This document discusses the development and benefits of a GIS-based application for optimizing sewer maintenance. It was created to increase sewer lifespan by calculating dynamic maintenance intervals using a damage forecast model. The application includes a digital work report, optimization tools based on work reports and various requirements. It provides benefits like tailored maintenance schedules and improved planning based on collected conduit data. The overall aim is to reduce pollution in rivers by optimizing sewer maintenance using MapWindow-based GIS tools.

1. Werner Sprung
Dirk Muschalla
Elisabeth Sprung
Austria

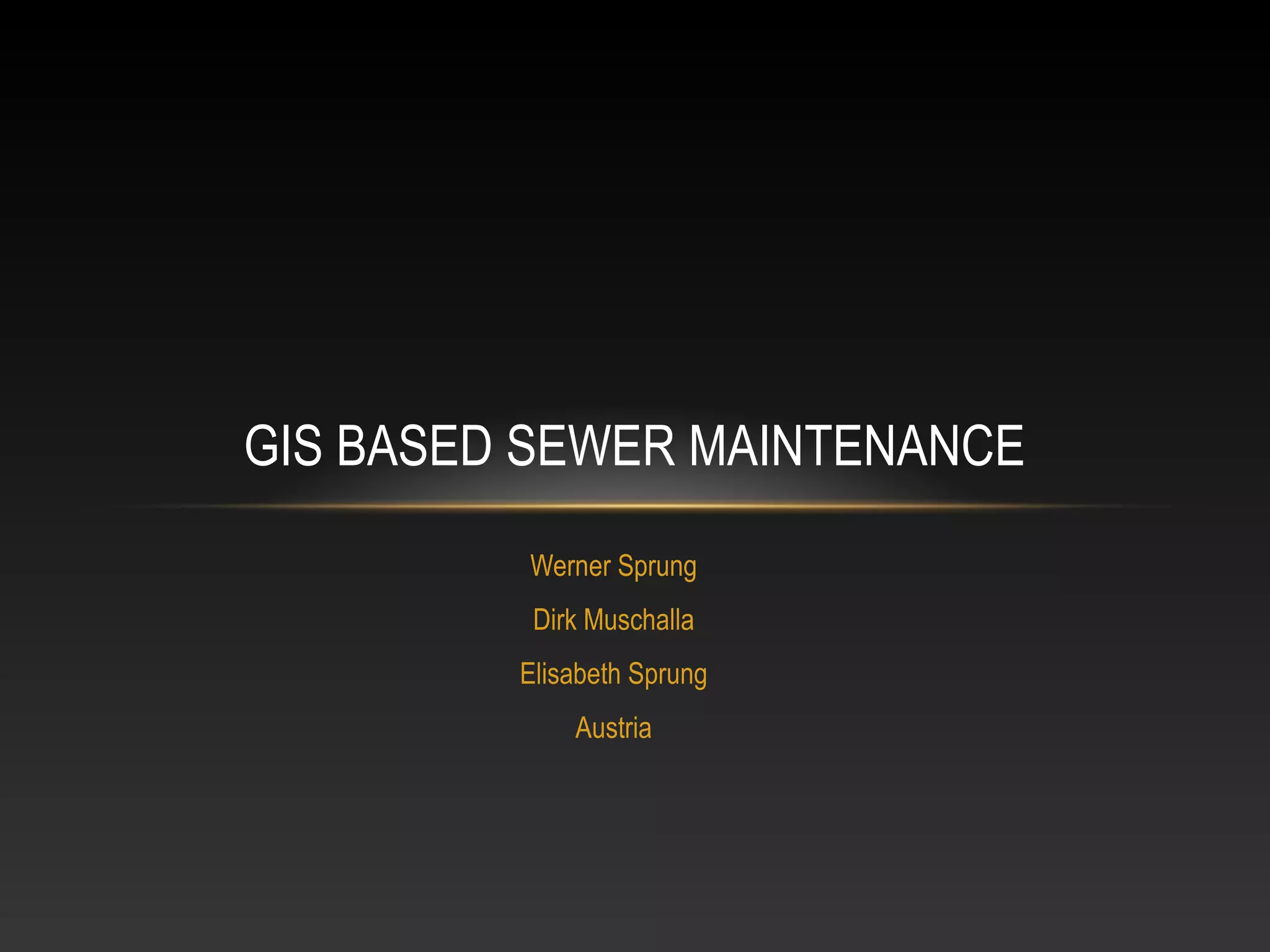

GIS BASED SEWER MAINTENANCE

2. SEWER SYSTEMS
INGENIEURBÜRO DIPL.-ING. WERNER SPRUNG
MWCONFERENCE 2014
2

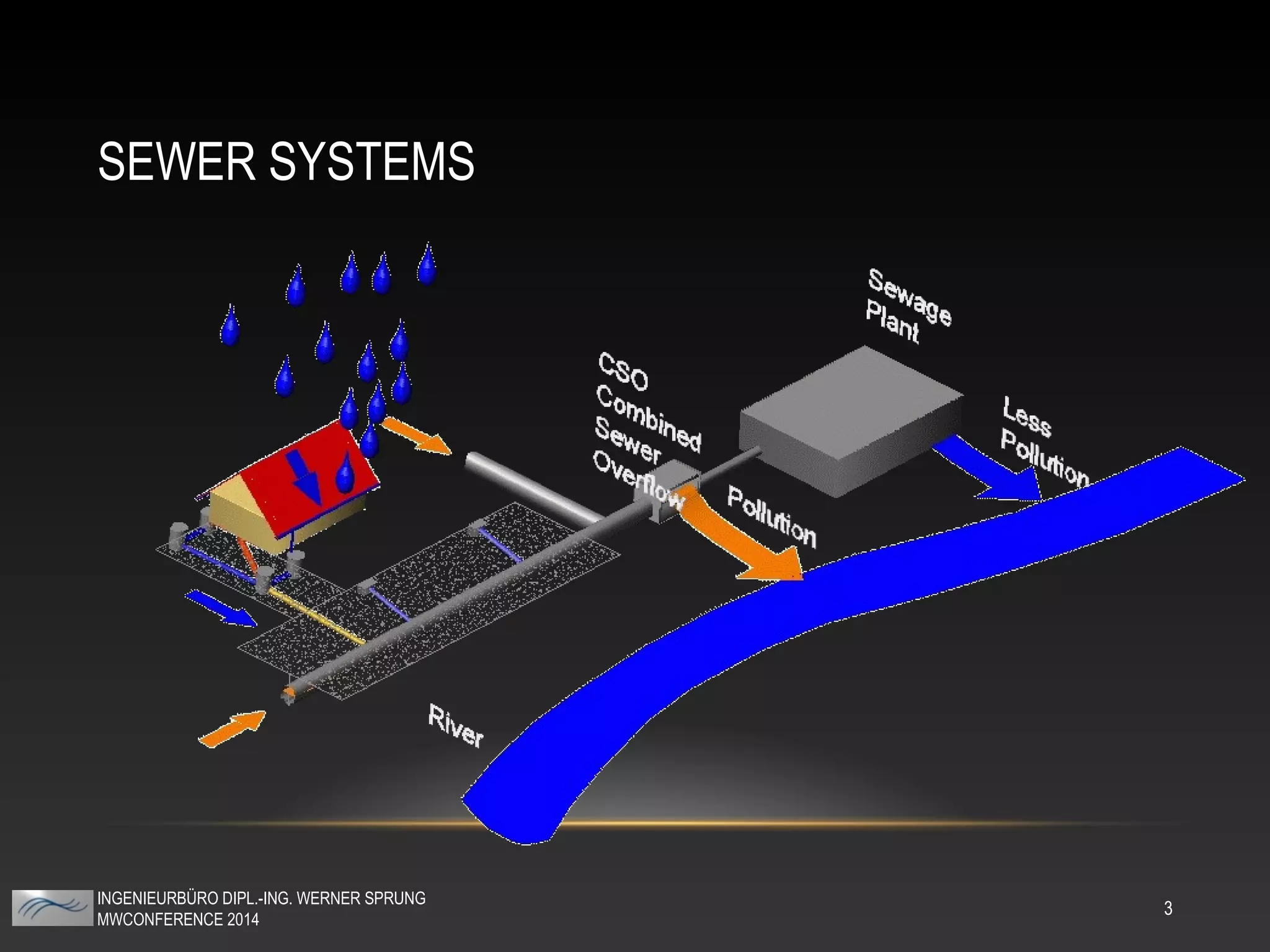

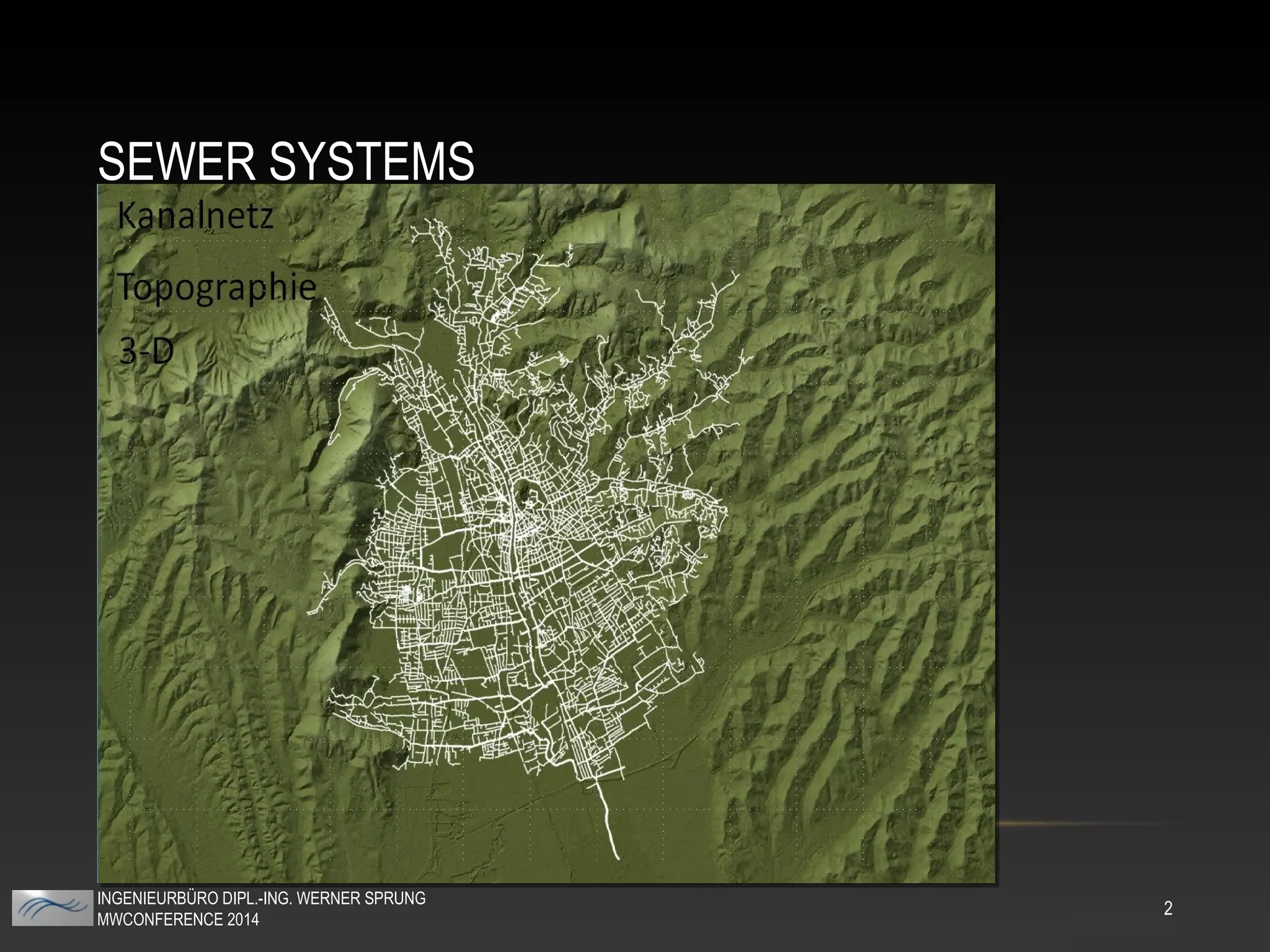

3. SEWER SYSTEMS
INGENIEURBÜRO DIPL.-ING. WERNER SPRUNG
MWCONFERENCE 2014
3

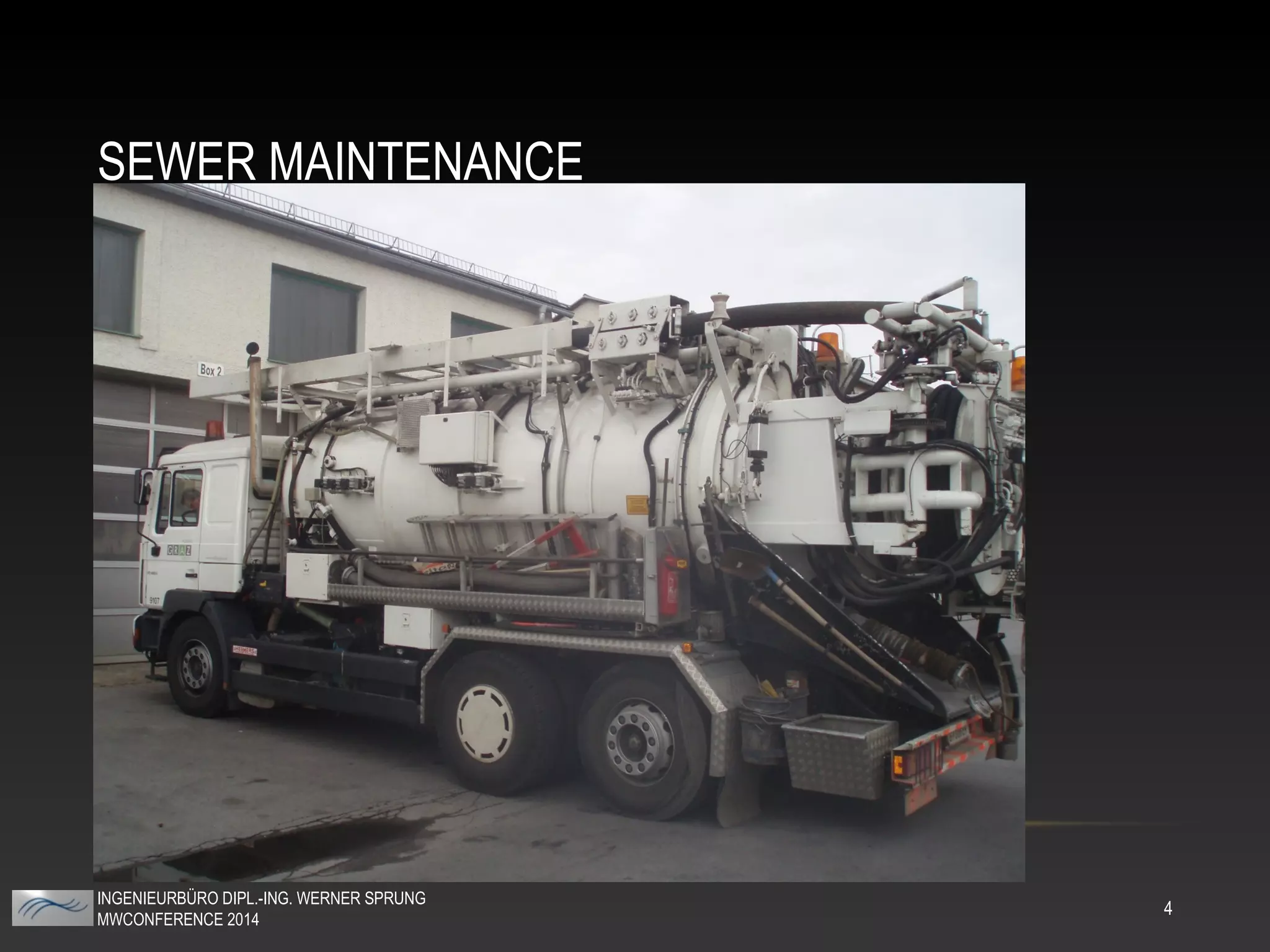

4. SEWER MAINTENANCE
• Bild Spülfahrzeug
INGENIEURBÜRO DIPL.-ING. WERNER SPRUNG
MWCONFERENCE 2014
4

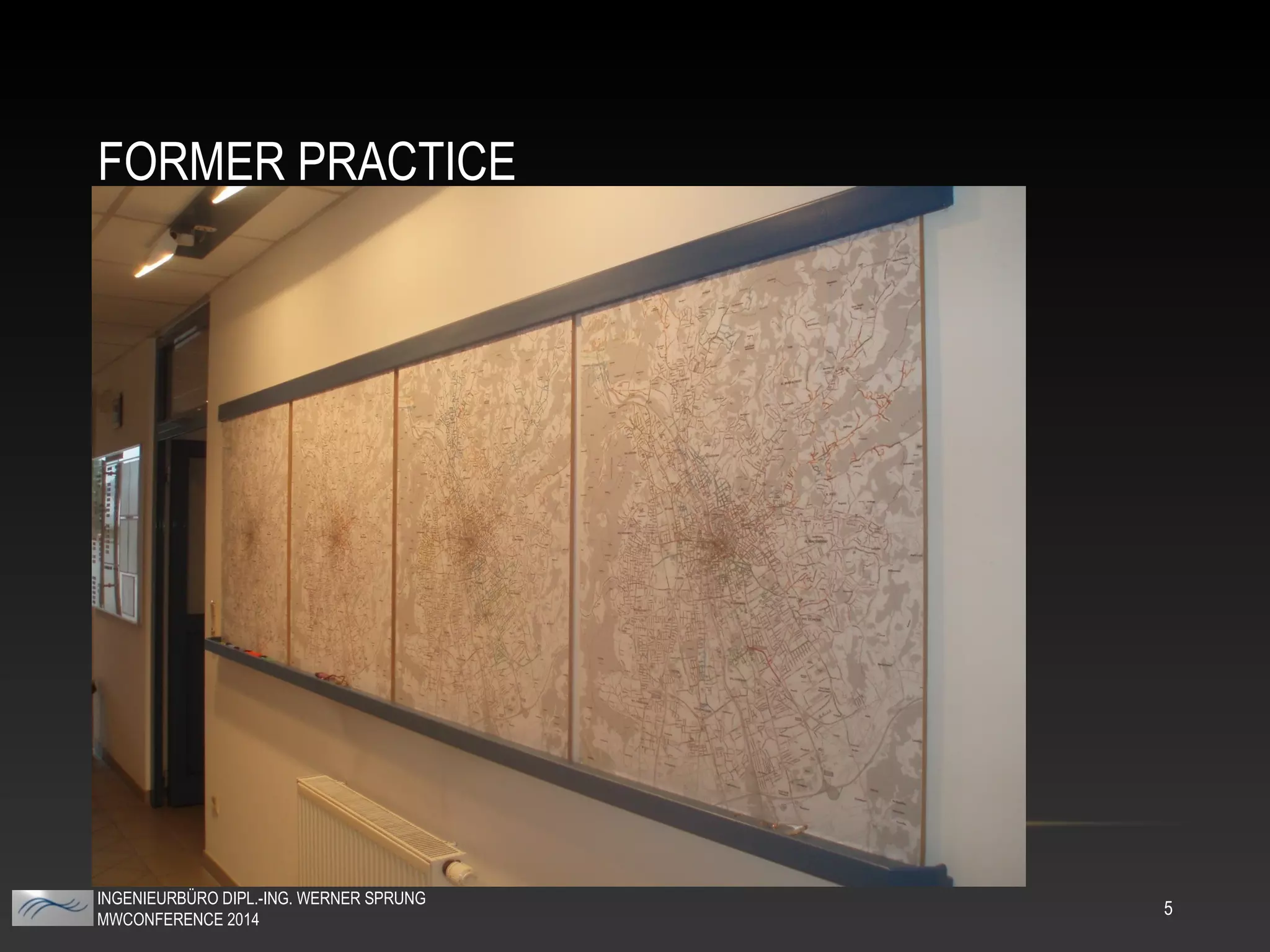

5. FORMER PRACTICE
• Bild Tafeln Betrieb Abwasser
INGENIEURBÜRO DIPL.-ING. WERNER SPRUNG
MWCONFERENCE 2014
5

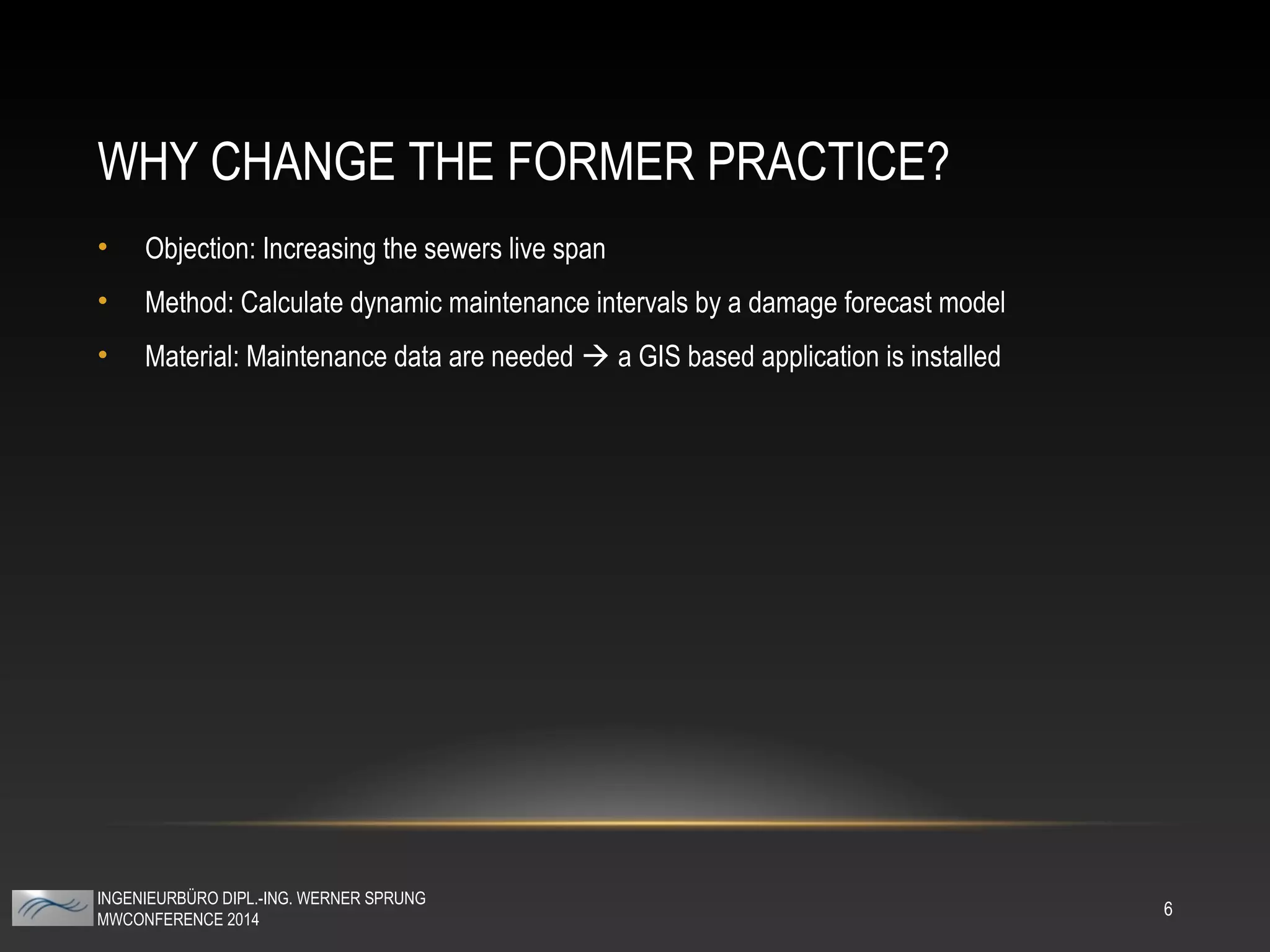

6. WHY CHANGE THE FORMER PRACTICE?
• Objection: Increasing the sewers live span
• Method: Calculate dynamic maintenance intervals by a damage forecast model
• Material: Maintenance data are needed  a GIS based application is installed
INGENIEURBÜRO DIPL.-ING. WERNER SPRUNG
MWCONFERENCE 2014
6

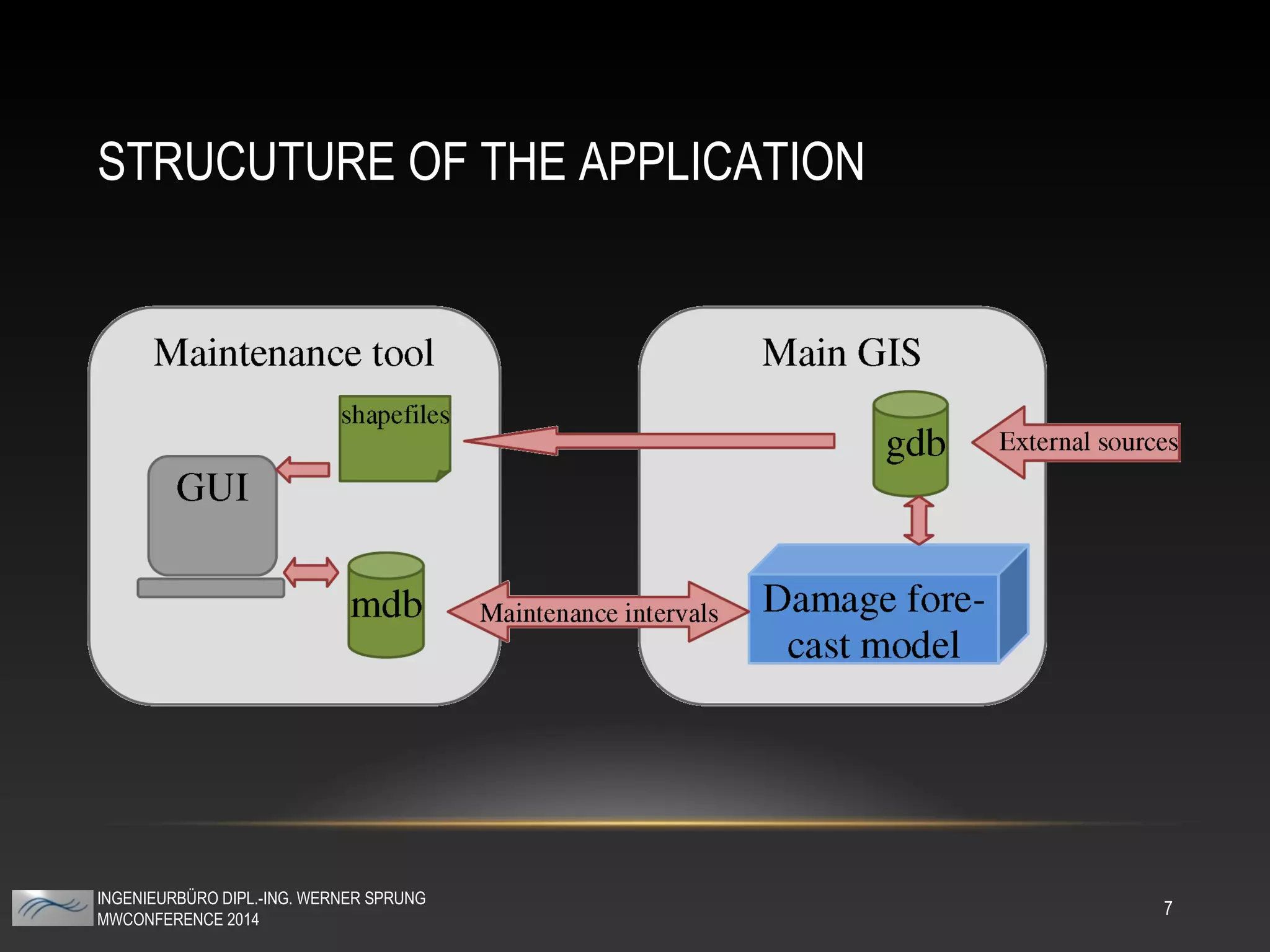

7. STRUCUTURE OF THE APPLICATION
INGENIEURBÜRO DIPL.-ING. WERNER SPRUNG
MWCONFERENCE 2014
7

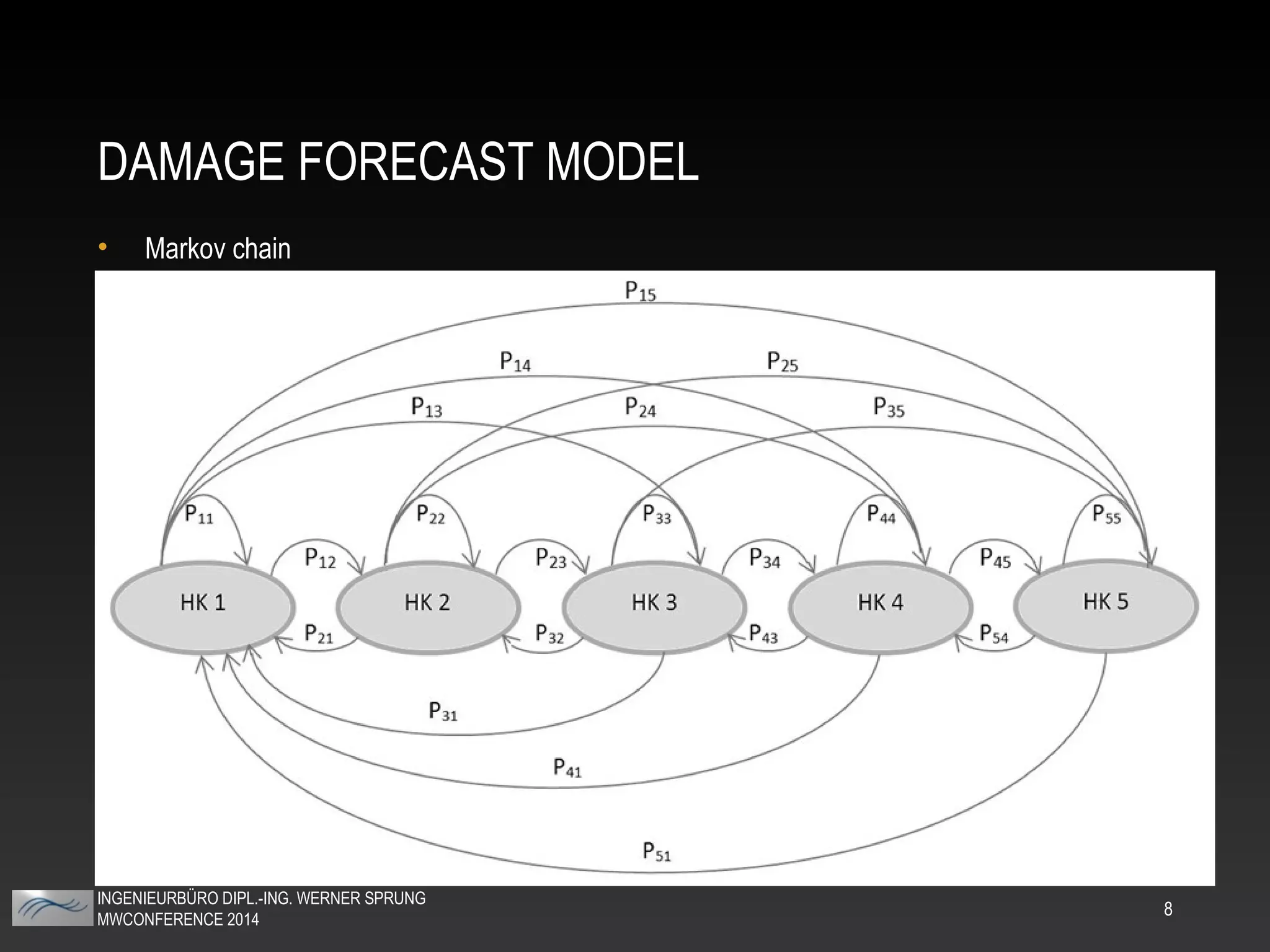

8. DAMAGE FORECAST MODEL
INGENIEURBÜRO DIPL.-ING. WERNER SPRUNG
MWCONFERENCE 2014
8
• Markov chain

9. GIS BASED APPLICATION

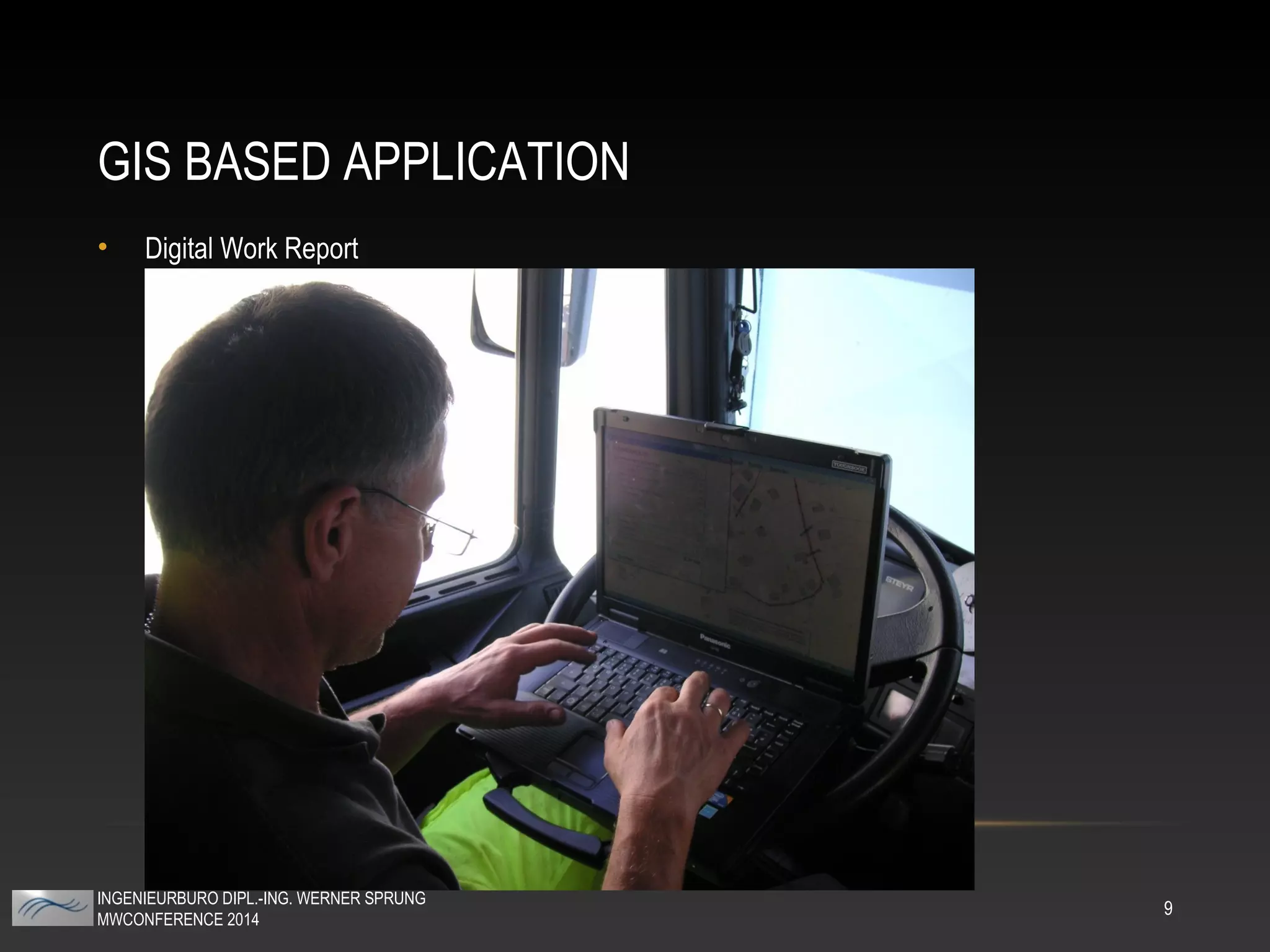

• Digital Work Report
INGENIEURBÜRO DIPL.-ING. WERNER SPRUNG
MWCONFERENCE 2014
9

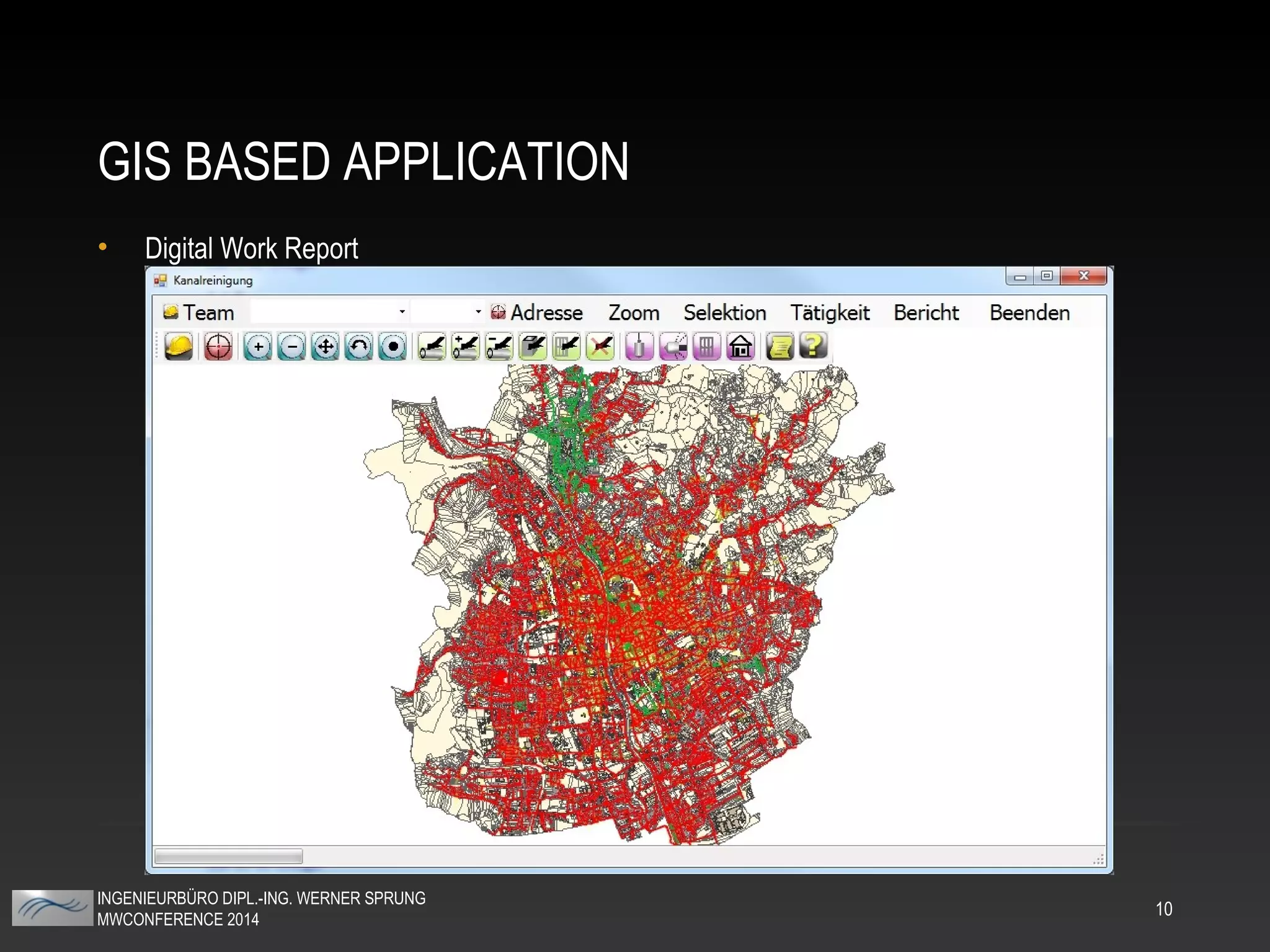

10. GIS BASED APPLICATION
• Digital Work Report
INGENIEURBÜRO DIPL.-ING. WERNER SPRUNG
MWCONFERENCE 2014
10

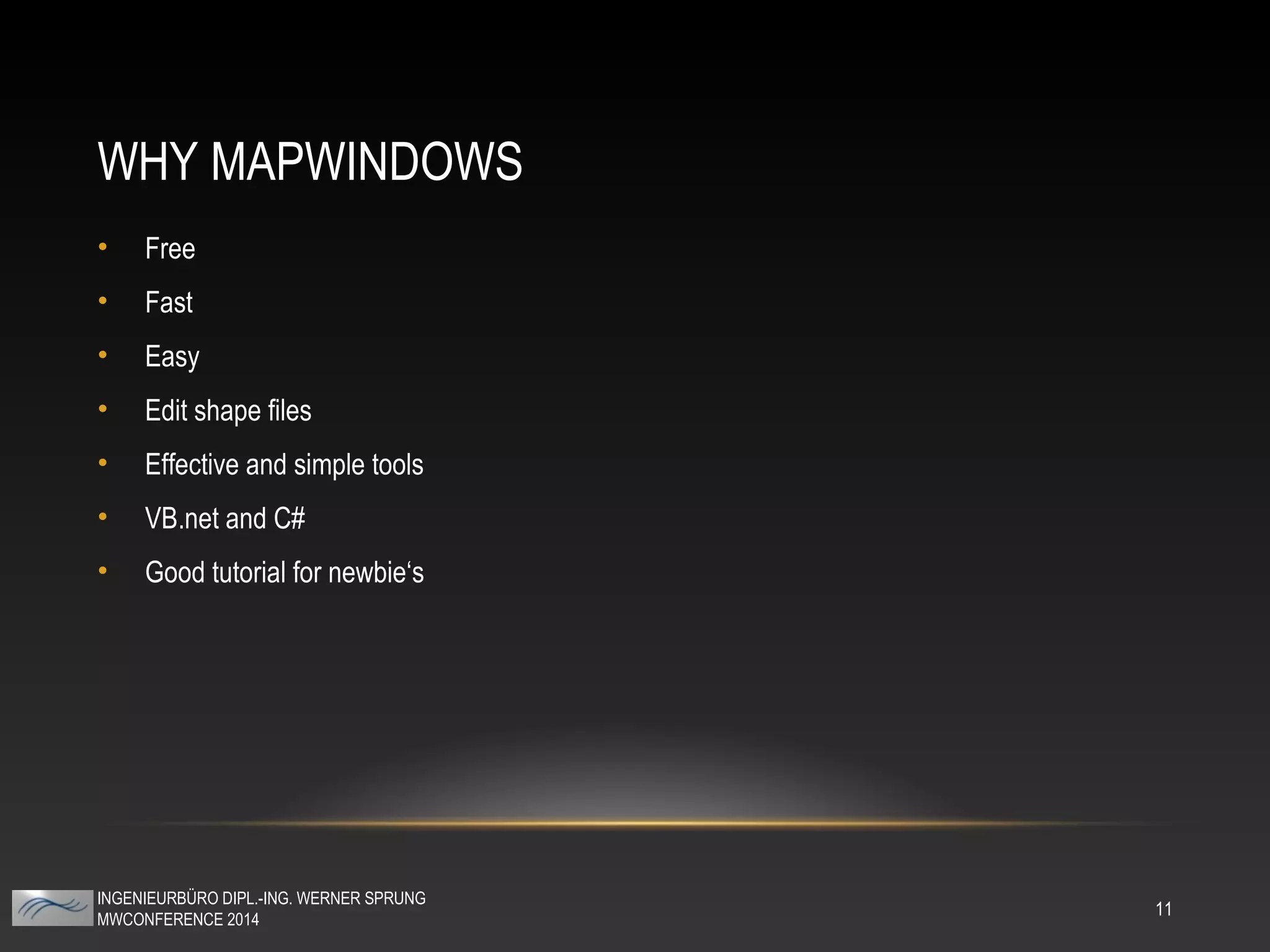

11. WHY MAPWINDOWS
• Free
• Fast
• Easy
• Edit shape files
• Effective and simple tools
• VB.net and C#
• Good tutorial for newbie‘s
INGENIEURBÜRO DIPL.-ING. WERNER SPRUNG
MWCONFERENCE 2014
11

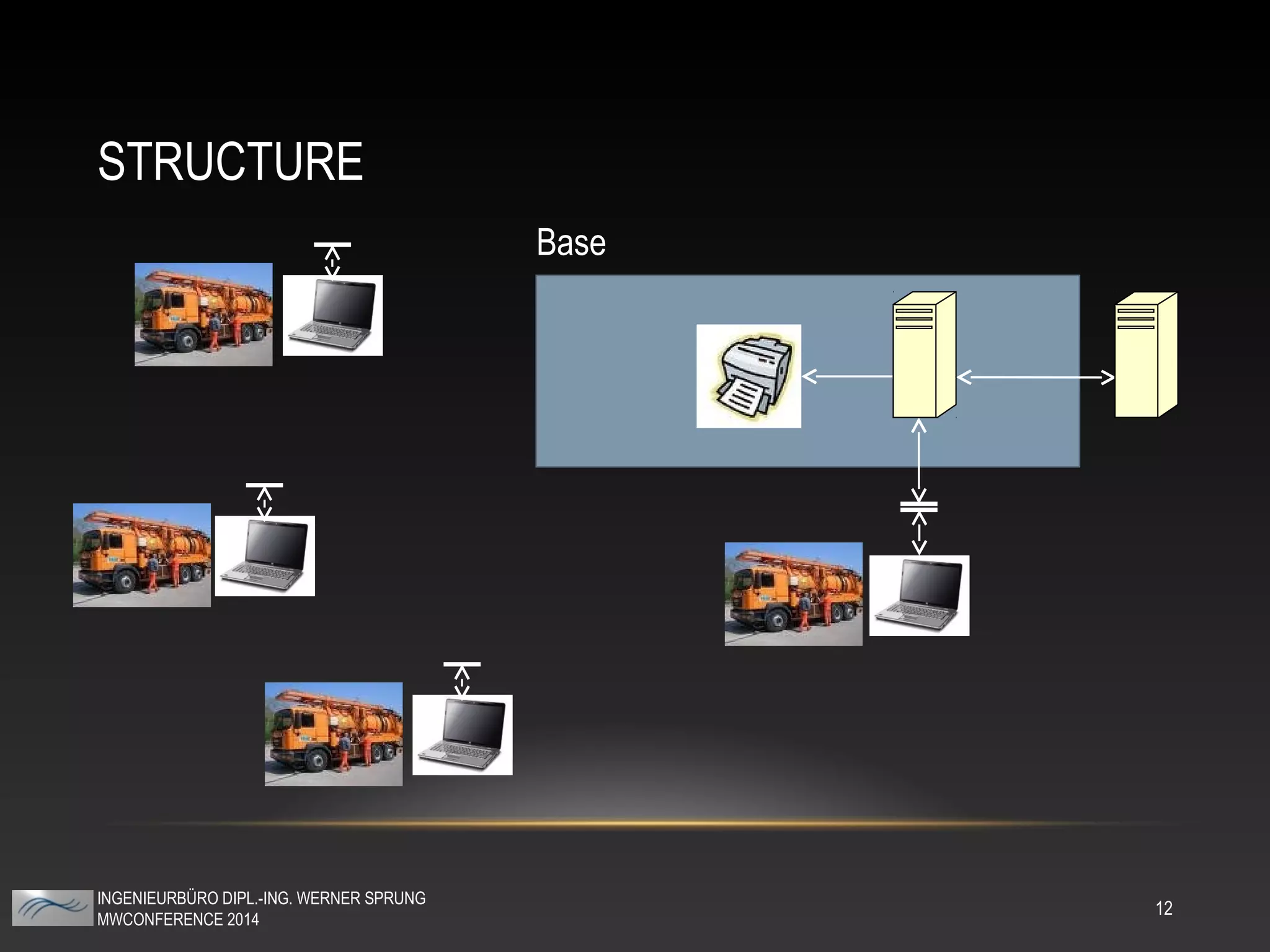

12. STRUCTURE
INGENIEURBÜRO DIPL.-ING. WERNER SPRUNG
MWCONFERENCE 2014
12
Base

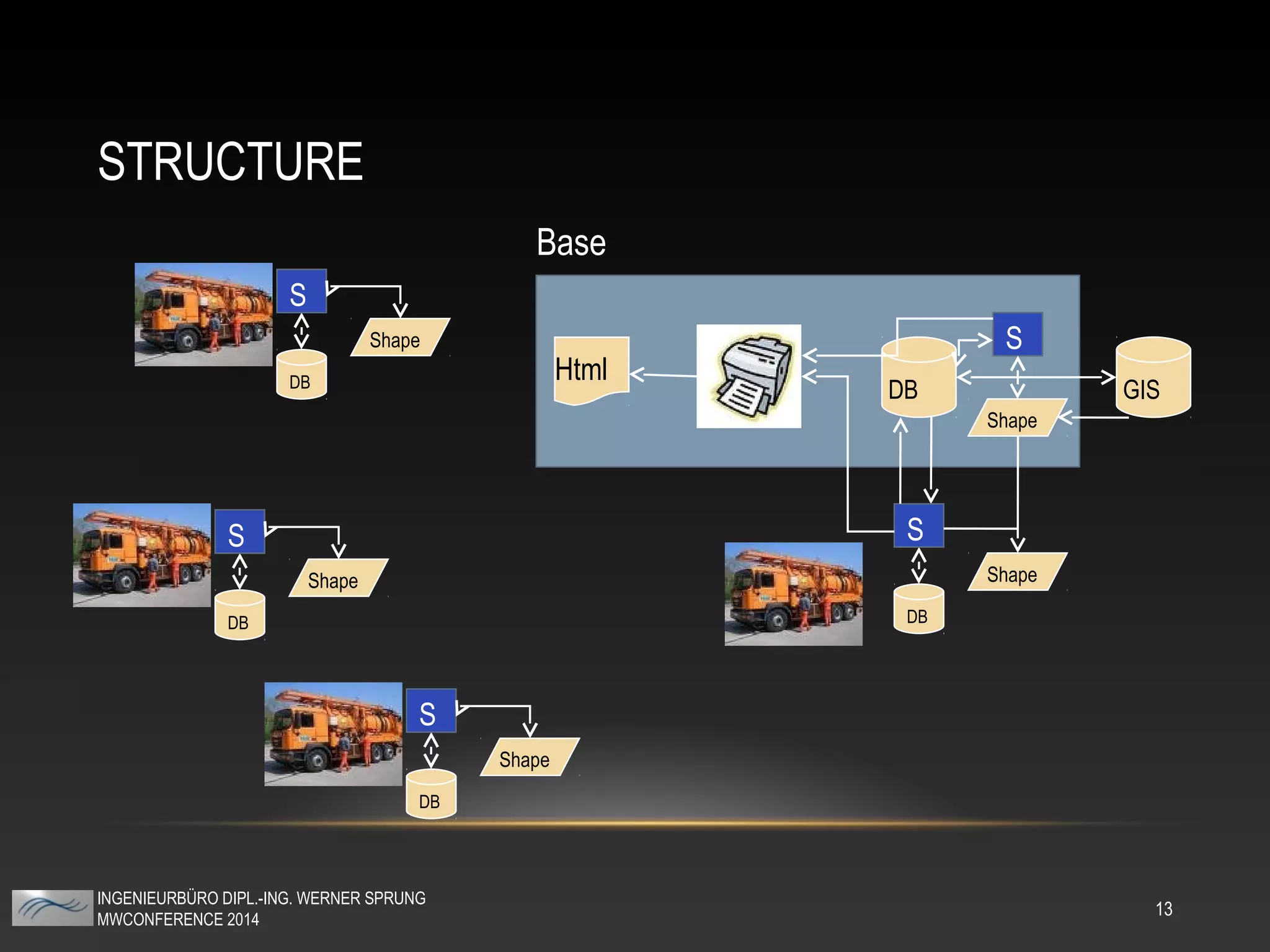

13. STRUCTURE
INGENIEURBÜRO DIPL.-ING. WERNER SPRUNG
MWCONFERENCE 2014
13
Base
DB GIS
S
Html
DB
Shape
Shape
S
S
DB
Shape
S
DB
Shape
S
DB
Shape

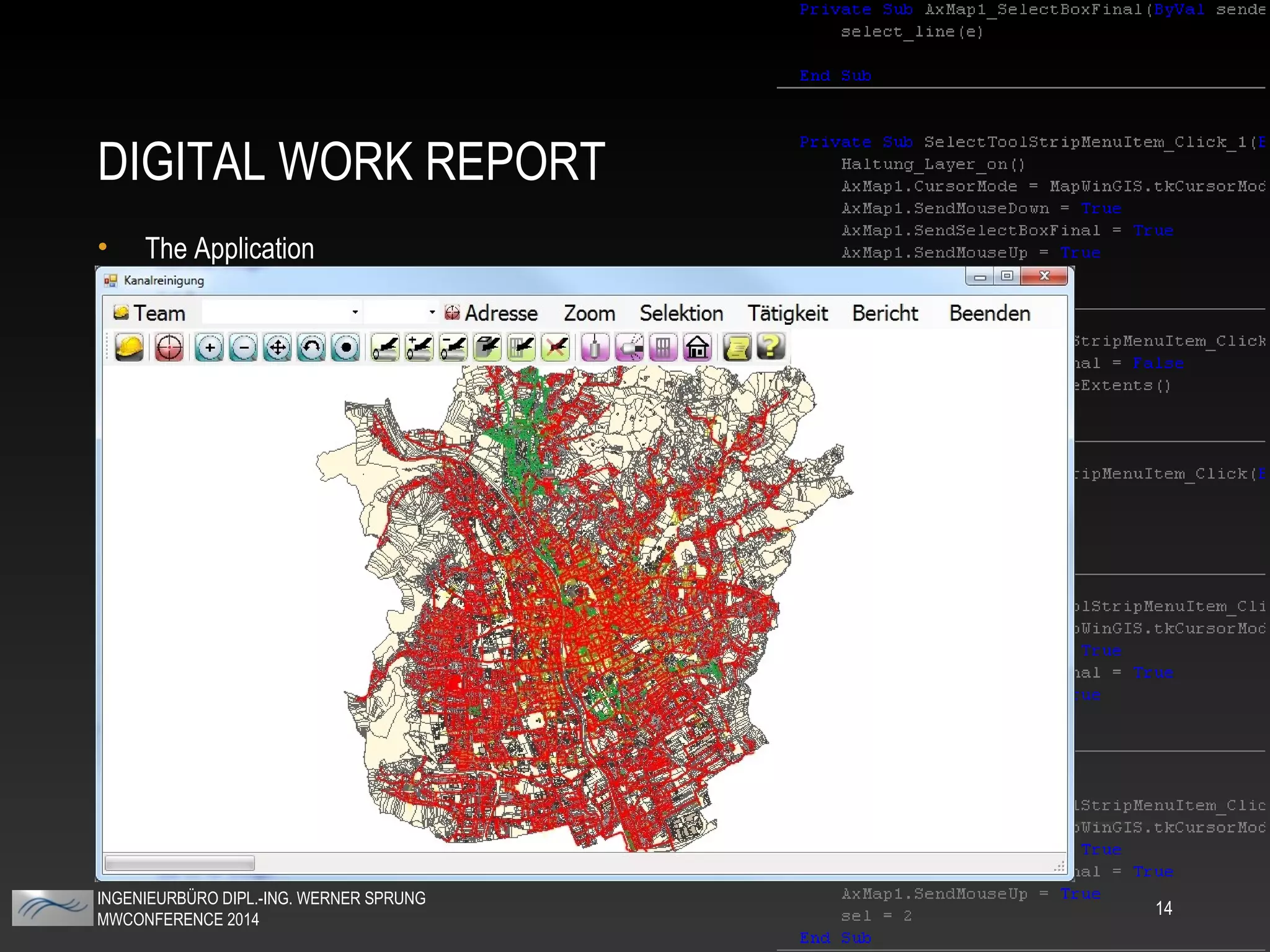

14. DIGITAL WORK REPORT
• The Application
INGENIEURBÜRO DIPL.-ING. WERNER SPRUNG
MWCONFERENCE 2014
14

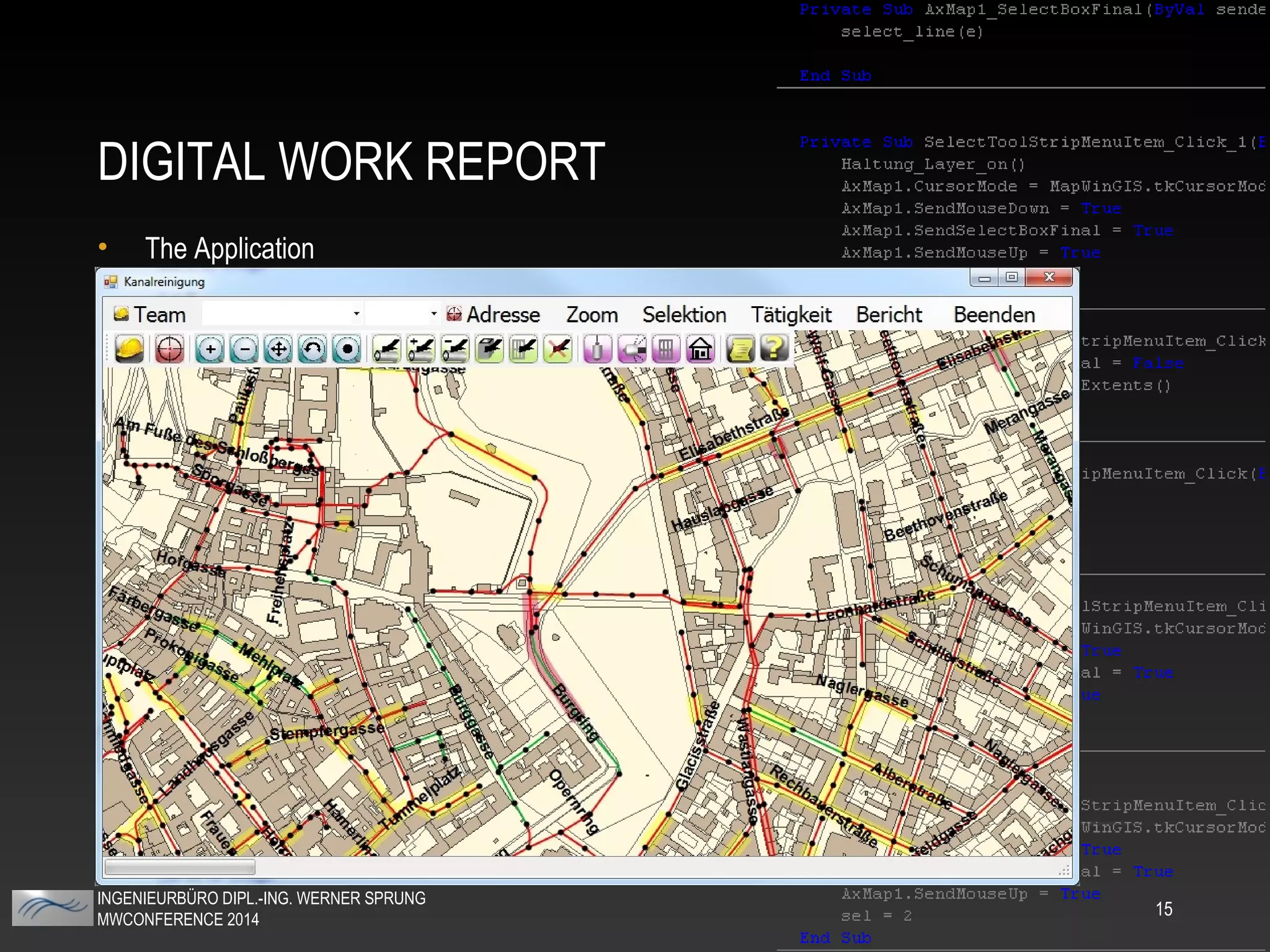

15. DIGITAL WORK REPORT
• The Application
INGENIEURBÜRO DIPL.-ING. WERNER SPRUNG
MWCONFERENCE 2014
15

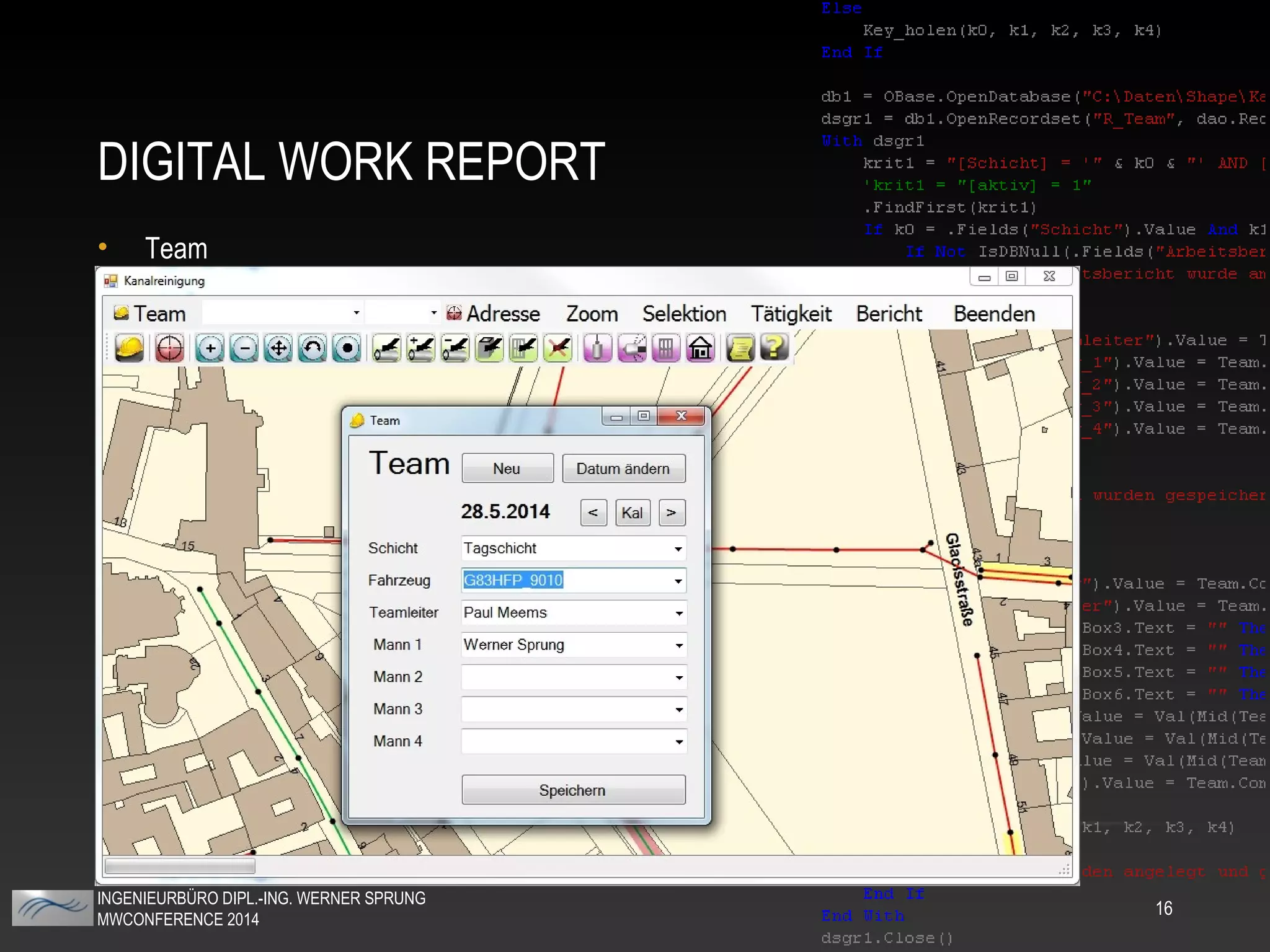

16. DIGITAL WORK REPORT
• Team
INGENIEURBÜRO DIPL.-ING. WERNER SPRUNG
MWCONFERENCE 2014
16

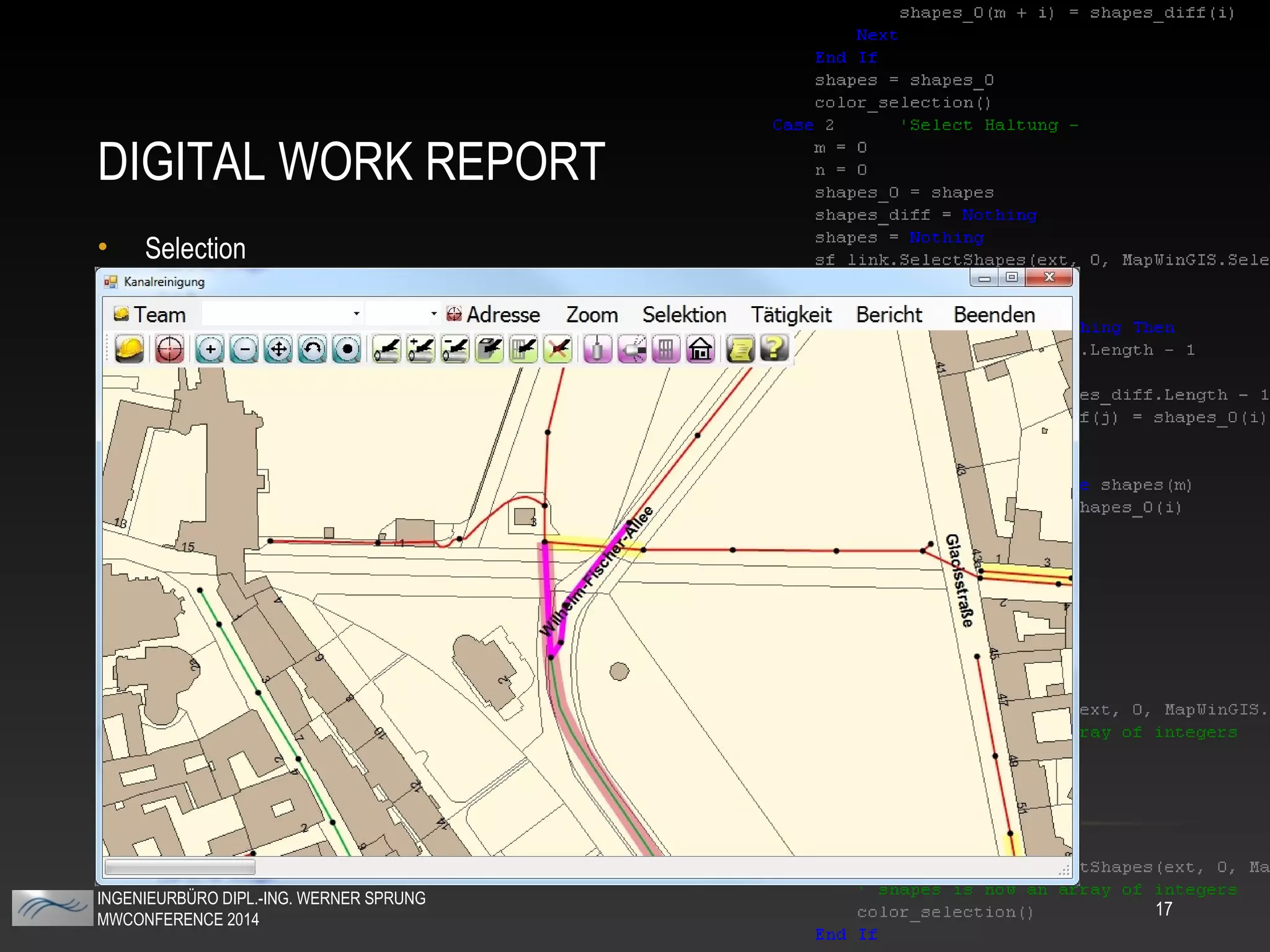

17. DIGITAL WORK REPORT
• Selection
INGENIEURBÜRO DIPL.-ING. WERNER SPRUNG
MWCONFERENCE 2014
17

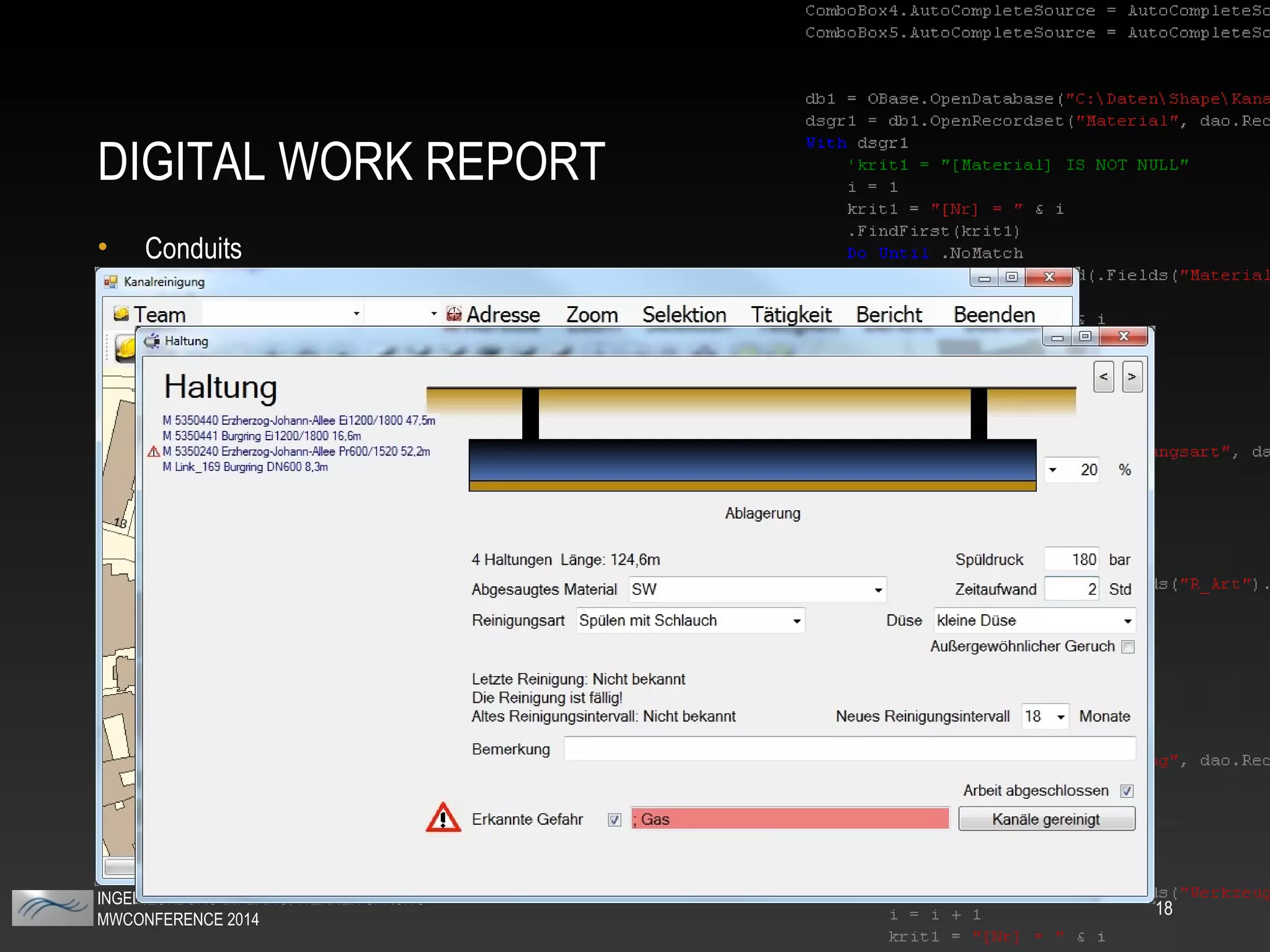

18. DIGITAL WORK REPORT
• Conduits
INGENIEURBÜRO DIPL.-ING. WERNER SPRUNG
MWCONFERENCE 2014
18

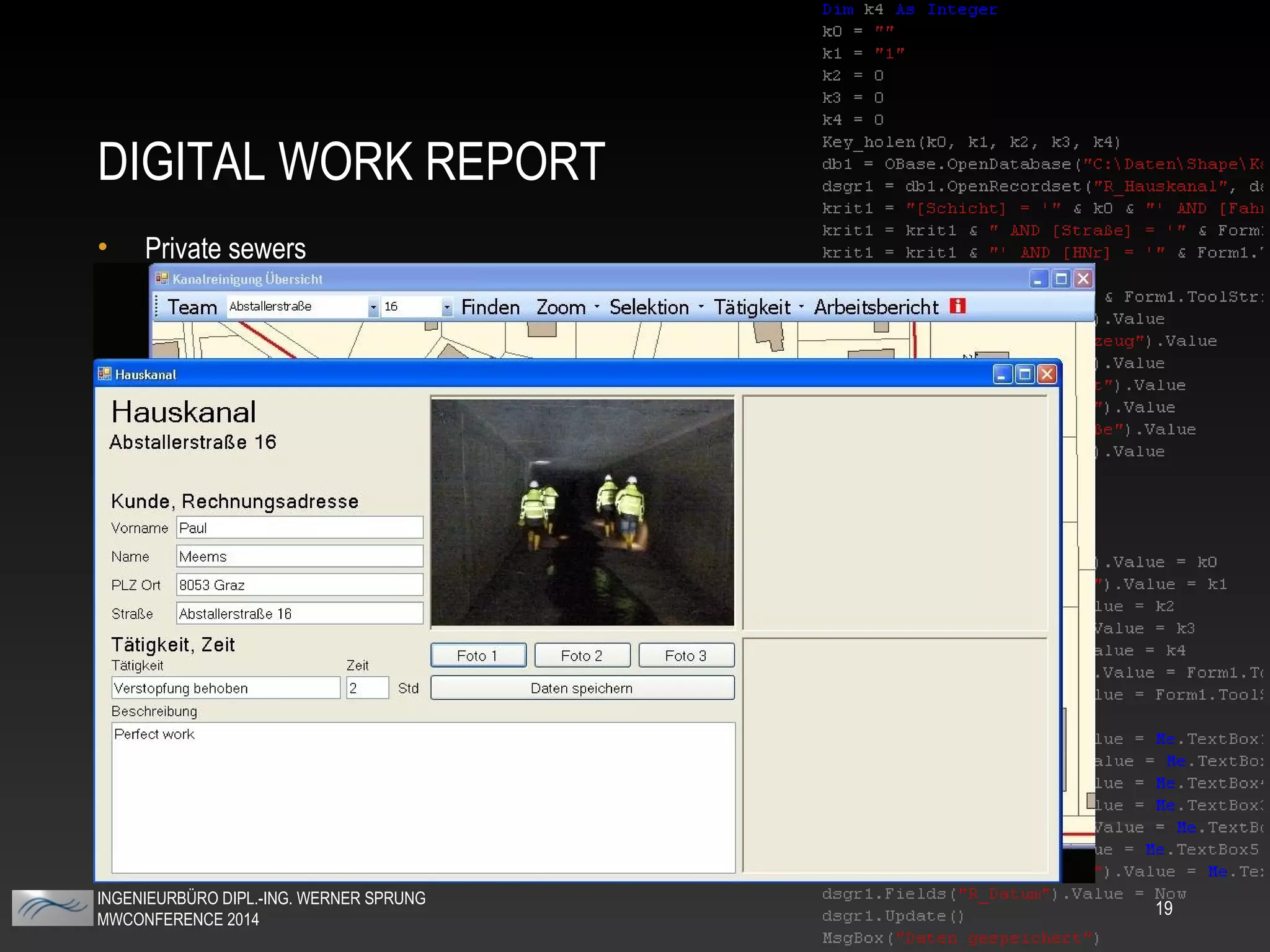

19. DIGITAL WORK REPORT
• Private sewers
INGENIEURBÜRO DIPL.-ING. WERNER SPRUNG
MWCONFERENCE 2014
19

20. DIGITAL WORK REPORT

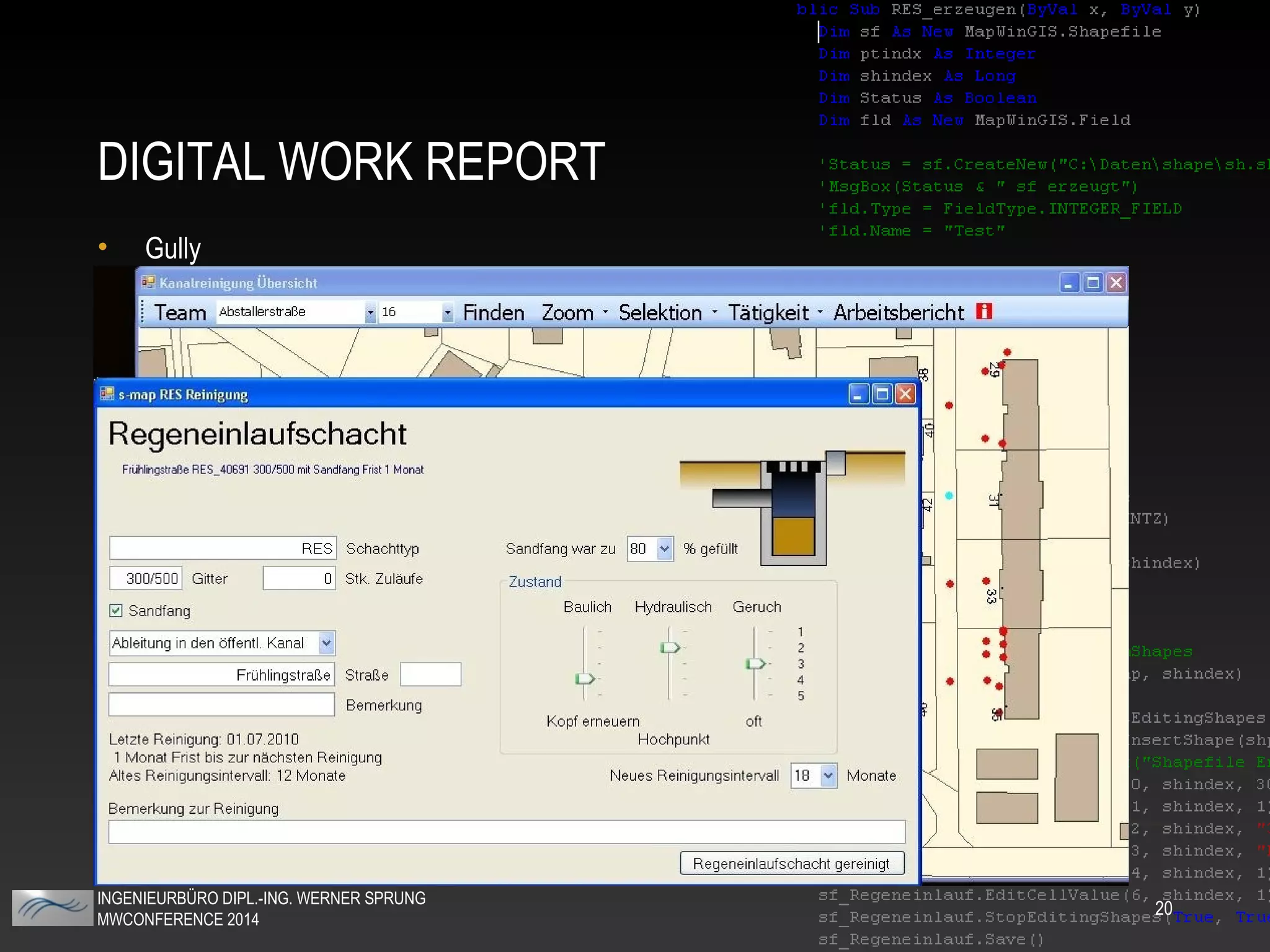

• Gully
INGENIEURBÜRO DIPL.-ING. WERNER SPRUNG
MWCONFERENCE 2014
20

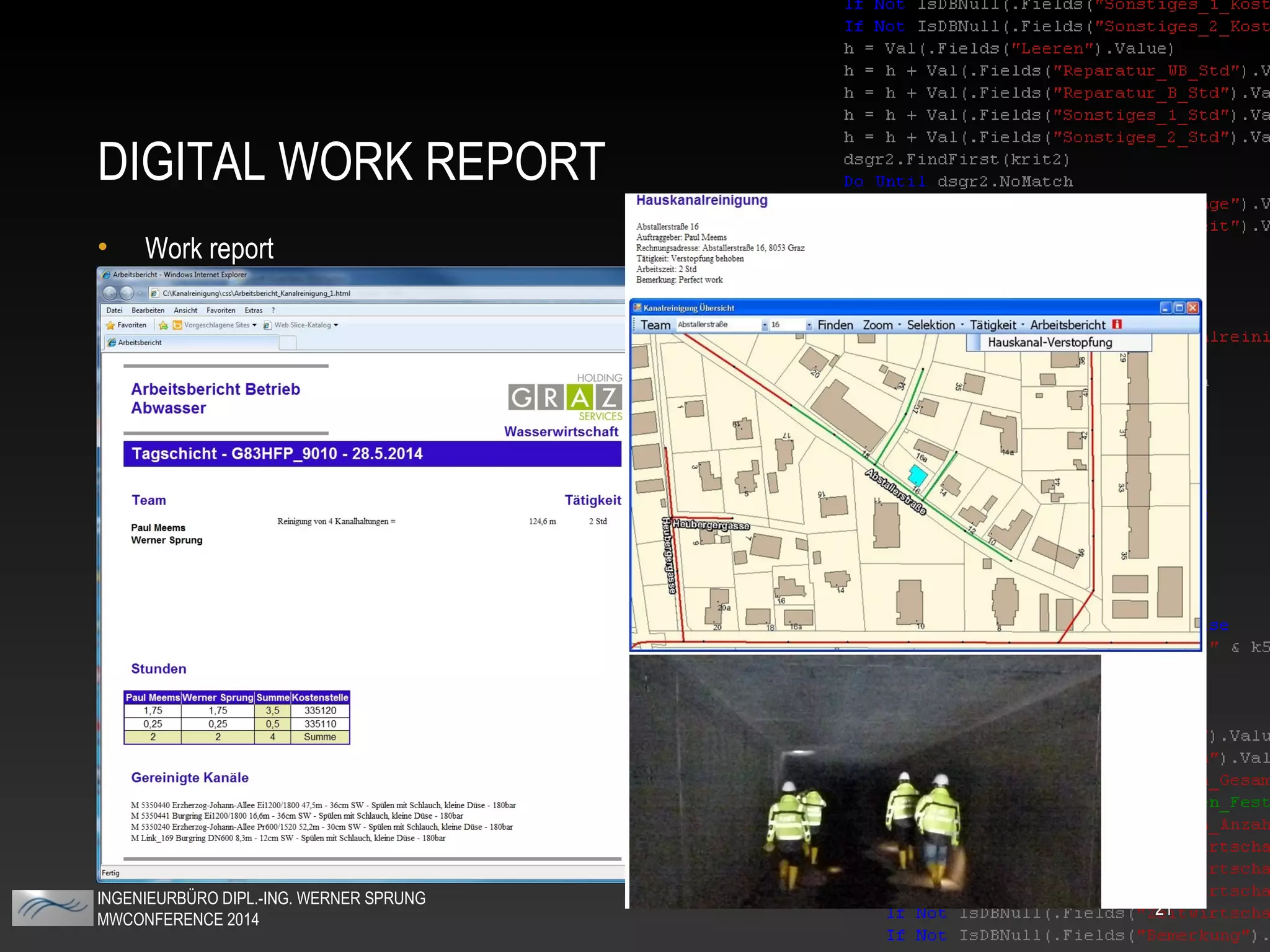

21. DIGITAL WORK REPORT
• Work report
INGENIEURBÜRO DIPL.-ING. WERNER SPRUNG
MWCONFERENCE 2014
21

22. PRACTICE
INGENIEURBÜRO DIPL.-ING. WERNER SPRUNG
MWCONFERENCE 2014
22

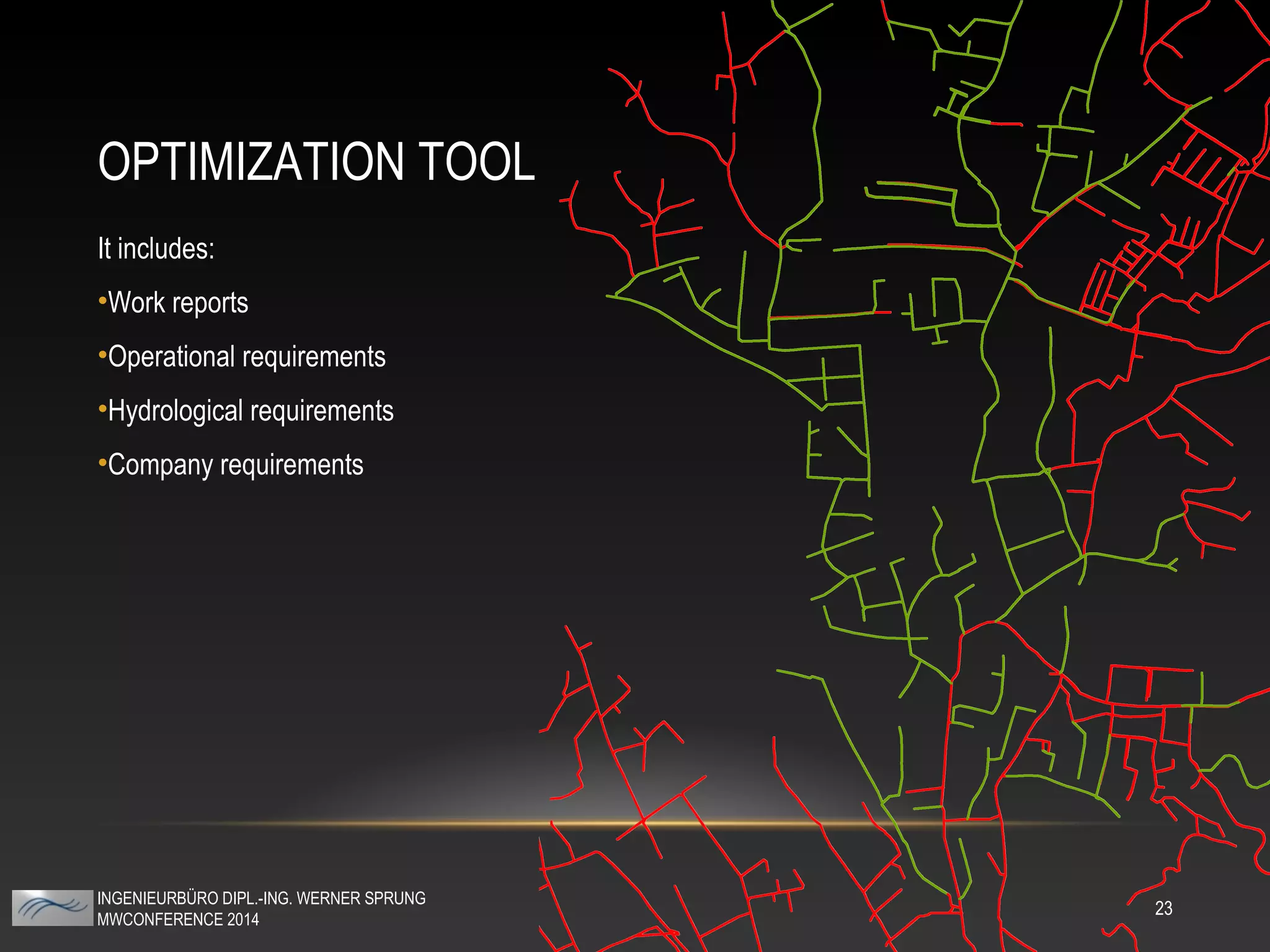

23. OPTIMIZATION TOOL
It includes:
•Work reports
•Operational requirements
•Hydrological requirements
•Company requirements
INGENIEURBÜRO DIPL.-ING. WERNER SPRUNG
MWCONFERENCE 2014
23

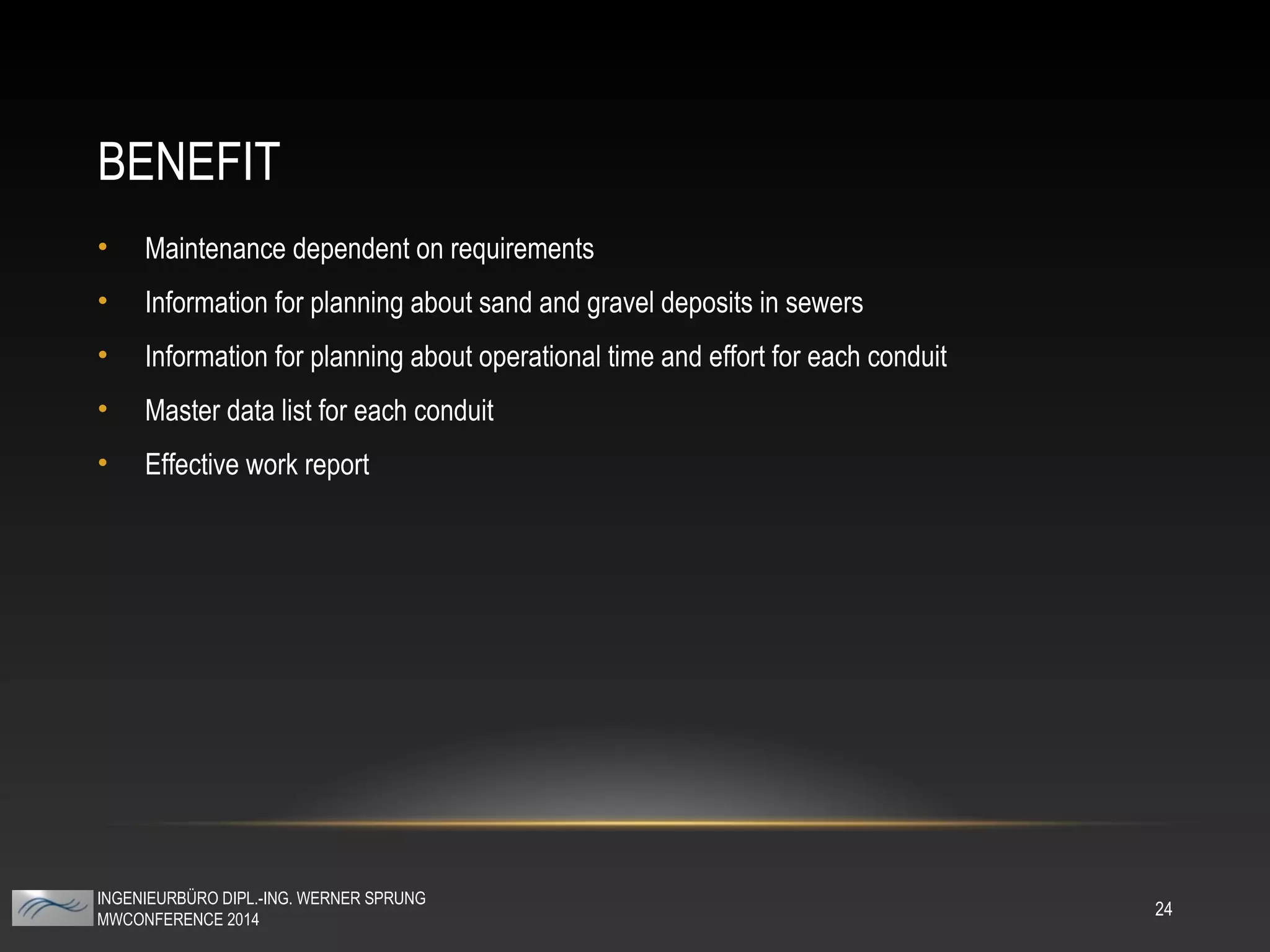

24. BENEFIT
• Maintenance dependent on requirements
• Information for planning about sand and gravel deposits in sewers
• Information for planning about operational time and effort for each conduit
• Master data list for each conduit
• Effective work report
INGENIEURBÜRO DIPL.-ING. WERNER SPRUNG
MWCONFERENCE 2014
24

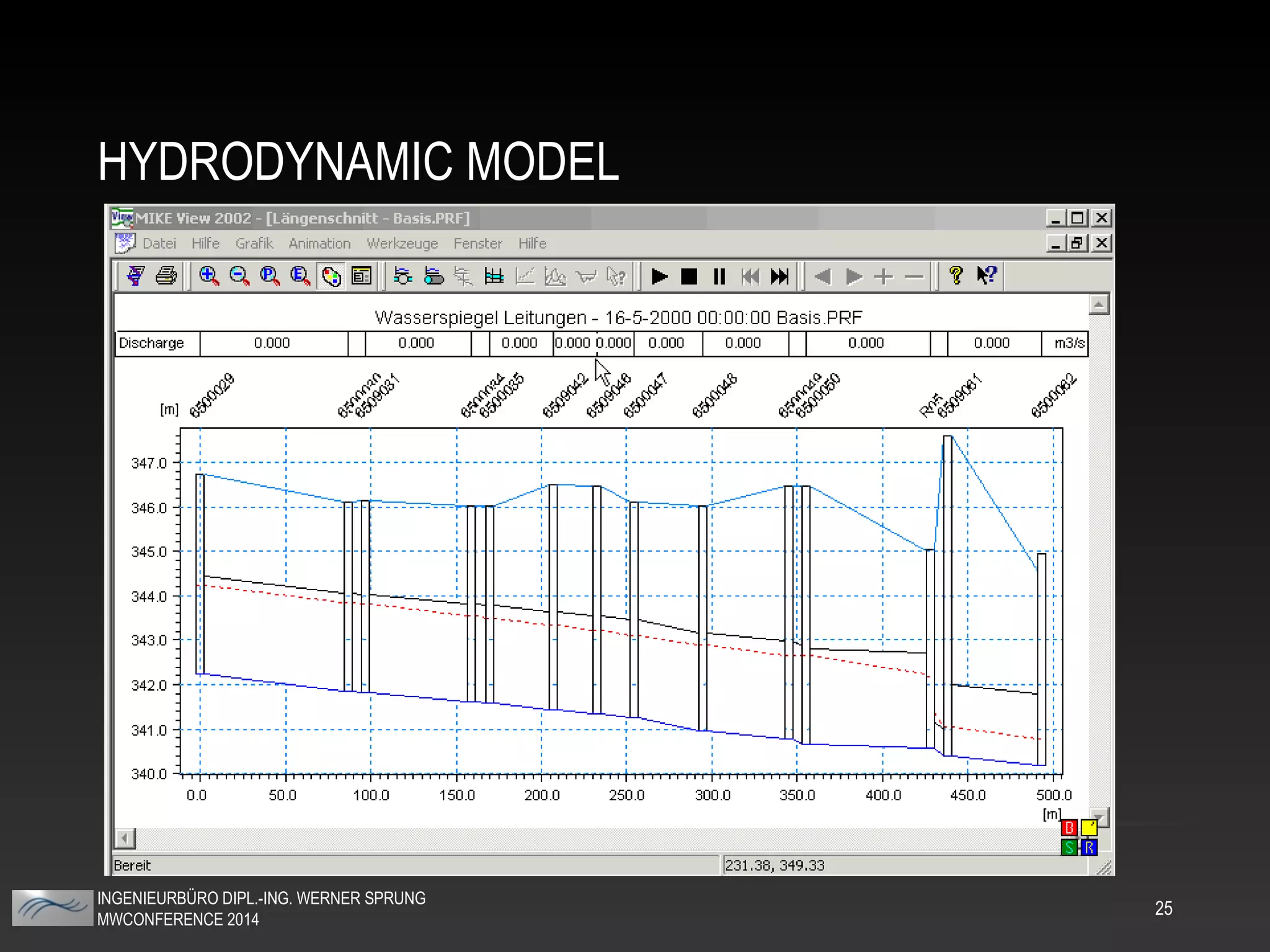

25. HYDRODYNAMIC MODEL
INGENIEURBÜRO DIPL.-ING. WERNER SPRUNG
MWCONFERENCE 2014
25

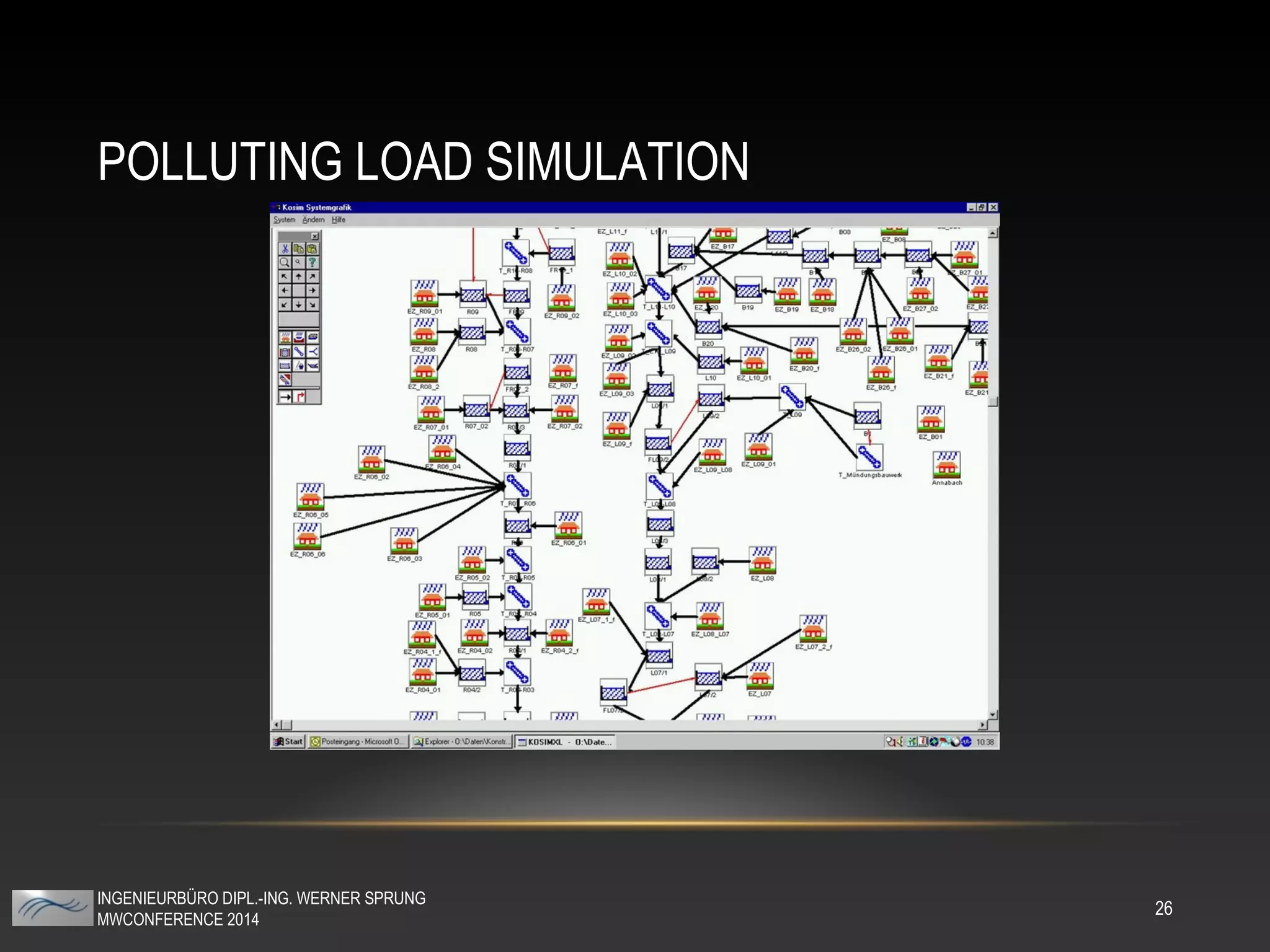

26. POLLUTING LOAD SIMULATION
INGENIEURBÜRO DIPL.-ING. WERNER SPRUNG
MWCONFERENCE 2014
26

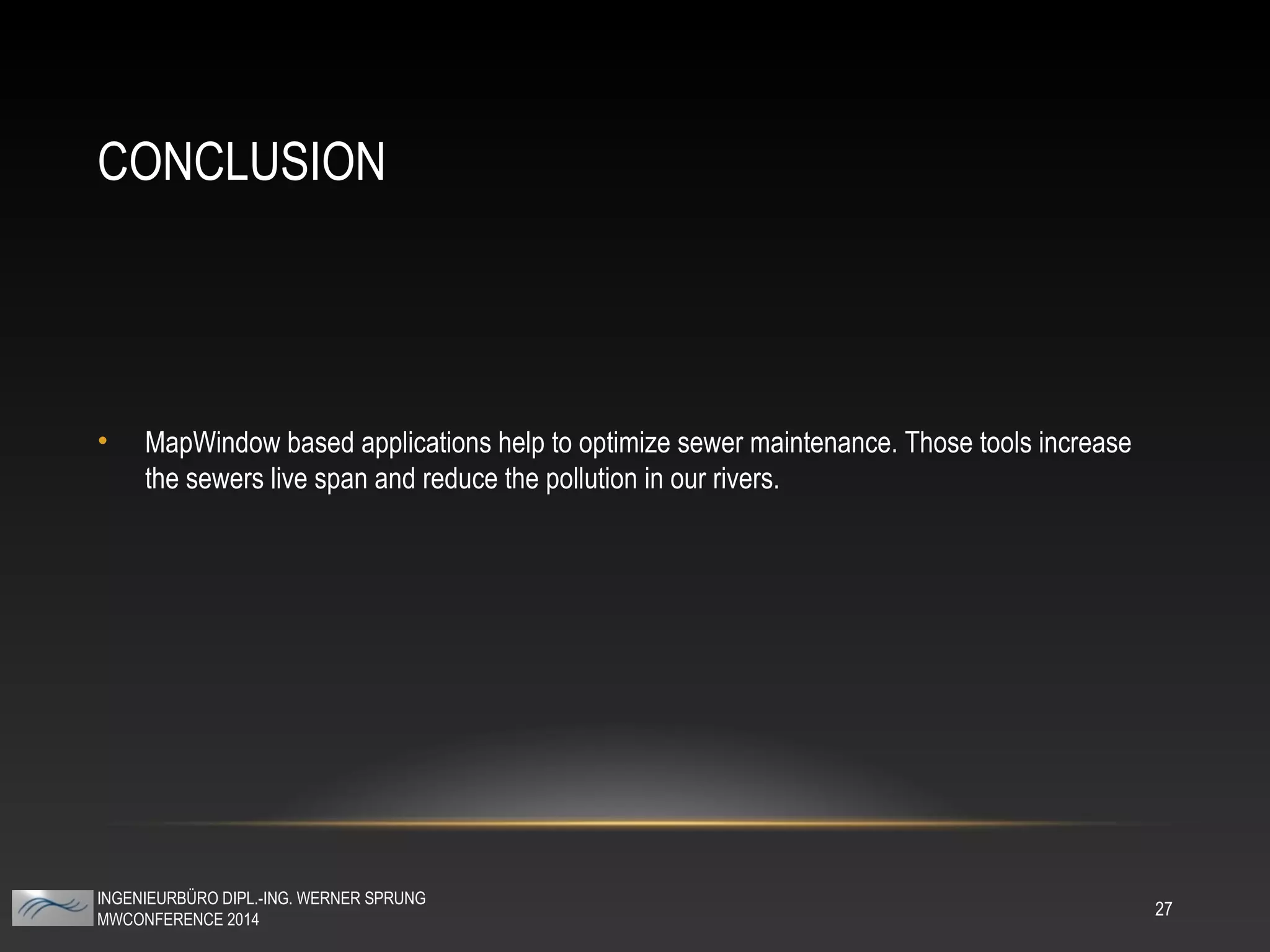

27. CONCLUSION
• MapWindow based applications help to optimize sewer maintenance. Those tools increase
the sewers live span and reduce the pollution in our rivers.
INGENIEURBÜRO DIPL.-ING. WERNER SPRUNG
MWCONFERENCE 2014
27

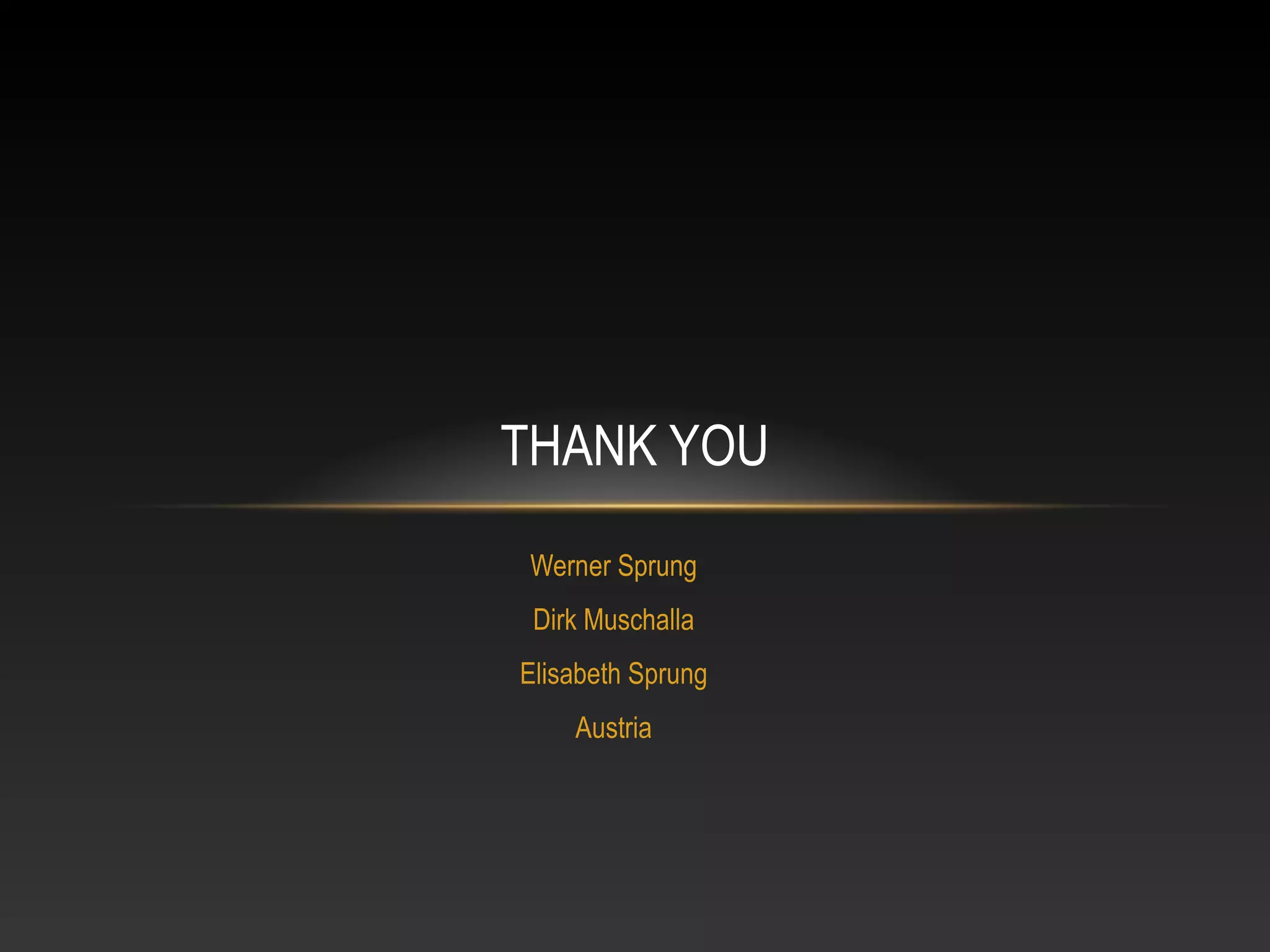

28. Werner Sprung
Dirk Muschalla
Elisabeth Sprung
Austria
THANK YOU
