Presentation on GG45 connectors, used in earlier times for connection of computer networking.

1. GG-45 connector for CAT-7 cable
BY:-
Jaideep Vidwani-105
Pankti Shah-89
Hardik Saini-85

2. Agenda
 Introduction
 Performance
 Characteristics
 CAT-7 cable
 Comparison
 Applications
 Advantages
 Disadvantages
 Bibliography
9-Jul-16 GG-45 by Jaideep Pankti Hardik 2

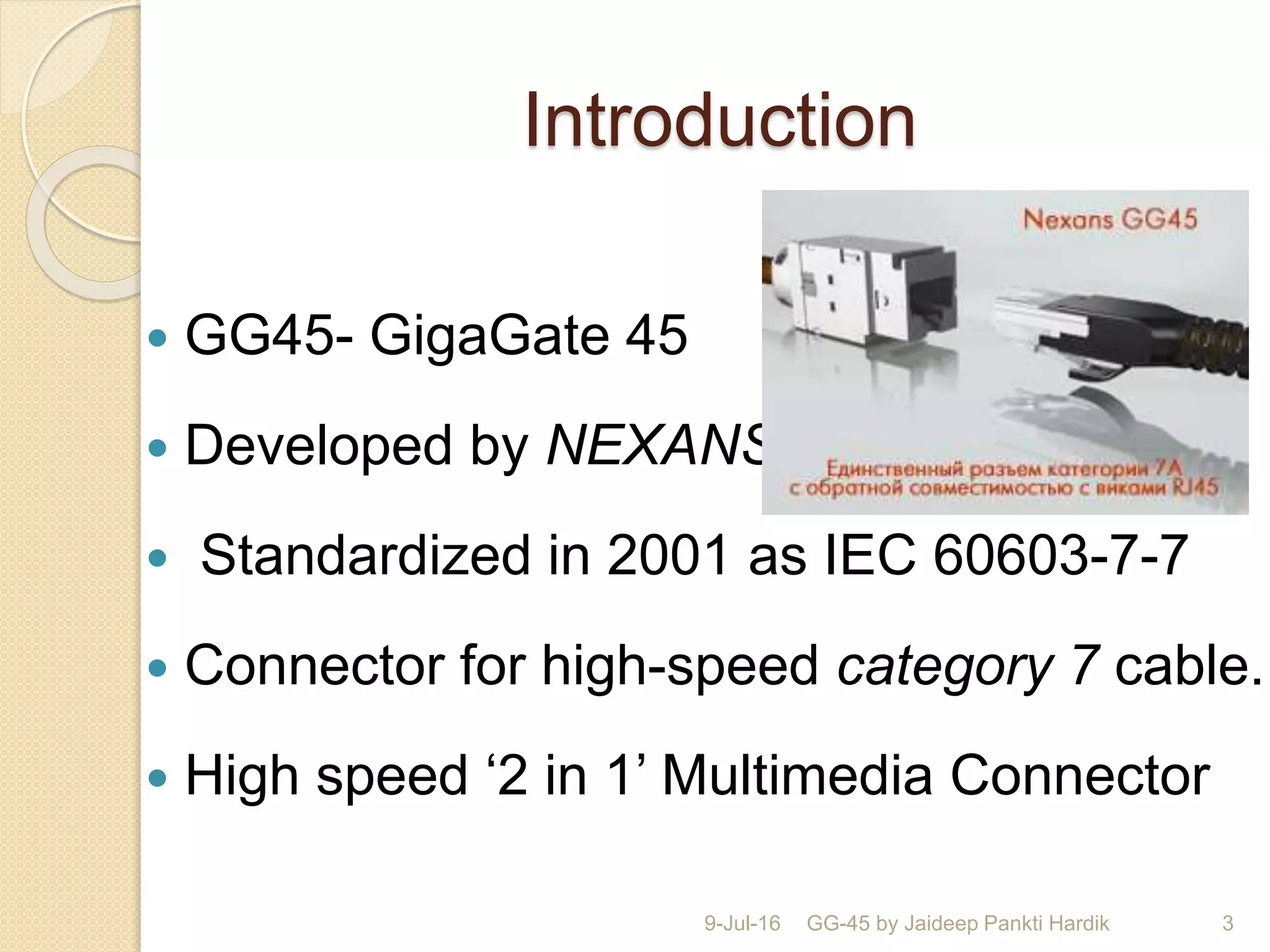

3. Introduction
 GG45- GigaGate 45
 Developed by NEXANS.
 Standardized in 2001 as IEC 60603-7-7
 Connector for high-speed category 7 cable.
 High speed ‘2 in 1’ Multimedia Connector
9-Jul-16 GG-45 by Jaideep Pankti Hardik 3

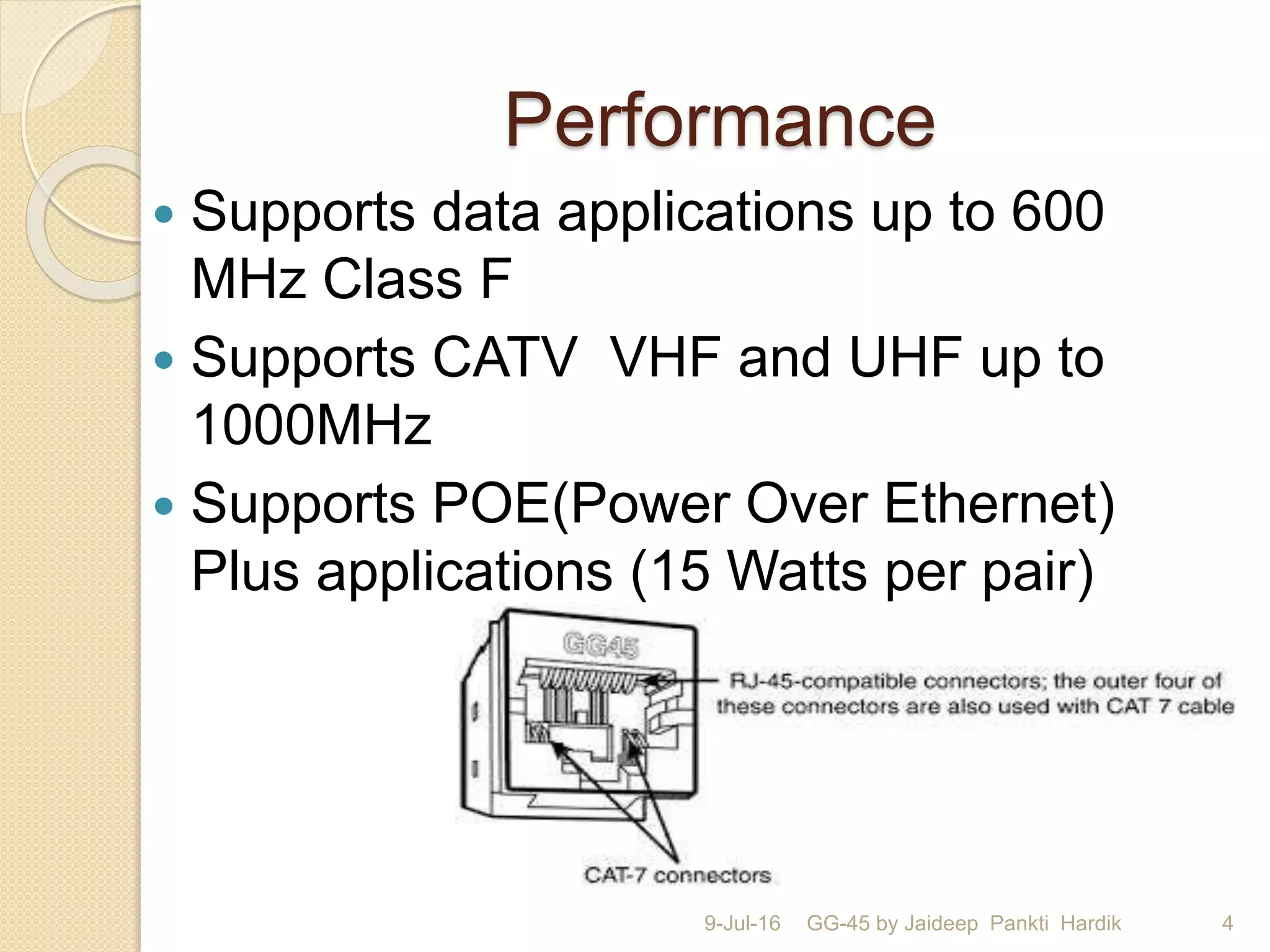

4. Performance
 Supports data applications up to 600
MHz Class F
 Supports CATV VHF and UHF up to
1000MHz
 Supports POE(Power Over Ethernet)
Plus applications (15 Watts per pair)
9-Jul-16 GG-45 by Jaideep Pankti Hardik 4

5. Characteristics
 GG45 connectors provide backwards
compatibility for standard 8P8C
 Switch Inside
 Fits in all Nexans modular Snap-In
structural hardware
9-Jul-16 GG-45 by Jaideep Pankti Hardik 5

6. CAT-7 Cable
 Cat7 cable provides a copper solution for
10-Gigabit Ethernet at 100 meters.
 Developed with strict specifications on
crosstalk and EMI protection.
9-Jul-16 GG-45 by Jaideep Pankti Hardik 6

7. Comparison
Cable Type
Maximum Data Transmission
Speed
Maximum Bandwidth
Category 3 UTP 10 Mbps 16 MHz
Category 5 UTP 10/100 Mbps 100 MHz
Category 5 e UTP 1000 Mbps 100 MHz
Category 6 UTP or STP 1000 Mbps 250 MHz
Category 6 a STP 10,000 Mbps 500 MHz
Category 7 SSTP 10,000 Mbps 600 MHz
9-Jul-16 GG-45 by Jaideep Pankti Hardik 7

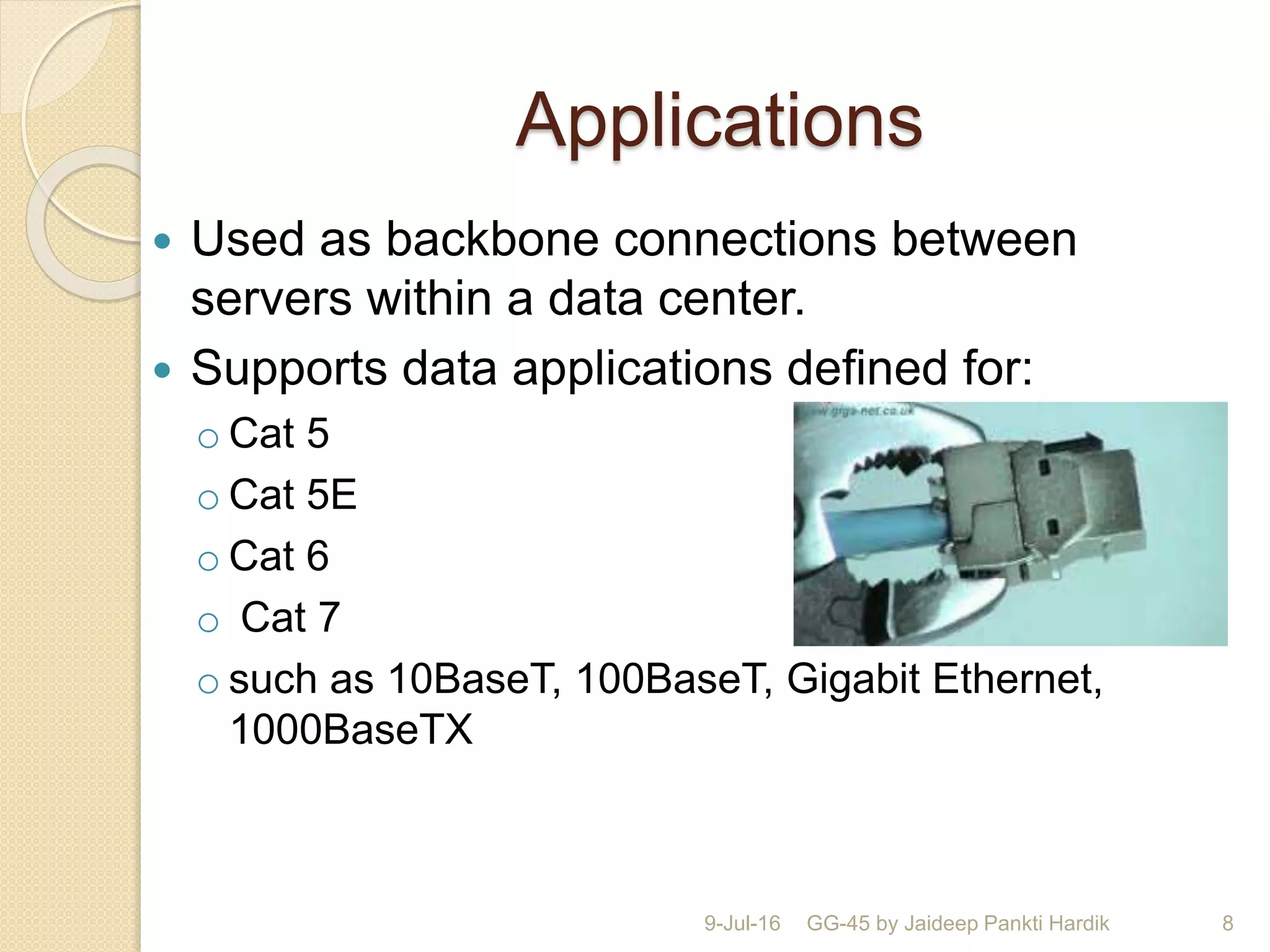

8. Applications
 Used as backbone connections between
servers within a data center.
 Supports data applications defined for:
o Cat 5
o Cat 5E
o Cat 6
o Cat 7
o such as 10BaseT, 100BaseT, Gigabit Ethernet,
1000BaseTX
9-Jul-16 GG-45 by Jaideep Pankti Hardik 8

9. Advantages
 Provides an alternative to using fiber optic
cabling.
 Designed to support much higher frequency
signals than Cat5e and Cat6.
 Provides better protected signals travelling
over the cable.
9-Jul-16 GG-45 by Jaideep Pankti Hardik 9

10. Disadvantages
 Not yet widely adopted
 Unnecessary expense for unused
bandwidth for desktop or end-users.
9-Jul-16 GG-45 by Jaideep Pankti Hardik 10

11. Bibliography
 www.lanmark.com
 www.cablelines.com
 http://en.wikipedia.org/wiki/GG45
 www.cablecon.co.kr
9-Jul-16 GG-45 by Jaideep Pankti Hardik 11

12. Thank
you….!!
9-Jul-16 GG-45 by Jaideep Pankti Hardik 12
