1. Get Value from Your Data
Danilo Poccia
AWS Technical Evangelist
@danilop
danilop

2. Data Analytics

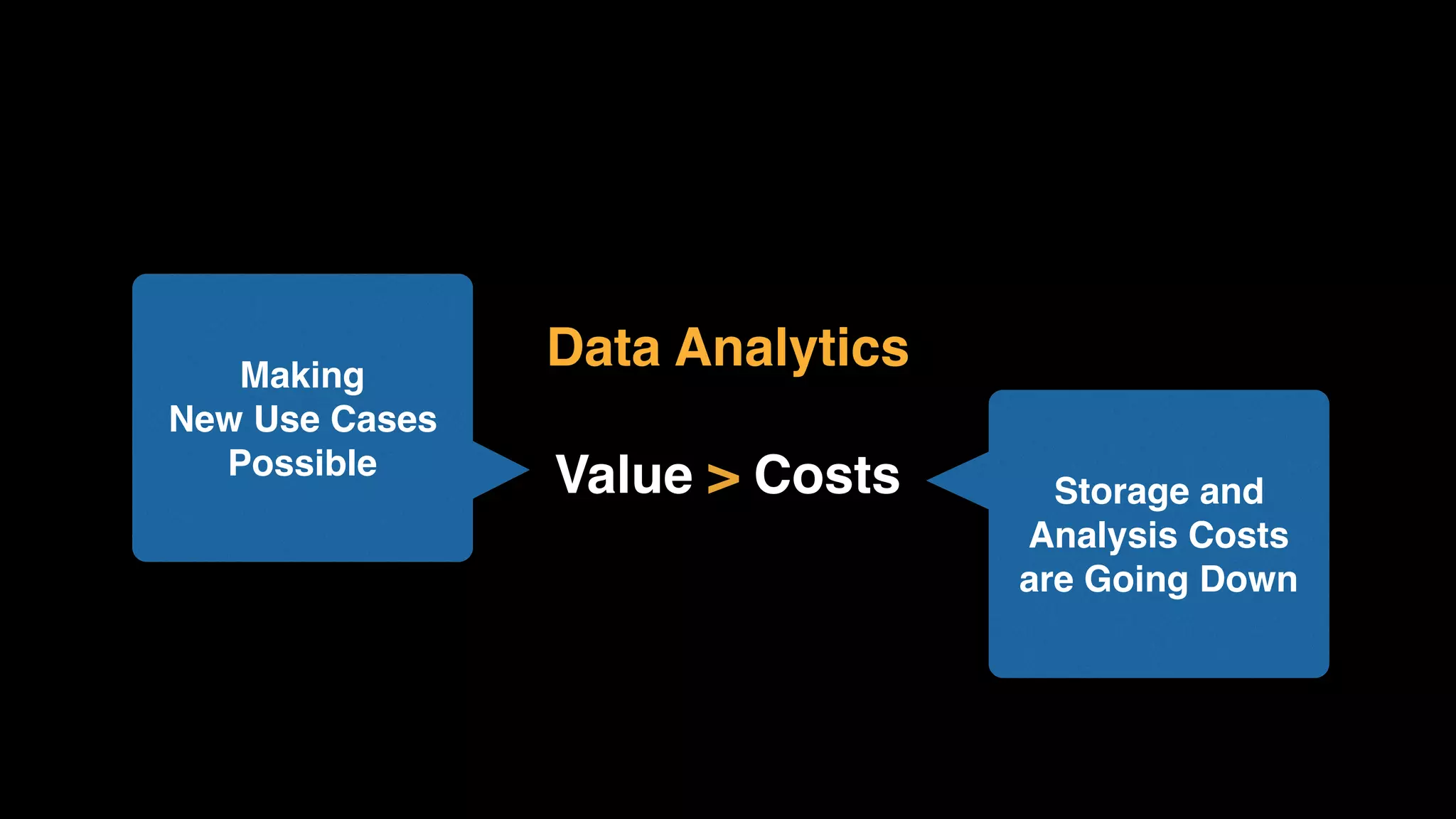

3. Data Analytics
Value > Costs Storage and
Analysis Costs
are Going Down
Making
New Use Cases
Possible

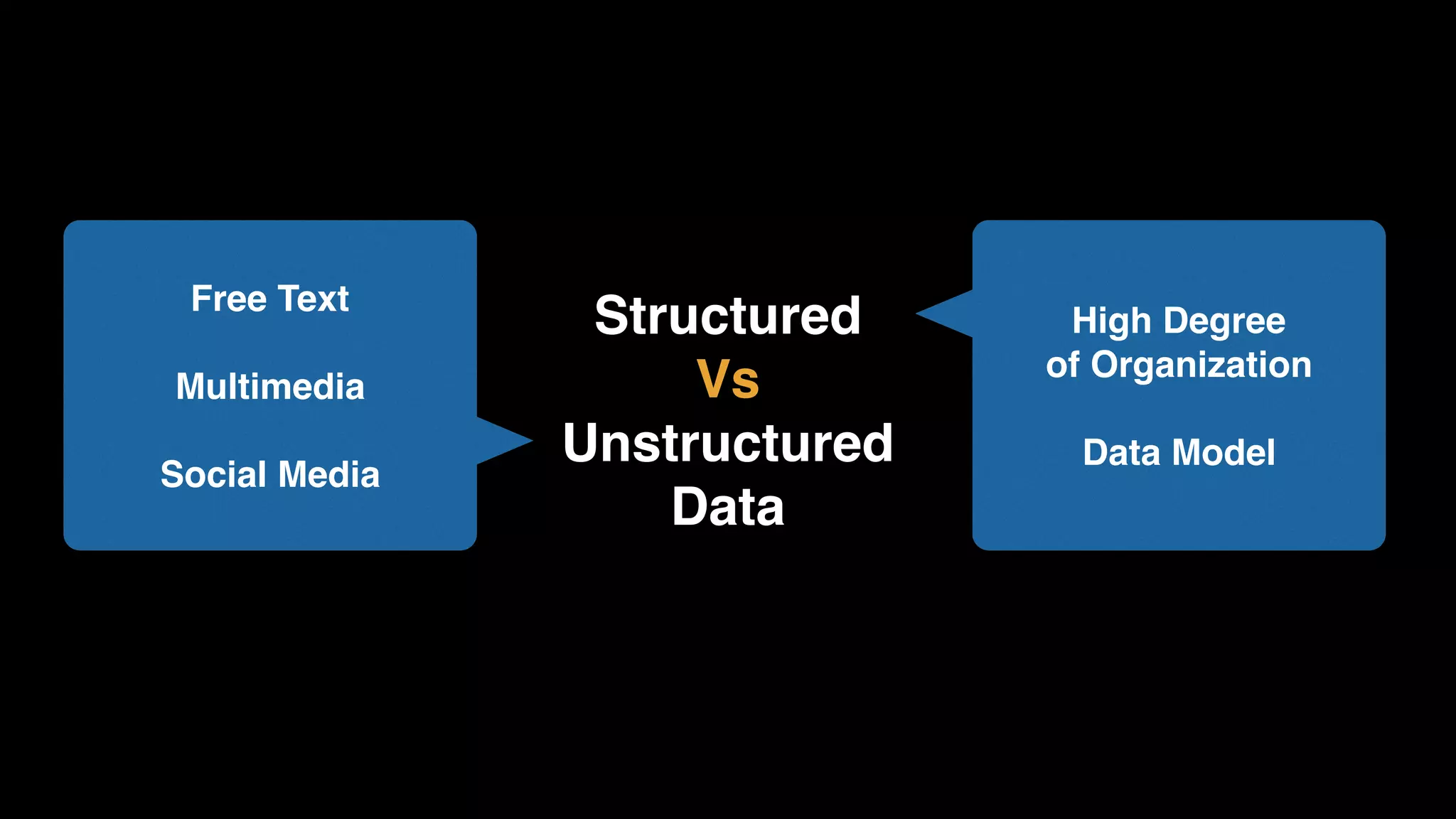

4. Structured
Vs
Unstructured
Data
High Degree
of Organization
Data Model
Free Text
Multimedia
Social Media

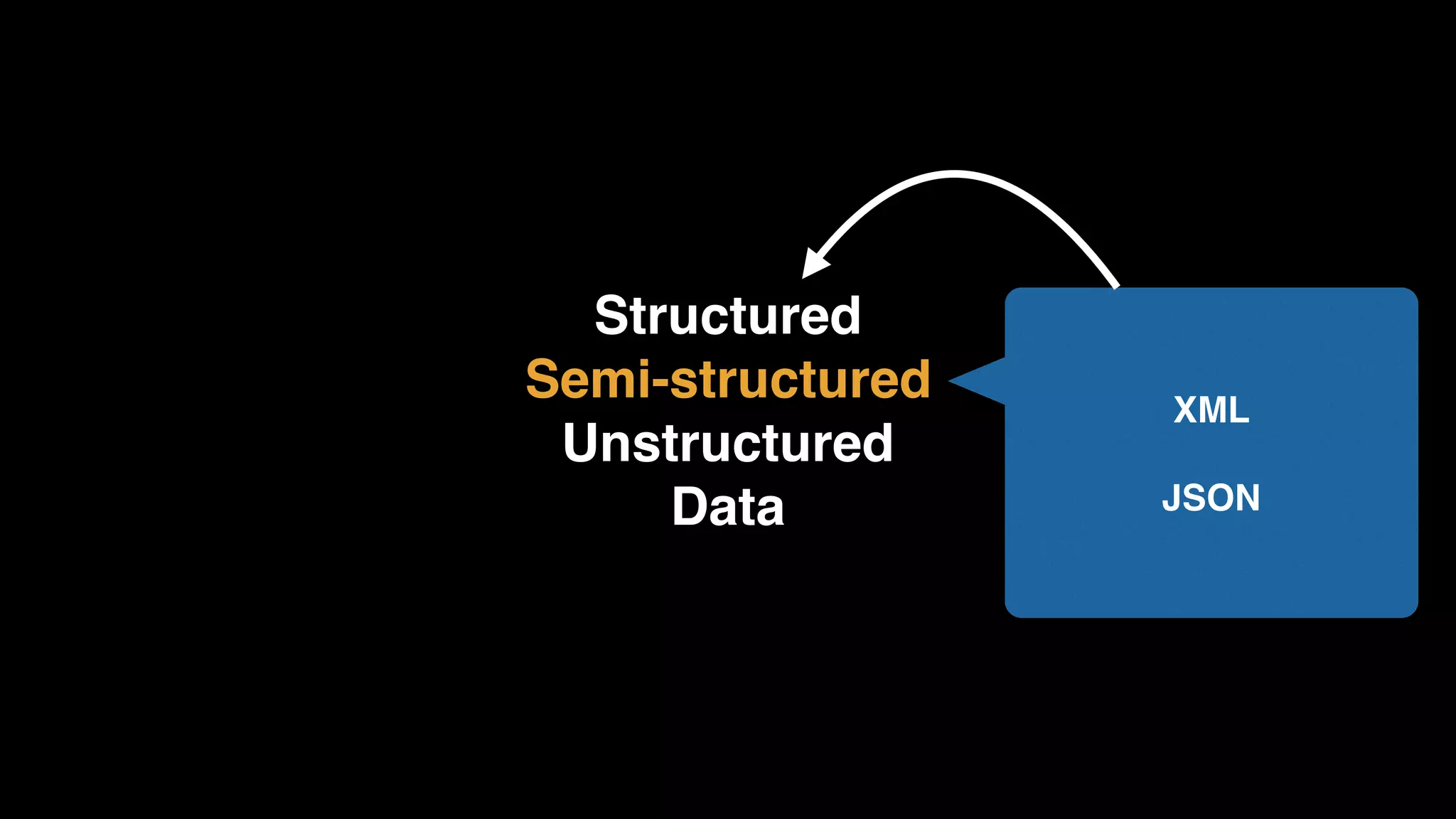

5. Structured
Semi-structured
Unstructured
Data
XML
JSON

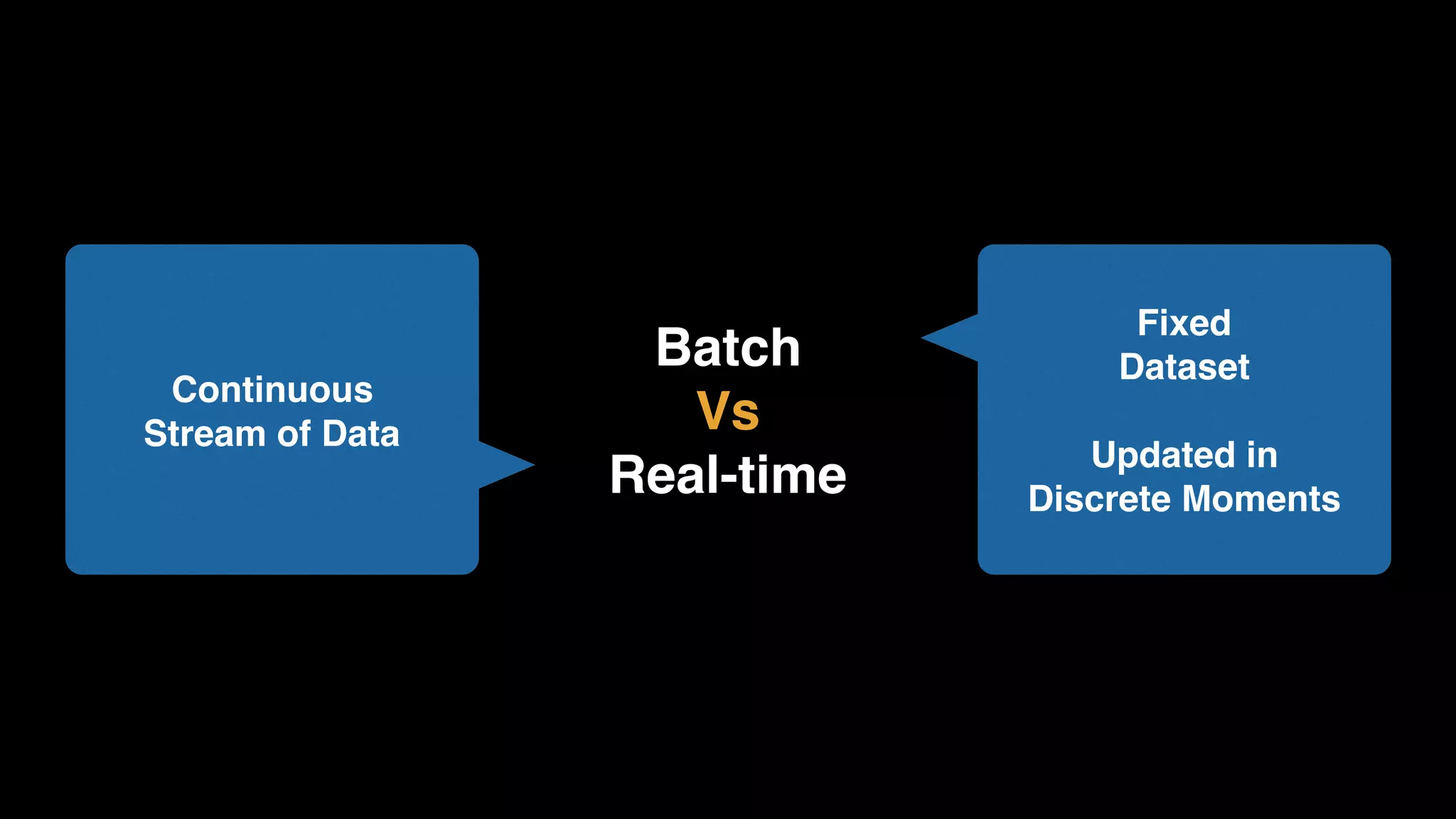

6. Batch
Vs
Real-time
Fixed
Dataset
Updated in
Discrete Moments
Continuous
Stream of Data

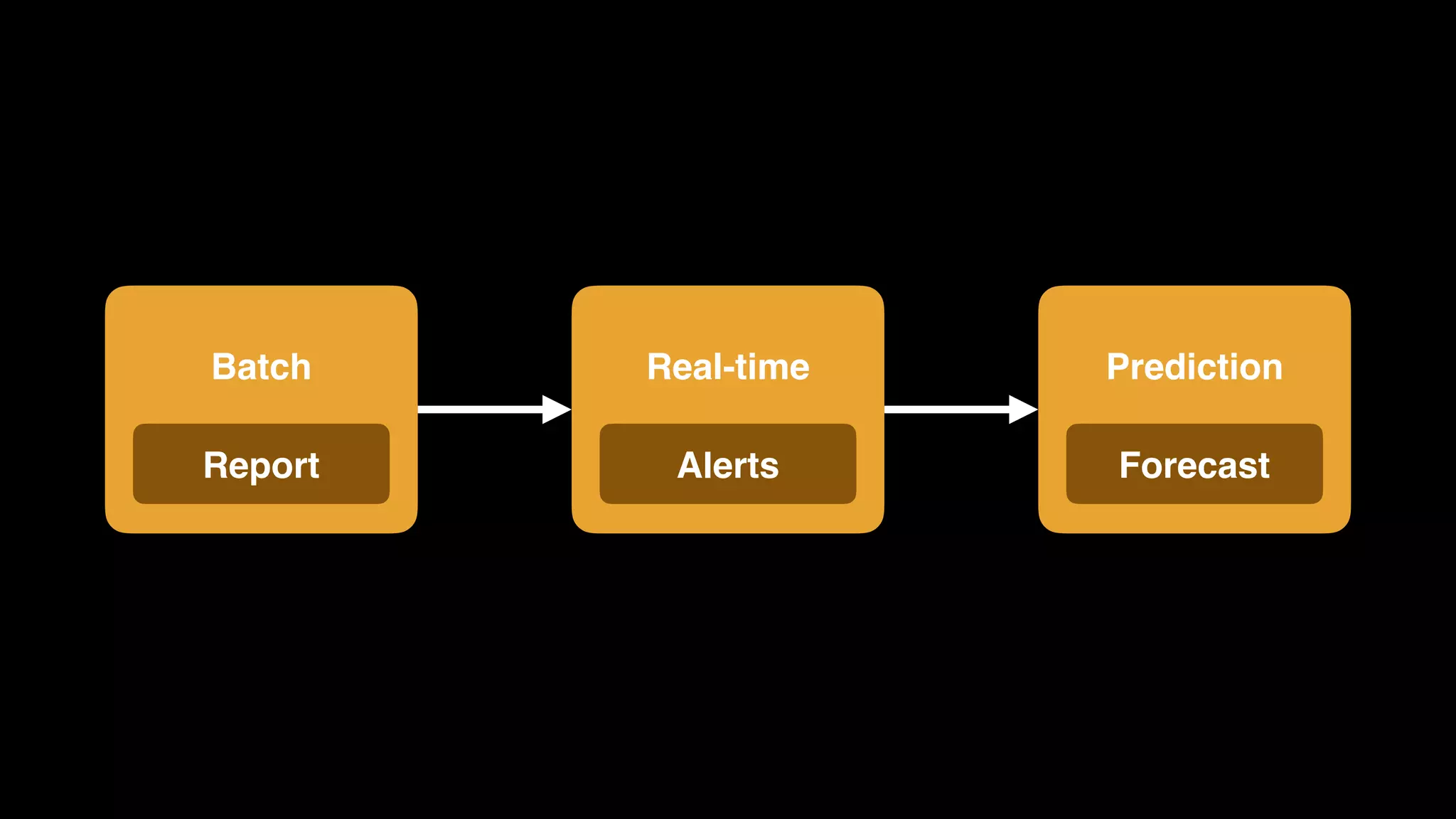

7. Batch
Report
Real-time
Alerts
Prediction
Forecast

8. Unstructured Data

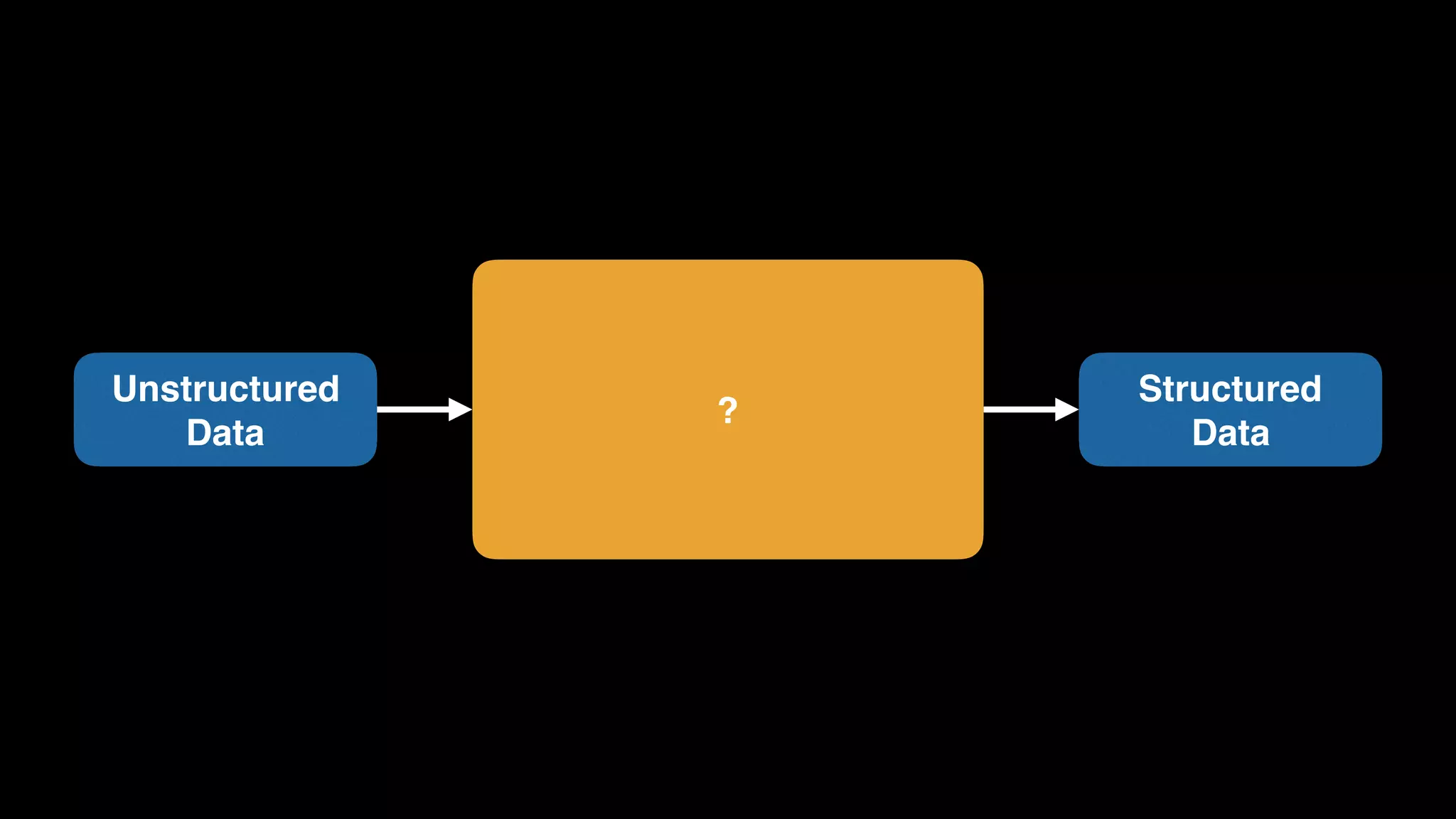

9. ?
Unstructured
Data
Structured
Data

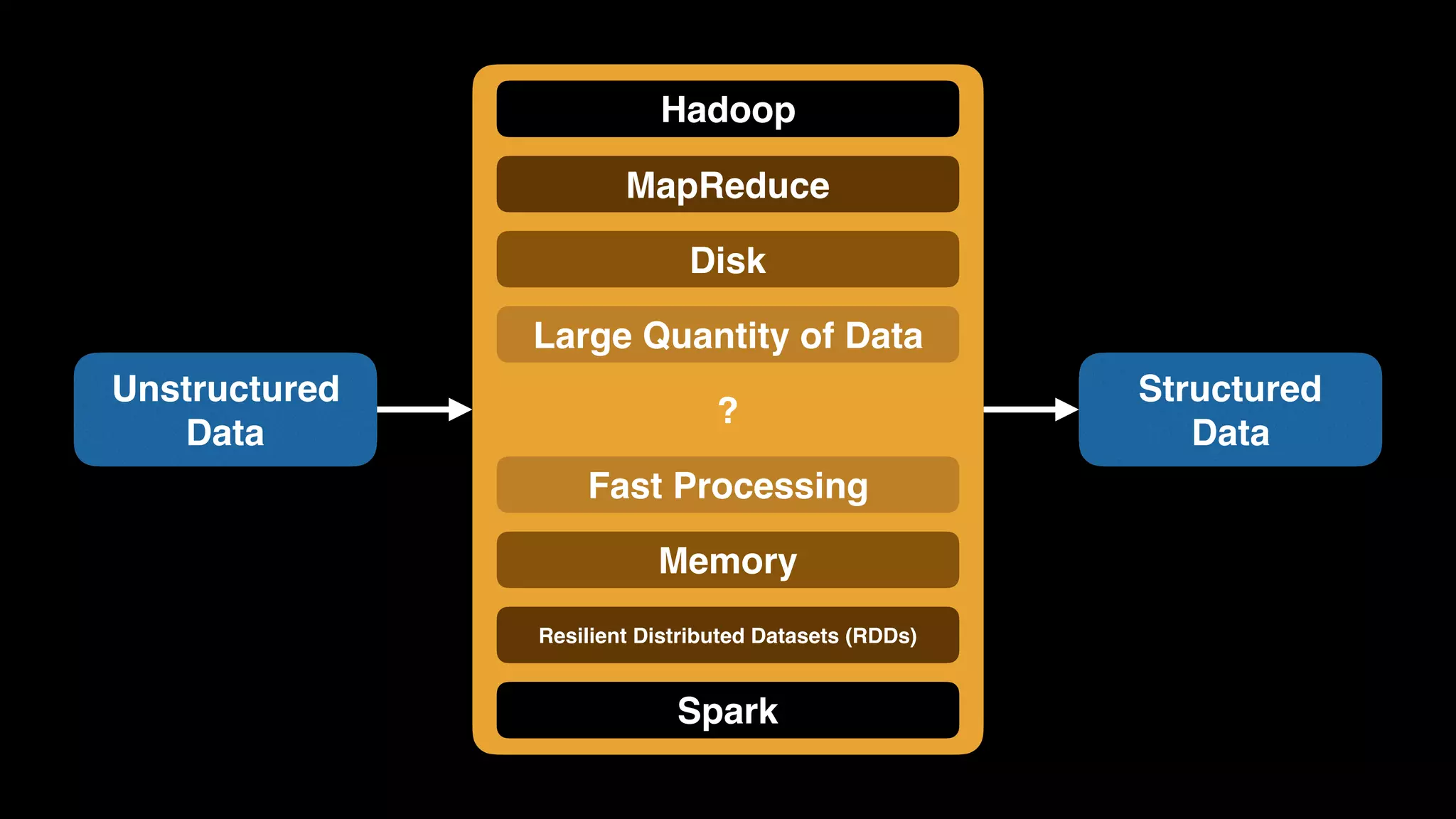

10. Unstructured
Data
Structured
Data
Resilient Distributed Datasets (RDDs)
Memory
Fast Processing
Large Quantity of Data
Disk
Hadoop
MapReduce
Spark
?

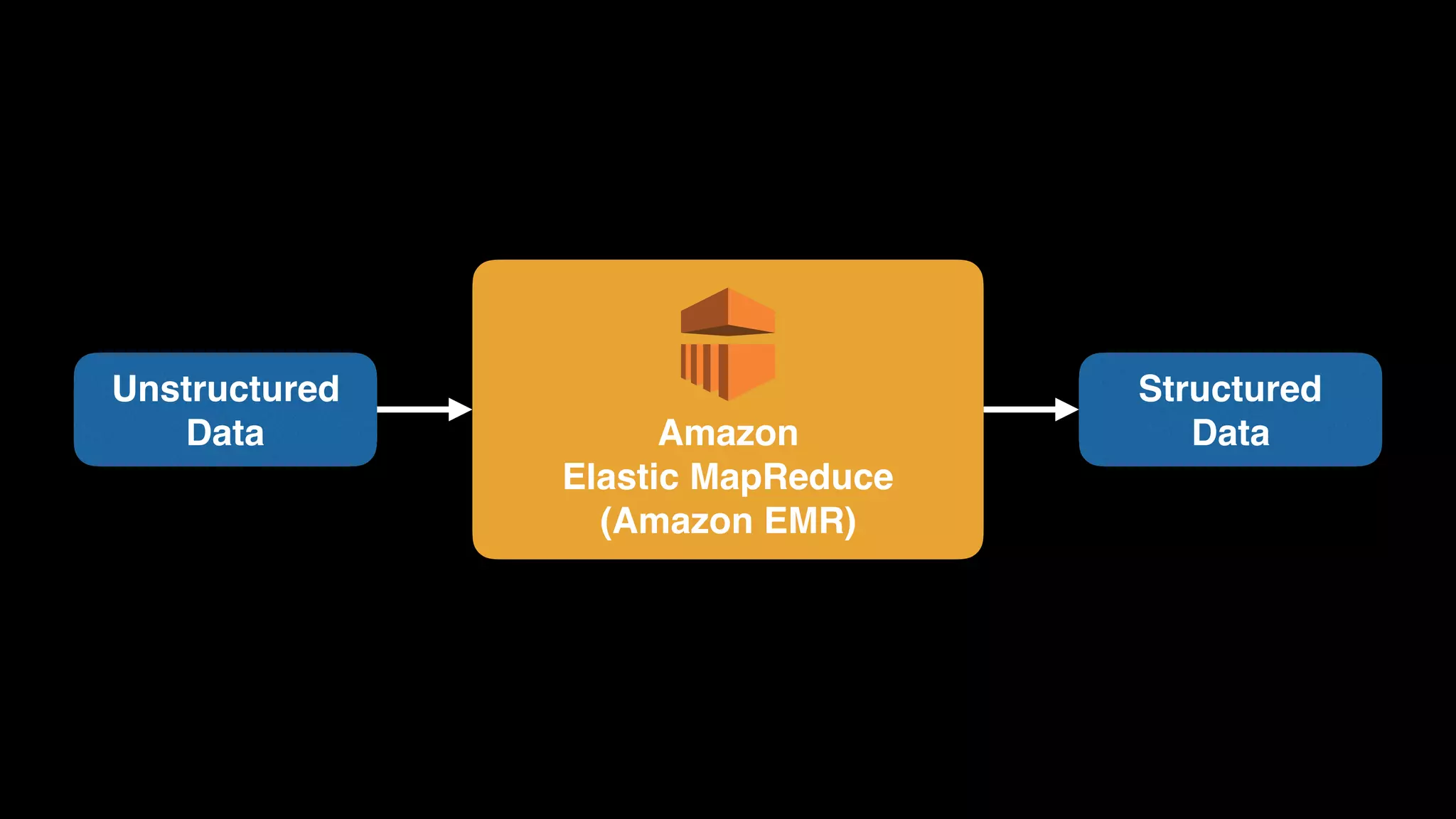

11. Amazon
Elastic MapReduce
(Amazon EMR)
Unstructured
Data
Structured
Data

12. Amazon
Elastic MapReduce
(Amazon EMR)
Structured
Data
Unstructured
Data
Structured
Data

13. Amazon
Elastic MapReduce
(Amazon EMR) Managed clusters
For Hadoop, Spark, Presto
or any other applications
in the Apache / Hadoop stackWhat is
Amazon EMR?

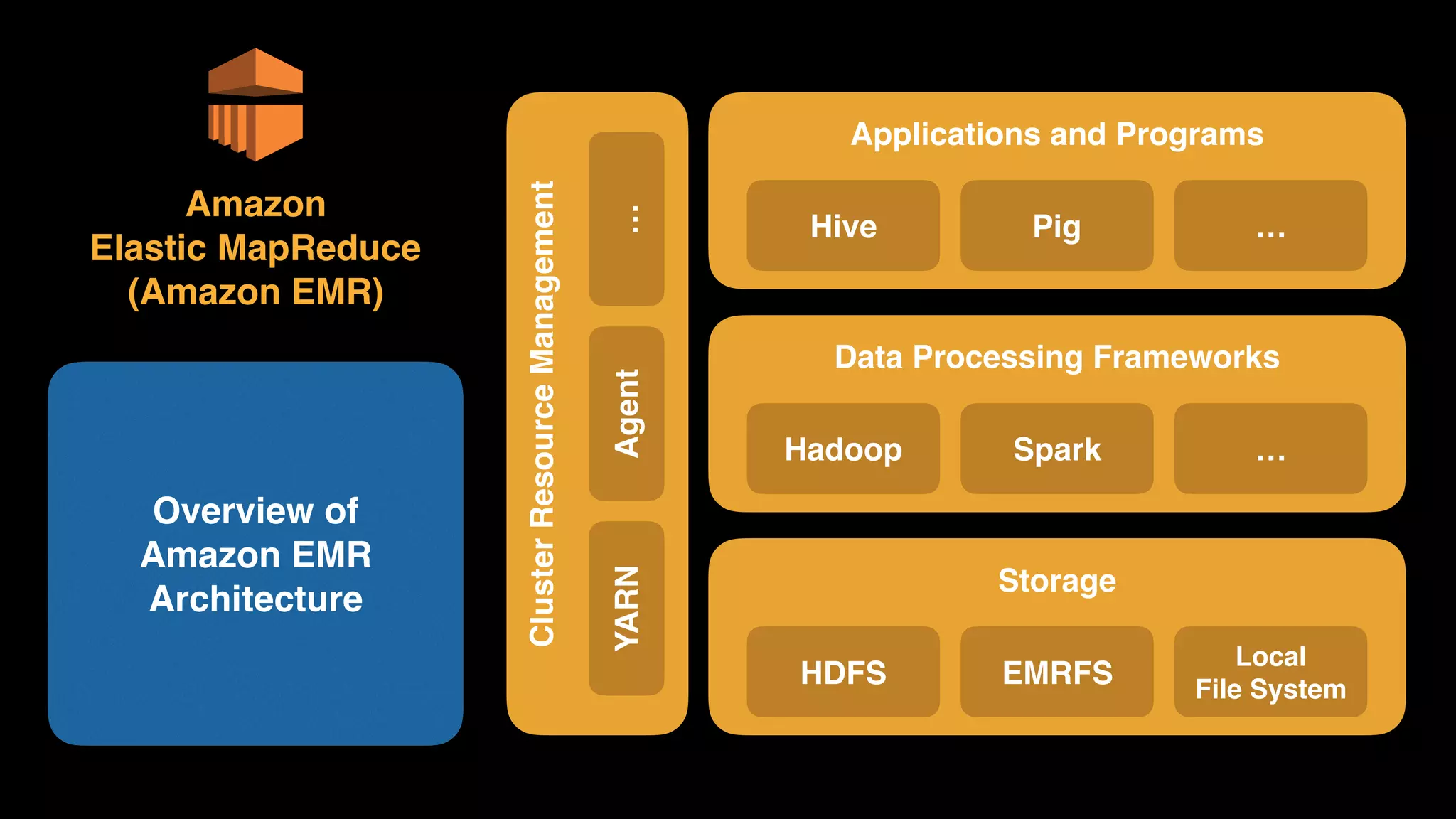

14. Amazon
Elastic MapReduce
(Amazon EMR)
Overview of
Amazon EMR
Architecture
Storage
HDFS EMRFS
Local
File System
Data Processing Frameworks
Hadoop Spark …
Applications and Programs
Hive Pig …
ClusterResourceManagement
YARNAgent…

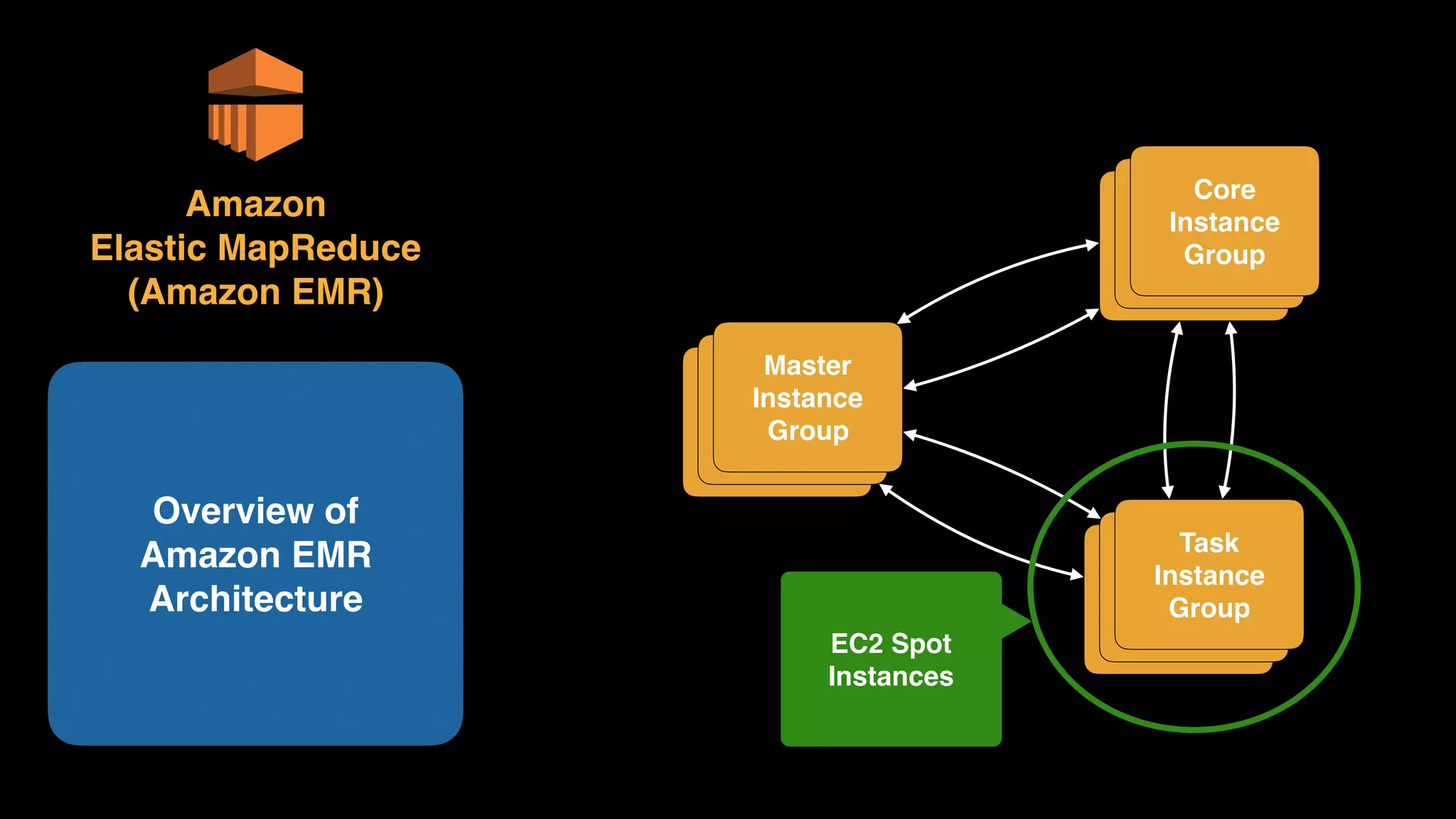

15. Amazon
Elastic MapReduce
(Amazon EMR)
Overview of
Amazon EMR
Architecture
Master
Instance
Group
Core
Instance
Group
Task
Instance
Group
EC2 Spot
Instances

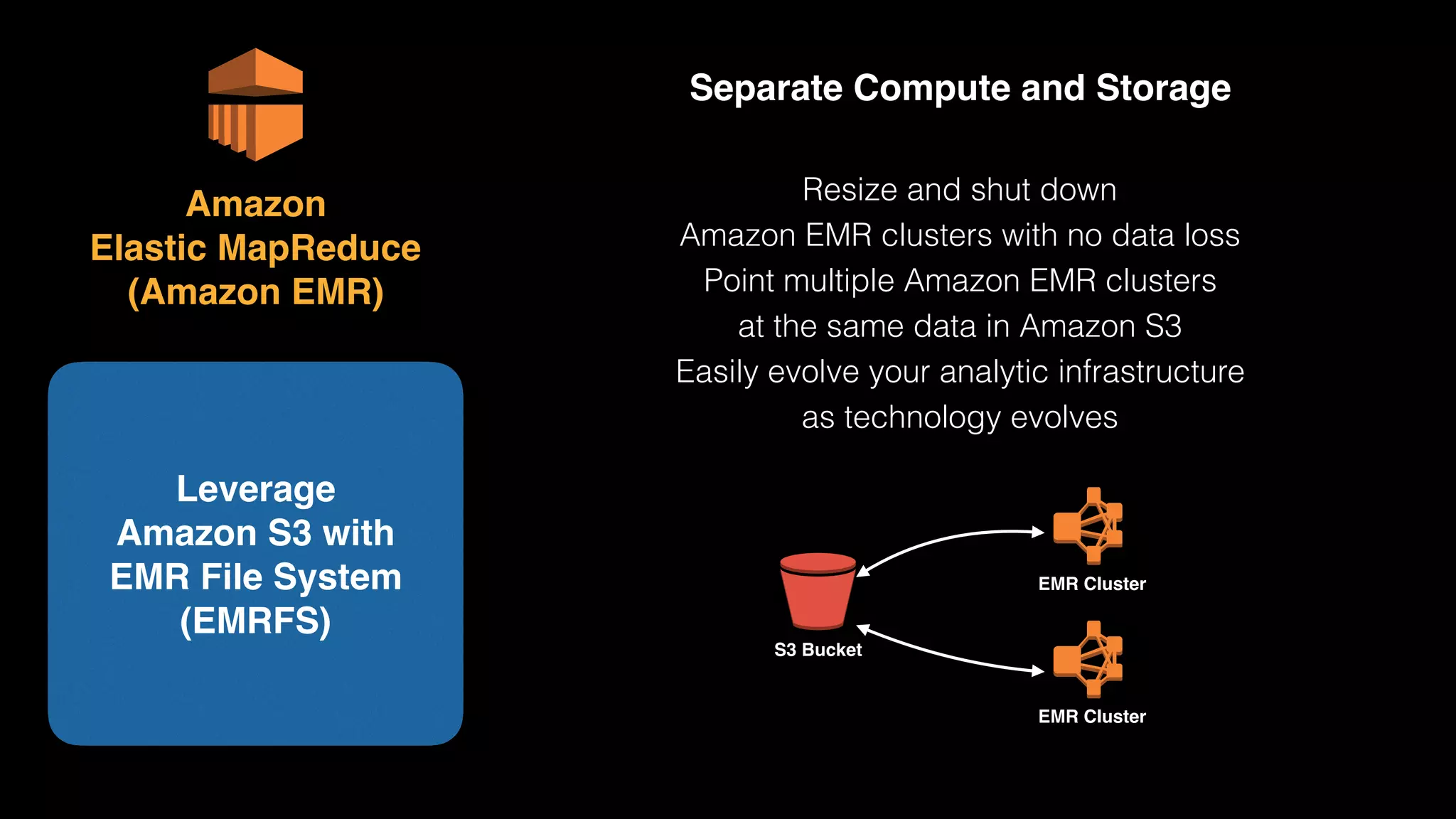

16. Separate Compute and Storage
Resize and shut down
Amazon EMR clusters with no data loss
Point multiple Amazon EMR clusters
at the same data in Amazon S3
Easily evolve your analytic infrastructure
as technology evolves
Leverage
Amazon S3 with
EMR File System
(EMRFS)
S3 Bucket
Cluster
EMR Cluster
Cluster
EMR Cluster
Amazon
Elastic MapReduce
(Amazon EMR)

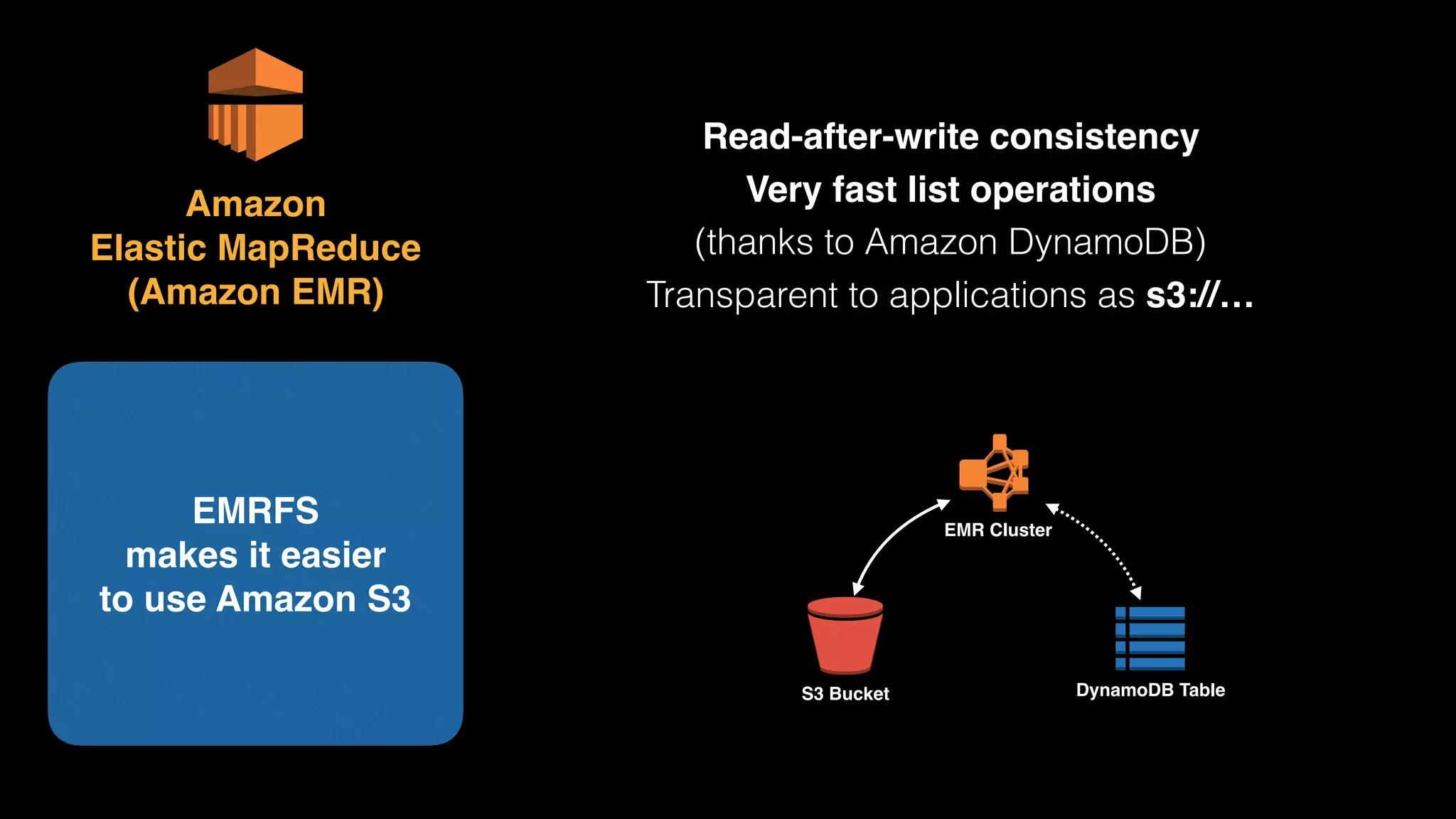

17. Read-after-write consistency
Very fast list operations
(thanks to Amazon DynamoDB)
Transparent to applications as s3://…
S3 Bucket
Cluster
EMR Cluster
DynamoDB Table
Amazon
Elastic MapReduce
(Amazon EMR)
EMRFS
makes it easier
to use Amazon S3

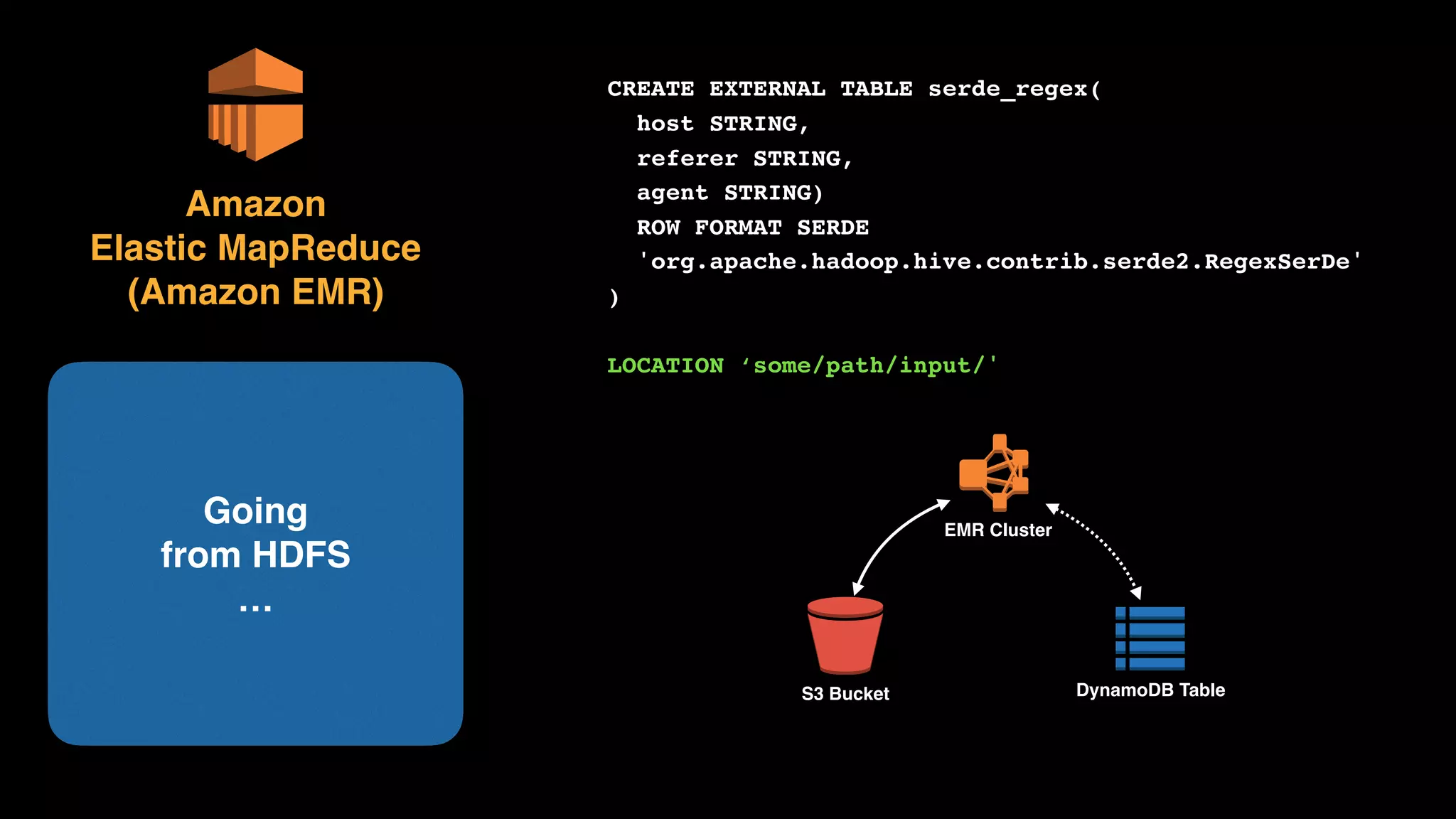

18. CREATE EXTERNAL TABLE serde_regex(
host STRING,
referer STRING,
agent STRING)
ROW FORMAT SERDE
'org.apache.hadoop.hive.contrib.serde2.RegexSerDe'
)
LOCATION ‘some/path/input/'
S3 Bucket
Cluster
EMR Cluster
DynamoDB Table
Amazon
Elastic MapReduce
(Amazon EMR)
Going
from HDFS
…

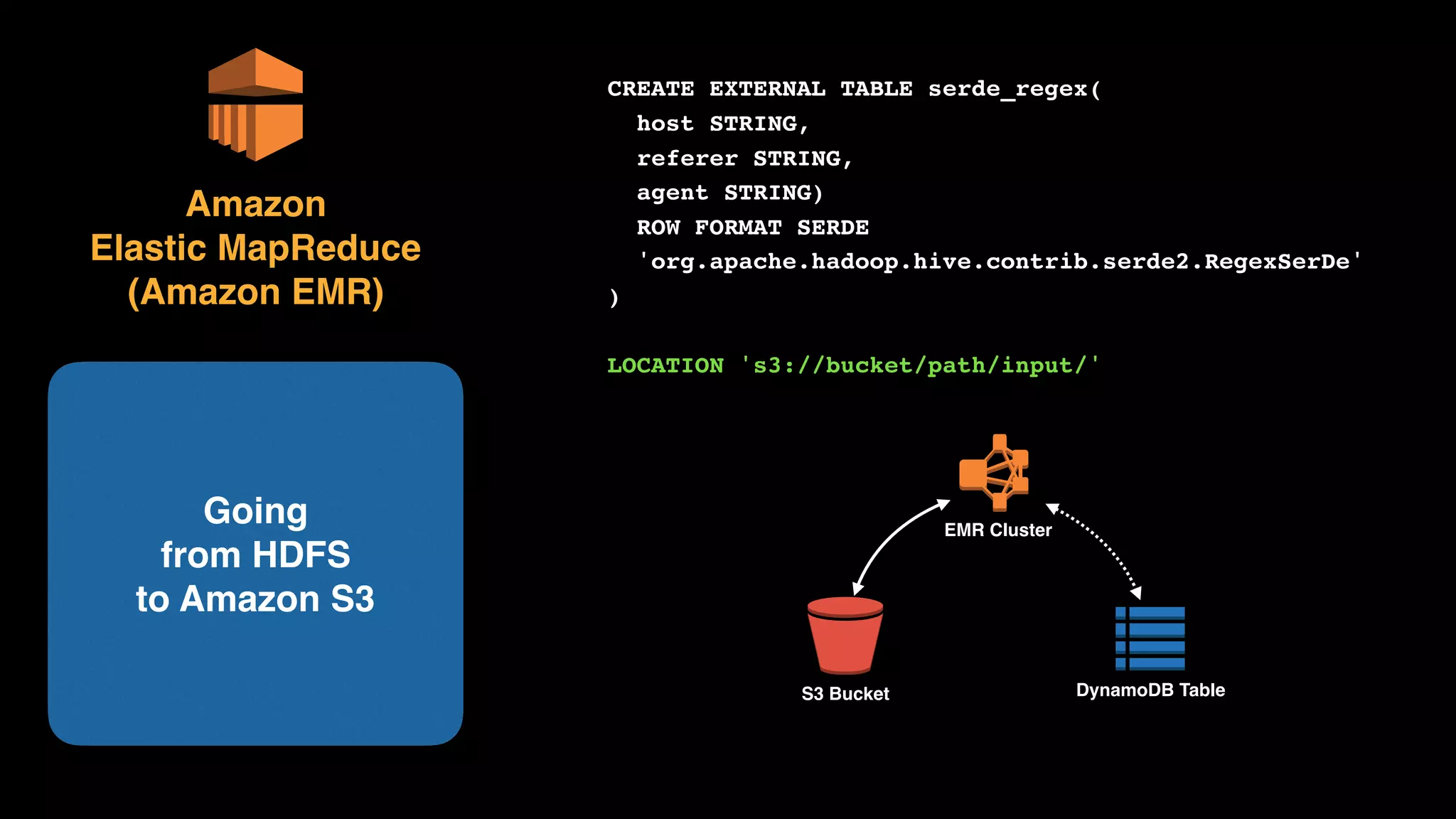

19. S3 Bucket
Cluster
EMR Cluster
DynamoDB Table
Amazon
Elastic MapReduce
(Amazon EMR)
Going
from HDFS
to Amazon S3
CREATE EXTERNAL TABLE serde_regex(
host STRING,
referer STRING,
agent STRING)
ROW FORMAT SERDE
'org.apache.hadoop.hive.contrib.serde2.RegexSerDe'
)
LOCATION 's3://bucket/path/input/'

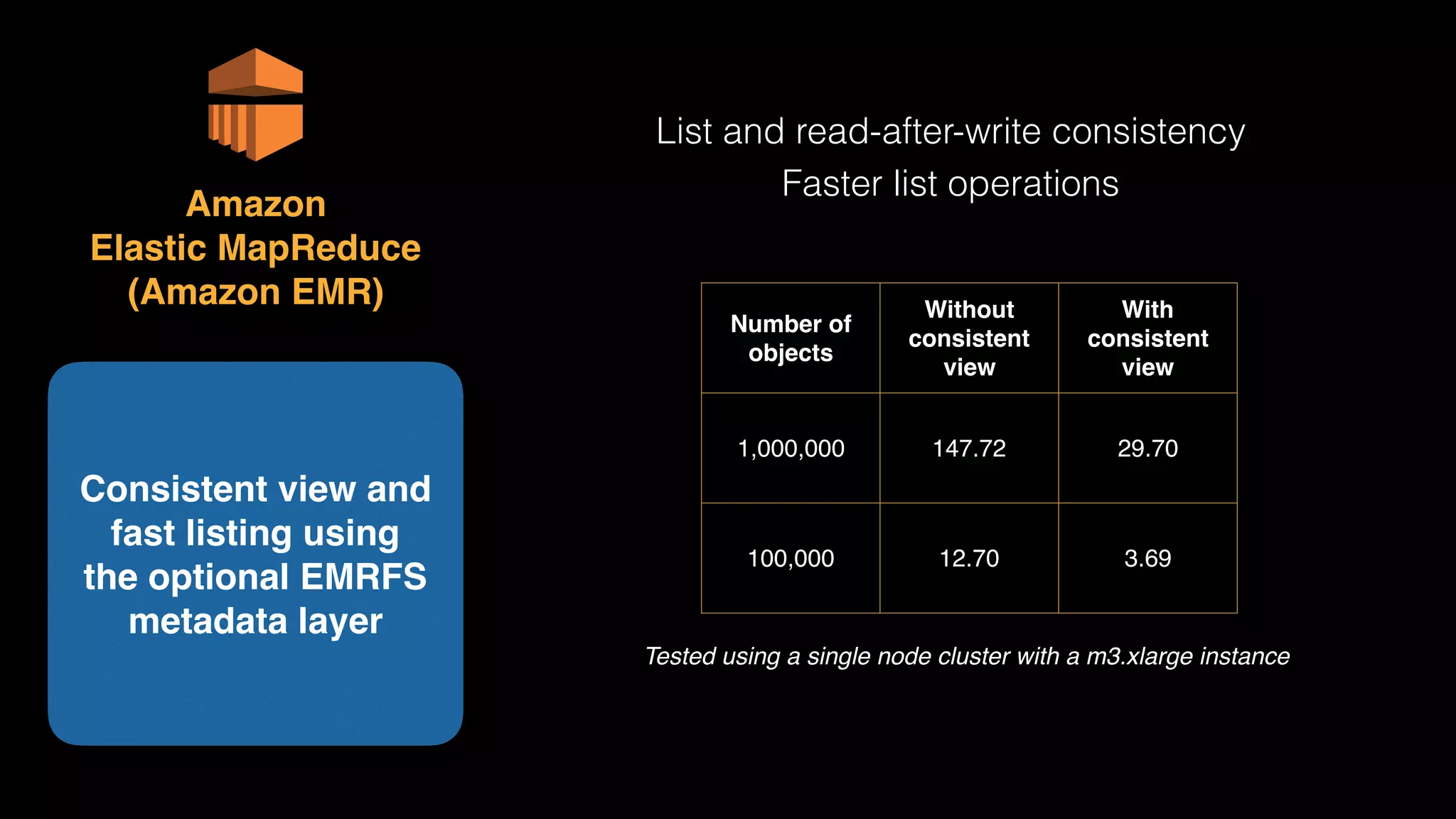

20. Amazon
Elastic MapReduce
(Amazon EMR)
Consistent view and
fast listing using
the optional EMRFS
metadata layer
List and read-after-write consistency
Faster list operations
Number of
objects
Without
consistent
view
With
consistent
view
1,000,000 147.72 29.70
100,000 12.70 3.69
Tested using a single node cluster with a m3.xlarge instance

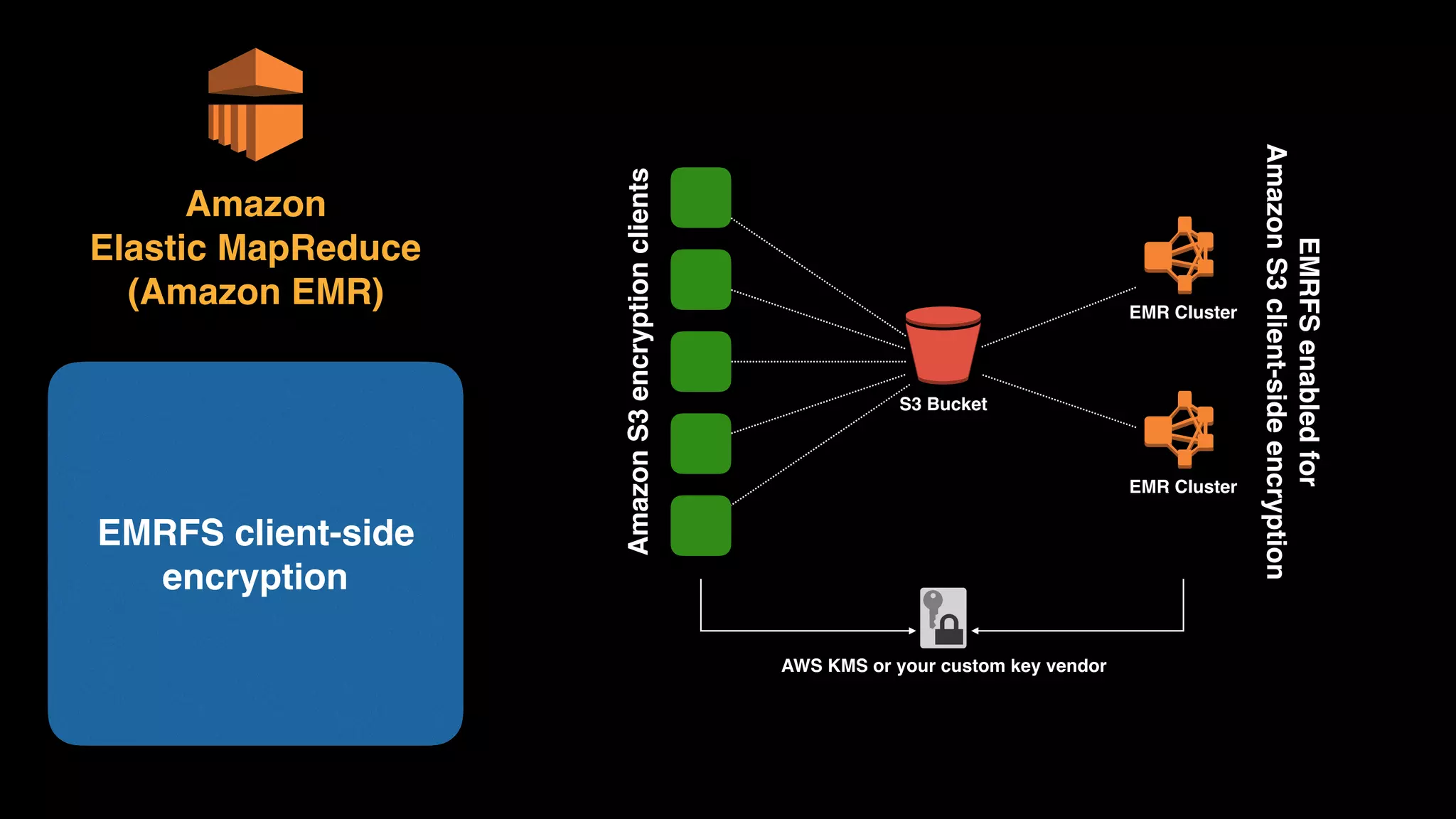

21. Amazon
Elastic MapReduce
(Amazon EMR)
EMRFS client-side
encryption
S3 Bucket
Cluster
EMR Cluster
Cluster
EMR Cluster
AWS KMS or your custom key vendor
AmazonS3encryptionclients
EMRFSenabledfor
AmazonS3client-sideencryption

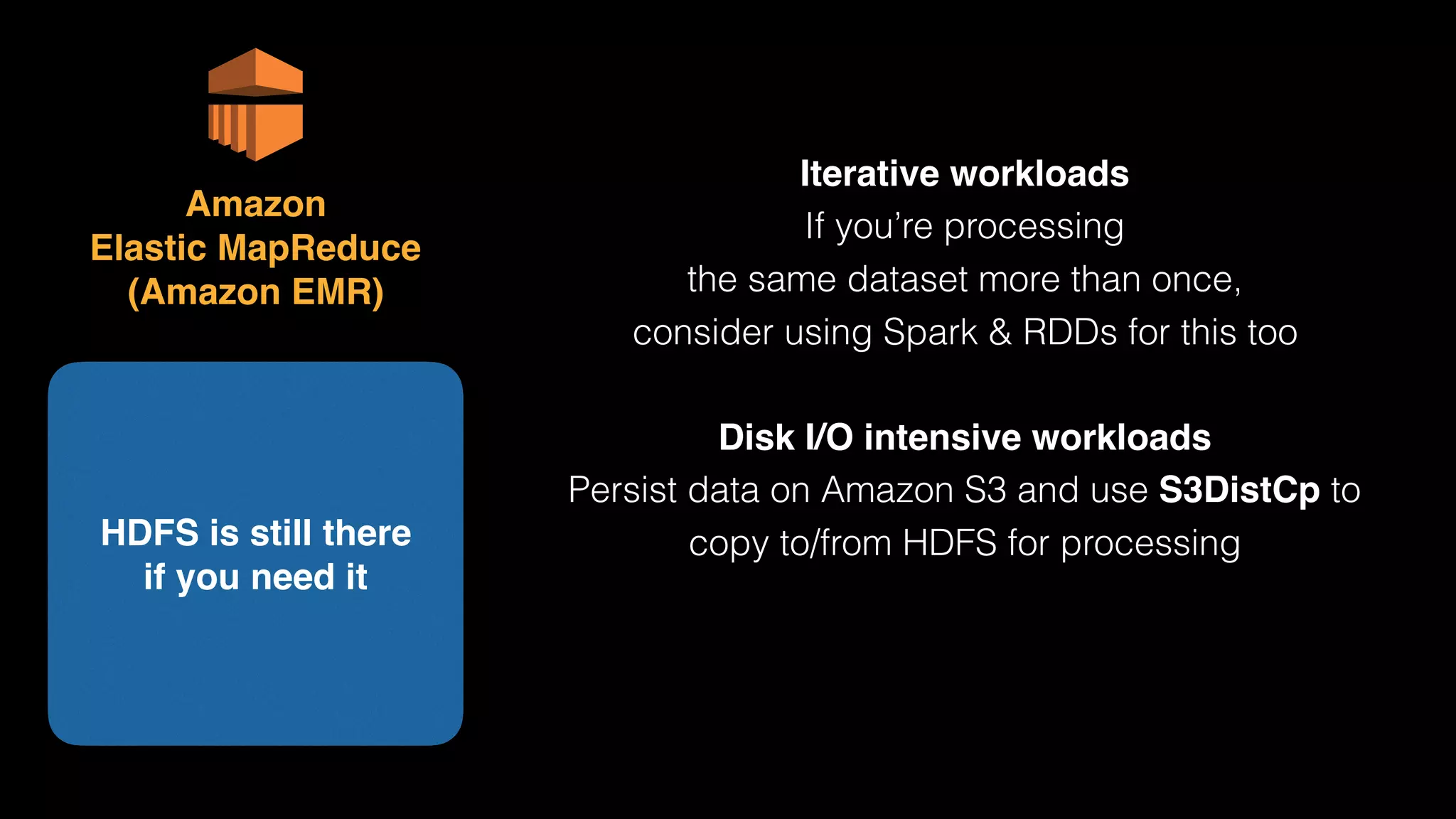

22. Iterative workloads
If you’re processing
the same dataset more than once,
consider using Spark & RDDs for this too
Disk I/O intensive workloads
Persist data on Amazon S3 and use S3DistCp to
copy to/from HDFS for processingHDFS is still there
if you need it
Amazon
Elastic MapReduce
(Amazon EMR)

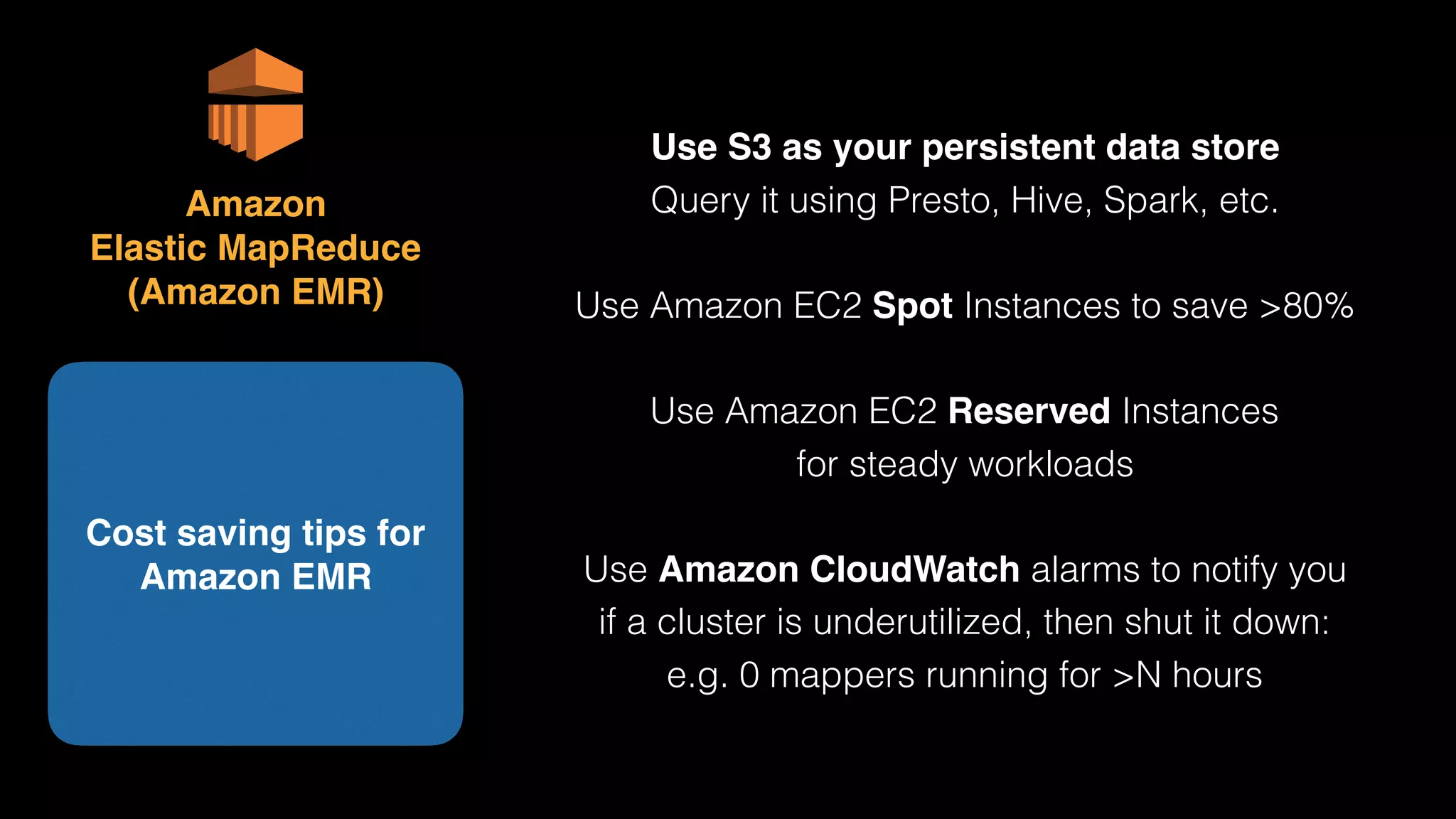

23. Use S3 as your persistent data store
Query it using Presto, Hive, Spark, etc.
Use Amazon EC2 Spot Instances to save >80%
Use Amazon EC2 Reserved Instances
for steady workloads
Use Amazon CloudWatch alarms to notify you
if a cluster is underutilized, then shut it down:
e.g. 0 mappers running for >N hours
Cost saving tips for
Amazon EMR
Amazon
Elastic MapReduce
(Amazon EMR)

24. Resize your cluster,
or create clusters when needed
and only pay for compute when you need it
Intelligent Scale Down
(including YARN / HDFS)Cost saving tips for
Amazon EMR
Amazon
Elastic MapReduce
(Amazon EMR)

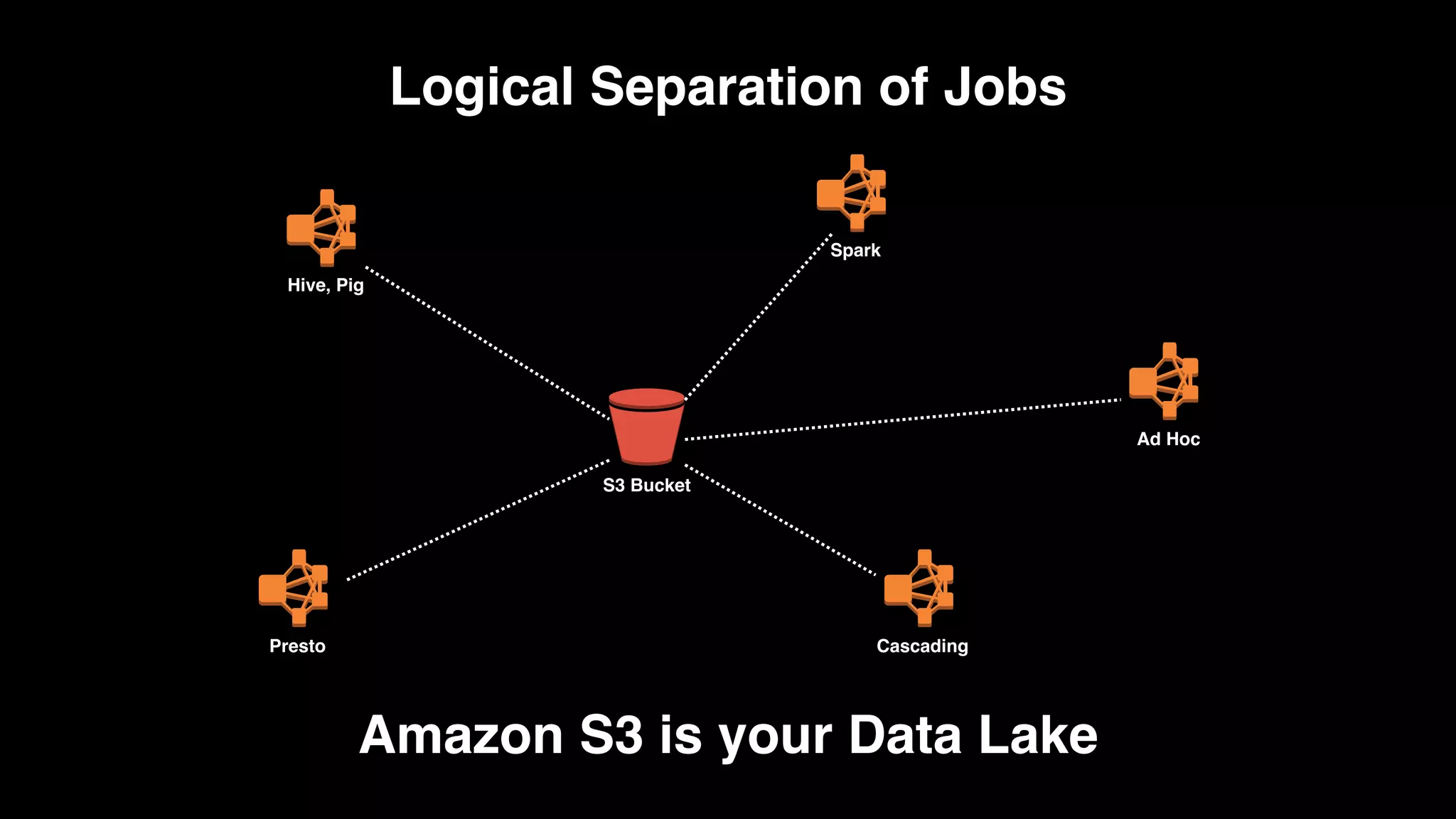

25. Amazon S3 is your Data Lake
S3 Bucket
Cluster
Hive, Pig
Cluster
Presto
Cluster
Spark
Cluster
Ad Hoc
Cluster
Cascading
Logical Separation of Jobs

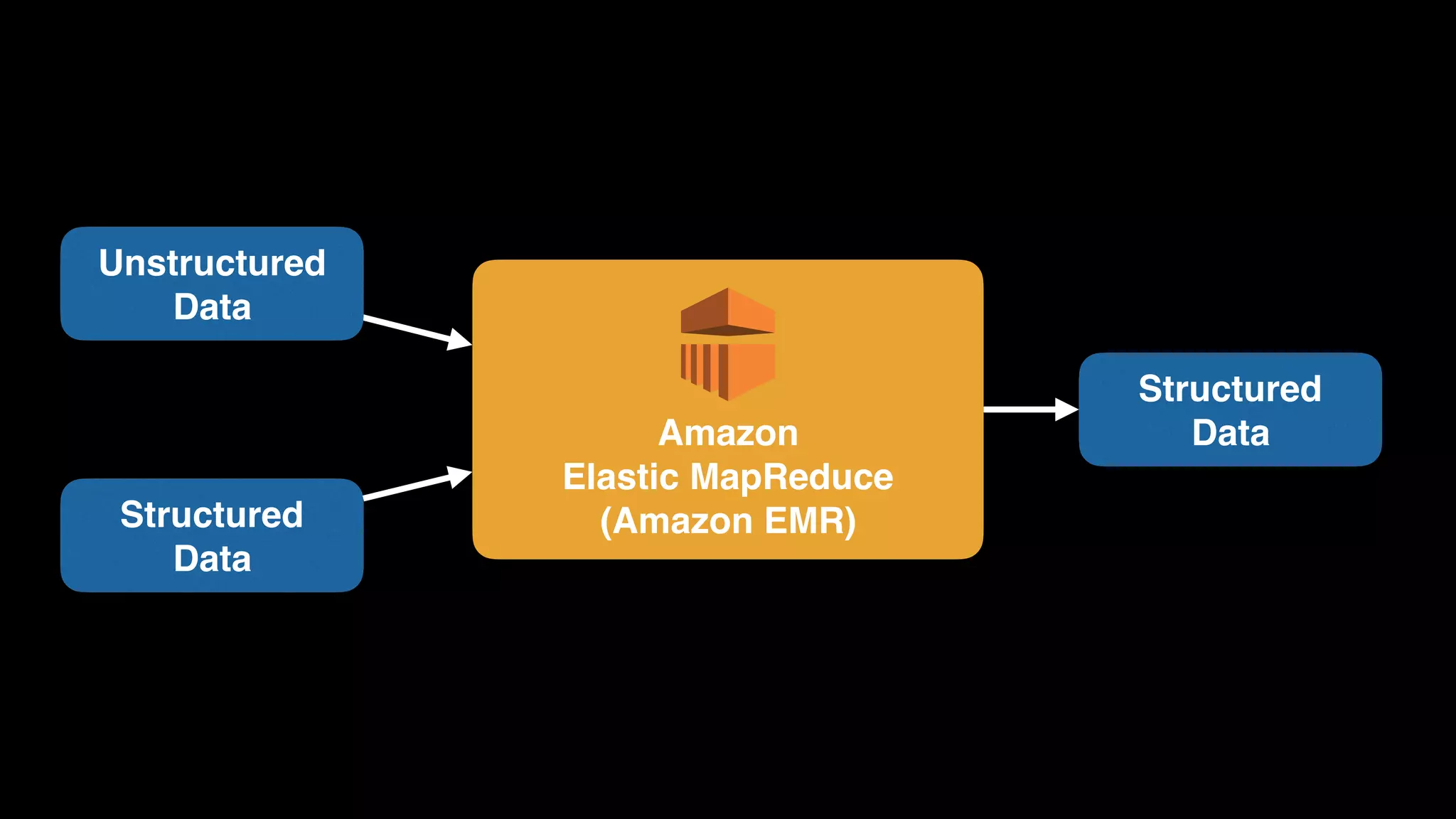

26. Amazon
Elastic MapReduce
(Amazon EMR)
Structured
Data
Unstructured
Data
Structured
Data

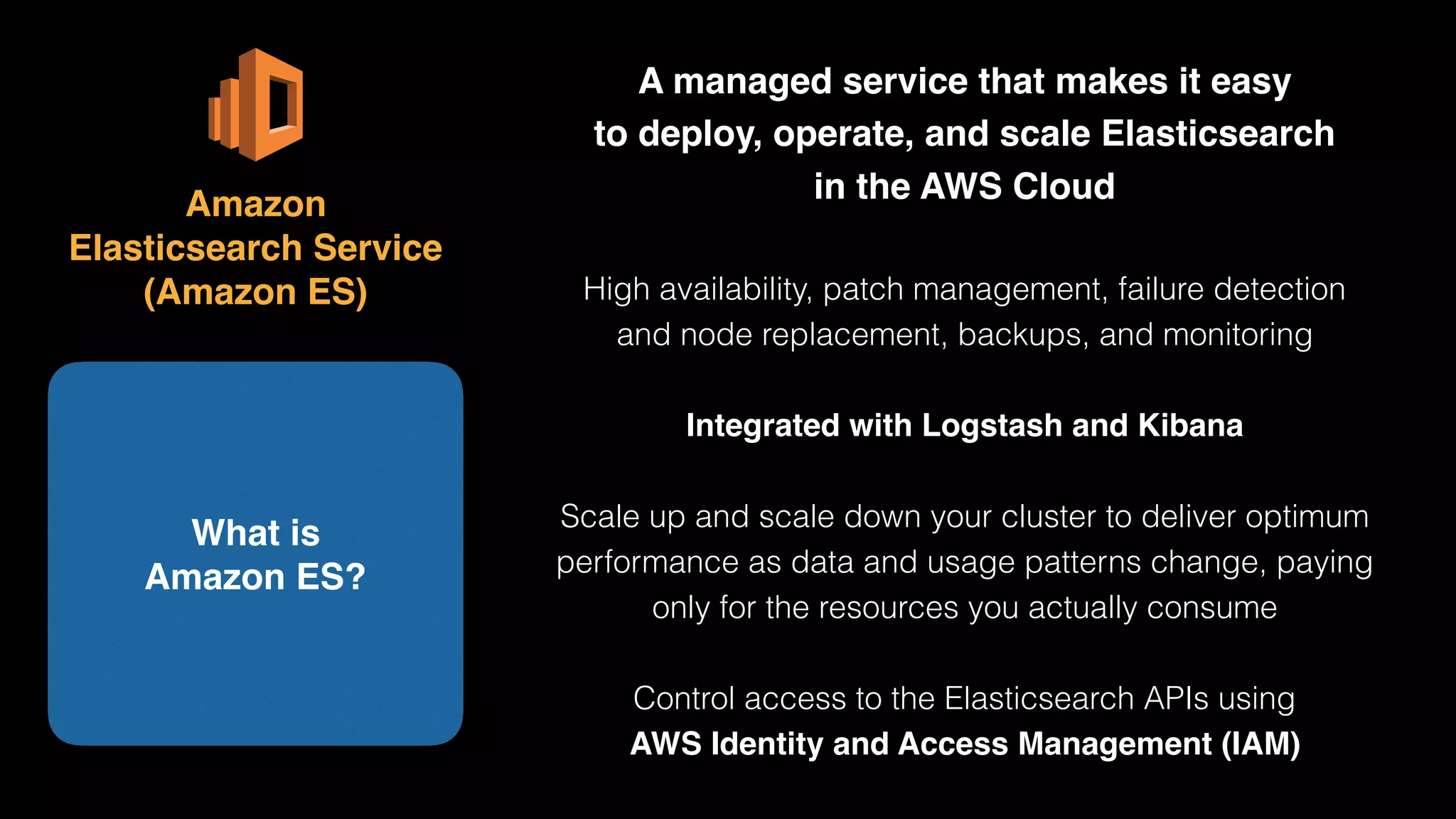

27. A managed service that makes it easy
to deploy, operate, and scale Elasticsearch
in the AWS Cloud
High availability, patch management, failure detection
and node replacement, backups, and monitoring
Integrated with Logstash and Kibana
Scale up and scale down your cluster to deliver optimum
performance as data and usage patterns change, paying
only for the resources you actually consume
Control access to the Elasticsearch APIs using
AWS Identity and Access Management (IAM)
What is
Amazon ES?
Amazon
Elasticsearch Service
(Amazon ES)

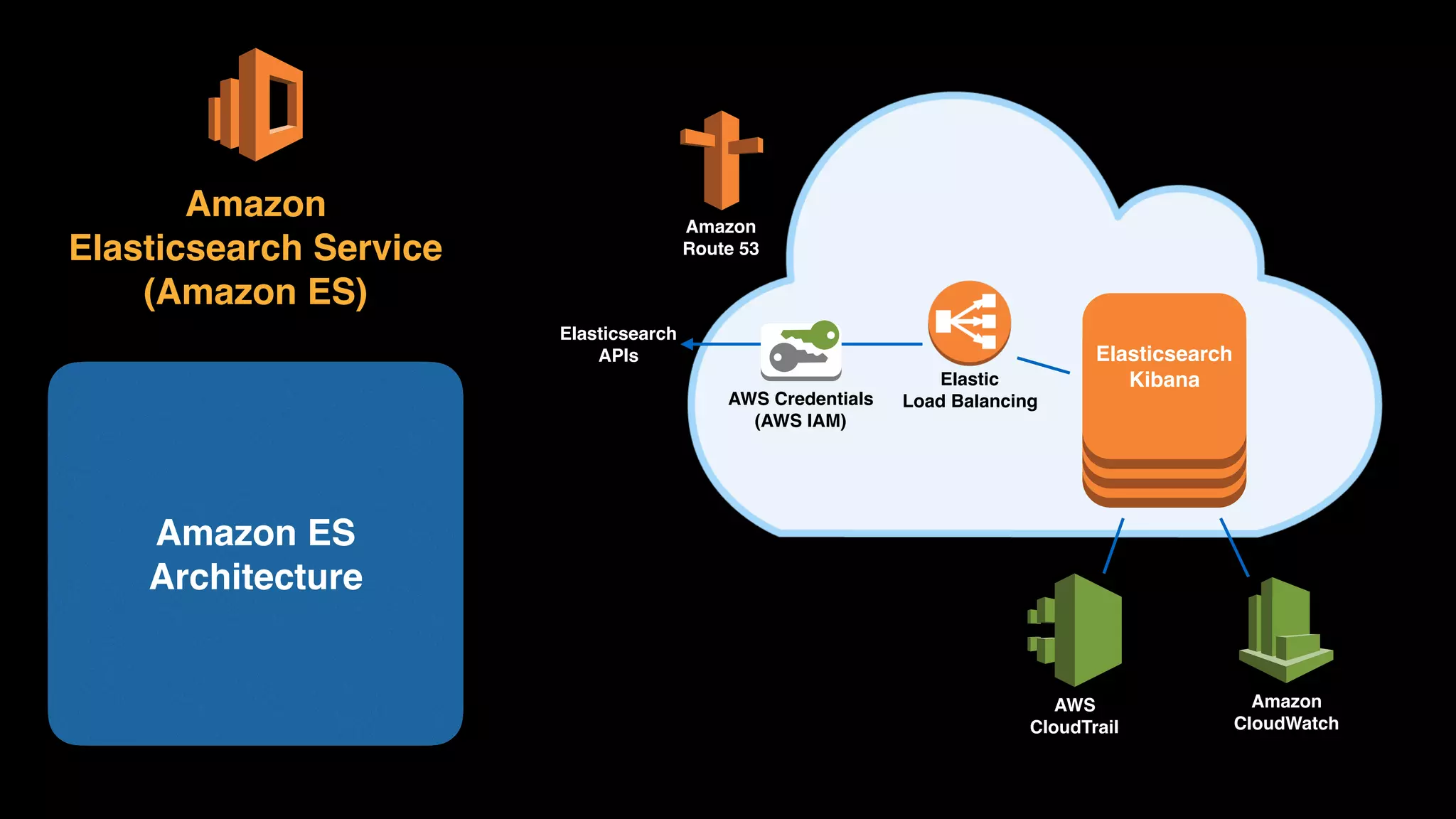

28. Amazon ES
Architecture
Amazon
Elasticsearch Service
(Amazon ES)
Elasticsearch
Kibana
Amazon
CloudWatch
AWS
CloudTrail
Elastic
Load Balancing
Amazon
Route 53
Elasticsearch
APIs
AWS Credentials
(AWS IAM)

29. Structured Data

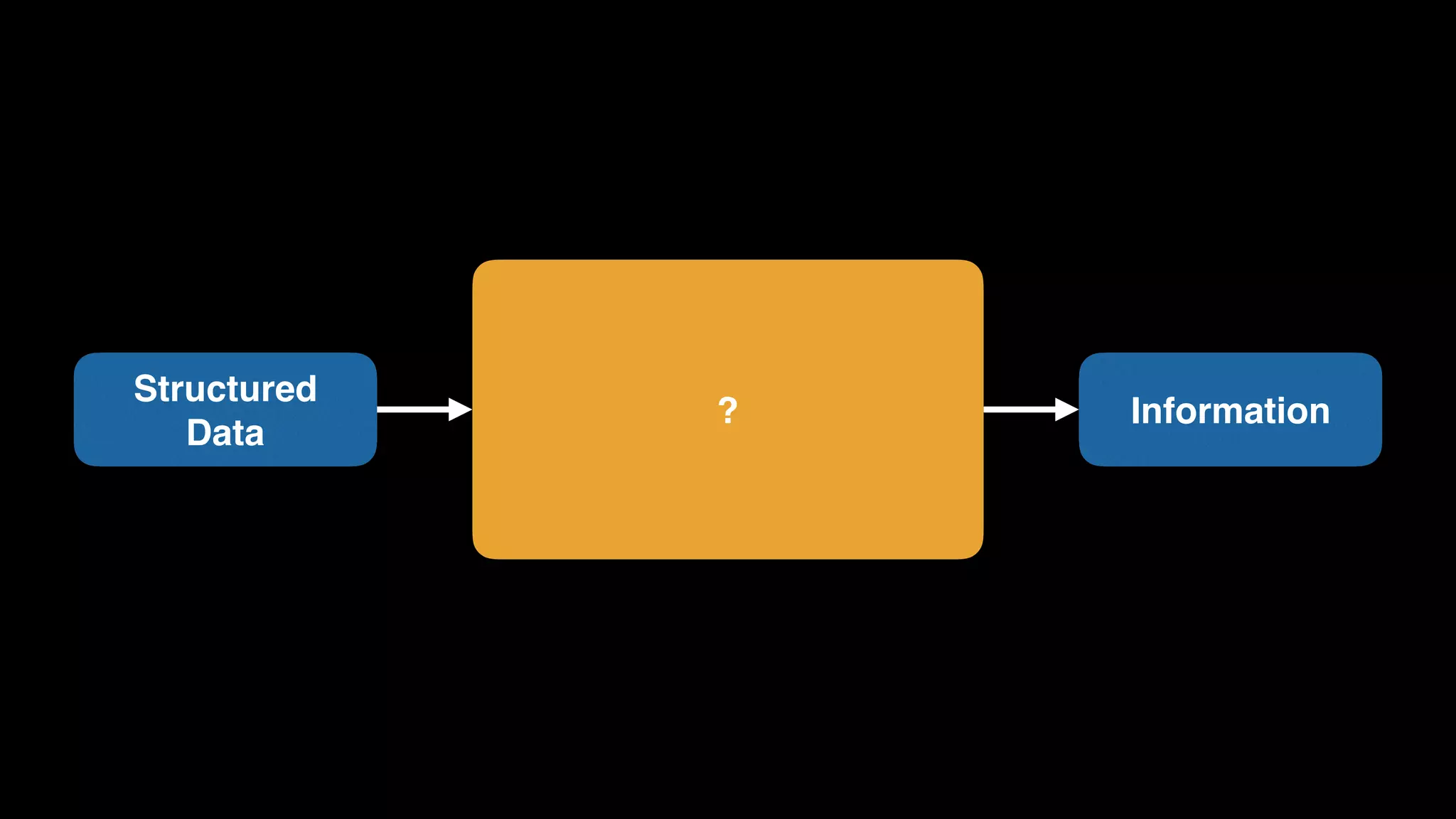

30. ?
Structured
Data
Information

31. Amazon
Redshift
Structured
Data
Information

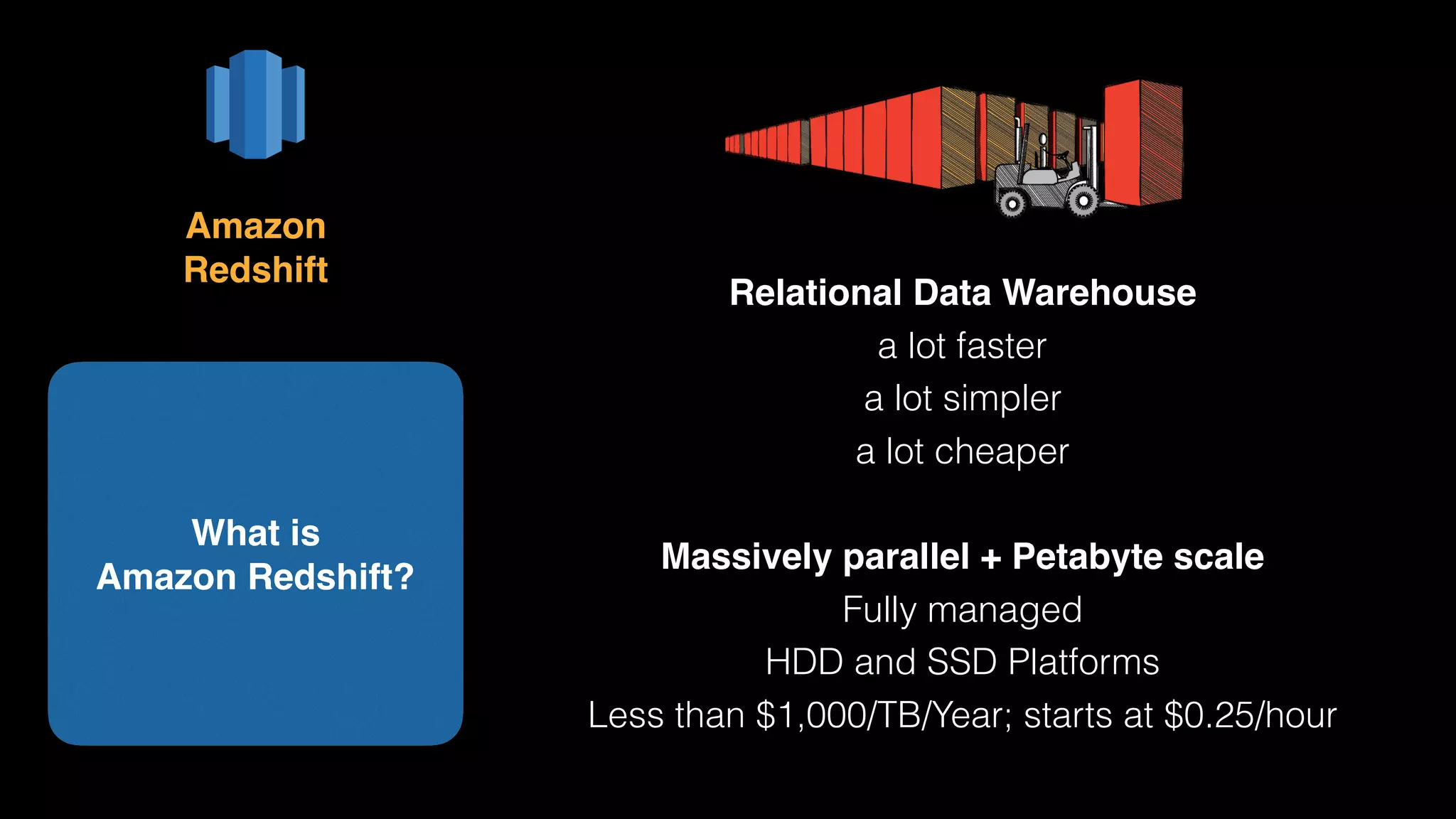

32. Relational Data Warehouse
a lot faster
a lot simpler
a lot cheaper
Massively parallel + Petabyte scale
Fully managed
HDD and SSD Platforms
Less than $1,000/TB/Year; starts at $0.25/hour
What is
Amazon Redshift?
Amazon
Redshift

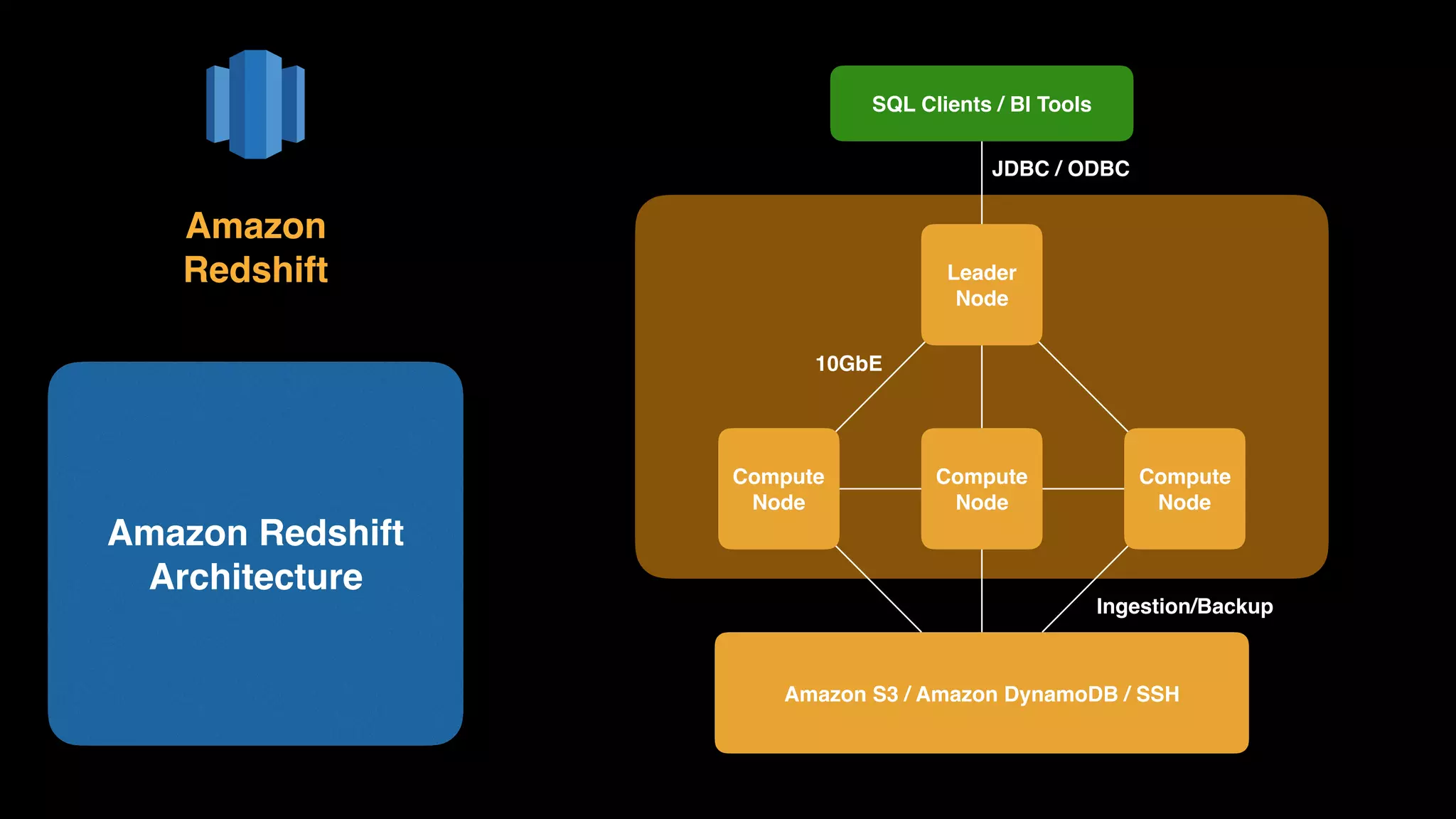

33. Amazon Redshift
Architecture
Amazon
Redshift
Compute
Node
Compute
Node
Compute
Node
Leader
Node
SQL Clients / BI Tools
Amazon S3 / Amazon DynamoDB / SSH
10GbE
Ingestion/Backup
JDBC / ODBC

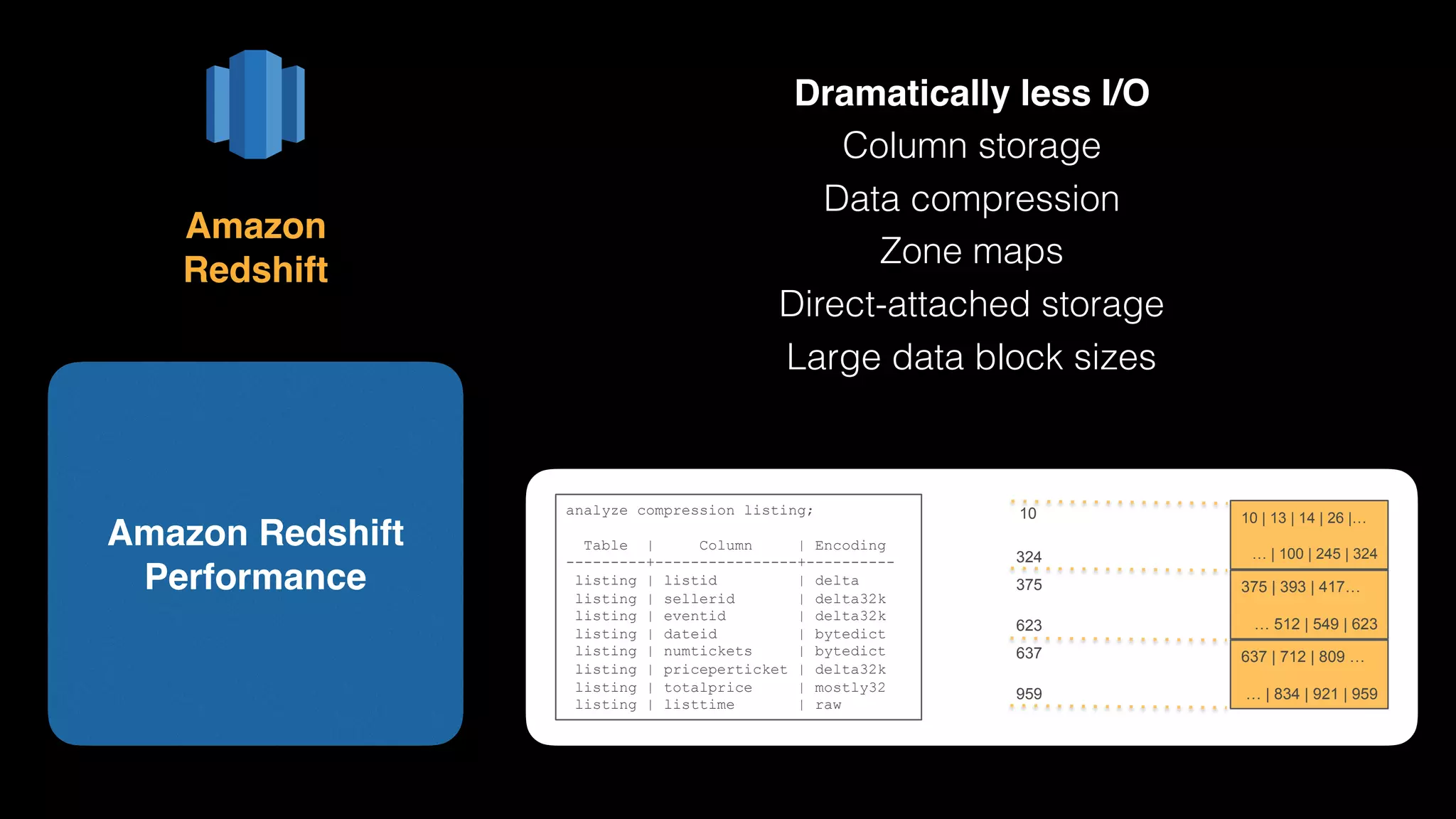

34. Dramatically less I/O
Column storage
Data compression
Zone maps
Direct-attached storage
Large data block sizes
Amazon Redshift
Performance
Amazon
Redshift
analyze compression listing;
Table | Column | Encoding
---------+----------------+----------
listing | listid | delta
listing | sellerid | delta32k
listing | eventid | delta32k
listing | dateid | bytedict
listing | numtickets | bytedict
listing | priceperticket | delta32k
listing | totalprice | mostly32
listing | listtime | raw
10 | 13 | 14 | 26 |…
… | 100 | 245 | 324
375 | 393 | 417…
… 512 | 549 | 623
637 | 712 | 809 …
… | 834 | 921 | 959
10
324
375
623
637
959

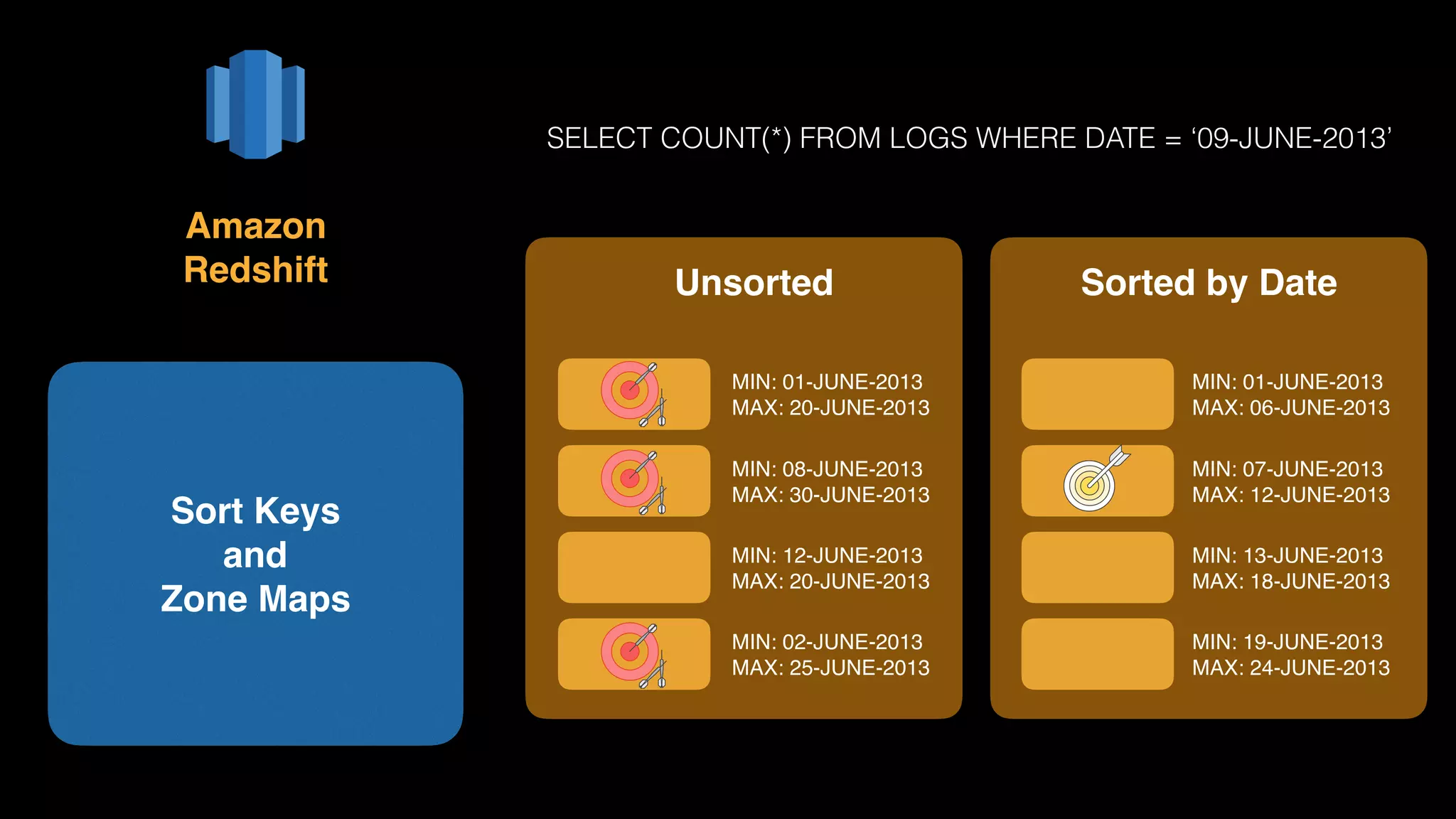

35. Sort Keys
and
Zone Maps
Amazon
Redshift
SELECT COUNT(*) FROM LOGS WHERE DATE = ‘09-JUNE-2013’
Unsorted Sorted by Date
MIN: 01-JUNE-2013
MAX: 20-JUNE-2013
MIN: 08-JUNE-2013
MAX: 30-JUNE-2013
MIN: 12-JUNE-2013
MAX: 20-JUNE-2013
MIN: 02-JUNE-2013
MAX: 25-JUNE-2013
MIN: 01-JUNE-2013
MAX: 06-JUNE-2013
MIN: 07-JUNE-2013
MAX: 12-JUNE-2013
MIN: 13-JUNE-2013
MAX: 18-JUNE-2013
MIN: 19-JUNE-2013
MAX: 24-JUNE-2013

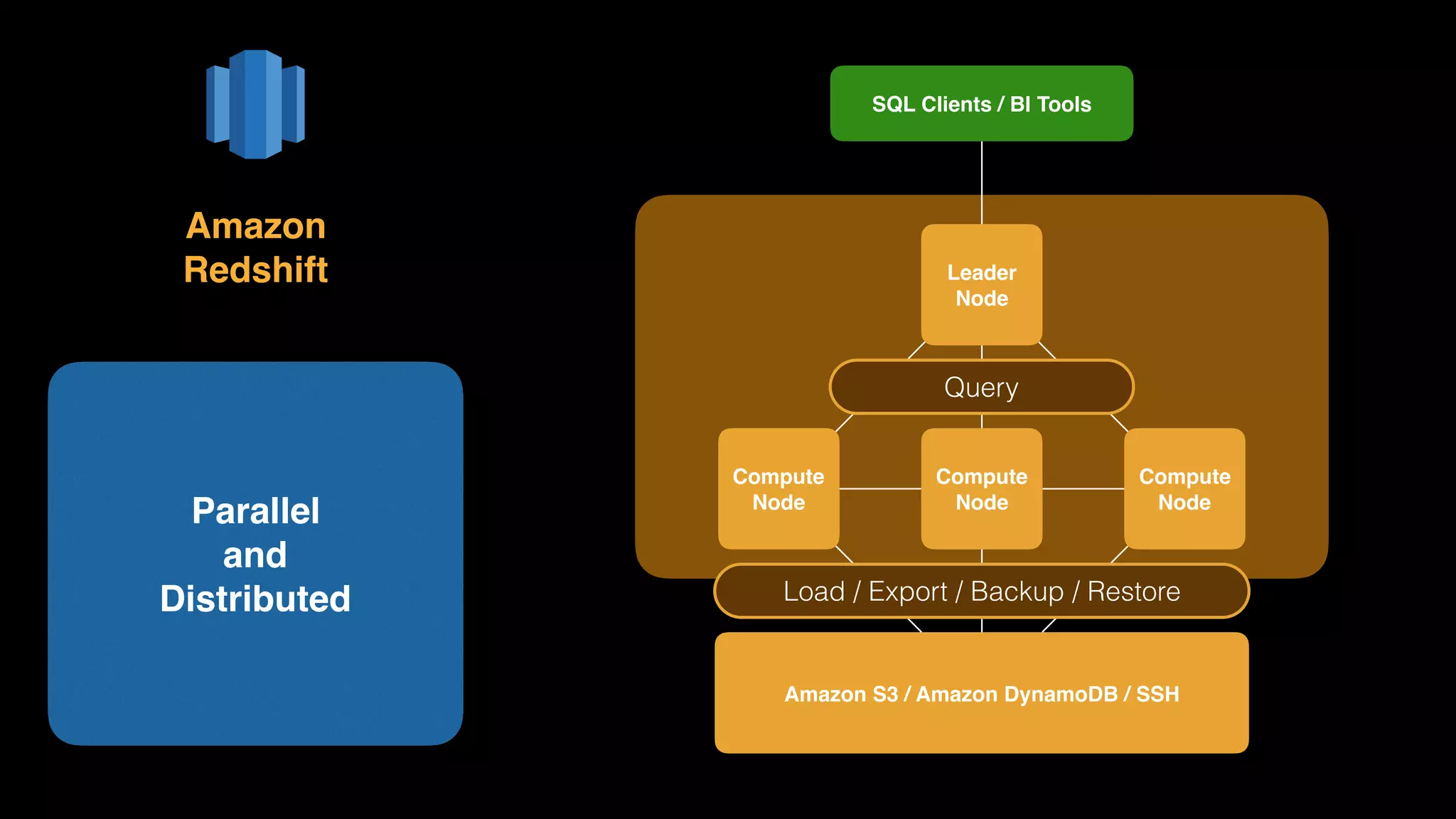

36. Parallel
and
Distributed
Amazon
Redshift
Compute
Node
Compute
Node
Compute
Node
Leader
Node
SQL Clients / BI Tools
Amazon S3 / Amazon DynamoDB / SSH
Query
Load / Export / Backup / Restore

37. Parallel
and
Distributed
Amazon
Redshift
Compute
Node
Compute
Node
Compute
Node
Leader
Node
SQL Clients / BI Tools
Amazon S3 / Amazon DynamoDB / SSH
Compute
Node
Query
Load / Export / Backup / Restore
Resize

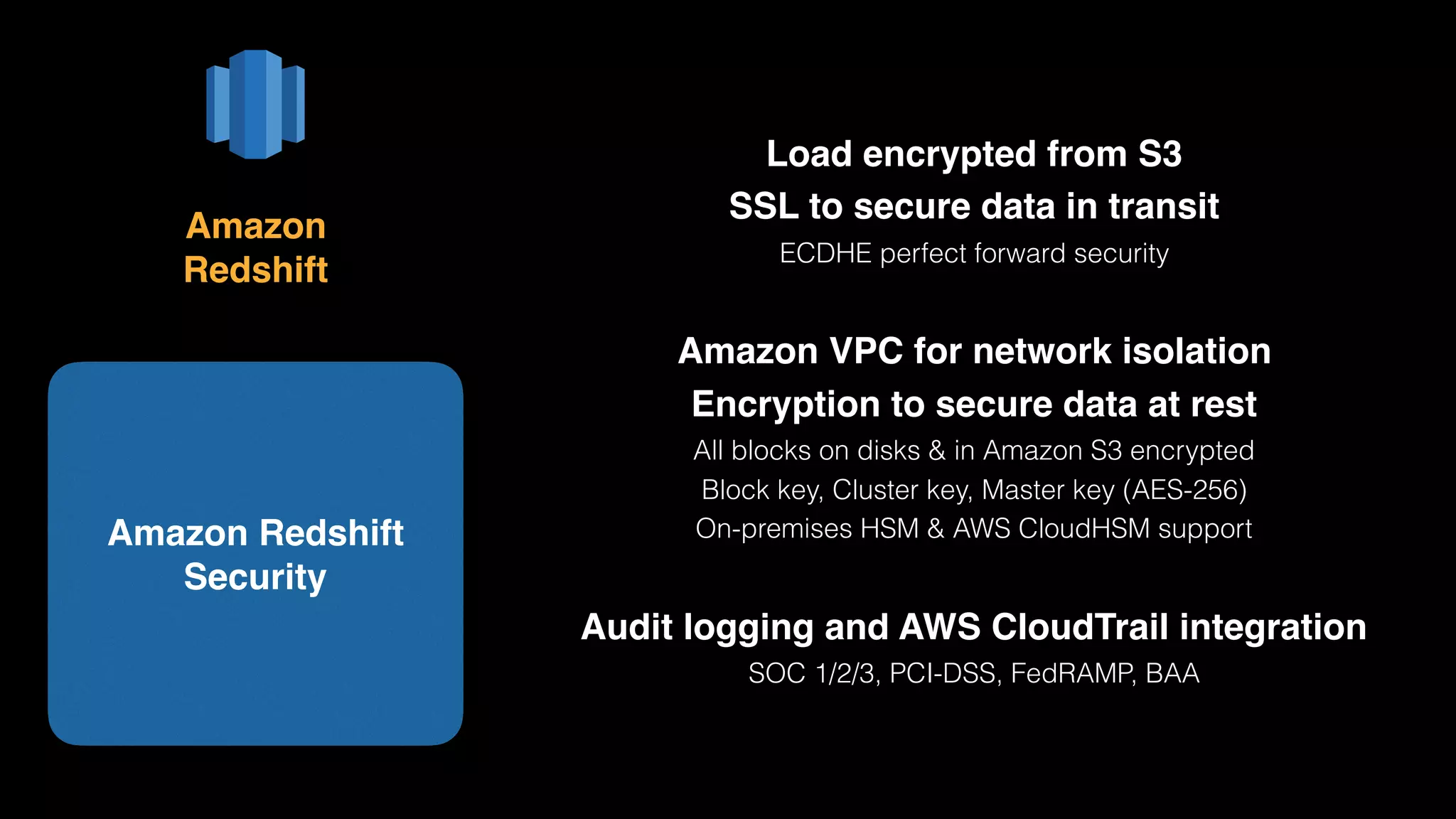

38. Load encrypted from S3
SSL to secure data in transit
ECDHE perfect forward security
Amazon VPC for network isolation
Encryption to secure data at rest
All blocks on disks & in Amazon S3 encrypted
Block key, Cluster key, Master key (AES-256)
On-premises HSM & AWS CloudHSM support
Audit logging and AWS CloudTrail integration
SOC 1/2/3, PCI-DSS, FedRAMP, BAA
Amazon Redshift
Security
Amazon
Redshift

39. Amazon Redshift
Innovation
Amazon
Redshift
Service Launch (2/14)
PDX (4/2)
Temp Credentials (4/11)
DUB (4/25)
SOC1/2/3 (5/8)
Unload Encrypted Files
NRT (6/5)
JDBC Fetch Size (6/27)
Unload logs (7/5)
SHA1 Builtin (7/15)
4 byte UTF-8 (7/18)
Sharing snapshots (7/18)
Statement Timeout (7/22)
Timezone, Epoch, Autoformat (7/25)
WLM Timeout/Wildcards (8/1)
CRC32 Builtin, CSV, Restore Progress
(8/9)
Resource Level IAM (8/9)
PCI (8/22)
UTF-8 Substitution (8/29)
JSON, Regex, Cursors (9/10)
Split_part, Audit tables (10/3)
SIN/SYD (10/8)
HSM Support (11/11)
Kinesis EMR/HDFS/SSH copy, Distributed
Tables, Audit Logging/CloudTrail,
Concurrency, Resize Perf., Approximate
Count Distinct, SNS Alerts, Cross Region
Backup (11/13)
Distributed Tables, Single Node Cursor
Support, Maximum Connections to 500
(12/13)
EIP Support for VPC Clusters (12/28)
New query monitoring system tables and
diststyle all (1/13)
Redshift on DW2 (SSD) Nodes (1/23)
Compression for COPY from SSH, Fetch
size support for single node clusters, new
system tables with commit stats,
row_number(), strotol() and query
termination (2/13)
Resize progress indicator & Cluster
Version (3/21)
Regex_Substr, COPY from JSON (3/25)
50 slots, COPY from EMR, ECDHE
ciphers (4/22)
3 new regex features, Unload to single
file, FedRAMP(5/6)
Rename Cluster (6/2)
Copy from multiple regions,
percentile_cont, percentile_disc (6/30)
Free Trial (7/1)
pg_last_unload_count (9/15)
AES-128 S3 encryption (9/29)
UTF-16 support (9/29)
Well over 100 new features added since launch
Release every two weeks
Automatic patching

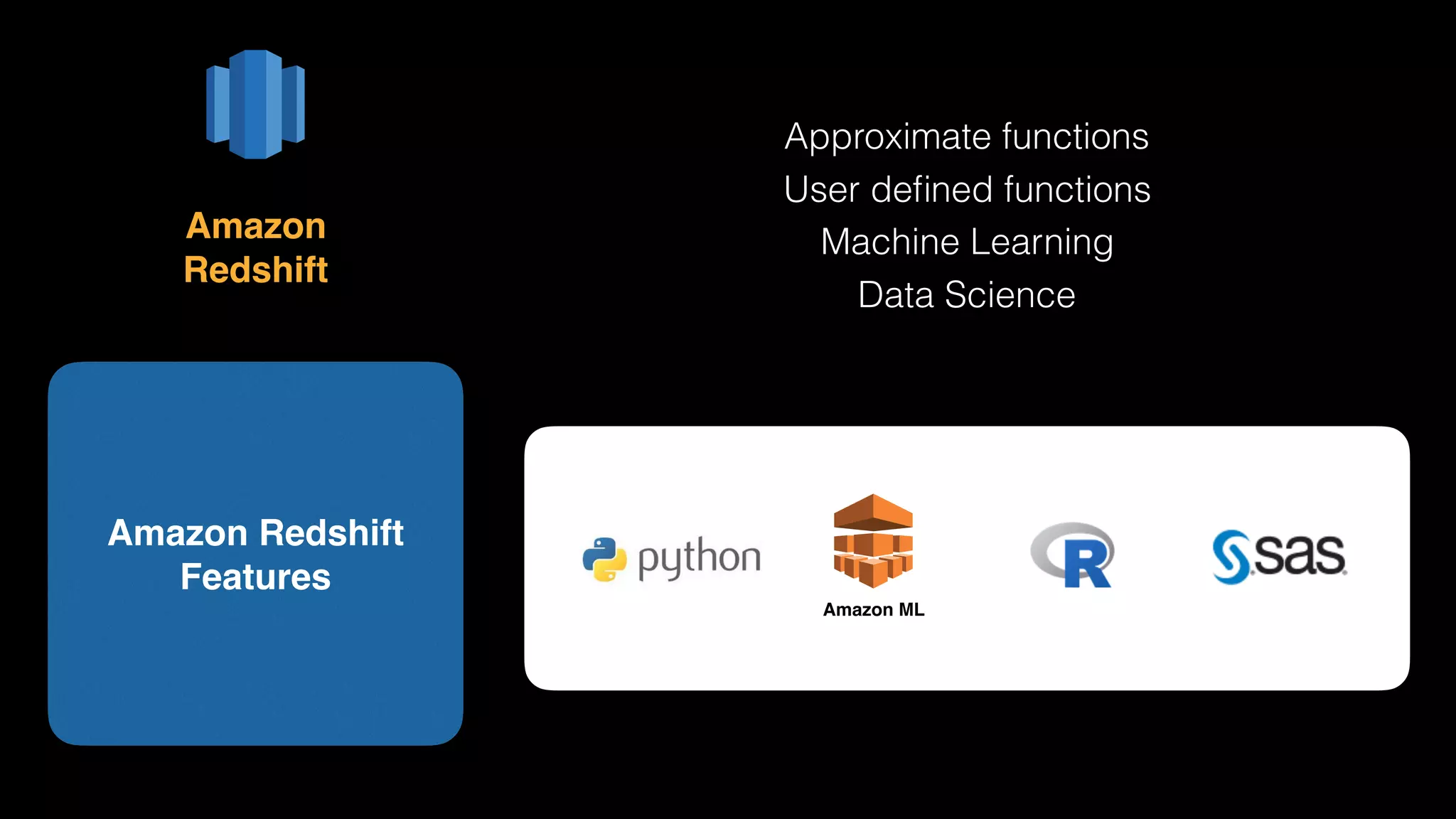

40. Amazon Redshift
Features
Amazon
Redshift
Approximate functions
User defined functions

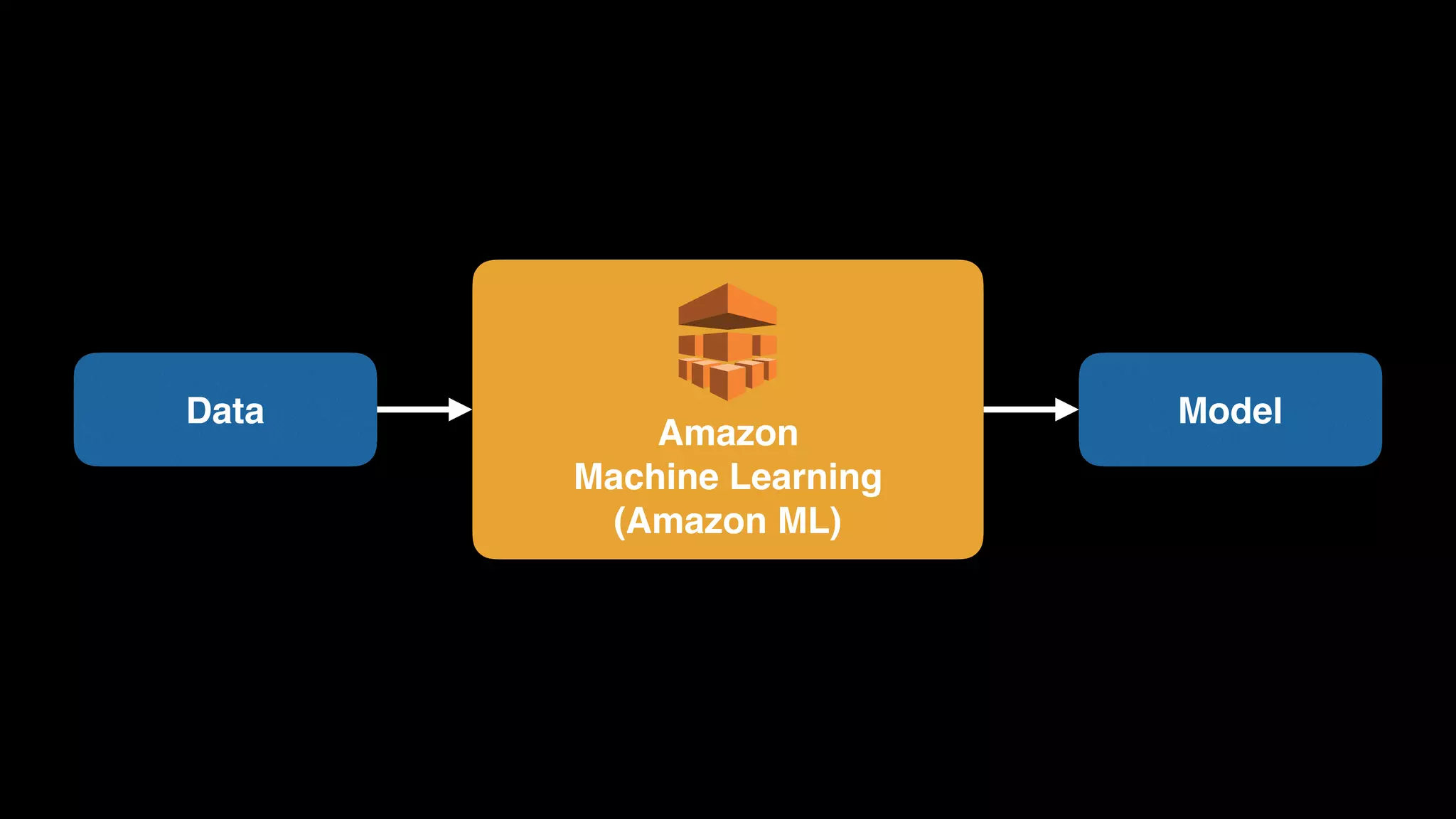

Machine Learning
Data Science
Amazon ML

41. Amazon Redshift
Ecosystem
Amazon
Redshift
Data Integration Systems IntegratorsBusiness Intelligence

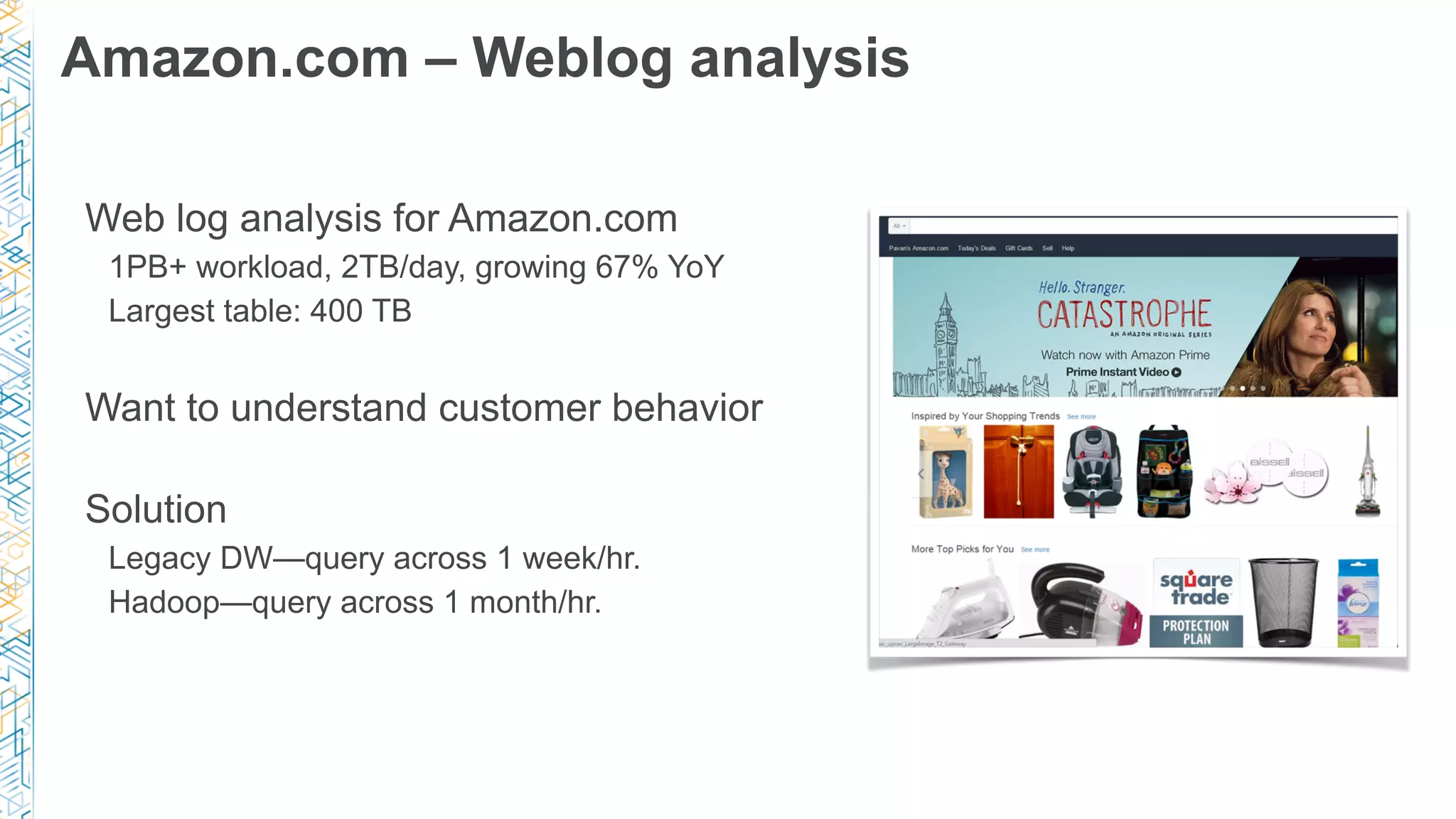

42. Amazon.com – Weblog analysis
Web log analysis for Amazon.com
1PB+ workload, 2TB/day, growing 67% YoY
Largest table: 400 TB
Want to understand customer behavior
Solution
Legacy DW—query across 1 week/hr.
Hadoop—query across 1 month/hr.

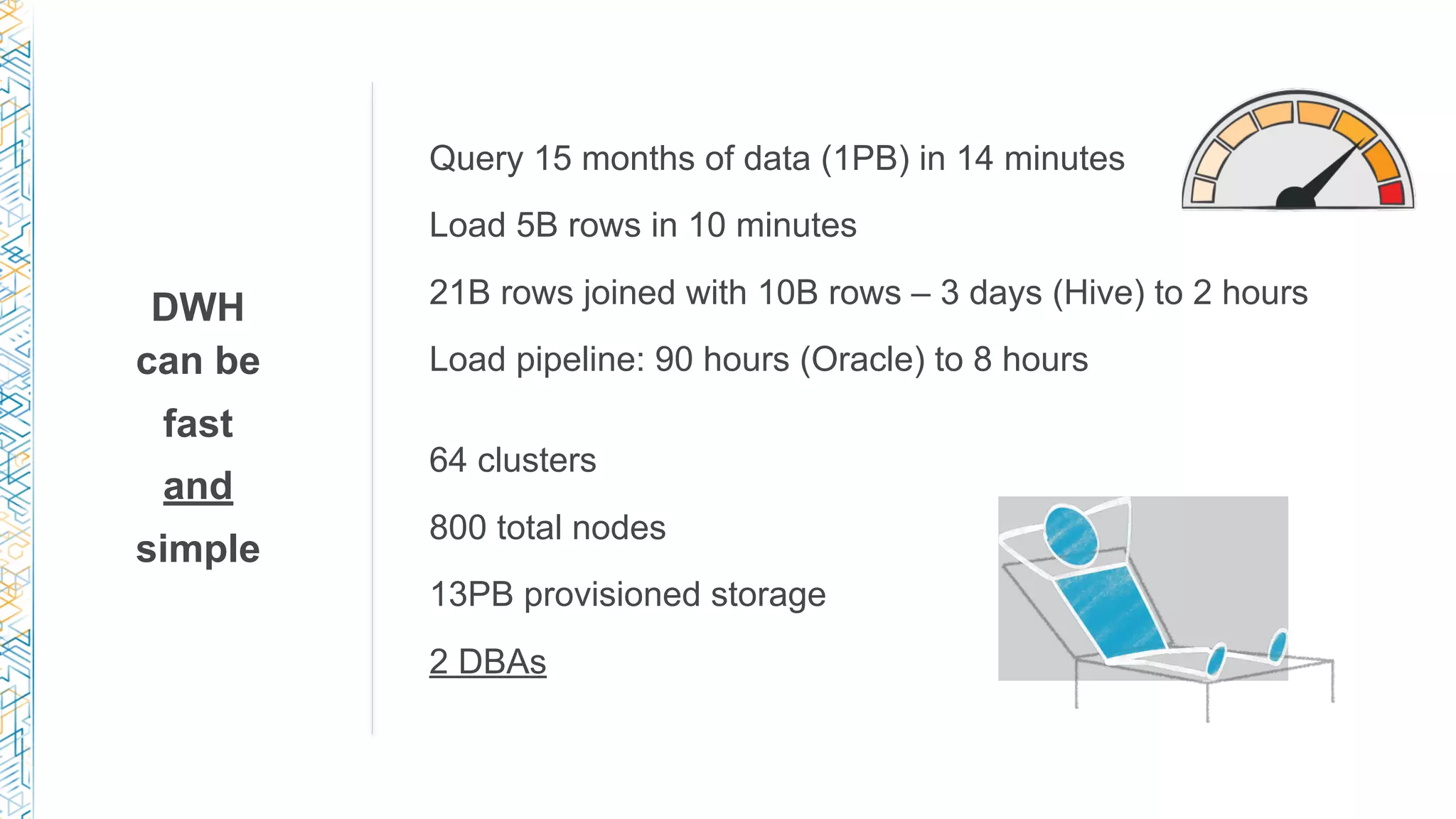

43. Query 15 months of data (1PB) in 14 minutes
Load 5B rows in 10 minutes
21B rows joined with 10B rows – 3 days (Hive) to 2 hours
Load pipeline: 90 hours (Oracle) to 8 hours
64 clusters
800 total nodes
13PB provisioned storage
2 DBAs
DWH
can be
fast
and
simple

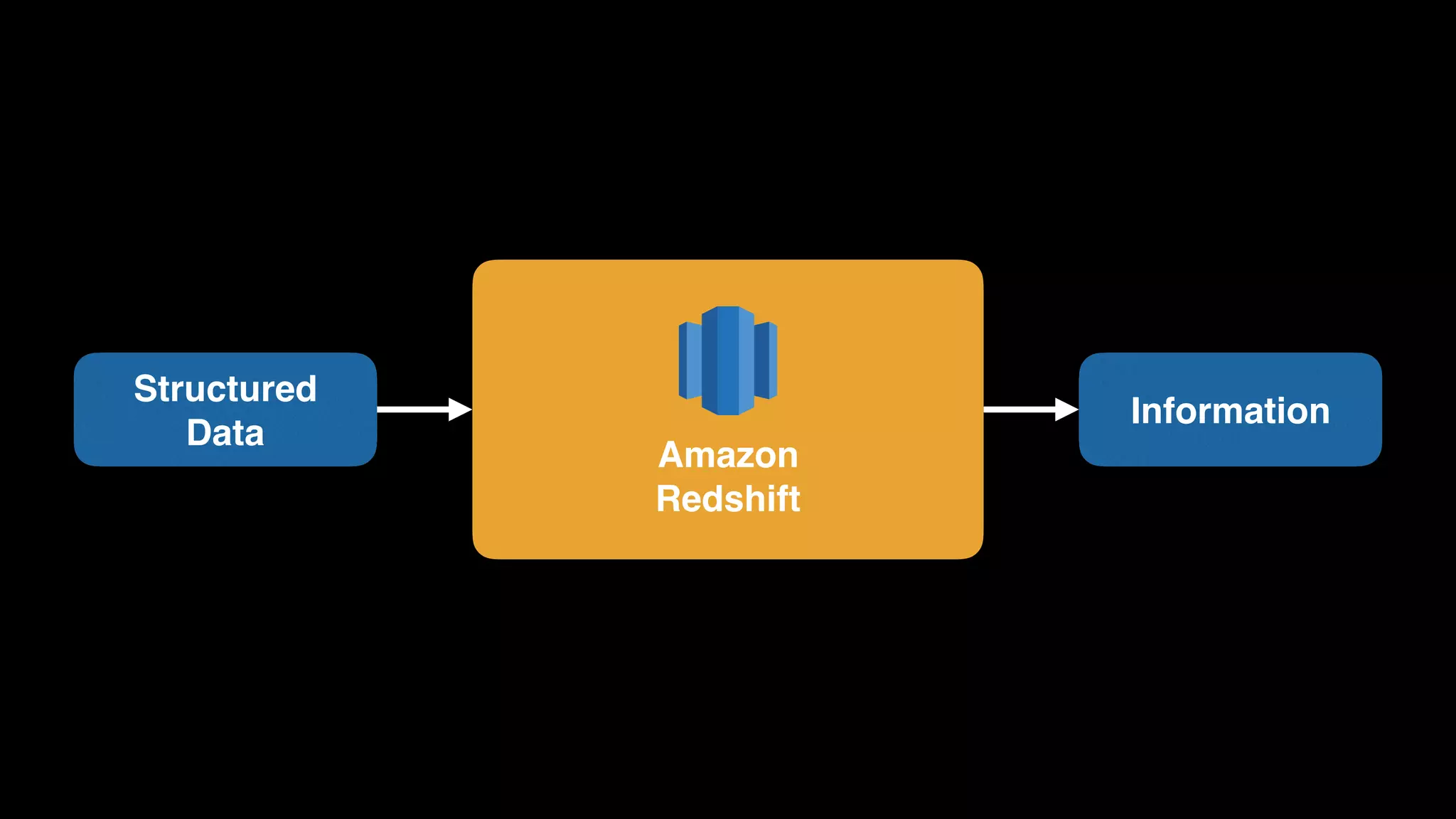

44. Amazon
Redshift
Structured
Data
Information

45. Real-Time Data

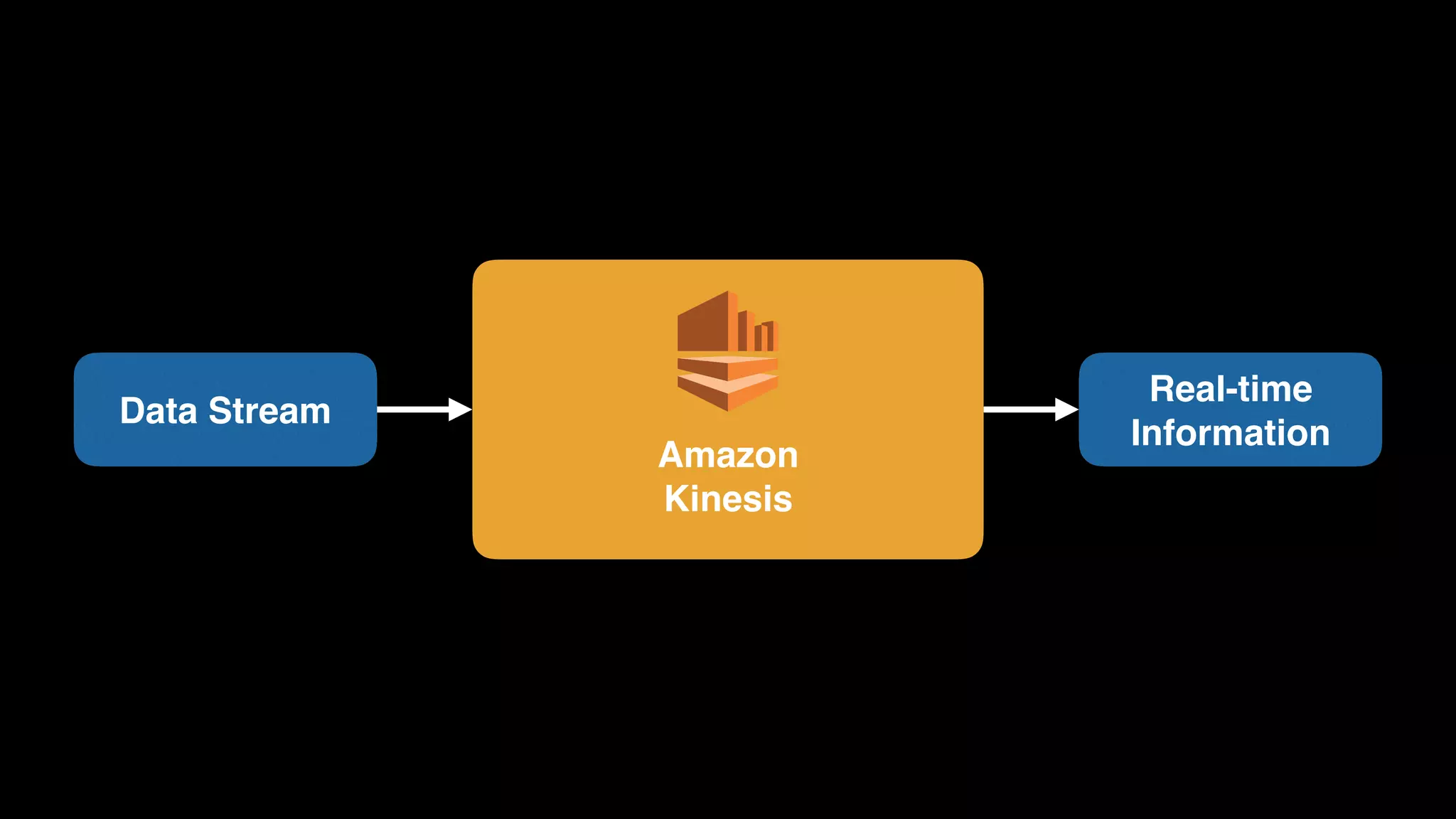

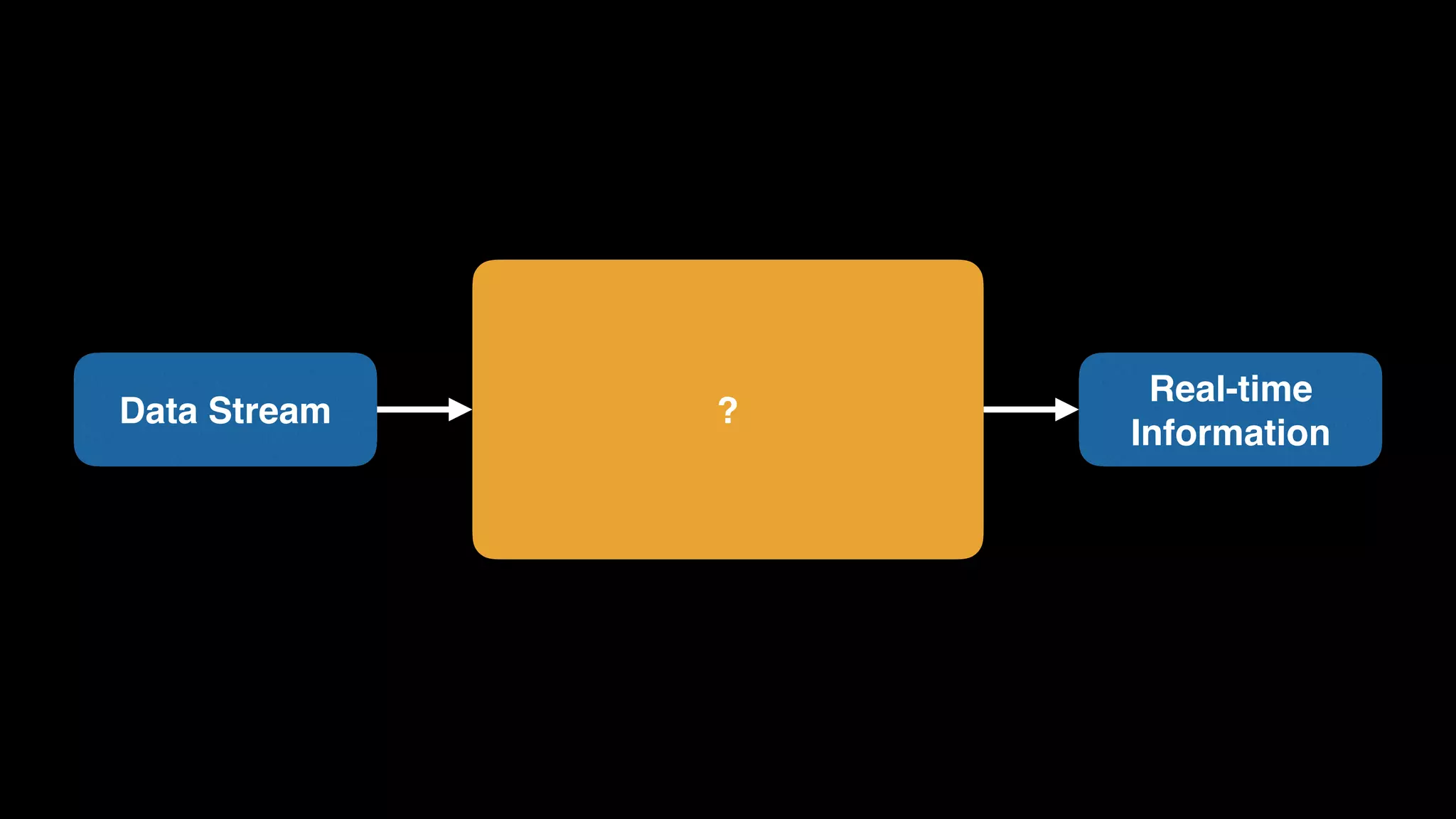

46. ?Data Stream
Real-time
Information

47. Amazon
Kinesis
Data Stream
Real-time
Information

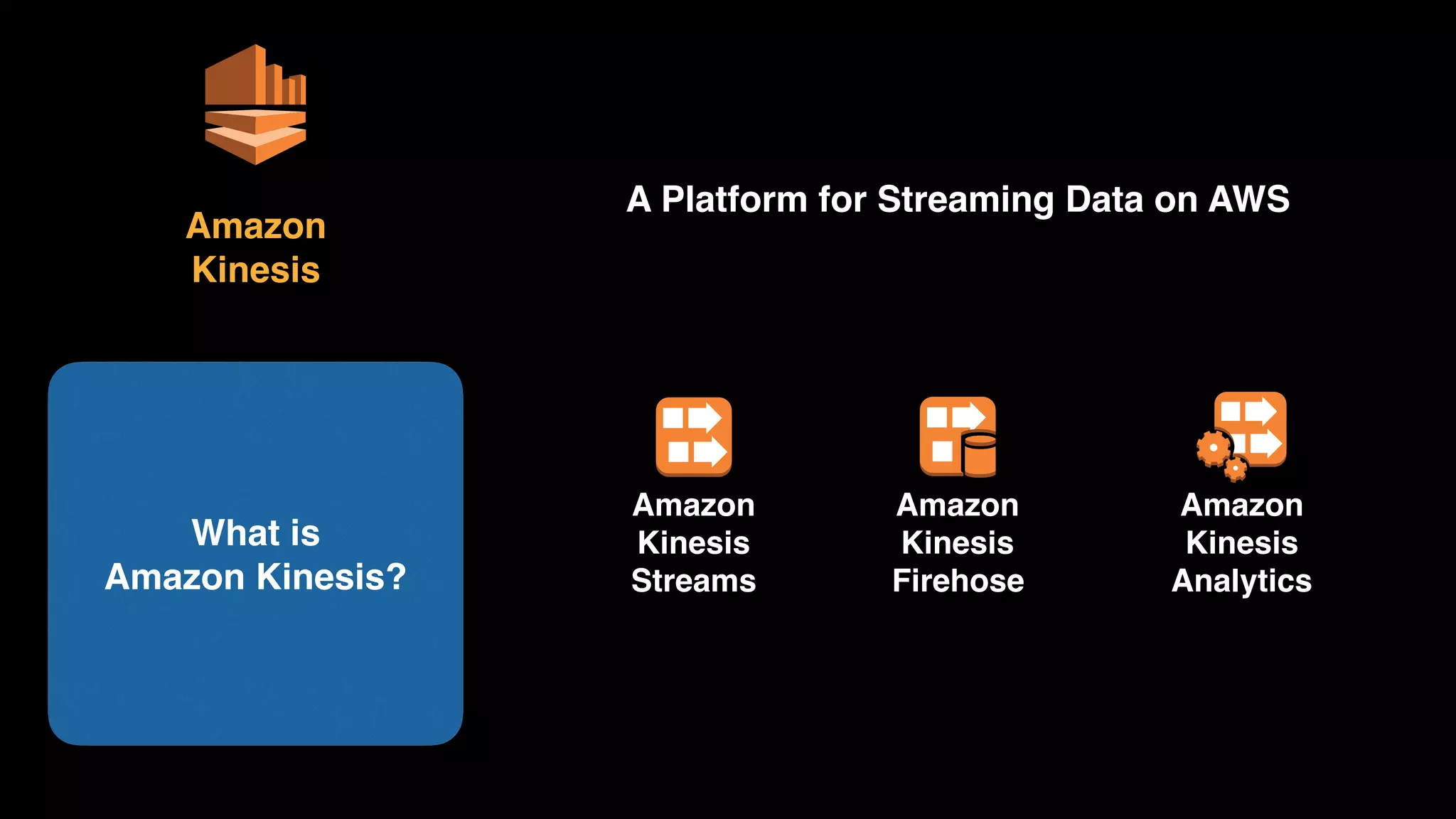

48. A Platform for Streaming Data on AWS
What is
Amazon Kinesis?
Amazon
Kinesis
Amazon
Kinesis
Streams
Amazon
Kinesis
Firehose
Amazon
Kinesis
Analytics

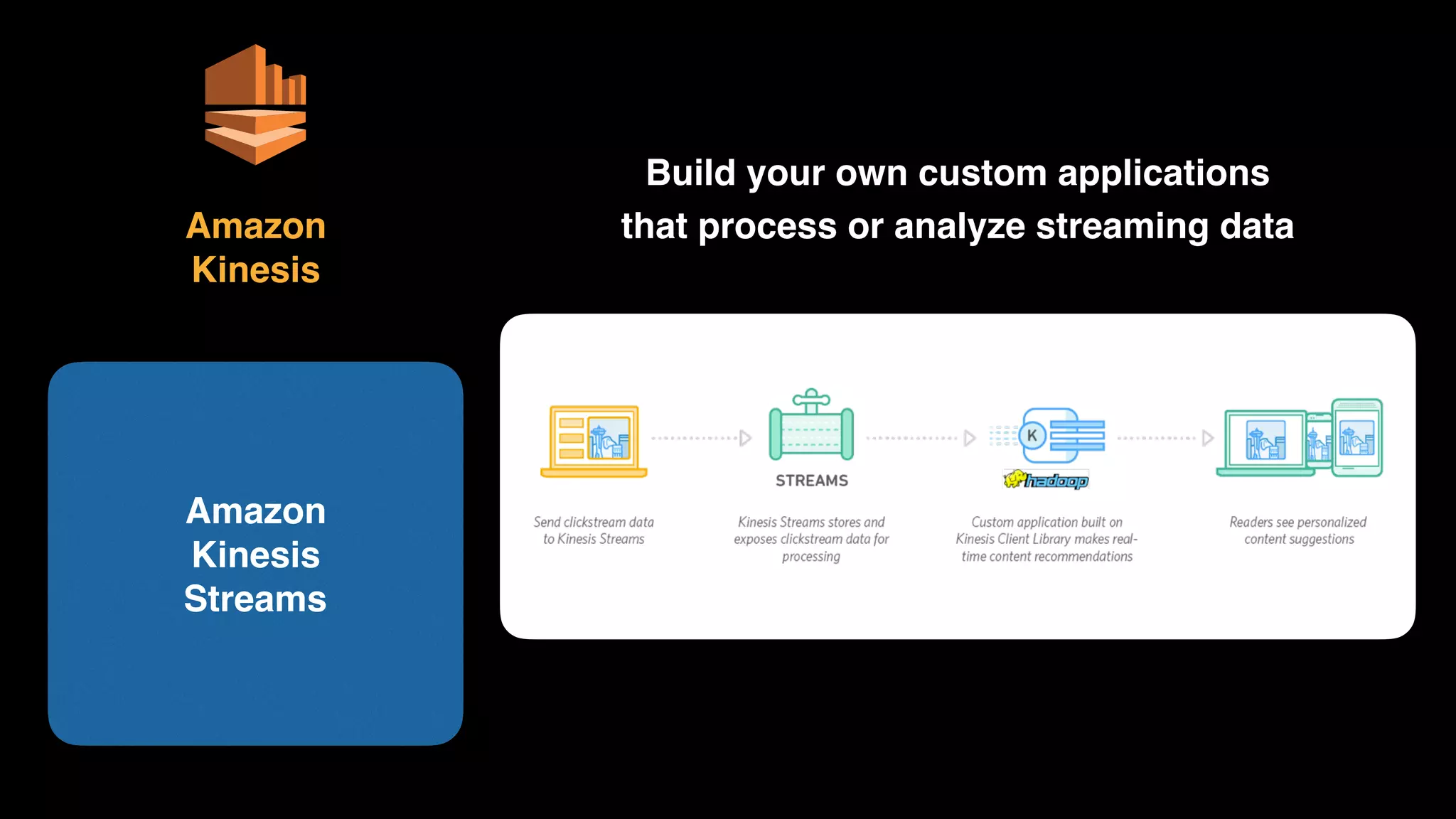

49. Amazon
Kinesis
Streams
Amazon
Kinesis
Build your own custom applications
that process or analyze streaming data

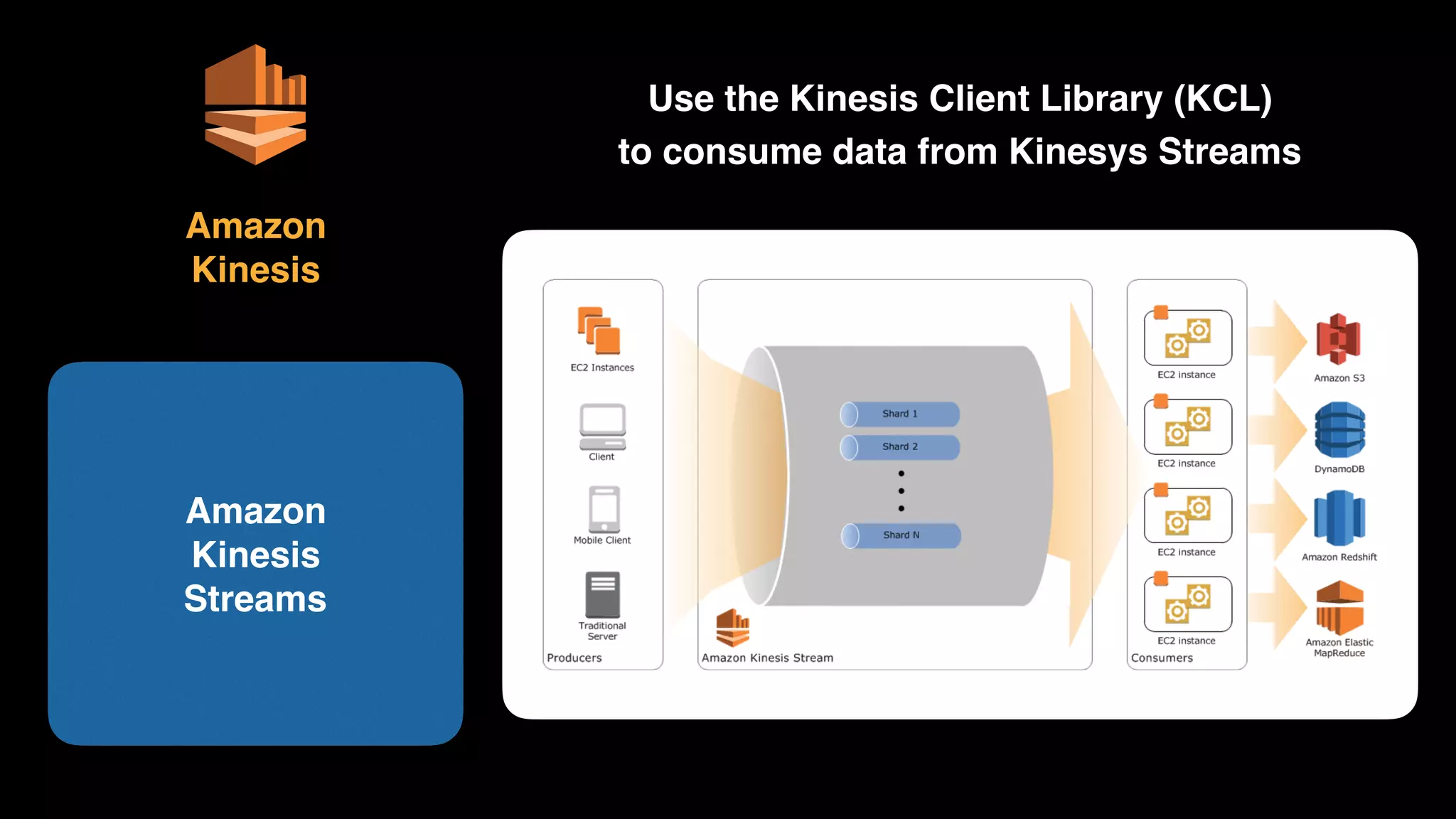

50. Amazon
Kinesis
Streams
Amazon
Kinesis
Use the Kinesis Client Library (KCL)
to consume data from Kinesys Streams

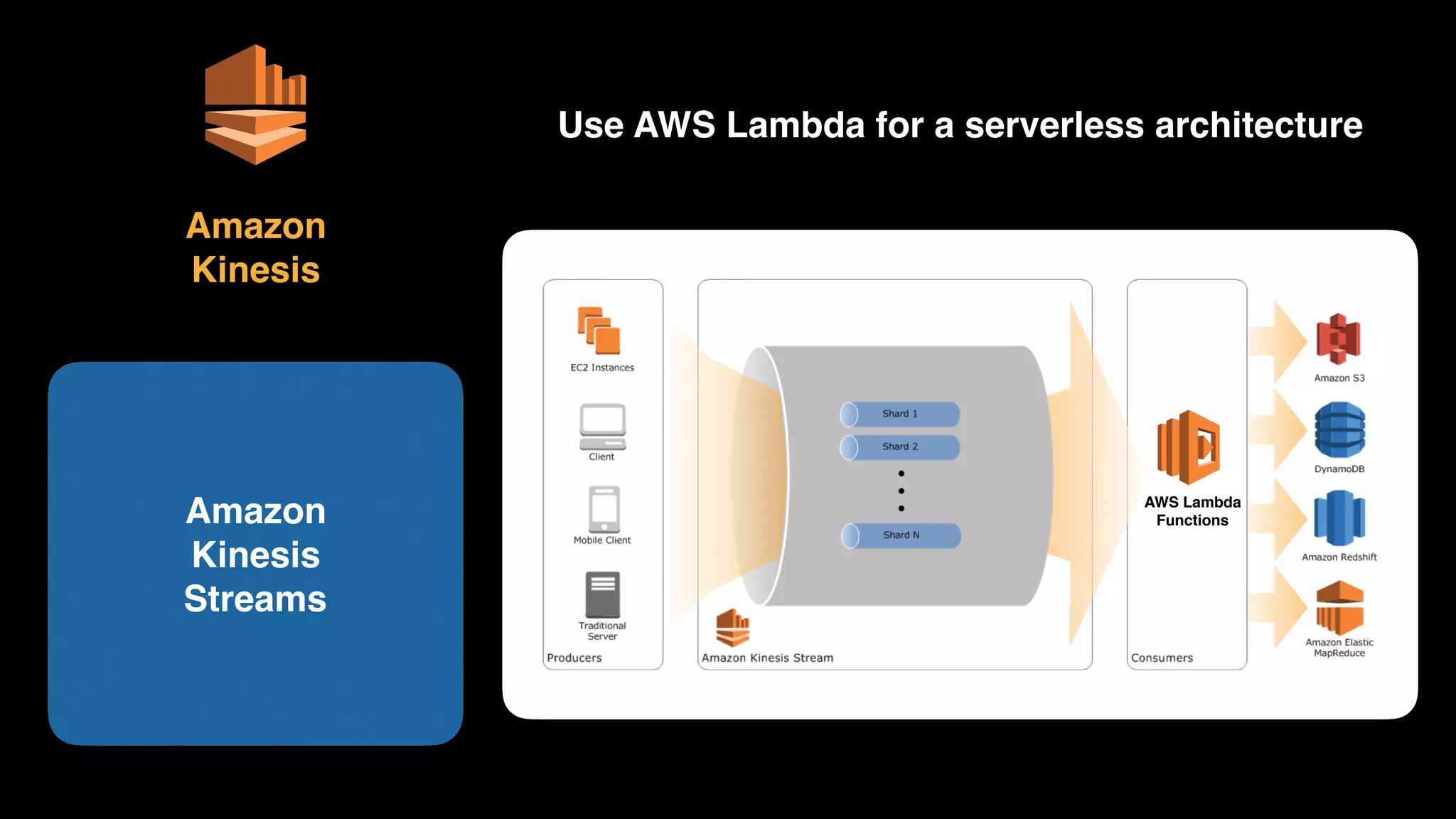

51. Amazon
Kinesis
Streams
Amazon
Kinesis
AWS Lambda
Functions
Use AWS Lambda for a serverless architecture

52. Amazon
Kinesis
Streams
Amazon
Kinesis
Low latency I/O
Configurable retention period from 1 to 7 days
The maximum size of a data blob is up to 1 MB
Each shard can support:
up to 5 transactions / second and
up to 2 MB / second for reads
up to 1,000 records / second and
up to 1 MB / second for writes

53. Amazon
Kinesis
Firehose
Amazon
Kinesis
Easily load massive volumes
of streaming data into AWS

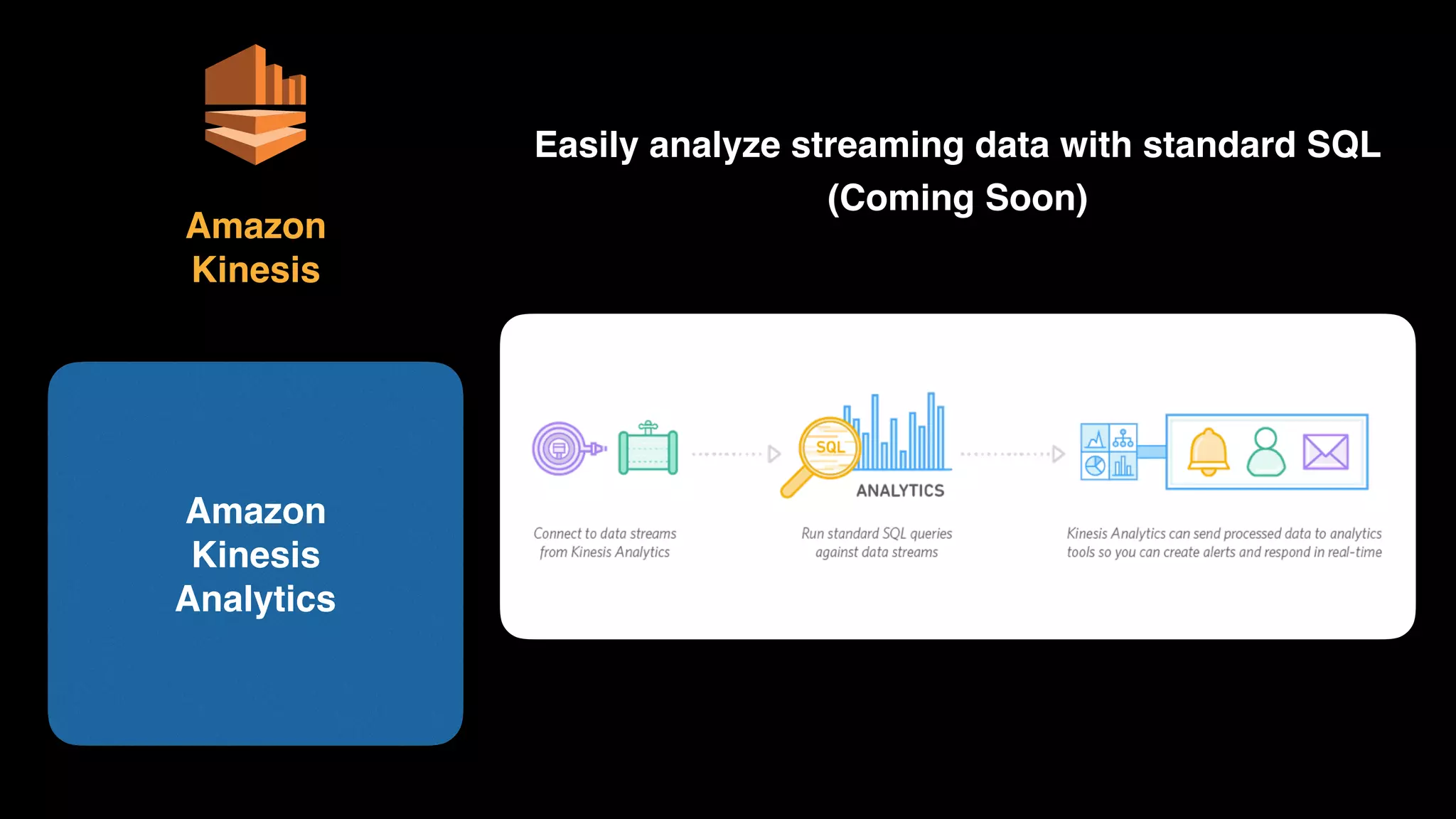

54. Amazon
Kinesis
Analytics
Amazon
Kinesis
Easily analyze streaming data with standard SQL
(Coming Soon)

55. Amazon
Kinesis
Data Stream
Real-time
Information

56. Internet of Things

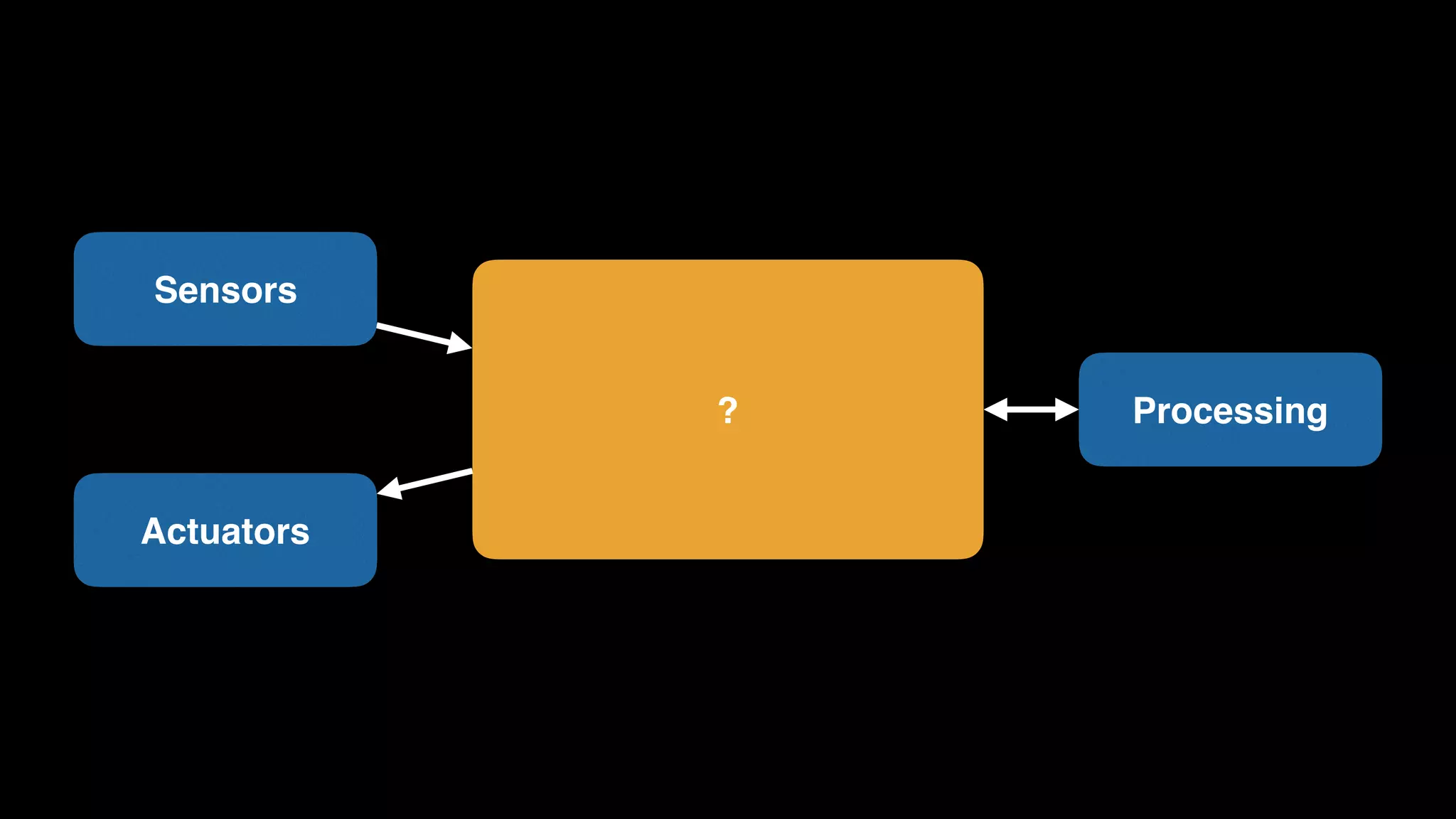

57. ? Processing
Actuators
Sensors

58. AWS IoT
Processing
Actuators
Sensors

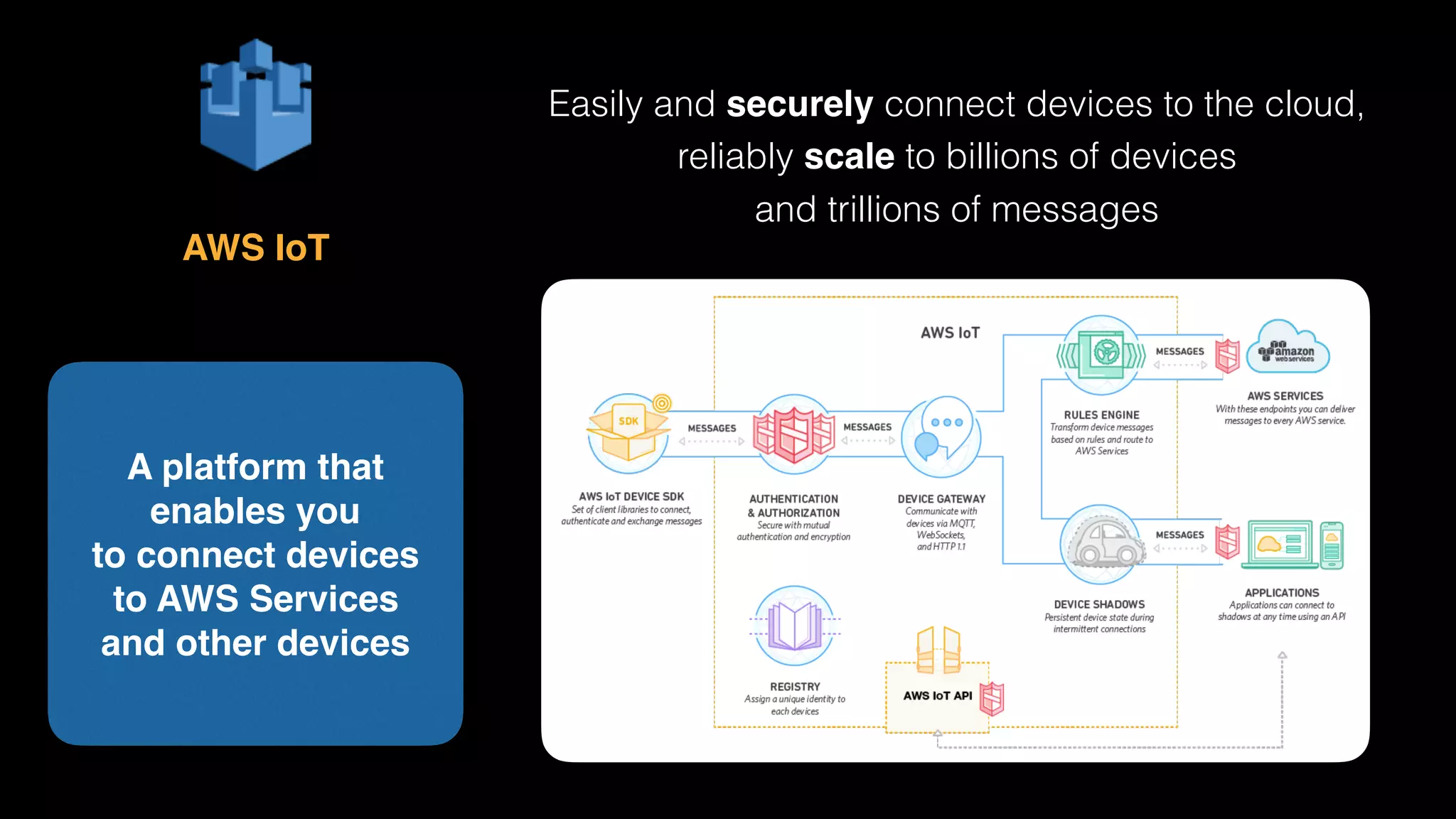

59. A platform that
enables you
to connect devices
to AWS Services
and other devices
AWS IoT
Easily and securely connect devices to the cloud,
reliably scale to billions of devices
and trillions of messages

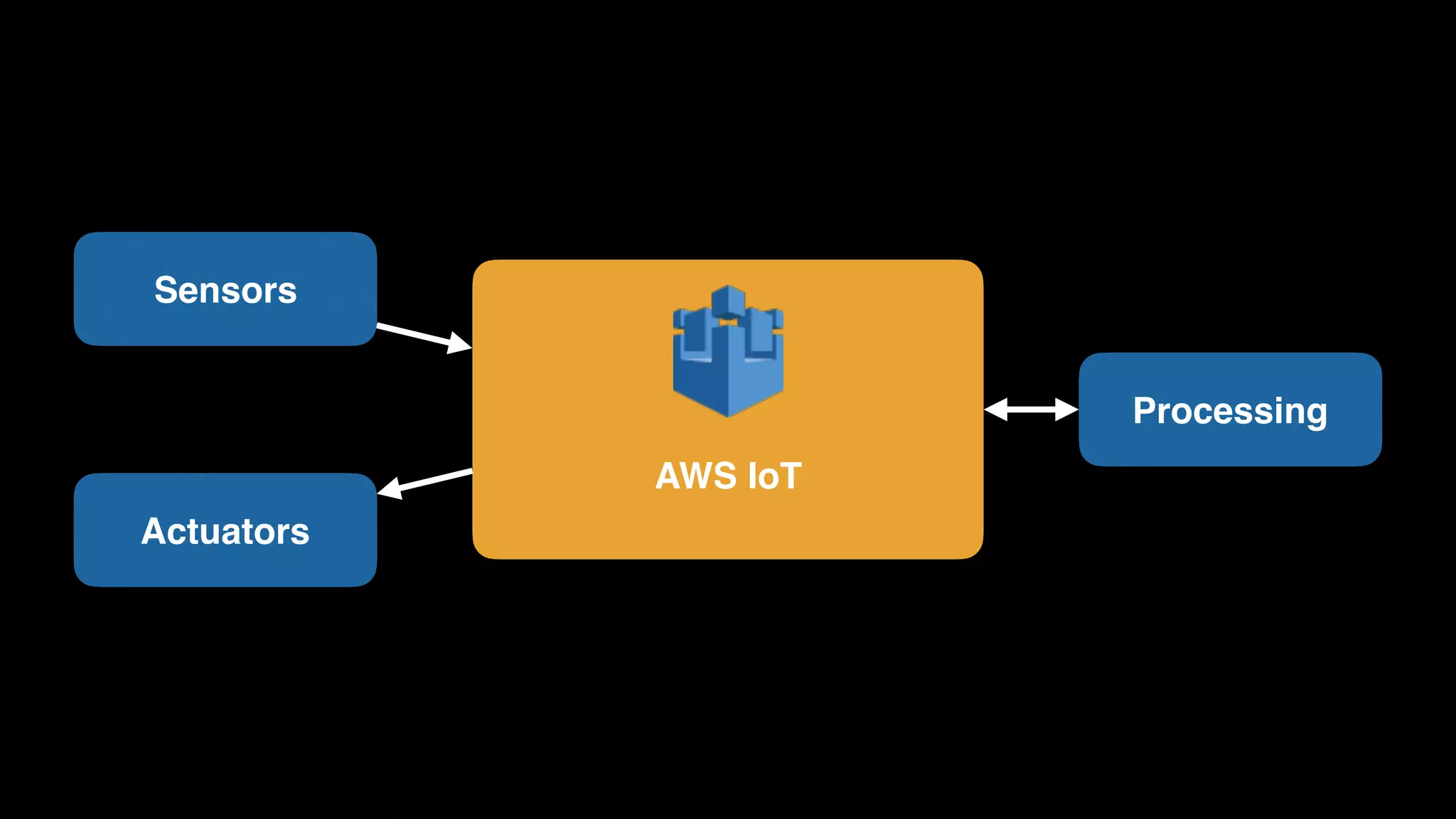

60. AWS IoT
Processing
Actuators
Sensors

61. Learning from Data

62. Data Visualization

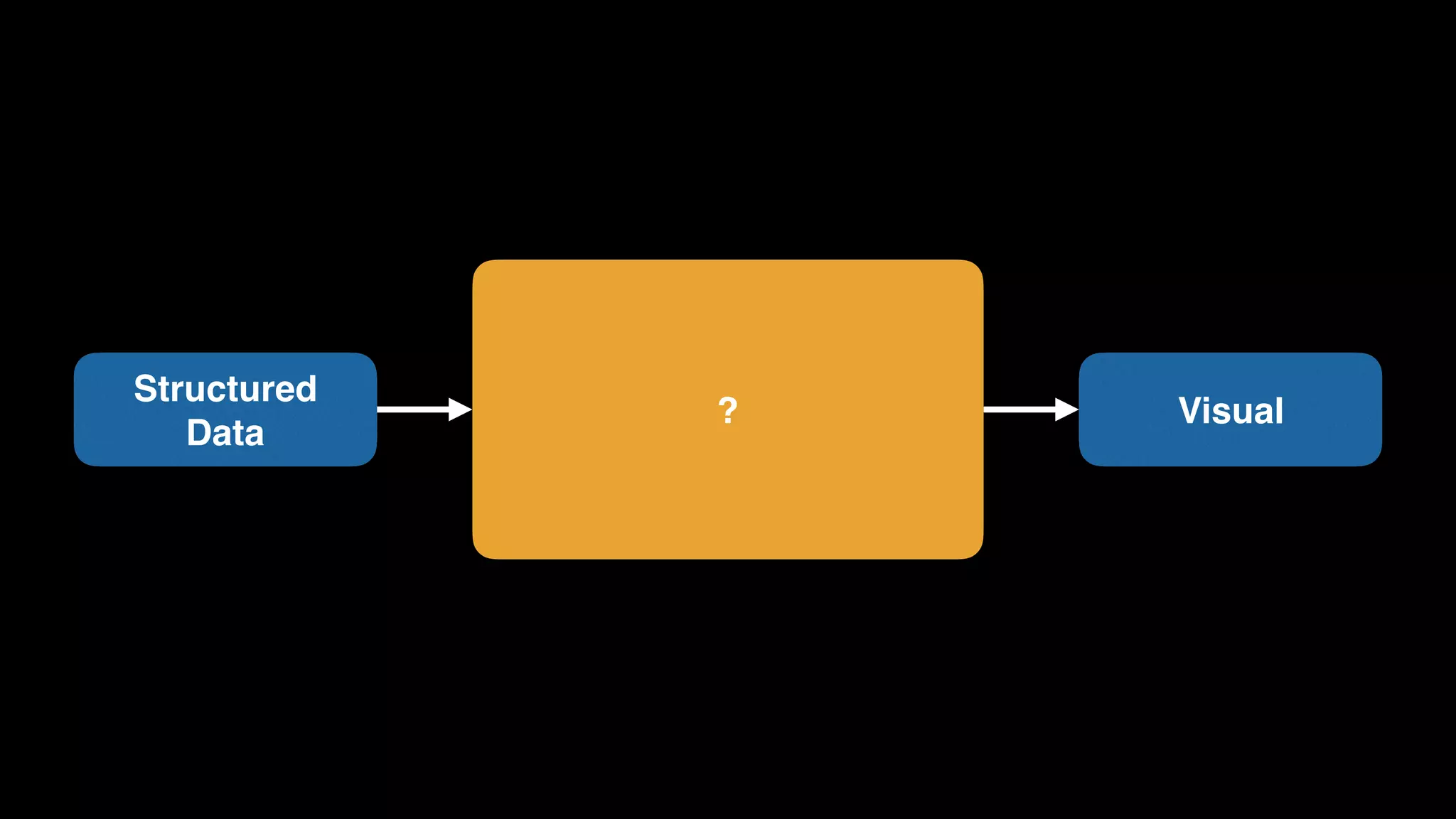

63. ?
Structured
Data
Visual

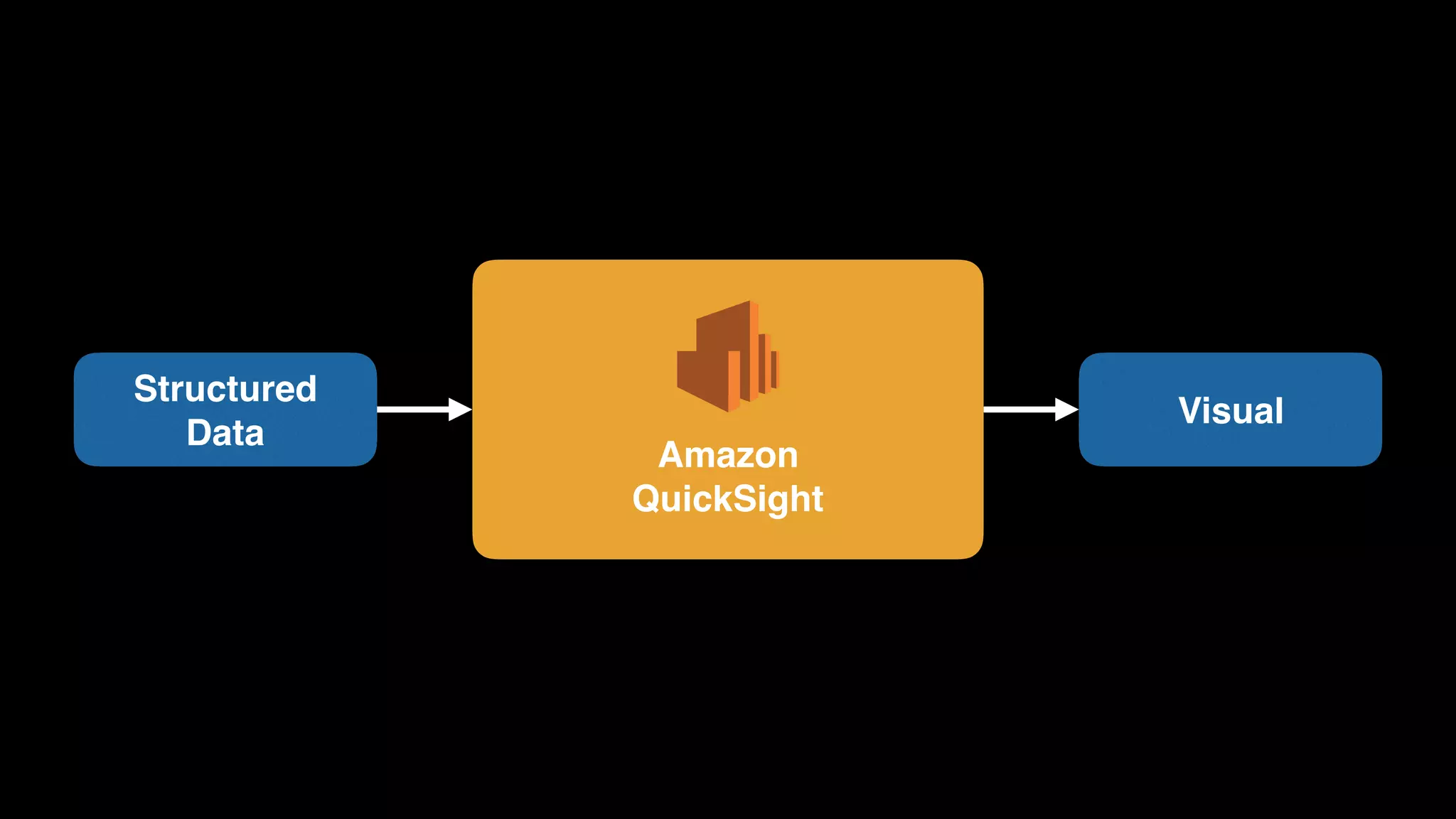

64. Amazon
QuickSight
Structured
Data

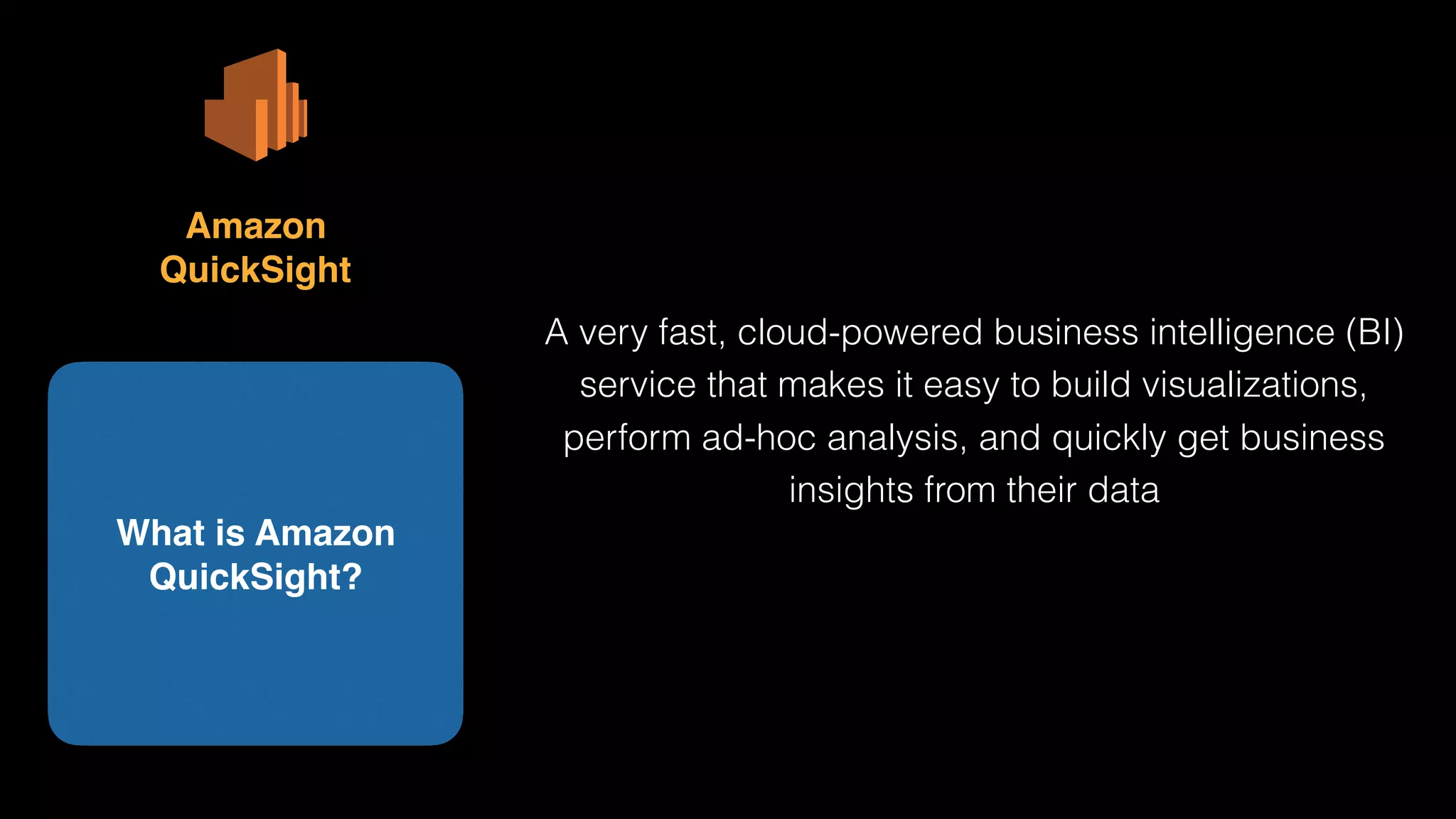

Visual

65. A very fast, cloud-powered business intelligence (BI)
service that makes it easy to build visualizations,
perform ad-hoc analysis, and quickly get business
insights from their data
What is Amazon
QuickSight?
Amazon
QuickSight

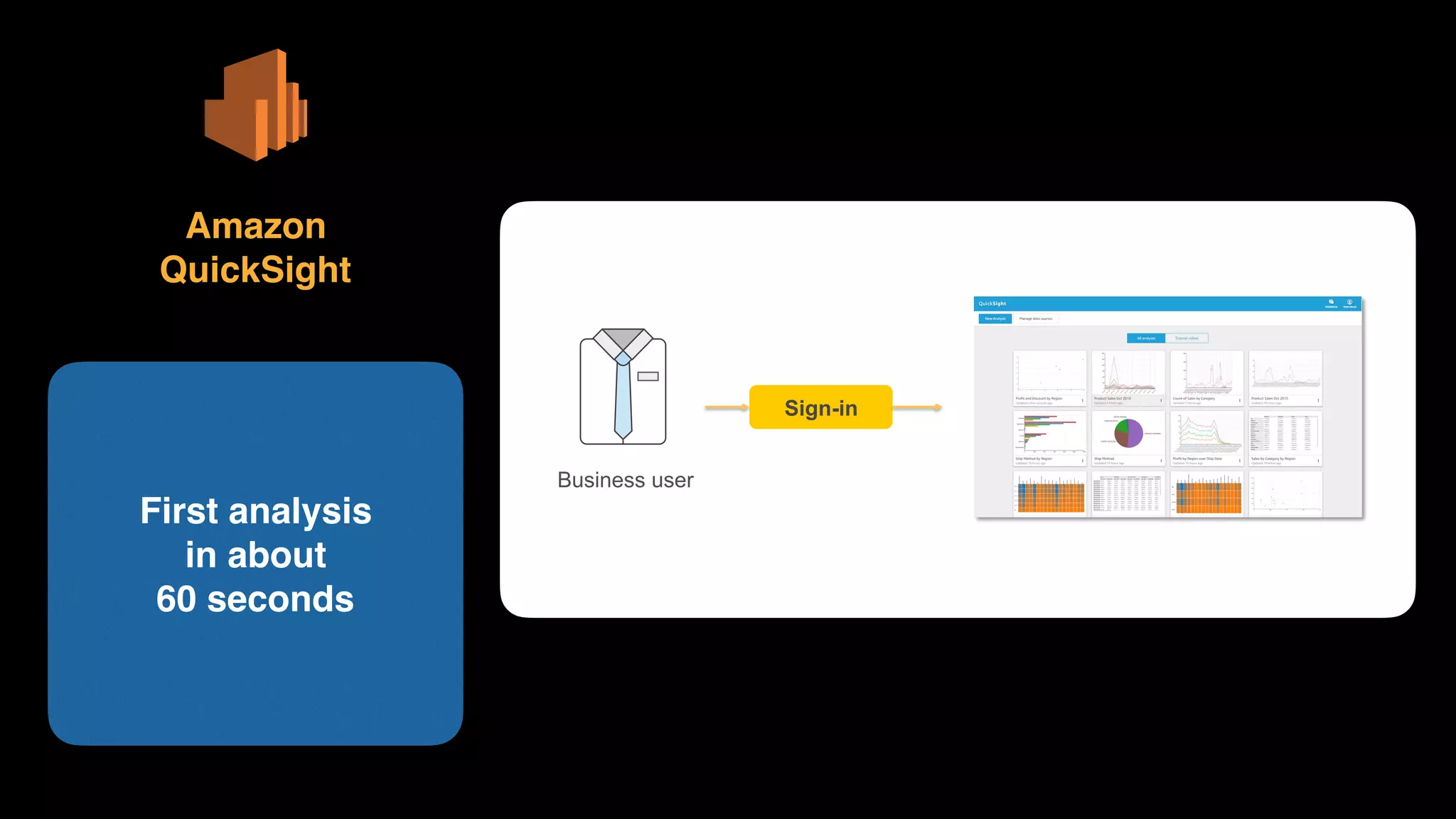

66. First analysis
in about
60 seconds
Amazon
QuickSight
Business user
Sign-in

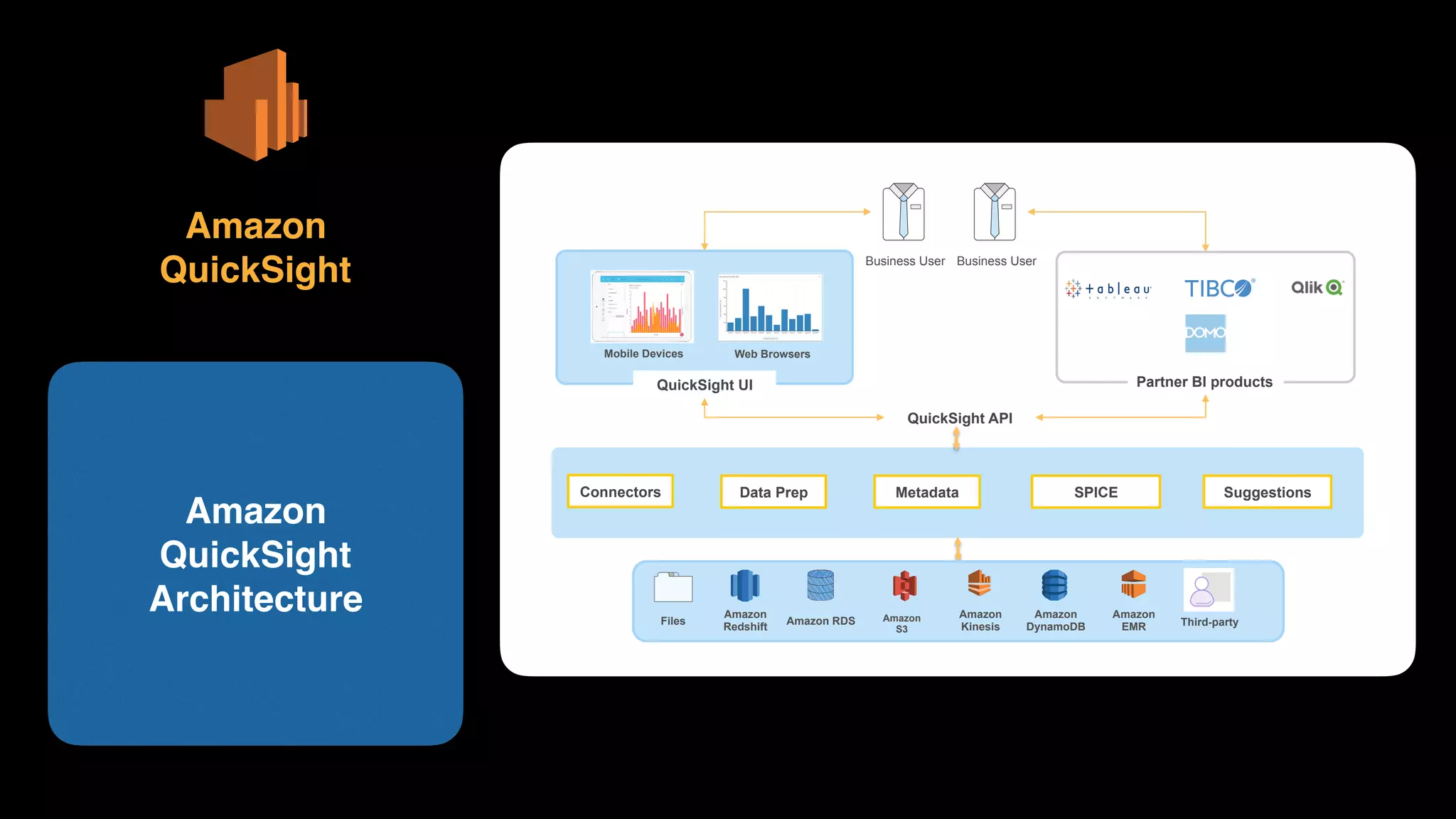

67. Amazon
QuickSight
Architecture
Amazon
QuickSight Business User
QuickSight API
Data Prep Metadata SuggestionsConnectors SPICE
Business User
QuickSight UI
Mobile Devices Web Browsers
Partner BI products
Amazon
S3
Amazon
Kinesis
Amazon
DynamoDB
Amazon
EMR
Amazon
Redshift
Amazon RDSFiles Third-party

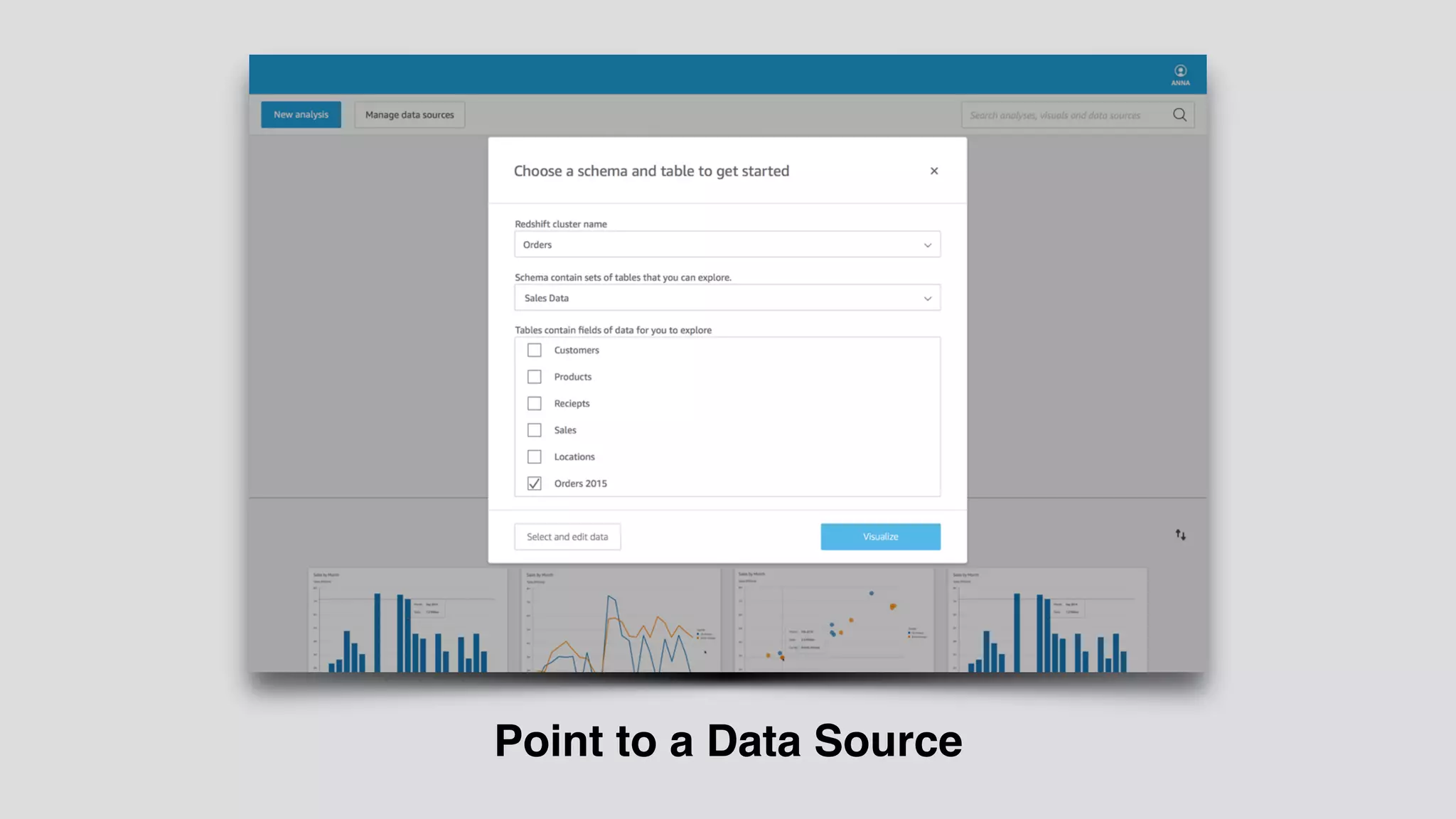

68. Point to a Data Source

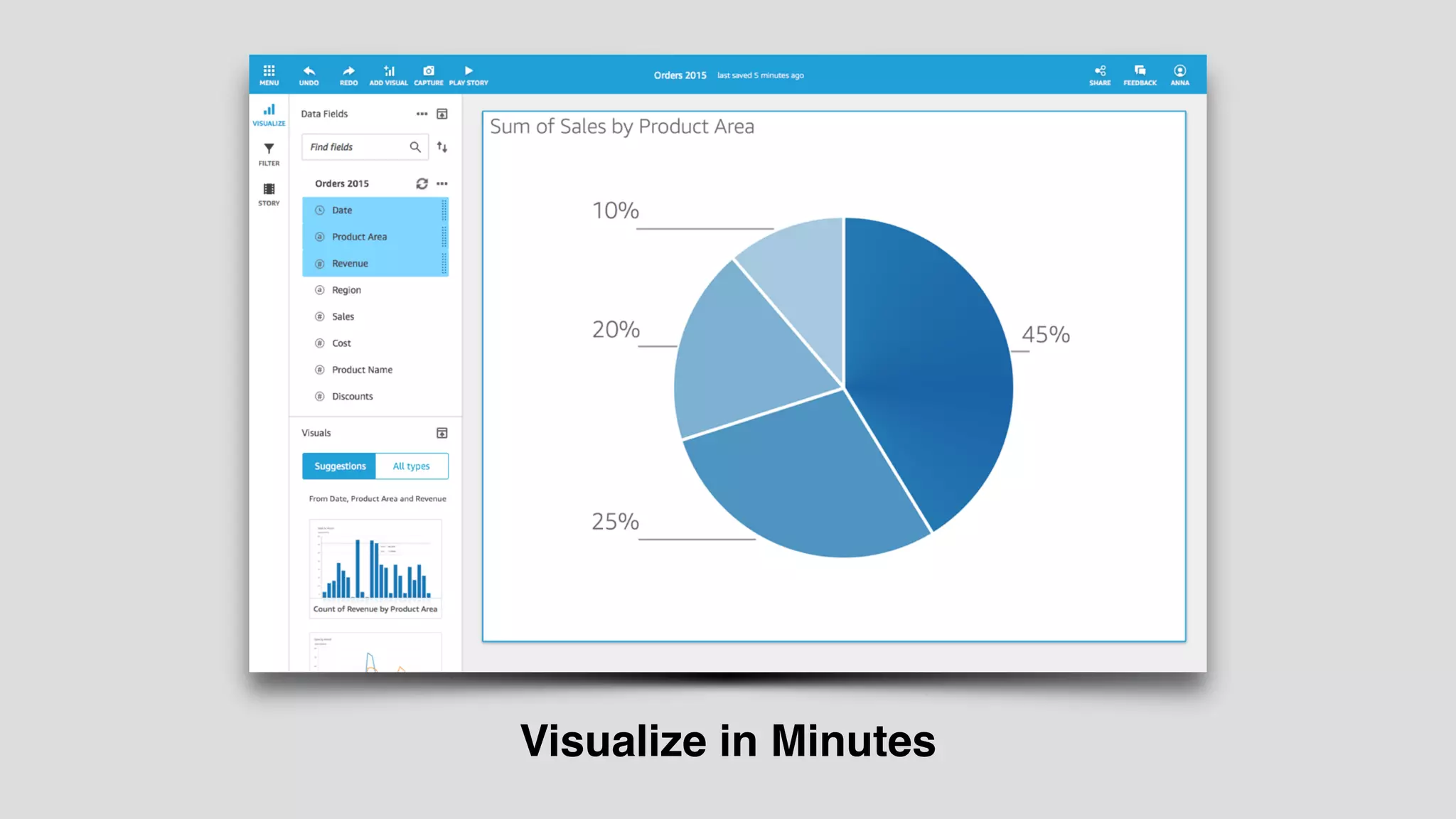

69. Visualize in Minutes

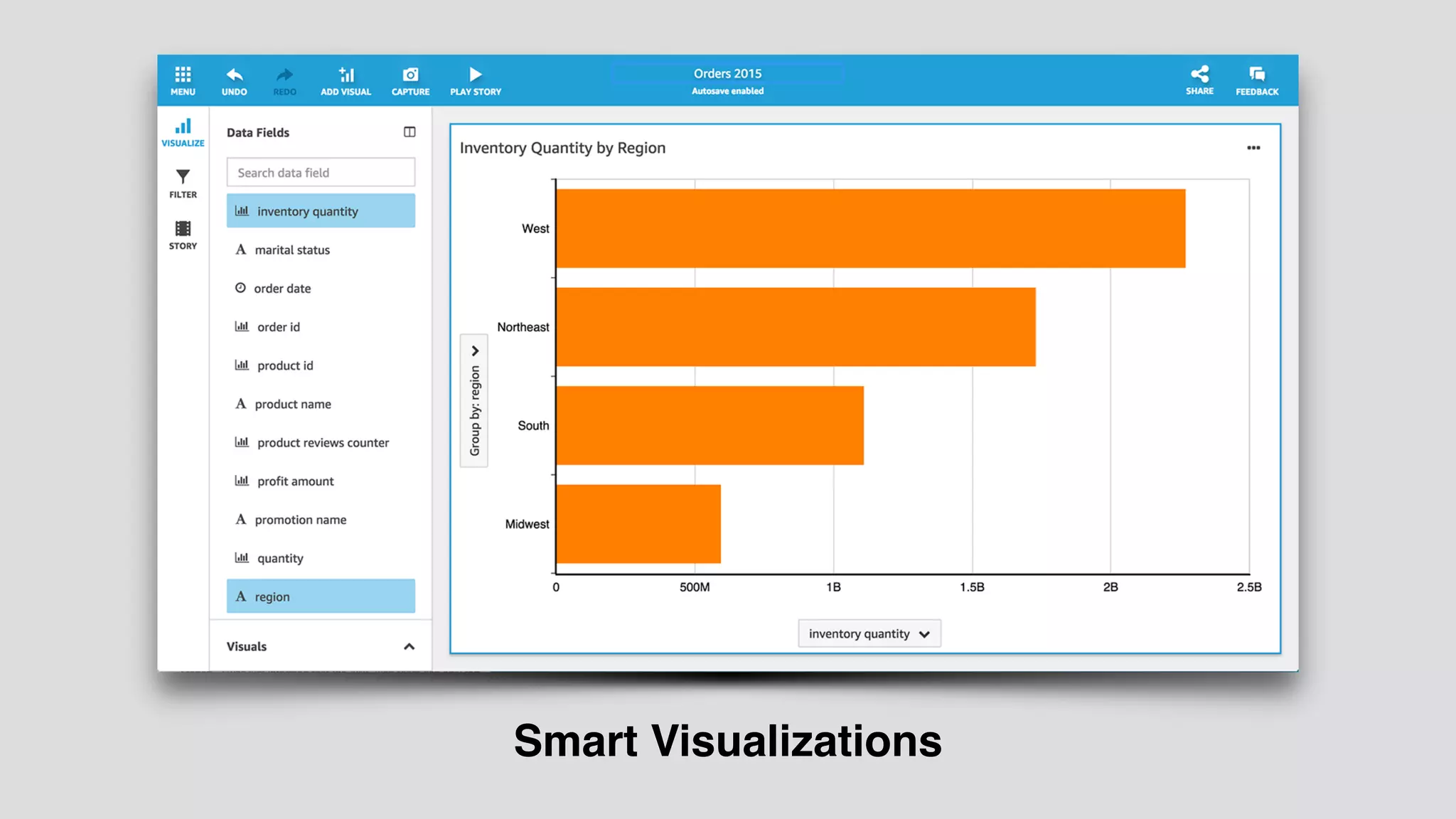

70. Smart Visualizations

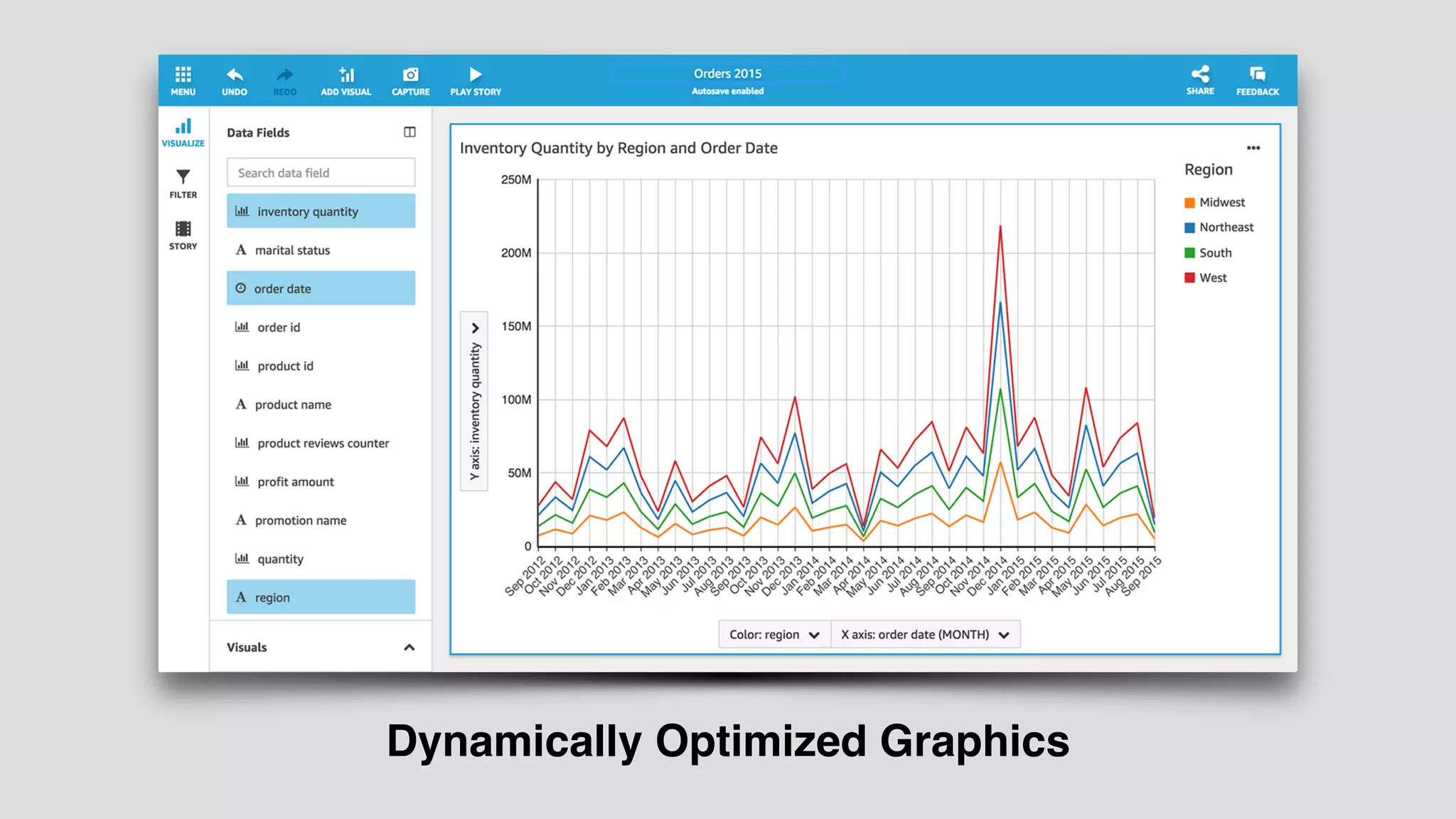

71. Dynamically Optimized Graphics

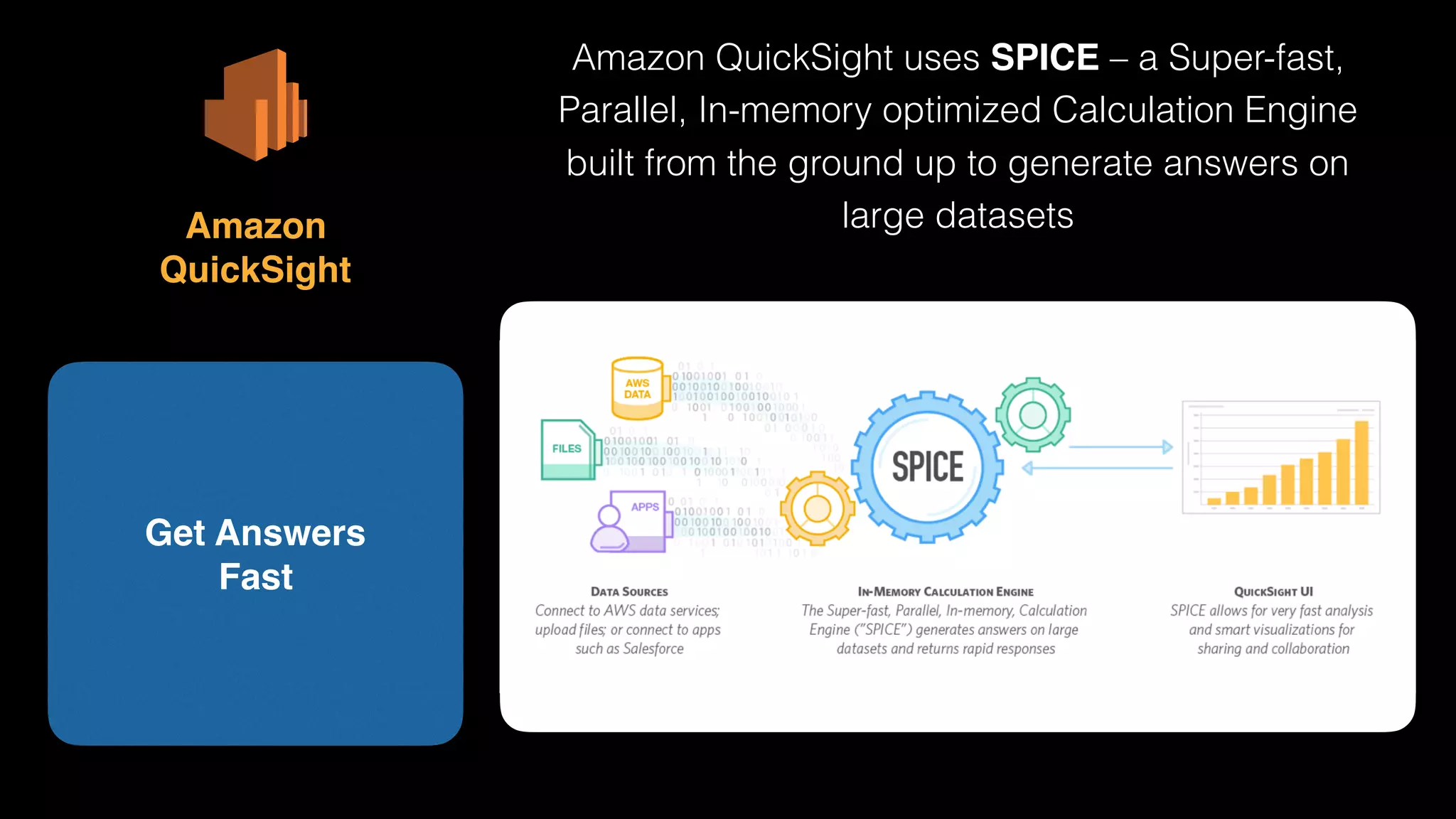

72. Get Answers
Fast
Amazon
QuickSight
Amazon QuickSight uses SPICE – a Super-fast,
Parallel, In-memory optimized Calculation Engine
built from the ground up to generate answers on
large datasets

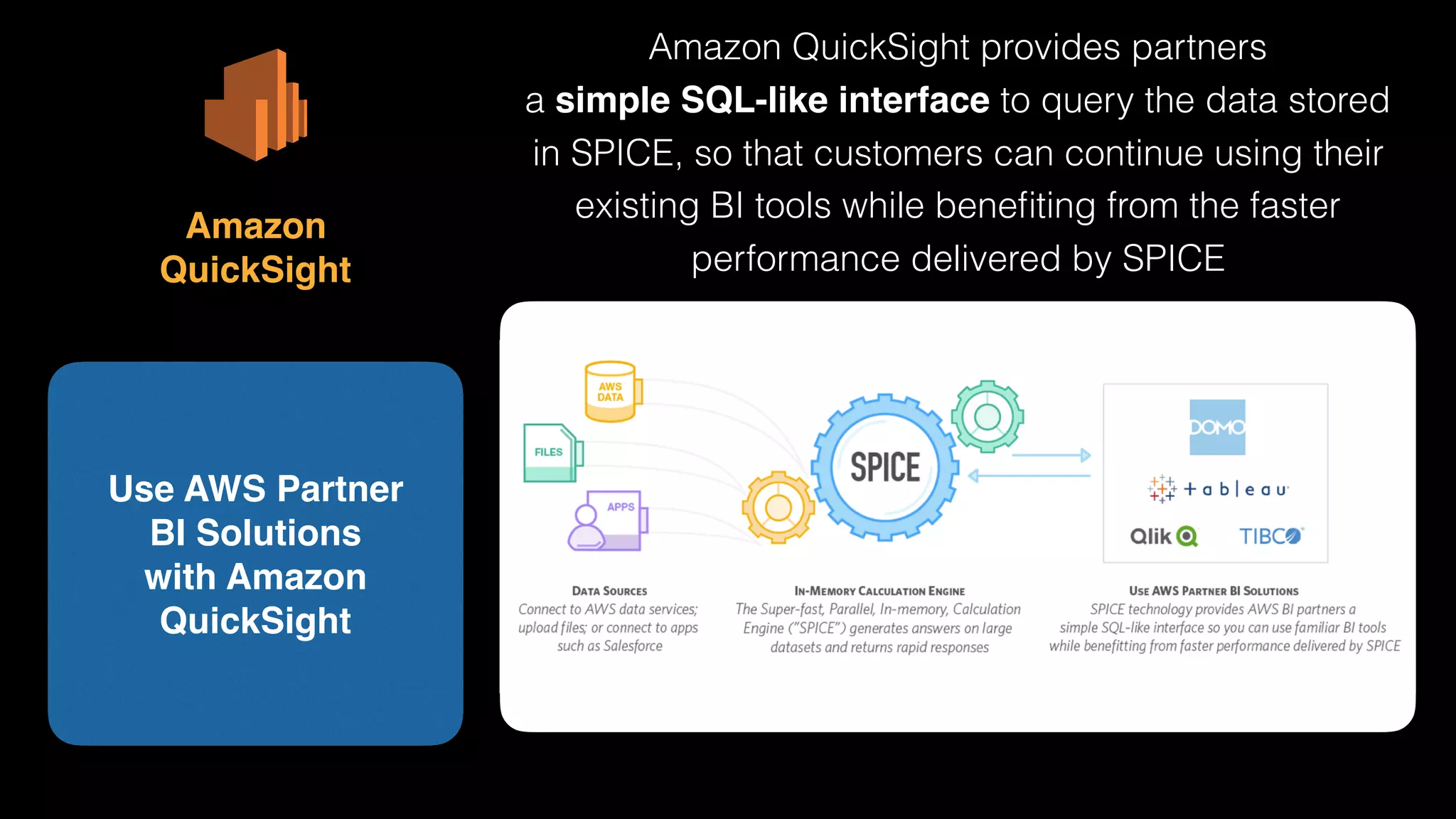

73. Use AWS Partner
BI Solutions
with Amazon
QuickSight
Amazon
QuickSight
Amazon QuickSight provides partners
a simple SQL-like interface to query the data stored
in SPICE, so that customers can continue using their
existing BI tools while benefiting from the faster
performance delivered by SPICE

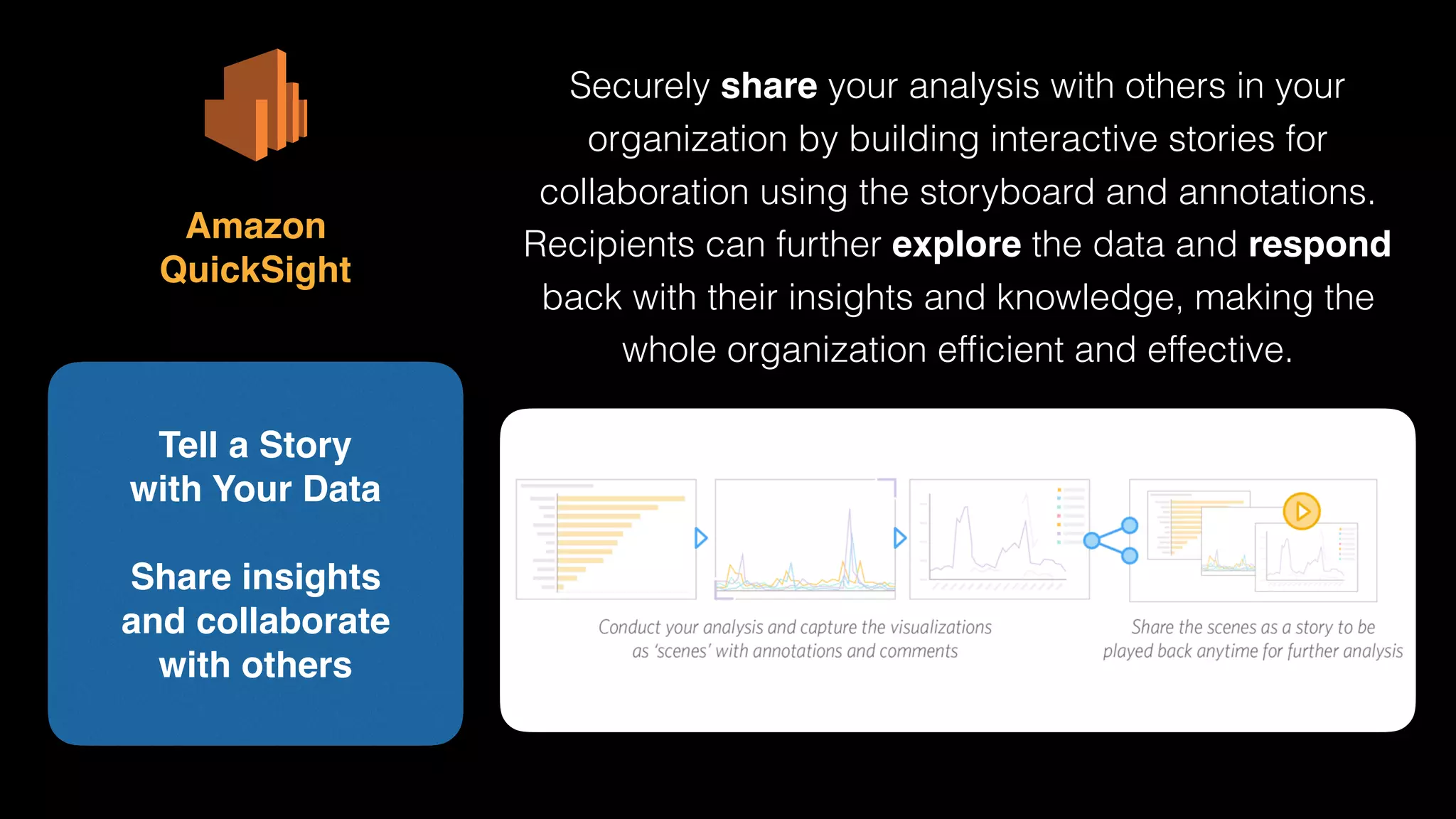

74. Tell a Story
with Your Data
Share insights
and collaborate
with others
Amazon
QuickSight
Securely share your analysis with others in your
organization by building interactive stories for
collaboration using the storyboard and annotations.
Recipients can further explore the data and respond
back with their insights and knowledge, making the
whole organization efficient and effective.

75. Amazon
QuickSight
Structured
Data
Visual

76. Predictions

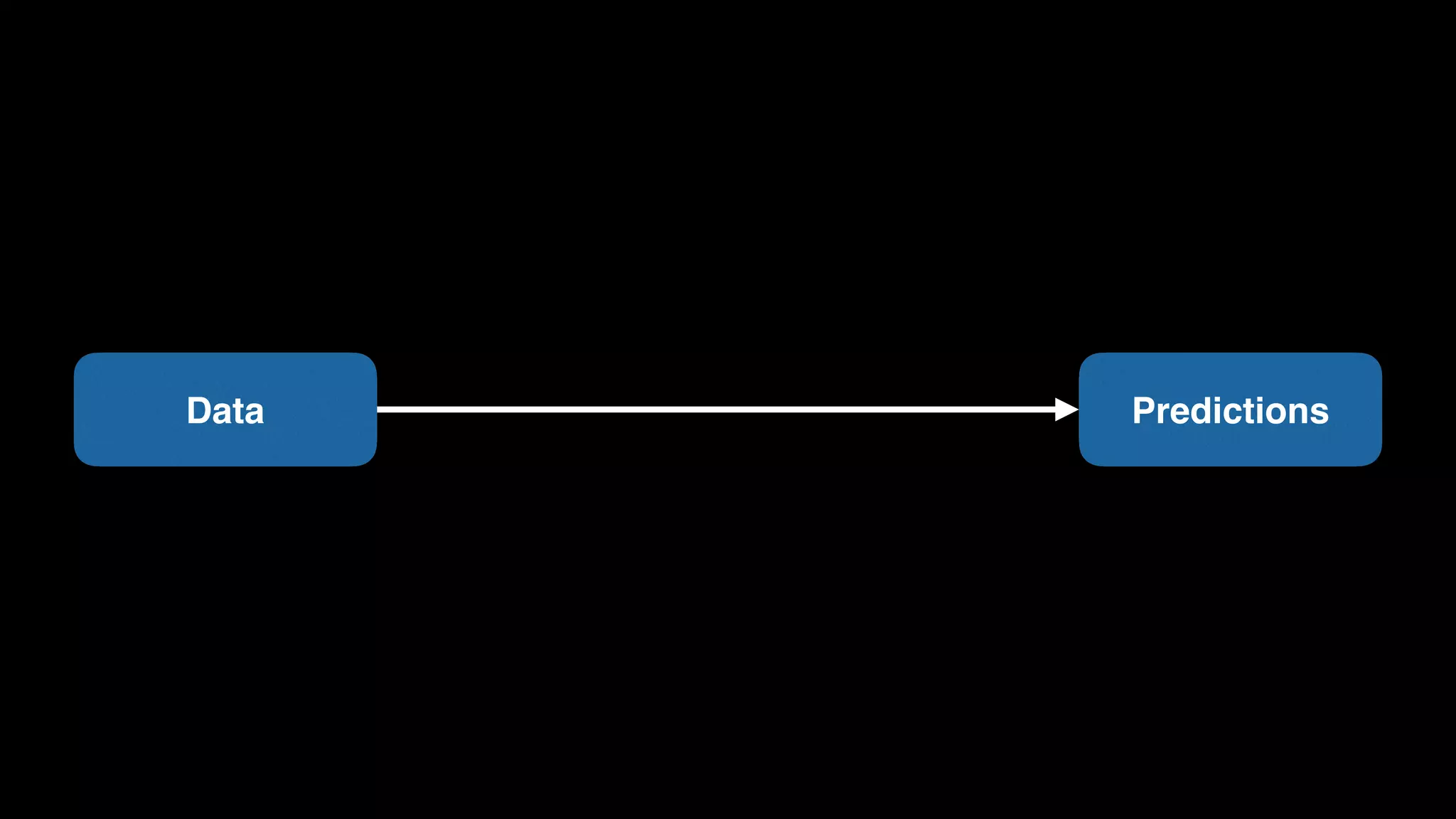

77. Data Predictions

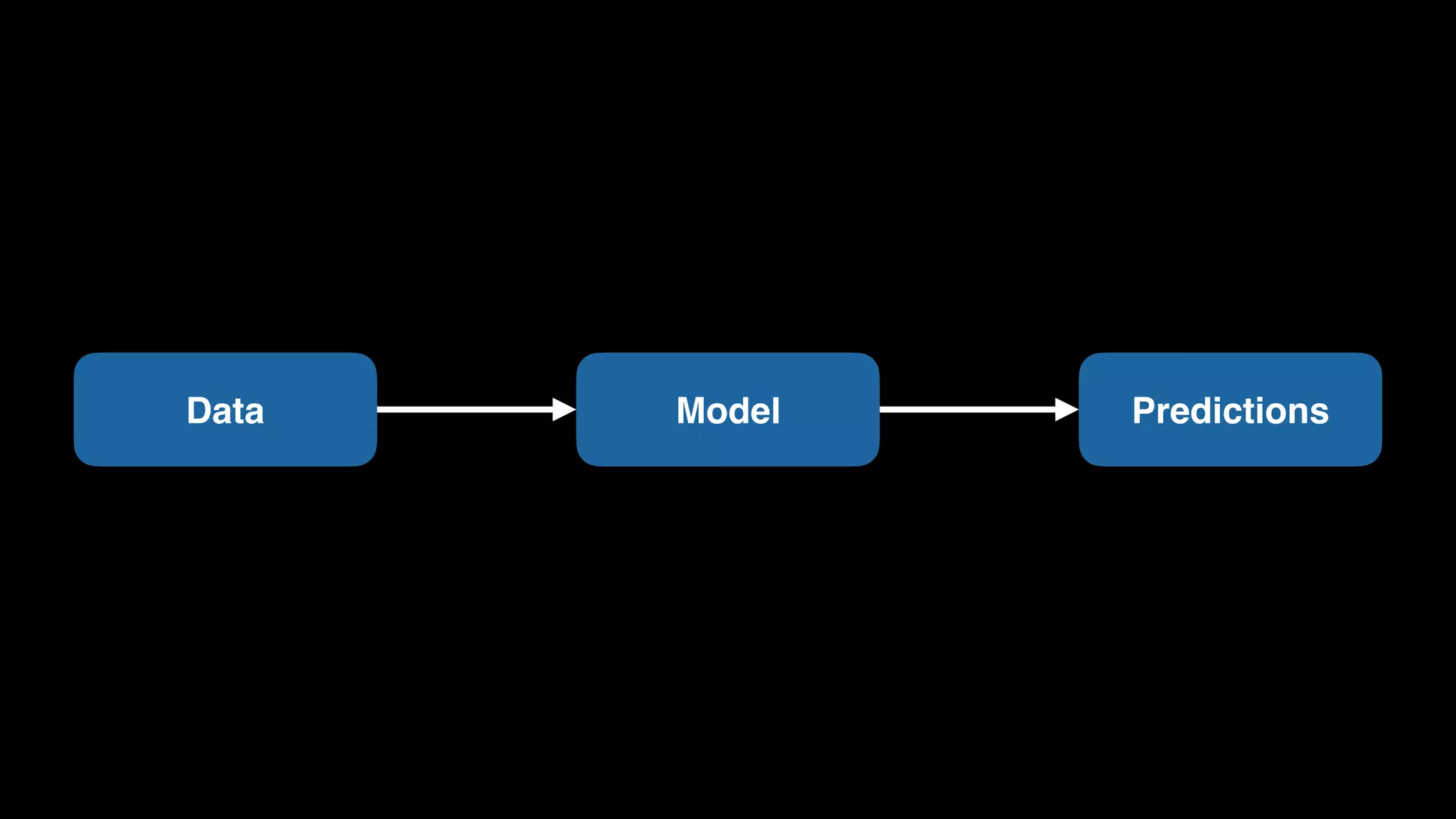

78. ModelData Predictions

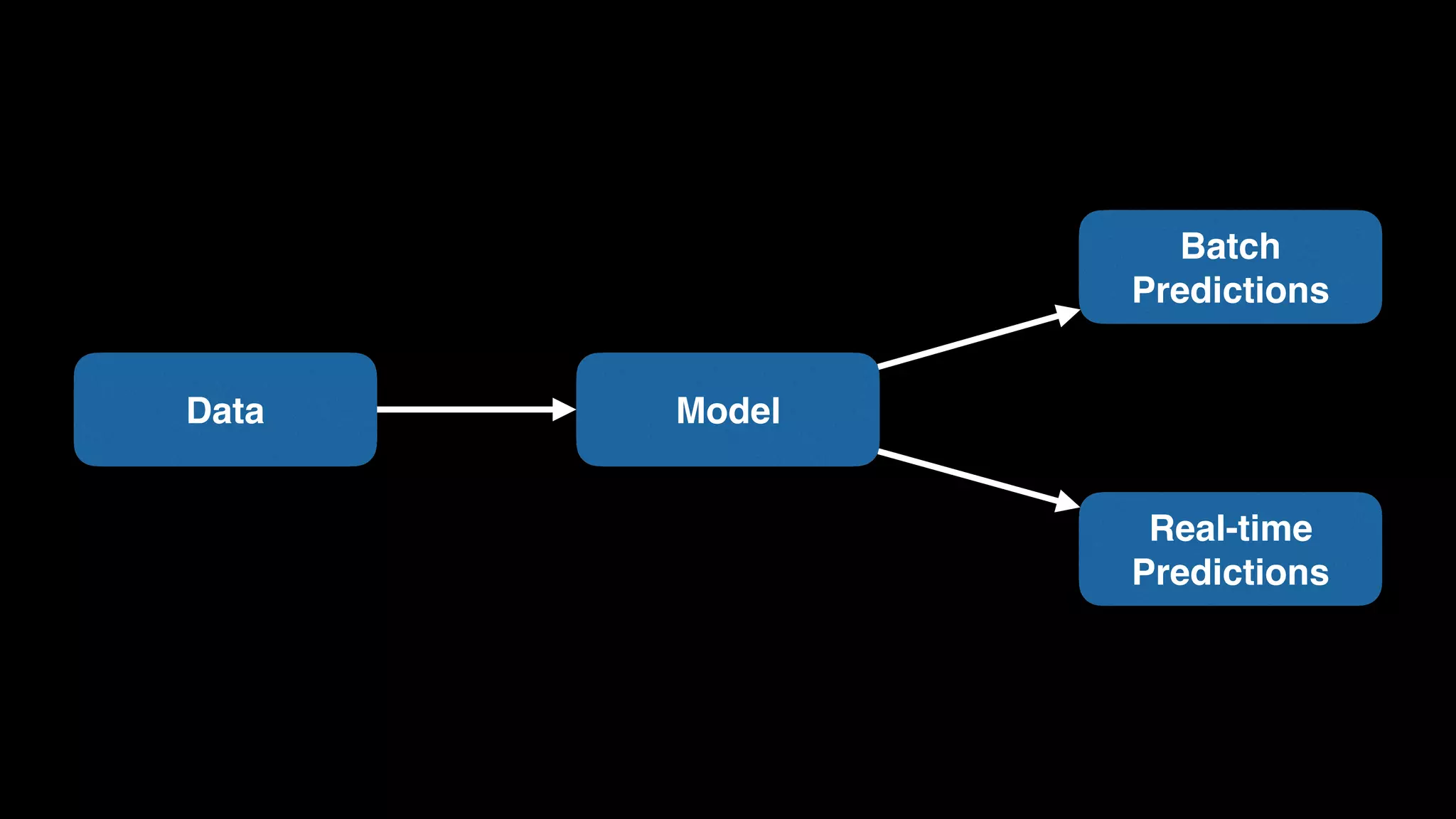

79. ModelData
Batch
Predictions
Real-time
Predictions

80. Machine Learning

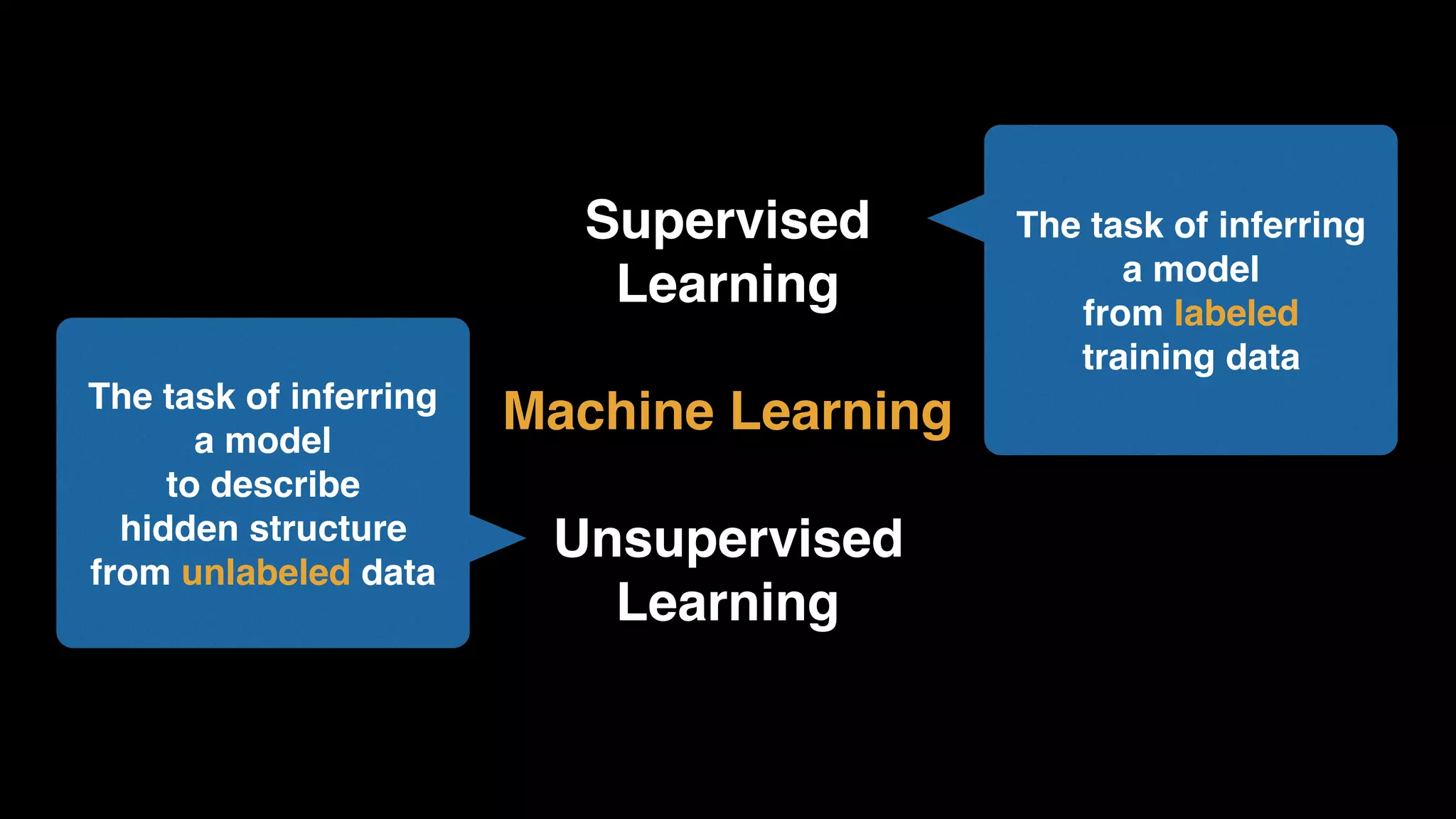

81. Supervised
Learning
Machine Learning
Unsupervised
Learning
The task of inferring
a model
from labeled
training data
The task of inferring
a model
to describe
hidden structure
from unlabeled data

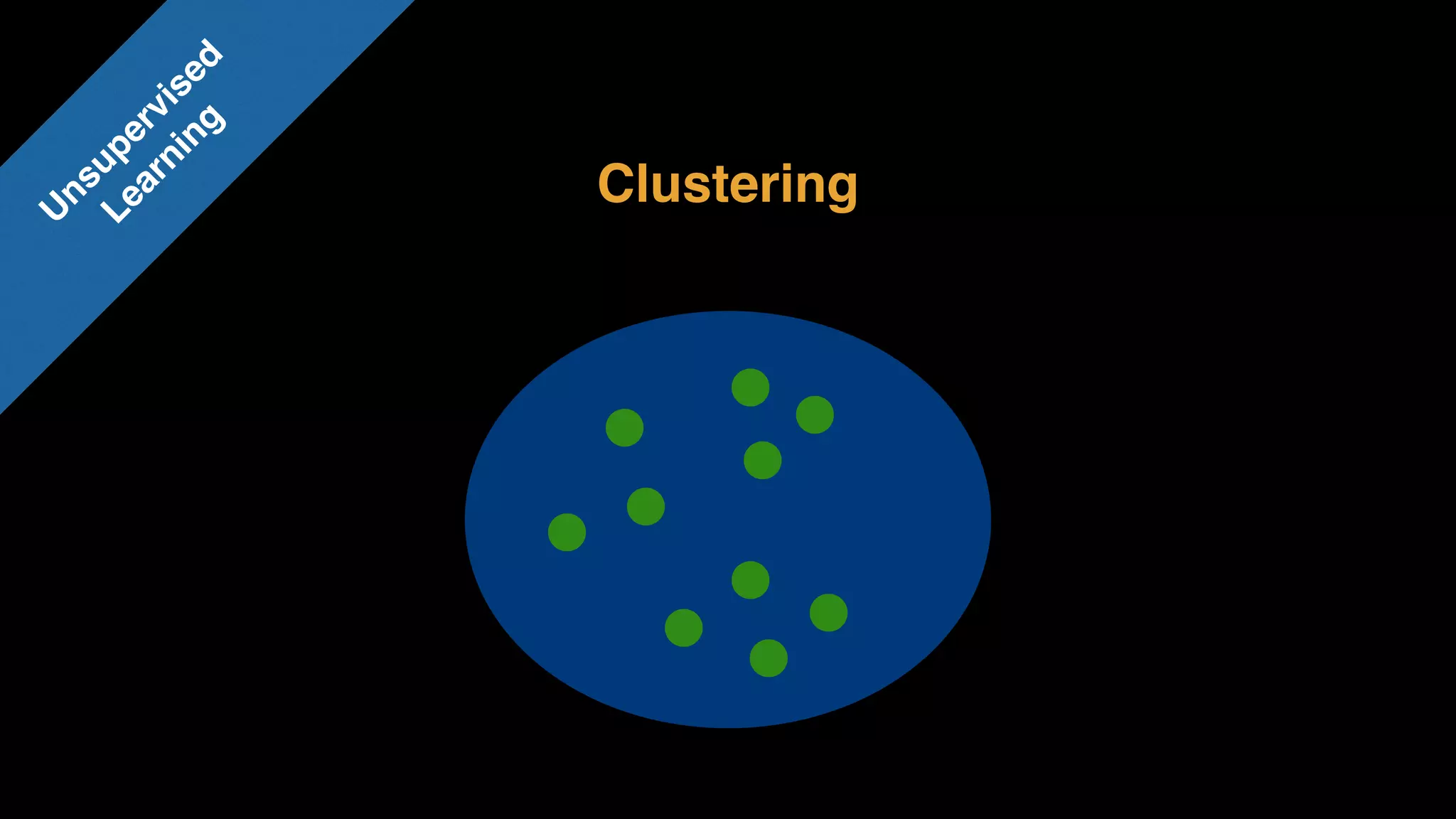

82. Clustering
U
nsupervised
Learning

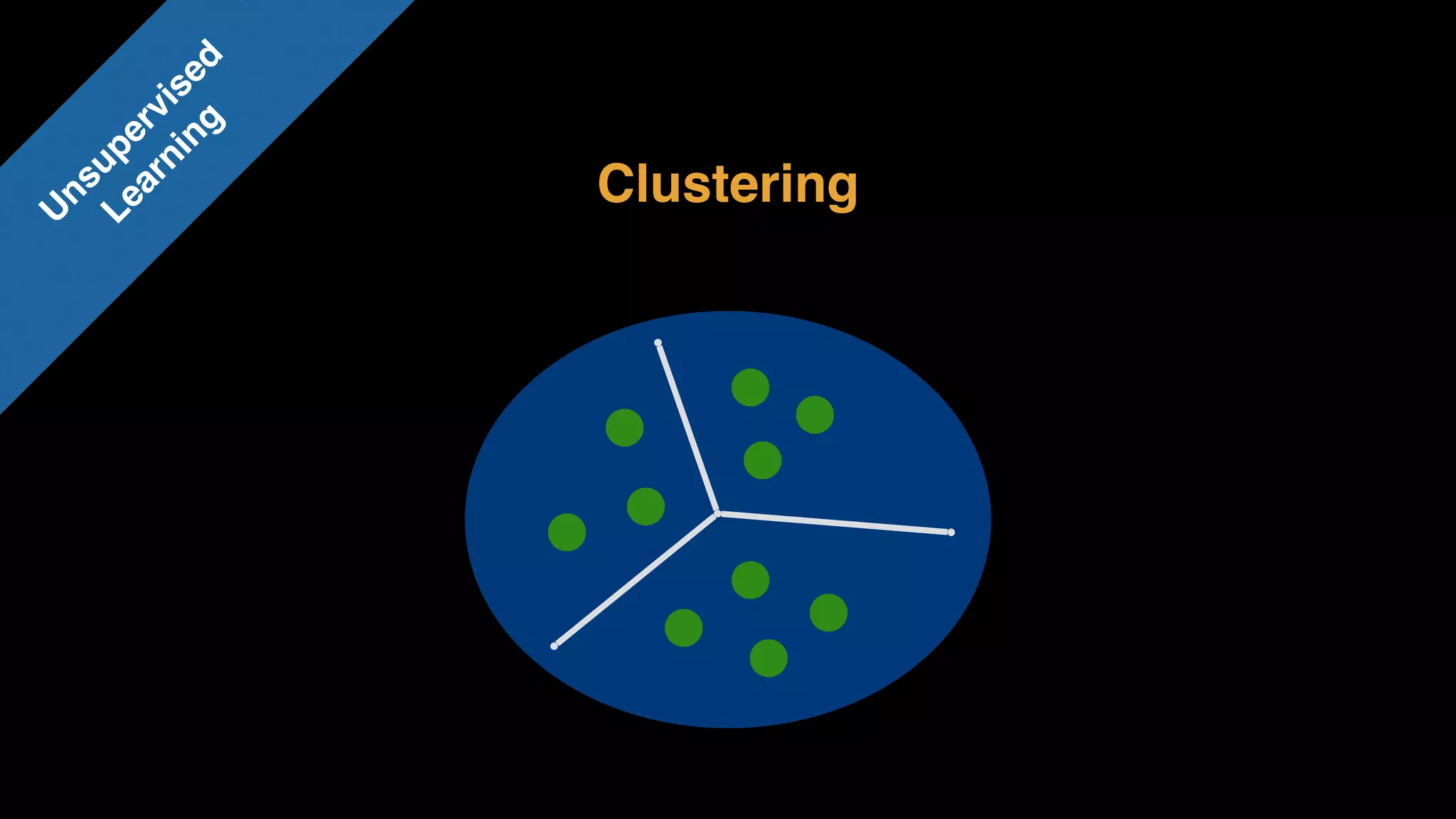

83. Clustering
U
nsupervised
Learning

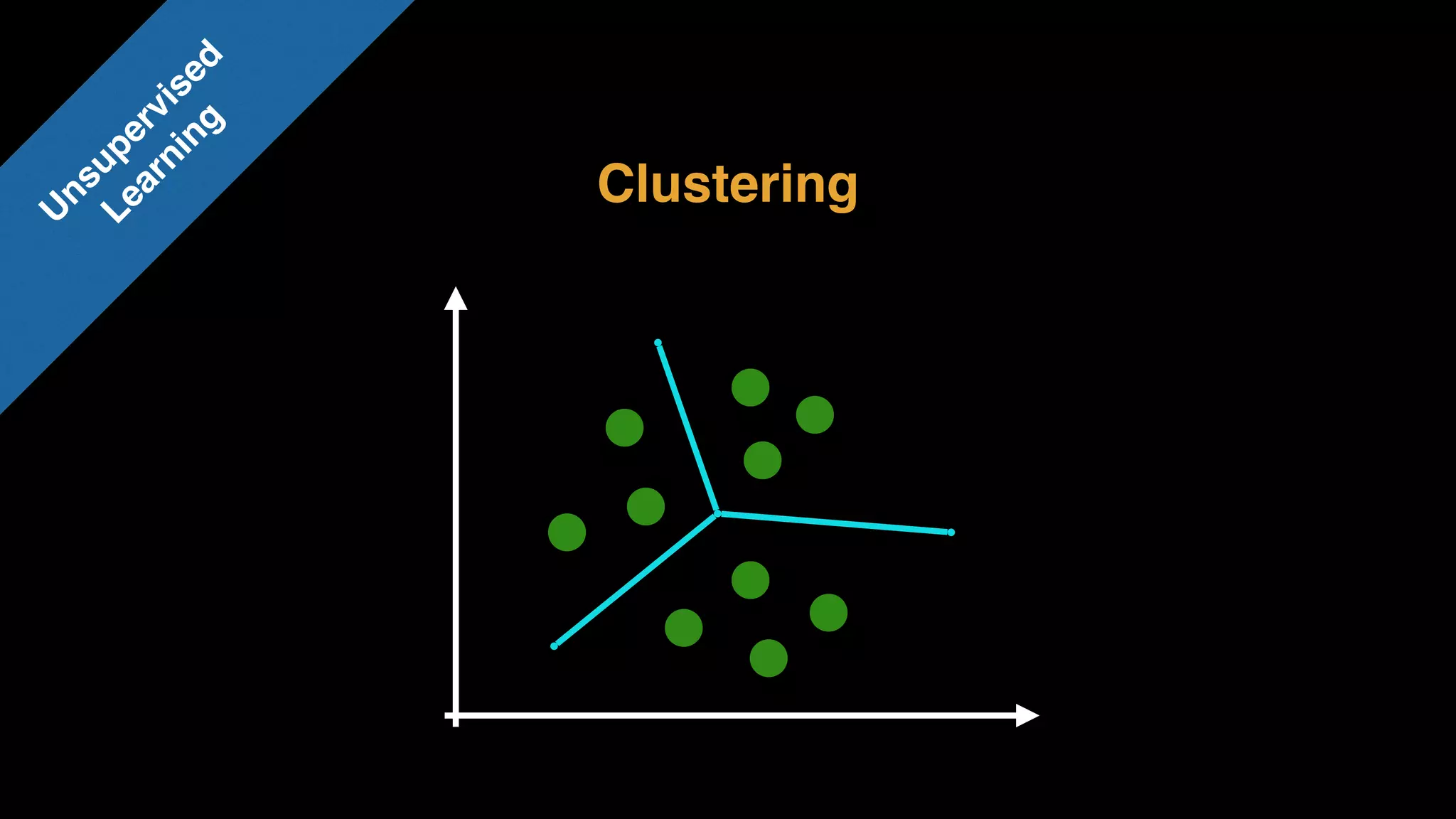

84. Clustering
U
nsupervised
Learning

85. Regression
Binary Classification
Multi-class Classification
Supervised
Learning

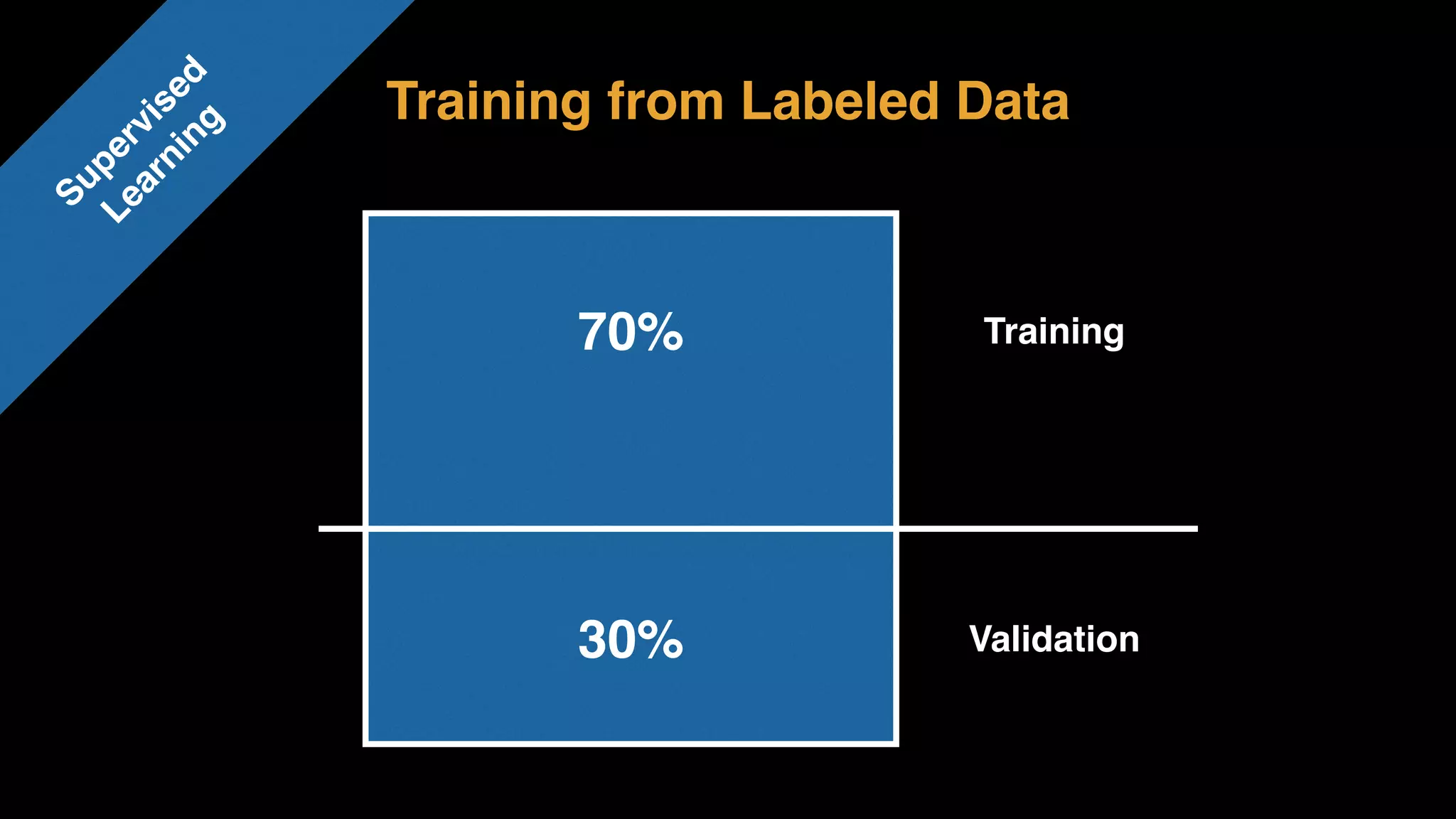

86. Training from Labeled Data
Supervised
Learning
Training
Validation
70%
30%

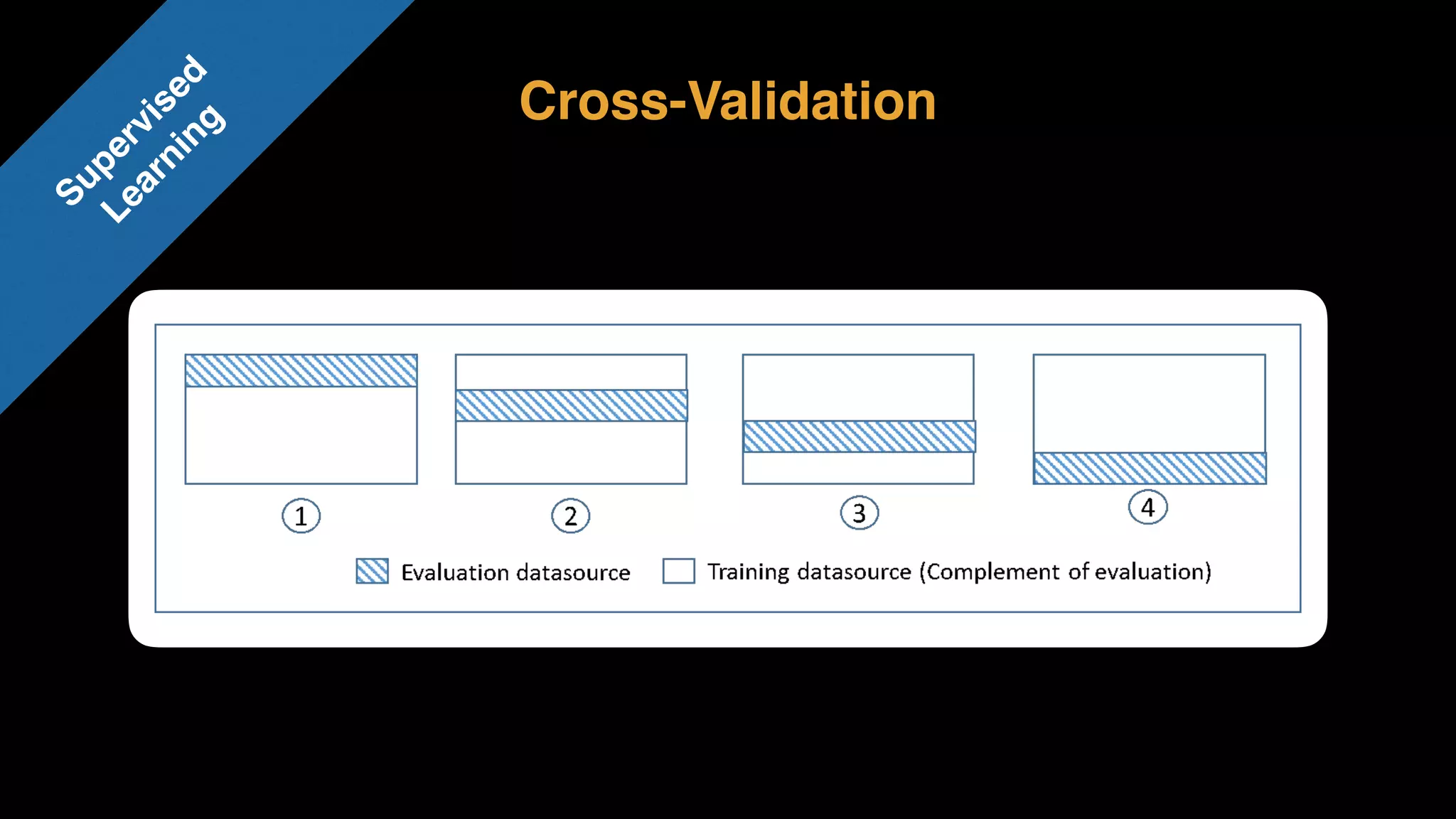

87. Cross-Validation
Supervised
Learning

88. Overfitting
Supervised
Learning

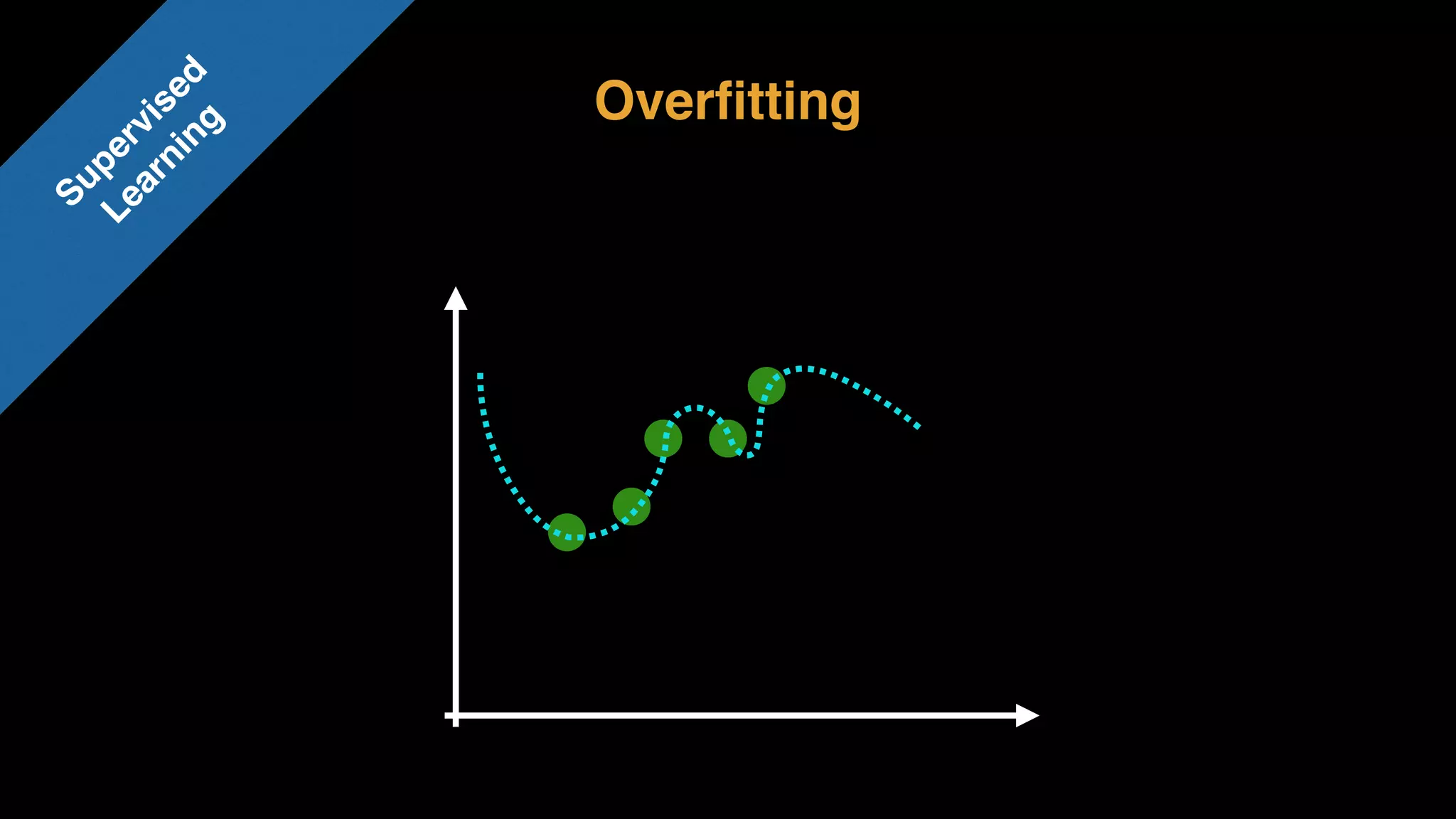

89. Overfitting
Supervised
Learning

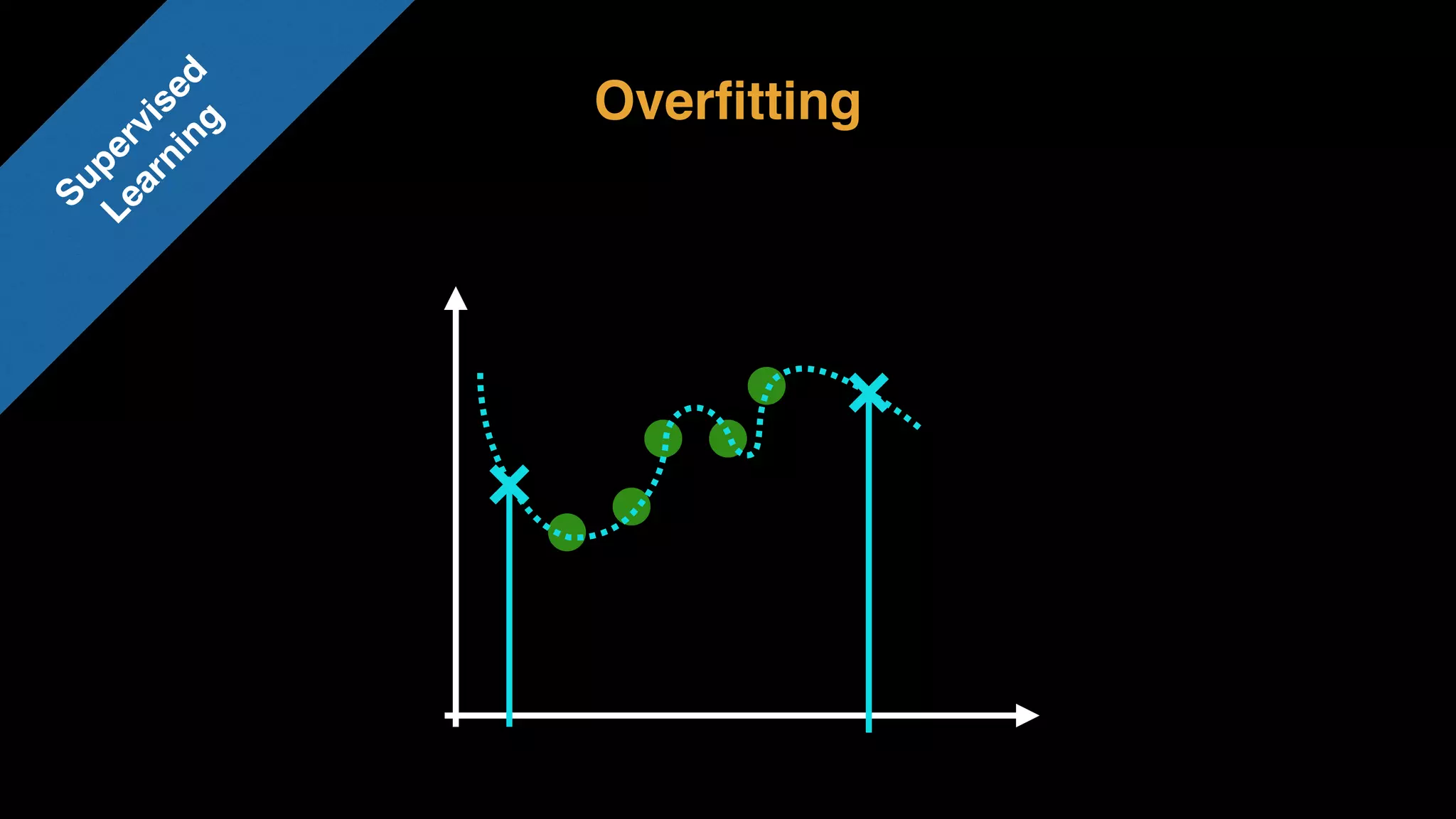

90. Overfitting
Supervised
Learning

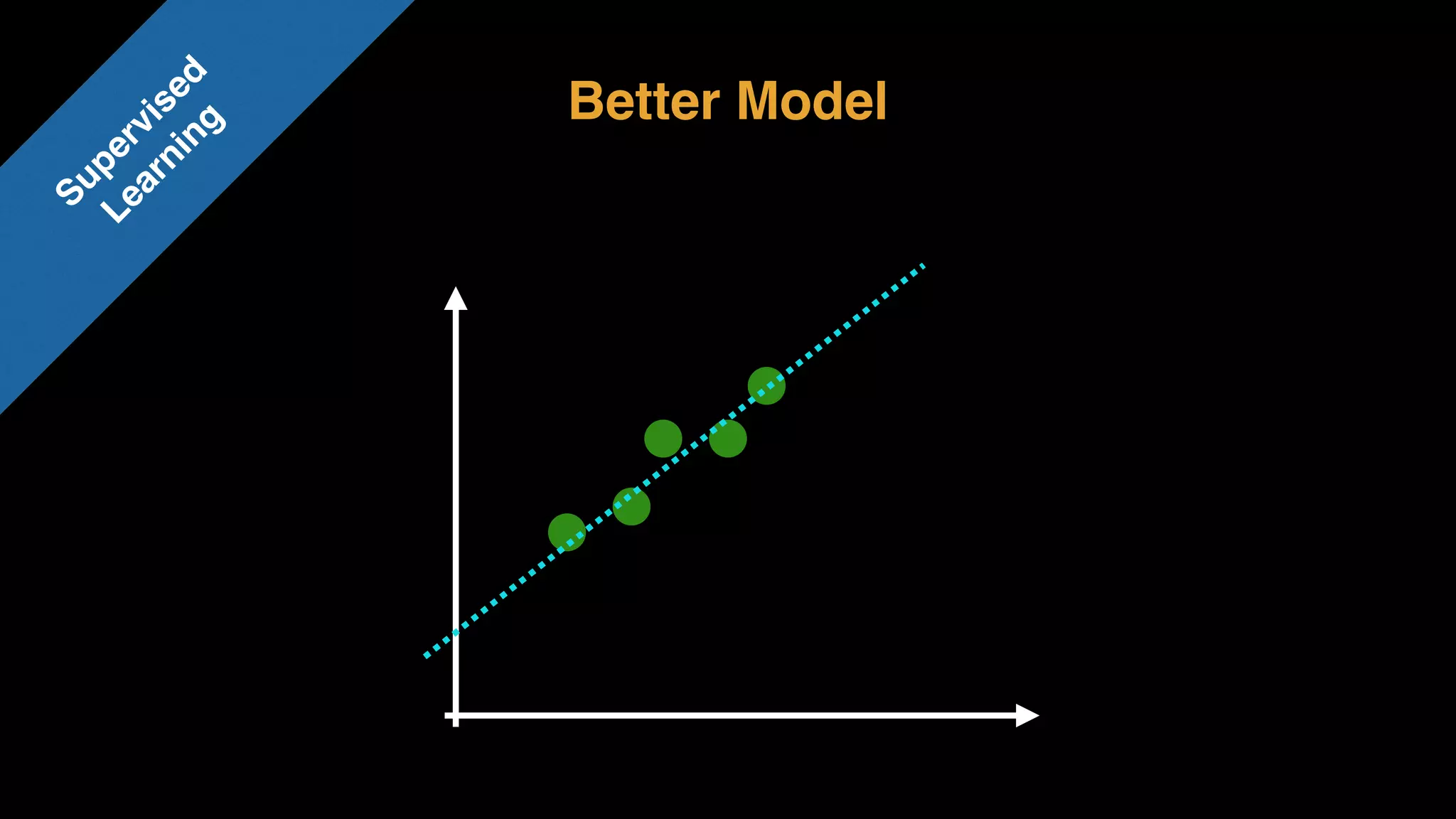

91. Better Model
Supervised
Learning

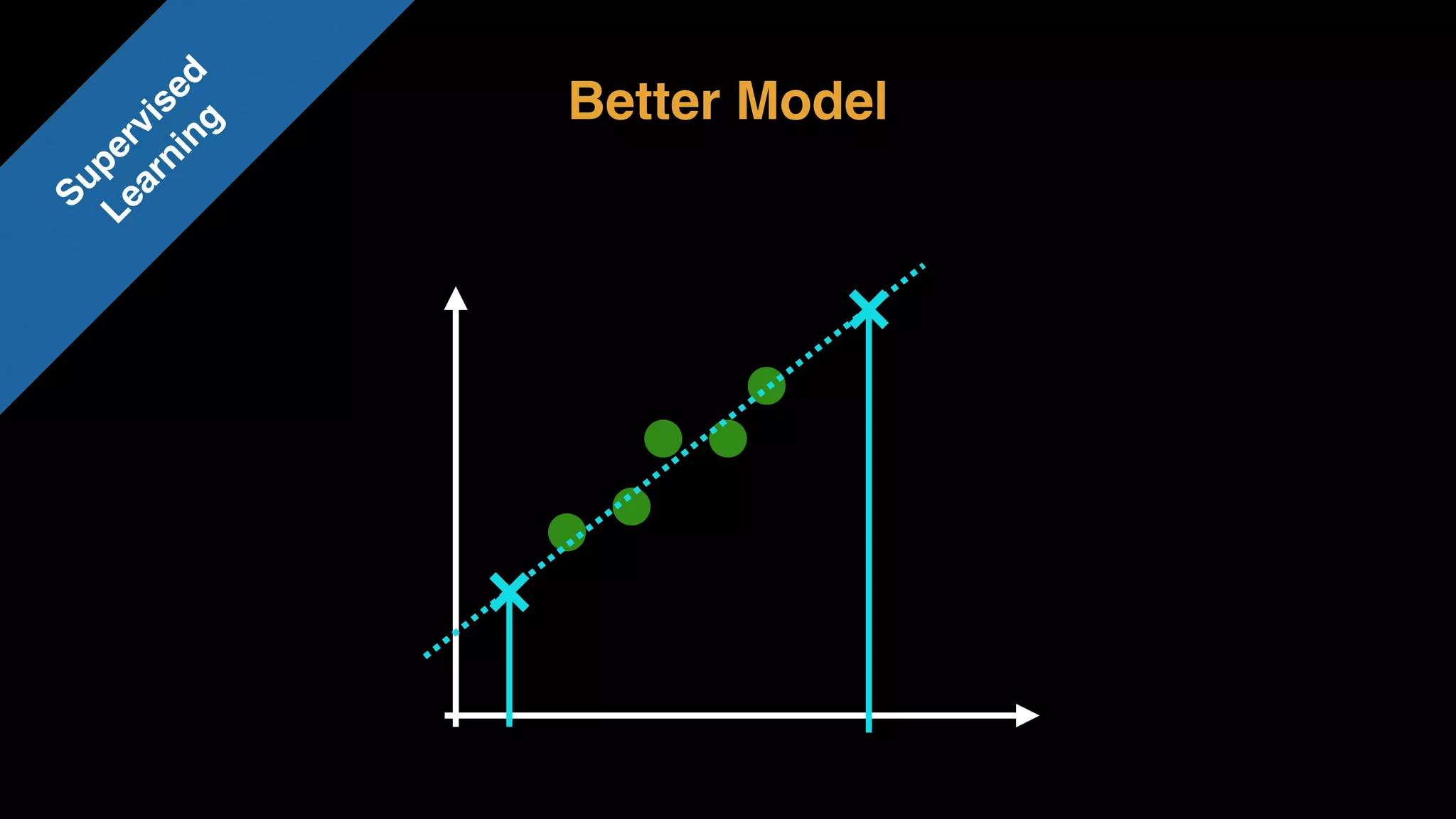

92. Better Model
Supervised
Learning

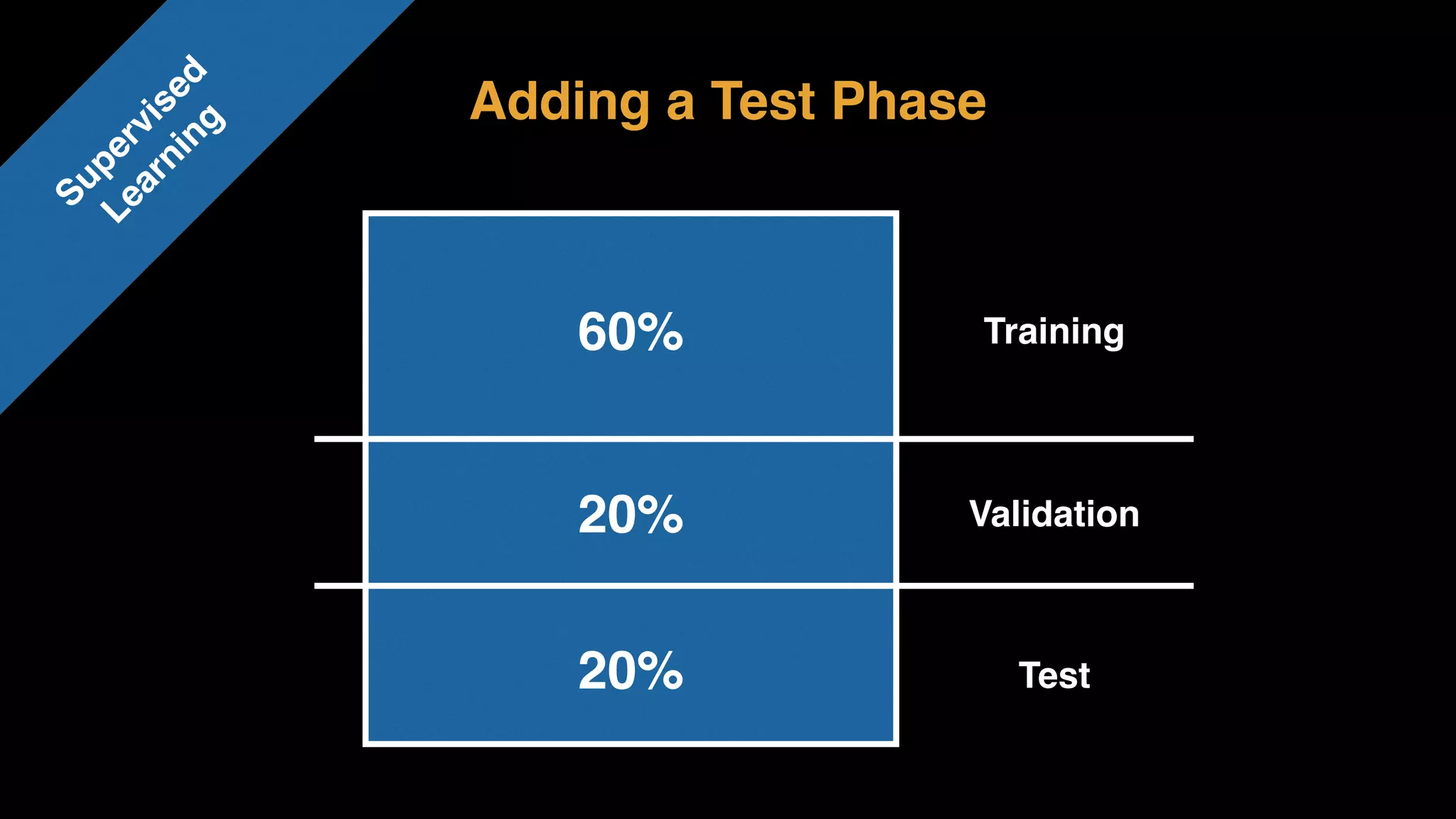

93. Adding a Test Phase
Supervised
Learning
Training
Validation
Test
60%
20%
20%

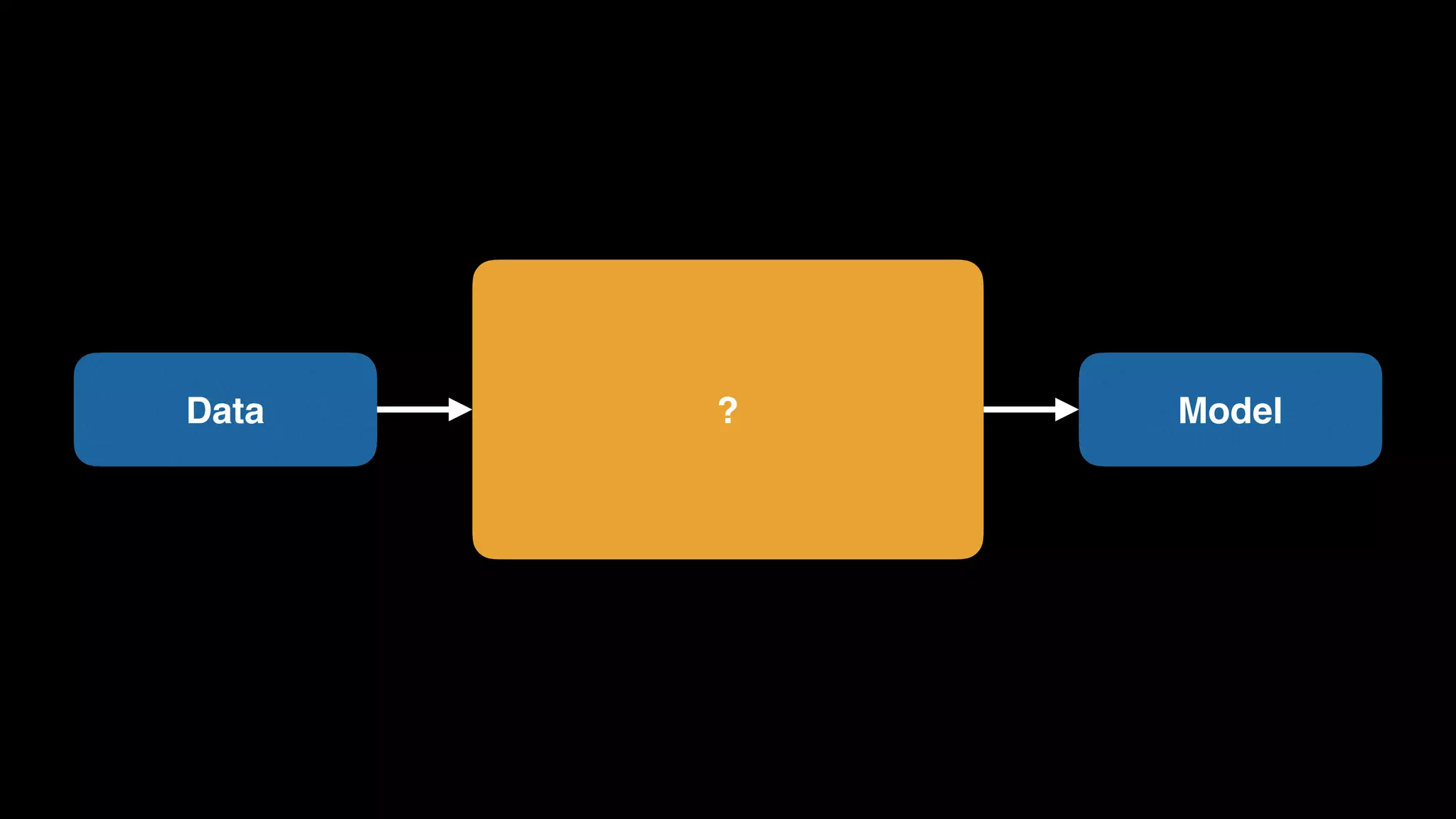

94. ?Data Model

95. Amazon EMR
with Spark (MLib)
Data Model

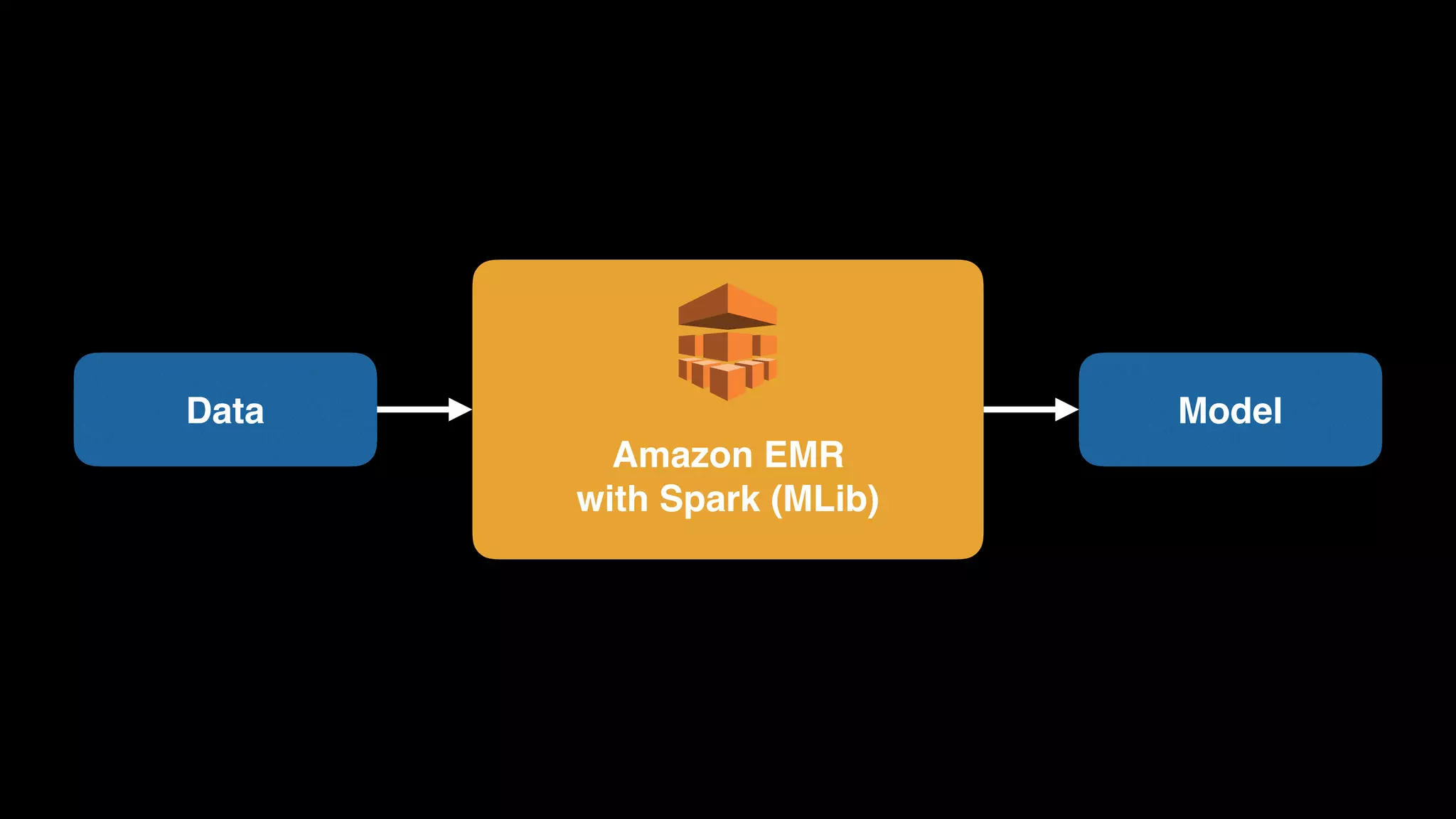

96. Amazon EMR
with Spark (MLib)
Data Model

97. Data Scientists
“Scalability”

98. Amazon
Machine Learning
(Amazon ML)
Data Model

99. Machine learning is the technology that automatically
finds patterns in your data and uses them to make
predictions for new data points as they become
available
Your Data + Machine Learning
= Smart Applications
What is
Machine Learning?
Amazon
Machine Learning
(Amazon ML)

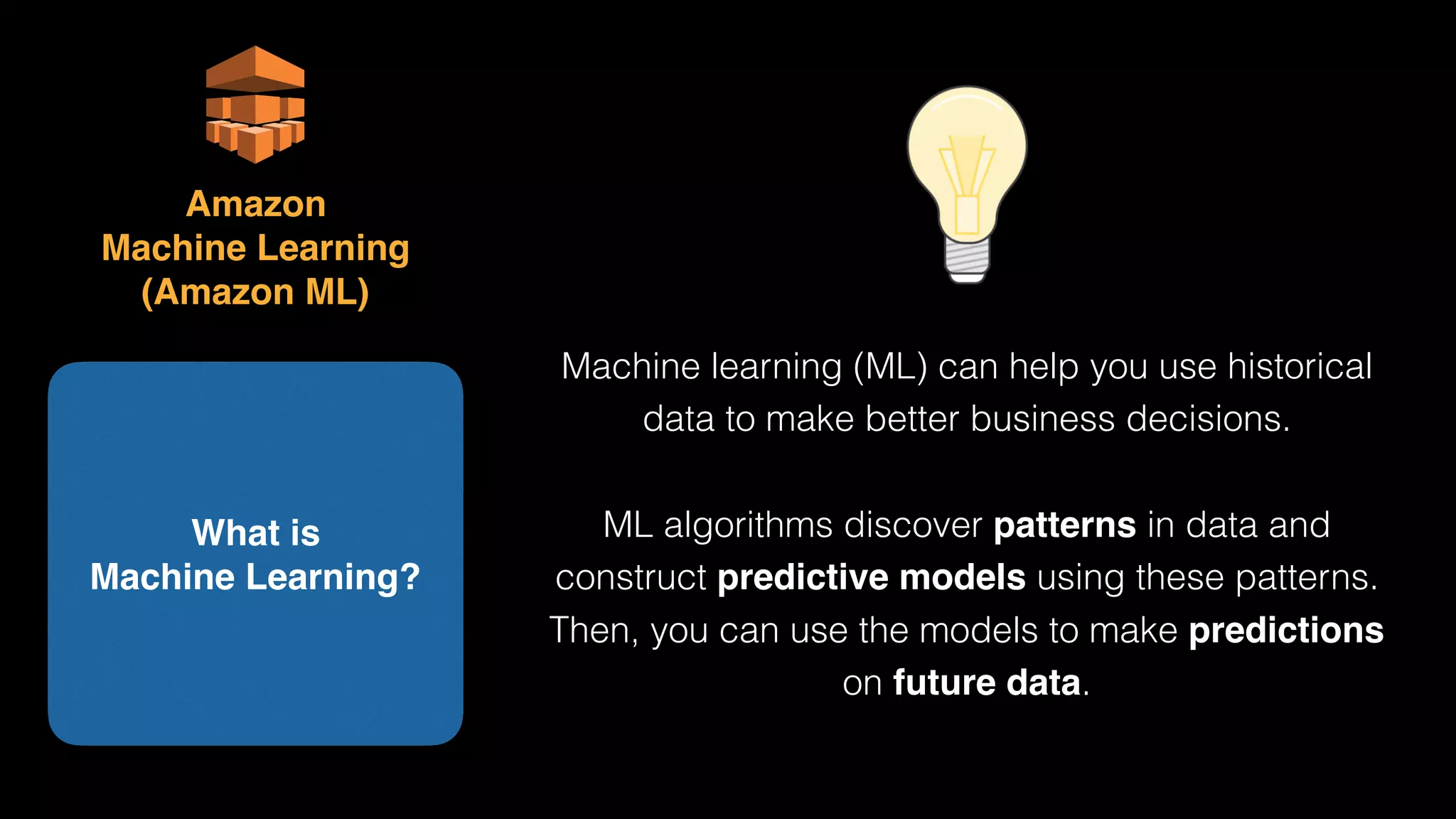

100. Machine learning (ML) can help you use historical
data to make better business decisions.
ML algorithms discover patterns in data and
construct predictive models using these patterns.
Then, you can use the models to make predictions
on future data.
What is
Machine Learning?
Amazon
Machine Learning
(Amazon ML)

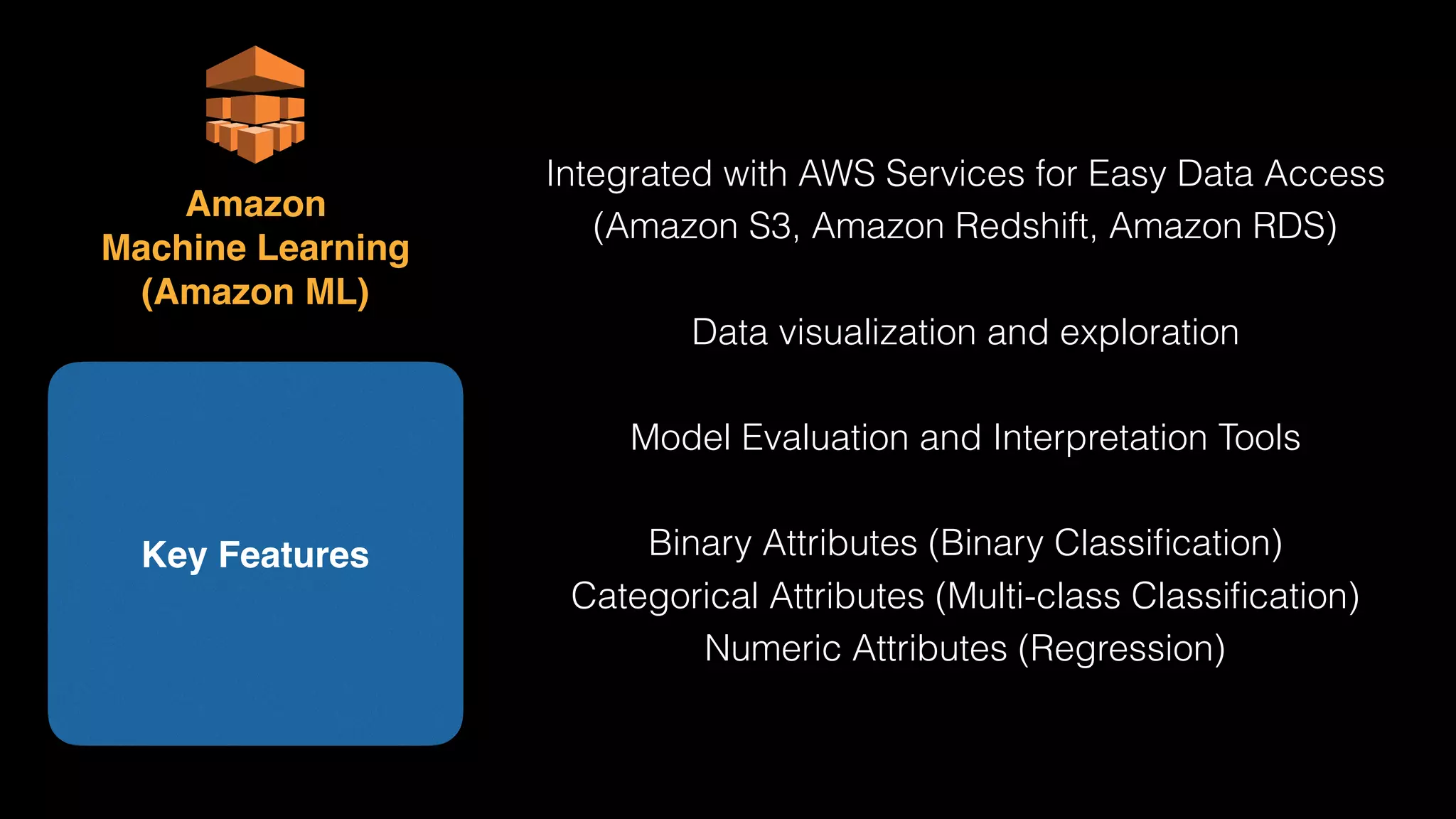

101. Integrated with AWS Services for Easy Data Access
(Amazon S3, Amazon Redshift, Amazon RDS)
Data visualization and exploration
Model Evaluation and Interpretation Tools
Binary Attributes (Binary Classification)
Categorical Attributes (Multi-class Classification)
Numeric Attributes (Regression)
Key Features
Amazon
Machine Learning
(Amazon ML)

102. Data Transformations
Modeling APIs
APIs for Batch and Real-time Predictions
Fully Managed
Pay per Use
Key Features
Amazon
Machine Learning
(Amazon ML)

103. Amazon
Machine Learning
(Amazon ML)
Data Model

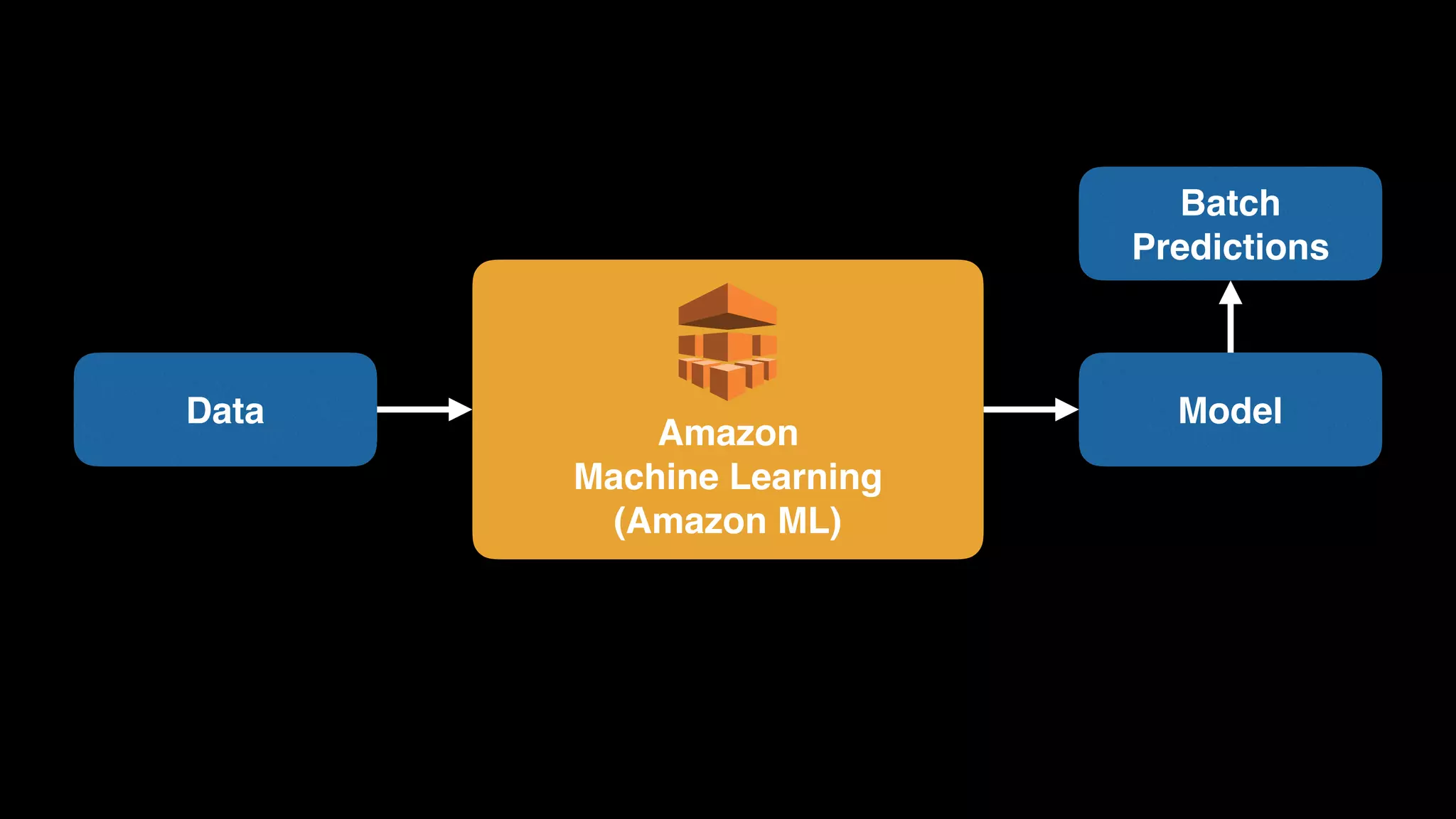

104. Amazon
Machine Learning
(Amazon ML)
Data Model
Batch
Predictions

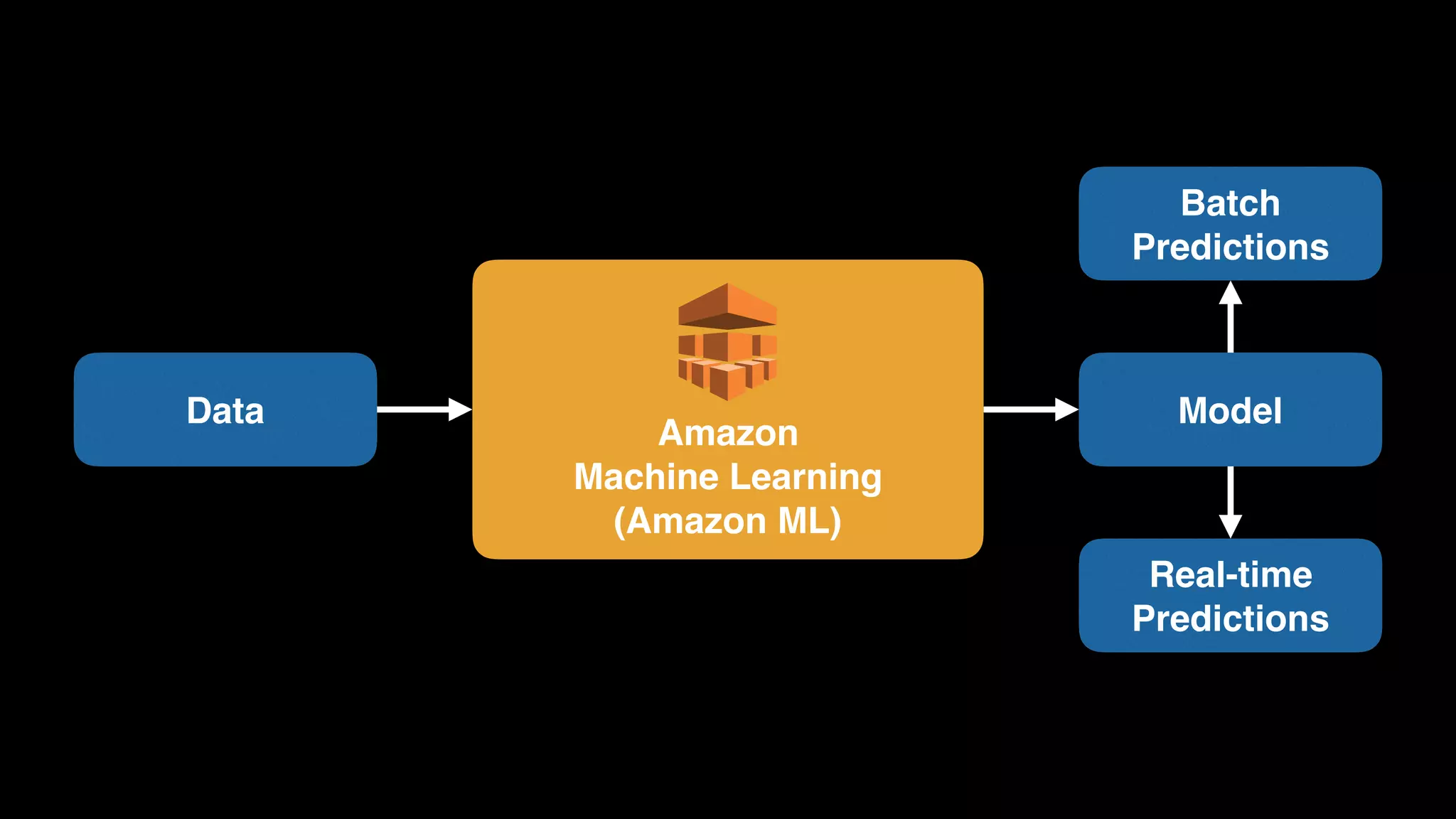

105. Amazon
Machine Learning
(Amazon ML)
Data Model
Batch
Predictions
Real-time
Predictions

106. Amazon
Machine Learning
(Amazon ML)
Data Model
Batch
Predictions
Real-time
Predictions

107. Batch
Report
Real-time
Alerts
Prediction
Forecast

108. Grow As You Need

109. Pay Only For What You Use

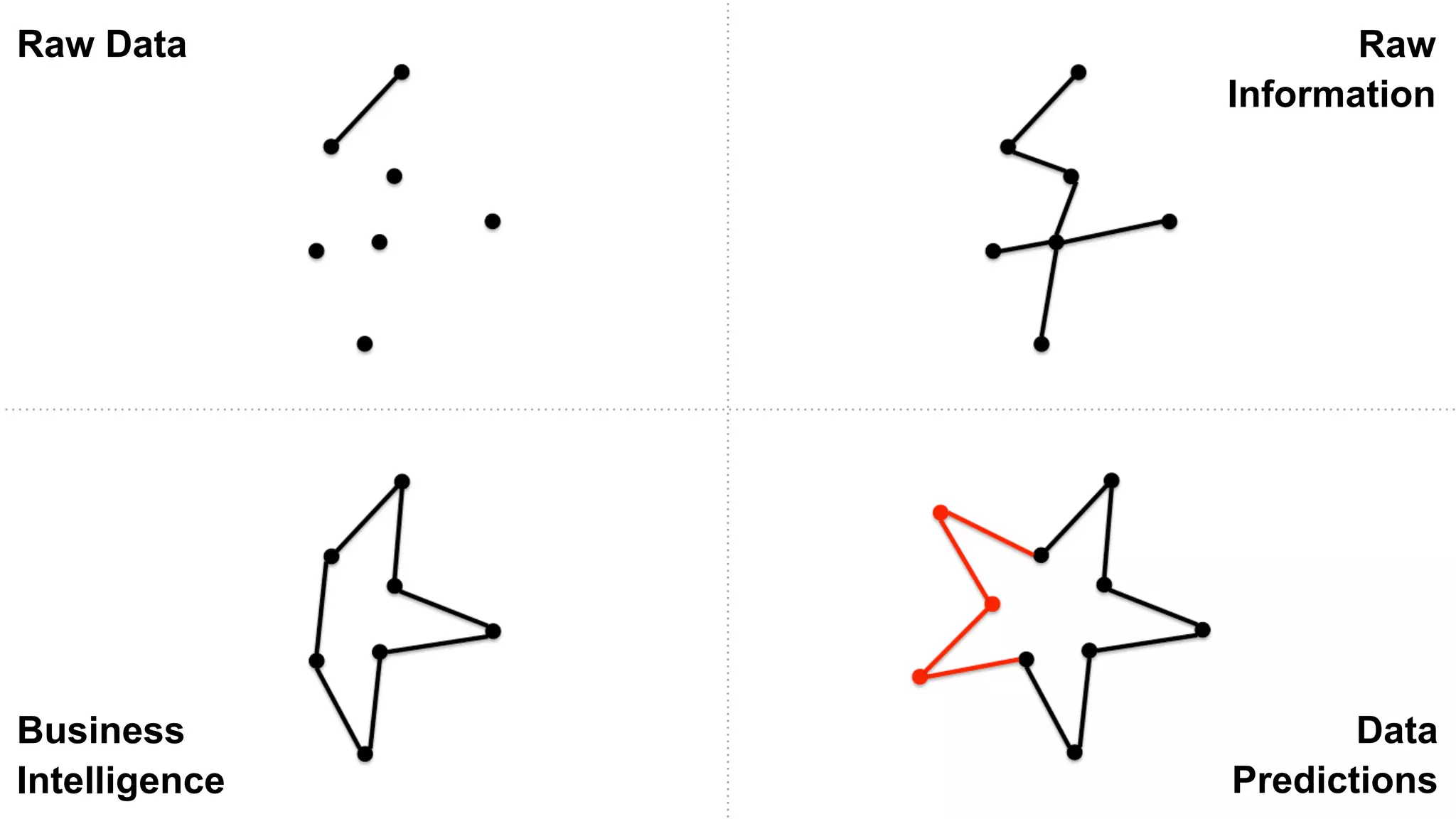

110. Raw Data
Business
Intelligence
Raw
Information
Data
Predictions

111. Get Value from Your Data
Danilo Poccia
AWS Technical Evangelist
@danilop
danilop
