![Access Policy for the IAM Role
{
"Effect":"Allow",
"Action":["s3:*"],
"Resource":"*"
}
{
"Effect": ”Deny",
"Action": ["dynamodb:*"],
"Resource": "*"
}
{
"Effect": "Allow",
"Action": [”cognito-sync:*"],
"Resource": "*"
}
Allow
Actions:
All S3, Sync store
Operations
Resource:
All resources within
these services
Deny
Actions:
All DDB Operations
Resource:
All resources](https://image.slidesharecdn.com/20141029-buildingcloudpoweredmobileapps-final-141031085148-conversion-gate01/85/Building-Cloud-powered-Mobile-Apps-26-320.jpg)
![Access Policy Restriction
{
"Effect":"Allow",
"Action":["s3:PutObject","s3:GetObject","s3:DeleteObject",
"s3:ListMultipartUploadParts","s3:AbortMultipartUpload"],
"Resource":"arn:aws:s3:::BUCKET_NAME/*"
}
{
"Effect":"Allow",
"Action":["s3:ListBucket","s3:ListBucketMultipartUploads"],
"Resource":"arn:aws:s3:::BUCKET_NAME"
}{
"Effect": "Allow",
"Action": ["dynamodb:GetItem", "dynamodb:Query", "dynamodb:PutItem"],
"Resource" : [ "arn:aws:dynamodb:REGION:123456789:table/TABLE_NAME",
"arn:aws:dynamodb:REGION:123456789:table/TABLE_NAME/
index/INDEX_NAME" ]
}
Allow
Actions:
Certain operations
Resource:
One bucket, table ..](https://image.slidesharecdn.com/20141029-buildingcloudpoweredmobileapps-final-141031085148-conversion-gate01/85/Building-Cloud-powered-Mobile-Apps-27-320.jpg)
![Access Policy Restriction
{
"Effect":"Allow”,
"Action” ["s3:PutObject","s3:GetObject","s3:DeleteObj
ect”,”s3:ListMultipartUploadParts","s3:AbortMultipart
Upload"],
"Resource":"arn:aws:s3:::BUCKET_NAME/Bob/*"
}
{
"Effect":"Allow",
"Action":"s3:ListBucket",
"Resource":"arn:aws:s3:::BUCKET_NAME",
"Condition":{"StringLike":{"s3:prefix":”Bob/"}}
}{
"Effect":"Allow",
"Action":["s3:ListBucketMultipartUploads"],
"Resource":"arn:aws:s3:::BUCKET_NAME"
}
Allow
Actions:
Certain operations
Resource:
Within a bucket with
specific prefix (user)](https://image.slidesharecdn.com/20141029-buildingcloudpoweredmobileapps-final-141031085148-conversion-gate01/85/Building-Cloud-powered-Mobile-Apps-28-320.jpg)
![Access Policy Restriction (Policy Variables)
Allow
Actions:
All sync operations
Resource:
Only to that identity
{"
Effect":"Allow",
"Action":"cognito-sync:*",
"Resource":["arn:aws:cognito-sync:us-east-1:
{
"Effect": "Allow”,
"Action": ["s3:GetObject”,"s3:PutObject”],
"Resource": ["arn:aws:s3:::
myBucket/amazon/snakegame/
${cognito-identity.amazonaws.com:sub}"]
}
123456789012:identitypool/
${cognito-identity.amazonaws.com:aud}/identity/
${cognito-identity.amazonaws.com:sub}/*"]
}
Allow
Actions:
S3 Get/Put operations
Resource:
Only to a specific part
of bucket to that identity](https://image.slidesharecdn.com/20141029-buildingcloudpoweredmobileapps-final-141031085148-conversion-gate01/85/Building-Cloud-powered-Mobile-Apps-29-320.jpg)
![Integrating Cognito Sync functionality is dead simple
Initialize the AWSCognitoSyncClient
AWSCognitoSyncClient *syncClient = [[AWSCognitoSyncClient alloc]
initWithConfiguration: configuration];
Create or open Dataset and Add Key Values
DataSet *dataset = [syncClient openOrCreateDataSet:@"myDataSet"];
NSString *value = [dataset readStringForKey:@"myKey"];
[dataset putString:@"my value" forKey:@"myKey"];
Call synchronize on the dataset
[dataset synchronize];
iOS](https://image.slidesharecdn.com/20141029-buildingcloudpoweredmobileapps-final-141031085148-conversion-gate01/85/Building-Cloud-powered-Mobile-Apps-37-320.jpg)
![Integrating Mobile Analytics is super simple
Initialize the AWSMobileAnalytics object. That’s it! Get Session
Activity in the AWS Management Console.
AWSMobileAnalytics* analytics = [AWSMobileAnalytics
defaultAWSMobileAnalyticsWithIdentifier:@"someuniqueid"];
Create add Custom Events
id<AWSMobileAnalyticsEventClient> eventClient =
analytics.eventClient;
id<AWSMobileAnalyticsEvent> level1Event = [eventClient
createEventWithEventType:@"level1Complete"];
Submit the event. If we don't call submitEvents, events
will automatically be submitted at periodic intervals.
[eventClient submitEvents];
iOS](https://image.slidesharecdn.com/20141029-buildingcloudpoweredmobileapps-final-141031085148-conversion-gate01/85/Building-Cloud-powered-Mobile-Apps-47-320.jpg)
![Amazon S3 Connector: Transfer Manager in iOS
// Creating the transfer manager
self.transferManager = [S3TransferManager new];
self.transferManager.s3 = s3client;
// Upload image
[self.transferManager uploadFile:fileName bucket:bucketName key:objectName];
// Download image
[self.transferManager downloadFile:fileName bucket:bucketName key:objectName];
// Pause, Resume, Cancel
[self.transferManager pauseAllTransfers];
[self.transferManager resumeAllTransfers];
[self.transferManager cancelAllTransfers];](https://image.slidesharecdn.com/20141029-buildingcloudpoweredmobileapps-final-141031085148-conversion-gate01/85/Building-Cloud-powered-Mobile-Apps-52-320.jpg)
Uploaded byDanilo Poccia
Building Cloud-powered Mobile Apps
This document discusses building cloud-powered mobile apps using Amazon Web Services (AWS). It provides an overview of AWS services that can be used to build mobile backend functionality such as user authentication with Amazon Cognito, data storage with DynamoDB, media delivery with S3 and CloudFront, push notifications with SNS, and analytics tracking with Mobile Analytics. The document also discusses how the AWS Mobile SDK provides an integrated way to access these services and handles issues like intermittent network connections. Specific services are then discussed in more detail, including how Cognito can be used for user identity management and data synchronization across devices.
![Serverless Meetup - Authentication for Serverless Applications [Jul 2020]](https://cdn.slidesharecdn.com/ss_thumbnails/serverlessmeetup-authenticationforserverlessapplicationsjul2020-240904113638-32f9df46-thumbnail.jpg?width=640&height=640&fit=bounds)
Building Cloud-powered Mobile Apps
- 1. Building Cloud-powered MobileApps Danilo Poccia, Technical Evangelist October 29th, 2014
- 2.

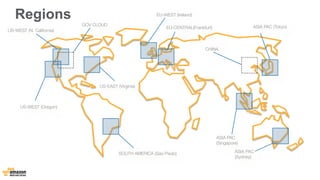

- 3. Regions US- WEST(N. California) EU-WEST (Ireland) ASIA PAC (Tokyo) ASIA PAC (Singapore) US-WEST (Oregon) US-EAST (Virginia) EU-CENTRAL(Frankfurt) SOUTH AMERICA (Sao Paulo) GOV CLOUD ASIA PAC (Sydney) CHINA
- 4.

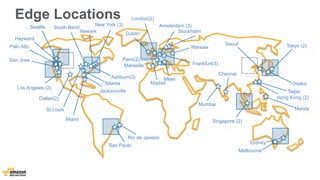

- 5. Edge Locations NewYork (3) Marseille Los Angeles (2) Jacksonville Dallas(2) St.Louis Miami Palo Alto Seattle London(2) Ashburn(3) Newark Dublin Amsterdam (3) Stockholm Frankfurt(3) Paris(2) Singapore (2) Tokyo (2) Taipei Hong Kong (2) Sao Paulo South Bend San Jose Milan Sydney Madrid Seoul Mumbai Chennai Atlanta Hayward Rio de Janeiro Warsaw Osaka Manila Melbourne
- 7. How to builda mobile app today?

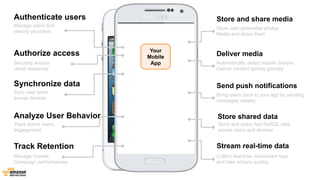

- 8. Authenticate users Manageusers and identity providers Authorize access Securely access cloud resources Sync user prefs across devices Analyze User Behavior Store and share media Synchronize data Deliver media Send push notifications Store shared data Track active users, engagement Track Retention Stream real-time data Manage funnels, Campaign performances Store user-generated photos Media and share them Automatically detect mobile devices Deliver content quickly globally Bring users back to your app by sending messages reliably Store and query fast NoSQL data across users and devices Collect real-time clickstream logs and take actions quickly Your Mobile App
- 9. Authenticate users AmazonCognito (Identity Broker) Authorize access AWS Identity and Access Management Analyze User Behavior Store and share media Synchronize data AWS Mobile SDK Amazon Mobile Analytics Deliver media Amazon Cognito (Sync) Amazon S3 Transfer Manager Amazon CloudFront (Device Detection) Store shared data Amazon DynamoDB (Object Mapper) Stream real-time data Amazon Kinesis (Recorder) Track Retention Amazon Mobile Analytics Send push notifications Amazon SNS Mobile Push Your Mobile App

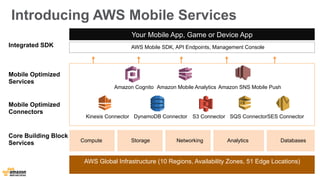

- 10. Introducing AWS MobileServices Amazon Cognito Amazon Mobile Analytics Amazon SNS Mobile Push Kinesis Connector DynamoDB Connector S3 Connector SQS Connector SES Connector AWS Global Infrastructure (10 Regions, Availability Zones, 51 Edge Locations) Mobile Optimized Services Mobile Optimized Connectors Core Building Block Services Your Mobile App, Game or Device App AWS Mobile SDK, API Endpoints, Management Console Compute Storage Networking Analytics Databases Integrated SDK

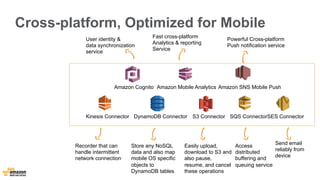

- 11. Cross-platform, Optimized forMobile User identity & data synchronization service Fast cross-platform Analytics & reporting Service Amazon Cognito Amazon Mobile Analytics Amazon SNS Mobile Push Kinesis Connector DynamoDB Connector S3 Connector SQS Connector SES Connector Store any NoSQL data and also map mobile OS specific objects to DynamoDB tables Powerful Cross-platform Push notification service Recorder that can handle intermittent network connection Easily upload, download to S3 and also pause, resume, and cancel these operations Send email reliably from device Access distributed buffering and queuing service

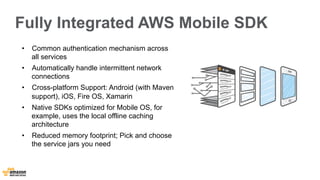

- 12. Fully Integrated AWSMobile SDK • Common authentication mechanism across all services • Automatically handle intermittent network connections • Cross-platform Support: Android (with Maven support), iOS, Fire OS, Xamarin • Native SDKs optimized for Mobile OS, for example, uses the local offline caching architecture • Reduced memory footprint; Pick and choose the service jars you need
- 13. Authenticate users: AmazonCognito

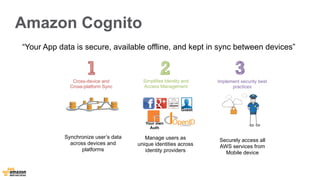

- 14. Amazon Cognito “YourApp data is secure, available offline, and kept in sync between devices” Simplifies Identity and Access Management Securely access all AWS services from Mobile device Cross-device and Cross-platform Sync Implement security best practices Synchronize user’s data across devices and platforms Guest Your own Auth Manage users as unique identities across identity providers

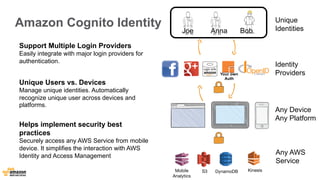

- 15. Unique Joe AnnaBob Identities Identity Providers Any Device Any Platform Any AWS Service Amazon Cognito Identity Support Multiple Login Providers Easily integrate with major login providers for authentication. Unique Users vs. Devices Manage unique identities. Automatically recognize unique user across devices and platforms. Helps implement security best practices Securely access any AWS Service from mobile device. It simplifies the interaction with AWS Identity and Access Management Mobile Analytics S3 DynamoDB Kinesis Your own Auth

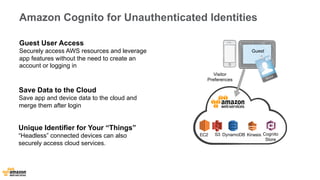

- 16. Amazon Cognito forUnauthenticated Identities Guest User Access Securely access AWS resources and leverage app features without the need to create an account or logging in Save Data to the Cloud Save app and device data to the cloud and merge them after login Unique Identifier for Your “Things” “Headless” connected devices can also securely access cloud services. Visitor Preferences Guest Cognito Store EC2 S3 DynamoDB Kinesis

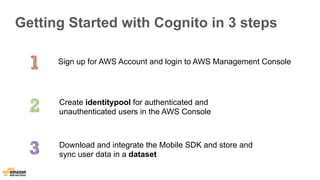

- 17. Getting Started withCognito in 3 steps Sign up for AWS Account and login to AWS Management Console Create identitypool for authenticated and unauthenticated users in the AWS Console Download and integrate the Mobile SDK and store and sync user data in a dataset
- 18. Demo: Amazon CognitoConsole
- 19. Amazon Cognito Security Safeguard AWS Credentials No need to embed credentials in the app anymore. Get least-privileged temporary credentials. Helps implement security best practices Securely access any AWS Service. It simplifies the interaction with Security Token Service and removes the need of Token Vending Machine Set granular access permissions on AWS resources Get fine-grained access control to cloud resources. EC2 S3 DynamoDB Kinesis
- 20. Amazon Cognito SecurityArchitecture Cognito ID (Temp Credentials) DynamoDB End Users Developer Access to AWS Services Cognito Identity Broker Login OAUTH/OpenID Access Token Cognito ID, Temp Credentials S3 Mobile Analytics Cognito Sync Store AWS Management Console Access Token Pool ID Role ARNs App with AWS Mobile SDK Your own Auth

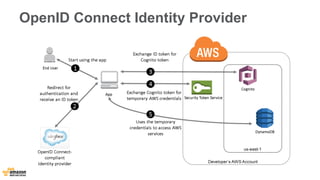

- 21. OpenID Connect IdentityProvider

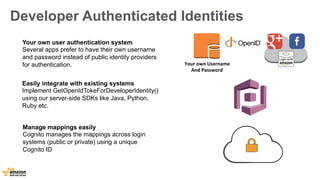

- 22. Developer Authenticated Identities Your own Username And Password Your own user authentication system Several apps prefer to have their own username and password instead of public identity providers for authentication. Easily integrate with existing systems Implement GetOpenIdTokeForDeveloperIdentity() using our server-side SDKs like Java, Python, Ruby etc. Manage mappings easily Cognito manages the mappings across login systems (public or private) using a unique Cognito ID

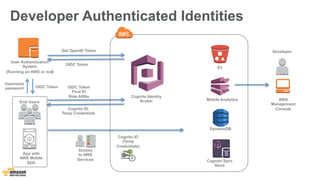

- 23. Developer Authenticated Identities Cognito ID (Temp Credentials) DynamoDB End Users Developer App with AWS Mobile SDK Access to AWS Services Cognito Identity Broker Get OpenID Token Username password Cognito ID, Temp Credentials S3 Mobile Analytics Cognito Sync Store AWS Management Console OIDC Token Pool ID Role ARNs User Authentication System (Running on AWS or not) OIDC Token OIDC Token
- 24. Authorize access: AmazonCognito + AWS IAM + Fine-grained access control

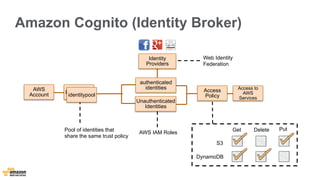

- 25. Amazon Cognito (IdentityBroker) authenticated identities Access to AWS Services identitypool Identitypool Identity Providers Pool of identities that share the same trust policy Access Policy Unauthenticated Identities AWS IAM Roles AWS Account Web Identity Federation S3 DynamoDB Get Delete Put

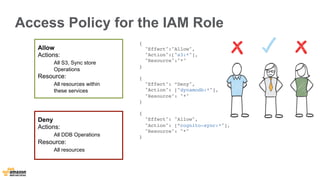

- 26. Access Policy forthe IAM Role { "Effect":"Allow", "Action":["s3:*"], "Resource":"*" } { "Effect": ”Deny", "Action": ["dynamodb:*"], "Resource": "*" } { "Effect": "Allow", "Action": [”cognito-sync:*"], "Resource": "*" } Allow Actions: All S3, Sync store Operations Resource: All resources within these services Deny Actions: All DDB Operations Resource: All resources

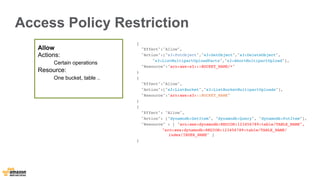

- 27. Access Policy Restriction { "Effect":"Allow", "Action":["s3:PutObject","s3:GetObject","s3:DeleteObject", "s3:ListMultipartUploadParts","s3:AbortMultipartUpload"], "Resource":"arn:aws:s3:::BUCKET_NAME/*" } { "Effect":"Allow", "Action":["s3:ListBucket","s3:ListBucketMultipartUploads"], "Resource":"arn:aws:s3:::BUCKET_NAME" }{ "Effect": "Allow", "Action": ["dynamodb:GetItem", "dynamodb:Query", "dynamodb:PutItem"], "Resource" : [ "arn:aws:dynamodb:REGION:123456789:table/TABLE_NAME", "arn:aws:dynamodb:REGION:123456789:table/TABLE_NAME/ index/INDEX_NAME" ] } Allow Actions: Certain operations Resource: One bucket, table ..
- 28. Access Policy Restriction { "Effect":"Allow”, "Action” ["s3:PutObject","s3:GetObject","s3:DeleteObj ect”,”s3:ListMultipartUploadParts","s3:AbortMultipart Upload"], "Resource":"arn:aws:s3:::BUCKET_NAME/Bob/*" } { "Effect":"Allow", "Action":"s3:ListBucket", "Resource":"arn:aws:s3:::BUCKET_NAME", "Condition":{"StringLike":{"s3:prefix":”Bob/"}} }{ "Effect":"Allow", "Action":["s3:ListBucketMultipartUploads"], "Resource":"arn:aws:s3:::BUCKET_NAME" } Allow Actions: Certain operations Resource: Within a bucket with specific prefix (user)

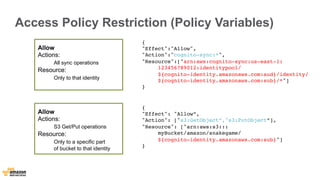

- 29. Access Policy Restriction(Policy Variables) Allow Actions: All sync operations Resource: Only to that identity {" Effect":"Allow", "Action":"cognito-sync:*", "Resource":["arn:aws:cognito-sync:us-east-1: { "Effect": "Allow”, "Action": ["s3:GetObject”,"s3:PutObject”], "Resource": ["arn:aws:s3::: myBucket/amazon/snakegame/ ${cognito-identity.amazonaws.com:sub}"] } 123456789012:identitypool/ ${cognito-identity.amazonaws.com:aud}/identity/ ${cognito-identity.amazonaws.com:sub}/*"] } Allow Actions: S3 Get/Put operations Resource: Only to a specific part of bucket to that identity
- 30. Synchronize data acrossdevices : Amazon Cognito (Sync)

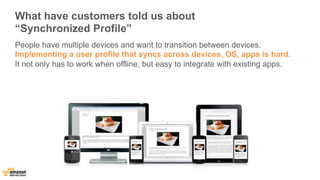

- 31. What have customerstold us about “Synchronized Profile” People have multiple devices and want to transition between devices. Implementing a user profile that syncs across devices, OS, apps is hard. It not only has to work when offline, but easy to integrate with existing apps.

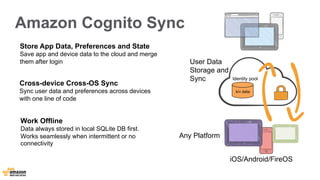

- 32. Amazon Cognito Sync User Data Storage and Sync Any Platform Identity pool iOS/Android/FireOS Store App Data, Preferences and State Save app and device data to the cloud and merge them after login Cross-device Cross-OS Sync Sync user data and preferences across devices with one line of code Work Offline Data always stored in local SQLite DB first. Works seamlessly when intermittent or no connectivity k/v data

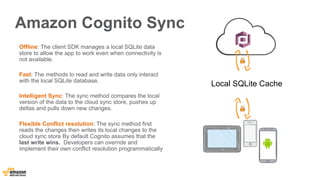

- 33. Amazon Cognito Sync Offline: The client SDK manages a local SQLite data store to allow the app to work even when connectivity is not available. Fast: The methods to read and write data only interact with the local SQLite database. Intelligent Sync: The sync method compares the local version of the data to the cloud sync store, pushes up deltas and pulls down new changes. Flexible Conflict resolution: The sync method first reads the changes then writes its local changes to the cloud sync store By default Cognito assumes that the last write wins. Developers can override and implement their own conflict resolution programmatically Local SQLite Cache
- 34. Amazon Cognito SyncData Model AWS Account Identitypool identitypool Dataset Pool of identities that share the same trust policy IdIdeenntittiyt y Identity DDaatatasseet t Unique identifier across devices, get cached on local devices as well as saved in the cloud 1:n 1:n 1:n Dataset synchronized across devices by simply calling dataset.synchronize() method 1:n DDaatatasseet t Key/Value Key-value and sync count

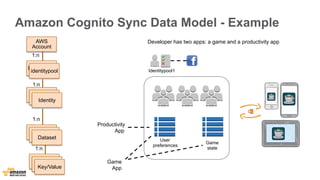

- 35. Amazon Cognito SyncData Model - Example AWS Account 1:n Identitypool identitypool 1:n IdIdeenntittiyt y Identity 1:n Dataset DDaatatasseet t Developer has two apps: a game and a productivity app User preferences Game state Identitypool1 Productivity App Game App 1:n DDaatatasseet t Key/Value

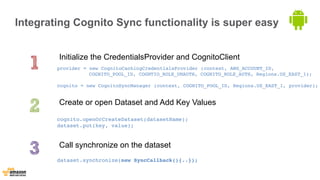

- 36. Integrating Cognito Syncfunctionality is super easy Initialize the CredentialsProvider and CognitoClient provider = new CognitoCachingCredentialsProvider (context, AWS_ACCOUNT_ID, COGNITO_POOL_ID, COGNTIO_ROLE_UNAUTH, COGNITO_ROLE_AUTH, Regions.US_EAST_1); cognito = new CognitoSyncManager (context, COGNITO_POOL_ID, Regions.US_EAST_1, provider); Create or open Dataset and Add Key Values cognito.openOrCreateDataset(datasetName); dataset.put(key, value); Call synchronize on the dataset dataset.synchronize(new SyncCallback(){..});
- 37. Integrating Cognito Syncfunctionality is dead simple Initialize the AWSCognitoSyncClient AWSCognitoSyncClient *syncClient = [[AWSCognitoSyncClient alloc] initWithConfiguration: configuration]; Create or open Dataset and Add Key Values DataSet *dataset = [syncClient openOrCreateDataSet:@"myDataSet"]; NSString *value = [dataset readStringForKey:@"myKey"]; [dataset putString:@"my value" forKey:@"myKey"]; Call synchronize on the dataset [dataset synchronize]; iOS
- 38. Amazon Cognito (IdentityBroker) AWS Identity and Access Management Analyze User Behavior Store and share media Deliver media Send push notifications Store shared data Track active users, engagement Track Retention Stream real-time data Manage funnels, Campaign performances Store user-generated photos Media and share them Automatically detect mobile devices Deliver content quickly globally Bring users back to your app by sending messages reliably Store and query fast NoSQL data across users and devices Collect real-time clickstream logs and take actions quickly Your Mobile App Authenticate users Authorize access Synchronize data Amazon Cognito (Sync)
- 39. Analyze User Behavior:Amazon Mobile Analytics

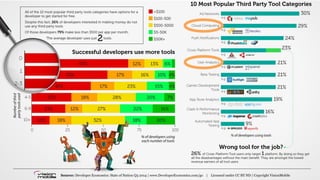

- 40. Developer Economics |State of the Developer Nation Q3 2014 | © VisionMobile | All rights reserved | www.developereconomics.com/go 27
- 41. User Analytics (andCloud Computing) among top 10 most popular tools Successful developers use more tools Developer Economics State of the Developer Nation Q3 2014 © VisionMobile
- 42. What Customers ToldUs About “Mobile Analytics” Developers deeply value user analytics and consider it an integral part of their app development process. They want to monitor their most important metrics in a timely manner, and take action quickly. They would like to own their mobile data, just like they do with any other AWS service.

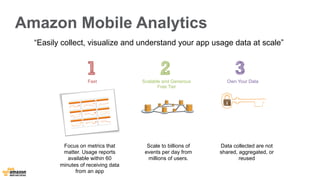

- 43. Amazon Mobile Analytics “Easily collect, visualize and understand your app usage data at scale” Scalable and Generous Free Tier Fast Focus on metrics that matter. Usage reports available within 60 minutes of receiving data from an app Scale to billions of events per day from millions of users. Own Your Data Data collected are not shared, aggregated, or reused

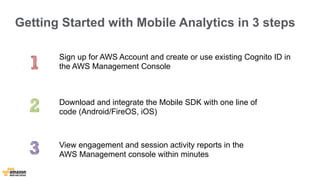

- 44. Getting Started withMobile Analytics in 3 steps Sign up for AWS Account and create or use existing Cognito ID in the AWS Management Console Download and integrate the Mobile SDK with one line of code (Android/FireOS, iOS) View engagement and session activity reports in the AWS Management console within minutes
- 45. Demo: Amazon MobileAnalytics Console

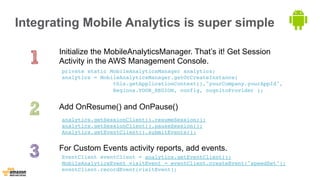

- 46. Integrating Mobile Analyticsis super simple Initialize the MobileAnalyticsManager. That’s it! Get Session Activity in the AWS Management Console. private static MobileAnalyticsManager analytics; analytics = MobileAnalyticsManager.getOrCreateInstance( this.getApplicationContext(),"yourCompany.yourAppId", Regions.YOUR_REGION, config, cognitoProvider ); Add OnResume() and OnPause() analytics.getSessionClient().resumeSession(); analytics.getSessionClient().pauseSession(); Analytics.getEventClient().submitEvents(); For Custom Events activity reports, add events. EventClient eventClient = analytics.getEventClient(); MobileAnalyticsEvent visitEvent = eventClient.createEvent("speedSet"); eventClient.recordEvent(visitEvent);
- 47. Integrating Mobile Analyticsis super simple Initialize the AWSMobileAnalytics object. That’s it! Get Session Activity in the AWS Management Console. AWSMobileAnalytics* analytics = [AWSMobileAnalytics defaultAWSMobileAnalyticsWithIdentifier:@"someuniqueid"]; Create add Custom Events id<AWSMobileAnalyticsEventClient> eventClient = analytics.eventClient; id<AWSMobileAnalyticsEvent> level1Event = [eventClient createEventWithEventType:@"level1Complete"]; Submit the event. If we don't call submitEvents, events will automatically be submitted at periodic intervals. [eventClient submitEvents]; iOS
- 48. Store and sharemedia Store user-generated photos Media and share them Deliver media Automatically detect mobile devices Deliver content quickly globally Send push notifications Bring users back to your app by sending messages reliably Store shared data Store and query fast NoSQL data across users and devices Stream real-time data Collect real-time clickstream logs and take actions quickly Your Mobile App Authenticate users Amazon Cognito (Identity Broker) Authorize access AWS Identity and Access Management Synchronize data Amazon Cognito (Sync) Analyze User Behavior Amazon Mobile Analytics Track Retention Amazon Mobile Analytics
- 49. Store and sharemedia: Amazon S3

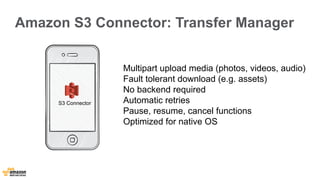

- 50. Amazon S3 Connector:Transfer Manager S3 Connector Multipart upload media (photos, videos, audio) Fault tolerant download (e.g. assets) No backend required Automatic retries Pause, resume, cancel functions Optimized for native OS
- 51. Amazon S3 Connector:Transfer Manager in Android // Creating the transfer manager TransferManager transferManager = new TransferManager(credentialProvider); // Upload image Upload upload = transferManager.upload(BUCKET_NAME, fileName, file); // Download image Download download = transferManager.download(BUCKET_NAME, mKey, file); // Pause, and Resume try { PersistableDownload persistableDownload = download.pause(); //do something if we didn’t abort } catch(PauseException e) { //do something if we aborted } download = transferManager.resumeDownload(persistableDownload);

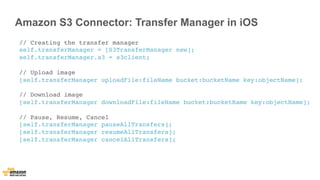

- 52. Amazon S3 Connector:Transfer Manager in iOS // Creating the transfer manager self.transferManager = [S3TransferManager new]; self.transferManager.s3 = s3client; // Upload image [self.transferManager uploadFile:fileName bucket:bucketName key:objectName]; // Download image [self.transferManager downloadFile:fileName bucket:bucketName key:objectName]; // Pause, Resume, Cancel [self.transferManager pauseAllTransfers]; [self.transferManager resumeAllTransfers]; [self.transferManager cancelAllTransfers];
- 53. Amazon S3 TransferManager Send push notifications Bring users back to your app by sending messages reliably Store shared data Store and query fast NoSQL data across users and devices Stream real-time data Collect real-time clickstream logs and take actions quickly Your Mobile App Authenticate users Amazon Cognito (Identity Broker) Authorize access AWS Identity and Access Management Synchronize data Amazon Cognito (Sync) Analyze User Behavior Amazon Mobile Analytics Track Retention Amazon Mobile Analytics Store and share media Deliver media Amazon CloudFront (Device Detection)
- 54. Authenticate users AmazonCognito (Identity Broker) Authorize access AWS Identity and Access Management Analyze User Behavior Store and share media Synchronize data AWS Mobile SDK Amazon Mobile Analytics Deliver media Amazon Cognito (Sync) Amazon S3 Transfer Manager Amazon CloudFront (Device Detection) Store shared data Amazon DynamoDB (Object Mapper) Stream real-time data Amazon Kinesis (Recorder) Track Retention Amazon Mobile Analytics Send push notifications Amazon SNS Mobile Push Your Mobile App
- 55. Send Push Notifications:Amazon SNS Mobile Push

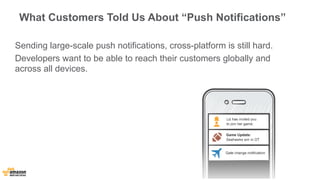

- 56. What Customers ToldUs About “Push Notifications” Sending large-scale push notifications, cross-platform is still hard. Developers want to be able to reach their customers globally and across all devices.

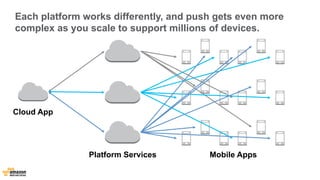

- 57. Each platform worksdifferently, and push gets even more complex as you scale to support millions of devices. Cloud App Platform Services Mobile Apps
- 58. Amazon SNS Cross-platform Mobile Push Internet Apple APNS Google GCM Baidu CP Amazon ADM Windows WNS and MPNS Industry’s First! New! iOS Apple iPhones and iPads Android Phones and Tablets in China With Amazon SNS, developers can send push notifications on multiple platforms and reach mobile users around the world New features: Message Expiry Time Message Attributes Amazon SNS Mobile Push Android Phones and Tablets Kindle Fire Devices Windows Desktop and Windows Phone Devices
- 59. Developers Love Cross-PlatformFeatures of SNS Customers love high scale and Reliability of SNS Fast reliable notification for every Email received is powered by SNS High-profile Startups trust SNS for their high-profile launches Secret.ly Mature games increase retention using SNS Advanced targeted notifications bring players back into the game Launched its Android App with SNS, no provisioning required Jetpack Joyride Fruit ninja
- 60. Store Shared Data:Amazon DynamoDB

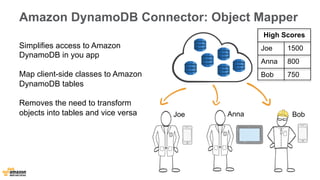

- 61. Amazon DynamoDB Connector:Object Mapper High Scores Joe 1500 Anna 800 Bob 750 Joe Anna Bob Simplifies access to Amazon DynamoDB in you app Map client-side classes to Amazon DynamoDB tables Removes the need to transform objects into tables and vice versa

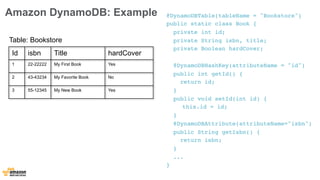

- 62. Amazon DynamoDB: Example@DynamoDBTable(tableName = "Bookstore") public static class Book { private int id; private String isbn, title; private Boolean hardCover; @DynamoDBHashKey(attributeName = "id") public int getId() { return id; } public void setId(int id) { this.id = id; } @DynamoDBAttribute(attributeName="isbn") public String getIsbn() { return isbn; } ... } Table: Bookstore Id isbn Title hardCover 1 22-22222 My First Book Yes 2 43-43234 My Favorite Book No 3 55-12345 My New Book Yes

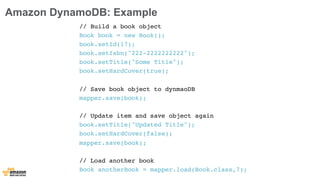

- 63. Amazon DynamoDB: Example // Build a book object Book book = new Book(); book.setId(17); book.setIsbn("222-2222222222"); book.setTitle("Some Title"); book.setHardCover(true); // Save book object to dynmaoDB mapper.save(book); // Update item and save object again book.setTitle("Updated Title"); book.setHardCover(false); mapper.save(book); // Load another book Book anotherBook = mapper.load(Book.class,7);

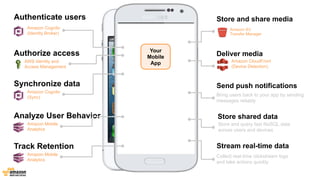

- 64. Amazon S3 TransferManager Send push notifications Bring users back to your app by sending messages reliably Store shared data Store and query fast NoSQL data across users and devices Stream real-time data Collect real-time clickstream logs and take actions quickly Your Mobile App Authenticate users Amazon Cognito (Identity Broker) Authorize access AWS Identity and Access Management Synchronize data Amazon Cognito (Sync) Analyze User Behavior Amazon Mobile Analytics Track Retention Amazon Mobile Analytics Store and share media Deliver media Amazon CloudFront (Device Detection)

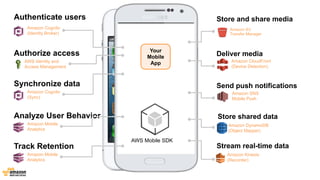

- 65. Authenticate users AmazonCognito (Identity Broker) Authorize access AWS Identity and Access Management Analyze User Behavior Store and share media Synchronize data AWS Mobile SDK Amazon Mobile Analytics Deliver media Amazon Cognito (Sync) Amazon S3 Transfer Manager Amazon CloudFront (Device Detection) Store shared data Amazon DynamoDB (Object Mapper) Stream real-time data Amazon Kinesis (Recorder) Track Retention Amazon Mobile Analytics Send push notifications Amazon SNS Mobile Push Your Mobile App
- 66. Collect real-time click-streamdata: Amazon Kinesis Mobile Connector

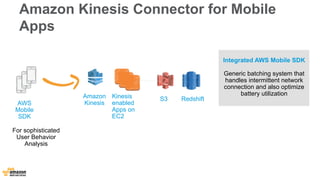

- 67. Amazon Kinesis Connectorfor Mobile Apps Amazon Kinesis S3 Redshift Kinesis enabled Apps on EC2 AWS Mobile SDK For sophisticated User Behavior Analysis Integrated AWS Mobile SDK Generic batching system that handles intermittent network connection and also optimize battery utilization
- 68.
- 69. Authenticate users Manageusers and identity providers Authorize access Securely access cloud resources Sync user prefs across devices Analyze User Behavior Store and share media Synchronize data Deliver media Send push notifications Store shared data Track active users, engagement Track Retention Stream real-time data Manage funnels, Campaign performances Store user-generated photos Media and share them Automatically detect mobile devices Deliver content quickly globally Bring users back to your app by sending messages reliably Store and query fast NoSQL data across users and devices Collect real-time clickstream logs and take actions quickly Your Mobile App

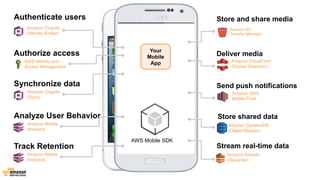

- 70. Authenticate users AmazonCognito (Identity Broker) Authorize access AWS Identity and Access Management Analyze User Behavior Store and share media Synchronize data AWS Mobile SDK Amazon Mobile Analytics Deliver media Amazon Cognito (Sync) Amazon S3 Transfer Manager Amazon CloudFront (Device Detection) Store shared data Amazon DynamoDB (Object Mapper) Stream real-time data Amazon Kinesis (Recorder) Track Retention Amazon Mobile Analytics Send push notifications Amazon SNS Mobile Push Your Mobile App

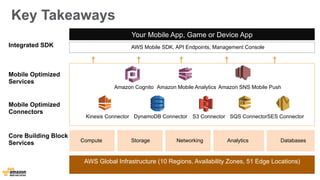

- 71. Key Takeaways AmazonCognito Amazon Mobile Analytics Amazon SNS Mobile Push Kinesis Connector DynamoDB Connector S3 Connector SQS Connector SES Connector AWS Global Infrastructure (10 Regions, Availability Zones, 51 Edge Locations) Mobile Optimized Services Mobile Optimized Connectors Core Building Block Services Your Mobile App, Game or Device App AWS Mobile SDK, API Endpoints, Management Console Compute Storage Networking Analytics Databases Integrated SDK

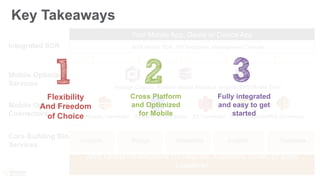

- 72. Key Takeaways AmazonCognito Amazon Mobile Analytics Amazon SNS Mobile Push Kinesis Connector DynamoDB Connector S3 Connector SQS Connector SES Connector AWS Global Infrastructure (10 Regions, Availability Zones, 51 Edge Locations) Mobile Optimized Services Mobile Optimized Connectors Core Building Block Services Your Mobile App, Game or Device App AWS Mobile SDK, API Endpoints, Management Console Compute Storage Networking Analytics Databases Integrated SDK Cross Platform and Optimized for Mobile Flexibility And Freedom of Choice Fully integrated and easy to get started

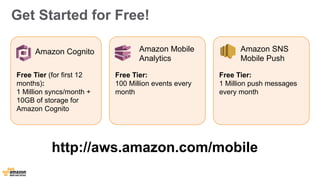

- 73. Get Started forFree! Amazon Cognito Amazon Mobile Analytics Amazon SNS Mobile Push Free Tier: 1 Million push messages every month Free Tier (for first 12 months): 1 Million syncs/month + 10GB of storage for Amazon Cognito Free Tier: 100 Million events every month http://aws.amazon.com/mobile
- 74. Thank You! #AWSUGIT @danilop
