This document discusses how Pivotal Cloud Foundry and Solace can be used together to seamlessly transport data between applications across distributed environments. It notes that Pivotal Cloud Foundry provides capabilities like elastic scaling and automation, while Solace provides an event mesh to enable event-driven communication between applications on Cloud Foundry, legacy systems, IoT devices, and across public and private clouds. A case study is presented of how a global bank used Pivotal Cloud Foundry and Solace to build a fault-tolerant global hybrid cloud data fabric and enable new applications to integrate with legacy systems.

1. © Copyright 2017 Pivotal Software, Inc. All rights Reserved. Version 1.0
Get the Message Across
Seamlessly transport data to apps,
anywhere, with Pivotal and Solace
Kamala Dasika
Product Marketing
Pivotal
Jonathan Schabowsky
Sr. Architect, Office of the CTO
Solace
Michael Hilmen
Sr. Systems Engineer
Solace

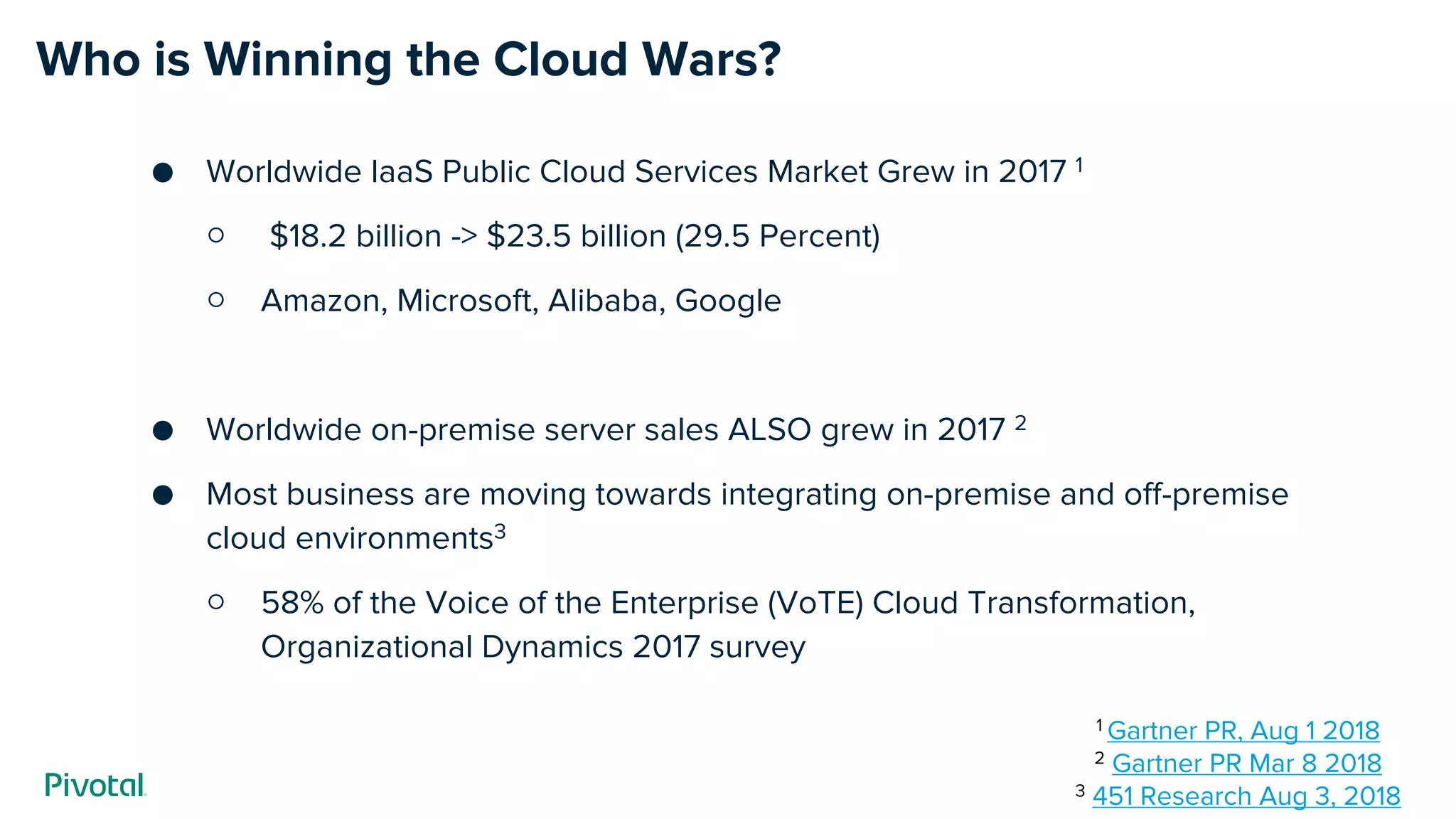

2. Who is Winning the Cloud Wars?
Worldwide IaaS Public Cloud Services Market Grew in 2017 1
○ $18.2 billion -> $23.5 billion (29.5 Percent)
○ Amazon, Microsoft, Alibaba, Google
Worldwide on-premise server sales ALSO grew in 2017 2
Most business are moving towards integrating on-premise and off-premise
cloud environments3
○ 58% of the Voice of the Enterprise (VoTE) Cloud Transformation,
Organizational Dynamics 2017 survey
1 Gartner PR, Aug 1 2018
2 Gartner PR Mar 8 2018
3 451 Research Aug 3, 2018

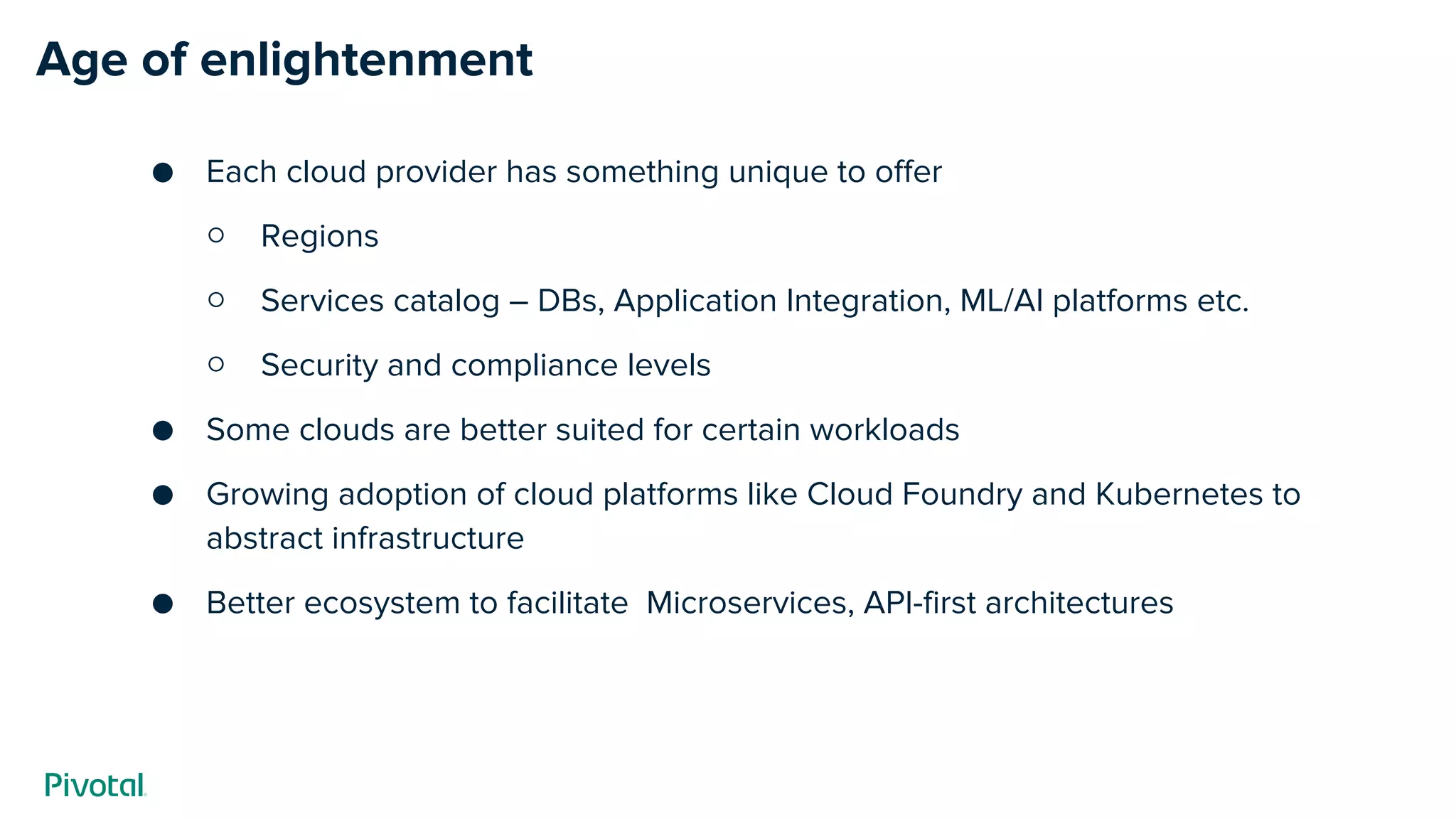

3. Age of enlightenment
Each cloud provider has something unique to offer
○ Regions
○ Services catalog – DBs, Application Integration, ML/AI platforms etc.
○ Security and compliance levels
Some clouds are better suited for certain workloads
Growing adoption of cloud platforms like Cloud Foundry and Kubernetes to
abstract infrastructure
Better ecosystem to facilitate Microservices, API-first architectures

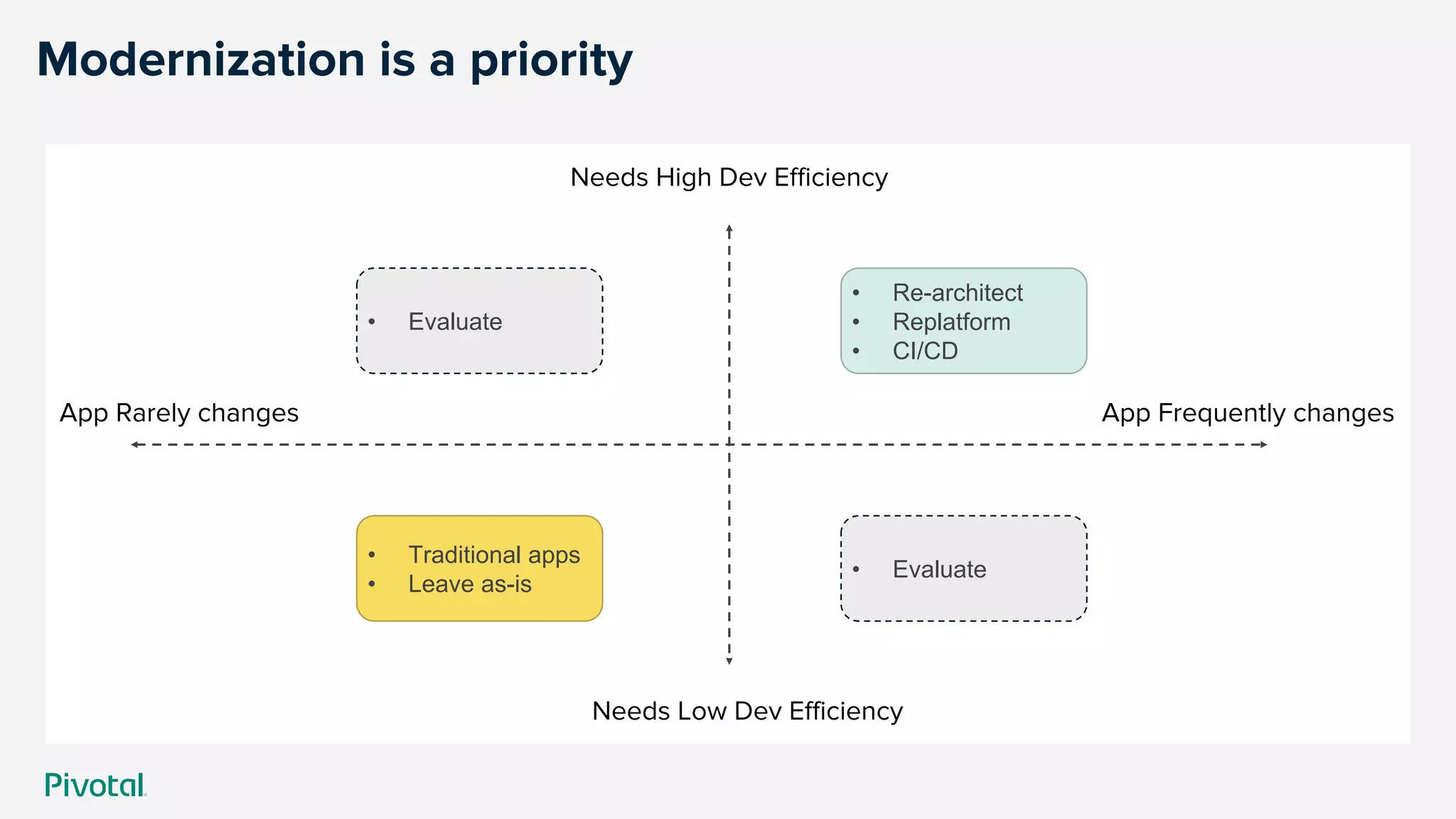

4. Modernization is a priority
Needs High Dev Efficiency
Needs Low Dev Efficiency
App Rarely changes App Frequently changes
• Traditional apps
• Leave as-is
• Re-architect
• Replatform
• CI/CD
• Evaluate
• Evaluate

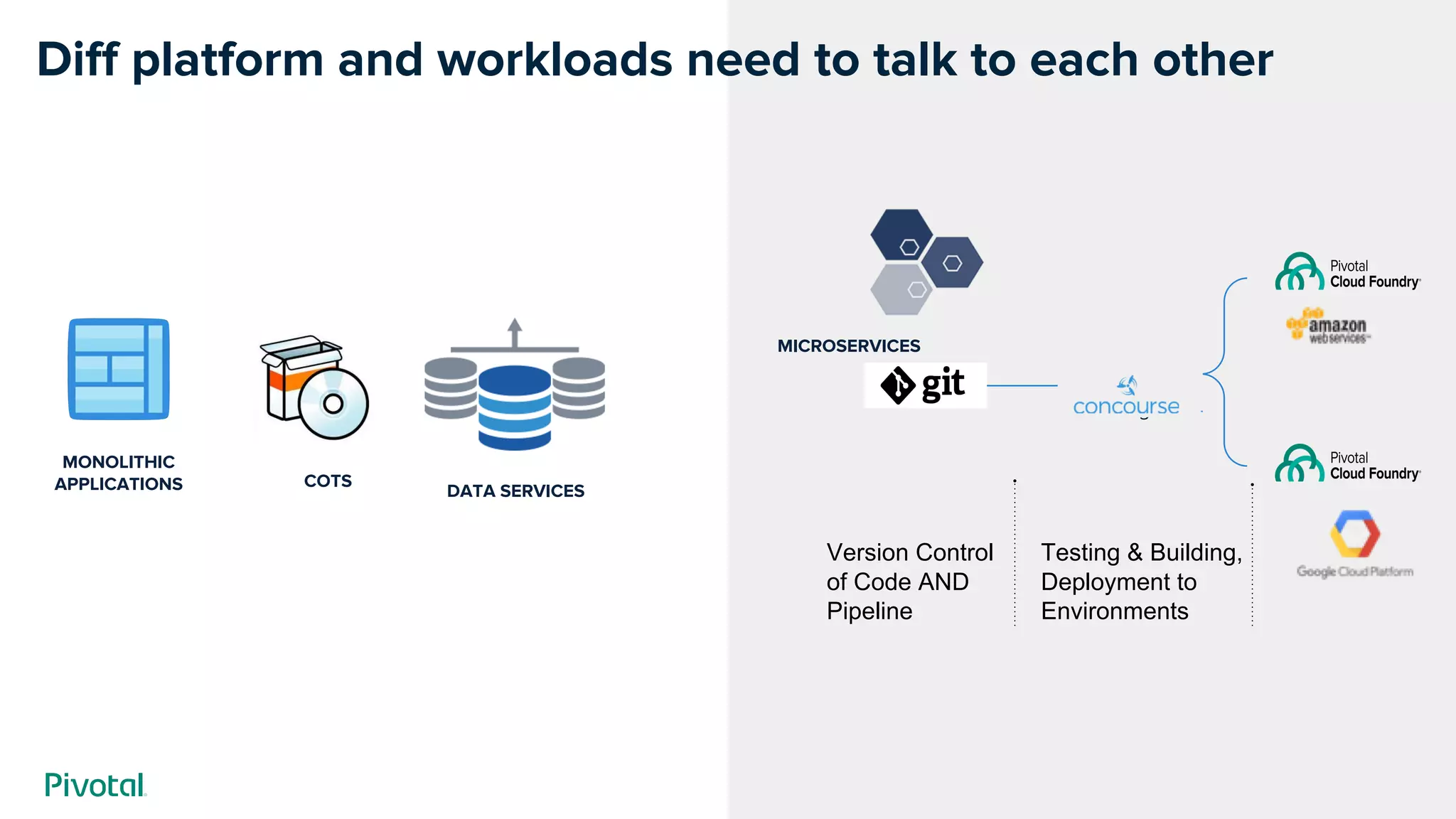

5. Cover w/ Image
Diff platform and workloads need to talk to each other
Version Control
of Code AND
Pipeline
Testing & Building,
Deployment to
Environments
MONOLITHIC
APPLICATIONS DATA SERVICES
MICROSERVICES
COTS

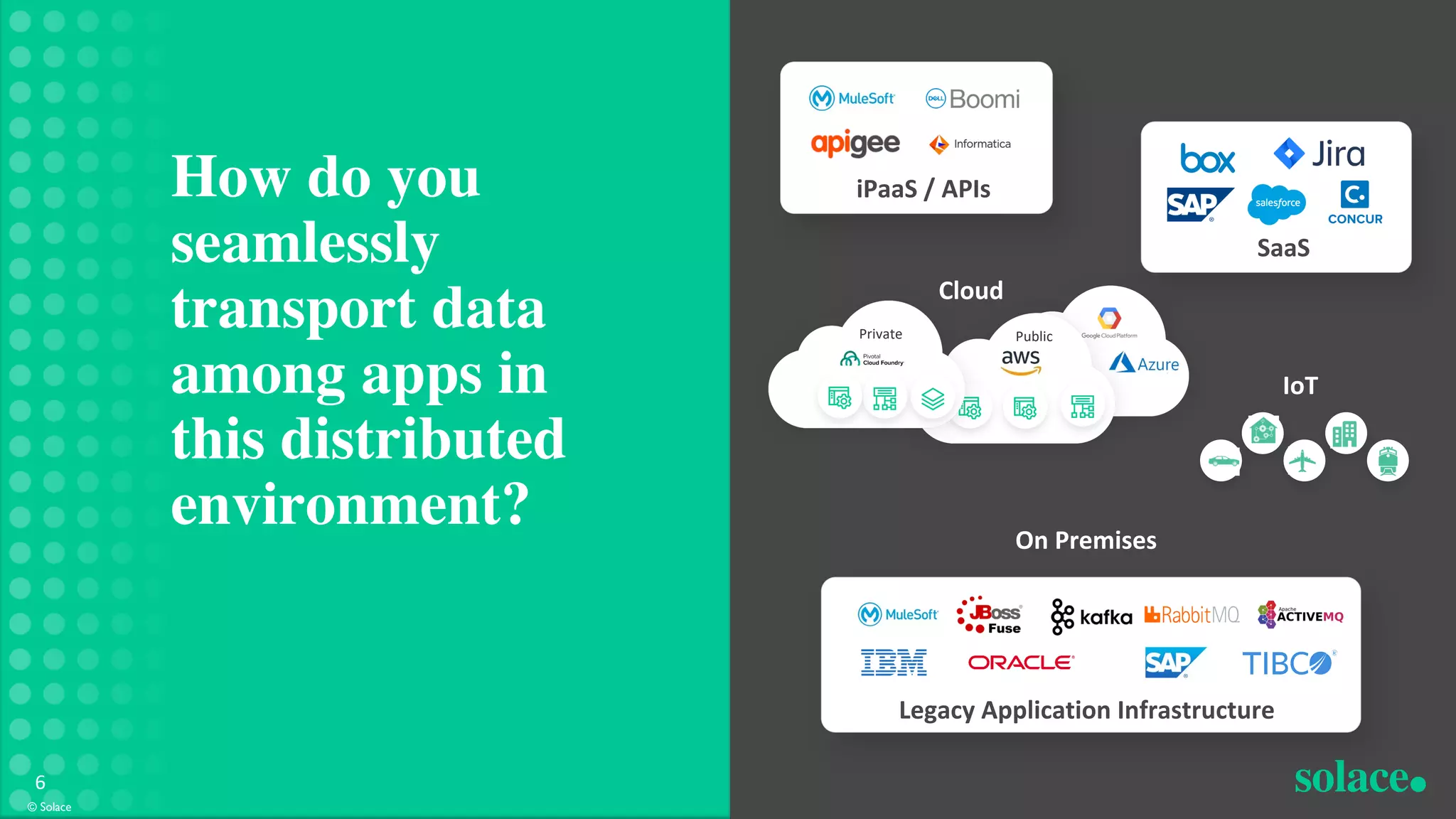

6. © Solace
6
Cloud
Private Public
On Premises
IoT
iPaaS / APIs
SaaS
Legacy Application Infrastructure
How do you
seamlessly
transport data
among apps in
this distributed
environment?

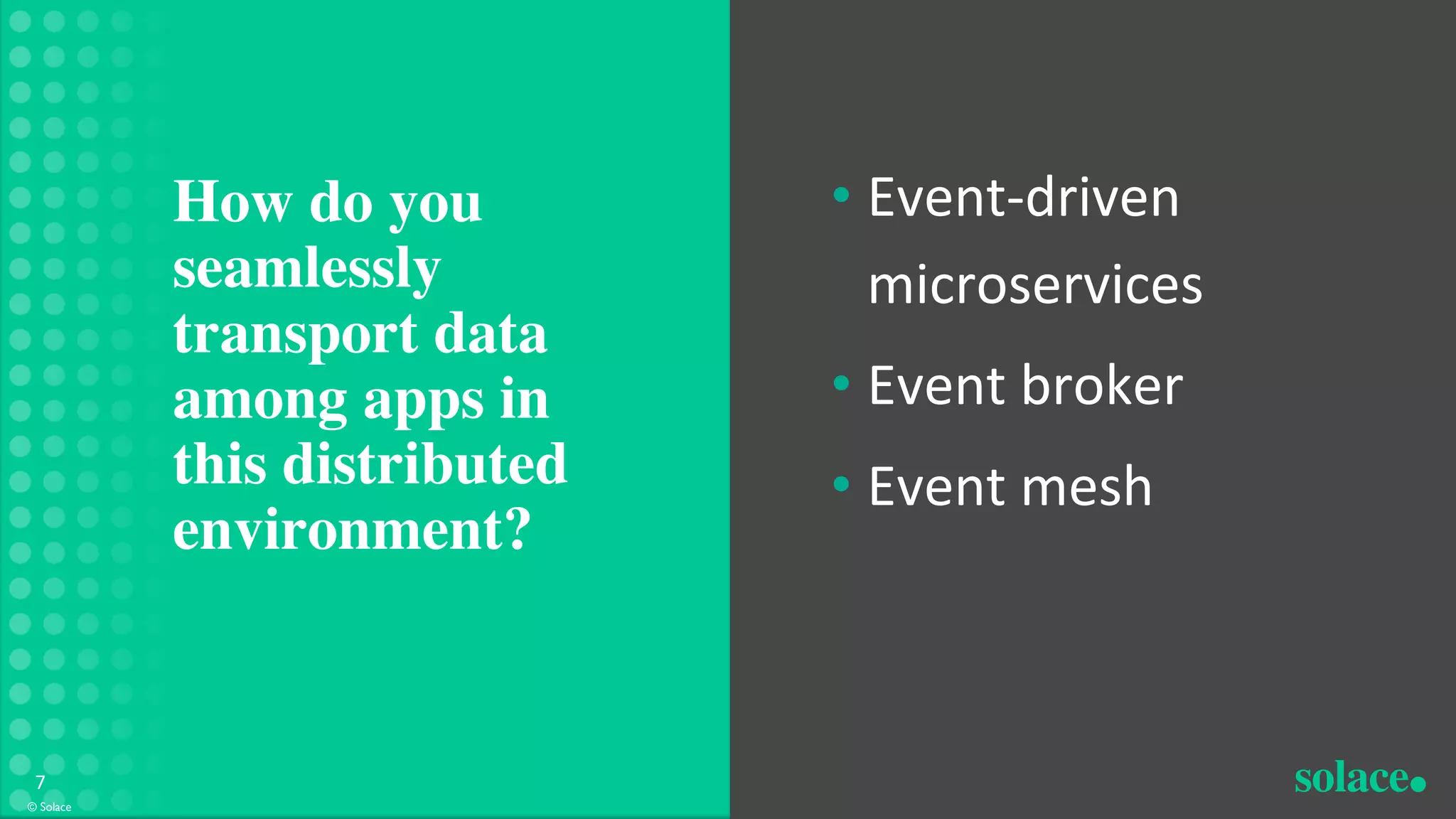

7. © Solace
7
• Event-driven
microservices
• Event broker
• Event mesh
How do you
seamlessly
transport data
among apps in
this distributed
environment?

8. Enabling event-driven
microservices
© Solace
8

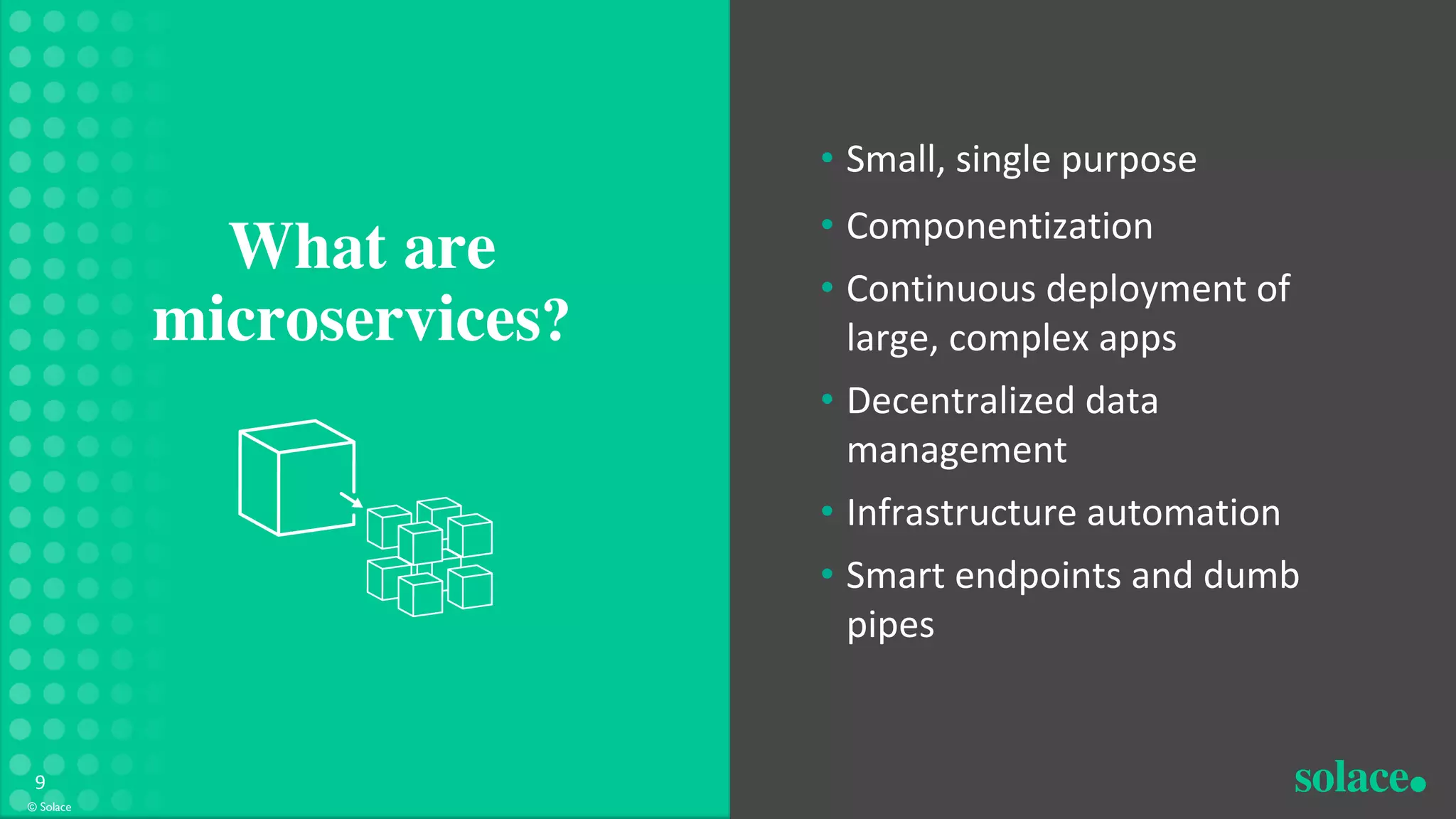

9. What are
microservices?
© Solace
9
• Small, single purpose
• Componentization
• Continuous deployment of
large, complex apps
• Decentralized data
management
• Infrastructure automation
• Smart endpoints and dumb
pipes

10. Gartner says
• Optimal software design model for
delivery agility
• By 2022, 70% of new digital
business solutions will require
event-sourced, real-time situational
awareness
• 80% of new business ecosystems
will require support for event
processing
Source: Gartner “Business Events, Business Moments and Event Thinking in Digital Business” 4 August
2017, Yefim Natis.
Why
event-driven
microservices?
© Solace
10

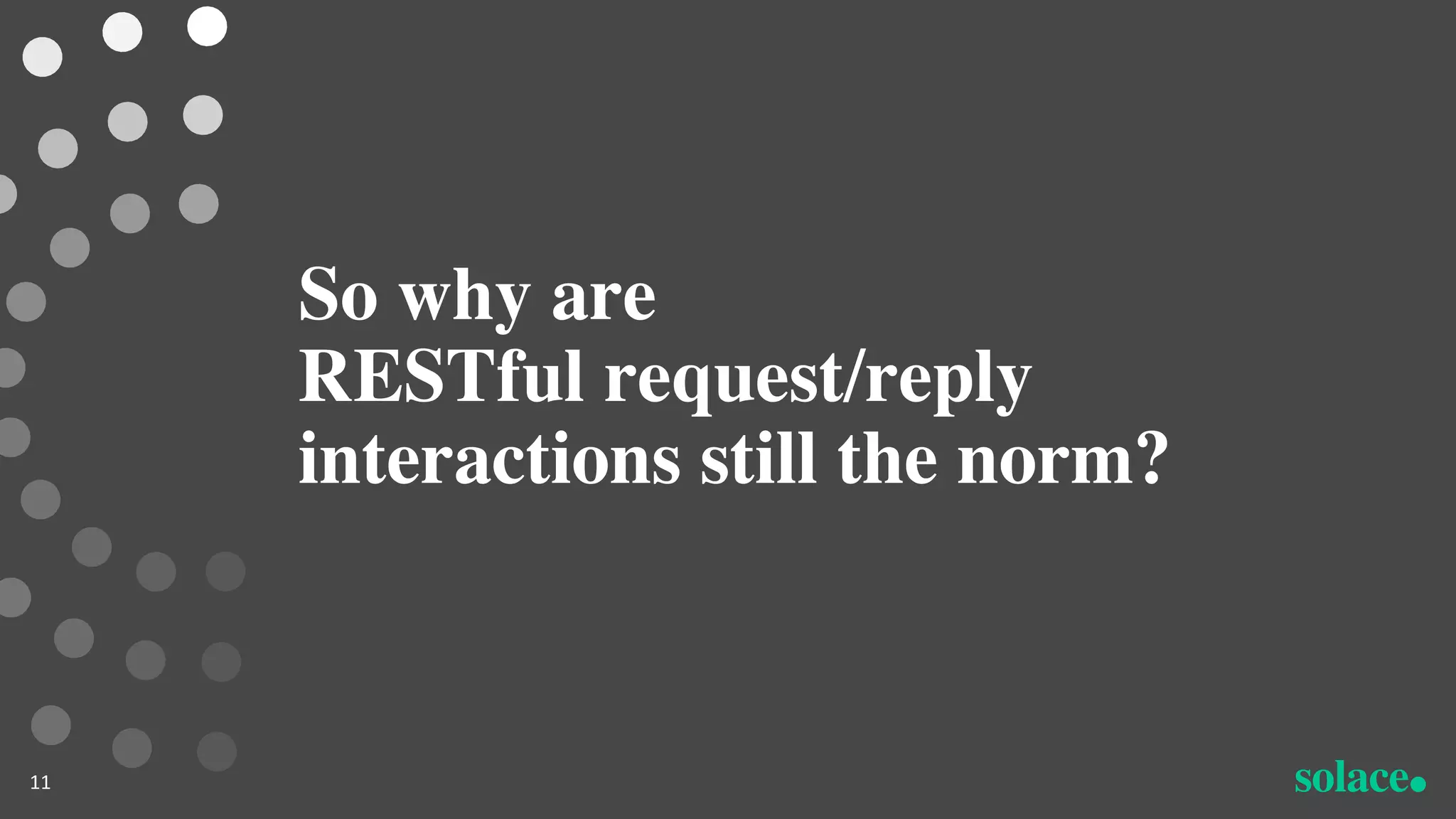

11. So why are
RESTful request/reply
interactions still the norm?
11

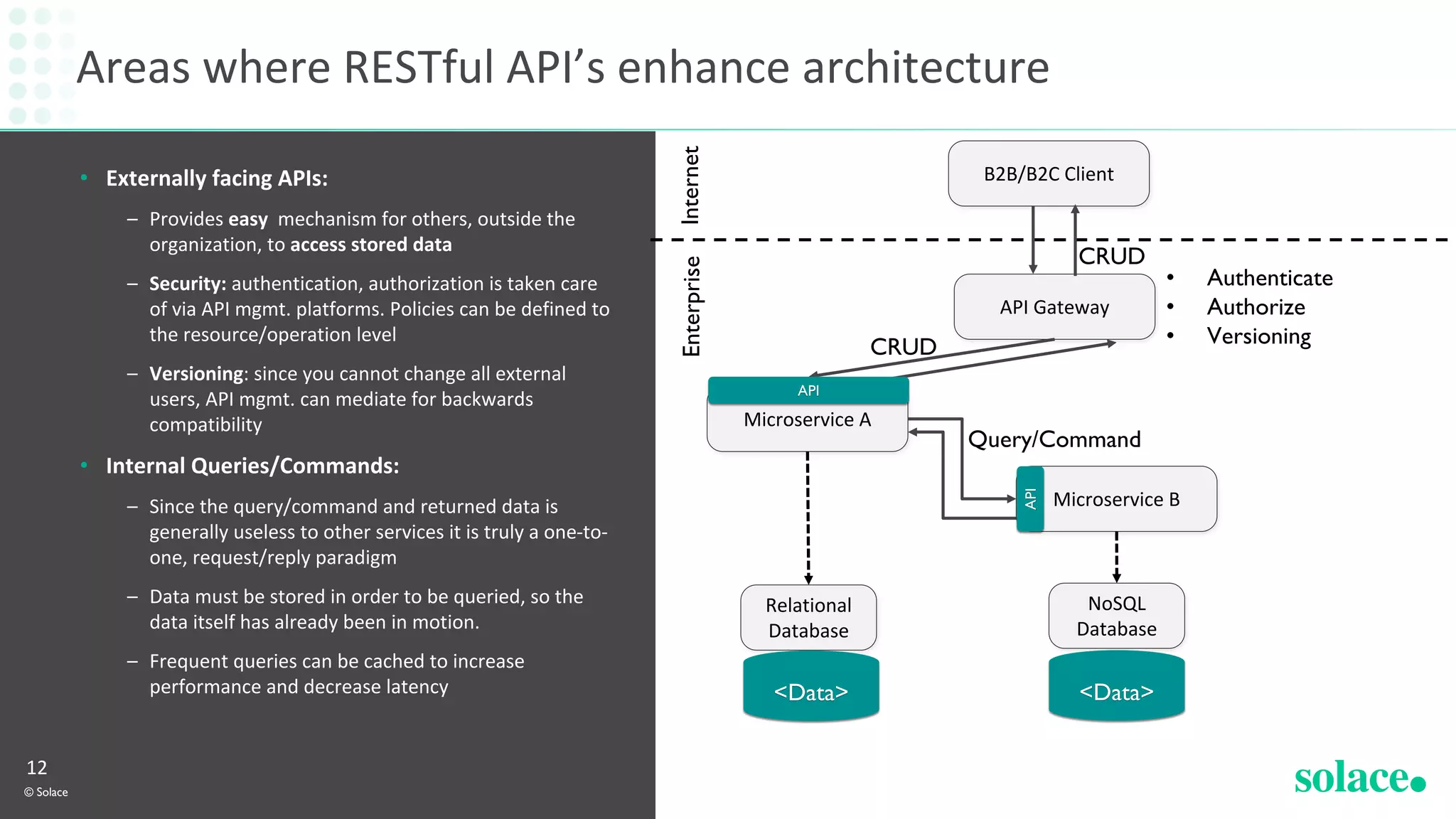

12. Areas where RESTful API’s enhance architecture
© Solace
12
• Externally facing APIs:
– Provides easy mechanism for others, outside the
organization, to access stored data
– Security: authentication, authorization is taken care
of via API mgmt. platforms. Policies can be defined to
the resource/operation level
– Versioning: since you cannot change all external
users, API mgmt. can mediate for backwards
compatibility
• Internal Queries/Commands:
– Since the query/command and returned data is
generally useless to other services it is truly a one-to-
one, request/reply paradigm
– Data must be stored in order to be queried, so the
data itself has already been in motion.
– Frequent queries can be cached to increase
performance and decrease latency
NoSQL
Database
API Gateway
Microservice B
Microservice A
Relational
Database
Query/Command
API
API
CRUD
B2B/B2C Client
InternetEnterprise <Data> <Data>
CRUD
• Authenticate
• Authorize
• Versioning

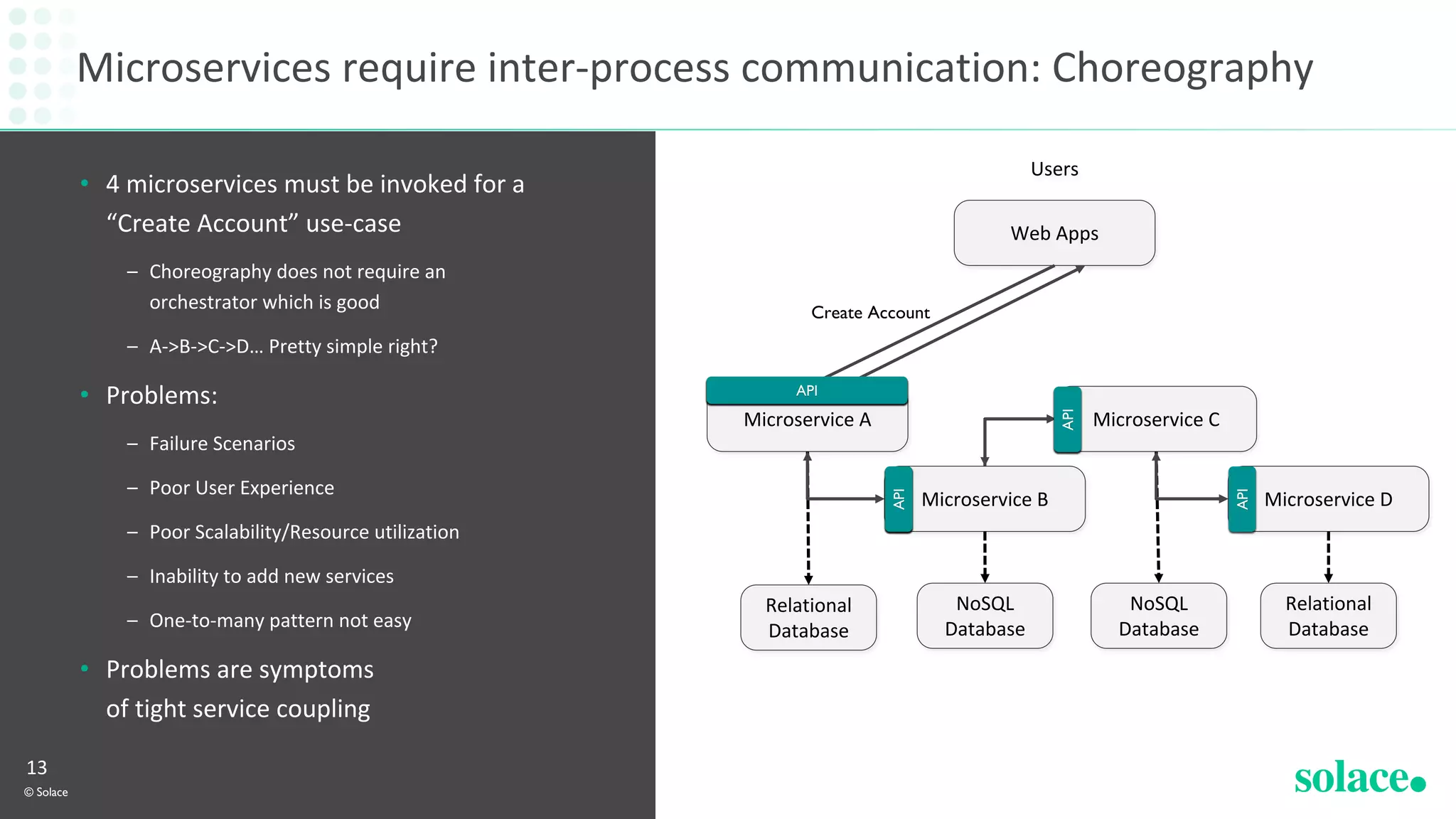

13. Microservices require inter-process communication: Choreography
• 4 microservices must be invoked for a
“Create Account” use-case
– Choreography does not require an
orchestrator which is good
– A->B->C->D… Pretty simple right?
• Problems:
– Failure Scenarios
– Poor User Experience
– Poor Scalability/Resource utilization
– Inability to add new services
– One-to-many pattern not easy
• Problems are symptoms
of tight service coupling
© Solace
13
Microservice C
NoSQL
Database
Relational
Database
Users
Web Apps
Microservice B Microservice D
Microservice A
Create Account
Relational
Database
NoSQL
Database
API
API
API
API
API
API
API
API
API
API
API
API
API

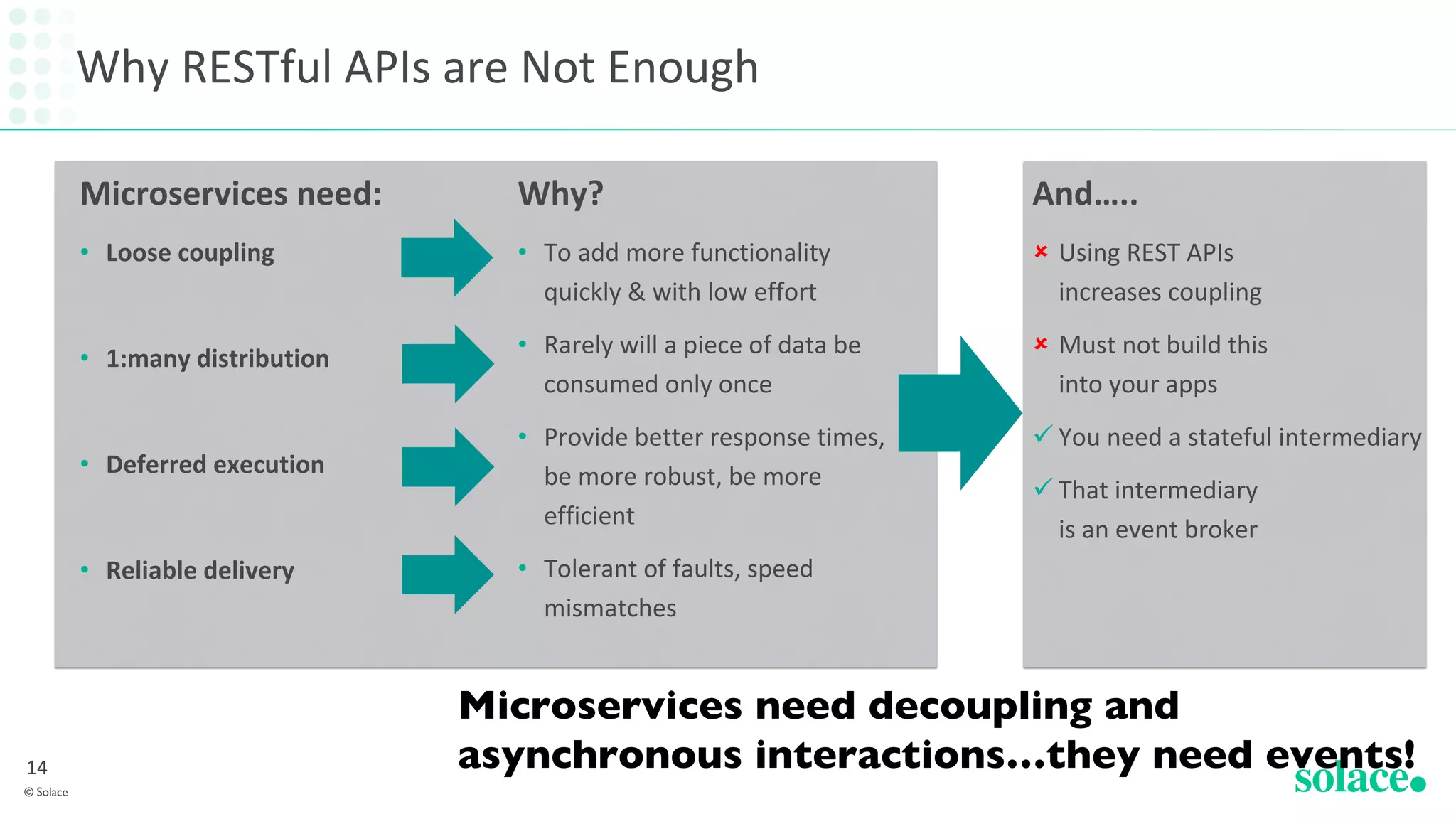

14. Why RESTful APIs are Not Enough
Microservices need:
• Loose coupling
• 1:many distribution
• Deferred execution
• Reliable delivery
© Solace
14
Why?
• To add more functionality
quickly & with low effort
• Rarely will a piece of data be
consumed only once
• Provide better response times,
be more robust, be more
efficient
• Tolerant of faults, speed
mismatches
And…..
û Using REST APIs
increases coupling
û Must not build this
into your apps
ü You need a stateful intermediary
ü That intermediary
is an event broker
Microservices need decoupling and
asynchronous interactions…they need events!

15. • Event broker
• Event mesh
Enhancing
microservices
with events
© Solace
15

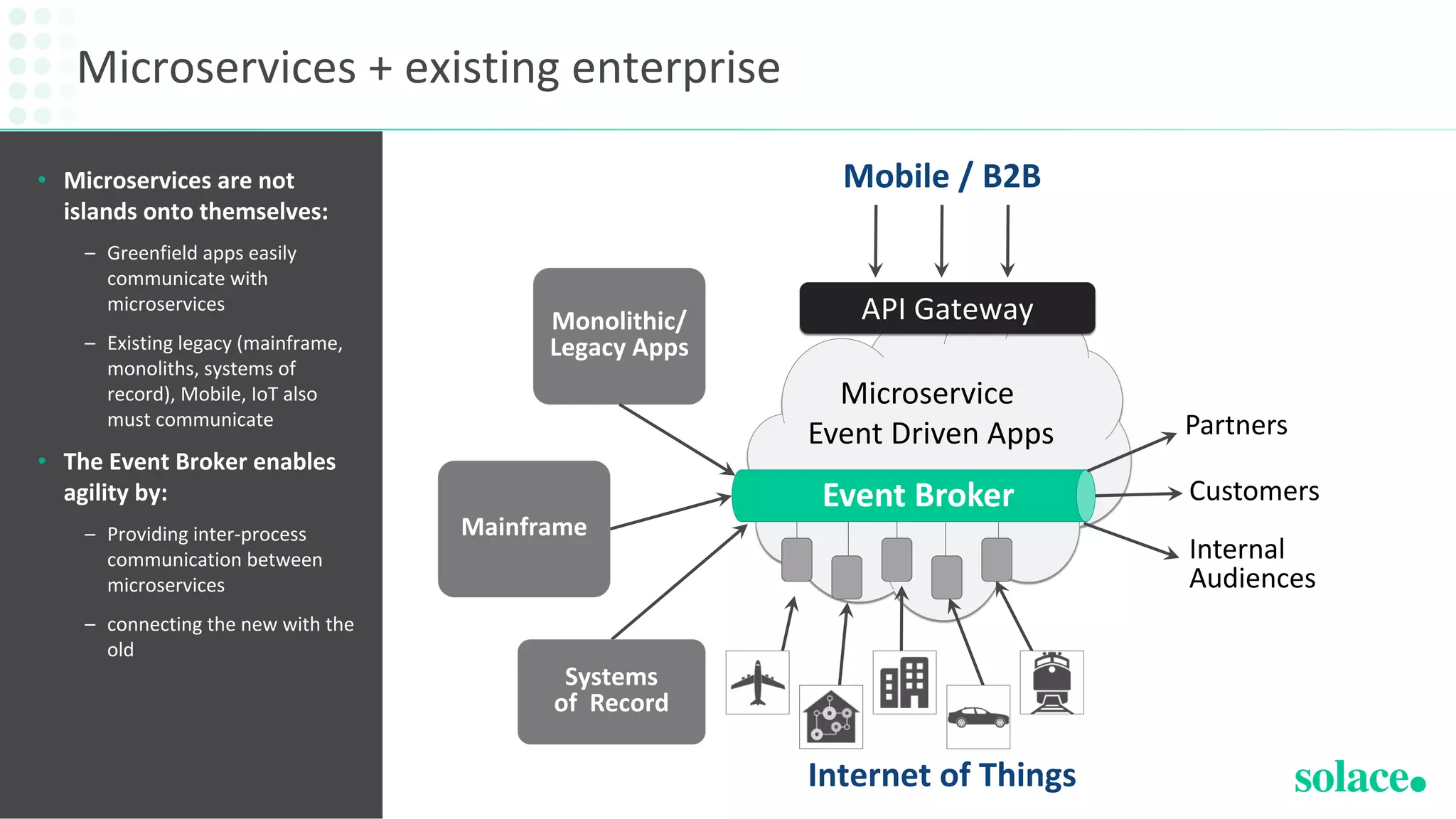

16. • Microservices are not
islands onto themselves:
– Greenfield apps easily
communicate with
microservices
– Existing legacy (mainframe,
monoliths, systems of
record), Mobile, IoT also
must communicate
• The Event Broker enables
agility by:
– Providing inter-process
communication between
microservices
– connecting the new with the
old
Microservices + existing enterprise
© Solace
16
Event Broker
Mainframe
Systems
of Record
Monolithic/
Legacy Apps
Microservice
Event Driven Apps
Internet of Things
Mobile / B2B
Event Broker
API Gateway
Internal
Audiences
Partners
Customers

17. A system that reliably
transmits events to
interested apps and
microservices across
environments.
What’s an
Event Broker?
© Solace
17

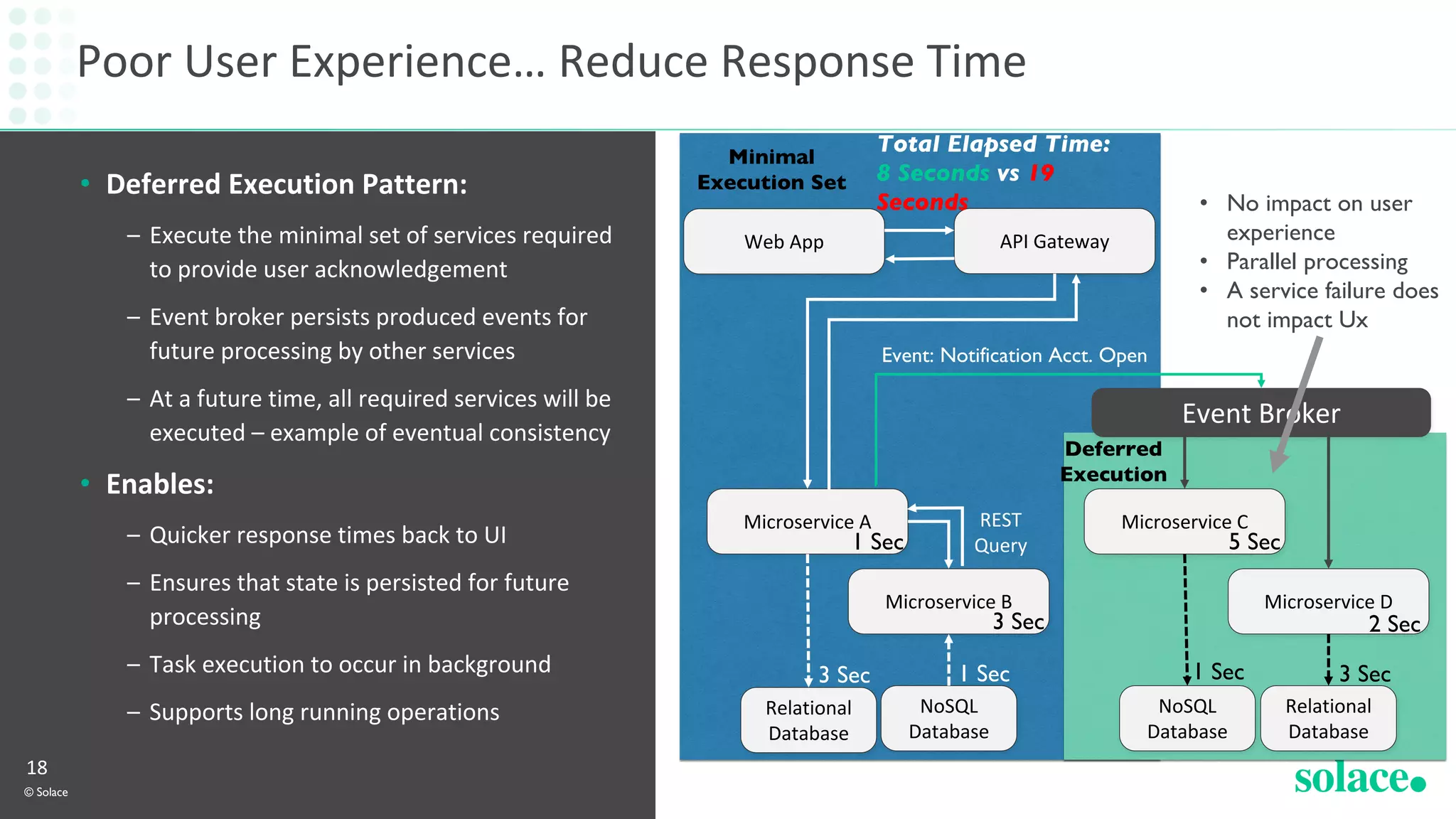

18. Poor User Experience… Reduce Response Time
© Solace
18
• Deferred Execution Pattern:
– Execute the minimal set of services required
to provide user acknowledgement
– Event broker persists produced events for
future processing by other services
– At a future time, all required services will be
executed – example of eventual consistency
• Enables:
– Quicker response times back to UI
– Ensures that state is persisted for future
processing
– Task execution to occur in background
– Supports long running operations
Microservice C
NoSQL
Database
Relational
Database
API Gateway
Microservice B Microservice D
Microservice A
Relational
Database
NoSQL
Database
Event Broker
Web App
Minimal
Execution Set
Event: Notification Acct. Open
REST
Query
Deferred
Execution
Total Elapsed Time:
8 Seconds vs 19
Seconds
2 Sec
3 Sec 1 Sec 1 Sec 3 Sec
5 Sec
3 Sec
1 Sec
• No impact on user
experience
• Parallel processing
• A service failure does
not impact Ux

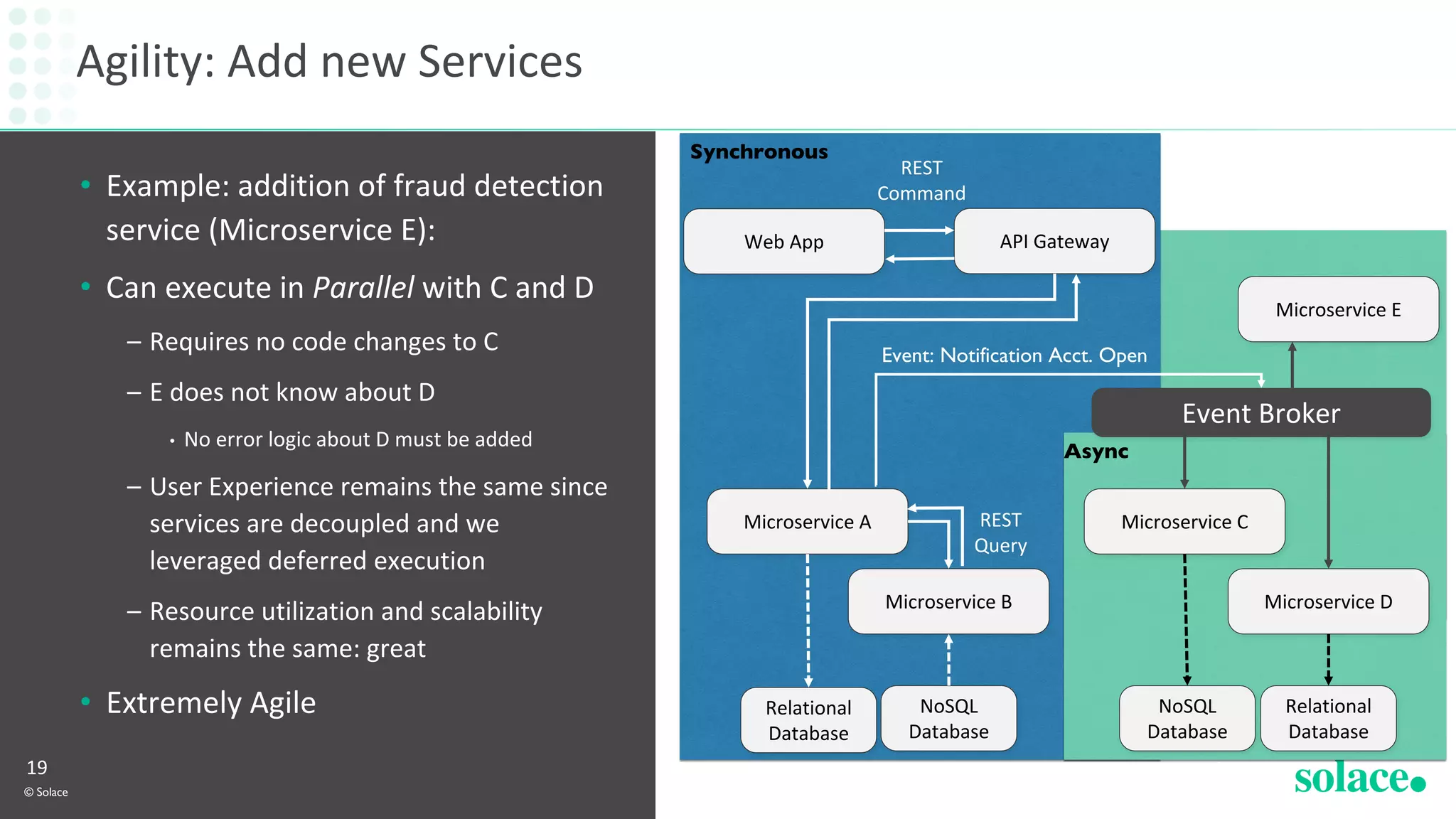

19. Agility: Add new Services
© Solace
19
• Example: addition of fraud detection
service (Microservice E):
• Can execute in Parallel with C and D
– Requires no code changes to C
– E does not know about D
• No error logic about D must be added
– User Experience remains the same since
services are decoupled and we
leveraged deferred execution
– Resource utilization and scalability
remains the same: great
• Extremely Agile
Microservice C
NoSQL
Database
Relational
Database
API Gateway
Microservice B Microservice D
Microservice A
Relational
Database
NoSQL
Database
Event Broker
Web App
REST
Command
Async
Synchronous
Event: Notification Acct. Open
REST
Query
Microservice E

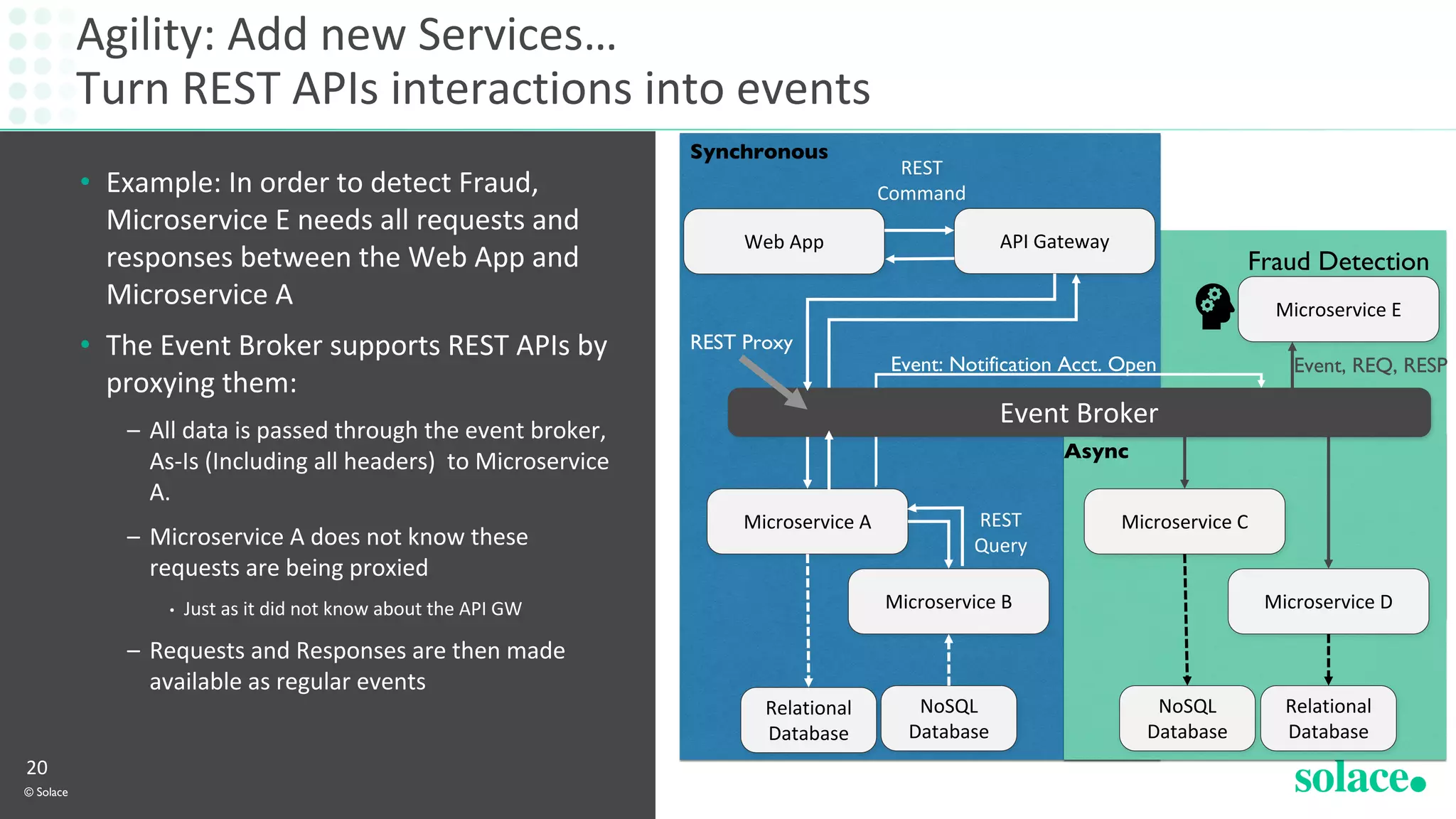

20. Agility: Add new Services…
Turn REST APIs interactions into events
© Solace
20
• Example: In order to detect Fraud,
Microservice E needs all requests and
responses between the Web App and
Microservice A
• The Event Broker supports REST APIs by
proxying them:
– All data is passed through the event broker,
As-Is (Including all headers) to Microservice
A.
– Microservice A does not know these
requests are being proxied
• Just as it did not know about the API GW
– Requests and Responses are then made
available as regular events
Microservice C
NoSQL
Database
Relational
Database
API Gateway
Microservice B Microservice D
Microservice A
Relational
Database
NoSQL
Database
Event Broker
Web App
REST
Command
Async
Synchronous
REST Proxy
REST
Query
Microservice E
Event Broker
Fraud Detection
Event, REQ, RESPEvent: Notification Acct. Open

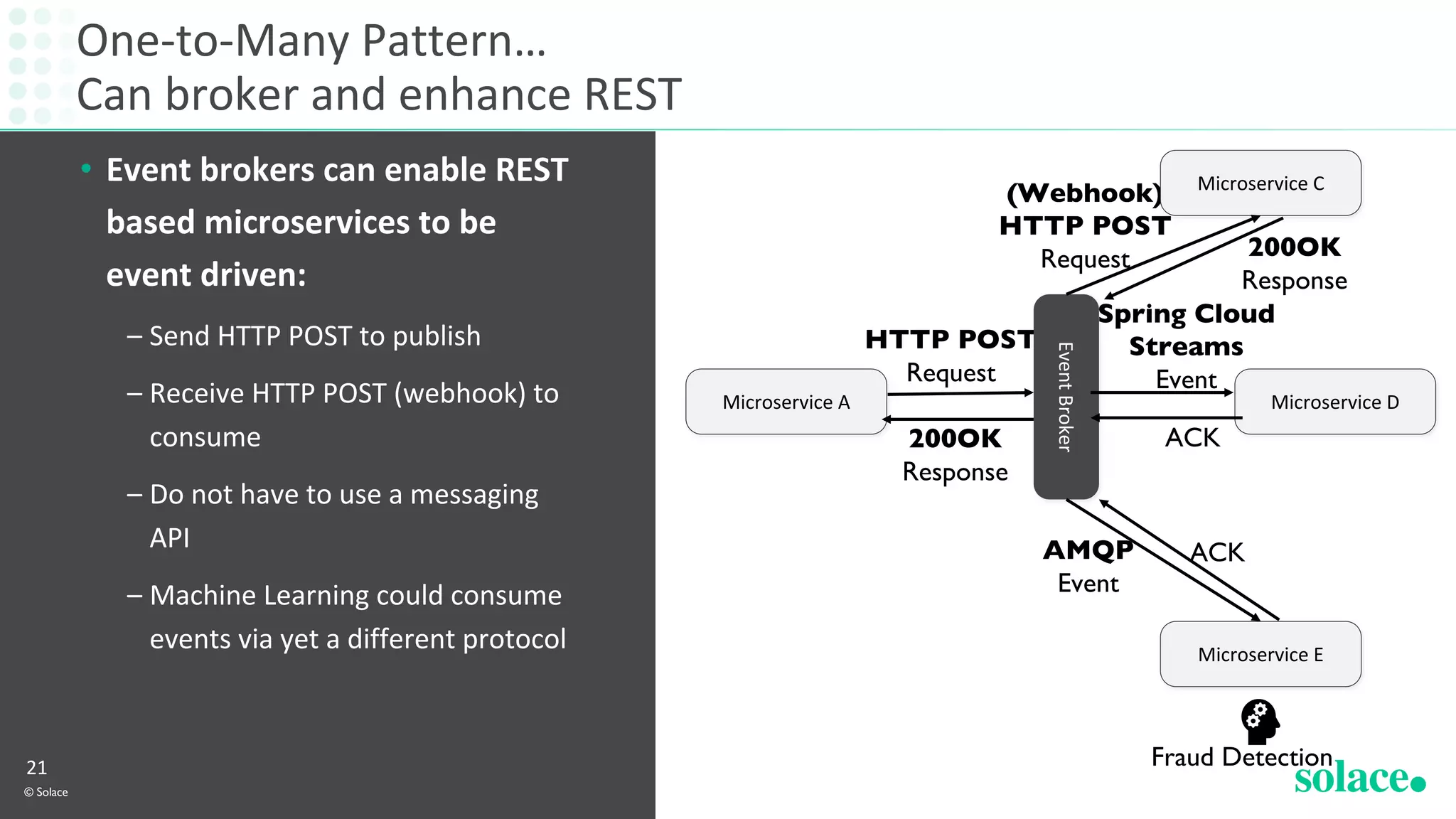

21. One-to-Many Pattern…
Can broker and enhance REST
© Solace
21
• Event brokers can enable REST
based microservices to be
event driven:
– Send HTTP POST to publish
– Receive HTTP POST (webhook) to
consume
– Do not have to use a messaging
API
– Machine Learning could consume
events via yet a different protocol
Microservice DMicroservice A
HTTP POST
Request
(Webhook)
HTTP POST
Request
EventBroker
Microservice E
Fraud Detection
200OK
Response
200OK
Response
Microservice C
Spring Cloud
Streams
Event
ACK
AMQP
Event
ACK

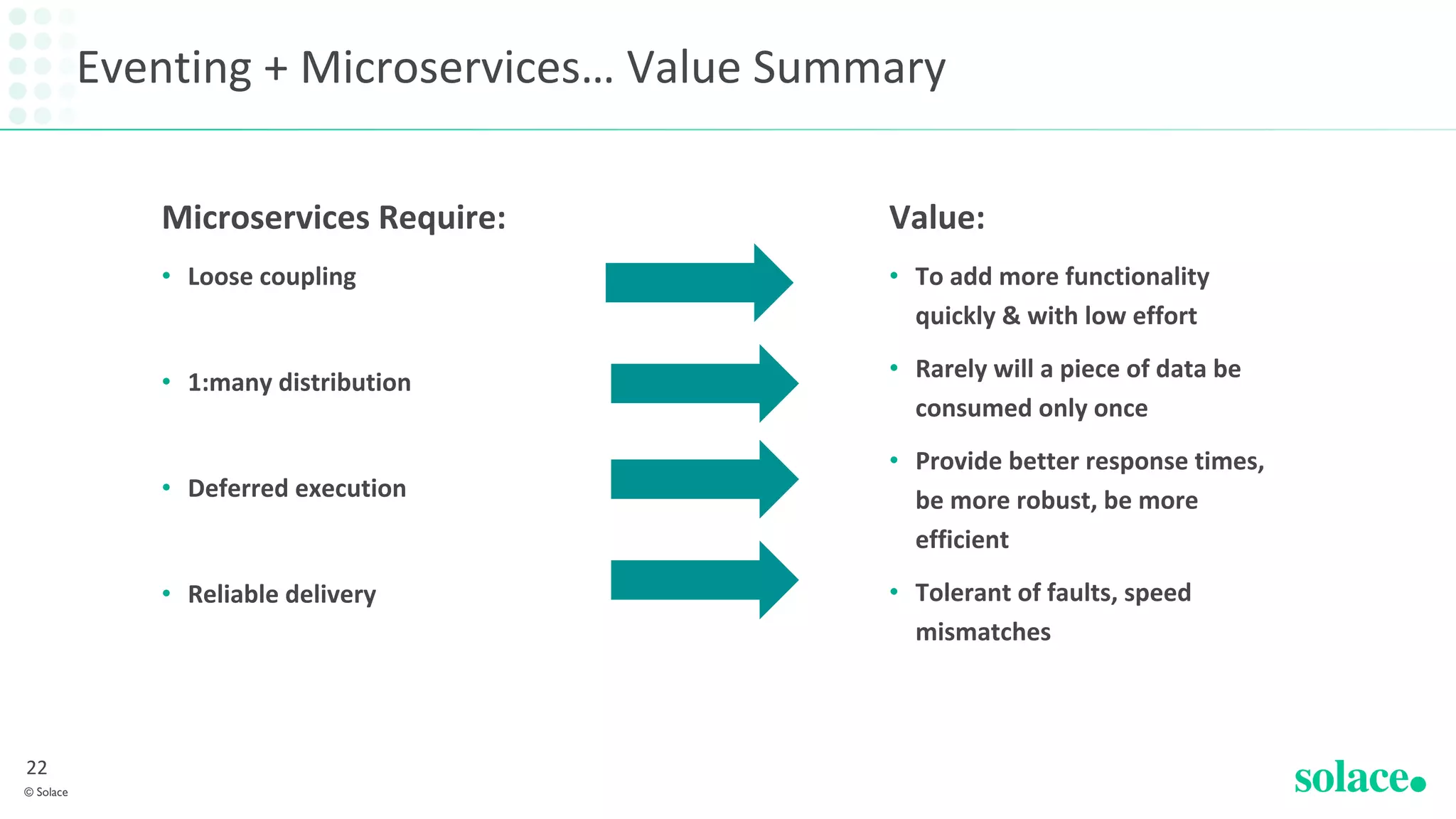

22. Eventing + Microservices… Value Summary
© Solace
22
Microservices Require:
• Loose coupling
• 1:many distribution
• Deferred execution
• Reliable delivery
Value:
• To add more functionality
quickly & with low effort
• Rarely will a piece of data be
consumed only once
• Provide better response times,
be more robust, be more
efficient
• Tolerant of faults, speed
mismatches

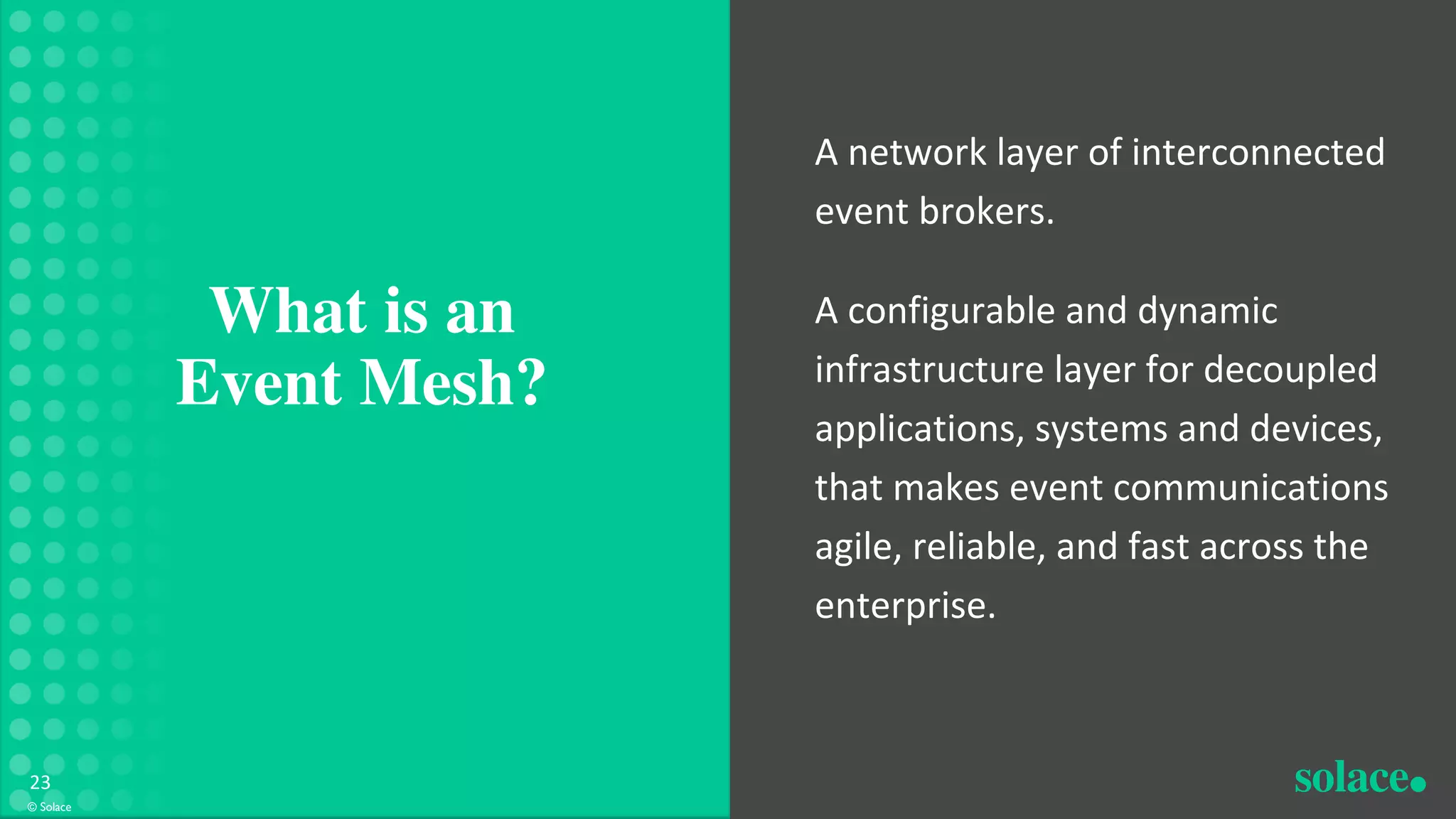

23. A network layer of interconnected
event brokers.
A configurable and dynamic
infrastructure layer for decoupled
applications, systems and devices,
that makes event communications
agile, reliable, and fast across the
enterprise.
What is an
Event Mesh?
© Solace
23

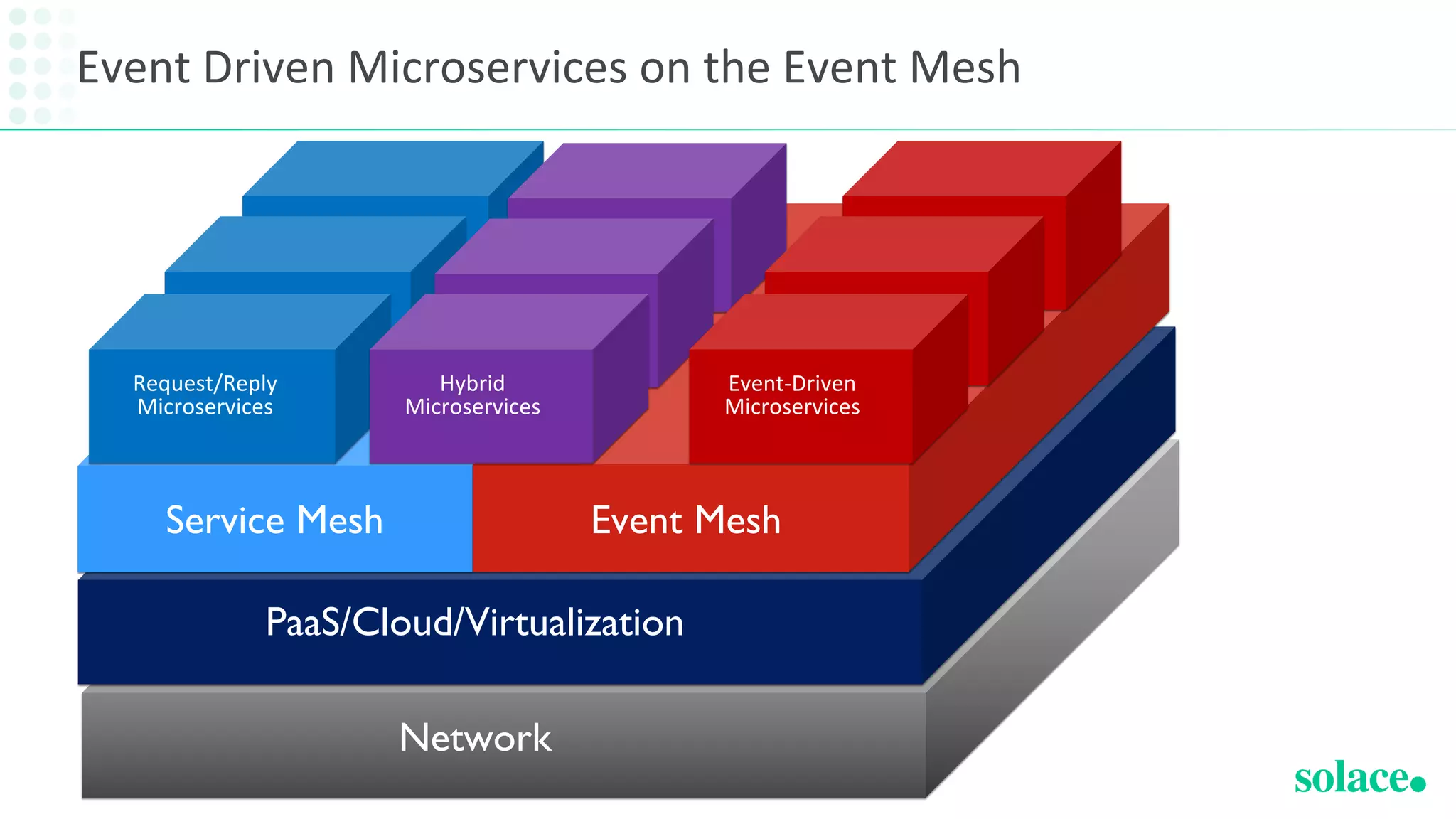

24. Event Driven Microservices on the Event Mesh
Service Mesh
PaaS/Cloud/Virtualization
Network
Event Mesh
Request/Reply
Microservices
Hybrid
Microservices
Event-Driven
Microservices

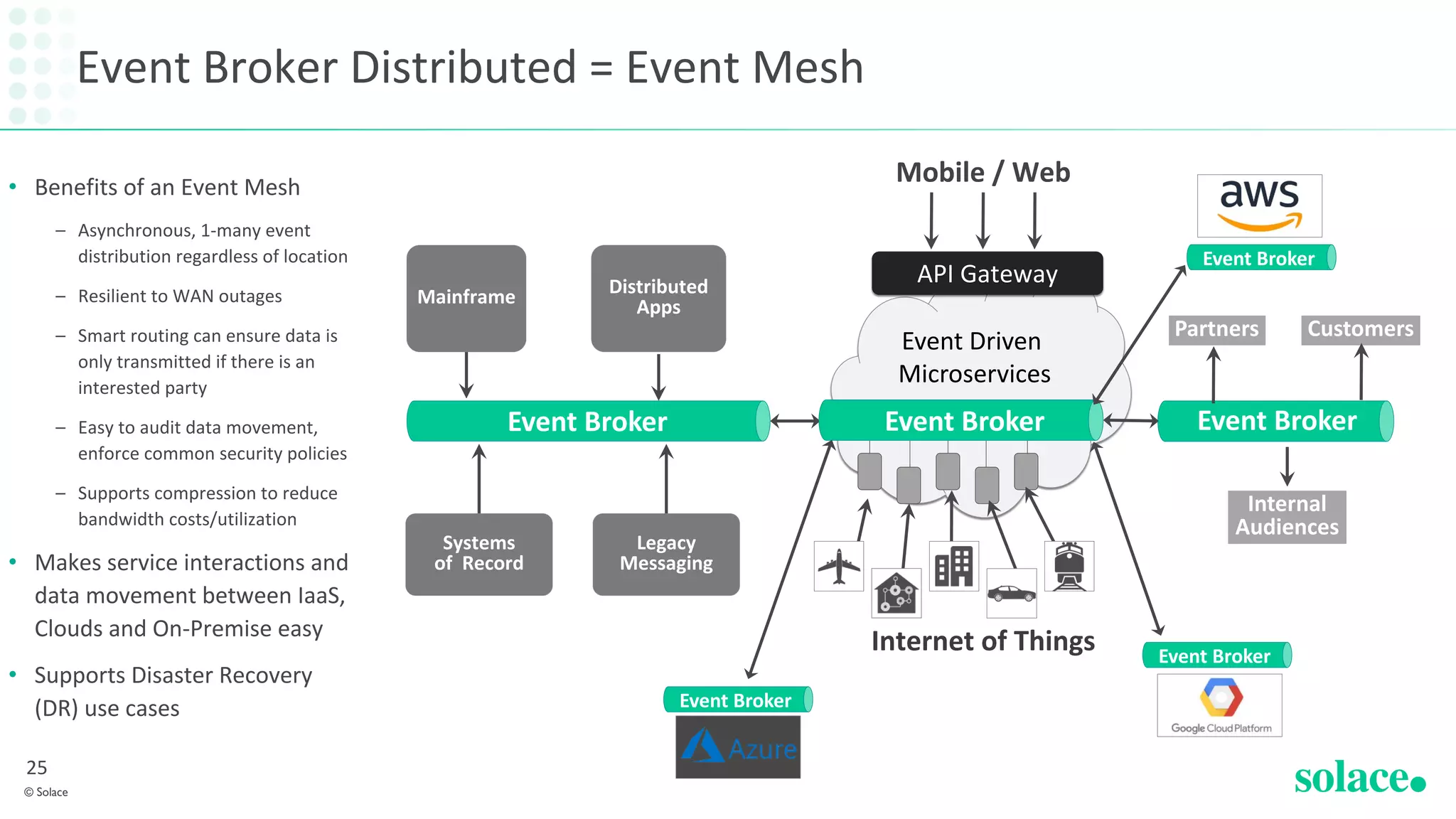

25. Event Broker Distributed = Event Mesh
© Solace
25
• Benefits of an Event Mesh
– Asynchronous, 1-many event
distribution regardless of location
– Resilient to WAN outages
– Smart routing can ensure data is
only transmitted if there is an
interested party
– Easy to audit data movement,
enforce common security policies
– Supports compression to reduce
bandwidth costs/utilization
• Makes service interactions and
data movement between IaaS,
Clouds and On-Premise easy
• Supports Disaster Recovery
(DR) use cases
Event Broker
Mainframe
Systems
of Record
Distributed
Apps
Legacy
Messaging
Event Driven
Microservices
Internet of Things
Mobile / Web
Event Broker
API Gateway
Internal
Audiences
Partners Customers
Event Broker
Event Broker
Event Broker
Event Broker

26. Why Solace?
© Solace
26

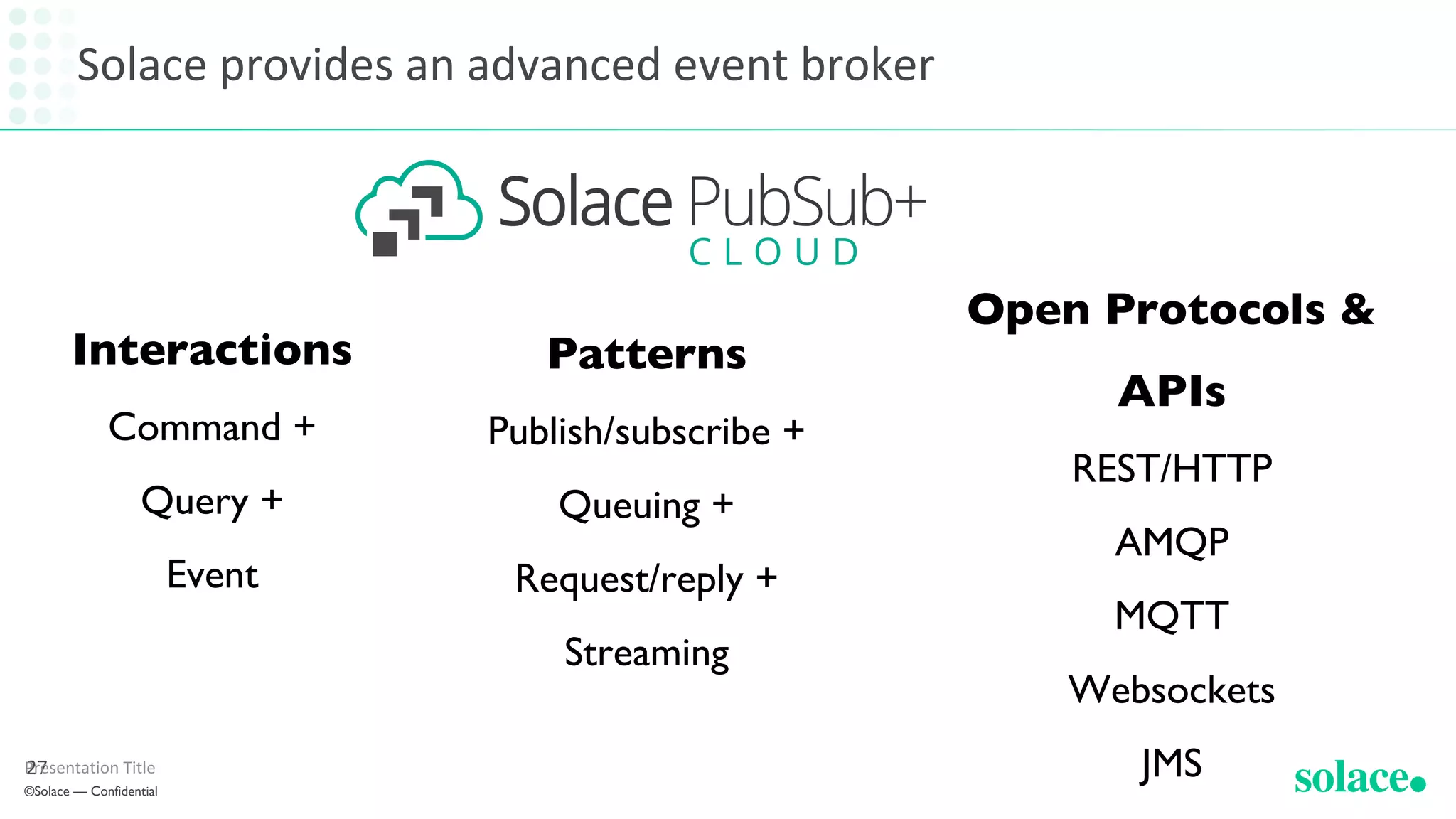

27. 27Presentation Title
©Solace — Confidential
Patterns
Publish/subscribe +
Queuing +
Request/reply +
Streaming
Open Protocols &
APIs
REST/HTTP
AMQP
MQTT
Websockets
JMS
Interactions
Command +
Query +
Event
Solace provides an advanced event broker

28. Solace makes it easy to create
new applications and
microservices.
Why Solace
for PCF?
© Solace
28

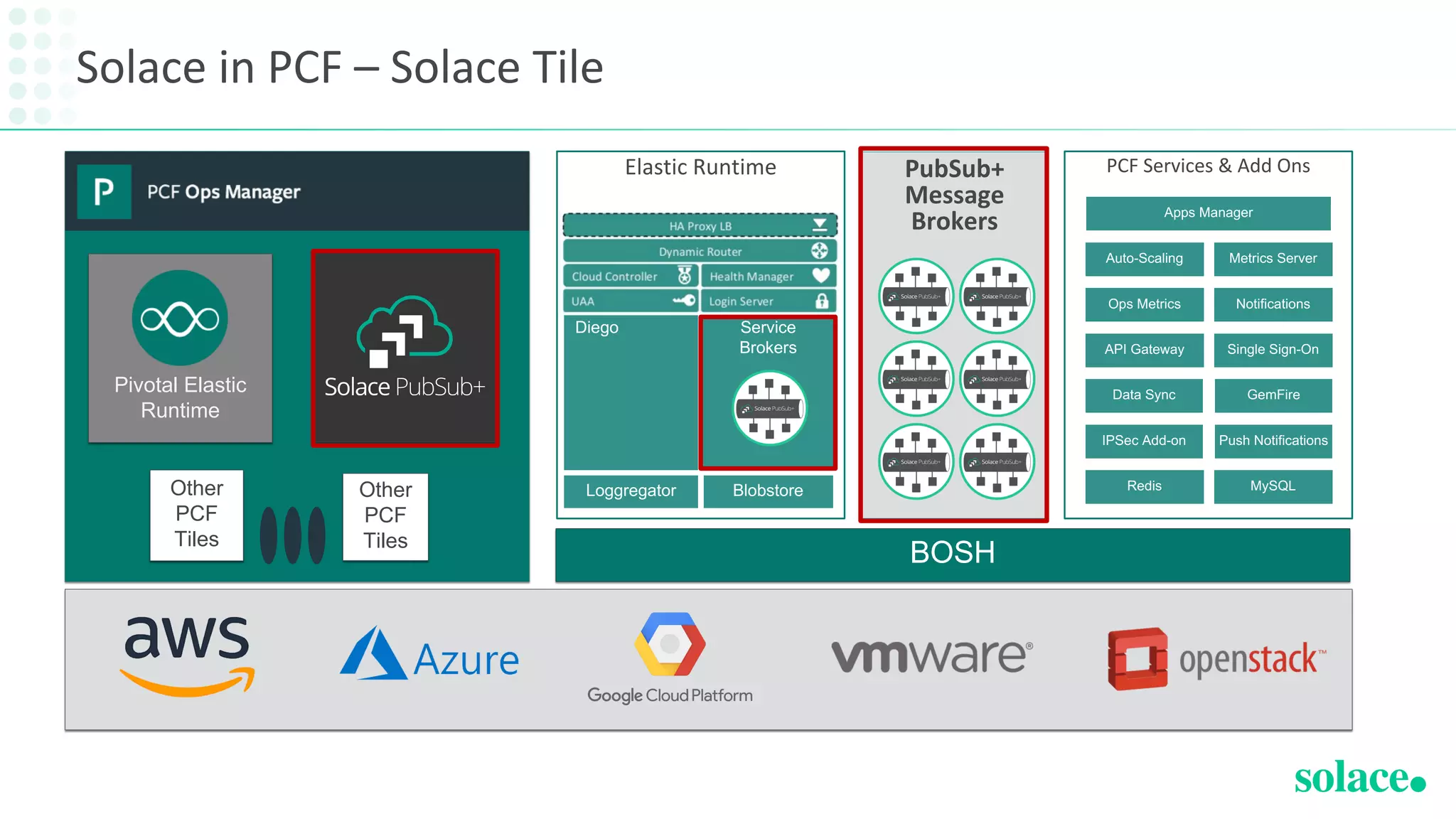

29. Elastic Runtime PubSub+
Message
Brokers
Other
PCF
Tiles
Other
PCF
Tiles
Diego
Loggregator
Service
Brokers
Blobstore
PCF Services & Add Ons
Apps Manager
Auto-Scaling
API Gateway
Data Sync
IPSec Add-on
Redis MySQL
Push Notifications
GemFire
Single Sign-On
Metrics Server
Ops Metrics Notifications
BOSH
Pivotal Elastic
Runtime
Solace in PCF – Solace Tile

30. • Takes customers from: • To:
A Unifying Eventing/Messaging Platform
Legacy AppMainframe Mainframe Legacy App Mainframe
On-Premise Data Center

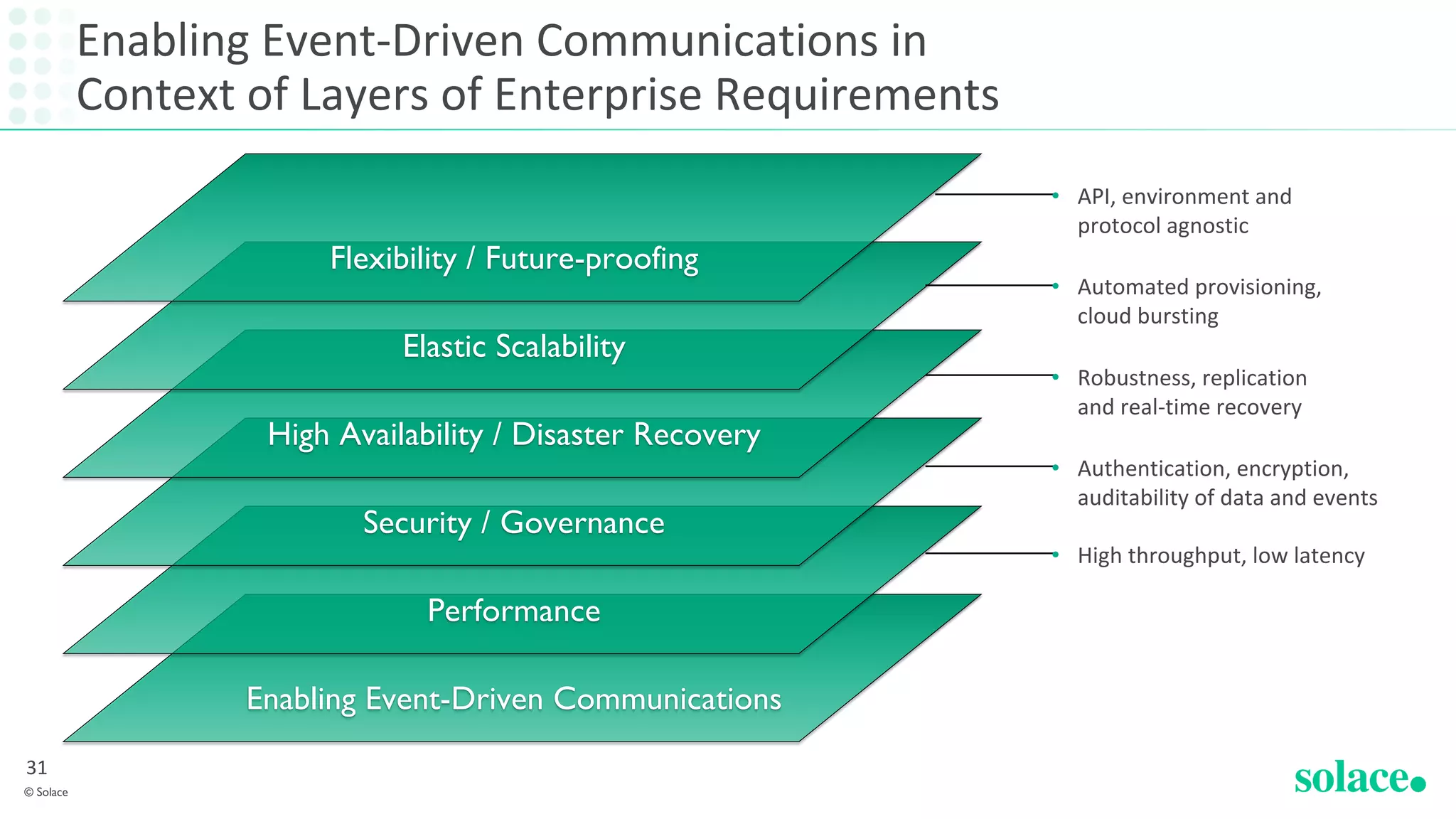

31. Enabling Event-Driven Communications in
Context of Layers of Enterprise Requirements
© Solace
31
Enabling Event-Driven Communications
Performance
Security / Governance
High Availability / Disaster Recovery
Elastic Scalability
Flexibility / Future-proofing
• API, environment and
protocol agnostic
• Authentication, encryption,
auditability of data and events
• Robustness, replication
and real-time recovery
• Automated provisioning,
cloud bursting
• High throughput, low latency

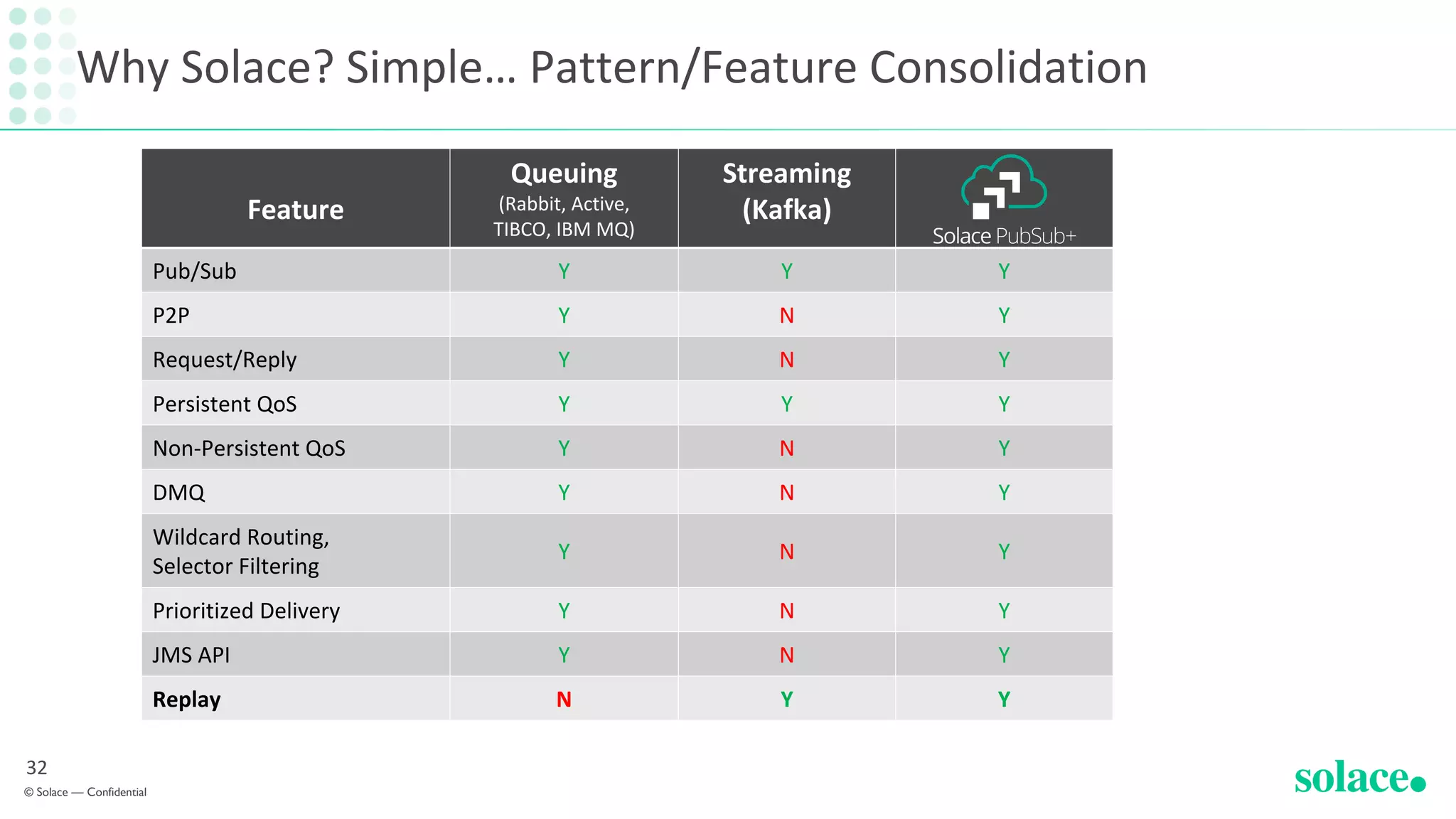

32. Why Solace? Simple… Pattern/Feature Consolidation
Streaming
(Kafka)
Y
N
N
Y
N
N
N
N
N
Y
Feature
Queuing
(Rabbit, Active,
TIBCO, IBM MQ)
Pub/Sub Y
P2P Y
Request/Reply Y
Persistent QoS Y
Non-Persistent QoS Y
DMQ Y
Wildcard Routing,
Selector Filtering
Y
Prioritized Delivery Y
JMS API Y
Replay N
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
© Solace — Confidential
32

33. What’s in this
for developers?
33
© Solace

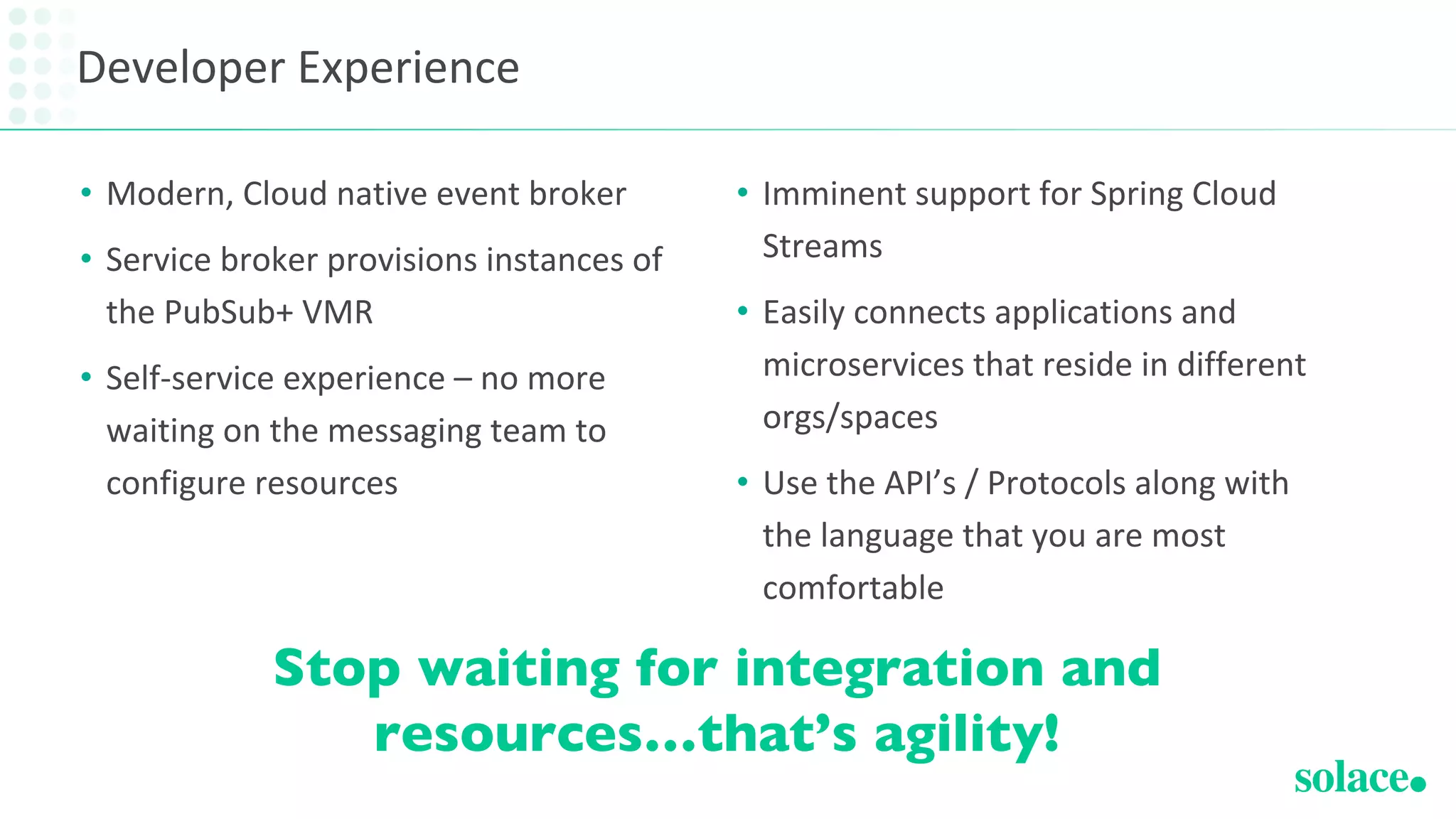

34. Developer Experience
• Modern, Cloud native event broker
• Service broker provisions instances of
the PubSub+ VMR
• Self-service experience – no more
waiting on the messaging team to
configure resources
• Imminent support for Spring Cloud
Streams
• Easily connects applications and
microservices that reside in different
orgs/spaces
• Use the API’s / Protocols along with
the language that you are most
comfortable
Stop waiting for integration and
resources…that’s agility!

35. Case Study
How PCF + Solace enable
an event mesh for a
global consumer bank
© Solace
35

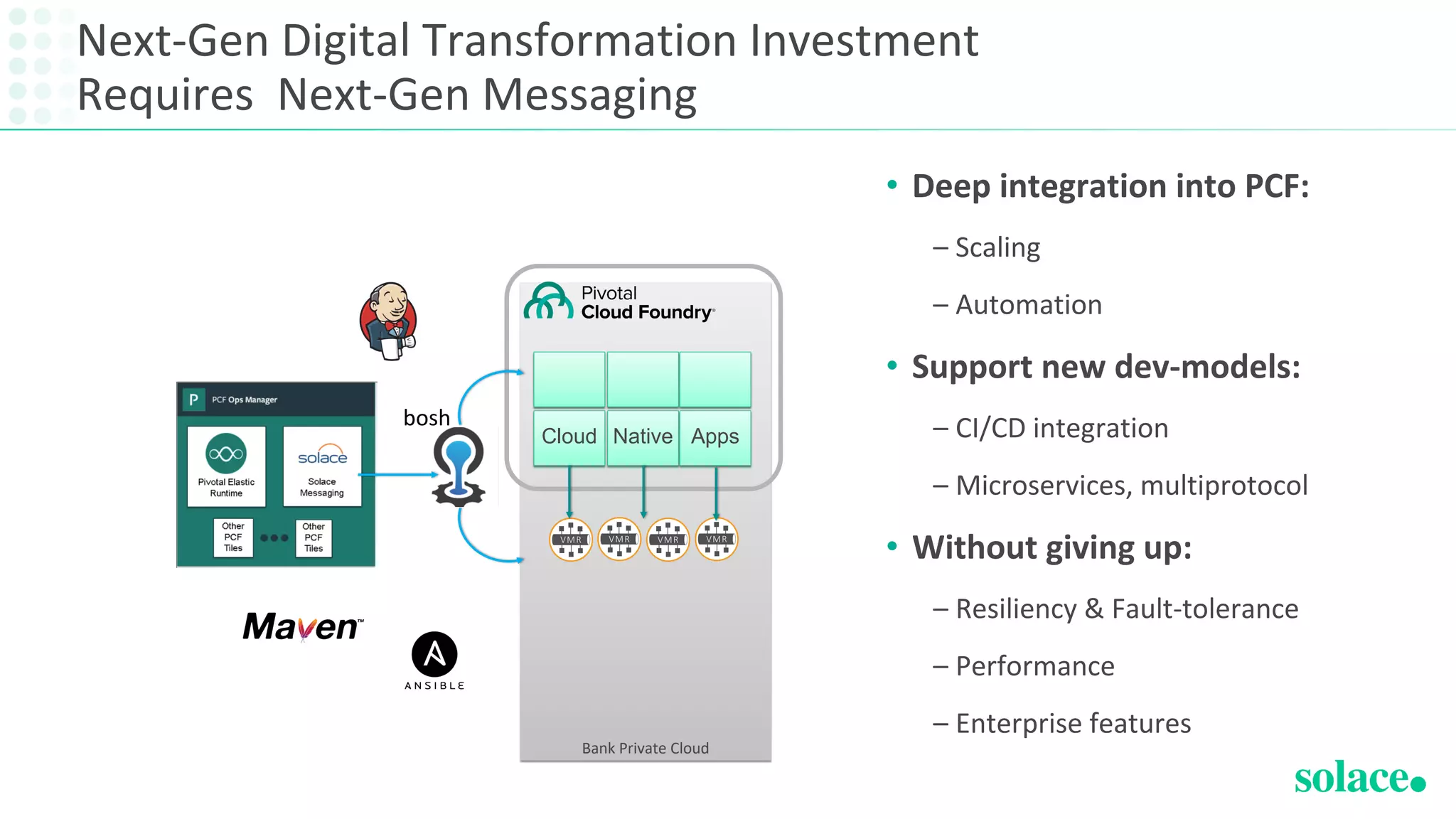

36. Next-Gen Digital Transformation Investment
Requires Next-Gen Messaging
• Deep integration into PCF:
– Scaling
– Automation
• Support new dev-models:
– CI/CD integration
– Microservices, multiprotocol
• Without giving up:
– Resiliency & Fault-tolerance
– Performance
– Enterprise features
Bank Private Cloud
Cloud Native Apps
bosh

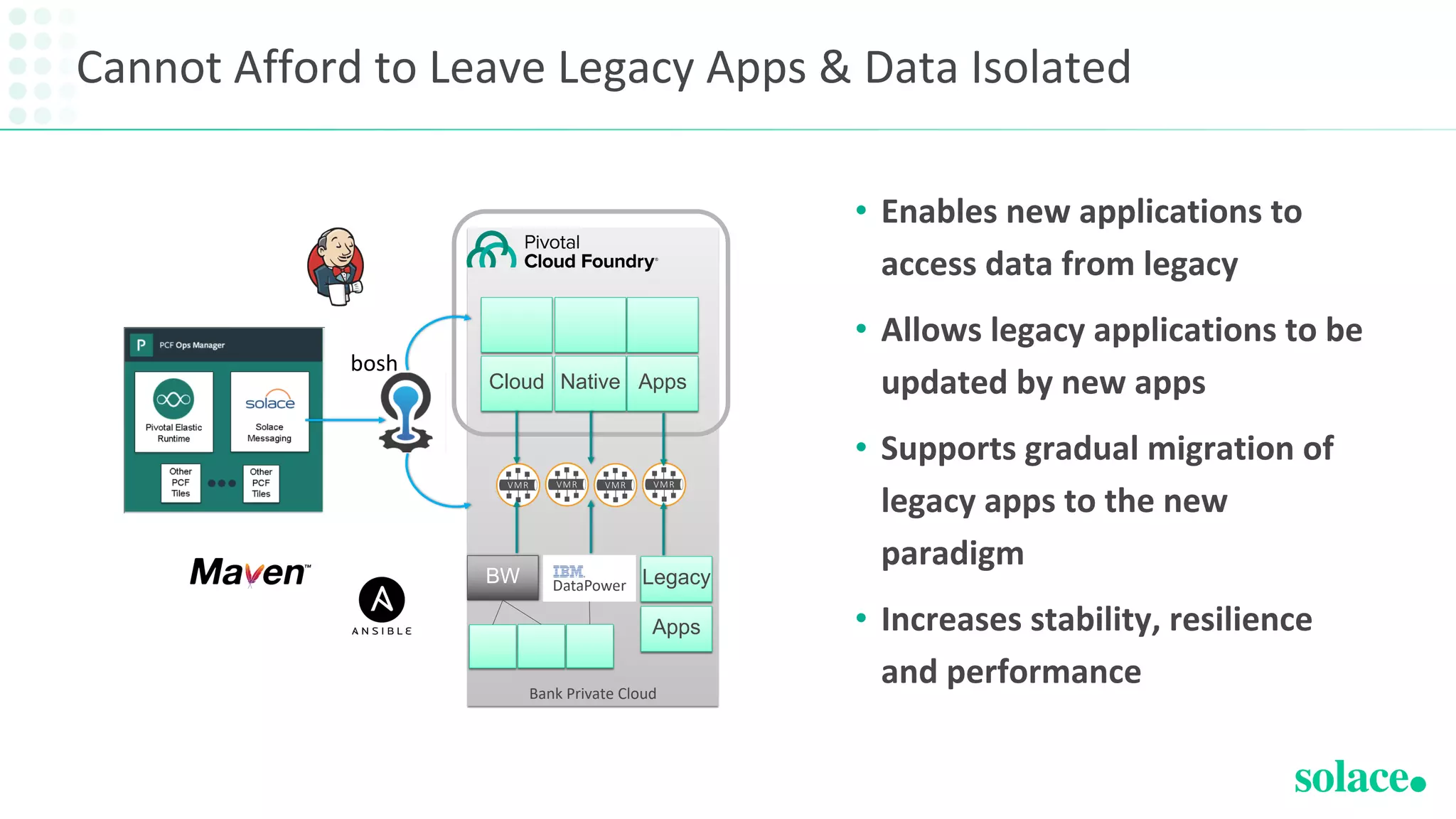

37. Cannot Afford to Leave Legacy Apps & Data Isolated
• Enables new applications to
access data from legacy
• Allows legacy applications to be
updated by new apps
• Supports gradual migration of
legacy apps to the new
paradigm
• Increases stability, resilience
and performanceBank Private Cloud
Cloud Native Apps
bosh
BW Legacy
Apps

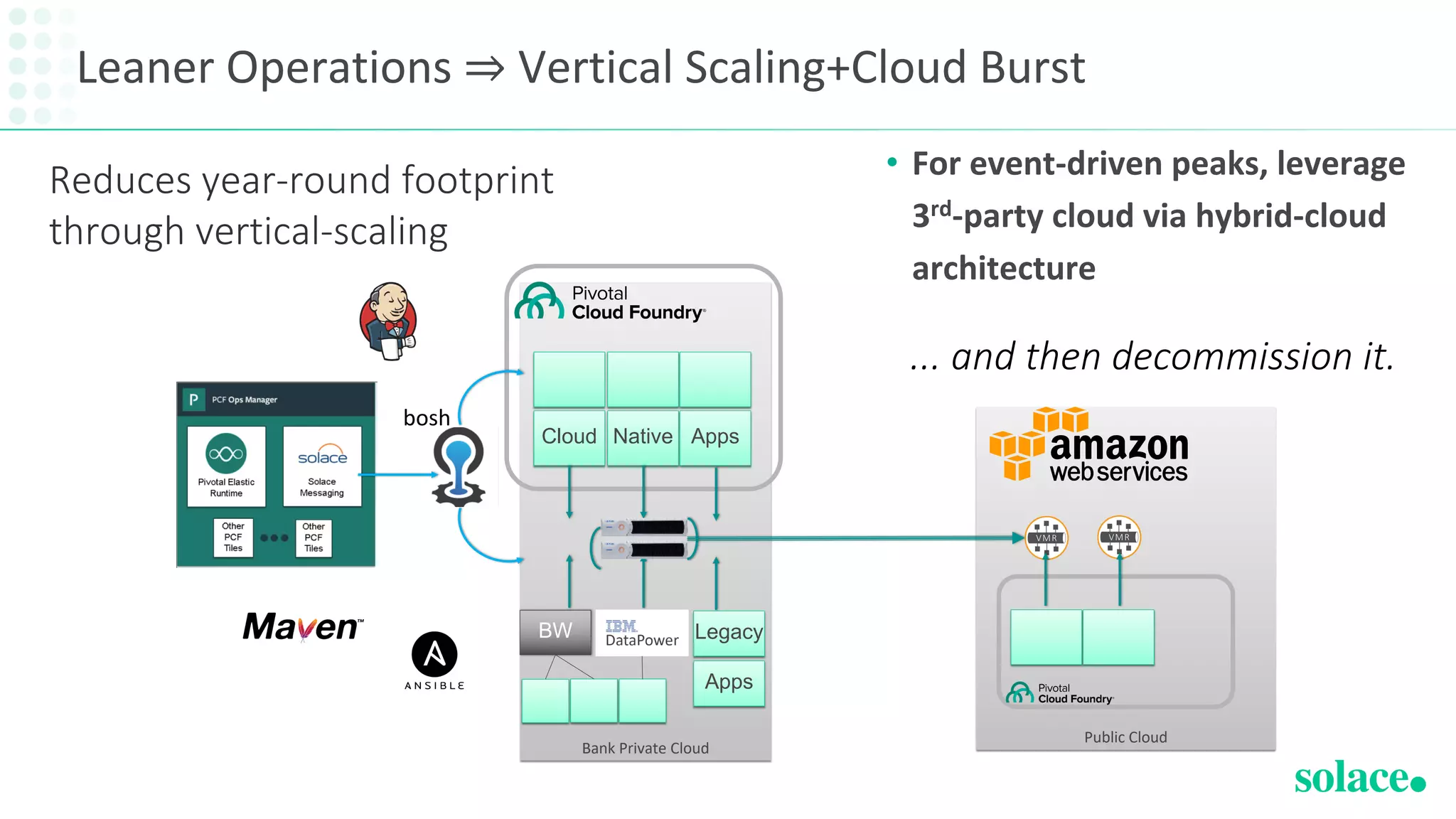

38. Leaner Operations ⇒ Vertical Scaling+Cloud Burst
• For event-driven peaks, leverage
3rd-party cloud via hybrid-cloud
architecture
Bank Private Cloud
Cloud Native Apps
bosh
BW Legacy
Apps
Reduces year-round footprint
through vertical-scaling
Public Cloud
... and then decommission it.

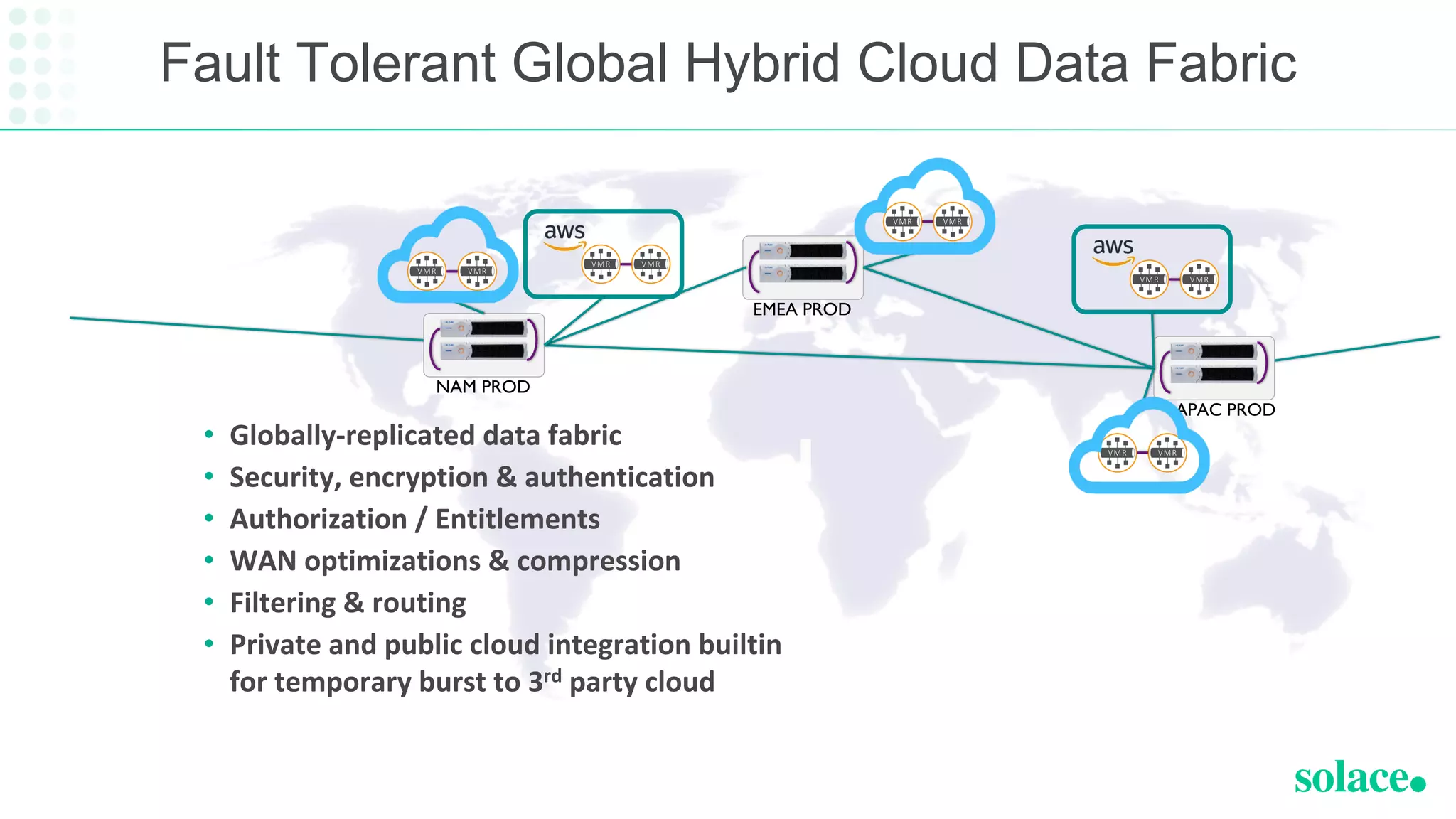

39. Fault Tolerant Global Hybrid Cloud Data Fabric
NAM PROD
APAC PROD
EMEA PROD
• Globally-replicated data fabric
• Security, encryption & authentication
• Authorization / Entitlements
• WAN optimizations & compression
• Filtering & routing
• Private and public cloud integration builtin
for temporary burst to 3rd party cloud

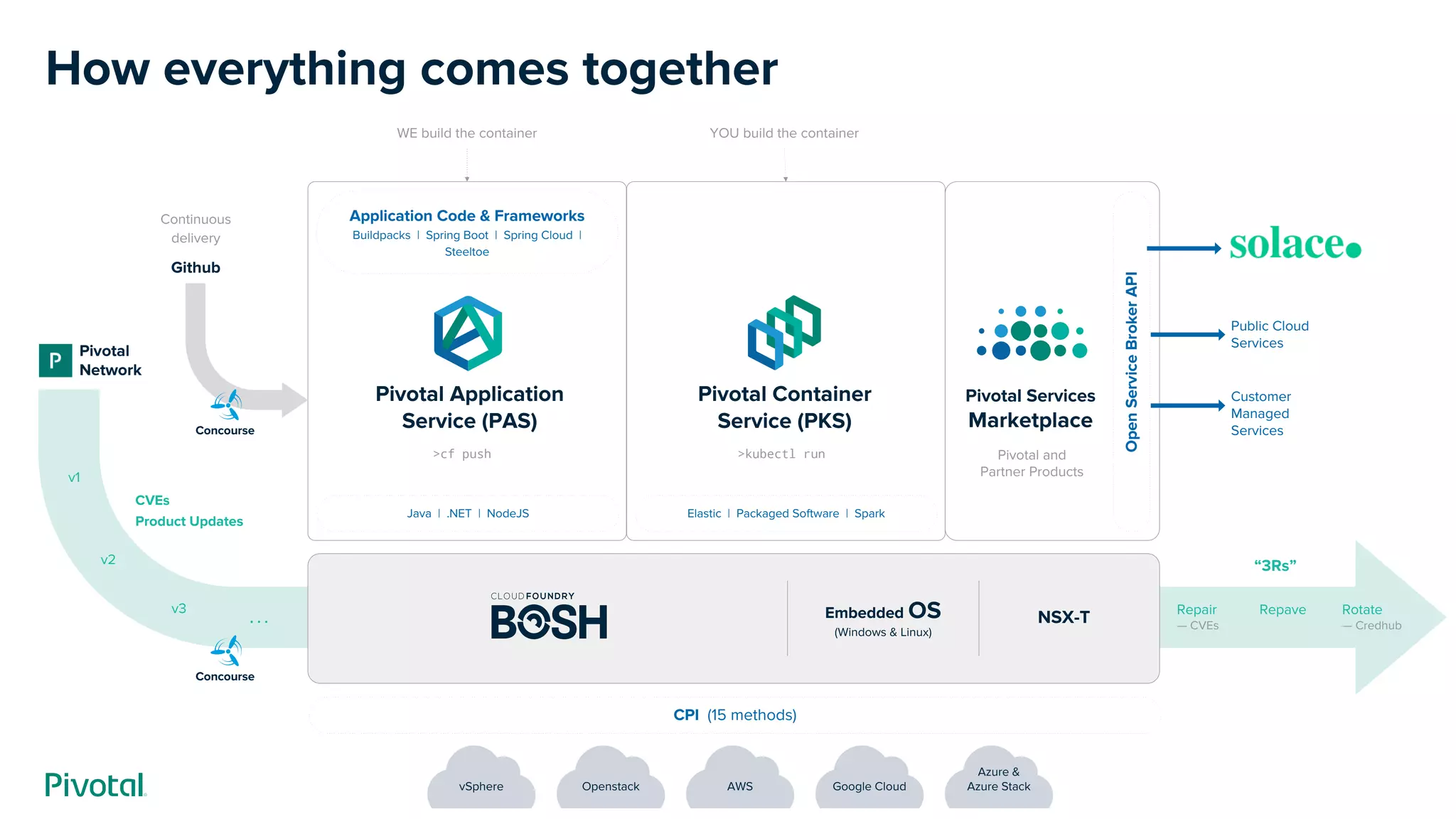

40. Embedded OS
(Windows & Linux)
NSX-T
CPI (15 methods)
v1
v2
v3
...
CVEs
Product Updates
Java | .NET | NodeJS
Pivotal Application
Service (PAS)
Application Code & Frameworks
Buildpacks | Spring Boot | Spring Cloud |
Steeltoe
Elastic | Packaged Software | Spark
Pivotal Container
Service (PKS)
>cf push >kubectl run
YOU build the containerWE build the container
vSphere
Azure &
Azure StackGoogle CloudAWSOpenstack
Pivotal
Network
“3Rs”
Github
Concourse
Concourse
Pivotal Services
Marketplace
Pivotal and
Partner Products
Continuous
delivery
Public Cloud
Services
Customer
Managed
Services
OpenServiceBrokerAPI
Repair
— CVEs
Repave Rotate
— Credhub
How everything comes together

41. © Copyright 2017 Pivotal Software, Inc. All rights Reserved. Version 1.0
Get the Message Across
Seamlessly transport data to apps,
anywhere, with Pivotal and Solace
Kamala Dasika
Product Marketing
Pivotal
Jonathan Schabowsky
Sr. Architect, Office of the CTO
Solace
Michael Hilmen
Sr. Systems Engineer
Solace
