In 2014, we collected bus rider data and conducted surveys to help us take a look at the overall transit system in the region. Several themes emerged, including a need for more frequent service in key corridors, earlier and later bus service, and more connections. This presentation includes short, medium, and long term solutions to these issues.

1. SEPTEMBER 23 & 24, 2015
GREATER BRIDGEPORT TRANSIT
LONG RANGE MASTER PLAN

2. Project Overview1

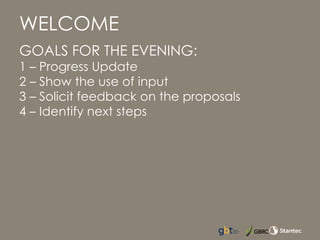

3. GOALS FOR THE EVENING:
1 – Progress Update
2 – Show the use of input
3 – Solicit feedback on the proposals
4 – Identify next steps
WELCOME

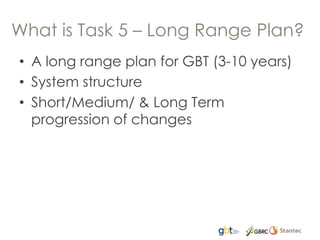

4. What is Task 5 – Long Range Plan?
• A long range plan for GBT (3-10 years)
• System structure
• Short/Medium/ & Long Term
progression of changes

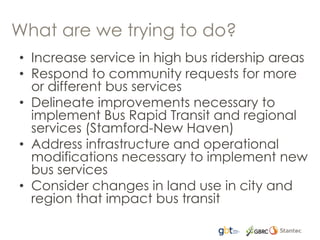

5. What are we trying to do?
• Increase service in high bus ridership areas
• Respond to community requests for more
or different bus services
• Delineate improvements necessary to
implement Bus Rapid Transit and regional
services (Stamford-New Haven)
• Address infrastructure and operational
modifications necessary to implement new
bus services
• Consider changes in land use in city and
region that impact bus transit

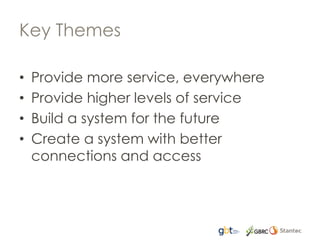

6. Key Themes
• Provide more service, everywhere
• Provide higher levels of service
• Build a system for the future
• Create a system with better
connections and access

7. Input into the route options2

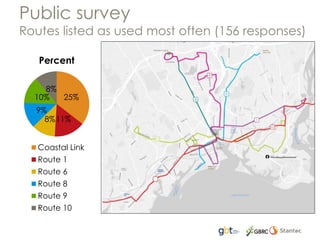

8. Public survey
Routes listed as used most often (156 responses)
25%
11%8%
9%
10%
8%
Percent
Coastal Link
Route 1
Route 6
Route 8
Route 9
Route 10

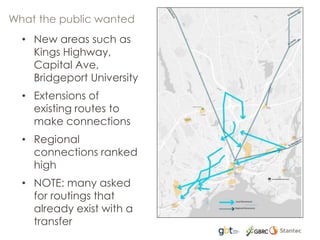

9. What the public wanted
• New areas such as
Kings Highway,
Capital Ave,
Bridgeport University
• Extensions of
existing routes to
make connections
• Regional
connections ranked
high
• NOTE: many asked
for routings that
already exist with a
transfer

10. SYSTEM DESIGN CHARETTE
March 2015 - Attendees
GBT, GBRC, City of Bridgeport,
Town of Stratford, Connecticut DOT

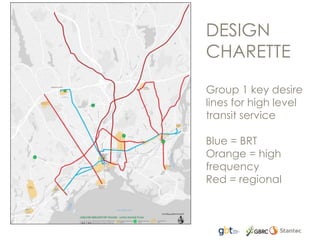

11. DESIGN
CHARETTE
Group 1 key desire
lines for high level
transit service
Blue = BRT
Orange = high
frequency
Red = regional

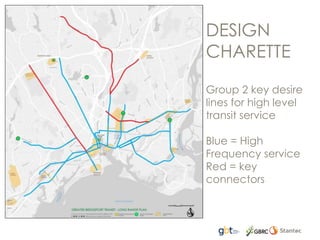

12. DESIGN
CHARETTE
Group 2 key desire
lines for high level
transit service
Blue = High
Frequency service
Red = key
connectors

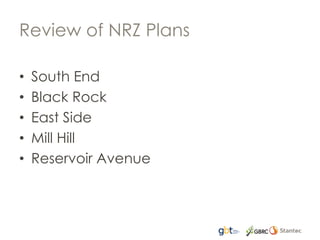

13. Review of NRZ Plans
• South End
• Black Rock
• East Side
• Mill Hill
• Reservoir Avenue

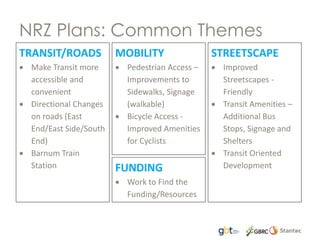

14. NRZ Plans: Common Themes
MOBILITY
 Pedestrian Access –
Improvements to
Sidewalks, Signage
(walkable)
 Bicycle Access -
Improved Amenities
for Cyclists
STREETSCAPE
 Improved
Streetscapes -
Friendly
 Transit Amenities –
Additional Bus
Stops, Signage and
Shelters
 Transit Oriented
Development
TRANSIT/ROADS
 Make Transit more
accessible and
convenient
 Directional Changes
on roads (East
End/East Side/South
End)
 Barnum Train
Station FUNDING
 Work to Find the
Funding/Resources

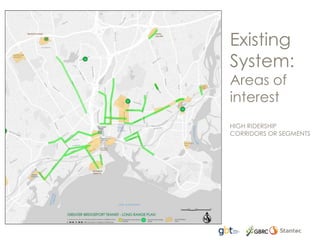

15. Existing
System:
Areas of
interest
HIGH RIDERSHIP
CORRIDORS OR SEGMENTS

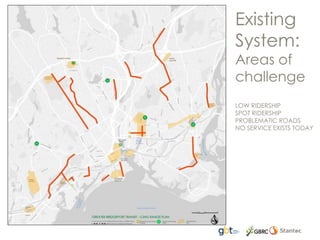

16. Existing
System:
Areas of
challenge
LOW RIDERSHIP
SPOT RIDERSHIP
PROBLEMATIC ROADS
NO SERVICE EXISTS TODAY

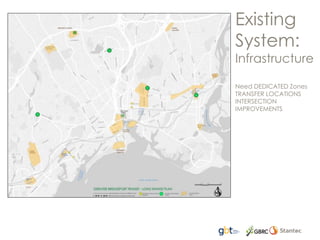

17. Existing
System:
Infrastructure
Need DEDICATED Zones
TRANSFER LOCATIONS
INTERSECTION
IMPROVEMENTS

18. Existing System: Common Transfers
Route Transferred to
Route 1 Route 2 Route 3 Route 4 Route 5 Route 6 Route 7 Route 8 Route 9 Route 10 Route 13
1 33 39 7 22 21 11 2 38 21 24 6
2 29 38 28 17 8 20 1 61 28 19 8
3 14 27 22 12 19 12 3 22 15 12 8
4 8 20 6 11 3 4 0 19 11 11 6
5 28 22 12 9 16 12 0 30 30 13 10
6 14 26 13 5 10 6 0 21 6 14 3
7 1 2 3 2 1 5 1 1 2 4 0
8 40 41 22 20 27 14 4 74 21 26 16
9 21 33 16 20 24 12 1 29 23 36 8
10 31 16 22 19 12 10 4 45 27 20 8
13 10 11 3 13 13 2 0 14 6 11 1
StartingRoute

19. System Considerations3

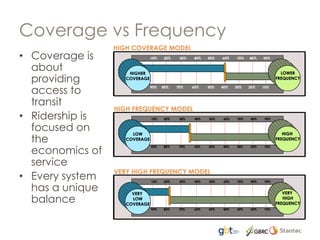

20. Coverage vs Frequency
• Coverage is
about
providing
access to
transit
• Ridership is
focused on
the
economics of
service
• Every system
has a unique
balance

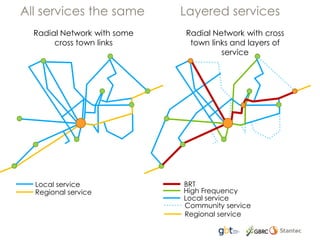

22. Regional service
Local service
Radial Network with some
cross town links
Local service
Community service
BRT
High Frequency
Regional service
Radial Network with cross
town links and layers of
service
All services the same Layered services

23. PROPOSED ROUTES
Groupings, infrastructure and
issues
4

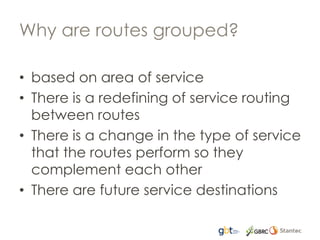

24. Why are routes grouped?
• based on area of service
• There is a redefining of service routing
between routes
• There is a change in the type of service
that the routes perform so they
complement each other
• There are future service destinations

25. PACKAGE 1 – The Coastal
Link

26. Coastal Link – AM Inbound to Downtown

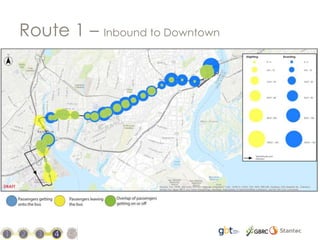

27. Route 1 – Inbound to Downtown

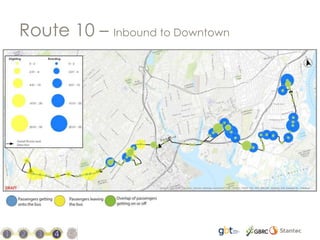

28. Route 10 – Inbound to Downtown

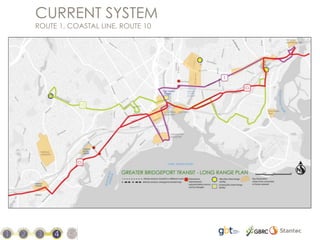

29. CURRENT SYSTEM
ROUTE 1, COASTAL LINE, ROUTE 10

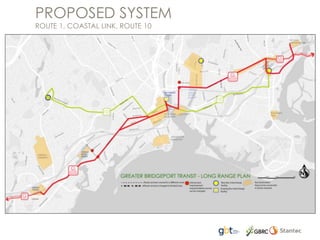

30. PROPOSED SYSTEM
ROUTE 1, COASTAL LINK, ROUTE 10

31. PACKAGE 2 – Bridgeport to
Westfield Trumbull

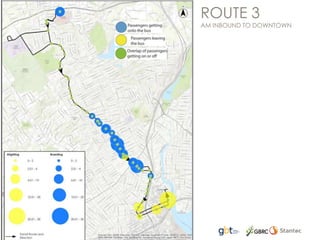

32. ROUTE 3
AM INBOUND TO DOWNTOWN

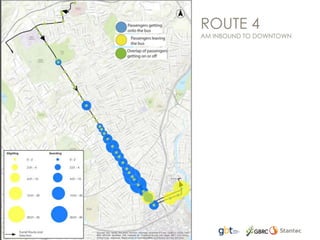

33. ROUTE 4
AM INBOUND TO DOWNTOWN

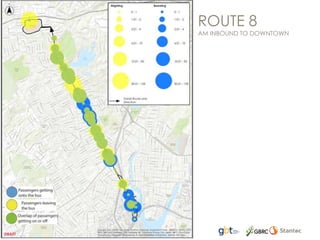

34. ROUTE 8
AM INBOUND TO DOWNTOWN

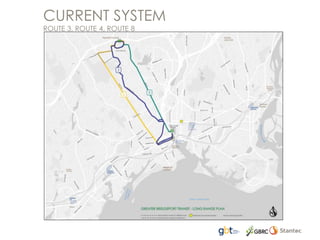

35. CURRENT SYSTEM
ROUTE 3, ROUTE 4, ROUTE 8

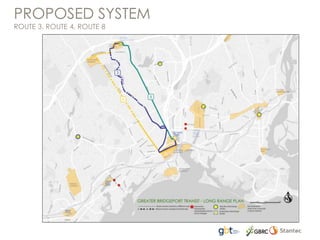

36. PROPOSED SYSTEM
ROUTE 3, ROUTE 4, ROUTE 8

37. PACKAGE 3 – Fairfield to
Bridgeport

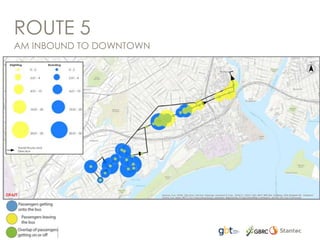

38. ROUTE 5
AM INBOUND TO DOWNTOWN

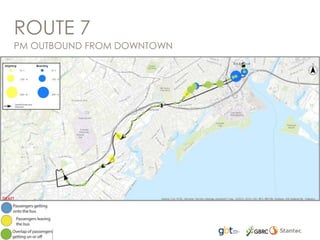

39. ROUTE 7
PM OUTBOUND FROM DOWNTOWN

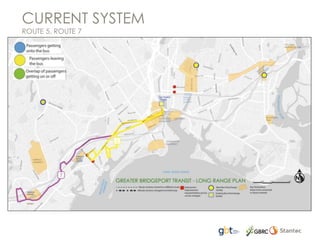

40. CURRENT SYSTEM
ROUTE 5, ROUTE 7

41. PROPOSED SYSTEM
ROUTE 5, ROUTE 7

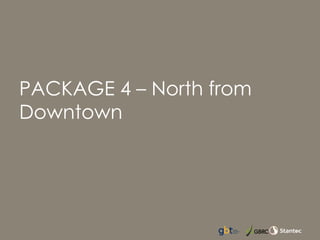

42. PACKAGE 4 – North from
Downtown

43. ROUTE 6
AM INBOUND TO
DOWNTOWN

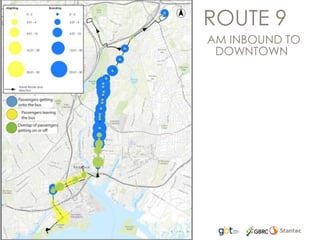

44. ROUTE 9
AM INBOUND TO
DOWNTOWN

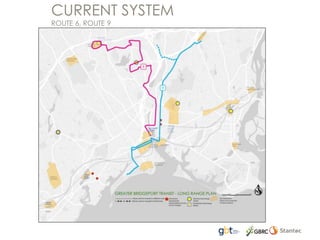

45. CURRENT SYSTEM
ROUTE 6, ROUTE 9

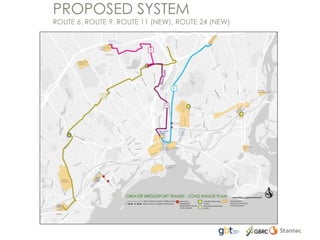

46. PROPOSED SYSTEM
ROUTE 6, ROUTE 9, ROUTE 11 (NEW), ROUTE 24 (NEW)

47. PACKAGE 5 – Mill Hill/Lake
Success

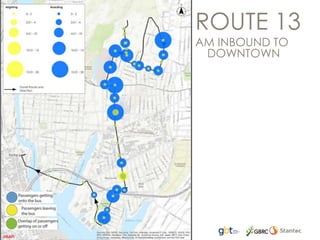

48. ROUTE 13
AM INBOUND TO
DOWNTOWN

49. ROUTE 15
AM INBOUND TO
DOWNTOWN

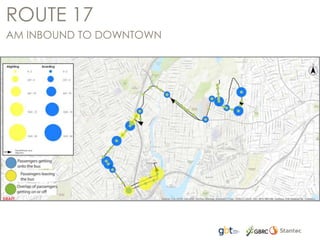

50. ROUTE 17
AM INBOUND TO DOWNTOWN

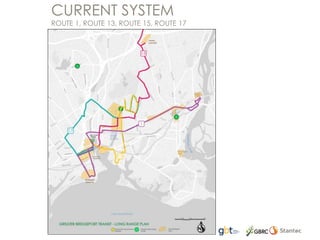

51. CURRENT SYSTEM
ROUTE 1, ROUTE 13, ROUTE 15, ROUTE 17

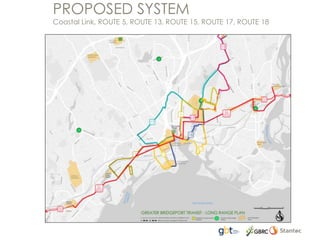

52. PROPOSED SYSTEM
Coastal Link, ROUTE 5, ROUTE 13, ROUTE 15, ROUTE 17, ROUTE 18

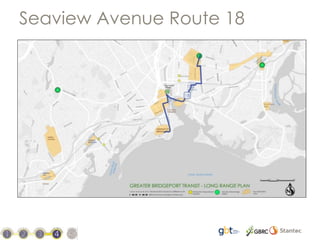

53. Seaview Avenue Route 18

54. PACKAGE 6
Crosstown Services

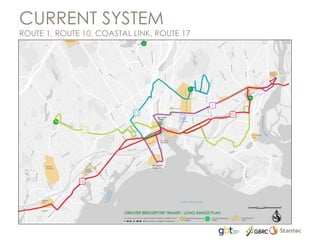

55. CURRENT SYSTEM
ROUTE 1, ROUTE 10, COASTAL LINK, ROUTE 17

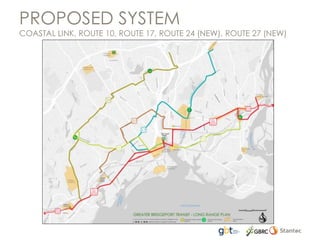

56. PROPOSED SYSTEM
COASTAL LINK, ROUTE 10, ROUTE 17, ROUTE 24 (NEW), ROUTE 27 (NEW)

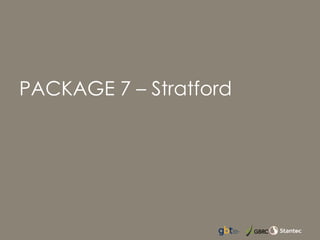

57. PACKAGE 7 – Stratford

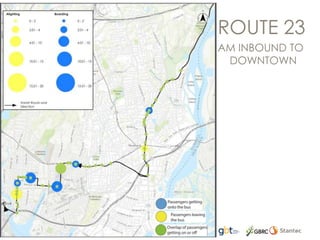

58. ROUTE 23
AM INBOUND TO
DOWNTOWN

59. CURRENT SYSTEM
ROUTE 1, ROUTE 10, COASTAL LINK, ROUTE 16, Route 23

60. PROPOSED SYSTEM
COASTAL LINK, ROUTE 10, ROUTE 16, ROUTE 23, ROUTE 25

61. PACKAGE 8 – Trumbull &
Monroe

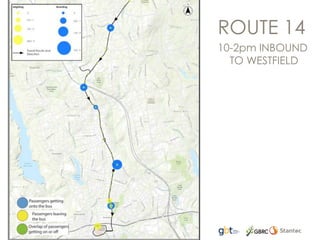

62. ROUTE 14
10-2pm INBOUND
TO WESTFIELD

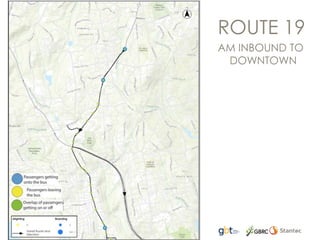

63. ROUTE 19
AM INBOUND TO
DOWNTOWN

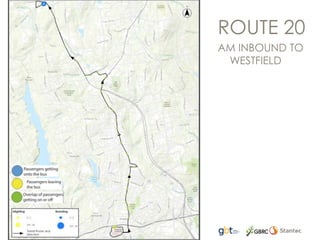

64. ROUTE 20
AM INBOUND TO
WESTFIELD

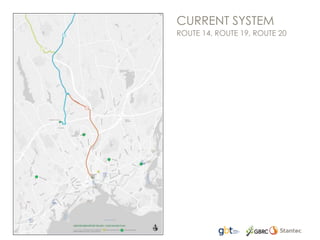

65. CURRENT SYSTEM
ROUTE 14, ROUTE 19, ROUTE 20

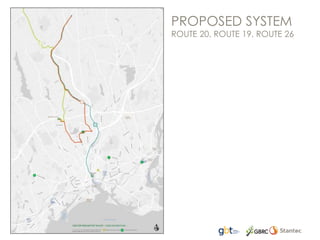

66. PROPOSED SYSTEM
ROUTE 20, ROUTE 19, ROUTE 26

67. PACKAGE 9 – Route 22X

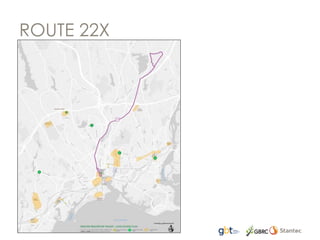

68. ROUTE 22X

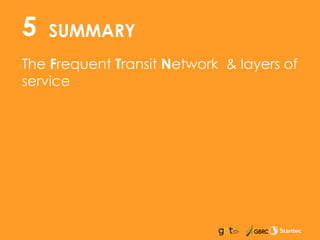

69. SUMMARY
The Frequent Transit Network & layers of
service
5

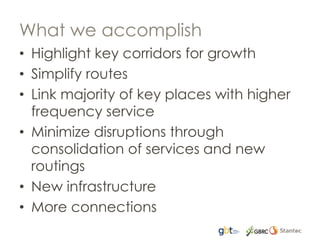

70. What we accomplish
• Highlight key corridors for growth
• Simplify routes
• Link majority of key places with higher
frequency service
• Minimize disruptions through
consolidation of services and new
routings
• New infrastructure
• More connections

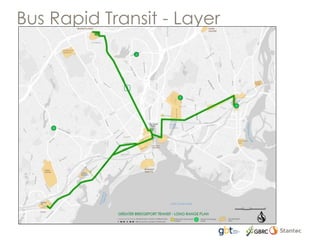

71. Bus Rapid Transit - Layer

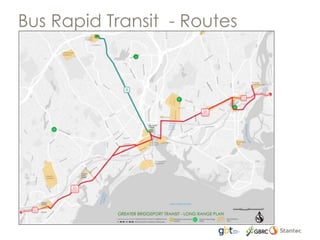

72. Bus Rapid Transit - Routes

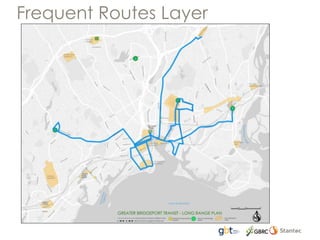

73. Frequent Routes Layer

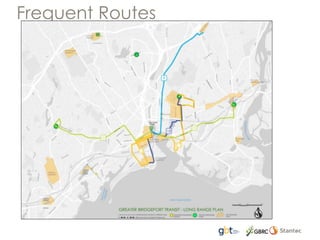

74. Frequent Routes

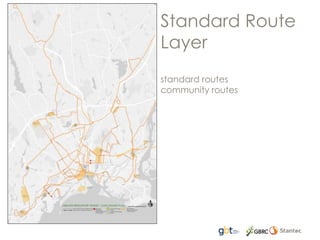

75. Standard Route
Layer
standard routes
community routes

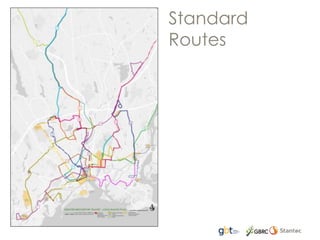

76. Standard
Routes

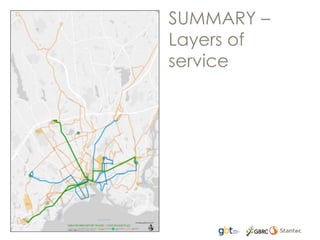

77. SUMMARY –
Layers of
service

78. SUMMARY –
Routes

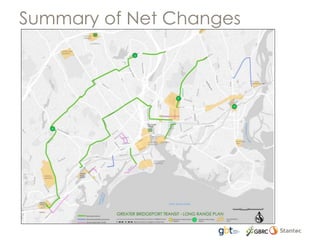

79. Summary of Net Changes

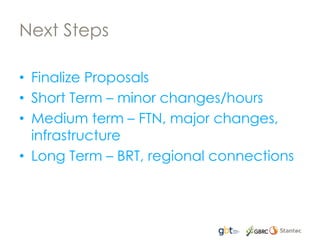

80. Next Steps
• Finalize Proposals
• Short Term – minor changes/hours
• Medium term – FTN, major changes,
infrastructure
• Long Term – BRT, regional connections

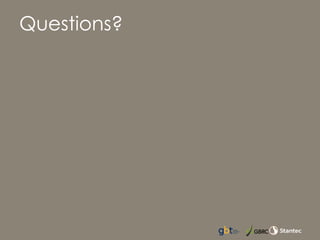

81. Questions?
