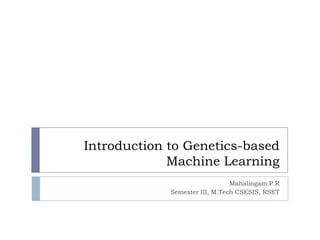

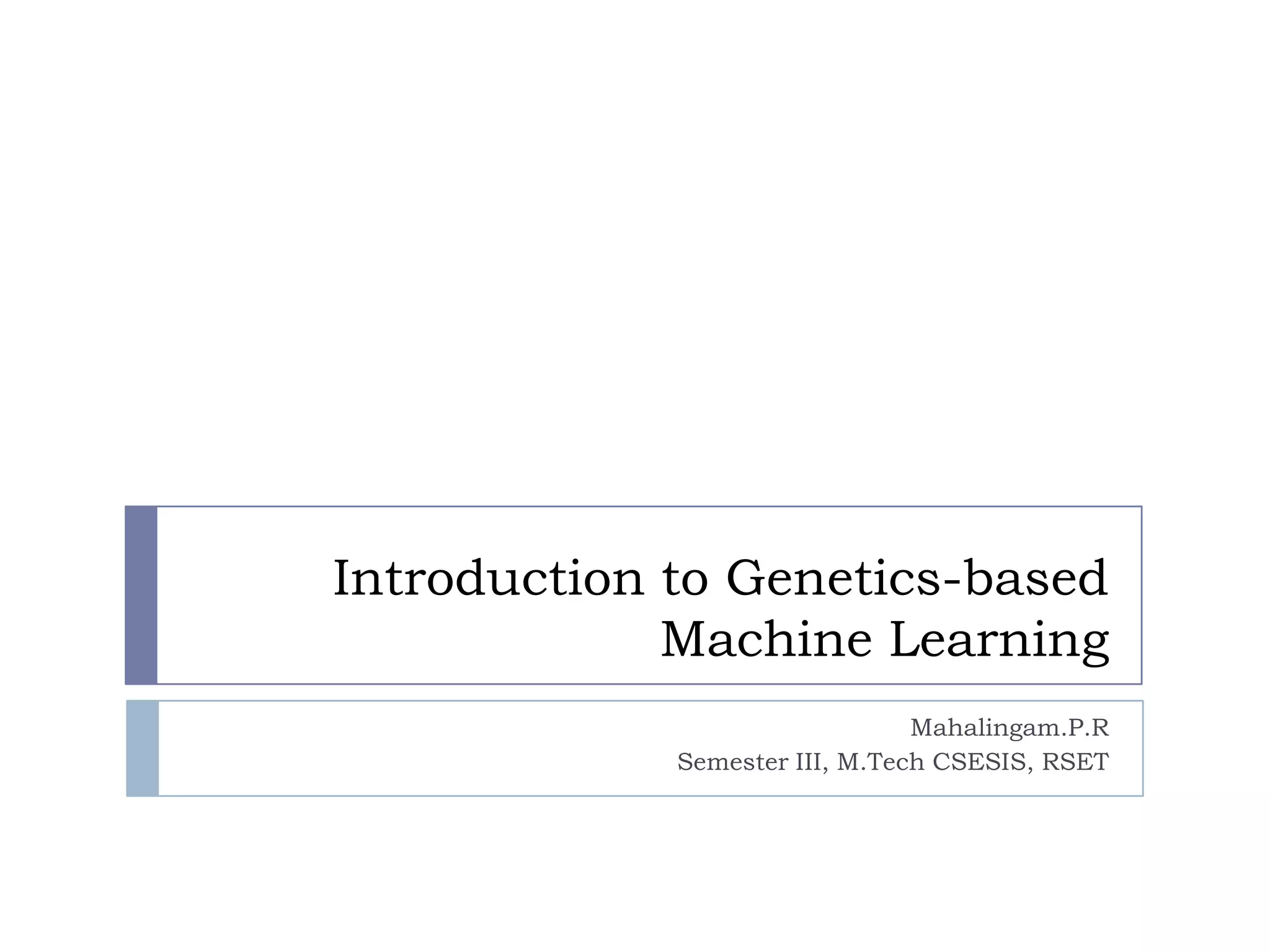

Genetics Based Machine Learning

1. Introduction to Genetics-based
Machine Learning
Mahalingam.P.R
Semester III, M.Tech CSESIS, RSET

2. Contents
 Background of Machine Learning
 About Machine Learning
 GA in Machine Learning
 Evolution of GBML
 Classifier System
 Rule and Message System
 Apportionment of Credit System
 Genetic Algorithm
 A simple classifier system in Pascal
 Conclusion
2 Introduction to GBML

3. Introduction
3 Introduction to GBML

4. Machine Learning
 A machine learns whenever it changes its structure,
program, or data (based on its inputs or in response
to external information) in such a manner that its
expected future performance improves.
 Machine learning usually refers to the changes in
systems that perform tasks associated with artificial
intelligence (AI).
 Such tasks involve recognition, diagnosis, planning,
robot control, prediction, etc. The “changes" might be
either enhancements to already performing systems
or ab-initio synthesis of new systems.
4 Introduction to GBML

5. A typical AI system
Here, the model progressively learns from the experience it earns from the environment
5 Introduction to GBML

6. Need for Machine Learning
 Some tasks cannot be defined well except by
example.
 We might be able to specify input/output pairs but not a
concise relationship between inputs and desired outputs.
 We would like machines to be able to adjust their internal
structure to produce correct outputs for a large number of
sample inputs
 suitably constrain their input/output function to approximate the
relationship implicit in the examples.
 It is possible that hidden among large piles of data
are important relationships and correlations.
 Machine learning methods can often be used to extract
these relationships (data mining).
6 Introduction to GBML

7.  Machine learning methods can be used for on-the-job
improvement of existing machine designs.
 The amount of knowledge available about certain tasks
might be too large for explicit encoding by humans.
 Machines that learn this knowledge gradually might be able to
capture more of it than humans would want to write down.
 Environments change over time.
 Machines that can adapt to a changing environment would
reduce the need for constant redesign.
 New knowledge about tasks is constantly being
discovered by humans (Vocabulary changes).
 There is a constant stream of new events in the world.
 Continuing redesign of AI systems to conform to new
knowledge is impractical.
 Machine learning methods might be able to track much of it.
7 Introduction to GBML

8. More on Machine Learning
Contributions to Machine Varieties of Machine
Learning Learning
 Statistics  Functions
 Brain Models  Logic Programs and
 Adaptive Control Theory Rule sets
 Psychological Models  Finite-state machines
 Artificial Intelligence  Grammars
 Evolutionary Models  Problem solving
systems
8 Introduction to GBML

9. GA in Machine Learning
 Conventional GA systems work with the following
properties:
 Probabilistic
 Random
 Enumerative
 The structures adapted cater to the human-like
mechanism adopted in the methodology.
 This adaptation itself is the biggest hindrance when
incorporating GA into more complex, less completely
defined environments.
 Too much “guesses” when it comes to searching
 Methodology safe under the “sandbox” of searching
9 Introduction to GBML

10. Coming Up
Origins of GBML
 Study Machine Learning systems Systems
that use genetic search as their
Classifier System
primary discovery heuristic.
Operation of Classifier
Systems
 Adapting GA structures to work in Implementation of a
complex environments like Machine Simple Classifier System
in Pascal
Learning
Testing classifier in a
problem domain –
Learning a Boolean
function
10 Introduction to GBML

11. Origin of GBML systems
11 Introduction to GBML

12.  In nature, not only do individual animals learn to
perform better, but species evolve to be better fit in
their individual niches.
 Since the distinction between evolving and learning
can be blurred in computer systems, techniques that
model certain aspects of biological evolution have
been proposed as learning methods to improve the
performance of computer programs.
 Genetic algorithms [Holland, 1975] and genetic
programming [Koza, 1992, Koza, 1994] are the most
prominent computational techniques for evolution.
12 Introduction to GBML

13. Theoretical Foundation for GBML
 Laid by Holland (1962)
 Outline for Adaptive Systems Theory
 role of program replication as a method of emphasizing
past programs.
 Fundamental role of recombination
 Holland (1965)
 Schemata Processors
 Holland (1968-1971)
 Application of a classifier system
 Holland and Reitman (1978)
13 Introduction to GBML

14.  Modern classifier systems resemble schemata
processors in both outline and detail
 Holland suggested four prototypes in the initial
proposal.
 No experiments or implementation have been reported
yet!
 Proposal coincided with the development of the
theory of schemata.
14 Introduction to GBML

15. Prototype 1 Prototype 2
 Stimulus-response (SR)  Extend type 1 by adding
processor that would internal effectors
link environmental (internal states).
schemata (conditions)
with particular action
effectors.
15 Introduction to GBML

16. Prototype 3 Prototype 4
 Build upon types 1 and  Extend the other types
2 by including explicit by incorporating the
environmental state capability to modify its
prediction (a model of own effectors and
the real world), and an detectors, permitting
internal evaluation greater (or lesser) range
mechanism. of data detection and a
larger behavioural
response.
16 Introduction to GBML

17. Broadcast language
 Derived from early proposals.
 Broad
 Unimplemented
 Creating broadcast units (production rules) from a 10-
letter alphabet.
 The alphabet added wild card (single and multiple match)
characters to an underlying binary alphabet.
 If included, the following would have given sufficient
power for computational completeness and
representational convenience.
 A fundamental punctuation mark, a persistence symbol for
continued broadcast of a message.
 A quotation character for taking the next character literally.
17 Introduction to GBML

18.  The proposal for broadcast language was
instrumental in unifying the earlier suggestions for
schemata operators by:
 theoretically permitting a consistent representation of all
operators, data, and rules or instructions.
 The generality gained in theory has not been
realized in practice.
18 Introduction to GBML

19. First practical implementation
 Three years following the broadcast language
proposal (Holland and Reitman, 1978).
 Cognitive System Level One (CS-1)
 Trained to learn two maze-running tasks.
 Performance system with message list and simple string
rules (classifiers).
 GA composed of reproduction, crossover, mutation and
crowding.
 Epochal learning mechanism where reward is
apportioned to all classifiers active between successive
payoff events.
 Learning mechanism has largely been supplanted by
another mechanism – a bucket brigade.
19 Introduction to GBML

20. GBML Applications
20 Introduction to GBML

21. 21 Introduction to GBML

22. 22 Introduction to GBML

23. 23 Introduction to GBML

24. 24 Introduction to GBML

25. Classifier System
25 Introduction to GBML

26.  A classifier system is a machine learning system that
learns syntactically simple string rules (called
classifiers) to guide its performance in an arbitrary
environment.
 A classifier system consists of three main
components:
 Rule and message system
 Apportionment of credit system
 Genetic algorithm
26 Introduction to GBML

27.  The rule and message system of a classifier system
is a special kind of production system.
 A production system is a computational scheme that
uses rules as its only algorithmic device. The general
syntax of such systems are as follows:
if <condition> then <action>
 The production means that the action may be taken
(rule is “fired”) when the condition is satisfied.
27 Introduction to GBML

28.  It has been shown that production systems are
computationally complete, as well as convenient.
 A simple rule or set of rules can represent a complex
set of thoughts compactly.
 But when it comes to situations in need of learning,
this is not advisable due to the complex rule syntax.
 Many production systems permit involved
grammatical constructions for the condition and
action part of the rule.
28 Introduction to GBML

29.  Classifier systems depart from the mainstream by
restricting a rule to a fixed length representation.
 This restriction has two benefits.
 All strings under the permissible alphabet are syntactically
meaningful
 A fixed string representation permits string operators of
the genetic kind. This leaves the door open for a Genetic
Algorithm search of the space of permissible rules.
29 Introduction to GBML

30.  Classifier systems use parallel rule activation,
whereas traditional systems use serial rule
activation.
 They permit multiple activities to be coordinated
simultaneously. When choices must be made
between mutually exclusive environmental actions,
or size of matched rule set must be pruned to
accommodate the fixed length message list, the
choices are postponed to the last possible moment,
and the arbitration is then performed competitively.
30 Introduction to GBML

31.  In traditional expert systems, the value or rating of a rule
relative to other is fixed by the programmer in conjunction
with the expert or group of experts to be emulated. But
this is not possible in rule learning system.
 In such cases, the relative importance has to be
“learned”. So, classifiers are forced to coexist in an
information-based service economy. A competition is held
among classifiers where the right to answer relevant
messages goes to the highest bidder. Subsequent bids
serve as the income for previously successful message
senders.
 This competitive nature ensures that good rules
(profitable ones) survive and the bad rules (unprofitable)
die off.
31 Introduction to GBML

32. Internal Currency
 The exchange and accumulation of an internal
currency provides a natural figure of merit for
applying GA.
 Using the “bank balance” as a fitness function,
classifiers may be reproduced, crossed, and
mutated.
 So, it can rank extant rules, and discover new,
possibly better rules by innovative combinations of
old ones.
 Here, the stress is on “who gets replaced”, not
“replace entire populations”.
32 Introduction to GBML

33.  Thus, apportionment of credit via
competition and rule discovery Next…
using GA form a reasonable basis Each component is
discussed in detail and
for constructing a machine learning
the interconnections
system atop the computationally studied.
convenient and complete •Ruleand message
framework of classifiers. system
•Apportionment of credit
•Genetic Algorithm
Implementation in Pascal
Testing on real world
problem – learning a
Boolean function
33 Introduction to GBML

34. Rule and Message System
34 Introduction to GBML

35. This is the schematic of a
complete classifier
system.
35 Introduction to GBML

36.  The rule and message system forms the backbone
of the silicon beast.
 Information flows from the environment through the
detectors, where it is decoded to one or more finite
length messages.
 The environmental messages are fed into a finite
length message list where the messages activate
string rules called classifiers.
 When activated, the classifier posts a message on to
the message list, which may in-turn invoke other
classifiers, or cause an action to be taken through
the system’s action triggers called effectors.
36 Introduction to GBML

37.  Classifiers combine environmental cues and internal
thoughts to determine what the system should do
and think next.
 Coordinates the flow of information from where it is
sensed (detectors) to where it is processed
(message list and classifier store) to where it is
called to action (effectors).
 Informational units
 Messages
 Classifiers
37 Introduction to GBML

38.  A message within a classifier system is simply a
finite-length string over some finite alphabet. If we
limit to the binary alphabet, we get
<message> ::= {0, 1}L
 This means taking the concatenation of 0s or 1s for
“L” times.
 Messages are the basic token of information
exchange in a classifier system.
 The messages on the message list may match one
or more classifiers or string rules.
38 Introduction to GBML

39.  A classifier is a production rule with the syntax
<classifier> ::= <condition>:<message>
 The condition is a simple pattern recognition device
where a wild card (#) is added to the underlying alphabet.
<condition> ::= {0, 1, #}L
 So, the condition matches a message if at every position,
a 0 in the message matches a 0 in the condition, 1
matches a 1, or a # matches either a 0 or a 1.
 For example, #01# matches 0010, 0011, 1010 and 1011. But it
doesn’t match 0000.
 Similar to schema in GA
39 Introduction to GBML

40.  Once the classifier’s condition is matched, it
becomes a candidate to post its message to the
message list in the next time step.
 Whether the candidate classifier posts its message
is determined by the outcome of an activation
auction, which in turn depends on evaluation of the
classifier’s value or weighting.
40 Introduction to GBML

41. Sample simulation by hand
 Initial message list is as follows.
41 Introduction to GBML

42. 42 Introduction to GBML

43. 43 Introduction to GBML

44. 44 Introduction to GBML

45. 45 Introduction to GBML

46. 46 Introduction to GBML

47. 47 Introduction to GBML

48. 48 Introduction to GBML

49. 49 Introduction to GBML

50. Apportionment of Credit
Algorithm
THE BUCKET BRIGADE
50 Introduction to GBML

51.  Many classifiers attempt to rank or rate the individual
classifiers according to a classifier’s role in achieving
reward from the environment.
 Most prevalent method
 Bucket Brigade Algorithm
 John Holland
51 Introduction to GBML

52. About the algorithm
 An information economy where the right to trade
information is bought and sold by classifiers.
 Classifiers form a chain of middlemen from
information manufacturer (the environment) to
information consumer (the effectors).
 Components of service economy
 Auction
 ClearingHouse
52 Introduction to GBML

53.  When classifiers are matched, they don’t directly
post their messages.
 A matching message entitles a classifier to
participate in an activation auction.
 Each classifier maintains a record of its net worth.
 Called Strength (S).
 Each matched classifier makes a bid B.
 Bid proportional to its strength.
 In this way, rules that are highly fit (have
accumulated a net worth) are given preference over
other rules.
53 Introduction to GBML

54.  Once a classifier is selected for activation, it must clear
its payment through the clearinghouse, paying its bid to
other classifiers for matching messages rendered.
 A matched and activated classifier sends its bid B to
those classifiers responsible for sending the messages
that matched the bidder classifier’s condition.
 Bid amount divided among the matching classifiers.
 Division of payoff among contributing classifiers helps
ensure the formation of an appropriately sized
subpopulation of rules.
 Different types of rules can cover different types of
behavioral requirements without undue interspecies
competition.
54 Introduction to GBML

55.  In a rule-learning system of any experience, we
cannot search for one master rule.
 We must instead search for a co-adapted set of rules
that together cover a range of behavior that provides
ample payoff to the learning system.
Consider the
classifiers as before.
55 Introduction to GBML

56.  Now, lets follow the payments, with initial strength of
200.
56 Introduction to GBML

57. 57 Introduction to GBML

58. 58 Introduction to GBML

59. 59 Introduction to GBML

60. 60 Introduction to GBML

61. 61 Introduction to GBML

62. 62 Introduction to GBML

63.  For steady receipts, the bid value approaches the
receipt. For time-varying receipt values, we see that
the bid is a geometrically weighted average of the
input.
 As such, it acts as a filter of the possibly intermittent
and noisy receipt values.
63 Introduction to GBML

64. Genetic Algorithm
64 Introduction to GBML

65.  Bucket brigade
 Clean procedure
 Evaluation of rules
 Decide among competing alternatives
 But we have to devise a way of injecting new rules
into the system.
 Similar to SGA, we can inject new rules using the
tripartite rules
 Reproduction
 Crossover
 Mutation
65 Introduction to GBML

66.  The rules are placed in the population and
processed by the auction, payment and
reinforcement mechanism to properly evaluate their
role in the system.
 Pay attention to “who replaces whom”
 Not replacing the entire population
 GA in classifier systems strongly resemble those
used in search and optimization.
 Main difference in Machine Learning
 Non-overlapping population model not acceptable here.
 In non-overlapping generations, complete generations are
selected and replaced by a new population at every run.
66 Introduction to GBML

67. Machine Learning Search and optimization
 High level of on-line  Convergence
performance.  Offline performance
 Learn to perform more
proficiently.
67 Introduction to GBML

68. De Jong’s experiments Machine Learning
 Conventional system  Whole population
 GA Parameter should not be replaced.
 Generation Gap (G)  Quantity
 Implement and test  Selection Proportion
overlapping population (proportion)
Genetic Algorithms.  Replace that proportion
of the population at a
given algorithm run.
 Coupled with a number
of other parameters.
68 Introduction to GBML

69. Other Parameters
 GA Period
 Represented as Tga
 Specifies number of time steps (rule and message cycles)
between GA calls.
 Period can be treated deterministically
 GA is called every Tga cycles
 Or stochastically
 GA is called probabilistically with average period Tga
 Invocation of GA learning may be conditioned on
particular events such as:
 Lack of match
 Poor performance
69 Introduction to GBML

70. Selection
 Roulette Wheel Selection
 Classifier’s strength S used as the fitness.
 No longer generating entire populations
 Careful when choosing population members for
replacement.
 De Jong’s crowding procedure
 Encourage replacement of similar population memebers
70 Introduction to GBML

71. Mutation
 Modified procedure
 Here, ternary alphabet is used
 SGA used a binary alphabet
 Mutation probability pm defined as before
 When a mutation is called for, we change the
mutated character to one of the other two with equal
probability.
 0  { 1, # }
 1  { 0, # }
 #  { 0, 1 }
71 Introduction to GBML

72. Next-
 With all these changes to the A simple Classifier
normal SGA routine, GA may be System in Pascal
dropped into the classifier system •Simple Classifier System
Data Structure
and used in a manner not too
different from normal search and •The Performance System
optimization applications. •Apportionment of credit
algorithm
•Geneticsearch within the
Simple Classifier System
•Real-world testing
•Results
•Comparison with and
without GA
72 Introduction to GBML

73. A Simple Classifier System in
Pascal
73 Introduction to GBML

74.  Construct a system designed to learn a boolean
function
 A multiplexer
 Collapse the finite-length message list to a single
message (the environmental message)
 Immediate feedback
 Simple payoff
74 Introduction to GBML

75. Components
 Simple Classifier System Data Structure
 Adapt to learning strategies
 Performance System
 Heart of SCS
 Matching procedures are the heart of the performance system
 Apportionment of Credit
 Procedures
 Auction
 Clearinghouse
 Taxcollector
 Genetic Search within Simple Classifier System
 Similar to SGA
 Learning the multiplexing system
 Main procedure
 Reinforcement
75 Introduction to GBML

76. Six – bit multiplexing system
76 Introduction to GBML

77. Results using the Simple Classifier System
Without GA With GA
77 Introduction to GBML

78. Conclusion
 The following were discussed
 Machine Learning
 Role of GA in Machine Learning
 The evolution of GA concepts in Machine Learning
 Some applications of GBML
 Classifier System
 Components of Classifier System
 Rule and Message System
 Apportionment of Credit (The Bucket Brigade)
 Genetic Algorithm
 A practical implementation in Pascal
 Increase in output efficiency when using GA
78 Introduction to GBML

79. References
 “Introduction to Machine Learning”, Nils J. Nilsson,
Robotics Laboratory, Department of Computer
Science, Stanford University
 “Genetic Algorithms in Search, Optimization and
Machine Learning”, David E. Goldberg, pp 217-260
79 Introduction to GBML

80. THANK YOU
80 Introduction to GBML
