This document provides product information for MOLYKOTE G 67 extreme pressure grease. It has excellent protection against fretting corrosion and wear. It is particularly adhesive and provides high load carrying capacity and protection against wear in applications like gears, chains, and joints. The grease has a service temperature range of -25 to 120°C and consists of mineral oil, lithium soap, and solid lubricants. It requires cleaning of contact points and can be applied by brush, spatula, or grease gun. Compatibility testing is recommended due to variability of plastics and elastomers.
Nicholas Pennington: 1L at Drexel University College of Law, Philadelphia, PA LawCrossing
Drexel University College Of Law Student Nicholas Pennington Was Grown Up In The Rural East Tennessee Community Of Clax Gap. His Determination And Hardworking Turned His Talents To The Hospitality Industry By Getting A Master Degree From The University Of Tennessee.
Nicholas Pennington: 1L at Drexel University College of Law, Philadelphia, PA LawCrossing
Drexel University College Of Law Student Nicholas Pennington Was Grown Up In The Rural East Tennessee Community Of Clax Gap. His Determination And Hardworking Turned His Talents To The Hospitality Industry By Getting A Master Degree From The University Of Tennessee.
This safety tool is a must if you have a need to move fingers away from the impact zone of a hammer on flogging spanners and from pinch points when using impact wrenches and hydraulic torque equipment.
Please spend 5 minutes to browse through our key products for the drilling rigs segment. We call these the Rig Essentials Line. Please do not hesitate to ask us for more information. Our Sales Support team is ready to send out detailed information on any products that you may require. Thank you again and we look forward to hearing more on our requirements.
Regards
Manju, Inside Sales
Project Sales Corp
28, Founta Plaza I Suryabagh I Visakhapatnam 530020. AP I India
Phone No. +91-891-2566293 I Web www.projectsalescorp.IN
With over 750 products in its stocking range, Project Sales Corp is undoubtedly India’s largest oilfield ropes, soaps, dopes store. We call it the Rig Essentials Line. Take a look inside to see some of the key products that we stock in this category of MRO, Tools, Safety and Rig Essentials. Whether you are a rig operator or an oilfield supplier, you will find consolidating your purchases with us for the items we stock would be the right way to service your end-users requirement the quickest way !
An ideal flanged joint would consist of two, mirror-finish, perfectly flat
and parallel surfaces bolted directly together to create a leak-free seal.
However, manufacturing processes do not allow for perfect sealing surfaces.
Most flange faces have surface irregularities that cannot be sealed without
the use of some type of compressible, resilient material or a combination of
materials between them to seal the fluid being transferred. This is true
even for the most finely machined surfaces as a turbine flange where the
surface asperities can create a leak situation.
Project Sales Corp presents an exhaustive range of sealing and gasketing
material that can be used to effectively seal flanges and in many cases seal
leaks that can develop in operation and can be sealed in-situ without an
outage of the equipment. We stock gasketing compounds, jointing Compounds,
Flange Sealants, Thread Sealants, Pipe Sealants, Form-in-place RTVs, Turbine
Flange Sealing Compounds. Please see attached presentation for more details.
Regards
Anil Tiwari
Project Sales Corp
28, Founta Plaza I Suryabagh I Visakhapatnam 530020. AP I India
Phone No. +91-9866467276 I Web www.projectsalescorp.IN
Project Sales Corp, marketers of leading impact glove brands Kong™, Mechanix®, Ringers and HexArmor® in India now offers a complete hands-off tools portfolio to
include several products to support companies in India with a proactive Hands Free Policy.
While access to data in the India’s offshore industry is not available, one thing, from our sale of impact gloves to almost all O&G companies, is clear – the industry
uses the impact gloves as a last line of defense for impact protection and to reduce/ if not eliminate pinched fingers, bruising blows and hairline fractures. The
first probably is the company’s hands off policy that seeks to identify and document safer methods of handling suspended loads to reduce/ if not eliminate pinch
points, “struck by” , “caught between” and other hand injury situations that occur due to unpredictable or unanticipated movement of suspended/supported loads. We have
seen some company actually list down each specific task - whether hands on or hands off - in activities associated with drilling, running casings, cementing or
logging, etc. Hands Free Lifting refers to personnel not touching a load (with any part of their body) that is connected to a mechanical lifting device and is
a key constituent of the hands-off policy.
Project Sales Corp has brought in products internationally recognized by oil drilling companies as a safer alternative and a key component of the hands off policy on
board drilling rigs. These would includes Shove-it, Fingersaver, Ergonomix, Saf-T-Guider, Helix Taglines, Retriever tool and more.

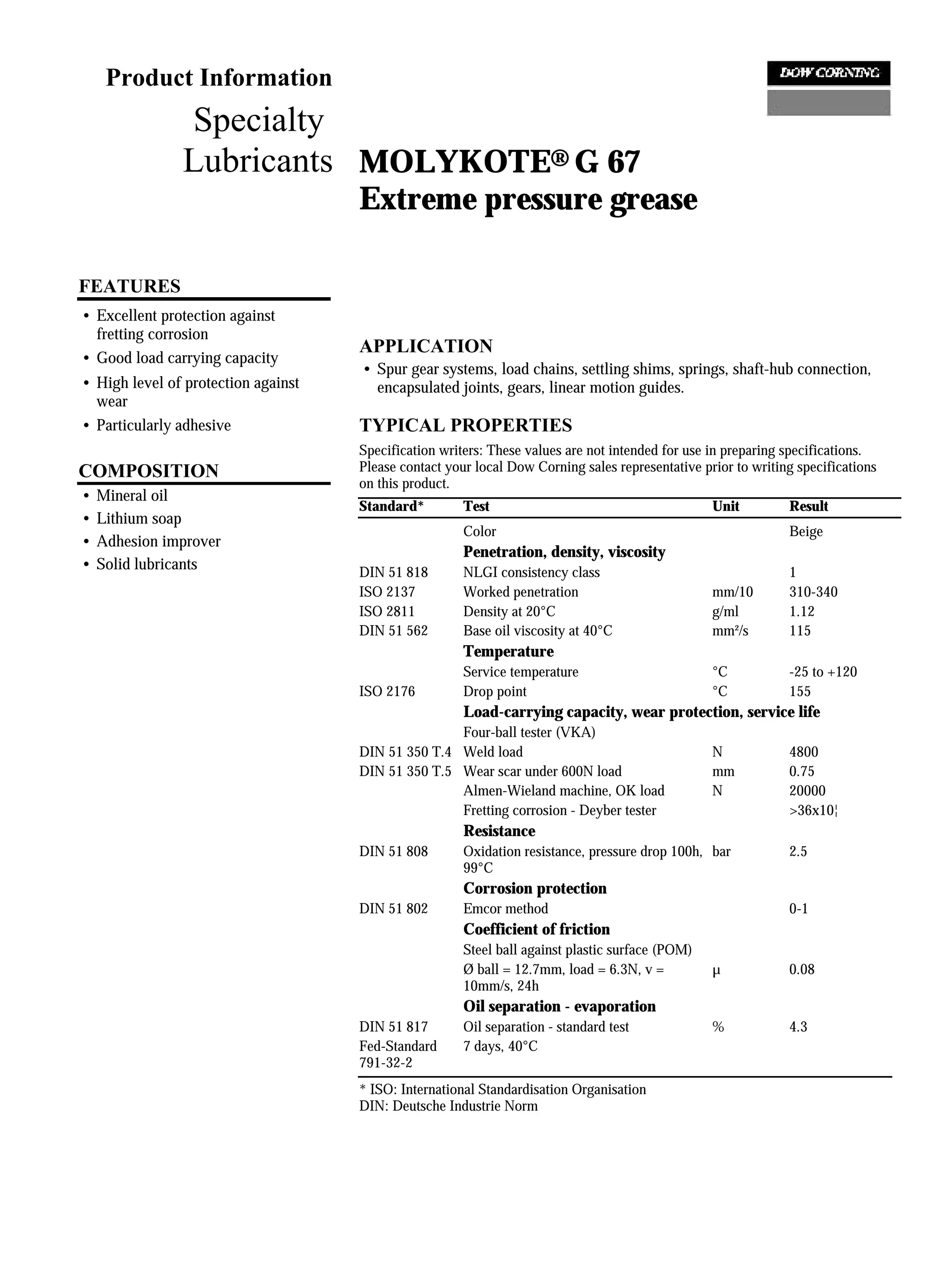

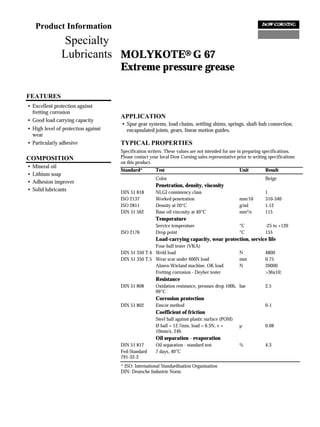

1. Product Information
Specialty
Lubricants MOLYKOTE® G 67
Extreme pressure grease
FEATURES
• Excellent protection against
fretting corrosion
APPLICATION
• Good load carrying capacity
• Spur gear systems, load chains, settling shims, springs, shaft-hub connection,
• High level of protection against encapsulated joints, gears, linear motion guides.
wear
• Particularly adhesive TYPICAL PROPERTIES
Specification writers: These values are not intended for use in preparing specifications.
COMPOSITION Please contact your local Dow Corning sales representative prior to writing specifications
on this product.
• Mineral oil
Standard* Test Unit Result
• Lithium soap
Color Beige
• Adhesion improver
Penetration, density, viscosity
• Solid lubricants DIN 51 818 NLGI consistency class 1
ISO 2137 Worked penetration mm/10 310-340
ISO 2811 Density at 20°C g/ml 1.12
DIN 51 562 Base oil viscosity at 40°C mm²/s 115
Temperature
Service temperature °C -25 to +120
ISO 2176 Drop point °C 155
Load-carrying capacity, wear protection, service life
Four-ball tester (VKA)
DIN 51 350 T.4 Weld load N 4800
DIN 51 350 T.5 Wear scar under 600N load mm 0.75
Almen-Wieland machine, OK load N 20000
Fretting corrosion - Deyber tester >36x10¦
Resistance
DIN 51 808 Oxidation resistance, pressure drop 100h, bar 2.5
99°C
Corrosion protection
DIN 51 802 Emcor method 0-1
Coefficient of friction
Steel ball against plastic surface (POM)
Ø ball = 12.7mm, load = 6.3N, v = µ 0.08
10mm/s, 24h
Oil separation - evaporation
DIN 51 817 Oil separation - standard test % 4.3
Fed-Standard 7 days, 40°C
791-32-2
* ISO: International Standardisation Organisation
DIN: Deutsche Industrie Norm
