1. Fundamentos de Akka.net para
sistemas concorrentes e distribuídos
usando o modelo de atores.
Elemar Jr

2. Elemar Júnior
Microsoft Most Valuable Professional (MVP)
Arquiteto de Soluções na Promob há 17 anos
elemarjr.net
github.com/elemarjr
twitter.com/elemarjr
linkedin.com/elemarjr

3. The Reactive Manifesto
Responsivo
Elástico Resiliente
Orientado a mensagem

4. Para considerar...
É difícil fazer sistemas verdadeiramente
concorrentes da forma correta
É difícil fazer sistemas que realmente
suportem “Scaling up” e “Scaling out”
É difícil fazer sistemas resilientes, tolerantes
a falhas com “auto recuperação”

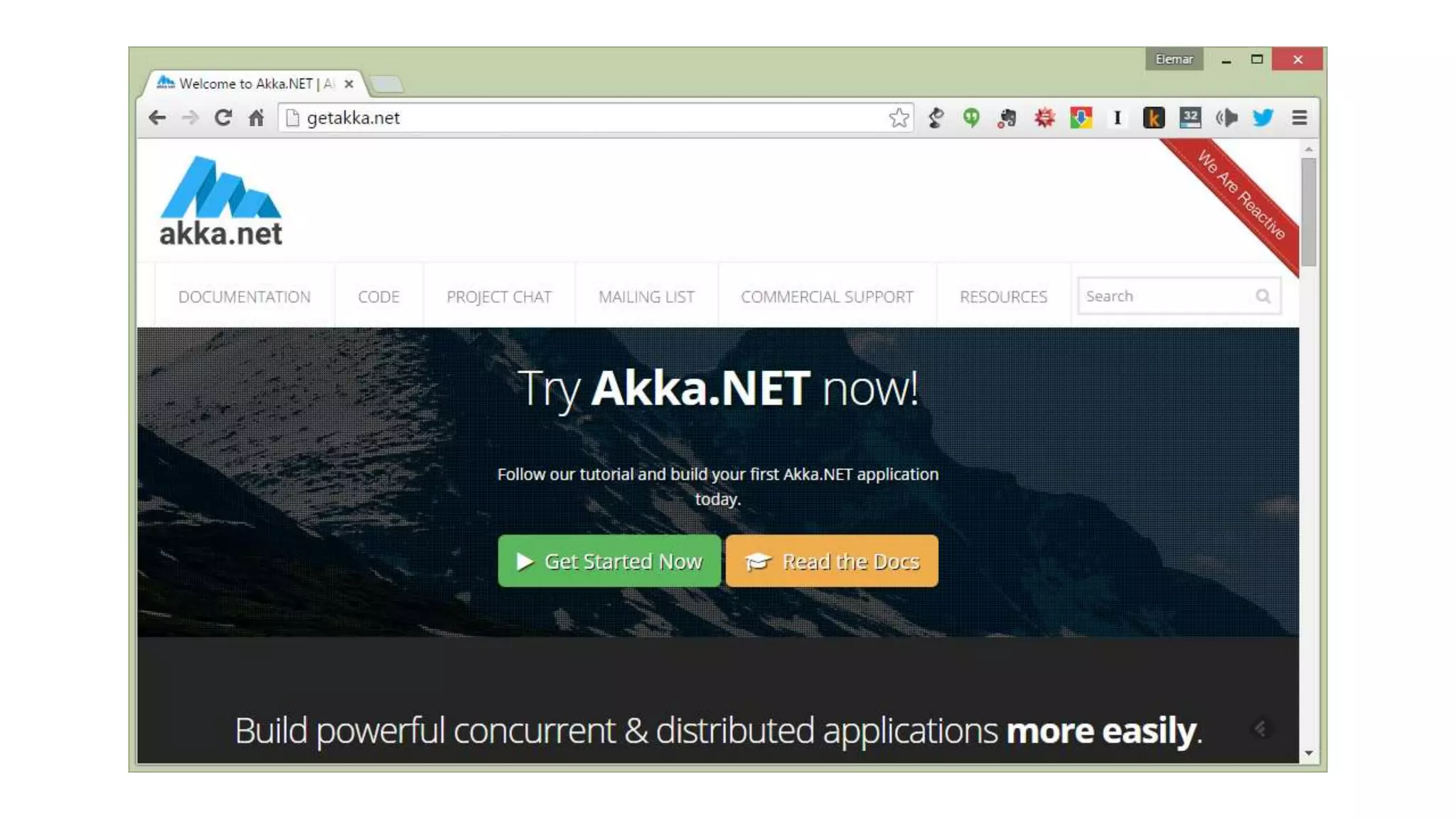

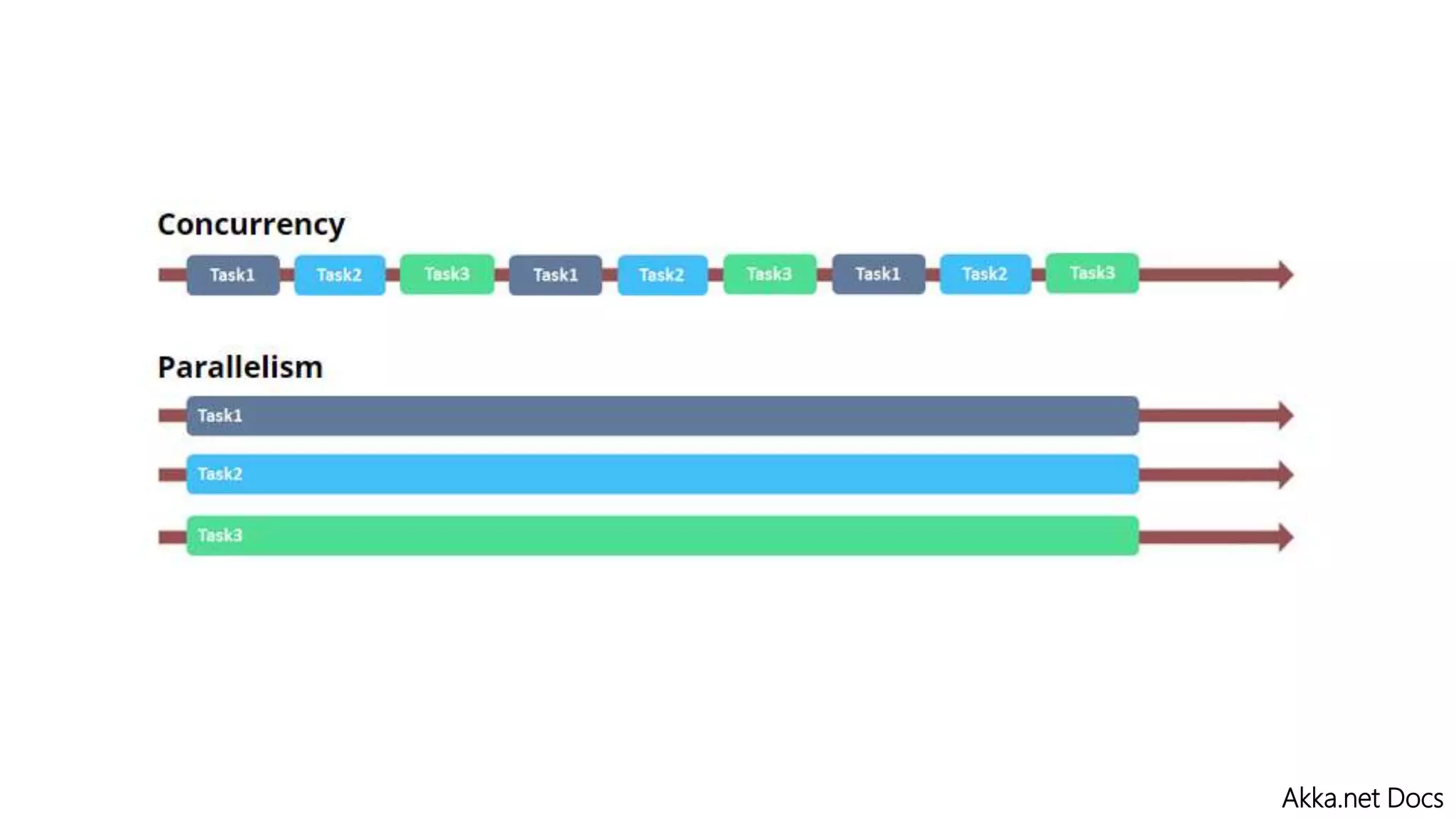

5. Akka.net Docs

6. O “Actor Model” foi definido em 1973, por Carl
Hewitt

9. A B
ActorRef
ActorSystem
Message
ActorRef
Message

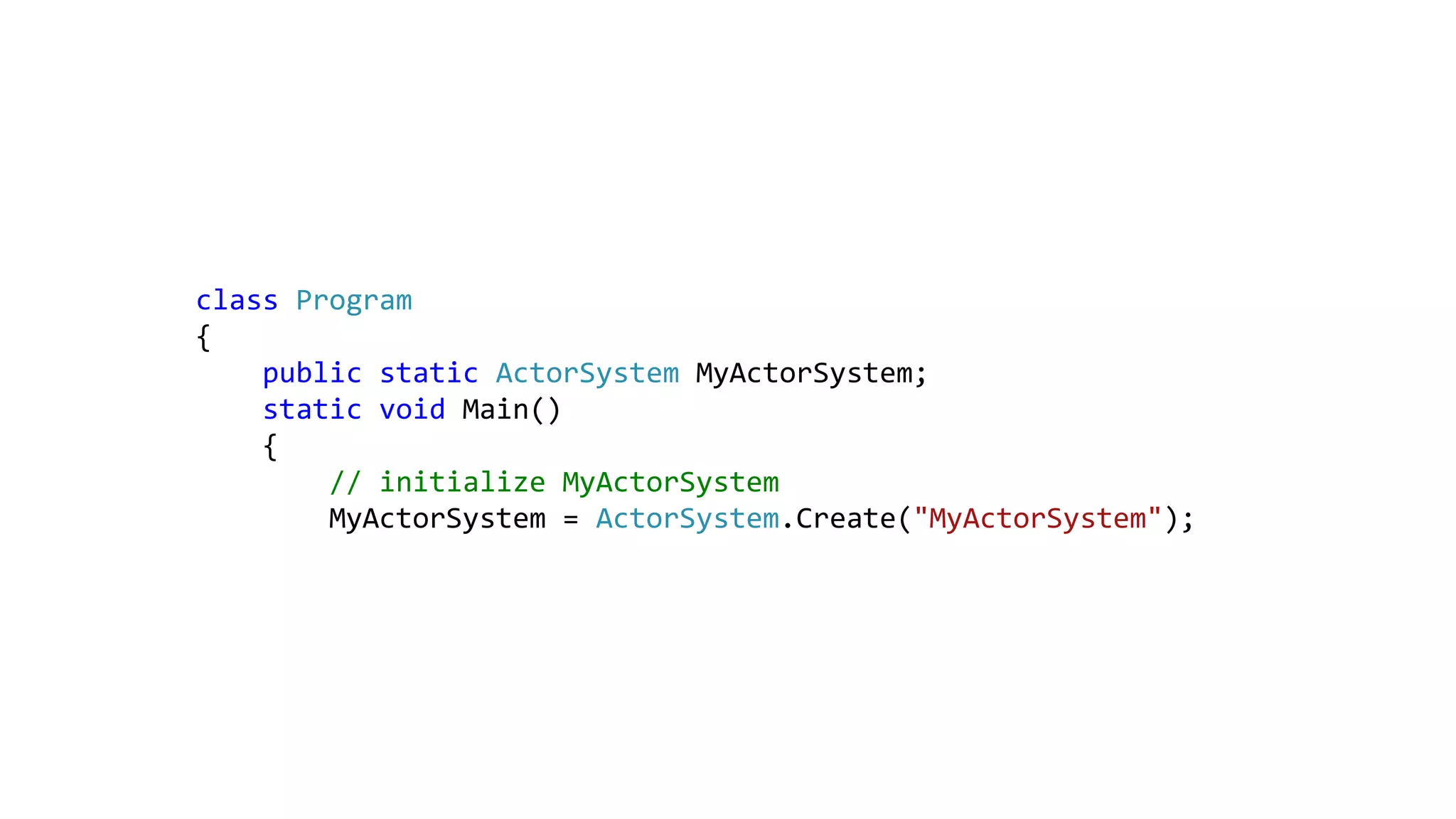

10. class Program
{
public static ActorSystem MyActorSystem;
static void Main()
{
// initialize MyActorSystem
MyActorSystem = ActorSystem.Create("MyActorSystem");

11. var consoleWriterProps = Props.Create(() => new ConsoleWriterActor());
var consoleWriterActor = MyActorSystem.ActorOf(consoleWriterProps);
var consoleReaderProps = Props.Create(() => new ConsoleReaderActor(consoleWriterActor));
var consoleReaderActor =MyActorSystem.ActorOf(consoleReaderProps);

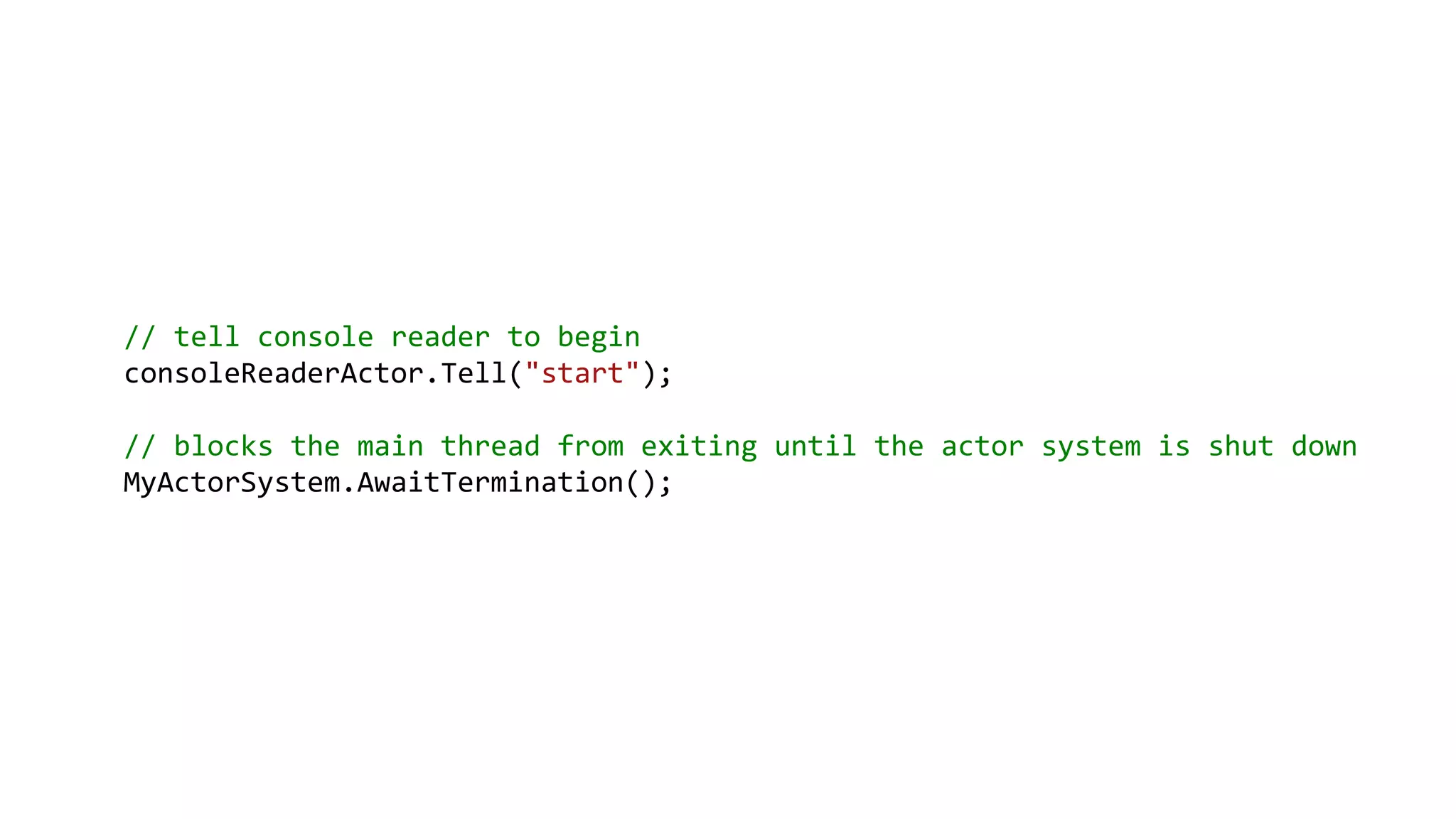

12. // tell console reader to begin
consoleReaderActor.Tell("start");
// blocks the main thread from exiting until the actor system is shut down
MyActorSystem.AwaitTermination();

13. class ConsoleReaderActor : UntypedActor
{
public const string ExitCommand = "exit";
private readonly IActorRef _consoleWriterActor;
public ConsoleReaderActor(IActorRef consoleWriterActor)
{
_consoleWriterActor = consoleWriterActor;
}
protected override void OnReceive(object message)
{
var read = Console.ReadLine();
if (!string.IsNullOrEmpty(read) &&
string.Equals(read, ExitCommand, StringComparison.OrdinalIgnoreCase))
{
Context.System.Shutdown();
return;
}
_consoleWriterActor.Tell(read);
Self.Tell("continue");
}
}

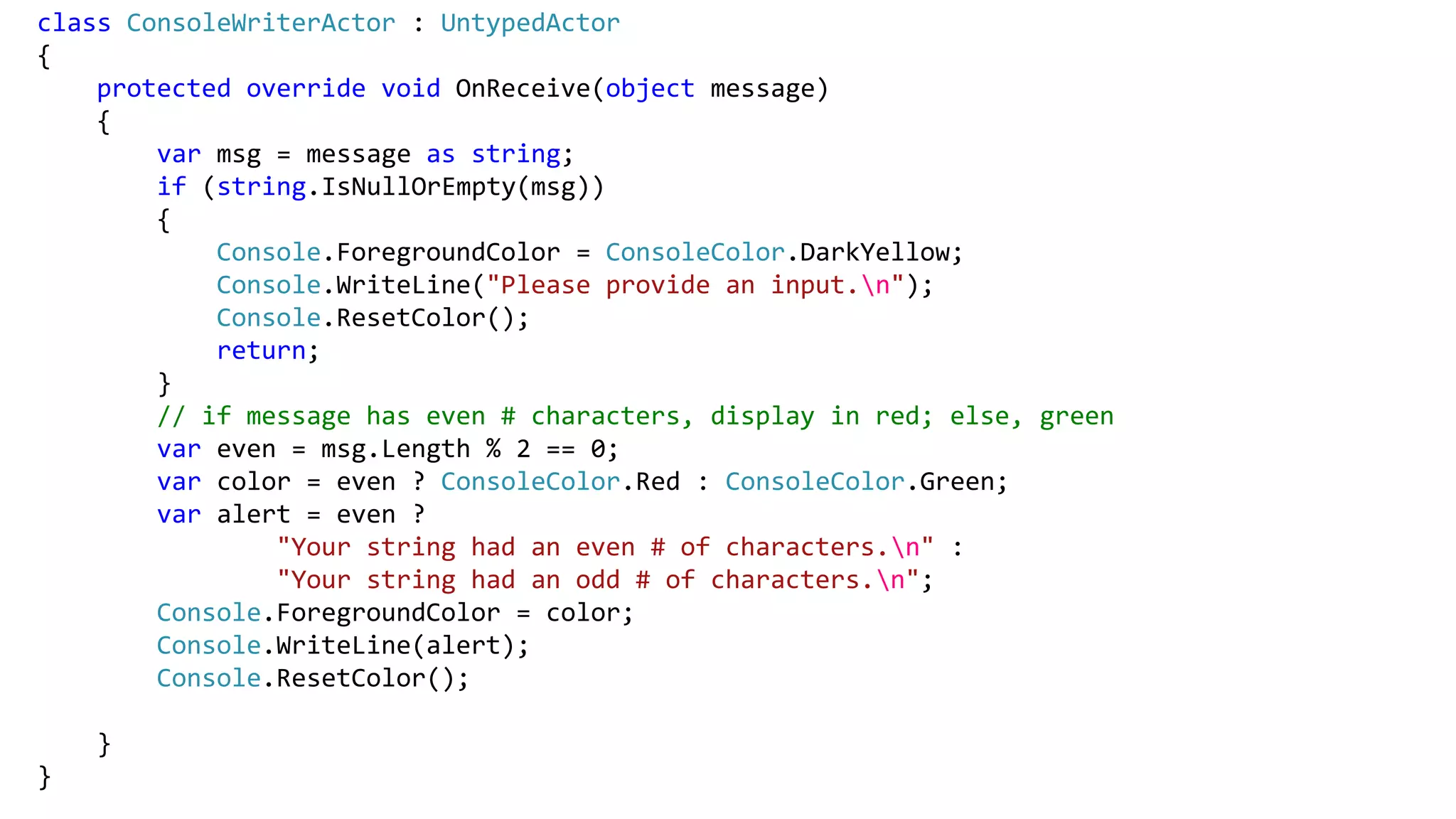

14. class ConsoleWriterActor : UntypedActor
{
protected override void OnReceive(object message)
{
var msg = message as string;
if (string.IsNullOrEmpty(msg))
{
Console.ForegroundColor = ConsoleColor.DarkYellow;
Console.WriteLine("Please provide an input.n");
Console.ResetColor();
return;
}
// if message has even # characters, display in red; else, green
var even = msg.Length % 2 == 0;
var color = even ? ConsoleColor.Red : ConsoleColor.Green;
var alert = even ?
"Your string had an even # of characters.n" :
"Your string had an odd # of characters.n";
Console.ForegroundColor = color;
Console.WriteLine(alert);
Console.ResetColor();
}
}

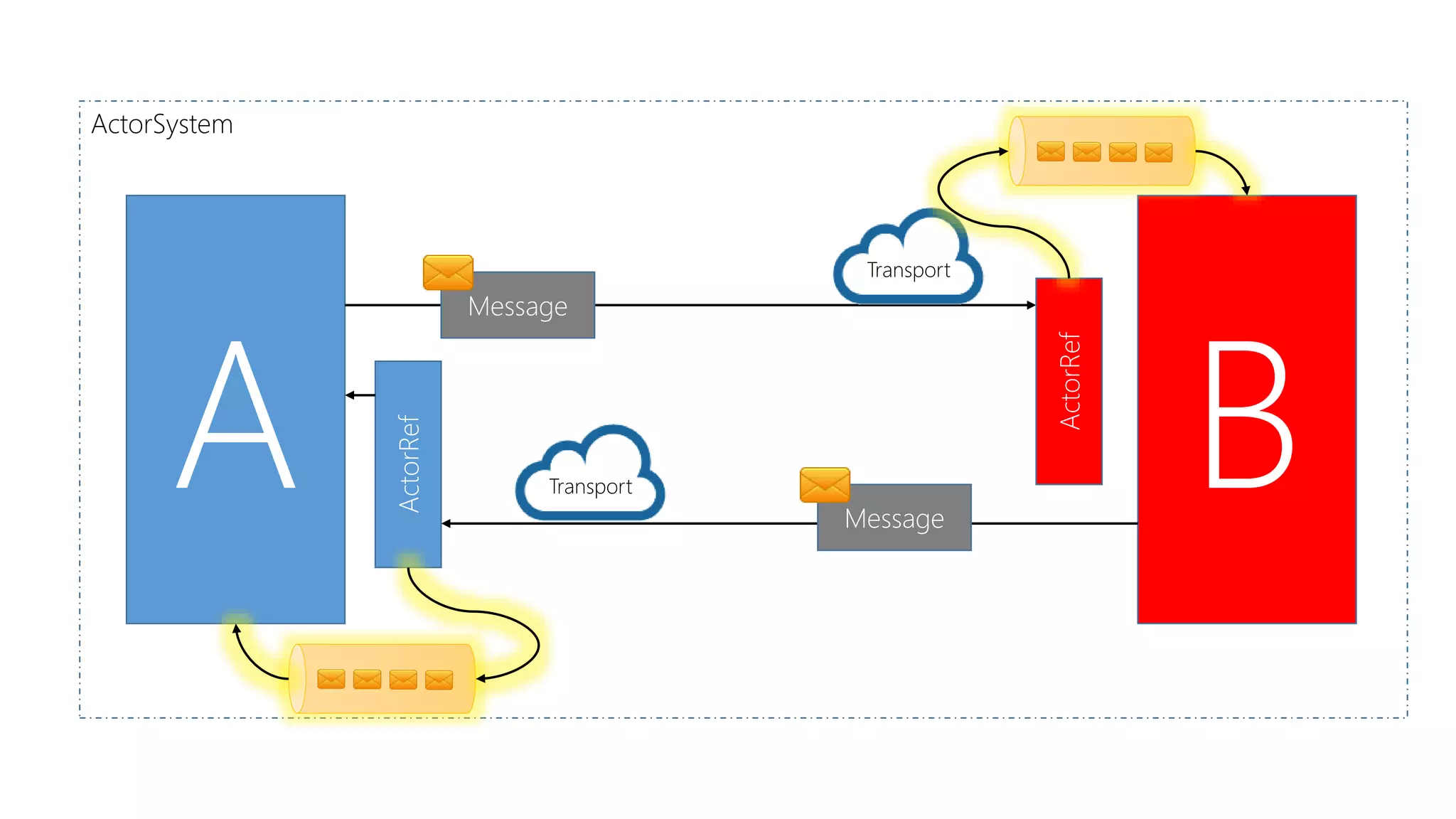

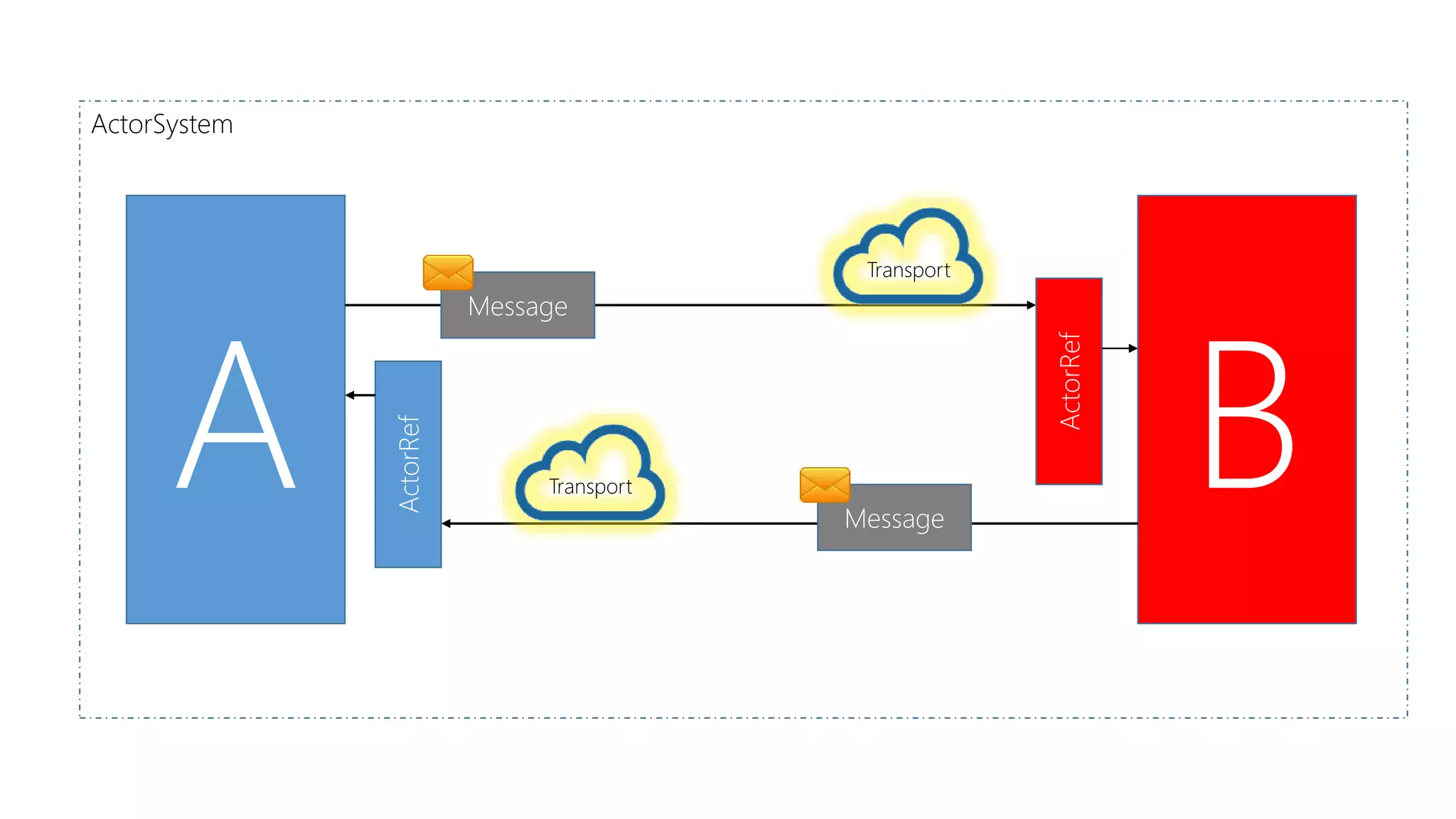

15. A B
ActorRef
ActorSystem
Message
ActorRef
Message
Transport
Transport

16. A B
ActorRef
ActorSystem
Message
ActorRef
Message
Transport
Transport

17. Mensagens são “imutáveis”

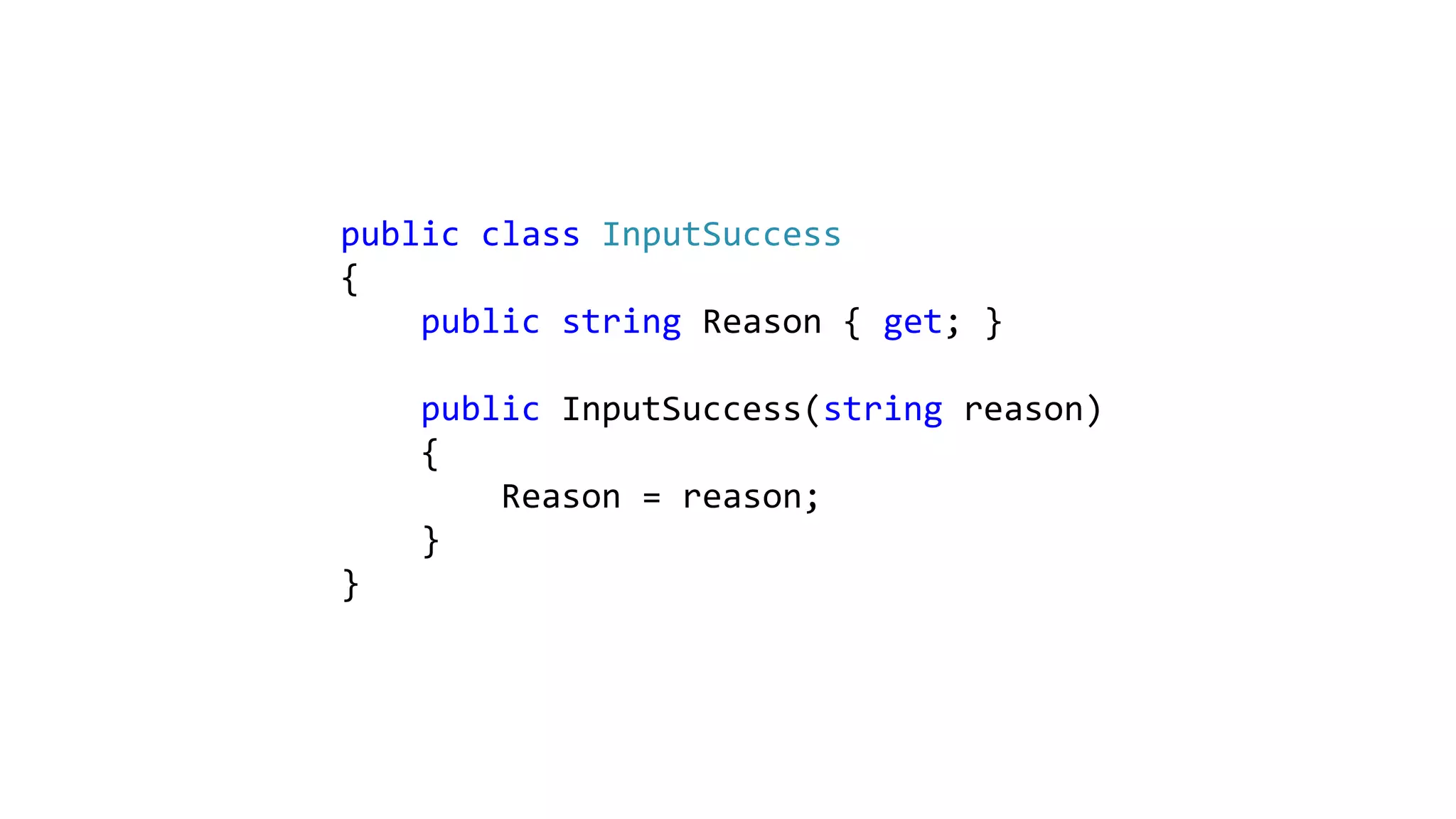

18. public class InputSuccess
{
public string Reason { get; }
public InputSuccess(string reason)
{
Reason = reason;
}
}

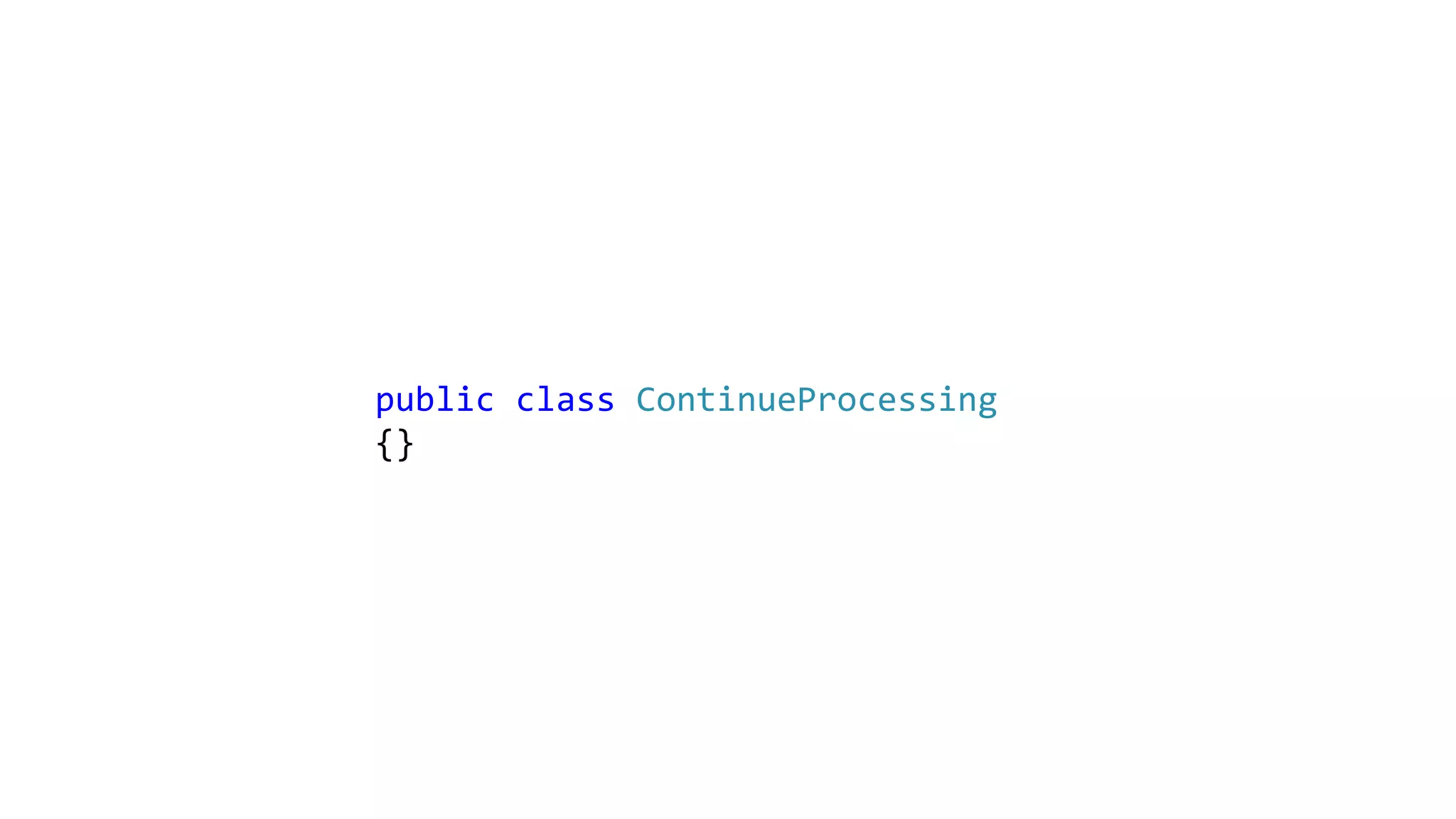

19. public class ContinueProcessing
{}

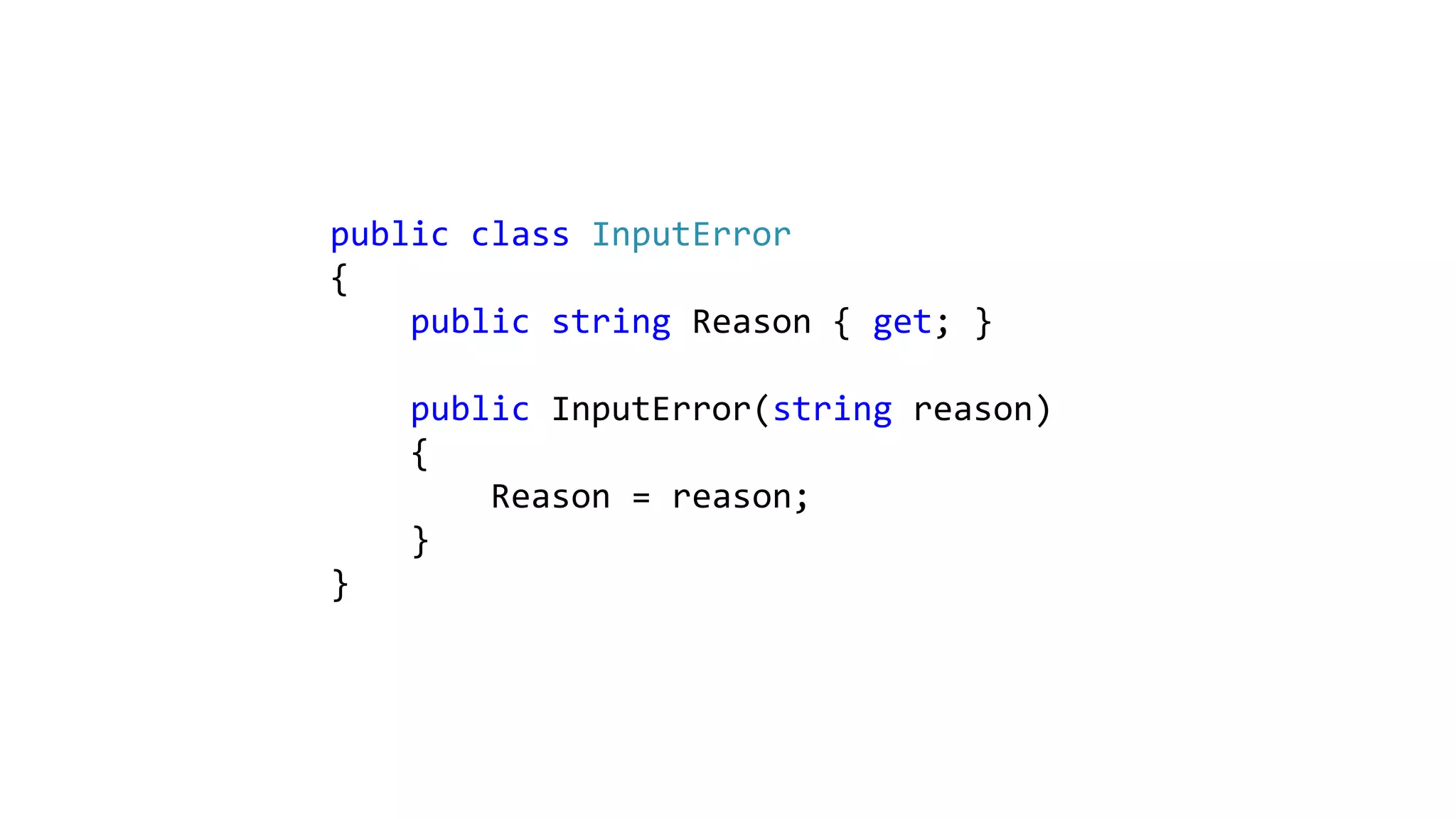

20. public class InputError
{
public string Reason { get; }
public InputError(string reason)
{
Reason = reason;
}
}

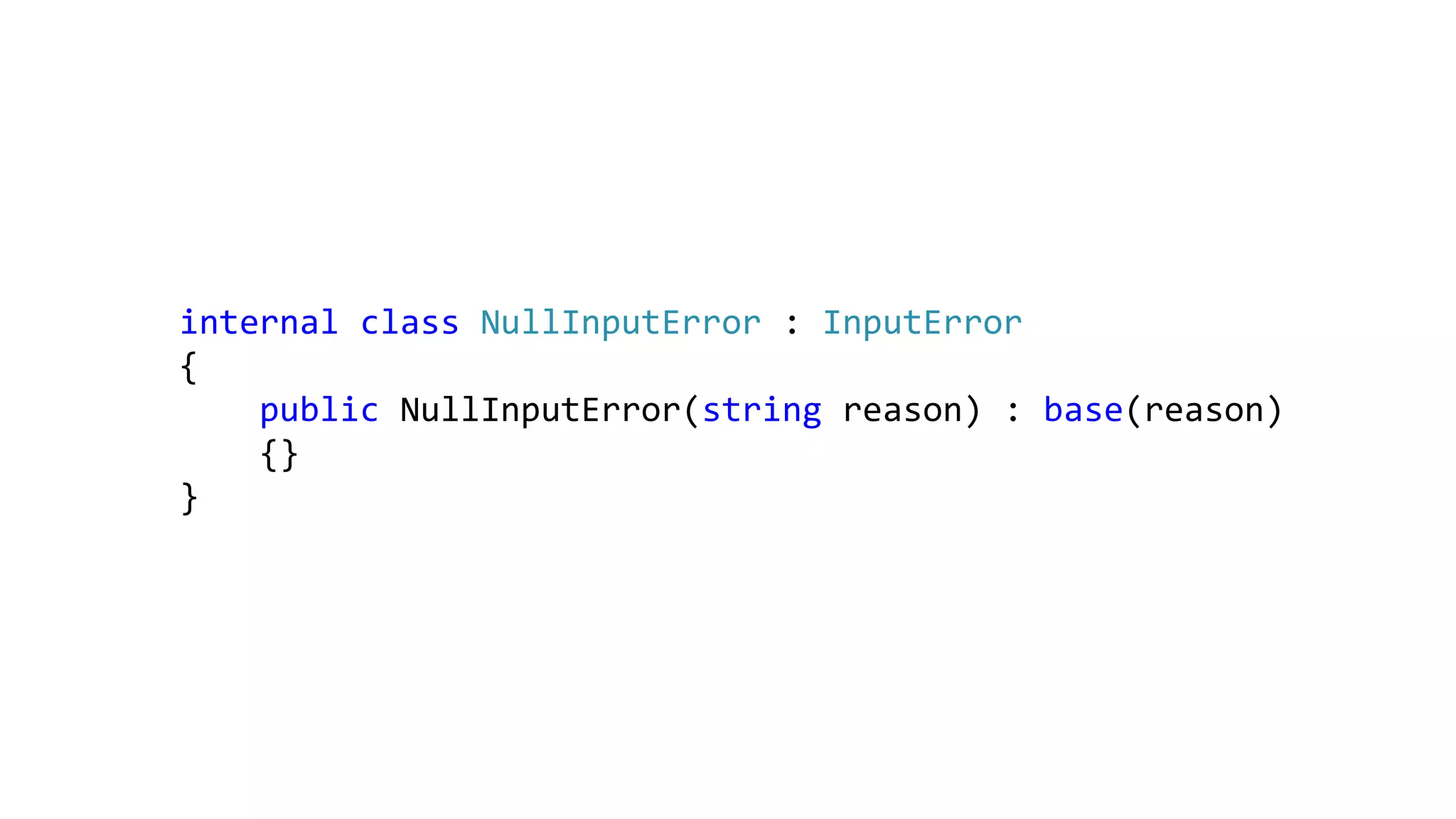

21. internal class NullInputError : InputError
{
public NullInputError(string reason) : base(reason)
{}
}

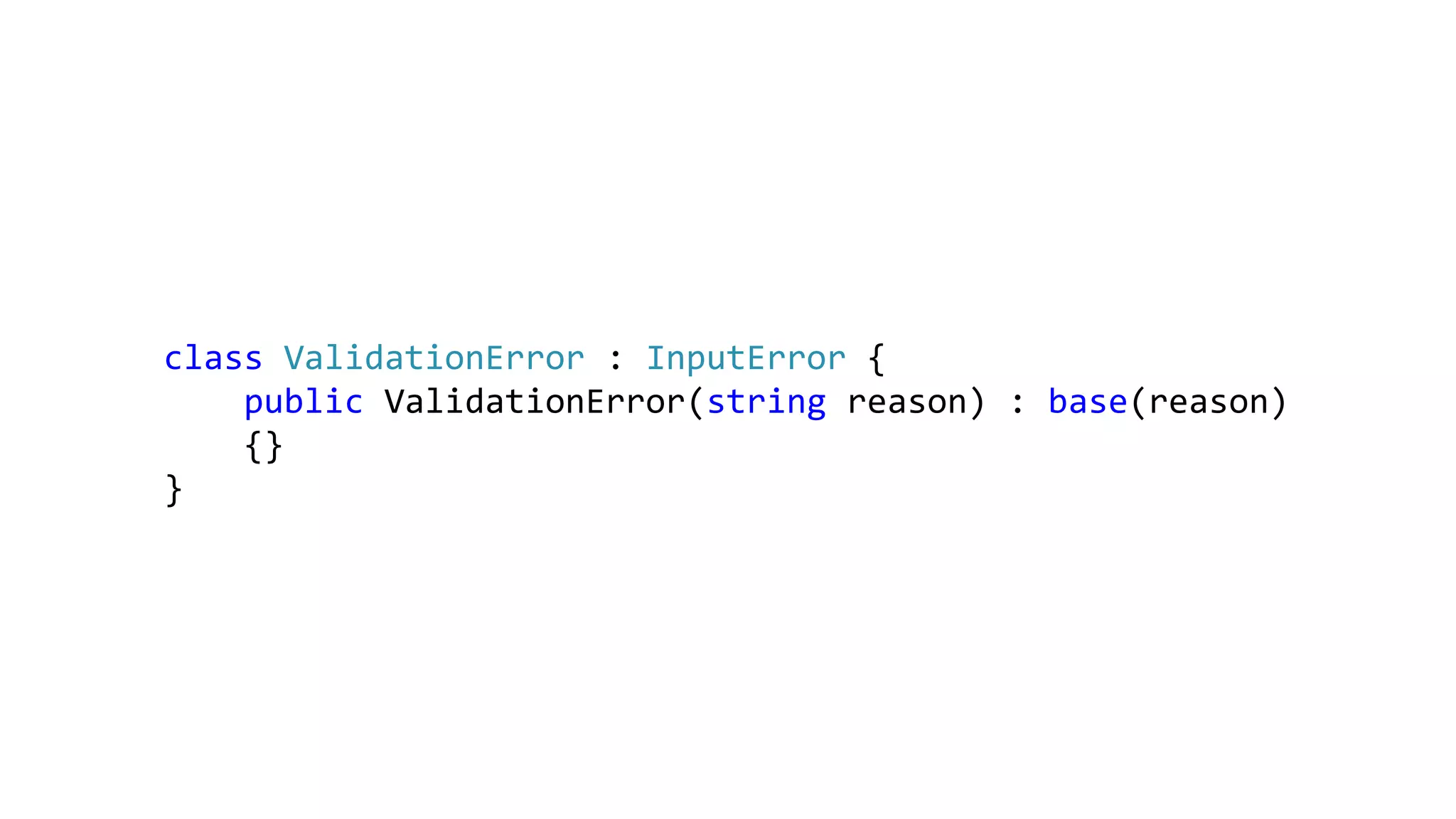

22. class ValidationError : InputError {
public ValidationError(string reason) : base(reason)
{}
}

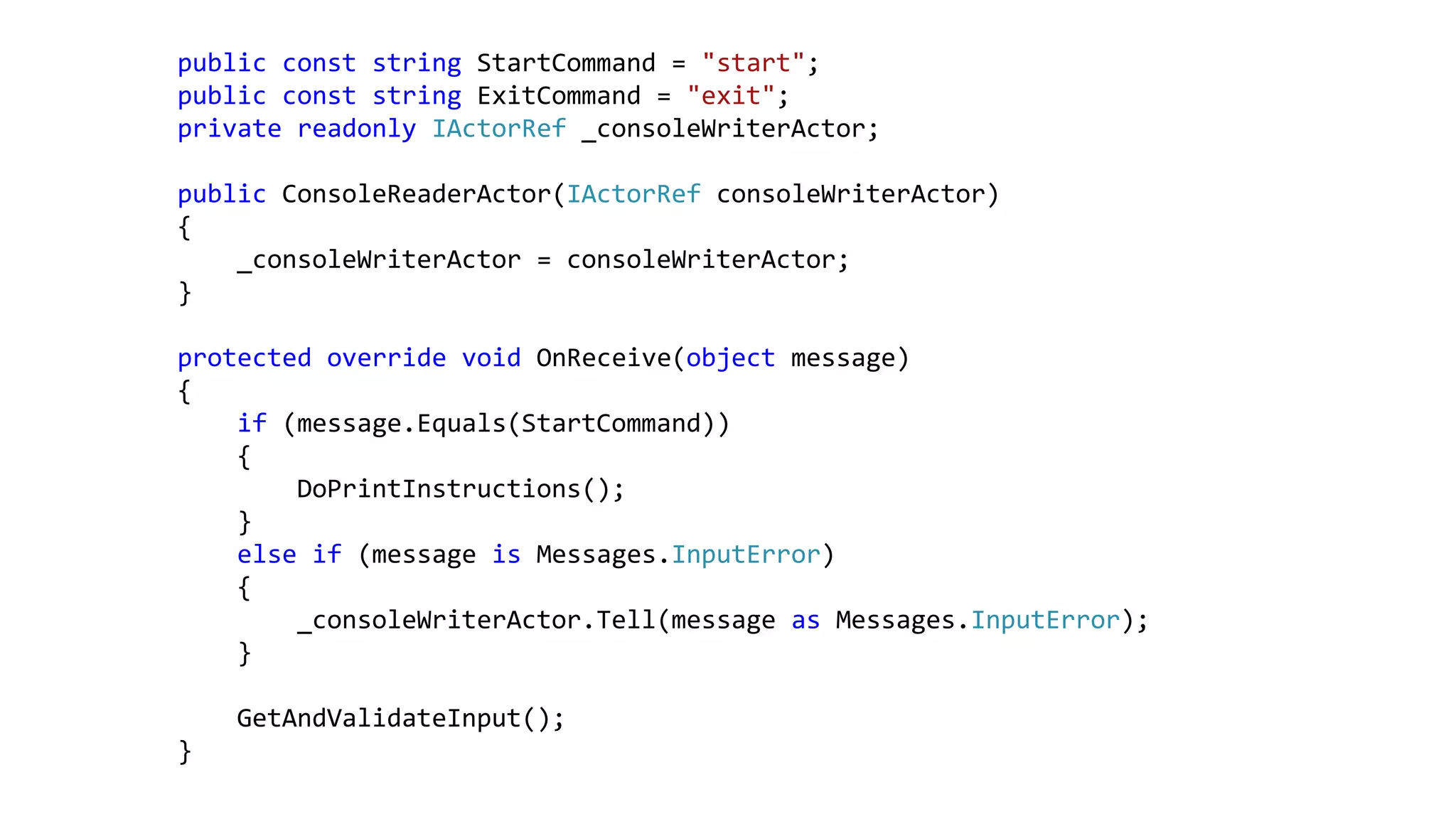

23. public const string StartCommand = "start";
public const string ExitCommand = "exit";
private readonly IActorRef _consoleWriterActor;
public ConsoleReaderActor(IActorRef consoleWriterActor)
{
_consoleWriterActor = consoleWriterActor;
}
protected override void OnReceive(object message)
{
if (message.Equals(StartCommand))
{
DoPrintInstructions();
}
else if (message is Messages.InputError)
{
_consoleWriterActor.Tell(message as Messages.InputError);
}
GetAndValidateInput();
}

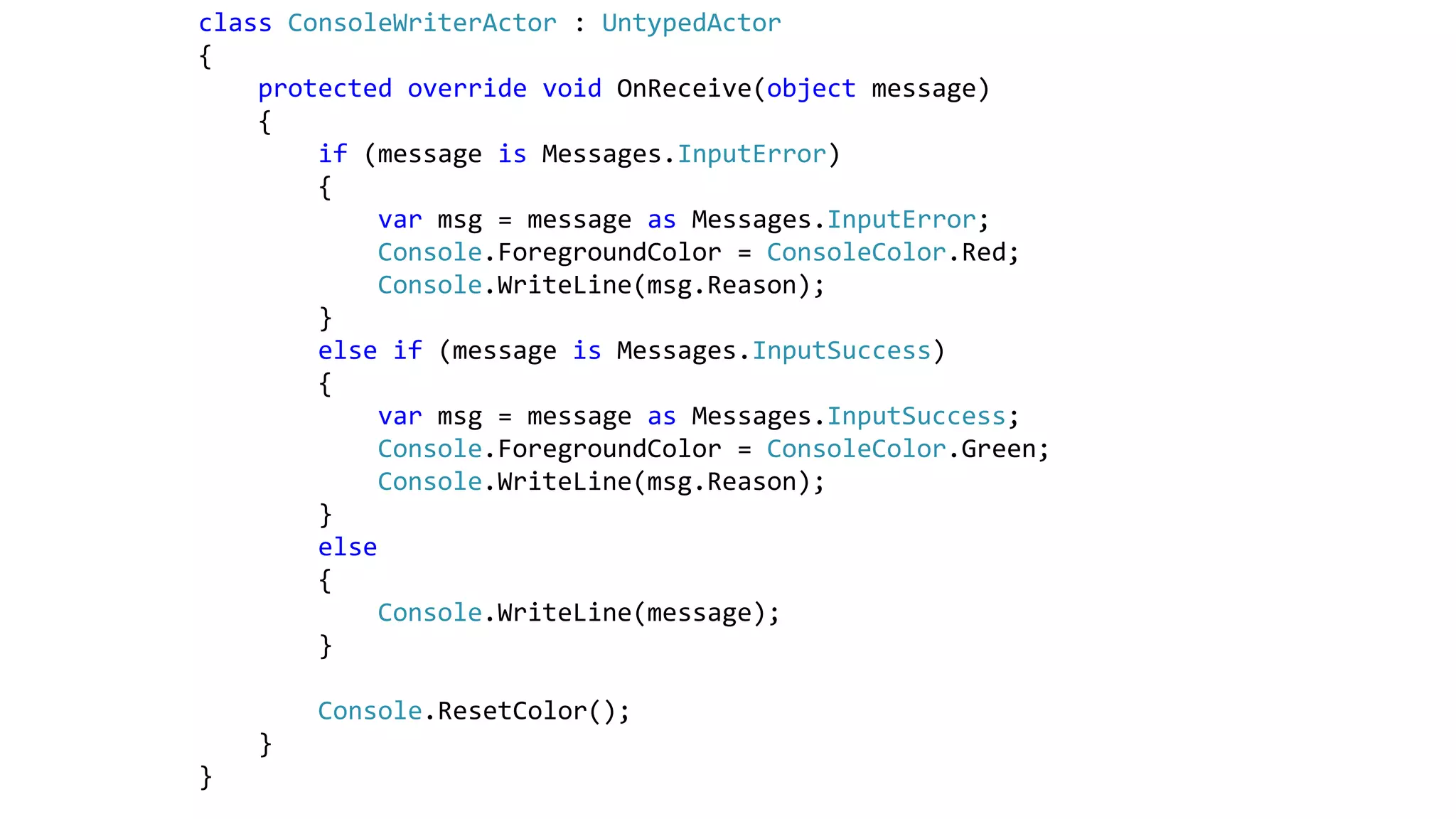

24. class ConsoleWriterActor : UntypedActor
{
protected override void OnReceive(object message)
{
if (message is Messages.InputError)
{
var msg = message as Messages.InputError;
Console.ForegroundColor = ConsoleColor.Red;
Console.WriteLine(msg.Reason);
}
else if (message is Messages.InputSuccess)
{
var msg = message as Messages.InputSuccess;
Console.ForegroundColor = ConsoleColor.Green;
Console.WriteLine(msg.Reason);
}
else
{
Console.WriteLine(message);
}
Console.ResetColor();
}
}

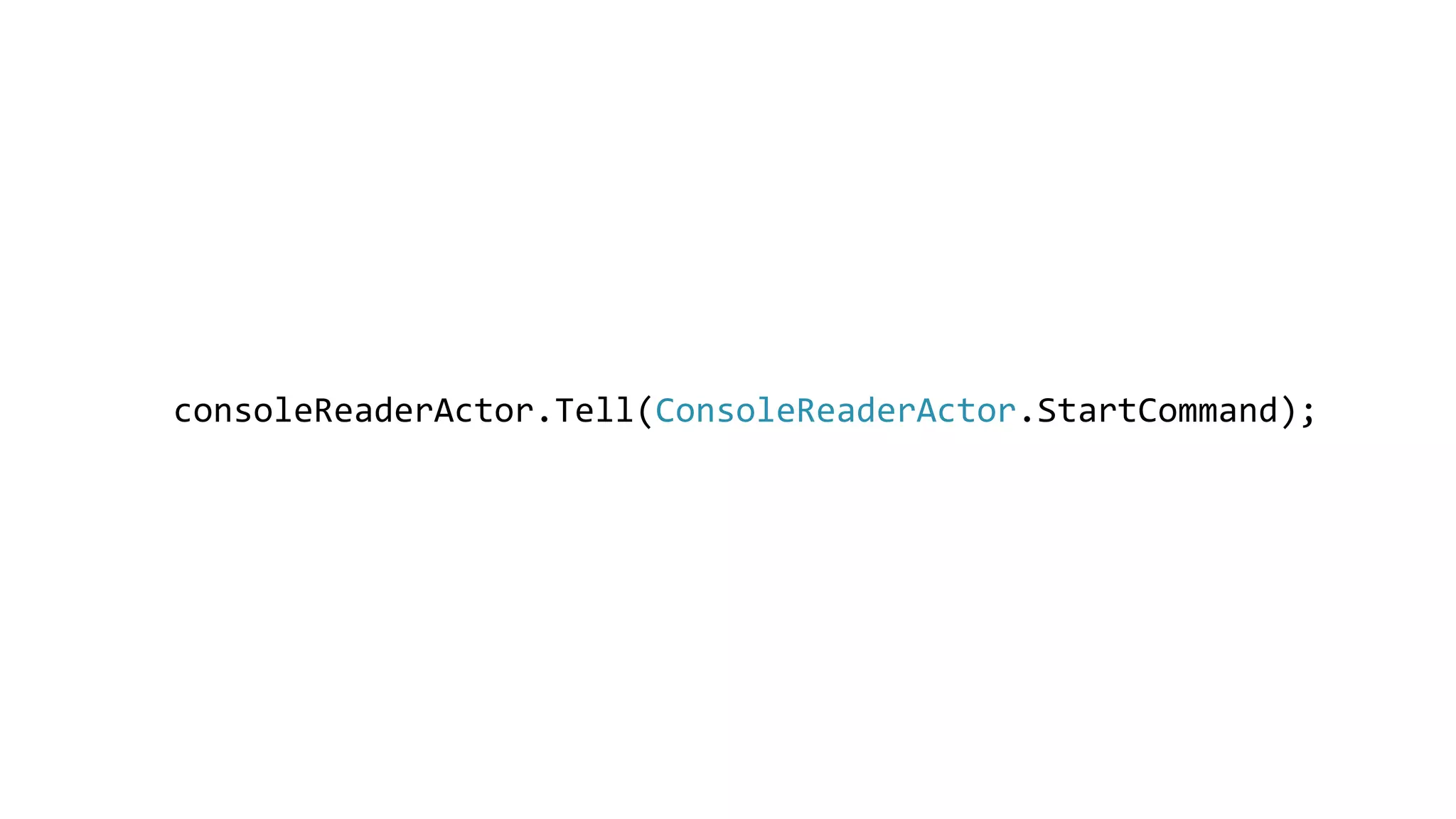

25. consoleReaderActor.Tell(ConsoleReaderActor.StartCommand);

26. A B
ActorRef
ActorSystem
Message
ActorRef
Message
Transport
Transport

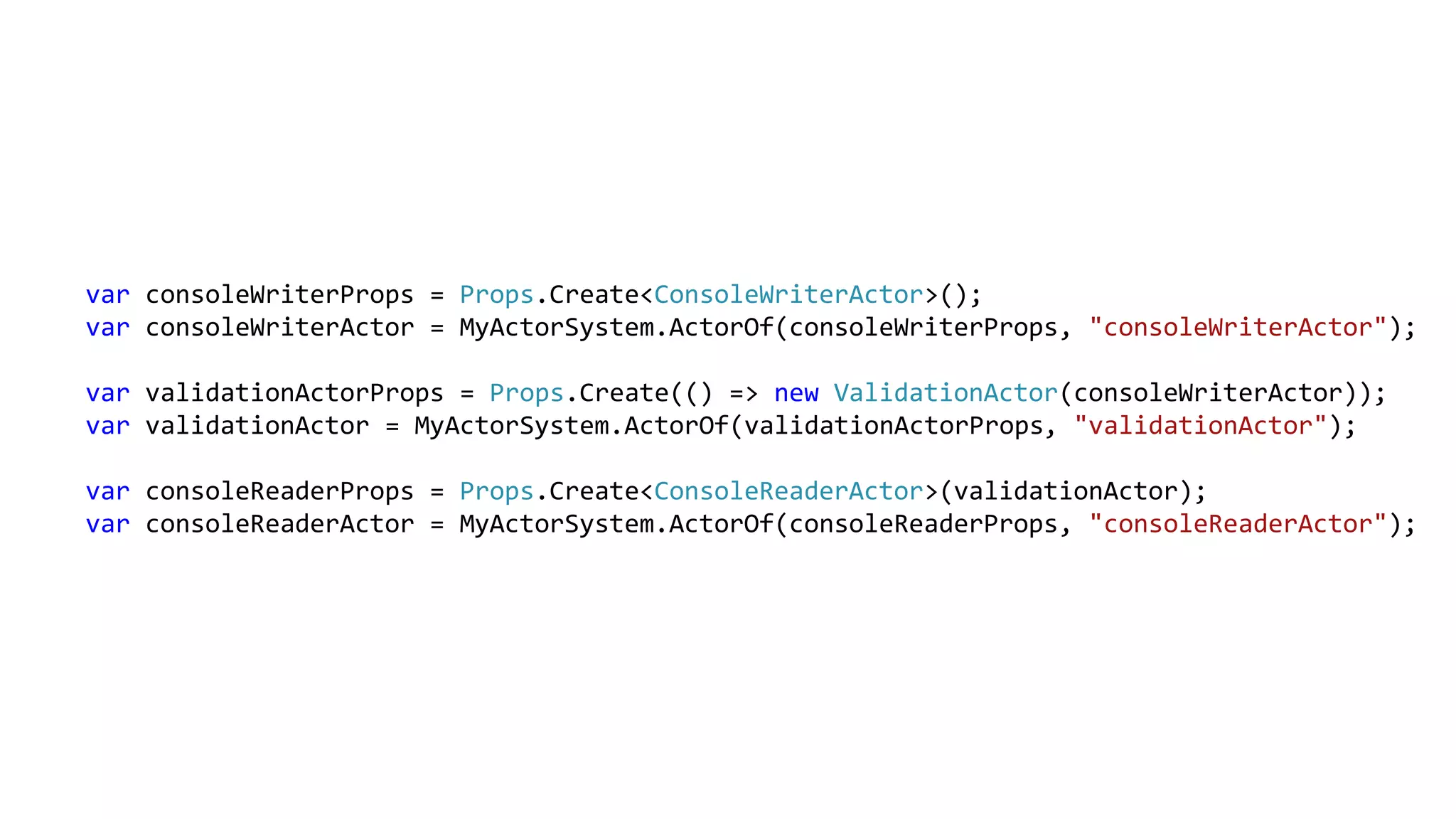

27. var consoleWriterProps = Props.Create<ConsoleWriterActor>();
var consoleWriterActor = MyActorSystem.ActorOf(consoleWriterProps, "consoleWriterActor");
var validationActorProps = Props.Create(() => new ValidationActor(consoleWriterActor));
var validationActor = MyActorSystem.ActorOf(validationActorProps, "validationActor");
var consoleReaderProps = Props.Create<ConsoleReaderActor>(validationActor);
var consoleReaderActor = MyActorSystem.ActorOf(consoleReaderProps, "consoleReaderActor");

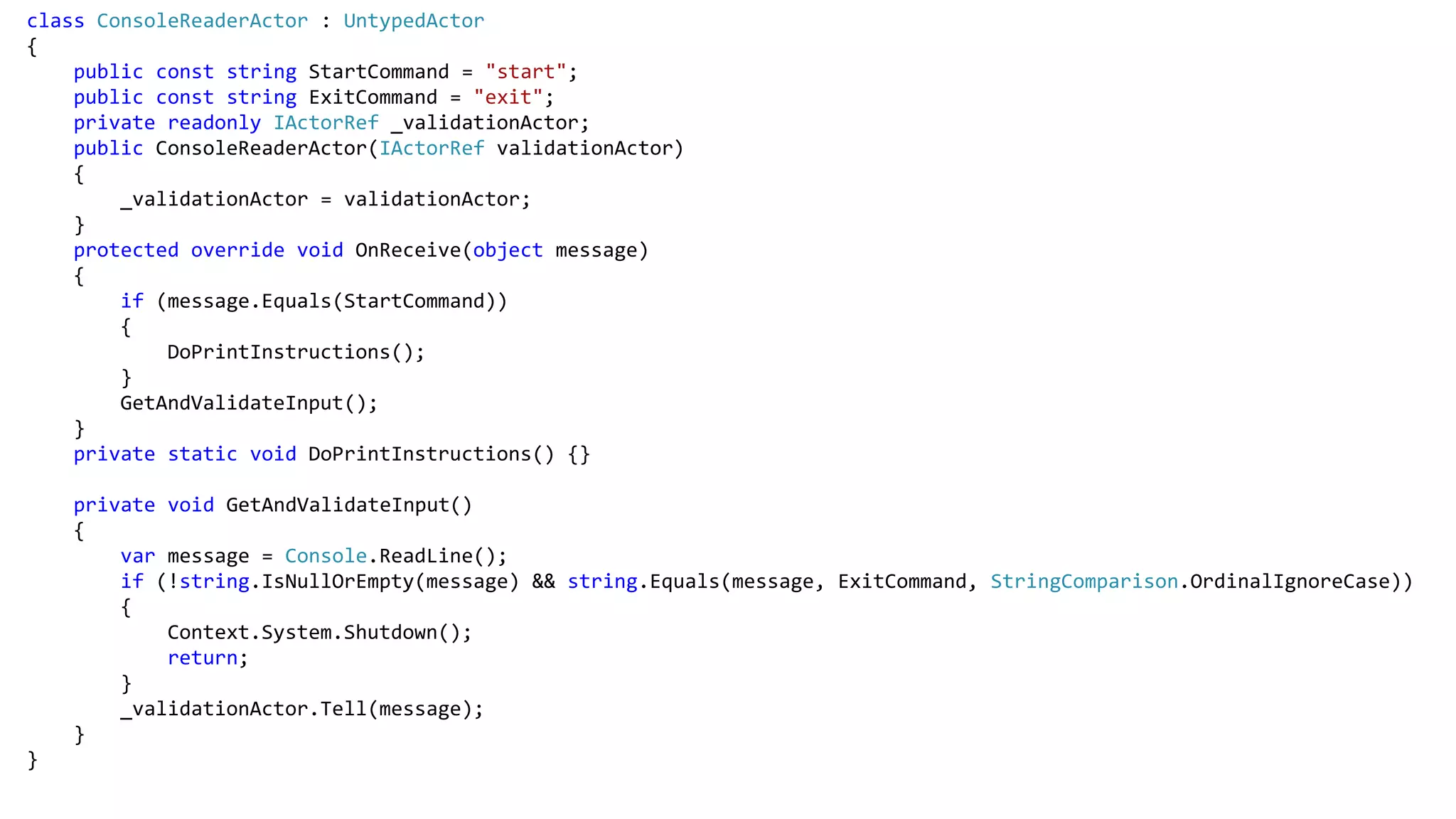

28. class ConsoleReaderActor : UntypedActor
{
public const string StartCommand = "start";
public const string ExitCommand = "exit";
private readonly IActorRef _validationActor;
public ConsoleReaderActor(IActorRef validationActor)
{
_validationActor = validationActor;
}
protected override void OnReceive(object message)
{
if (message.Equals(StartCommand))
{
DoPrintInstructions();
}
GetAndValidateInput();
}
private static void DoPrintInstructions() {}
private void GetAndValidateInput()
{
var message = Console.ReadLine();
if (!string.IsNullOrEmpty(message) && string.Equals(message, ExitCommand, StringComparison.OrdinalIgnoreCase))
{
Context.System.Shutdown();
return;
}
_validationActor.Tell(message);
}
}

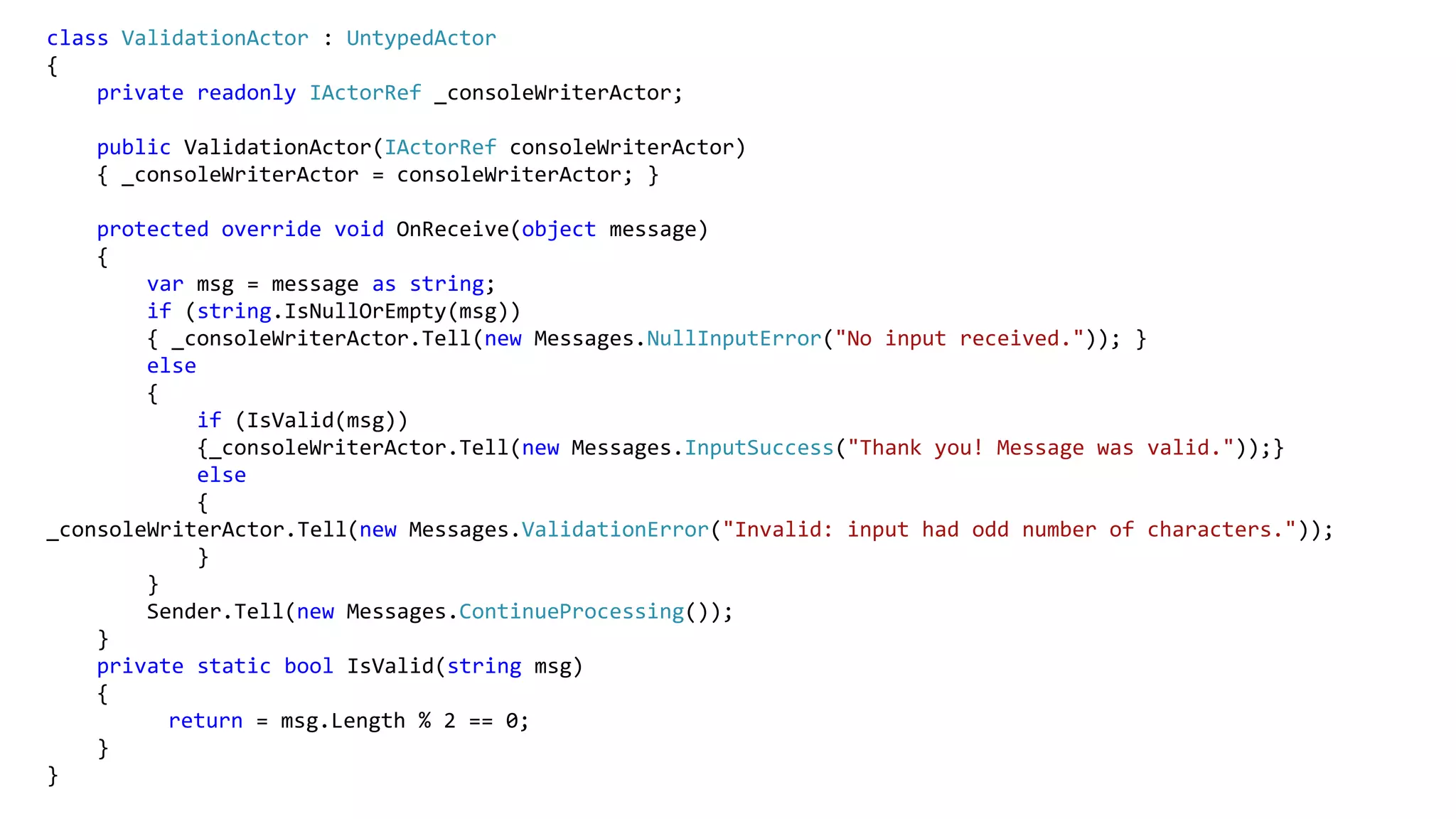

29. class ValidationActor : UntypedActor
{
private readonly IActorRef _consoleWriterActor;
public ValidationActor(IActorRef consoleWriterActor)
{ _consoleWriterActor = consoleWriterActor; }
protected override void OnReceive(object message)
{
var msg = message as string;
if (string.IsNullOrEmpty(msg))
{ _consoleWriterActor.Tell(new Messages.NullInputError("No input received.")); }
else
{
if (IsValid(msg))
{_consoleWriterActor.Tell(new Messages.InputSuccess("Thank you! Message was valid."));}
else
{
_consoleWriterActor.Tell(new Messages.ValidationError("Invalid: input had odd number of characters."));
}
}
Sender.Tell(new Messages.ContinueProcessing());
}
private static bool IsValid(string msg)
{
return = msg.Length % 2 == 0;
}
}

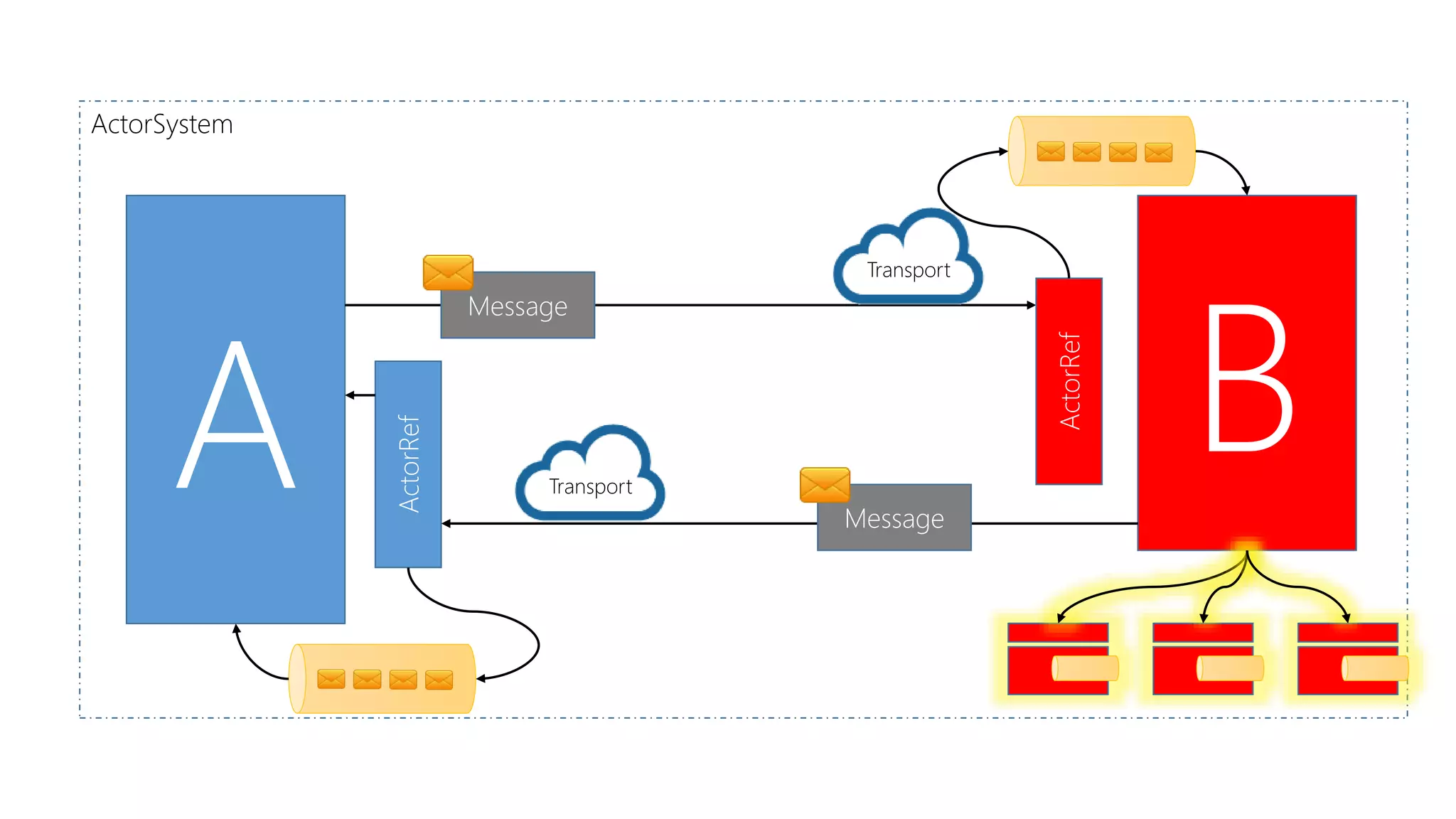

30. A B
ActorRef
ActorSystem
Message
ActorRef
Message
Transport
Transport

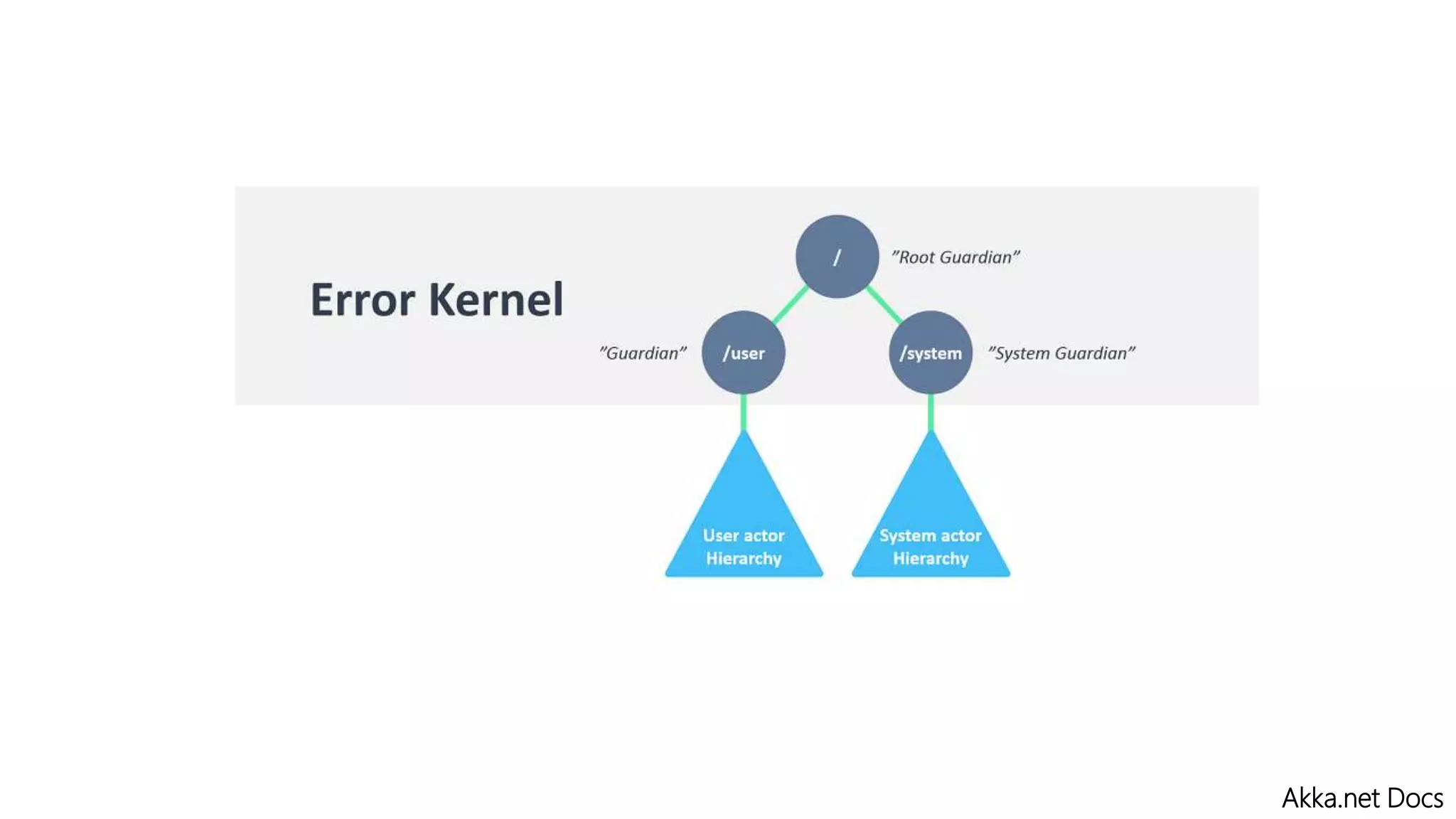

31. Akka.net Docs

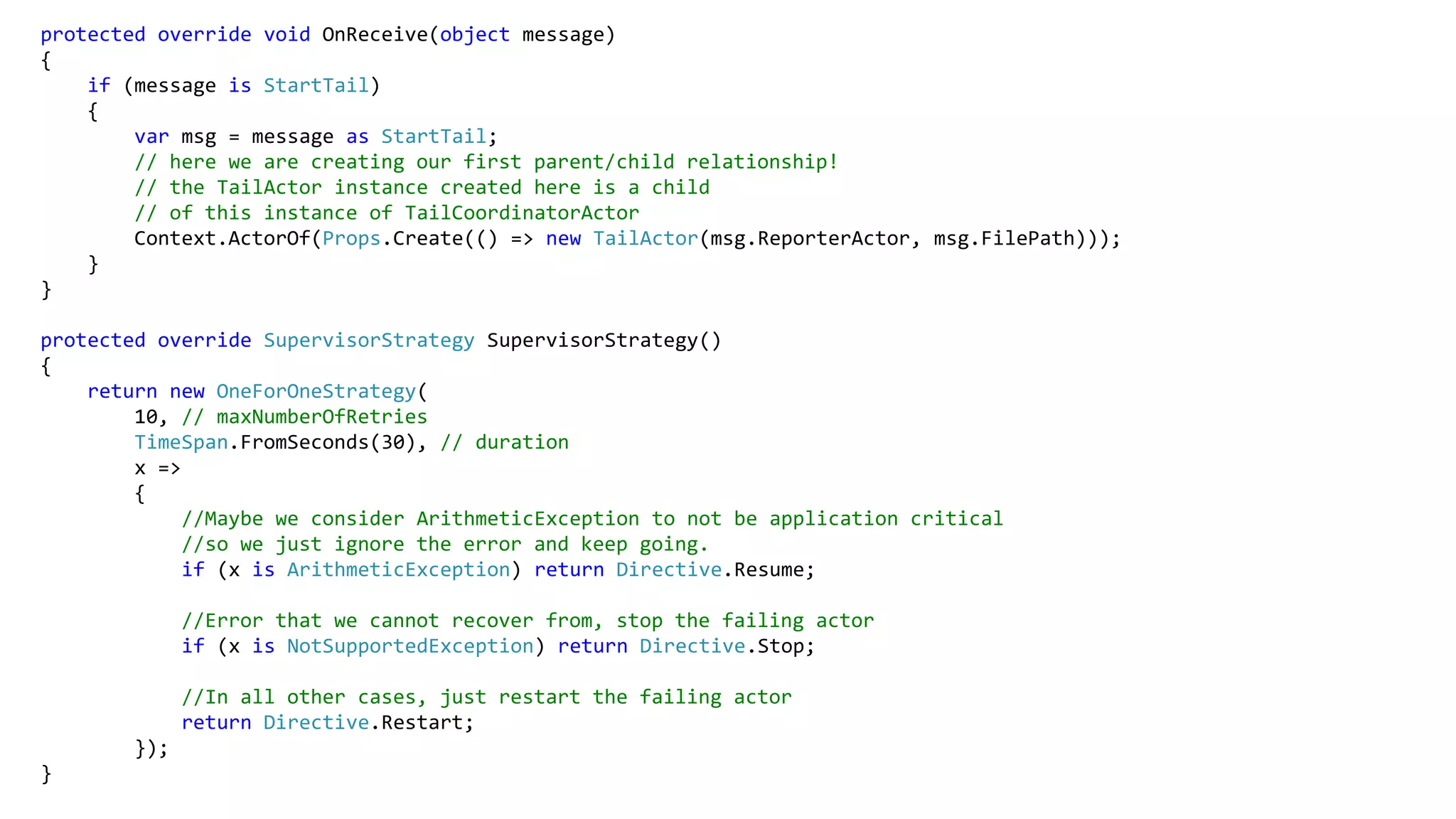

32. protected override void OnReceive(object message)
{
if (message is StartTail)
{
var msg = message as StartTail;
// here we are creating our first parent/child relationship!
// the TailActor instance created here is a child
// of this instance of TailCoordinatorActor
Context.ActorOf(Props.Create(() => new TailActor(msg.ReporterActor, msg.FilePath)));
}
}
protected override SupervisorStrategy SupervisorStrategy()
{
return new OneForOneStrategy(
10, // maxNumberOfRetries
TimeSpan.FromSeconds(30), // duration
x =>
{
//Maybe we consider ArithmeticException to not be application critical
//so we just ignore the error and keep going.
if (x is ArithmeticException) return Directive.Resume;
//Error that we cannot recover from, stop the failing actor
if (x is NotSupportedException) return Directive.Stop;
//In all other cases, just restart the failing actor
return Directive.Restart;
});
}

33. Akka.net Bootcamp

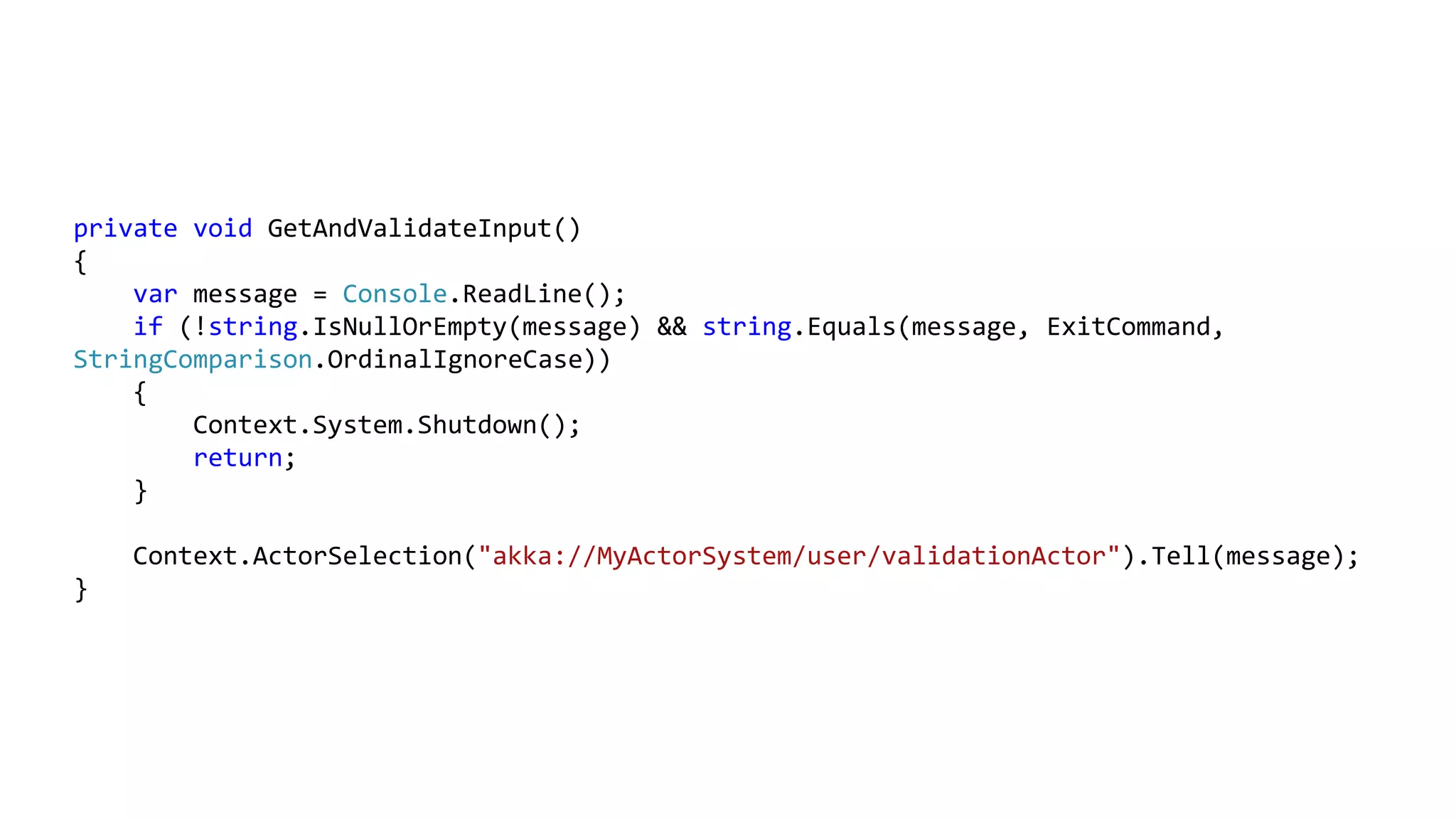

34. private void GetAndValidateInput()
{
var message = Console.ReadLine();
if (!string.IsNullOrEmpty(message) && string.Equals(message, ExitCommand,
StringComparison.OrdinalIgnoreCase))
{
Context.System.Shutdown();
return;
}
Context.ActorSelection("akka://MyActorSystem/user/validationActor").Tell(message);
}

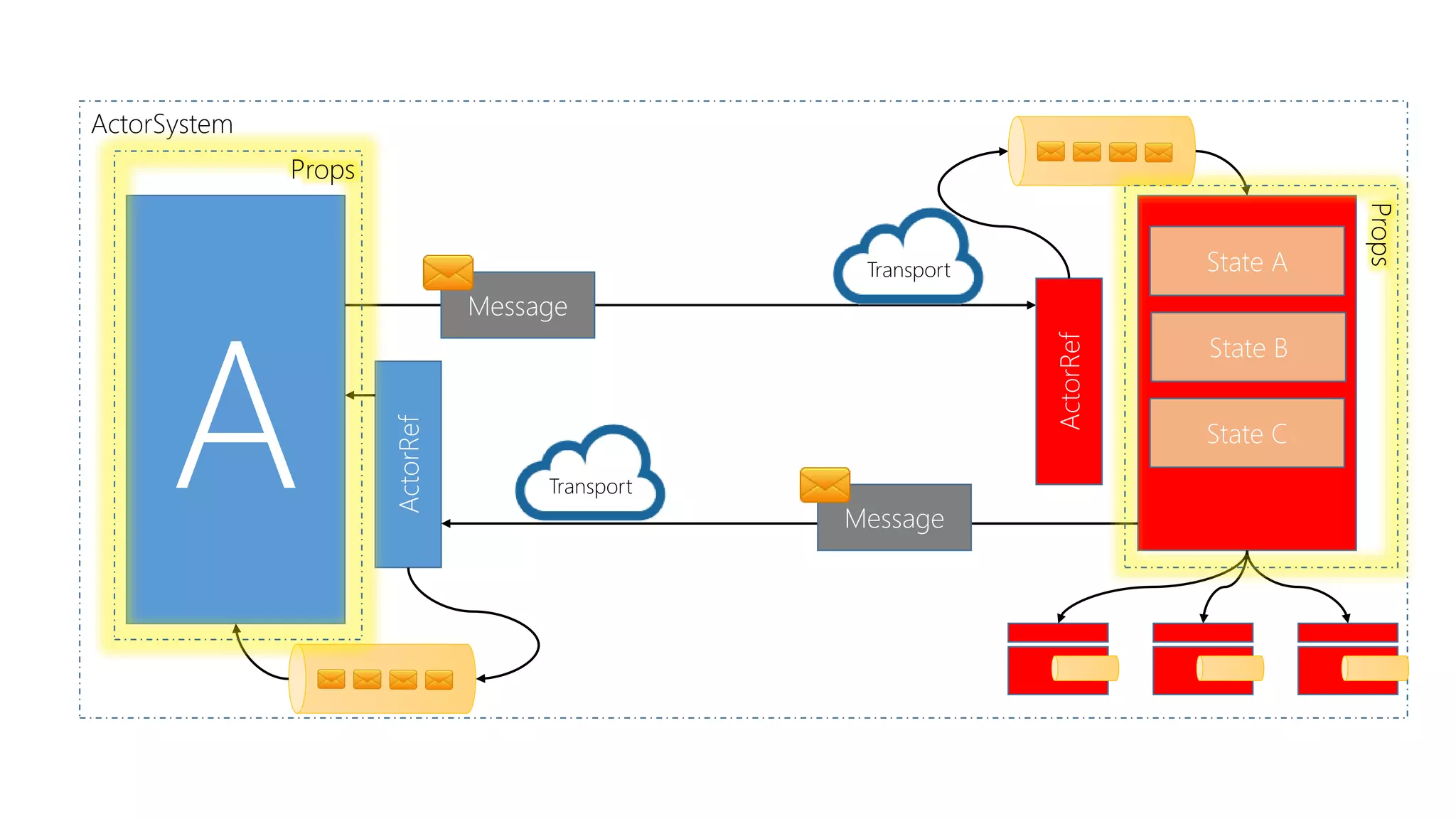

35. A
ActorRef
ActorSystem
Message
ActorRef
Message
Transport
Transport
State A
State B
State C
Props
Props

36. Akka.net Bootcamp

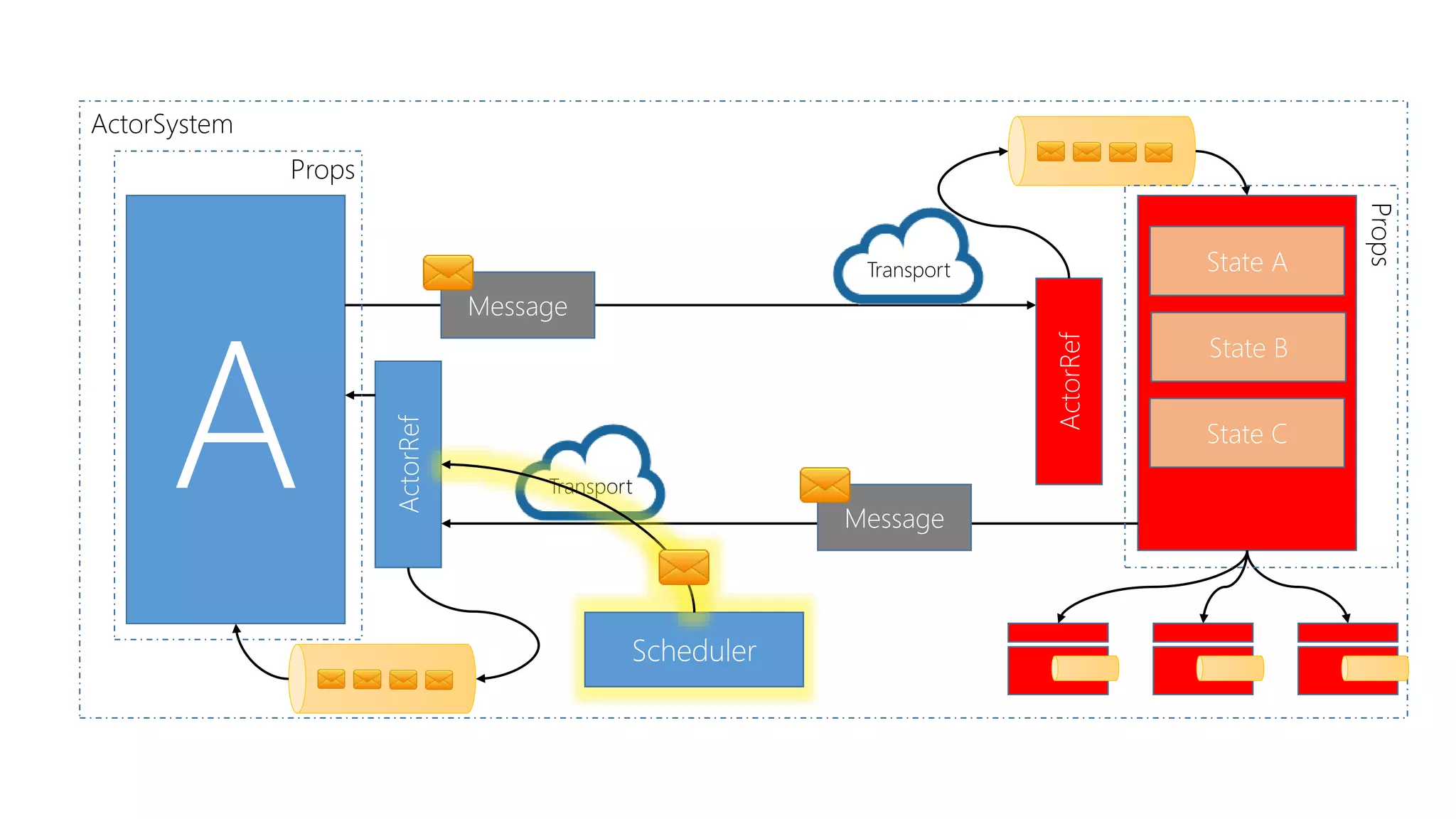

37. A
ActorRef
ActorSystem
Message
ActorRef
Message
Transport
Transport
State A
State B
State C
Props
Props
Scheduler

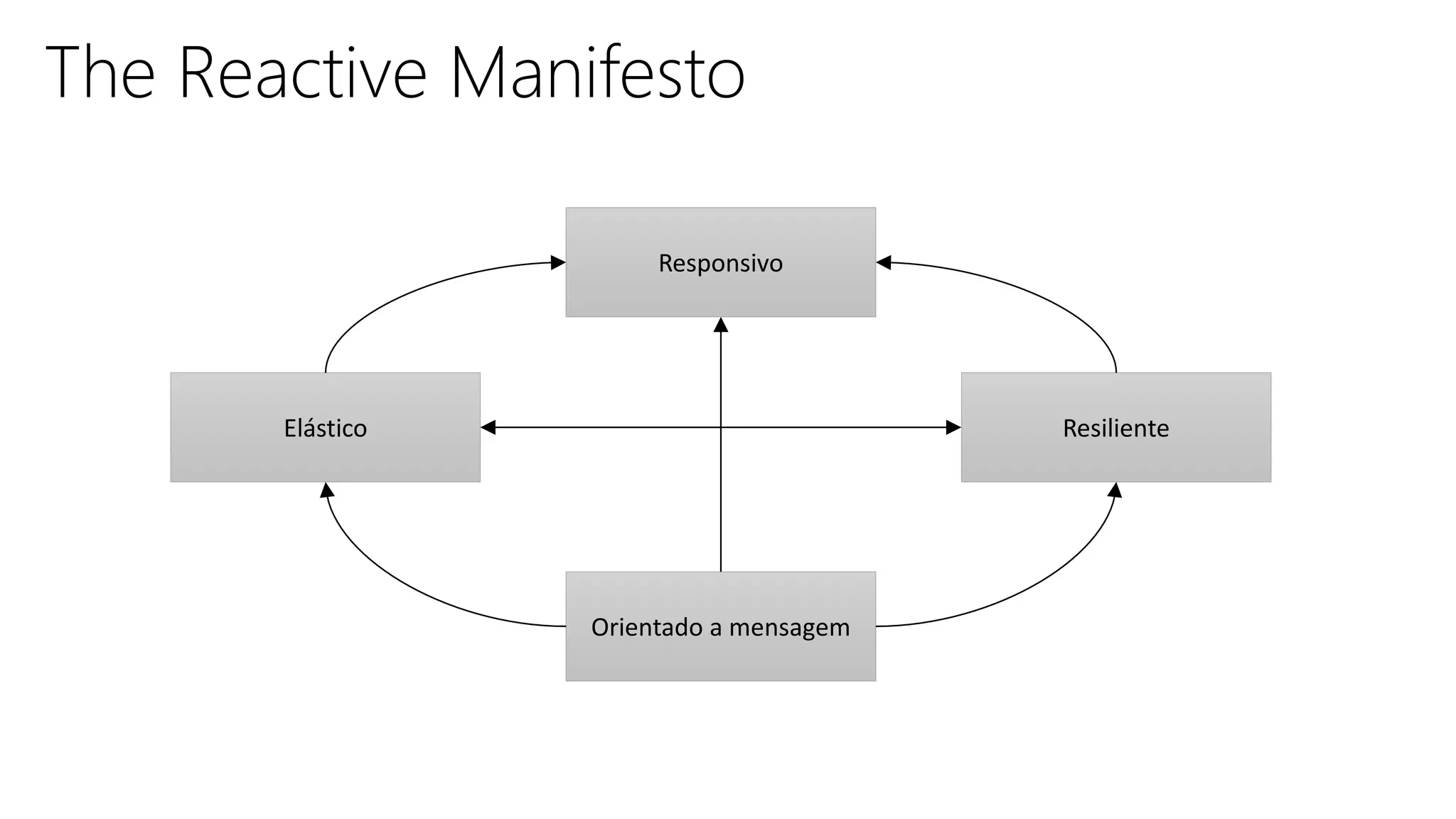

38. The Reactive Manifesto
Responsivo
Elástico Resiliente
Orientado a mensagem

39. Obrigado!
tinyurl.com/feedback-ej
