The document provides an overview of functions in programming, covering their definition, declaration, types of arguments, and various ways to call functions including call by value, address, and reference. It also discusses inline functions to reduce call overhead, default arguments, and function overloading in C++, emphasizing the importance of function signatures for overloading. Additionally, it highlights the restrictions on function overloading and examples illustrating these concepts.

1. Functions
Presented by:
Faizan Janjua #103
Hamza Tariq Ansari #121
Muhammad Usman #128

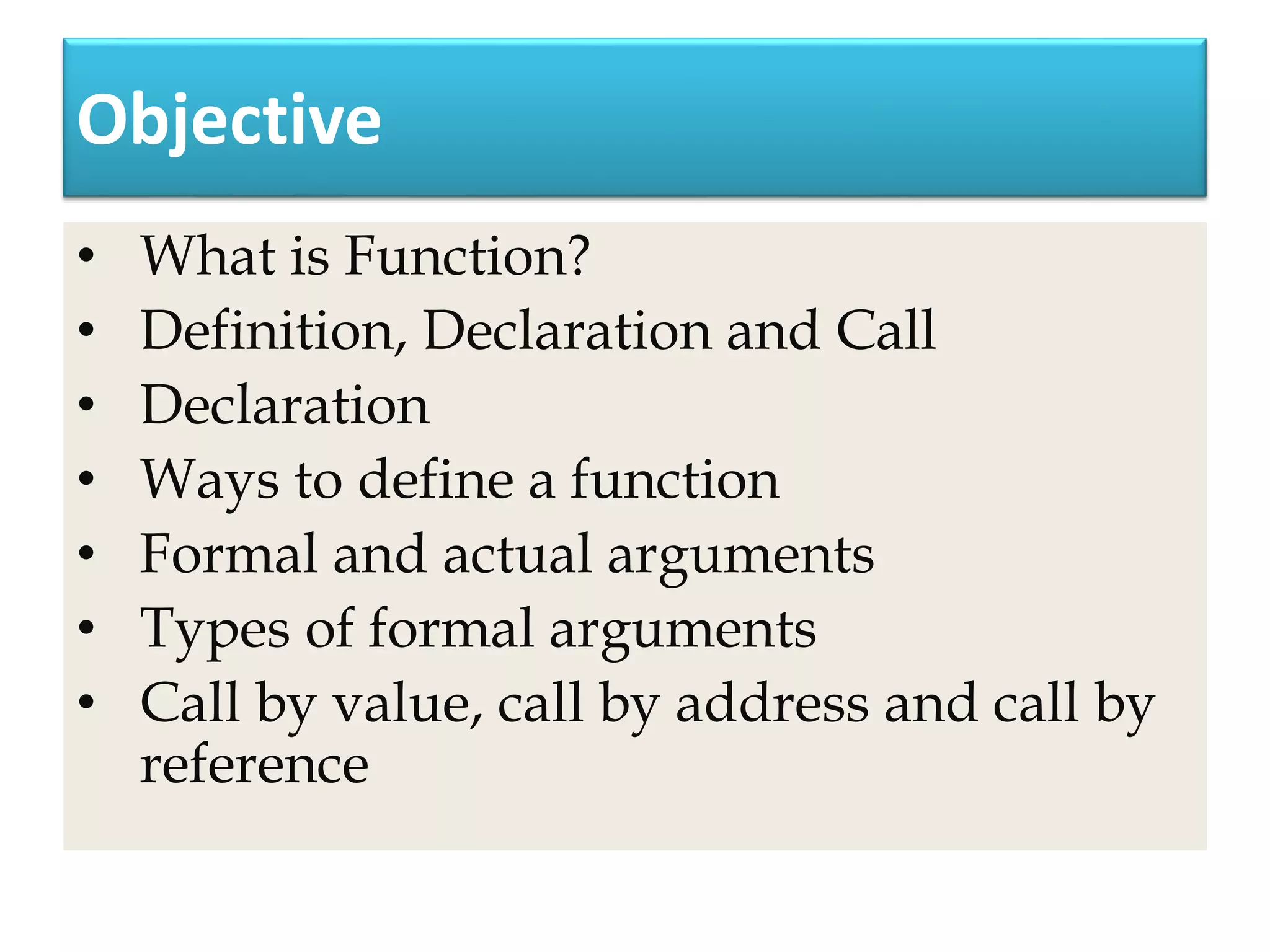

2. Objective
• What is Function?
• Definition, Declaration and Call
• Declaration
• Ways to define a function
• Formal and actual arguments
• Types of formal arguments
• Call by value, call by address and call by
reference

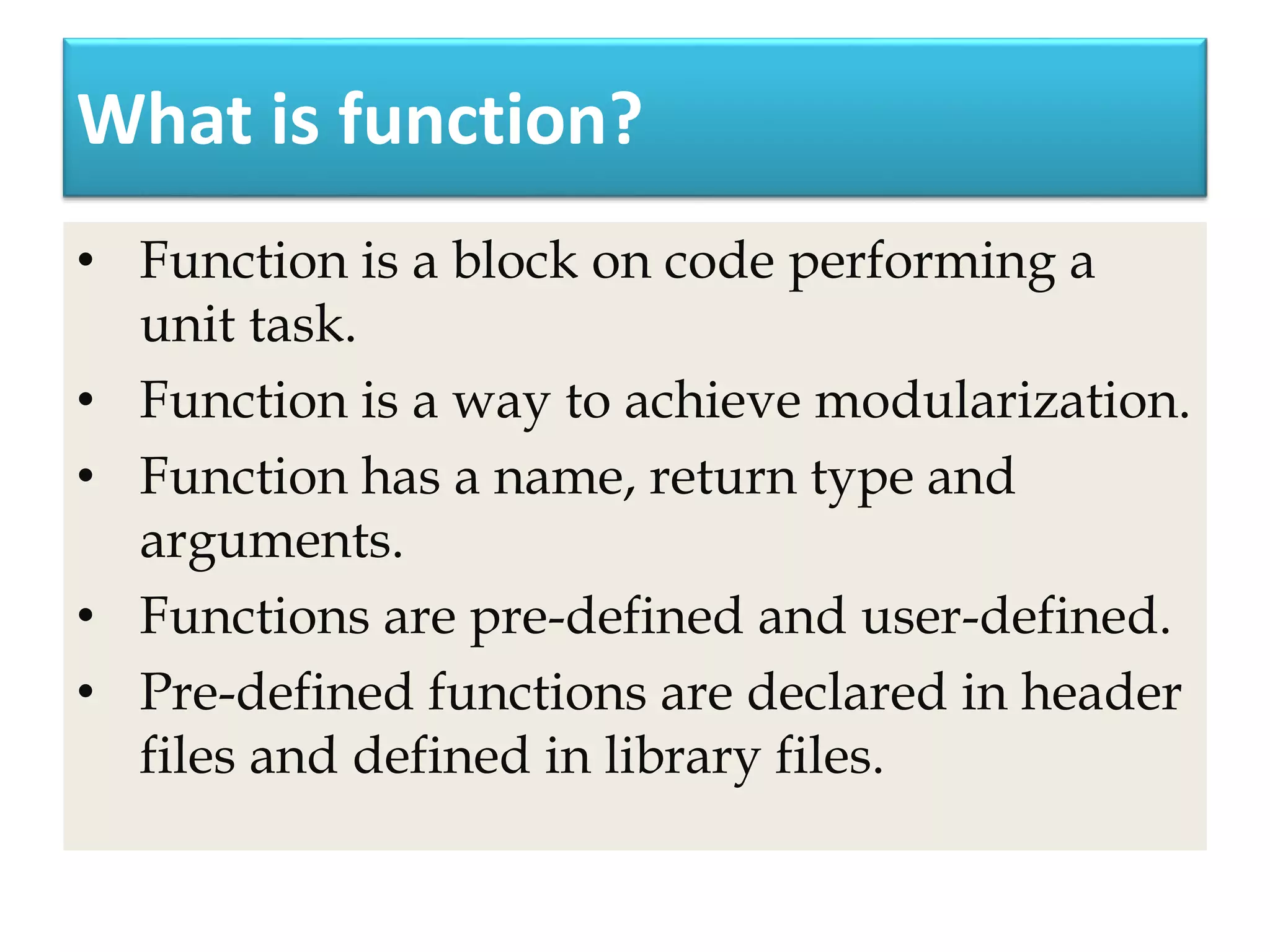

3. What is function?
• Function is a block on code performing a
unit task.
• Function is a way to achieve modularization.
• Function has a name, return type and
arguments.
• Functions are pre-defined and user-defined.
• Pre-defined functions are declared in header
files and defined in library files.

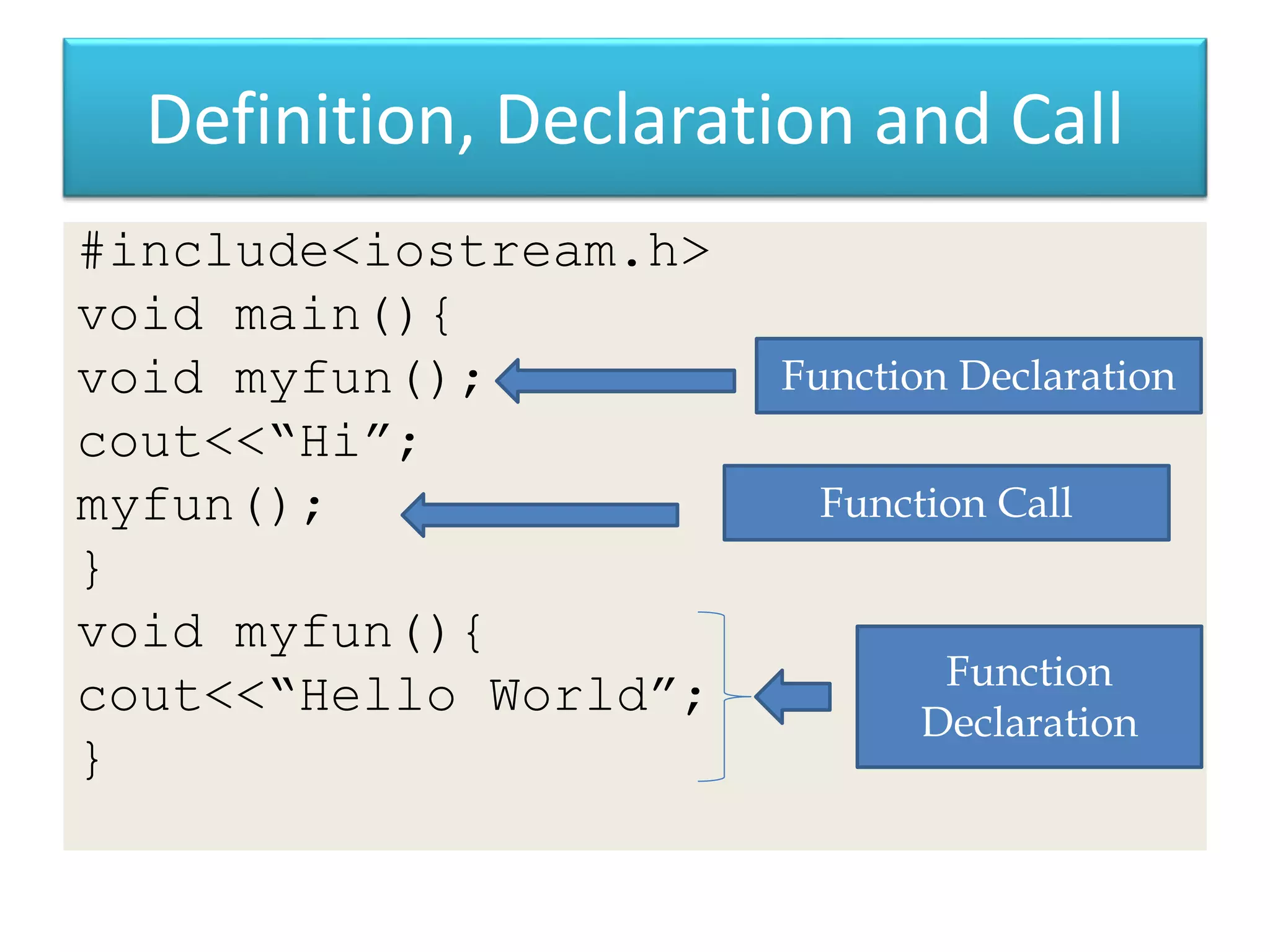

4. Definition, Declaration and Call
#include<iostream.h>
void main(){
void myfun();
cout<<“Hi”;
myfun();
}
void myfun(){
cout<<“Hello World”;
}
Function Declaration
Function Call
Function
Declaration

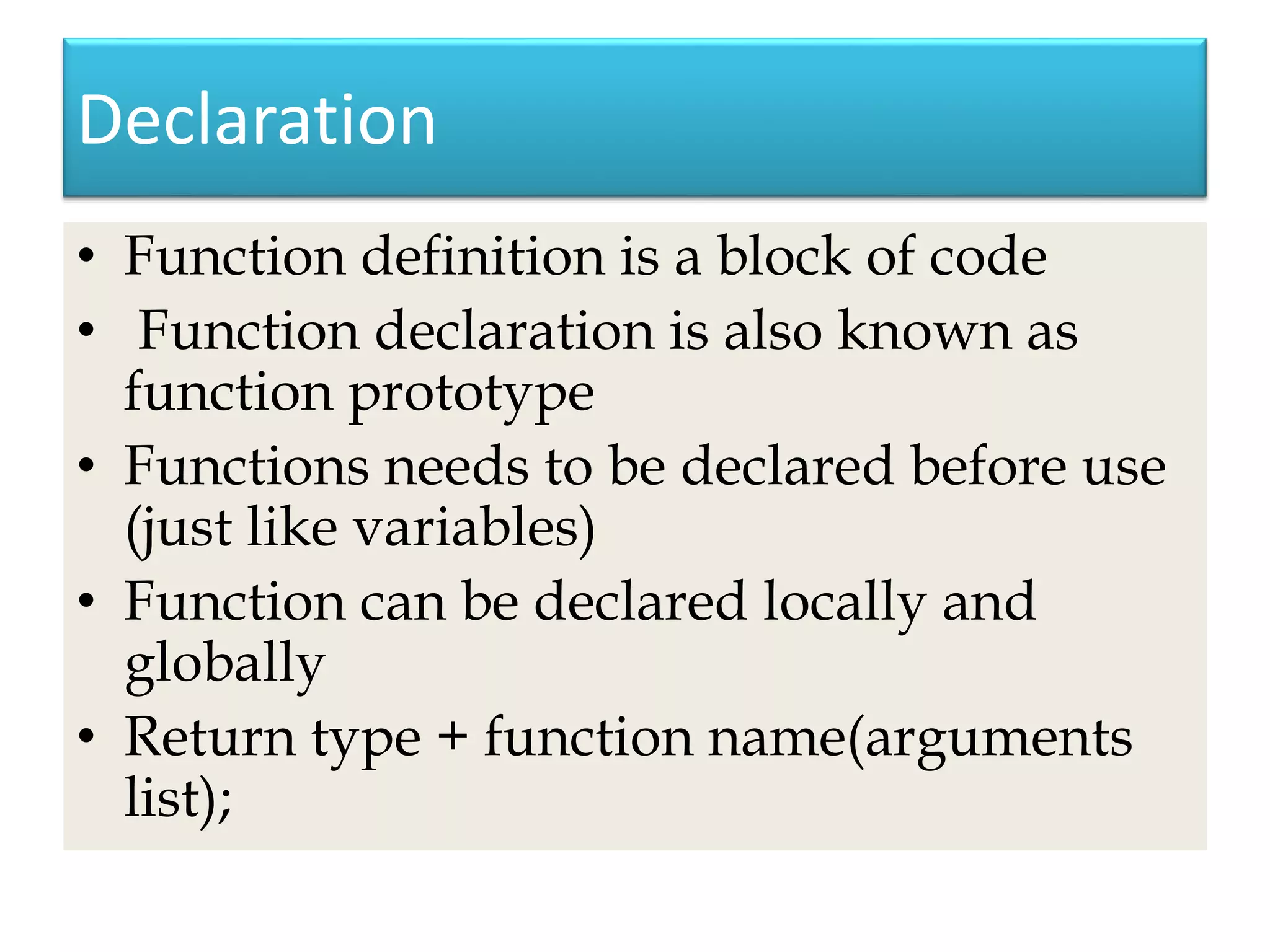

5. Declaration
• Function definition is a block of code
• Function declaration is also known as
function prototype
• Functions needs to be declared before use
(just like variables)
• Function can be declared locally and
globally
• Return type + function name(arguments
list);

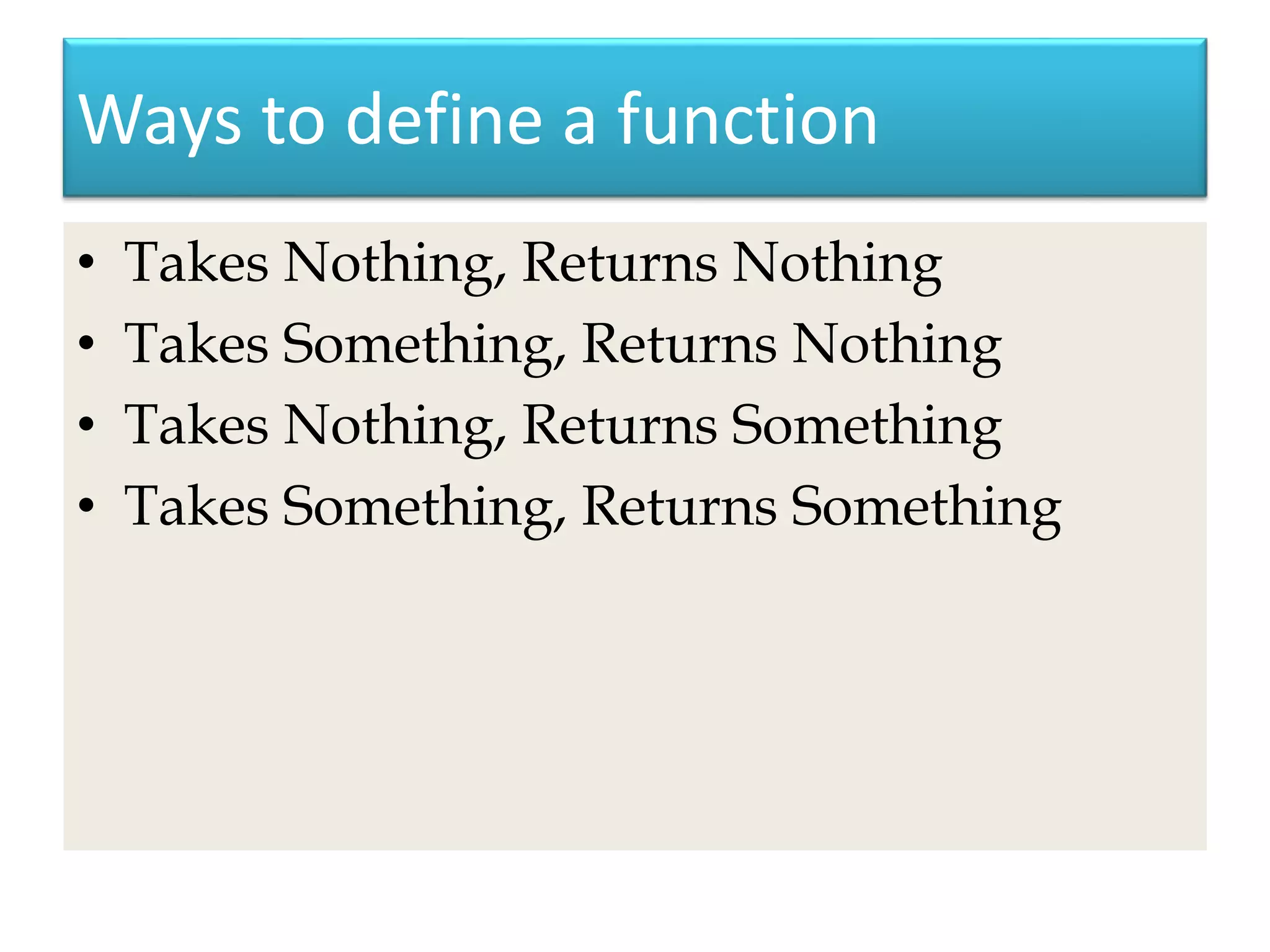

6. Ways to define a function
• Takes Nothing, Returns Nothing
• Takes Something, Returns Nothing
• Takes Nothing, Returns Something
• Takes Something, Returns Something

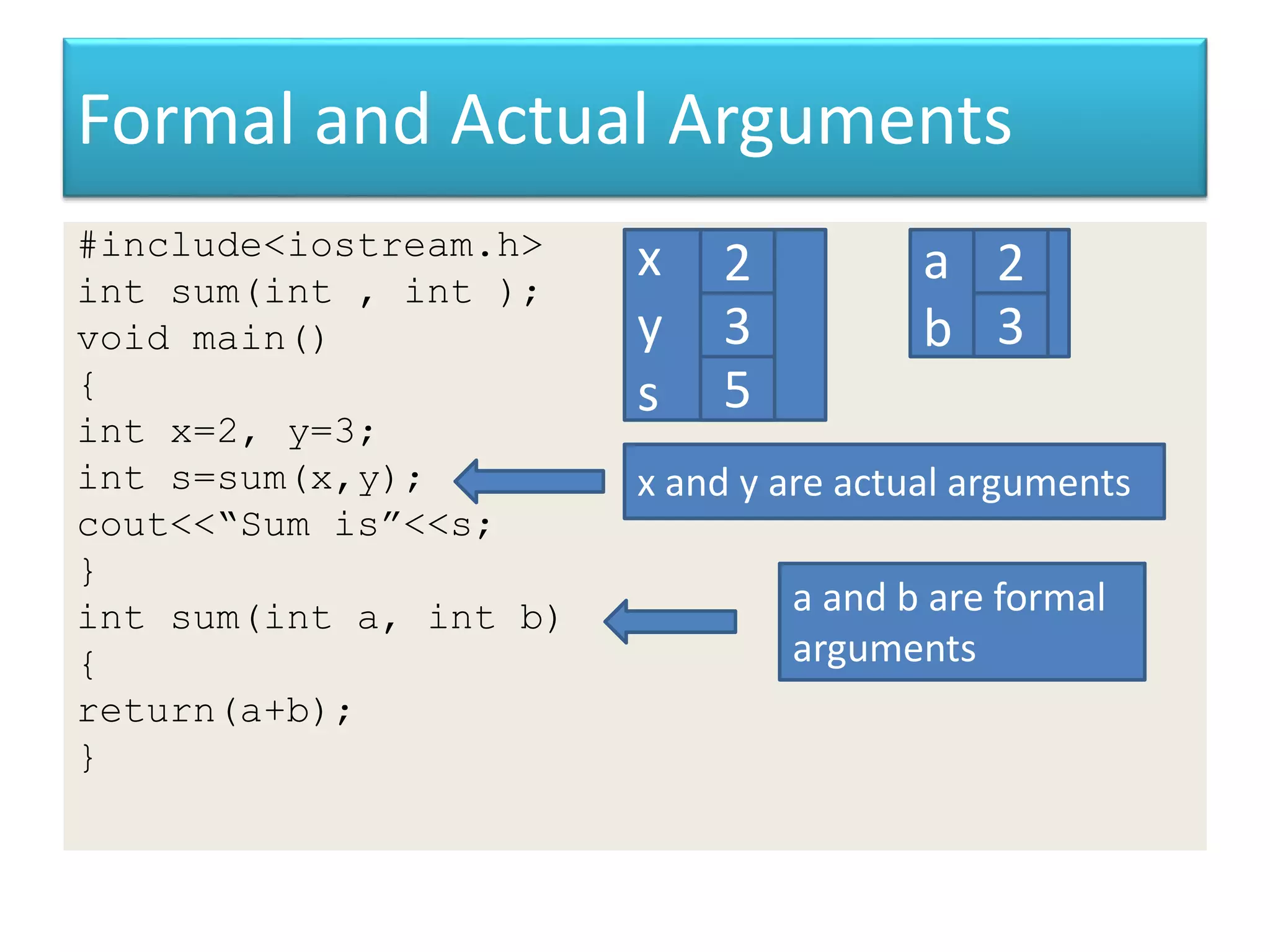

7. Formal and Actual Arguments
#include<iostream.h>
int sum(int , int );
void main()
{
int x=2, y=3;
int s=sum(x,y);
cout<<“Sum is”<<s;
}
int sum(int a, int b)
{
return(a+b);
}
x
y
s
2
3
5
x and y are actual arguments
a
b
2
3
a and b are formal
arguments

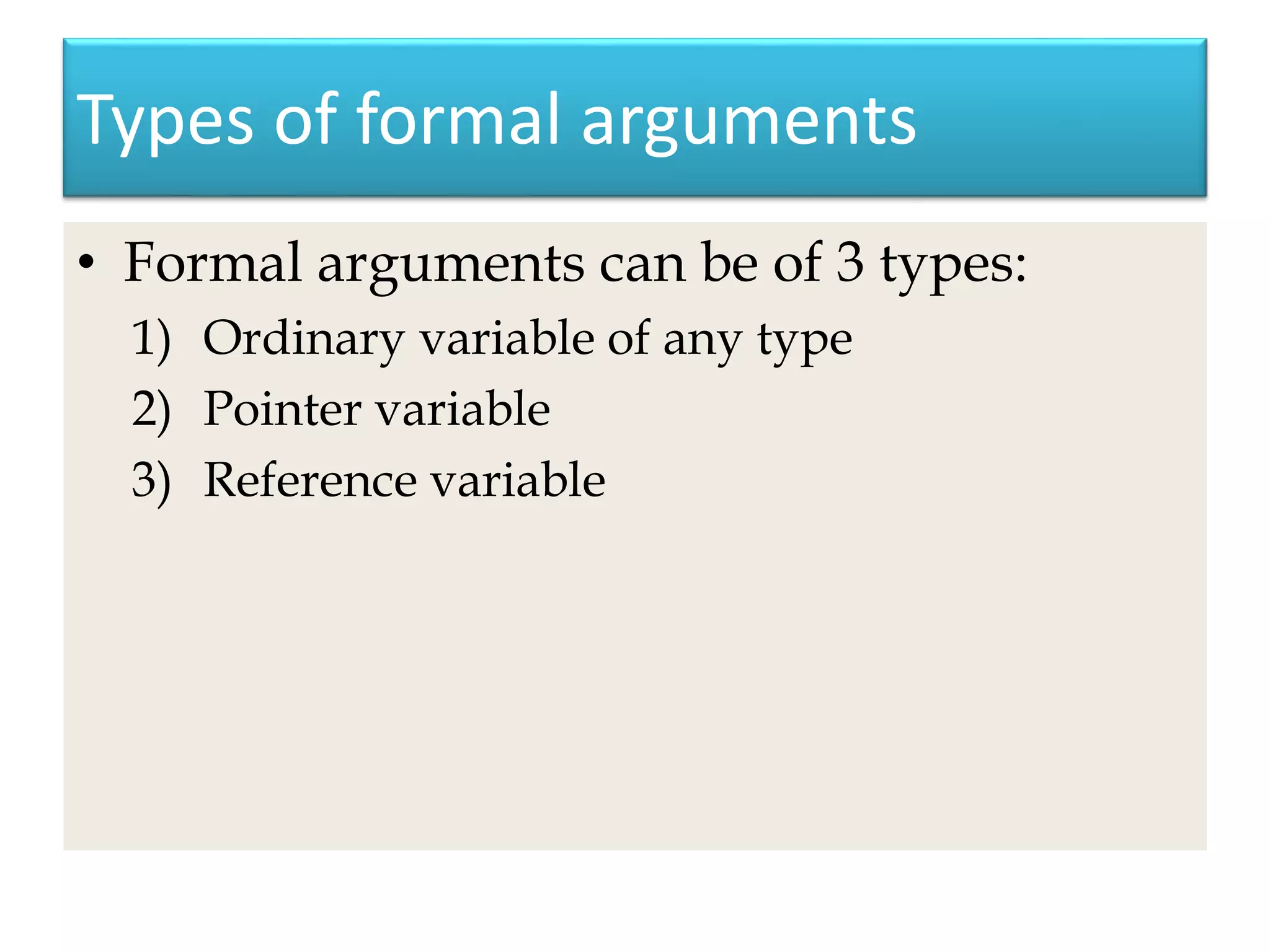

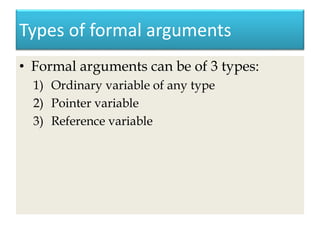

8. Types of formal arguments
• Formal arguments can be of 3 types:
1) Ordinary variable of any type
2) Pointer variable
3) Reference variable

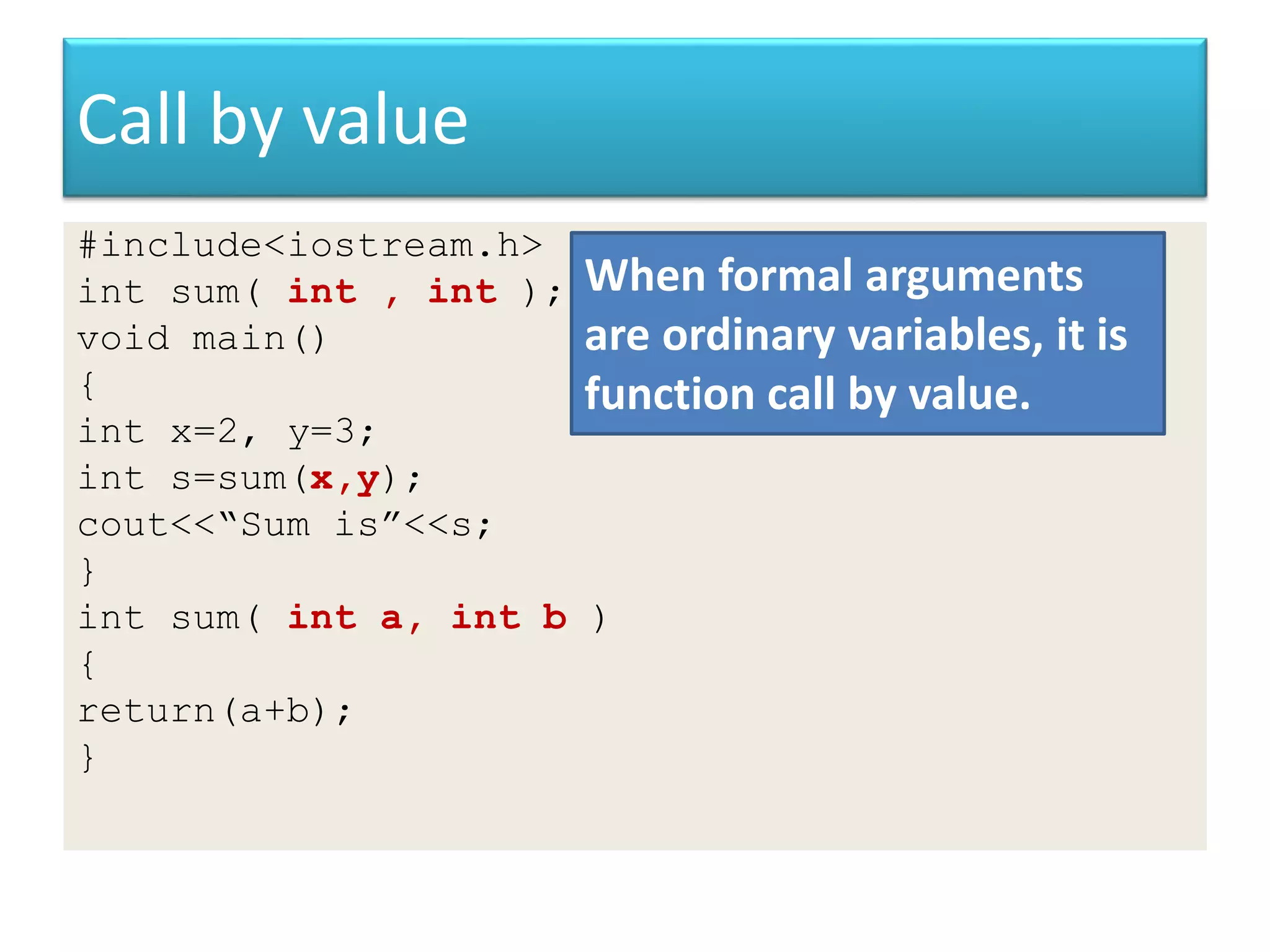

9. Call by value
#include<iostream.h>
int sum( int , int );
void main()
{
int x=2, y=3;
int s=sum(x,y);
cout<<“Sum is”<<s;
}
int sum( int a, int b )
{
return(a+b);
}
When formal arguments
are ordinary variables, it is
function call by value.

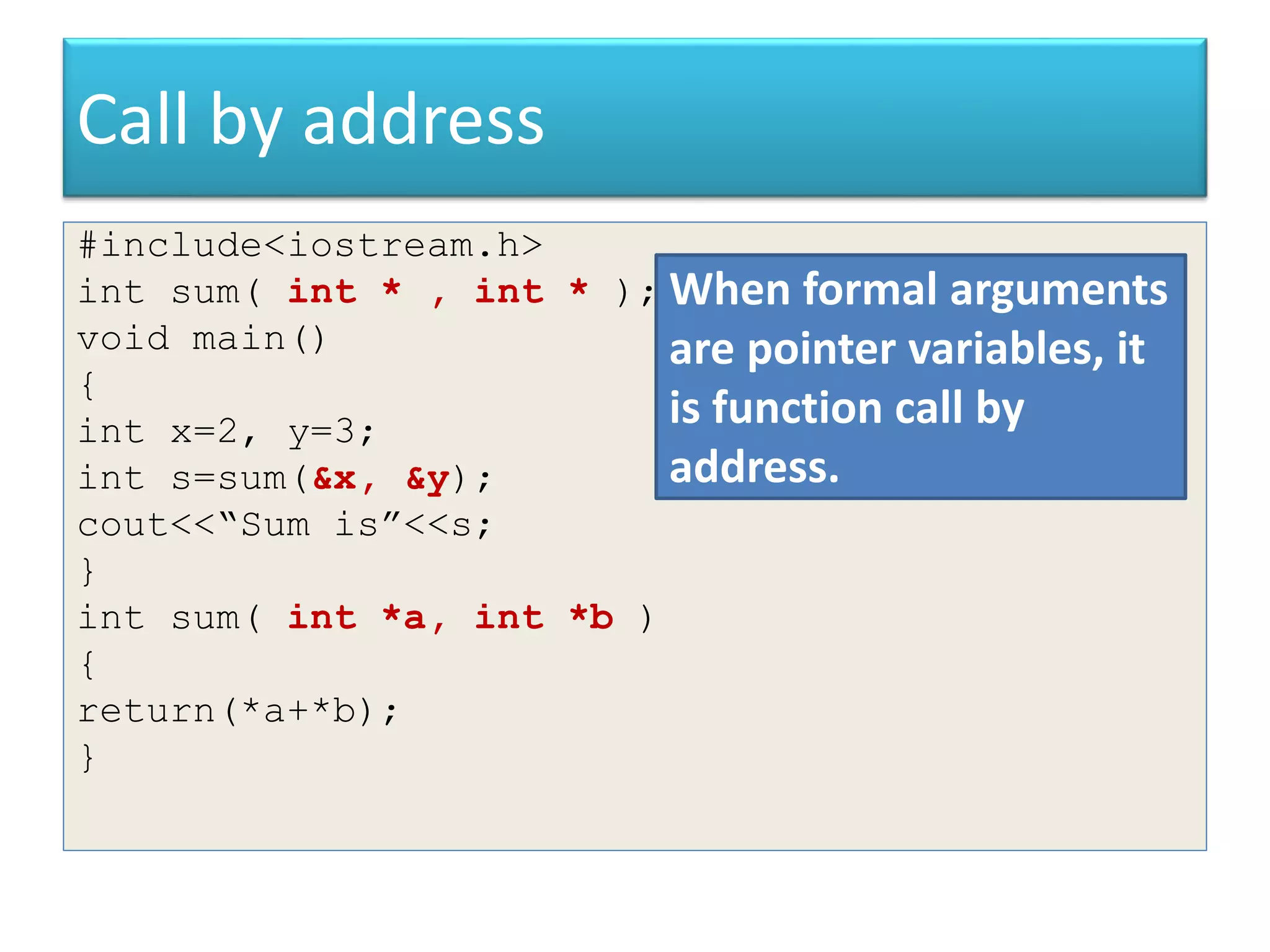

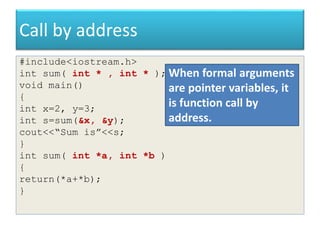

10. Call by address
#include<iostream.h>
int sum( int * , int * );
void main()
{
int x=2, y=3;
int s=sum(&x, &y);
cout<<“Sum is”<<s;
}
int sum( int *a, int *b )
{
return(*a+*b);
}
When formal arguments
are pointer variables, it
is function call by
address.

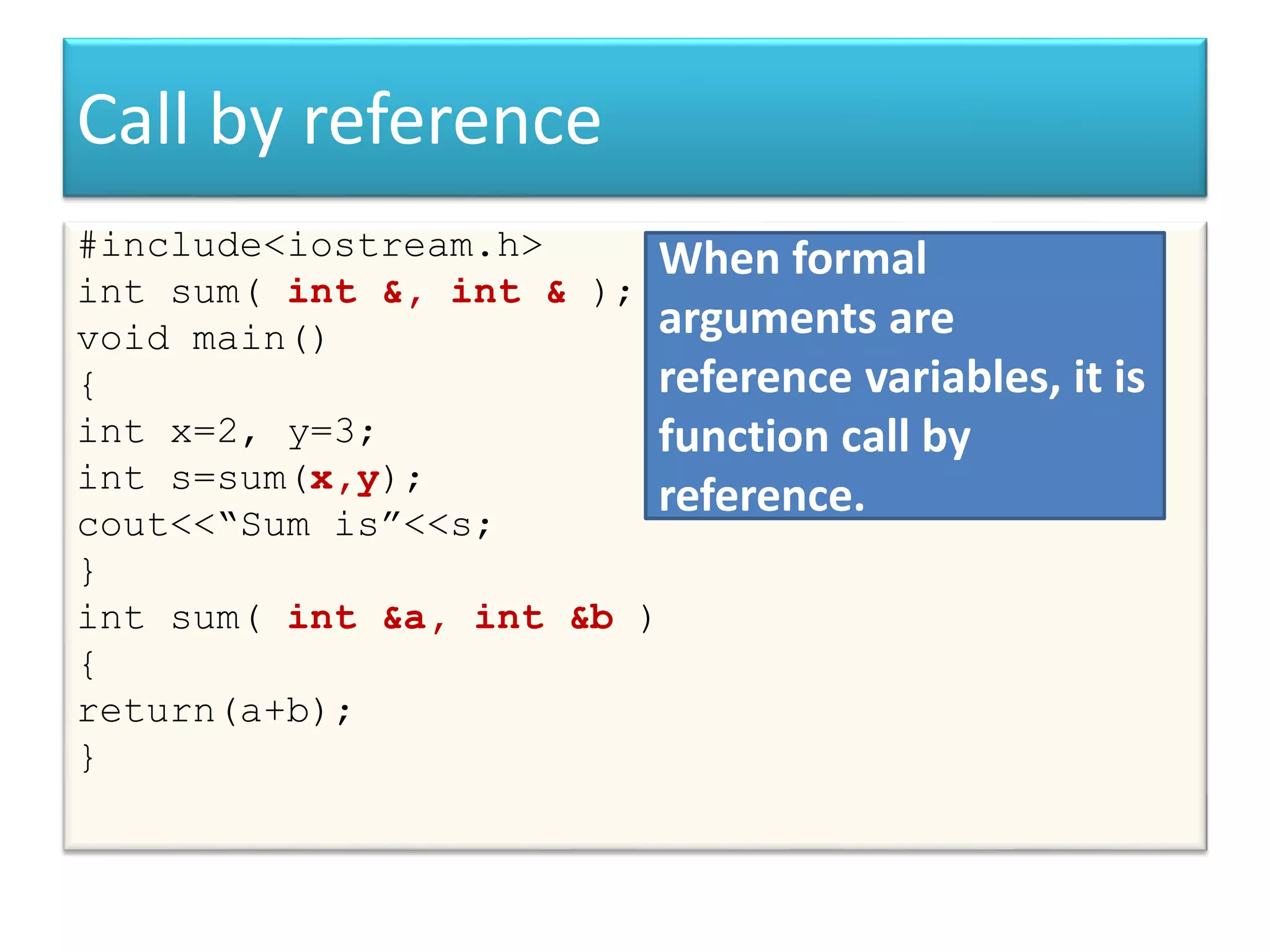

11. Call by reference
#include<iostream.h>
int sum( int &, int & );
void main()
{
int x=2, y=3;
int s=sum(x,y);
cout<<“Sum is”<<s;
}
int sum( int &a, int &b )
{
return(a+b);
}
When formal
arguments are
reference variables, it is
function call by
reference.

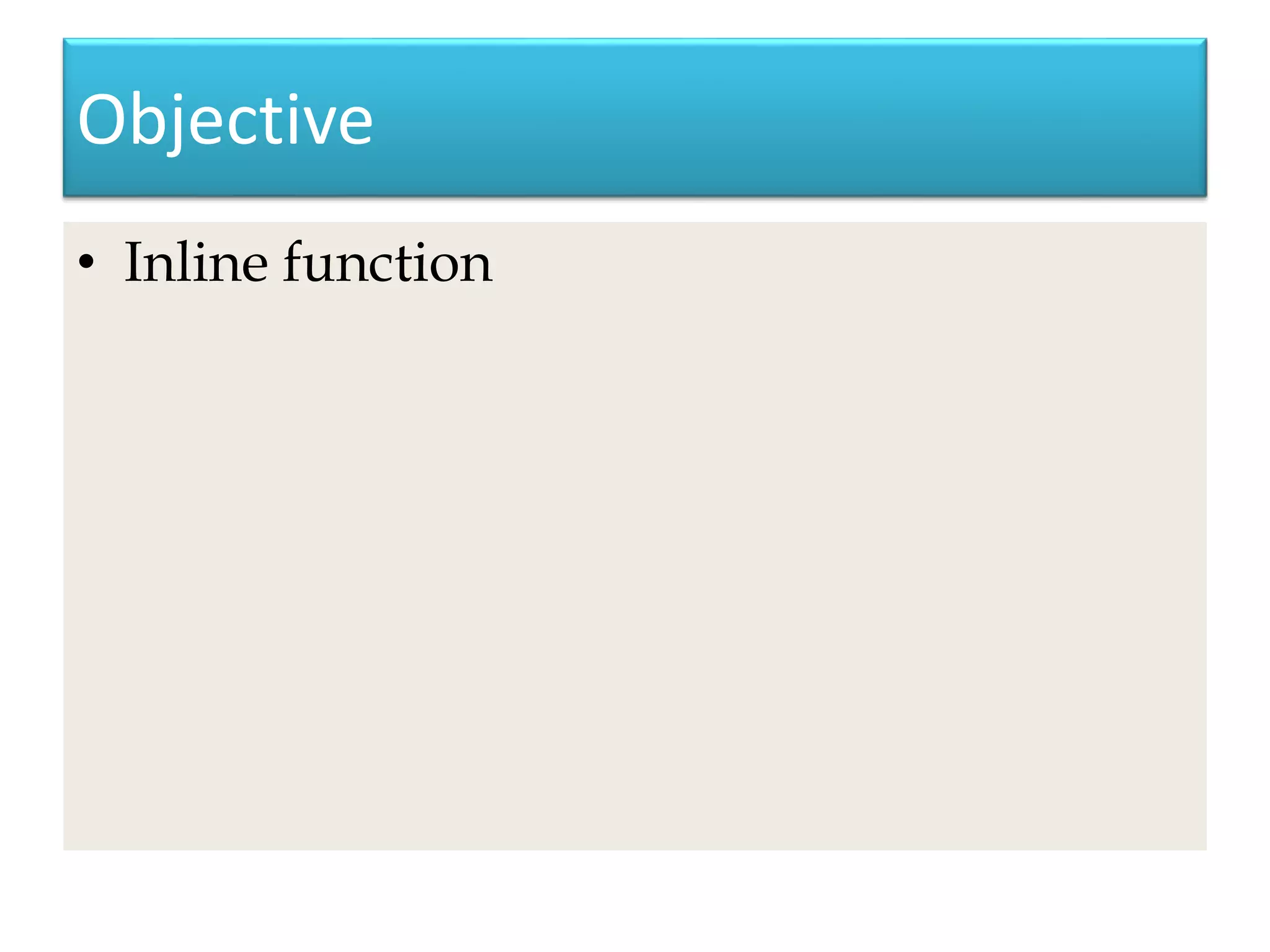

12. Objective
• Inline function

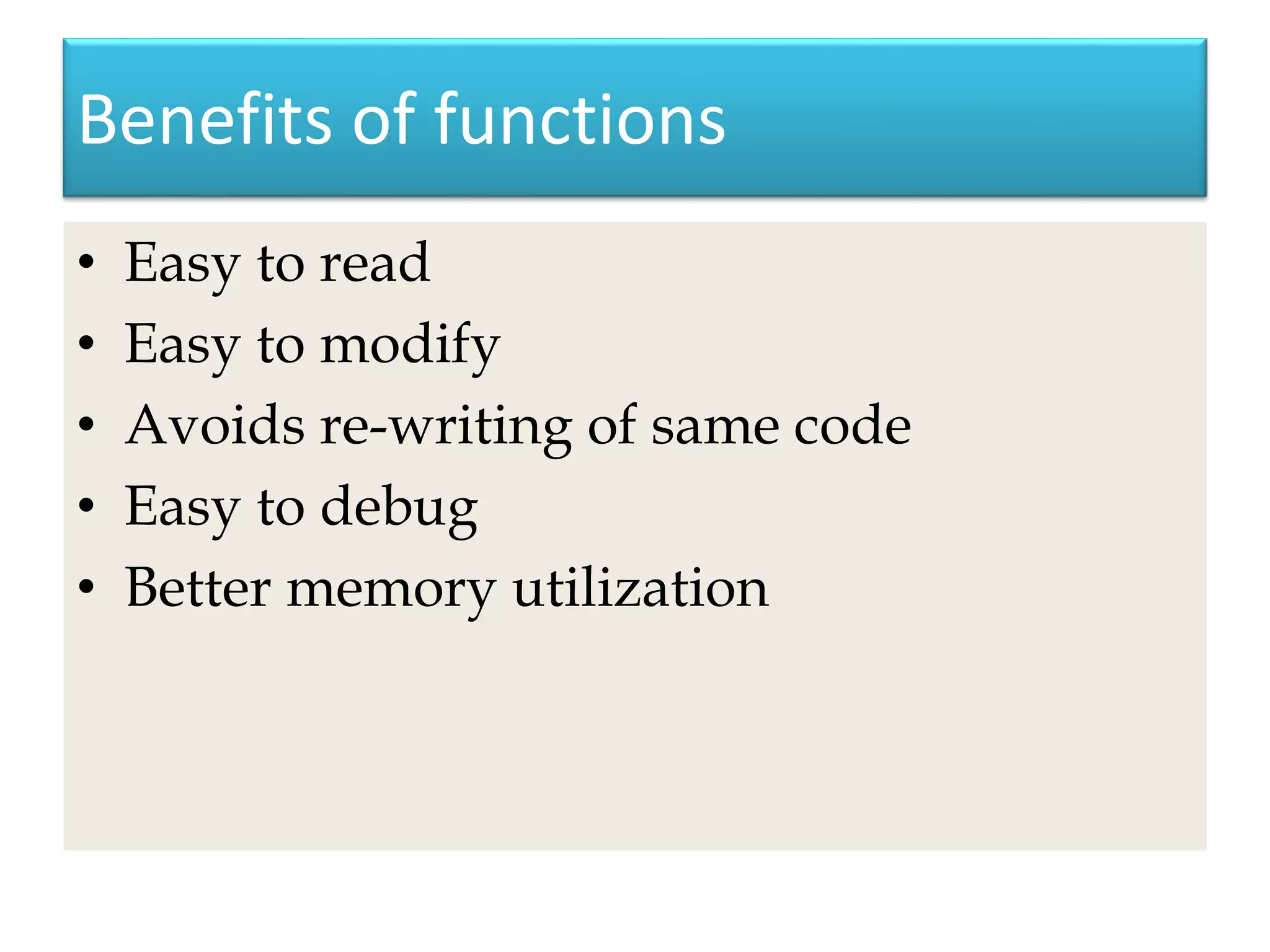

13. Benefits of functions
• Easy to read
• Easy to modify
• Avoids re-writing of same code
• Easy to debug
• Better memory utilization

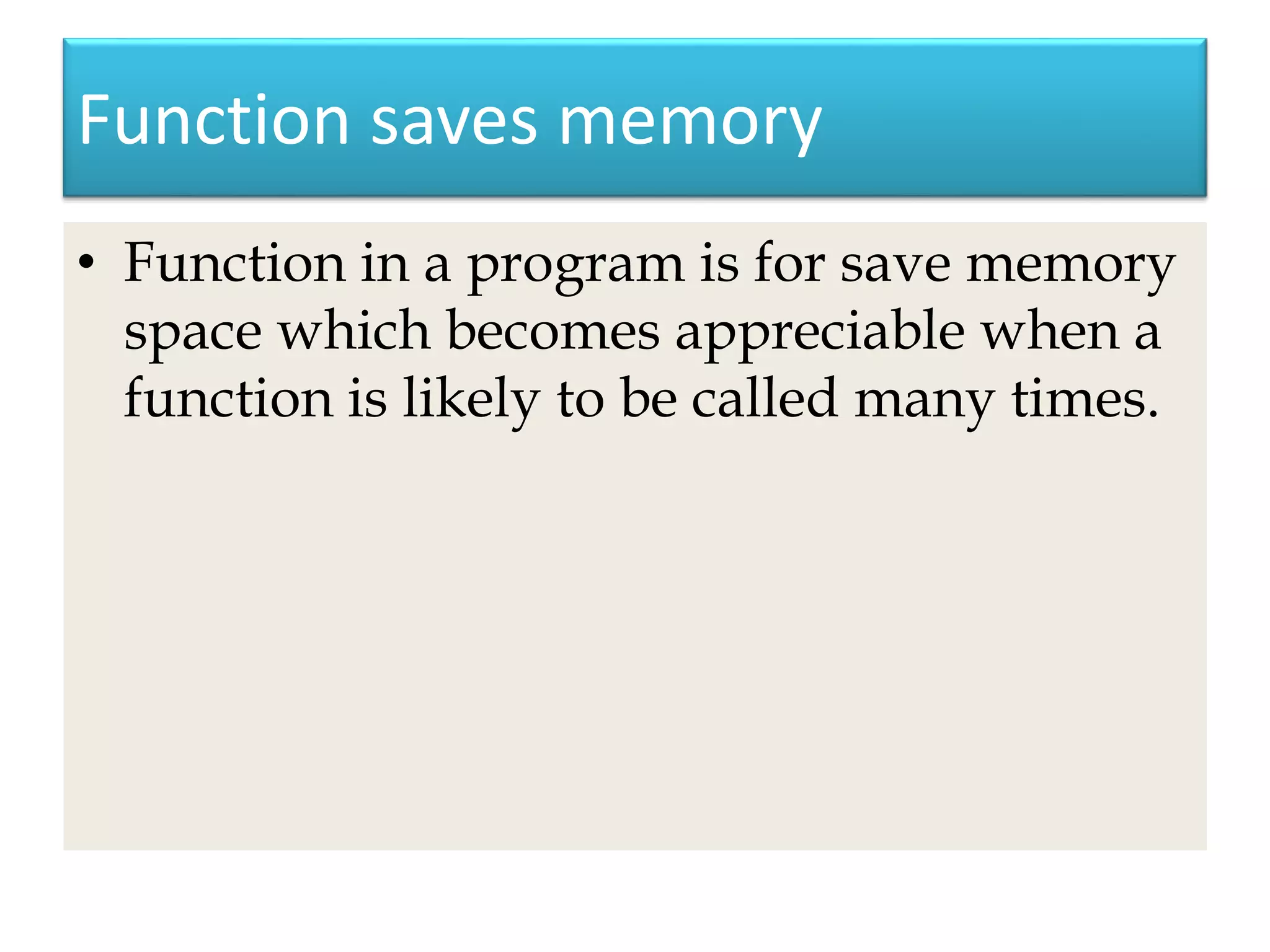

14. Function saves memory
• Function in a program is for save memory
space which becomes appreciable when a
function is likely to be called many times.

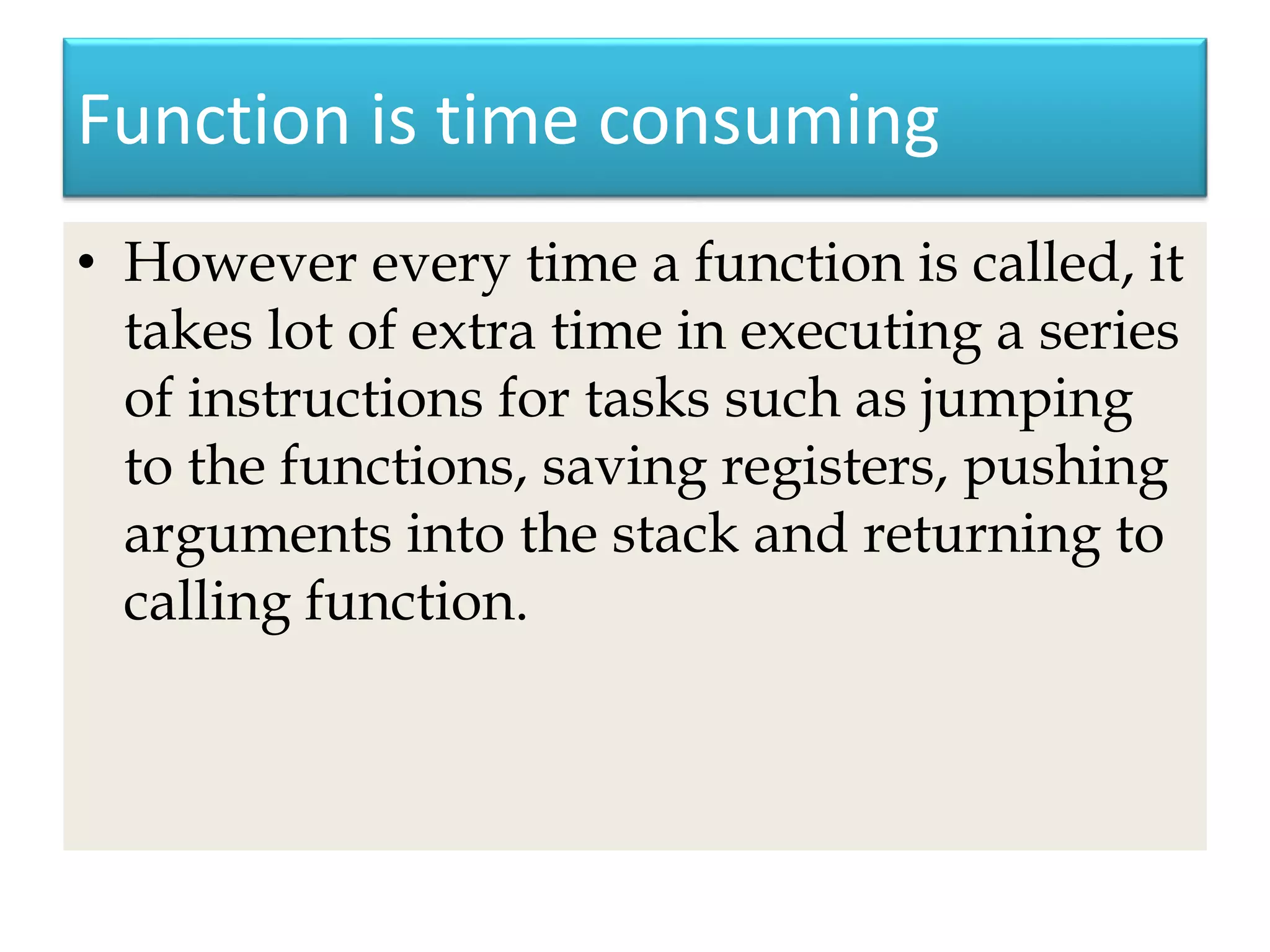

15. Function is time consuming
• However every time a function is called, it
takes lot of extra time in executing a series
of instructions for tasks such as jumping
to the functions, saving registers, pushing
arguments into the stack and returning to
calling function.

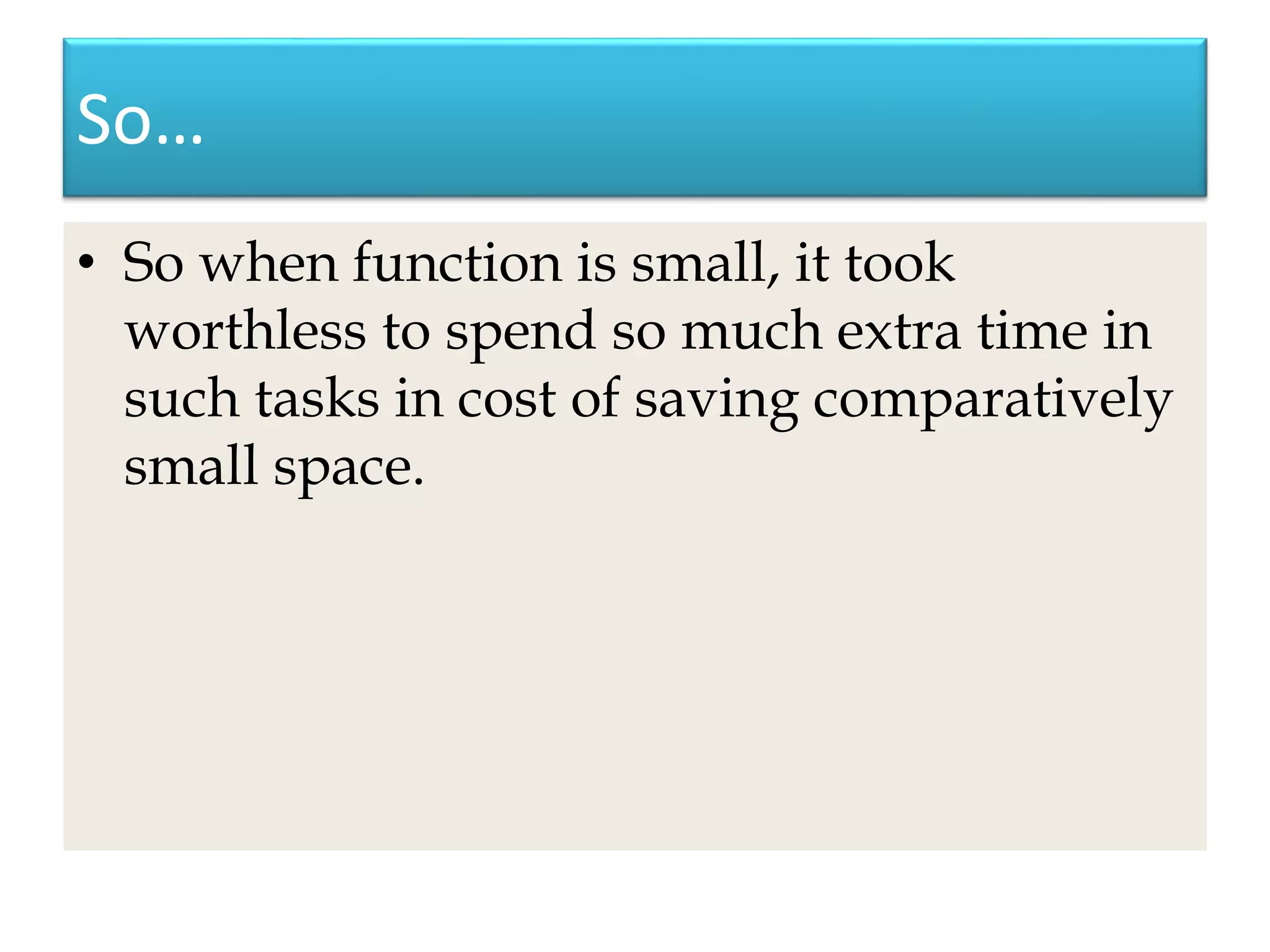

16. So…
• So when function is small, it took
worthless to spend so much extra time in
such tasks in cost of saving comparatively
small space.

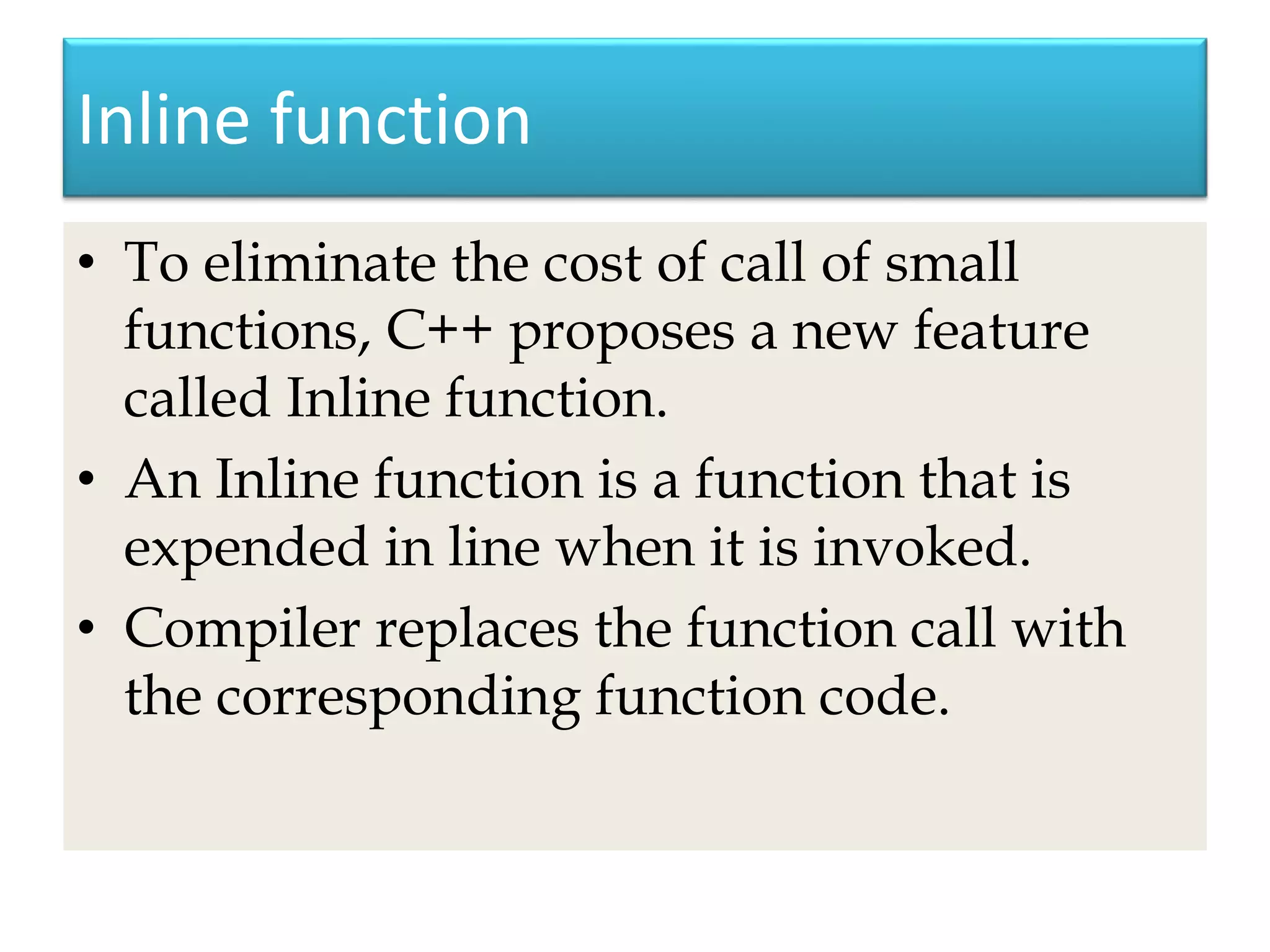

17. Inline function
• To eliminate the cost of call of small
functions, C++ proposes a new feature
called Inline function.
• An Inline function is a function that is
expended in line when it is invoked.
• Compiler replaces the function call with
the corresponding function code.

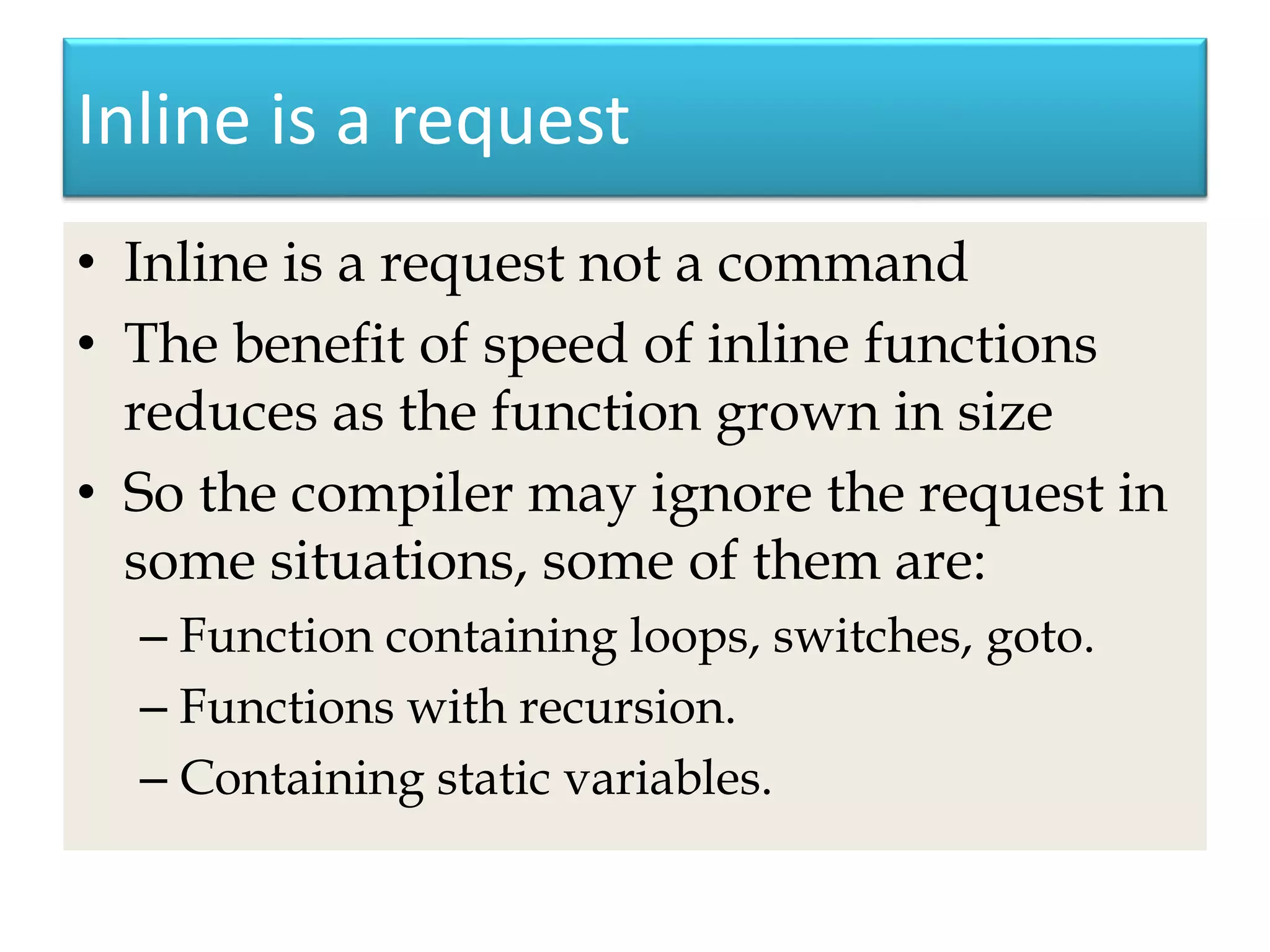

18. Inline is a request
• Inline is a request not a command
• The benefit of speed of inline functions
reduces as the function grown in size
• So the compiler may ignore the request in
some situations, some of them are:
– Function containing loops, switches, goto.
– Functions with recursion.
– Containing static variables.

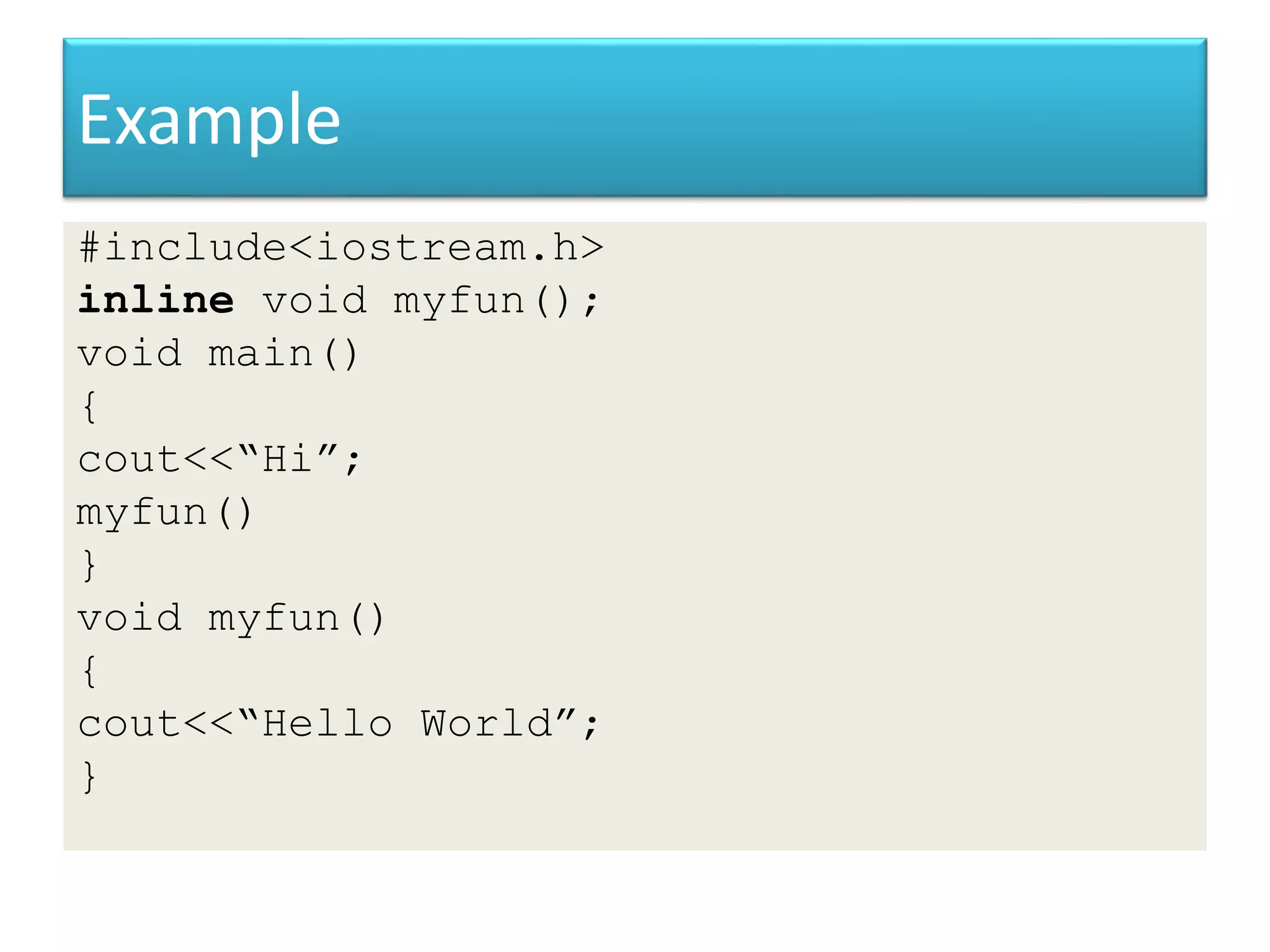

19. Example
#include<iostream.h>
inline void myfun();
void main()
{
cout<<“Hi”;
myfun()
}
void myfun()
{
cout<<“Hello World”;
}

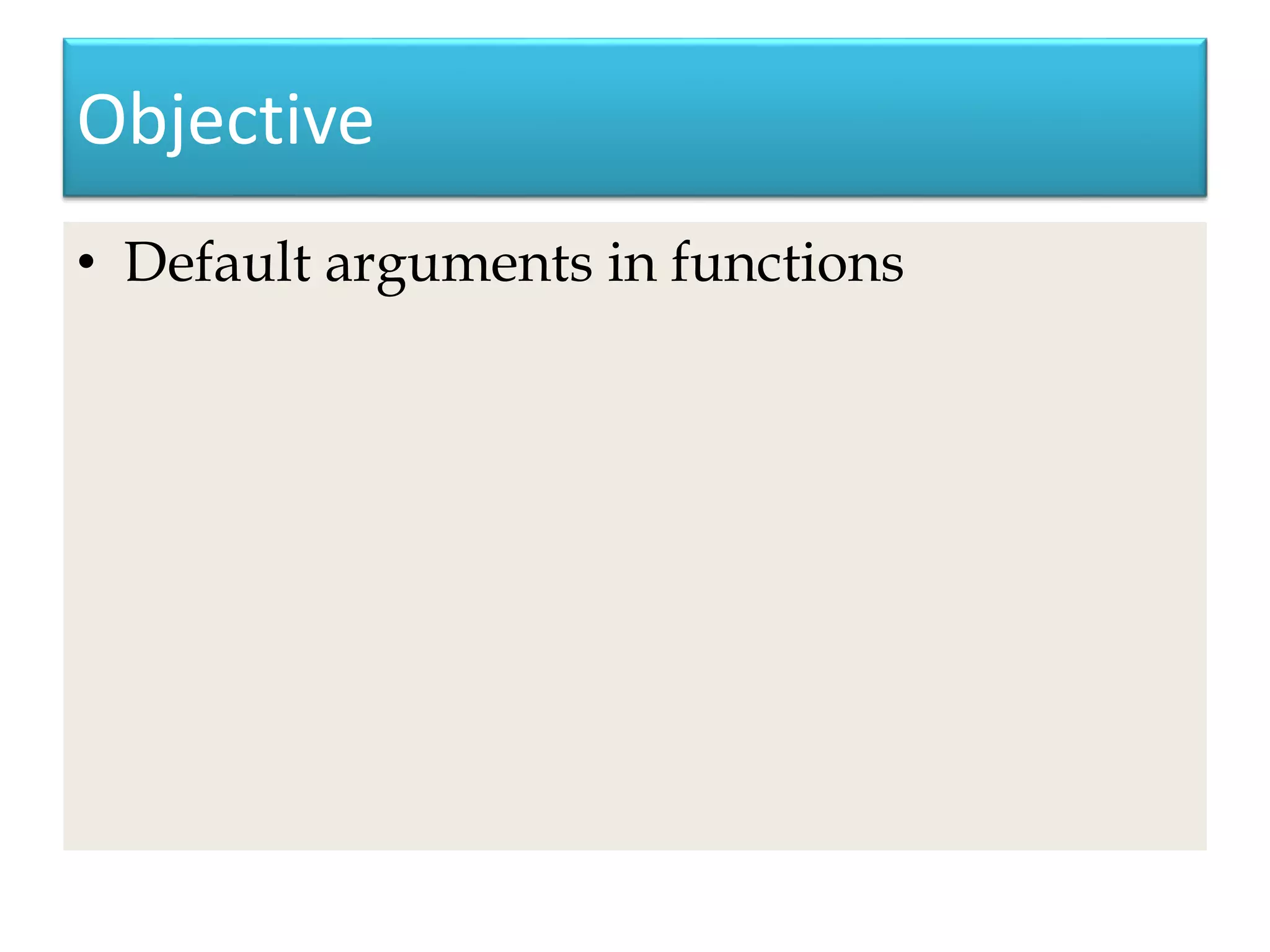

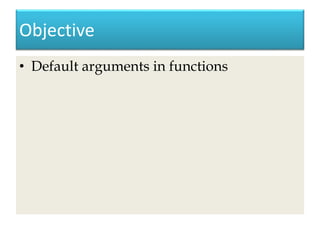

20. Objective
• Default arguments in functions

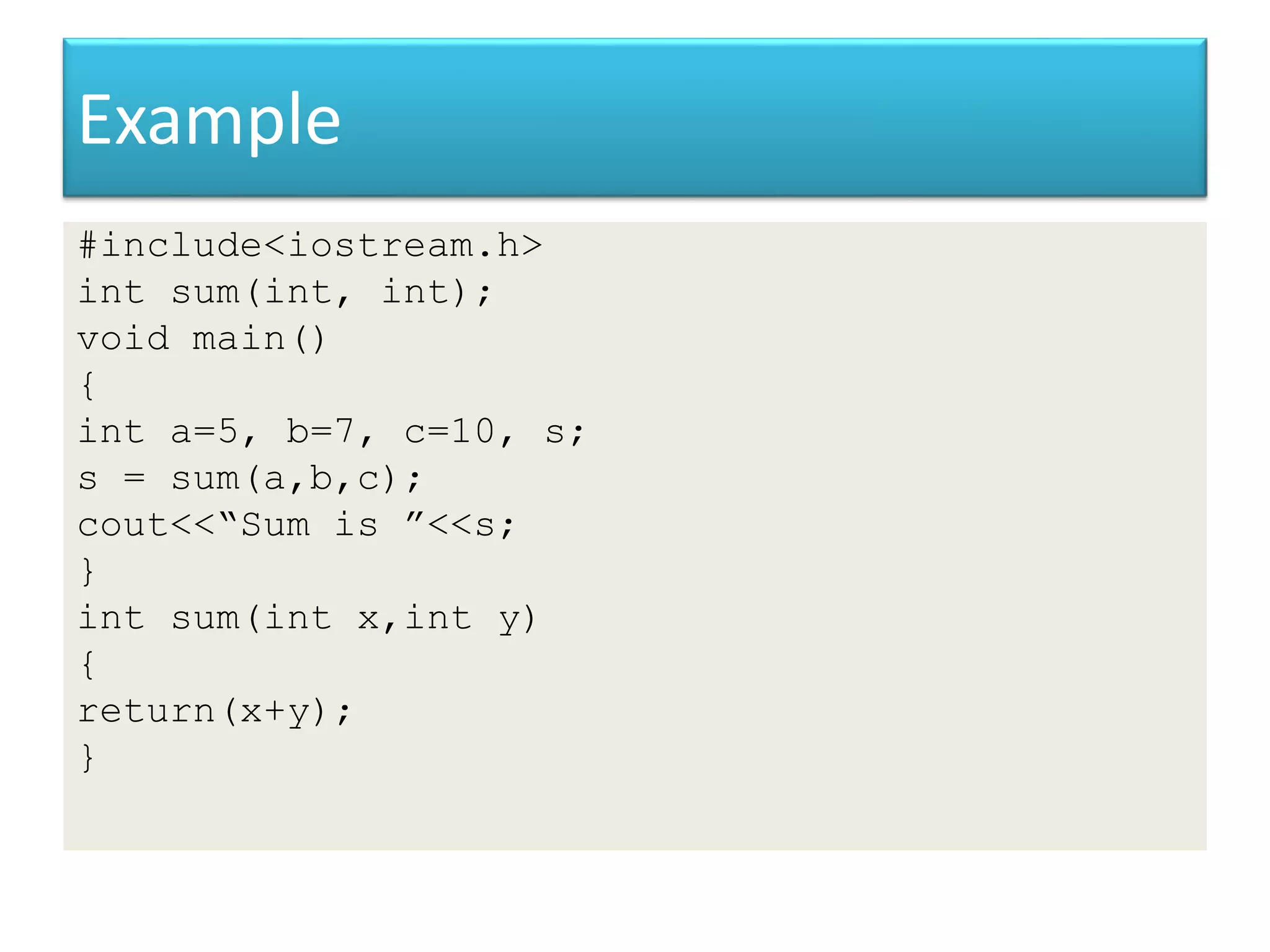

21. Example
#include<iostream.h>
int sum(int, int);
void main()
{
int a=5, b=7, c=10, s;
s = sum(a,b,c);
cout<<“Sum is ”<<s;
}
int sum(int x,int y)
{
return(x+y);
}

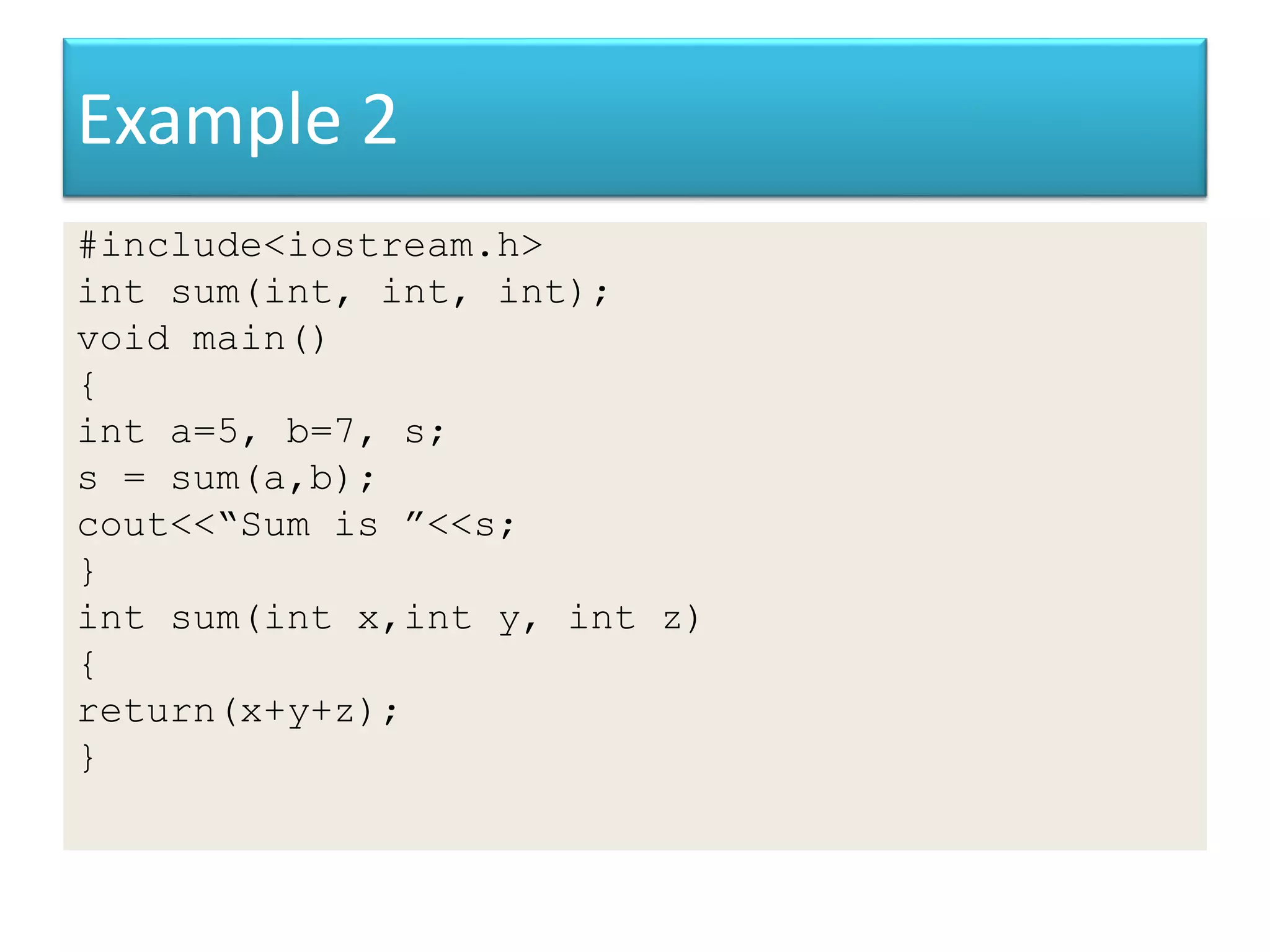

22. Example 2
#include<iostream.h>
int sum(int, int, int);
void main()
{
int a=5, b=7, s;
s = sum(a,b);
cout<<“Sum is ”<<s;
}
int sum(int x,int y, int z)
{
return(x+y+z);
}

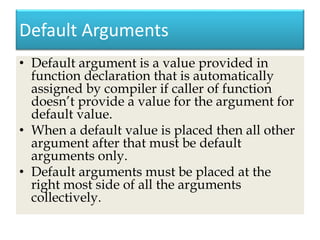

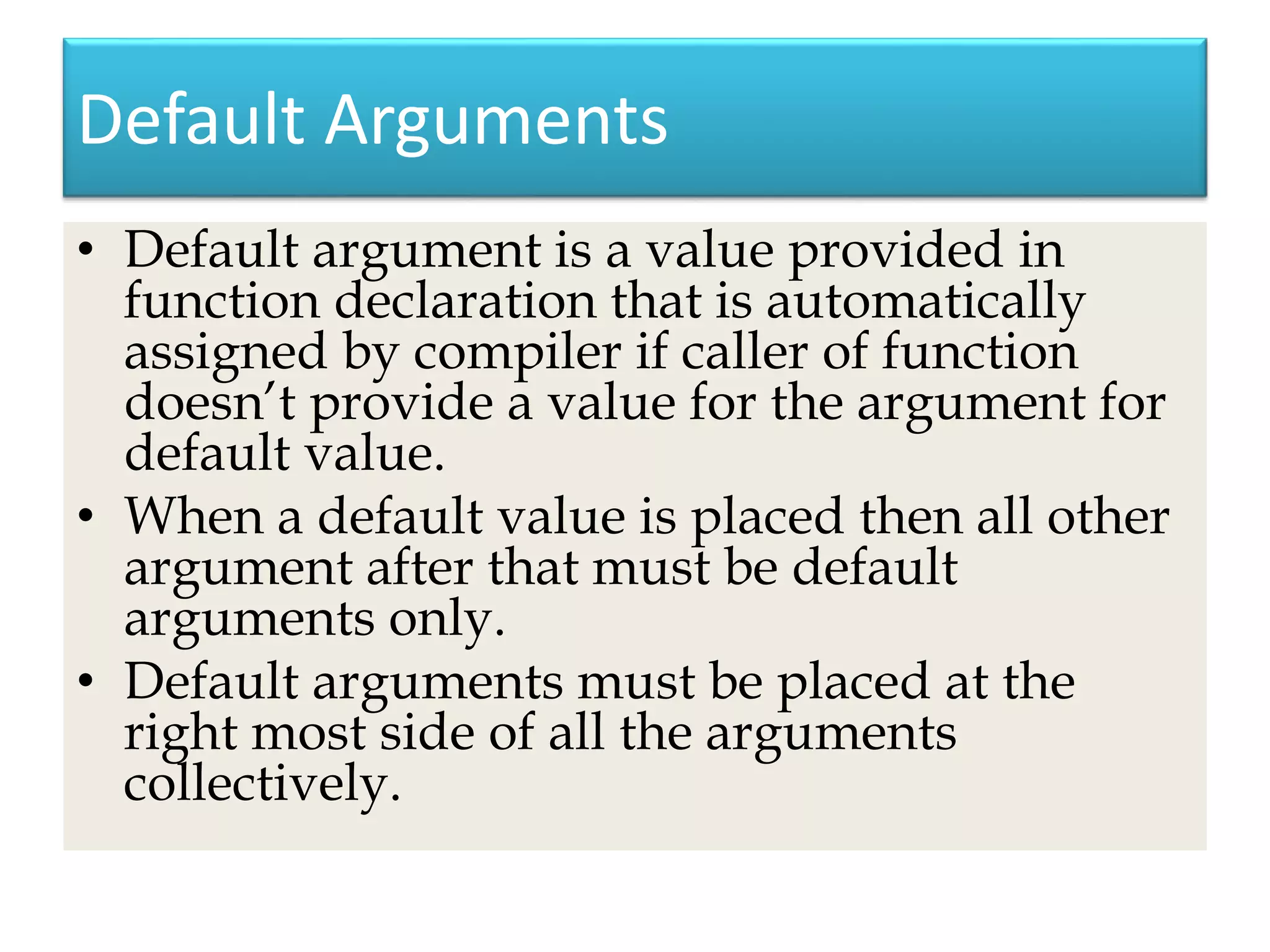

23. Default Arguments
• Default argument is a value provided in
function declaration that is automatically
assigned by compiler if caller of function
doesn’t provide a value for the argument for
default value.
• When a default value is placed then all other
argument after that must be default
arguments only.
• Default arguments must be placed at the
right most side of all the arguments
collectively.

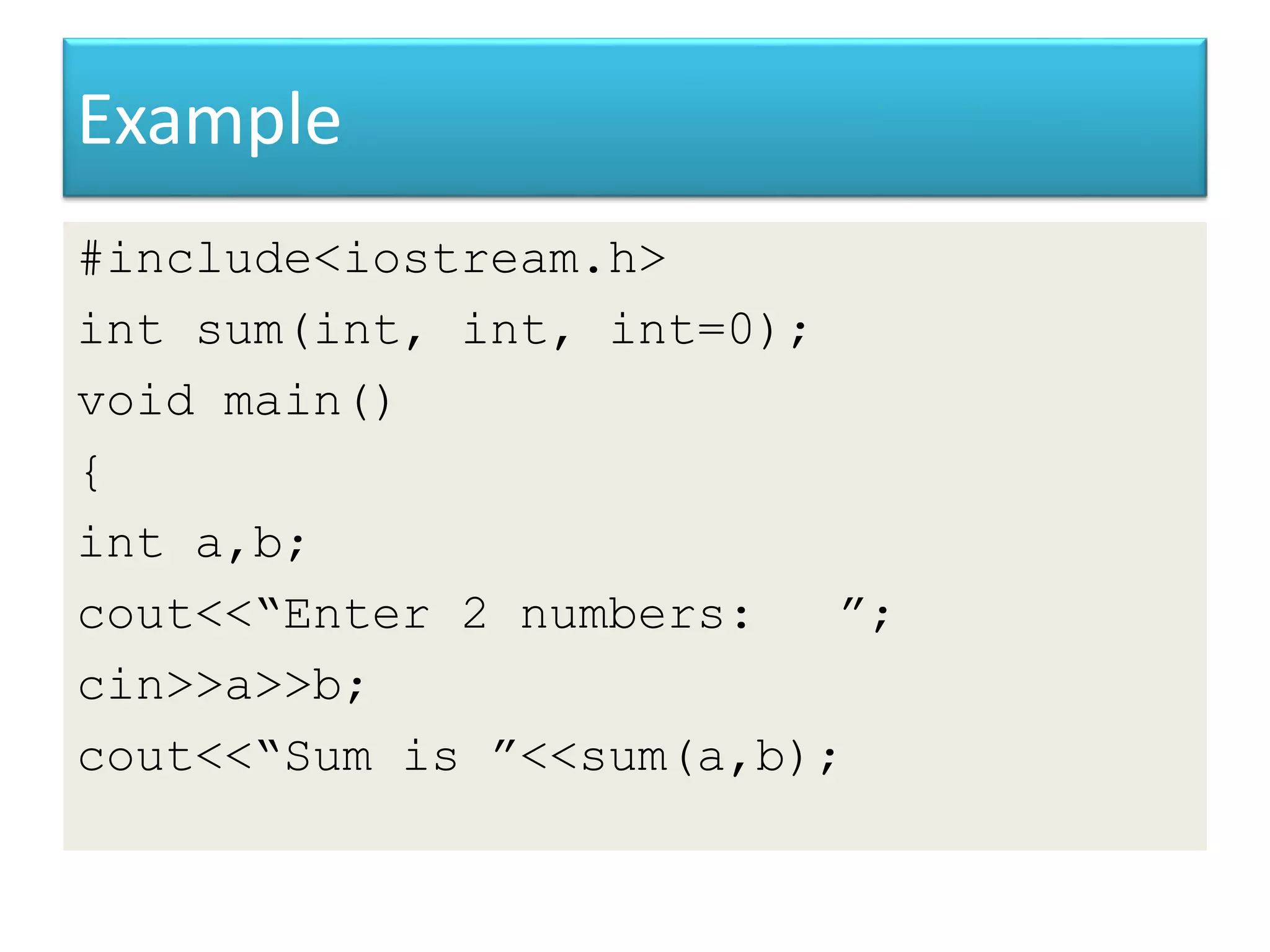

24. Example
#include<iostream.h>
int sum(int, int, int=0);
void main()
{
int a,b;
cout<<“Enter 2 numbers: ”;
cin>>a>>b;
cout<<“Sum is ”<<sum(a,b);

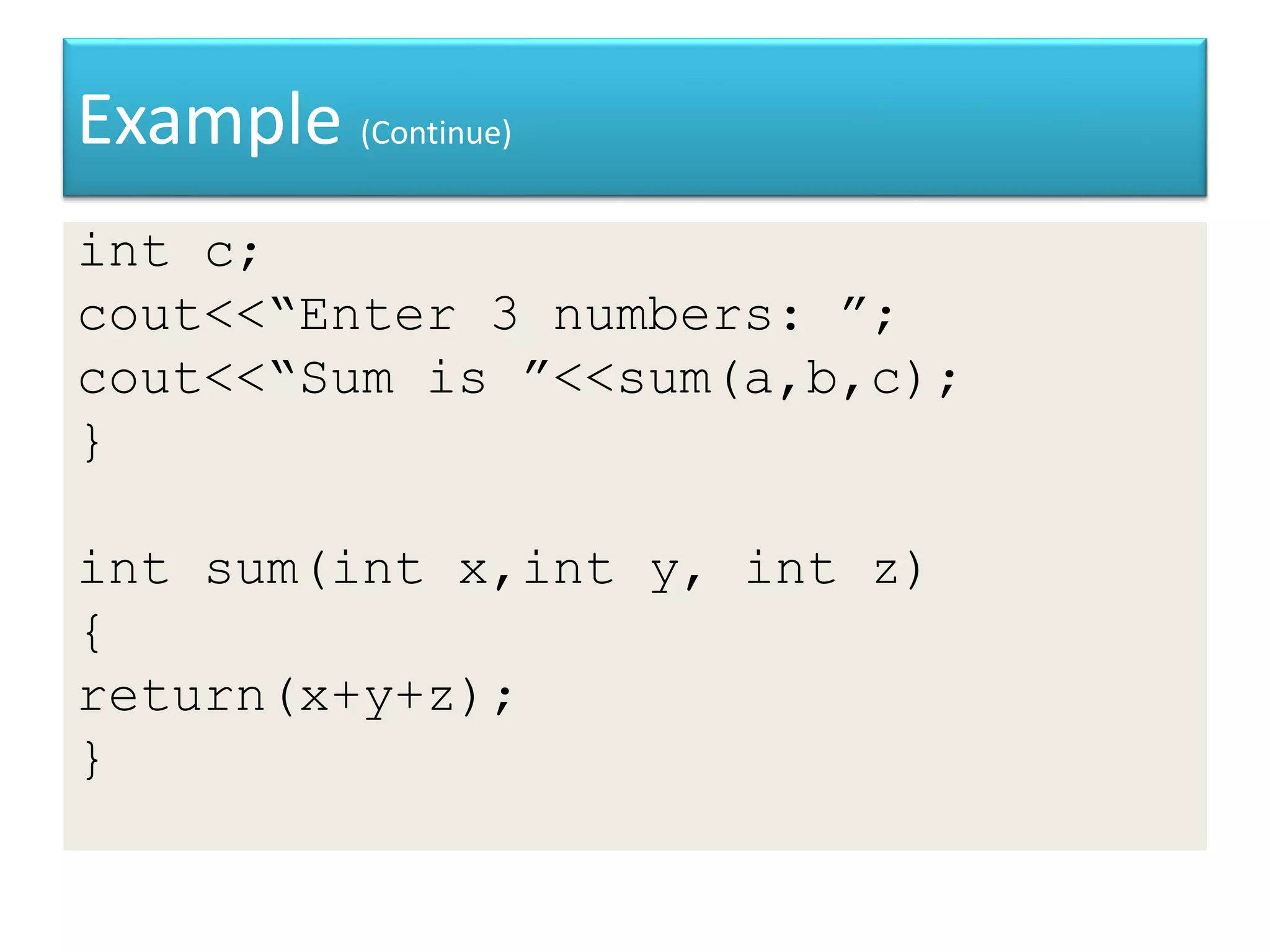

25. Example (Continue)
int c;
cout<<“Enter 3 numbers: ”;
cout<<“Sum is ”<<sum(a,b,c);
}
int sum(int x,int y, int z)
{
return(x+y+z);
}

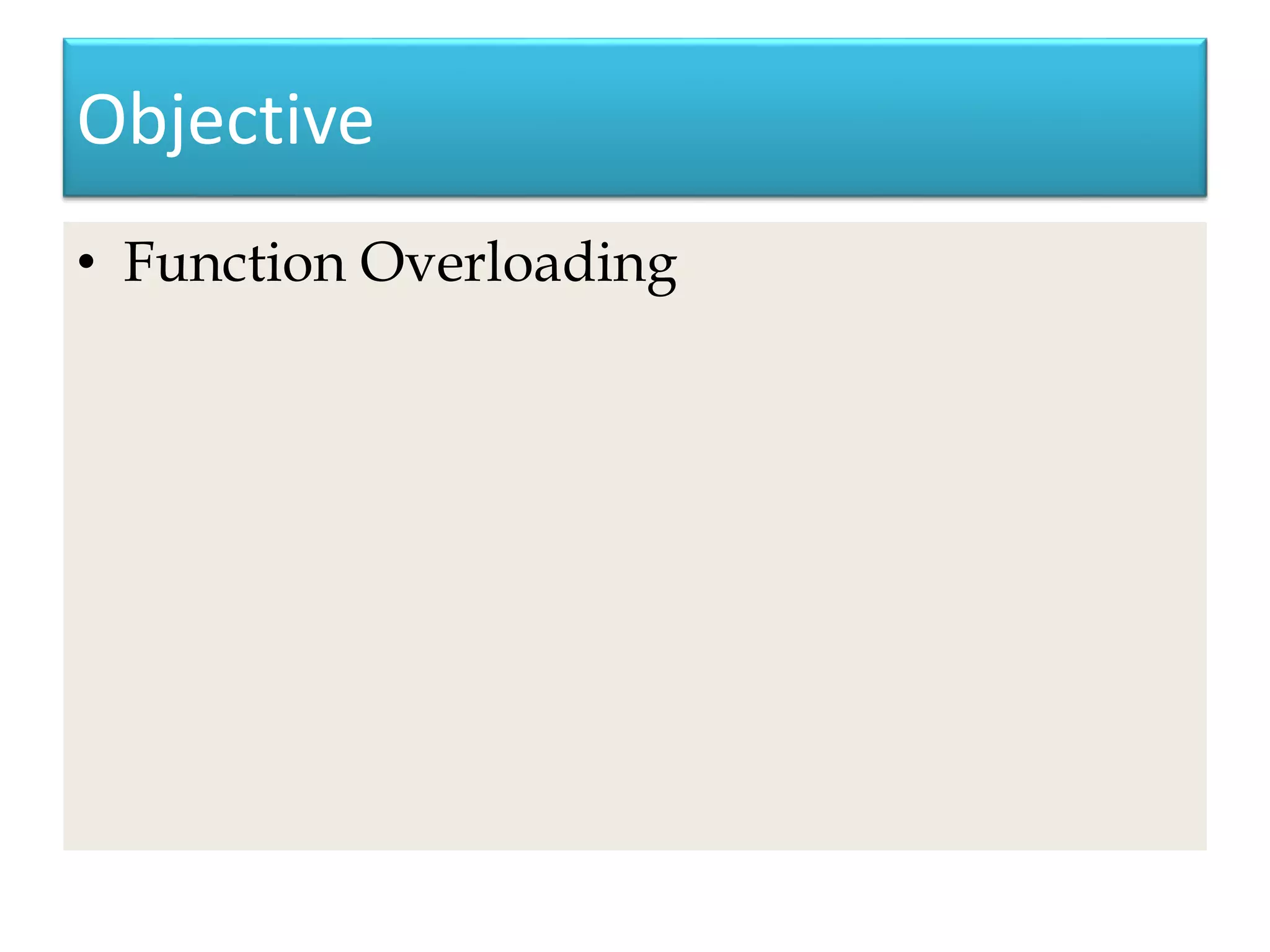

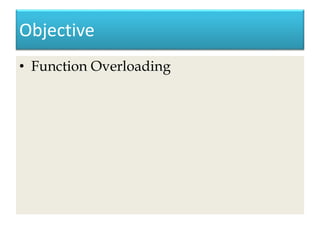

26. Objective
• Function Overloading

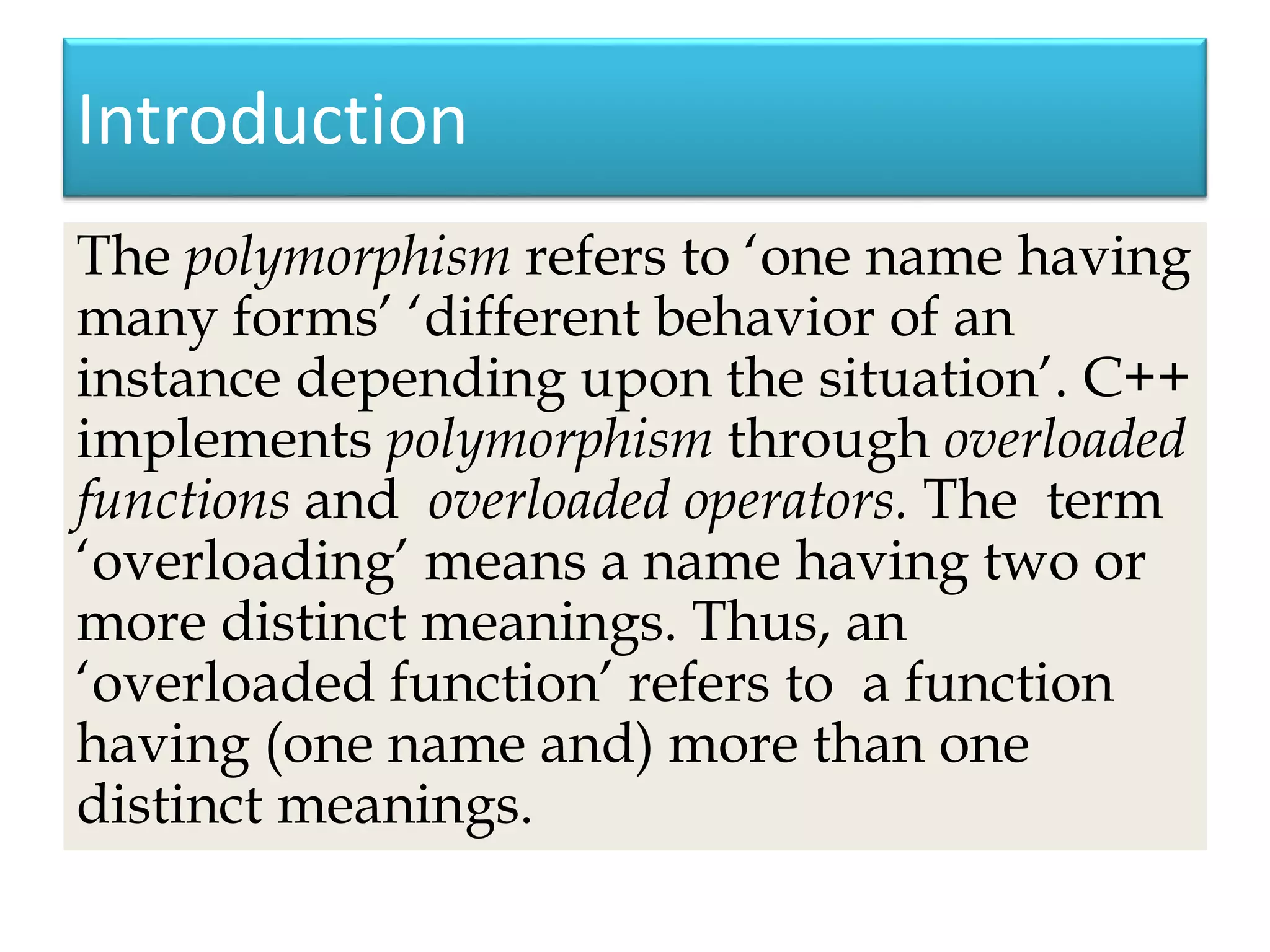

27. Introduction
The polymorphism refers to ‘one name having
many forms’ ‘different behavior of an
instance depending upon the situation’. C++
implements polymorphism through overloaded
functions and overloaded operators. The term
‘overloading’ means a name having two or
more distinct meanings. Thus, an
‘overloaded function’ refers to a function
having (one name and) more than one
distinct meanings.

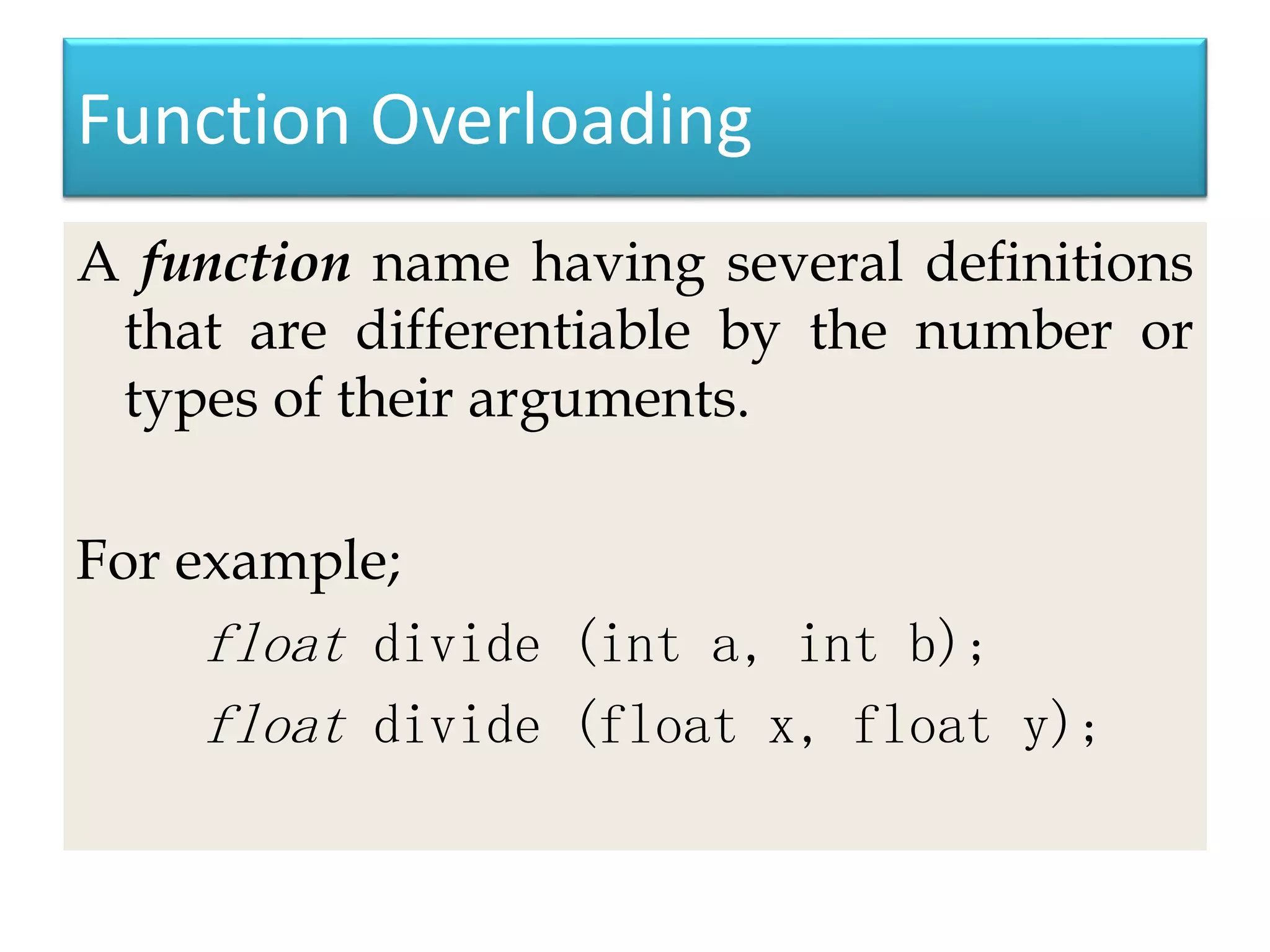

28. Function Overloading
A function name having several definitions
that are differentiable by the number or
types of their arguments.
For example;
float divide (int a, int b);
float divide (float x, float y);

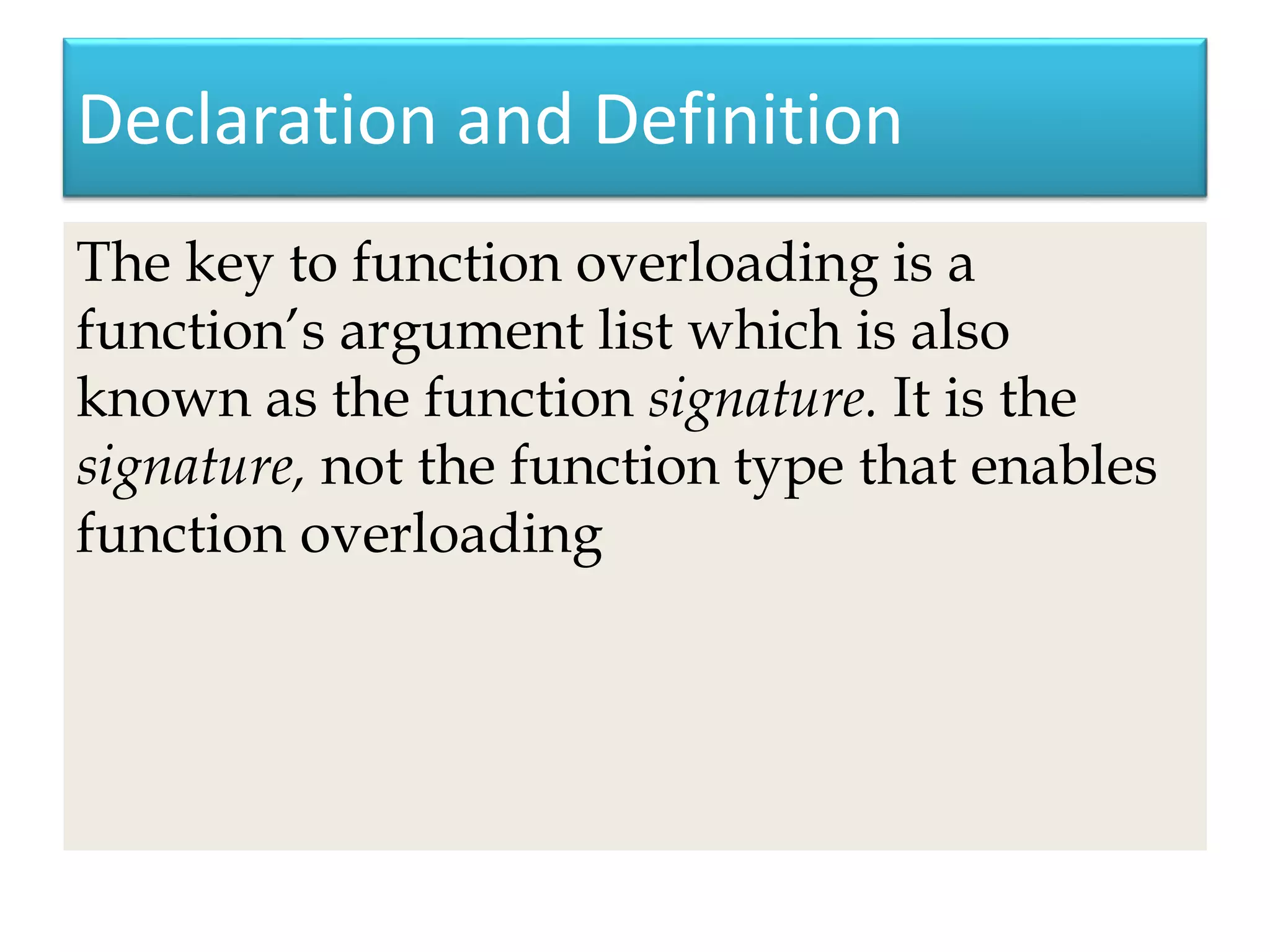

29. Declaration and Definition
The key to function overloading is a
function’s argument list which is also
known as the function signature. It is the
signature, not the function type that enables
function overloading

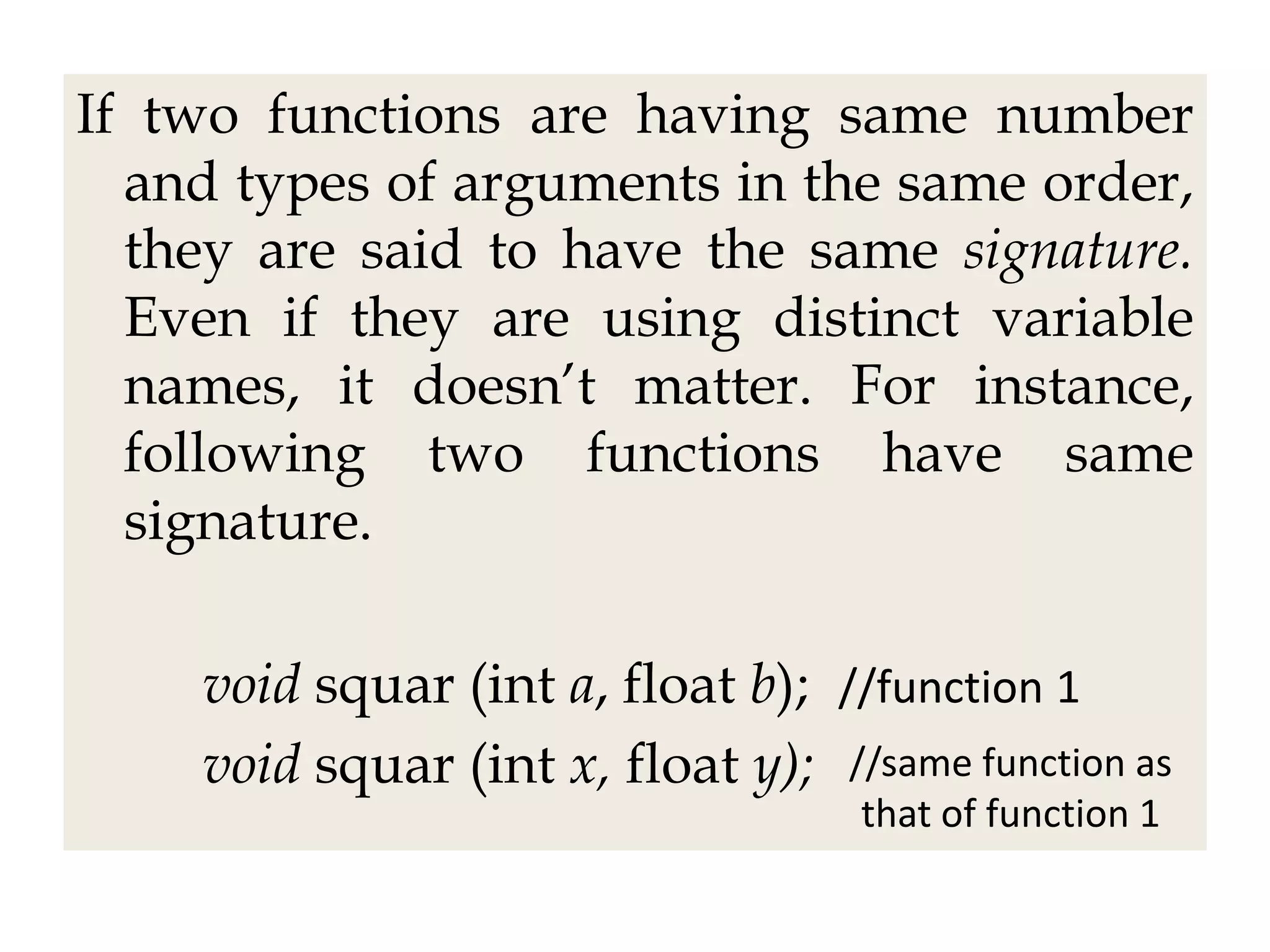

30. If two functions are having same number
and types of arguments in the same order,
they are said to have the same signature.
Even if they are using distinct variable
names, it doesn’t matter. For instance,
following two functions have same
signature.
void squar (int a, float b); //function 1
void squar (int x, float y); //same function as
that of function 1

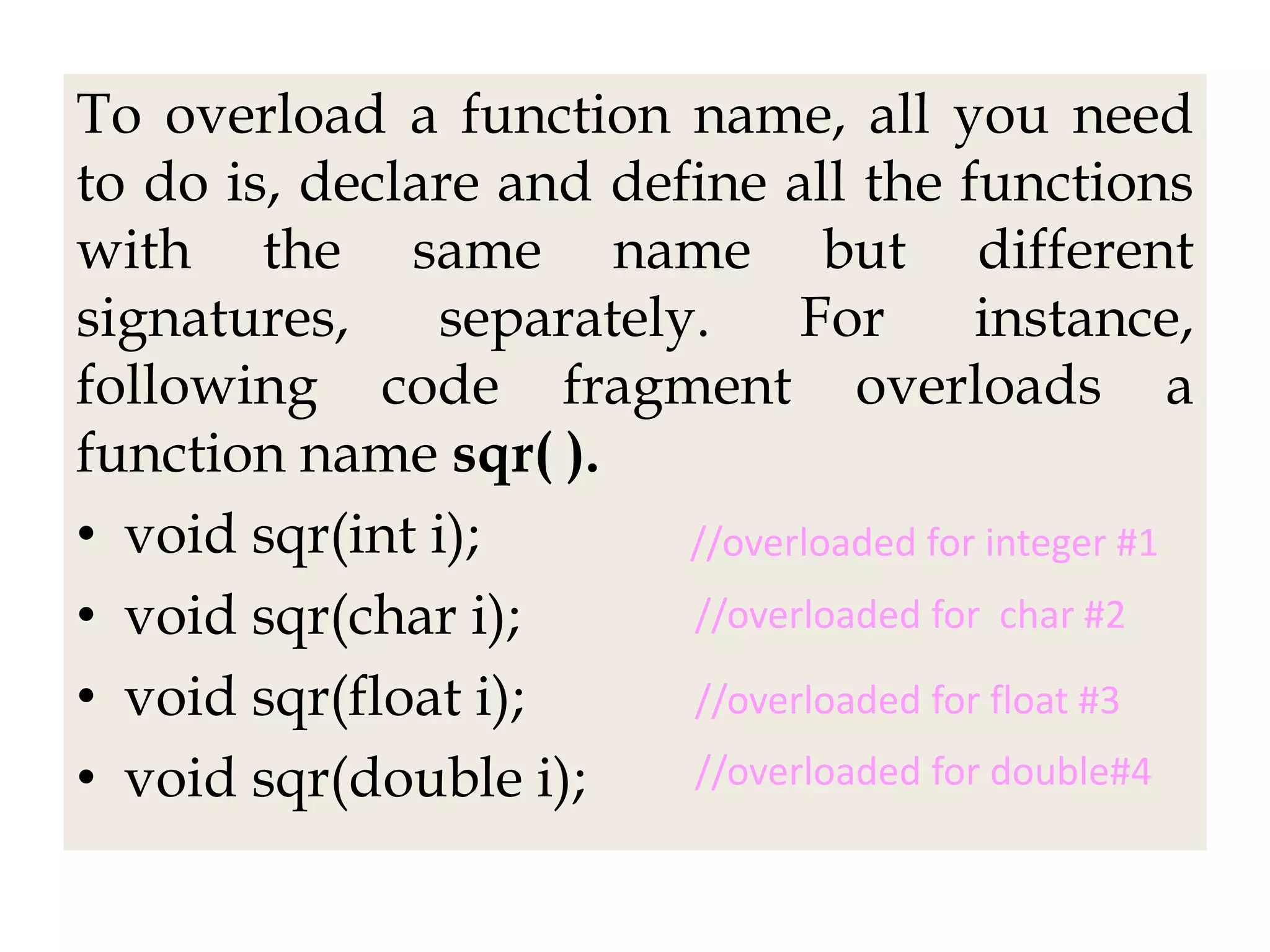

31. To overload a function name, all you need
to do is, declare and define all the functions
with the same name but different
signatures, separately. For instance,
following code fragment overloads a
function name sqr( ).
• void sqr(int i);
• void sqr(char i);
• void sqr(float i);
• void sqr(double i);
//overloaded for integer #1
//overloaded for char #2
//overloaded for float #3
//overloaded for double#4

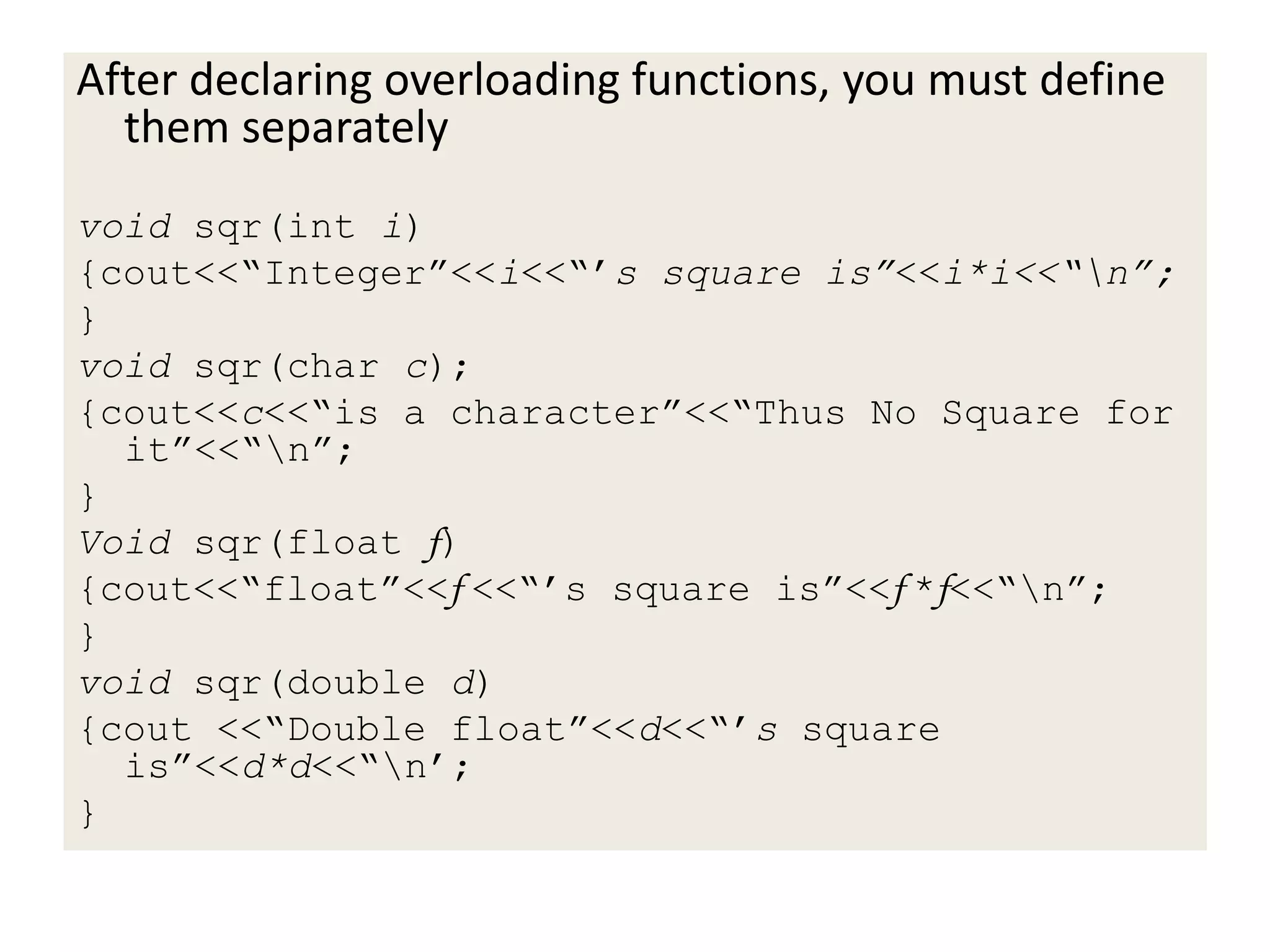

32. After declaring overloading functions, you must define
them separately
void sqr(int i)
{cout<<“Integer”<<i<<“’s square is”<<i*i<<“n”;
}
void sqr(char c);
{cout<<c<<“is a character”<<“Thus No Square for
it”<<“n”;
}
Void sqr(float f)
{cout<<“float”<<f <<“’s square is”<<f *f<<“n”;
}
void sqr(double d)
{cout <<“Double float”<<d<<“’s square
is”<<d*d<<“n’;
}

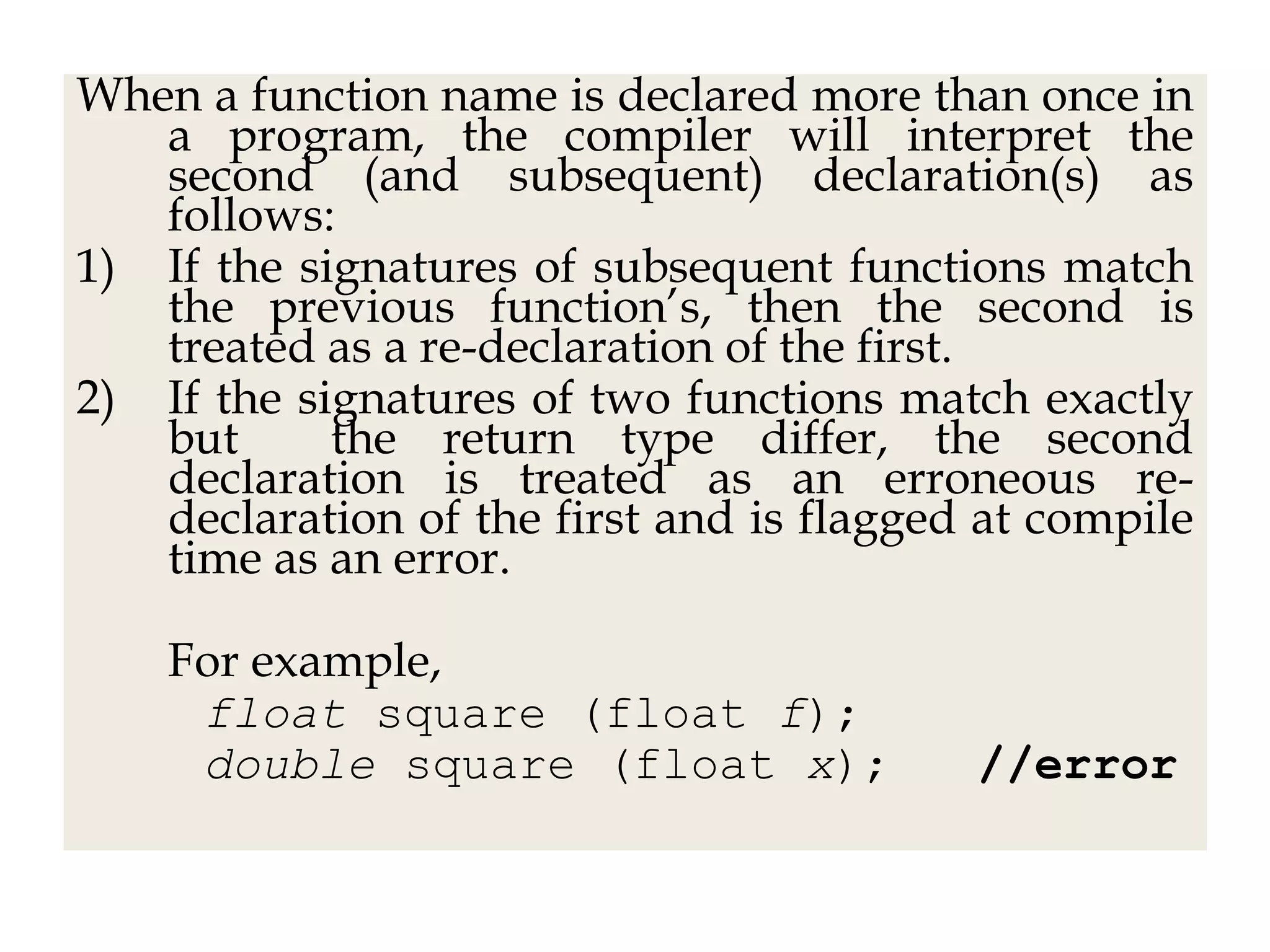

33. When a function name is declared more than once in
a program, the compiler will interpret the
second (and subsequent) declaration(s) as
follows:
1) If the signatures of subsequent functions match
the previous function’s, then the second is
treated as a re-declaration of the first.
2) If the signatures of two functions match exactly
but the return type differ, the second
declaration is treated as an erroneous re-
declaration of the first and is flagged at compile
time as an error.
For example,
float square (float f);
double square (float x); //error

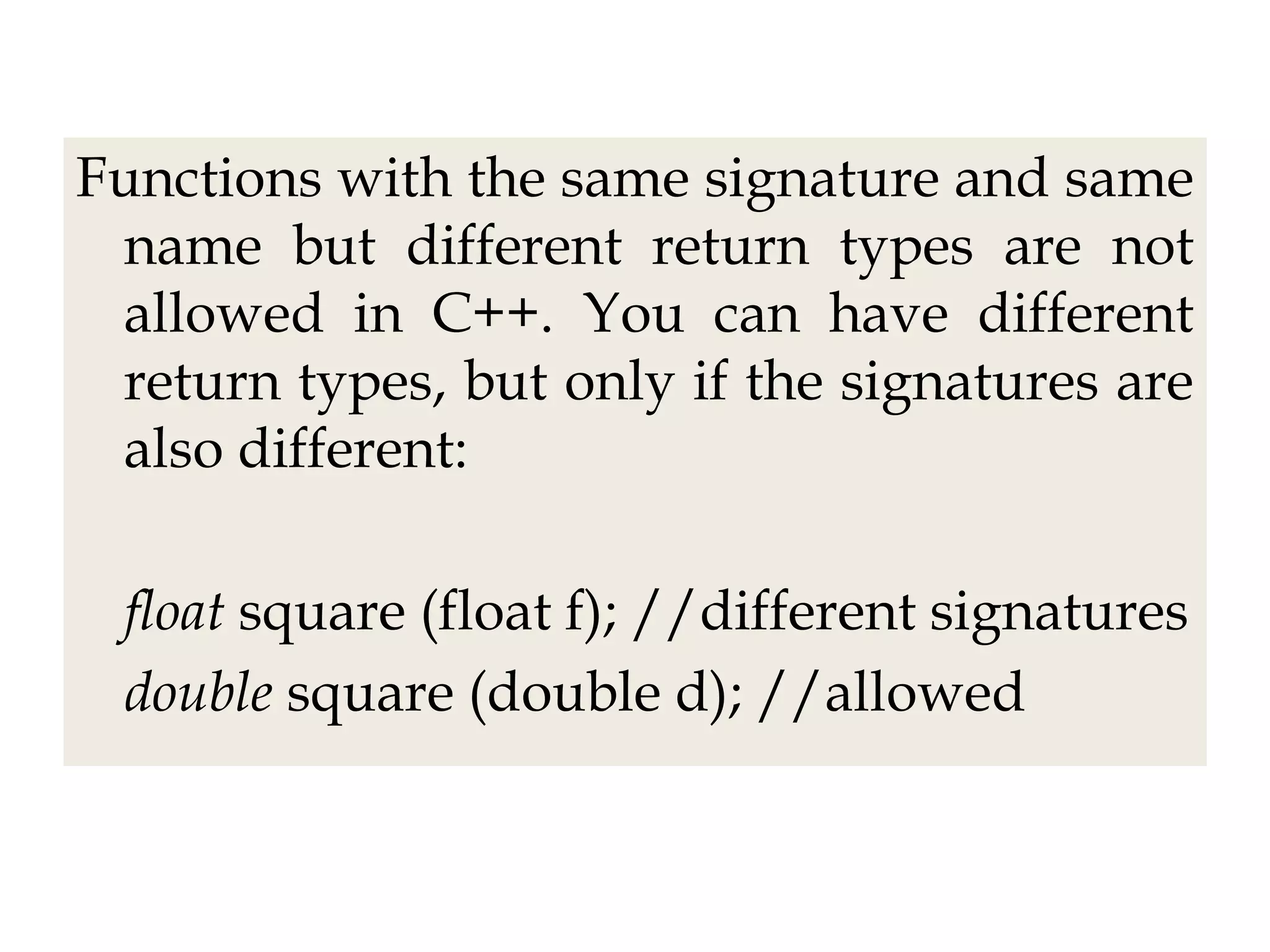

34. Functions with the same signature and same
name but different return types are not
allowed in C++. You can have different
return types, but only if the signatures are
also different:
float square (float f); //different signatures
double square (double d); //allowed

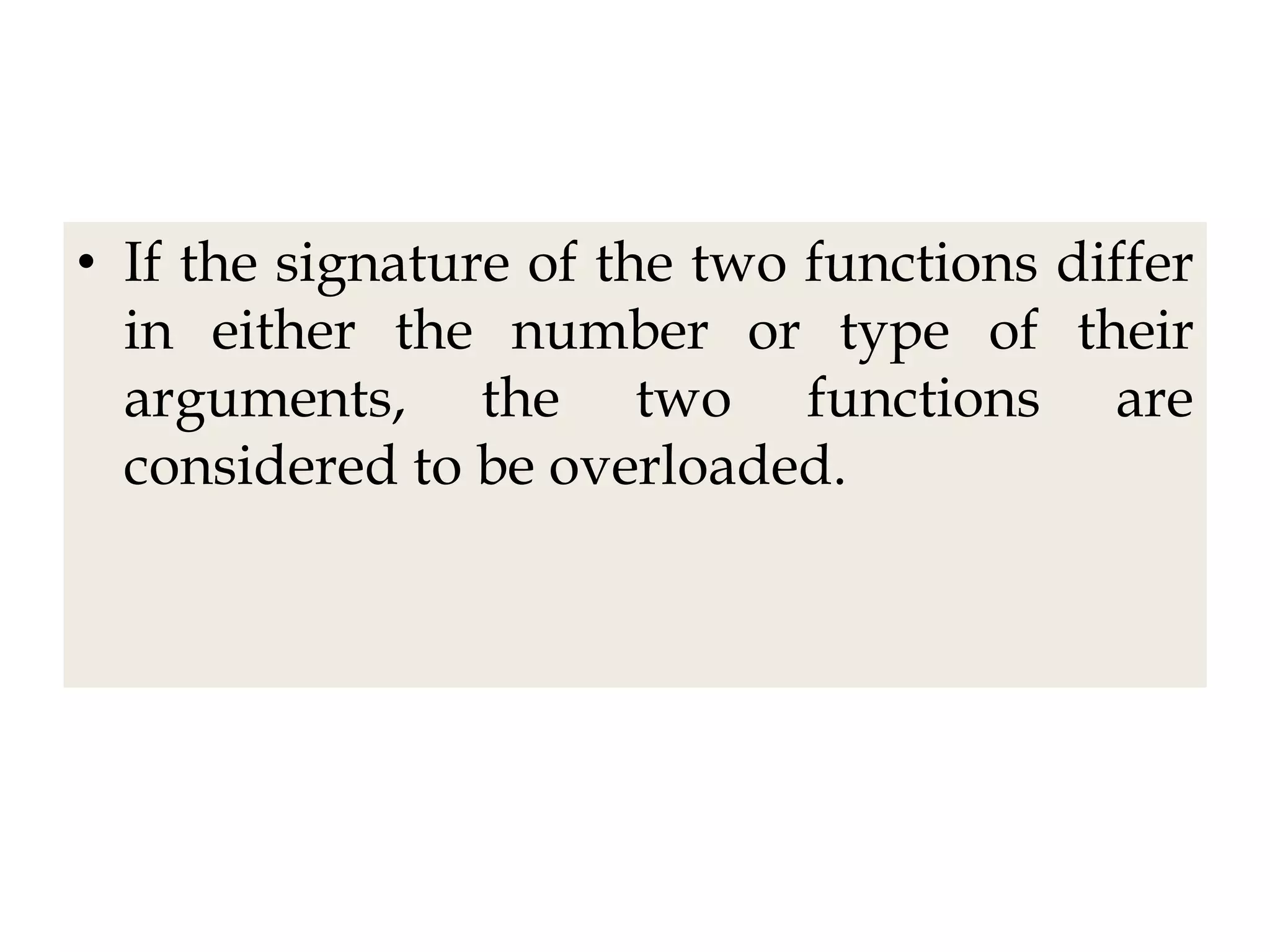

35. • If the signature of the two functions differ
in either the number or type of their
arguments, the two functions are
considered to be overloaded.

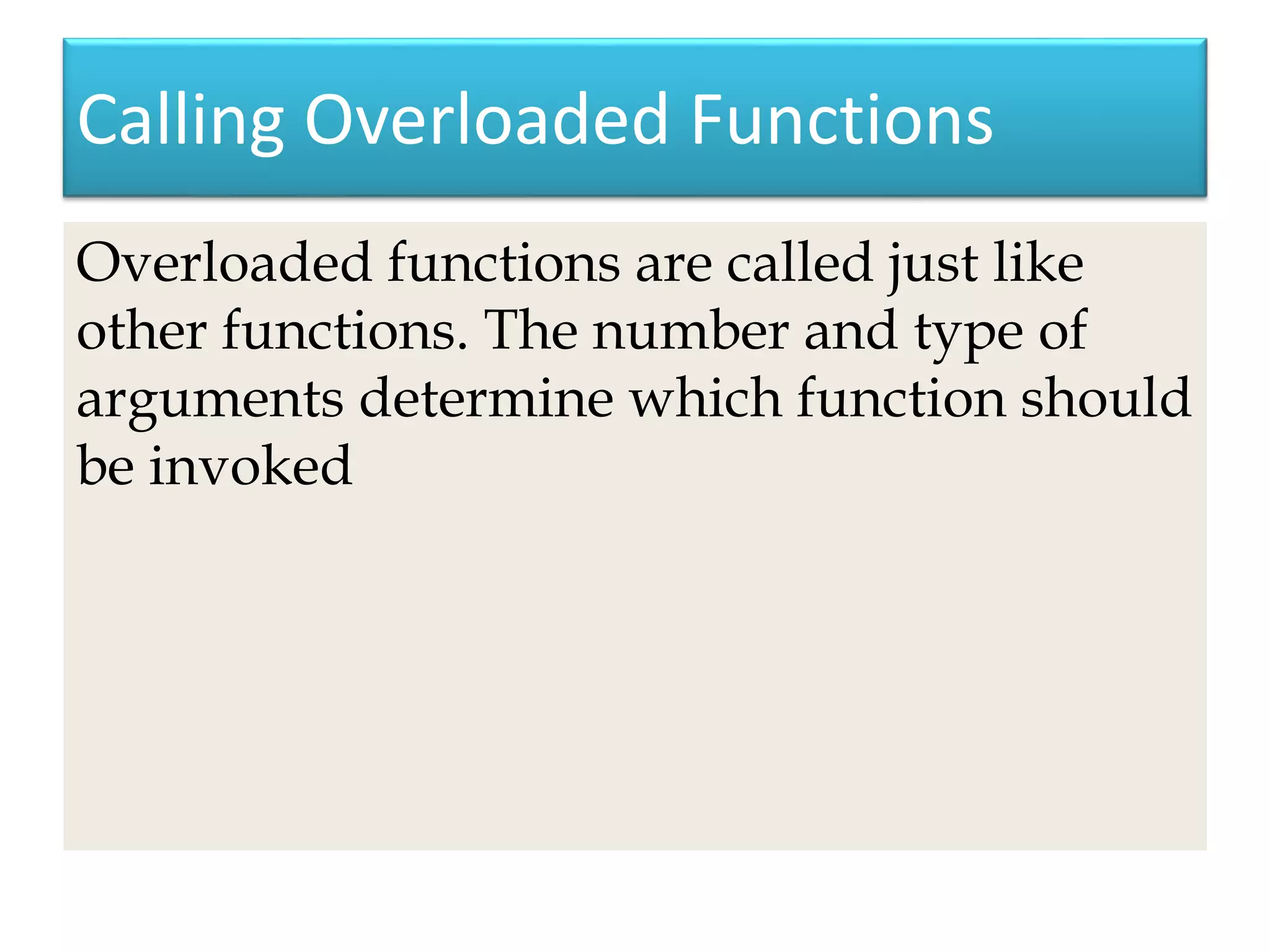

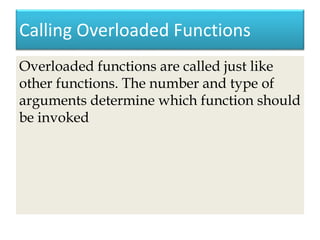

36. Calling Overloaded Functions
Overloaded functions are called just like
other functions. The number and type of
arguments determine which function should
be invoked

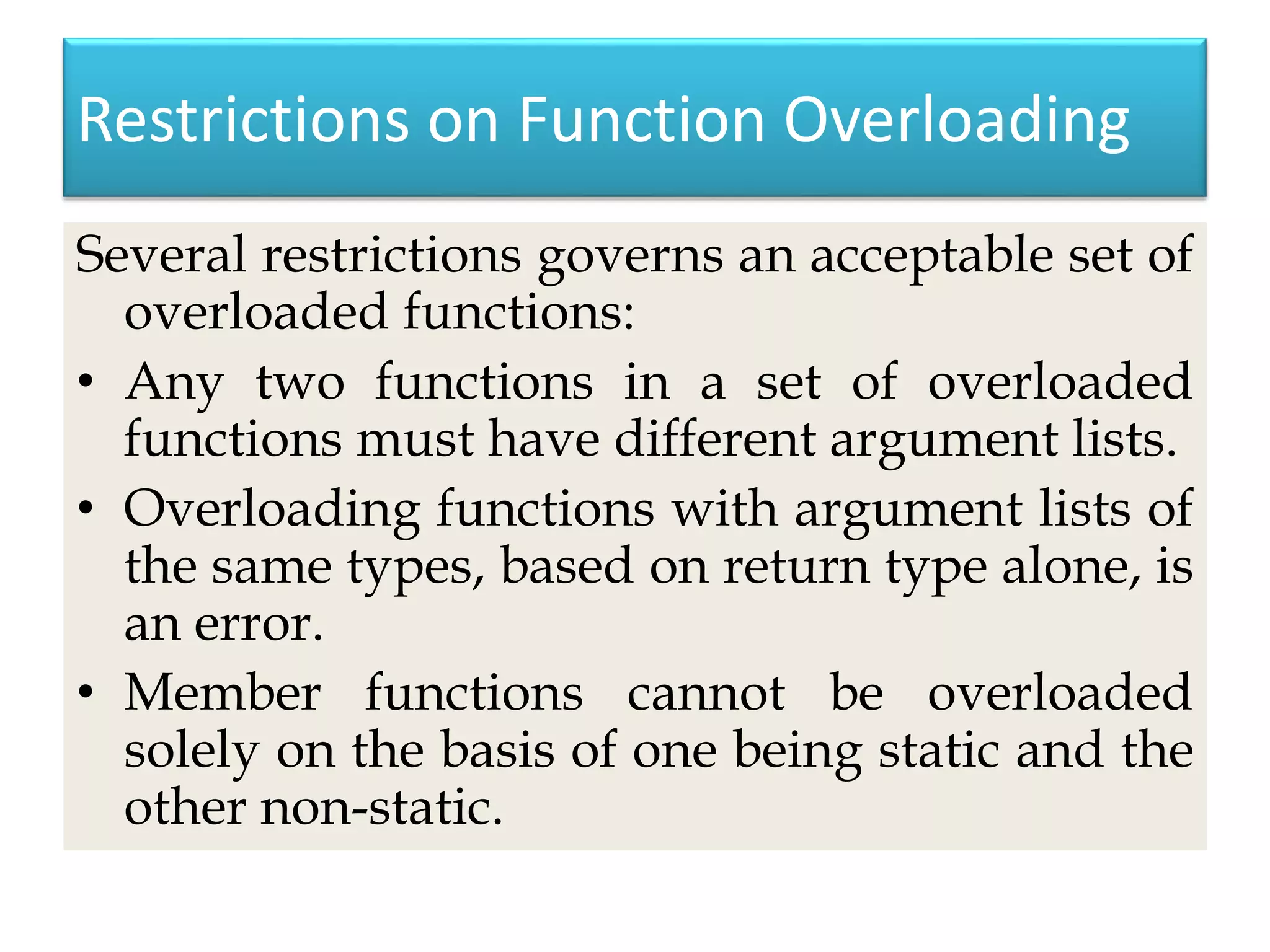

37. Restrictions on Function Overloading
Several restrictions governs an acceptable set of
overloaded functions:
• Any two functions in a set of overloaded
functions must have different argument lists.
• Overloading functions with argument lists of
the same types, based on return type alone, is
an error.
• Member functions cannot be overloaded
solely on the basis of one being static and the
other non-static.
