1. Fuel & its
Architecture
Mike Scherbakov
Fuel Lead

2. ● What is Fuel?
● How it works (high level)
● User Experience
● Components
● Additional functions
● What Fuel already deploys?
● Roadmap
● Where to get Fuel?
● Resources & Development processes
Agenda

3. Fuel targets a position to become a control plane of
your Data Center
● Hardware Discovery
● Switches configuration [to be implemented]
● Network Verification
● OS provisioning on bare metal
● Deployment of OpenStack and beyond
● Post-deployment checks of OpenStack
What is Fuel?

4. Manual steps to setup an environment:
● Hardware planning
● Network configuration
How it works now (high level)

5. Manual steps to setup an environment:
● Hardware planning
● Network configuration
● [Live demo] Installation of Fuel Master node
● [Automated] Hardware discovery process
How it works now (high level)

6. How it works: Hardware Discovery
Fuel Master (b) PXE
(a) Power on
(c) discovery
(d) agent REST API
call
node-1

7. User Experience: UI (Live Demo)

8. User Experience: CLI (Live Demo)
● Covers everything we can do via UI
● Allows even more

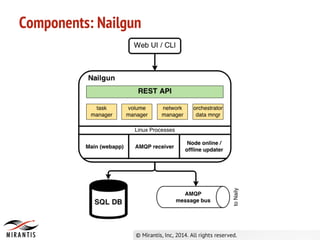

9. Components: Nailgun

10. ● Written on Python
● Exposes internal data via REST API
● Concentrates up to 90% of deployment logic
● Transforms user input (UI, CLI) into deployment
data (JSON)
● Keeps tasks status and all information in DB
● Uses SQLAlchemy, Alembic for DB access and
migrations
Components: Nailgun

11. Components: Naily & Astute

12. ● Naily consumes messages sent by Nailgun
● Naily & Astute are both written in Ruby
● Astute uses MCollective RPC
● Has bindings to provisioning
● Tracks progress of deployment, provisioning
● Supports operations (adding/removing nodes)
● Small in comparison with Nailgun
Components: Naily & Astute

13. Components: OSTF (Health Check)

14. Architecture: bigger picture

15. ● Health Check
● Network Checker
○ DHCP
○ VLANs
● Diagnostic Snapshot
● Logs collection & calculation of operations
progress
● [In development] Master node upgrade
capabilities
Additional Functions

16. ● Core OpenStack components in HA fashion
○ nova-network & Neutron
○ Ceilometer
● Savanna (Hadoop on top of OpenStack)
● Murano (Windows DCs on top of OpenStack)
● Ceph
What Fuel already deploys?

17. ● Fuel Master node upgrades
● Patching & Upgrade of OpenStack
● Replacement of Cobbler by Ironic
● …. suggest us more here: https://blueprints.
launchpad.net/fuel
In the Roadmap

18. ● Download ISO from Mirantis (need to register)
● Build your own ISO: docs.mirantis.com/fuel-dev
● All other info starts from wiki.opentstack.
org/wiki/fuel
… Issues? Talk to us at #fuel-dev & https:
//launchpad.net/~fuel-dev
Where to get

19. ● Code at github.com/stackforge/fuel-*
● OpenStack Gerrit for code reviews
● Launchpad for tracking bugs & blueprints
● #fuel-dev & fuel-dev@lists.launchpad.net
● Development docs at docs.mirantis.com/fuel-dev
● fuel-jenkins.mirantis.com - open CI
Development Processes

20. Q&A
Mike Scherbakov
mscherbakov@mirantis.com
