1. DATA VIRTUALIZATION PACKED LUNCH
WEBINAR SERIES
Sessions Covering Key Data Integration Challenges
Solved with Data Virtualization

2. From Single Purpose to Multi Purpose
Data Lakes - Broadening End Users
Michael Dickson
Sales Engineer, Denodo
Paul Moxon
VP Data Architectures & Chief Evangelist, Denodo

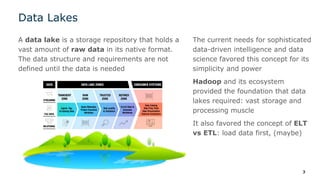

3. A data lake is a storage repository that holds a
vast amount of raw data in its native format.
The data structure and requirements are not
defined until the data is needed
The current needs for sophisticated
data-driven intelligence and data
science favored this concept for its
simplicity and power
Hadoop and its ecosystem
provided the foundation that data
lakes required: vast storage and
processing muscle
It also favored the concept of ELT
vs ETL: load data first, (maybe)
Data Lakes
3

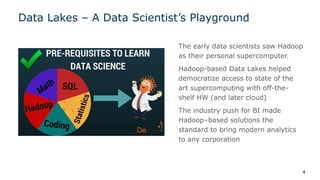

4. The early data scientists saw Hadoop
as their personal supercomputer.
Hadoop-based Data Lakes helped
democratize access to state of the
art supercomputing with off-the-
shelf HW (and later cloud)
The industry push for BI made
Hadoop–based solutions the
standard to bring modern analytics
to any corporation
Data Lakes – A Data Scientist’s Playground
4

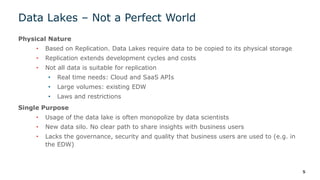

5. Data Lakes – Not a Perfect World
Physical Nature
• Based on Replication. Data Lakes require data to be copied to its physical storage
• Replication extends development cycles and costs
• Not all data is suitable for replication
• Real time needs: Cloud and SaaS APIs
• Large volumes: existing EDW
• Laws and restrictions
Single Purpose
• Usage of the data lake is often monopolize by data scientists
• New data silo. No clear path to share insights with business users
• Lacks the governance, security and quality that business users are used to (e.g. in
the EDW)
5

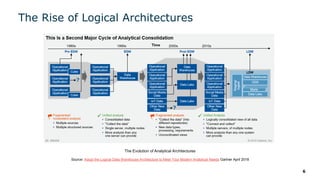

6. 6
The Rise of Logical Architectures
The Evolution of Analytical Architectures
Source: Adopt the Logical Data Warehouse Architecture to Meet Your Modern Analytical Needs Gartner April 2018

7. Rick Van der Lans, R20 Consultancy
Multi‐purpose data lakes are data delivery environments developed to
support a broad range of users, from traditional self‐service BI users (e.g.
finance, marketing, human resource, transport) to sophisticated data scientists.
Multi‐purpose data lakes allow a broader and deeper use of the data lake
investment without minimizing the potential value for data science and without
making it an inflexible environment.

8. The Multipurpose Data Lake with Data Virtualization
Logical Nature
• Replication is an option, not a necessity
• Broaden data access, shorten development times, better
insights
• Tight integration with big data systems. Fast execution with
large data volumes
Multi-purpose
• Curated access for non-technical users
• Better governance and access control
• Better ROI for the investment of the lake
8

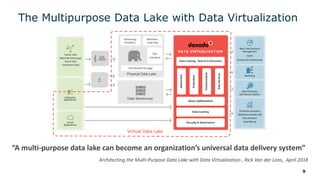

9. 9
The Multipurpose Data Lake with Data Virtualization
“A multi-purpose data lake can become an organization’s universal data delivery system”
Architecting the Multi-Purpose Data Lake with Data Virtualization , Rick Van der Lans, April 2018

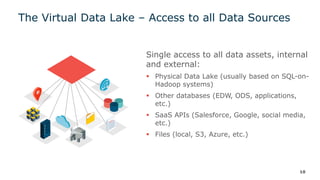

10. Single access to all data assets, internal
and external:
▪ Physical Data Lake (usually based on SQL-on-
Hadoop systems)
▪ Other databases (EDW, ODS, applications,
etc.)
▪ SaaS APIs (Salesforce, Google, social media,
etc.)
▪ Files (local, S3, Azure, etc.)
The Virtual Data Lake – Access to all Data Sources
10

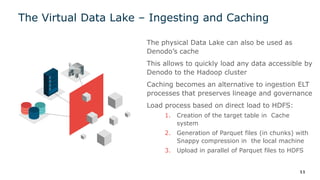

11. The physical Data Lake can also be used as
Denodo’s cache
This allows to quickly load any data accessible by
Denodo to the Hadoop cluster
Caching becomes an alternative to ingestion ELT
processes that preserves lineage and governance
Load process based on direct load to HDFS:
1. Creation of the target table in Cache
system
2. Generation of Parquet files (in chunks) with
Snappy compression in the local machine
3. Upload in parallel of Parquet files to HDFS
The Virtual Data Lake – Ingesting and Caching
11

12. Denodo optimizer provides native integration
with MPP systems to provide one extra key
capability: Query Acceleration
Denodo can move, on demand, processing to
the MPP during execution of a query
• Parallel power for calculations in the
virtual layer
• Avoids slow processing in-disk when
processing buffers don’t fit into
Denodo’s memory (swapped data)
The Virtual Data Lake – Using the Lake Processing Engine
12

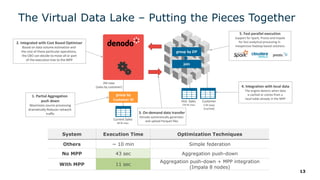

13. 13
The Virtual Data Lake – Putting the Pieces Together
2M rows
(sales by customer)
Current Sales
68 M rows
1. Partial Aggregation
push down
Maximizes source processing
dramatically Reduces network
traffic 3. On-demand data transfer
Denodo automatically generates
and upload Parquet files
4. Integration with local data
The engine detects when data
is cached or comes from a
local table already in the MPP
2. Integrated with Cost Based Optimizer
Based on data volume estimation and
the cost of these particular operations,
the CBO can decide to move all or part
of the execution tree to the MPP
5. Fast parallel execution
Support for Spark, Presto and Impala
for fast analytical processing in
inexpensive Hadoop-based solutions
Hist. Sales
220 M rows
Customer
2 M rows
(Cached)
join
group by ZIP
System Execution Time Optimization Techniques
Others ~ 10 min Simple federation
No MPP 43 sec Aggregation push-down
With MPP 11 sec
Aggregation push-down + MPP integration
(Impala 8 nodes)
group by
Customer ID

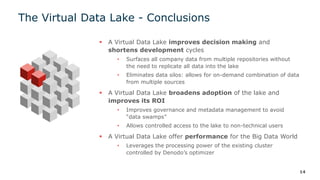

14. ▪ A Virtual Data Lake improves decision making and
shortens development cycles
• Surfaces all company data from multiple repositories without
the need to replicate all data into the lake
• Eliminates data silos: allows for on-demand combination of data
from multiple sources
▪ A Virtual Data Lake broadens adoption of the lake and
improves its ROI
• Improves governance and metadata management to avoid
“data swamps”
• Allows controlled access to the lake to non-technical users
▪ A Virtual Data Lake offer performance for the Big Data World
• Leverages the processing power of the existing cluster
controlled by Denodo’s optimizer
The Virtual Data Lake - Conclusions
14

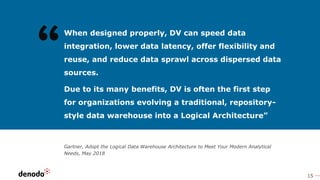

15. 15
Gartner, Adopt the Logical Data Warehouse Architecture to Meet Your Modern Analytical
Needs, May 2018
When designed properly, DV can speed data
integration, lower data latency, offer flexibility and
reuse, and reduce data sprawl across dispersed data
sources.
Due to its many benefits, DV is often the first step
for organizations evolving a traditional, repository-
style data warehouse into a Logical Architecture”

16. Product Demonstration
A Multipurpose Data Lake with Data
Virtualization
16
Sales Engineer, Denodo
Michael Dickson

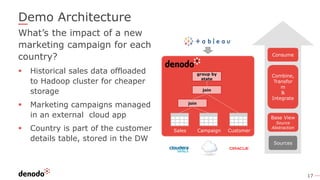

17. 17
Demo Architecture
What’s the impact of a new
marketing campaign for each
country?
▪ Historical sales data offloaded
to Hadoop cluster for cheaper
storage
▪ Marketing campaigns managed
in an external cloud app
▪ Country is part of the customer
details table, stored in the DW Sources
Combine,
Transfor
m
&
Integrate
Consume
Base View
Source
Abstraction
join
group by
state
join
Sales Campaign Customer

18. Demo
18

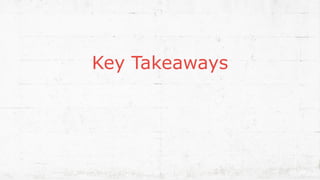

19. Key Takeaways
19

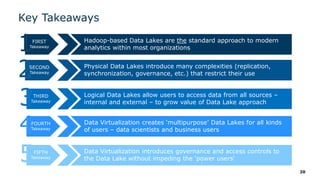

20. Key Takeaways
20
FIRST
Takeaway
Hadoop-based Data Lakes are the standard approach to modern
analytics within most organizations
SECOND
Takeaway
Physical Data Lakes introduce many complexities (replication,
synchronization, governance, etc.) that restrict their use
THIRD
Takeaway
Logical Data Lakes allow users to access data from all sources –
internal and external – to grow value of Data Lake approach
FOURTH
Takeaway
Data Virtualization creates ‘multipurpose’ Data Lakes for all kinds
of users – data scientists and business users
FIFTH
Takeaway
Data Virtualization introduces governance and access controls to
the Data Lake without impeding the ‘power users'

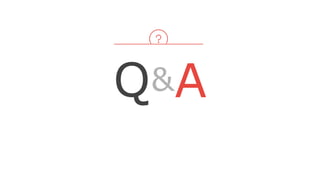

21. Q&A

22. Next steps
Download Denodo Express:
www.denodoexpress.com
Access Denodo Platform in the Cloud!
30 day FREE trial available!
Denodo for Azure:
www.denodo.com/TrialAzure/PackedLunch
Denodo for AWS: www.denodo.com/TrialAWS/PackedLunch

23. Next session
The Role of Data Virtualization in an
API Economy
Thursday, September 20, 2018 | 11:00 AM PT / 2:00 PM ET
Paul Moxon
VP Data Architectures & Chief Evangelist, Denodo

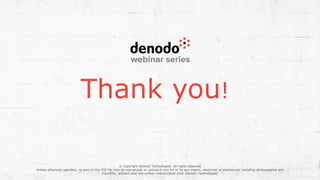

24. Thank you!
