This document summarizes a Forrester Consulting study on private clouds. The study found that while enterprises want the cost benefits of private clouds, many are not realizing these benefits due to a lack of understanding of true cloud models and an underestimation of critical components like storage. Specifically, the study found that decision-makers were confused about private clouds versus virtualization; storage was being treated as "business as usual" without considering cloud implications; and storage was not a key consideration in decision-making processes. The document provides best practices for private cloud storage architectures to maximize efficiencies.

1. A Forrester Consulting Thought Leadership Paper Commissioned By NetApp
Private Clouds: Storage Architectures Are Key To
Maximizing Efficiencies
February 2011

2. Forrester Consulting
Private Clouds: Storage Architectures Are Key To Maximizing Efficiencies

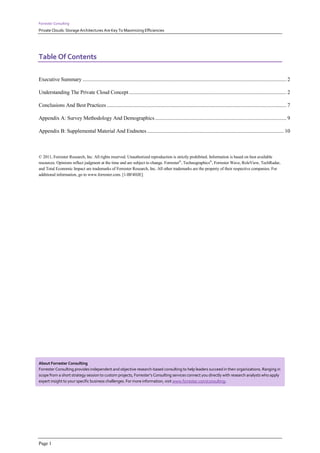

Table Of Contents
Executive Summary .............................................................................................................................................................. 2
Understanding The Private Cloud Concept .......................................................................................................................... 2
Conclusions And Best Practices ........................................................................................................................................... 7
Appendix A: Survey Methodology And Demographics ...................................................................................................... 9
Appendix B: Supplemental Material And Endnotes .......................................................................................................... 10
© 2011, Forrester Research, Inc. All rights reserved. Unauthorized reproduction is strictly prohibited. Information is based on best available
resources. Opinions reflect judgment at the time and are subject to change. Forrester®, Technographics®, Forrester Wave, RoleView, TechRadar,
and Total Economic Impact are trademarks of Forrester Research, Inc. All other trademarks are the property of their respective companies. For
additional information, go to www.forrester.com. [1-BF4HJE]
About Forrester Consulting
Forrester Consulting provides independent and objective research-based consulting to help leaders succeed in their organizations. Ranging in
scope from a short strategy session to custom projects, Forrester’s Consulting services connect you directly with research analysts who apply
expert insight to your specific business challenges. For more information, visit www.forrester.com/consulting.
Page 1

3. Forrester Consulting
Private Clouds: Storage Architectures Are Key To Maximizing Efficiencies
Executive Summary
Today, enterprises across the world are crafting cloud strategies and starting to invest in private clouds to take
advantage of the economic benefits that cloud models offer. In fact, Forrester found that 29% of enterprises
consider building a private cloud a high or critical priority.1 The more interesting finding, however, is that although
enterprises greatly desire the economic benefits from a cloud model, those who have implemented a private cloud
are not taking full advantage of those benefits. Why? Well, we discovered that it’s primarily due to two reasons: 1)
lack of understanding about what a true cloud model consists of, and 2) underestimation of the critical components
that make up a true private cloud (i.e., storage).
In fall 2010, NetApp commissioned Forrester Consulting to scientifically qualify the notion that companies lack
clear understanding about clouds and hence underestimate the key components that are required to achieve
maximum benefit from a cloud strategy. This paper reflects the results from a study of 150 US enterprise IT
decision-makers who were surveyed about their private cloud interests and implementations. You will find that our
study yielded three key findings:
 Decision-makers are, in fact, confused about private clouds and traditional virtualized environments.
Private clouds are shared, highly standardized, and automated environments with self-service access to these
resources. Of the 150 IT decision-makers surveyed, 27% said they were running a private cloud; however,
the majority did not recognize these key characteristics and described their clouds like their traditional
virtualization environments. For example, 54% anticipated providing the same tiers of service for different
applications deployed within the cloud and the full breadth of storage options with little standardization or
automation. In fact, only 17% of cloud users thought a private cloud would affect their traditional
architecture deployments or environment options at all, showing a clear disconnect.
 Storage is treated as “business as usual.” Most survey respondents (73%) expected their cloud to save
them money, but only 37% expected their cloud storage to be more efficient. Why the disconnect? The
respondents showed little understanding of how the storage in their private cloud would (or should) differ
from traditional storage implementations. We know this because only 20% of cloud users said they offer
standardized cloud storage options. We also found that 66% of cloud users planned to build their private
clouds atop their existing storage assets, and for 50% of respondents, this means their existing, high-cost
SAN infrastructures. Taking a “business as usual” approach to storage will limit your benefits from a cloud
model and cost you more money in the long run.
 Storage is not a key consideration in the decision-making process. It’s not surprising most cloud
administrators (73%) have server/virtual server experience, whereas only 29% have core experience in
storage administration. But what’s alarming is that storage administrators aren’t included in the upfront cloud
architecture and design decisions. When it came to the decision-making, only 14% of respondents included
storage administrators in private cloud platform selection, and only 21% included them in storage equipment
and storage management software selections. Neglecting to involve storage administrators in key decision-
making processes is a red flag for cloud inefficiency.
Understanding The Private Cloud Concept
Building a private cloud has to start with a basic understanding of how a cloud differs from a traditional virtualized
environment. Forrester defines cloud computing as:
Page 2

4. Forrester Consulting
Private Clouds: Storage Architectures Are Key To Maximizing Efficiencies

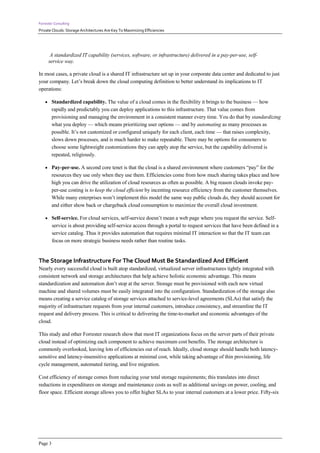

A standardized IT capability (services, software, or infrastructure) delivered in a pay-per-use, self-
service way.
In most cases, a private cloud is a shared IT infrastructure set up in your corporate data center and dedicated to just
your company. Let’s break down the cloud computing definition to better understand its implications to IT
operations:
 Standardized capability. The value of a cloud comes in the flexibility it brings to the business — how
rapidly and predictably you can deploy applications to this infrastructure. That value comes from
provisioning and managing the environment in a consistent manner every time. You do that by standardizing
what you deploy — which means prioritizing user options — and by automating as many processes as
possible. It’s not customized or configured uniquely for each client, each time — that raises complexity,
slows down processes, and is much harder to make repeatable. There may be options for consumers to
choose some lightweight customizations they can apply atop the service, but the capability delivered is
repeated, religiously.
 Pay-per-use. A second core tenet is that the cloud is a shared environment where customers “pay” for the
resources they use only when they use them. Efficiencies come from how much sharing takes place and how
high you can drive the utilization of cloud resources as often as possible. A big reason clouds invoke pay-
per-use costing is to keep the cloud efficient by incenting resource efficiency from the customer themselves.
While many enterprises won’t implement this model the same way public clouds do, they should account for
and either show back or chargeback cloud consumption to maximize the overall cloud investment.
 Self-service. For cloud services, self-service doesn’t mean a web page where you request the service. Self-
service is about providing self-service access through a portal to request services that have been defined in a
service catalog. Thus it provides automation that requires minimal IT interaction so that the IT team can
focus on more strategic business needs rather than routine tasks.
The Storage Infrastructure For The Cloud Must Be Standardized And Efficient
Nearly every successful cloud is built atop standardized, virtualized server infrastructures tightly integrated with
consistent network and storage architectures that help achieve holistic economic advantage. This means
standardization and automation don’t stop at the server. Storage must be provisioned with each new virtual
machine and shared volumes must be easily integrated into the configuration. Standardization of the storage also
means creating a service catalog of storage services attached to service-level agreements (SLAs) that satisfy the
majority of infrastructure requests from your internal customers, introduce consistency, and streamline the IT
request and delivery process. This is critical to delivering the time-to-market and economic advantages of the
cloud.
This study and other Forrester research show that most IT organizations focus on the server parts of their private
cloud instead of optimizing each component to achieve maximum cost benefits. The storage architecture is
commonly overlooked, leaving lots of efficiencies out of reach. Ideally, cloud storage should handle both latency-
sensitive and latency-insensitive applications at minimal cost, while taking advantage of thin provisioning, life
cycle management, automated tiering, and live migration.
Cost efficiency of storage comes from reducing your total storage requirements; this translates into direct
reductions in expenditures on storage and maintenance costs as well as additional savings on power, cooling, and
floor space. Efficient storage allows you to offer higher SLAs to your internal customers at a lower price. Fifty-six
Page 3

5. Forrester Consulting
Private Clouds: Storage Architectures Are Key To Maximizing Efficiencies
percent of cloud users surveyed were planning to stick to the status quo with their storage options — expecting to
have several tiers of service levels for different applications deployed in the cloud. Only 20% were choosing the
cloud best practice of offering single-block and file-shared storage options with a single SLA.

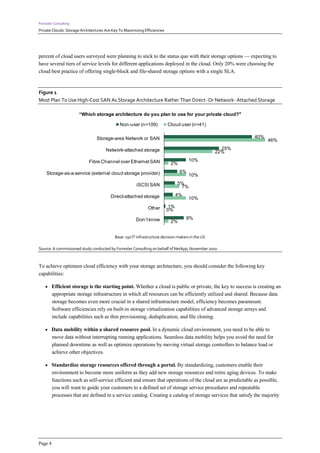

Figure 1
Most Plan To Use High-Cost SAN As Storage Architecture Rather Than Direct- Or Network- Attached Storage
“Which storage architecture do you plan to use for your private cloud?"
Non-user (n=109) Cloud user (n=41)
Storage-area Network or SAN 40%
46%
Network-attached storage 25%
22%
Fibre Channel over Ethernet SAN 10%
2%
Storage-as-a-service (external cloud storage provider) 6%
10%
iSCSI SAN 5%
7%
Direct-attached storage 4%
10%
Other 1%
0%
Don’t know 9%
2%
Base: 150 IT infrastructure decision-makers in the US
Source: A commissioned study conducted by Forrester Consulting on behalf of NetApp, November 2010
To achieve optimum cloud efficiency with your storage architecture, you should consider the following key
capabilities:
 Efficient storage is the starting point. Whether a cloud is public or private, the key to success is creating an
appropriate storage infrastructure in which all resources can be efficiently utilized and shared. Because data
storage becomes even more crucial in a shared infrastructure model, efficiency becomes paramount.
Software efficiencies rely on built-in storage virtualization capabilities of advanced storage arrays and
include capabilities such as thin provisioning, deduplication, and file cloning.
 Data mobility within a shared resource pool. In a dynamic cloud environment, you need to be able to
move data without interrupting running applications. Seamless data mobility helps you avoid the need for
planned downtime as well as optimize operations by moving virtual storage controllers to balance load or
achieve other objectives.
 Standardize storage resources offered through a portal. By standardizing, customers enable their
environment to become more uniform as they add new storage resources and retire aging devices. To make
functions such as self-service efficient and ensure that operations of the cloud are as predictable as possible,
you will want to guide your customers to a defined set of storage service procedures and repeatable
processes that are defined in a service catalog. Creating a catalog of storage services that satisfy the majority
Page 4

6. Forrester Consulting
Private Clouds: Storage Architectures Are Key To Maximizing Efficiencies
of infrastructure requests from your internal customers will provide consistency and streamline the IT
request and delivery process.
 Rationalize the prioritization of data in order to ensure efficiency. When data is widely dispersed across
a cloud-based infrastructure, it becomes more difficult to efficiently identify and retrieve “hot” data. Your
customers always think all their data is the most important data in the company. But we know that there are
classes of priority and that the value of data declines with time. Rather than explicitly exposing this to the
customer as options that impede efficiency, solve for this on the back end using automated tiering, tierless
solutions, intelligent caching, or other solutions that automate this process based on use patterns and
relevancy. The method used depends on the type of workload. In some cases, reducing the number of tiers
creates better efficiencies. Whichever method you choose, it’s more efficient than doing it manually. In most
cases, the manual default leads to everything being placed in the highest-performing level of capacity, which
is never the cost-efficient choice.
 Secure multitenancy is important to consider for shared storage architecture. Only 14% of survey
respondents felt multitenant security was of critical importance to their private cloud efforts. While private
clouds have fewer security concerns than public clouds, enterprises will need to securely separate business
units and applications from one another and from sub-administrators. For example, you’ll want to ensure
financial applications can safely share your cloud without being accessible to non-financial employees. On
the storage front, this requires a solution that can create multiple, separate virtual storage controllers on a
single system.
Importance Of Storage For Cloud Economics
Cloud economics relies upon running a large pool of resources as efficiently as possible. These benefits quickly
decrease as standardization gives way to increasing customization, configuration, and options. Just as consolidating
and virtualizing the server environment is key for running an efficient architecture, the same is true for storage.
Cost efficiency of storage comes from satisfying the majority of infrastructure requests as broadly and consistently
as possible. Ignoring the cloud implications on storage or simply assuming it is the same as traditional storage
keeps efficiencies at bay. Your cloud storage architecture should deliver:
 Increased storage utilization. For years IT departments purchased new machines to support new
applications and storage needs despite additional unused space in existing infrastructure. Consolidation,
virtualization, and thin provisioning have begun the process of eliminating this unused space. Your private
cloud environment relies on these concepts of higher utilization to achieve maximum cost reductions.
 Reduction in provisioning time. Provisioning storage volumes is a highly repeatable task, and if it requires
time from infrastructure and operations professionals, that represents cost to your cloud, time to deploy, and
time away from higher-value actions that require the brainpower of these administrators. Standardization and
automation are key to cloud economics, and the optimum storage architecture is one that integrates
seamlessly with your cloud automation platform of choice. Storage is a key component of this architecture
and should not be an afterthought, as you may end up having to retrofit your storage to your cloud to achieve
predictable, efficient integration.
 Consistent storage management automation. You want to provide different storage services to your cloud
customers, but they shouldn’t come at the cost of consistent management or the ability to easily automate
these functions. This requires a storage system that unifies the key storage functions for both assignment and
protection of data. A single storage automation system that can assign volumes across different storage
Page 5

7. Forrester Consulting

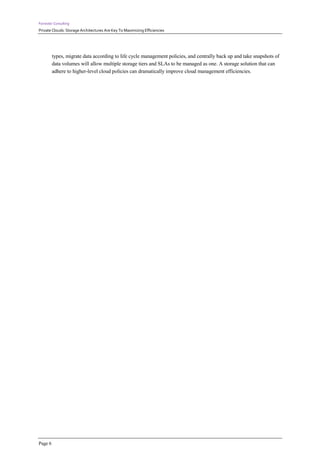

Private Clouds: Storage Architectures Are Key To Maximizing Efficiencies
types, migrate data according to life cycle management policies, and centrally back up and take snapshots of
data volumes will allow multiple storage tiers and SLAs to be managed as one. A storage solution that can
adhere to higher-level cloud policies can dramatically improve cloud management efficiencies.
Page 6

8. Forrester Consulting
Private Clouds: Storage Architectures Are Key To Maximizing Efficiencies

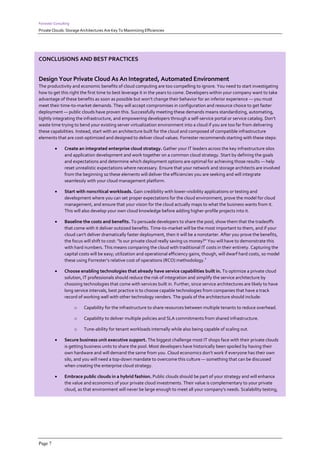

CONCLUSIONS AND BEST PRACTICES
Design Your Private Cloud As An Integrated, Automated Environment
The productivity and economic benefits of cloud computing are too compelling to ignore. You need to start investigating
how to get this right the first time to best leverage it in the years to come. Developers within your company want to take
advantage of these benefits as soon as possible but won’t change their behavior for an inferior experience — you must
meet their time-to-market demands. They will accept compromises in configuration and resource choice to get faster
deployment — public clouds have proven this. Successfully meeting these demands means standardizing, automating,
tightly integrating the infrastructure, and empowering developers through a self-service portal or service catalog. Don’t
waste time trying to bend your existing server virtualization environment into a cloud if you are too far from delivering
these capabilities. Instead, start with an architecture built for the cloud and composed of compatible infrastructure
elements that are cost-optimized and designed to deliver cloud values. Forrester recommends starting with these steps:
 Create an integrated enterprise cloud strategy. Gather your IT leaders across the key infrastructure silos
and application development and work together on a common cloud strategy. Start by defining the goals
and expectations and determine which deployment options are optimal for achieving those results — help
reset unrealistic expectations where necessary. Ensure that your network and storage architects are involved
from the beginning so these elements will deliver the efficiencies you are seeking and will integrate
seamlessly with your cloud management platform.
 Start with noncritical workloads. Gain credibility with lower-visibility applications or testing and
development where you can set proper expectations for the cloud environment, prove the model for cloud
management, and ensure that your vision for the cloud actually maps to what the business wants from it.
This will also develop your own cloud knowledge before adding higher-profile projects into it.
 Baseline the costs and benefits. To persuade developers to share the pool, show them that the tradeoffs
that come with it deliver outsized benefits. Time-to-market will be the most important to them, and if your
cloud can't deliver dramatically faster deployment, then it will be a nonstarter. After you prove the benefits,
the focus will shift to cost: "Is our private cloud really saving us money?" You will have to demonstrate this
with hard numbers. This means comparing the cloud with traditional IT costs in their entirety. Capturing the
capital costs will be easy; utilization and operational efficiency gains, though, will dwarf hard costs, so model
2
these using Forrester’s relative cost of operations (RCO) methodology.
 Choose enabling technologies that already have service capabilities built in. To optimize a private cloud
solution, IT professionals should reduce the risk of integration and simplify the service architecture by
choosing technologies that come with services built in. Further, since service architectures are likely to have
long service intervals, best practice is to choose capable technologies from companies that have a track
record of working well with other technology venders. The goals of the architecture should include:
o Capability for the infrastructure to share resources between multiple tenants to reduce overhead.
o Capability to deliver multiple policies and SLA commitments from shared infrastructure.
o Tune-ability for tenant workloads internally while also being capable of scaling out.
 Secure business unit executive support. The biggest challenge most IT shops face with their private clouds
is getting business units to share the pool. Most developers have historically been spoiled by having their
own hardware and will demand the same from you. Cloud economics don't work if everyone has their own
silo, and you will need a top-down mandate to overcome this culture — something that can be discussed
when creating the enterprise cloud strategy.
 Embrace public clouds in a hybrid fashion. Public clouds should be part of your strategy and will enhance
the value and economics of your private cloud investments. Their value is complementary to your private
cloud, as that environment will never be large enough to meet all your company's needs. Scalability testing,
Page 7

9. Forrester Consulting
Private Clouds: Storage Architectures Are Key To Maximizing Efficiencies
high-performance computing applications, and highly volatile web applications need on-demand capacity at
times, and building out your private cloud for these peaks is a quick way to destroy the ROI of a private cloud.
So plan to link your private cloud to a public cloud resource for these purposes. Seek out public clouds that
meet the needs of your developers and provide compatibility with your private cloud management platform
and infrastructure elements. Similar storage volumes in both services will make data protection that much
easier.
Page 8

10. Forrester Consulting
Private Clouds: Storage Architectures Are Key To Maximizing Efficiencies
Appendix A: Survey Methodology And Demographics
In this study, Forrester conducted an online survey of 150 US enterprise IT decision-makers with an interest in
private clouds in order to highlight misconceptions of private cloud architectures and expectations — particularly
in regard to storage. Survey participants included IT decision-makers in horizontal representation across all
industries and enterprise sizes. Questions provided to the participants asked respondents about their existing
infrastructure and their private cloud experience, plans, and expectations. The study began in early October 2010
and was completed in November 2010.
Figure A1
Respondents From A Variety Of Enterprise Sizes
“Approximately how many people work for your company worldwide, including all branches and
locations (not including seasonal or temporary employees)?”
Cloud users (n = 41) Nonusers (n = 109)
1,000 to 4,999 20%
27%
5,000 to 19,999 22%
28%
20,000 to 49,999 22%
18%
50,000 or more 37%
27%
Base: 150 IT infrastructure decision-makers in the US
(percentages may not total 100 because of rounding)
Source: A commissioned study conducted by Forrester Consulting on behalf of NetApp, November 2010
Page 9

11. Forrester Consulting
Private Clouds: Storage Architectures Are Key To Maximizing Efficiencies

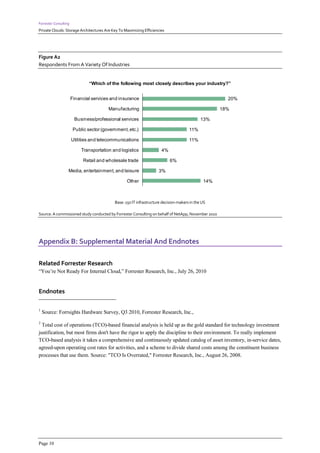

Figure A2
Respondents From A Variety Of Industries
“Which of the following most closely describes your industry?”
Financial services and insurance 20%
Manufacturing 18%
Business/professional services 13%
Public sector (government, etc.) 11%
Utilities and telecommunications 11%
Transportation and logistics 4%
Retail and wholesale trade 6%
Media, entertainment, and leisure 3%
Other 14%
Base: 150 IT infrastructure decision-makers in the US
Source: A commissioned study conducted by Forrester Consulting on behalf of NetApp, November 2010
Appendix B: Supplemental Material And Endnotes
Related Forrester Research
“You’re Not Ready For Internal Cloud,” Forrester Research, Inc., July 26, 2010
Endnotes
1
Source: Forrsights Hardware Survey, Q3 2010, Forrester Research, Inc.,
2
Total cost of operations (TCO)-based financial analysis is held up as the gold standard for technology investment
justification, but most firms don't have the rigor to apply the discipline to their environment. To really implement
TCO-based analysis it takes a comprehensive and continuously updated catalog of asset inventory, in-service dates,
agreed-upon operating cost rates for activities, and a scheme to divide shared costs among the constituent business
processes that use them. Source: "TCO Is Overrated," Forrester Research, Inc., August 26, 2008.
Page 10
