As the consumable used for hot and cold rolling mill, Mill rolls is SINOM superior product. SINOM FORGING AND CASTING BASE (SFC) is situated in Liaoning Coastal Industrial Zone with land area of 4,000,000 m2, which is a large equipment technology enterprises, integrated with special steel production and equipment manufacturing. Based on the advantage of special steel technology and R&D of HEBEI IRON & STEEL GROUP and MCC GROUP metallurgical equipment and integrated production and development advantage. SFC created the equipment manufacturing plus enterprise’s production pattern, and has built a first-class special steel production line and large castings and forgings, large complete sets of equipment production base. SFC provides informatization service of the metallurgical and manufacturing industry, produces and manufactures international advanced level large metallurgical equipment, provides all kinds of special steel for automobile, railway, construction machinery, shipbuilding, petroleum and mining industries, and produces large key components (large casting, forging and welding parts) and complete sets of equipment for mechanical, chemical, electric power, energy, paper making, shipbuilding industries. For more information or catalogue, please feel free to contact with us by email: sinom@sinomgroup.com, or WhatsApp: +86 136 3330 3390

1. SINOM GROUP CO., LTD. / SFC
LARGE FORGING AND CASTING PRODUCTS MANUFACTURING BASE
VERSION 2018

3. SINOM FORGING AND CASTING BASE (SFC) is
situated in Liaoning Coastal Industrial Zone with
land area of 4,000,000 m2, which is a large
equipment technology enterprises, integrated with
special steel production and equipment
manufacturing.
Based on the advantage of special steel technology
and R&D of HEBEI IRON & STEEL GROUP and MCC
GROUP metallurgical equipment and integrated
production and development advantage. SFC
created the equipment manufacturing plus
enterprise’s production pattern, and has built a
first-class special steel production line and large
castings and forgings, large complete sets of
equipment production base. SFC provides
informatization service of the metallurgical and
manufacturing industry, produces and
manufactures international advanced level large
metallurgical equipment, provides all kinds of
special steel for automobile, railway, construction
machinery, shipbuilding, petroleum and mining
industries, and produces large key components
(large casting, forging and welding parts) and
complete sets of equipment for mechanical,
chemical, electric power, energy, paper making,
shipbuilding industries.
BRANCH PROFILE

4. MAIN TECHNICAL PROCESS

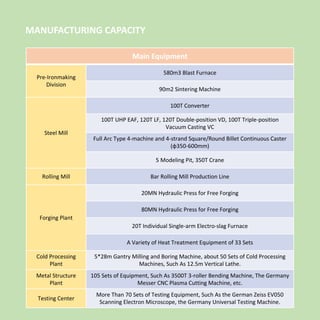

5. MANUFACTURING CAPACITY
Main Equipment
Pre-Ironmaking
Division
580m3 Blast Furnace
90m2 Sintering Machine
Steel Mill
100T Converter
100T UHP EAF, 120T LF, 120T Double-position VD, 100T Triple-position
Vacuum Casting VC
Full Arc Type 4-machine and 4-strand Square/Round Billet Continuous Caster
(φ350-600mm)
5 Modeling Pit, 350T Crane
Rolling Mill Bar Rolling Mill Production Line
Forging Plant
20MN Hydraulic Press for Free Forging
80MN Hydraulic Press for Free Forging
20T Individual Single-arm Electro-slag Furnace
A Variety of Heat Treatment Equipment of 33 Sets
Cold Processing
Plant
5*28m Gantry Milling and Boring Machine, about 50 Sets of Cold Processing
Machines, Such As 12.5m Vertical Lathe.
Metal Structure
Plant
105 Sets of Equipment, Such As 3500T 3-roller Bending Machine, The Germany
Messer CNC Plasma Cutting Machine, etc.
Testing Center
More Than 70 Sets of Testing Equipment, Such As the German Zeiss EV050
Scanning Electron Microscope, the Germany Universal Testing Machine.

6. MAIN PRODUCT
CATEGORY
• Casting Product1
• Forging Product2
• Semi-finished Product3

7. MAIN PRODUCT
CASTING CAPACITY AND SCALE
Liquid Steel: Annual production capacity of 1.8 million tons.
Including converter of 1.1 million tons; EAF of 700,000 tons.
One-time providing refining furnace molten steel of 600 tons.
Casting Products: Annual production capacity of 25,000 tons.
The maximum casting: Net weight of 400 tons.
Ingot: Produced the biggest double vacuum ingot of 132 tons.
Lifting capacity: Single maximum lifting capacity of 350 tons.

8. MAIN PRODUCT
CASTING PRODUCTS SHOW
Iron & Steel Complex Raw Materials Yard Project
Slag Pot / Net Weight 50 Tons
Upper Beam of Hydraulic Press
Net Weight 333 Tons / China 2nd Heavy Group

9. MAIN PRODUCT
CASTING PRODUCTS SHOW
Iron & Steel Complex Raw Materials Yard Project
Middle Cross Beam / Net Weight 198 Tons
Taiyuan Heavy Machinery Group
Upper Beam of Hydraulic Press
Net Weight 205 Tons / China 2nd Heavy Group

10. MAIN PRODUCT
CASTING PRODUCTS SHOW
Iron & Steel Complex Raw Materials Yard Project

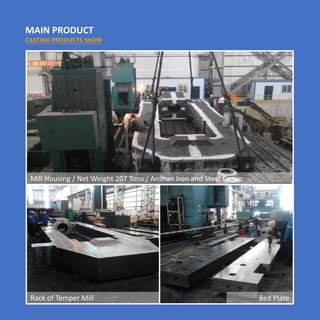

Mill Housing / Net Weight 207 Tons / Anshan Iron and Steel Group
Bed PlateRack of Temper Mill

11. MAIN PRODUCT
CASTING PRODUCTS SHOW
Iron & Steel Complex Raw Materials Yard Project
Mill Housing / Net Weight 207 Tons / Anshan Iron and Steel Group
Bed Plate

12. MAIN PRODUCT
CASTING PRODUCTS SHOW
Iron & Steel Complex

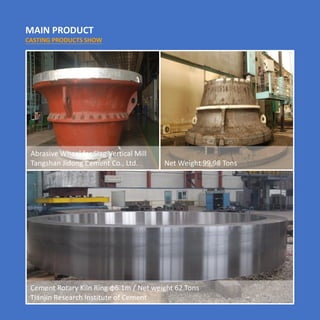

Abrasive Wheel for Slag Vertical Mill
Tangshan Jidong Cement Co., Ltd. Net Weight 99.98 Tons
Cement Rotary Kiln Ring φ6.1m / Net weight 62 Tons
Tianjin Research Institute of Cement

13. MAIN PRODUCT
CASTING PRODUCTS SHOW
Iron & Steel Complex Raw Materials Yard Project
Rudder Horn of 320 thousand DWT Crude Oil Tanker
Dalian Shipbuilding Industry Group Rudder Shaft Co., Ltd.
Ship Stern of 320 thousand DWT Crude Oil
Dalian Shipbuilding Industry Group Rudder Shaft Co., Ltd.

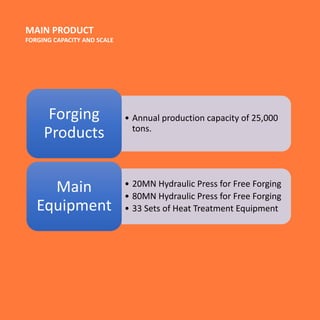

14. MAIN PRODUCT
FORGING CAPACITY AND SCALE
• Annual production capacity of 25,000
tons.
Forging
Products
• 20MN Hydraulic Press for Free Forging
• 80MN Hydraulic Press for Free Forging
• 33 Sets of Heat Treatment Equipment
Main
Equipment

15. MAIN PRODUCT
FORGING PRODUCTS SHOW
Back-up Roll / Material: Cr4
Jiangsu Youfu Sheet Technology Co., Ltd.
Back-up Roll / Material: Cr5
Bao Steel Group Co., Ltd.

16. MAIN PRODUCT
FORGING PRODUCTS SHOW
Continuous Casting Rollers
Minmetals Yingkou Medium Plate Co., Ltd.
Herringbone rack with length of 41 m
Changzhou Changbao Jingte Energy Co., Ltd.

17. MAIN PRODUCT
FORGING PRODUCTS SHOW
Shaft for Blower
Xi’an Shanxi Blower Manufacturing Co., Ltd.

18. MAIN PRODUCT
FORGING PRODUCTS SHOW
Intermediate Shaft, Propeller Shaft, Rudder Stock, Rudder Pintle
Dalian Shipbuilding Industry Group Rudder Shaft Co., Ltd.
Wind Turbine Shaft
Huatian Electric Machinery Co., Ltd.

19. MAIN PRODUCT
FORGING PRODUCTS SHOW
Motor Spindle
Harbin Electric Machinery Co., Ltd.

20. MAIN PRODUCT
SEMI-FINISHED PRODUCT CAPACITY AND SCALE
• Annual production capacity of 1,000,000.00 tons steel
liquid.
• Annual production capacity of 700,000.00 tons
continuous casting billet.
• Annual production capacity of 700,000.00 tons big bar
materials.
Semi-finished
Products
• φ350-600mm continuous casting machine
• φ80-350mm continuous rolling mill
Main
Equipment

21. MAIN PRODUCT
SEMI-FINISHED PRODUCTS SHOW
Bed Plate

22. MAIN PRODUCT
SEMI-FINISHED PRODUCTS SHOW
Bed Plate

23. REFERENCE LIST
MAIN PRODUCT
Casting
Forging
Completed
Equipment

24. REFERENCE LIST
CASTING PRODUCT
S.N. Product Names Specifications and Models End users
1 slag pot net weight 50t
Baosteel Engineering & Technology
Group Co., Ltd.
2 10.5m³ slag pot net weight 25t
Baosteel Engineering & Technology
Group Co., Ltd.
3 12m³ slag pot net weight 25t Baiyin nonferrous group co., ltd.
4 Mill Housing Monolithic net weight 81T
Changzhou Baoling Heavy & Industrial
Machinery Co., Ltd.
5 Mill Housing Monolithic net weight 81T
Baosteel Group Suzhou Metallurgical
Machinery Factory
6 Mill Housing Monolithic net weight 80T
Handan Iron and Steel Company
Affiliated Enterprise
7 T3000container vessel Rudder horn, stern ball
Dalian Shipbuilding Industry Co., Ltd.300000T ore carrier
Upper and lower castings for
rudder blade
320 thousand DWT
Crude Oil Tanker
Front casting of stern tube
8 318000T oil tanker
206000T bulk carrier
Rudder horn
Shanghai Waigaoqiao Shipbuilding
Co., Ltd.
9 45000T bulk carrier Rudder horn
Huludao Bochuan Mechanical
Engineering Co., Ltd.
10
800MN Die Forging
Machine
Side beam of moving crossbeam
China Erzhong Group (Deyang) Heavy
Industries Co., Ltd.
11
400MN Die Forging
Machine
Upper and lower sleeper beam
MCC Hengtong Cold Rolling
Technology Co., Ltd.
12
80MN Free Rapid
Forged Hydraulic Press
Upper beam, moving crossbeam
China's Second Heavy Machinery
Group Company
13
125MN Oil Hydraulic
Press
Upper beam, middle beam, lower
beam
Taiyuan Heavy Industry Co., Ltd.
14 ￠5.8Mbelting leather Belting leather Jidong Cement (Heilongjiang) Co., Ltd.
15
100 tons of vertical
grinding mill
Abrasive wheel for vertical mill of
100 t
Tangshan Jidong Cement Co., Ltd.

25. REFERENCE LIST
FORGING MARINE PRODUCT
S.N. Product Names Specifications and Models End users
1
93000T bulk carrier
180000T bulk carrier
320000T oil tanker
300000T ore carrier
Intermediate shaft
Propeller shaft
Rudder stock
Rudder pintle
Dalian Shipbuilding Industry Co., Ltd.
2
26000T bulk carrier
180000T bulk carrier
208000T bulk carrier
318000T oil tanker
Intermediate shaft
Propeller shaft
Rudder stock
Rudder pintle
SHANGHAI WAIGAOQIAO
SHIPBUILDING CO., LTD.
3
260000T bulk carrier
82000T bulk carrier
186300T bulk carrier
208000T bulk carrier
Intermediate shaft
Propeller shaft
Rudder stock
Rudder pintle
Hudong-Zhonghua Shipbuilding
(Group) Co., Ltd.
4 120000T bulk carrier
Intermediate shaft, Propeller shaft
Rudder stock, Rudder pintle
Shanhaiguan Shipbuilding Industry
Co., Ltd.
5 4200T bulk carrier Intermediate shaft, tail shaft Huludao Bochuan Mechanical
Engineering Co., Ltd.
6
Marine diesel engine
piston head
50 engine, 60 engine, 70 engine DALIAN VAN DER HORST MARINE
ENGINEERING CO., LTD.
7
Marine diesel engine
piston head
50 engine, 60 engine Dalian Dishi Ship Machine Co., Ltd
8 57000T bulk carrier
Intermediate shaft, Propeller shaft
Rudder stock, Rudder pintle
GUANGZHOU SHIPYARD
INTERNATIONAL COMPANY LIMITED
9
82000T bulk carrier
182000T bulk carrier
208000T bulk carrier
Intermediate shaft
Propeller shaft
Rudder stock, Rudder pintle
JIANGNAN SHIPYARD(GROUP)CO.,
LTD.
10
Semi-submersible
vessel
Rudderstock, rudder pintle,
rudderstock lower nut, piston
Nantong Ocean Ship Equipment Co.,
Ltd.

26. REFERENCE LIST
FORGING ROLL & SHAFT PRODUCT
S.N. Product Names Specifications and Models End users
1 Fan main shaft 25CrNiMoV, 25Cr2Ni4MoV Xi‘an Shaangu Power Co., Ltd.
2 Main shaft 30Cr2Ni4MoV, 20SiMn
Liaoning Liaozhong Heavy Machinery
Co., Ltd.
3 Main shaft 30Cr2Ni4MoV, 20SiMn Siping Blower Limited Company
4 Water power spindle 20SiMn
PinghuZhongzhou Heavy Machinery
Co., Ltd.
5 Water power spindle 20SiMn, 35# Wanxiang Heavy Machinery Co., Ltd.
6 Wind power spindle 42CrMoA
Baoding Xing'an Wind Power
Equipment Co., Ltd.
7 Motor rotor 25Cr2Ni4MoV Harbin Electric Machinery Co., LTD
8 Turbine rotor 30Cr2Ni4MoV Harbin Turbine Company Limited
9 Gear shaft 20CrNi2MoA, 17CrNiMo6
Ningbo Dongli Machinery
Manufacturing Co., Ltd.
10 Pipe die 21CrMo10
Shenyang Yate Industrial Machinery
Making Equipment Co., Ltd
11 Pipe die 20Cr2Mo Northern Heavy Industries Group
12 Step shaft 4145HMOD
Mudanjiang Jinniu Iron and Steel Co.,
Ltd.
13
1780 hot rolled
backup roll Cr5 Baotou Iron and Steel (Group) Co., Ltd.
14
1780 cold rolled
backup roll Cr5 Handan Iron &Steel Group Co., Ltd
15 Backup roll Cr3 Hengshui Strip Rolling Co., Ltd
16 Backup roll Cr3 Ansteel Heavy Machinery Co., Ltd.
17 Backup roll Cr3
Beijing Jianlong Heavy Industry Group
Co., Ltd
18 Backup roll Cr3
Chengde Iron and Steel Group Co.,
Ltd.

27. REFERENCE LIST
COMPLETED PRODUCT
S.N. Product Names End users
1 1450 rolling mill Shandong Kerui Steel Plate Co., Ltd.
2 1450 rolling mill Jinan Iron and Steel Co.,Ltd.
3 1150 six stand rolling mill Jiangsu Youfu sheet Technology Co. Ltd.
4 1250 five stand rolling mill Shandong Kerui Steel Plate Co., Ltd.
5 1450 hot-rolled and leveling versions Planisher Jilin Jianlong Steel Corp
6 1150 two rack leveler Jiangsu Youfu sheet Technology Co. Ltd.
7 3500 straightening machine Handan Steel Corp
8 3.5 thousand universal 3-roll bending machine
MCC Capital Engineering & Research
Incorporation Limited
9 50t Converter Pinggang Industrial Co., Ltd.
10 75t Converter Zhuhai Yueyufeng Steel Corp
11 100t Converter Inner Mongolia De sheng Industrial Company
12 Buggy Ladle Minmetals Yingkou Medium Plate Co.,Ltd.
13 Slab cooling bed Minmetals Yingkou Medium Plate Co.,Ltd.
14 Bar cooling bed
Liaoning Fushun Hanwang Heavy Industry Co.
Ltd.

28. SINOM GROUP CO., LTD.
TANGSHAN, HEBEI, CHINA
TEL +86 315 2316864 - FAX +86 315 2314131 - SINOM@SINOMGROUP.COM
WWW.SINOMGROUP.COM
