The document discusses optimistic record locking as an alternative to pessimistic record locking in FileMaker. It describes how optimistic locking only locks records during commits, reducing server workload compared to locking for the entire edit. The document also presents techniques for implementing optimistic locking, including storing calculations, using commit footprints to track changes, and converting solutions to use local file editing to reduce network traffic. It provides examples showing how these approaches can significantly improve performance.

1. Being an Optimist in a Pessimistic World
10. FileMaker Konferenz | Hamburg | 16.-19. Oktober 2019
www.filemaker-konferenz.com

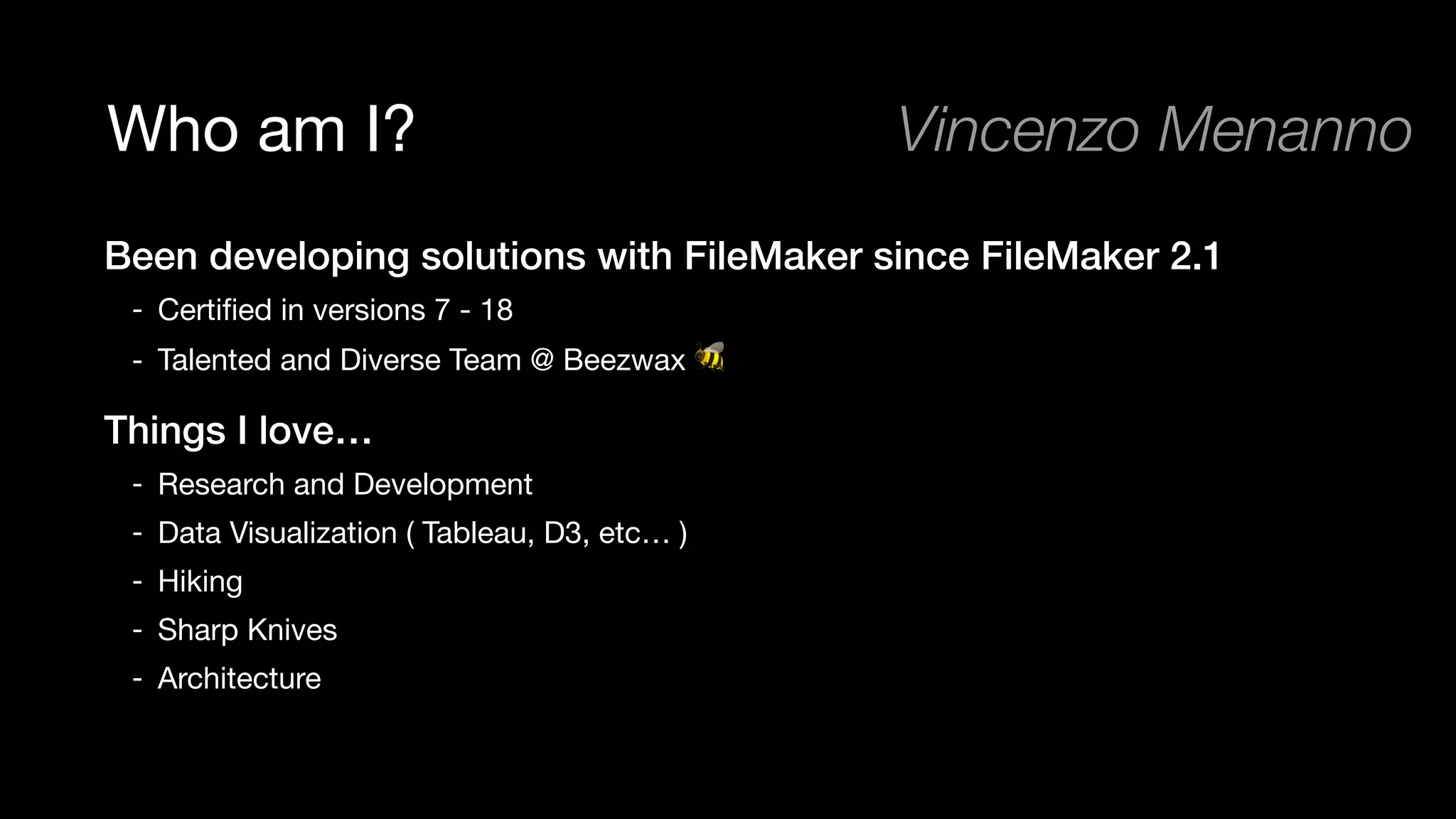

2. Who am I?
Been developing solutions with FileMaker since FileMaker 2.1
- Certified in versions 7 - 18
- Talented and Diverse Team @ Beezwax 🐝
Things I love…
- Research and Development
- Data Visualization ( Tableau, D3, etc… )
- Hiking
- Sharp Knives
- Architecture
Vincenzo Menanno

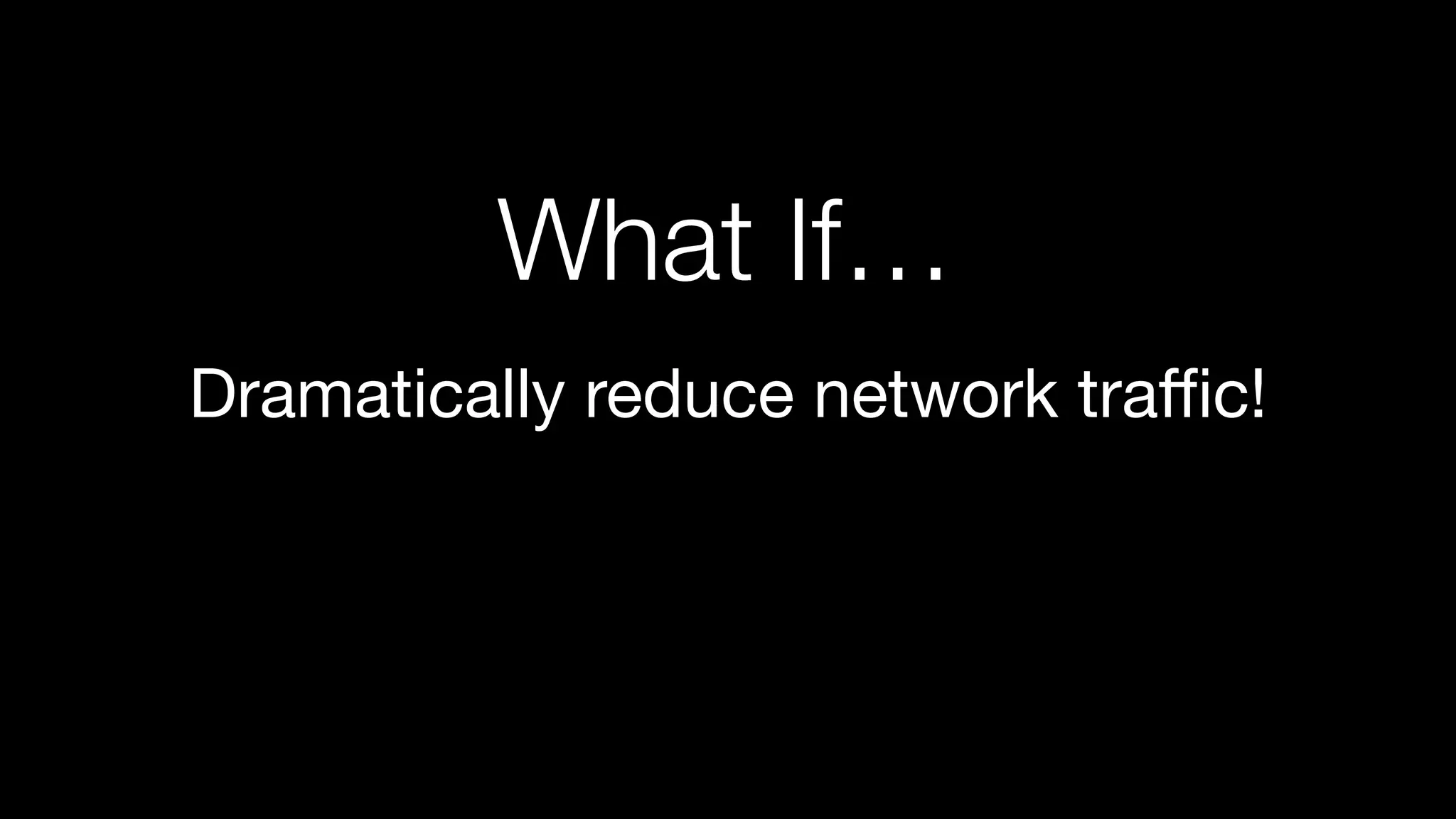

4. Dramatically reduce network traffic!
What If…

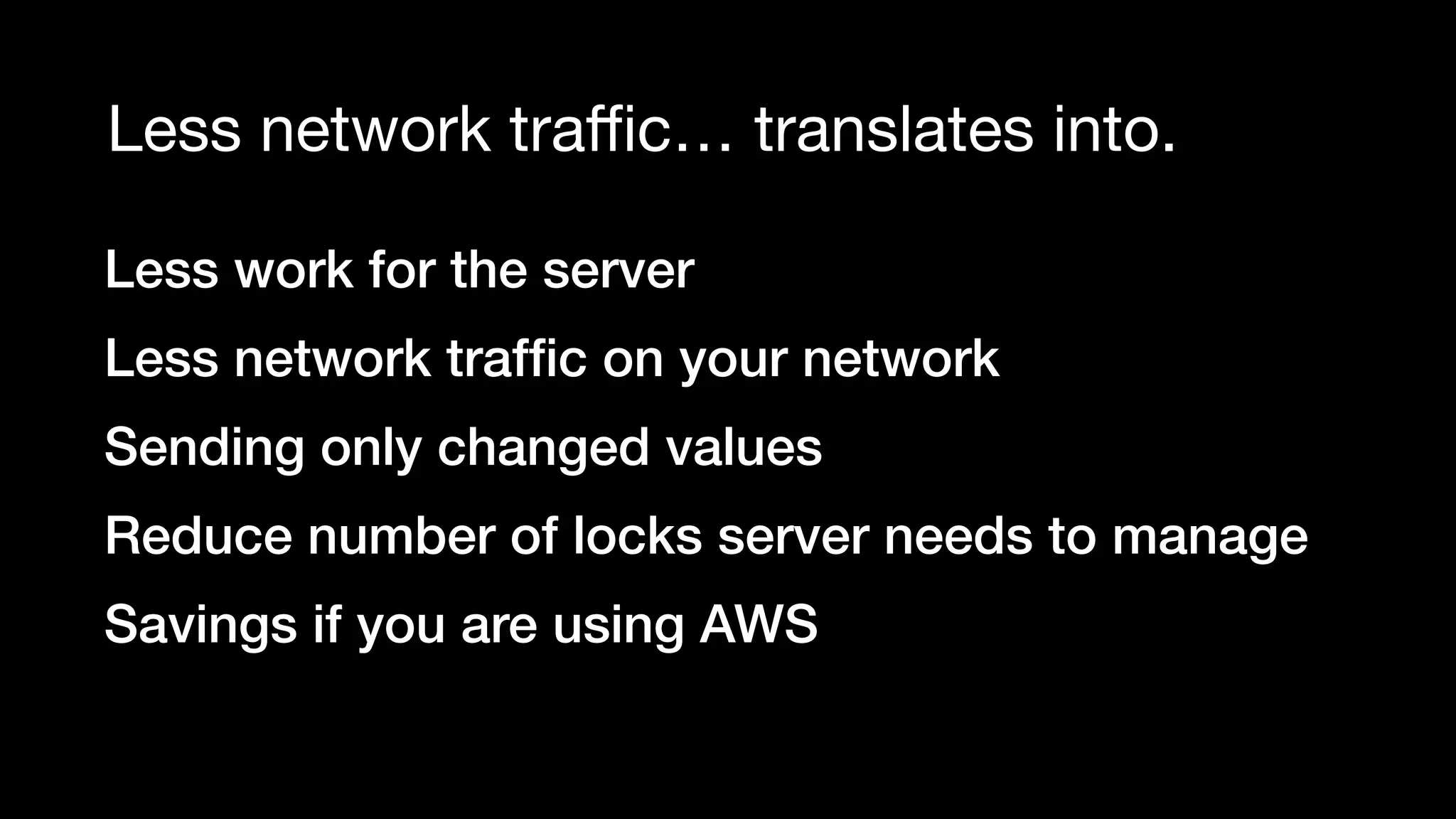

5. Less network traffic… translates into.
Less work for the server
Less network traffic on your network
Sending only changed values
Reduce number of locks server needs to manage
Savings if you are using AWS

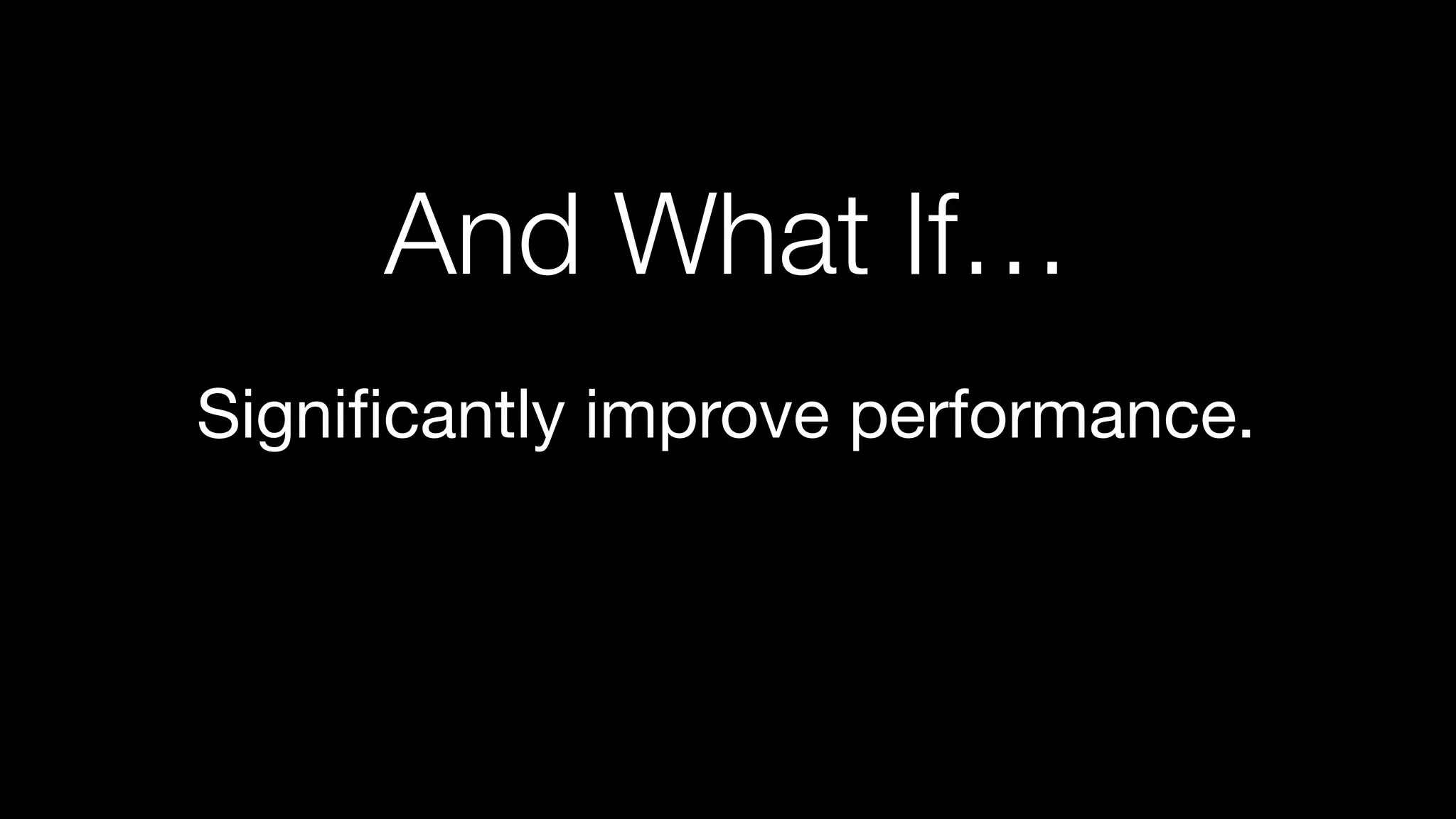

6. Significantly improve performance.
And What If…

7. This enables things like …
The ability to audit changes
Store data transactionally
Faster rendering and responsiveness

8. Pessimistic vs Optimistic
Differences
The Journey
Tools
Techniques

9. Break the rules…

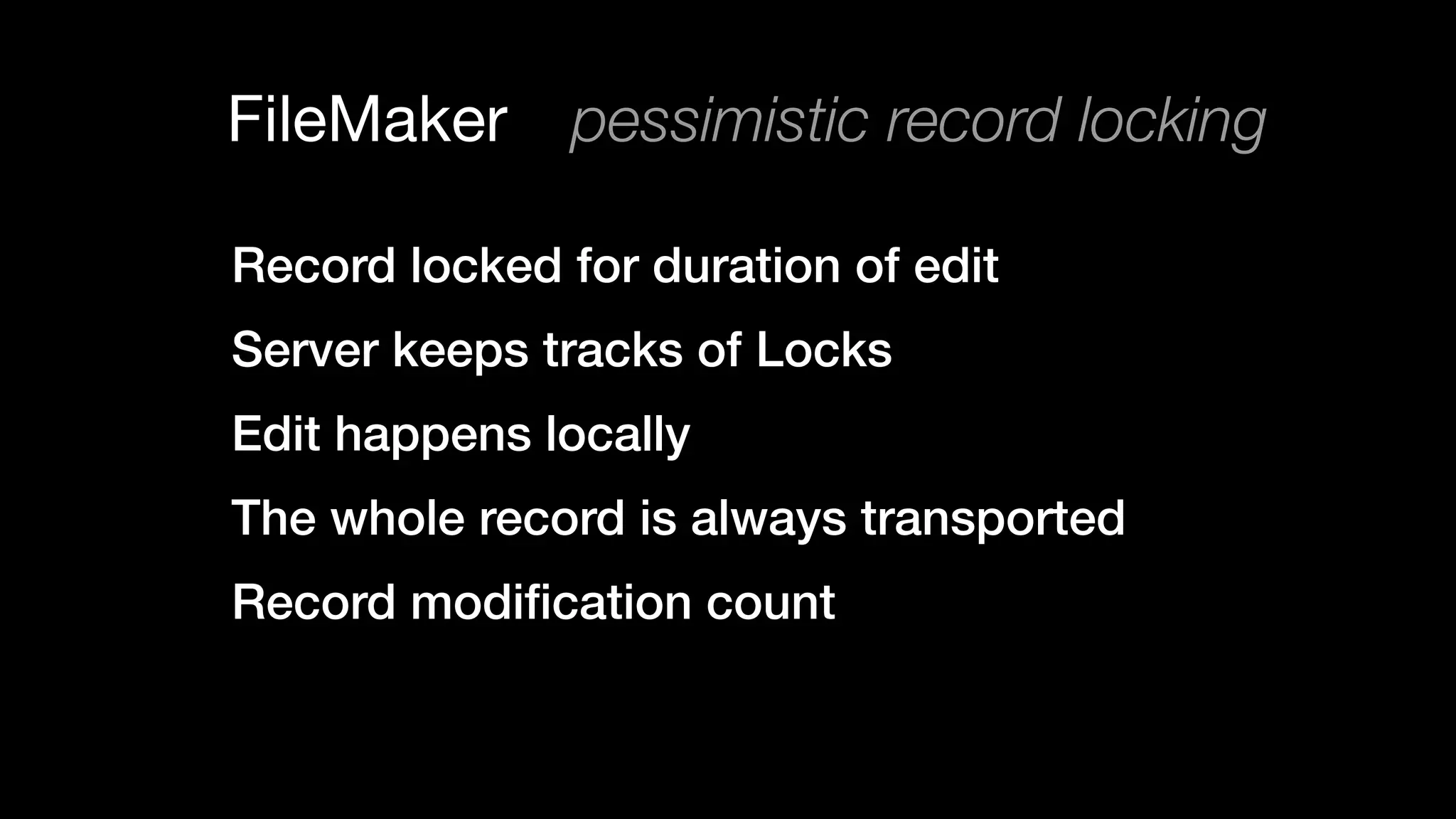

10. FileMaker pessimistic record locking
Record locked for duration of edit
Server keeps tracks of Locks
Edit happens locally
The whole record is always transported
Record modification count

11. O optimistic record locking
Record locked only for committing data
Server doesn’t have more work
Edits happen on server
Send only changes
Use hashes instead modification counts
Compare with Past, Present & Future
E
^
👻

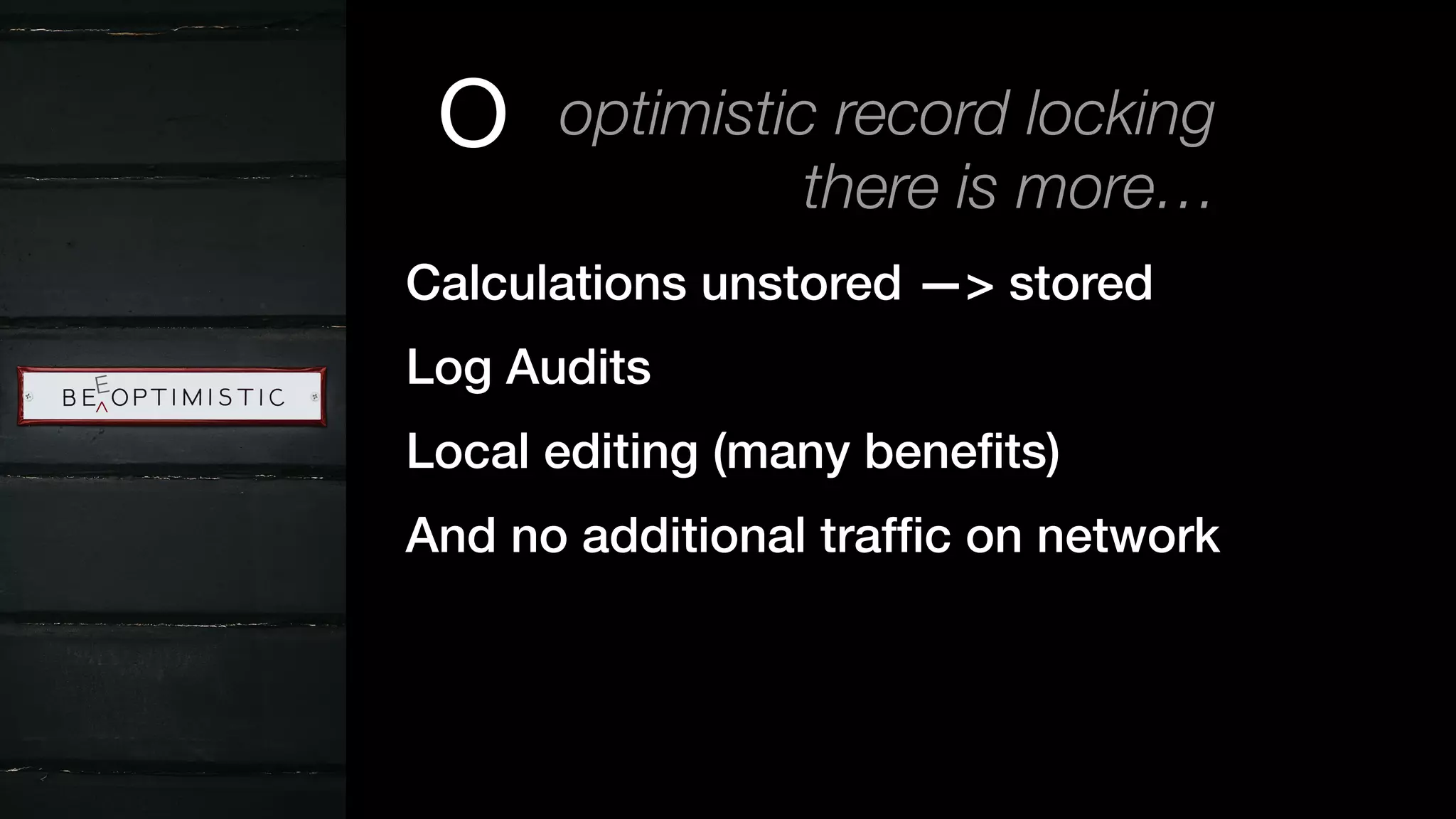

12. Calculations unstored —> stored
Log Audits
Local editing (many benefits)
And no additional traffic on network
E
^
optimistic record lockingO
there is more…

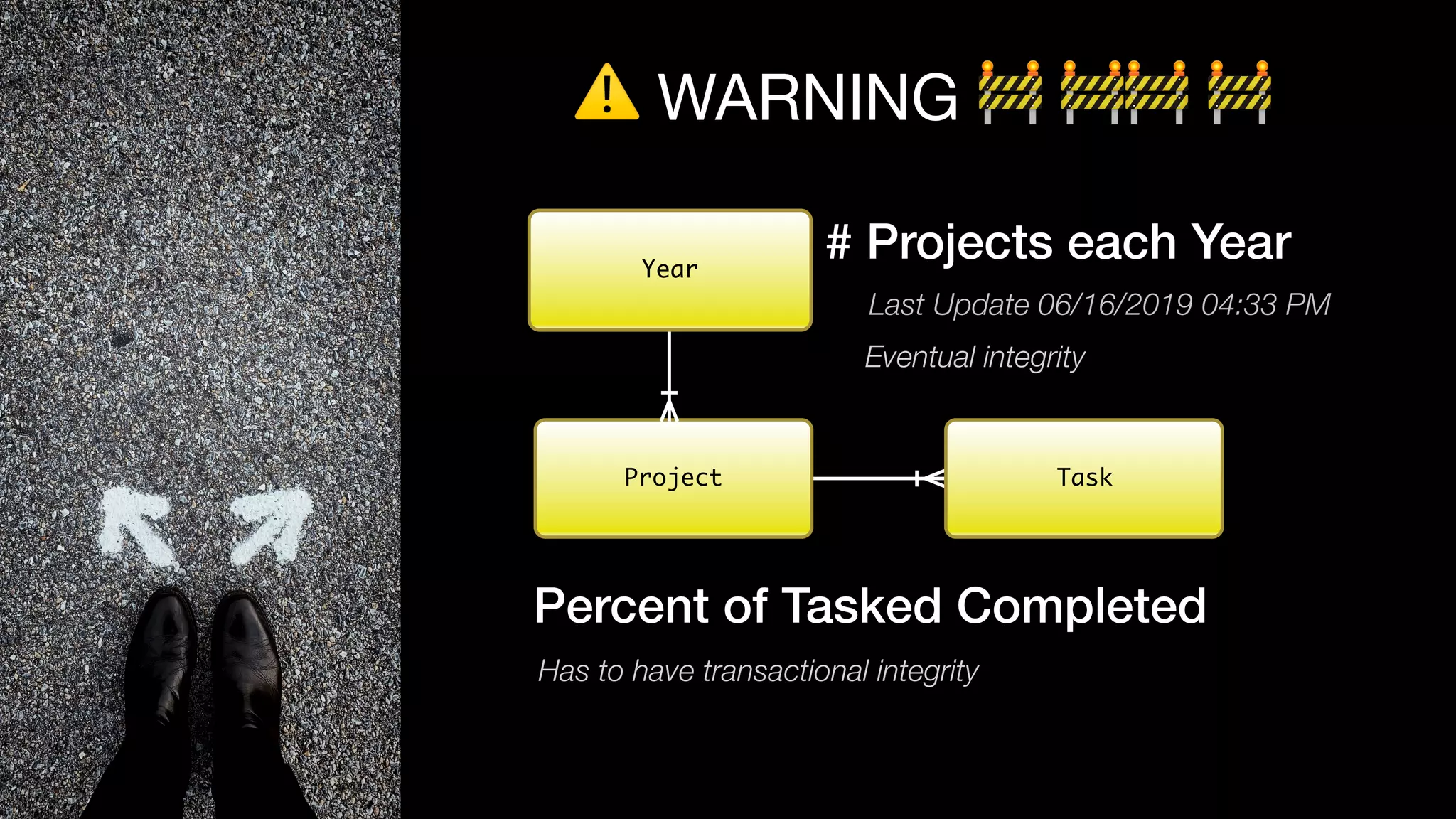

13. ⚠ WARNING 🚧 🚧🚧 🚧
Percent of Tasked Completed
Project Task
Year
# Projects each Year
Has to have transactional integrity
Last Update 06/16/2019 04:33 PM
Eventual integrity

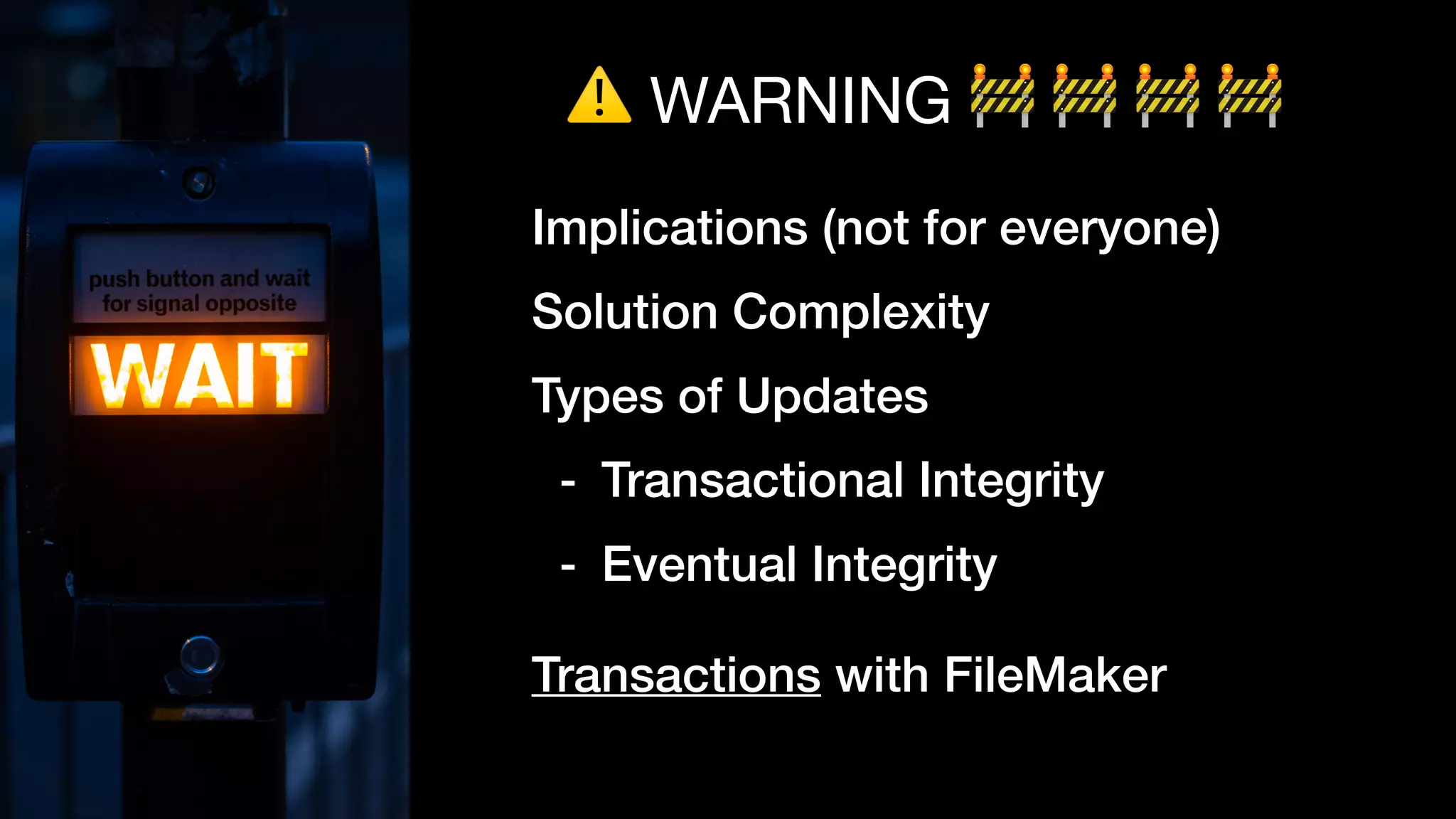

14. ⚠ WARNING 🚧 🚧 🚧 🚧
Implications (not for everyone)
Solution Complexity
Types of Updates
- Transactional Integrity
- Eventual Integrity
Transactions with FileMaker

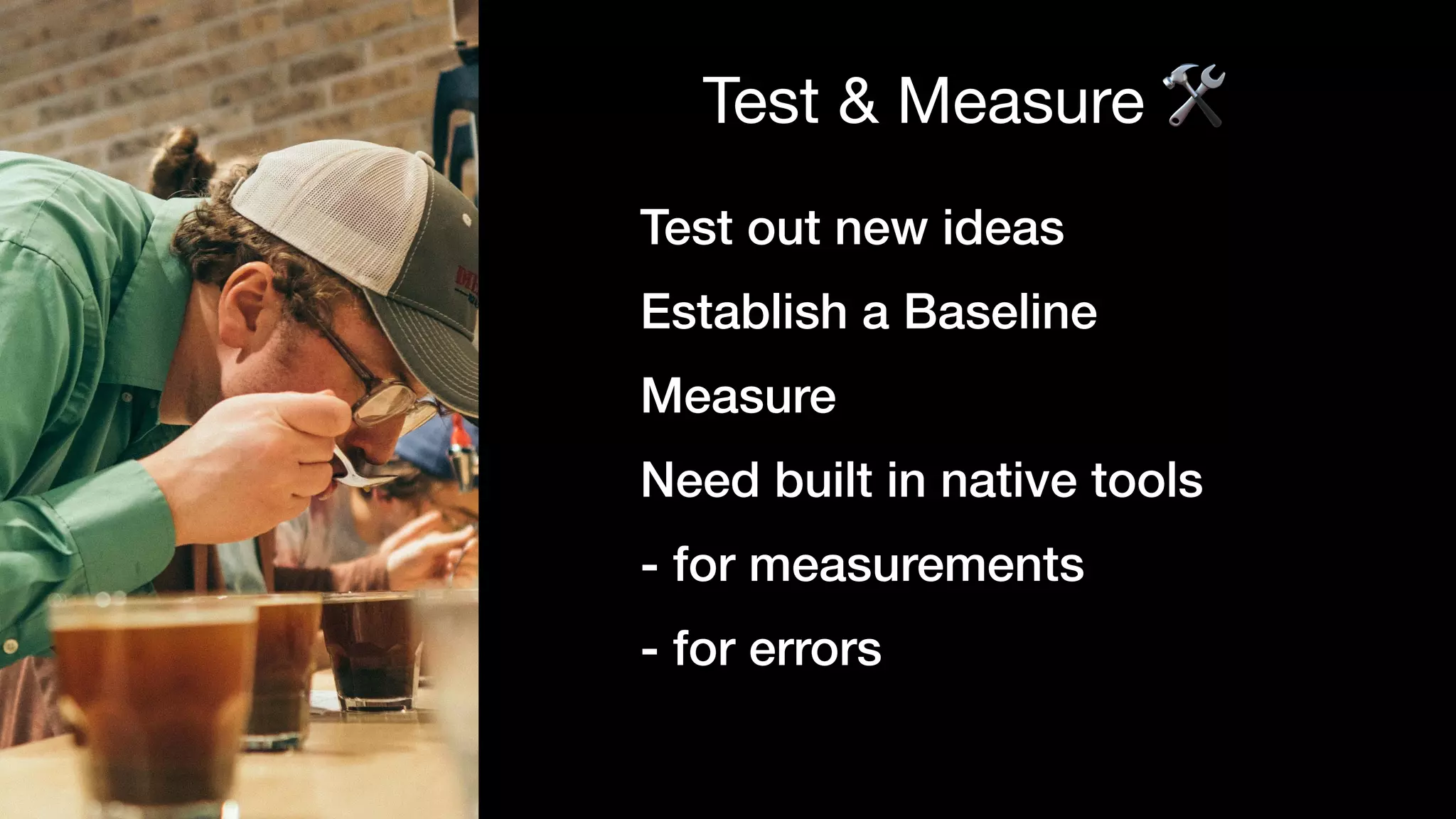

15. Test & Measure 🛠
Test out new ideas
Establish a Baseline
Measure
Need built in native tools
- for measurements
- for errors

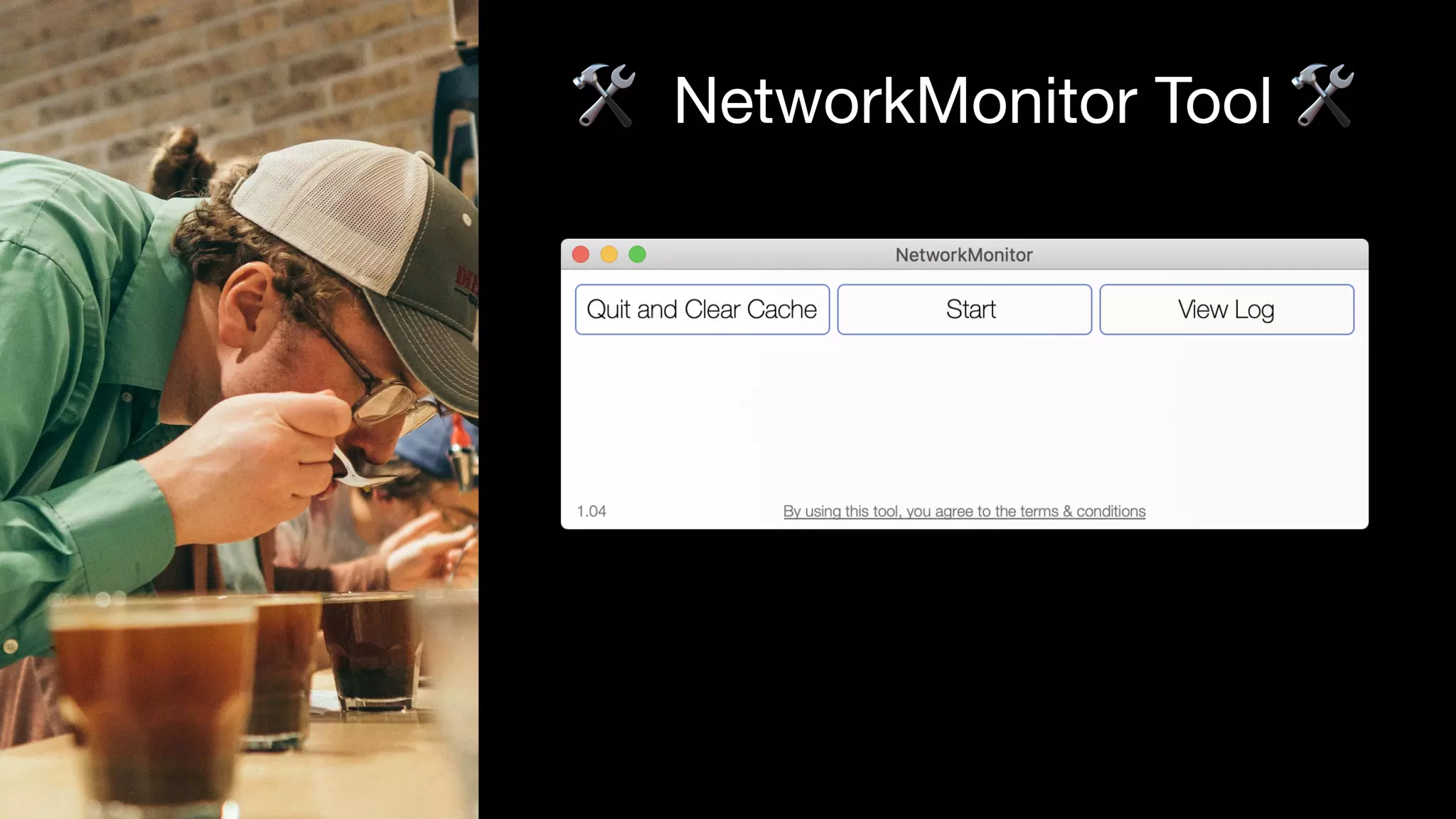

16. 🛠 NetworkMonitor Tool 🛠

17. Native Editing
Globals ( popovers and cards )
Local File Editing
Local File Editing (Data API)
Commit Footprint
3 Hashes (past, present, future)
A twist on MVC (model, view, controller)
The Journey

18. What is it
Implementation
How is it helpful
The Commit Footprint

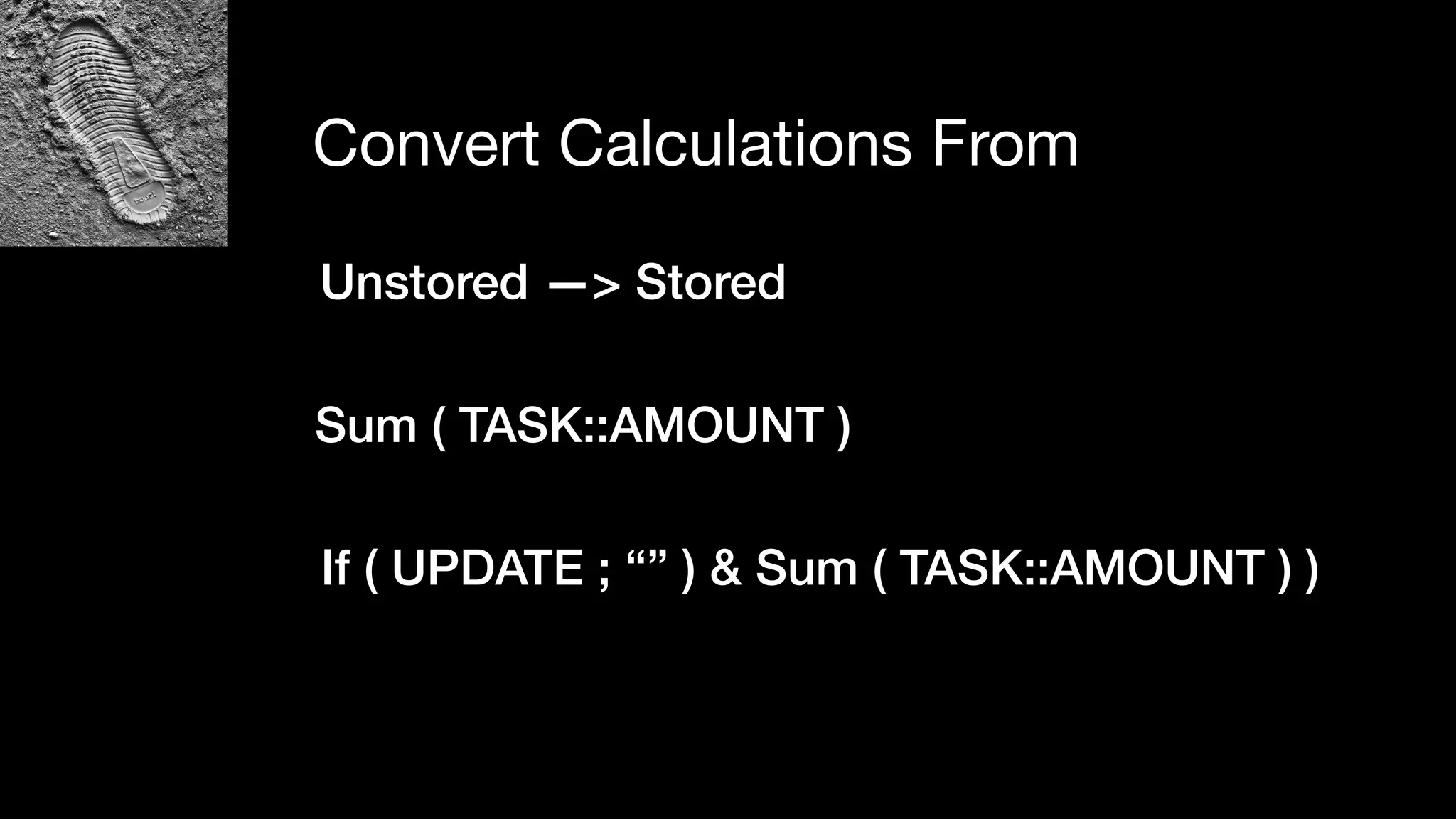

19. Convert Calculations From
Unstored —> Stored
Sum ( TASK::AMOUNT )
If ( UPDATE ; “” ) & Sum ( TASK::AMOUNT ) )

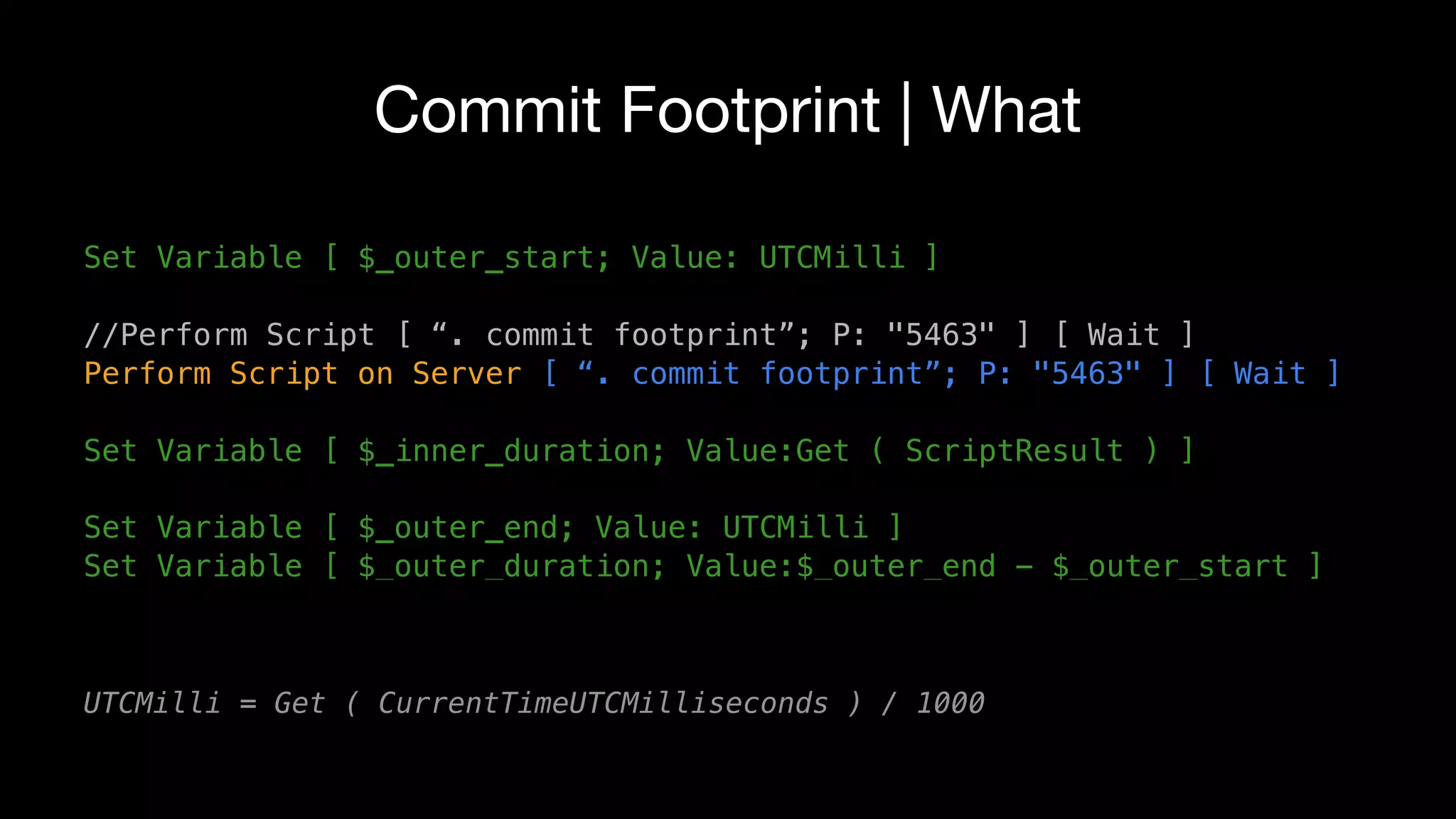

20. Commit Footprint | What
Set Variable [ $_outer_start; Value: UTCMilli ]
//Perform Script [ “. commit footprint”; P: "5463" ] [ Wait ]
Perform Script on Server [ “. commit footprint”; P: "5463" ] [ Wait ]
Set Variable [ $_inner_duration; Value:Get ( ScriptResult ) ]
Set Variable [ $_outer_end; Value: UTCMilli ]
Set Variable [ $_outer_duration; Value:$_outer_end - $_outer_start ]
UTCMilli = Get ( CurrentTimeUTCMilliseconds ) / 1000

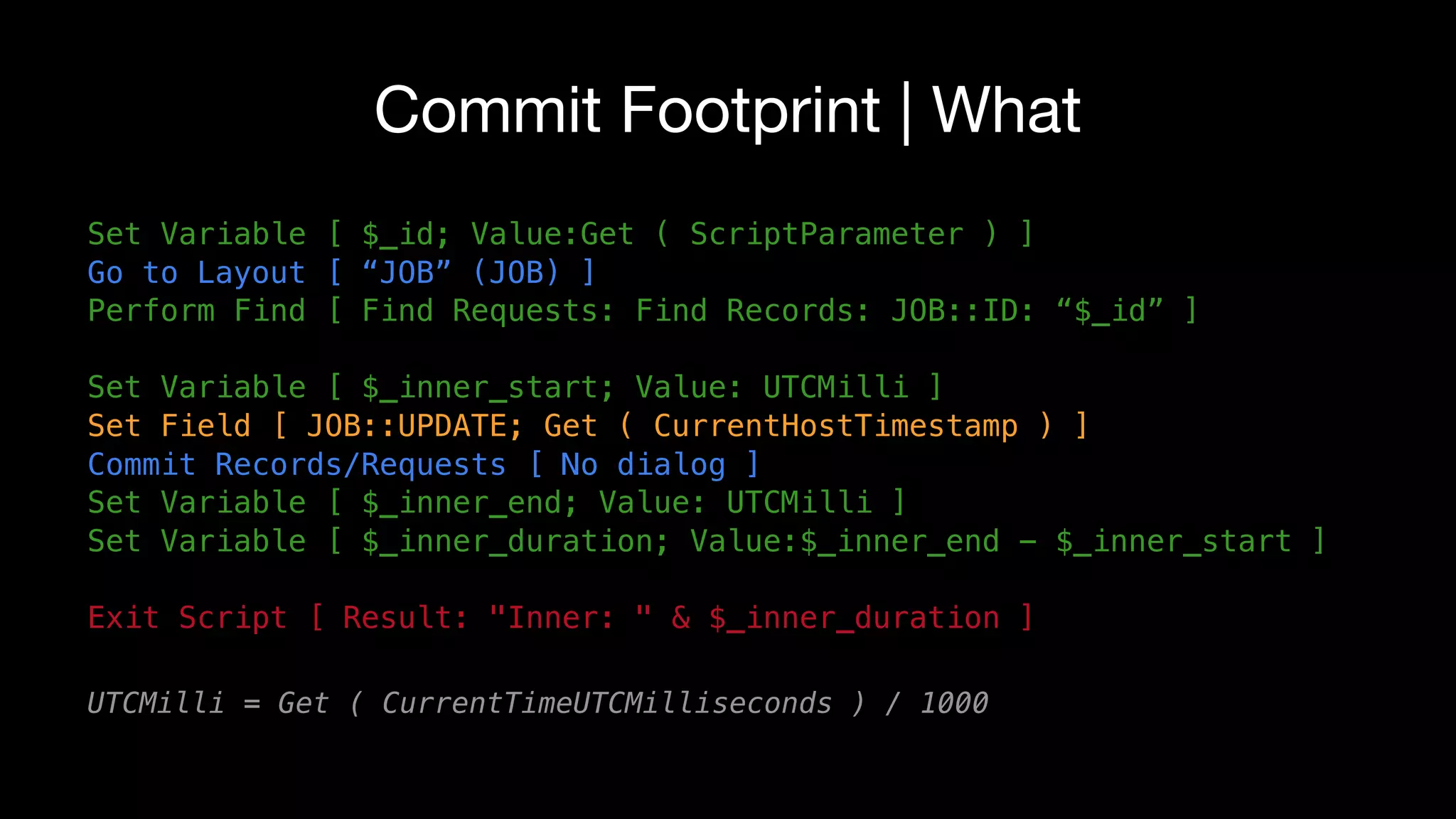

21. Commit Footprint | What
Set Variable [ $_id; Value:Get ( ScriptParameter ) ]
Go to Layout [ “JOB” (JOB) ]
Perform Find [ Find Requests: Find Records: JOB::ID: “$_id” ]
Set Variable [ $_inner_start; Value: UTCMilli ]
Set Field [ JOB::UPDATE; Get ( CurrentHostTimestamp ) ]
Commit Records/Requests [ No dialog ]
Set Variable [ $_inner_end; Value: UTCMilli ]
Set Variable [ $_inner_duration; Value:$_inner_end - $_inner_start ]
Exit Script [ Result: "Inner: " & $_inner_duration ]
UTCMilli = Get ( CurrentTimeUTCMilliseconds ) / 1000

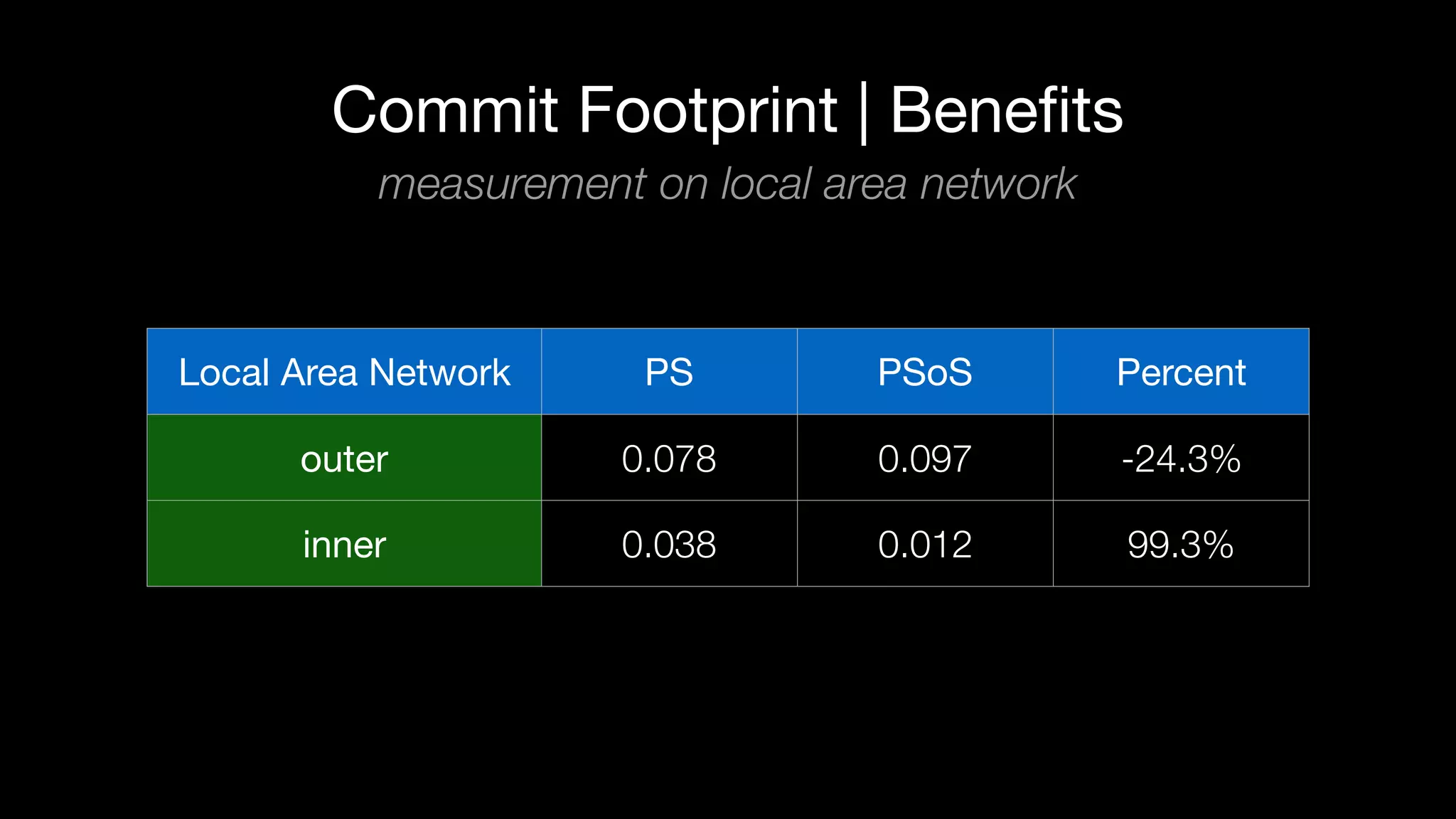

22. Commit Footprint | Benefits
measurement on local area network
Local Area Network PS PSoS Percent
outer 0.078 0.097 -24.3%
inner 0.038 0.012 99.3%

23. Commit Footprint | Benefits
measurement from Hayward about 25 miles away
Wide Area Network PS PSoS Percent
outer 1.134 0.145 87.2%
inner 0.982 0.009 99.1%

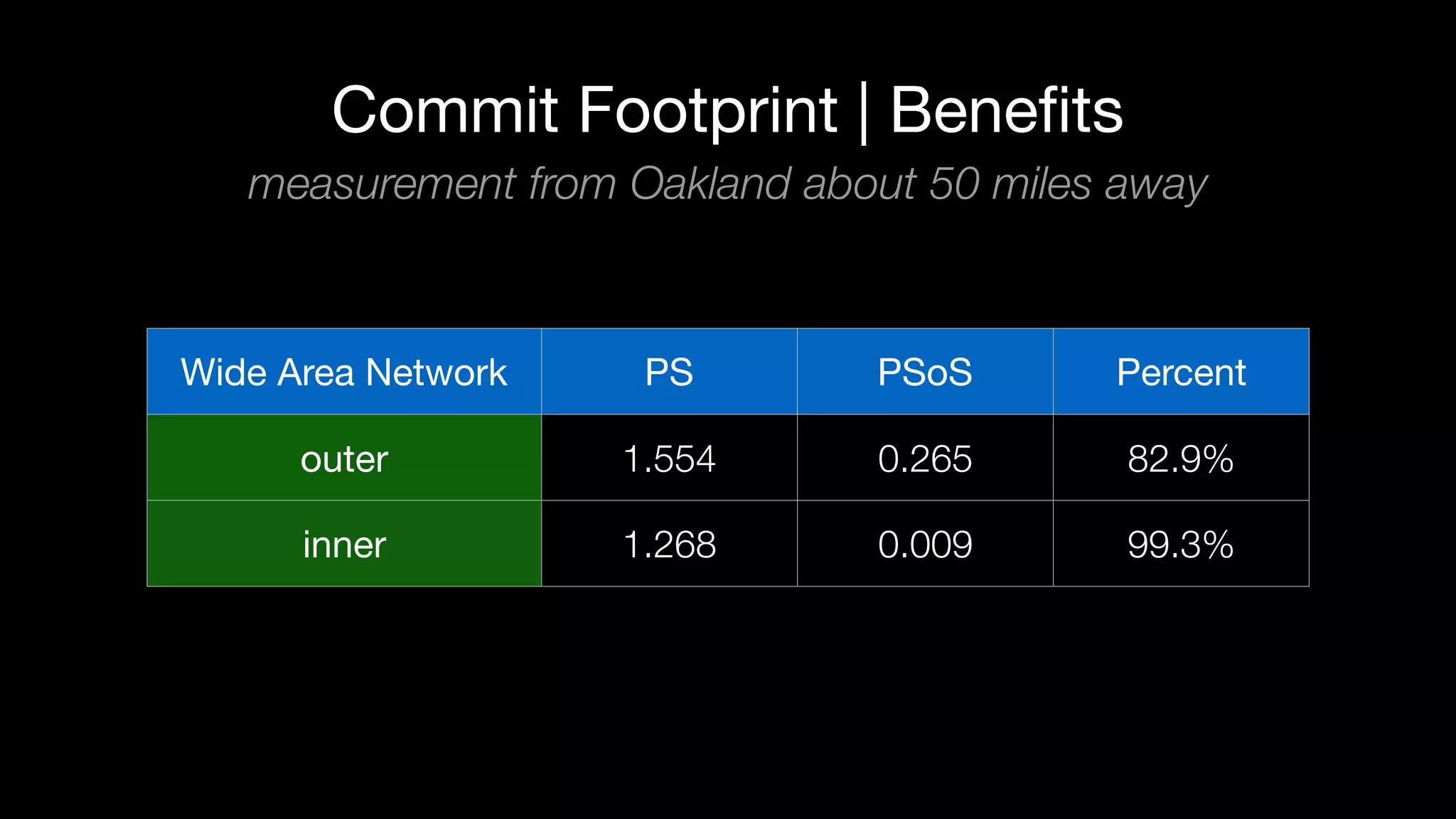

24. Commit Footprint | Benefits
measurement from Oakland about 50 miles away
Wide Area Network PS PSoS Percent
outer 1.554 0.265 82.9%
inner 1.268 0.009 99.3%

25. Commit Footprint | Benefits
measurement from London about 5359 miles away
Wide Area Network PS PSoS Percent
outer 3.03 0.279 90.8%
inner 2.073 0.009 99.6%

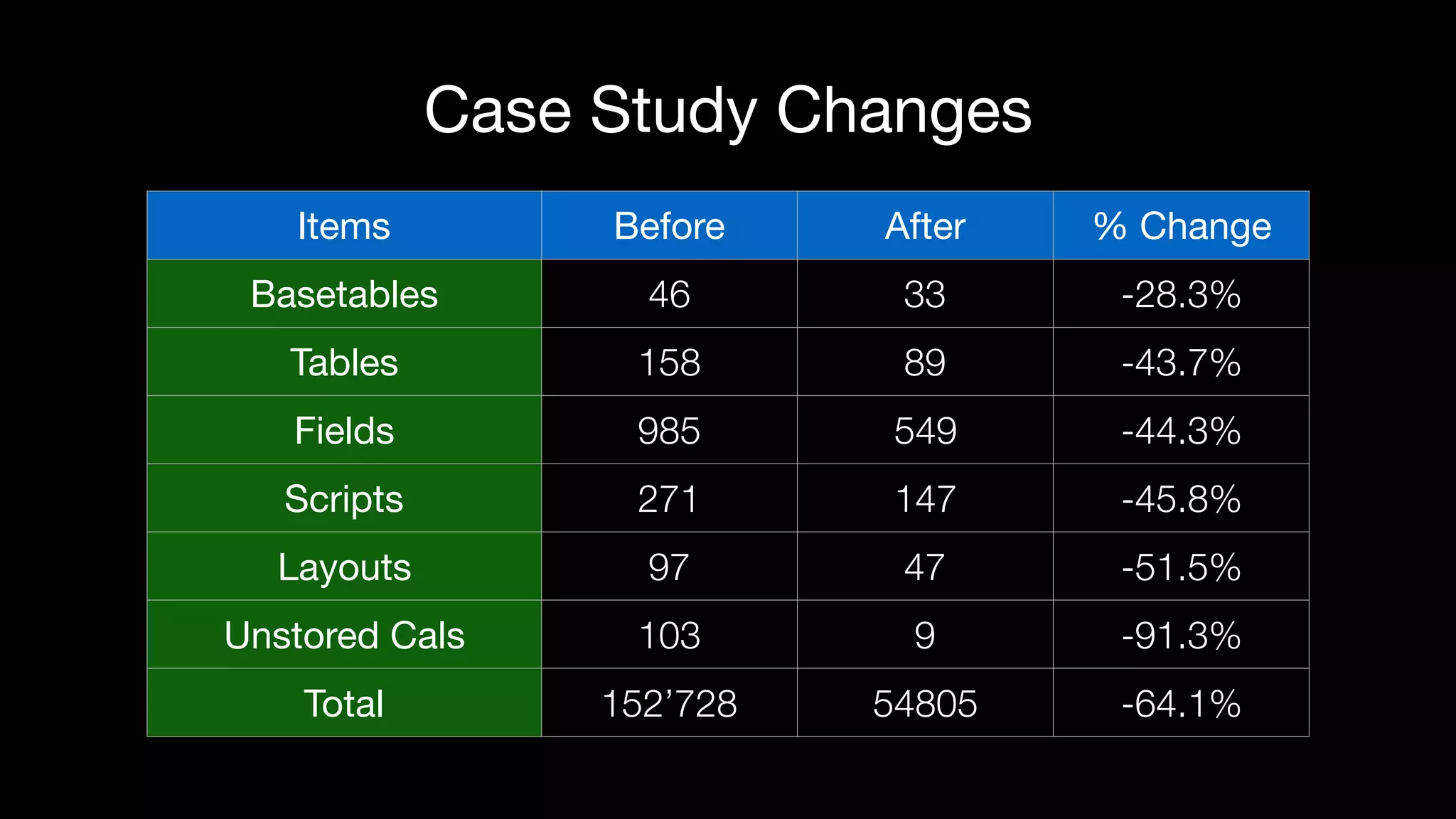

26. Case Study Changes
Items Before After % Change
Basetables 46 33 -28.3%
Tables 158 89 -43.7%
Fields 985 549 -44.3%
Scripts 271 147 -45.8%
Layouts 97 47 -51.5%
Unstored Cals 103 9 -91.3%
Total 152’728 54805 -64.1%

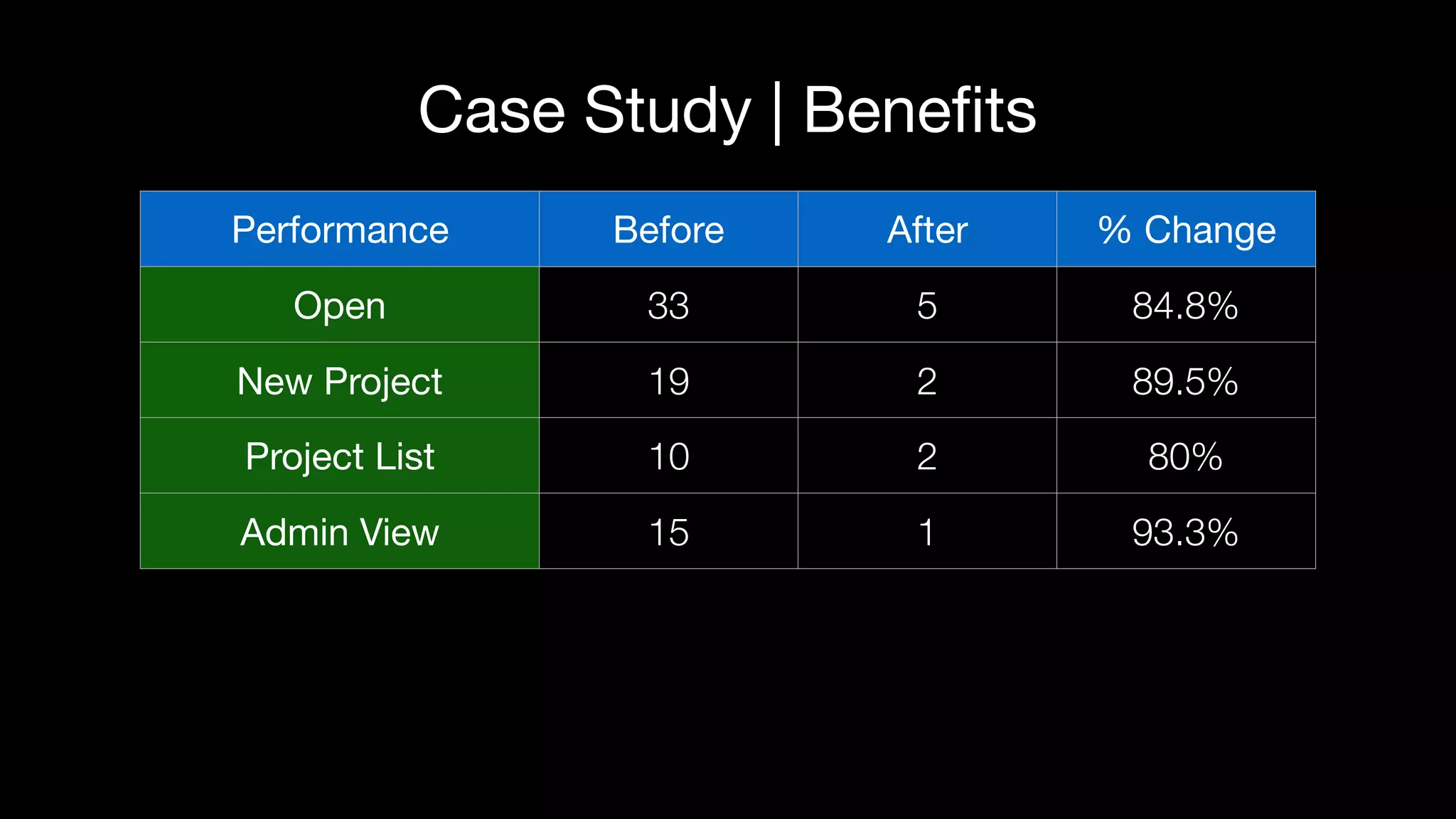

27. Case Study | Benefits
Performance Before After % Change
Open 33 5 84.8%
New Project 19 2 89.5%
Project List 10 2 80%
Admin View 15 1 93.3%

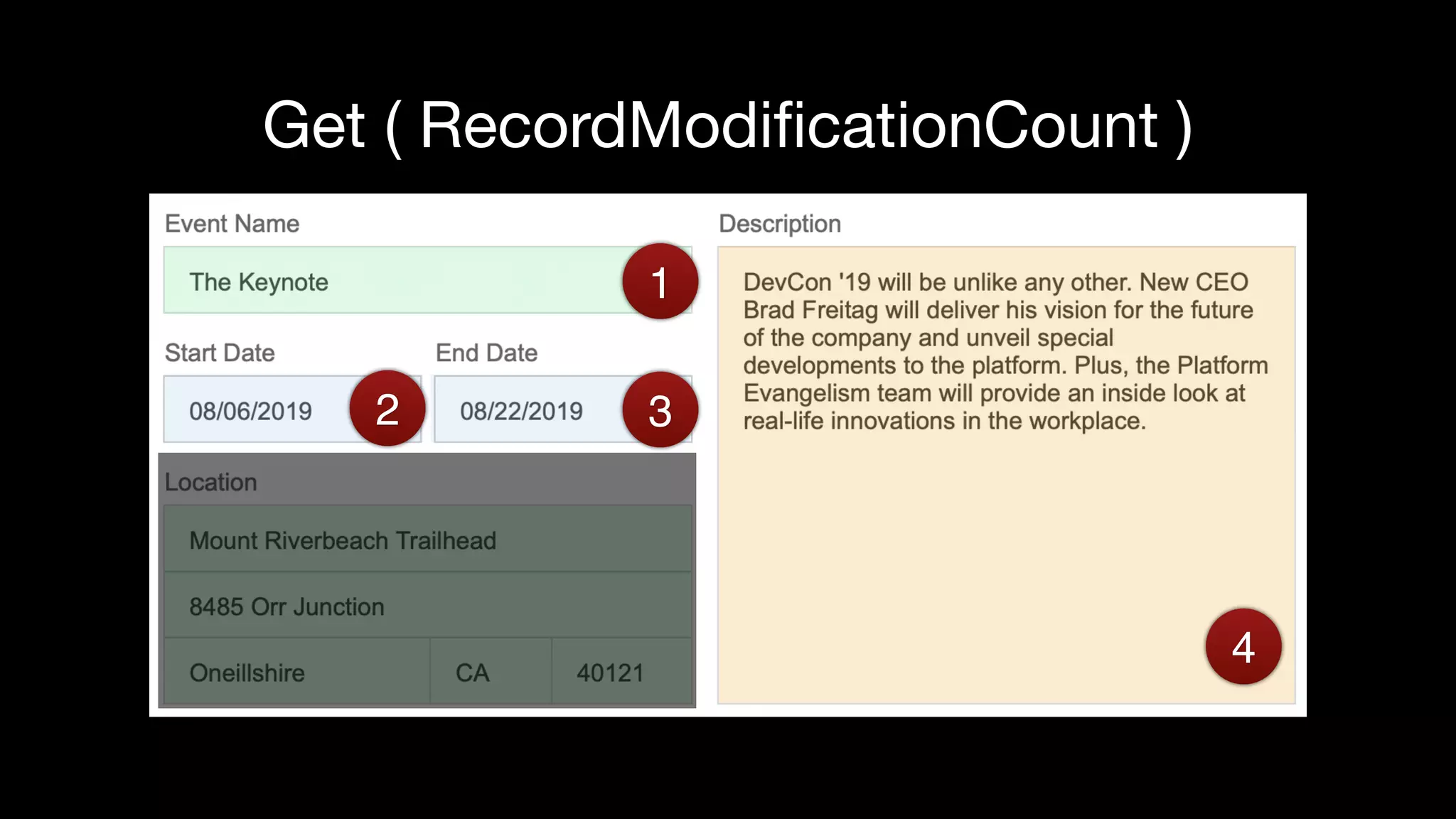

28. Get ( RecordModificationCount )
1
2 3
4

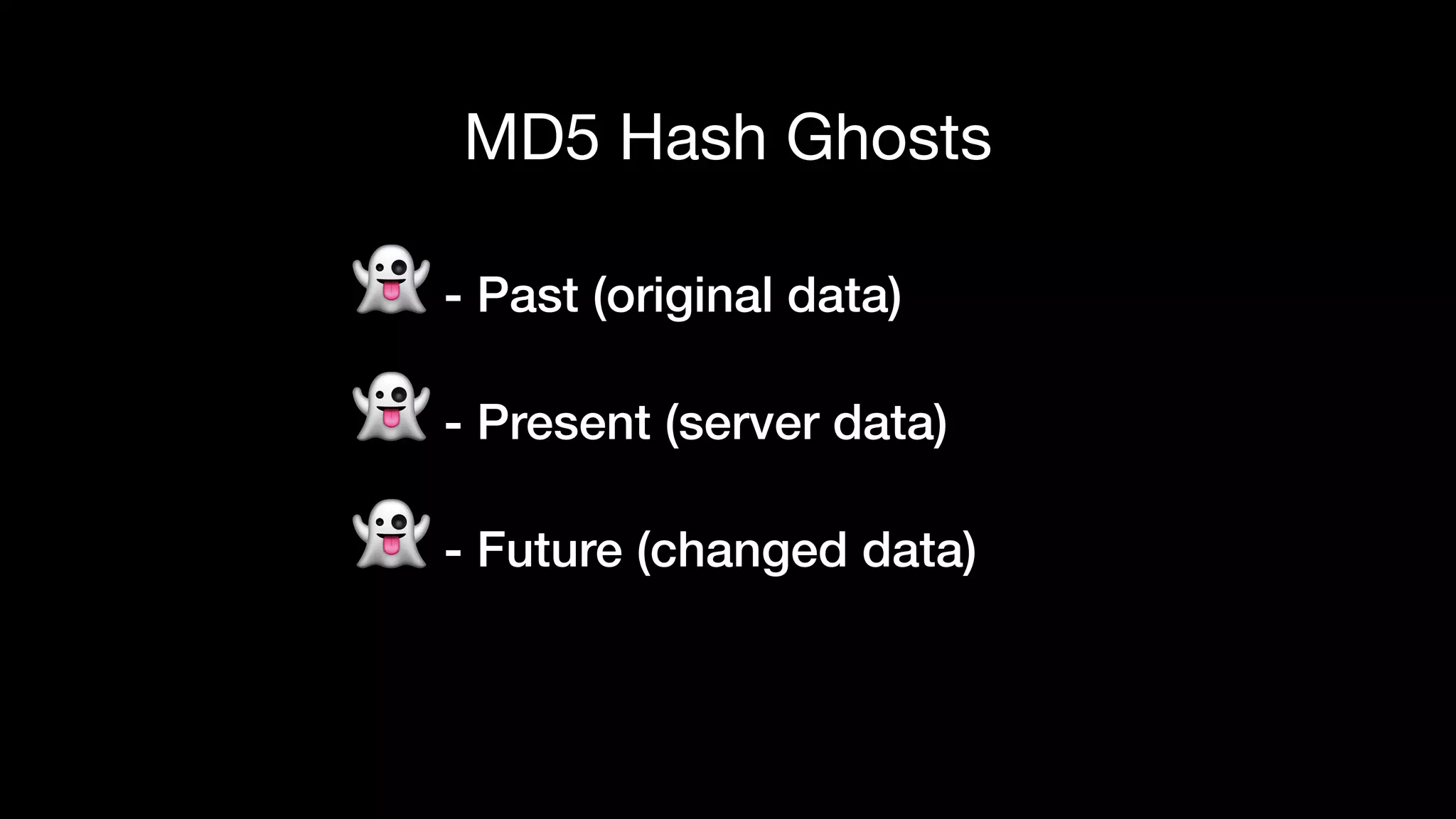

29. MD5 Hash Ghosts
👻 - Past (original data)
👻 - Present (server data)
👻 - Future (changed data)

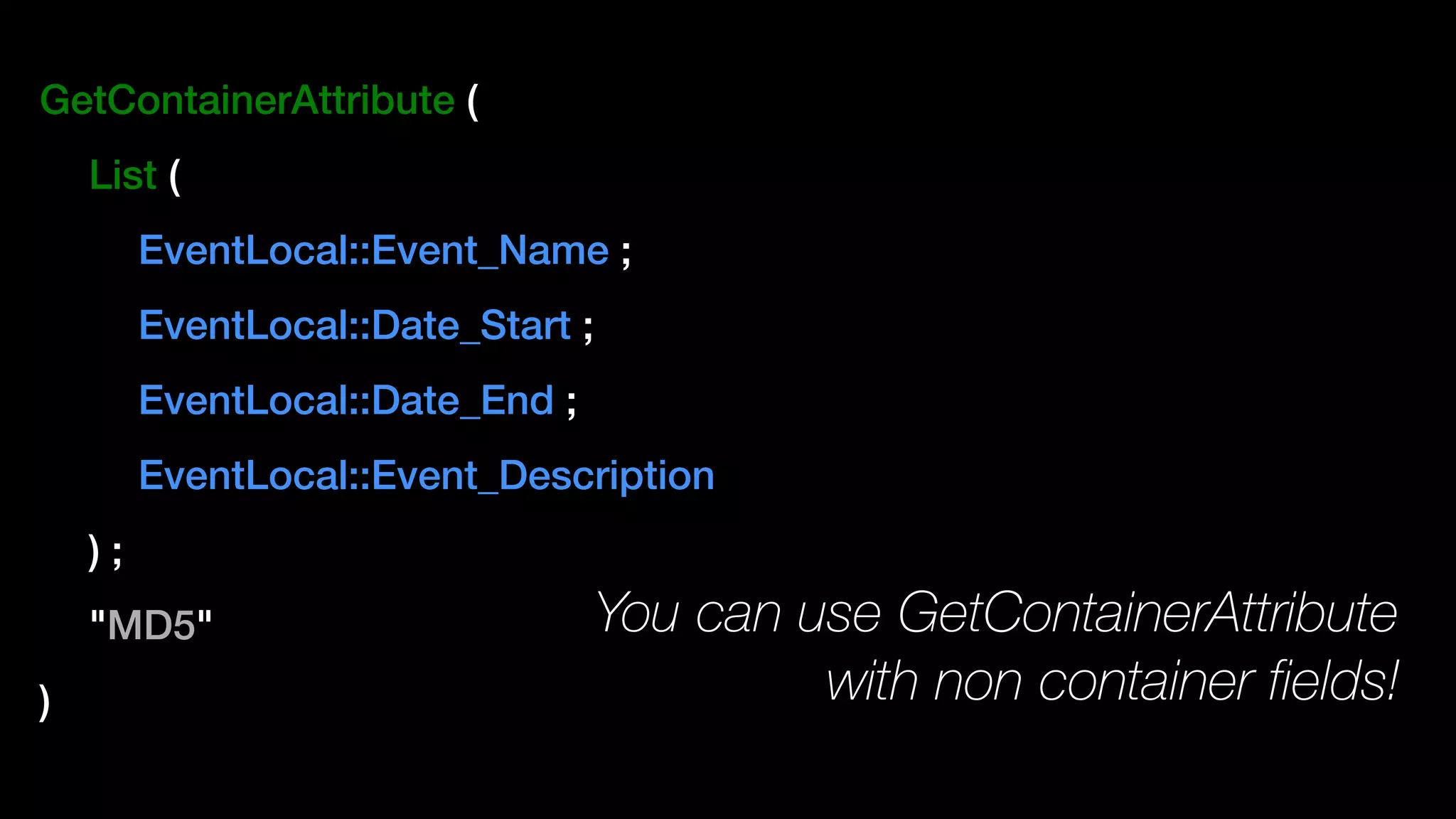

30. GetContainerAttribute (
List (
EventLocal::Event_Name ;
EventLocal::Date_Start ;
EventLocal::Date_End ;
EventLocal::Event_Description
) ;
"MD5"
)
You can use GetContainerAttribute
with non container fields!

31. MVC - Model | View | Controller
Model
View
Controller
Layout
Local StorageScripts

32. Demos

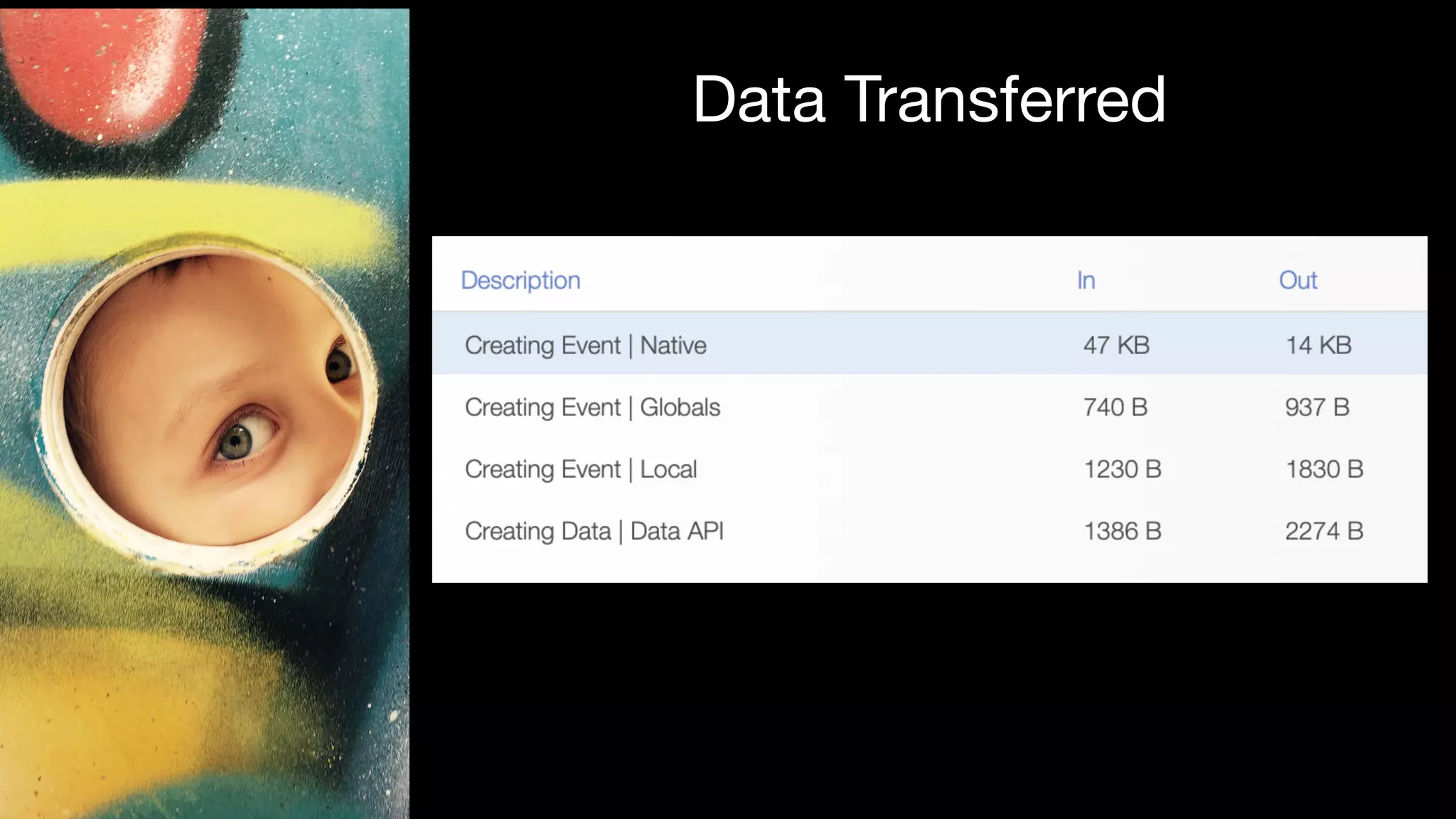

33. Data Transferred

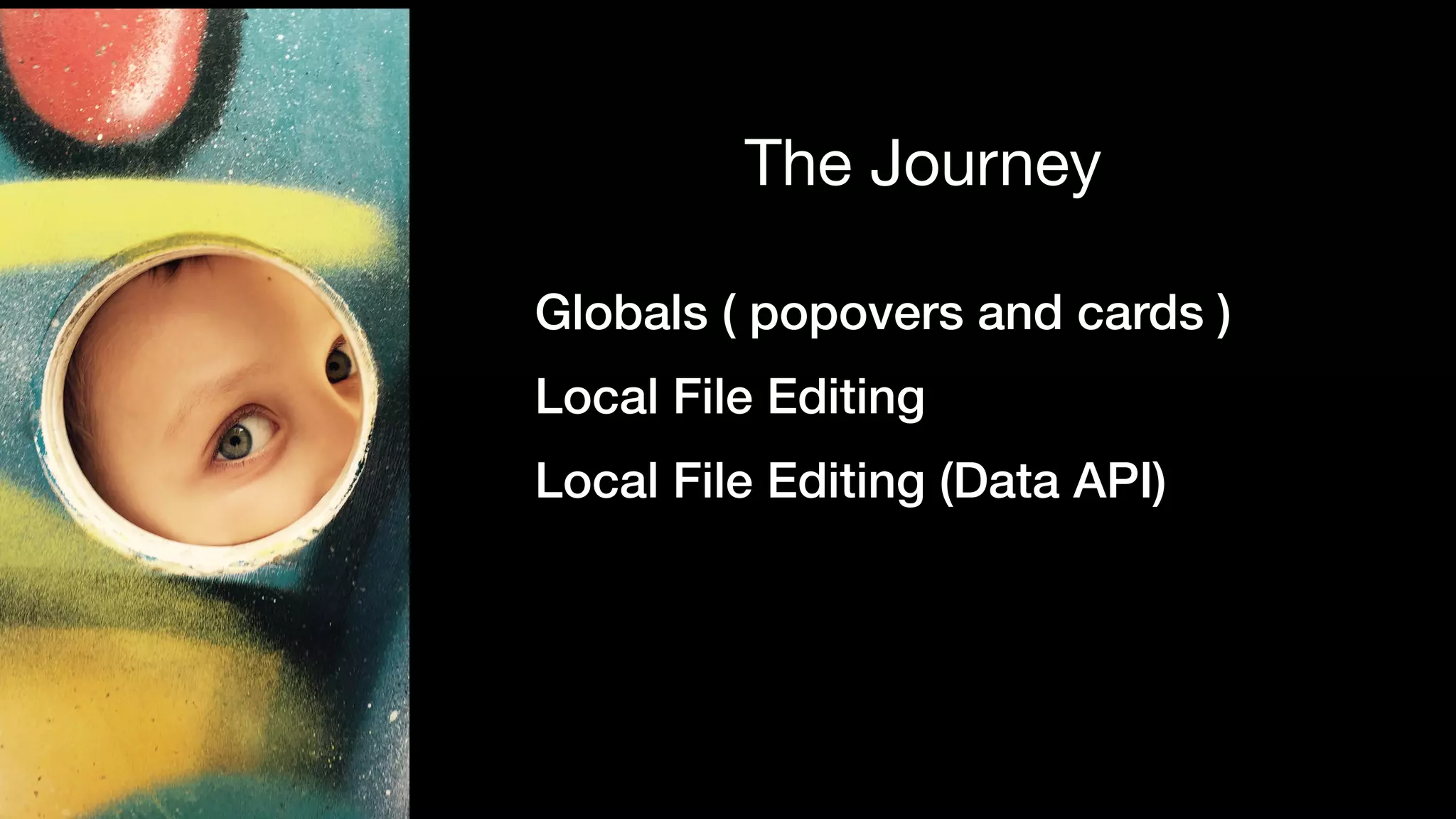

34. Globals ( popovers and cards )
Local File Editing
Local File Editing (Data API)
The Journey

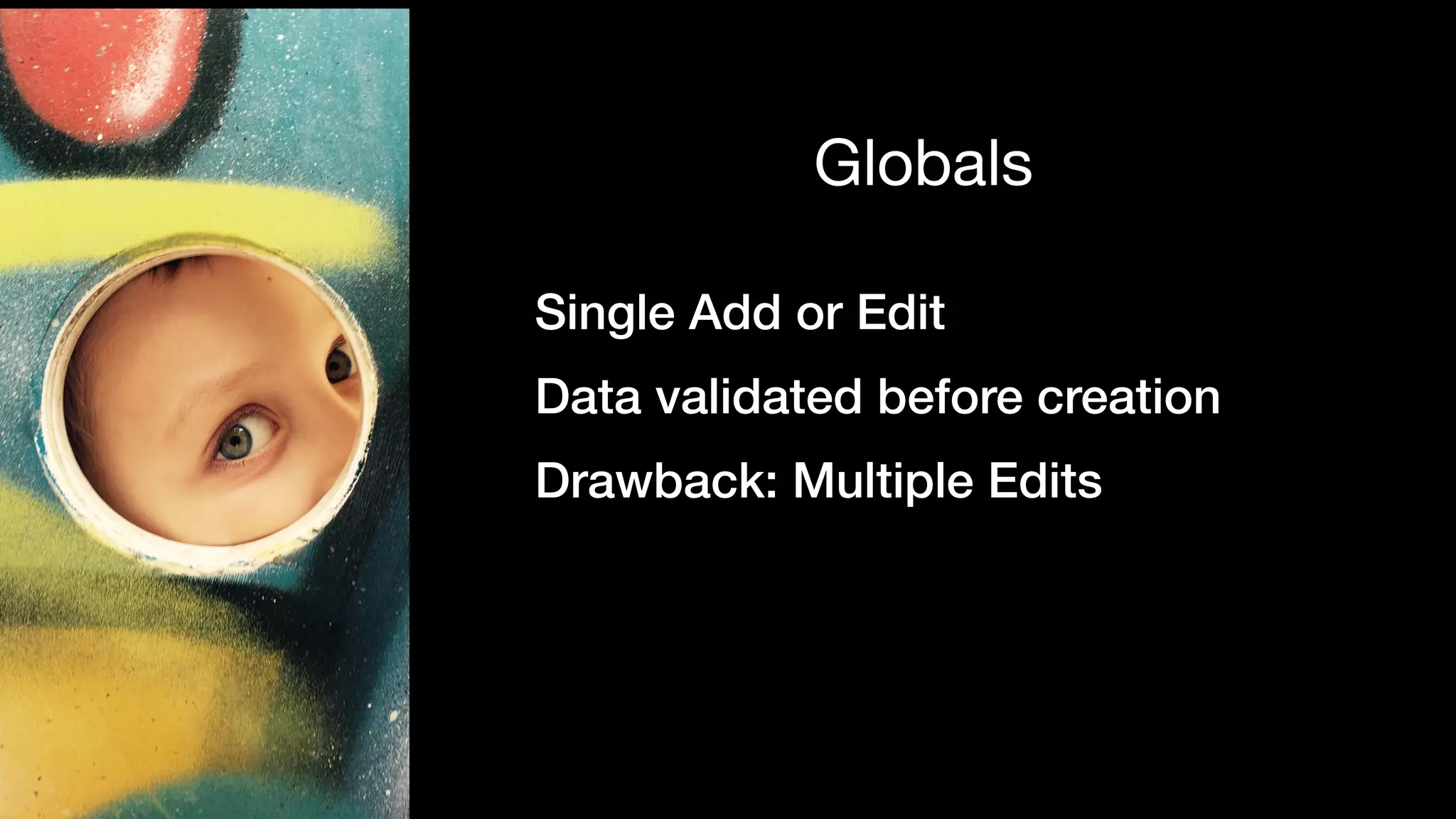

35. Single Add or Edit
Data validated before creation
Drawback: Multiple Edits
Globals

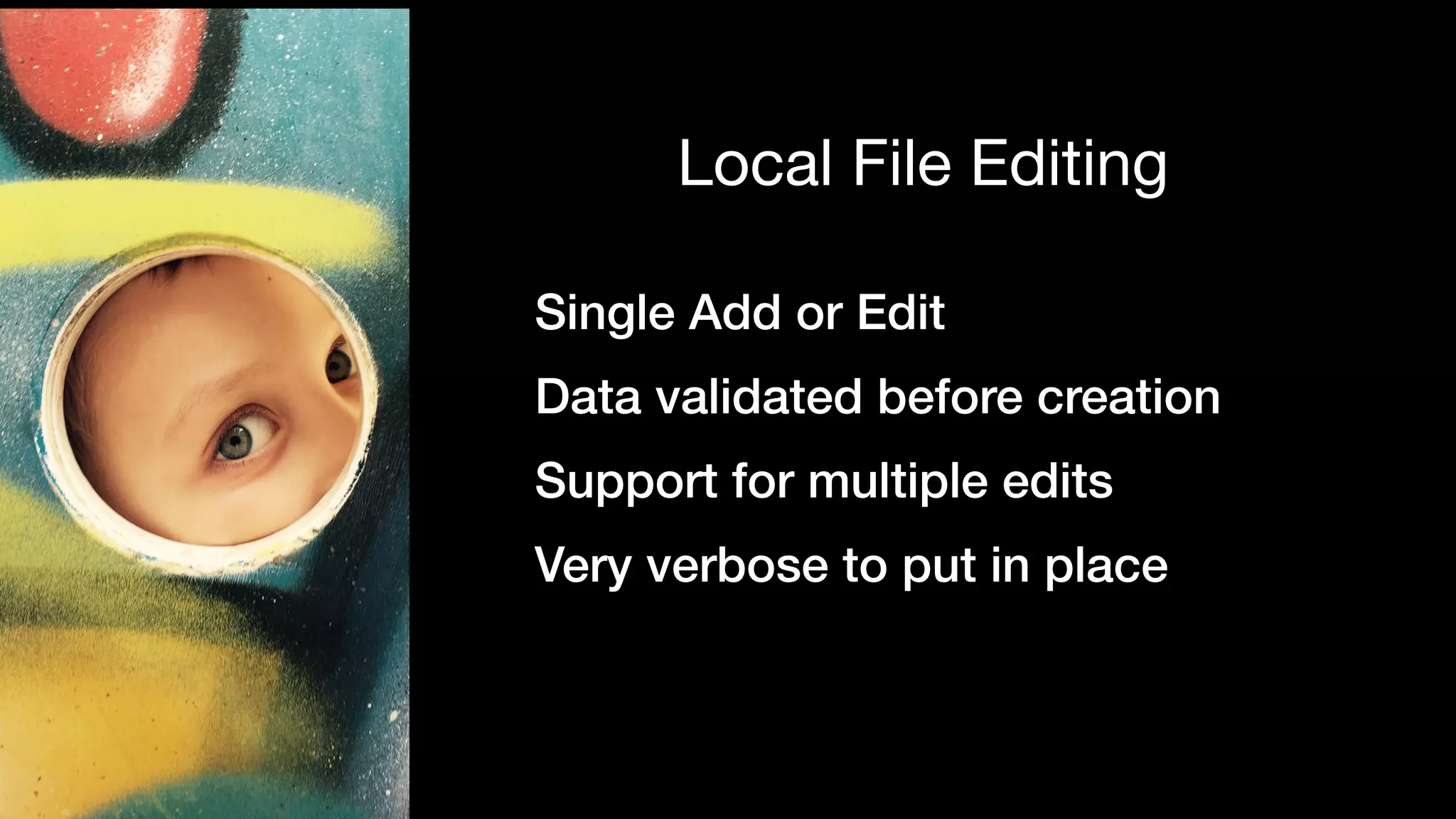

36. Single Add or Edit
Data validated before creation
Support for multiple edits
Very verbose to put in place

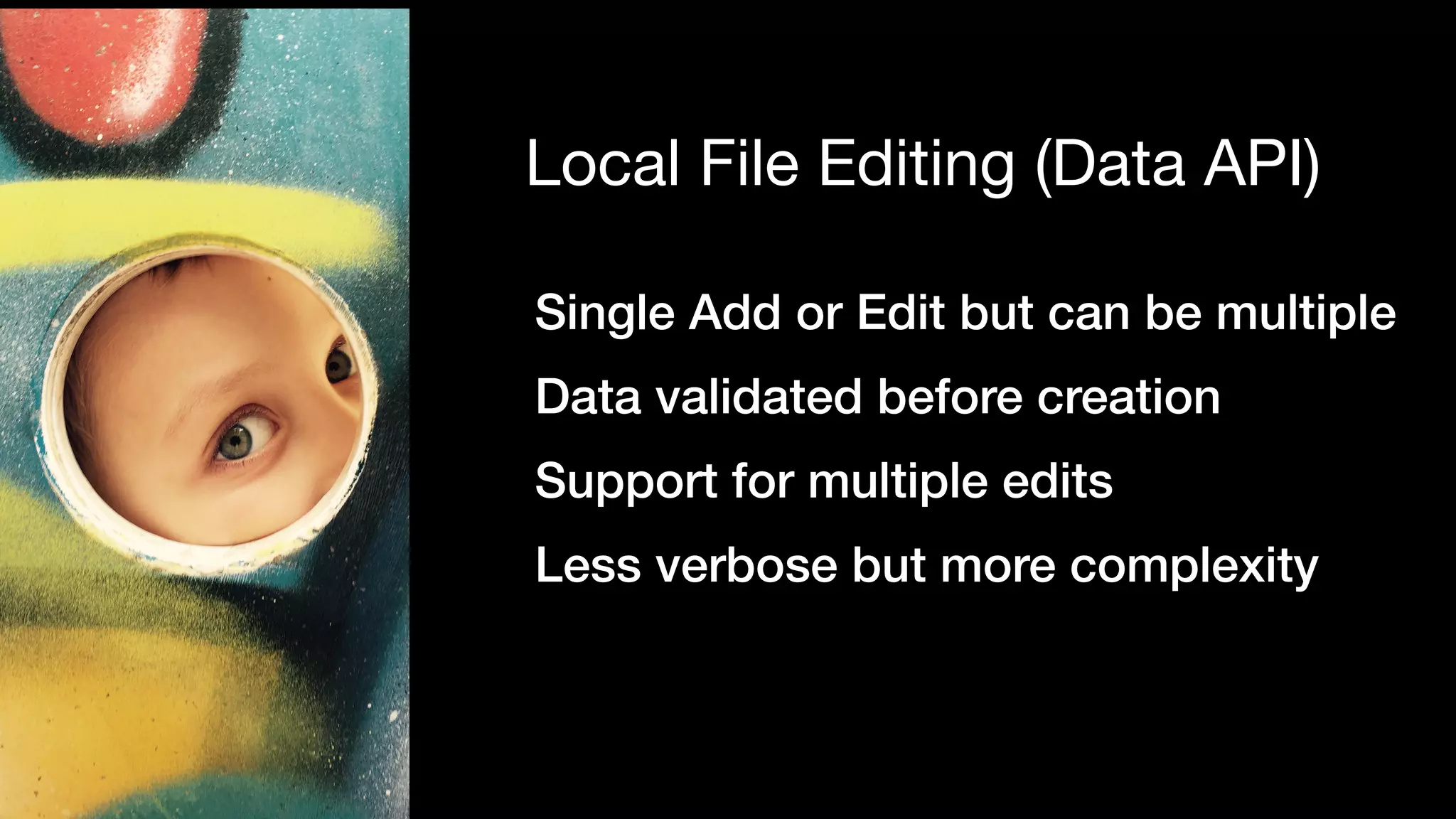

Local File Editing

37. Single Add or Edit but can be multiple
Data validated before creation
Support for multiple edits
Less verbose but more complexity
Local File Editing (Data API)

38. Pessimistic vs Optimistic
Recap

39. xDifferences between
Techniques Commit footprint / Local file editing
Warnings Important things to consider
Different approaches Global | Local | Data API
MVC Clear separation & easy to implement
Generating Hashes 👻 of past, present, and future

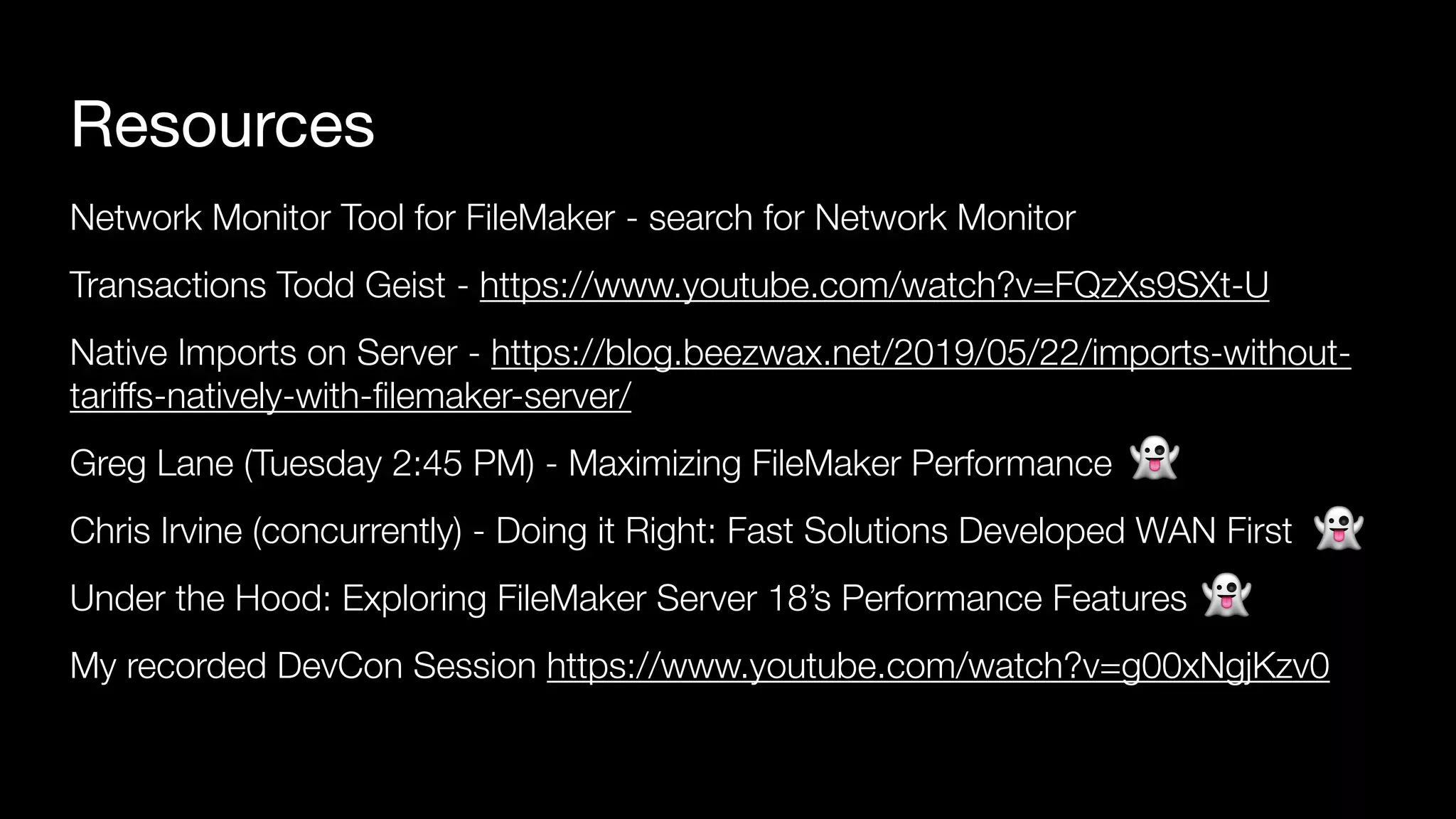

40. Resources
Network Monitor Tool for FileMaker - search for Network Monitor
Transactions Todd Geist - https://www.youtube.com/watch?v=FQzXs9SXt-U
Native Imports on Server - https://blog.beezwax.net/2019/05/22/imports-without-
tariffs-natively-with-filemaker-server/
Greg Lane (Tuesday 2:45 PM) - Maximizing FileMaker Performance
Chris Irvine (concurrently) - Doing it Right: Fast Solutions Developed WAN First
Under the Hood: Exploring FileMaker Server 18’s Performance Features
My recorded DevCon Session https://www.youtube.com/watch?v=g00xNgjKzv0
👻
👻
👻

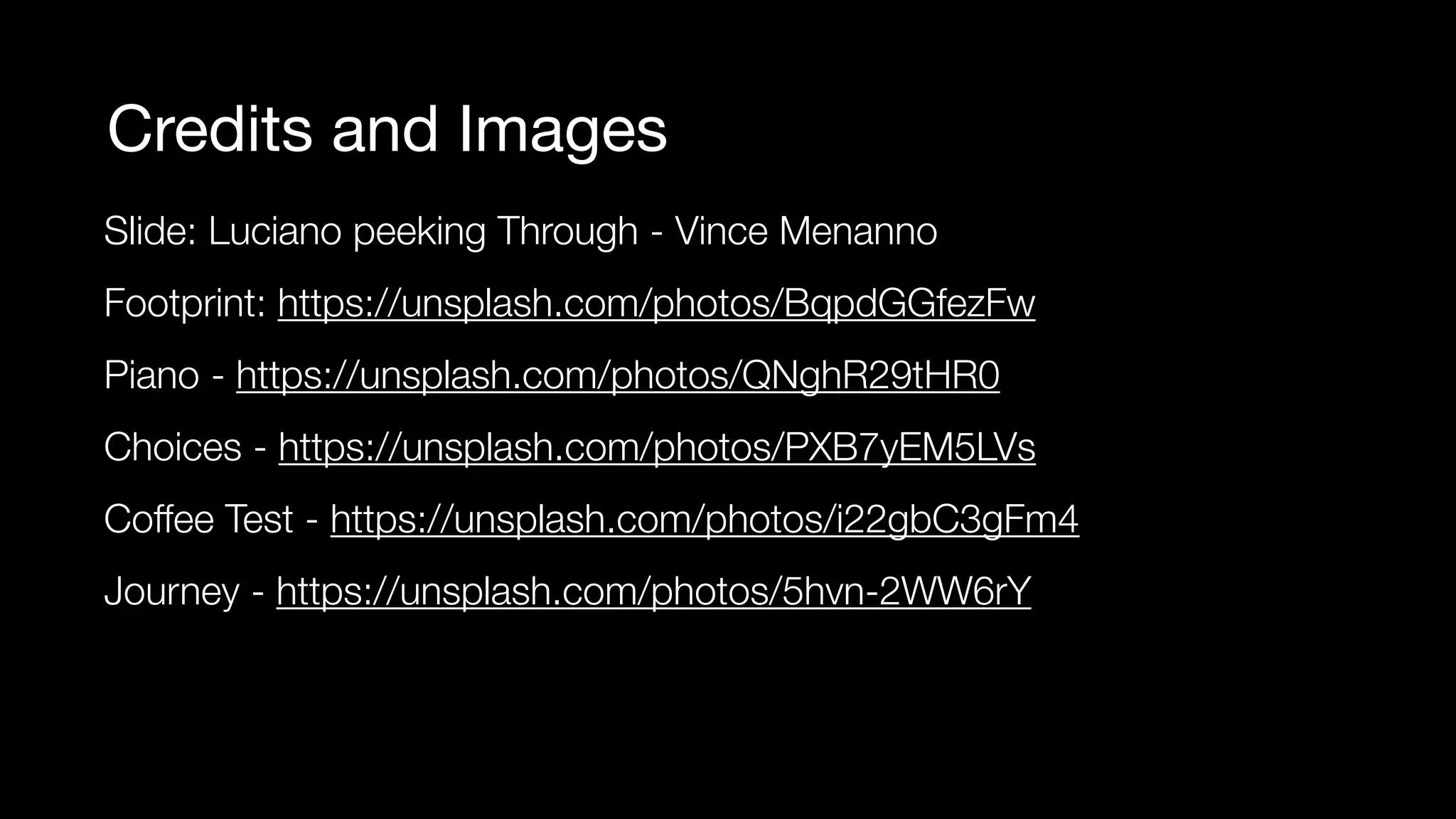

41. Credits and Images
