Floyd Warshall's algorithm finds the shortest paths between all pairs of vertices in a graph. It can handle graphs with negative edge weights but not negative weight cycles. The algorithm runs in O(n3) time, where n is the number of nodes, by iterating three nested loops to consider all possible paths through intermediate vertices and update the shortest path lengths. It works by building up the shortest paths one edge at a time, starting with the graph's direct edges and then improving paths by going through intermediate vertices.

1. 1

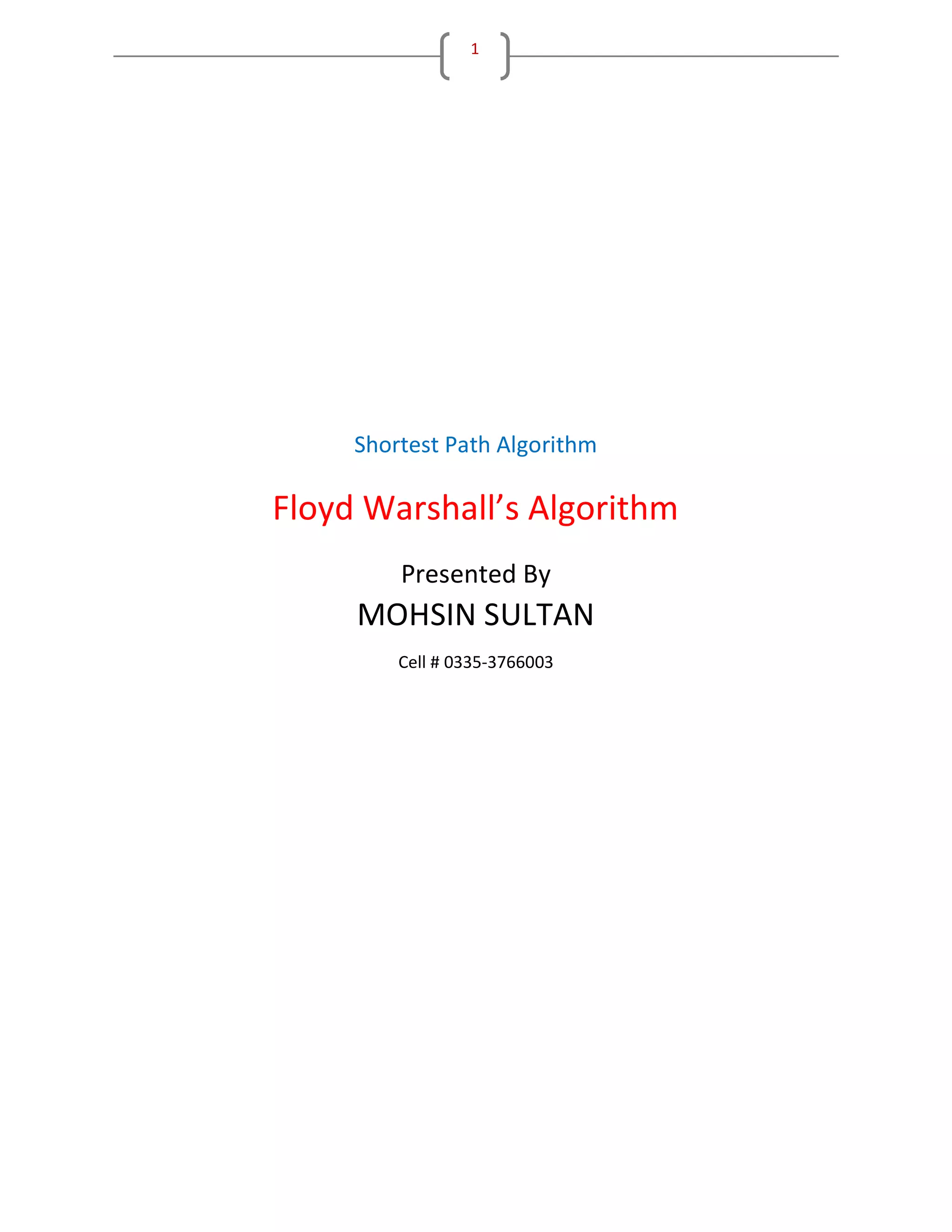

Shortest Path Algorithm
Floyd Warshall’s Algorithm
Presented By
MOHSIN SULTAN
Cell # 0335-3766003

2. 2

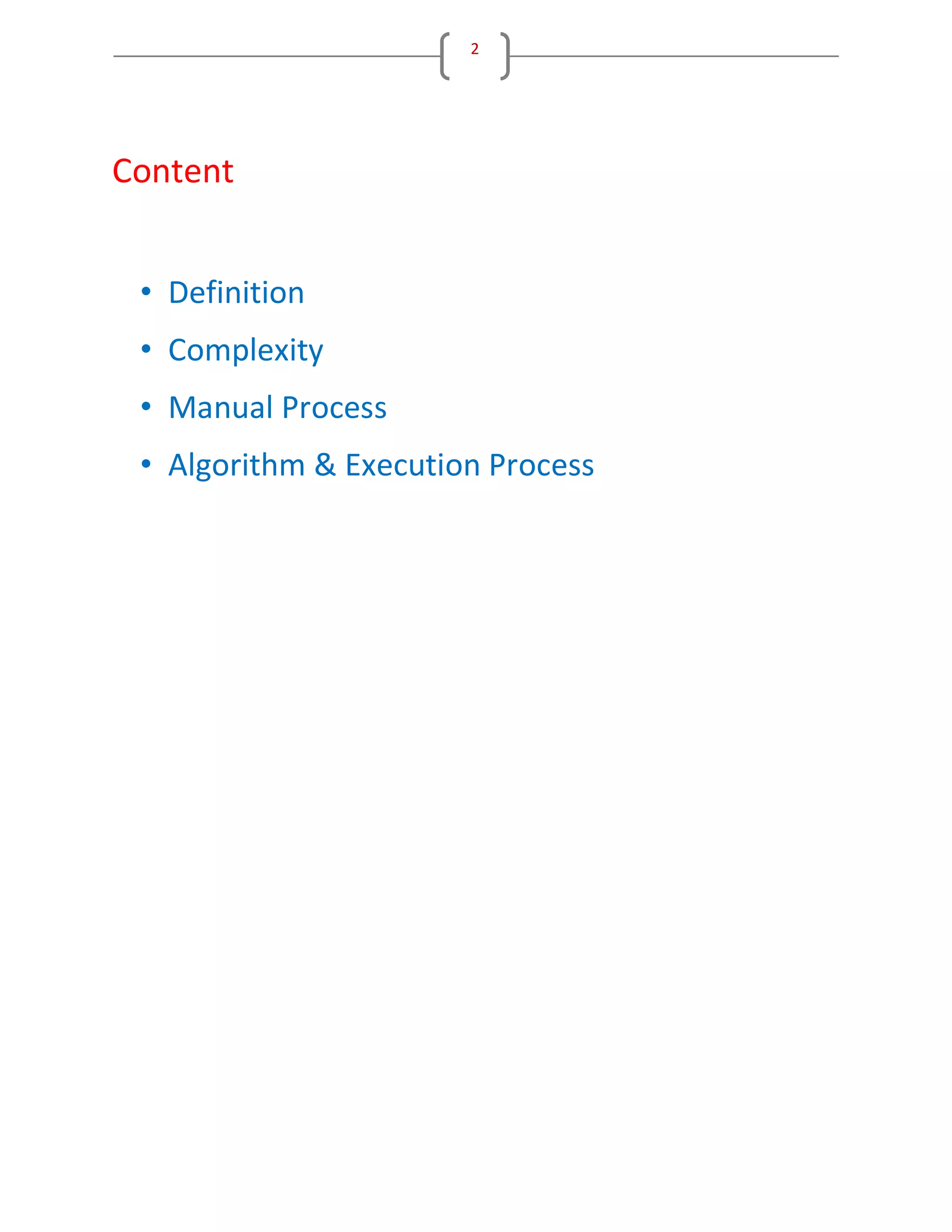

Content
• Definition
• Complexity
• Manual Process
• Algorithm & Execution Process

3. 3

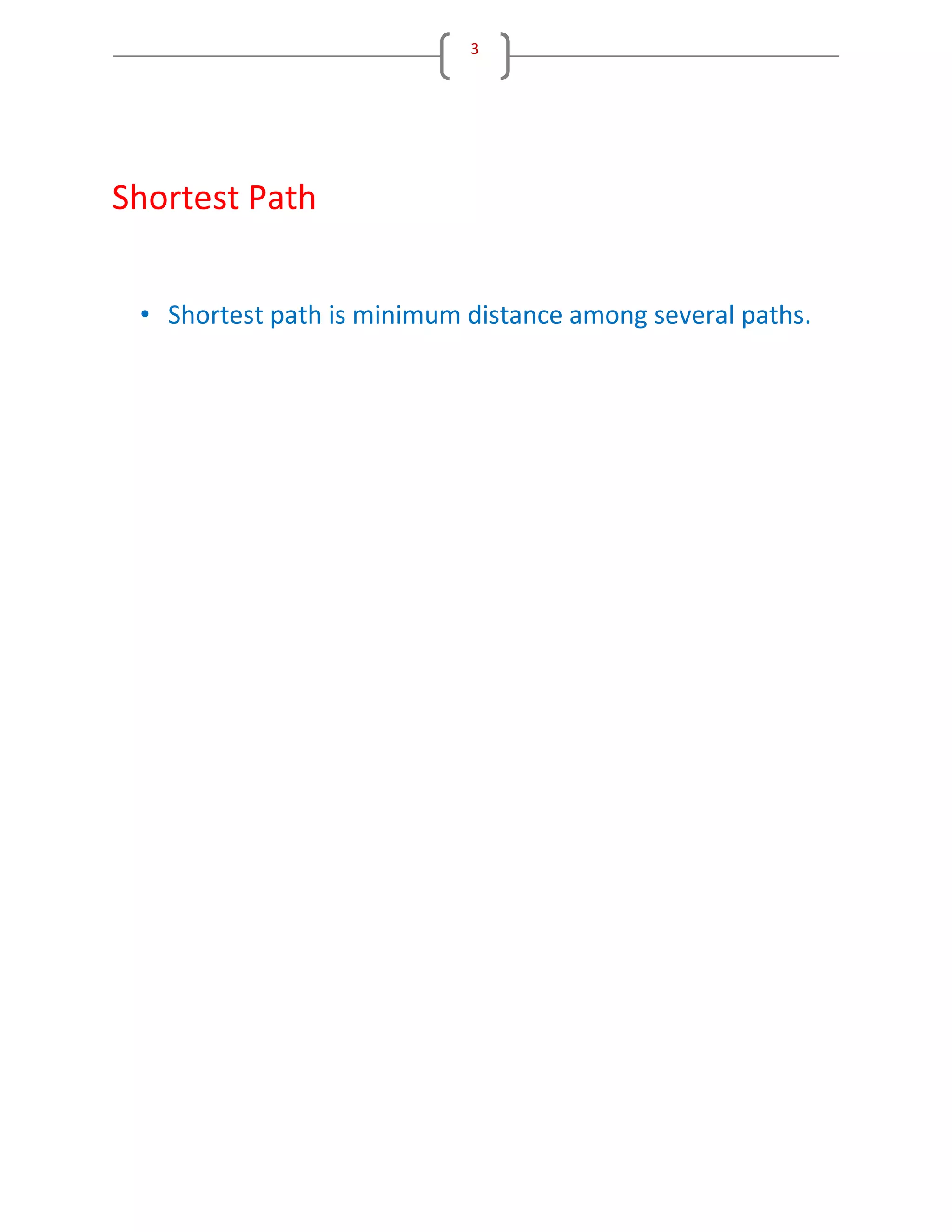

Shortest Path
• Shortest path is minimum distance among several paths.

4. 4

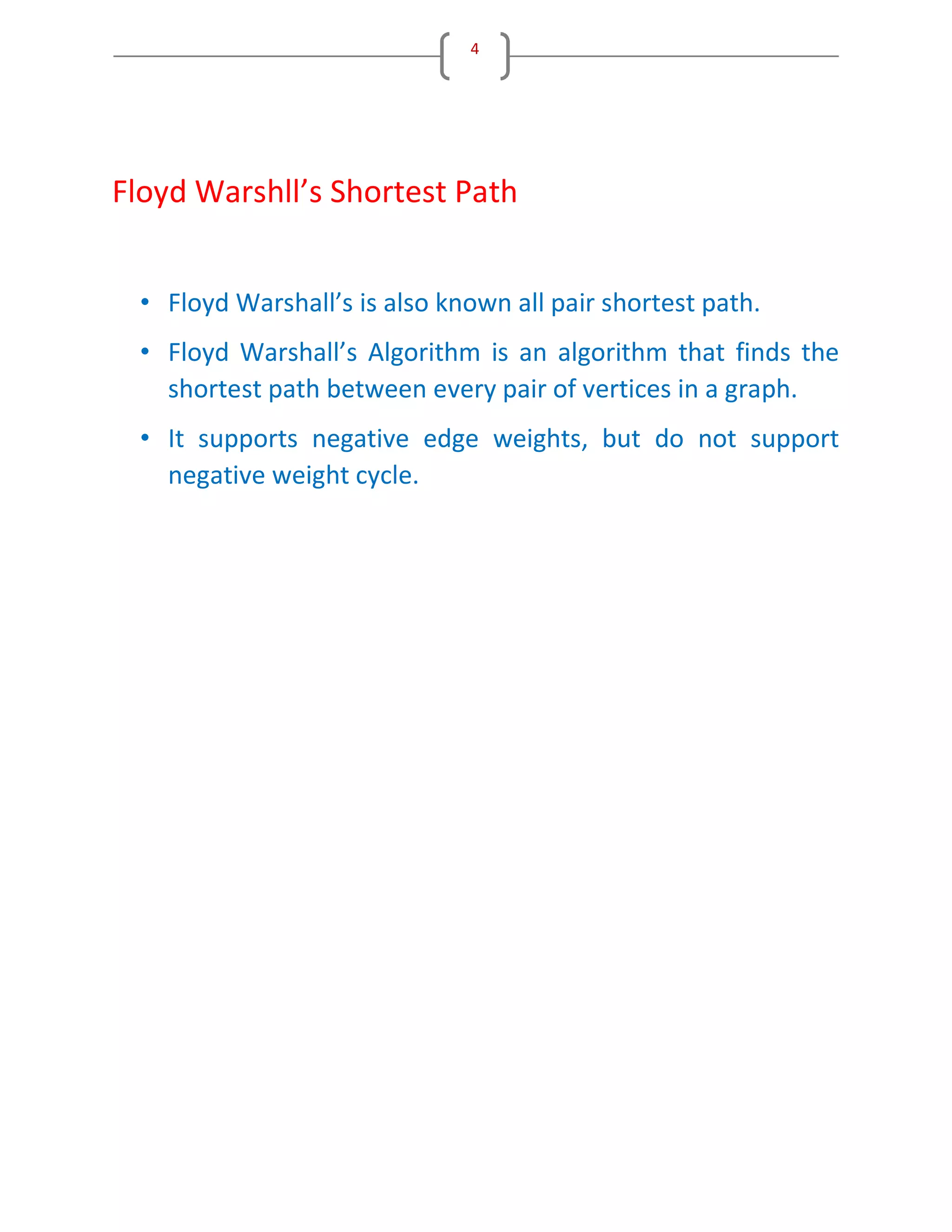

Floyd Warshll’s Shortest Path
• Floyd Warshall’s is also known all pair shortest path.
• Floyd Warshall’s Algorithm is an algorithm that finds the
shortest path between every pair of vertices in a graph.
• It supports negative edge weights, but do not support
negative weight cycle.

5. 5

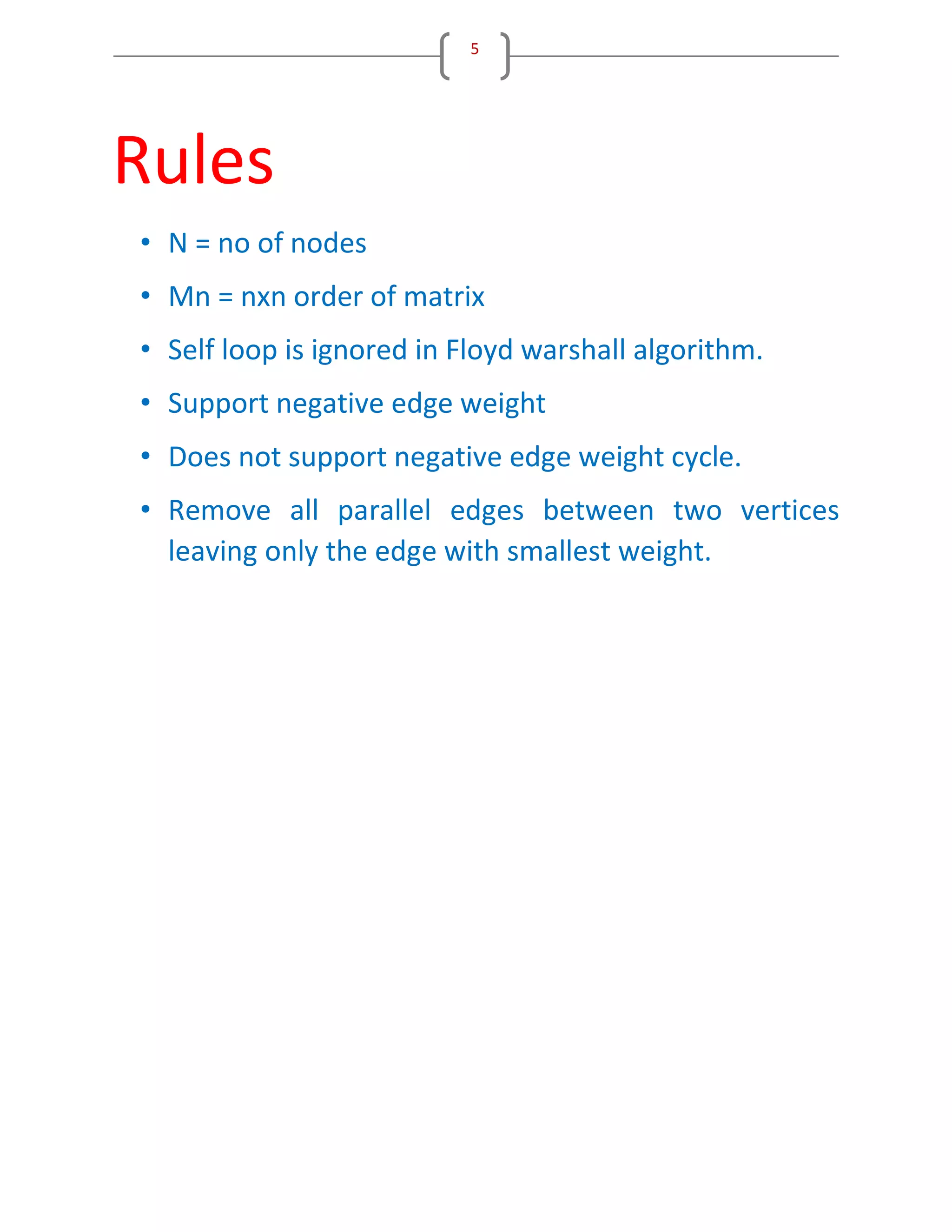

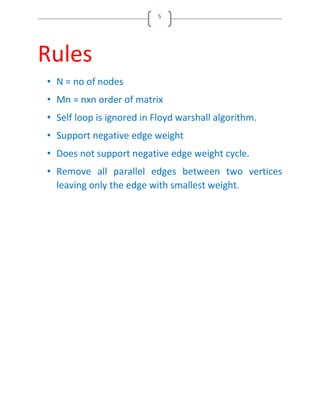

Rules
• N = no of nodes
• Mn = nxn order of matrix
• Self loop is ignored in Floyd warshall algorithm.
• Support negative edge weight
• Does not support negative edge weight cycle.
• Remove all parallel edges between two vertices
leaving only the edge with smallest weight.

6. 6

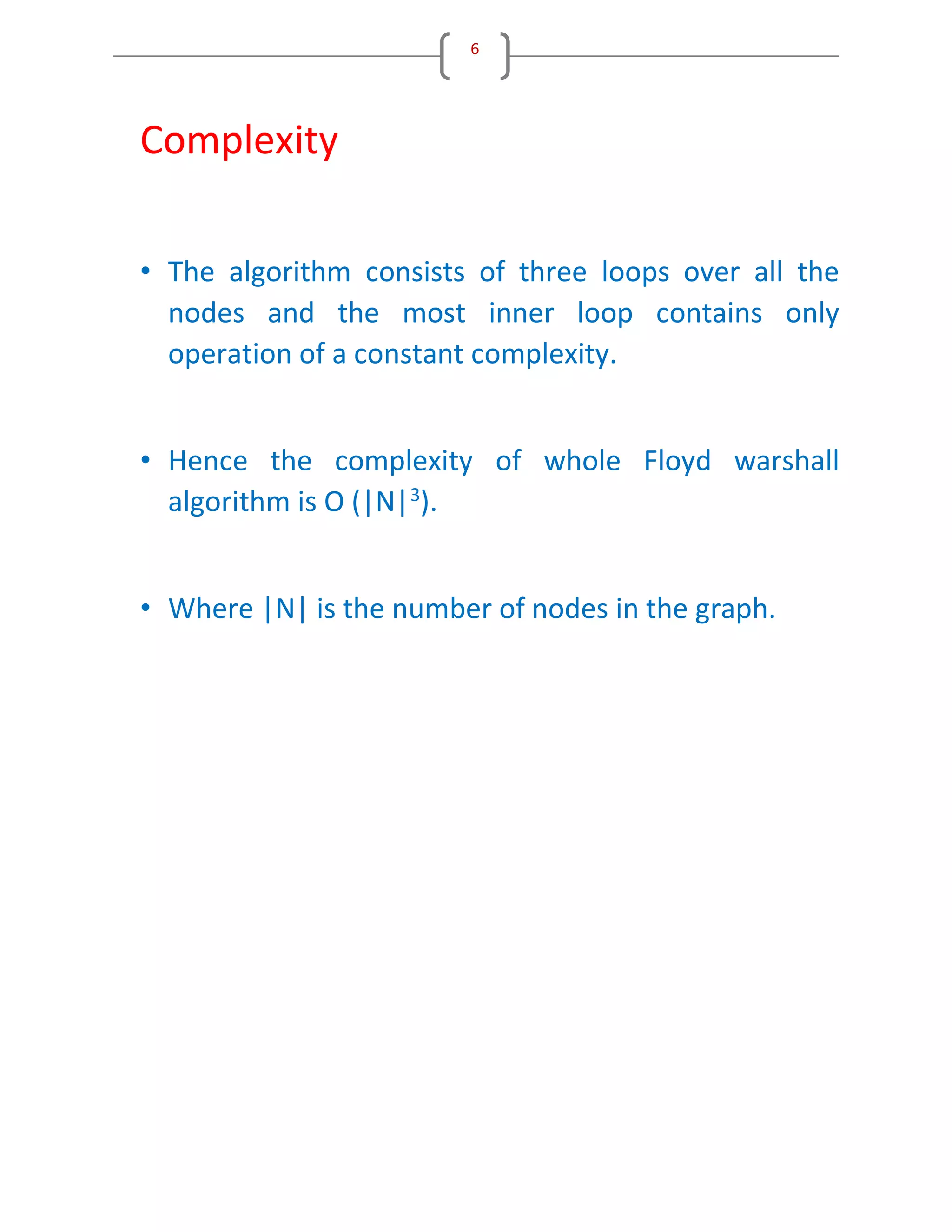

Complexity
• The algorithm consists of three loops over all the
nodes and the most inner loop contains only
operation of a constant complexity.
• Hence the complexity of whole Floyd warshall
algorithm is O (|N|3
).
• Where |N| is the number of nodes in the graph.

7. 7

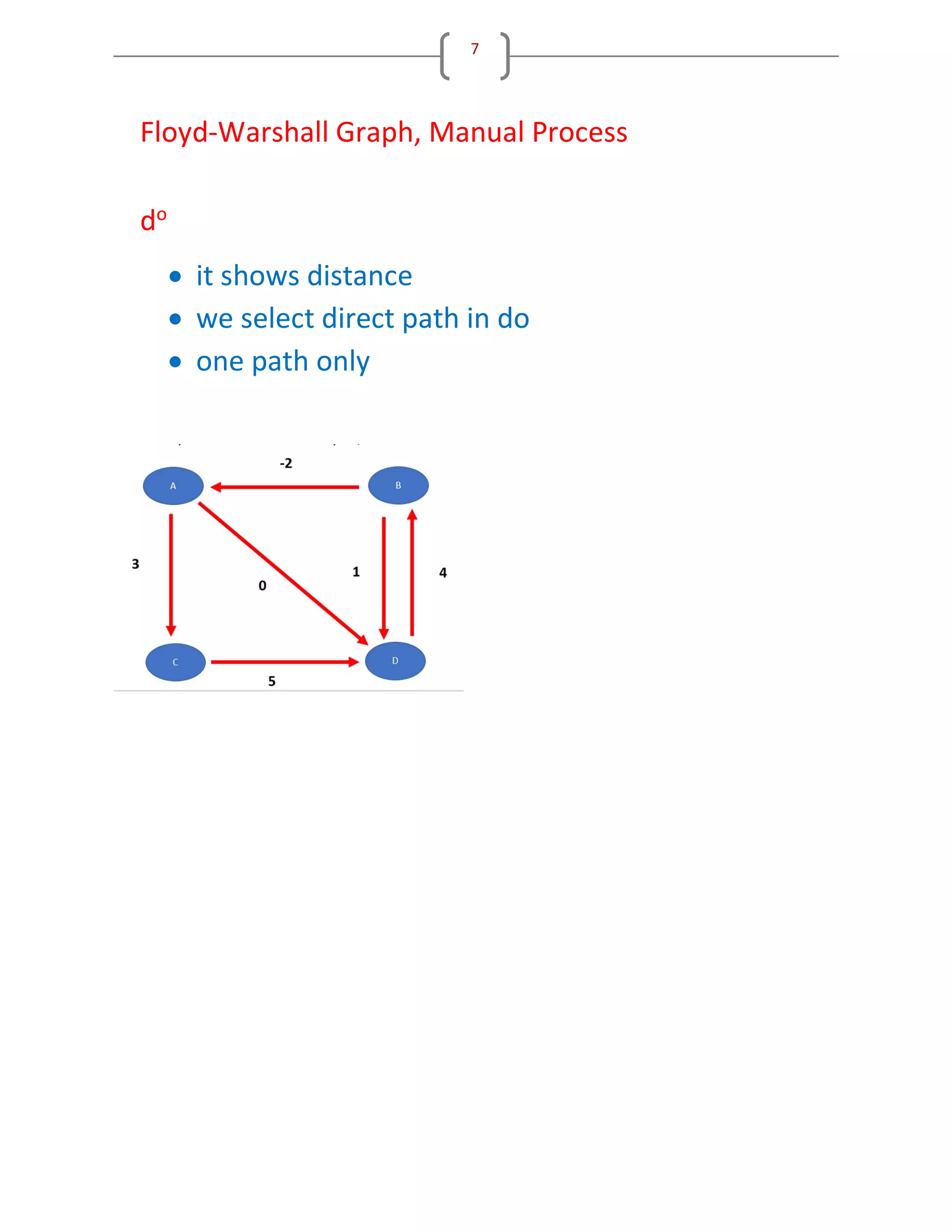

Floyd-Warshall Graph, Manual Process
do
 it shows distance
 we select direct path in do
 one path only

8. 8

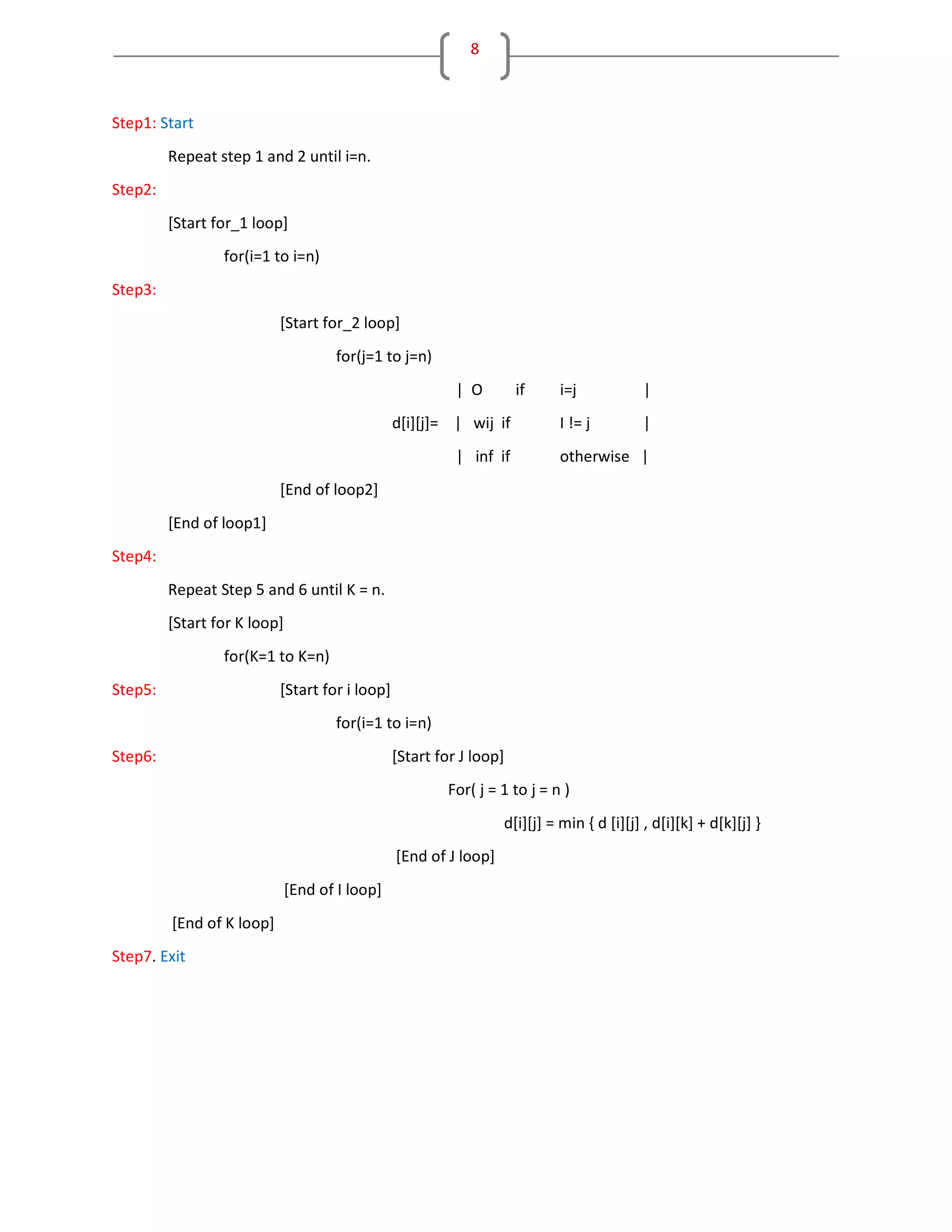

Step1: Start
Repeat step 1 and 2 until i=n.
Step2:
[Start for_1 loop]
for(i=1 to i=n)
Step3:
[Start for_2 loop]
for(j=1 to j=n)
| O if i=j |
d[i][j]= | wij if I != j |
| inf if otherwise |
[End of loop2]
[End of loop1]
Step4:
Repeat Step 5 and 6 until K = n.
[Start for K loop]
for(K=1 to K=n)
Step5: [Start for i loop]
for(i=1 to i=n)
Step6: [Start for J loop]
For( j = 1 to j = n )
d[i][j] = min { d [i][j] , d[i][k] + d[k][j] }
[End of J loop]
[End of I loop]
[End of K loop]
Step7. Exit

9. 9

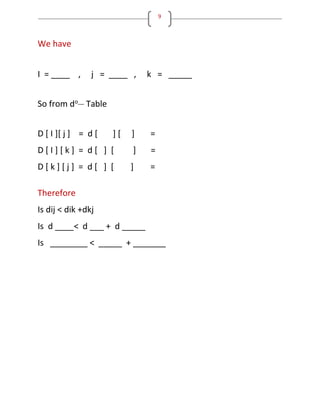

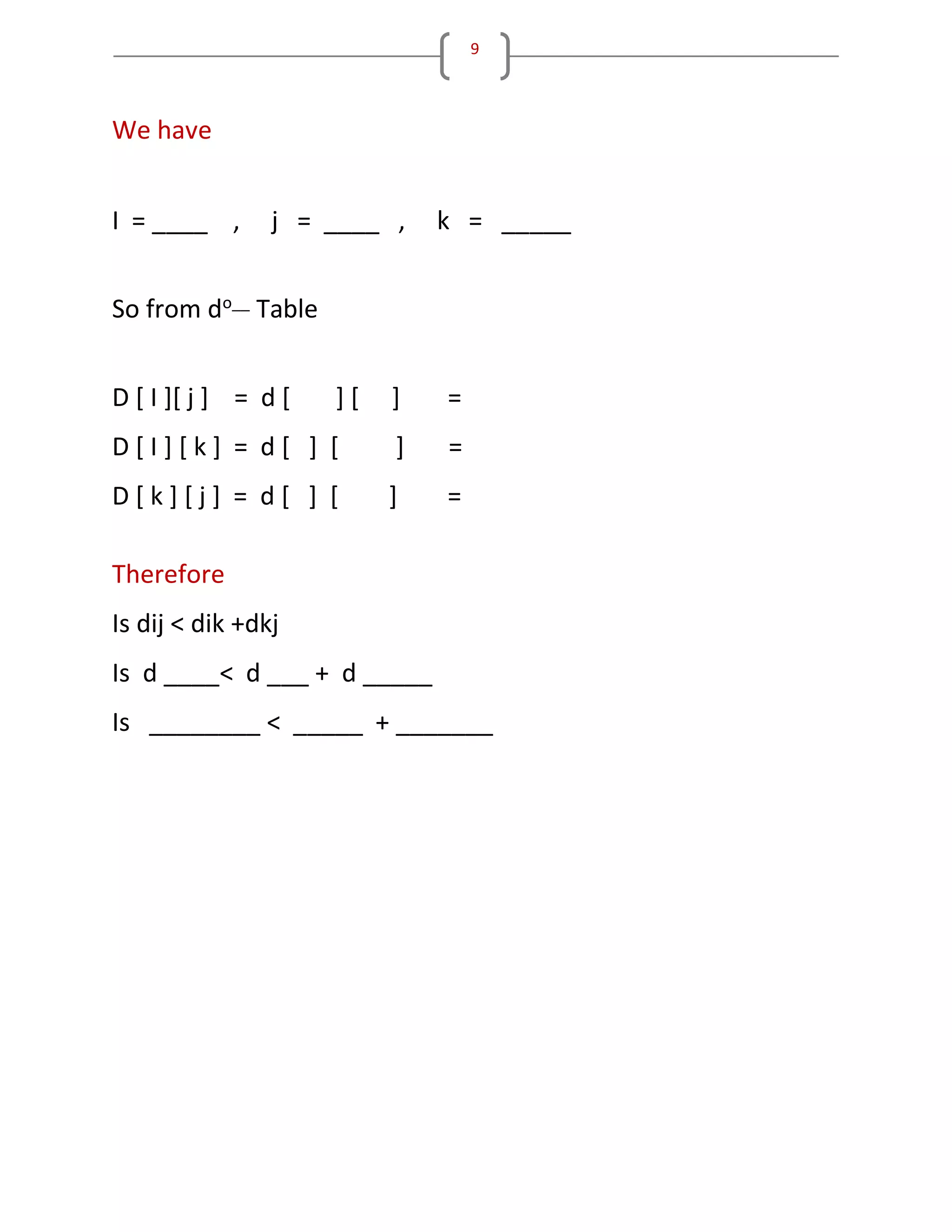

We have
I = ____ , j = ____ , k = _____
So from do__
Table
D [ I ][ j ] = d [ ] [ ] =
D [ I ] [ k ] = d [ ] [ ] =
D [ k ] [ j ] = d [ ] [ ] =
Therefore
Is dij < dik +dkj
Is d ____< d ___ + d _____
Is ________ < _____ + _______

10. 10
