1. FlinkML: Large-scale Machine
Learning with Apache Flink
Theodore Vasiloudis, SICS
SICS Data Science Day
October 21st, 2015

2. Apache Flink

3. What is Apache Flink?
● Large-scale data processing engine
● Easy and powerful APIs for batch and real-time streaming analysis
● Backed by a very robust execution backend
○ true streaming dataflow engine
○ custom memory manager
○ native iterations
○ cost-based optimizer

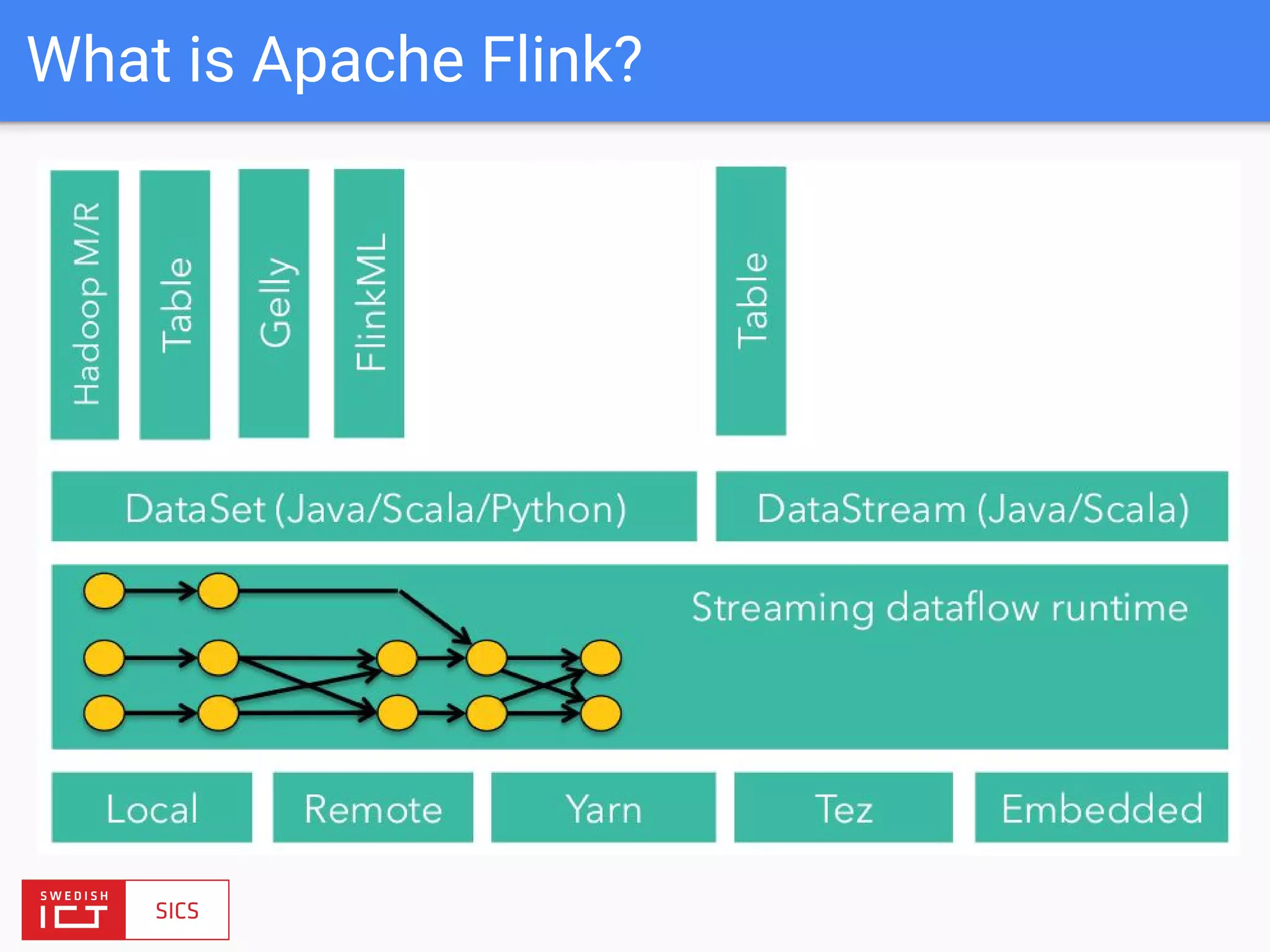

4. What is Apache Flink?

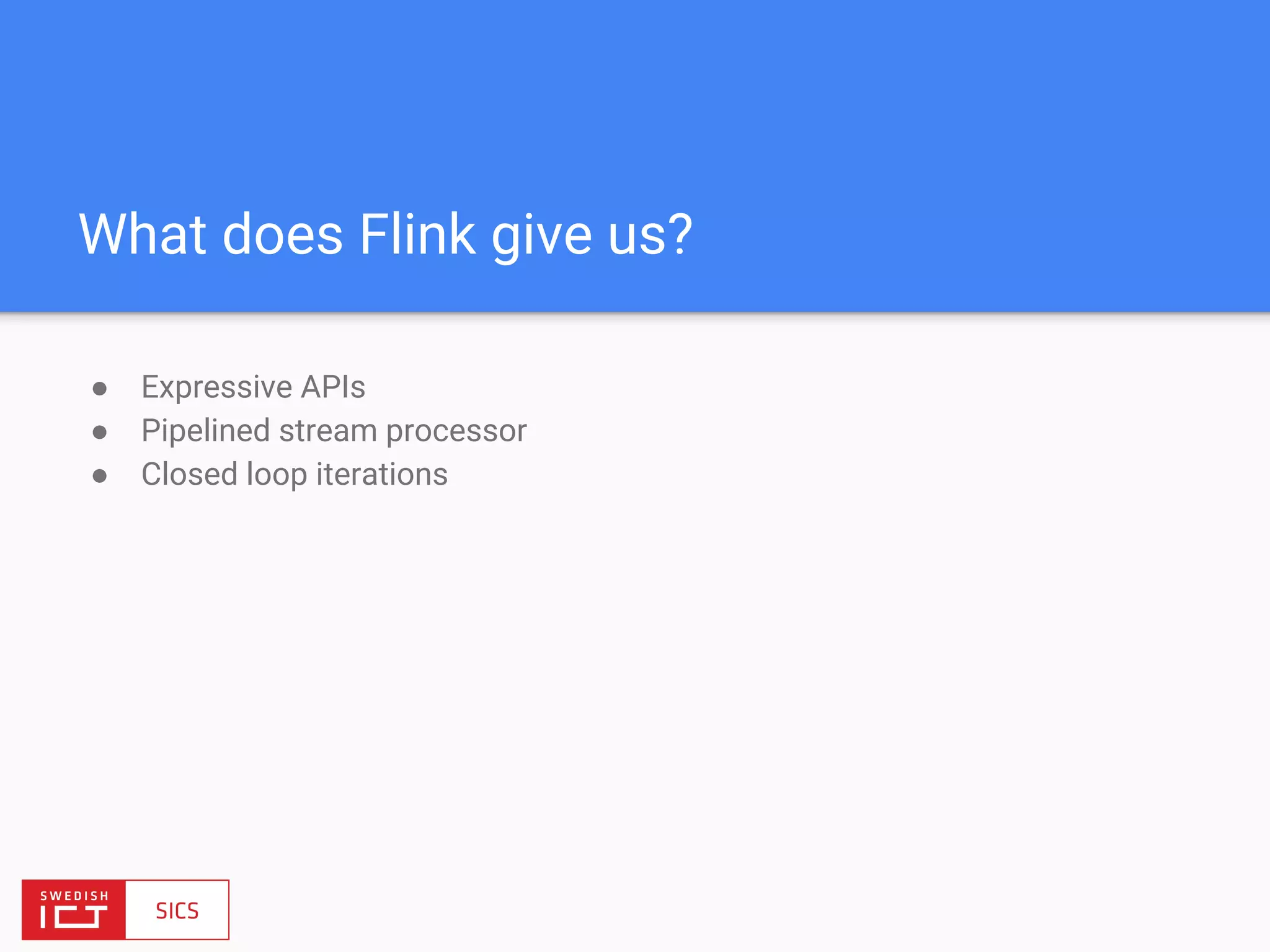

5. What does Flink give us?
● Expressive APIs
● Pipelined stream processor
● Closed loop iterations

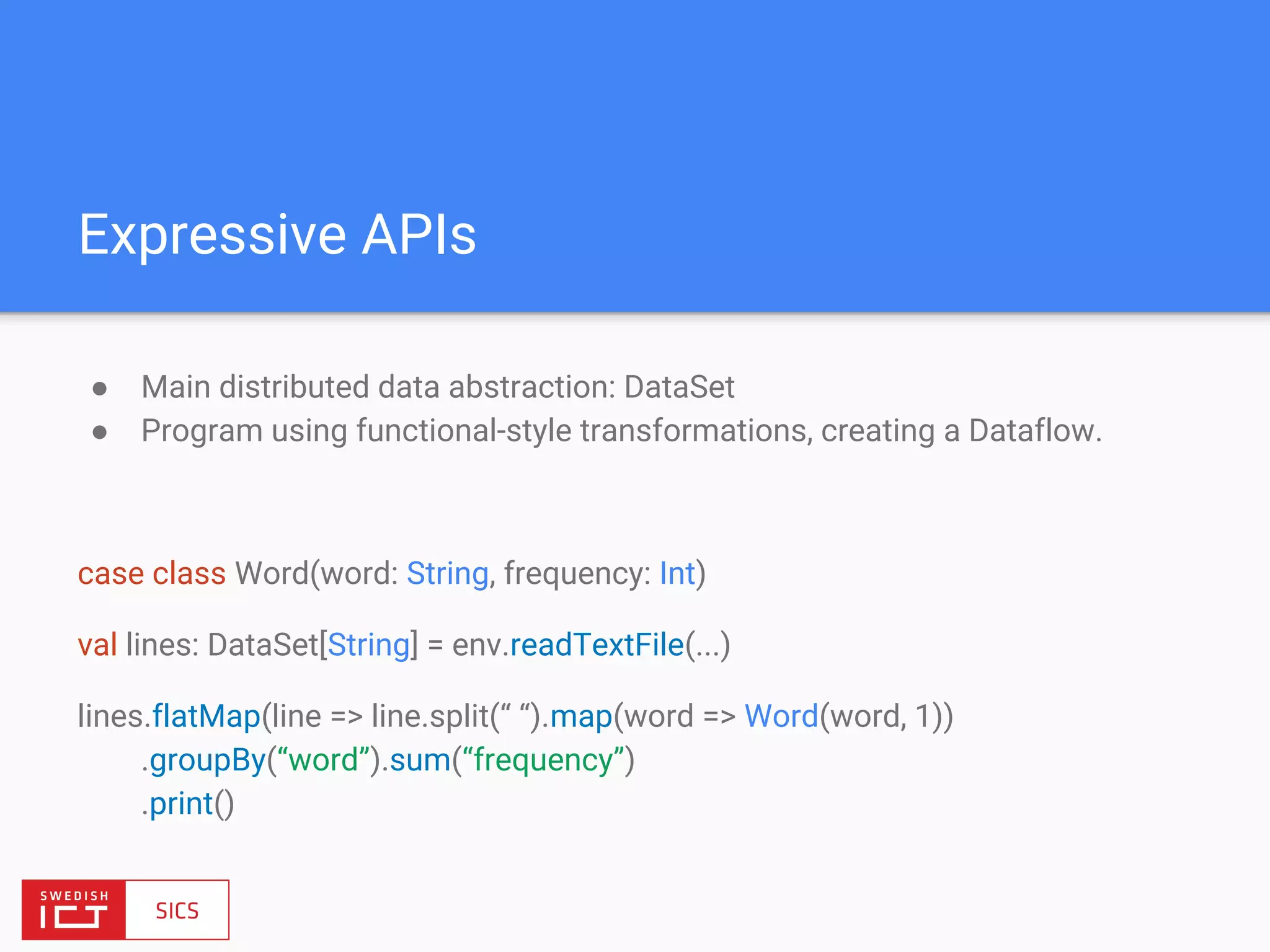

6. Expressive APIs
● Main distributed data abstraction: DataSet
● Program using functional-style transformations, creating a Dataflow.
case class Word(word: String, frequency: Int)
val lines: DataSet[String] = env.readTextFile(...)
lines.flatMap(line => line.split(“ “).map(word => Word(word, 1))
.groupBy(“word”).sum(“frequency”)
.print()

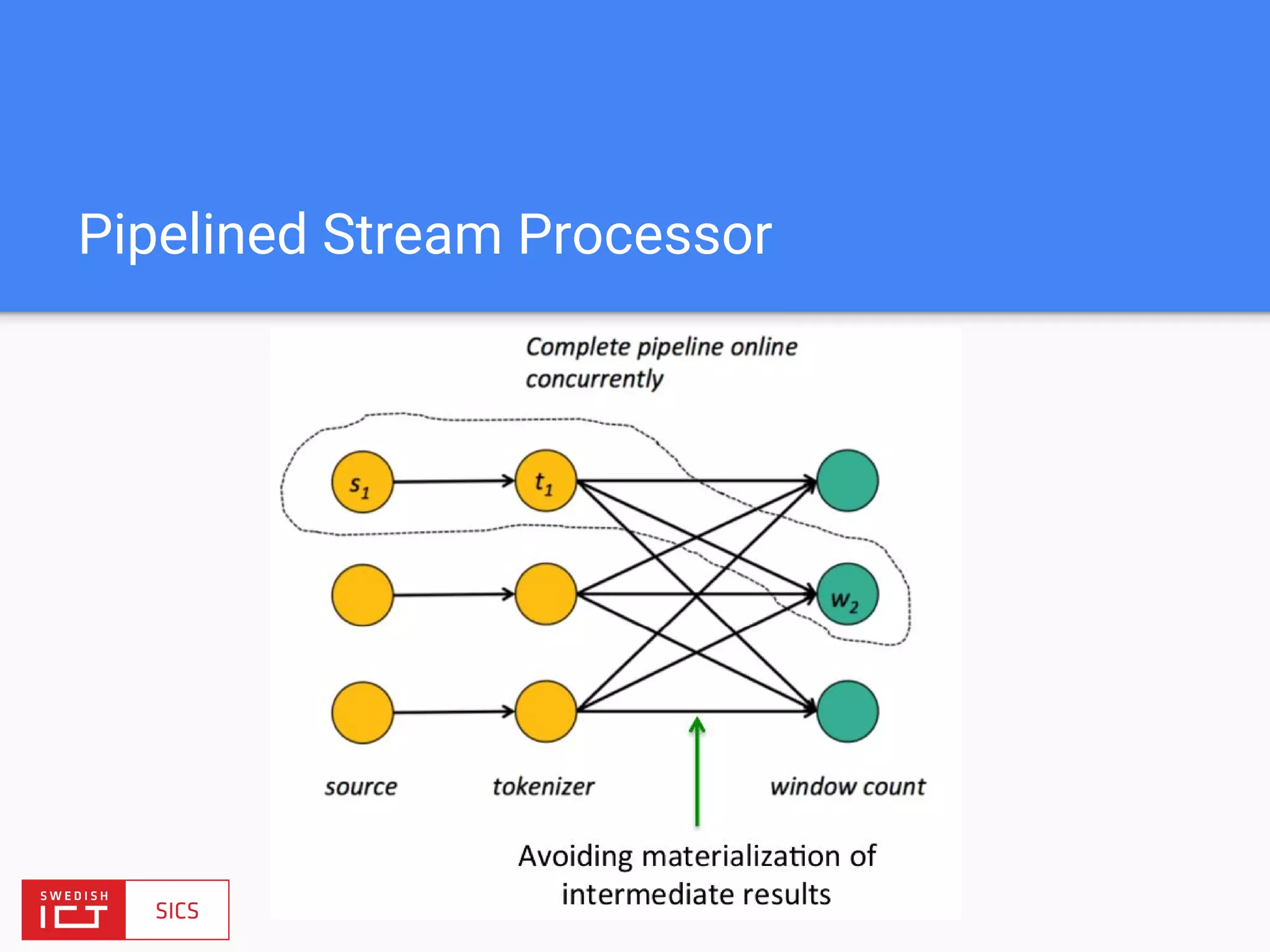

7. Pipelined Stream Processor

8. Iterate in the Dataflow

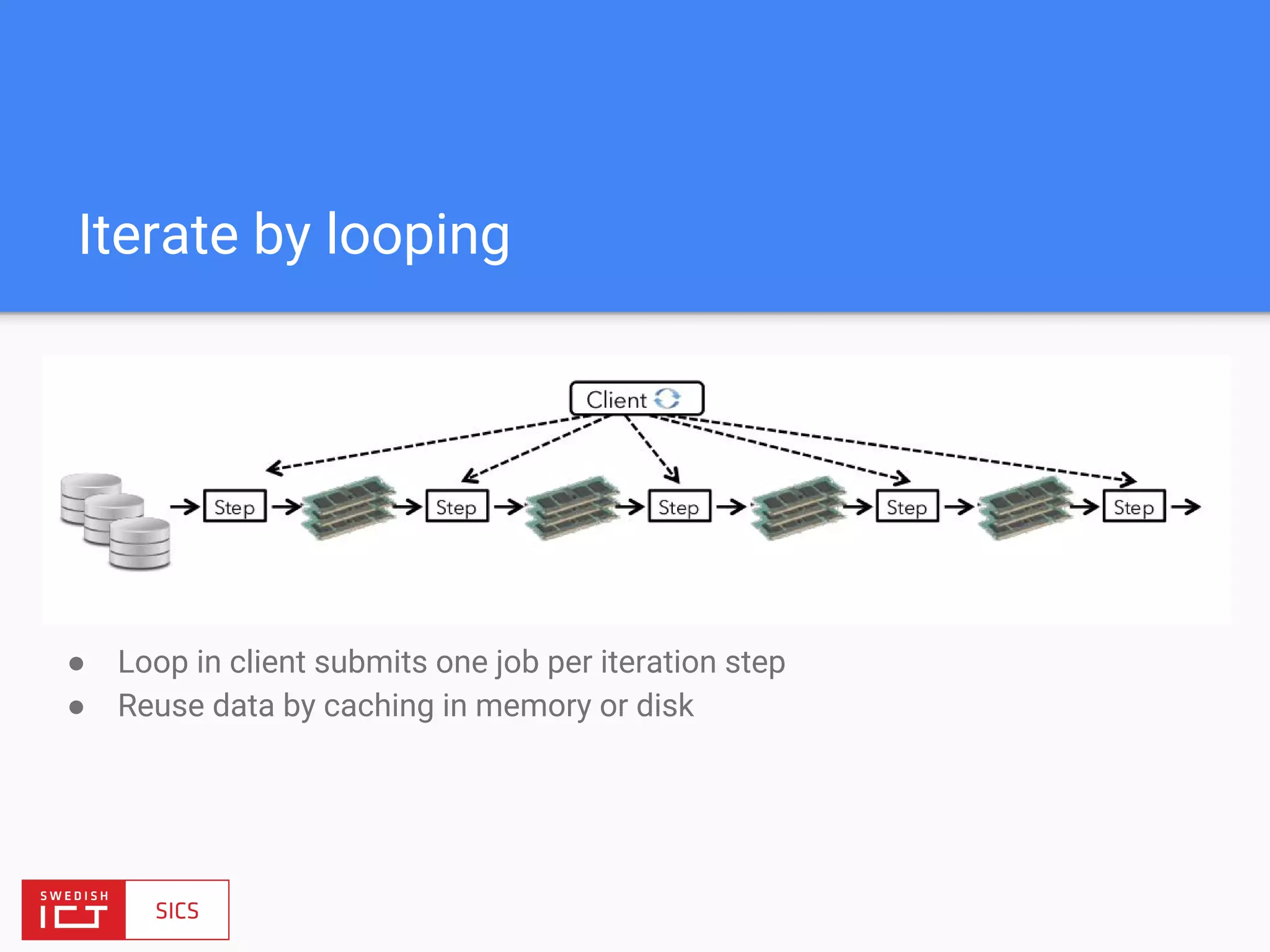

9. Iterate by looping
● Loop in client submits one job per iteration step
● Reuse data by caching in memory or disk

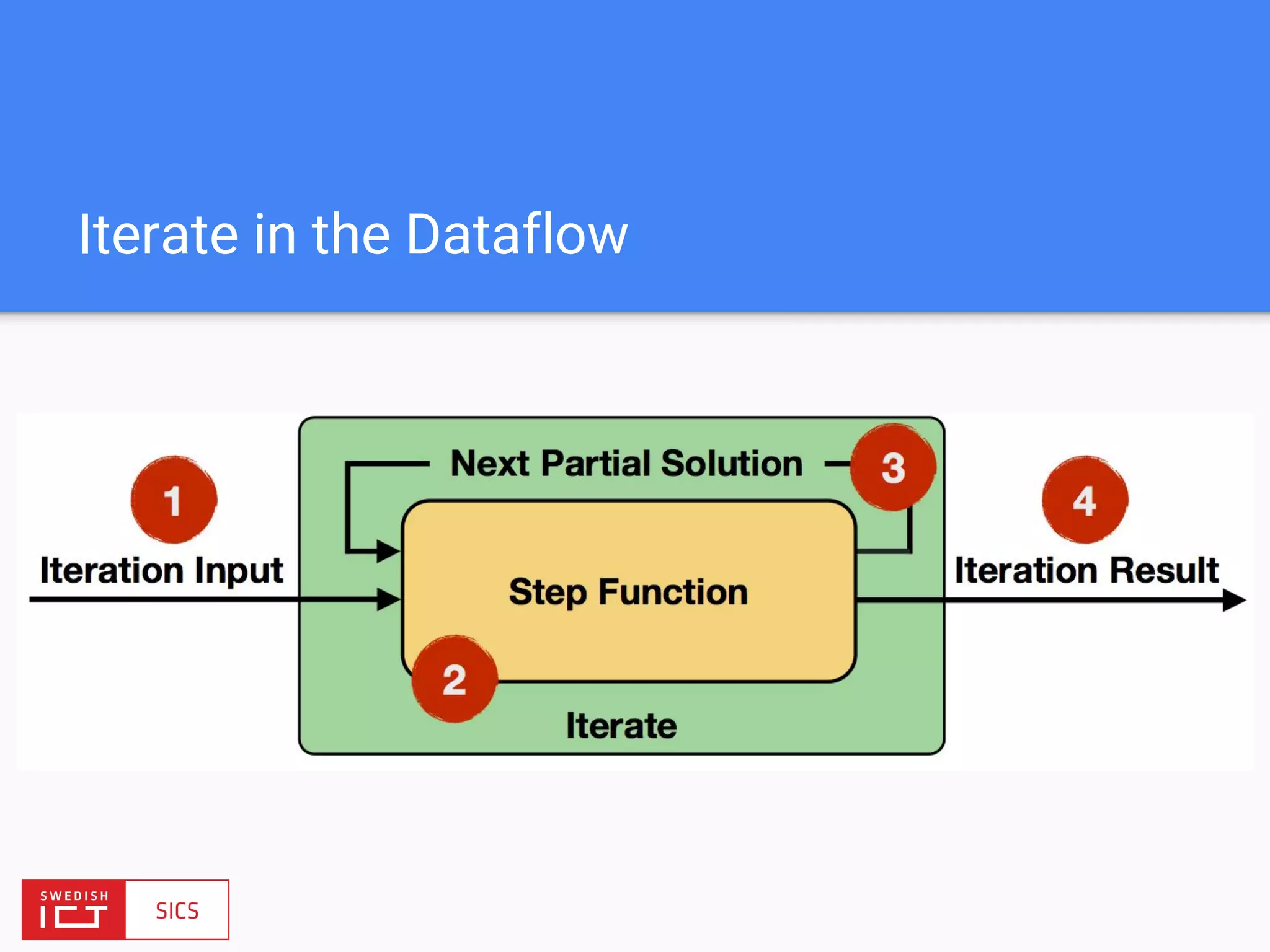

10. Iterate in the Dataflow

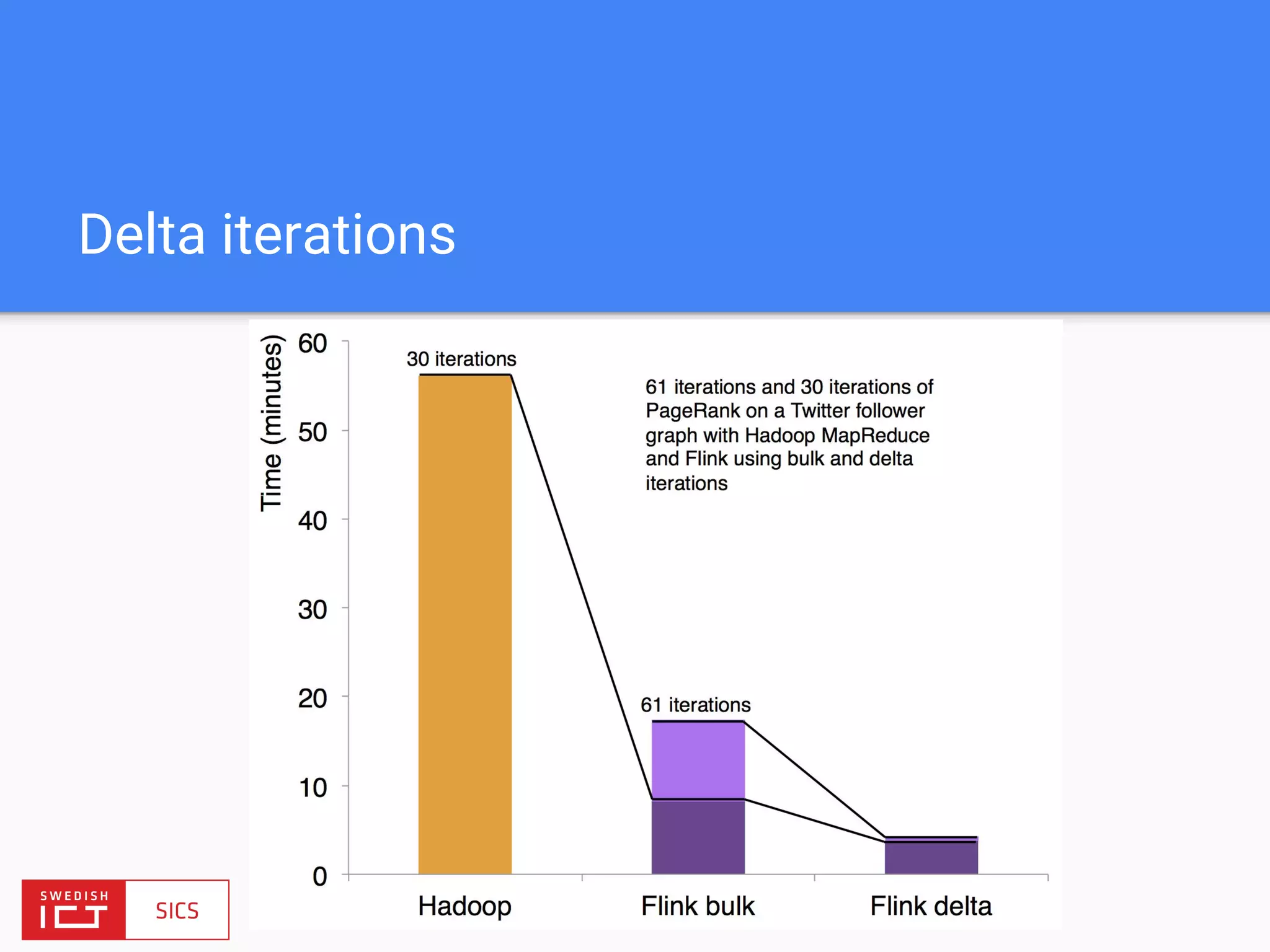

11. Delta iterations

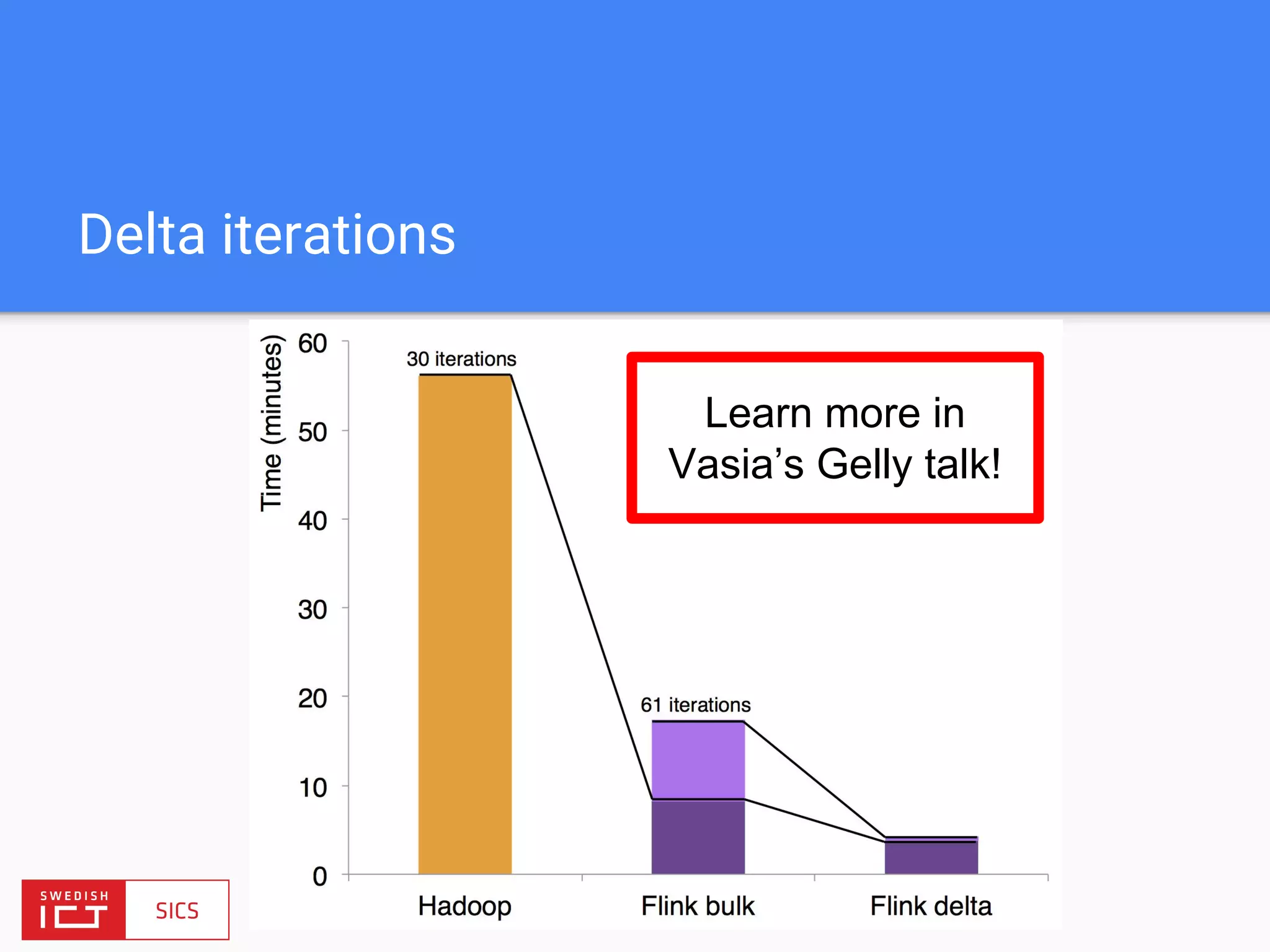

12. Delta iterations
Learn more in
Vasia’s Gelly talk!

13. Large-scale Machine Learning

14. What do we mean?

15. What do we mean?
● Small-scale learning ● Large-scale learning
Source: Léon Bottou

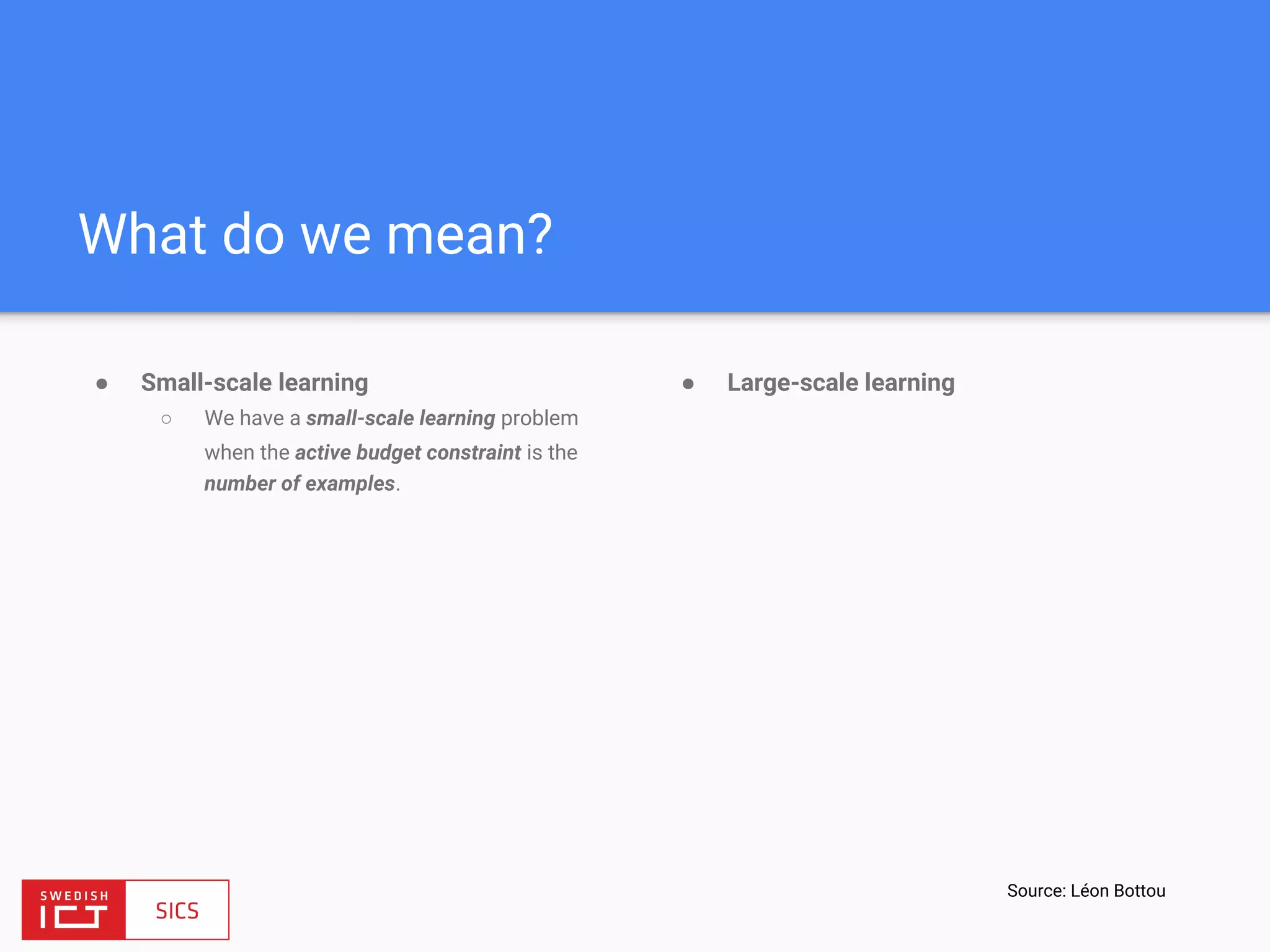

16. What do we mean?
● Small-scale learning
○ We have a small-scale learning problem
when the active budget constraint is the
number of examples.
● Large-scale learning
Source: Léon Bottou

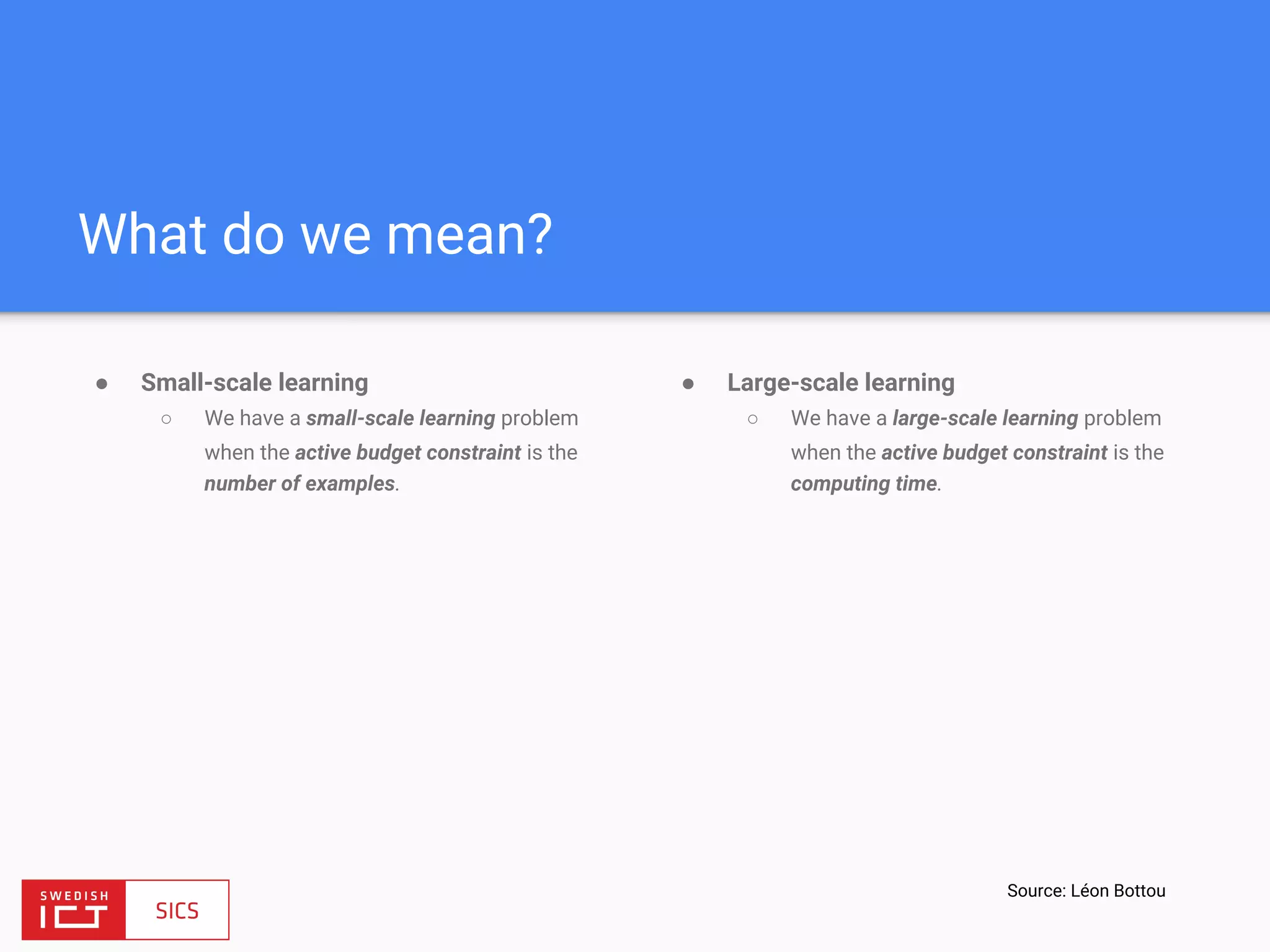

17. What do we mean?
● Small-scale learning
○ We have a small-scale learning problem
when the active budget constraint is the
number of examples.
● Large-scale learning
○ We have a large-scale learning problem
when the active budget constraint is the
computing time.
Source: Léon Bottou

18. What do we mean?
● What about the complexity of the problem?

19. What do we mean?
● What about the complexity of the problem?
Source: Wired Magazine

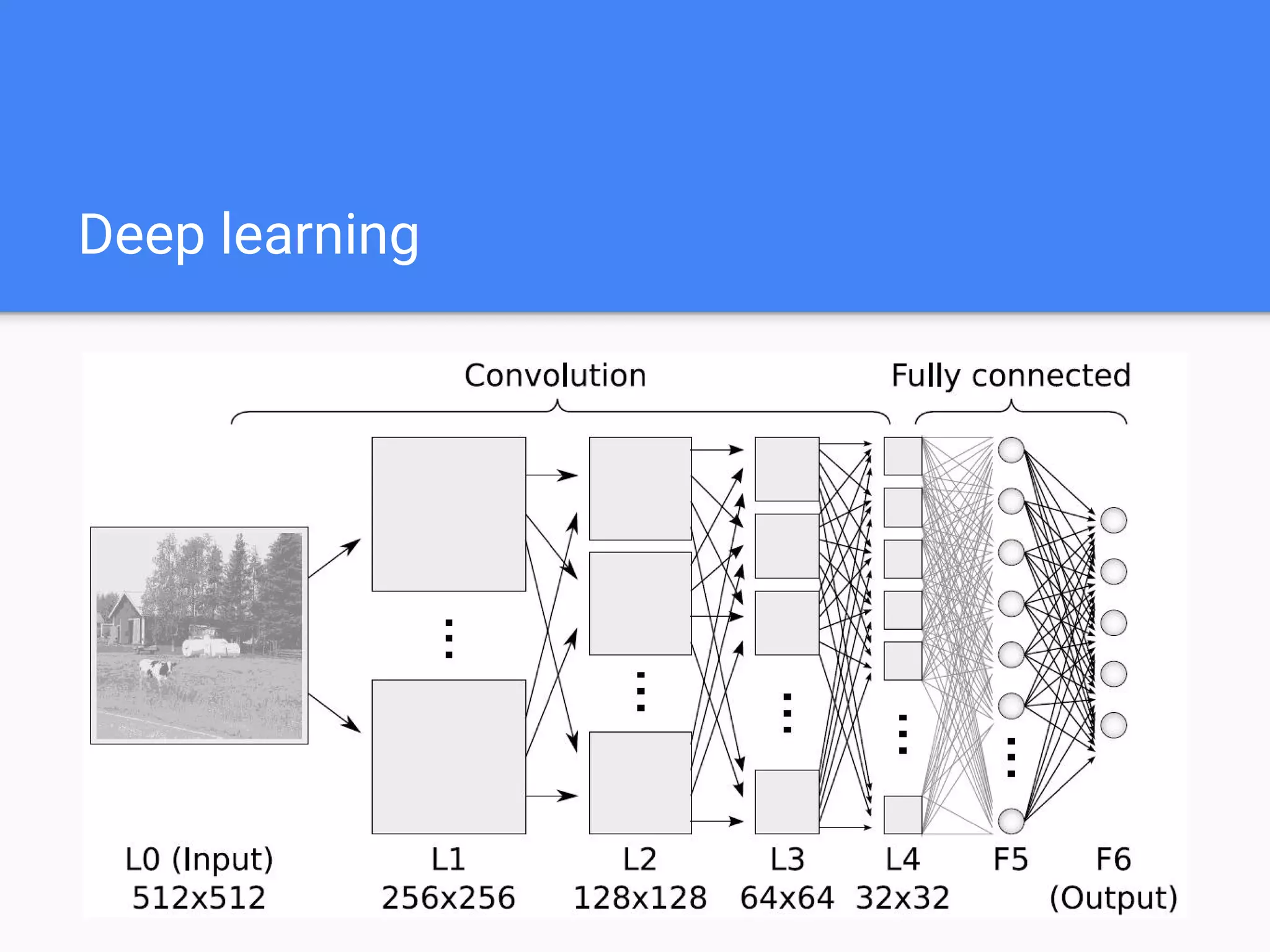

20. Deep learning

21. What do we mean?
● What about the complexity of the problem?
“When you get to a trillion [parameters], you’re getting to something that’s got a chance
of really understanding some stuff.” - Hinton, 2013
Source: Wired Magazine

22. What do we mean?
● We have a large-scale learning problem when the active budget constraint
is the computing time and/or the model complexity.

23. FlinkML

24. FlinkML
● New effort to bring large-scale machine learning to Flink

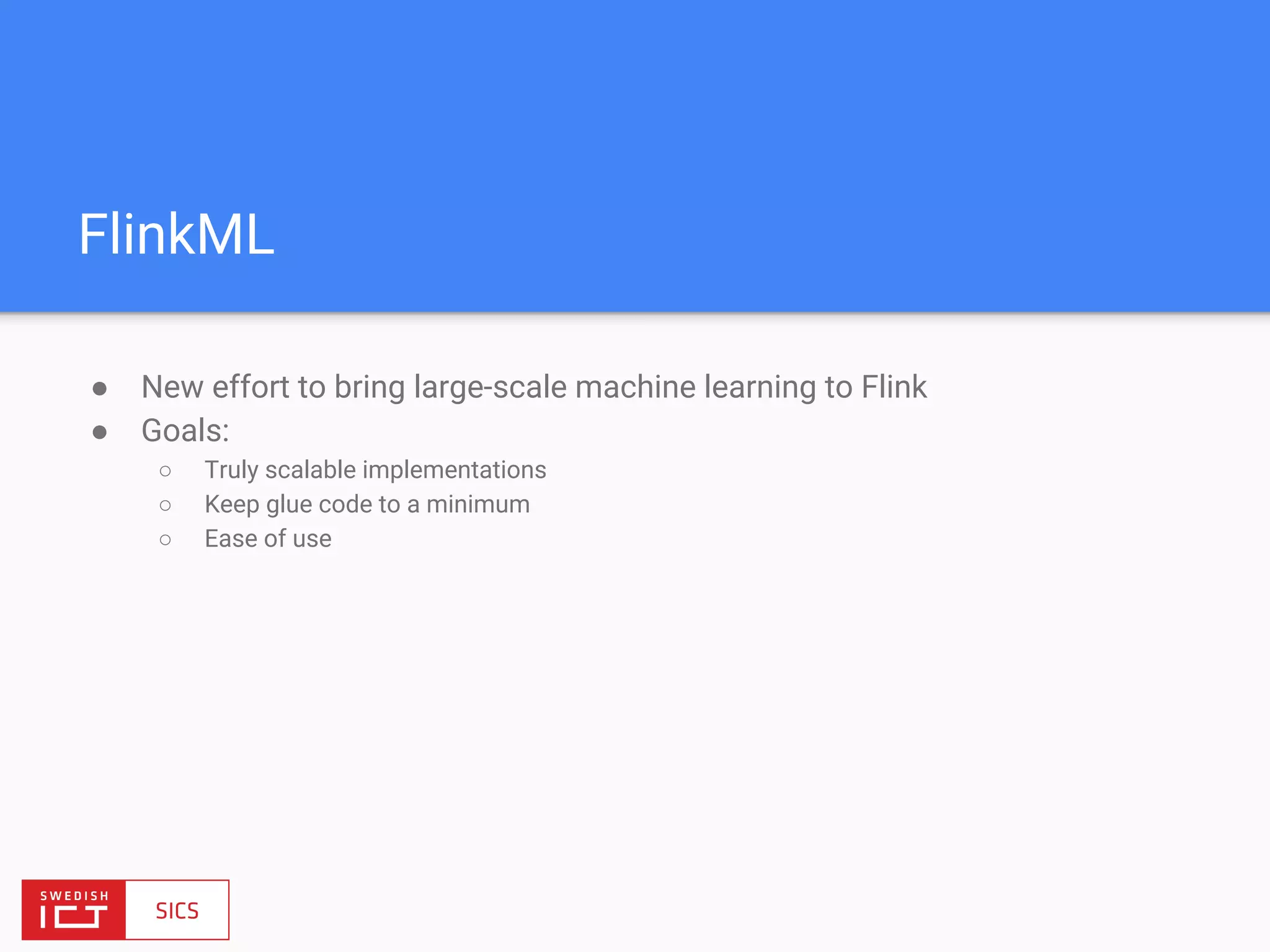

25. FlinkML
● New effort to bring large-scale machine learning to Flink
● Goals:
○ Truly scalable implementations
○ Keep glue code to a minimum
○ Ease of use

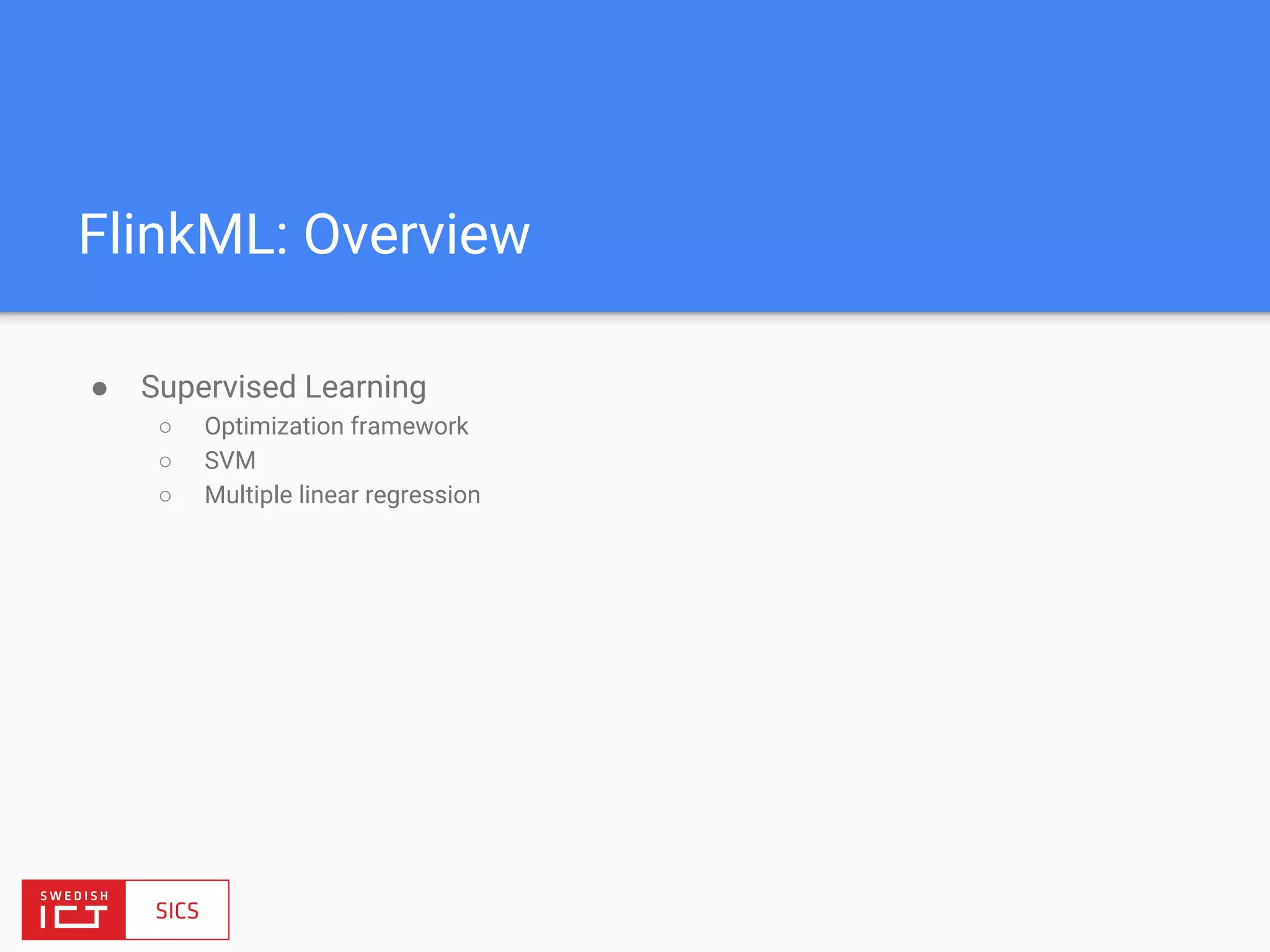

26. FlinkML: Overview
● Supervised Learning
○ Optimization framework
○ SVM
○ Multiple linear regression

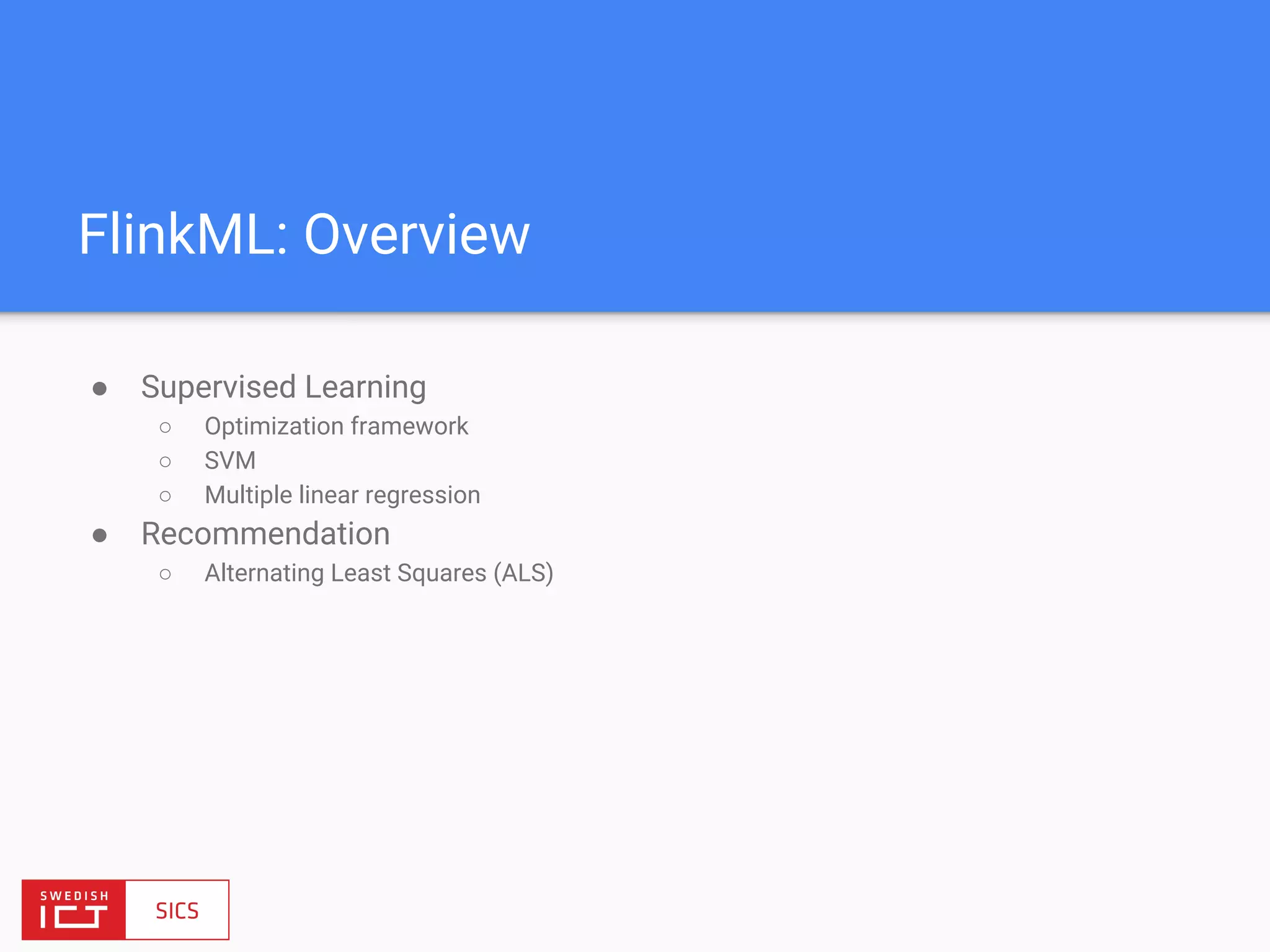

27. FlinkML: Overview
● Supervised Learning
○ Optimization framework
○ SVM
○ Multiple linear regression
● Recommendation
○ Alternating Least Squares (ALS)

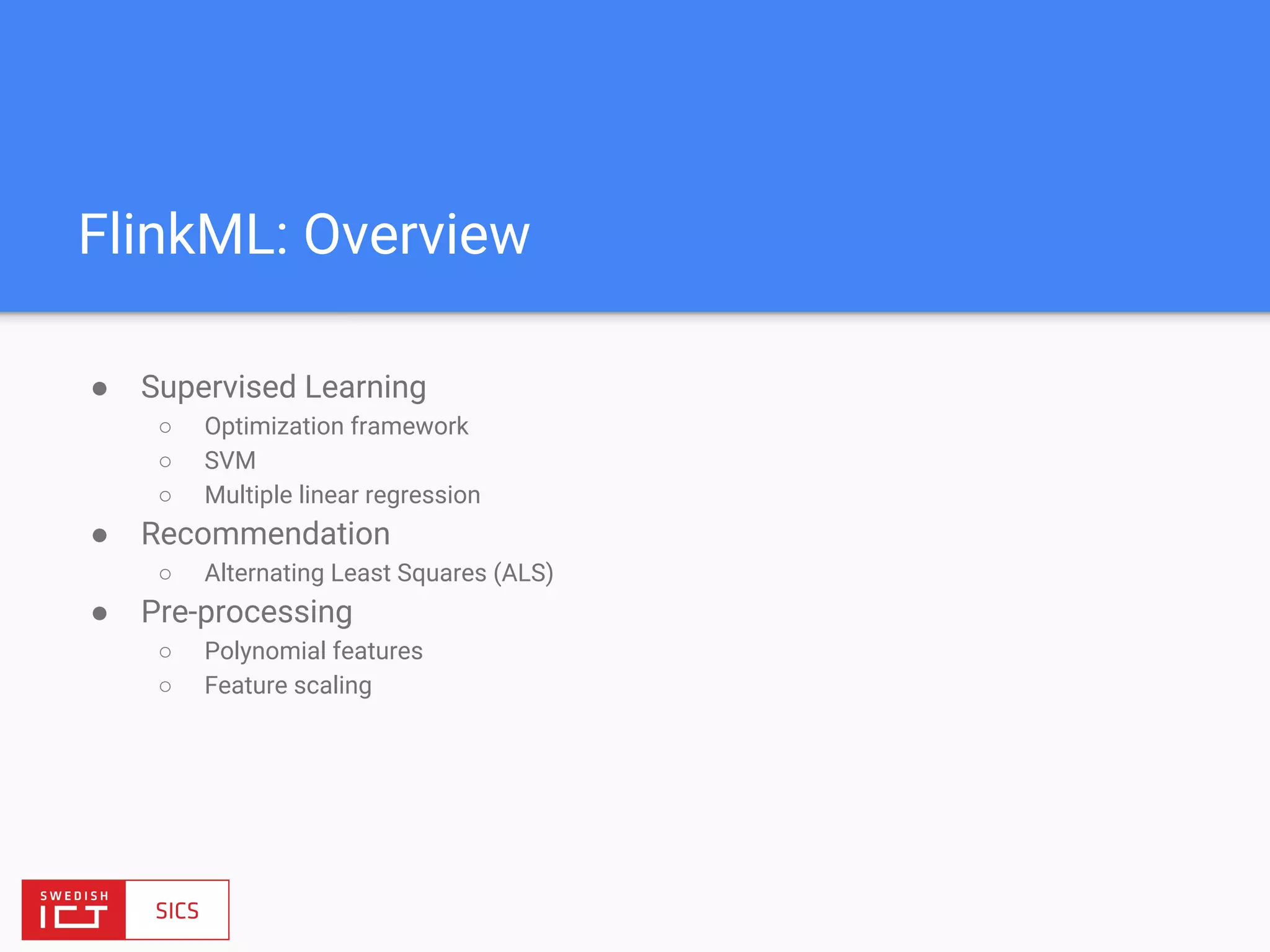

28. FlinkML: Overview
● Supervised Learning
○ Optimization framework
○ SVM
○ Multiple linear regression
● Recommendation
○ Alternating Least Squares (ALS)
● Pre-processing
○ Polynomial features
○ Feature scaling

29. FlinkML: Overview
● Supervised Learning
○ Optimization framework
○ SVM
○ Multiple linear regression
● Recommendation
○ Alternating Least Squares (ALS)
● Pre-processing
○ Polynomial features
○ Feature scaling
● sklearn-like ML pipelines

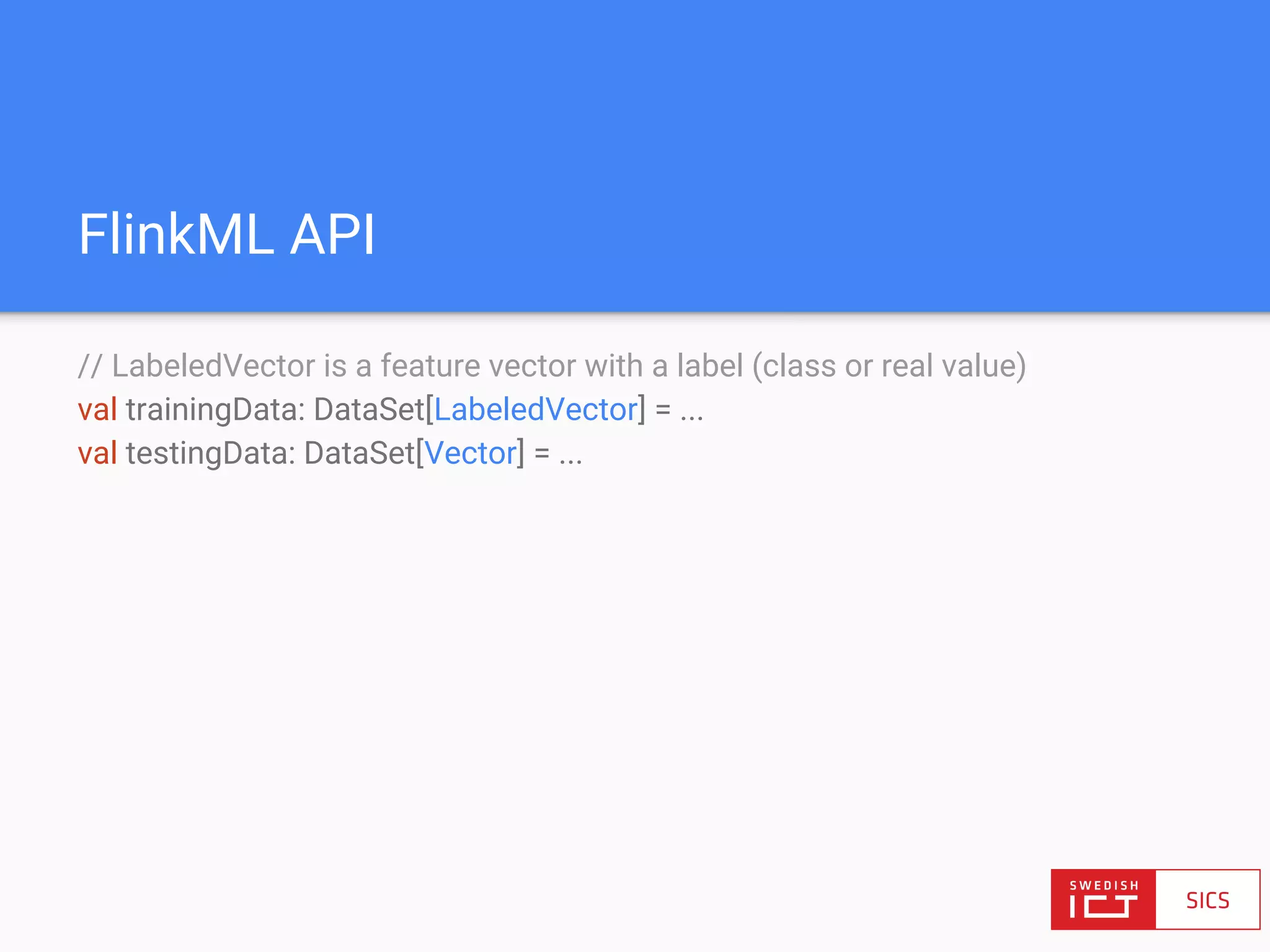

30. FlinkML API
// LabeledVector is a feature vector with a label (class or real value)
val trainingData: DataSet[LabeledVector] = ...
val testingData: DataSet[Vector] = ...

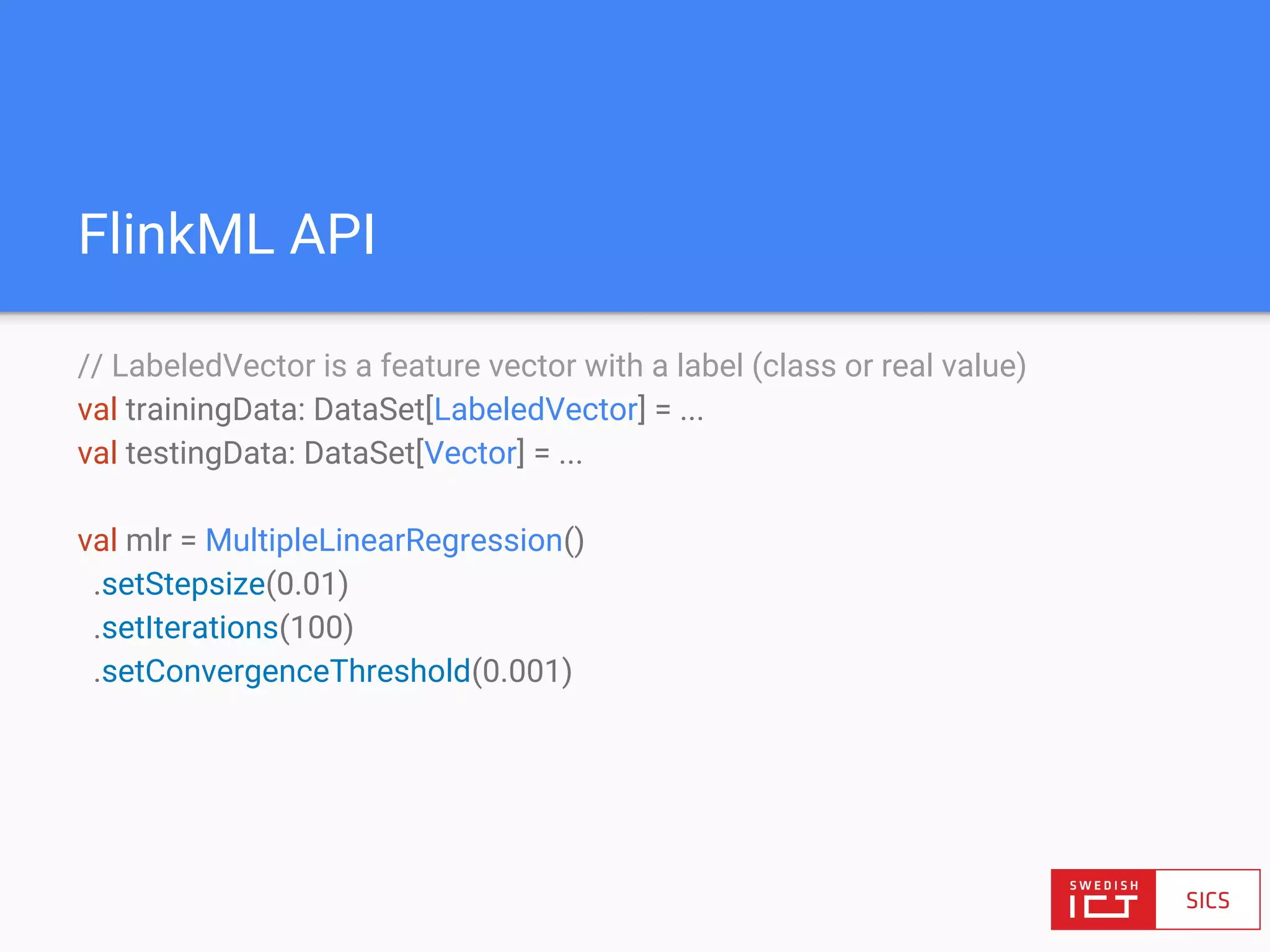

31. FlinkML API
// LabeledVector is a feature vector with a label (class or real value)
val trainingData: DataSet[LabeledVector] = ...
val testingData: DataSet[Vector] = ...
val mlr = MultipleLinearRegression()
.setStepsize(0.01)
.setIterations(100)
.setConvergenceThreshold(0.001)

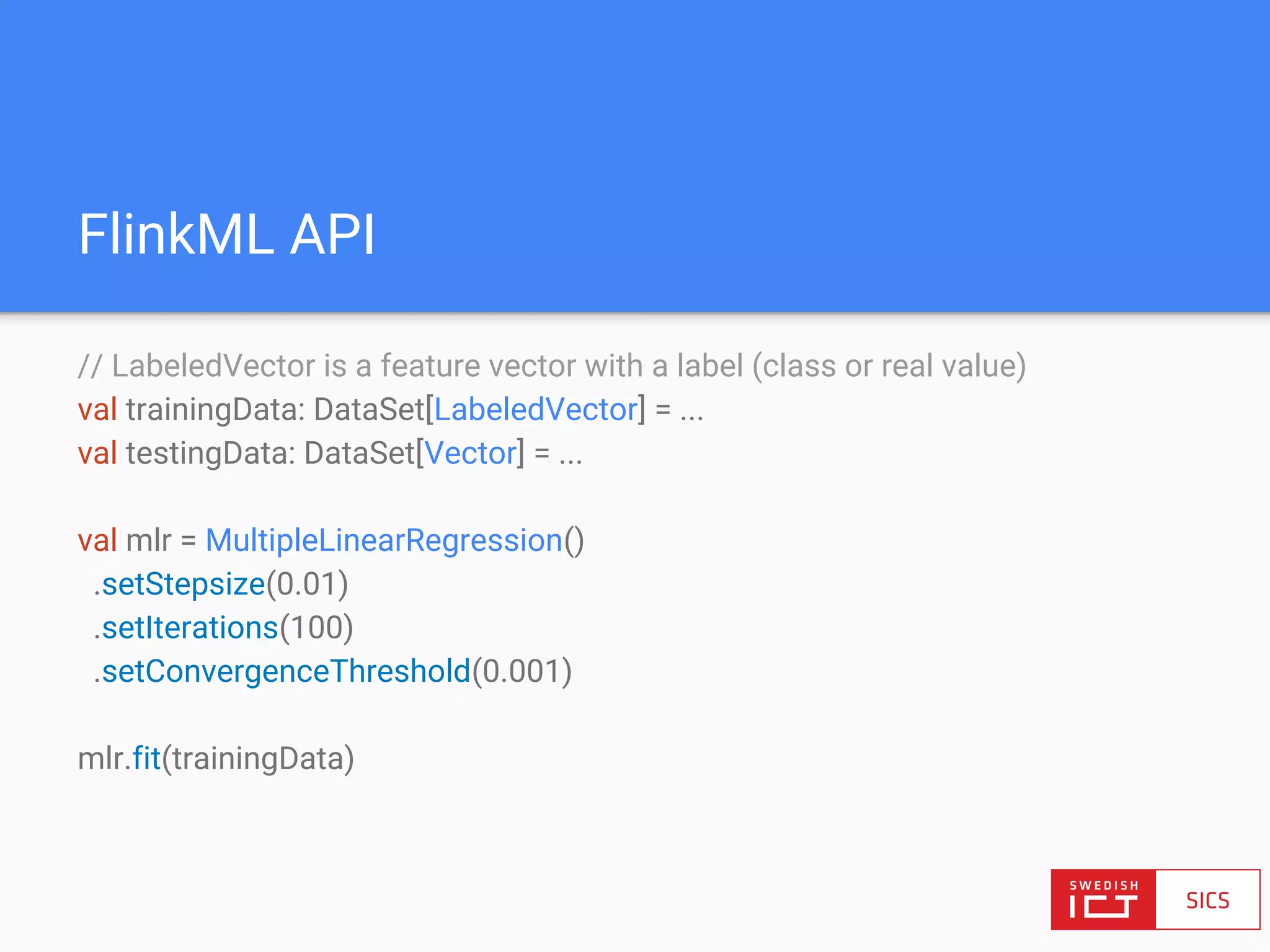

32. FlinkML API
// LabeledVector is a feature vector with a label (class or real value)
val trainingData: DataSet[LabeledVector] = ...
val testingData: DataSet[Vector] = ...
val mlr = MultipleLinearRegression()
.setStepsize(0.01)
.setIterations(100)
.setConvergenceThreshold(0.001)
mlr.fit(trainingData)

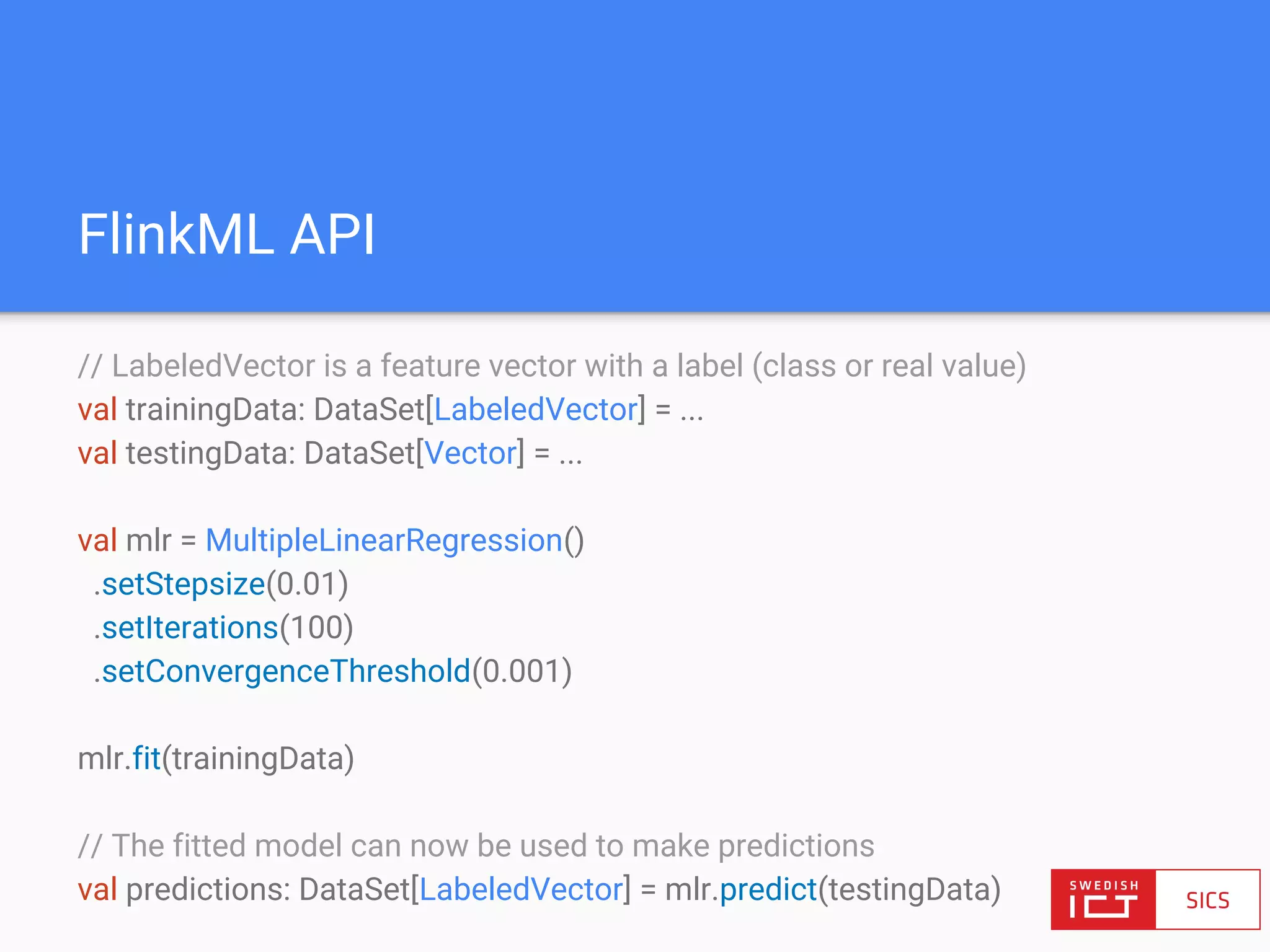

33. FlinkML API
// LabeledVector is a feature vector with a label (class or real value)
val trainingData: DataSet[LabeledVector] = ...
val testingData: DataSet[Vector] = ...
val mlr = MultipleLinearRegression()
.setStepsize(0.01)
.setIterations(100)
.setConvergenceThreshold(0.001)
mlr.fit(trainingData)
// The fitted model can now be used to make predictions
val predictions: DataSet[LabeledVector] = mlr.predict(testingData)

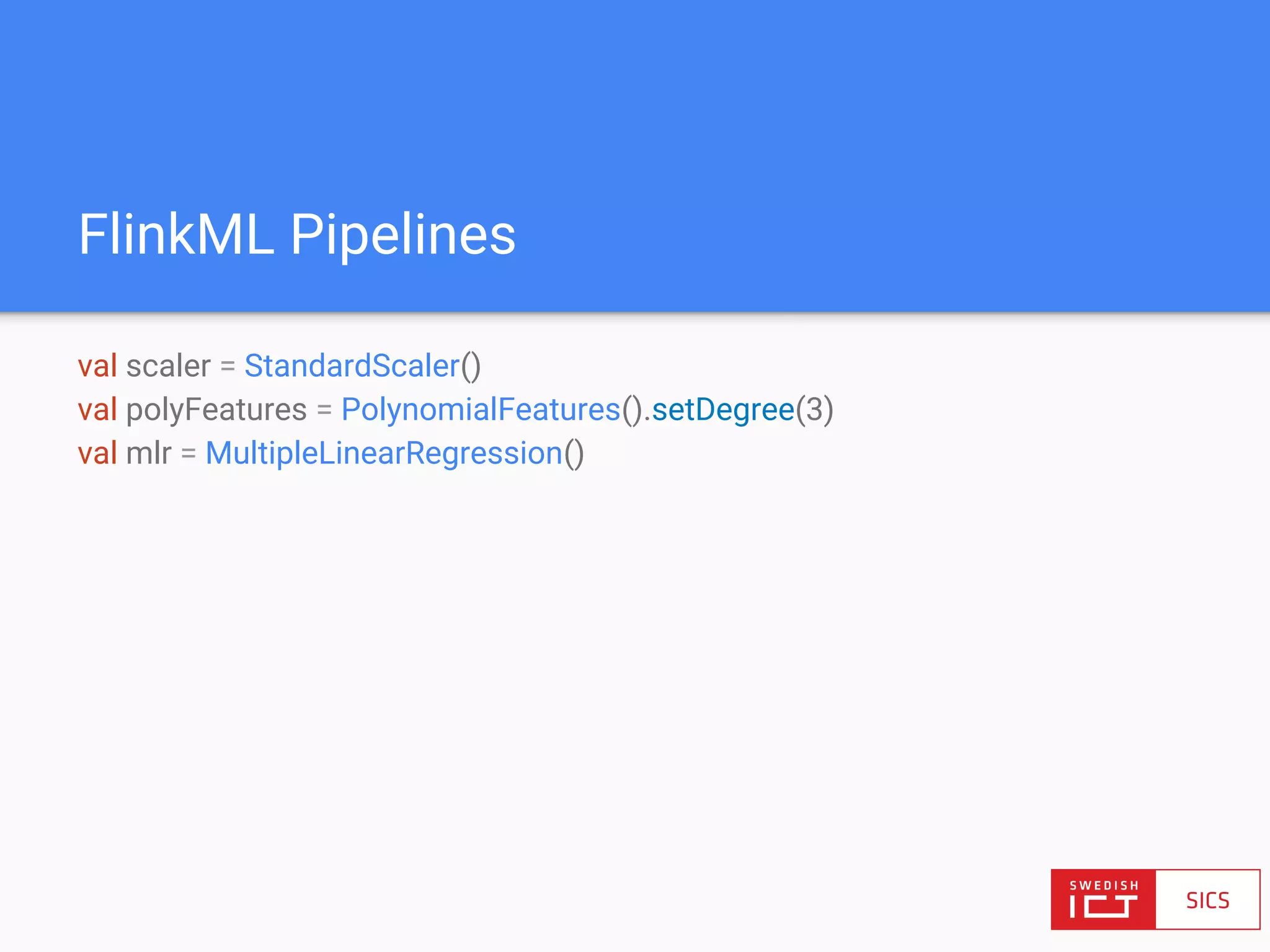

34. FlinkML Pipelines
val scaler = StandardScaler()
val polyFeatures = PolynomialFeatures().setDegree(3)
val mlr = MultipleLinearRegression()

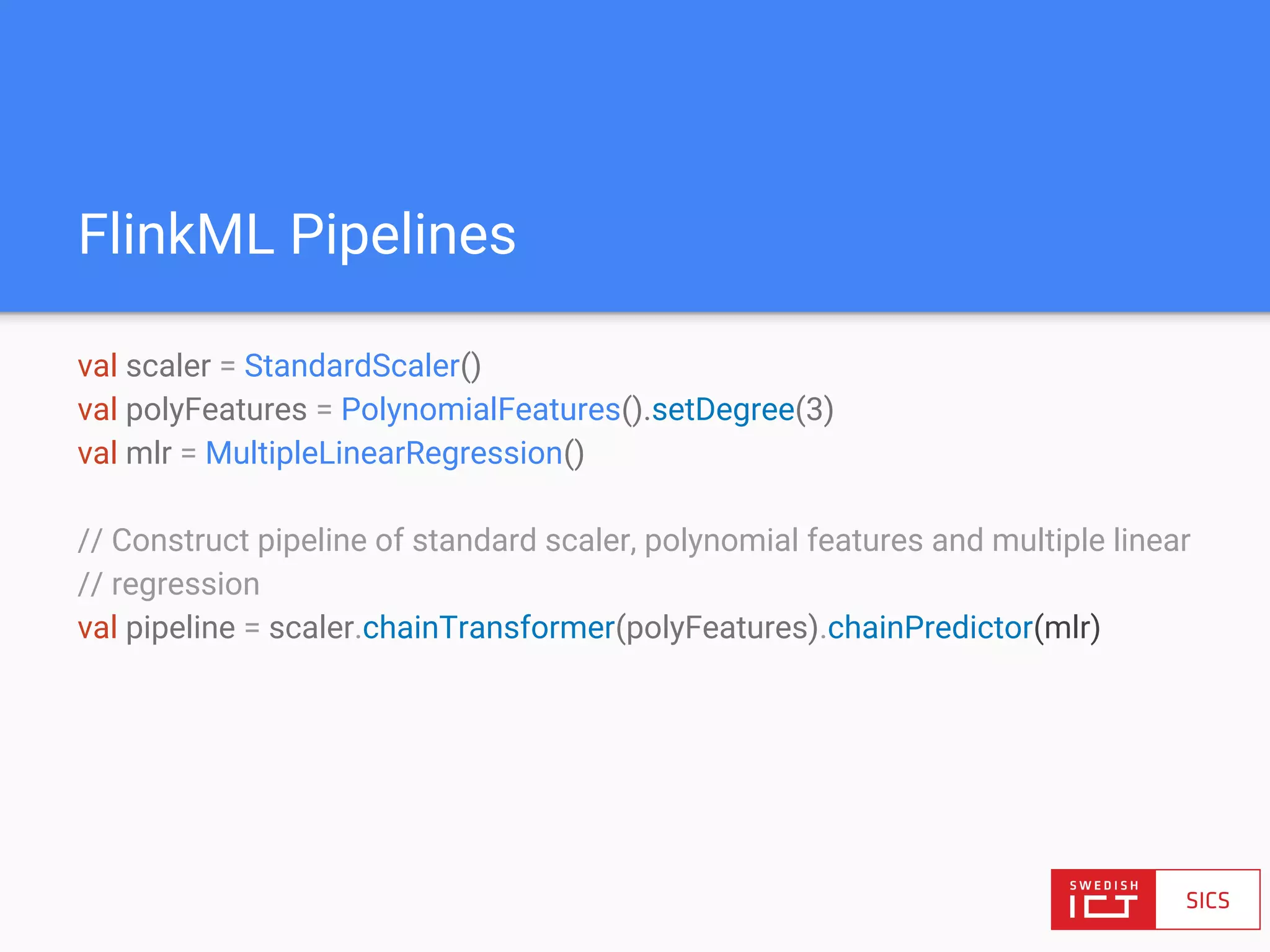

35. FlinkML Pipelines
val scaler = StandardScaler()
val polyFeatures = PolynomialFeatures().setDegree(3)
val mlr = MultipleLinearRegression()
// Construct pipeline of standard scaler, polynomial features and multiple linear
// regression
val pipeline = scaler.chainTransformer(polyFeatures).chainPredictor(mlr)

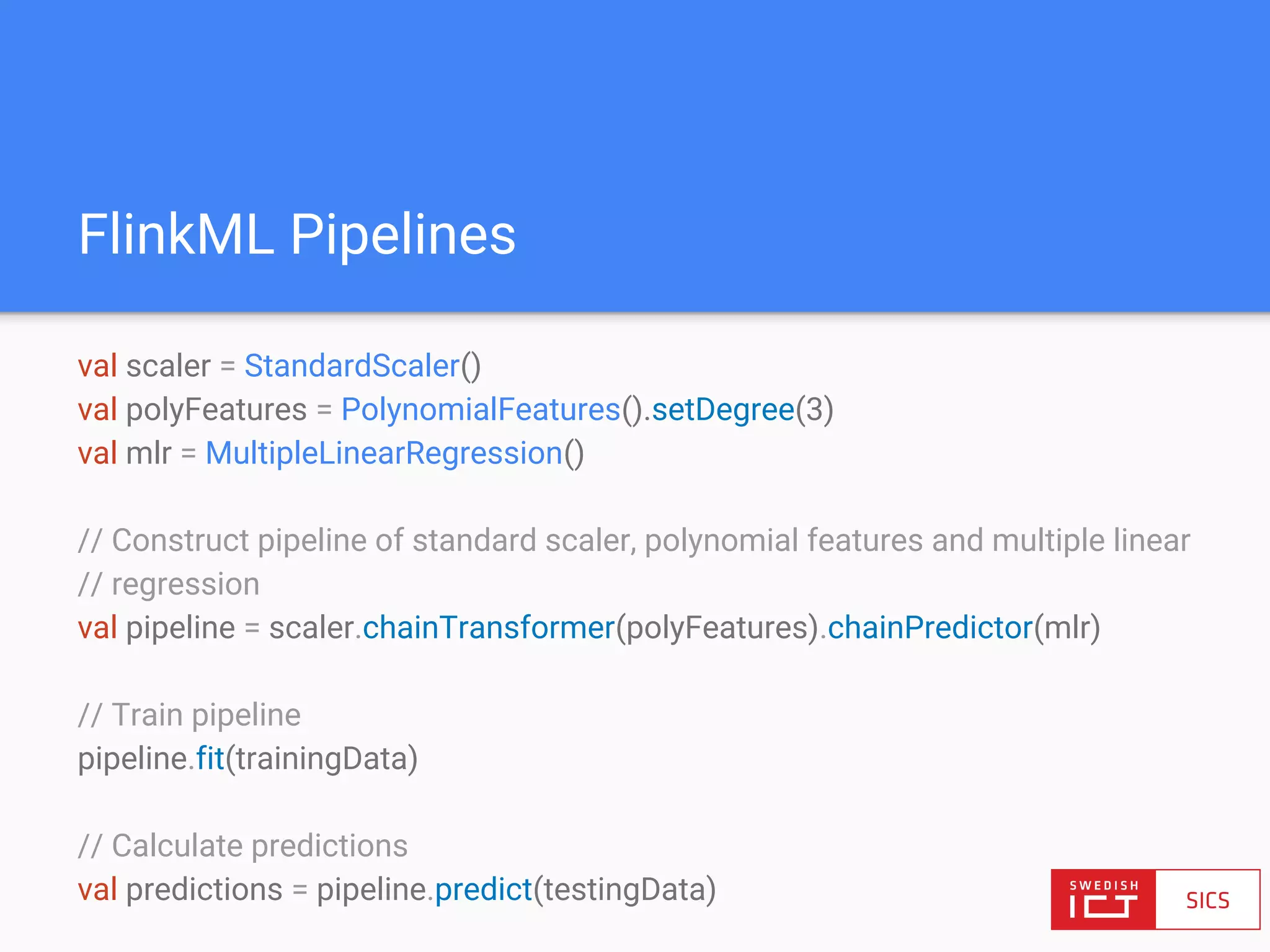

36. FlinkML Pipelines
val scaler = StandardScaler()
val polyFeatures = PolynomialFeatures().setDegree(3)
val mlr = MultipleLinearRegression()
// Construct pipeline of standard scaler, polynomial features and multiple linear
// regression
val pipeline = scaler.chainTransformer(polyFeatures).chainPredictor(mlr)
// Train pipeline
pipeline.fit(trainingData)
// Calculate predictions
val predictions = pipeline.predict(testingData)

37. State of the art in large-scale ML

38. Alternating Least Squares
R ≅ X Y✕Users
Items

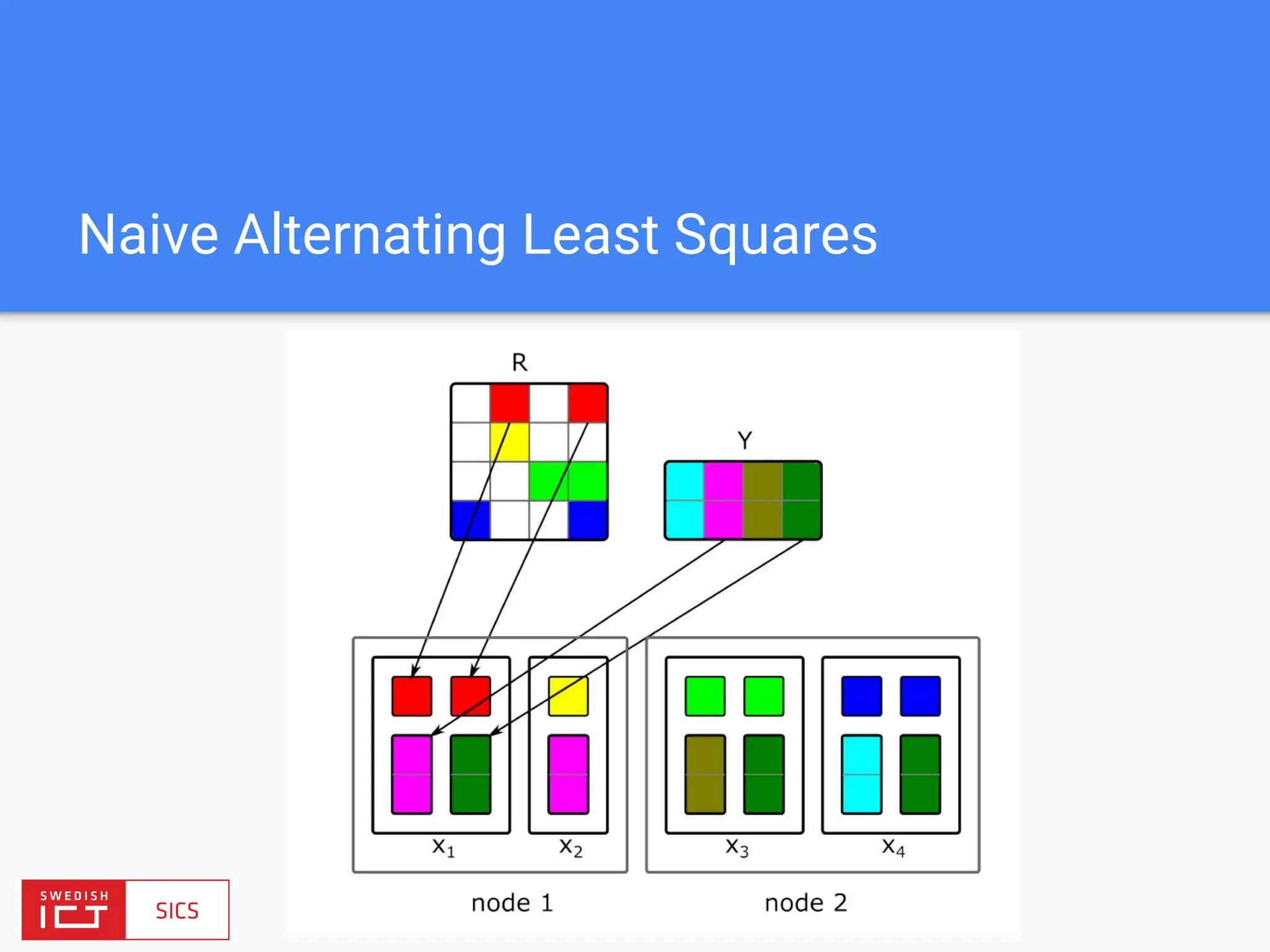

39. Naive Alternating Least Squares

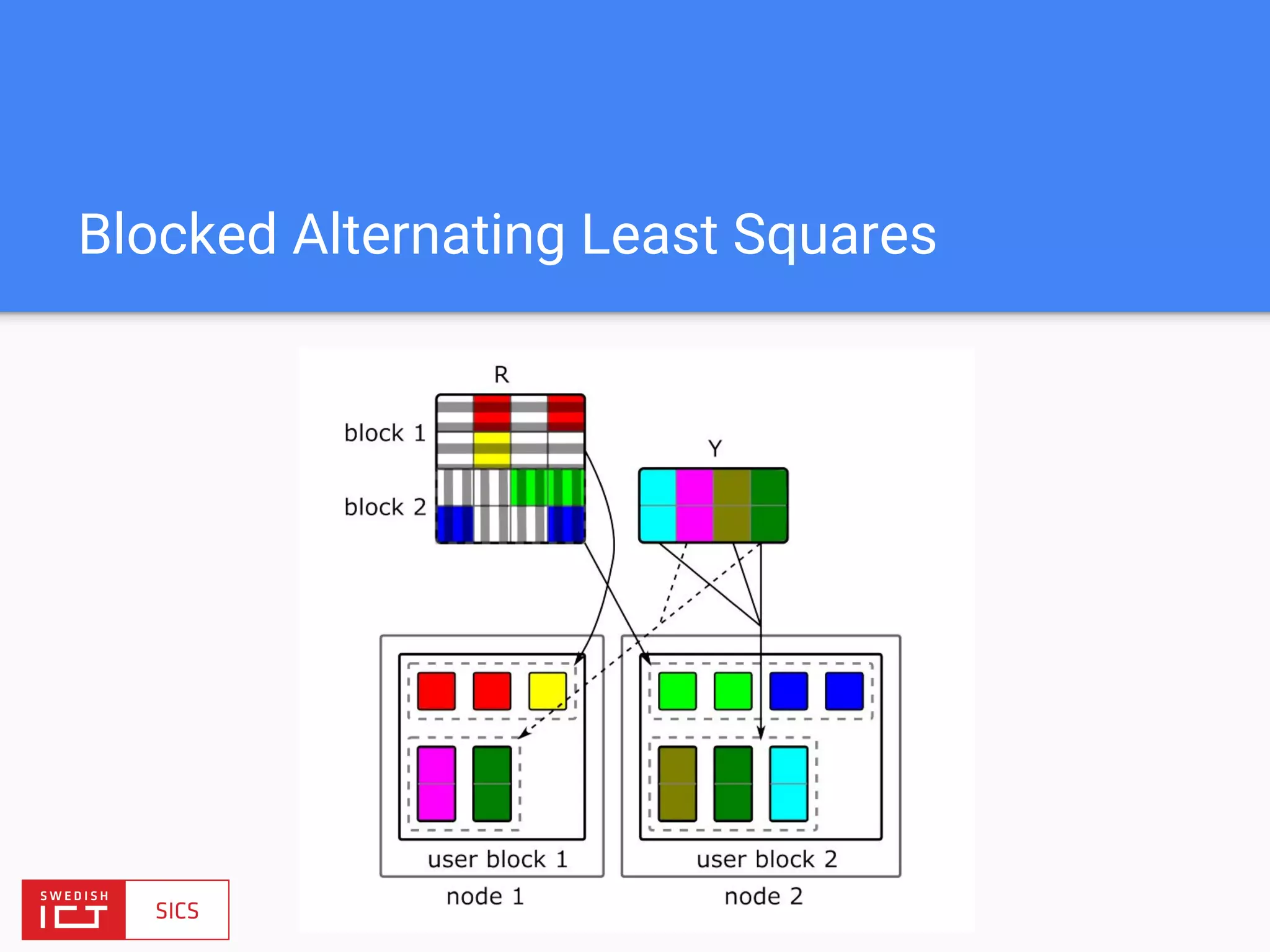

40. Blocked Alternating Least Squares

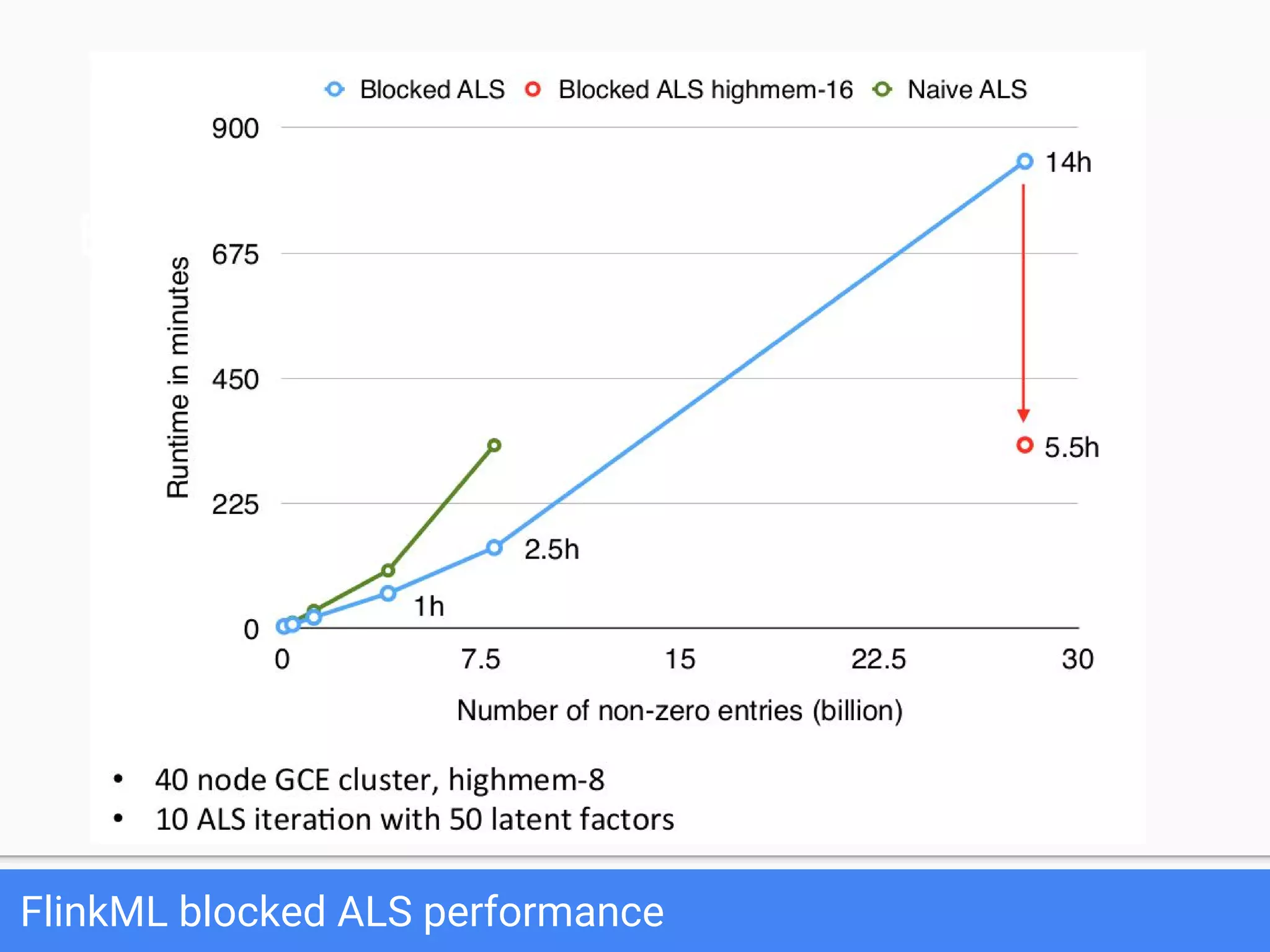

41. Blocked ALS performance
FlinkML blocked ALS performance

42. Going beyond SGD in large-scale
optimization

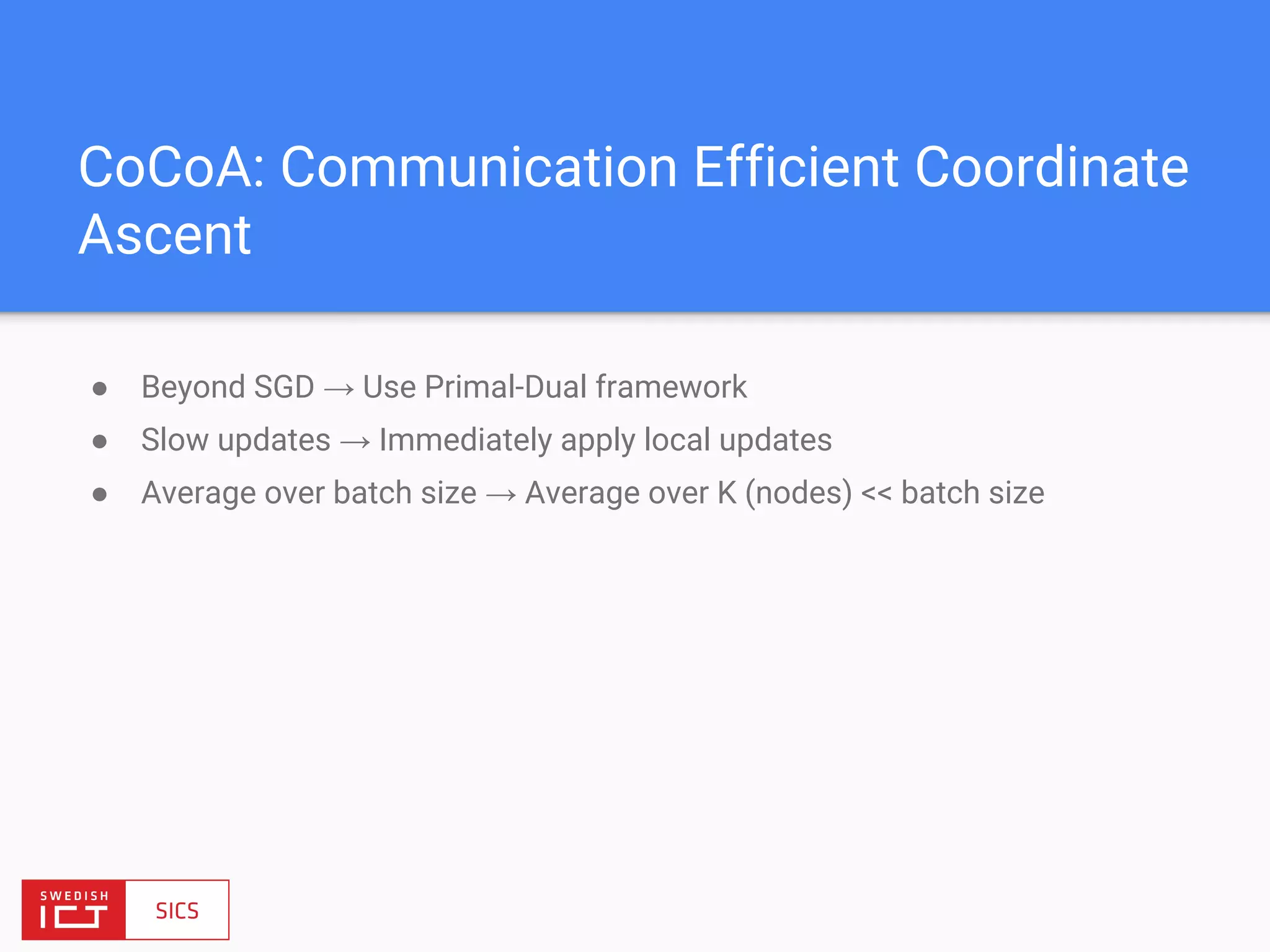

43. ● Beyond SGD → Use Primal-Dual framework
● Slow updates → Immediately apply local updates
● Average over batch size → Average over K (nodes) << batch size
CoCoA: Communication Efficient Coordinate
Ascent

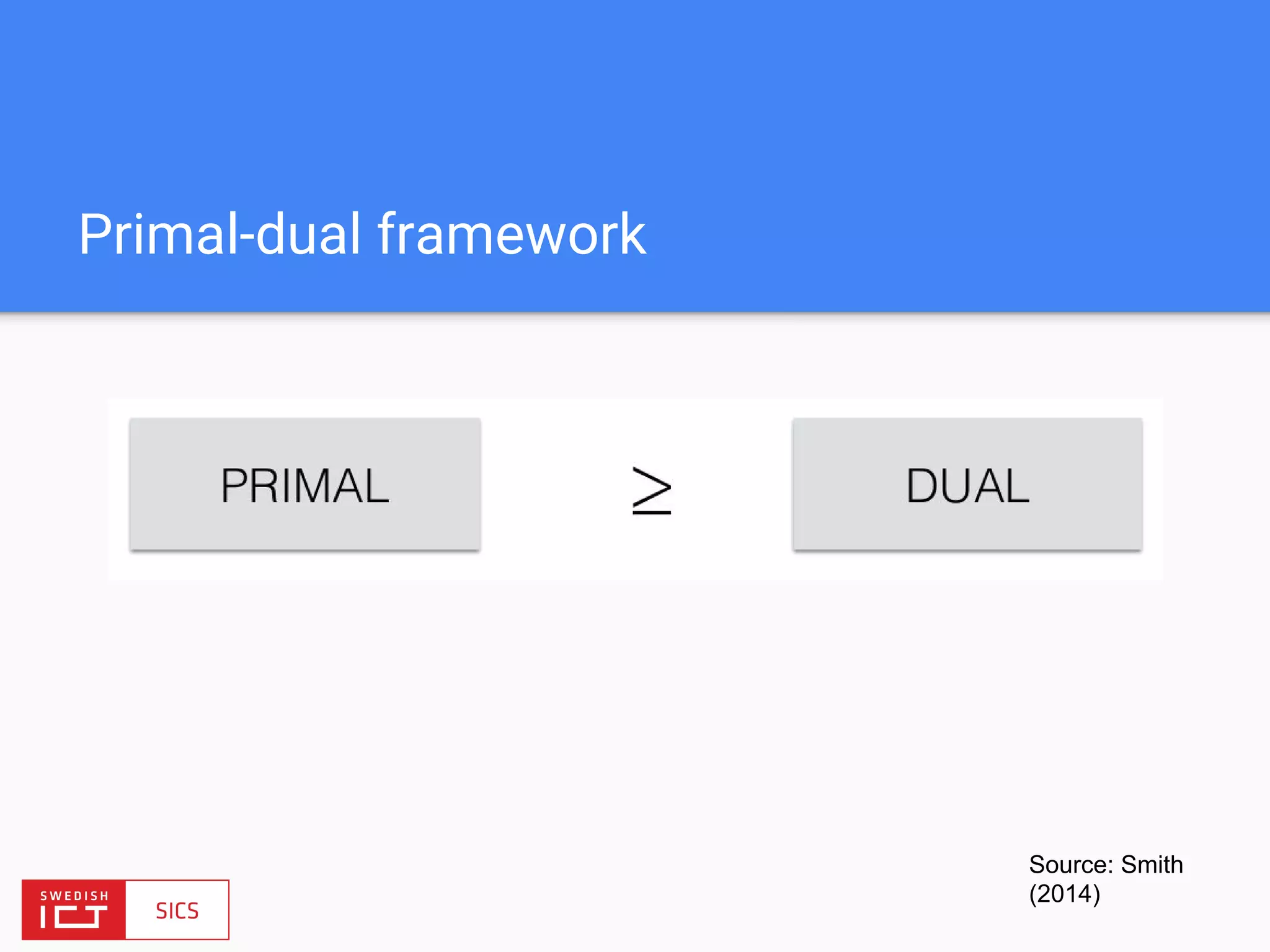

44. Primal-dual framework
Source: Smith
(2014)

45. Primal-dual framework
Source: Smith
(2014)

46. Immediately Apply Updates
Source: Smith
(2014)

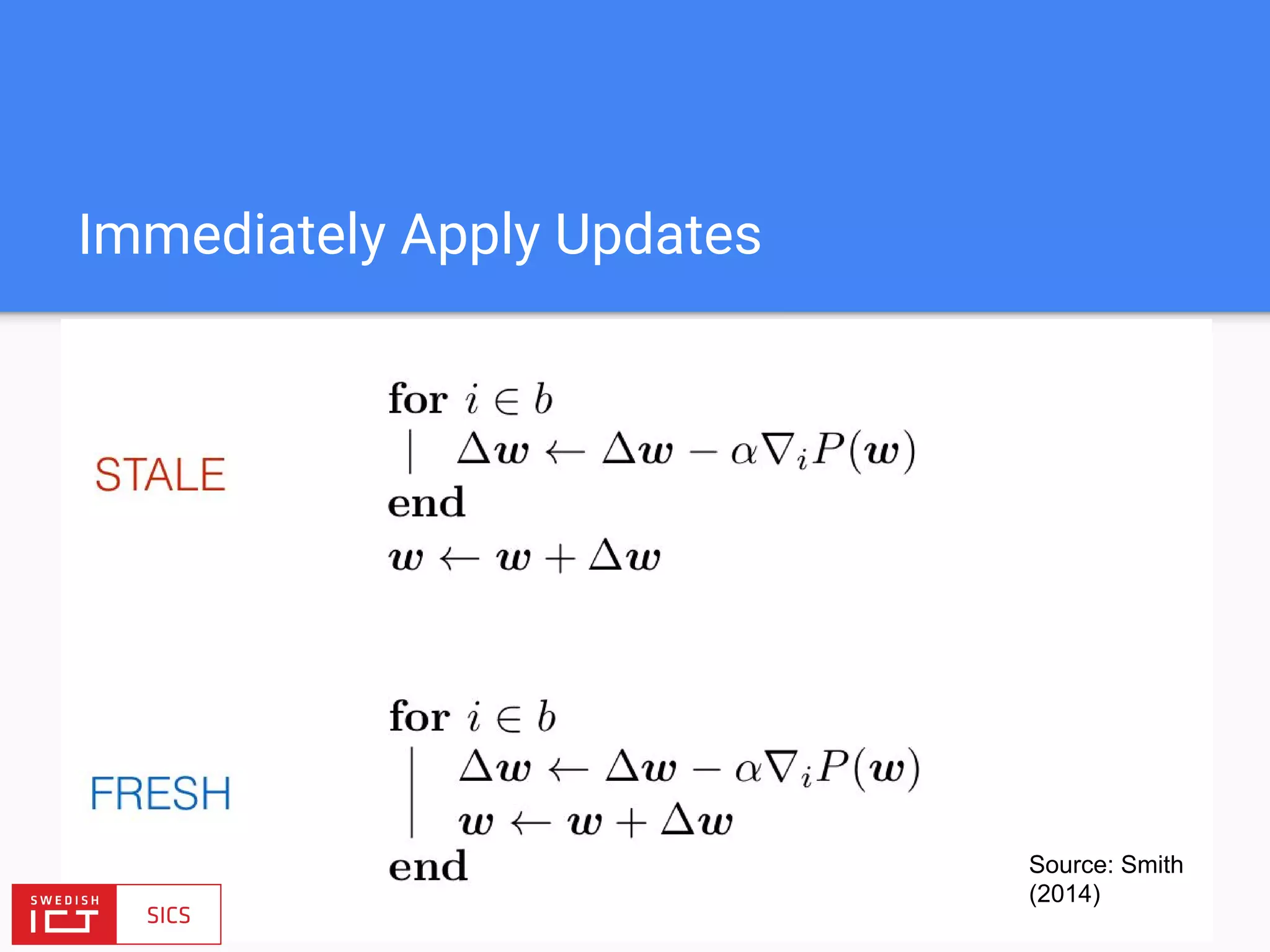

47. Immediately Apply Updates
Source: Smith
(2014)
Source: Smith
(2014)

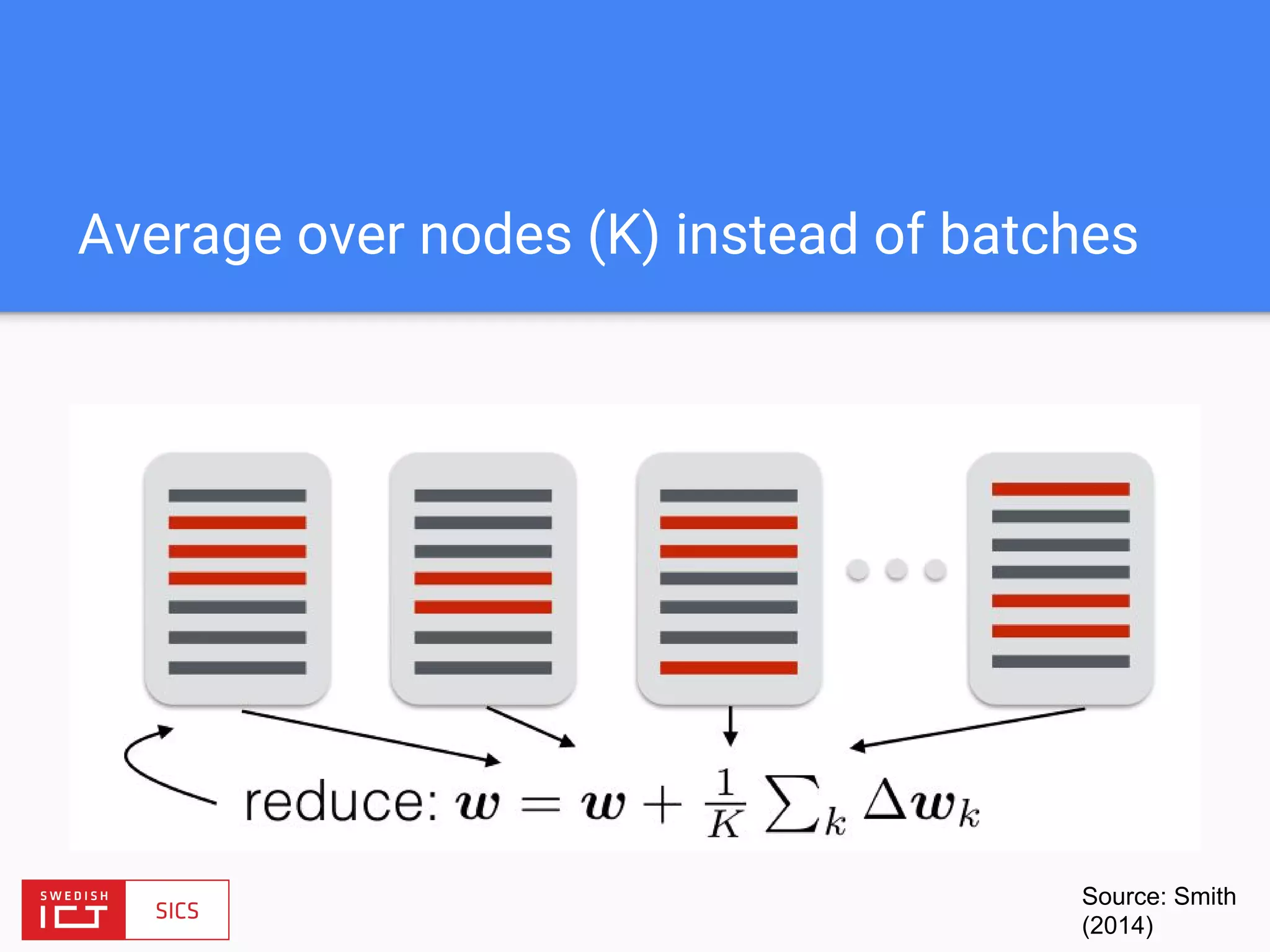

48. Average over nodes (K) instead of batches
Source: Smith
(2014)

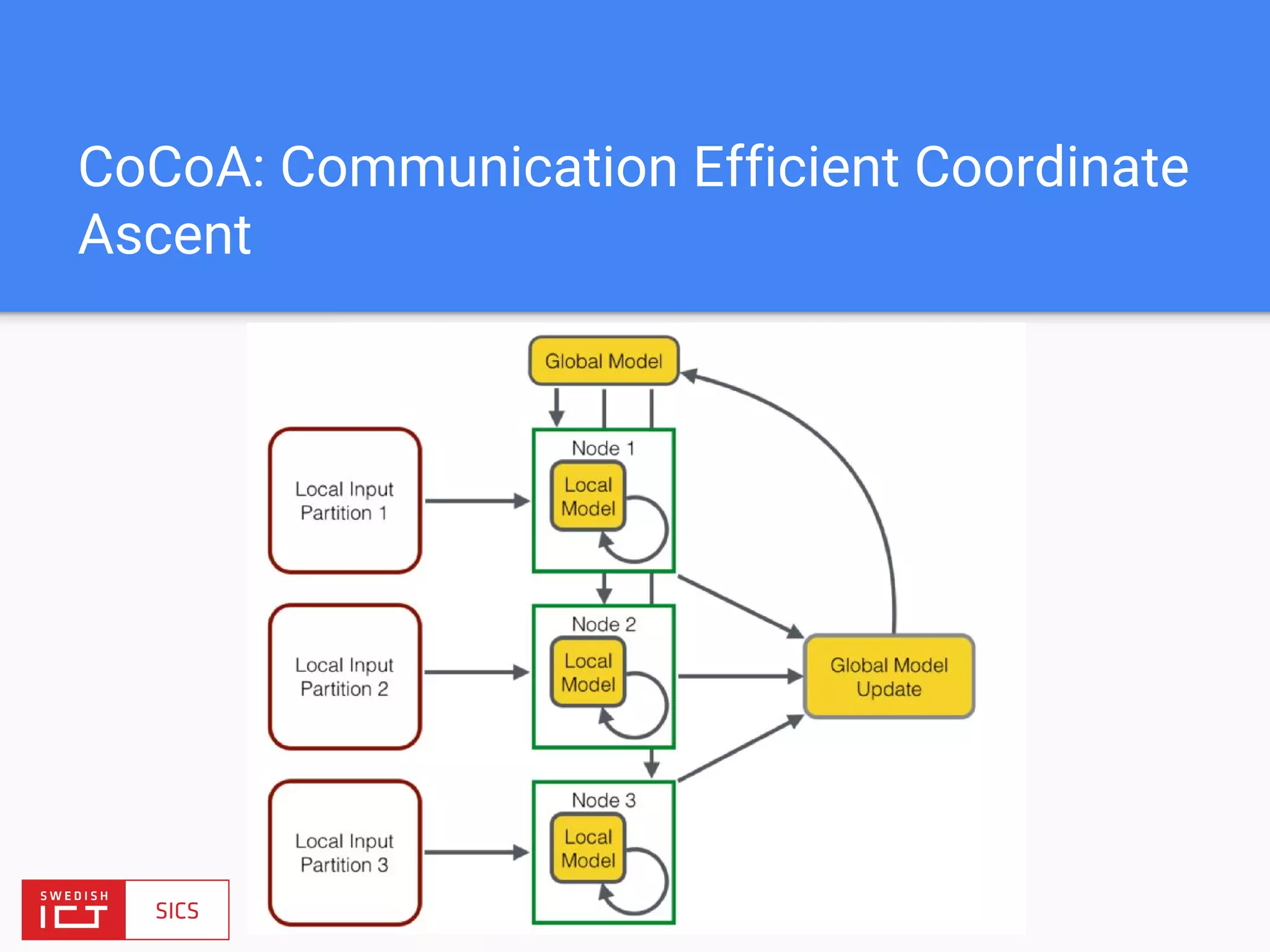

49. CoCoA: Communication Efficient Coordinate
Ascent

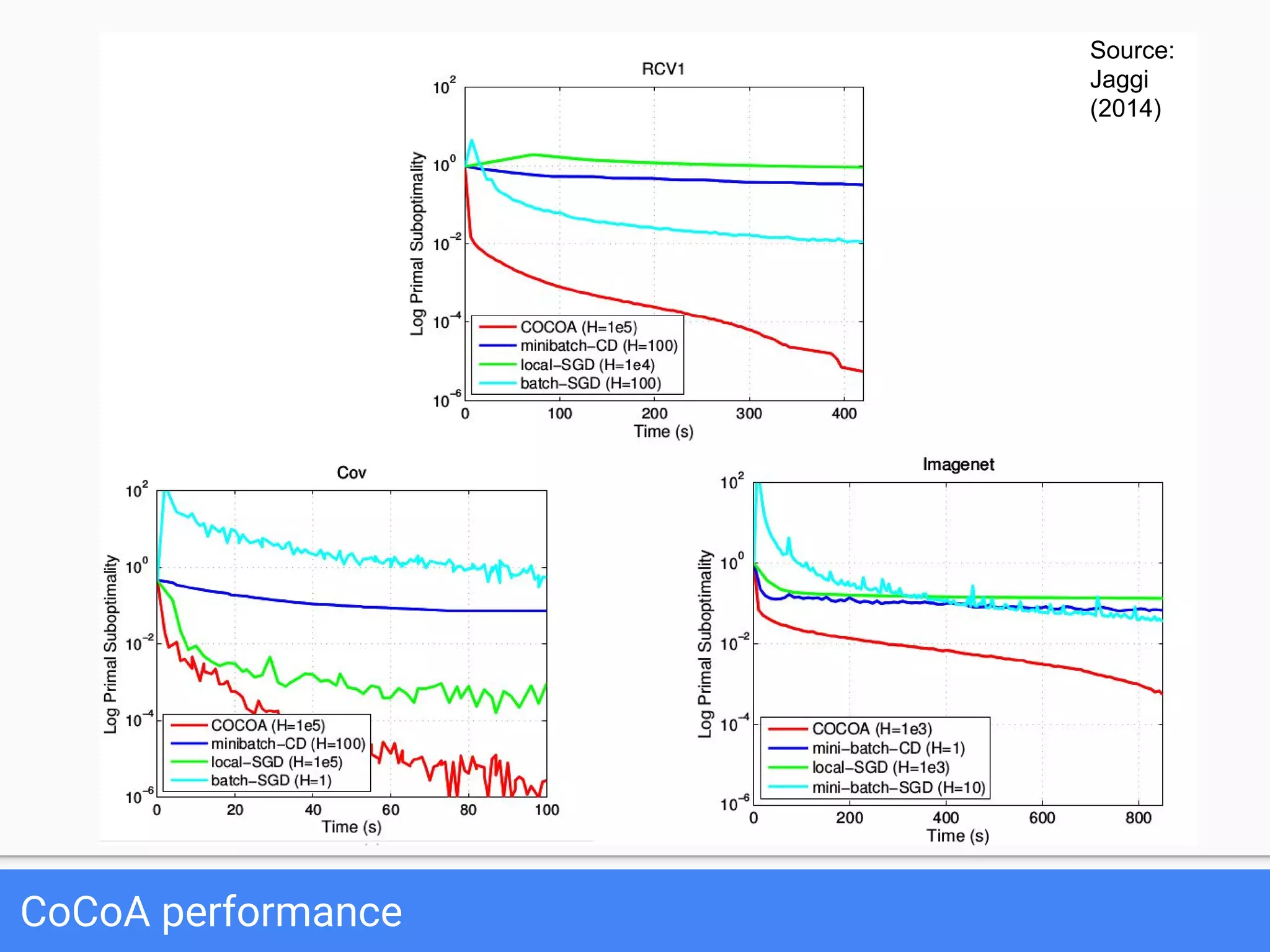

50. CoCoA performance
Source:
Jaggi
(2014)

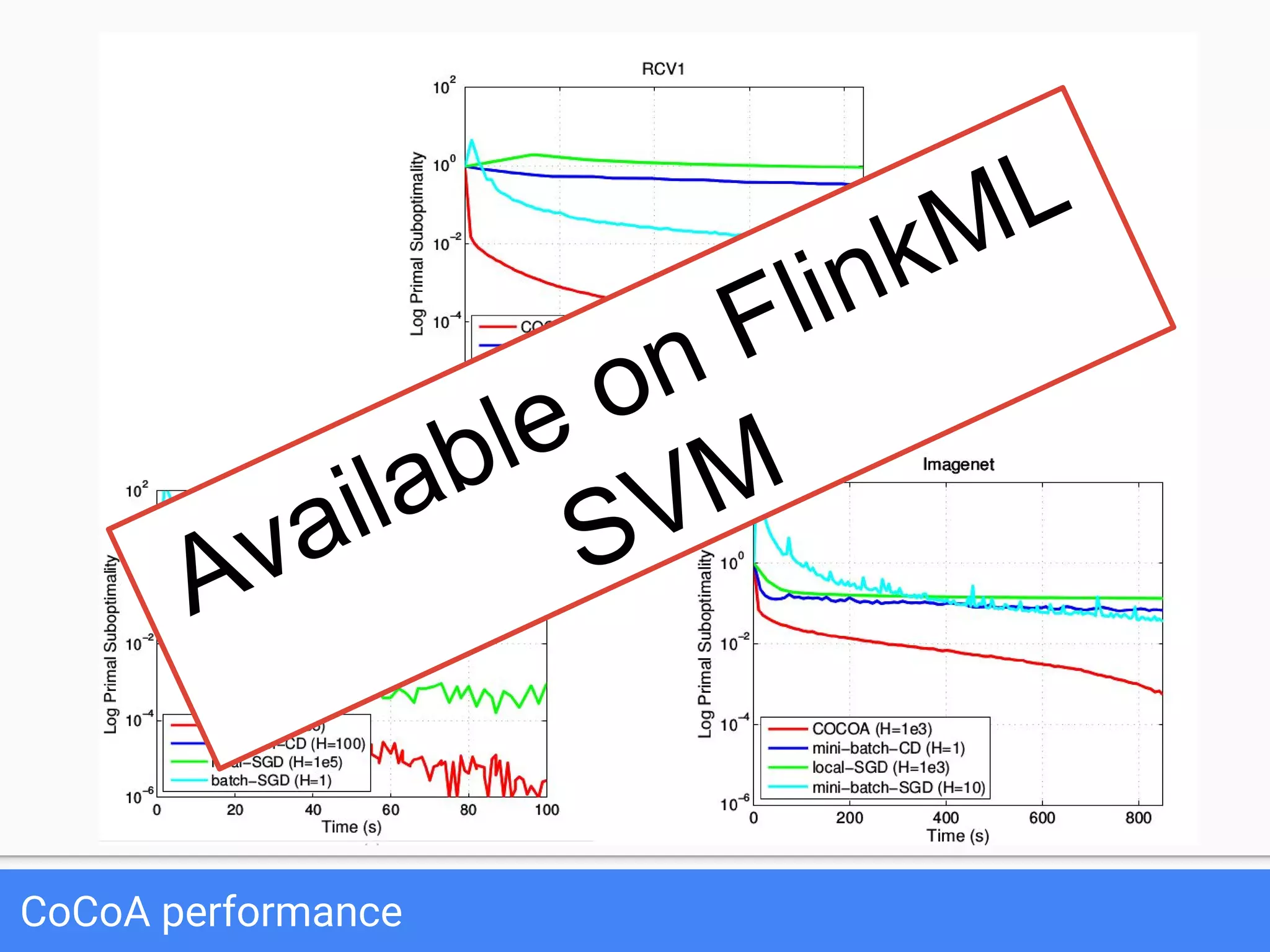

51. CoCoA performance
Available on FlinkML
SVM

52. Achieving model parallelism:
The parameter server
● The parameter server is essentially a distributed key-value store with two
basic commands: push and pull
○ push updates the model
○ pull retrieves a (lazily) updated model
● Allows us to store a model into multiple nodes, read and update it as
needed.

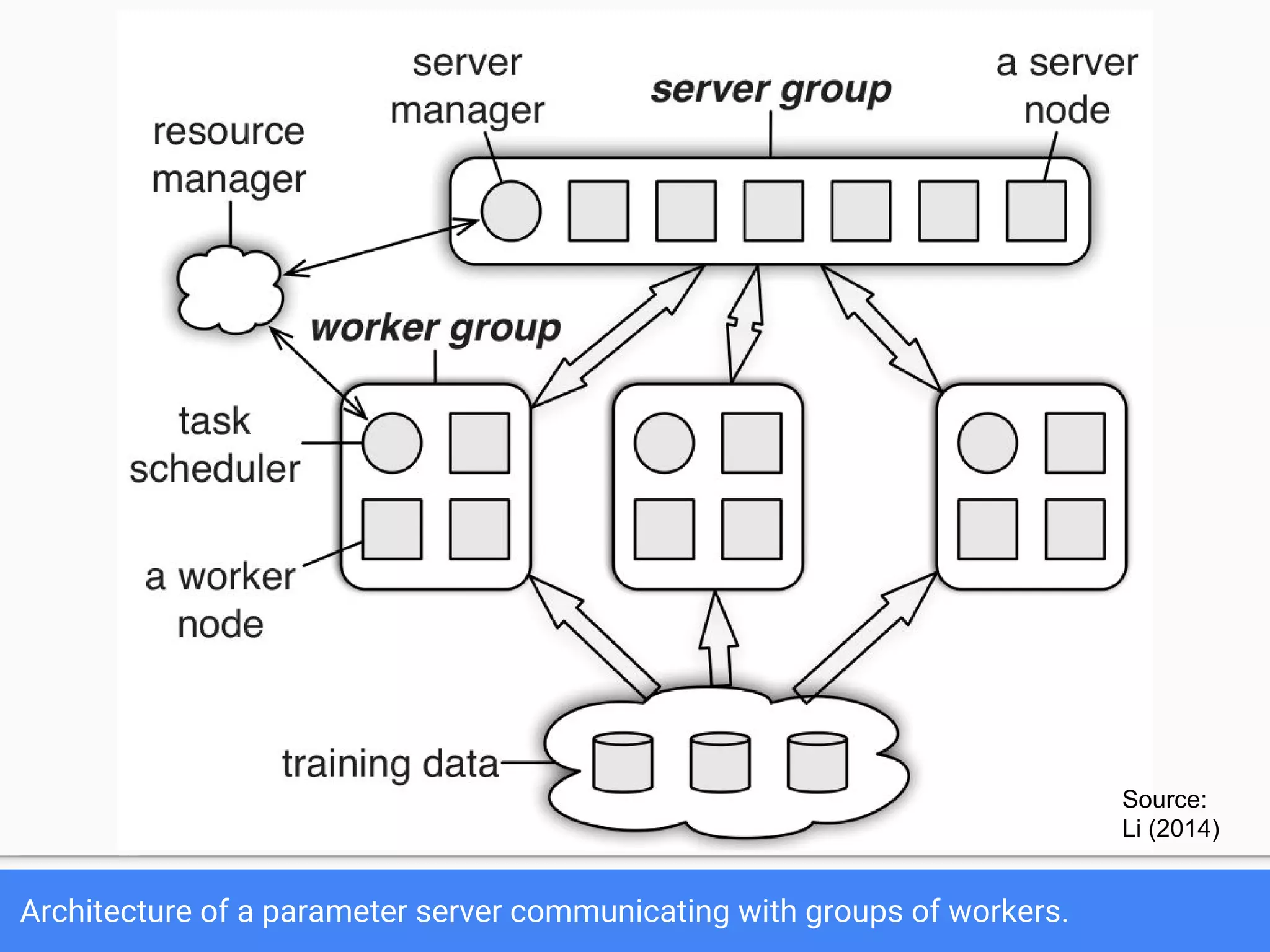

53. Architecture of a parameter server communicating with groups of workers.
Source:
Li (2014)

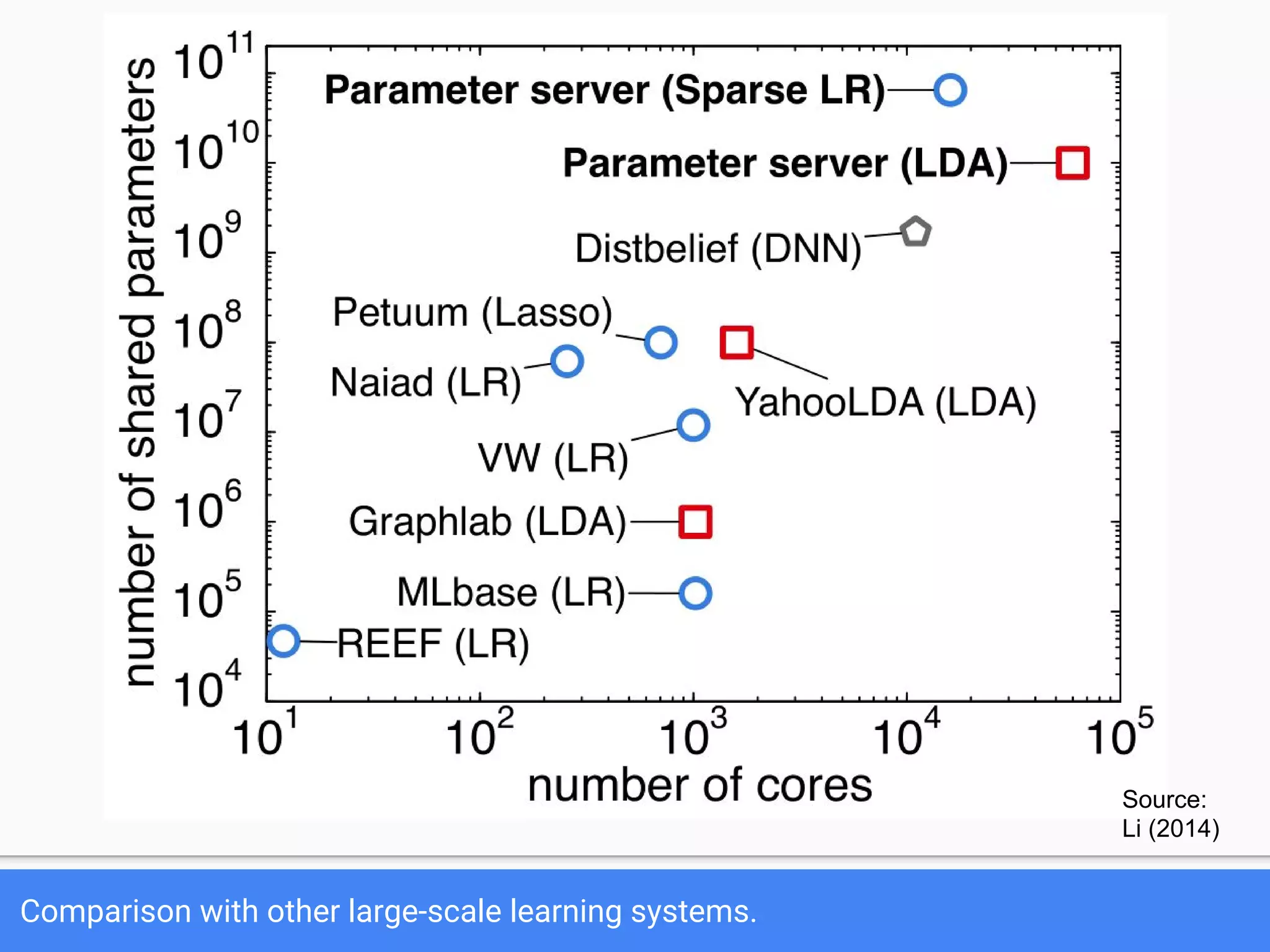

54. Comparison with other large-scale learning systems.
Source:
Li (2014)

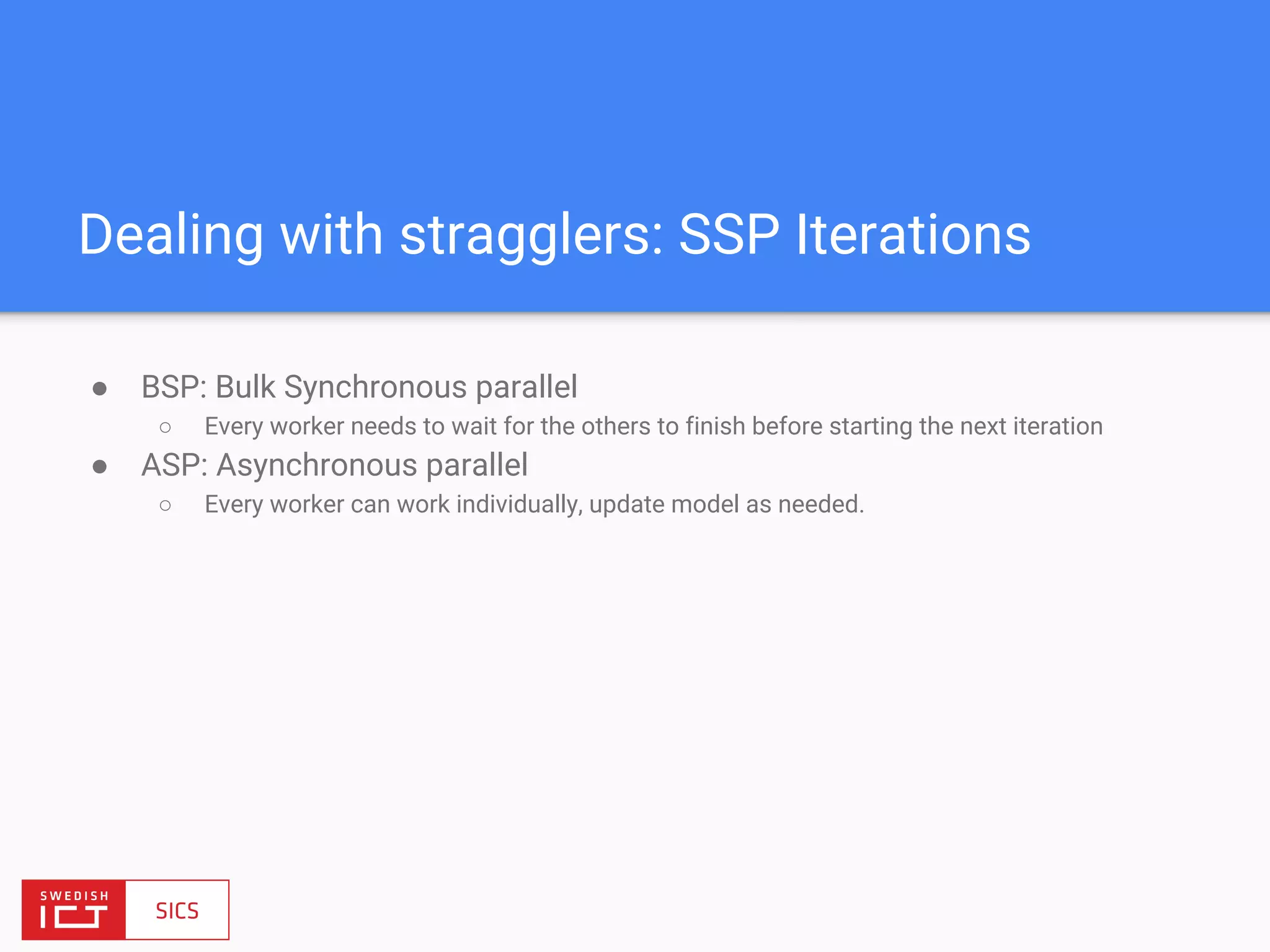

55. Dealing with stragglers: SSP Iterations

56. ● BSP: Bulk Synchronous parallel
○ Every worker needs to wait for the others to finish before starting the next iteration
Dealing with stragglers: SSP Iterations

57. ● BSP: Bulk Synchronous parallel
○ Every worker needs to wait for the others to finish before starting the next iteration
● ASP: Asynchronous parallel
○ Every worker can work individually, update model as needed.
Dealing with stragglers: SSP Iterations

58. ● BSP: Bulk Synchronous parallel
○ Every worker needs to wait for the others to finish before starting the next iteration
● ASP: Asynchronous parallel
○ Every worker can work individually, update model as needed.
○ Can be fast, but can often diverge.
Dealing with stragglers: SSP Iterations

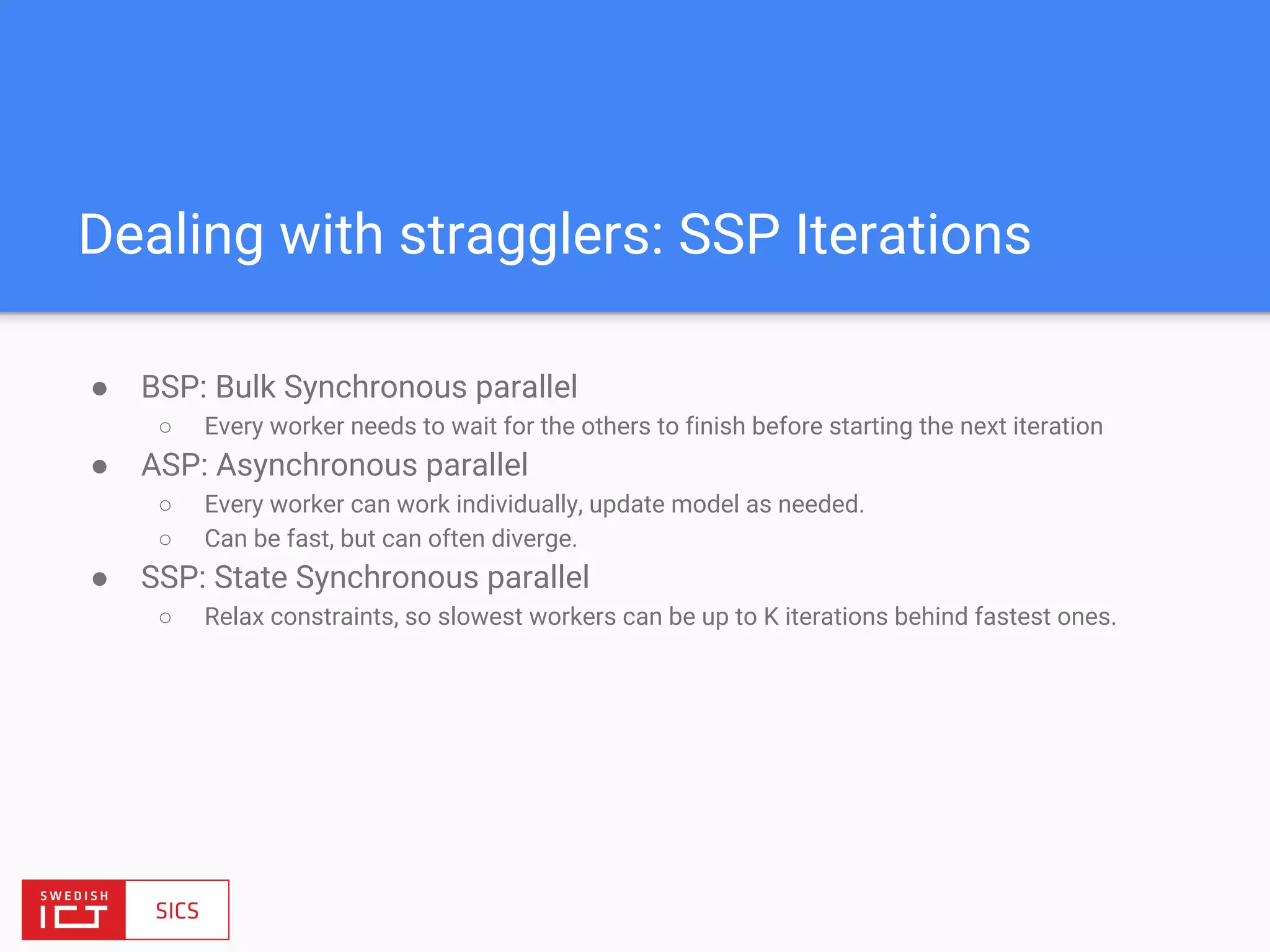

59. ● BSP: Bulk Synchronous parallel
○ Every worker needs to wait for the others to finish before starting the next iteration
● ASP: Asynchronous parallel
○ Every worker can work individually, update model as needed.
○ Can be fast, but can often diverge.
● SSP: State Synchronous parallel
○ Relax constraints, so slowest workers can be up to K iterations behind fastest ones.
Dealing with stragglers: SSP Iterations

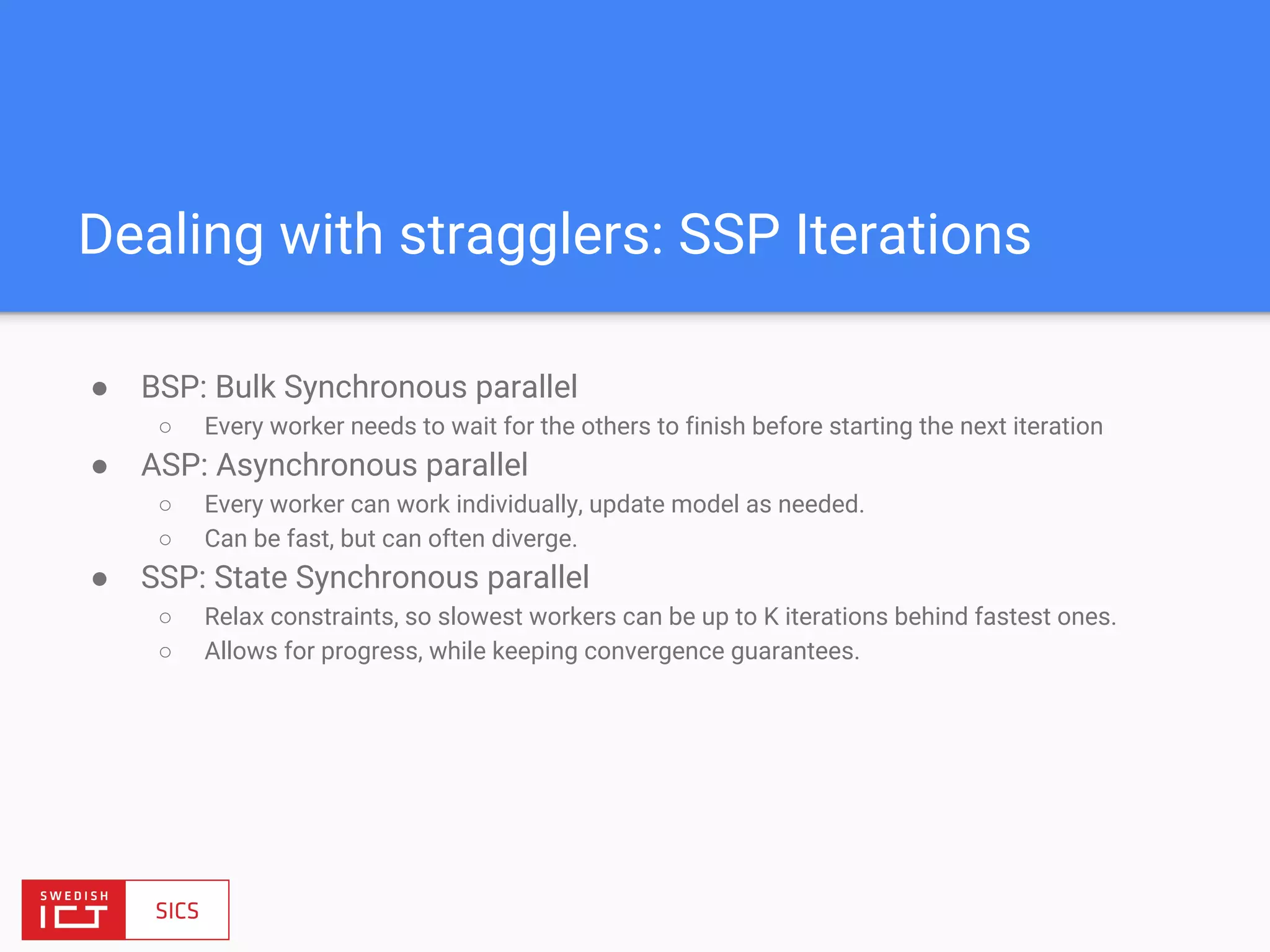

60. ● BSP: Bulk Synchronous parallel
○ Every worker needs to wait for the others to finish before starting the next iteration
● ASP: Asynchronous parallel
○ Every worker can work individually, update model as needed.
○ Can be fast, but can often diverge.
● SSP: State Synchronous parallel
○ Relax constraints, so slowest workers can be up to K iterations behind fastest ones.
○ Allows for progress, while keeping convergence guarantees.
Dealing with stragglers: SSP Iterations

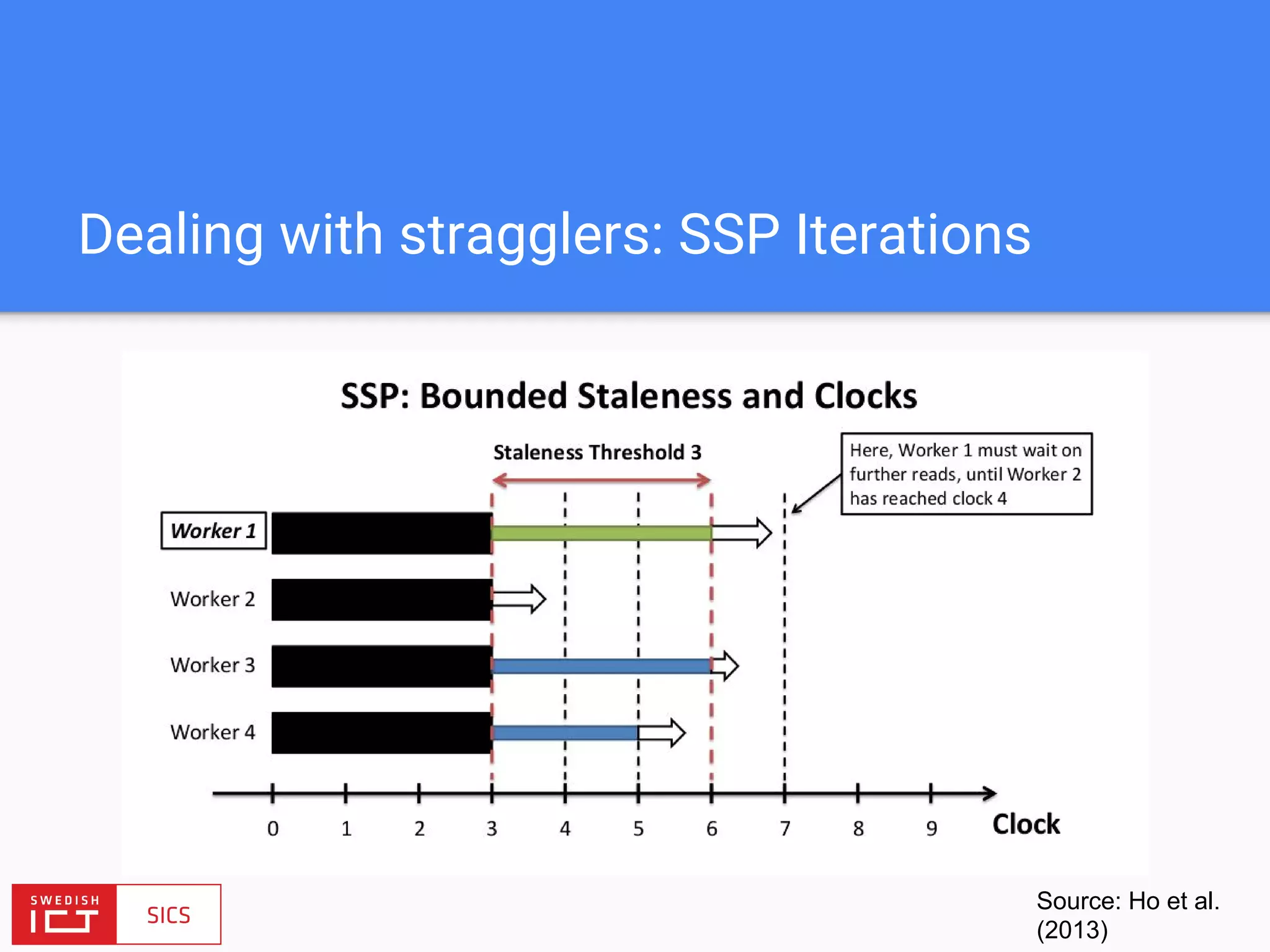

61. Dealing with stragglers: SSP Iterations
Source: Ho et al.
(2013)

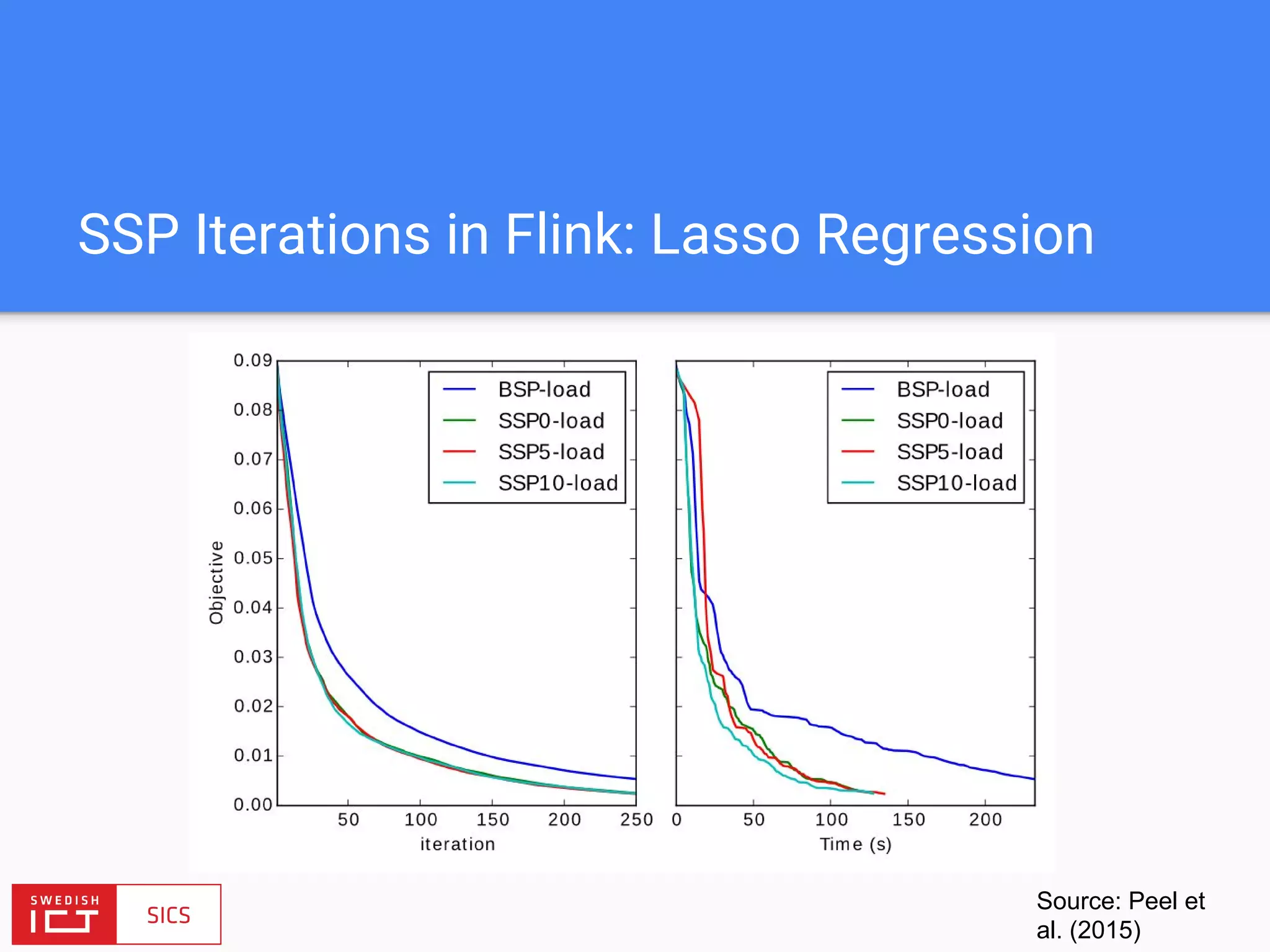

62. SSP Iterations in Flink: Lasso Regression
Source: Peel et
al. (2015)

63. SSP Iterations in Flink: Lasso Regression
Source: Peel et
al. (2015)
To be merged soon
into FlinkML

64. Current and future work on
FlinkML

65. Coming soon
● Tooling
○ Evaluation & cross-validation framework
○ Predictive Model Markup Language
● Algorithms
○ Quad-tree kNN search
○ Efficient streaming decision trees
○ k-means and extensions
○ Colum-wise statistics, histograms

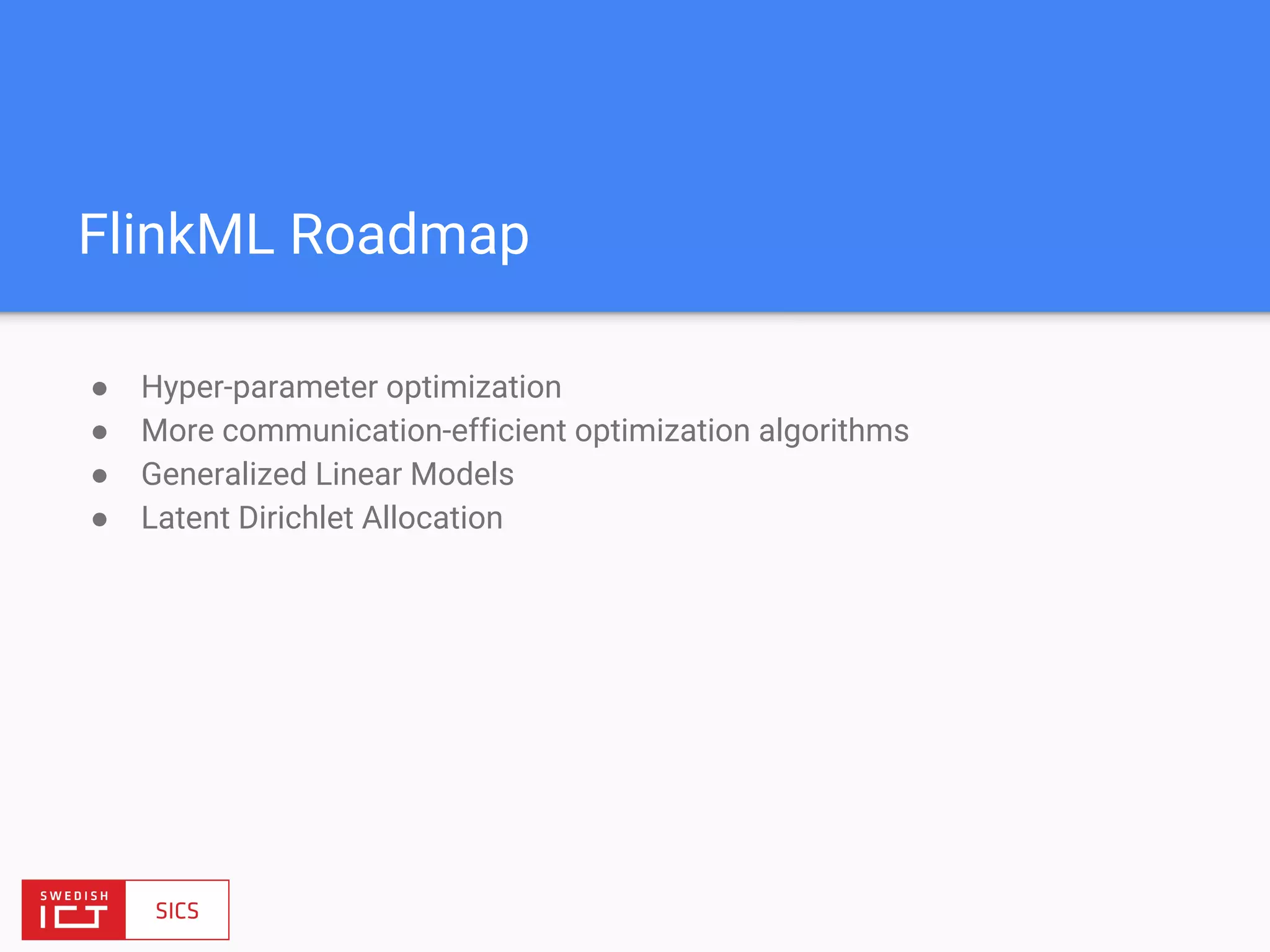

66. FlinkML Roadmap
● Hyper-parameter optimization
● More communication-efficient optimization algorithms
● Generalized Linear Models
● Latent Dirichlet Allocation

67. Future of Machine Learning on Flink
● Streaming ML
○ Flink already has SAMOA bindings.
○ We plan to kickstart the streaming ML library of Flink, and develop new algorithms.

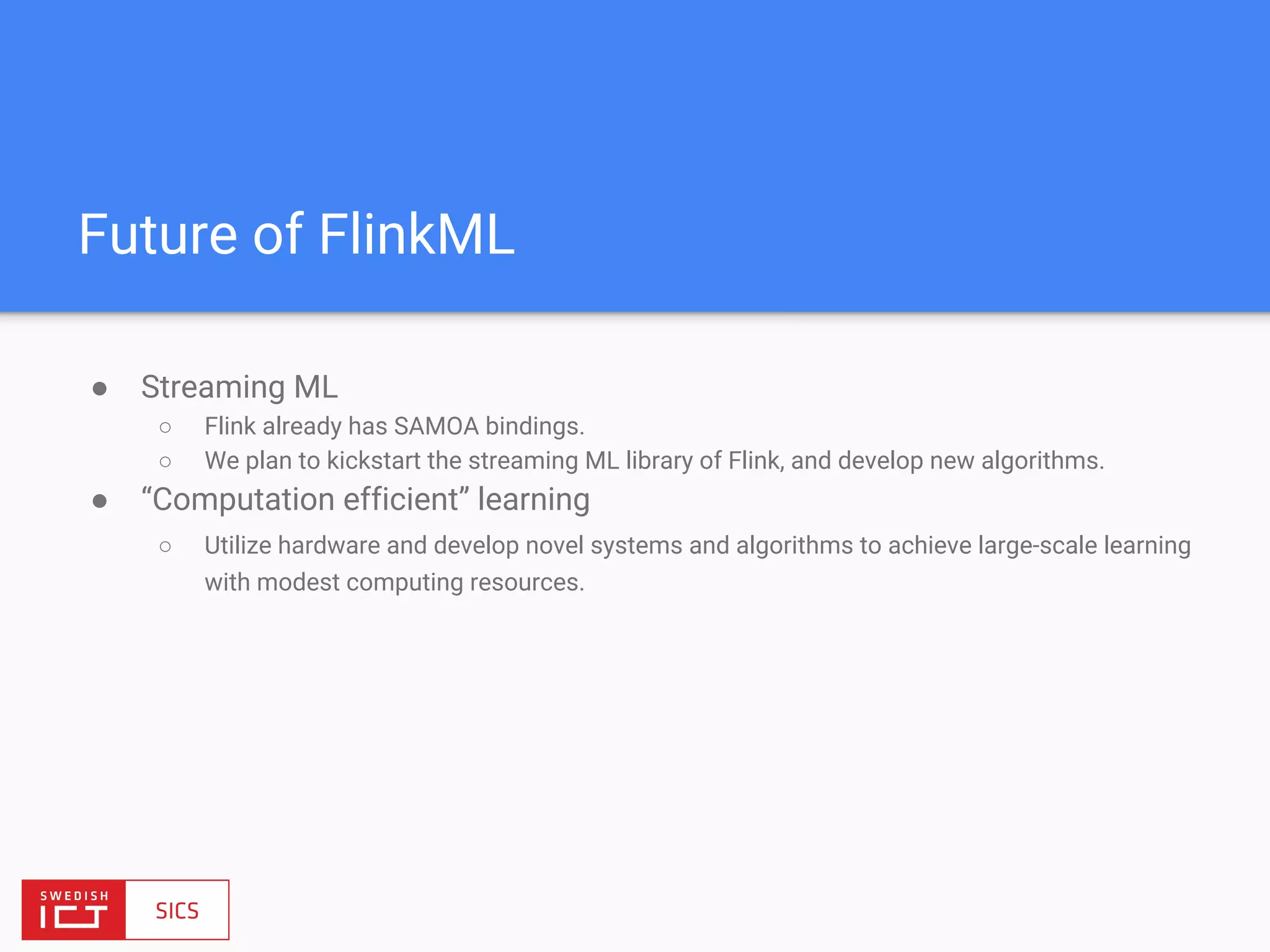

68. Future of FlinkML
● Streaming ML
○ Flink already has SAMOA bindings.
○ We plan to kickstart the streaming ML library of Flink, and develop new algorithms.
● “Computation efficient” learning
○ Utilize hardware and develop novel systems and algorithms to achieve large-scale learning
with modest computing resources.

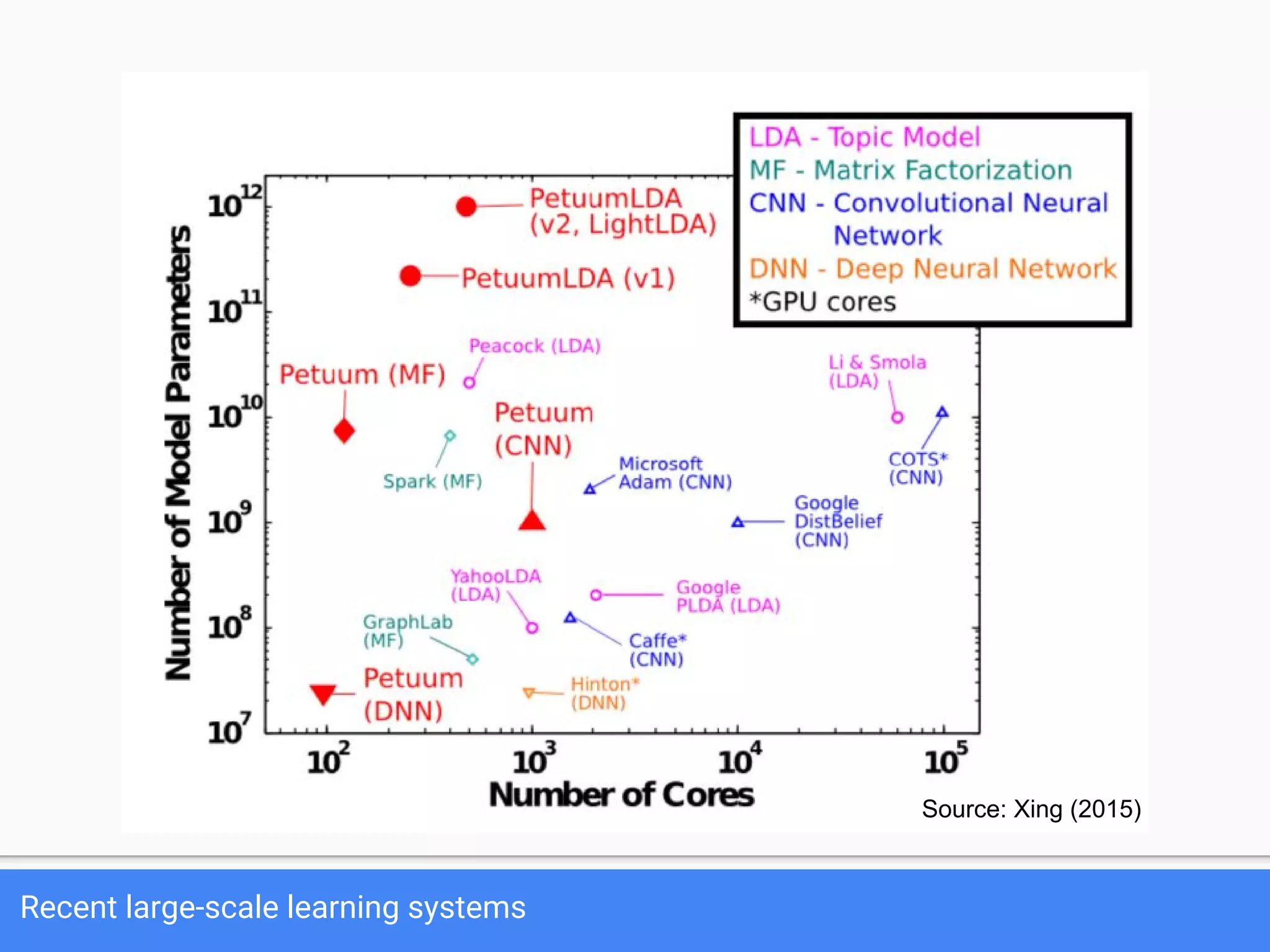

69. Recent large-scale learning systems
Source: Xing (2015)

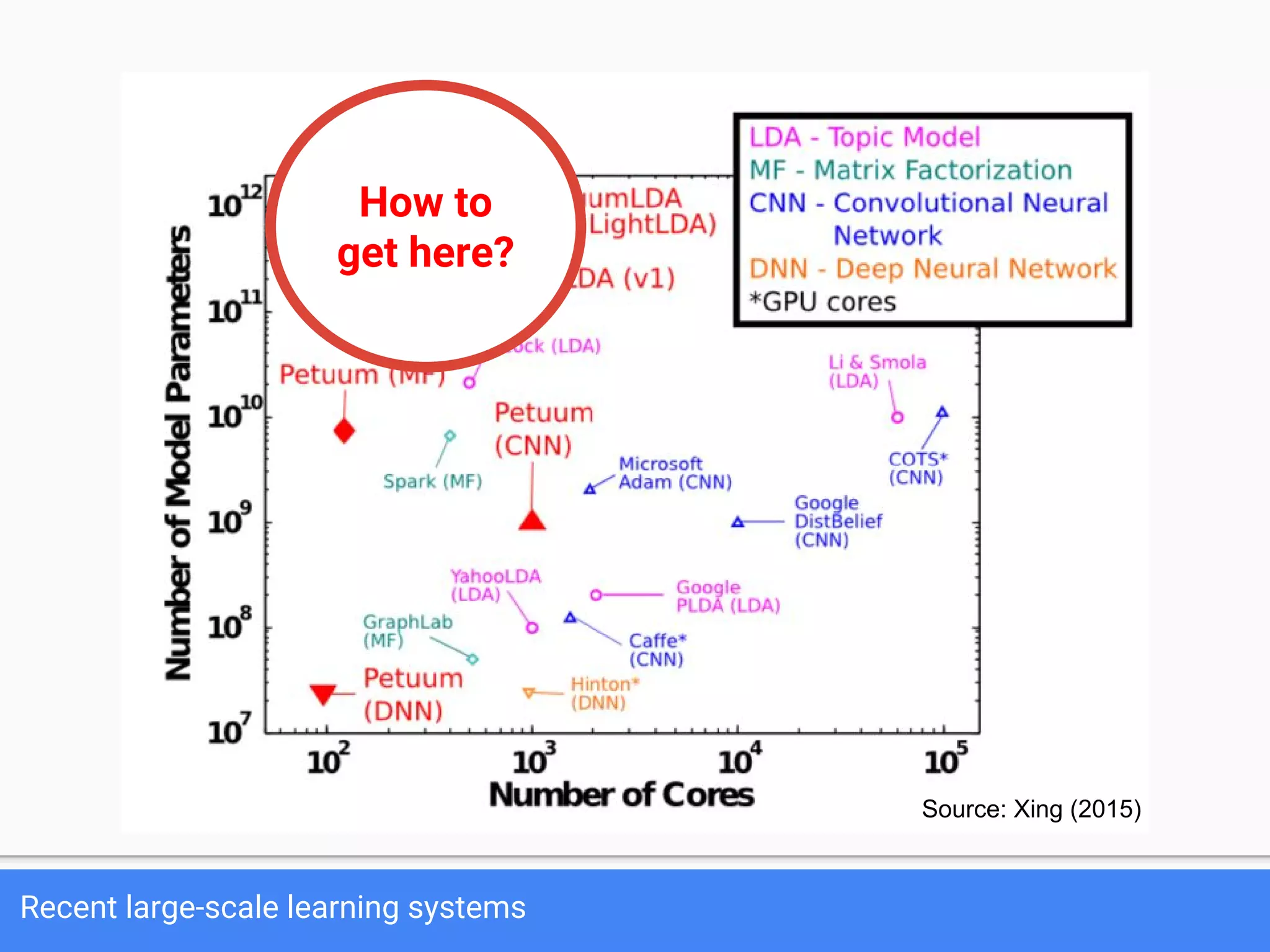

70. Recent large-scale learning systems
Source: Xing (2015)
How to
get here?

71. Demo?

72. Thank you.
@thvasilo
tvas@sics.se

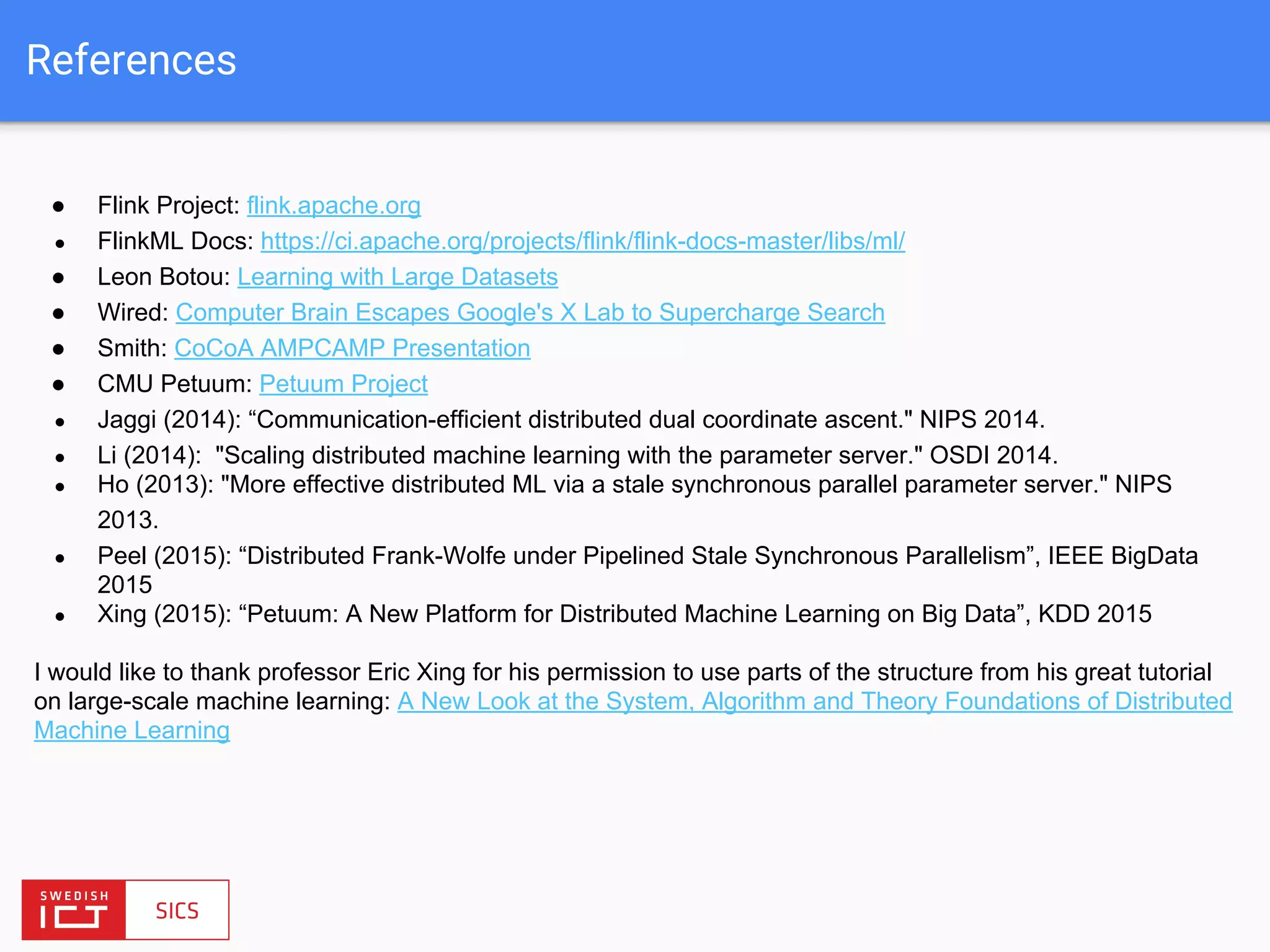

73. References
● Flink Project: flink.apache.org
● FlinkML Docs: https://ci.apache.org/projects/flink/flink-docs-master/libs/ml/
● Leon Botou: Learning with Large Datasets
● Wired: Computer Brain Escapes Google's X Lab to Supercharge Search
● Smith: CoCoA AMPCAMP Presentation
● CMU Petuum: Petuum Project
● Jaggi (2014): “Communication-efficient distributed dual coordinate ascent." NIPS 2014.
● Li (2014): "Scaling distributed machine learning with the parameter server." OSDI 2014.
● Ho (2013): "More effective distributed ML via a stale synchronous parallel parameter server." NIPS
2013.
● Peel (2015): “Distributed Frank-Wolfe under Pipelined Stale Synchronous Parallelism”, IEEE BigData
2015
● Xing (2015): “Petuum: A New Platform for Distributed Machine Learning on Big Data”, KDD 2015
I would like to thank professor Eric Xing for his permission to use parts of the structure from his great tutorial
on large-scale machine learning: A New Look at the System, Algorithm and Theory Foundations of Distributed
Machine Learning

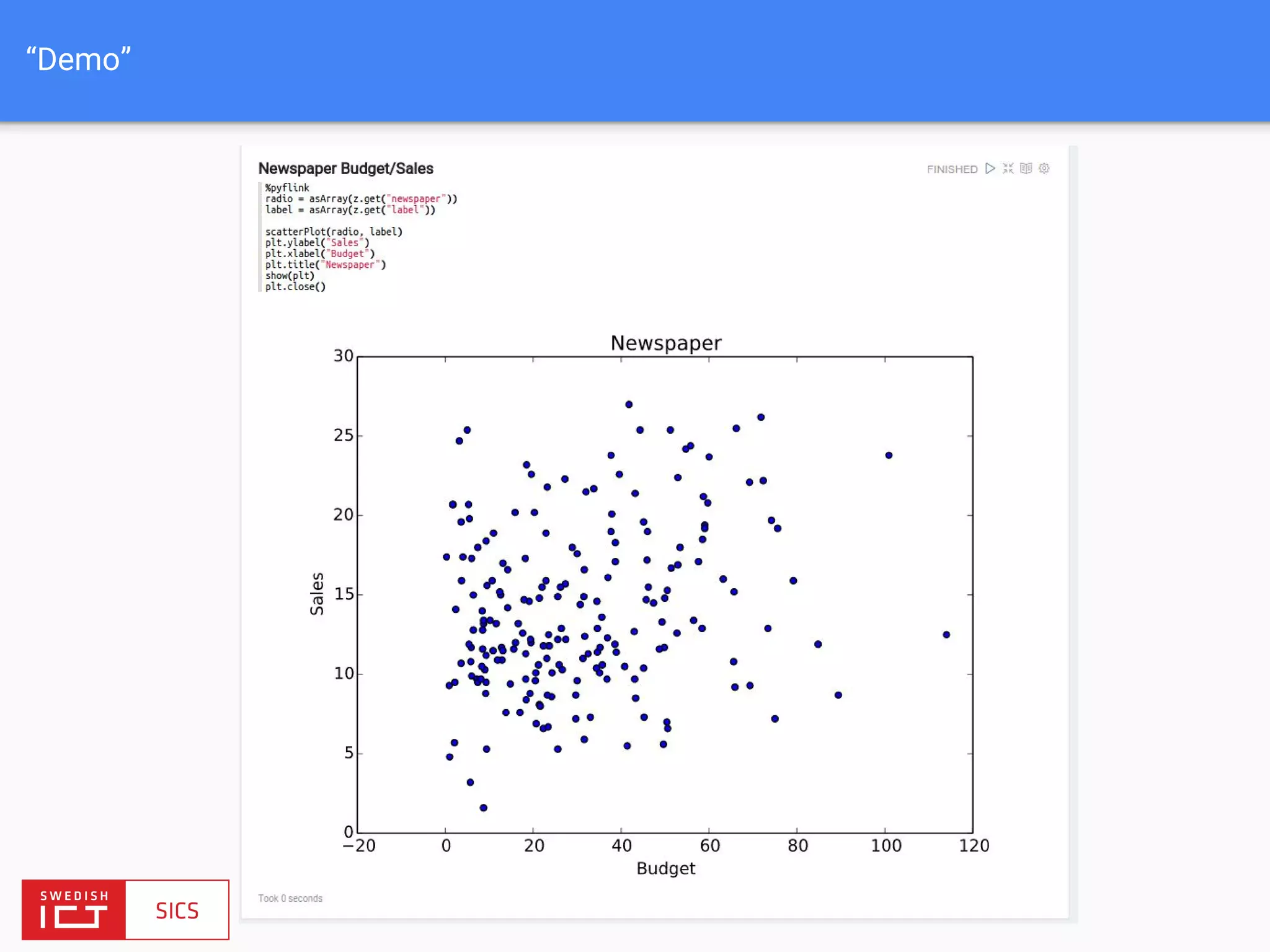

74. “Demo”

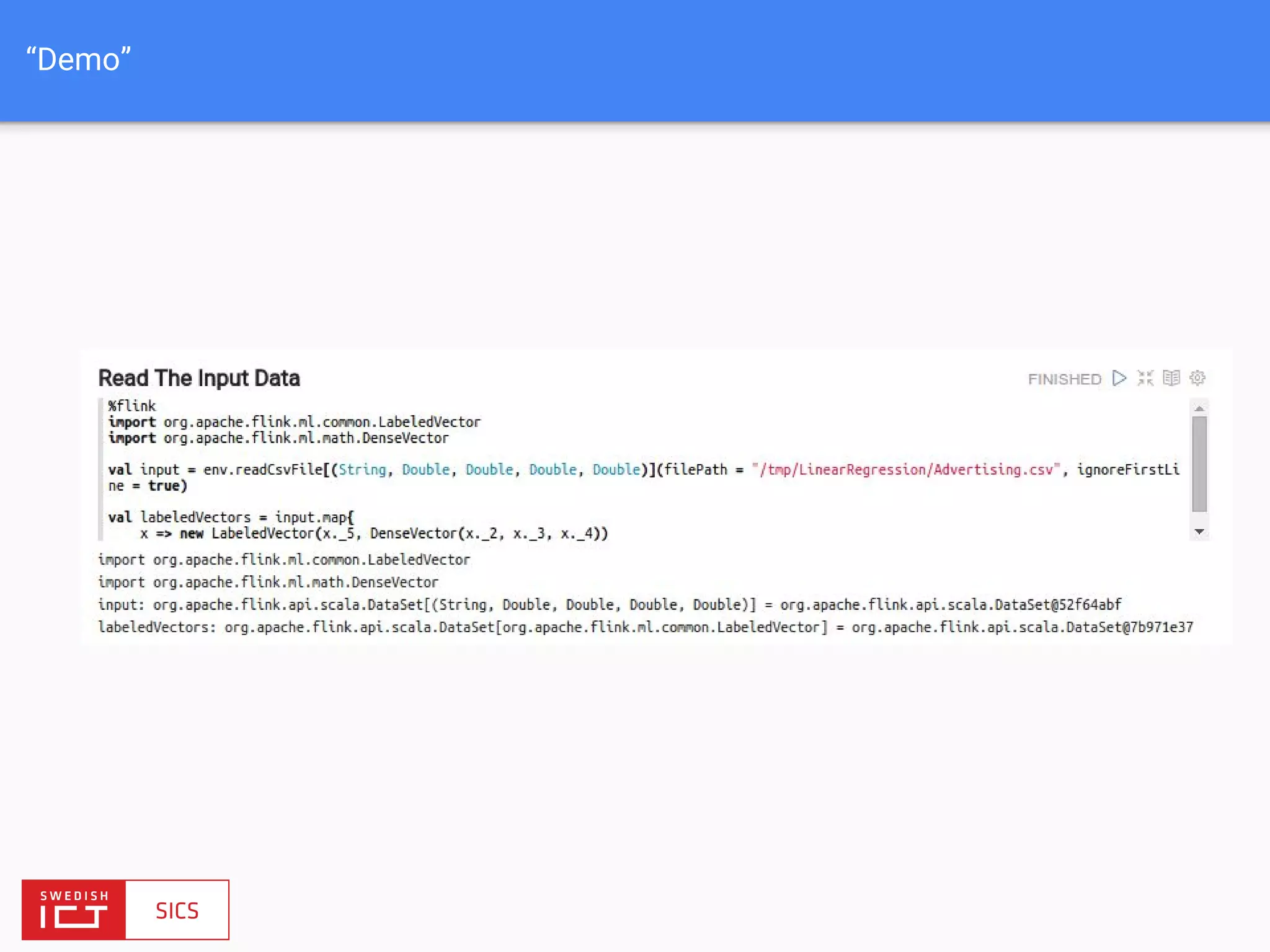

76. “Demo”

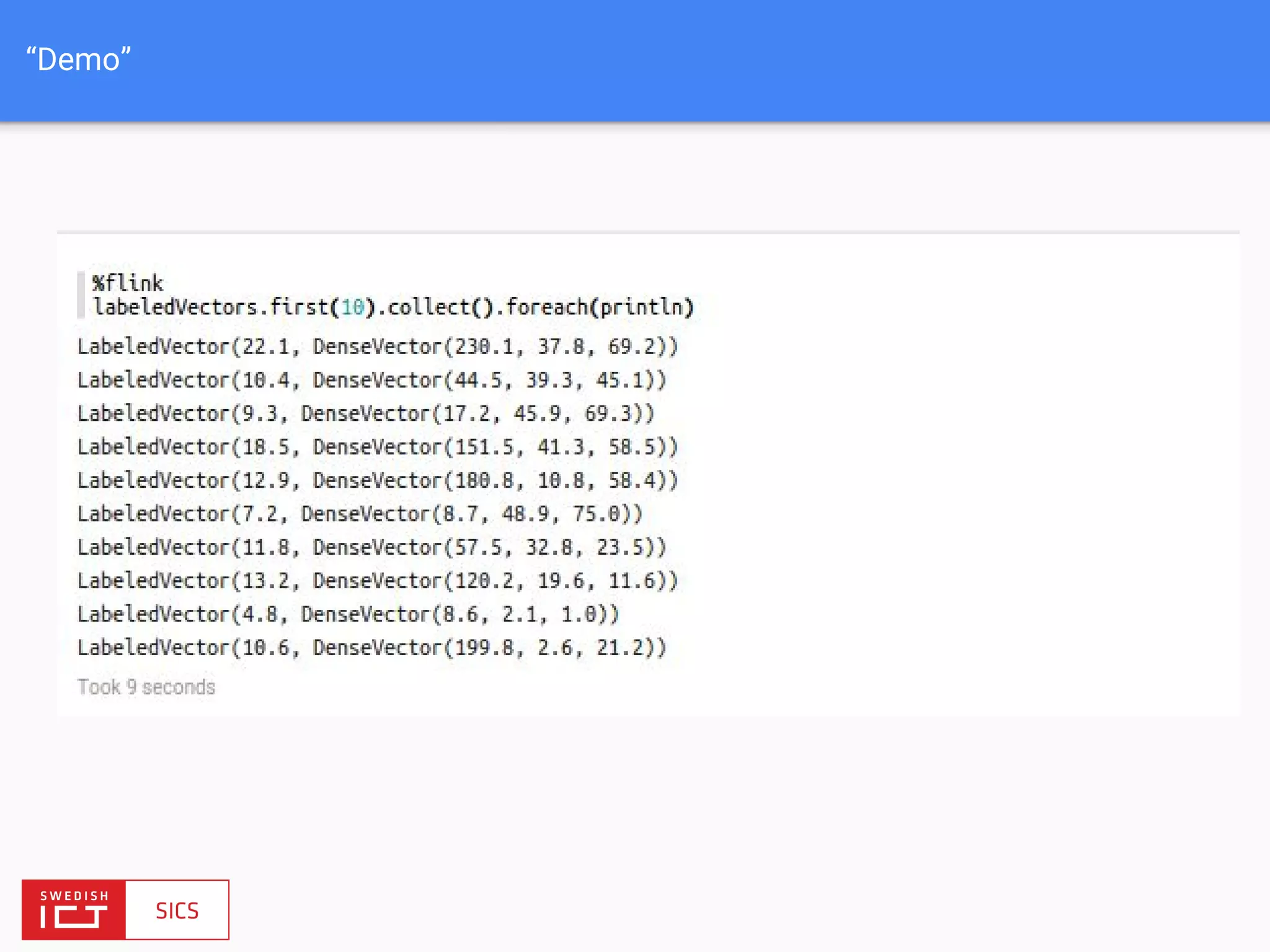

77. “Demo”

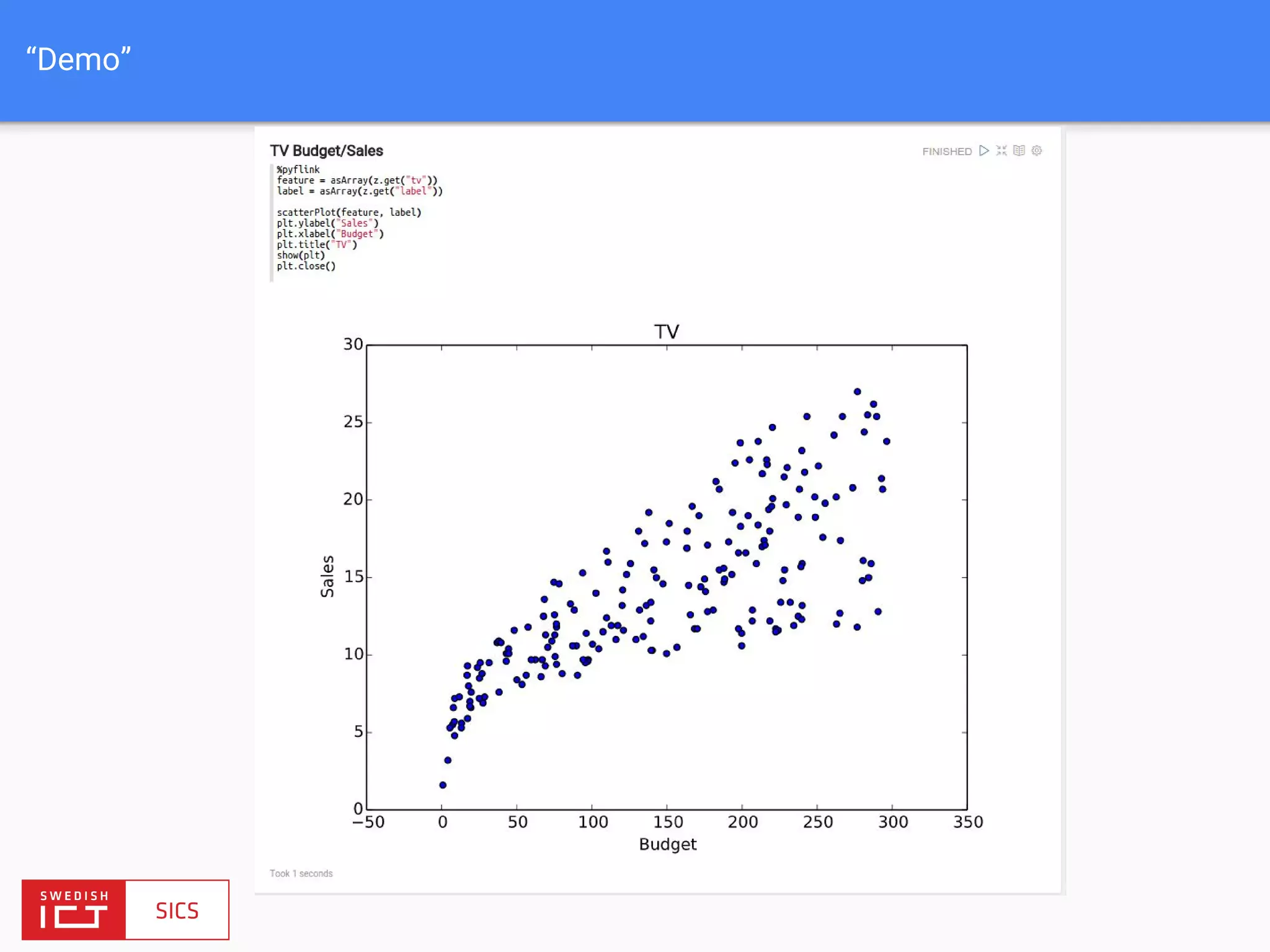

78. “Demo”

79. “Demo”

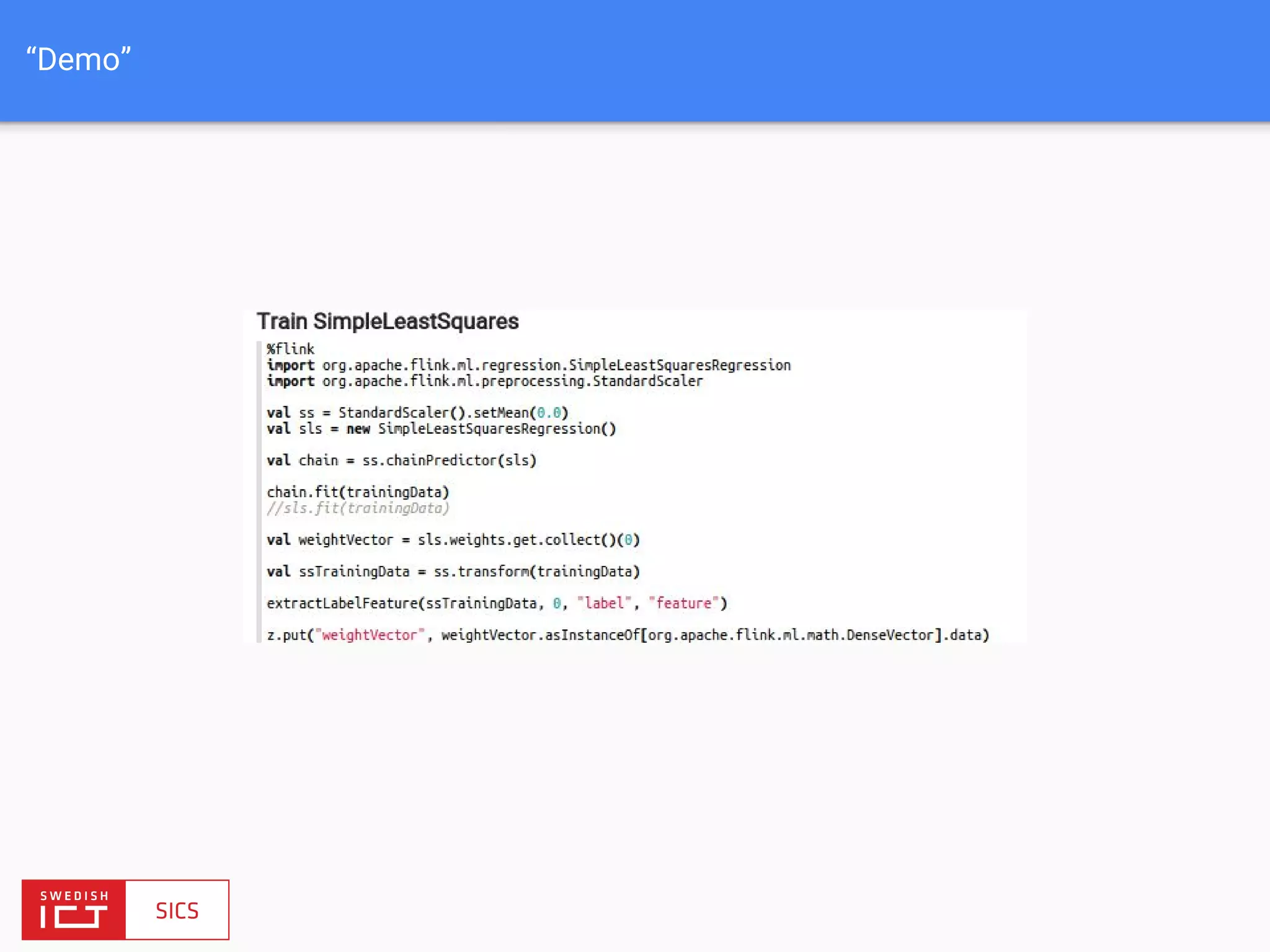

80. “Demo”

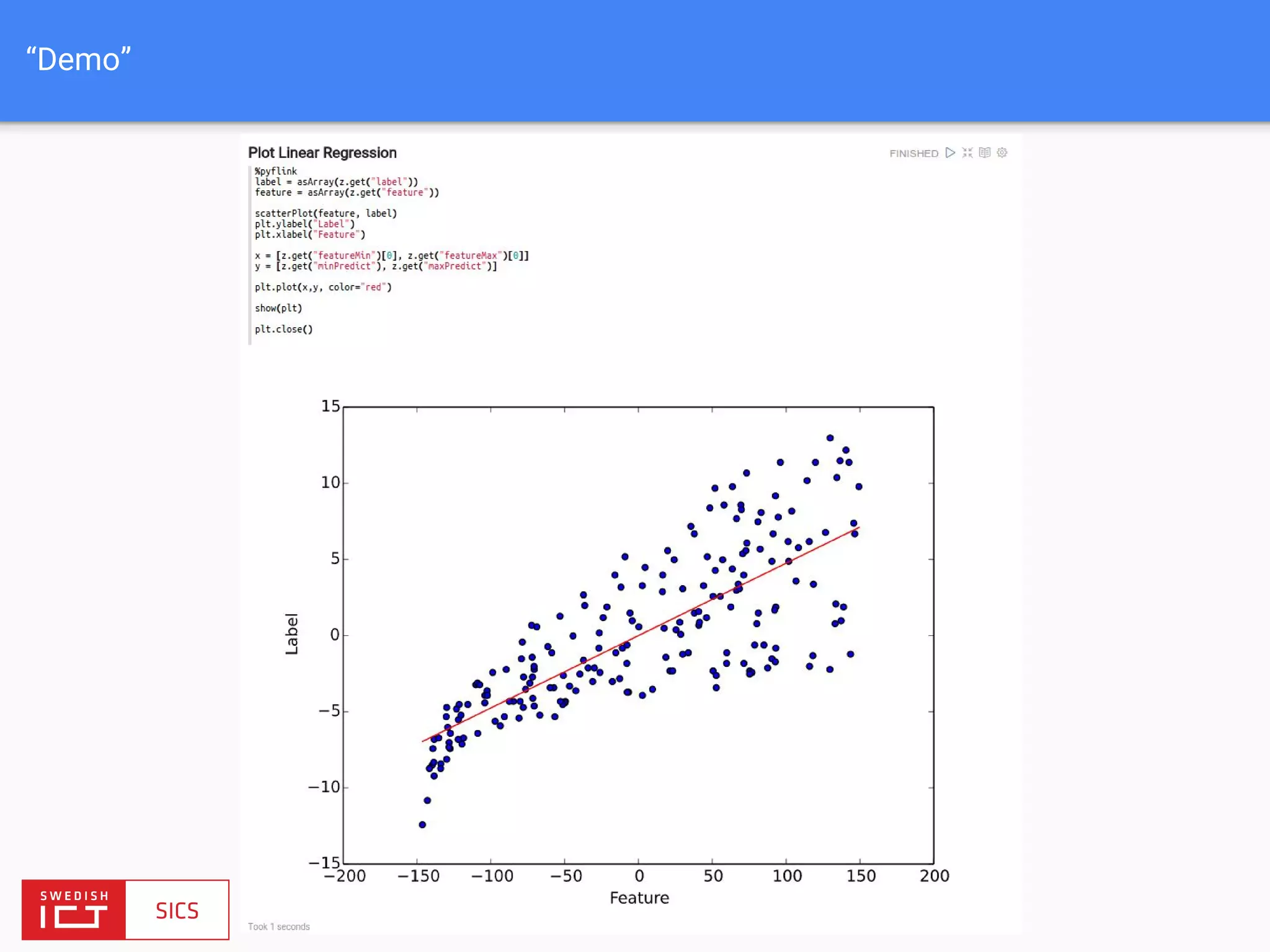

81. “Demo”

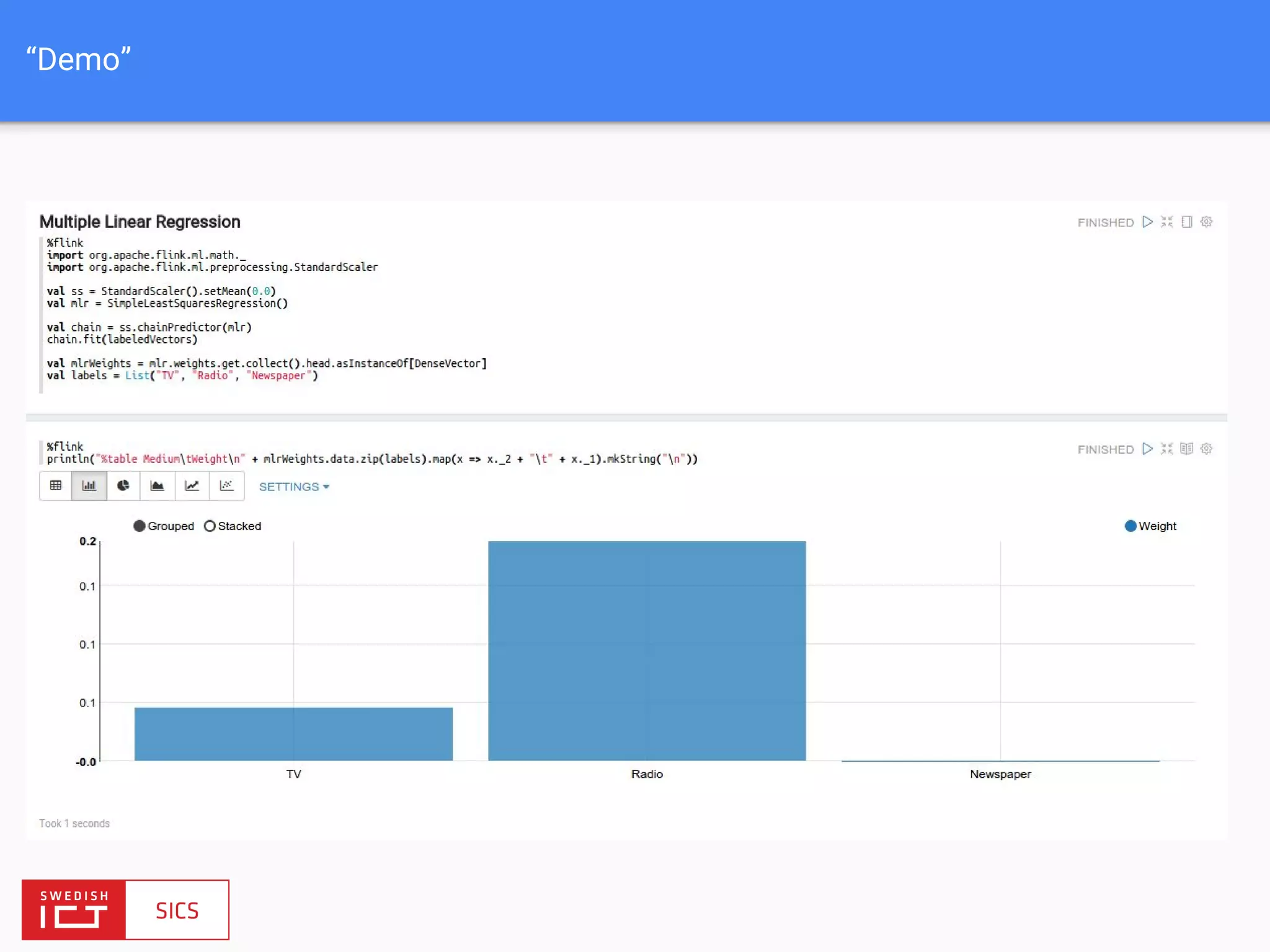

83. “Demo”

84. Thank you.
