Pivotal Data Labs - Technology and Tools in our Data Scientist's Arsenal

2,599 views

Published on

These slides give an overview of the technology and the tools used by Data Scientists at Pivotal Data Labs. This includes Procedural Languages like PL/Python, PL/R, PL/Java, PL/Perl and the parallel, in-database machine learning library MADlib. The slides also highlight the power and flexibility of the Pivotal platform from embracing open source libraries in Python, R or Java to using new computing paradigms such as Spark on Pivotal HD.

Published in: Data & Analytics

Pivotal Data Labs - Technology and Tools in our Data Scientist's Arsenal

  1. 1. Pivotal Data Labs – Technology and Tools in our Data Scientist’s Arsenal Srivatsan Ramanujam Senior Data Scientist 15 Oct 2014 Pivotal Data Labs © Copyright 2013 Pivotal. All rights reserved. 1
  2. 2. Agenda Ÿ Pivotal: Technology and Tools Introduction – Greenplum MPP Database and Pivotal Hadoop with HAWQ Ÿ Data Parallelism – PL/Python, PL/R, PL/Java, PL/C Ÿ Complete Parallelism – MADlib Ÿ Python and R Wrappers – PyMADlib and PivotalR Ÿ Open Source Integration – Spark and PySpark examples Ÿ Live Demos – Pivotal Data Science Tools in Action – Topic and Sentiment Analysis – Content Based Image Search © Copyright 2013 Pivotal. All rights reserved. 2
  3. 3. Technology and Tools © Copyright 2013 Pivotal. All rights reserved. 3

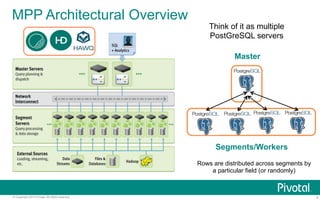

  4. 4. MPP Architectural Overview Think of it as multiple PostGreSQL servers Master Segments/Workers Rows are distributed across segments by a particular field (or randomly) © Copyright 2013 Pivotal. All rights reserved. 4
  5. 5. Implicit Parallelism – Procedural Languages © Copyright 2013 Pivotal. All rights reserved. 5

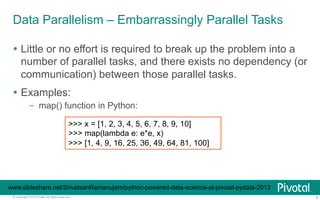

  6. 6. Data Parallelism – Embarrassingly Parallel Tasks Ÿ Little or no effort is required to break up the problem into a number of parallel tasks, and there exists no dependency (or communication) between those parallel tasks. Ÿ Examples: – map() function in Python: >>> x = [1, 2, 3, 4, 5, 6, 7, 8, 9, 10] >>> map(lambda e: e*e, x) >>> [1, 4, 9, 16, 25, 36, 49, 64, 81, 100] www.slideshare.net/SrivatsanRamanujam/python-powered-data-science-at-pivotal-pydata-2013 © Copyright 2013 Pivotal. All rights reserved. 6

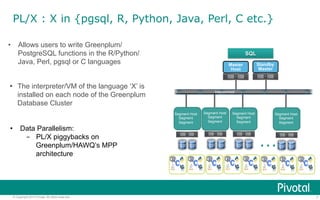

  7. 7. PL/X : X in {pgsql, R, Python, Java, Perl, C etc.} • Allows users to write Greenplum/ PostgreSQL functions in the R/Python/ Java, Perl, pgsql or C languages Standby Ÿ The interpreter/VM of the language ‘X’ is installed on each node of the Greenplum Database Cluster • Data Parallelism: - PL/X piggybacks on Greenplum/HAWQ’s MPP architecture Master Segment Host Segment Segment … Master Host SQL Interconnect Segment Host Segment Segment Segment Host Segment Segment Segment Host Segment Segment © Copyright 2013 Pivotal. All rights reserved. 7
  8. 8. User Defined Functions – PL/Python Example Ÿ Procedural languages need to be installed on each database used. Ÿ Syntax is like normal Python function with function definition line replaced by SQL wrapper. Alternatively like a SQL User Defined Function with Python inside. CREATE FUNCTION pymax (a integer, b integer) RETURNS integer AS $$ if a > b: return a return b $$ LANGUAGE plpythonu; SQL wrapper Normal Python SQL wrapper © Copyright 2013 Pivotal. All rights reserved. 8

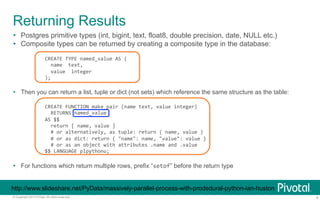

  9. 9. Returning Results Ÿ Postgres primitive types (int, bigint, text, float8, double precision, date, NULL etc.) Ÿ Composite types can be returned by creating a composite type in the database: CREATE TYPE named_value AS ( name text, value integer ); Ÿ Then you can return a list, tuple or dict (not sets) which reference the same structure as the table: CREATE FUNCTION make_pair (name text, value integer) RETURNS named_value AS $$ return [ name, value ] # or alternatively, as tuple: return ( name, value ) # or as dict: return { "name": name, "value": value } # or as an object with attributes .name and .value $$ LANGUAGE plpythonu; Ÿ For functions which return multiple rows, prefix “setof” before the return type http://www.slideshare.net/PyData/massively-parallel-process-with-prodedural-python-ian-huston © Copyright 2013 Pivotal. All rights reserved. 9
  10. 10. Returning more results You can return multiple results by wrapping them in a sequence (tuple, list or set), an iterator or a generator: CREATE FUNCTION make_pair (name text) RETURNS SETOF named_value AS $$ return ([ name, 1 ], [ name, 2 ], [ name, 3]) $$ LANGUAGE plpythonu; Sequence Generator CREATE FUNCTION make_pair (name text) RETURNS SETOF named_value AS $$ for i in range(3): yield (name, i) $$ LANGUAGE plpythonu; © Copyright 2013 Pivotal. All rights reserved. 10

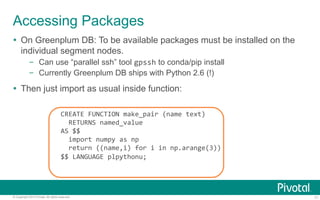

  11. 11. Accessing Packages Ÿ On Greenplum DB: To be available packages must be installed on the individual segment nodes. – Can use “parallel ssh” tool gpssh to conda/pip install – Currently Greenplum DB ships with Python 2.6 (!) Ÿ Then just import as usual inside function: CREATE FUNCTION make_pair (name text) RETURNS named_value AS $$ import numpy as np return ((name,i) for i in np.arange(3)) $$ LANGUAGE plpythonu; © Copyright 2013 Pivotal. All rights reserved. 11

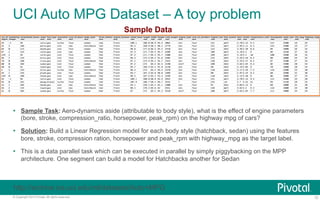

  12. 12. UCI Auto MPG Dataset – A toy problem Sample Data Ÿ Sample Task: Aero-dynamics aside (attributable to body style), what is the effect of engine parameters (bore, stroke, compression_ratio, horsepower, peak_rpm) on the highway mpg of cars? Ÿ Solution: Build a Linear Regression model for each body style (hatchback, sedan) using the features bore, stroke, compression ration, horsepower and peak_rpm with highway_mpg as the target label. Ÿ This is a data parallel task which can be executed in parallel by simply piggybacking on the MPP architecture. One segment can build a model for Hatchbacks another for Sedan http://archive.ics.uci.edu/ml/datasets/Auto+MPG © Copyright 2013 Pivotal. All rights reserved. 12

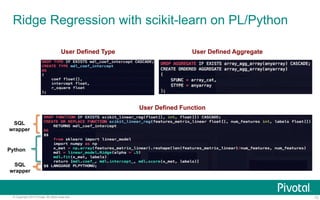

  13. 13. Ridge Regression with scikit-learn on PL/Python SQL wrapper Python SQL wrapper User Defined Type User Defined Aggregate User Defined Function © Copyright 2013 Pivotal. All rights reserved. 13

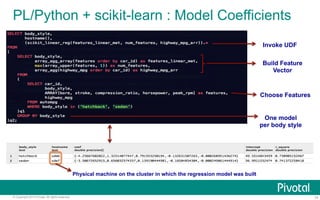

  14. 14. PL/Python + scikit-learn : Model Coefficients Physical machine on the cluster in which the regression model was built Invoke UDF Build Feature Vector Choose Features One model per body style © Copyright 2013 Pivotal. All rights reserved. 14

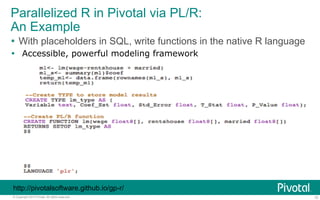

  15. 15. Parallelized R in Pivotal via PL/R: An Example Ÿ With placeholders in SQL, write functions in the native R language Ÿ Accessible, powerful modeling framework http://pivotalsoftware.github.io/gp-r/ © Copyright 2013 Pivotal. All rights reserved. 15

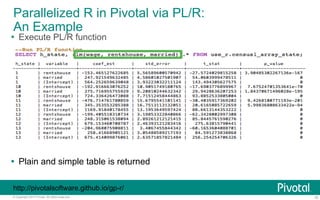

  16. 16. Parallelized R in Pivotal via PL/R: An Example Ÿ Execute PL/R function Ÿ Plain and simple table is returned http://pivotalsoftware.github.io/gp-r/ © Copyright 2013 Pivotal. All rights reserved. 16

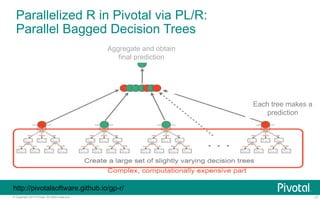

  17. 17. Parallelized R in Pivotal via PL/R: Parallel Bagged Decision Trees Aggregate and obtain final prediction Each tree makes a prediction http://pivotalsoftware.github.io/gp-r/ © Copyright 2013 Pivotal. All rights reserved. 17
  18. 18. Complete Parallelism © Copyright 2013 Pivotal. All rights reserved. 18
  19. 19. Complete Parallelism – Beyond Data Parallel Tasks Ÿ Data Parallel computation via PL/X libraries only allow us to run ‘n’ models in parallel. Ÿ This works great when we are building one model for each value of the group by column, but we need parallelized algorithms to be able to build a single model on all the available data Ÿ For this, we use MADlib – an open source library of parallel in-database machine learning algorithms. © Copyright 2013 Pivotal. All rights reserved. 19

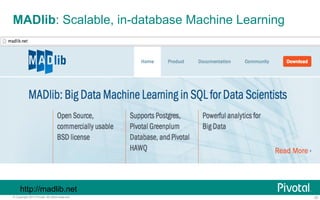

  20. 20. MADlib: Scalable, in-database Machine Learning http://madlib.net © Copyright 2013 Pivotal. All rights reserved. 20

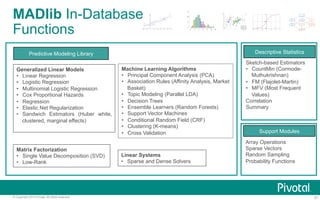

  21. 21. MADlib In-Database Functions Predictive Modeling Library Machine Learning Algorithms • Principal Component Analysis (PCA) • Association Rules (Affinity Analysis, Market Basket) • Topic Modeling (Parallel LDA) • Decision Trees • Ensemble Learners (Random Forests) • Support Vector Machines • Conditional Random Field (CRF) • Clustering (K-means) • Cross Validation Linear Systems • Sparse and Dense Solvers Generalized Linear Models • Linear Regression • Logistic Regression • Multinomial Logistic Regression • Cox Proportional Hazards • Regression • Elastic Net Regularization • Sandwich Estimators (Huber white, clustered, marginal effects) Matrix Factorization • Single Value Decomposition (SVD) • Low-Rank Descriptive Statistics Sketch-based Estimators • CountMin (Cormode- Muthukrishnan) • FM (Flajolet-Martin) • MFV (Most Frequent Values) Correlation Summary Support Modules Array Operations Sparse Vectors Random Sampling Probability Functions © Copyright 2013 Pivotal. All rights reserved. 21

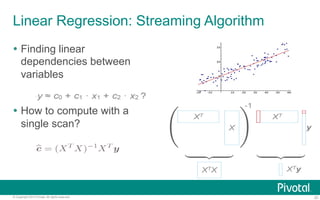

  22. 22. Linear Regression: Streaming Algorithm Ÿ Finding linear dependencies between variables Ÿ How to compute with a single scan? © Copyright 2013 Pivotal. All rights reserved. 22

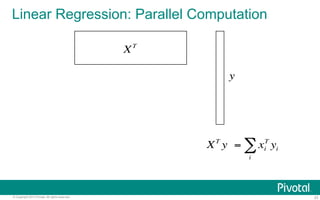

  23. 23. Linear Regression: Parallel Computation XT y Σ XT y = xi T yi i © Copyright 2013 Pivotal. All rights reserved. 23

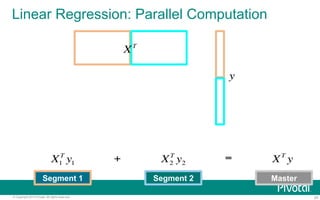

  24. 24. Linear Regression: Parallel Computation y XT XT y Master T y2 + = T y1 X2 X1 Segment 1 Segment 2 © Copyright 2013 Pivotal. All rights reserved. 24

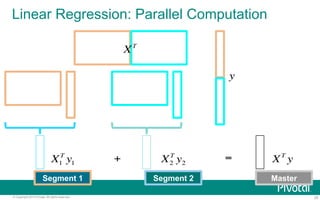

  25. 25. Linear Regression: Parallel Computation y XT T y2 + = T y1 X2 XT X y 1 Segment 1 Segment 2 Master © Copyright 2013 Pivotal. All rights reserved. 25

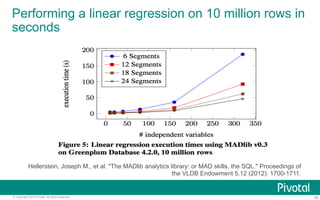

  26. 26. Performing a linear regression on 10 million rows in seconds Hellerstein, Joseph M., et al. "The MADlib analytics library: or MAD skills, the SQL." Proceedings of the VLDB Endowment 5.12 (2012): 1700-1711. © Copyright 2013 Pivotal. All rights reserved. 26

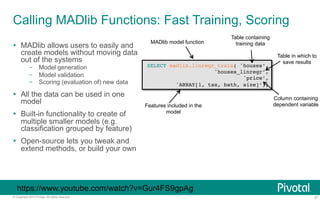

  27. 27. Calling MADlib Functions: Fast Training, Scoring Ÿ MADlib allows users to easily and create models without moving data out of the systems – Model generation – Model validation – Scoring (evaluation of) new data Ÿ All the data can be used in one model Ÿ Built-in functionality to create of multiple smaller models (e.g. classification grouped by feature) Ÿ Open-source lets you tweak and extend methods, or build your own MADlib model function Table containing training data SELECT madlib.linregr_train( 'houses’,! 'houses_linregr’,! 'price’,! 'ARRAY[1, tax, bath, size]’);! Table in which to save results Column containing Features included in the dependent variable model https://www.youtube.com/watch?v=Gur4FS9gpAg © Copyright 2013 Pivotal. All rights reserved. 27

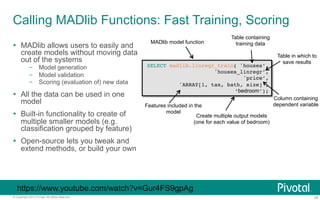

  28. 28. Calling MADlib Functions: Fast Training, Scoring MADlib model function Table containing training data SELECT madlib.linregr_train( 'houses’,! 'houses_linregr’,! 'price’,! 'ARRAY[1, tax, bath, size]’,! ‘bedroom’);! Table in which to save results Column containing dependent variable Features included in the Create multiple output models (one for each value of bedroom) Ÿ MADlib allows users to easily and create models without moving data out of the systems – Model generation – Model validation – Scoring (evaluation of) new data Ÿ All the data can be used in one model Ÿ Built-in functionality to create of multiple smaller models (e.g. classification grouped by feature) Ÿ Open-source lets you tweak and extend methods, or build your own model https://www.youtube.com/watch?v=Gur4FS9gpAg © Copyright 2013 Pivotal. All rights reserved. 28

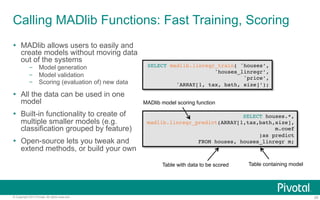

  29. 29. Calling MADlib Functions: Fast Training, Scoring SELECT madlib.linregr_train( 'houses’,! 'houses_linregr’,! 'price’,! 'ARRAY[1, tax, bath, size]’);! SELECT houses.*, MADlib model scoring function madlib.linregr_predict(ARRAY[1,tax,bath,size], m.coef! )as predict ! FROM houses, houses_linregr m;! Table with data to be scored Table containing model Ÿ MADlib allows users to easily and create models without moving data out of the systems – Model generation – Model validation – Scoring (evaluation of) new data Ÿ All the data can be used in one model Ÿ Built-in functionality to create of multiple smaller models (e.g. classification grouped by feature) Ÿ Open-source lets you tweak and extend methods, or build your own © Copyright 2013 Pivotal. All rights reserved. 29
  30. 30. Python and R wrappers to MADlib © Copyright 2013 Pivotal. All rights reserved. 30

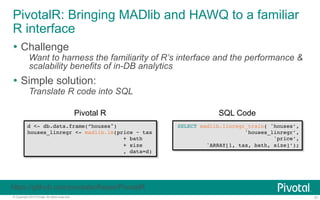

  31. 31. PivotalR: Bringing MADlib and HAWQ to a familiar R interface Ÿ Challenge Want to harness the familiarity of R’s interface and the performance & scalability benefits of in-DB analytics Ÿ Simple solution: Translate R code into SQL Pivotal R d <- db.data.frame(”houses")! houses_linregr <- madlib.lm(price ~ tax! ! ! !+ bath! ! ! !+ size! ! ! !, data=d)! SQL Code SELECT madlib.linregr_train( 'houses’,! 'houses_linregr’,! 'price’,! 'ARRAY[1, tax, bath, size]’);! https://github.com/pivotalsoftware/PivotalR © Copyright 2013 Pivotal. All rights reserved. 31
  32. 32. PivotalR: Bringing MADlib and HAWQ to a familiar R interface Ÿ Challenge Want to harness the familiarity of R’s interface and the performance & scalability benefits of in-DB analytics Ÿ Simple solution: Translate R code into SQL Pivotal R # Build a regression model with a different! # intercept term for each state! # (state=1 as baseline).! # Note that PivotalR supports automated! # indicator coding a la as.factor()!! d <- db.data.frame(”houses")! houses_linregr <- madlib.lm(price ~ as.factor(state)! ! ! ! !+ tax! ! ! ! !+ bath! ! ! ! !+ size! ! ! ! !, data=d)! https://github.com/pivotalsoftware/PivotalR © Copyright 2013 Pivotal. All rights reserved. 32

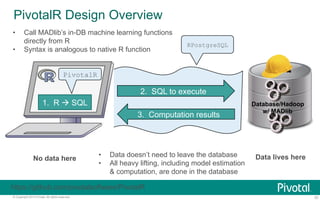

  33. 33. PivotalR Design Overview RPostgreSQL • Call MADlib’s in-DB machine learning functions • Syntax is analogous to native R function 2. SQL to execute 3. Computation results directly from R PivotalR 1. R à SQL Database/Hadoop w/ MADlib • Data doesn’t need to leave the database • All heavy lifting, including model estimation No data here Data lives here & computation, are done in the database https://github.com/pivotalsoftware/PivotalR © Copyright 2013 Pivotal. All rights reserved. 33

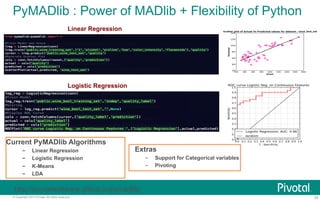

  34. 34. PyMADlib : Power of MADlib + Flexibility of Python Linear Regression Logistic Regression Extras Current PyMADlib Algorithms – Linear Regression – Logistic Regression – K-Means – LDA http://pivotalsoftware.github.io/pymadlib/ – Support for Categorical variables – Pivoting © Copyright 2013 Pivotal. All rights reserved. 34
  35. 35. Visualization © Copyright 2013 Pivotal. All rights reserved. 35
  36. 36. Visualization Open Source Commercial © Copyright 2013 Pivotal. All rights reserved. 36

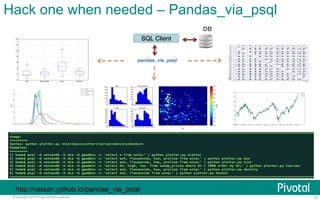

  37. 37. Hack one when needed – Pandas_via_psql http://vatsan.github.io/pandas_via_psql/ SQL Client DB © Copyright 2013 Pivotal. All rights reserved. 37

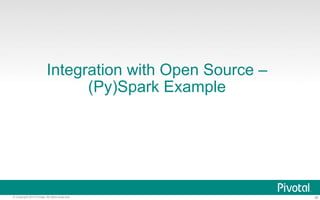

  38. 38. Integration with Open Source – (Py)Spark Example © Copyright 2013 Pivotal. All rights reserved. 38

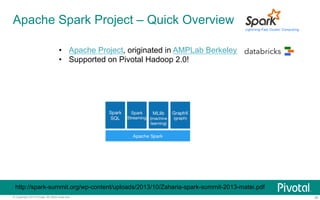

  39. 39. Apache Spark Project – Quick Overview • Apache Project, originated in AMPLab Berkeley • Supported on Pivotal Hadoop 2.0! http://spark-summit.org/wp-content/uploads/2013/10/Zaharia-spark-summit-2013-matei.pdf © Copyright 2013 Pivotal. All rights reserved. 39

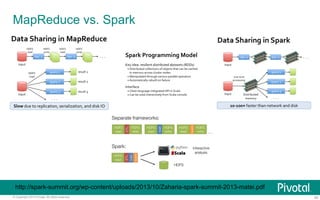

  40. 40. MapReduce vs. Spark http://spark-summit.org/wp-content/uploads/2013/10/Zaharia-spark-summit-2013-matei.pdf © Copyright 2013 Pivotal. All rights reserved. 40

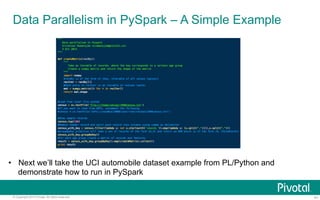

  41. 41. Data Parallelism in PySpark – A Simple Example • Next we’ll take the UCI automobile dataset example from PL/Python and demonstrate how to run in PySpark © Copyright 2013 Pivotal. All rights reserved. 41

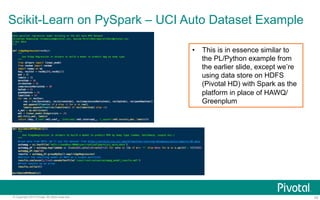

  42. 42. Scikit-Learn on PySpark – UCI Auto Dataset Example • This is in essence similar to the PL/Python example from the earlier slide, except we’re using data store on HDFS (Pivotal HD) with Spark as the platform in place of HAWQ/ Greenplum © Copyright 2013 Pivotal. All rights reserved. 42
  43. 43. Large Scale Topic and Sentiment Analysis of Tweets Social Media Demo © Copyright 2013 Pivotal. All rights reserved. 43

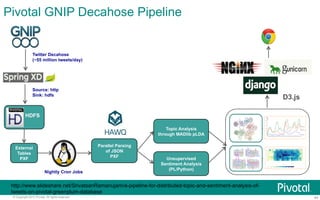

  44. 44. Pivotal GNIP Decahose Pipeline Parallel Parsing of JSON PXF Twitter Decahose (~55 million tweets/day) Source: http Sink: hdfs HDFS External Tables PXF Nightly Cron Jobs Topic Analysis through MADlib pLDA Unsupervised Sentiment Analysis (PL/Python) D3.js http://www.slideshare.net/SrivatsanRamanujam/a-pipeline-for-distributed-topic-and-sentiment-analysis-of-tweets- on-pivotal-greenplum-database © Copyright 2013 Pivotal. All rights reserved. 44

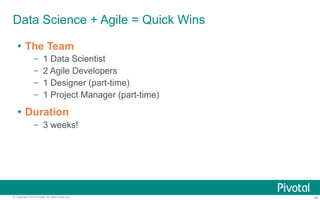

  45. 45. Data Science + Agile = Quick Wins Ÿ The Team – 1 Data Scientist – 2 Agile Developers – 1 Designer (part-time) – 1 Project Manager (part-time) Ÿ Duration – 3 weeks! © Copyright 2013 Pivotal. All rights reserved. 45
  46. 46. Live Demo – Topic and Sentiment Analysis © Copyright 2013 Pivotal. All rights reserved. 46
  47. 47. Content Based Image Search CBIR Live Demo Pivotal Confidential–Internal Use Only 47

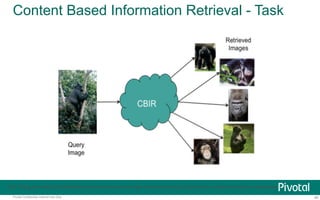

  48. 48. Content Based Information Retrieval - Task http://blog.pivotal.io/pivotal/features/content-based-image-retrieval-using-pivotal-hd-or-pivotal-greenplum-database Pivotal Confidential–Internal Use Only 48
  49. 49. CBIR - Components http://blog.pivotal.io/pivotal/features/content-based-image-retrieval-using-pivotal-hd-or-pivotal-greenplum-database Pivotal Confidential–Internal Use Only 49

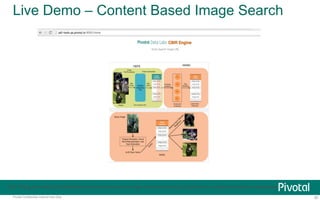

  50. 50. Live Demo – Content Based Image Search http://blog.pivotal.io/pivotal/features/content-based-image-retrieval-using-pivotal-hd-or-pivotal-greenplum-database Pivotal Confidential–Internal Use Only 50
  51. 51. Appendix Pivotal Confidential–Internal Use Only 51
  52. 52. Acknowledgements • Ian Huston, Woo Jung, Sarah Aerni, Gautam Muralidhar, Regunathan Radhakrishnan, Ronert Obst, Hai Qian, MADlib Engineering Team, Sumedh Mungee, Girish Lingappa Pivotal Confidential–Internal Use Only 52

×
