1. FleetDB
A Schema-Free Database in Clojure
Mark McGranaghan
January 8, 2010

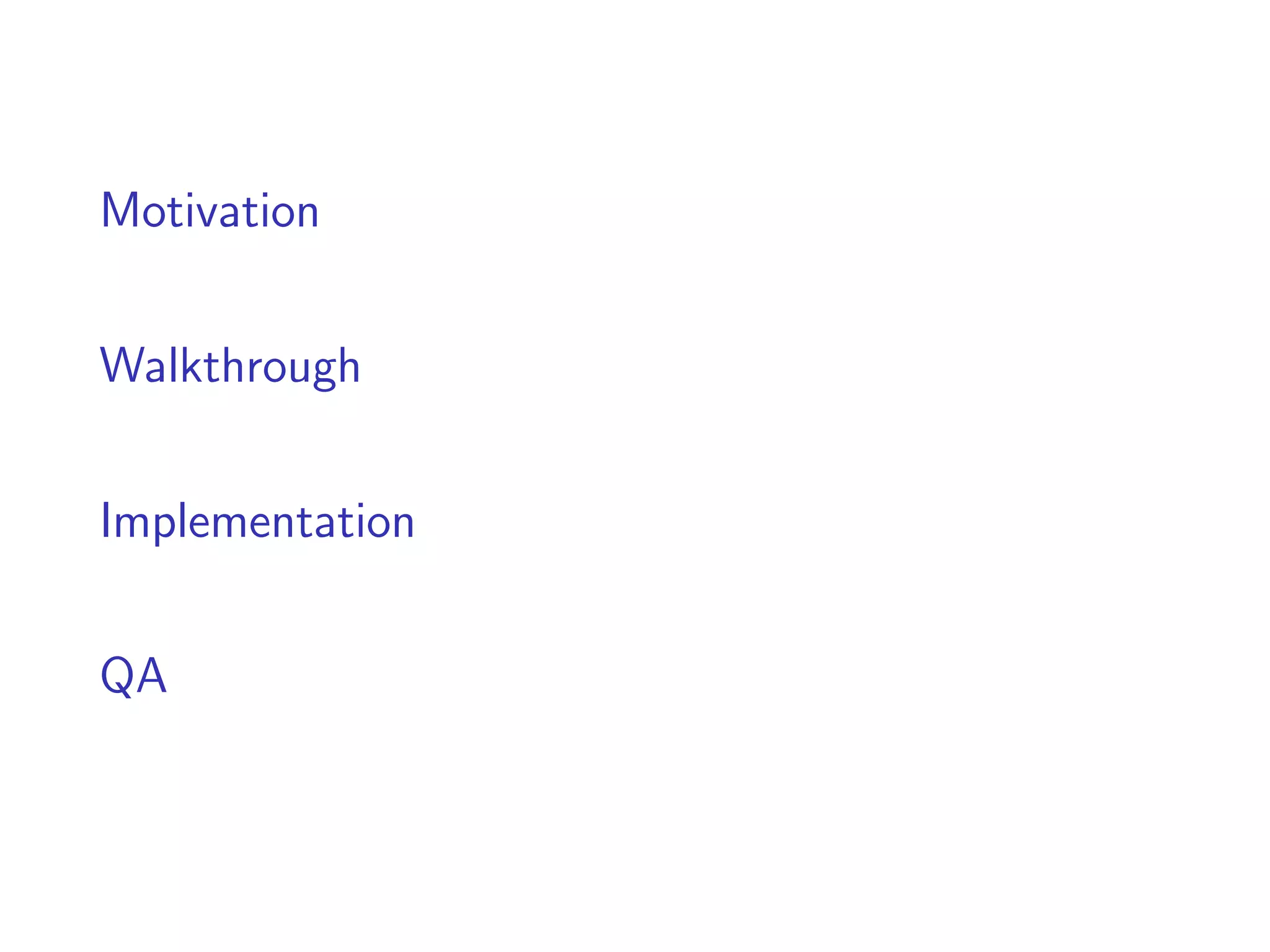

2. Motivation
Walkthrough
Implementation
QA

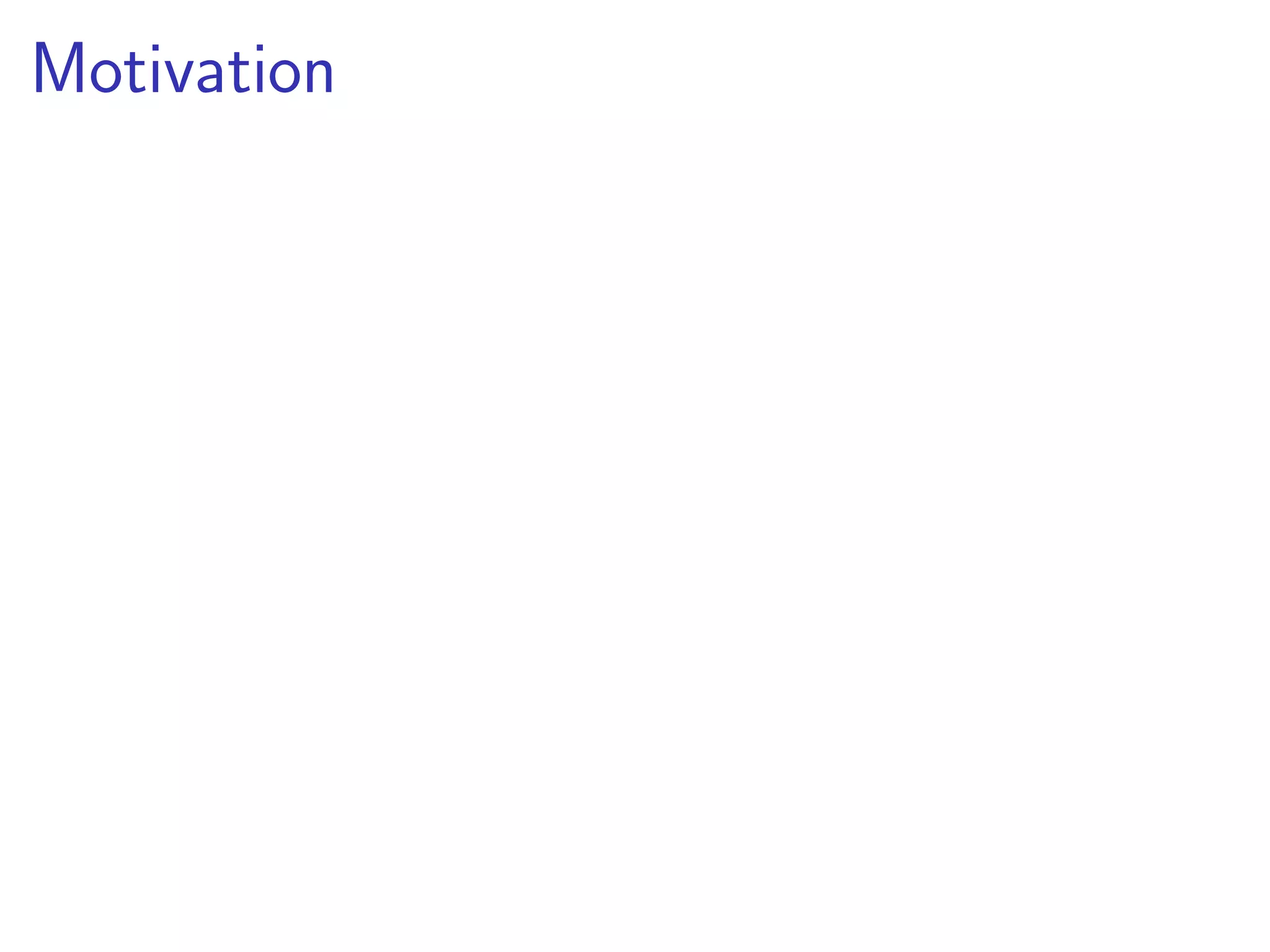

3. Motivation

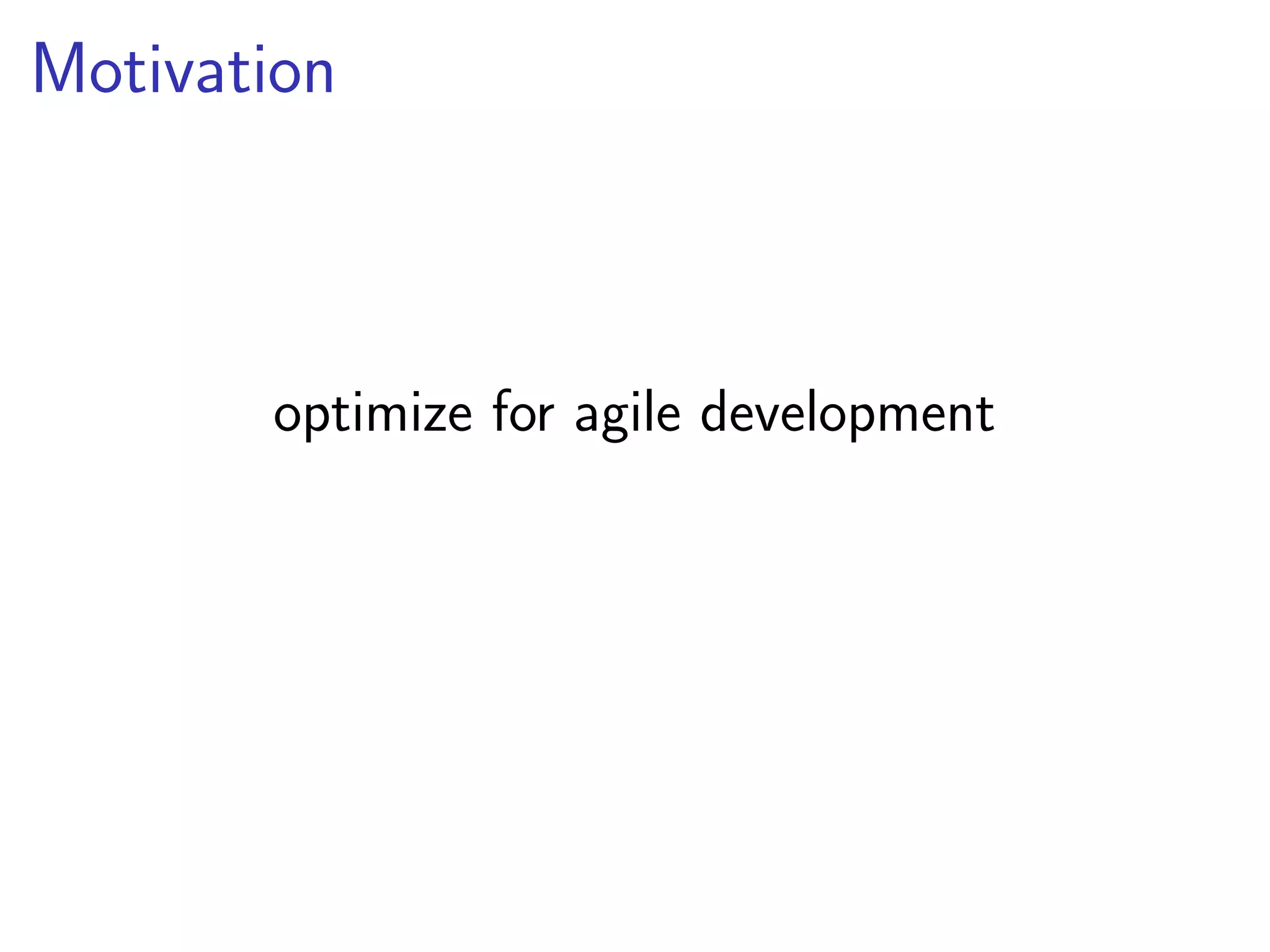

4. Motivation
optimize for agile development

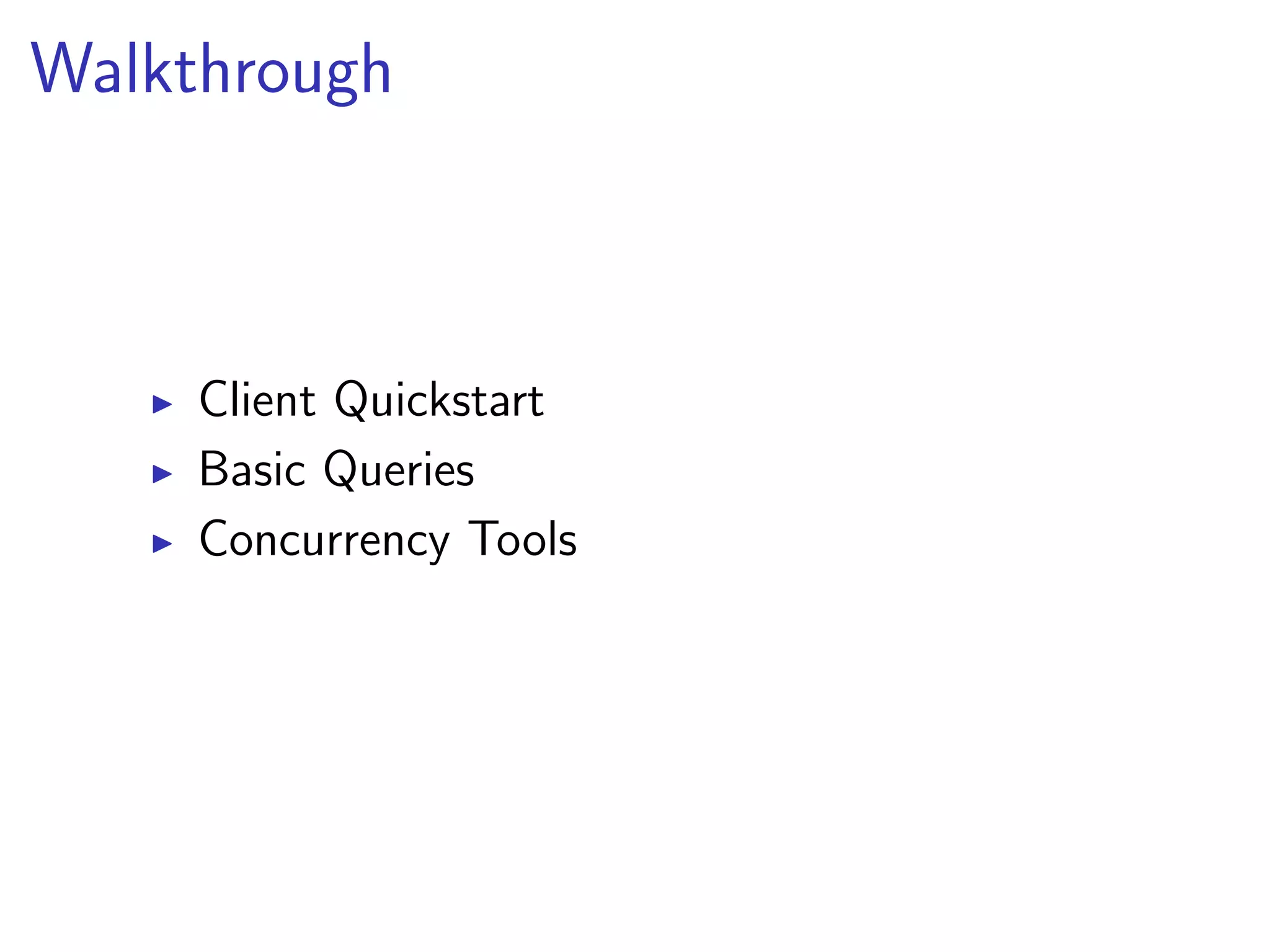

5. Walkthrough
Client Quickstart
Basic Queries
Concurrency Tools

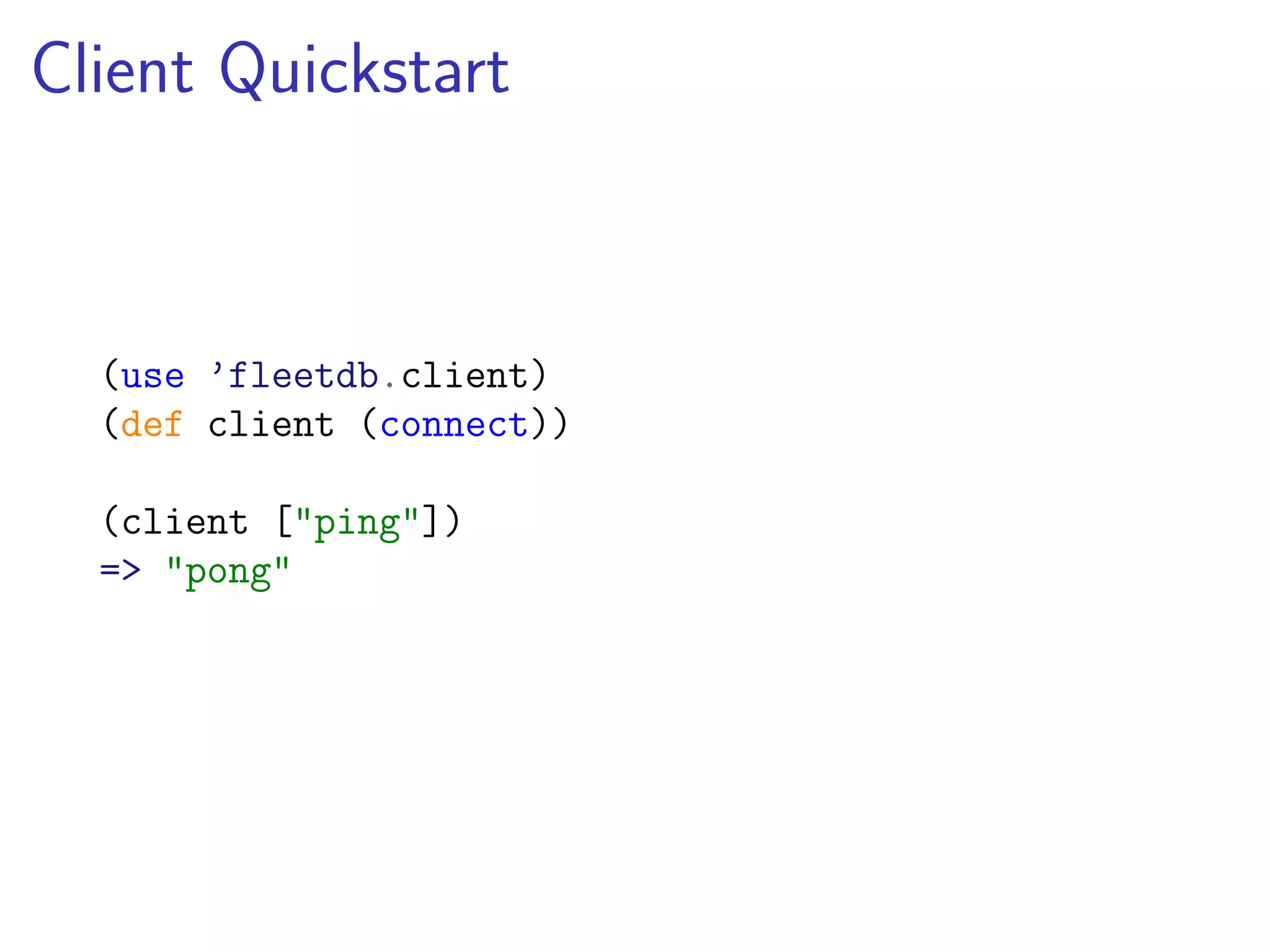

6. Client Quickstart
(use ’fleetdb.client)
(def client (connect))
(client ["ping"])
=> "pong"

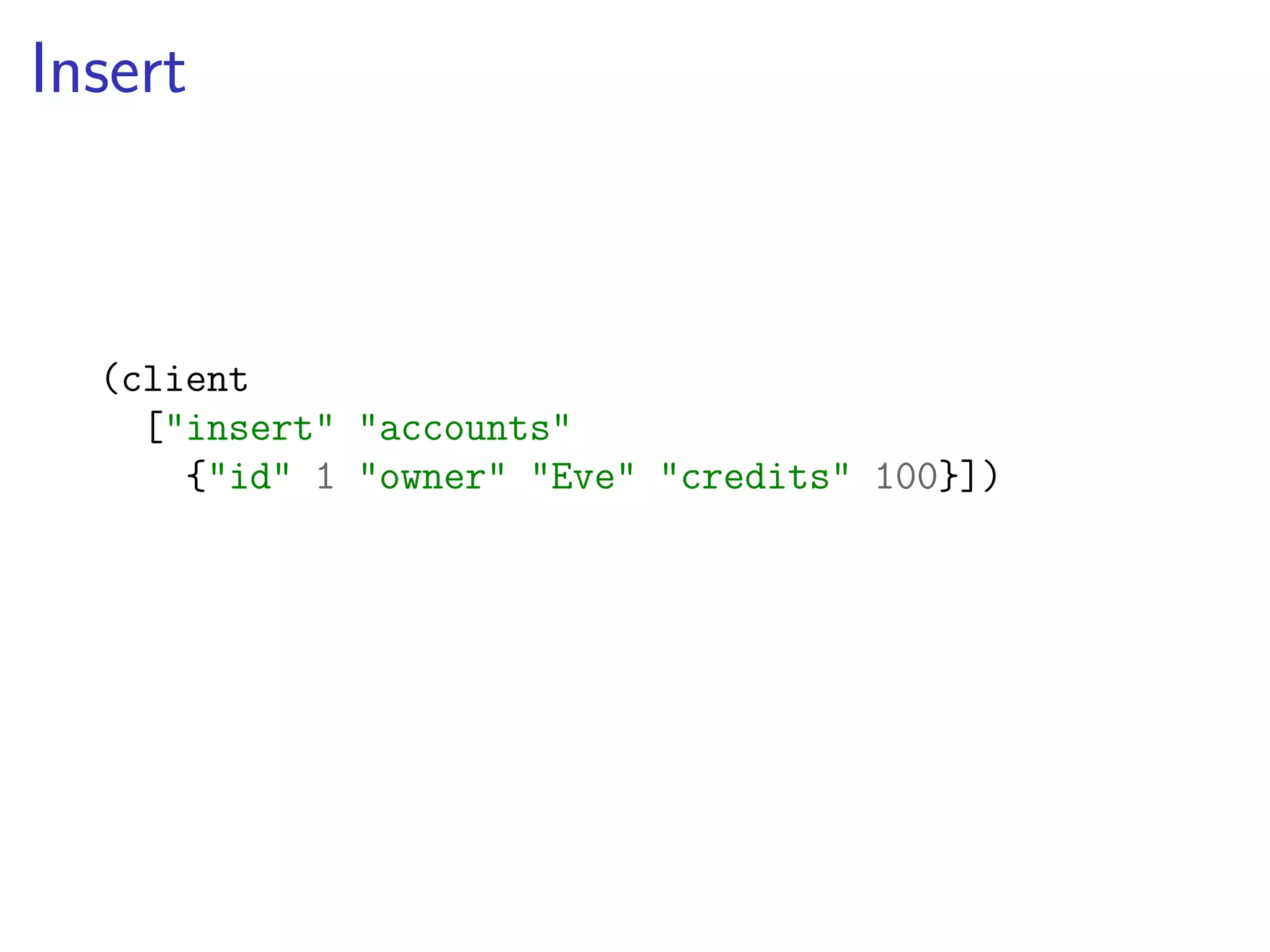

7. Insert
(client
["insert" "accounts"
{"id" 1 "owner" "Eve" "credits" 100}])

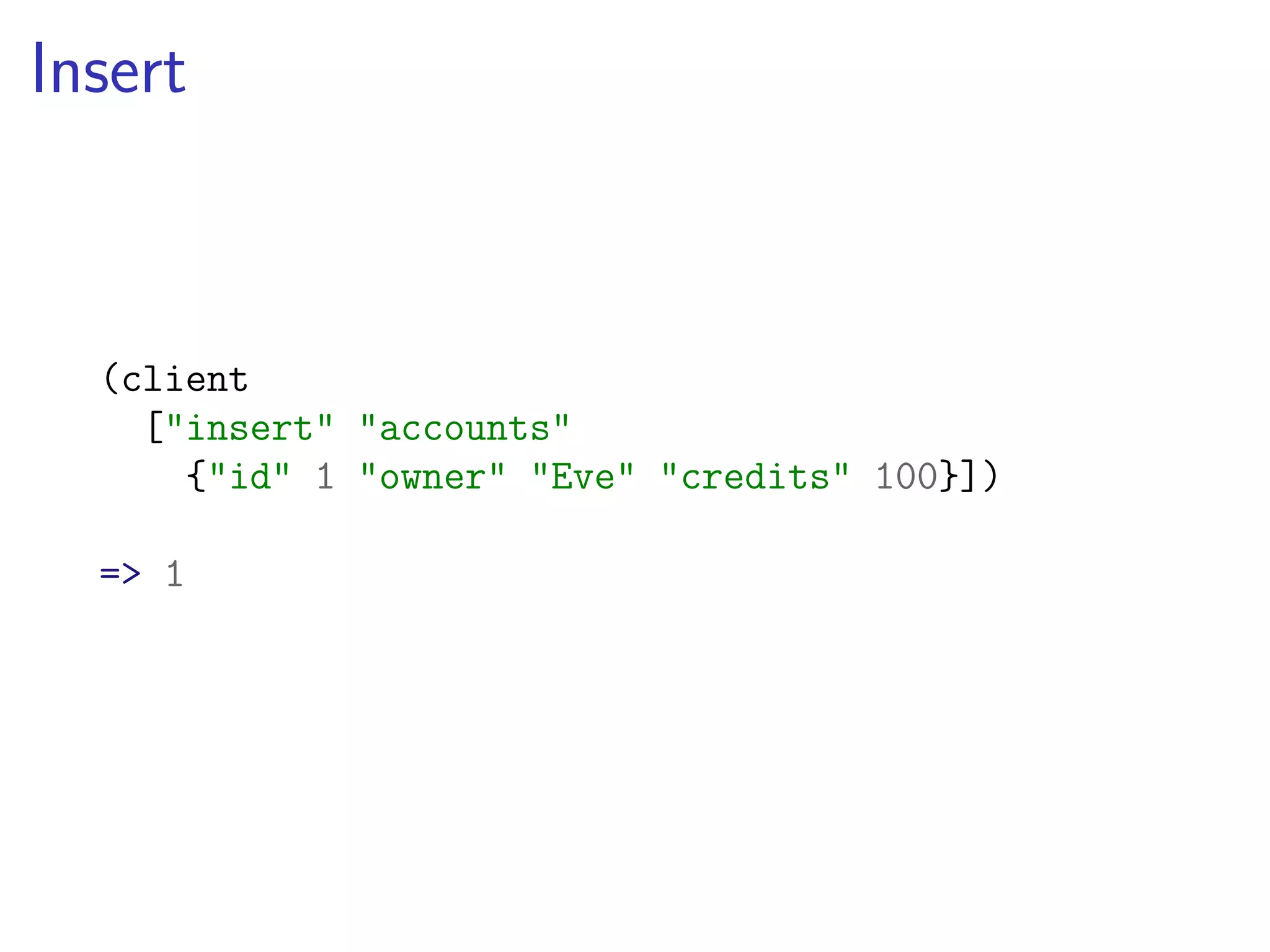

8. Insert
(client
["insert" "accounts"
{"id" 1 "owner" "Eve" "credits" 100}])
=> 1

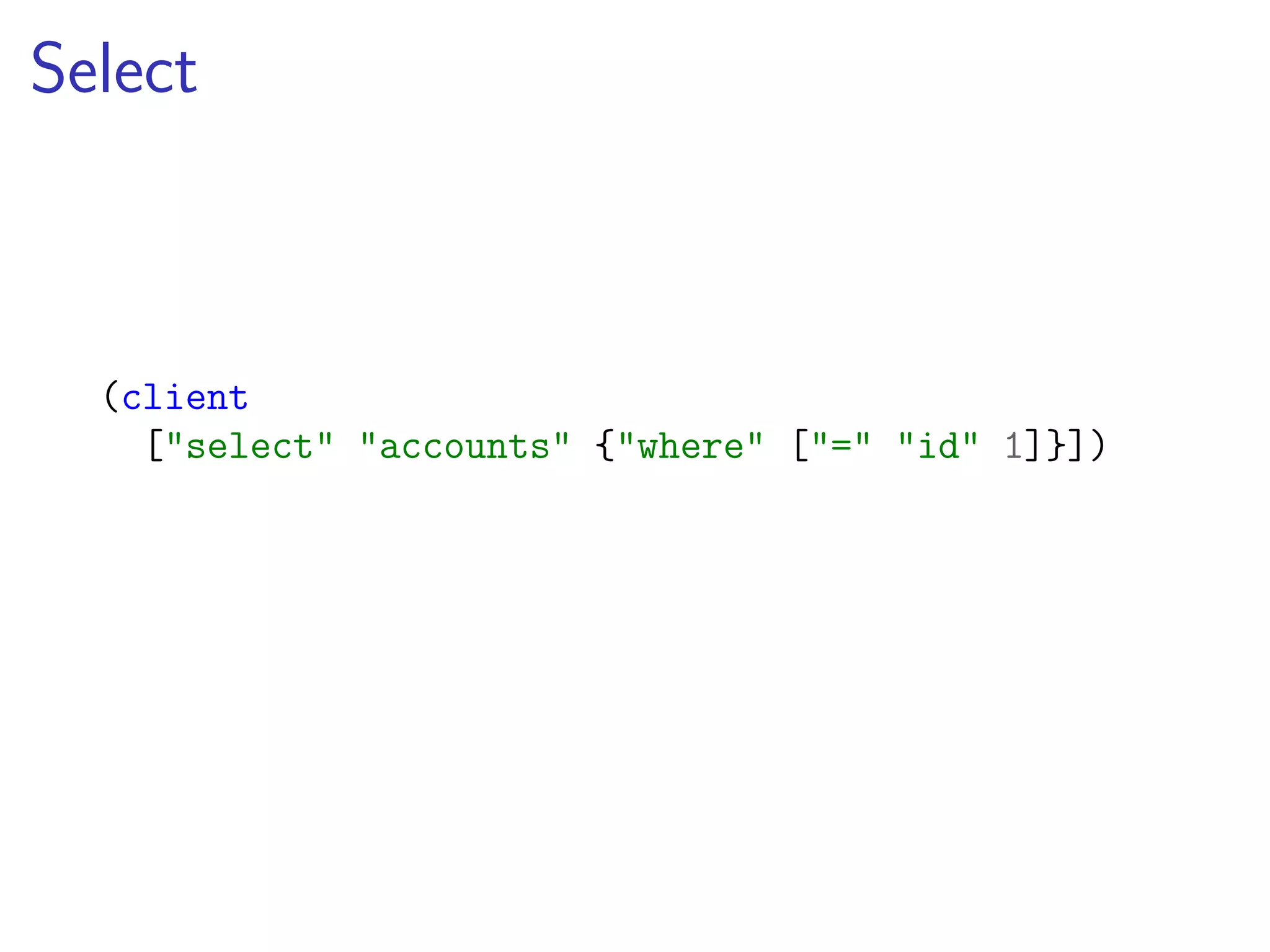

9. Select
(client
["select" "accounts" {"where" ["=" "id" 1]}])

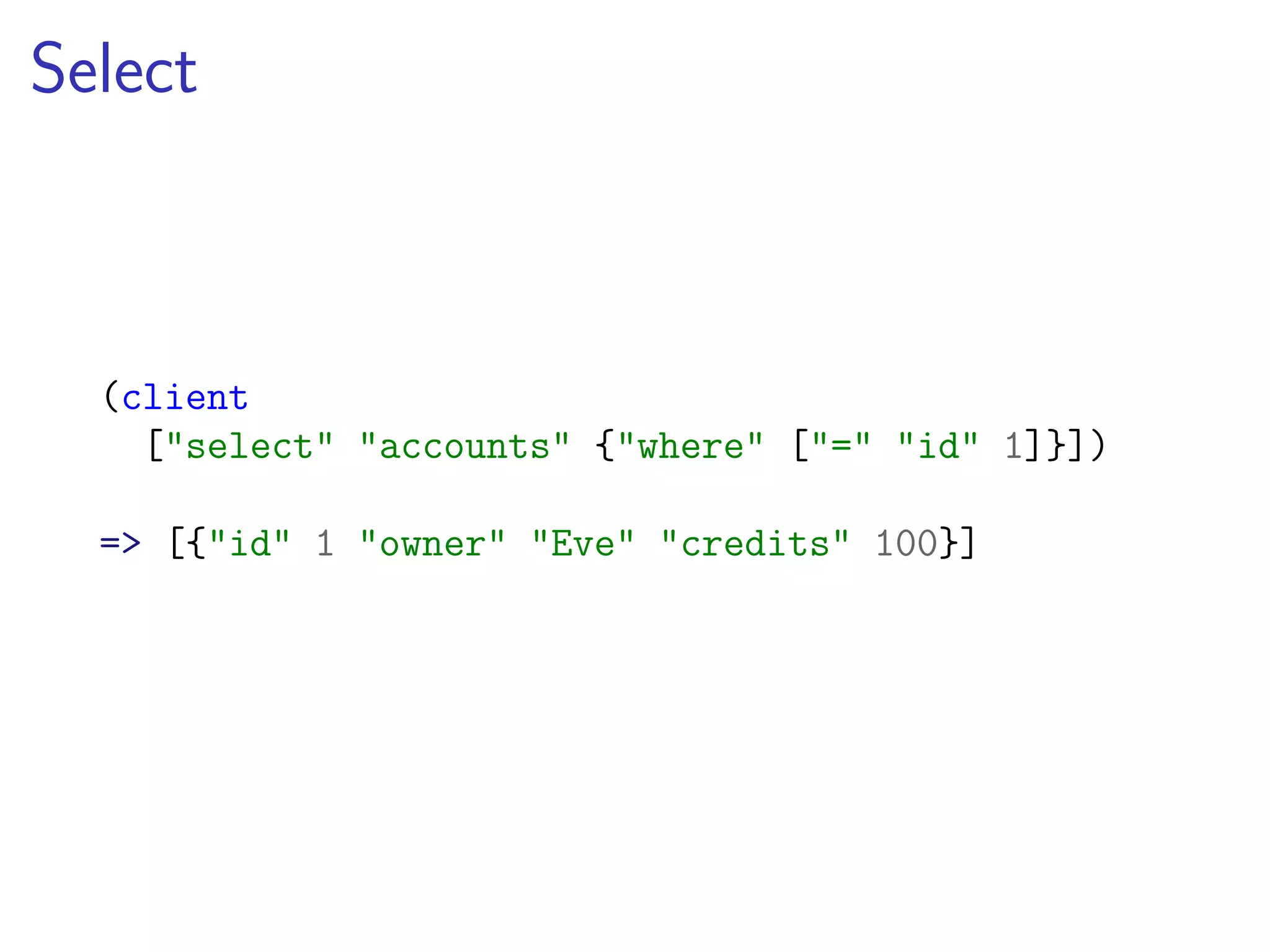

10. Select
(client
["select" "accounts" {"where" ["=" "id" 1]}])
=> [{"id" 1 "owner" "Eve" "credits" 100}]

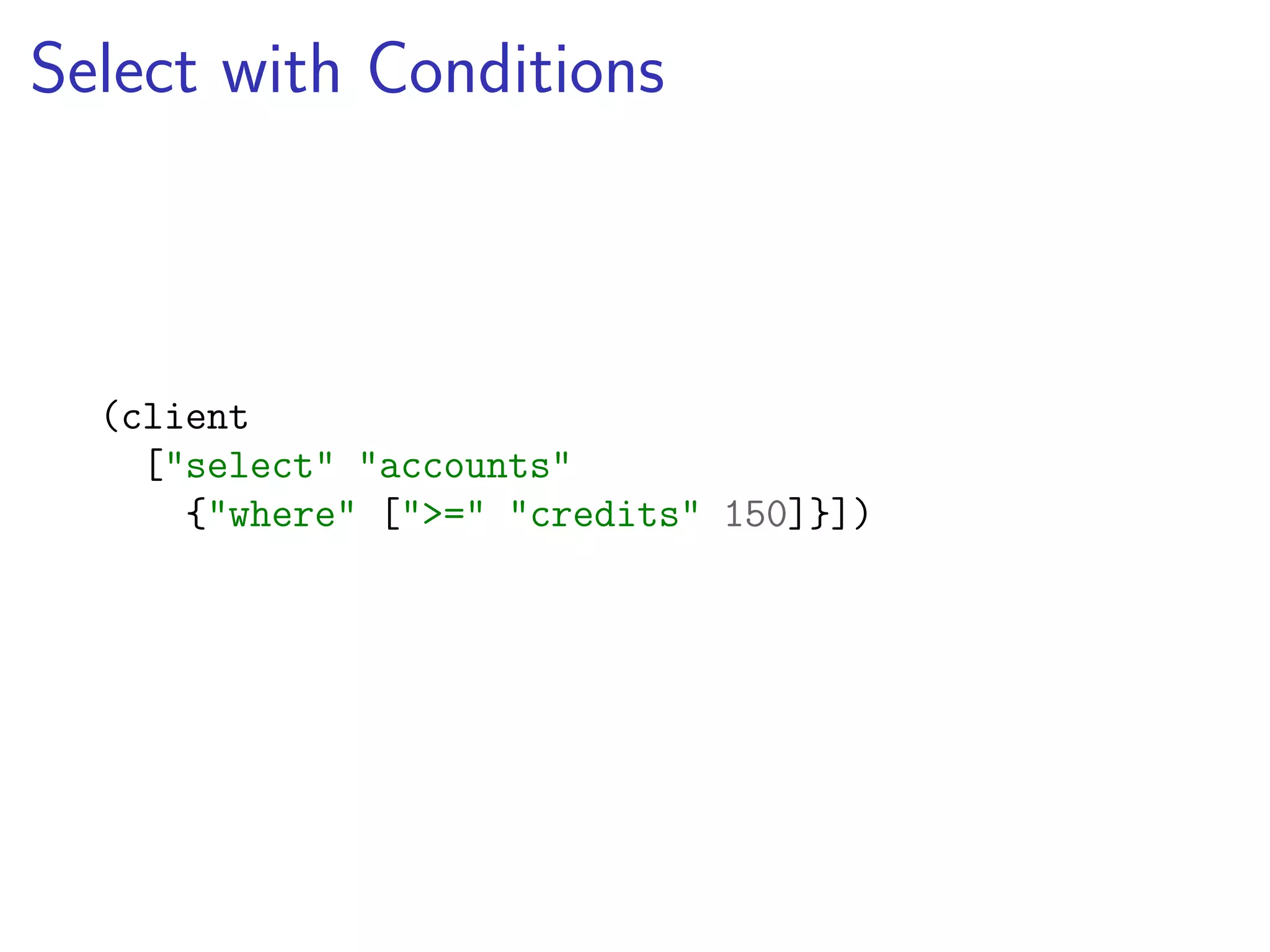

11. Select with Conditions
(client
["select" "accounts"
{"where" [">=" "credits" 150]}])

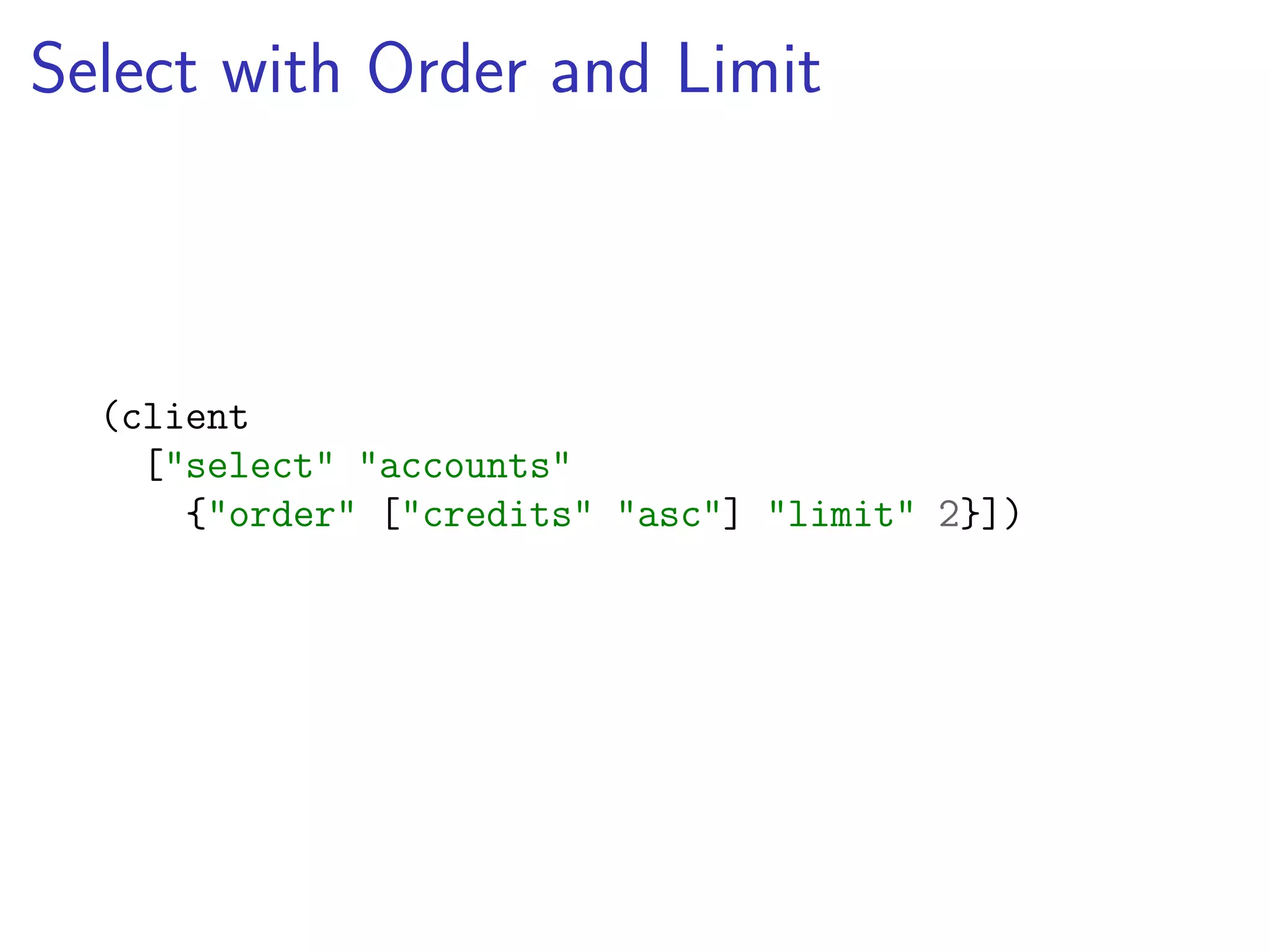

12. Select with Order and Limit
(client
["select" "accounts"
{"order" ["credits" "asc"] "limit" 2}])

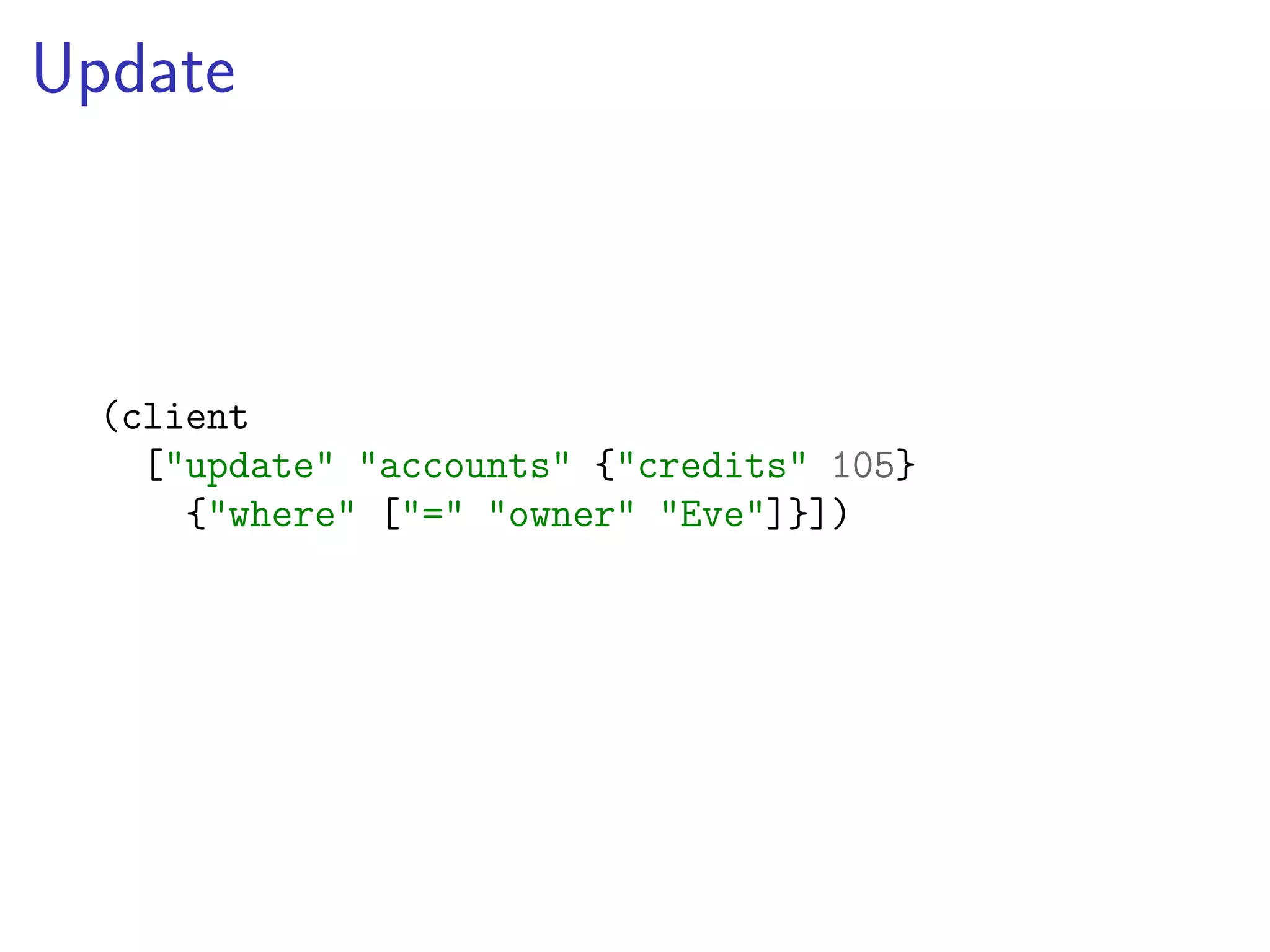

13. Update
(client
["update" "accounts" {"credits" 105}
{"where" ["=" "owner" "Eve"]}])

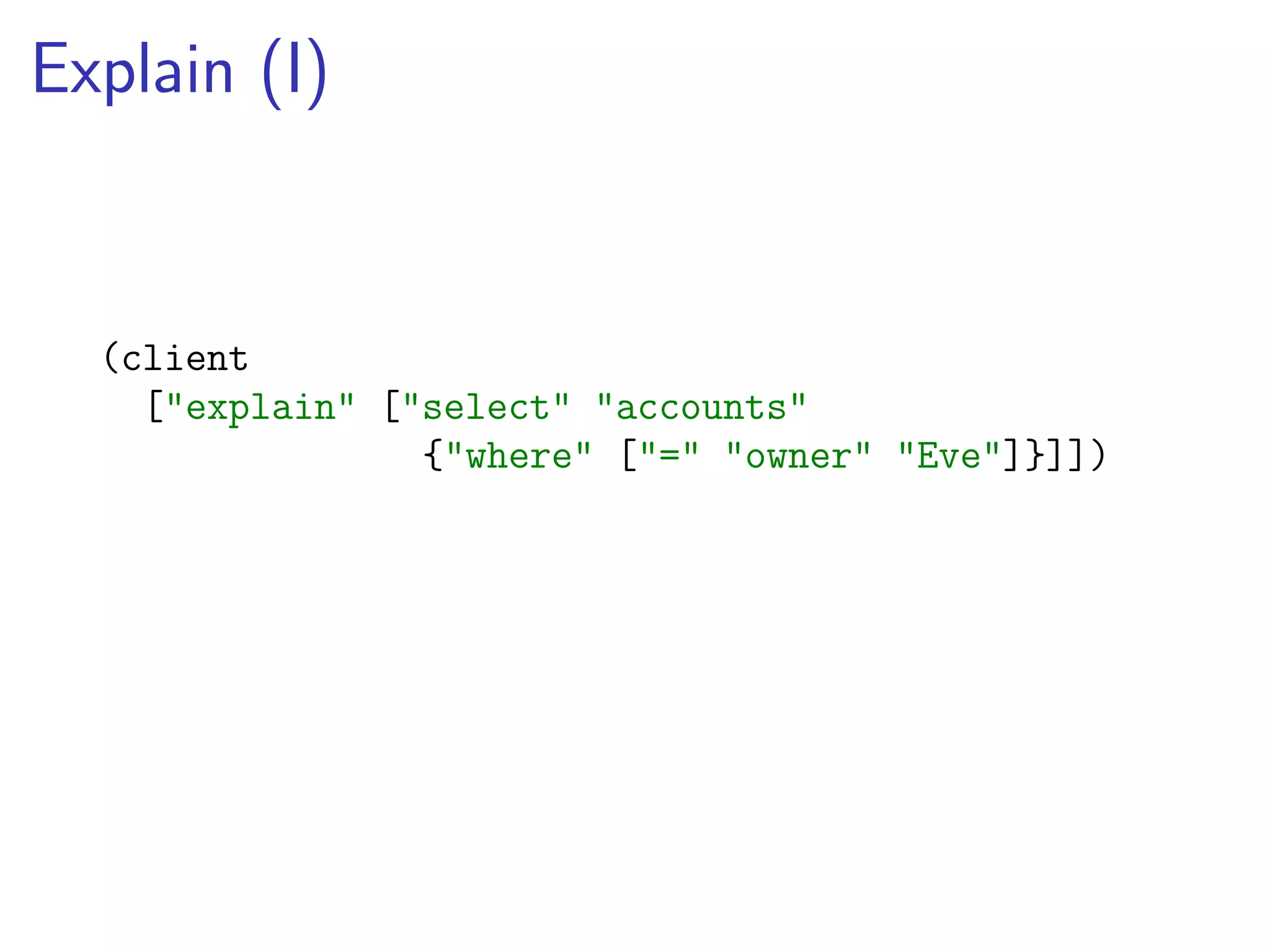

14. Explain (I)
(client
["explain" ["select" "accounts"
{"where" ["=" "owner" "Eve"]}]])

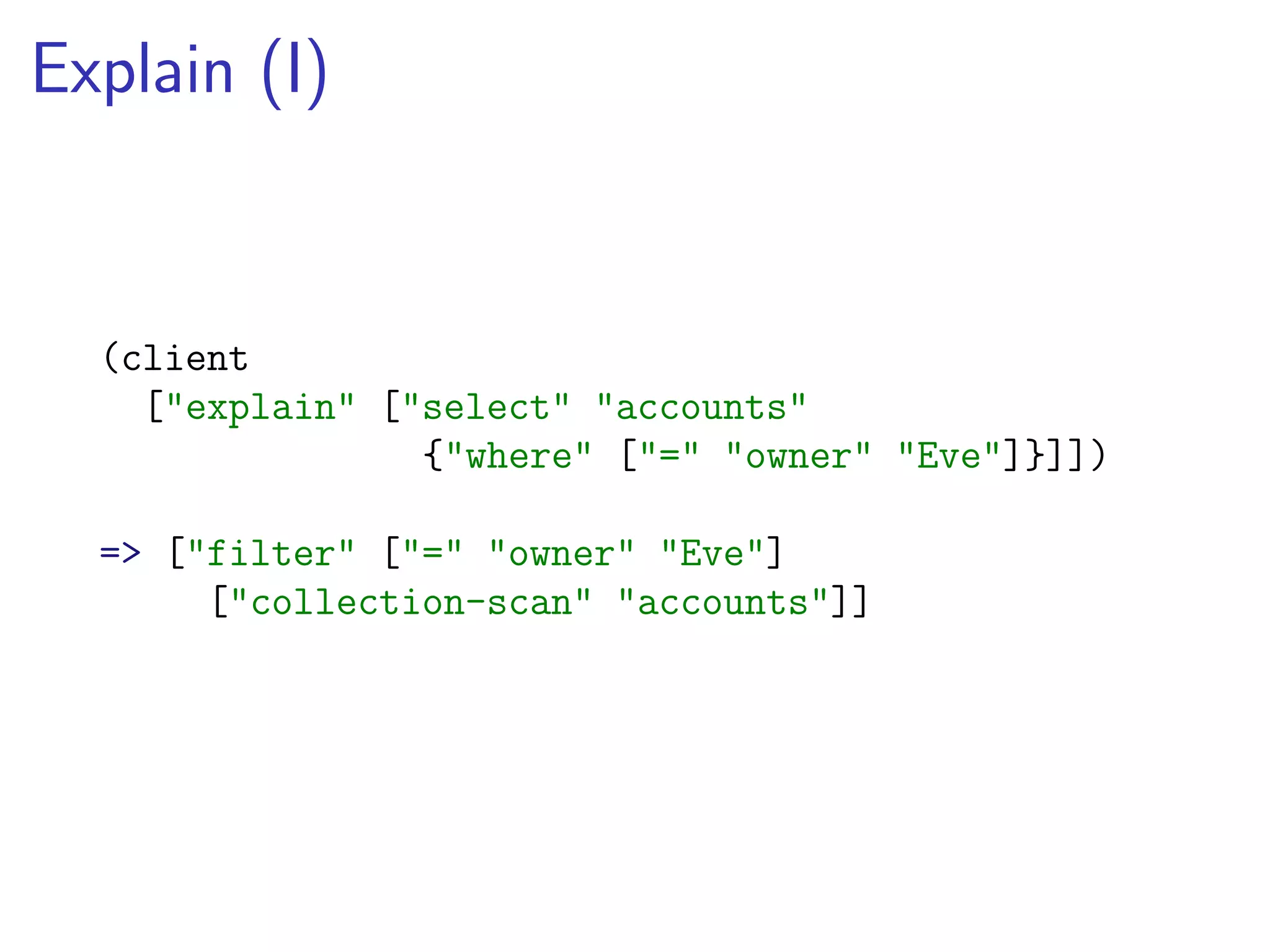

15. Explain (I)
(client
["explain" ["select" "accounts"
{"where" ["=" "owner" "Eve"]}]])
=> ["filter" ["=" "owner" "Eve"]
["collection-scan" "accounts"]]

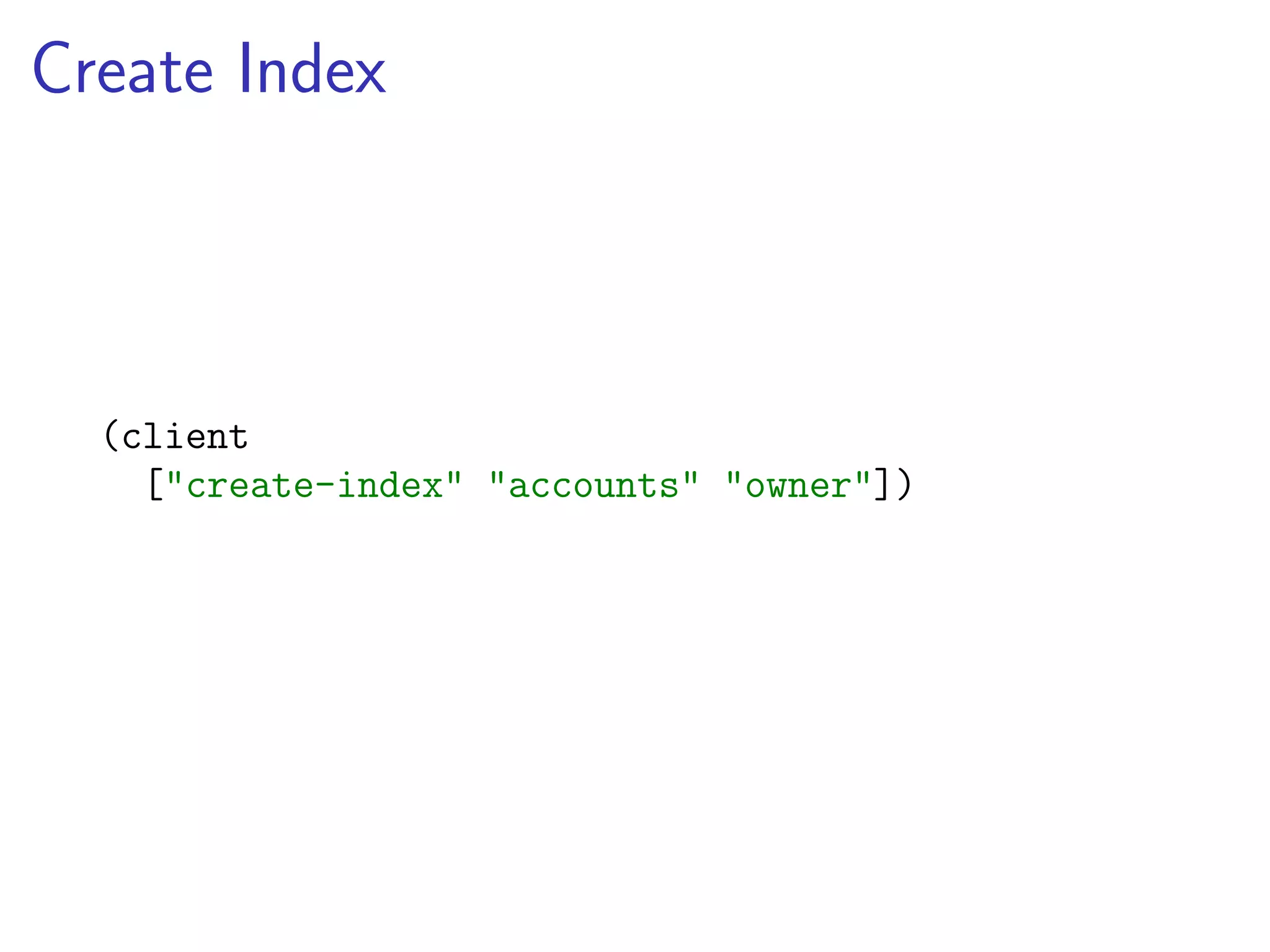

16. Create Index
(client
["create-index" "accounts" "owner"])

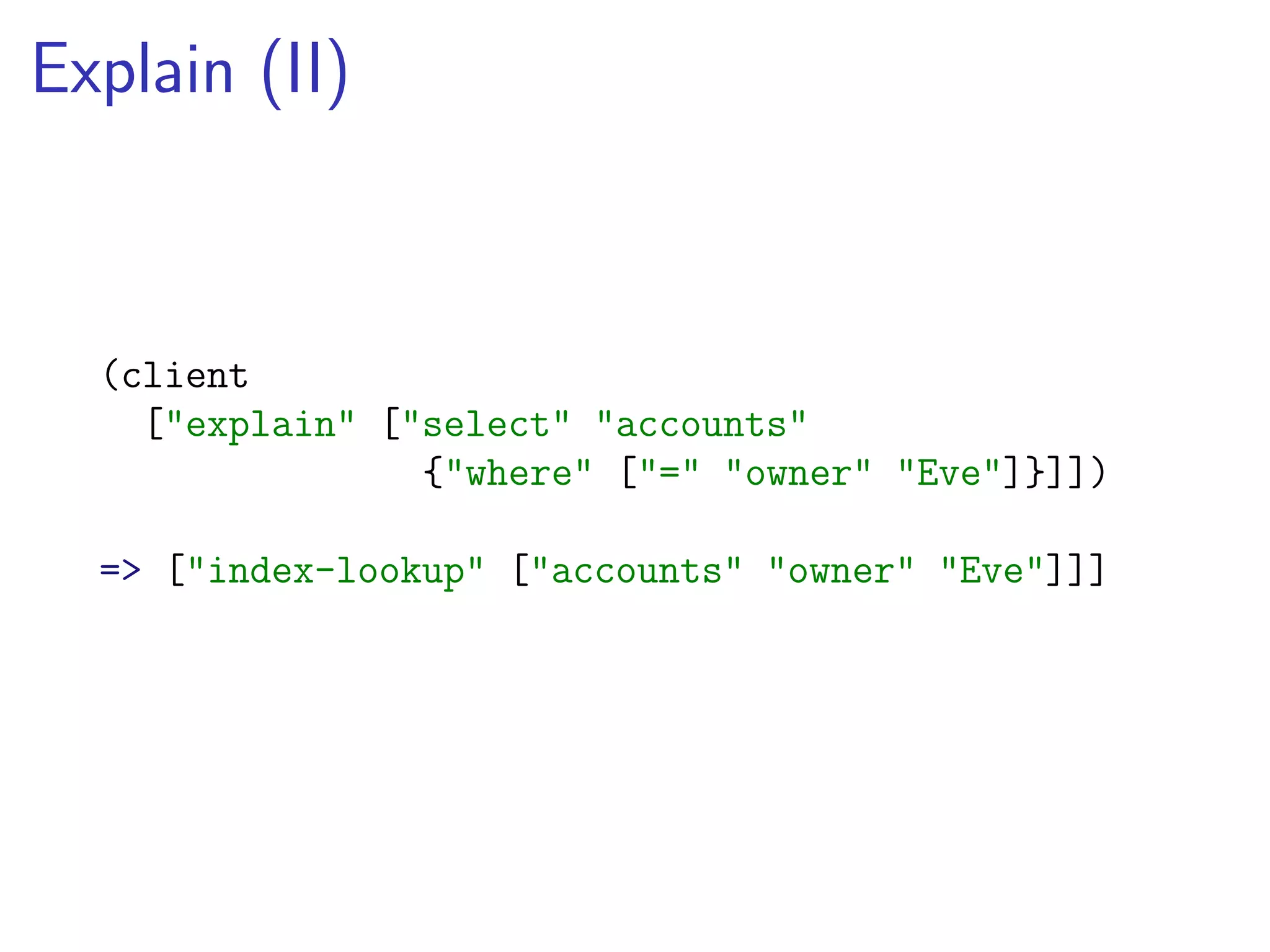

17. Explain (II)
(client
["explain" ["select" "accounts"
{"where" ["=" "owner" "Eve"]}]])
=> ["index-lookup" ["accounts" "owner" "Eve"]]]

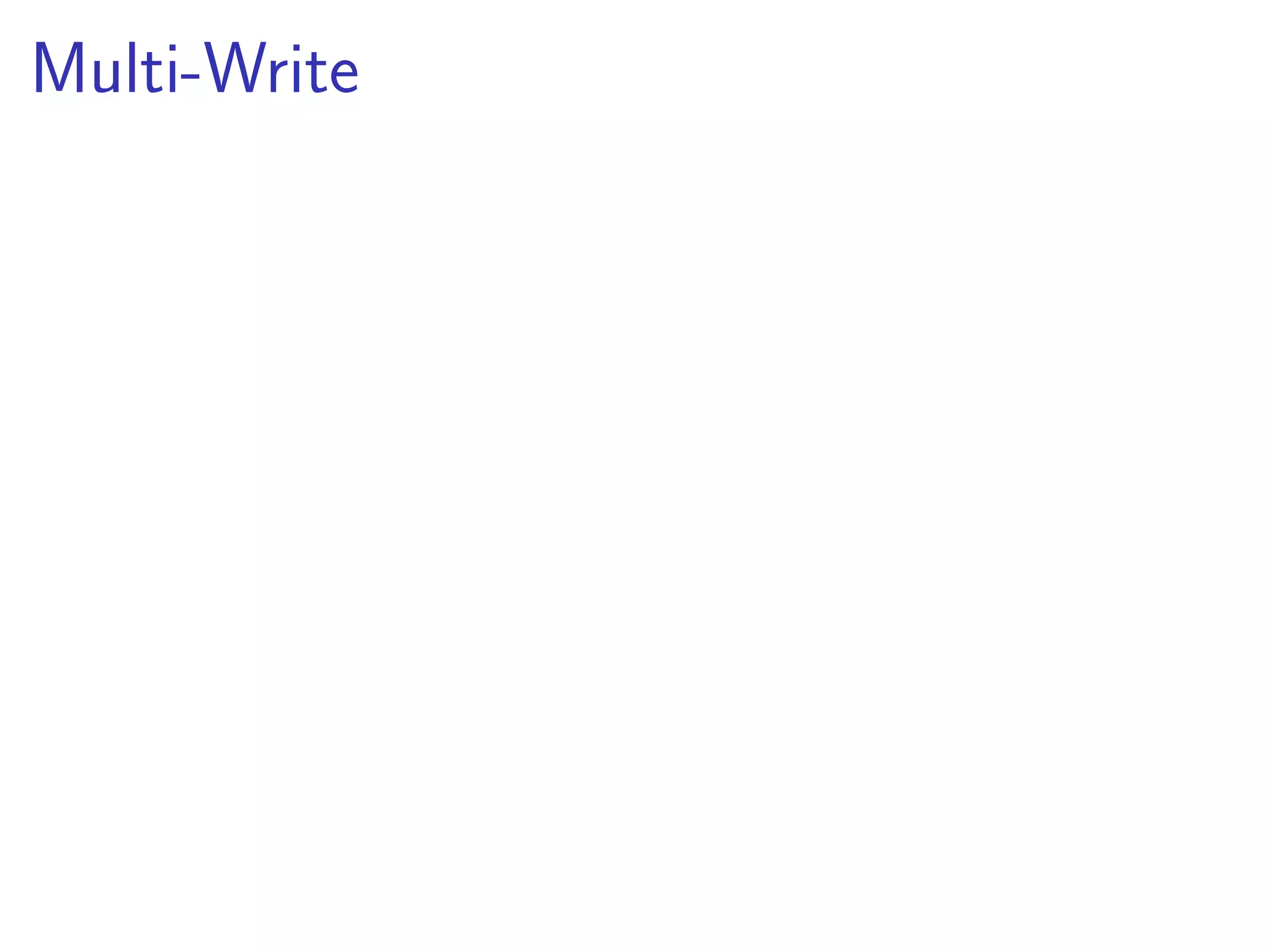

18. Multi-Write

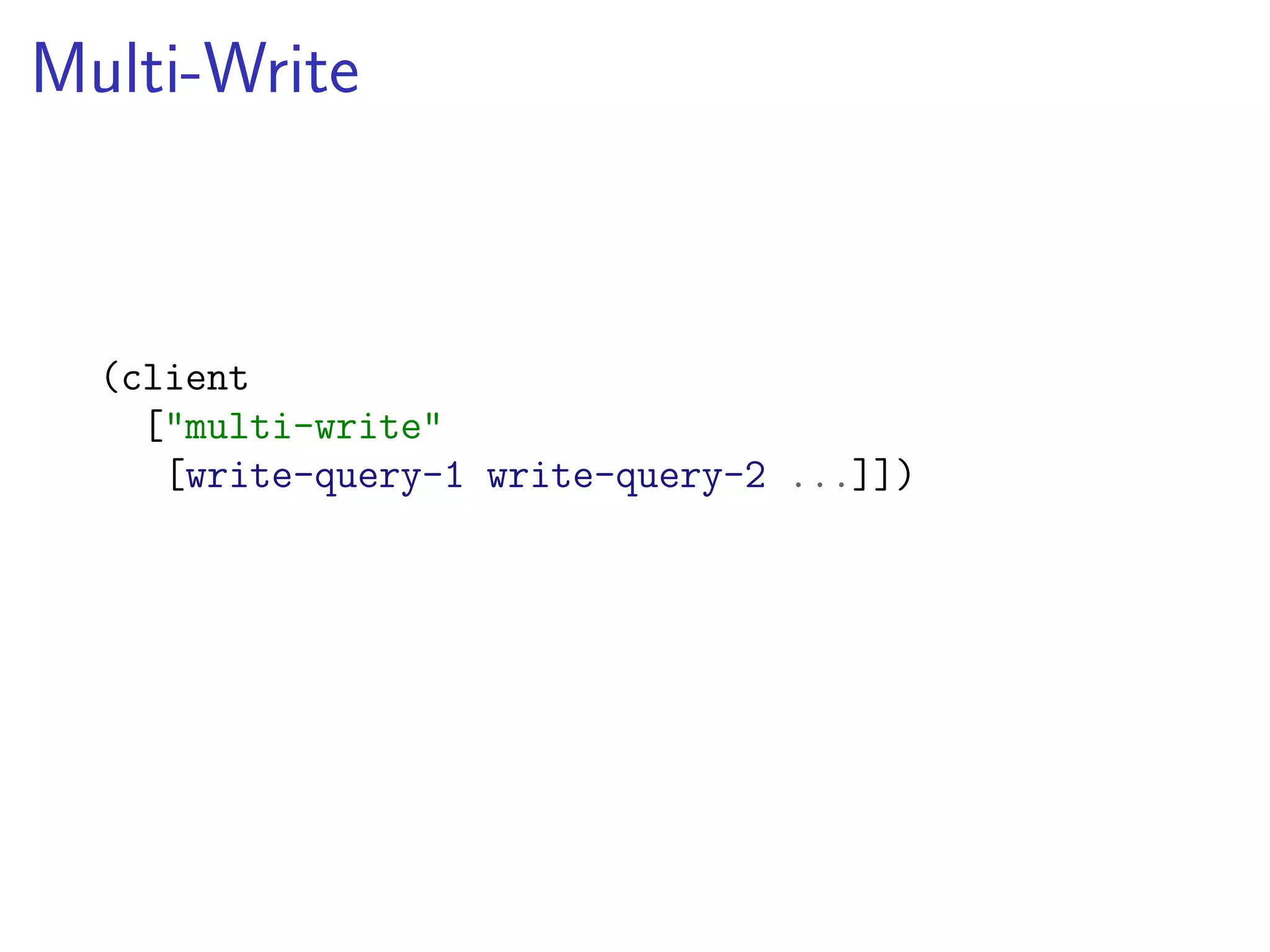

19. Multi-Write
(client
["multi-write"
[write-query-1 write-query-2 ...]])

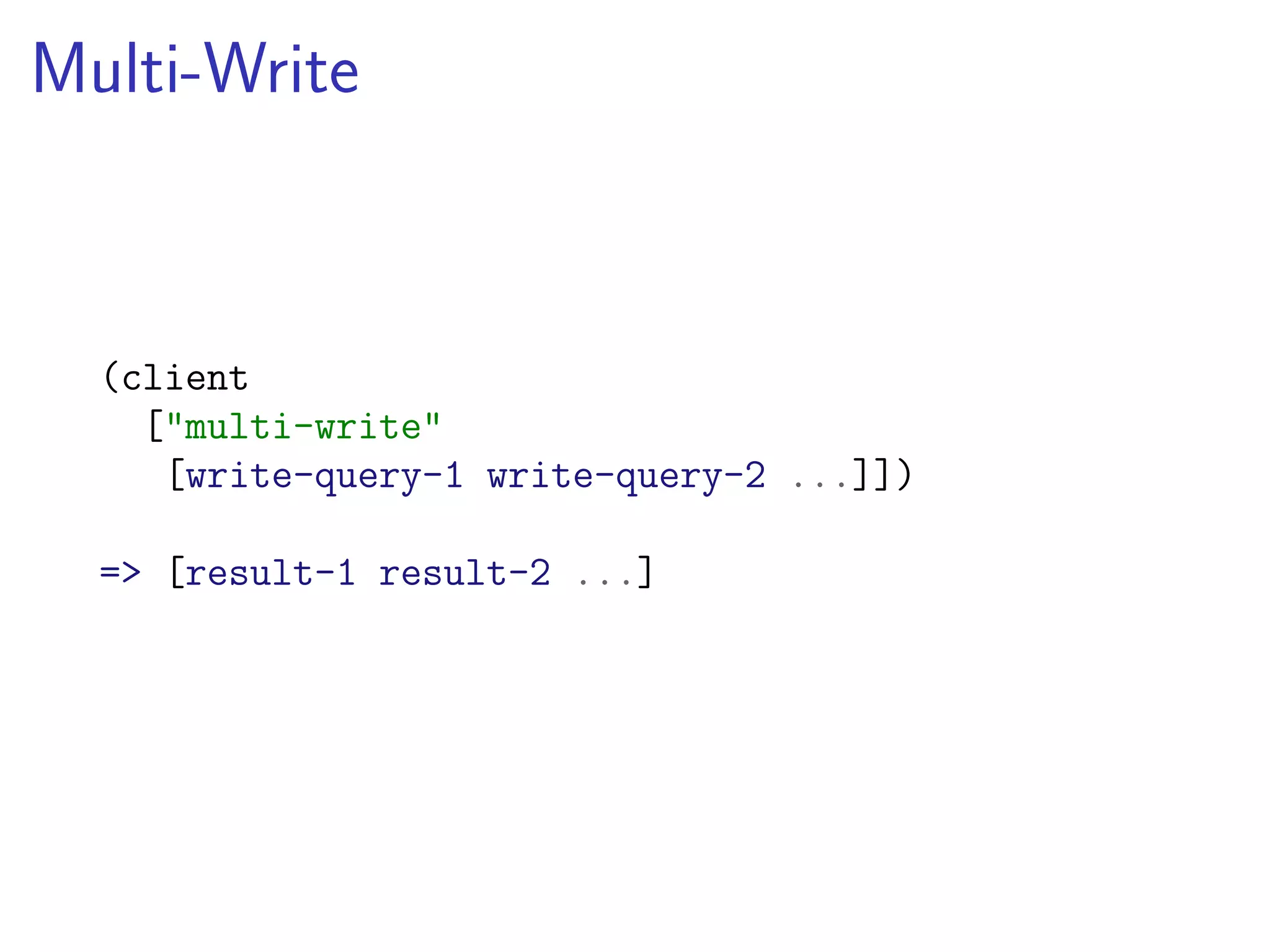

20. Multi-Write
(client
["multi-write"
[write-query-1 write-query-2 ...]])
=> [result-1 result-2 ...]

21. Checked-Write

22. Checked-Write
(client
["checked-write"
read-query
expected-read-result
write-query])

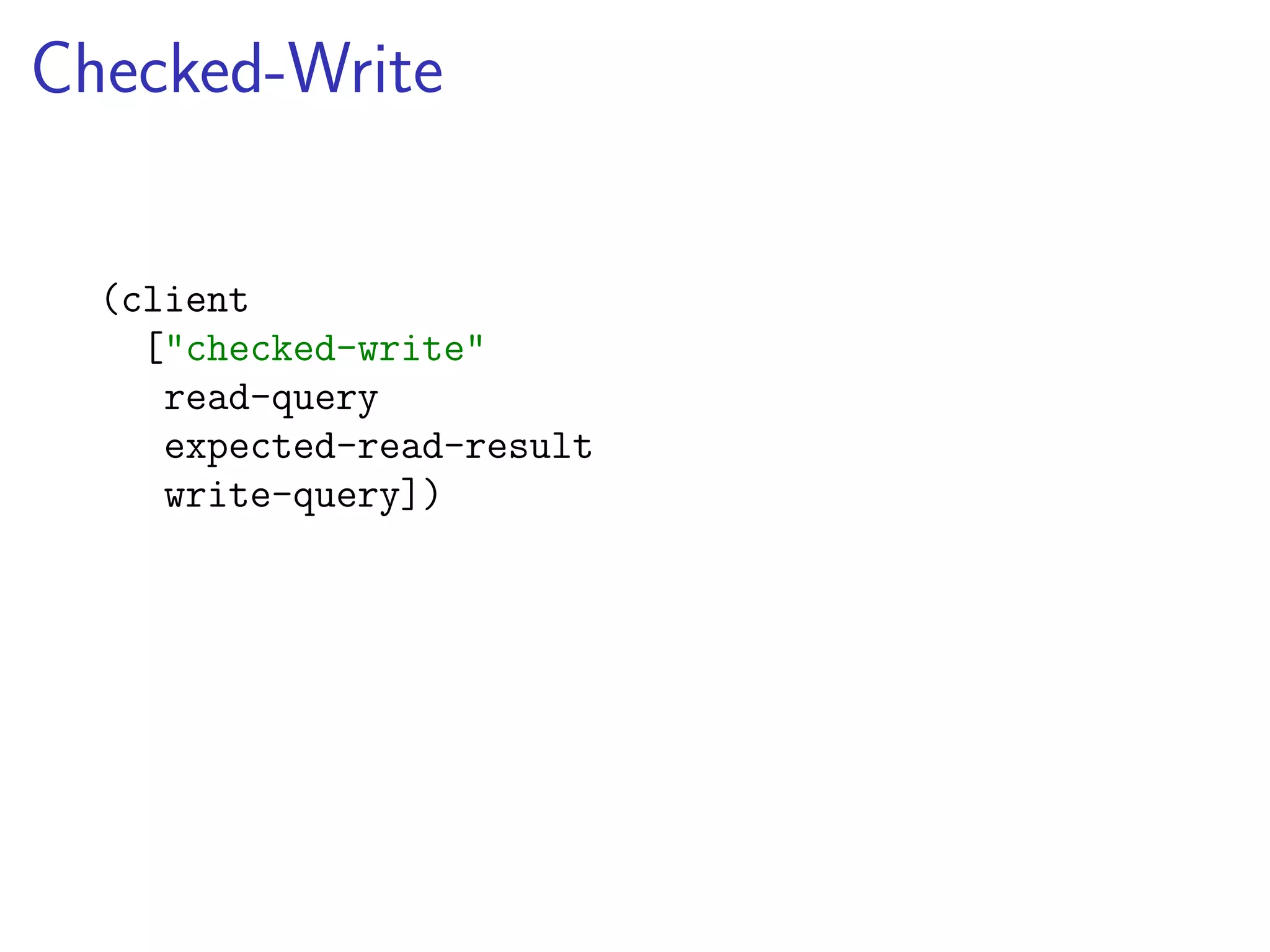

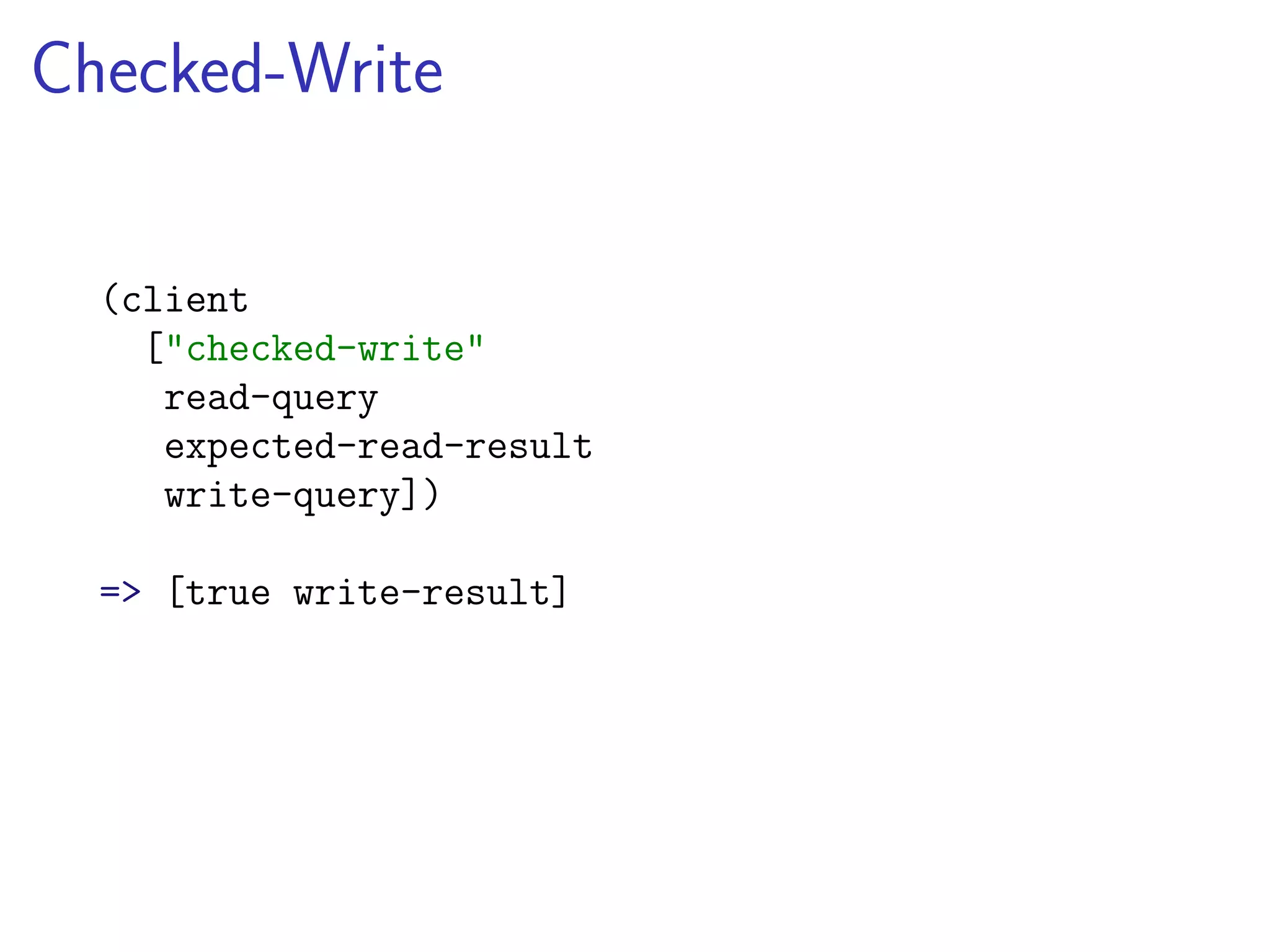

23. Checked-Write
(client
["checked-write"
read-query
expected-read-result
write-query])
=> [true write-result]

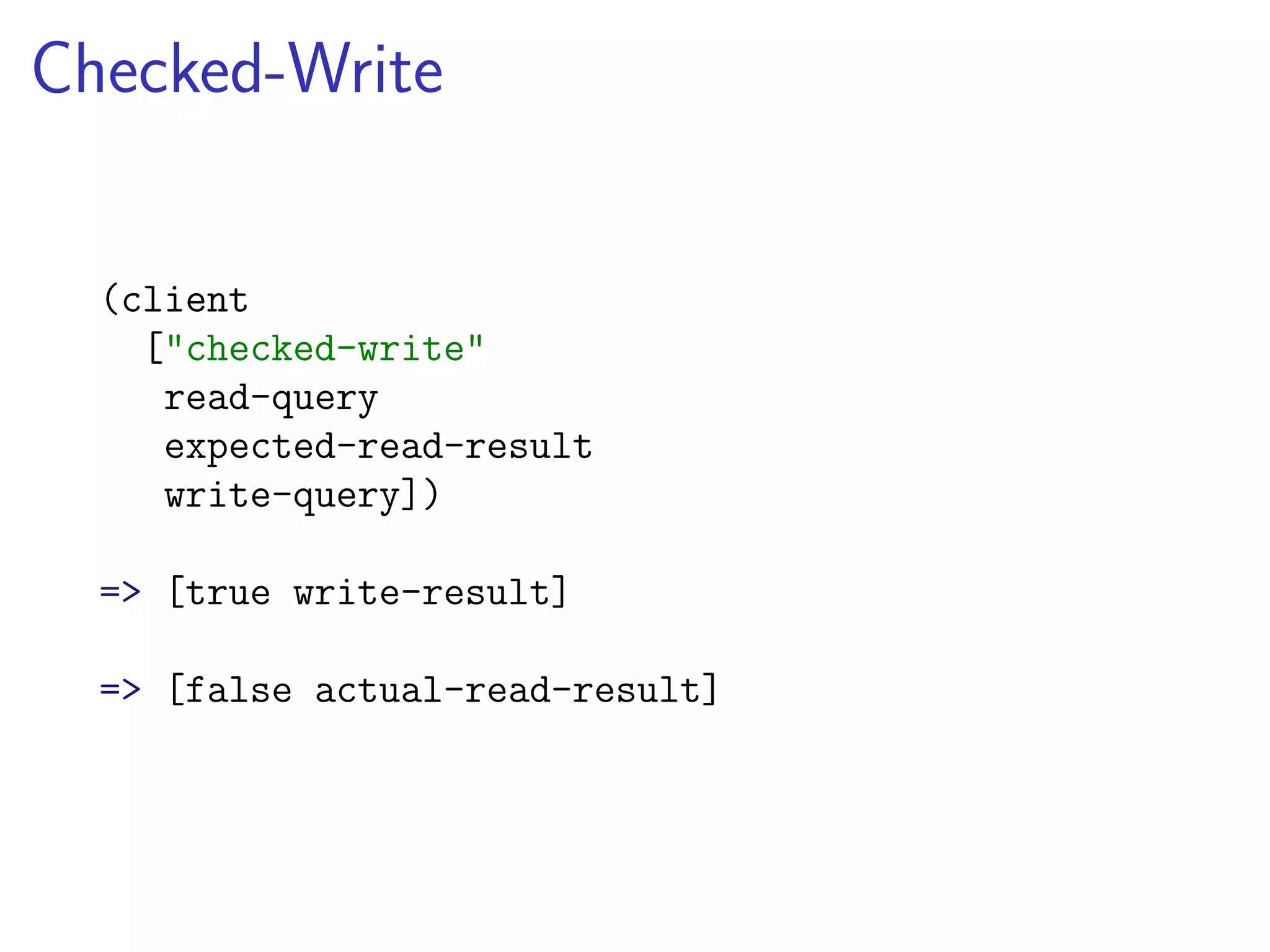

24. Checked-Write
(client
["checked-write"
read-query
expected-read-result
write-query])
=> [true write-result]
=> [false actual-read-result]

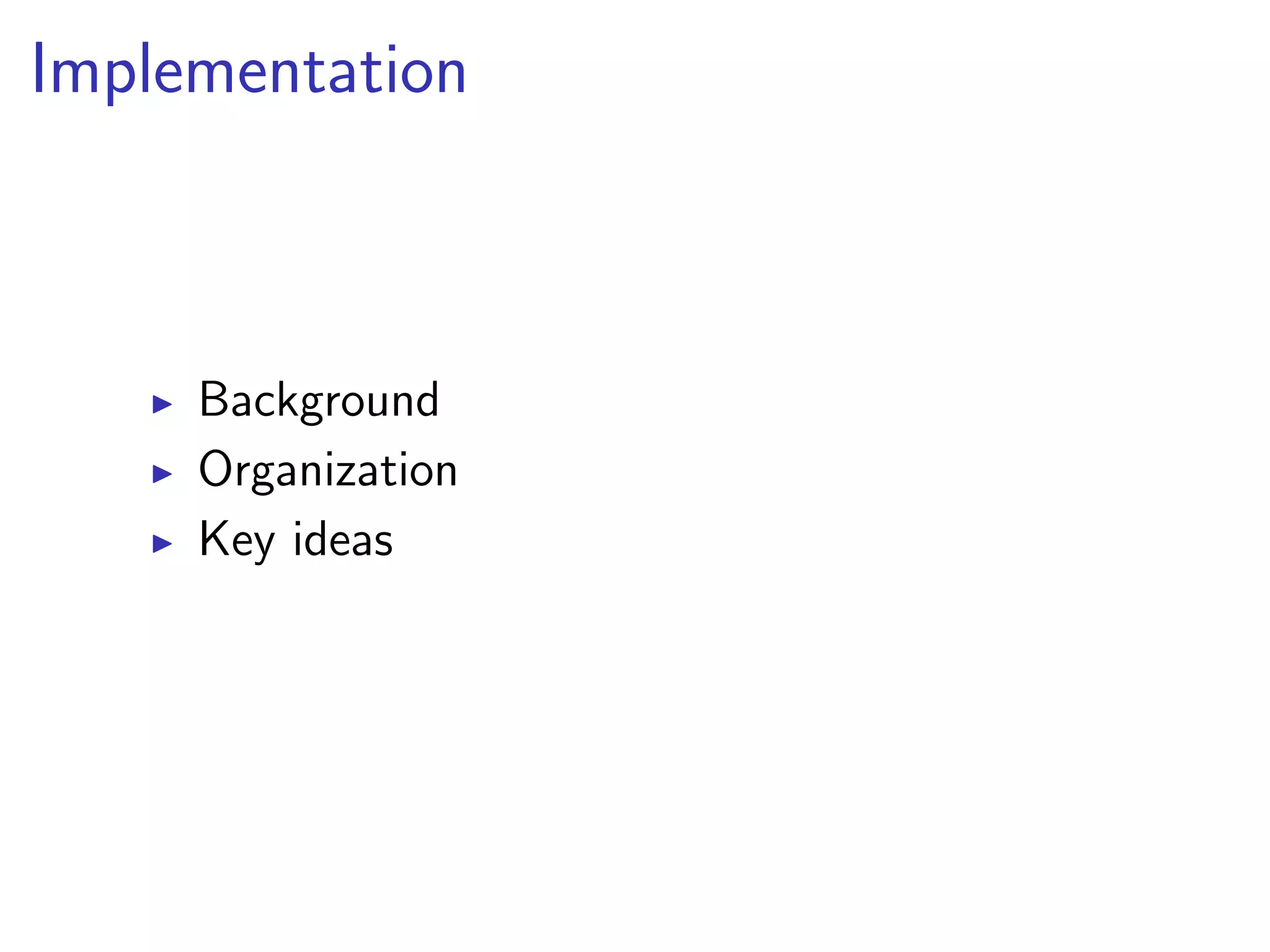

25. Implementation
Background
Organization
Key ideas

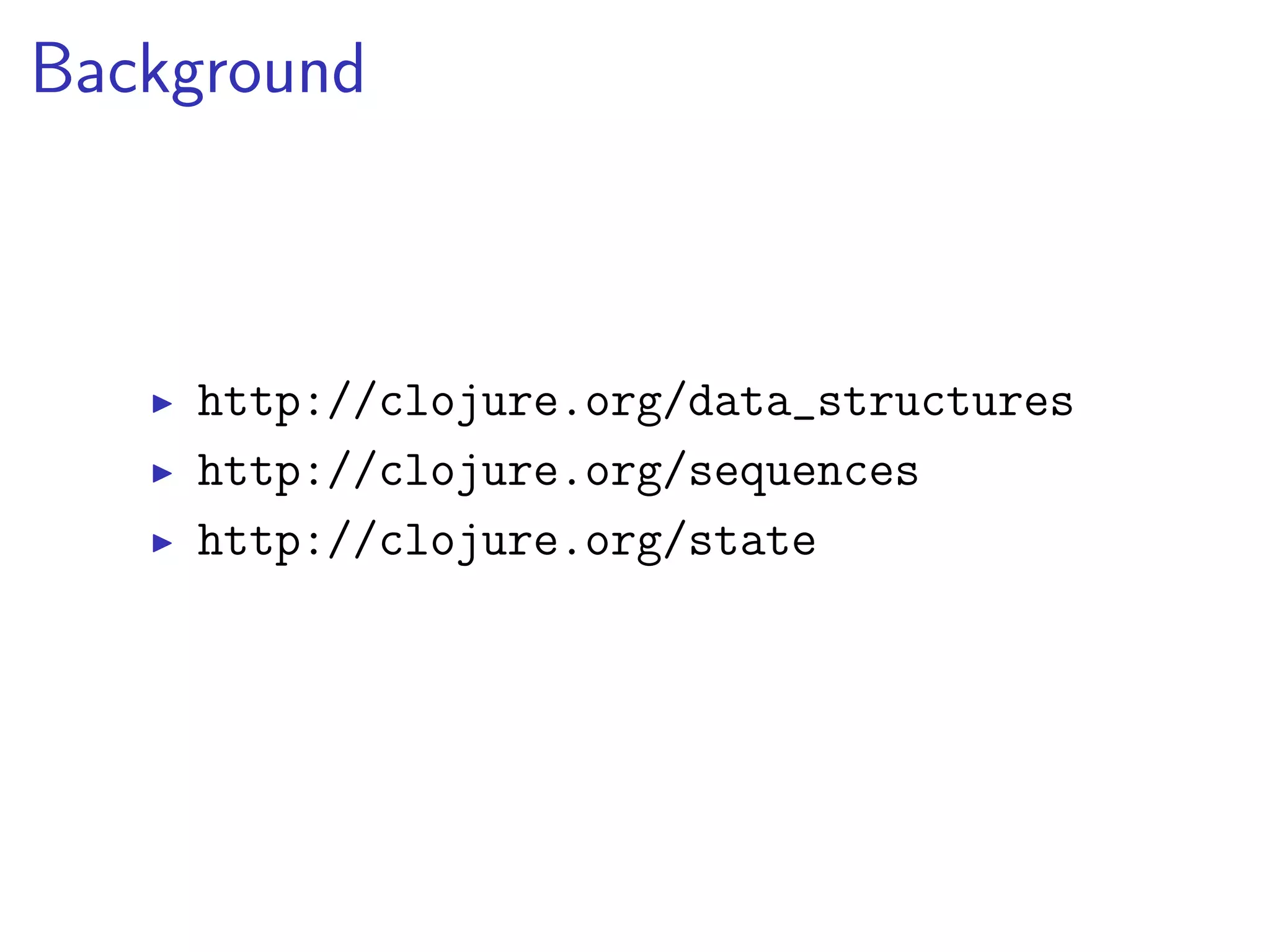

26. Background
http://clojure.org/data_structures
http://clojure.org/sequences
http://clojure.org/state

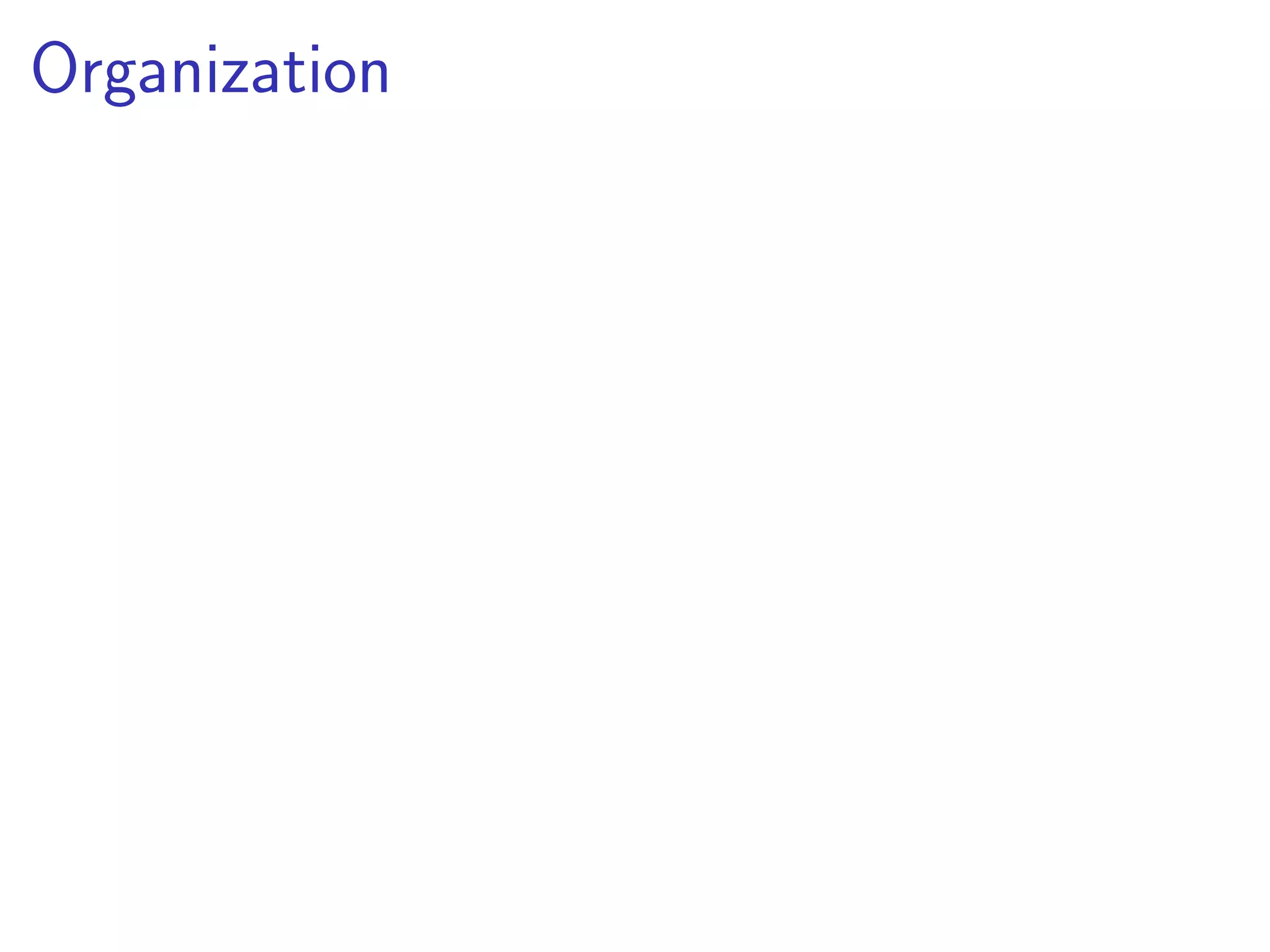

27. Organization

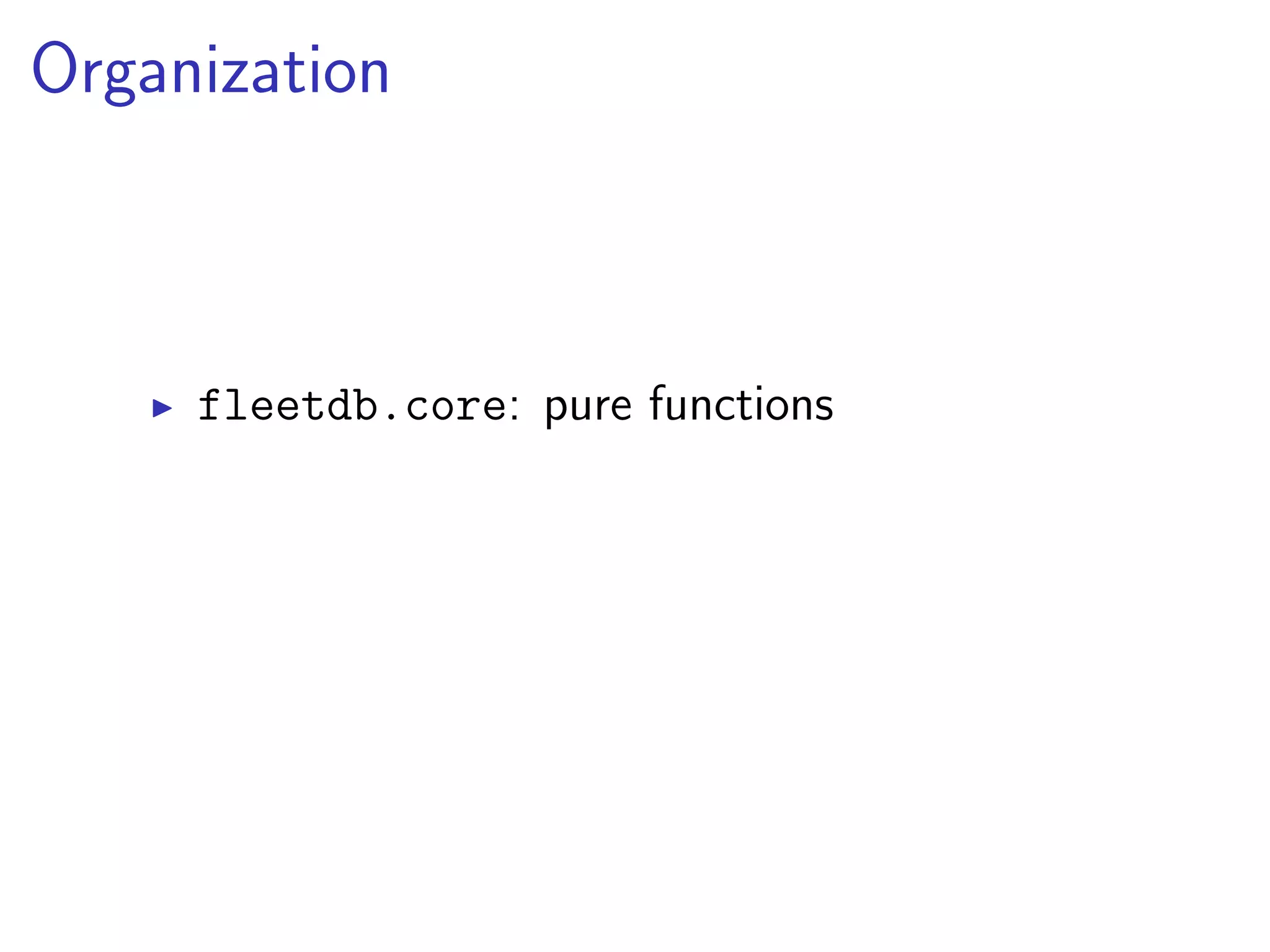

28. Organization
fleetdb.core: pure functions

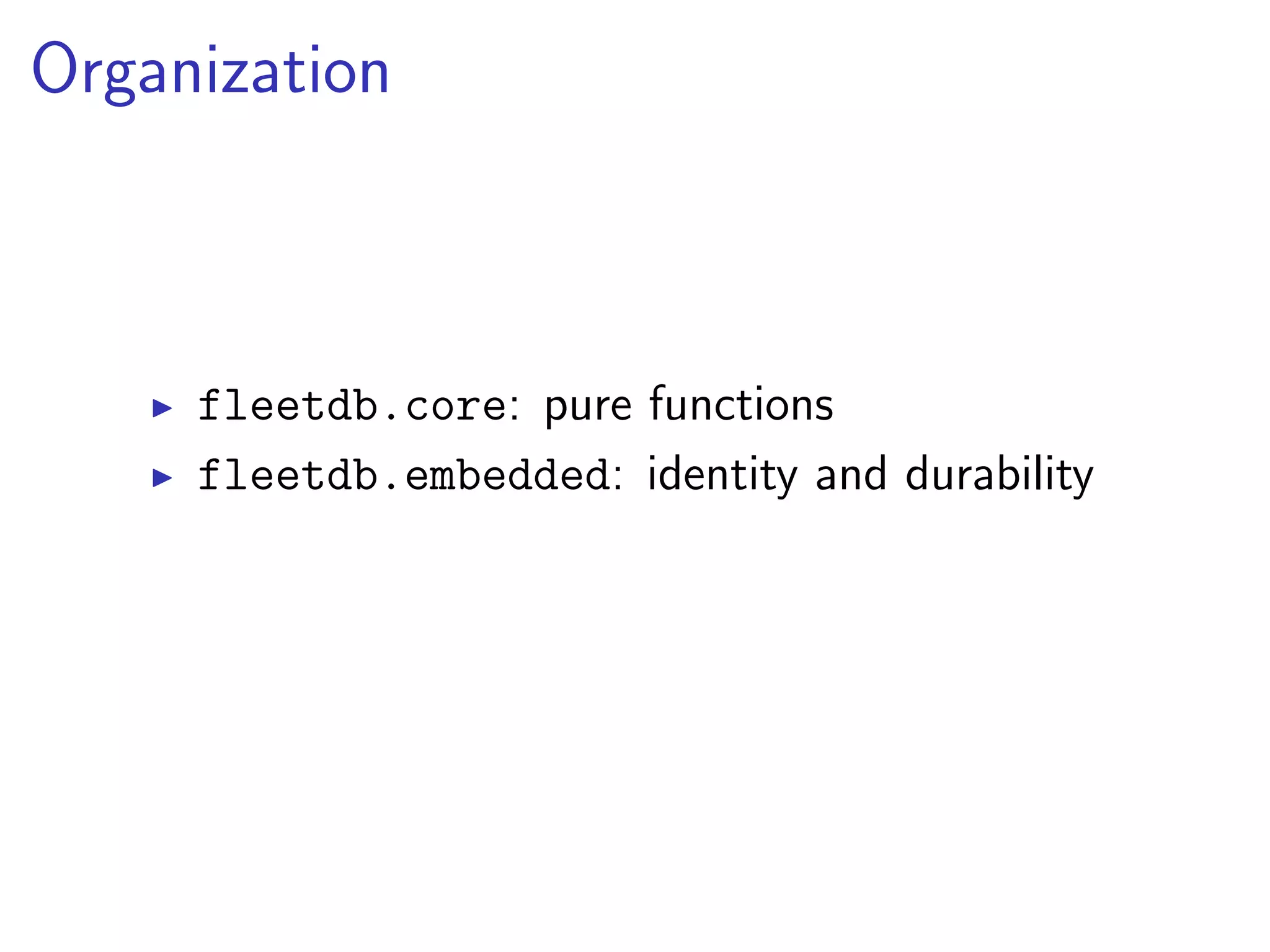

29. Organization
fleetdb.core: pure functions
fleetdb.embedded: identity and durability

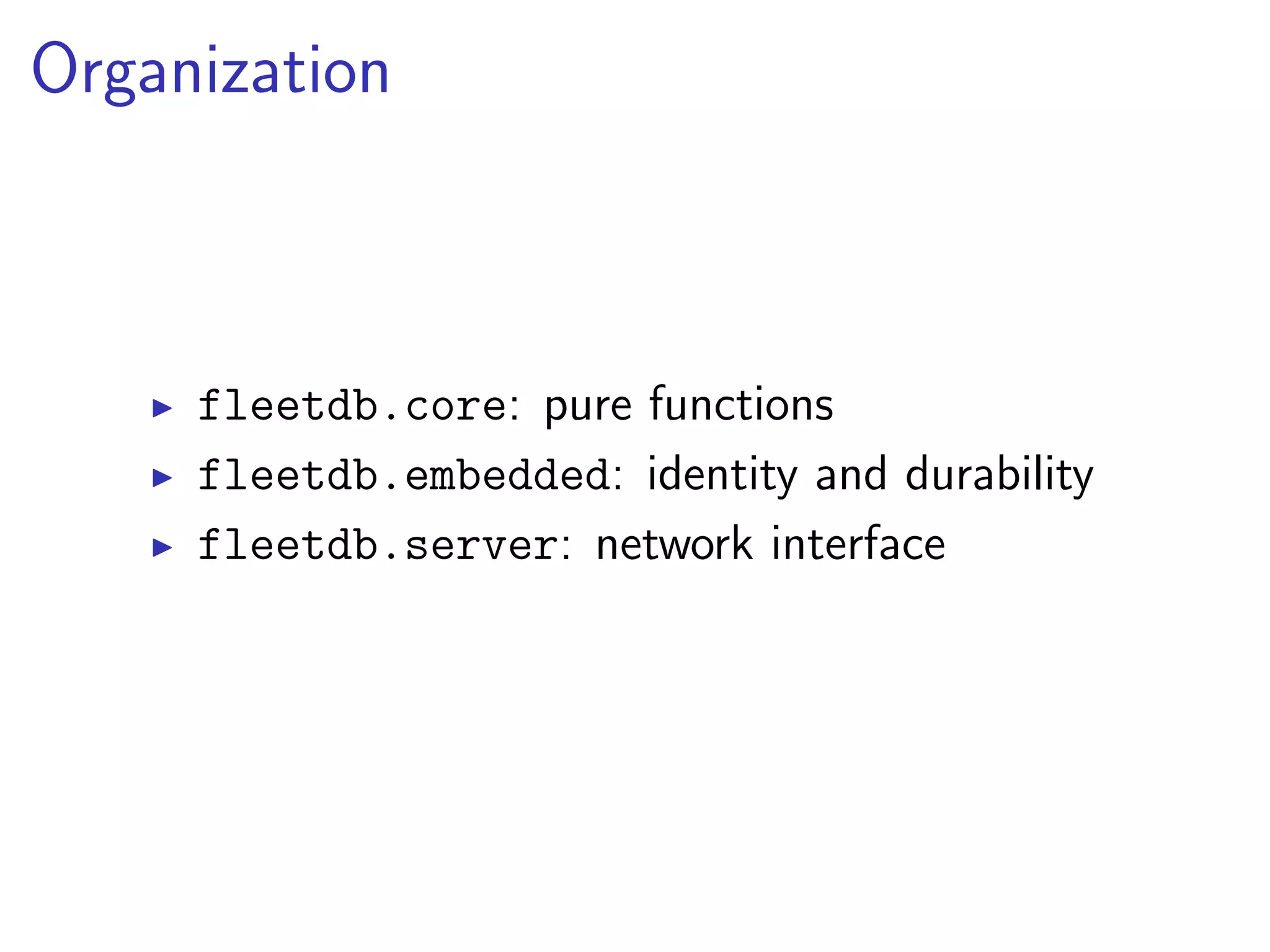

30. Organization
fleetdb.core: pure functions
fleetdb.embedded: identity and durability
fleetdb.server: network interface

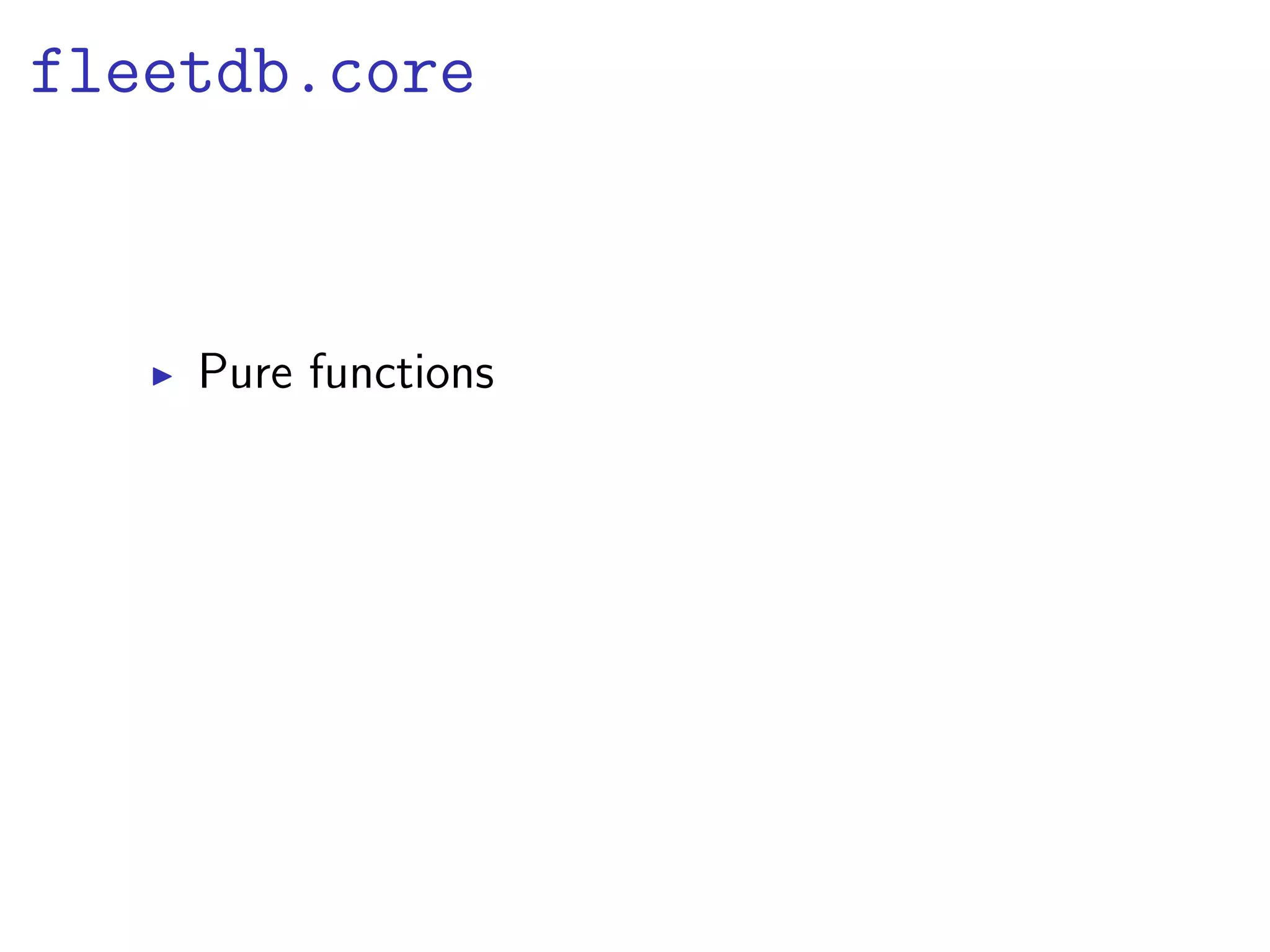

31. fleetdb.core
Pure functions

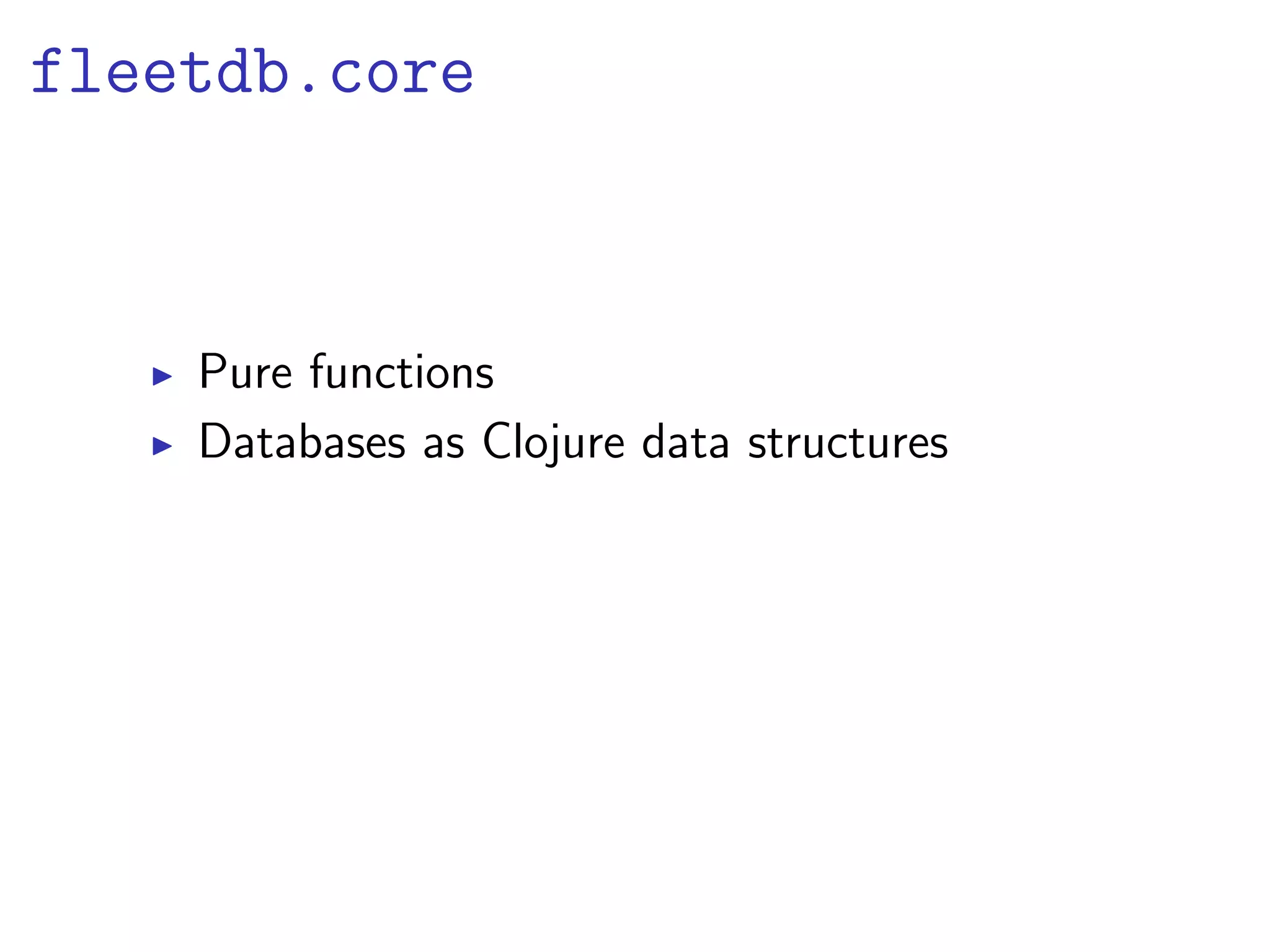

32. fleetdb.core
Pure functions
Databases as Clojure data structures

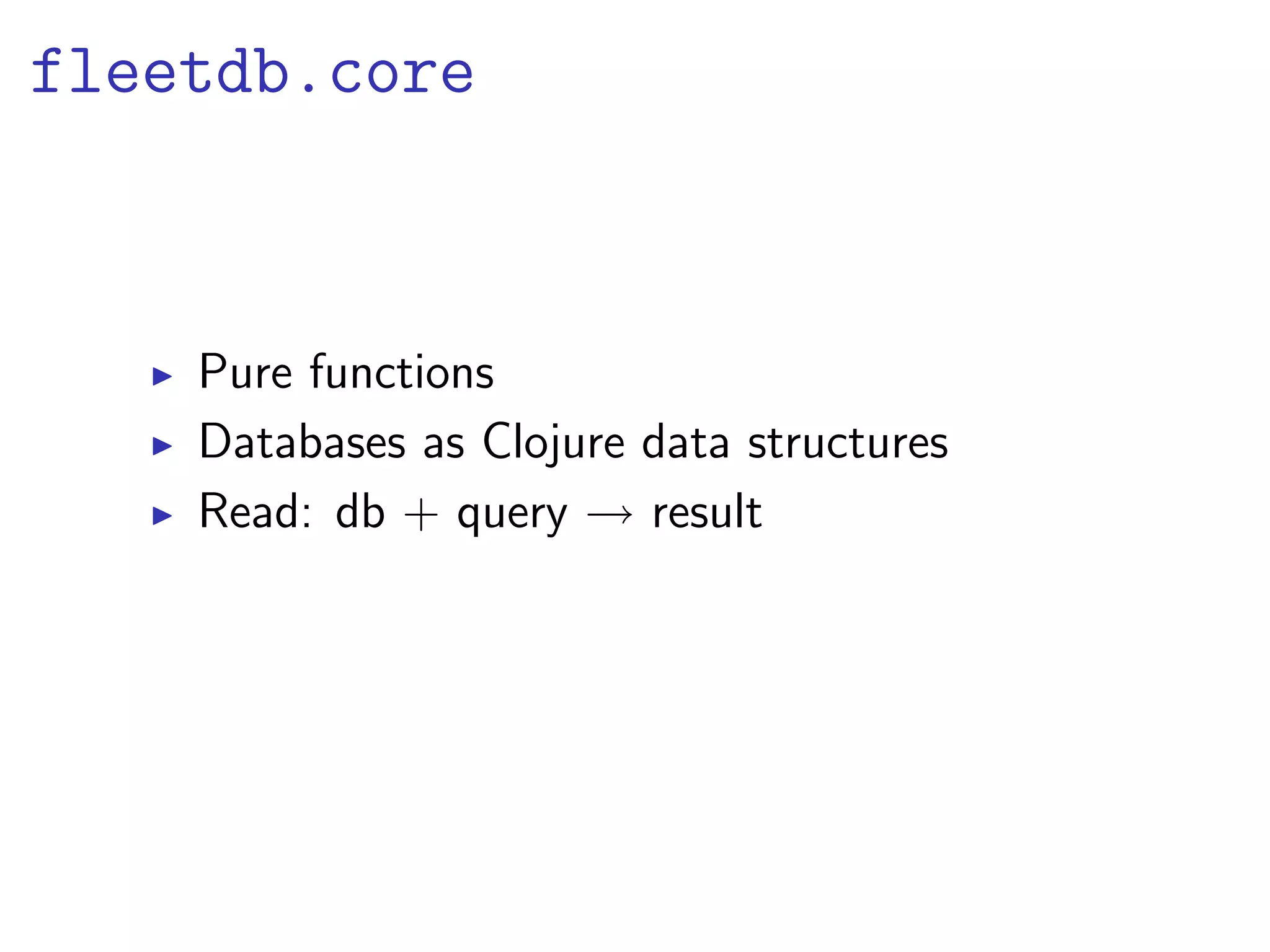

33. fleetdb.core
Pure functions
Databases as Clojure data structures
Read: db + query → result

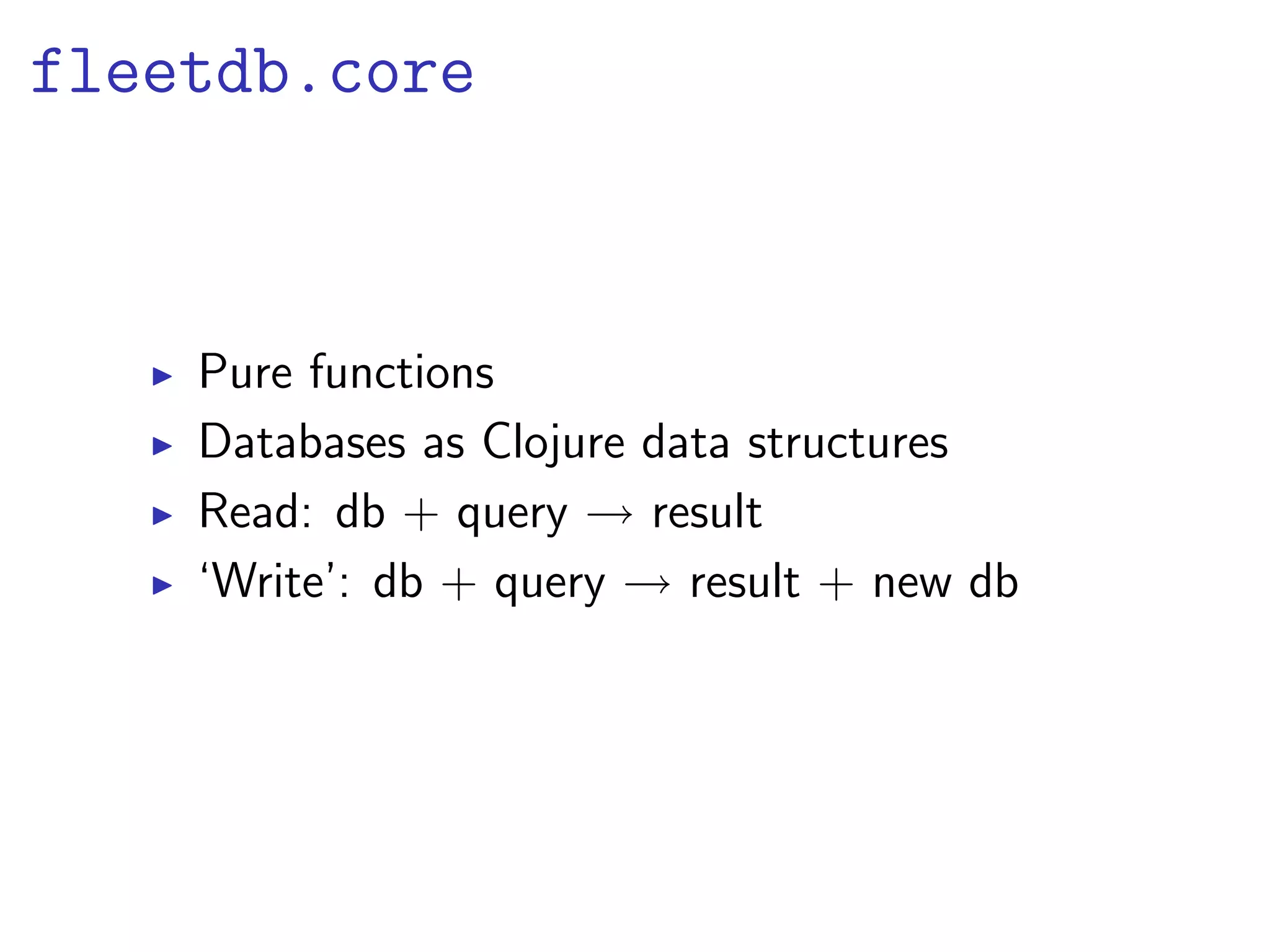

34. fleetdb.core
Pure functions
Databases as Clojure data structures
Read: db + query → result
‘Write’: db + query → result + new db

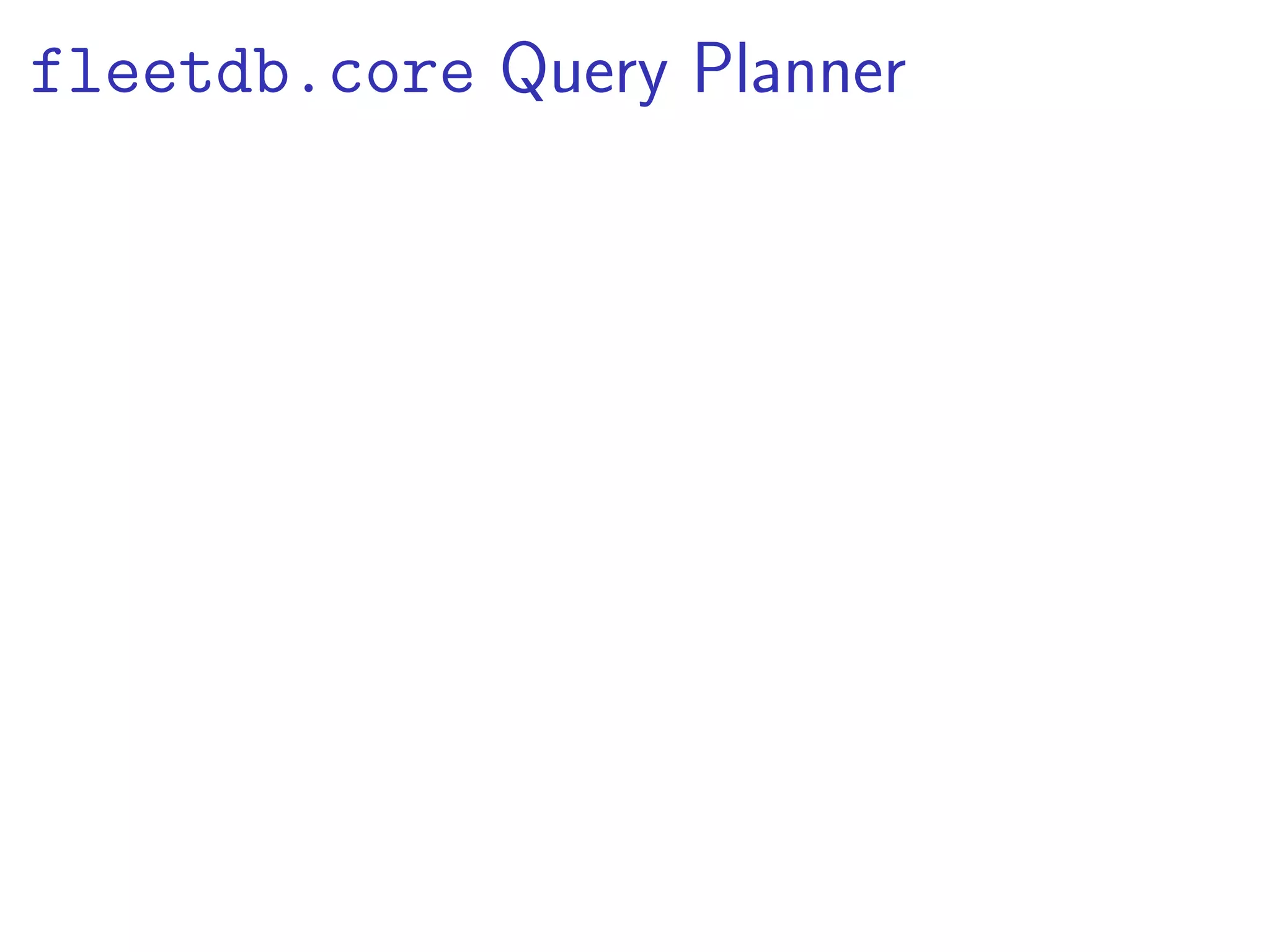

35. fleetdb.core Query Planner

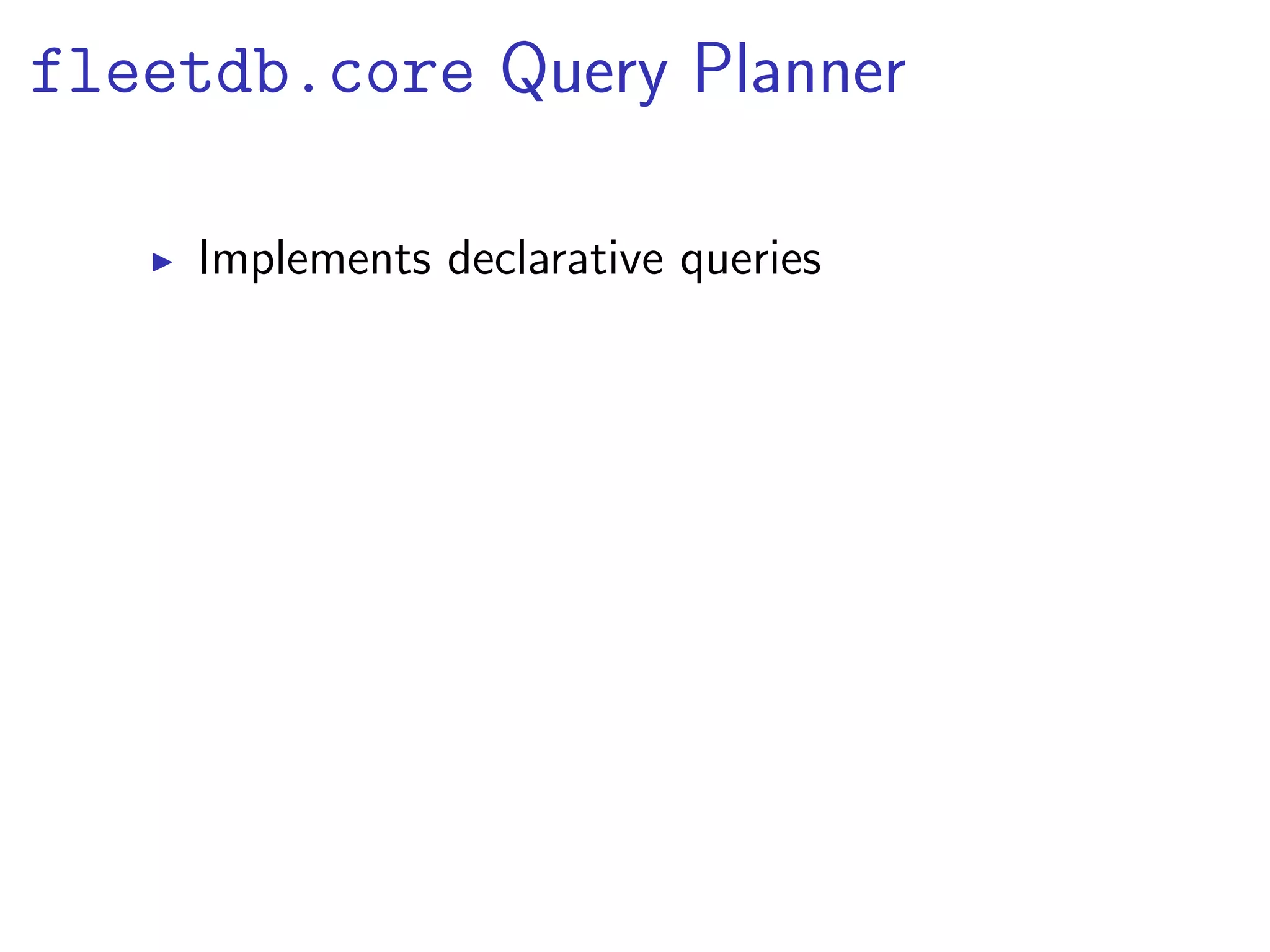

36. fleetdb.core Query Planner
Implements declarative queries

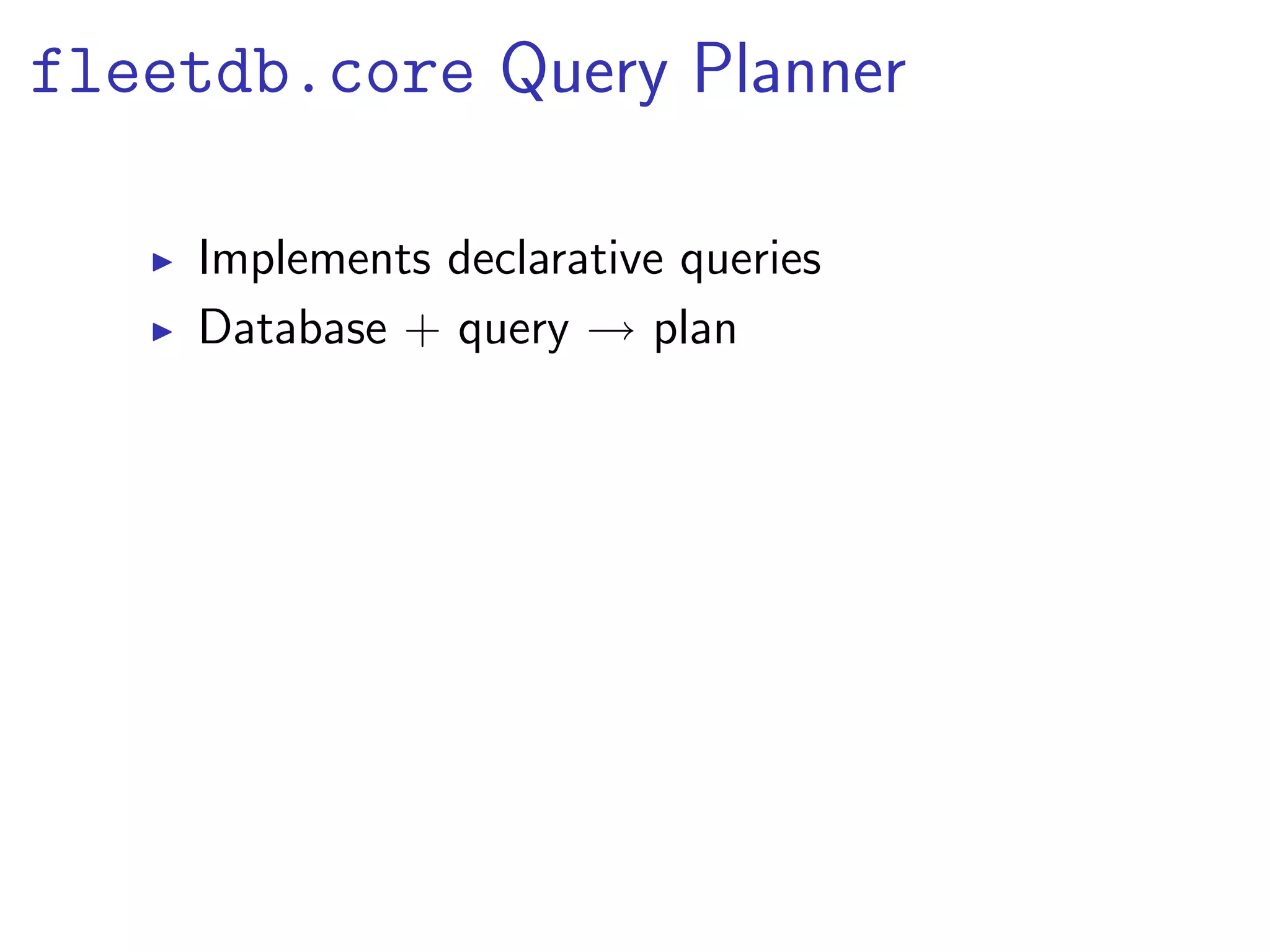

37. fleetdb.core Query Planner
Implements declarative queries
Database + query → plan

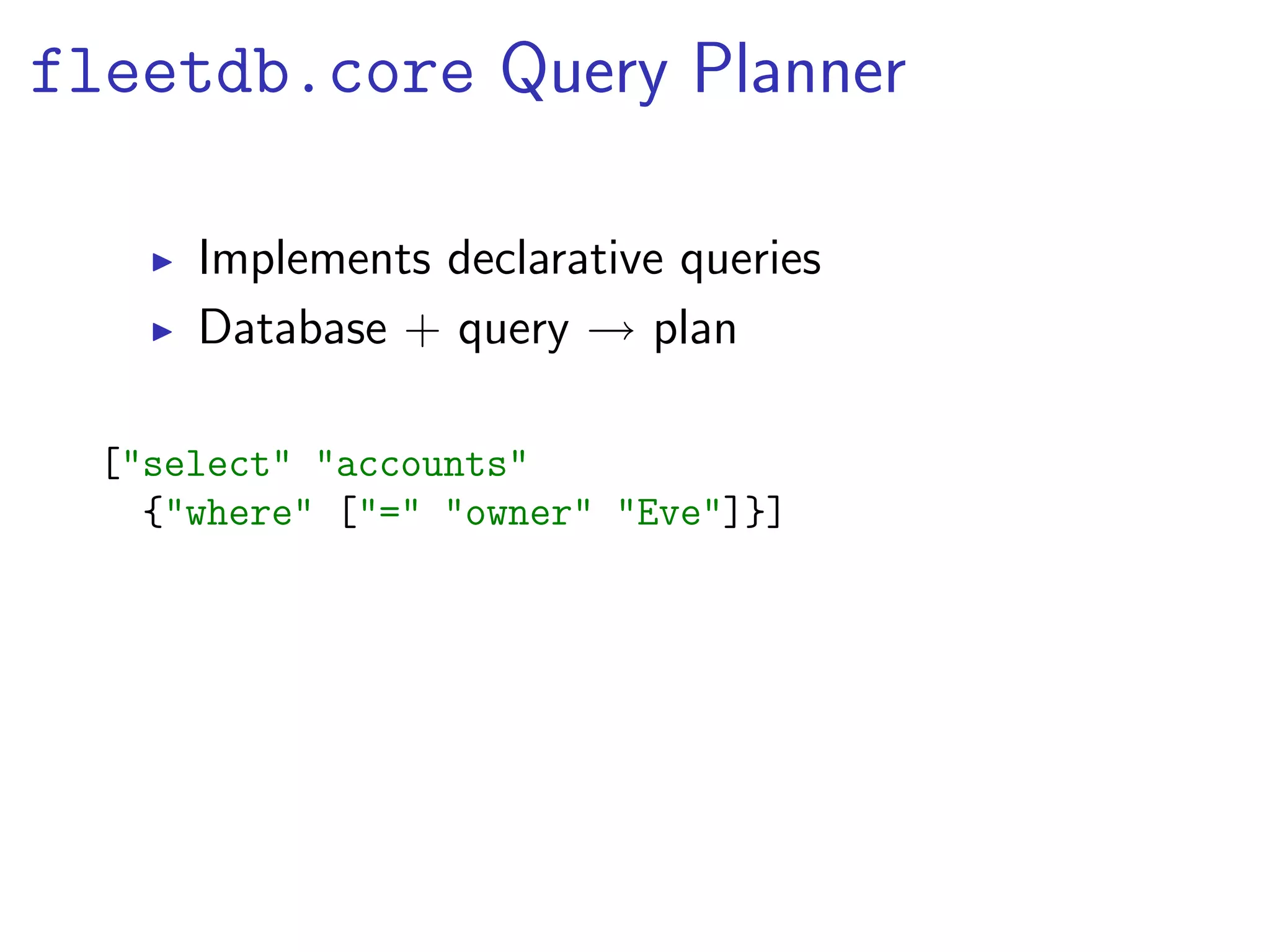

38. fleetdb.core Query Planner
Implements declarative queries
Database + query → plan
["select" "accounts"
{"where" ["=" "owner" "Eve"]}]

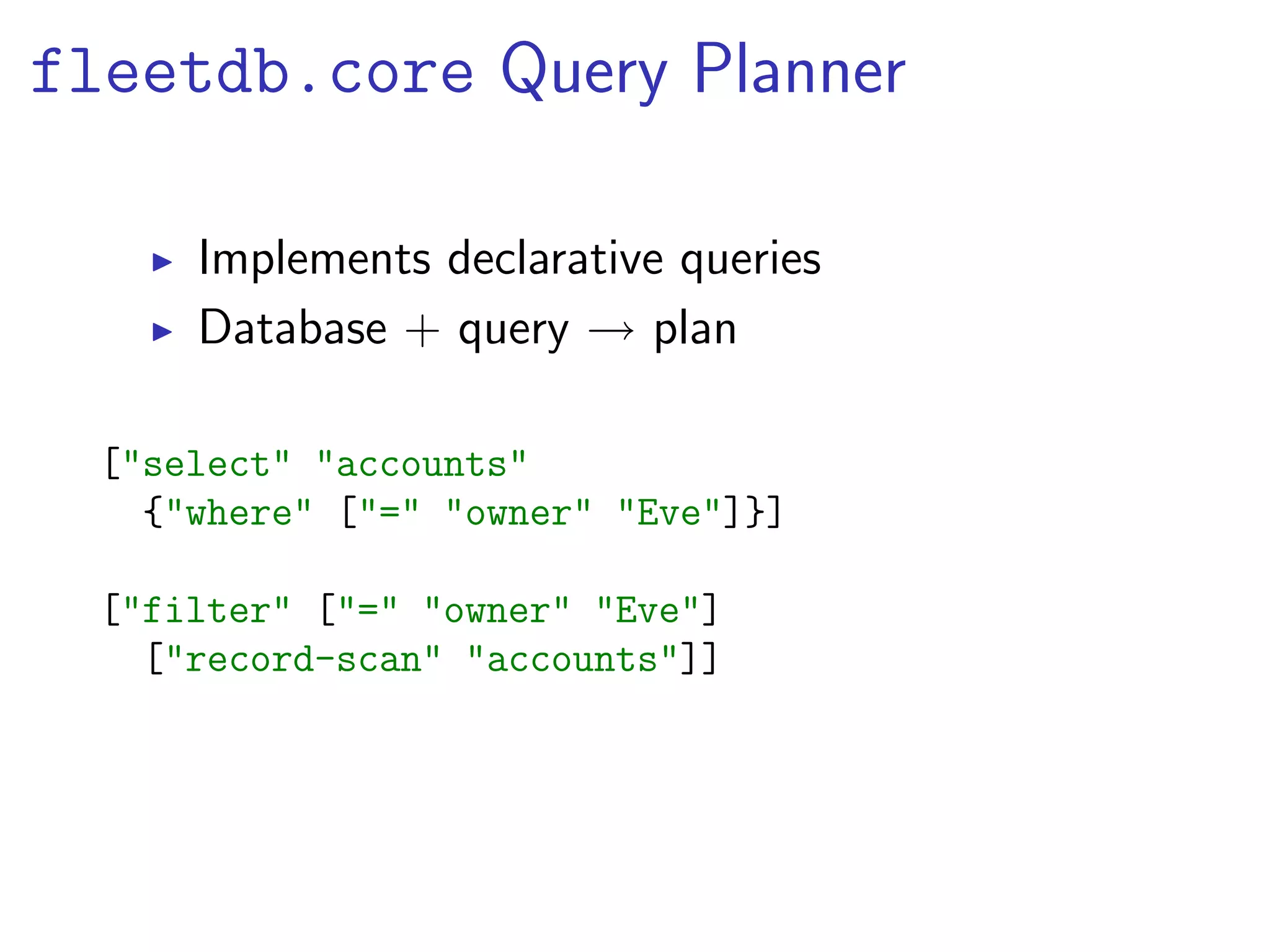

39. fleetdb.core Query Planner
Implements declarative queries
Database + query → plan
["select" "accounts"
{"where" ["=" "owner" "Eve"]}]
["filter" ["=" "owner" "Eve"]
["record-scan" "accounts"]]

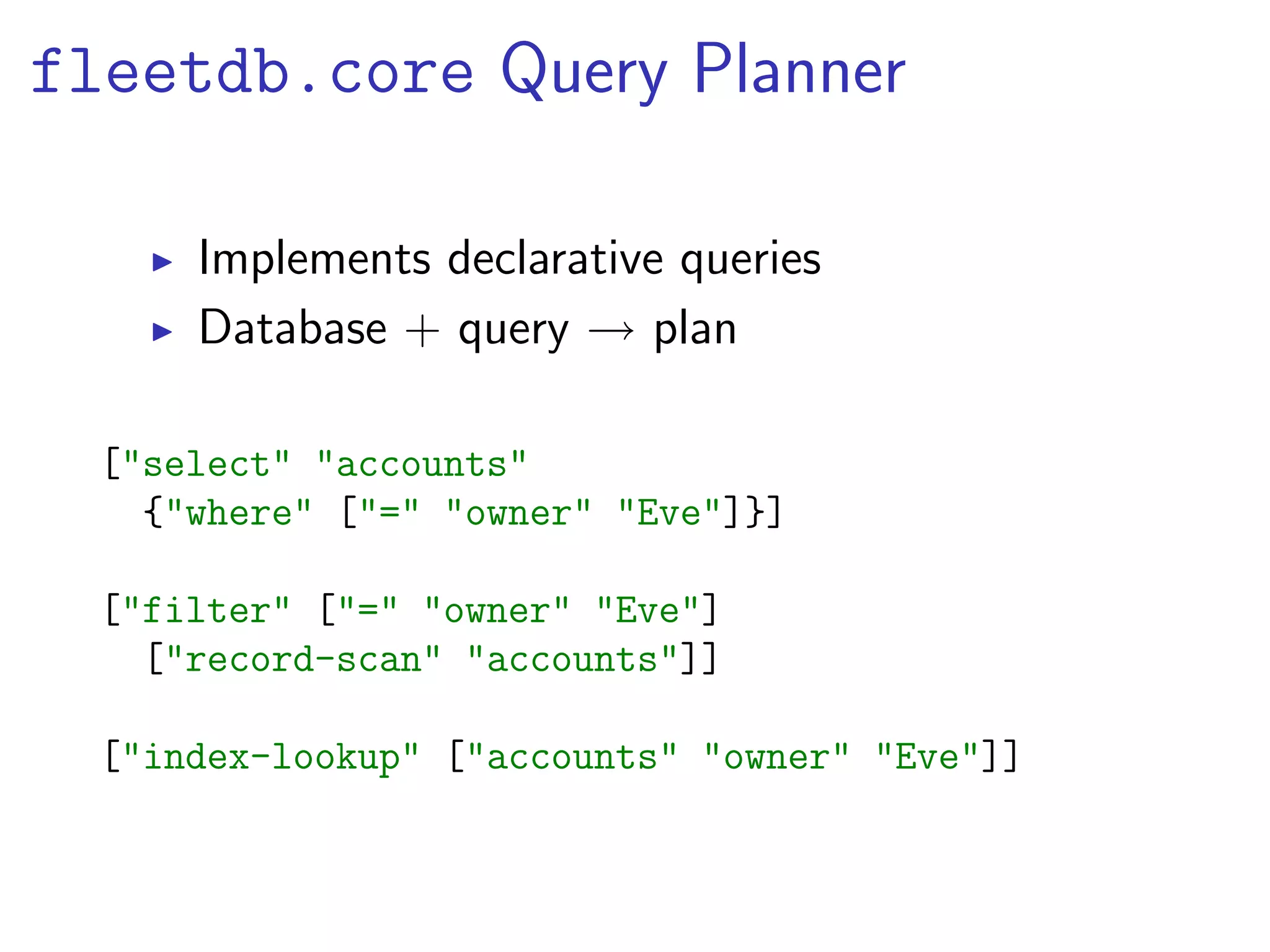

40. fleetdb.core Query Planner
Implements declarative queries
Database + query → plan
["select" "accounts"
{"where" ["=" "owner" "Eve"]}]
["filter" ["=" "owner" "Eve"]
["record-scan" "accounts"]]
["index-lookup" ["accounts" "owner" "Eve"]]

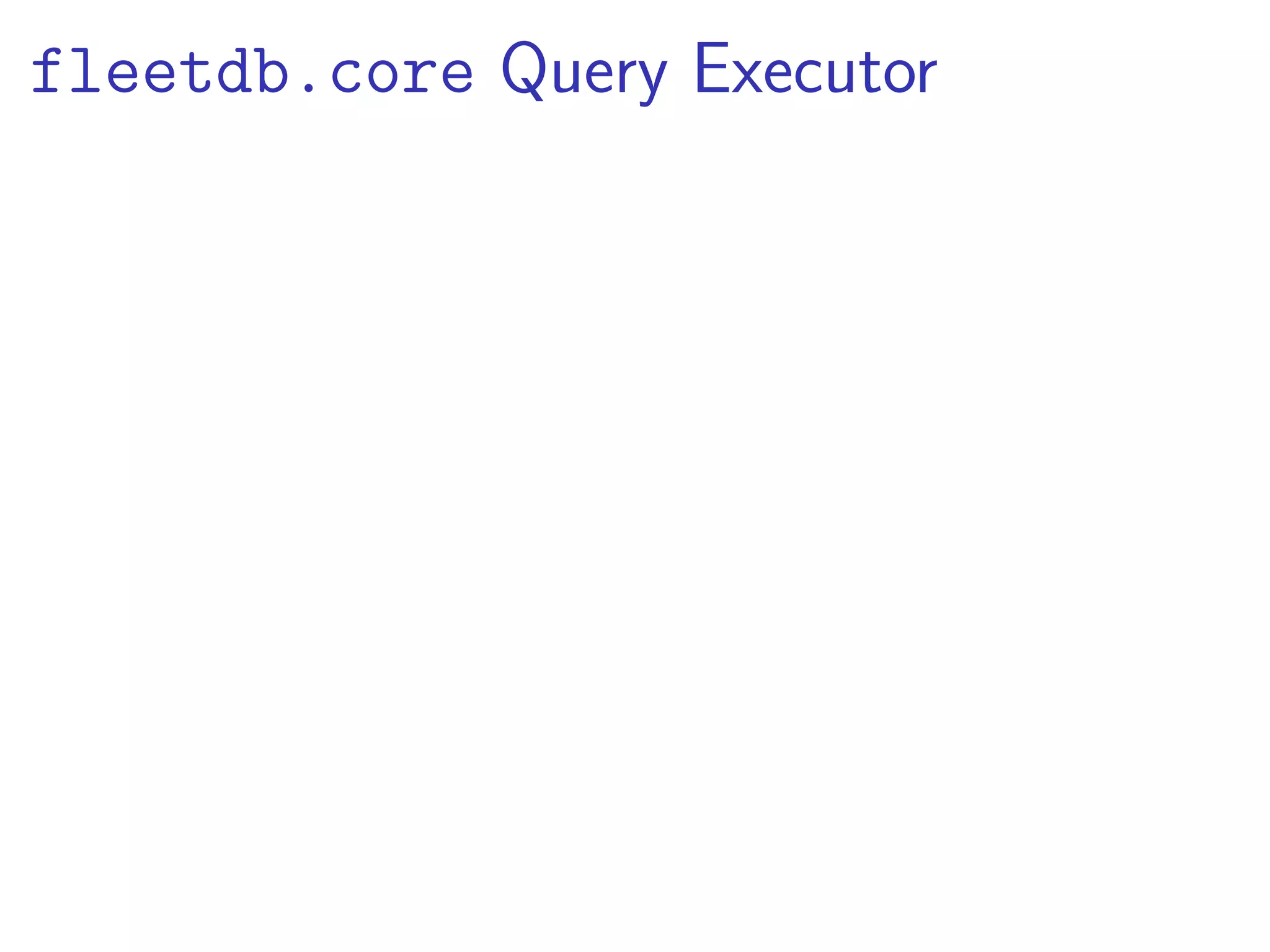

41. fleetdb.core Query Executor

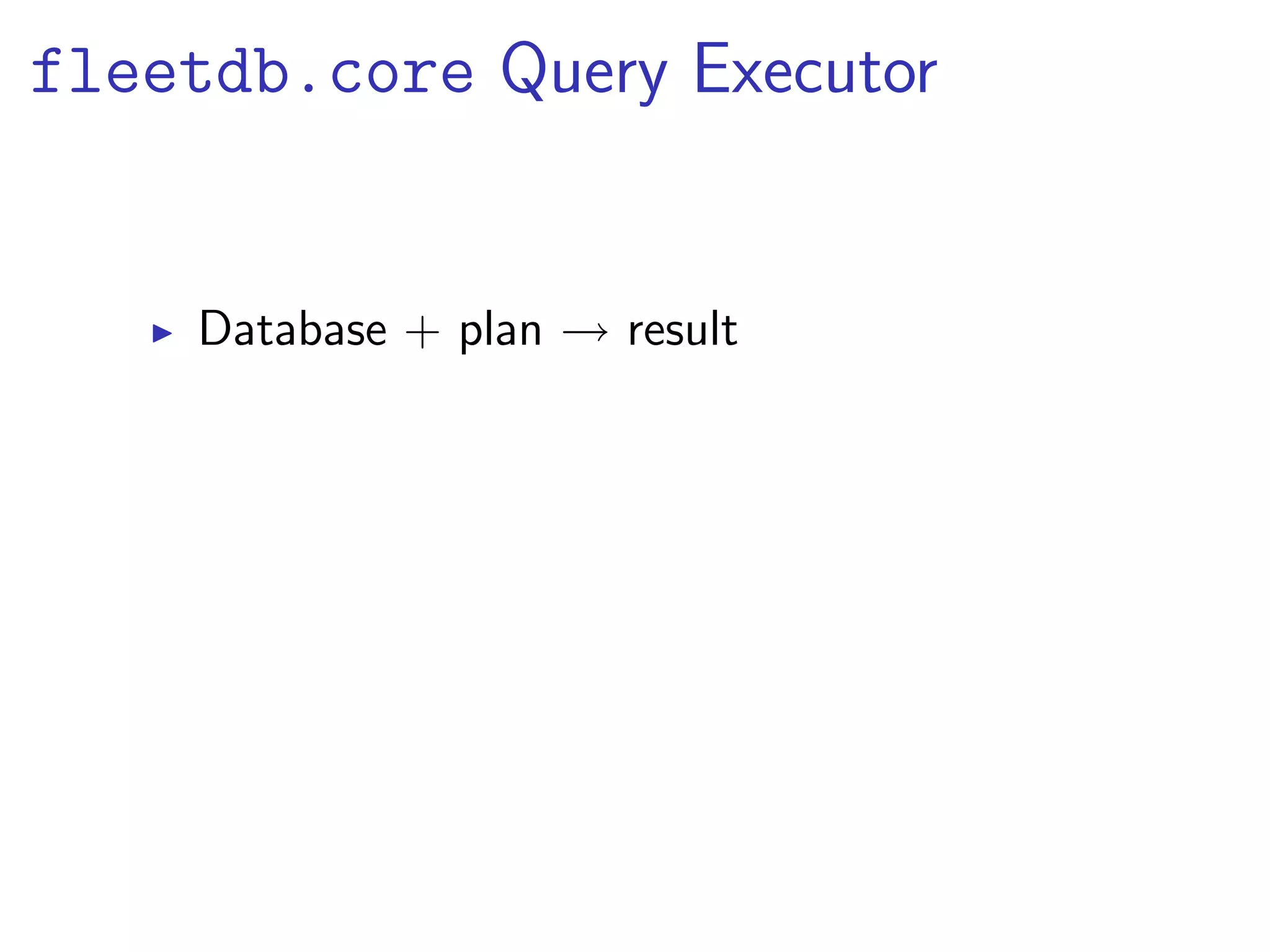

42. fleetdb.core Query Executor
Database + plan → result

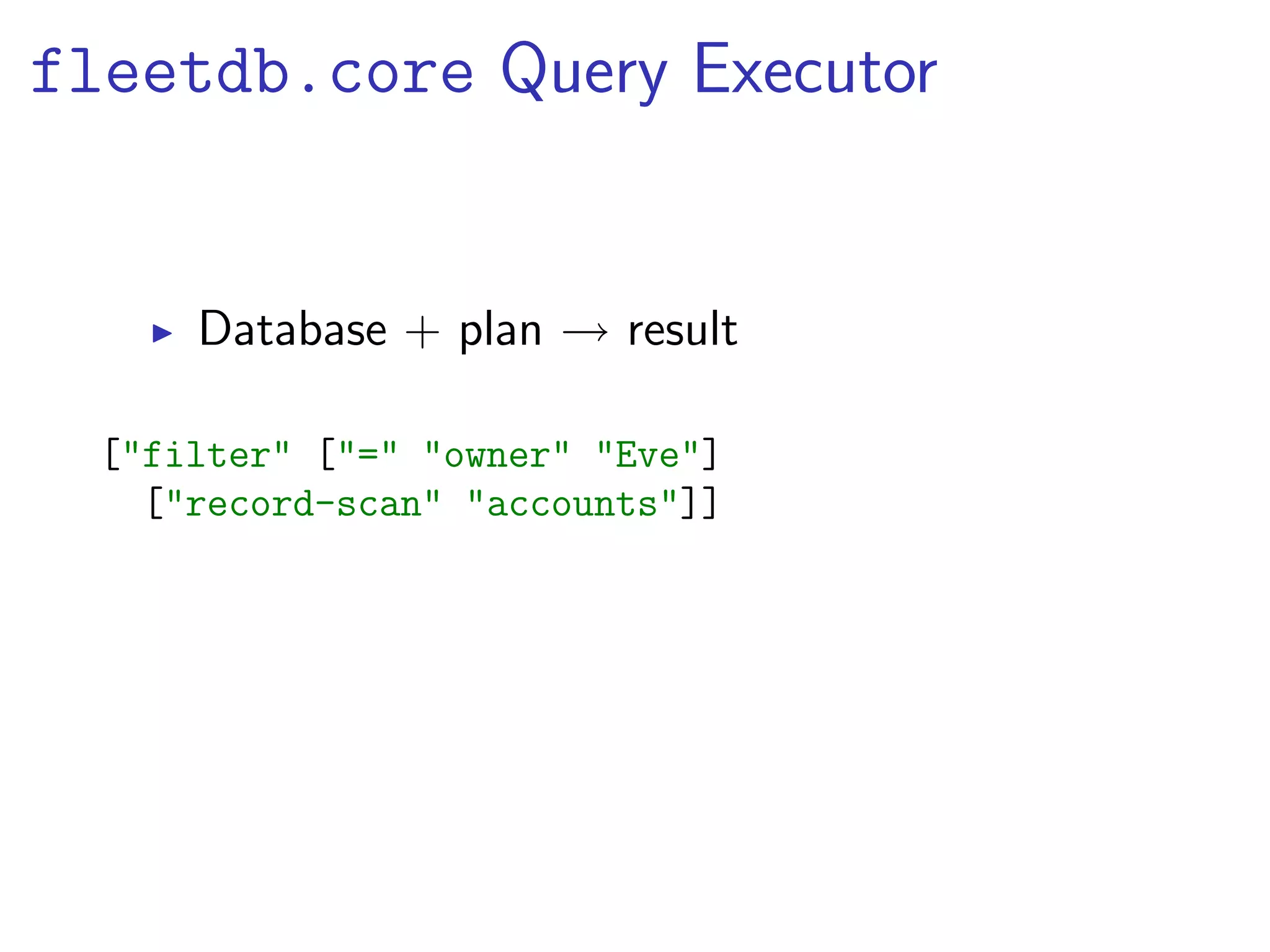

43. fleetdb.core Query Executor
Database + plan → result
["filter" ["=" "owner" "Eve"]
["record-scan" "accounts"]]

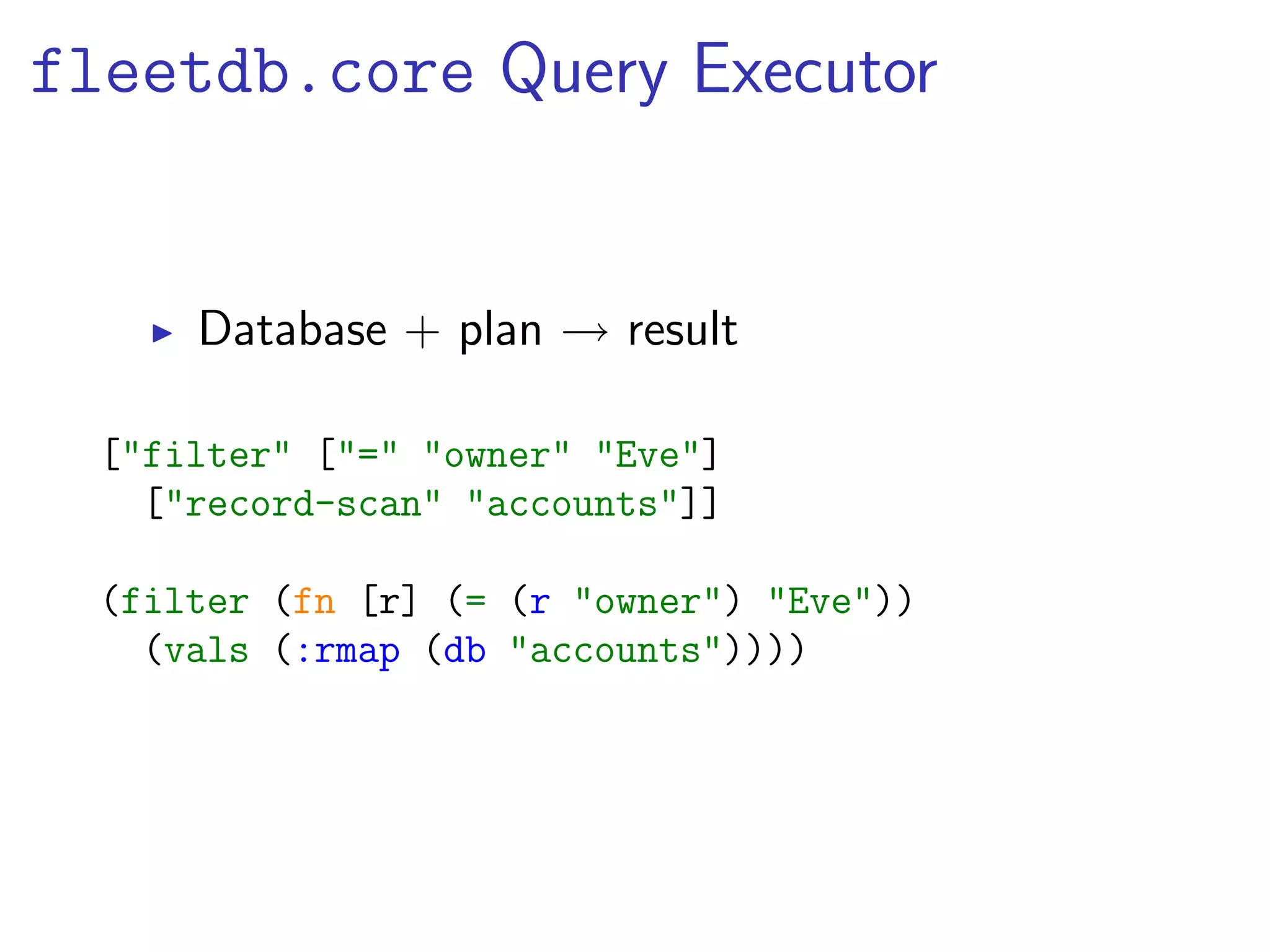

44. fleetdb.core Query Executor
Database + plan → result
["filter" ["=" "owner" "Eve"]
["record-scan" "accounts"]]
(filter (fn [r] (= (r "owner") "Eve"))
(vals (:rmap (db "accounts"))))

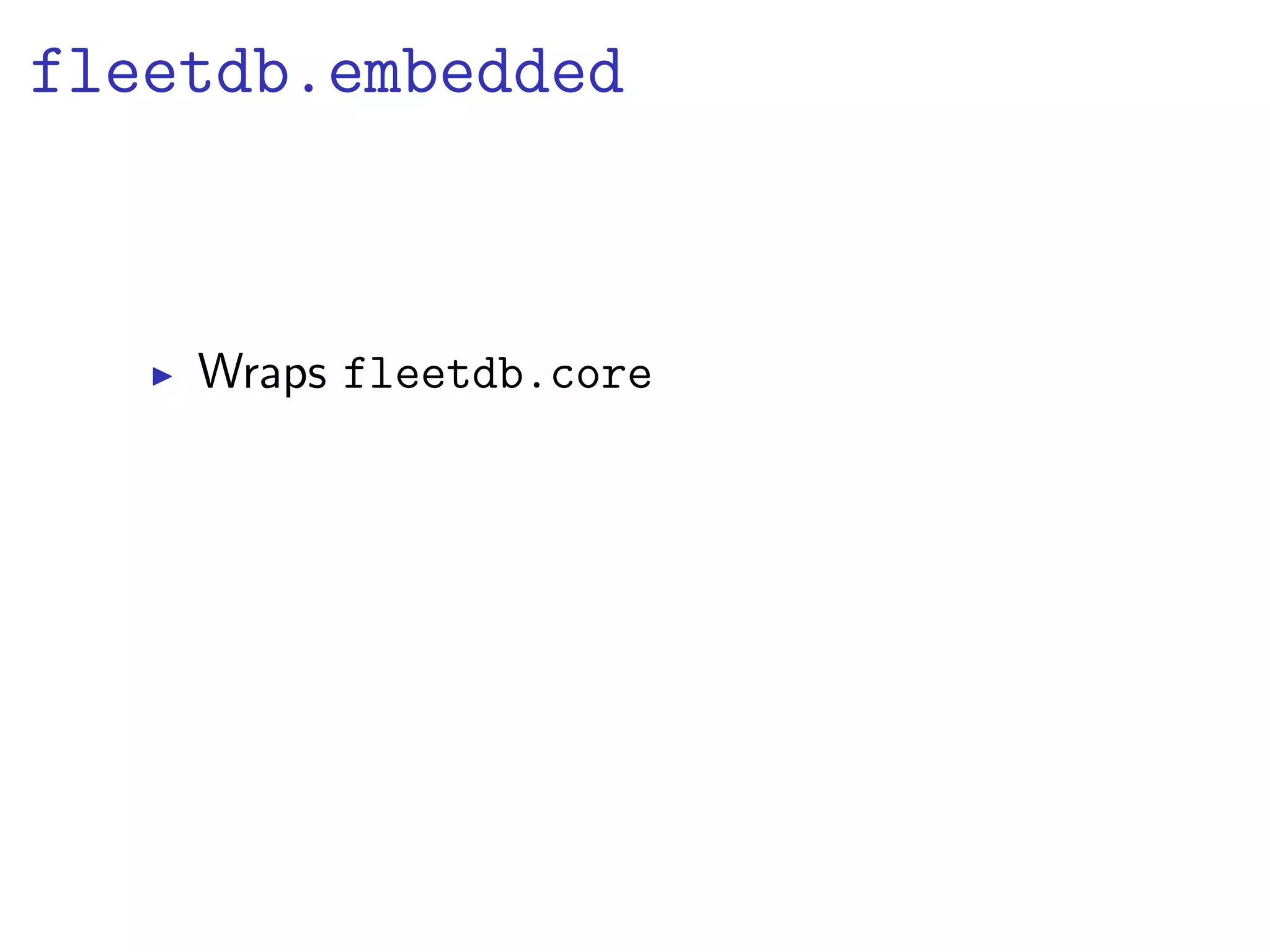

45. fleetdb.embedded
Wraps fleetdb.core

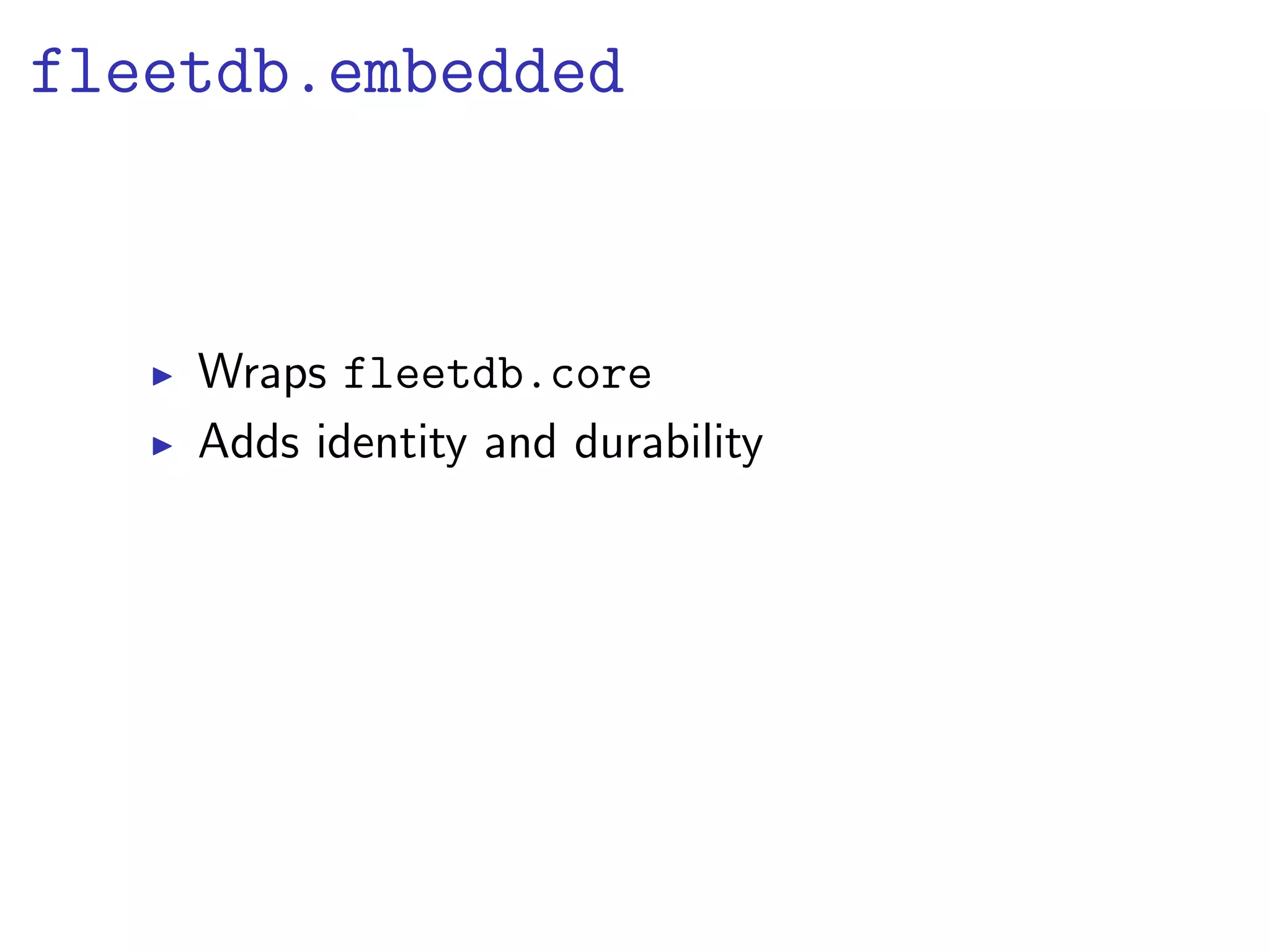

46. fleetdb.embedded
Wraps fleetdb.core
Adds identity and durability

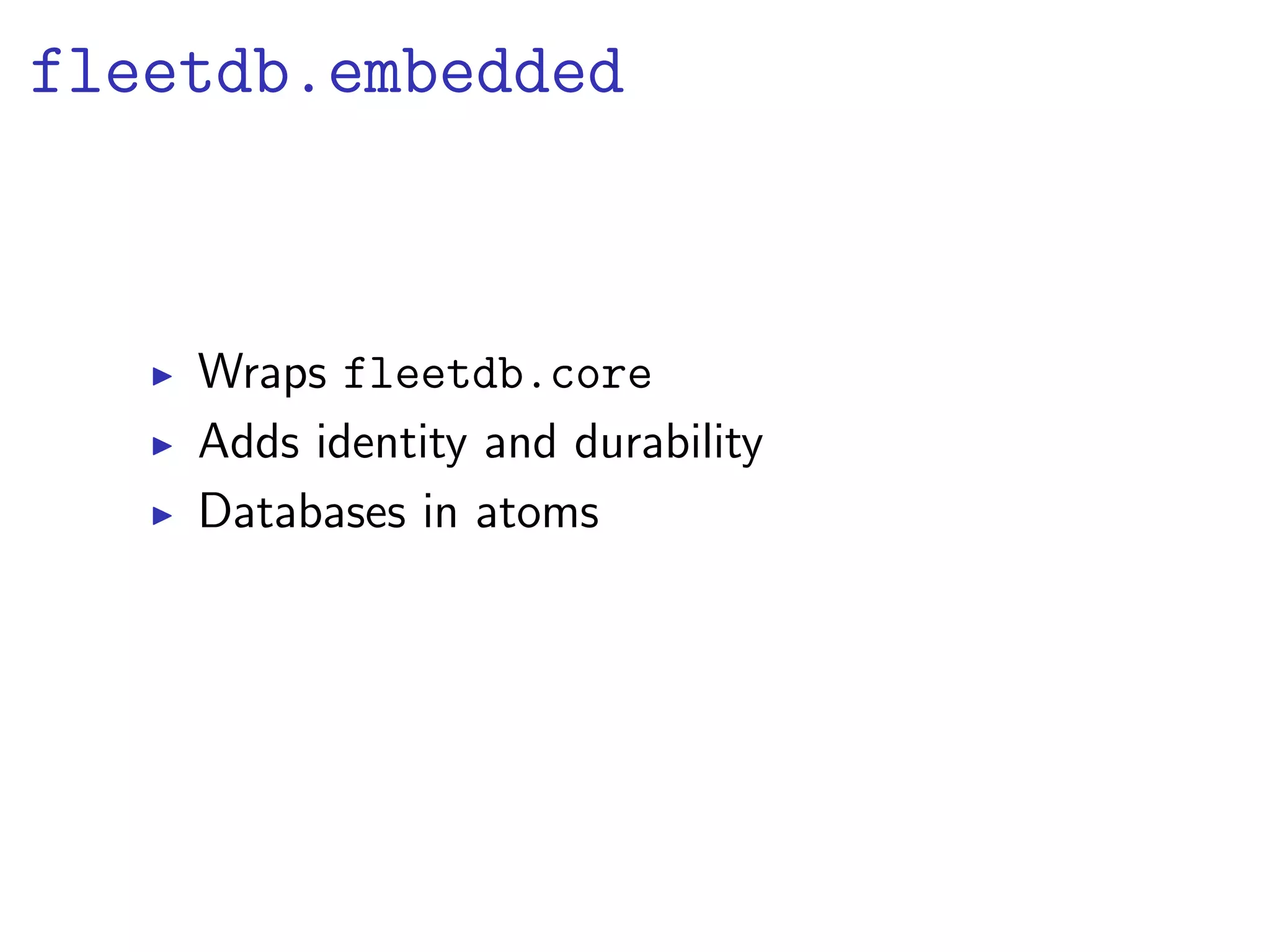

47. fleetdb.embedded
Wraps fleetdb.core
Adds identity and durability
Databases in atoms

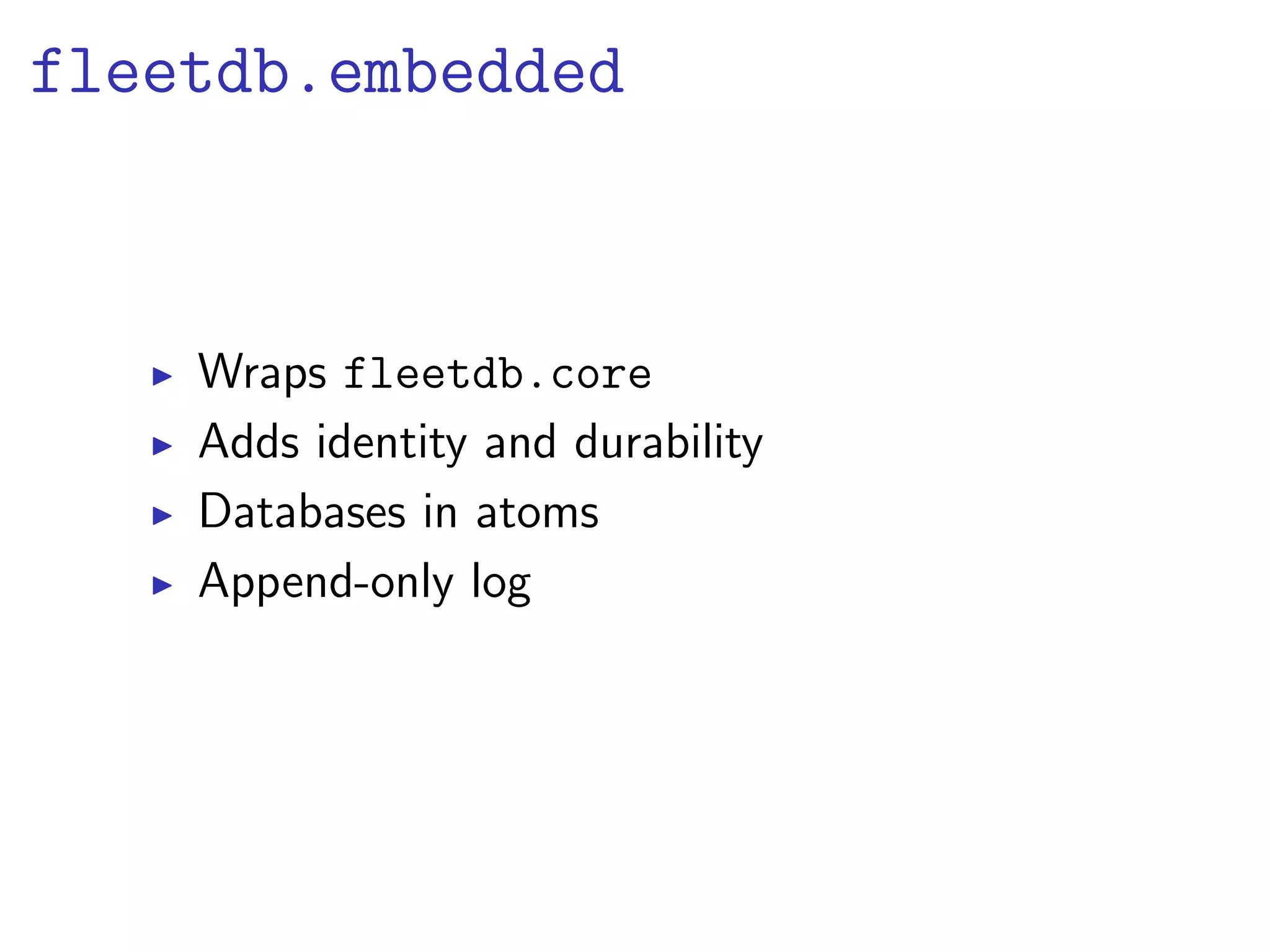

48. fleetdb.embedded
Wraps fleetdb.core
Adds identity and durability
Databases in atoms
Append-only log

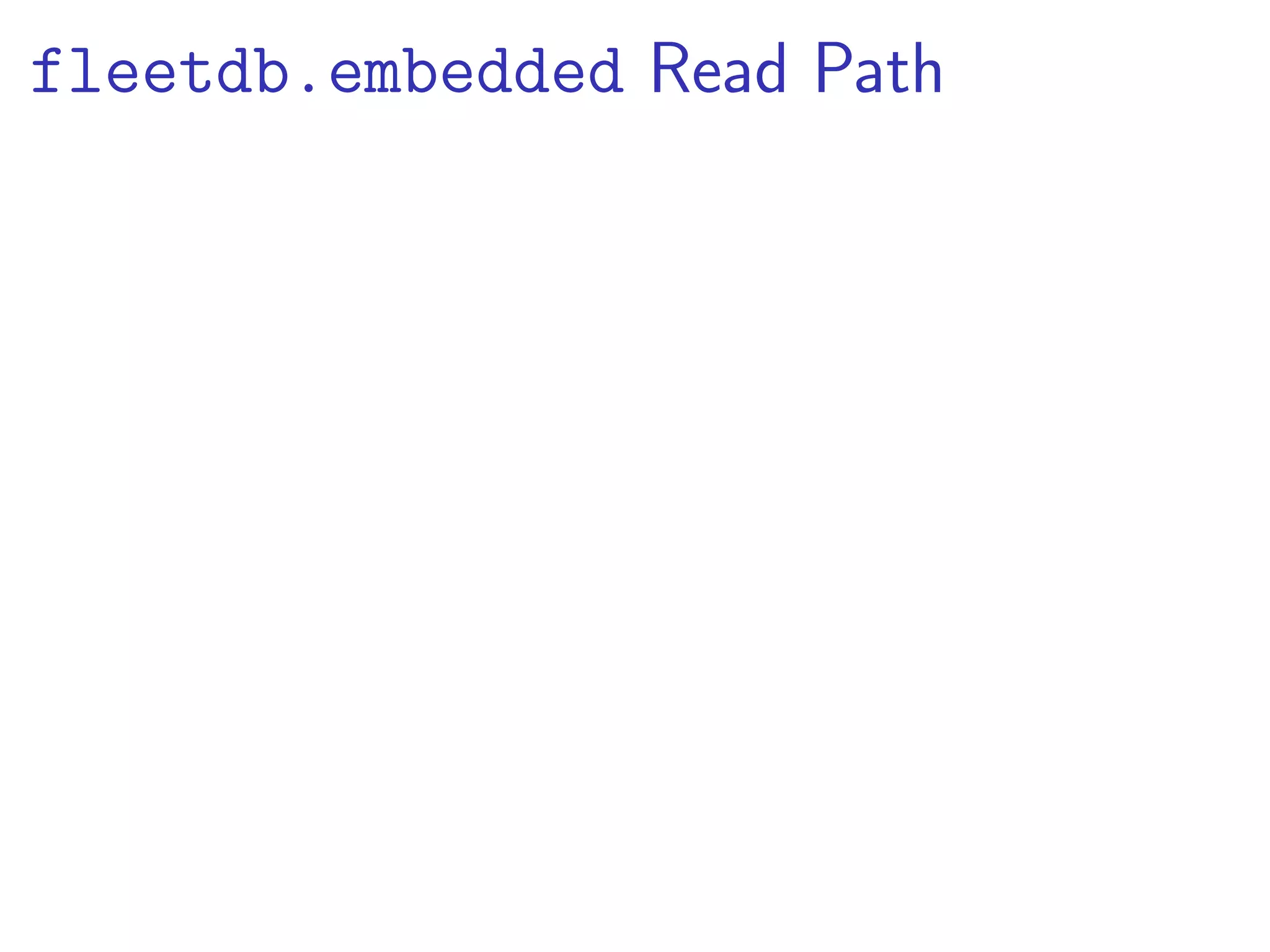

49. fleetdb.embedded Read Path

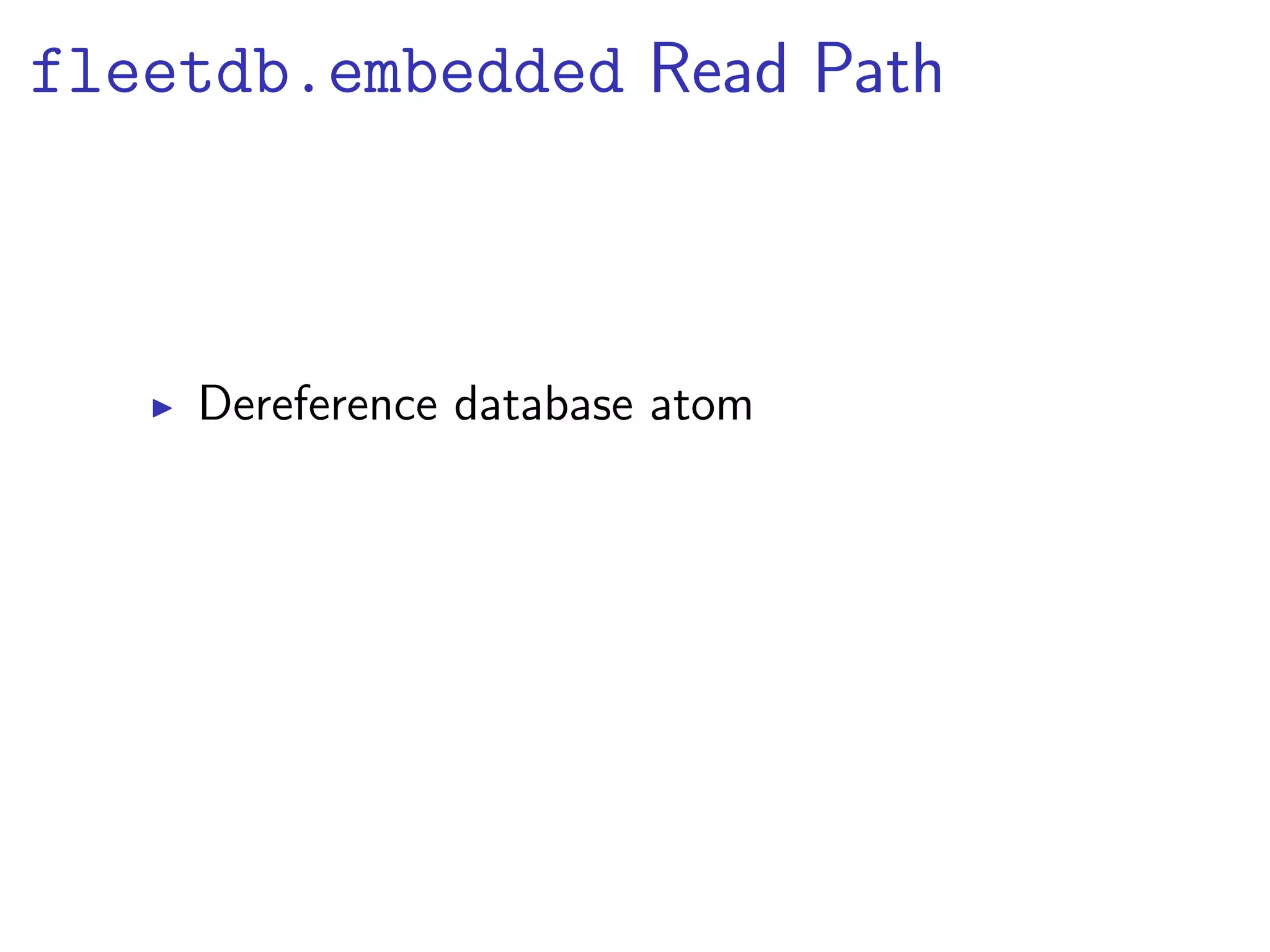

50. fleetdb.embedded Read Path
Dereference database atom

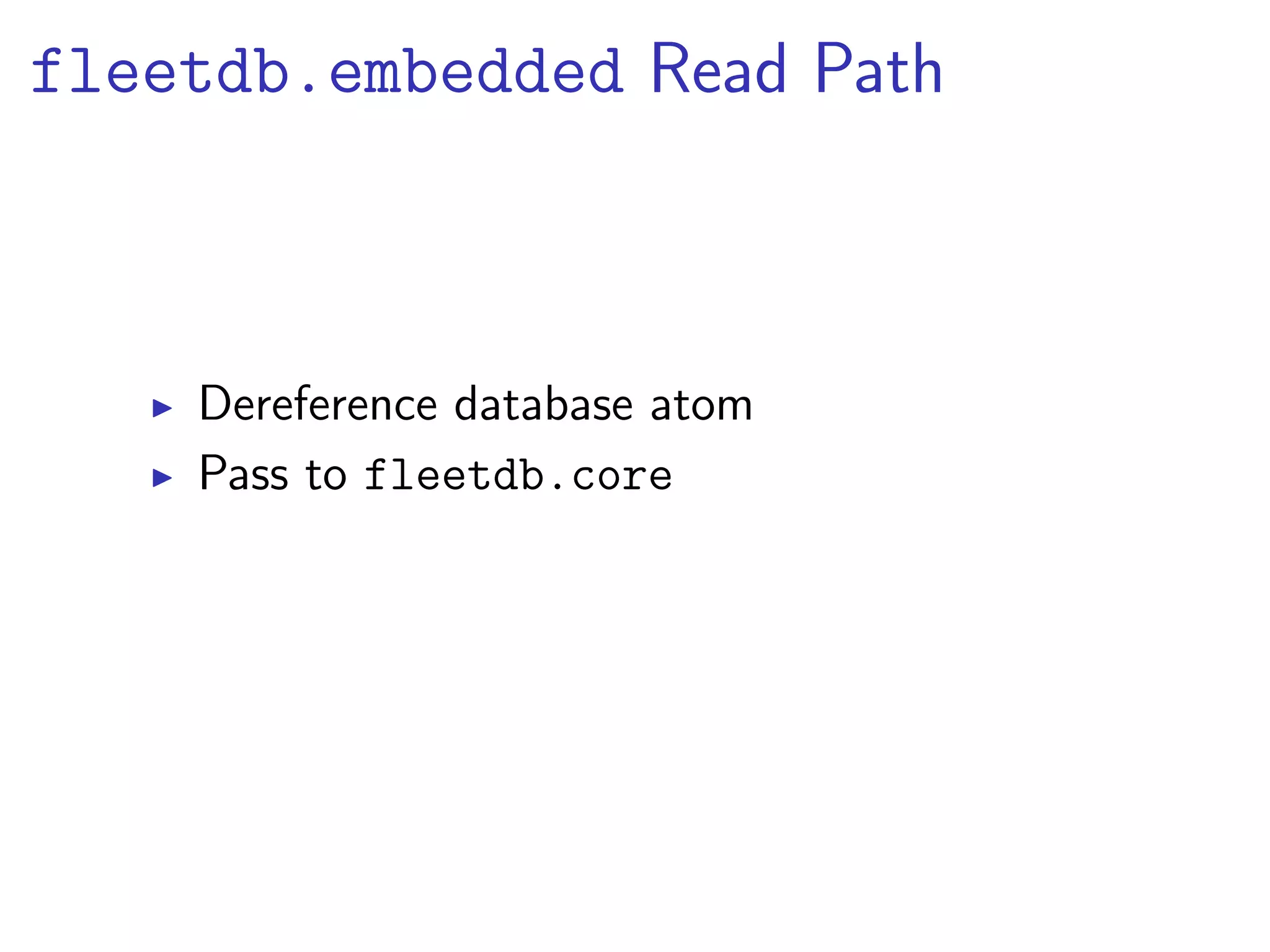

51. fleetdb.embedded Read Path
Dereference database atom
Pass to fleetdb.core

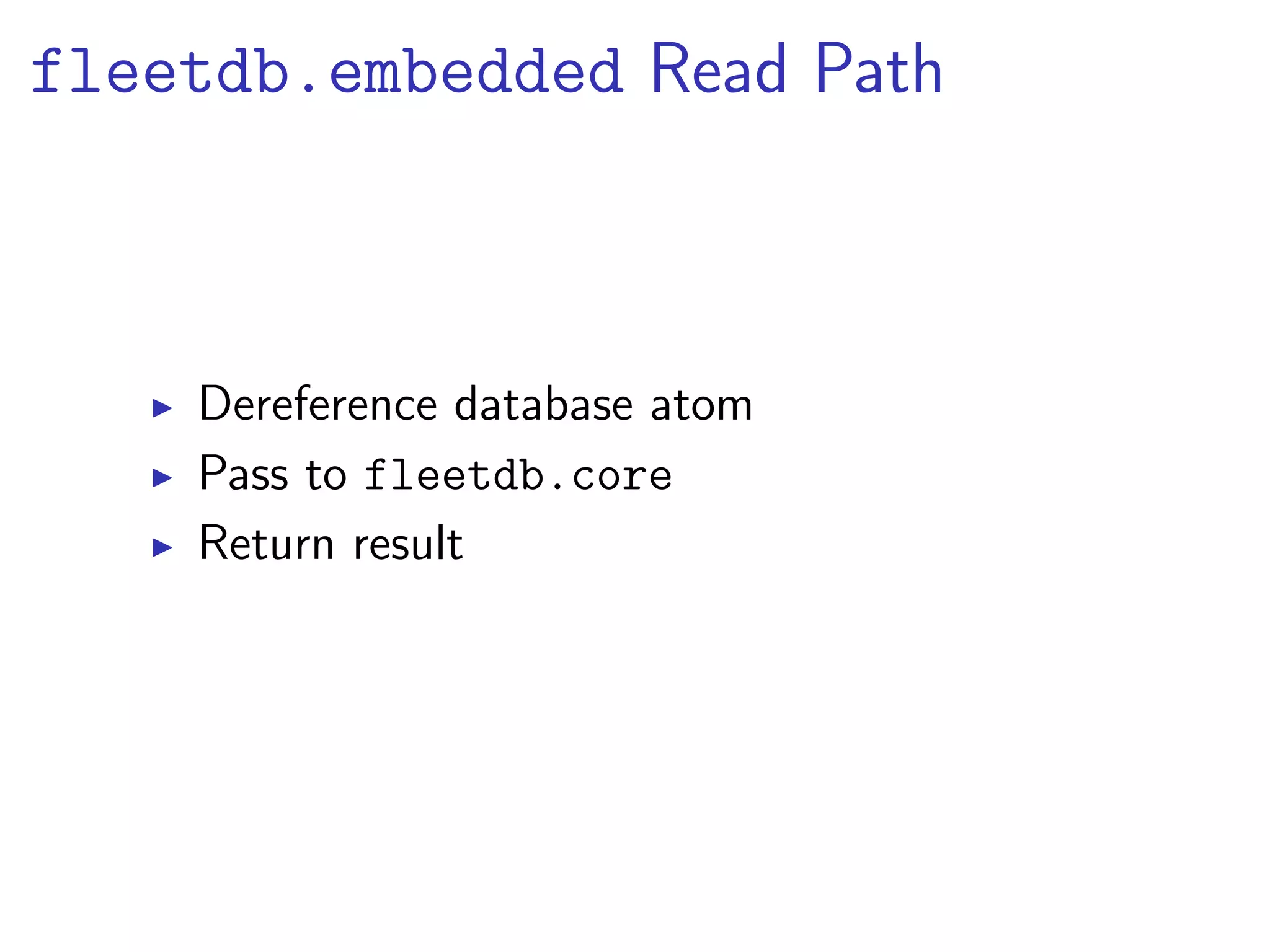

52. fleetdb.embedded Read Path
Dereference database atom
Pass to fleetdb.core
Return result

53. fleetdb.embedded Write Path

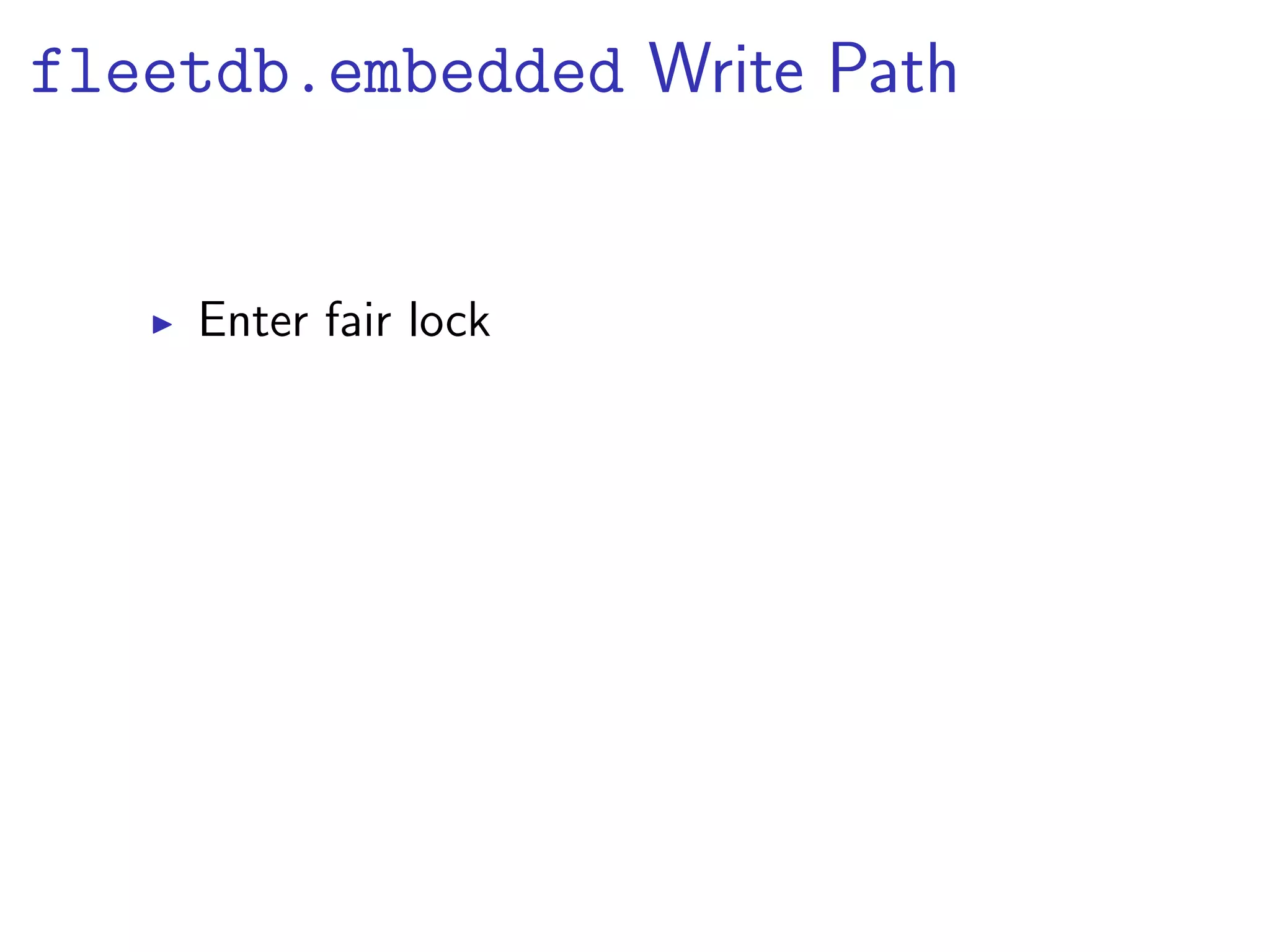

54. fleetdb.embedded Write Path
Enter fair lock

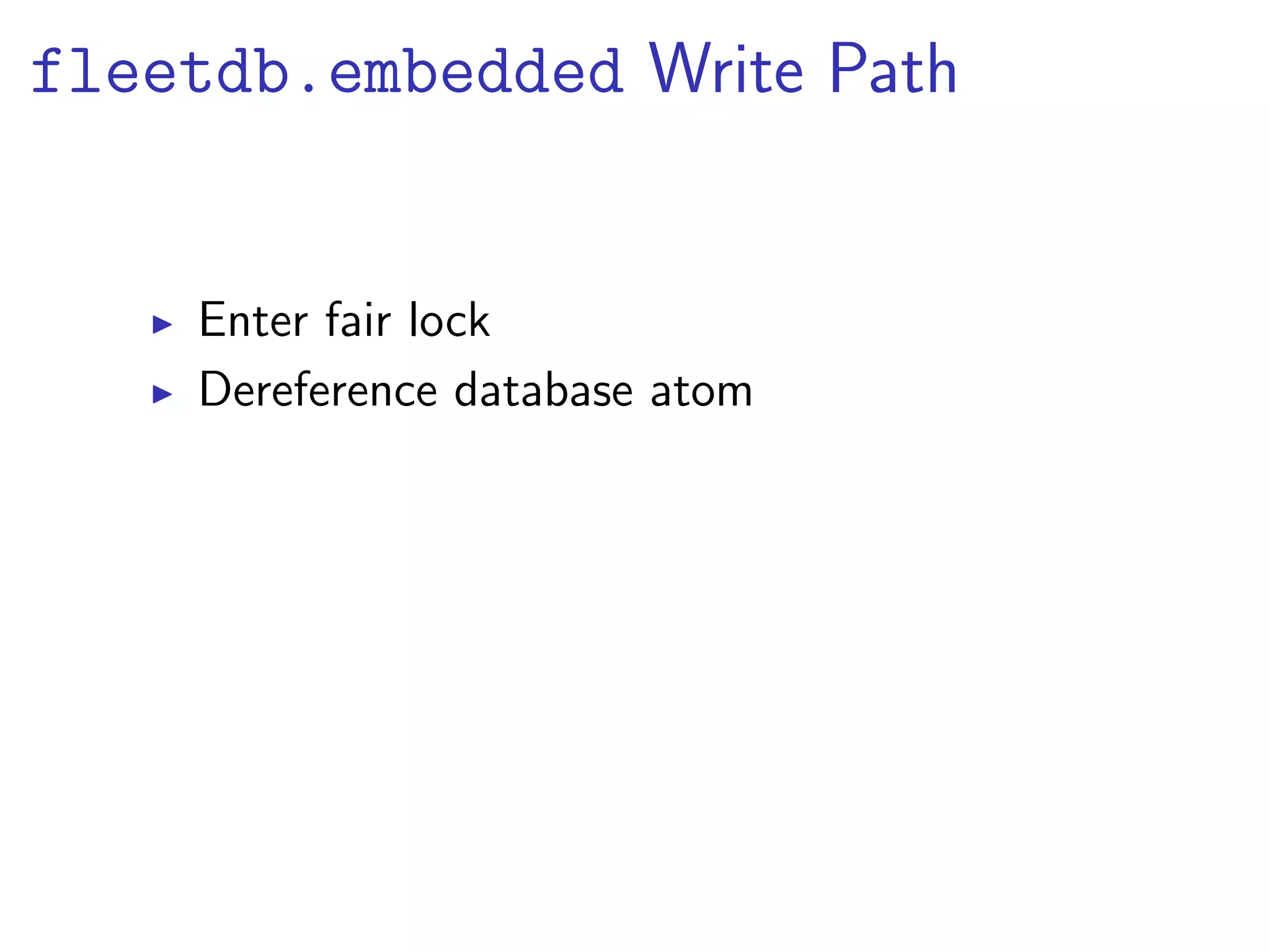

55. fleetdb.embedded Write Path
Enter fair lock
Dereference database atom

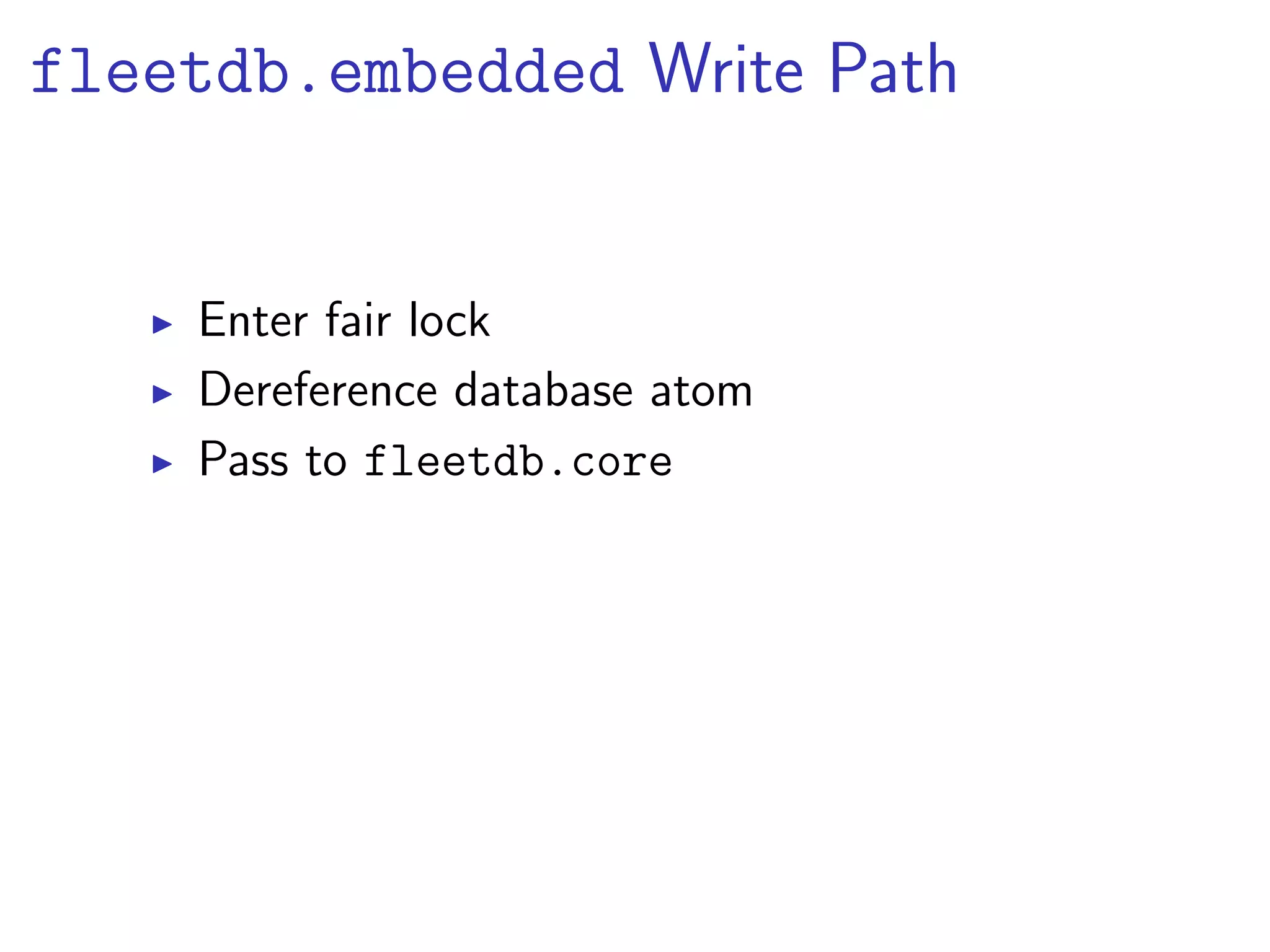

56. fleetdb.embedded Write Path
Enter fair lock
Dereference database atom
Pass to fleetdb.core

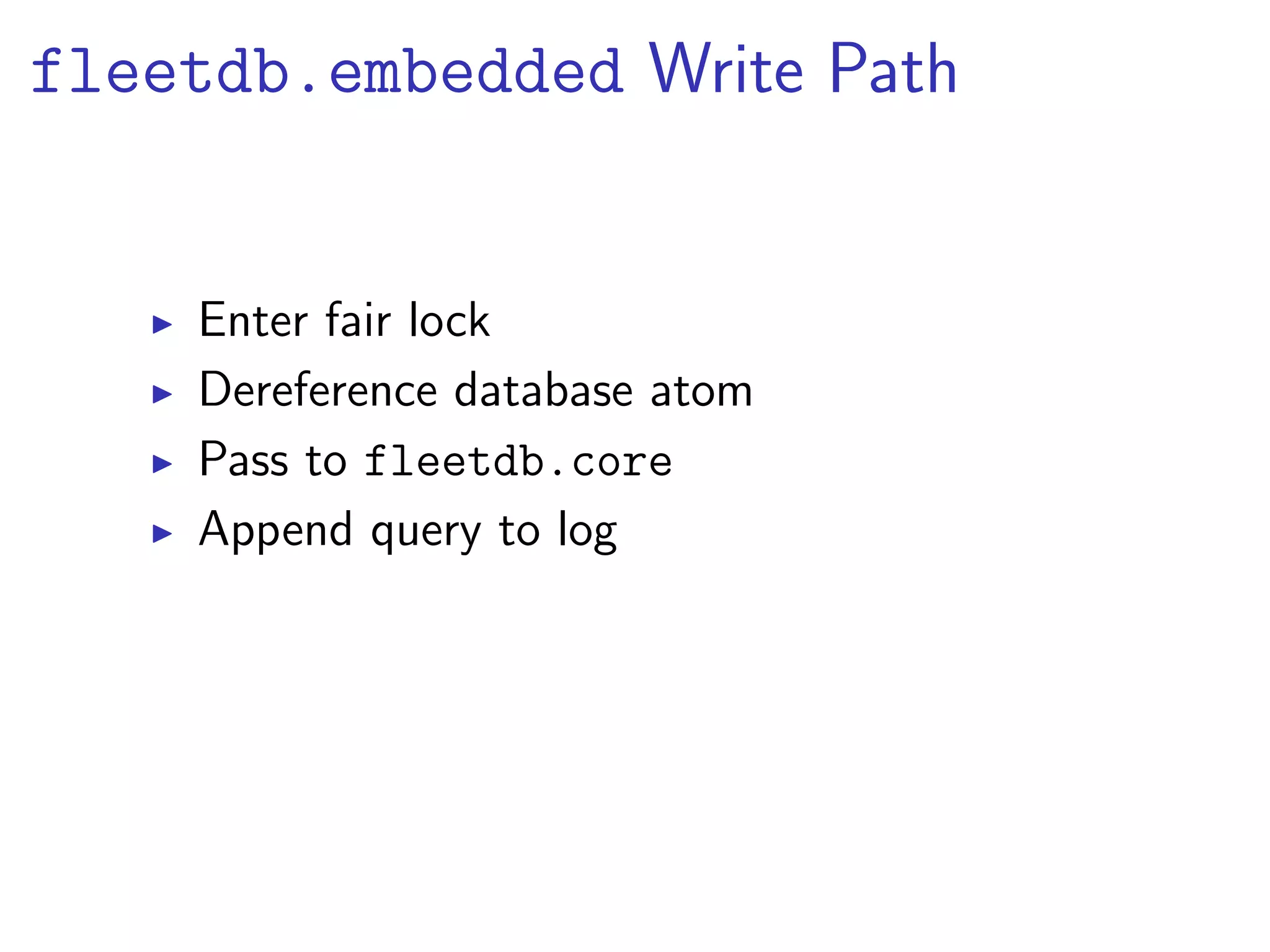

57. fleetdb.embedded Write Path
Enter fair lock
Dereference database atom
Pass to fleetdb.core
Append query to log

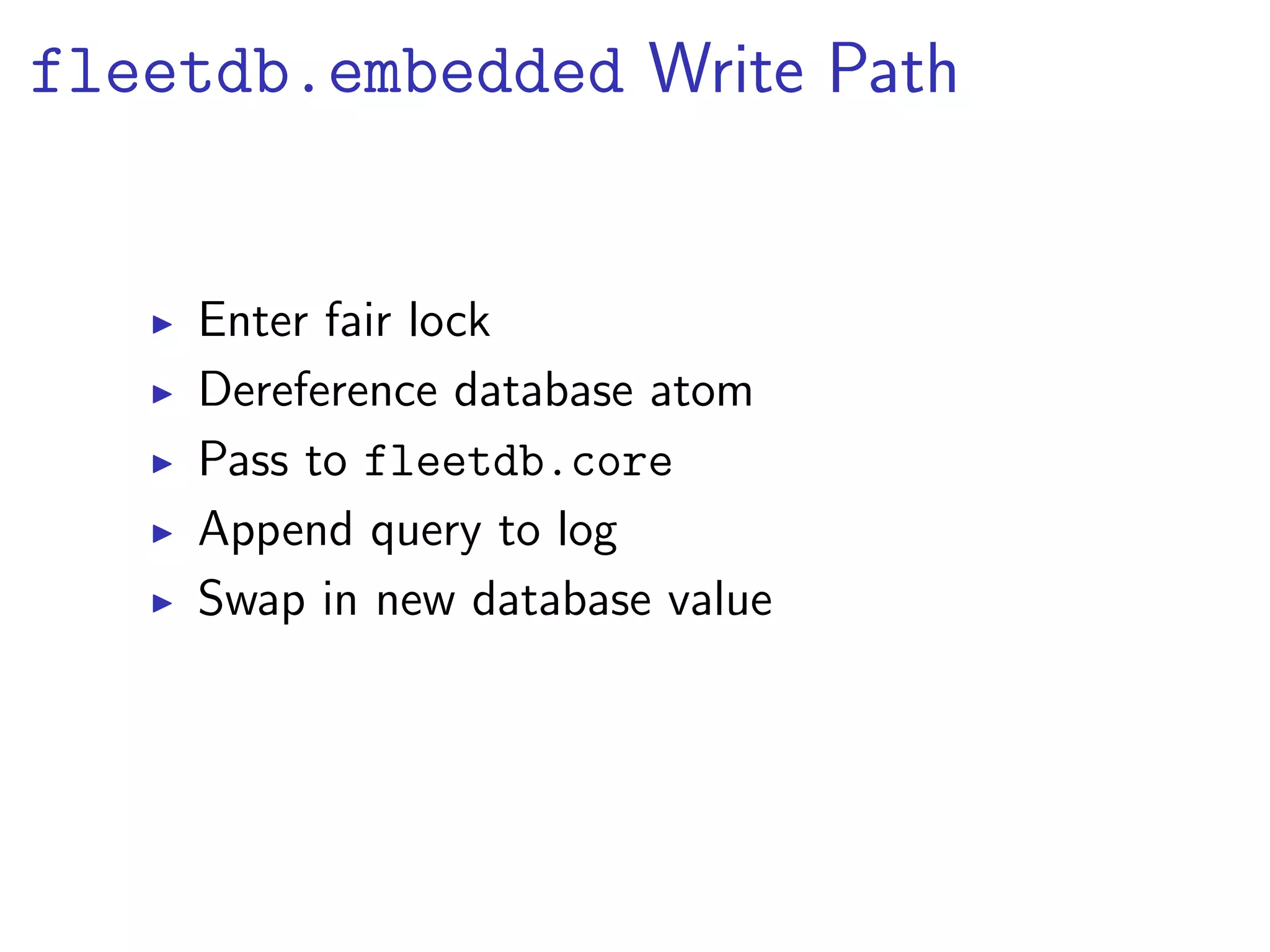

58. fleetdb.embedded Write Path
Enter fair lock
Dereference database atom
Pass to fleetdb.core
Append query to log
Swap in new database value

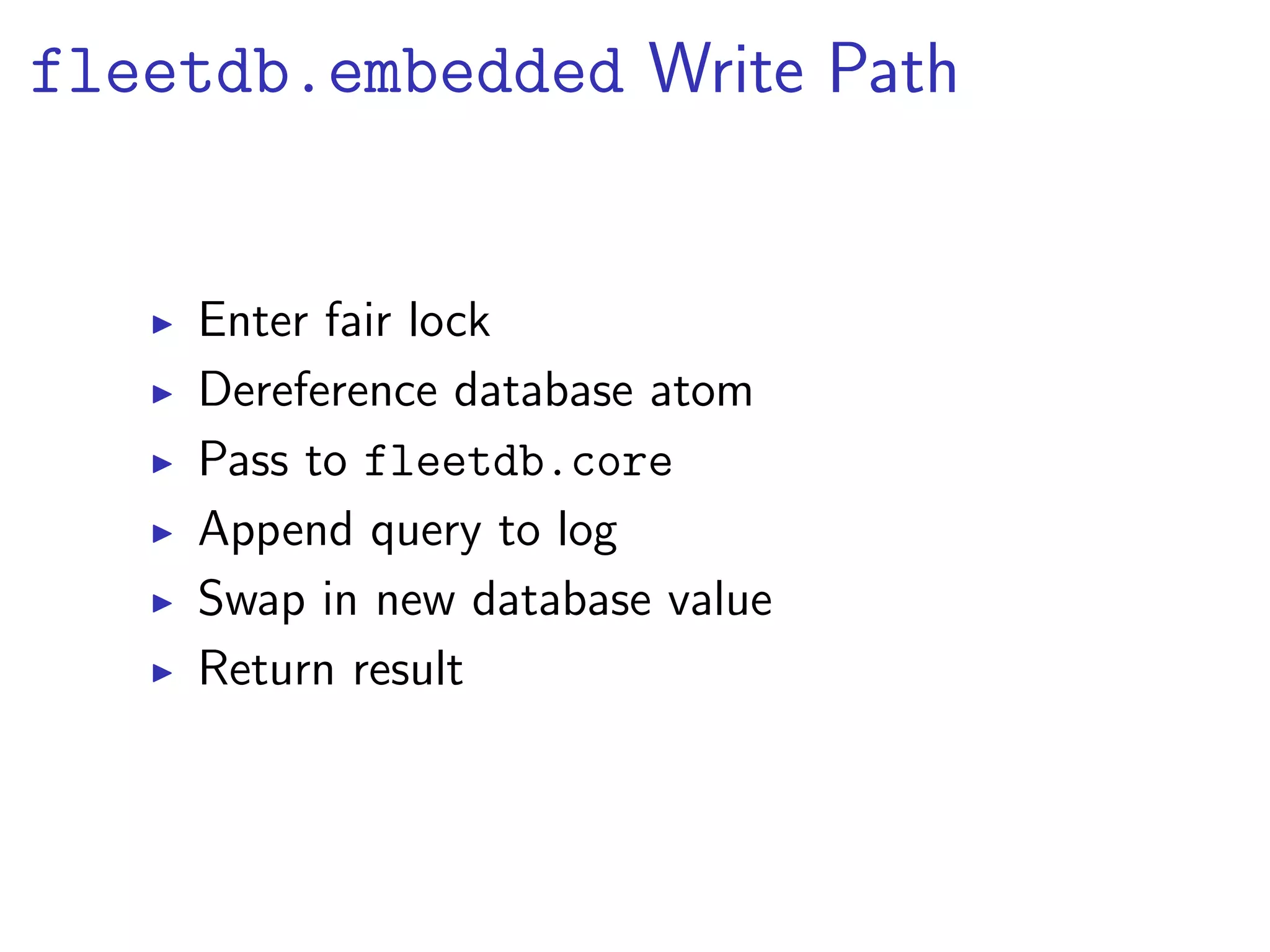

59. fleetdb.embedded Write Path
Enter fair lock
Dereference database atom
Pass to fleetdb.core
Append query to log
Swap in new database value
Return result

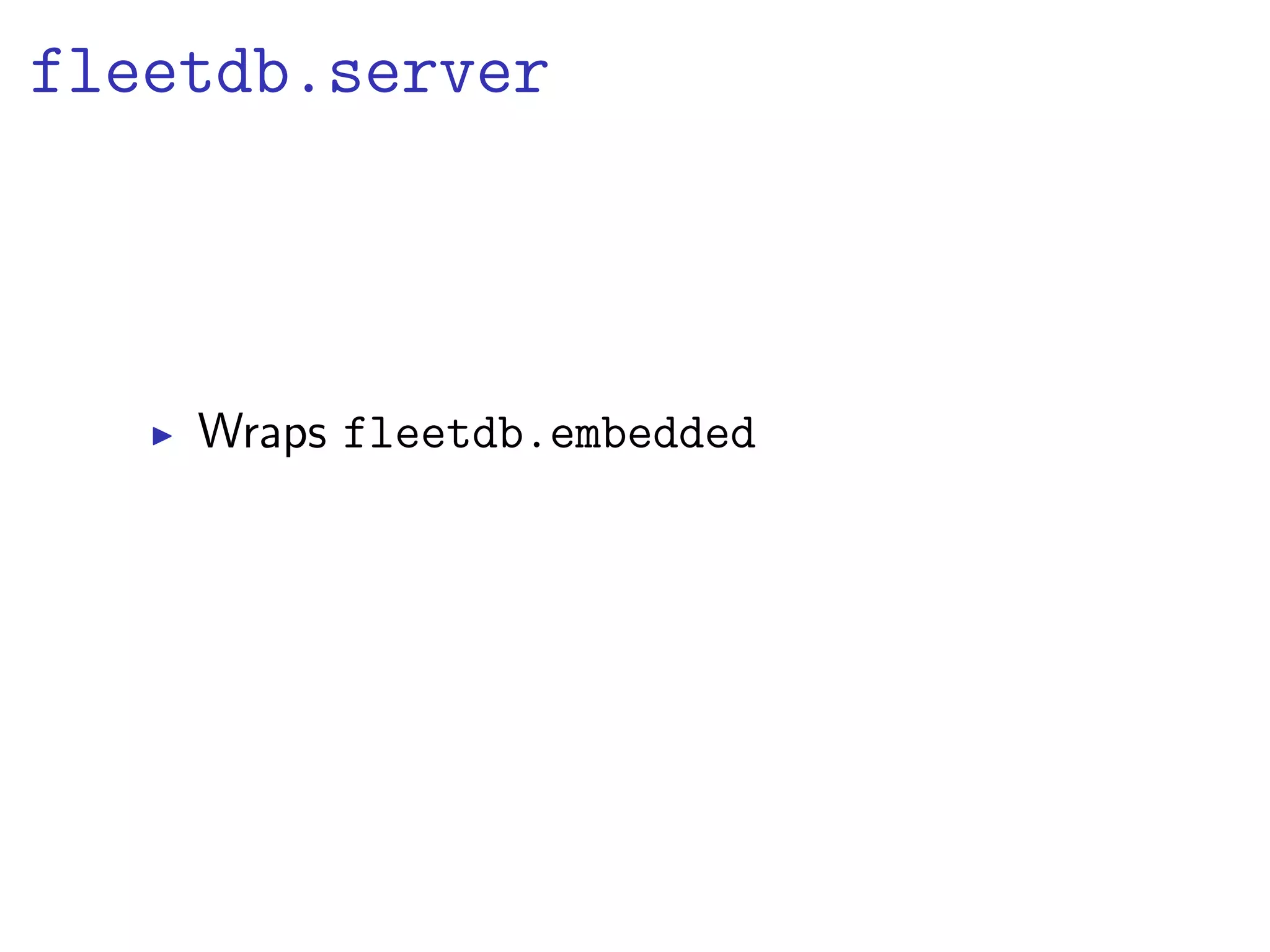

60. fleetdb.server
Wraps fleetdb.embedded

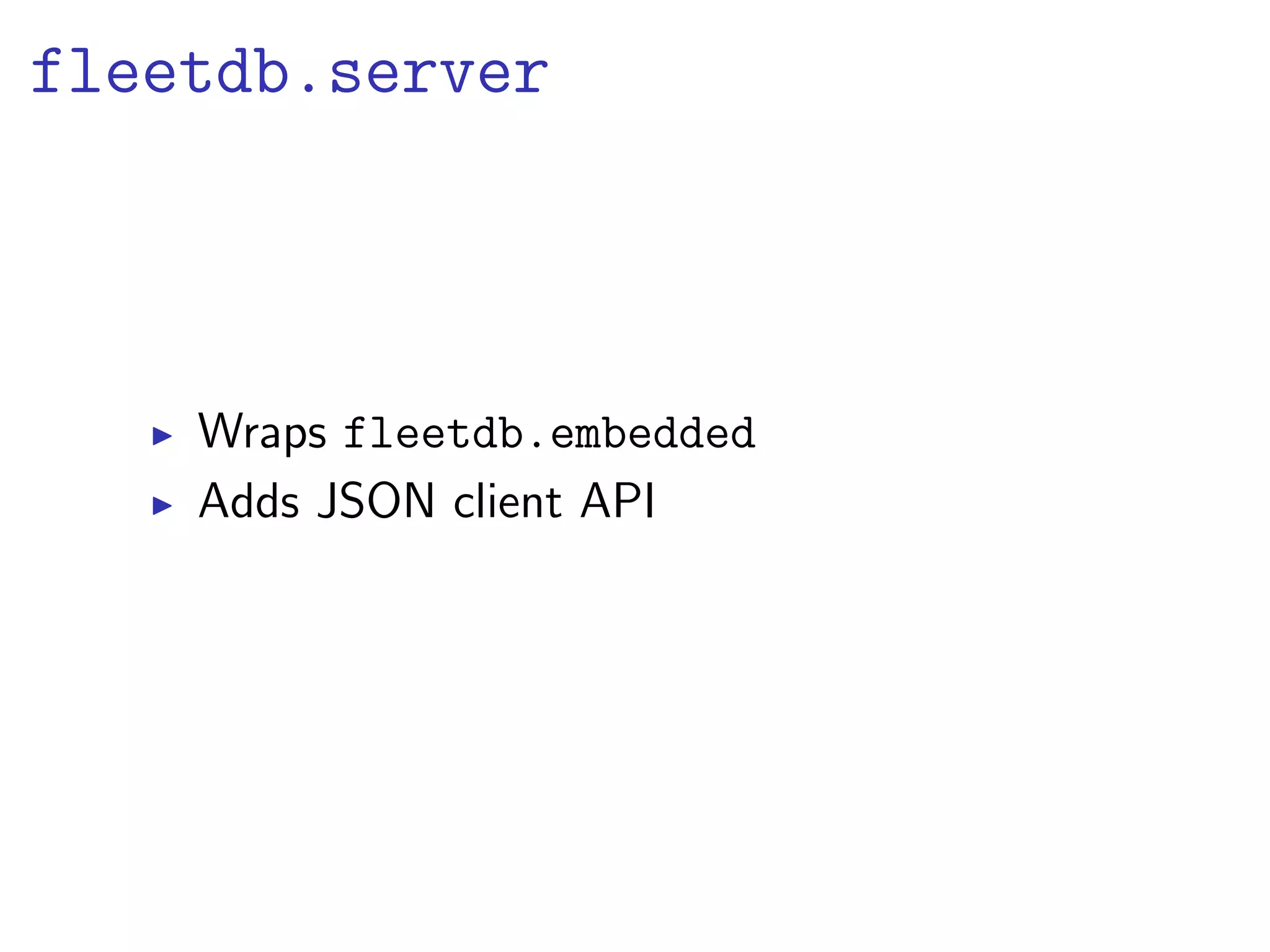

61. fleetdb.server
Wraps fleetdb.embedded
Adds JSON client API

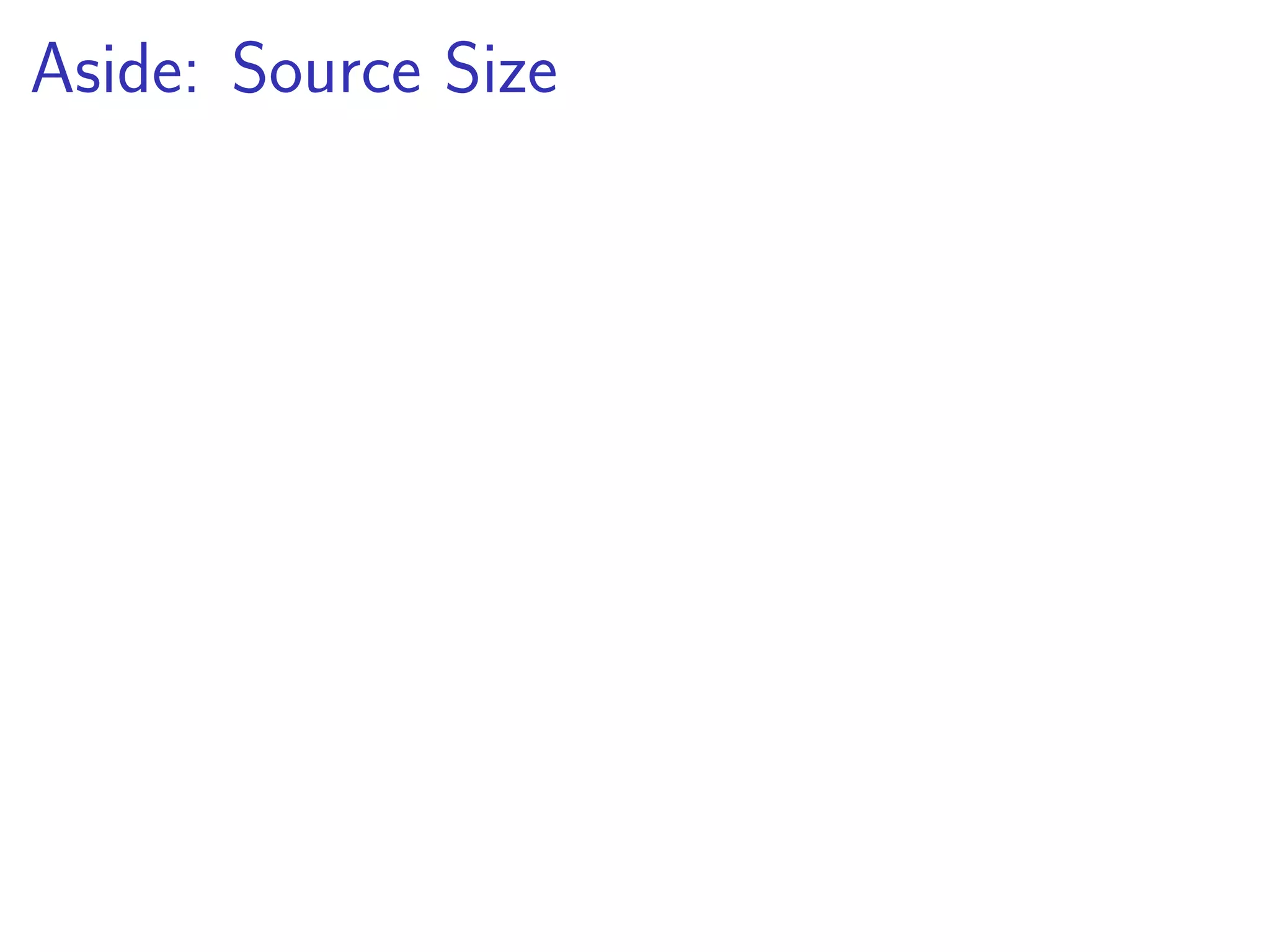

62. Aside: Source Size

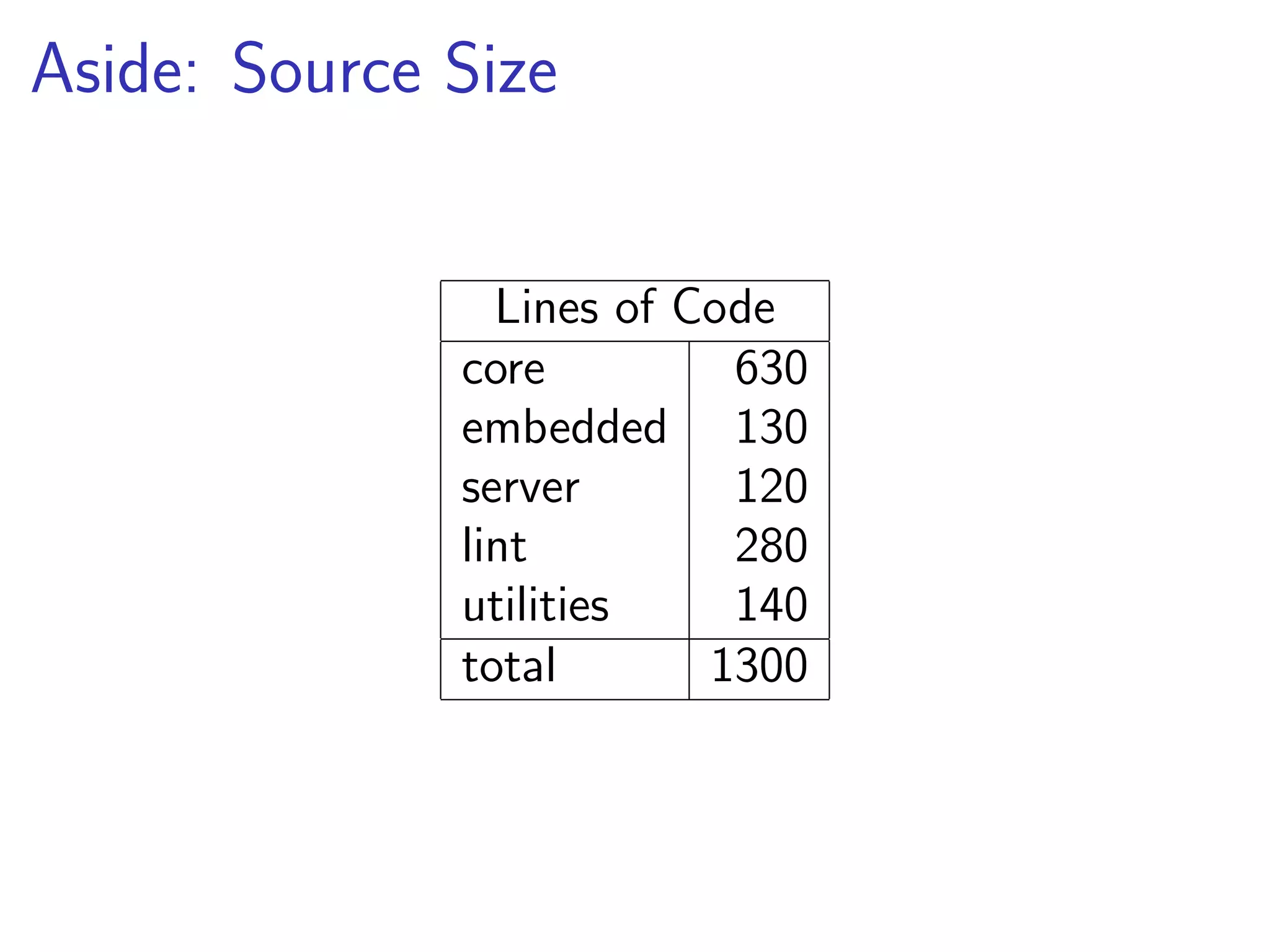

63. Aside: Source Size
Lines of Code
core 630
embedded 130
server 120
lint 280
utilities 140
total 1300

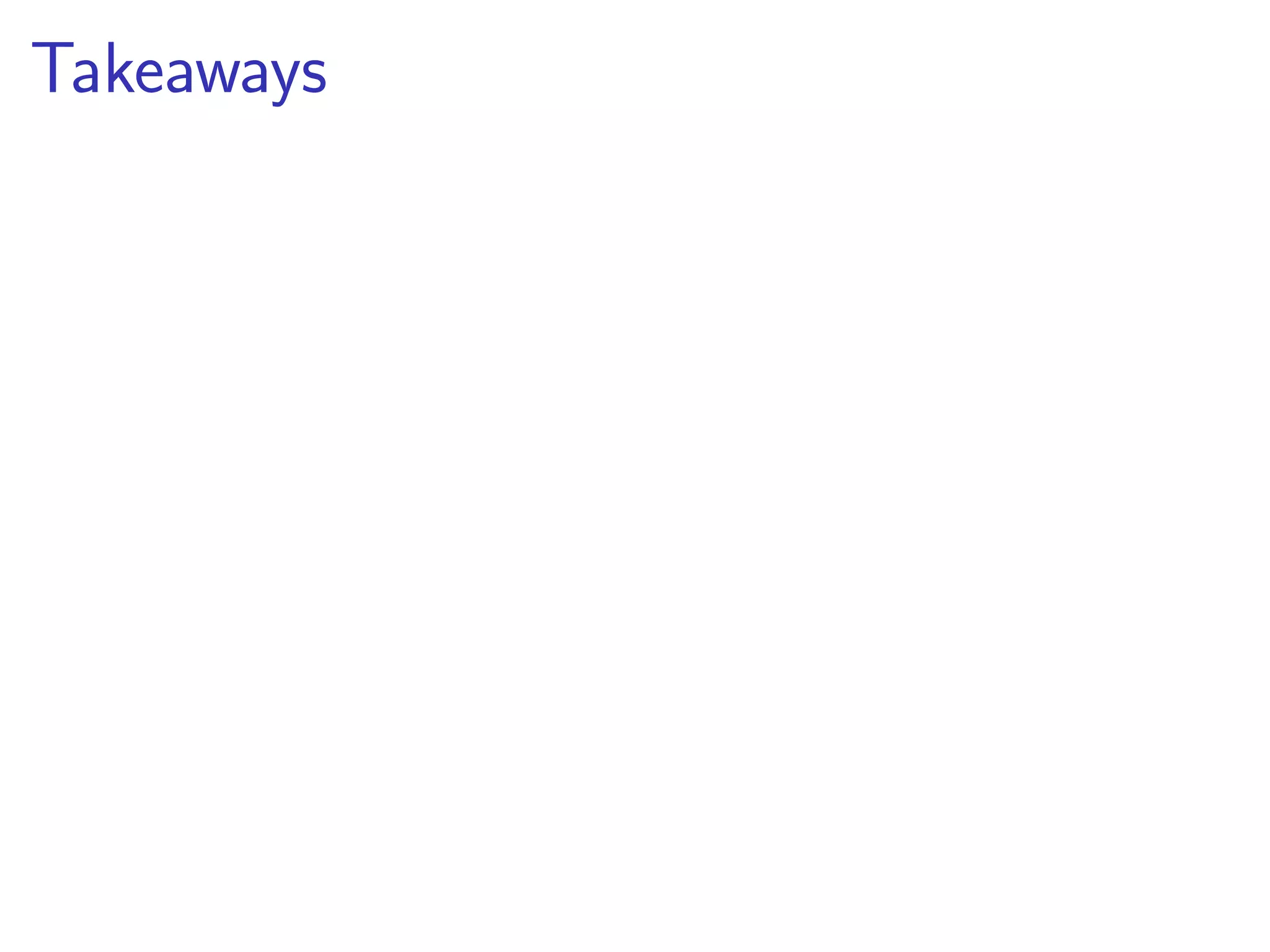

64. Takeaways

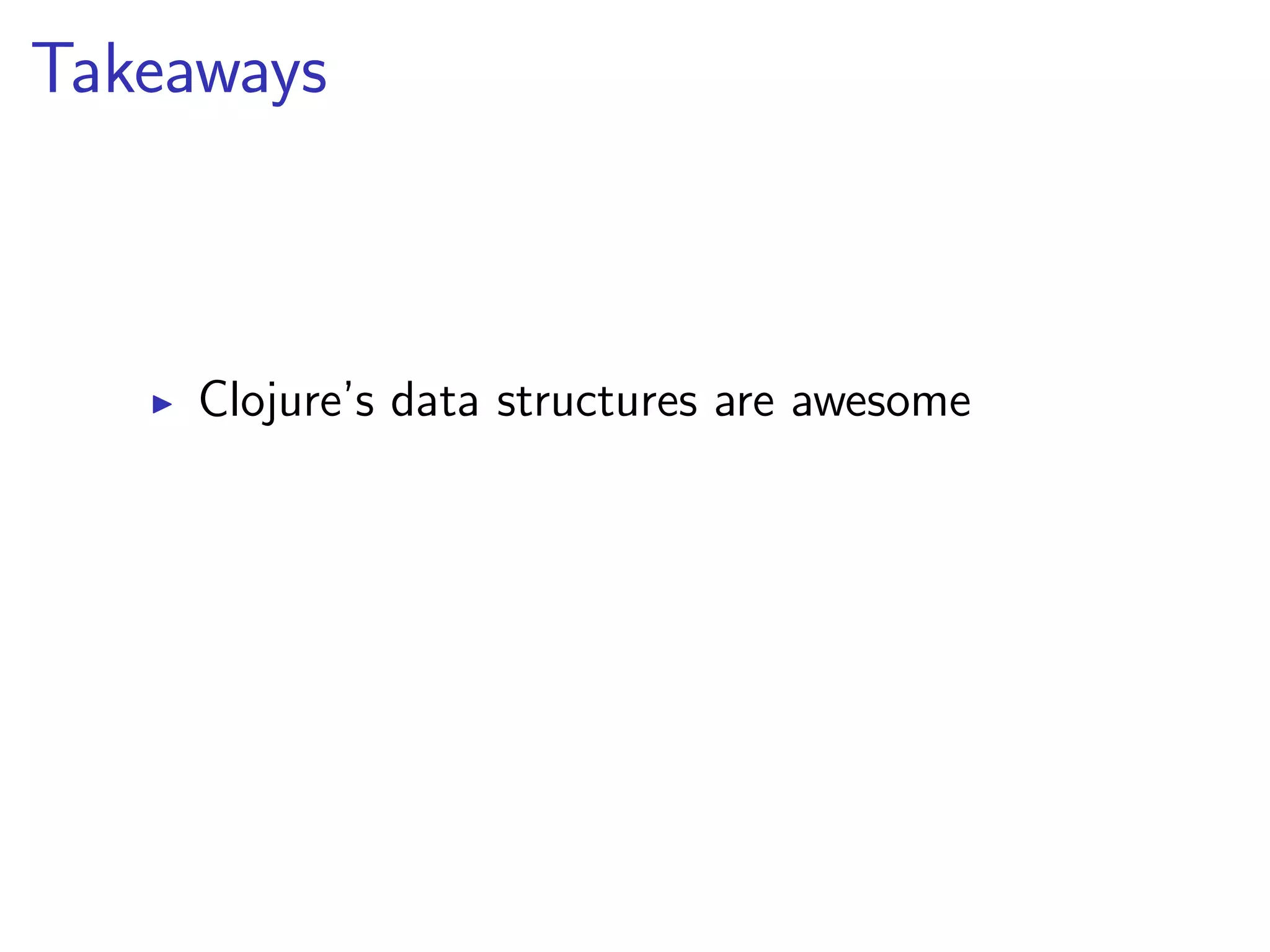

65. Takeaways
Clojure’s data structures are awesome

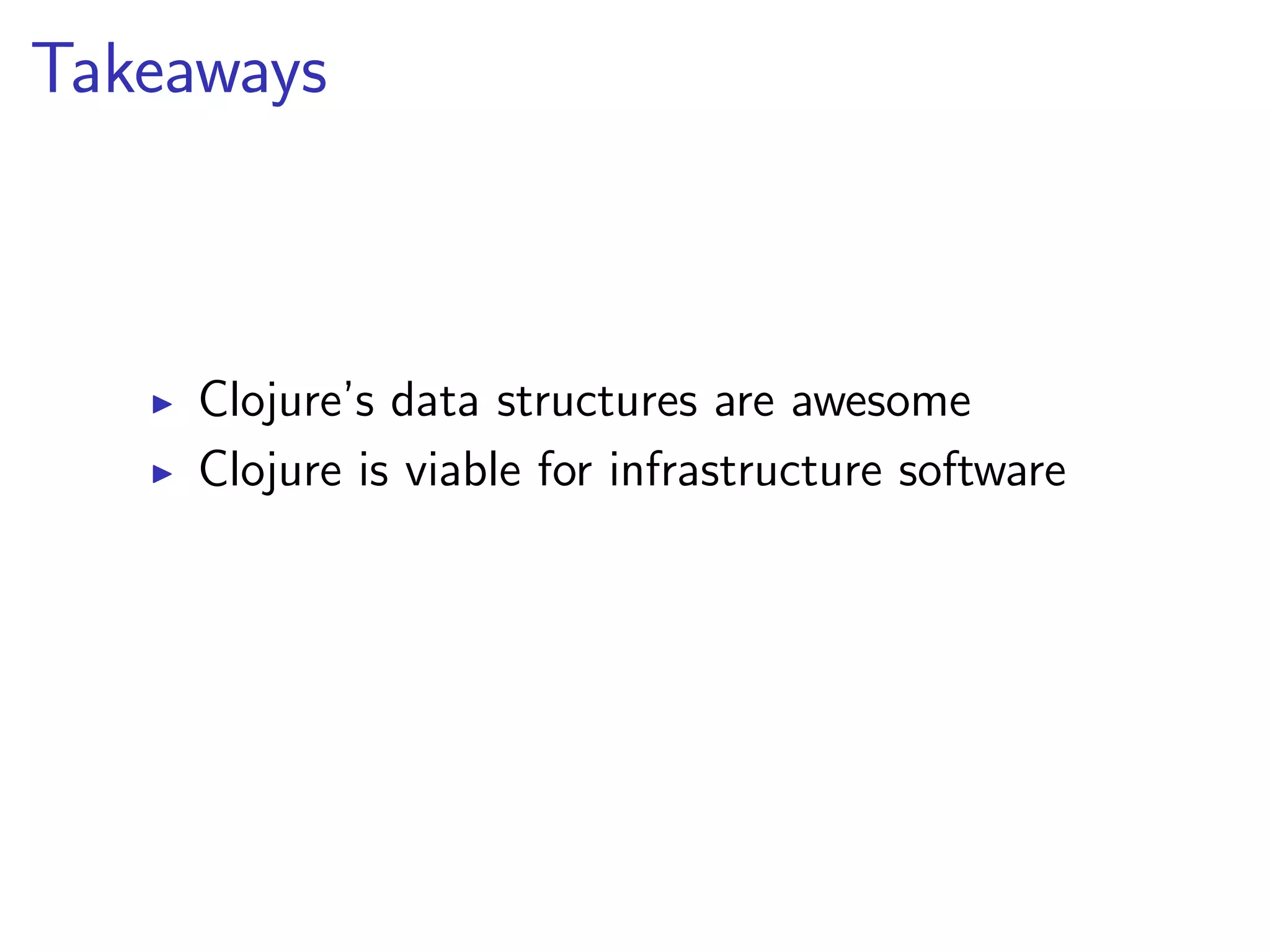

66. Takeaways
Clojure’s data structures are awesome
Clojure is viable for infrastructure software

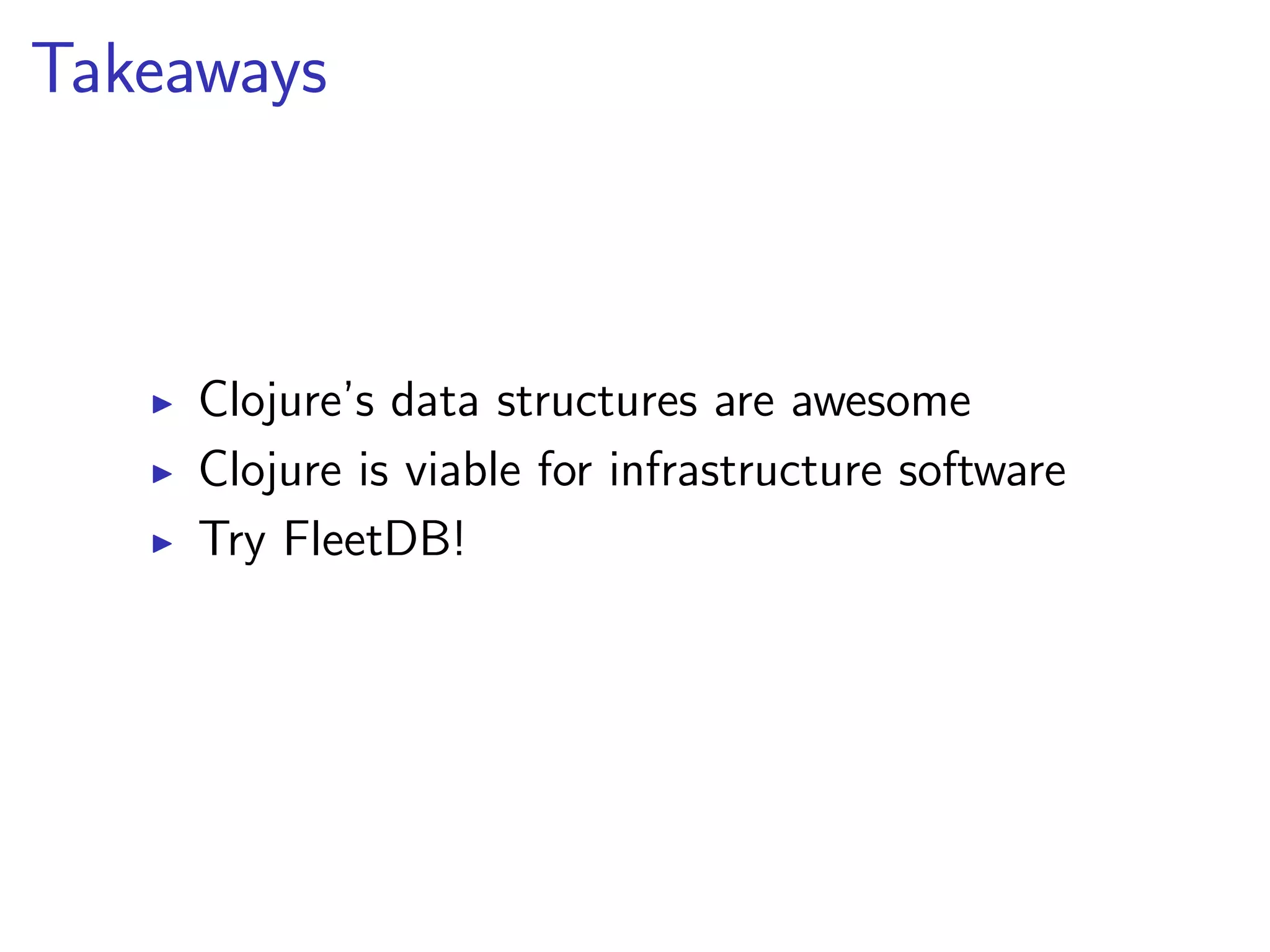

67. Takeaways
Clojure’s data structures are awesome
Clojure is viable for infrastructure software
Try FleetDB!

68. Thanks for listening!
Questions?

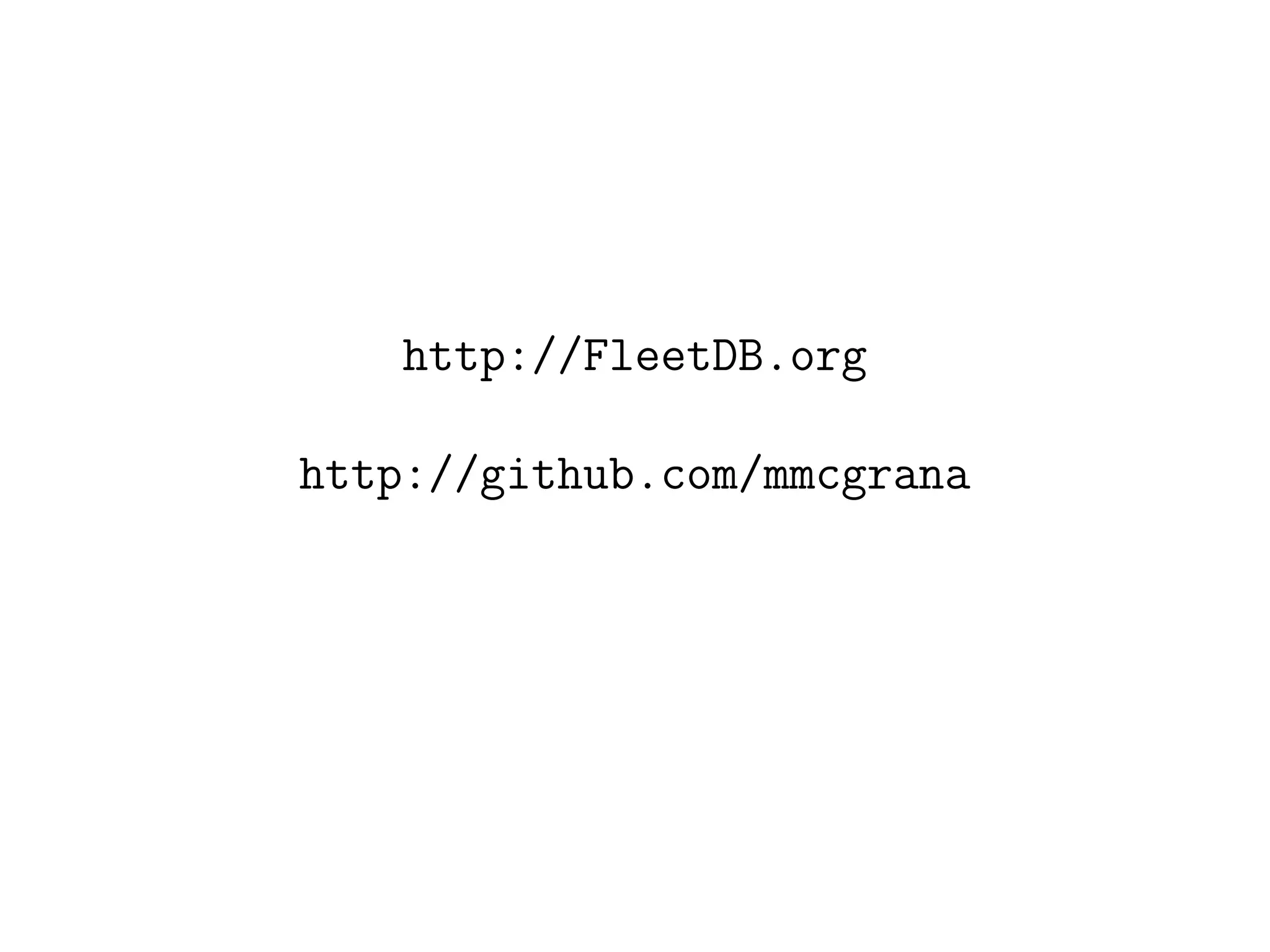

69. http://FleetDB.org
http://github.com/mmcgrana
