This document provides details of experiments and required equipment for the Department of Electrical and Electronics Engineering at B.N.M. Institute of Technology. It lists 9 experiments, the dimensions and type of circuit boards needed, and quantity of boards required for each experiment. A total of 34 circuit boards of various types and dimensions are required to complete the listed experiments.

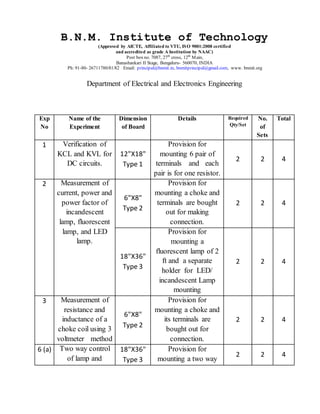

1. B.N.M. Institute of Technology
(Approved by AICTE, Affiliated to VTU, ISO 9001:2008 certified
and accredited as grade A Institution by NAAC)
Post box no. 7087, 27th
cross, 12th
Main,
Banashankari II Stage, Bengaluru- 560070, INDIA
Ph: 91-80- 26711780/81/82 Email: principal@bnmit.in, bnmitprincipal@gmail.com, www. bnmit.org
Department of Electrical and Electronics Engineering
Exp
No
Name of the
Experiment
Dimension
of Board
Details Required
Qty/Set
No.
of
Sets
Total
1 Verification of
KCL and KVL for
DC circuits.
12"X18"
Type 1
Provision for
mounting 6 pair of
terminals and each
pair is for one resistor.
2 2 4
2 Measurement of
current, power and
power factor of
incandescent
lamp, fluorescent
lamp, and LED
lamp.
6"X8"
Type 2
Provision for
mounting a choke and
terminals are bought
out for making
connection.
2 2 4
18"X36"
Type 3
Provision for
mounting a
fluorescent lamp of 2
ft and a separate
holder for LED/
incandescent Lamp
mounting
2 2 4
3 Measurement of
resistance and
inductance of a
choke coil using 3
voltmeter method
6"X8"
Type 2
Provision for
mounting a choke and
its terminals are
bought out for
connection.
2 2 4
6 (a) Two way control
of lamp and
18"X36"
Type 3
Provision for
mounting a two way
2 2 4

2. formation of truth
table.
switch with its
terminals bought out
for connection.
And a provision for
mounting a
incandescent lamp ,
Single Pole MCB
(b)
Three way control
of lamp and
formation of truth
table.
18"X36"
Type 3
Provision for
mounting a three way
switch with its
terminals bought out
for connection and a
provision for
mounting a
incandescent lamp
and single pole MCB
2 2 4
8 Measurement of
energy using
single phase
energy meter
15"X18"
Type 4
Provision for
mounting a single
phase energy meter
and provide terminals
for connection. (4No
2 for supply side and 2
for load side)
1 2 2
9(a) Demonstration of
fuse by creating a
fault 6"X8"
Type 2
Provision for
mounting a single
pole MCB, fuse and
for making external
connection terminals
are bought out.
2 2 4
9(b) Demonstration of
MCB by creating
a fault
6"X8"
Type 2
Provision for
mounting a two pole
MCB
2 2 4

3. Total Boards Required
Sl
No
Dimension of Board Total
1 Type 1 12"X18" X0.16" 4
2 Type 2 6"X8"X0.16" 16
3 Type 3 18"X36"X0.16" 12
4 Type 4 15"X18"X0.16" 2
Type 1.
Type 2.
6"
8"
12"
18"

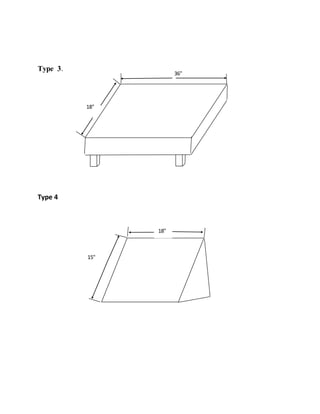

4. Type 3.
Type 4
18"
36"
15"
18"
