Firefox OS and the Internet of Things - NDC London 2014
This document discusses the potential for using Firefox OS and the JanOS operating system to power Internet of Things devices by accessing device sensors and features through HTML, CSS, and JavaScript. It provides examples of projects like a home security camera, Bluetooth doorbell, and tracking device that are made possible by the open web technologies of Firefox OS and JanOS. The document encourages developers to get their own rootable Firefox OS phones and create their own Internet of Things scripts and projects.
More Related Content
Similar to Firefox OS and the Internet of Things - NDC London 2014
Firefox OS and the Internet of Things - NDC London 2014
- 1. Firefox OS NDC 3 December 2014 …and the Internet of Things
- 2.
- 3.
- 4. Evangelist Firefox OS…Contributor @janjongboom
- 5. Evangelist Firefox OS…Contributor User @janjongboom

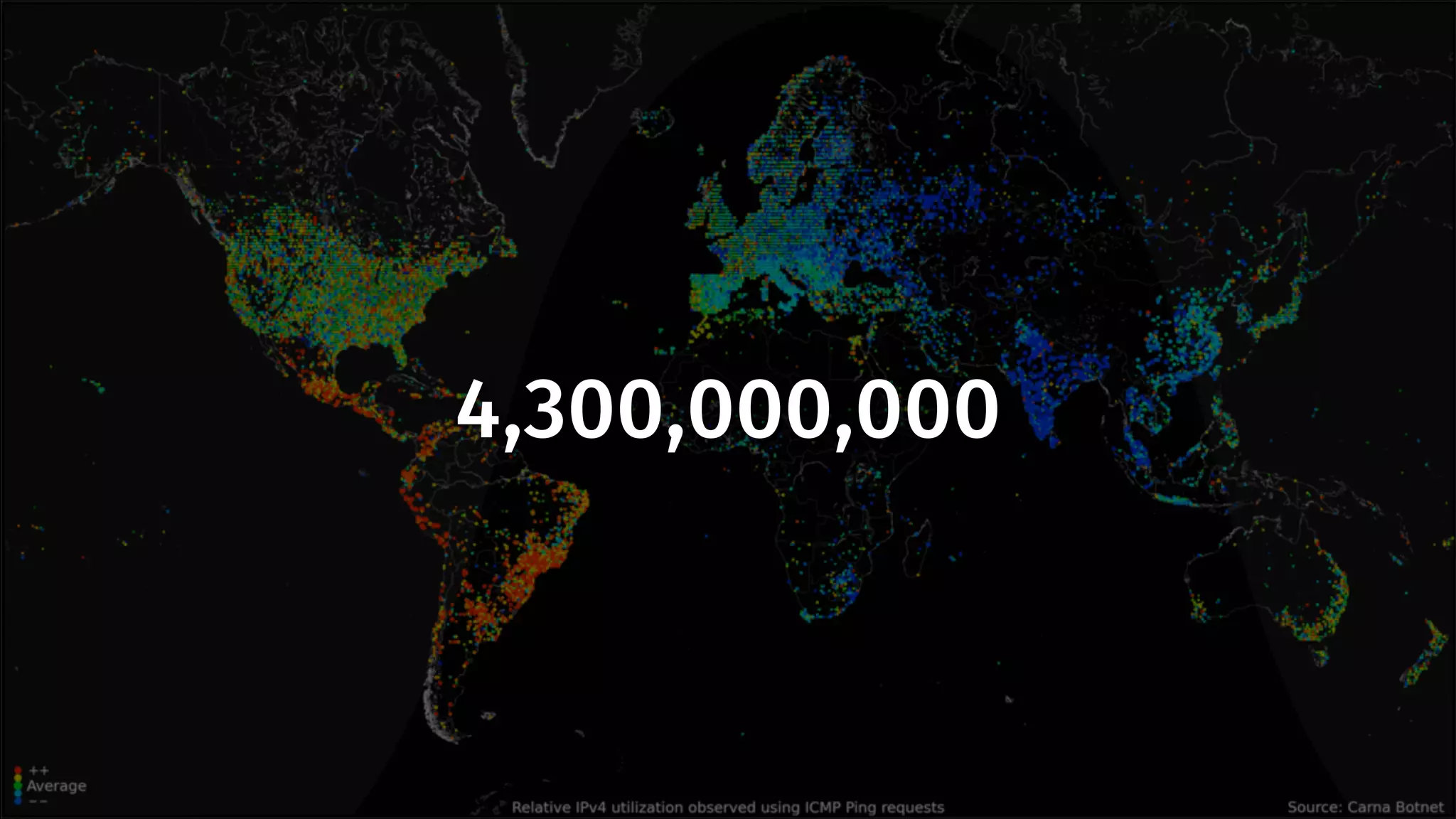

- 9.
- 10. Network 2013: 3Grollout in Bangladesh
- 11.
- 12. Handsets 12-14% smartphonepenetration
- 13. Handsets 12-14% smartphonepenetration
- 14. prices are dropping but not enough...

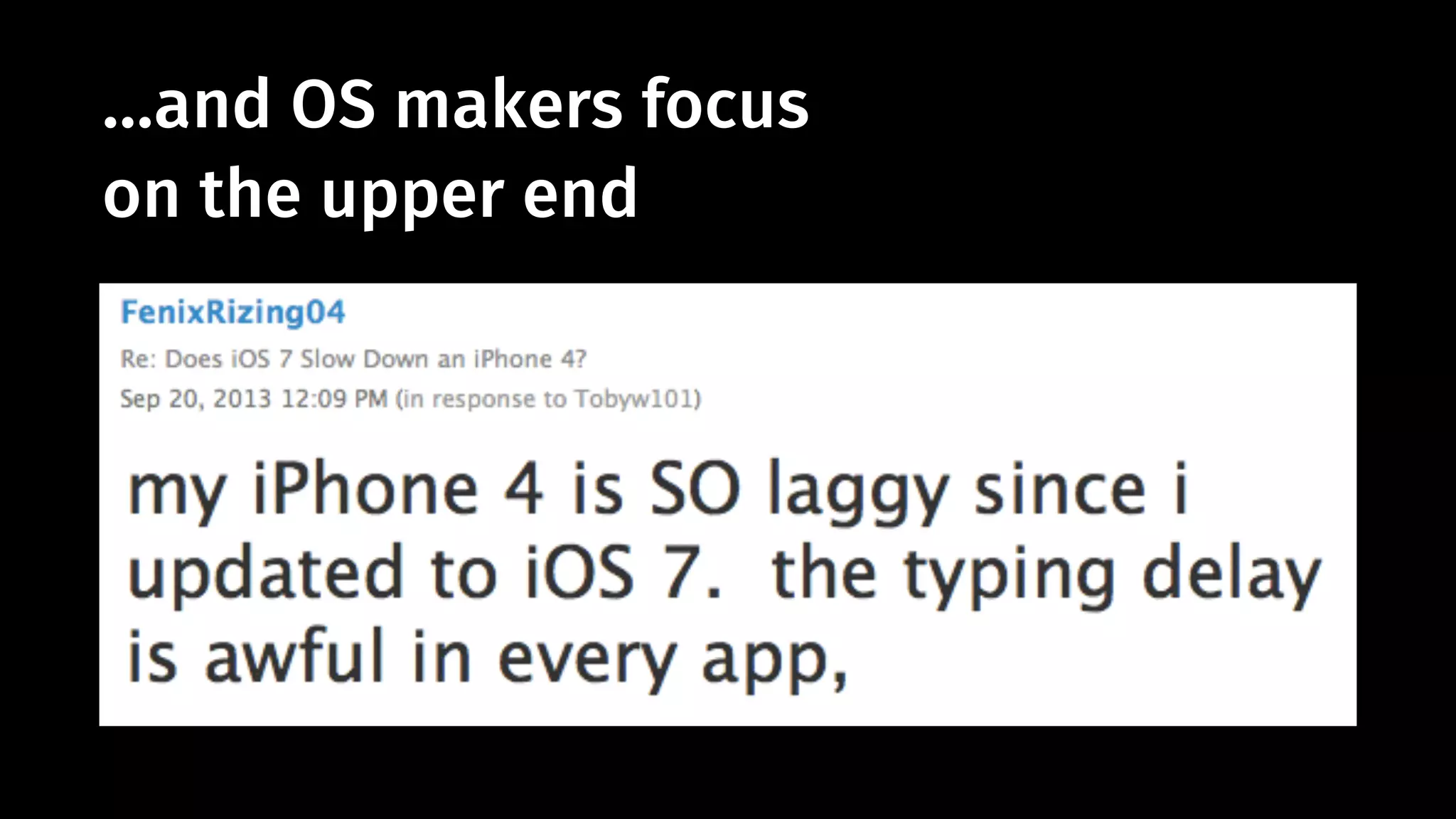

- 15. ...and OS makersfocus on the upper end
- 16. Firefox OS SmartphoneOS by Mozilla
- 17. “Awesome internet experienceat low-cost hardware”
- 18. Launched in 2013 26 countries
- 19. Unlike Android, iOS Putting the web first
- 20. Take the fullcontent of the Android App Store

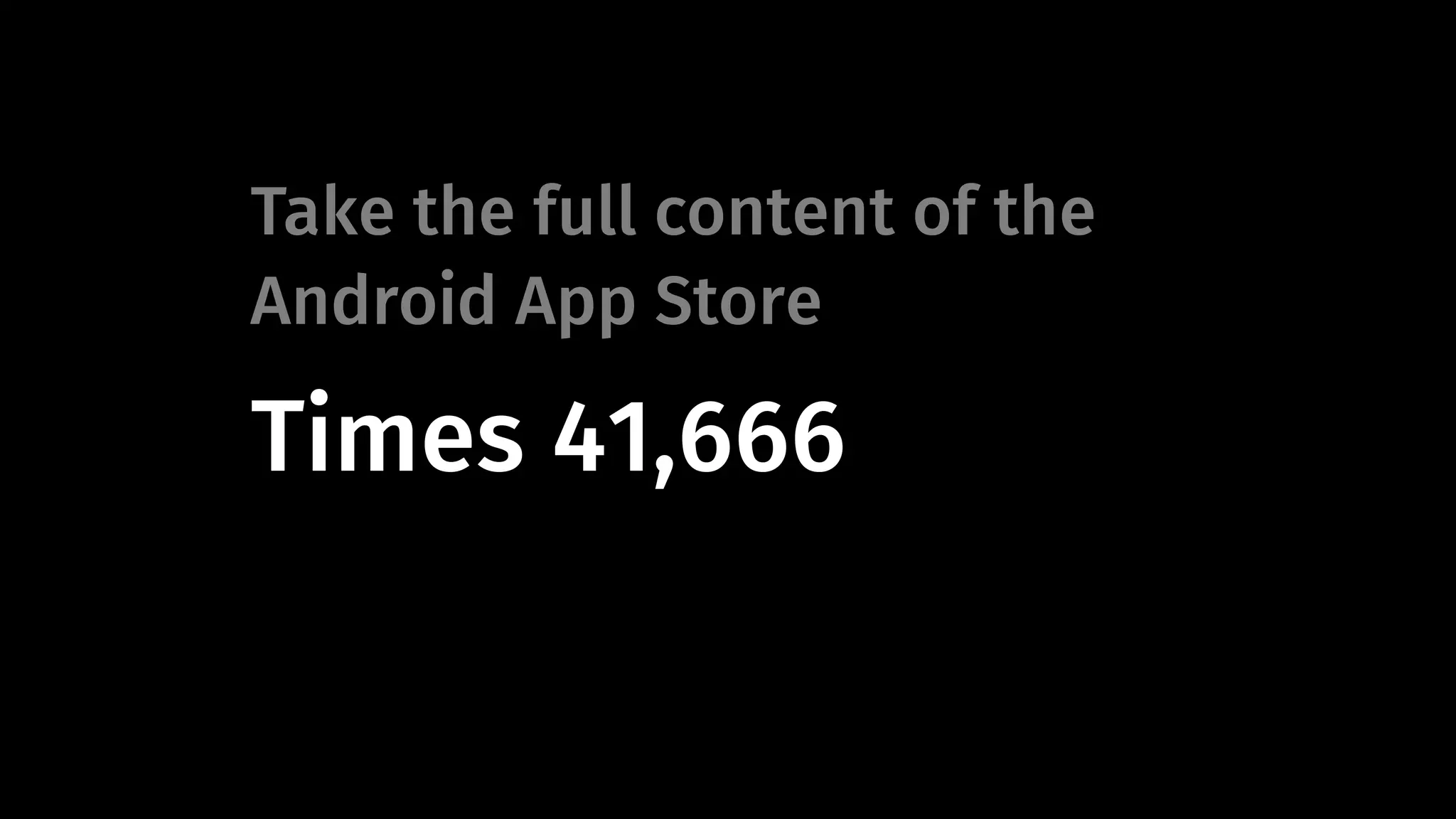

- 21. Take the fullcontent of the Android App Store Times 41,666

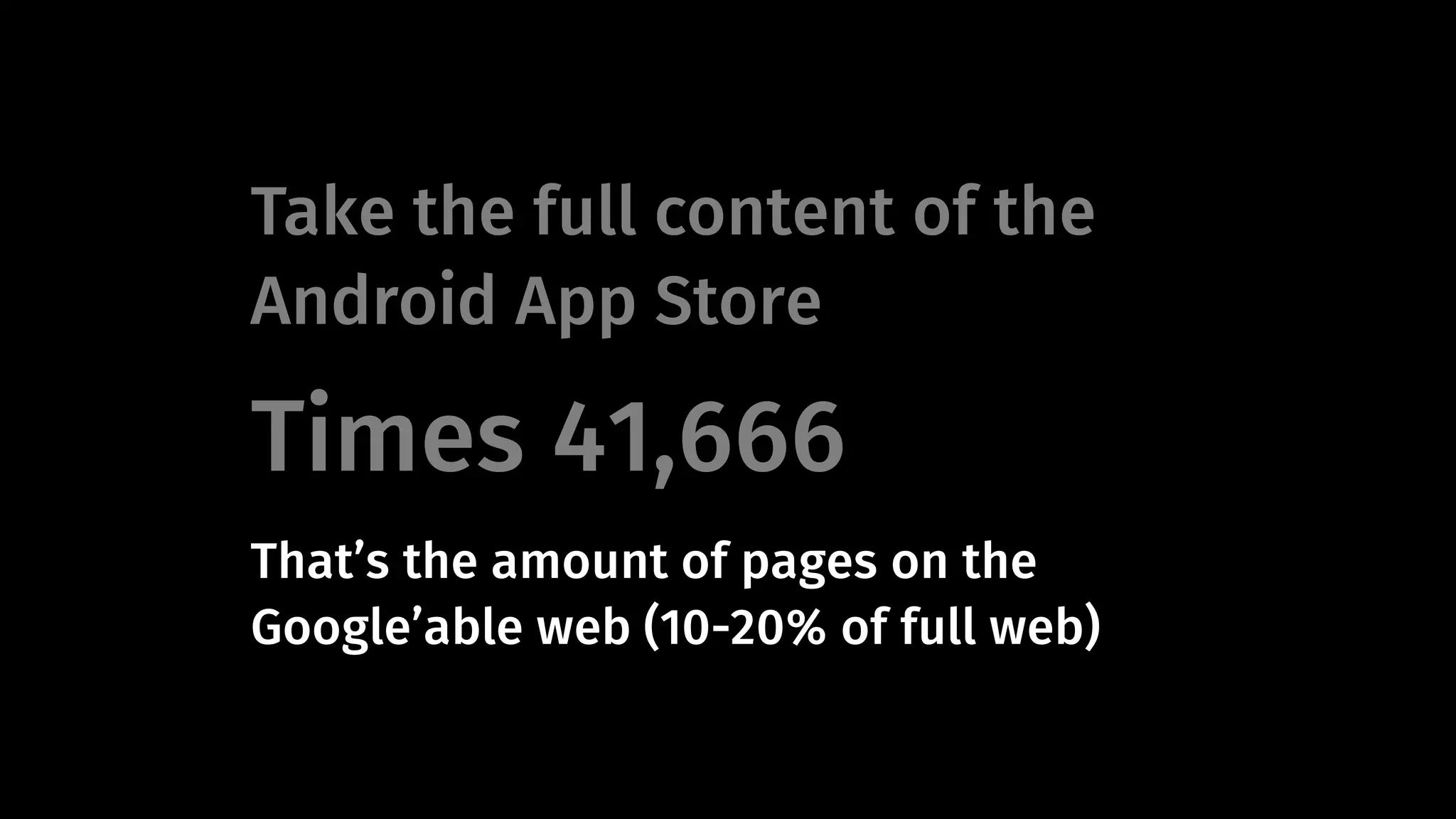

- 22. Take the fullcontent of the Android App Store Times 41,666 That’s the amount of pages on the Google’able web (10-20% of full web)
- 23. Web is superiorfor information And information develops a country
- 24. Goal of theproject Building a smartphone for the open web
- 25.
- 26.

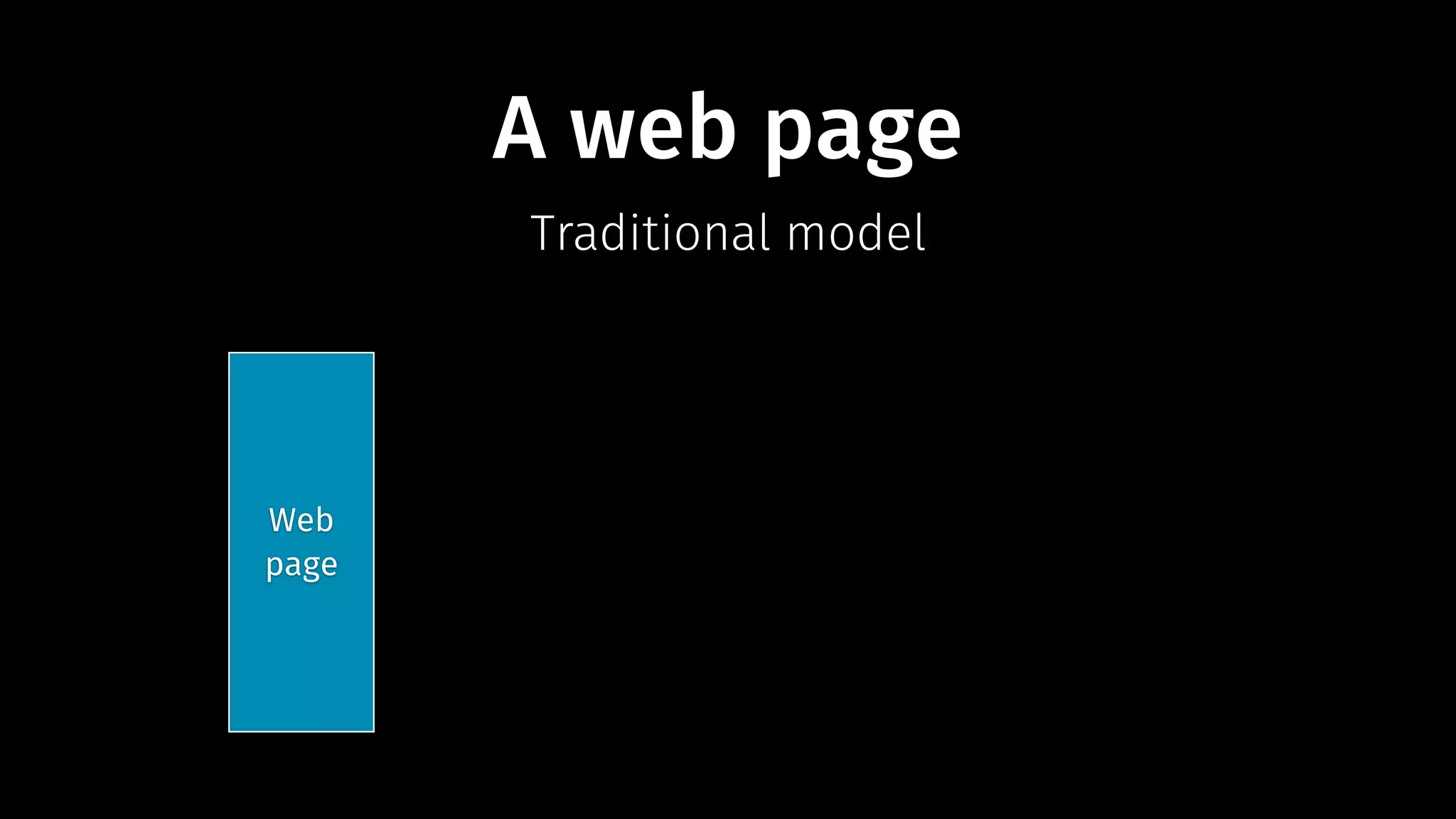

- 27. A web page Web page Traditional model

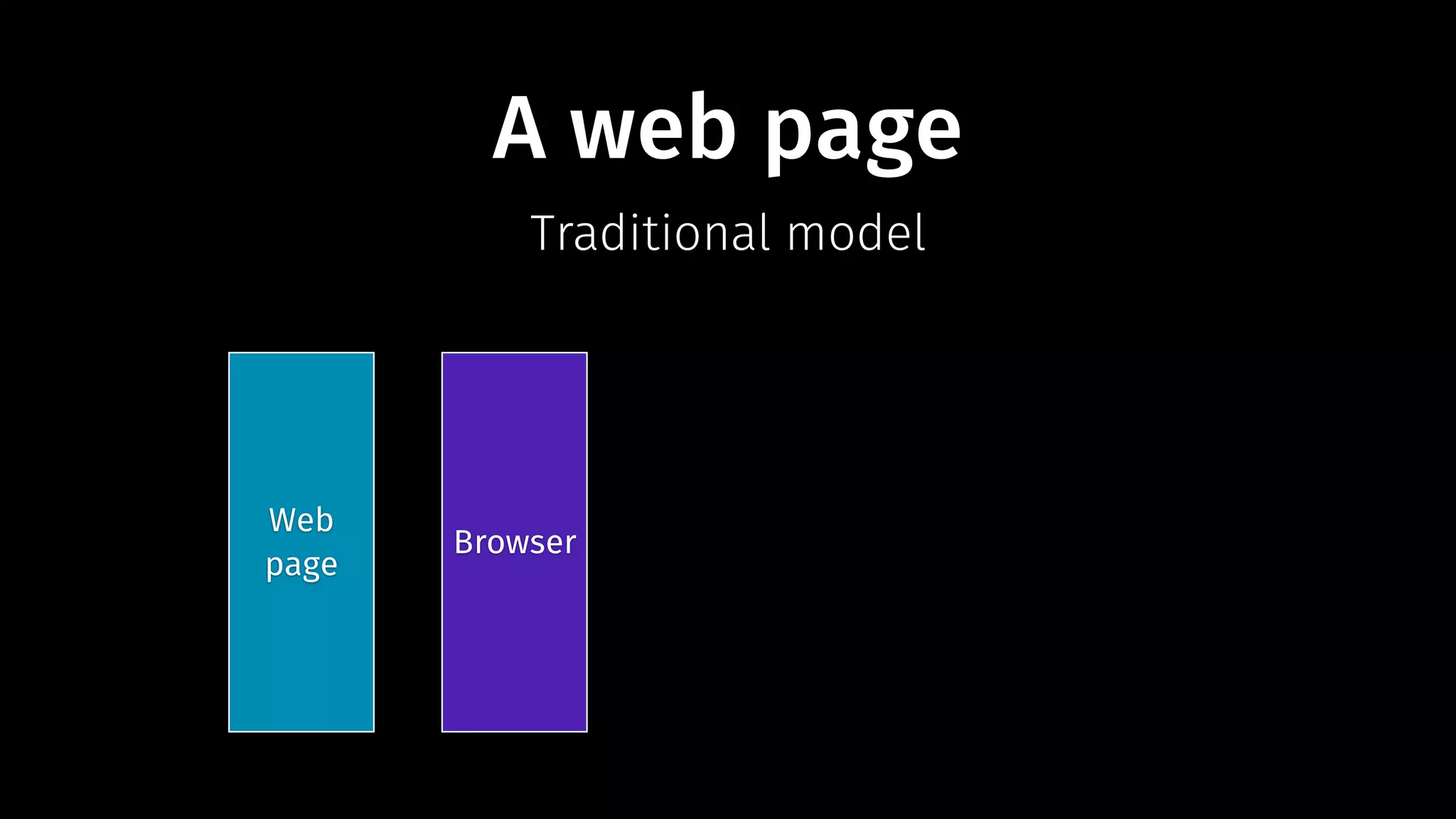

- 28. A web page Traditional model Web page Browser

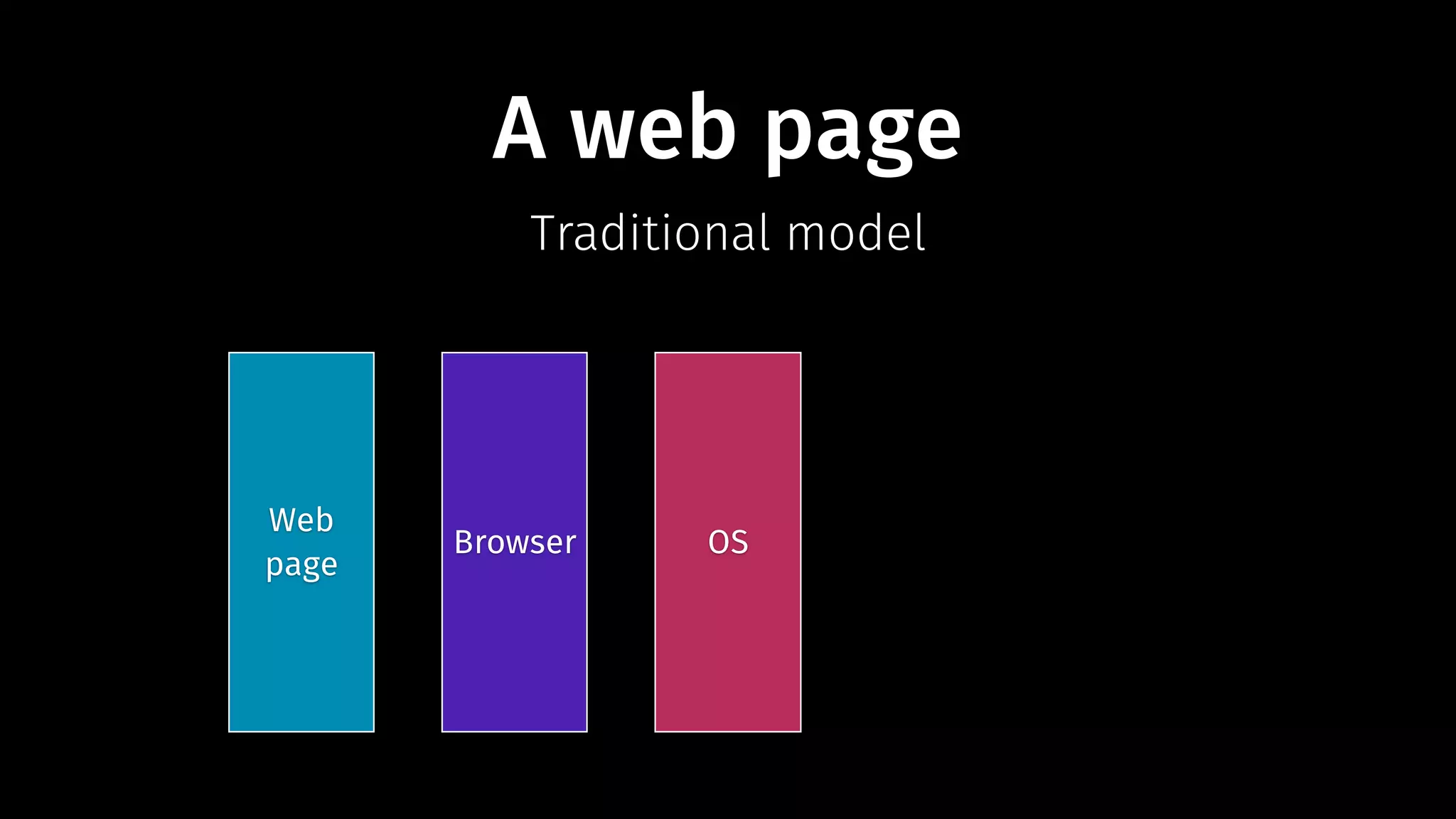

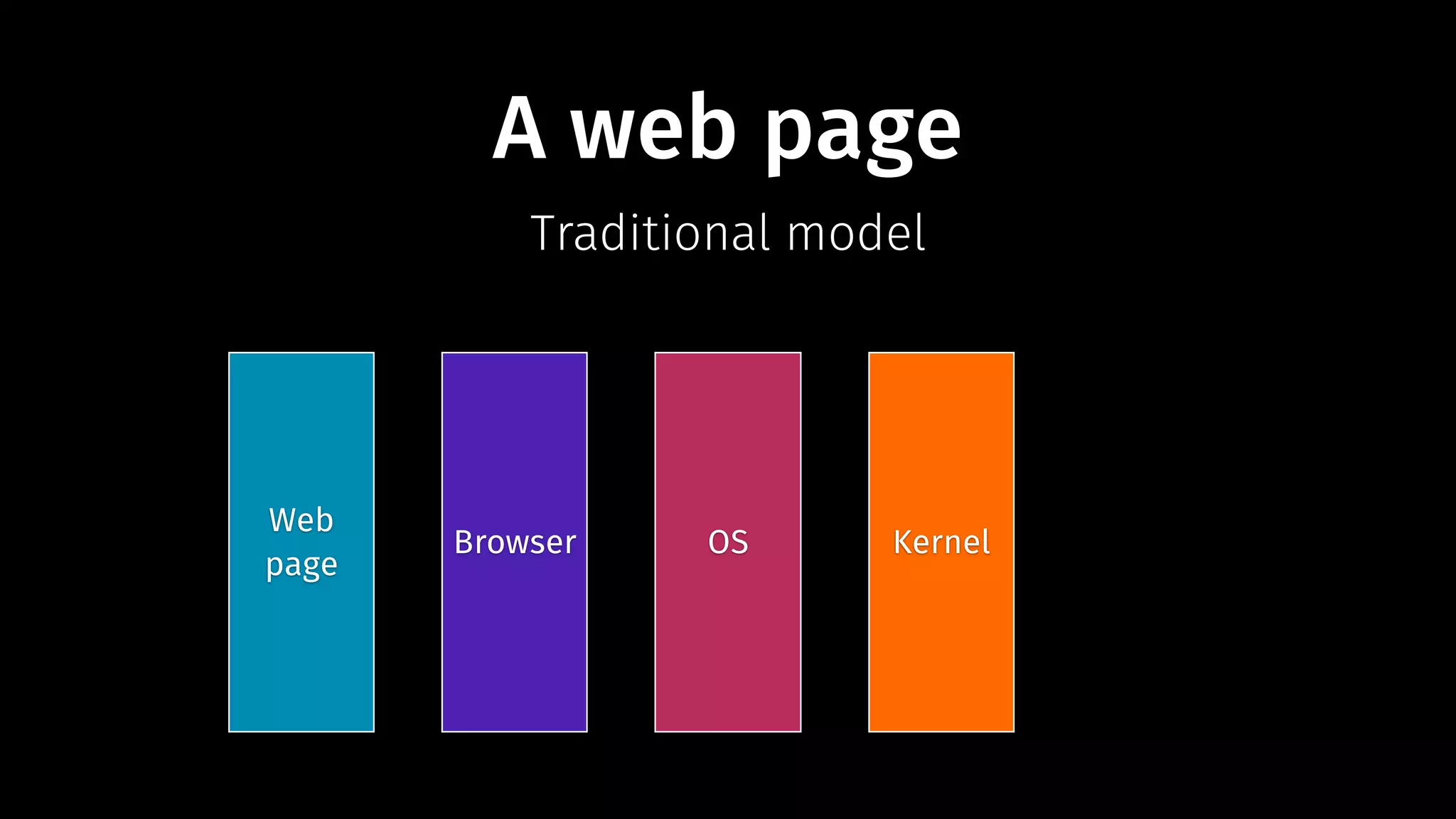

- 29. A web page Traditional model Web page Browser OS
- 30. A web page Traditional model Web page Browser OS Kernel

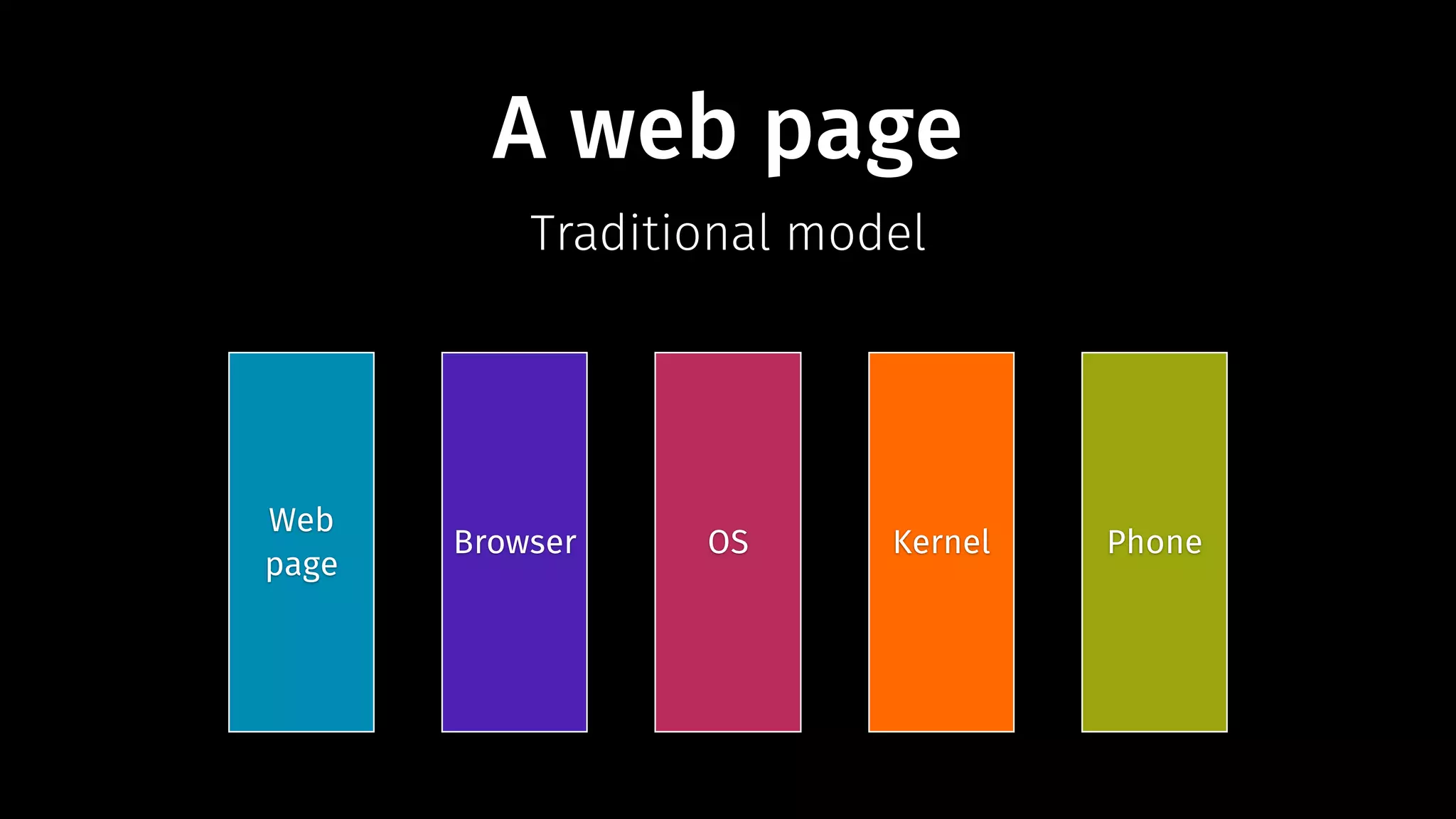

- 31. A web page Traditional model Web page Browser OS Kernel Phone

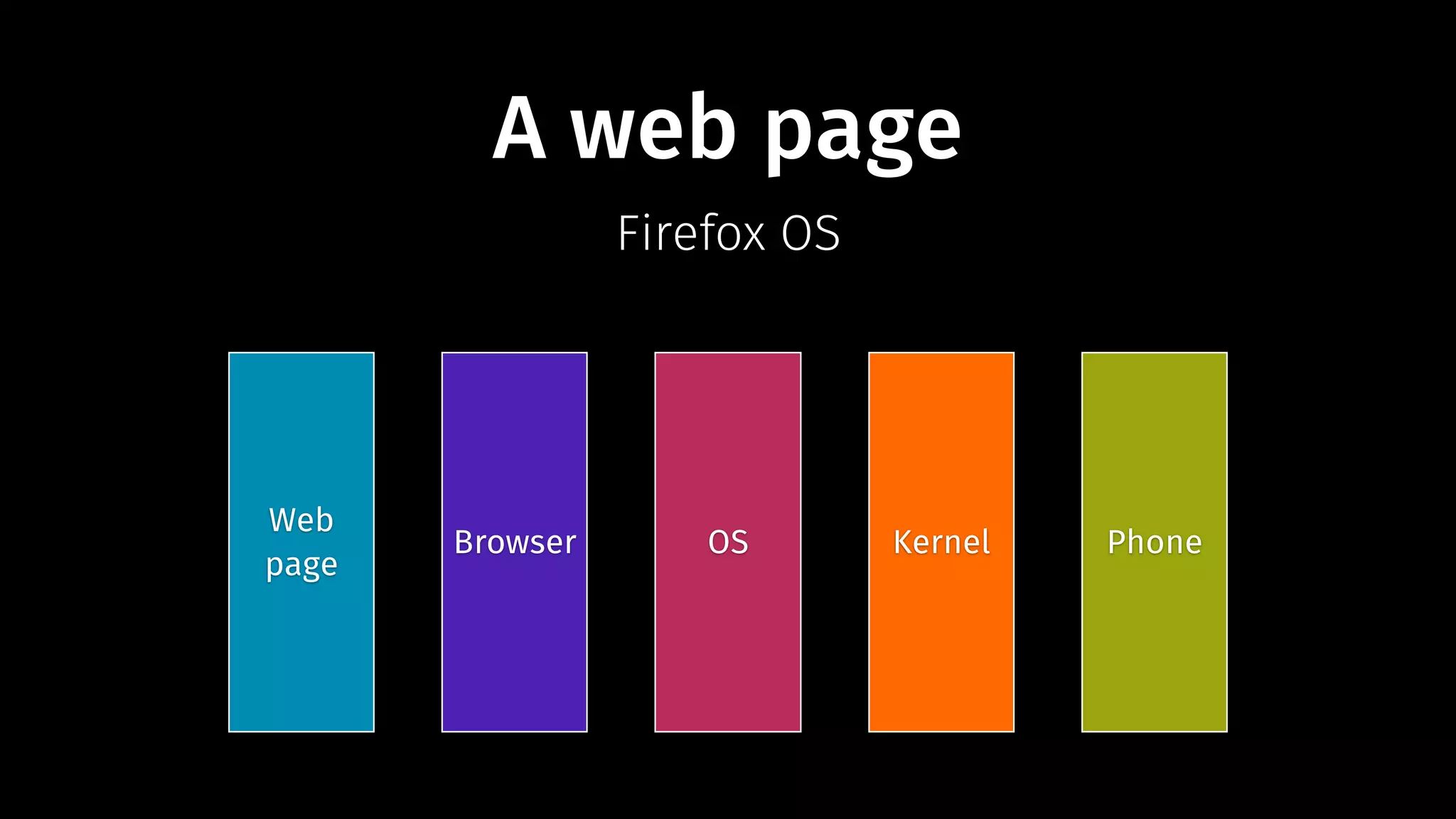

- 32. A web page Firefox OS Web page Browser OS Kernel Phone

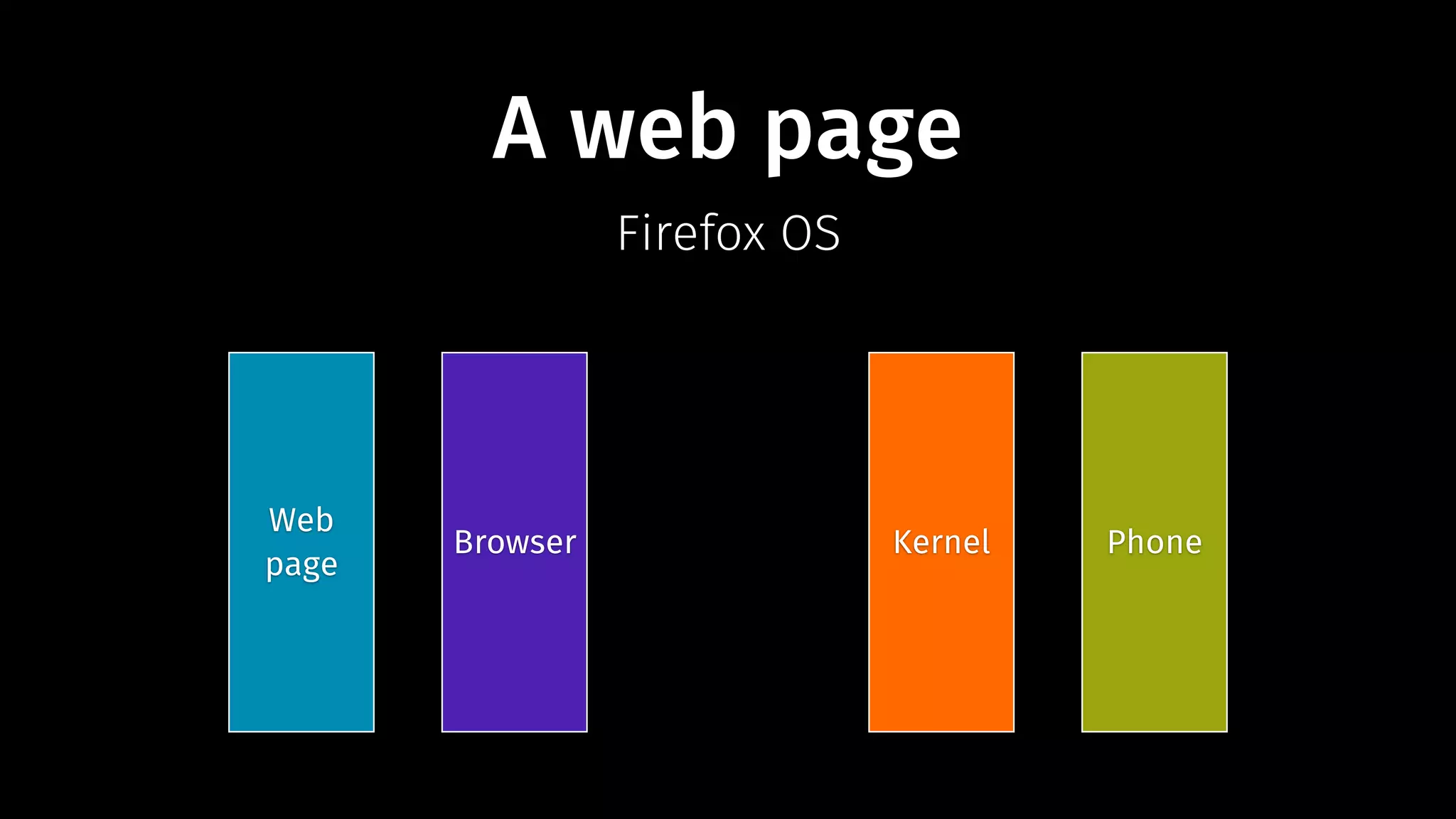

- 33. A web page Firefox OS Web page Browser Kernel Phone

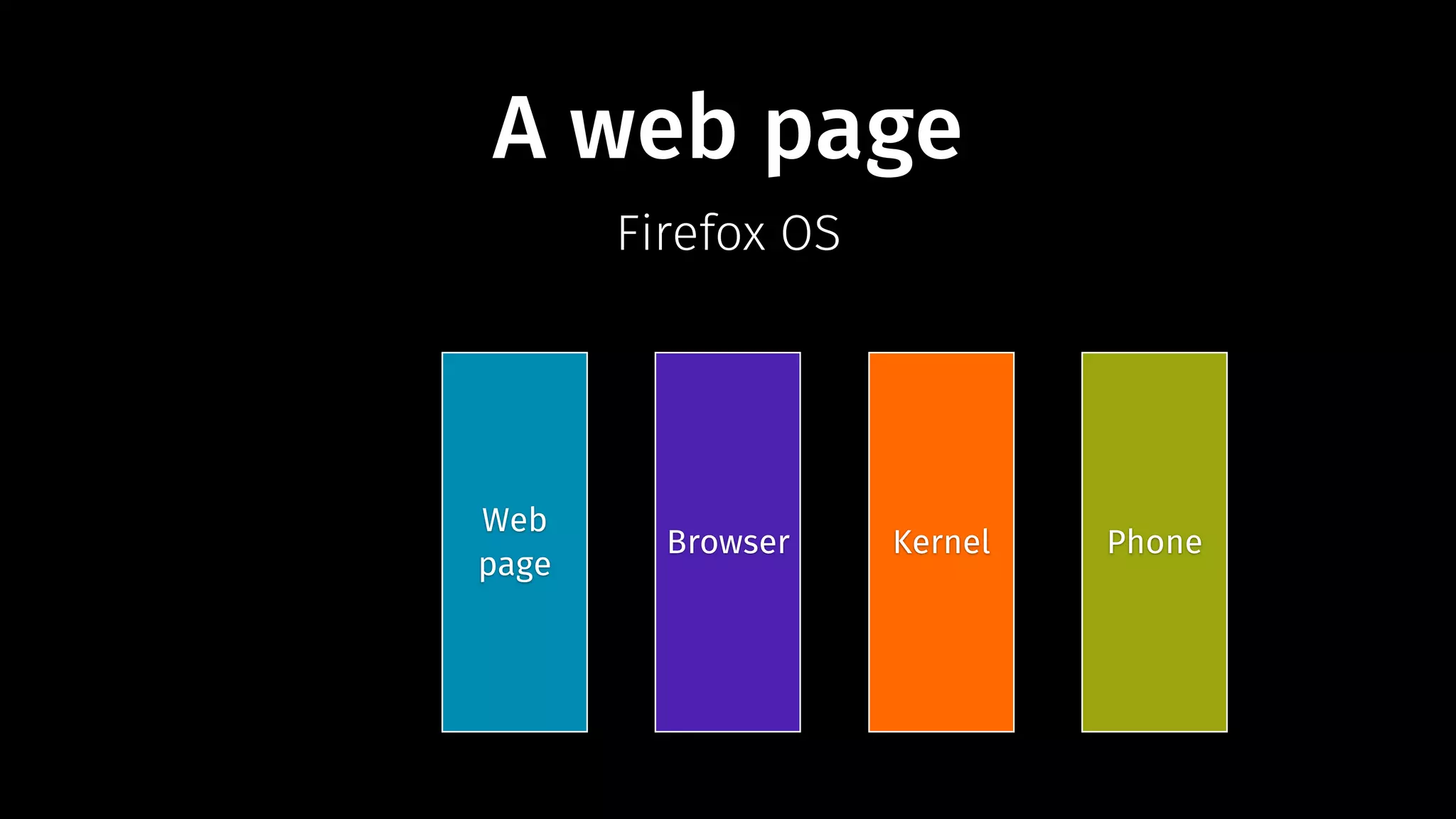

- 34. A web page Firefox OS Web page Browser Kernel Phone
- 35. Android 4.4 FirefoxOS 1.3
- 36. Android 4.4 FirefoxOS 1.3 512 MB
- 37. Android 4.4 FirefoxOS 1.3 512 MB 128 MB
- 38. Just a webbrowser Apps? Offline? Payment?
- 39. No shortcuts Everythingin the phone written in HTML5

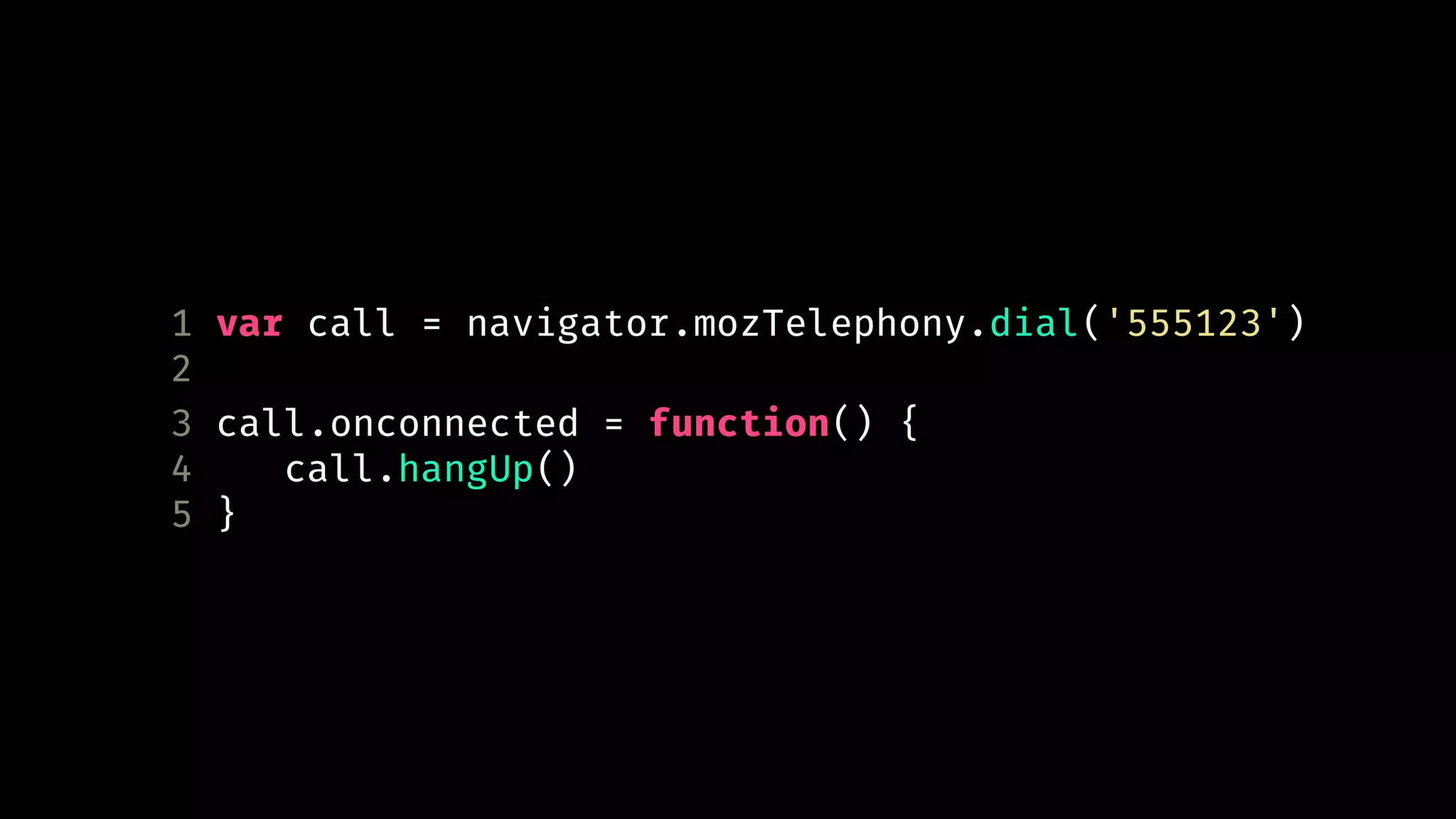

- 41. 1 var call= navigator.mozTelephony.dial('555123') 2 3 call.onconnected = function() { 4 call.hangUp() 5 }
- 42.
- 43. Before mobile revolution… Limited input methods
- 44.
- 45.
- 46.
- 47. Proximity Accelerometer AmbientLight Magnetometer Gyroscope Humidity Ambient Temperature Pressure Battery Cameras
- 48.
- 49.
- 50.
- 51.
- 56. WiFi Connection Realpurpose: internet connection
- 57. Hide & Seek! Hider sets up a WiFi hotspot Seekers use dBm to triangulate

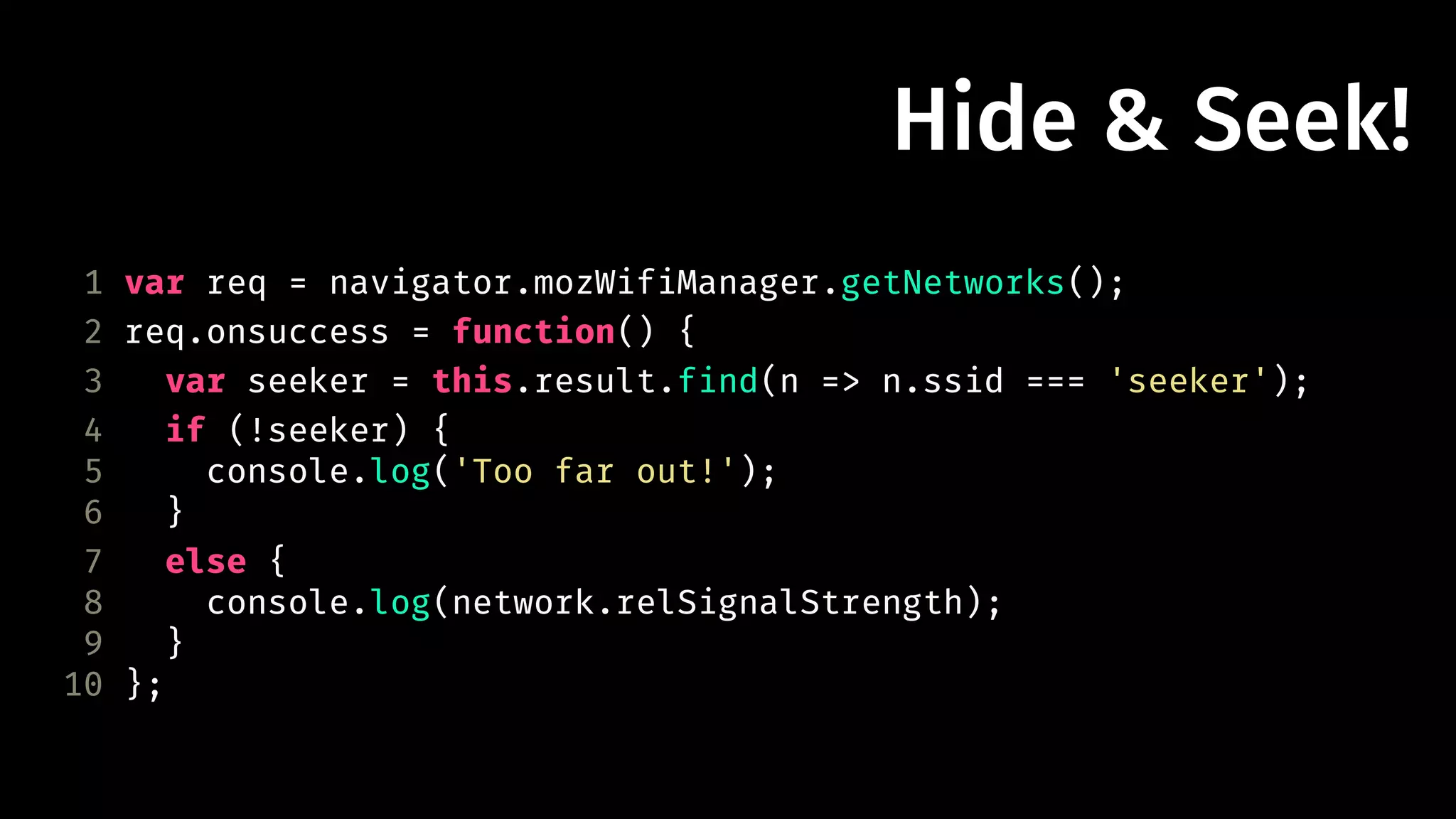

- 58. Hide & Seek! 1 var req = navigator.mozWifiManager.getNetworks(); 2 req.onsuccess = function() { 3 var seeker = this.result.find(n => n.ssid === 'seeker'); 4 if (!seeker) { 5 console.log('Too far out!'); 6 } 7 else { 8 console.log(network.relSignalStrength); 9 } 10 };
- 59. Device Light Realpurpose: adjust brightness
- 60. Music Theremin isinstrument Use device light as tone frequency Wave your hands and magic!
- 61. Music Theremin isinstrument Use device light as tone frequency Wave your hands and magic!

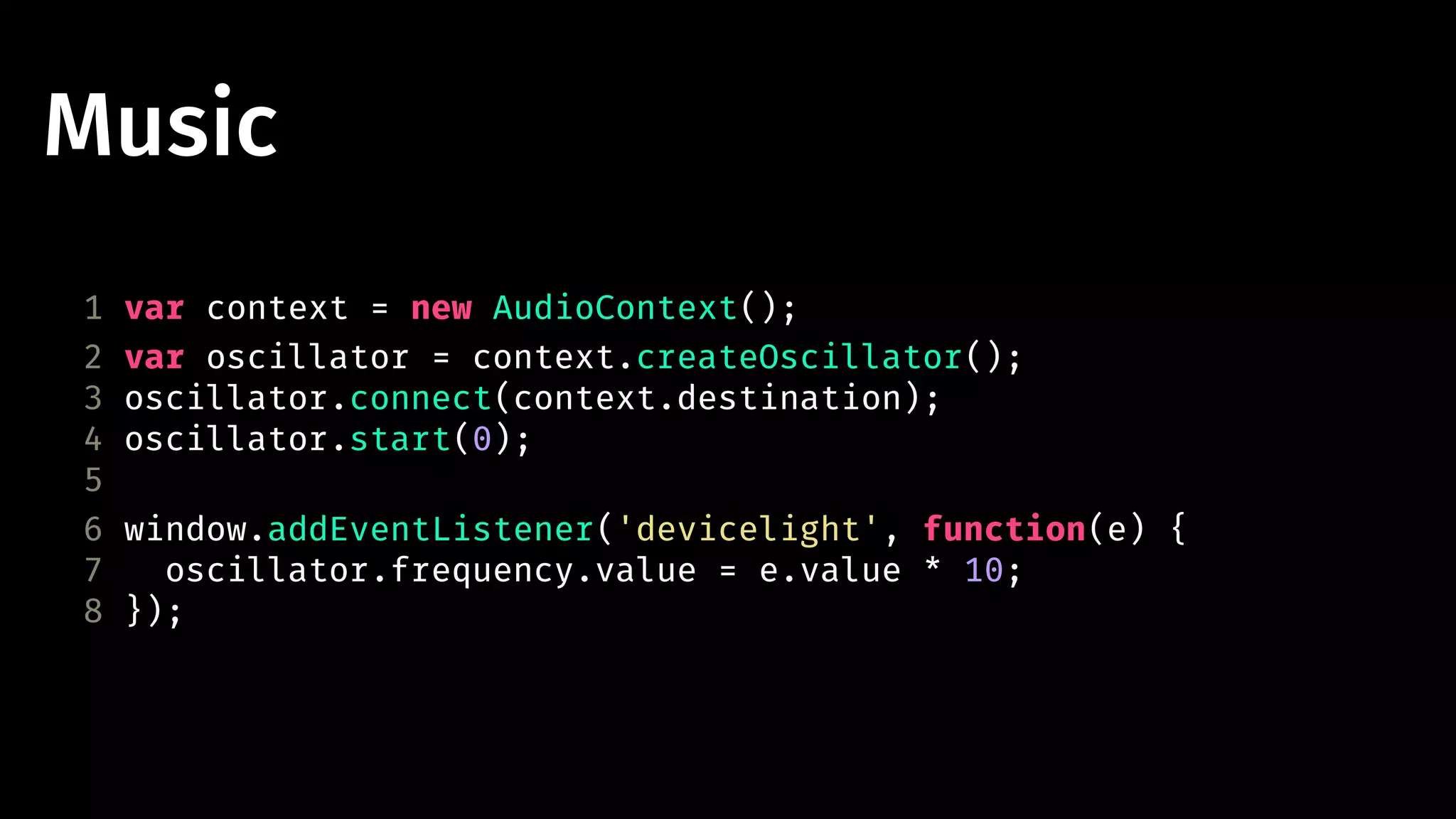

- 62. Music 1 varcontext = new AudioContext(); 2 var oscillator = context.createOscillator(); 3 oscillator.connect(context.destination); 4 oscillator.start(0); 5 6 window.addEventListener('devicelight', function(e) { 7 oscillator.frequency.value = e.value * 10; 8 });
- 63. Gyroscope Real purpose:rotate screen
- 64. Gyroscope Real purpose:rotate screen

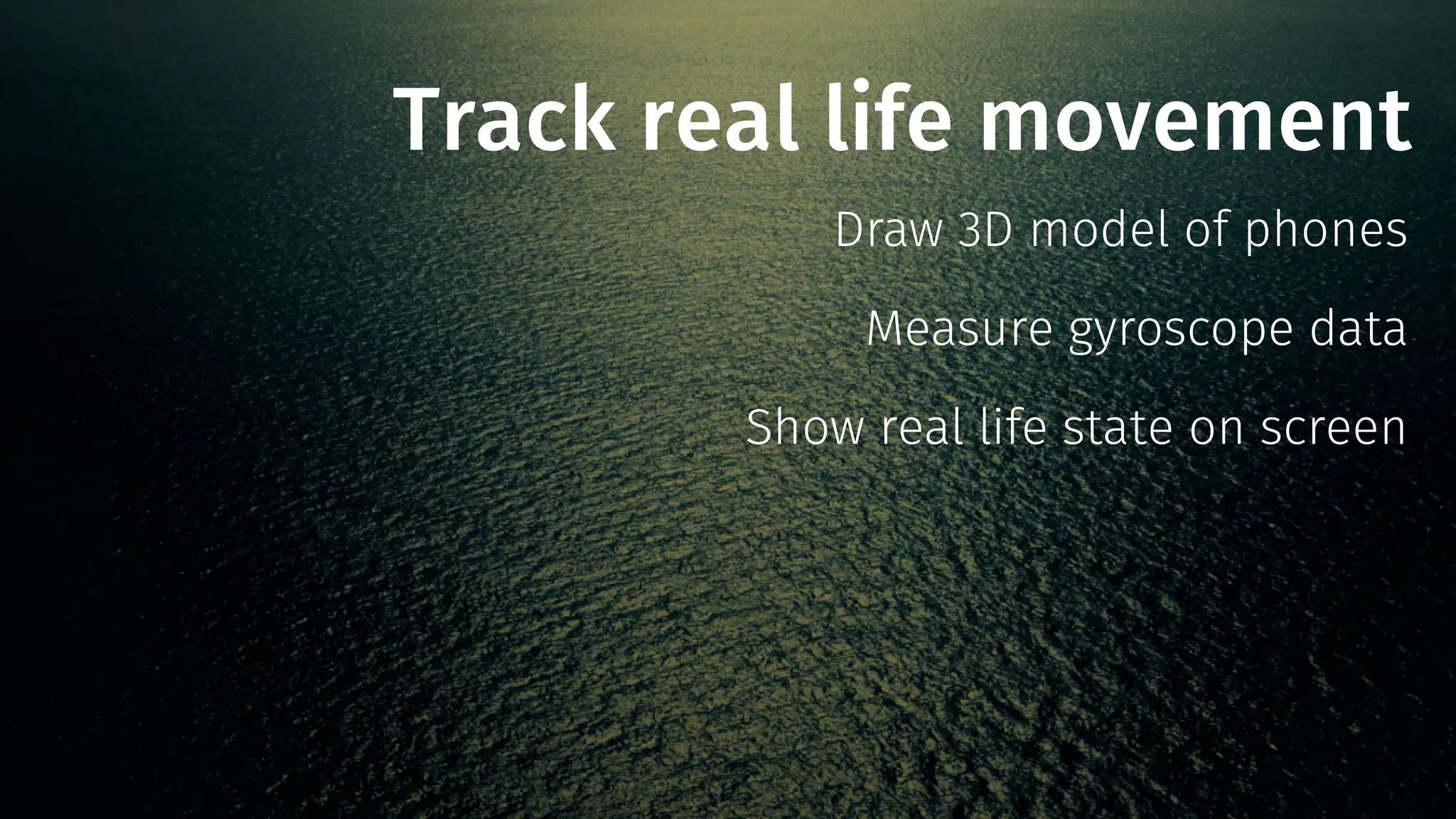

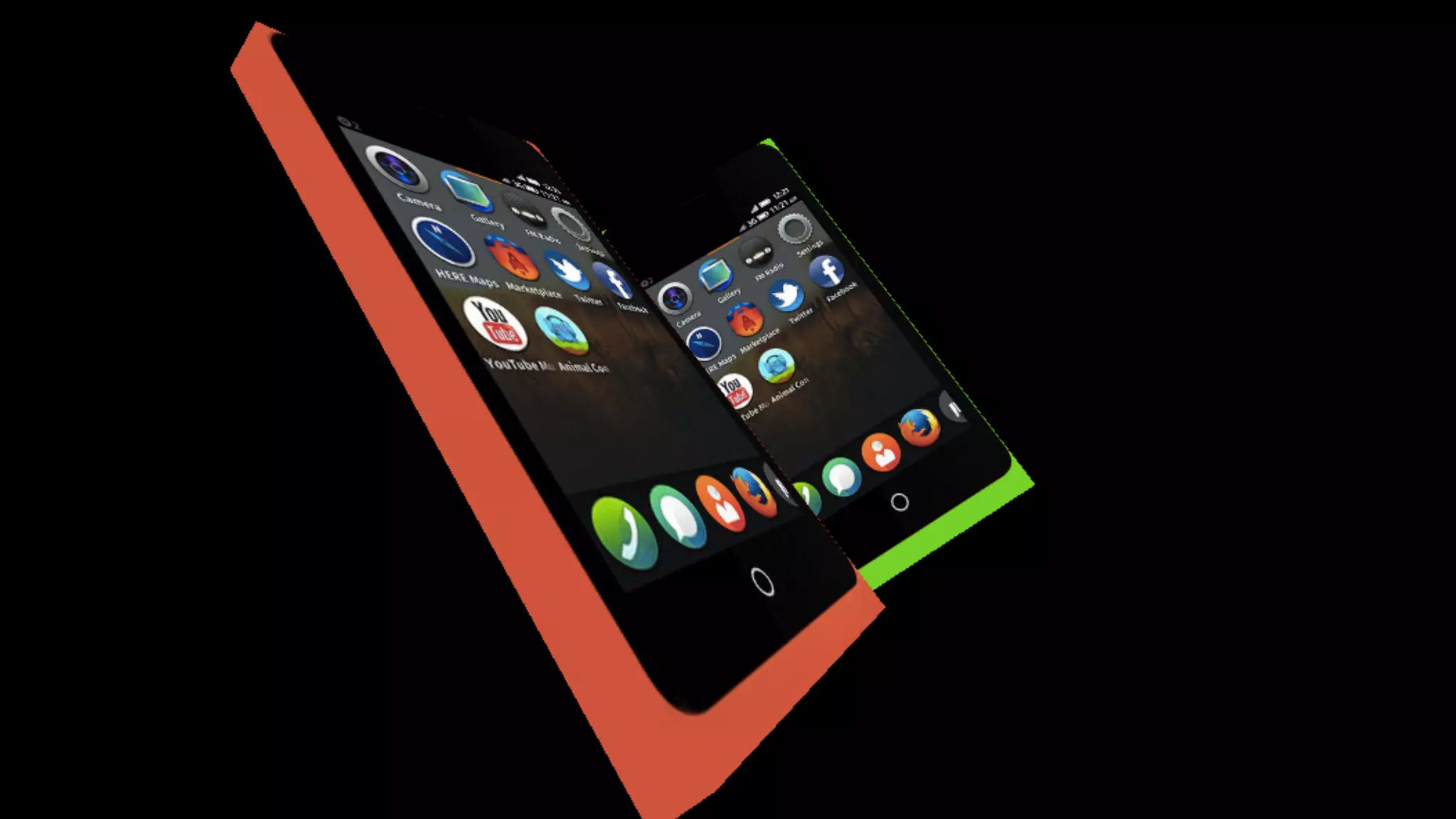

- 65. Track real lifemovement Draw 3D model of phones Measure gyroscope data Show real life state on screen

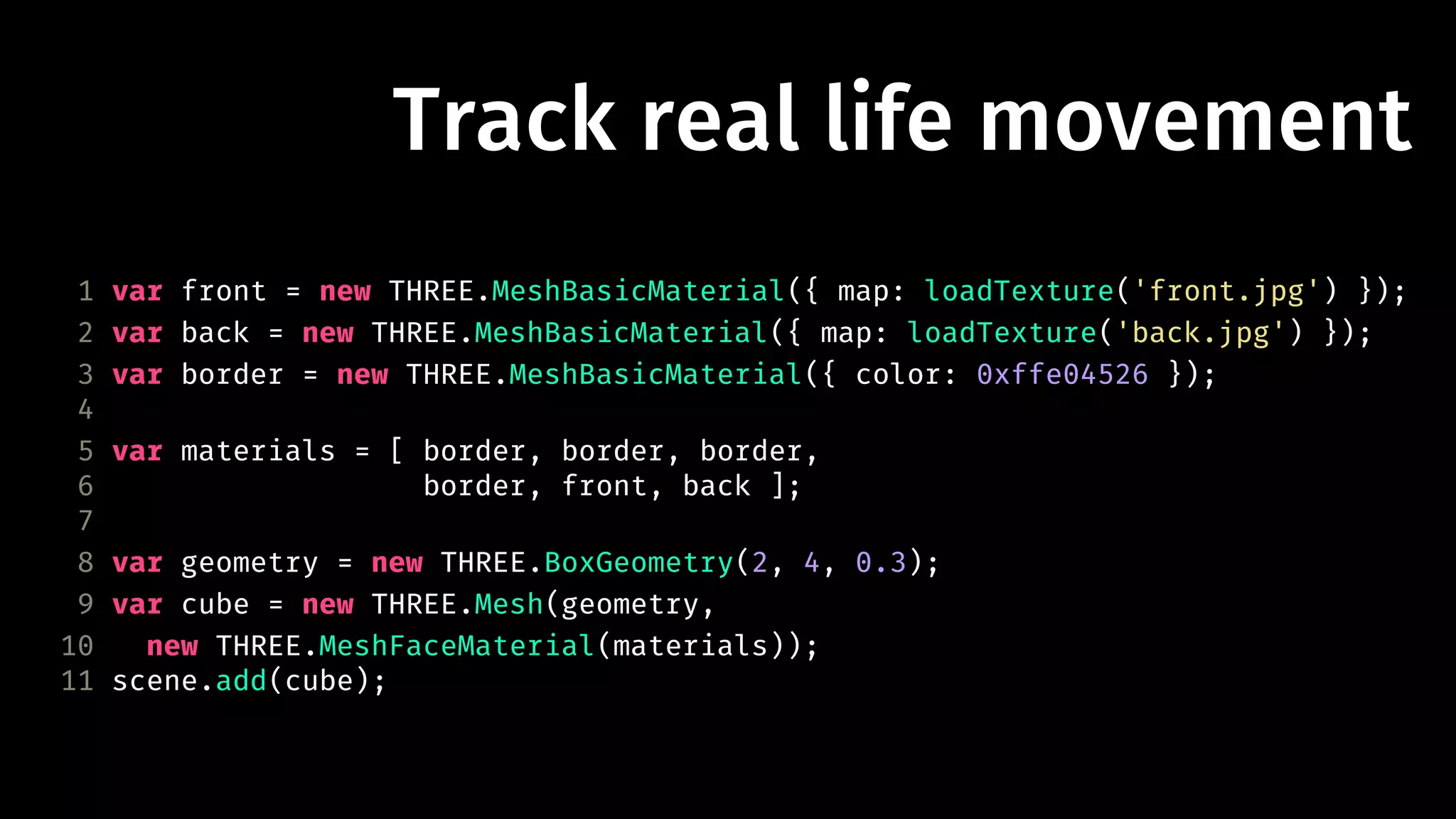

- 67. Track real lifemovement 1 var front = new THREE.MeshBasicMaterial({ map: loadTexture('front.jpg') }); 2 var back = new THREE.MeshBasicMaterial({ map: loadTexture('back.jpg') }); 3 var border = new THREE.MeshBasicMaterial({ color: 0xffe04526 }); 4 5 var materials = [ border, border, border, 6 border, front, back ]; 7 8 var geometry = new THREE.BoxGeometry(2, 4, 0.3); 9 var cube = new THREE.Mesh(geometry, 10 new THREE.MeshFaceMaterial(materials)); 11 scene.add(cube);

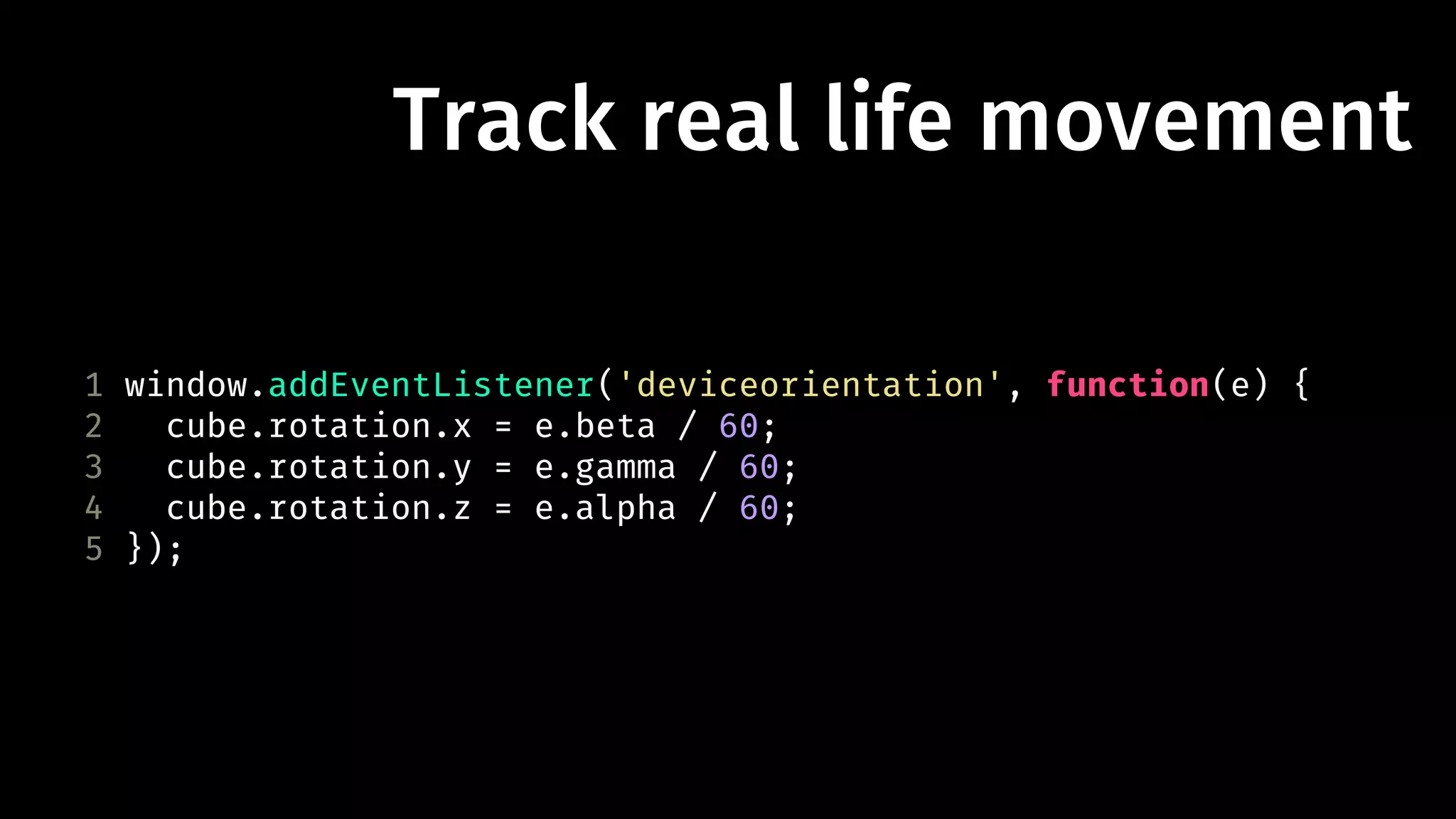

- 68. Track real lifemovement 1 window.addEventListener('deviceorientation', function(e) { 2 cube.rotation.x = e.beta / 60; 3 cube.rotation.y = e.gamma / 60; 4 cube.rotation.z = e.alpha / 60; 5 });
- 69. Accelerometer Real purpose:Turn to mute
- 70. Juggling visualizer Measurez-forces on device Plot it in graph over time Juggle with multiple devices

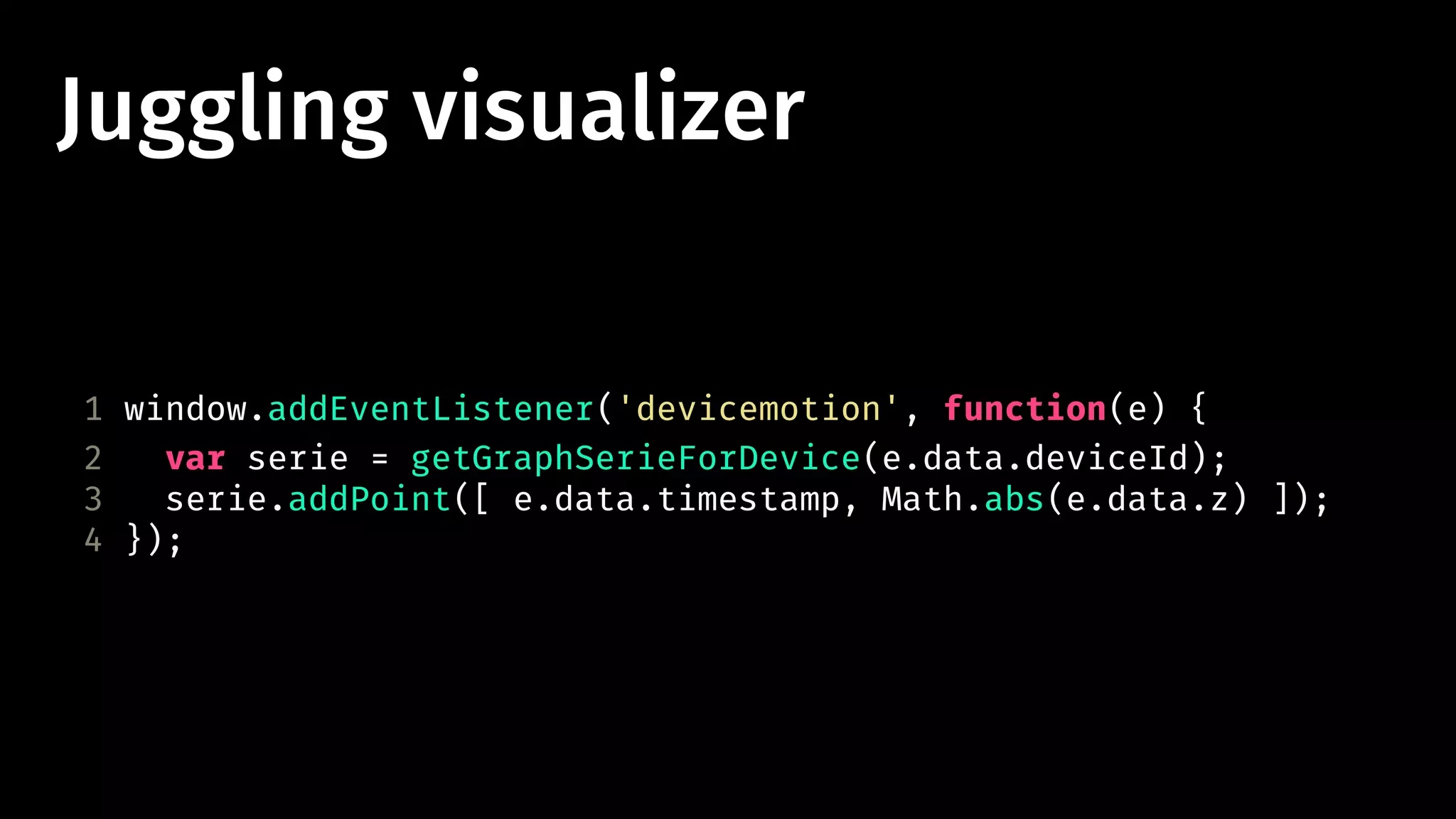

- 71. Juggling visualizer 1window.addEventListener('devicemotion', function(e) { 2 var serie = getGraphSerieForDevice(e.data.deviceId); 3 serie.addPoint([ e.data.timestamp, Math.abs(e.data.z) ]); 4 });

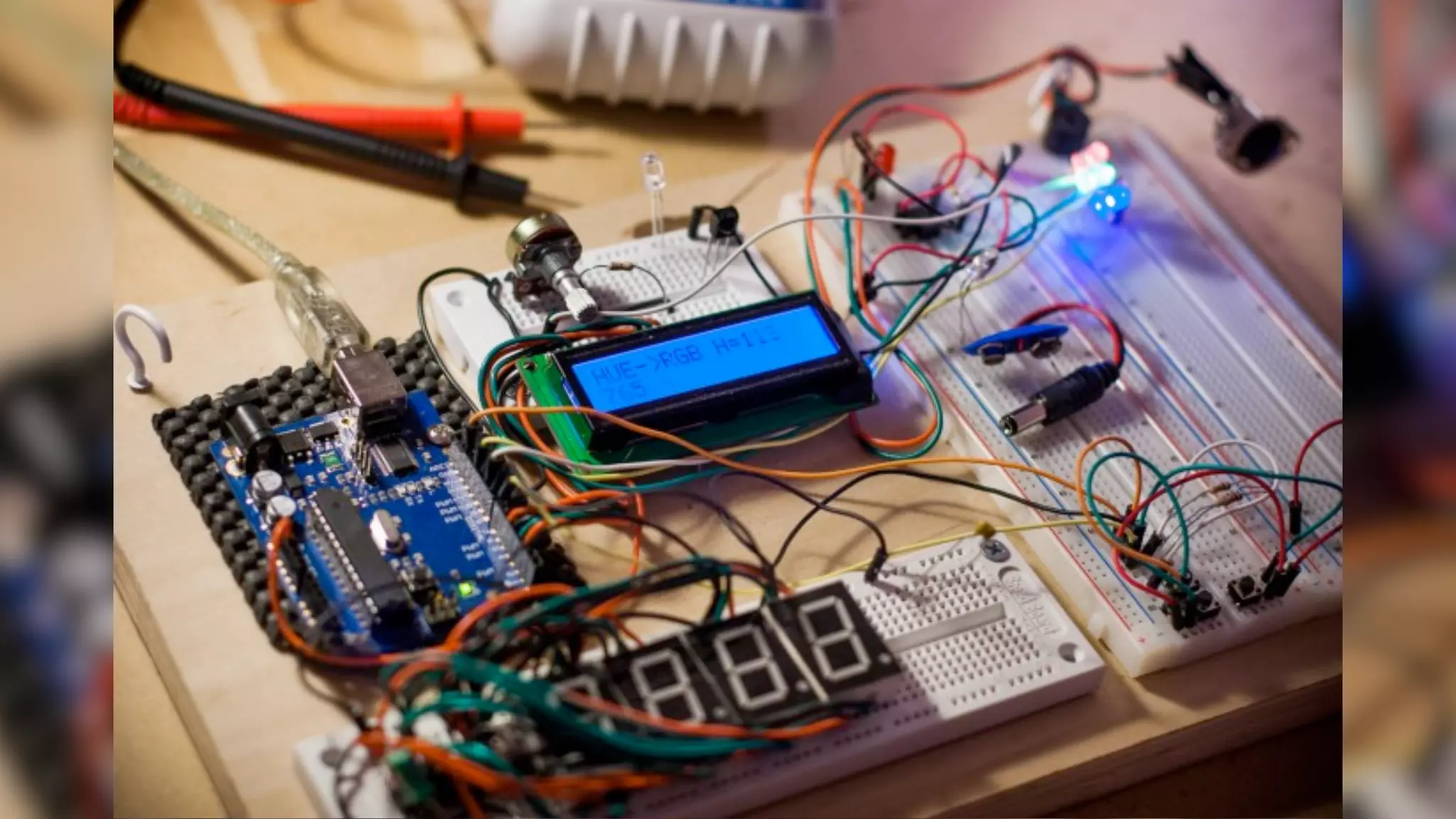

- 74. Maker movement is EVERYWHERE (Kickstarter, spaces, fairs, Wired)
- 77.
- 80.

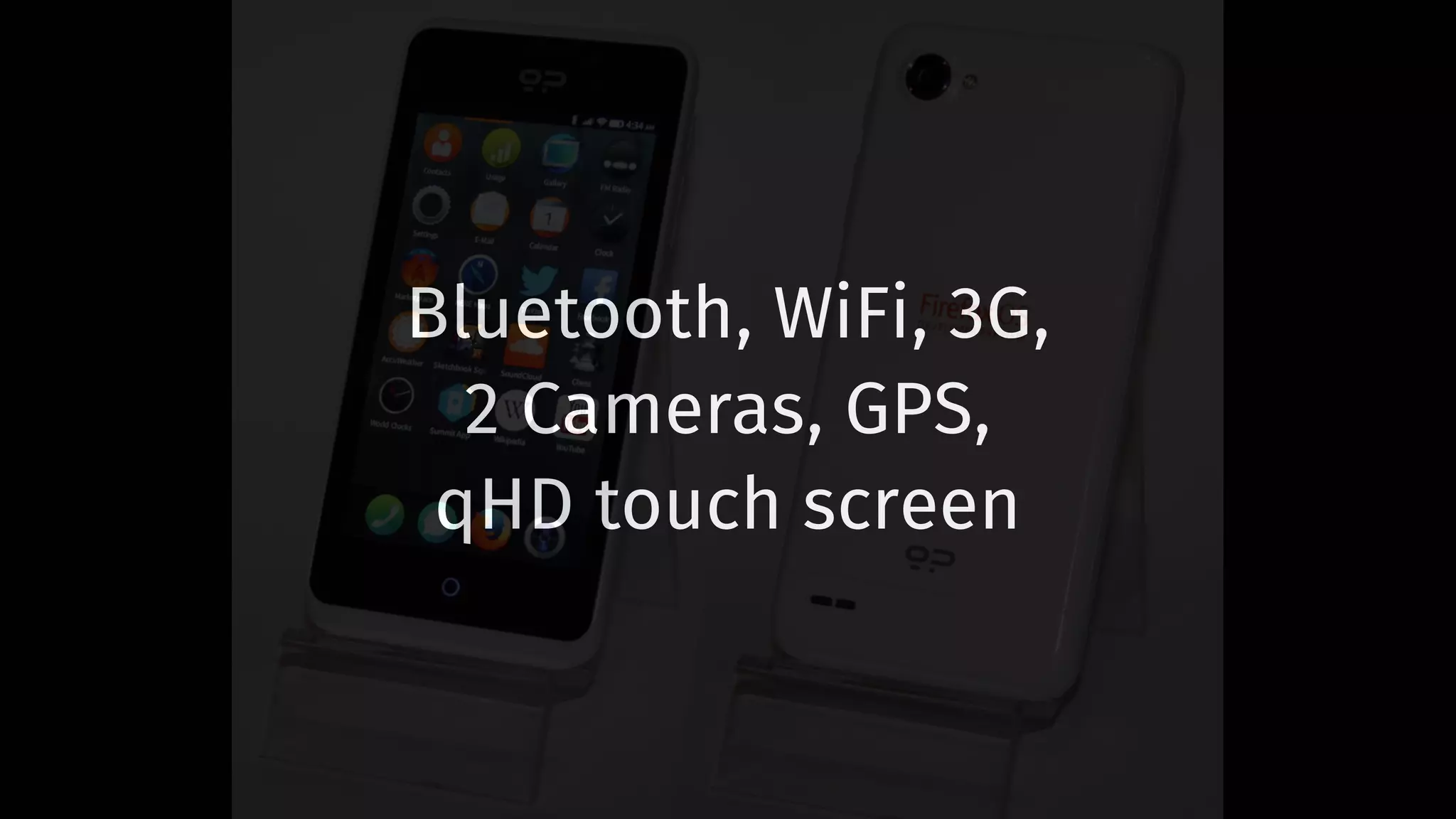

- 82. Bluetooth, WiFi, 3G, 2 Cameras, GPS, qHD touch screen

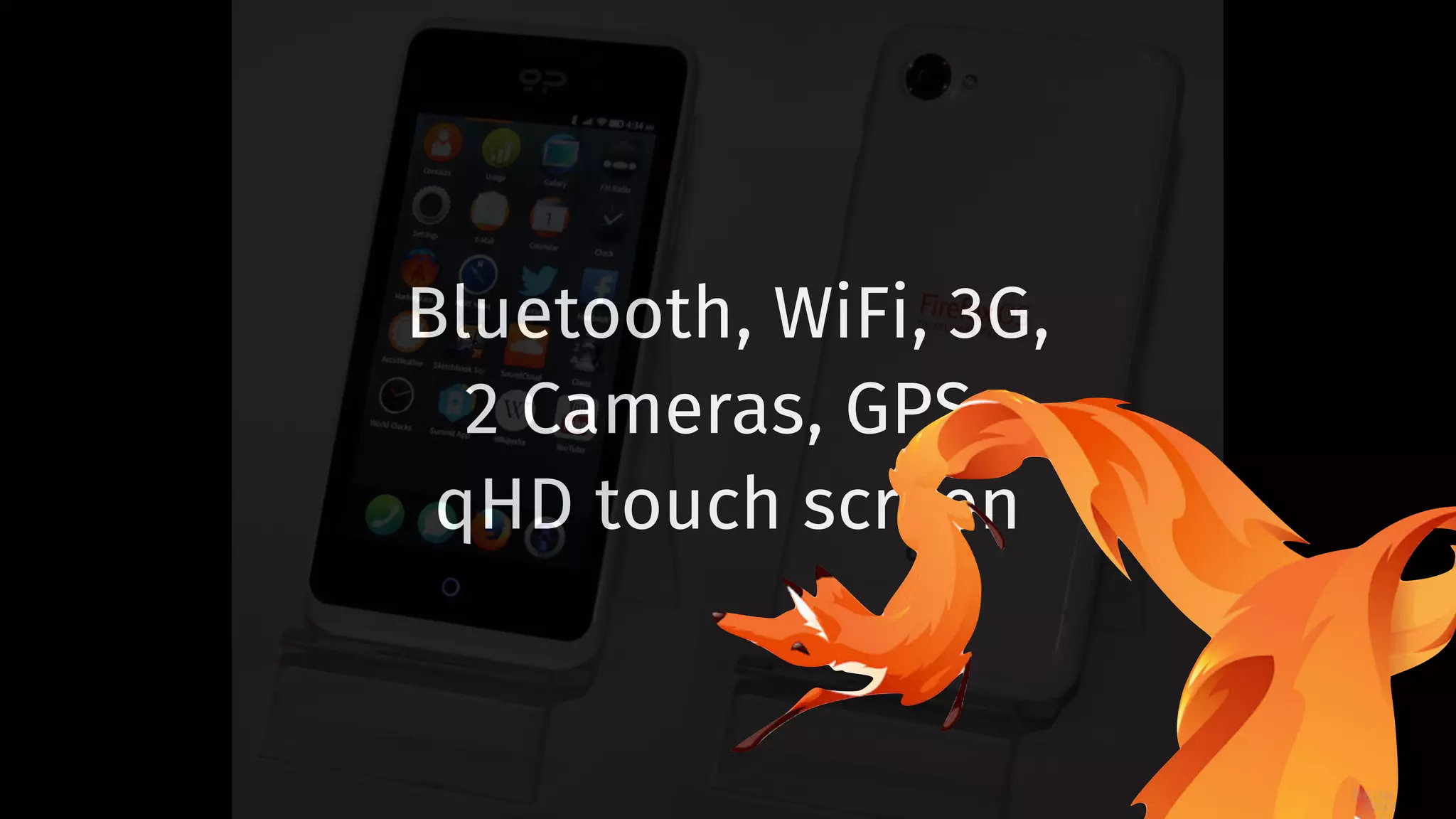

- 83. Bluetooth, WiFi, 3G, 2 Cameras, GPS, qHD touch screen

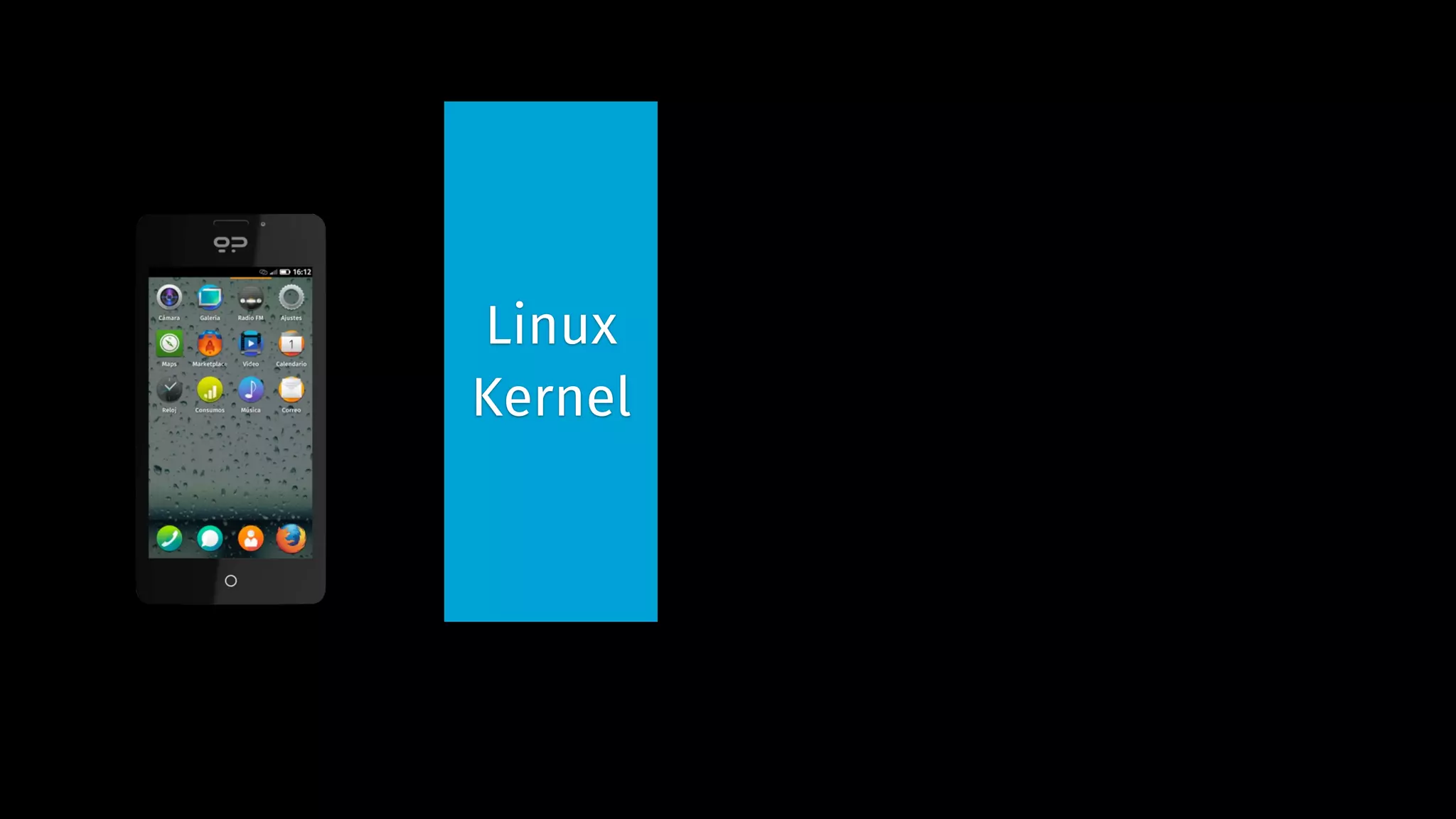

- 85.
- 86.

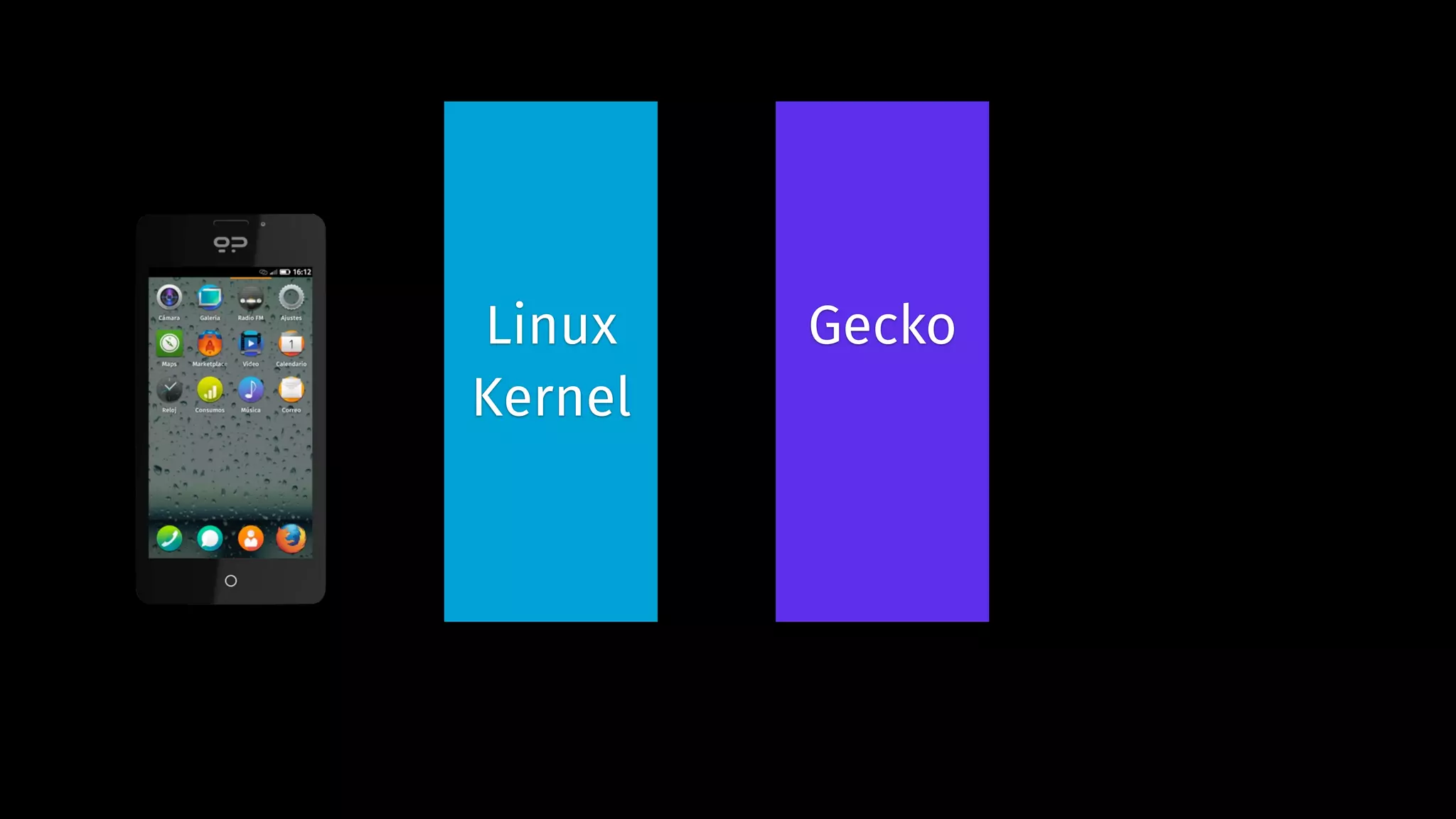

- 87. Linux Kernel GeckoHTML5 UI

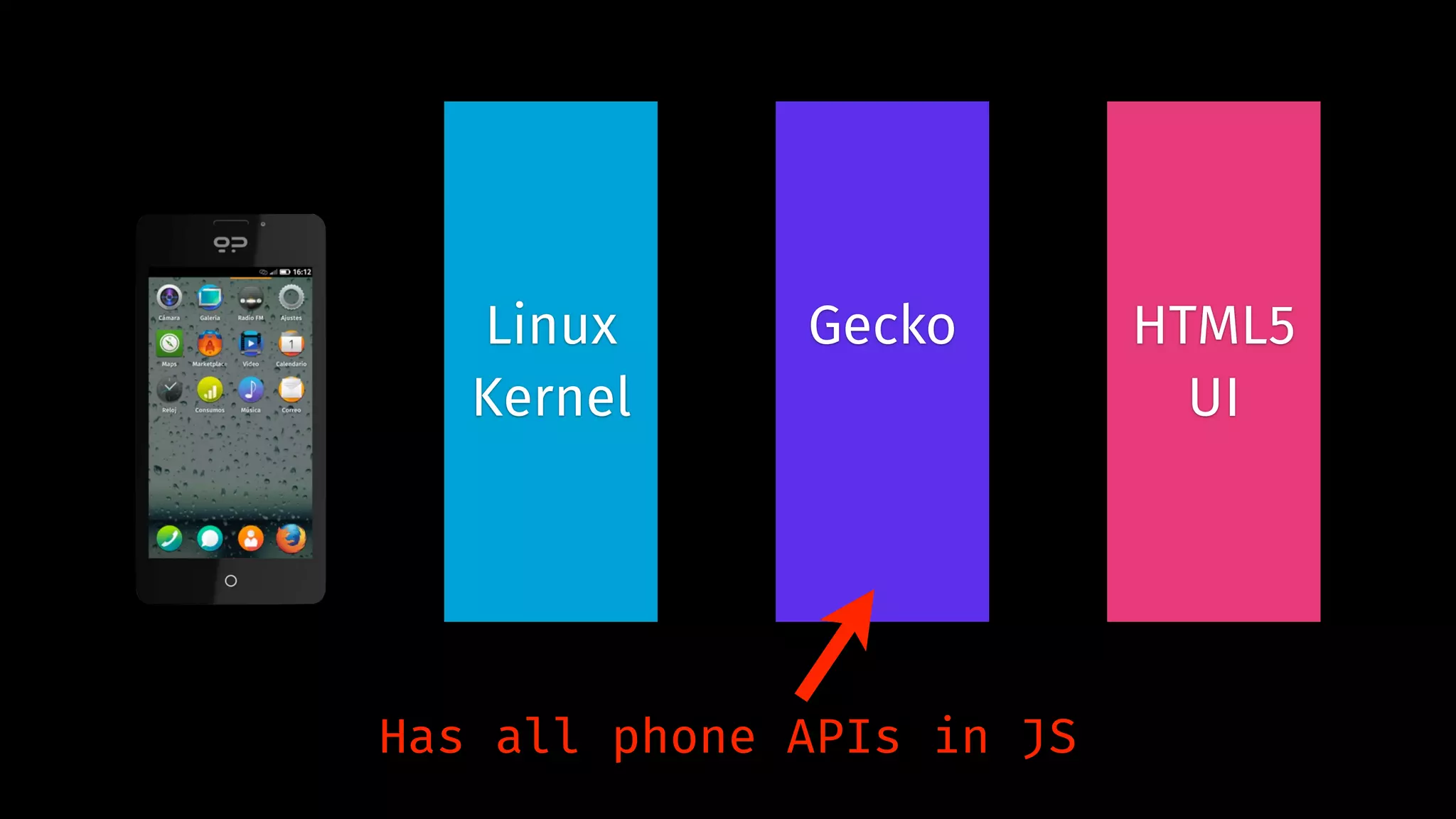

- 88. Linux Kernel GeckoHTML5 UI Has all phone APIs in JS

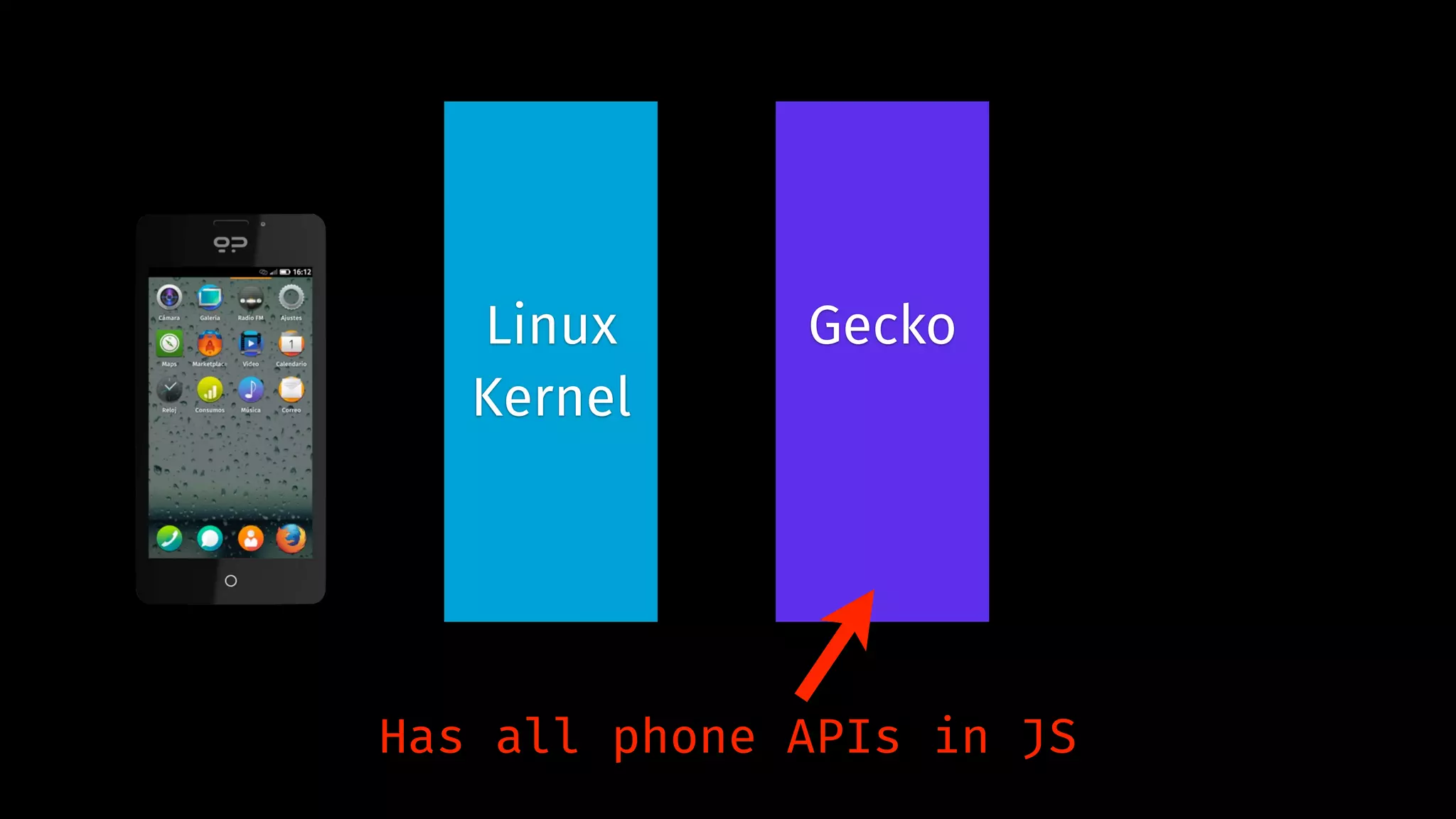

- 89. Linux Kernel Gecko Has all phone APIs in JS
- 91.
- 113. Linux Kernel Gecko Has all phone APIs in JS

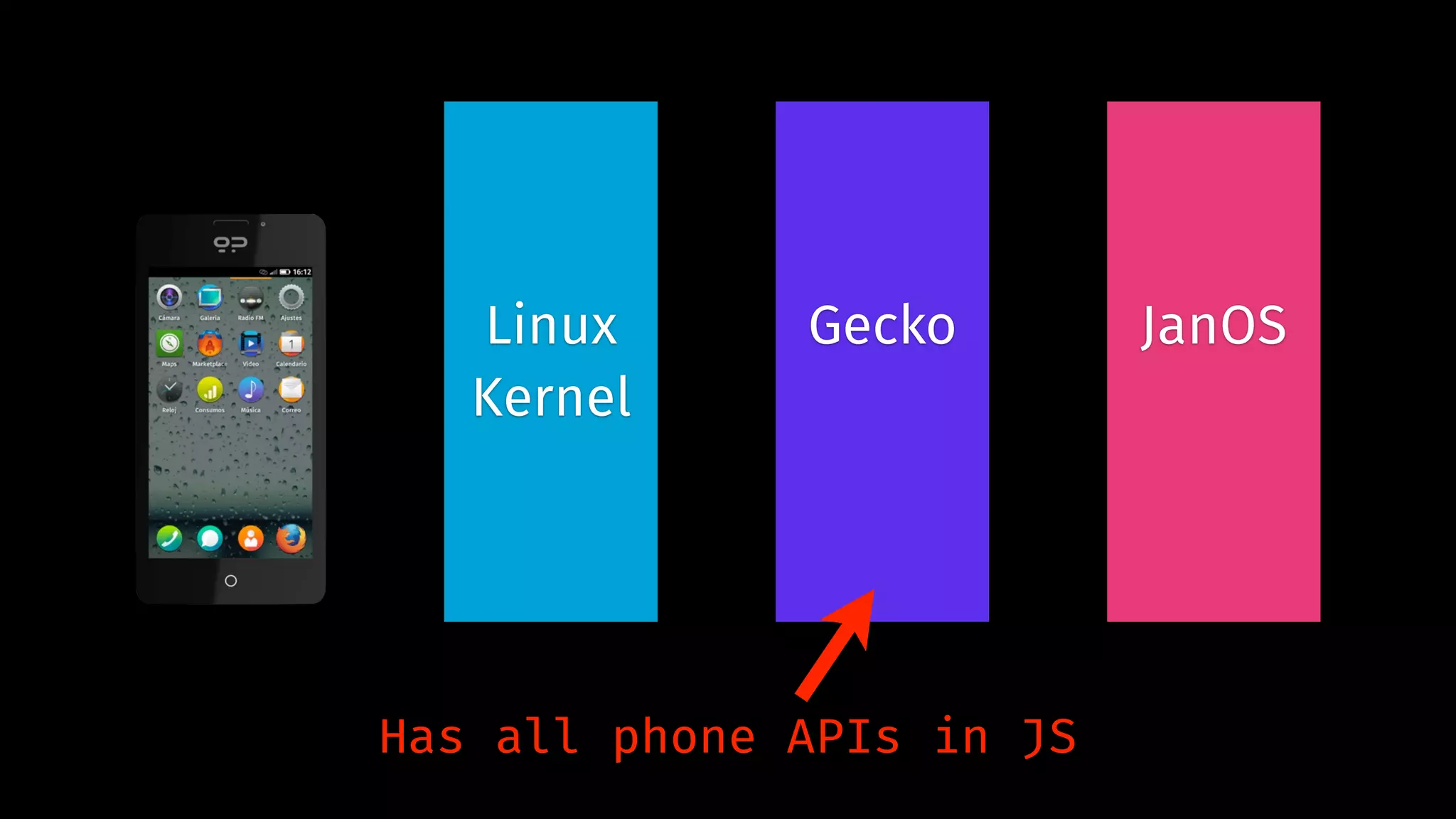

- 114. Linux Kernel GeckoJanOS Has all phone APIs in JS

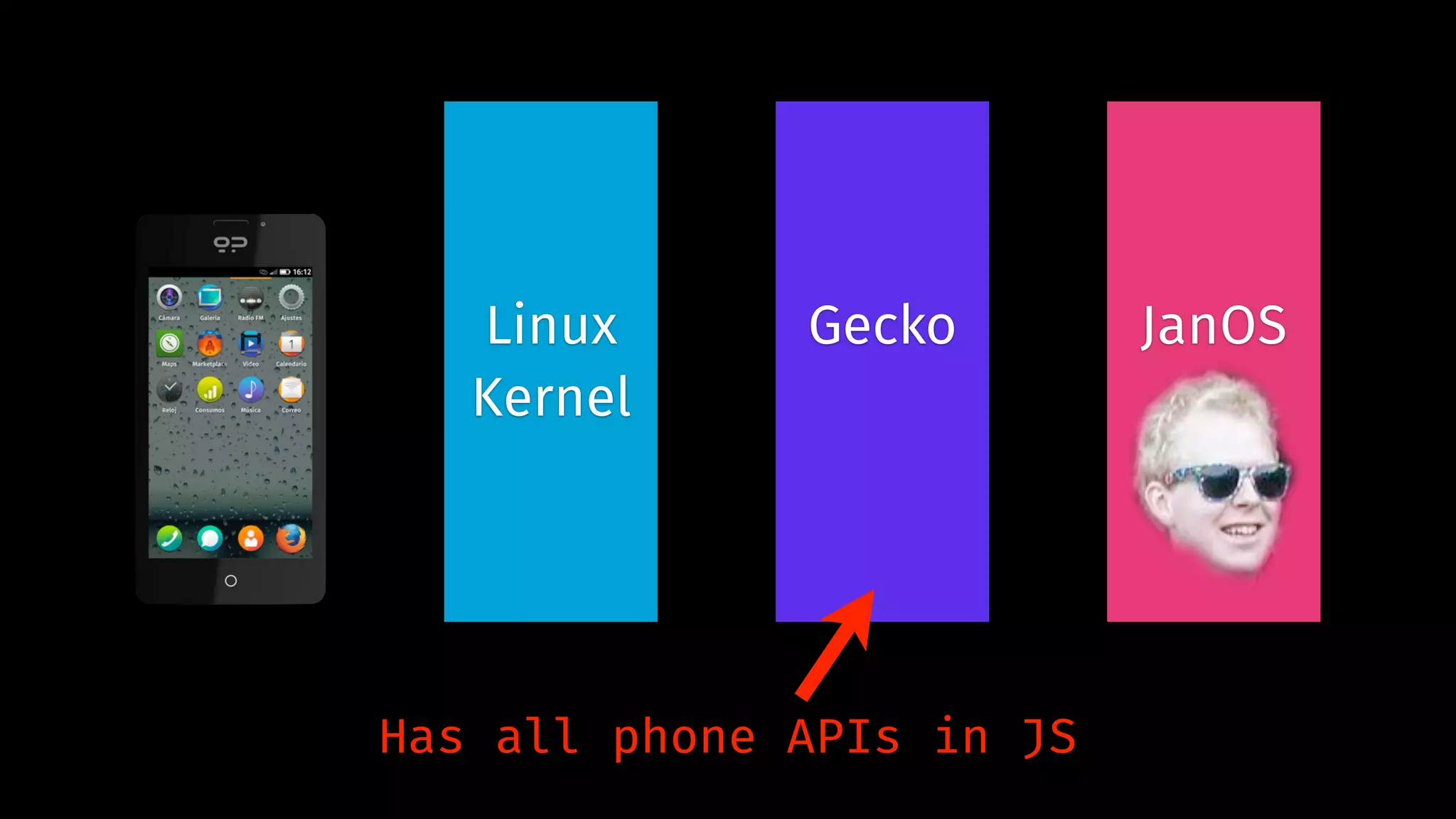

- 115. Linux Kernel GeckoJanOS Has all phone APIs in JS
- 116. JanOS Alternative toFirefox OS Some batteries included Need rooted Firefox OS phone with ADB enabled ! github.com/janjongboom/janos

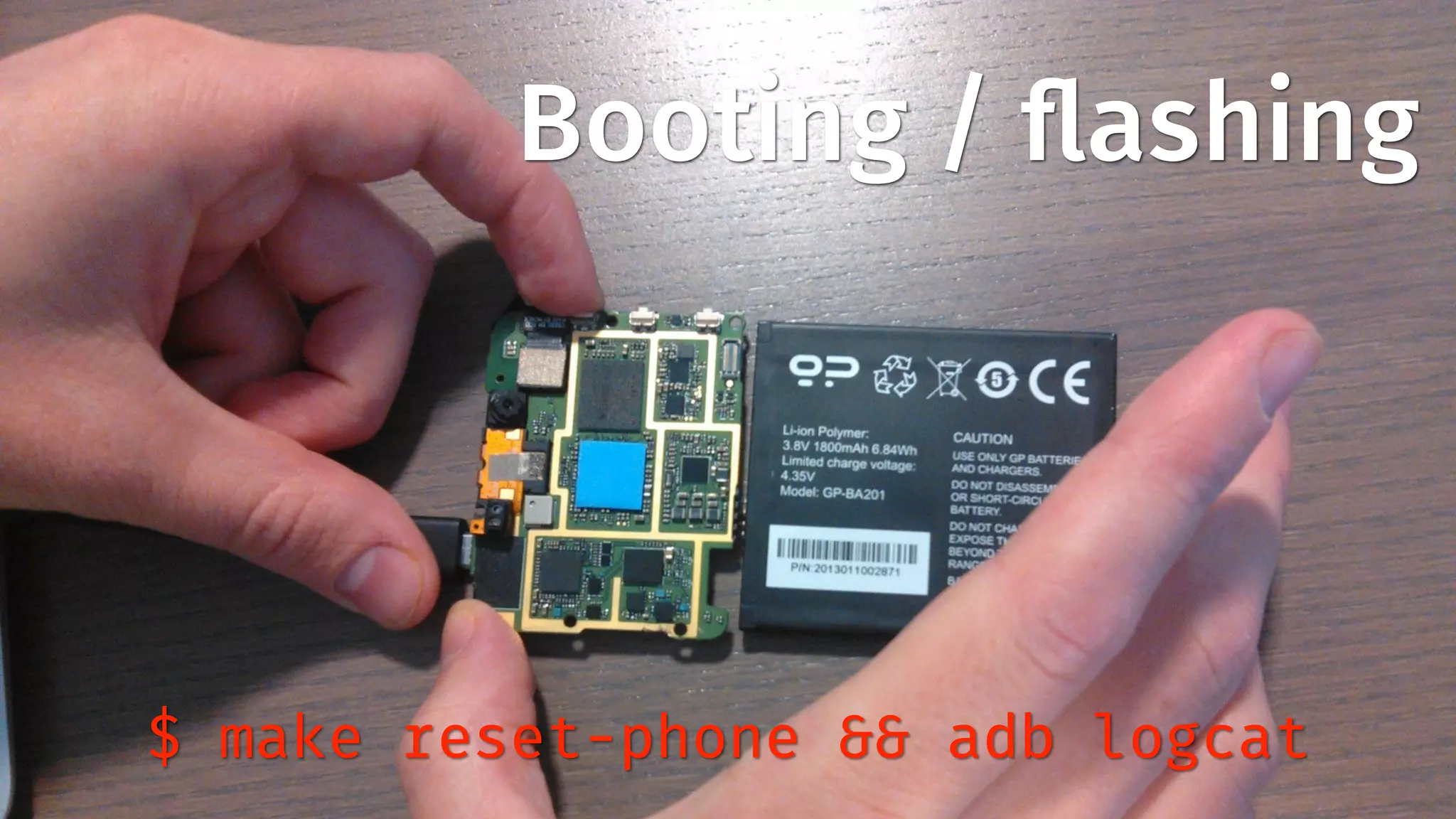

- 117. Booting / flashing $ make reset-phone && adb logcat

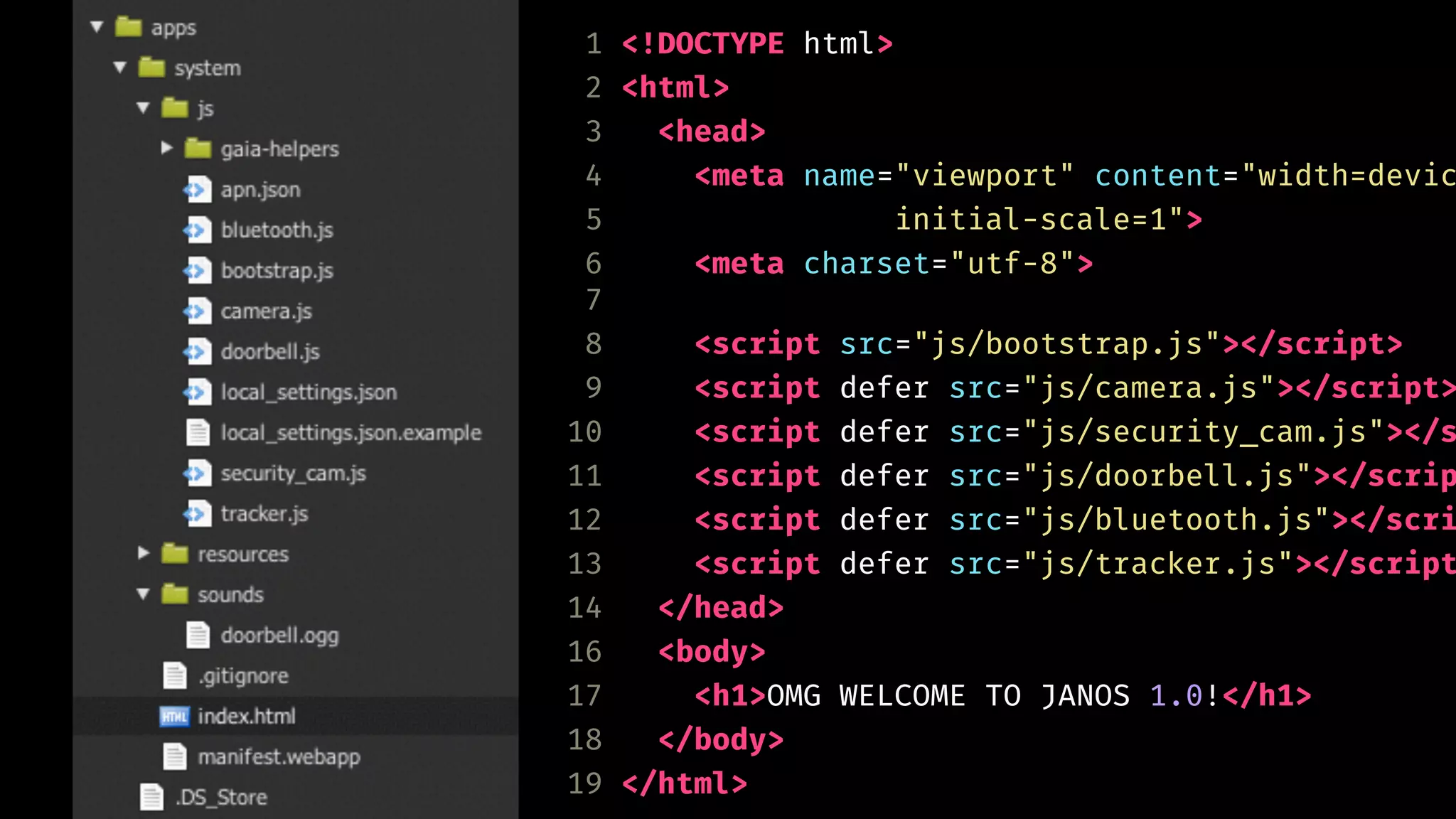

- 118. 1 <!DOCTYPE html> 2 <html> 3 <head> 4 <meta name="viewport" content="width=device-5 initial-scale=1"> 6 <meta charset="utf-8"> 7 8 <script src="js/bootstrap.js"></script> 9 <script defer src="js/camera.js"></script> 10 <script defer src="js/security_cam.js"></script> 11 <script defer src="js/doorbell.js"></script> 12 <script defer src="js/bluetooth.js"></script> 13 <script defer src="js/tracker.js"></script> 14 </head> 16 <body> 17 <h1>OMG WELCOME TO JANOS 1.0!</h1> 18 </body> 19 </html>
- 119.

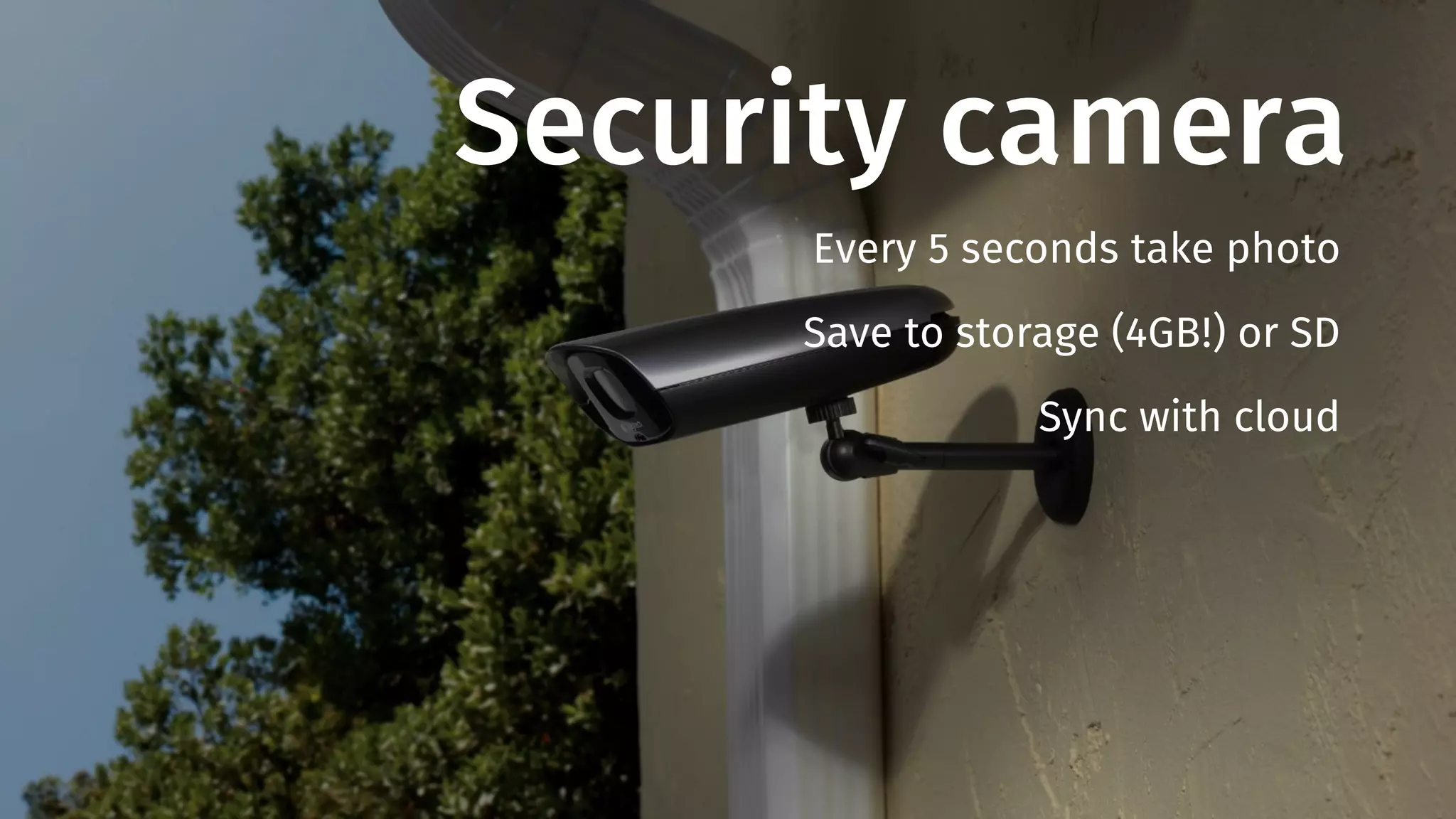

- 120. Security camera Every5 seconds take photo Save to storage (4GB!) or SD Sync with cloud

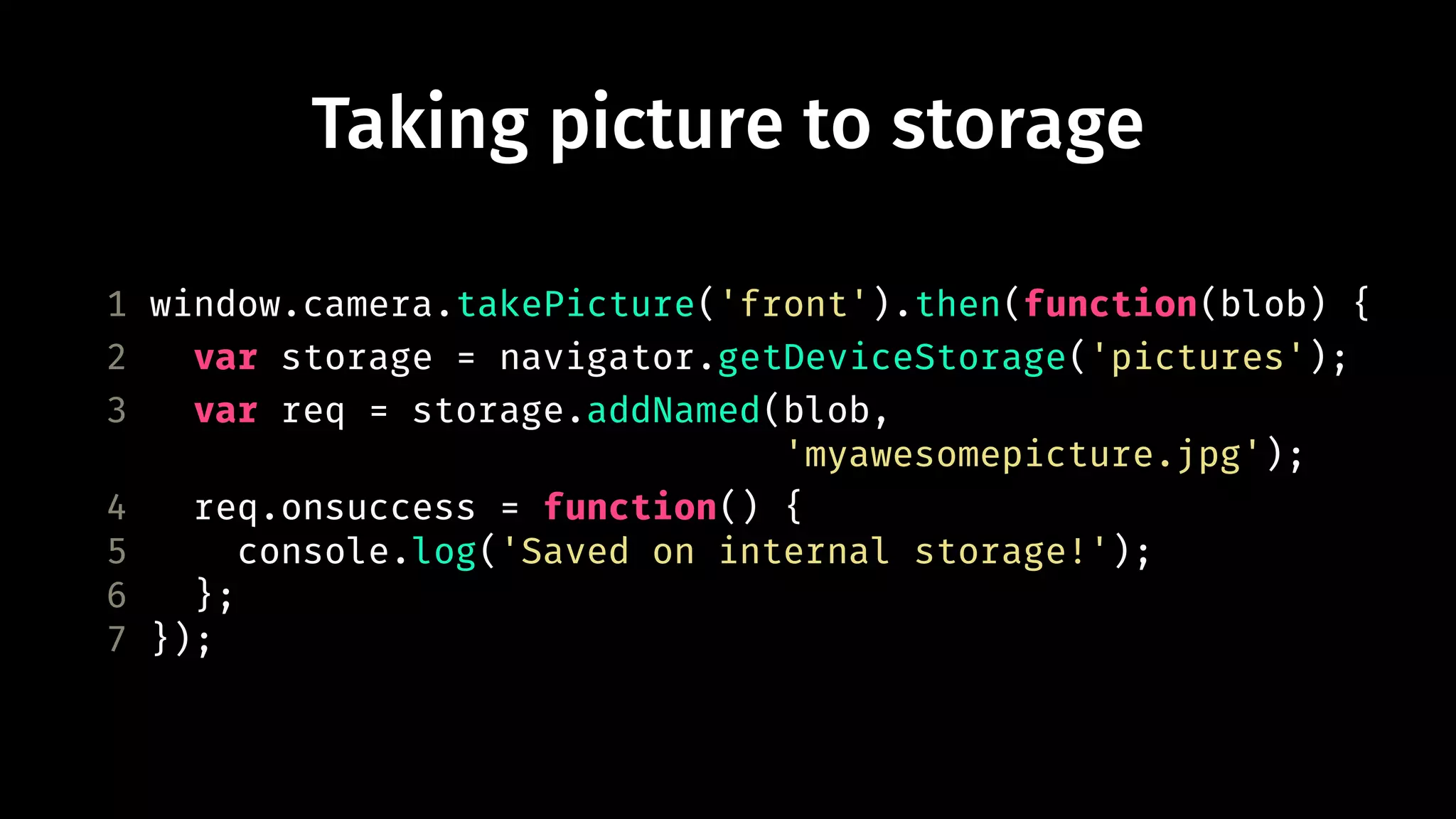

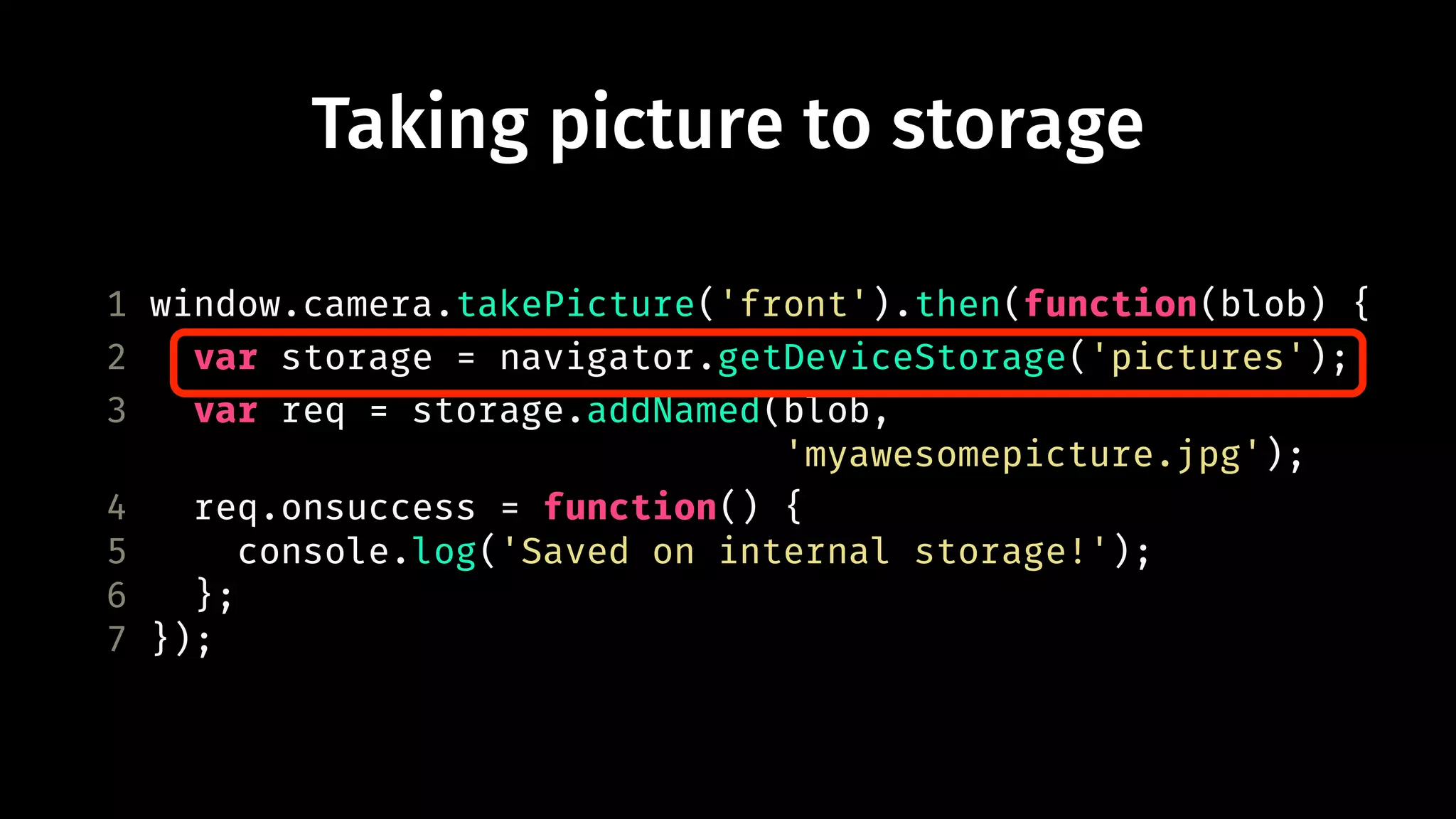

- 121. Taking picture tostorage 1 window.camera.takePicture('front').then(function(blob) { 2 var storage = navigator.getDeviceStorage('pictures'); 3 var req = storage.addNamed(blob, 'myawesomepicture.jpg'); 4 req.onsuccess = function() { 5 console.log('Saved on internal storage!'); 6 }; 7 });

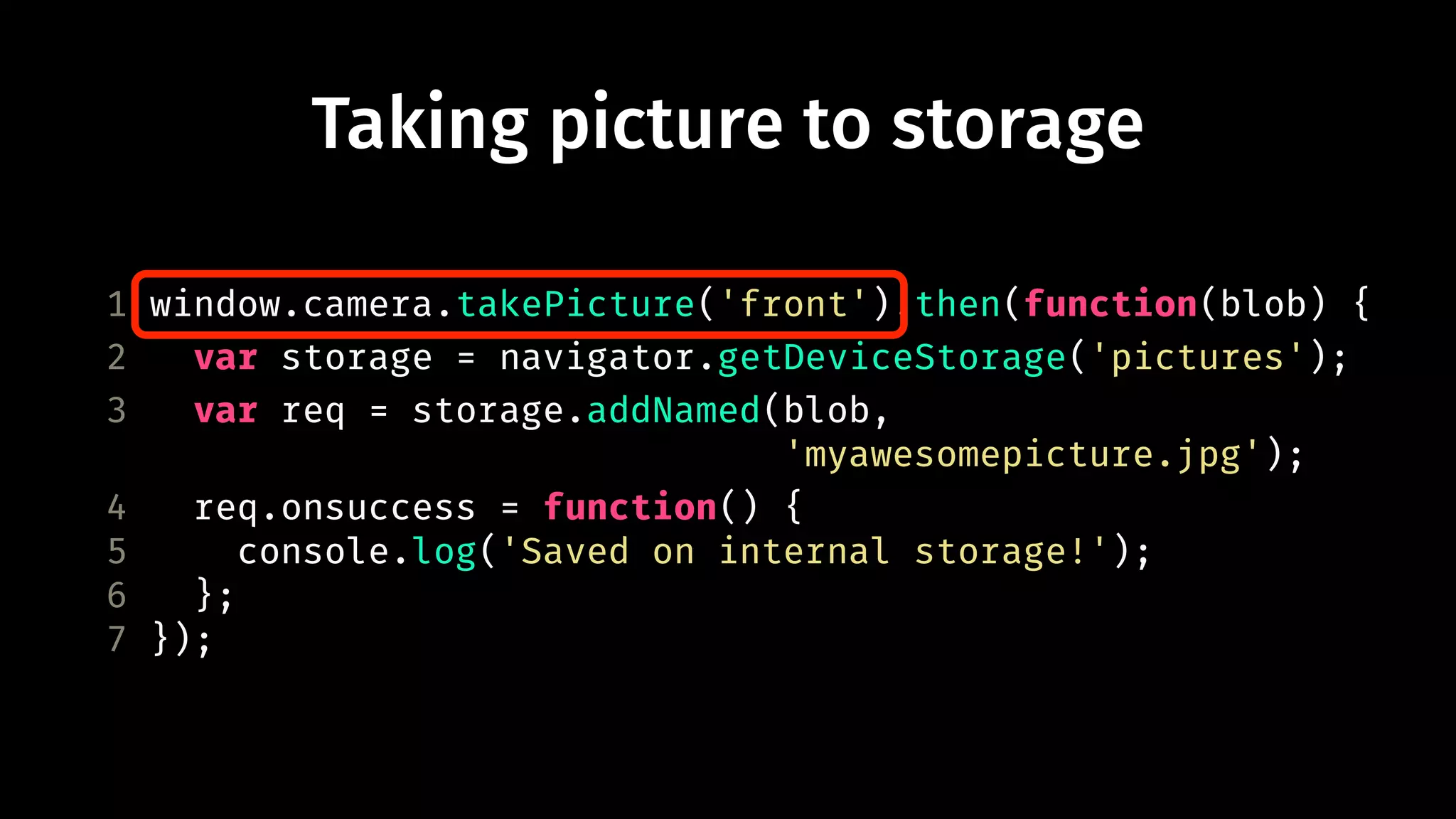

- 122. Taking picture tostorage 1 window.camera.takePicture('front').then(function(blob) { 2 var storage = navigator.getDeviceStorage('pictures'); 3 var req = storage.addNamed(blob, 'myawesomepicture.jpg'); 4 req.onsuccess = function() { 5 console.log('Saved on internal storage!'); 6 }; 7 });
- 123. Taking picture tostorage 1 window.camera.takePicture('front').then(function(blob) { 2 var storage = navigator.getDeviceStorage('pictures'); 3 var req = storage.addNamed(blob, 'myawesomepicture.jpg'); 4 req.onsuccess = function() { 5 console.log('Saved on internal storage!'); 6 }; 7 });

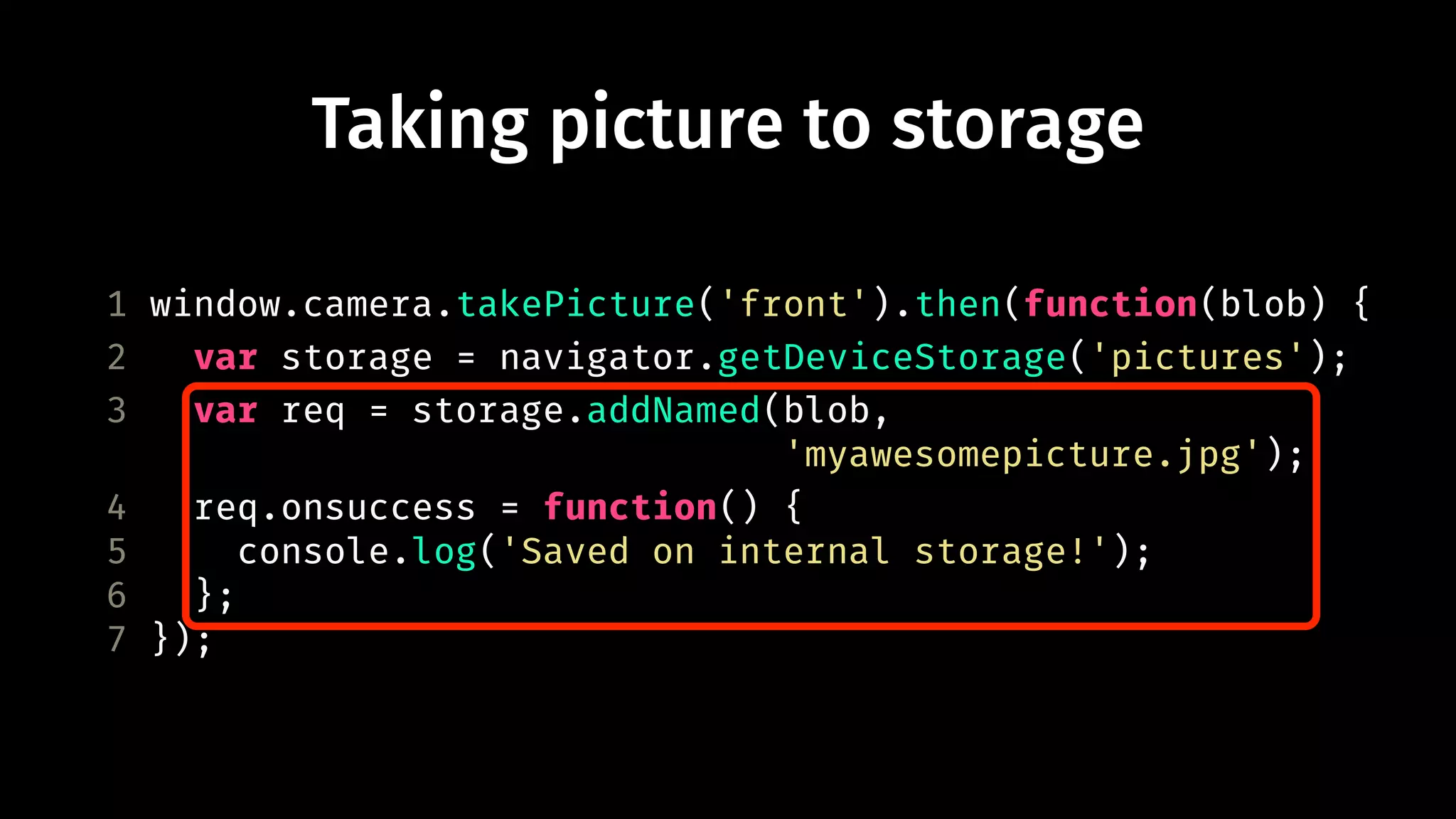

- 124. Taking picture tostorage 1 window.camera.takePicture('front').then(function(blob) { 2 var storage = navigator.getDeviceStorage('pictures'); 3 var req = storage.addNamed(blob, 'myawesomepicture.jpg'); 4 req.onsuccess = function() { 5 console.log('Saved on internal storage!'); 6 }; 7 });
- 125. Doorbell Proximity sensor Ring over bluetooth Live video stream

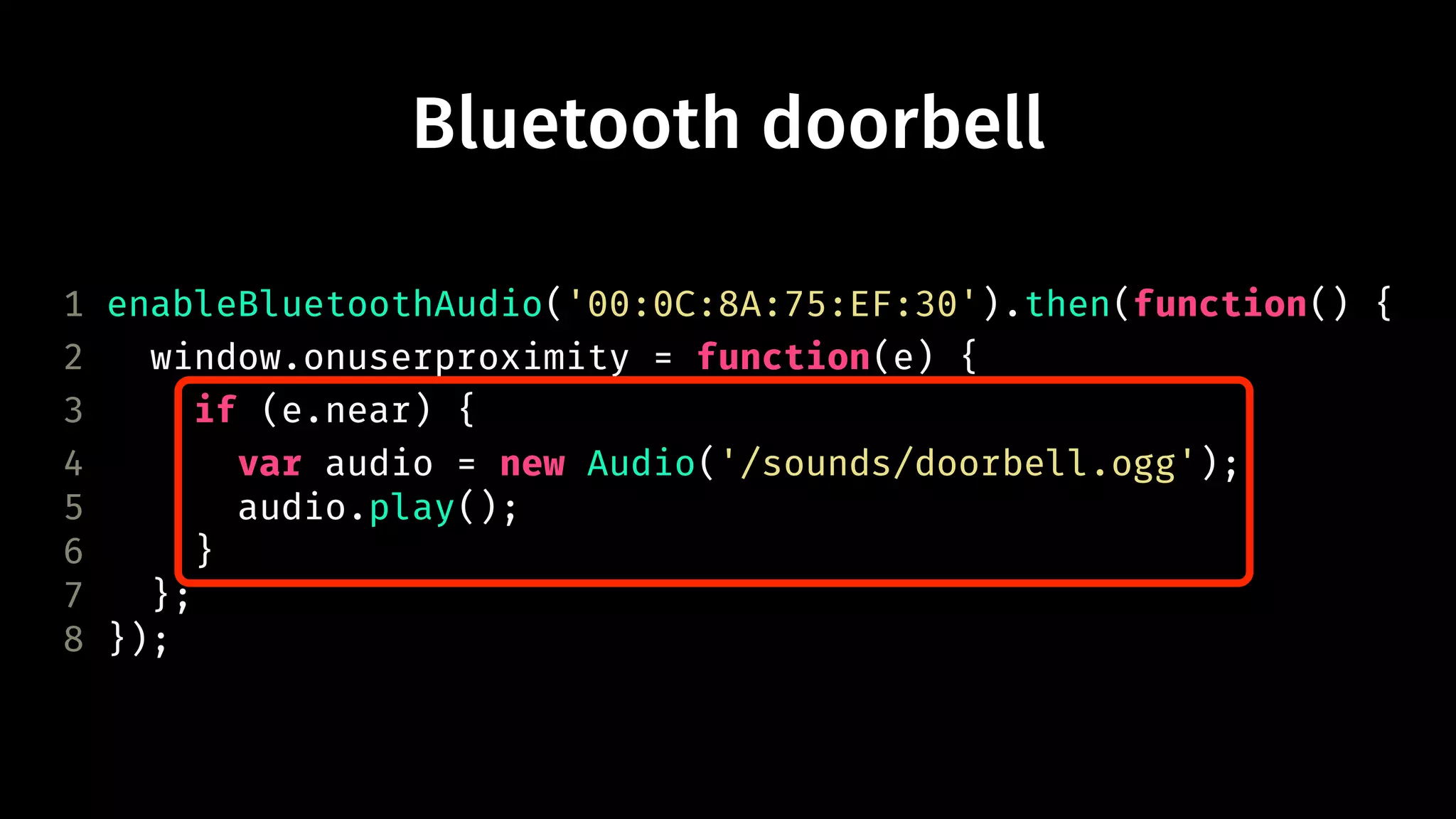

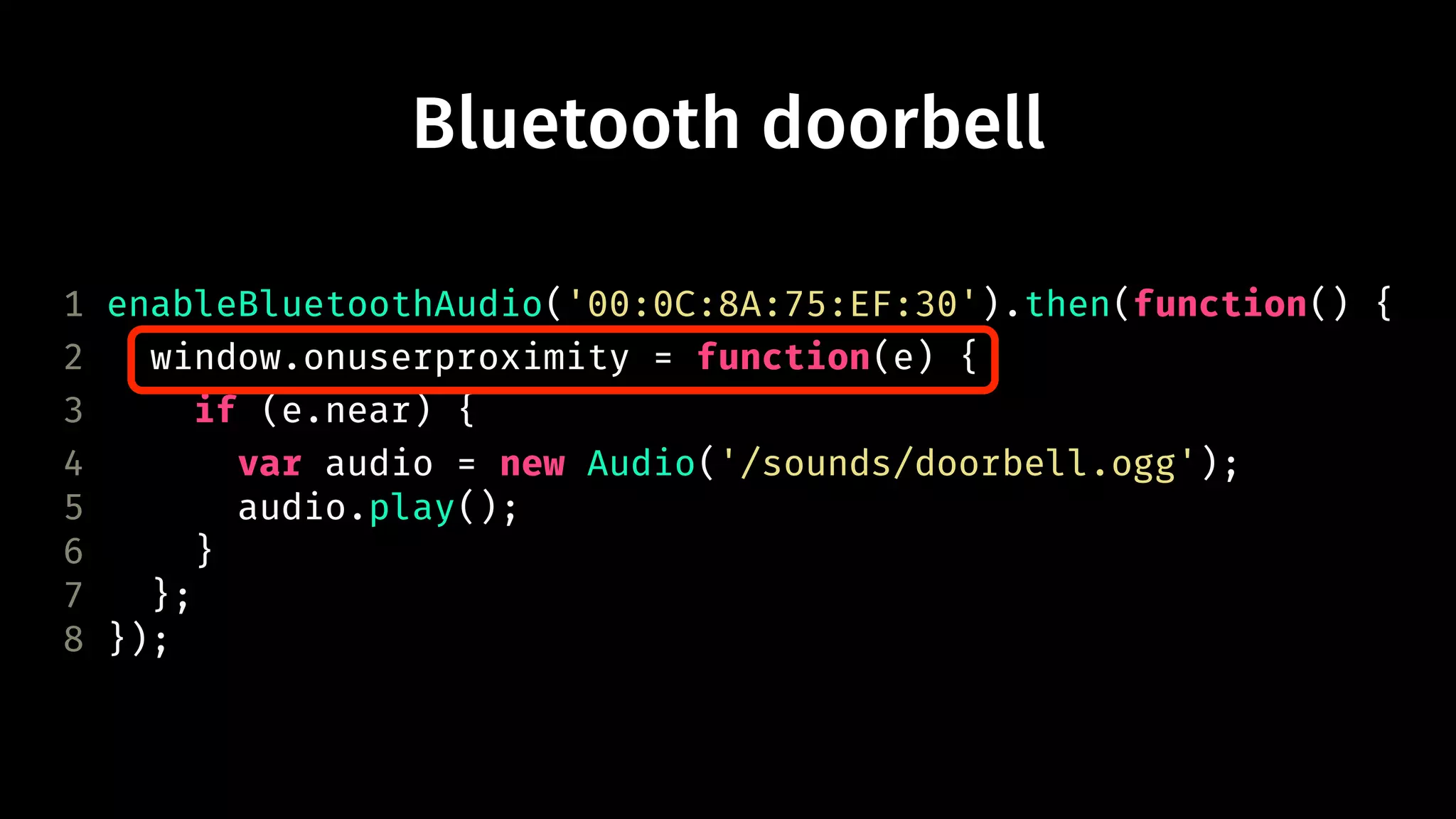

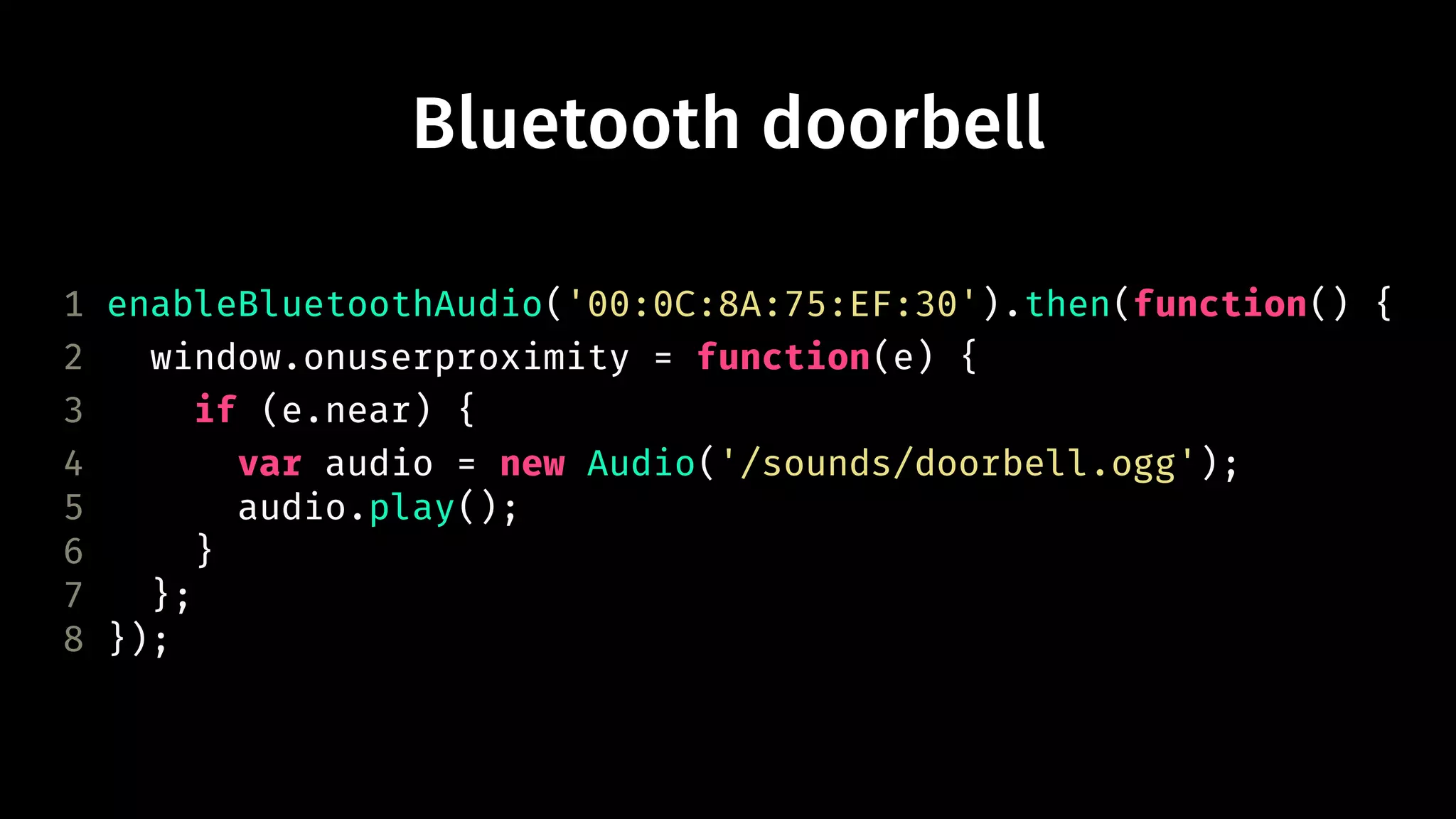

- 126. Bluetooth doorbell 1enableBluetoothAudio('00:0C:8A:75:EF:30').then(function() { 2 window.onuserproximity = function(e) { 3 if (e.near) { 4 var audio = new Audio('/sounds/doorbell.ogg'); 5 audio.play(); 6 } 7 }; 8 });

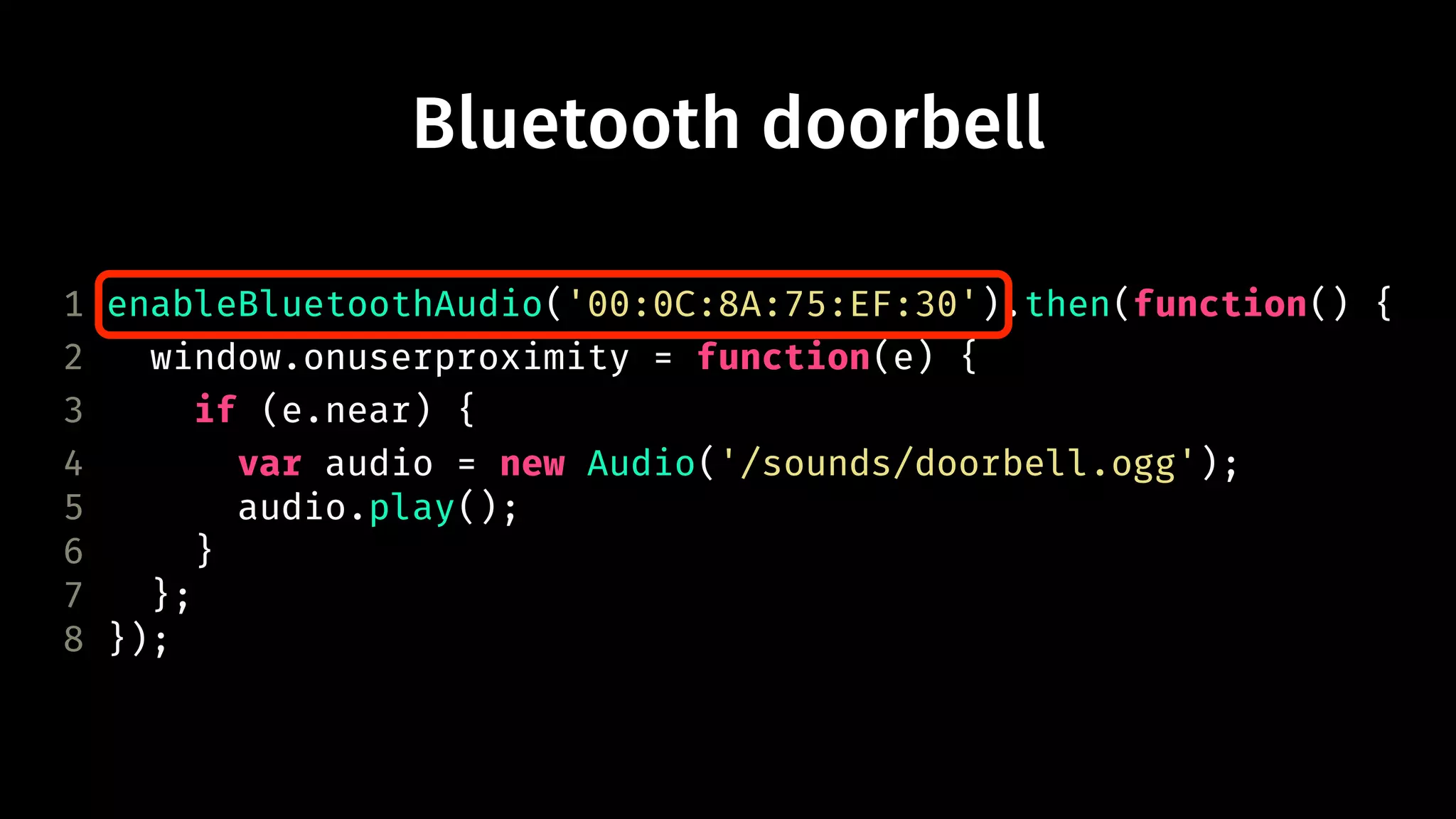

- 127. Bluetooth doorbell 1enableBluetoothAudio('00:0C:8A:75:EF:30').then(function() { 2 window.onuserproximity = function(e) { 3 if (e.near) { 4 var audio = new Audio('/sounds/doorbell.ogg'); 5 audio.play(); 6 } 7 }; 8 });
- 128. Bluetooth doorbell 1enableBluetoothAudio('00:0C:8A:75:EF:30').then(function() { 2 window.onuserproximity = function(e) { 3 if (e.near) { 4 var audio = new Audio('/sounds/doorbell.ogg'); 5 audio.play(); 6 } 7 }; 8 });
- 129. Bluetooth doorbell 1enableBluetoothAudio('00:0C:8A:75:EF:30').then(function() { 2 window.onuserproximity = function(e) { 3 if (e.near) { 4 var audio = new Audio('/sounds/doorbell.ogg'); 5 audio.play(); 6 } 7 }; 8 });
- 131.

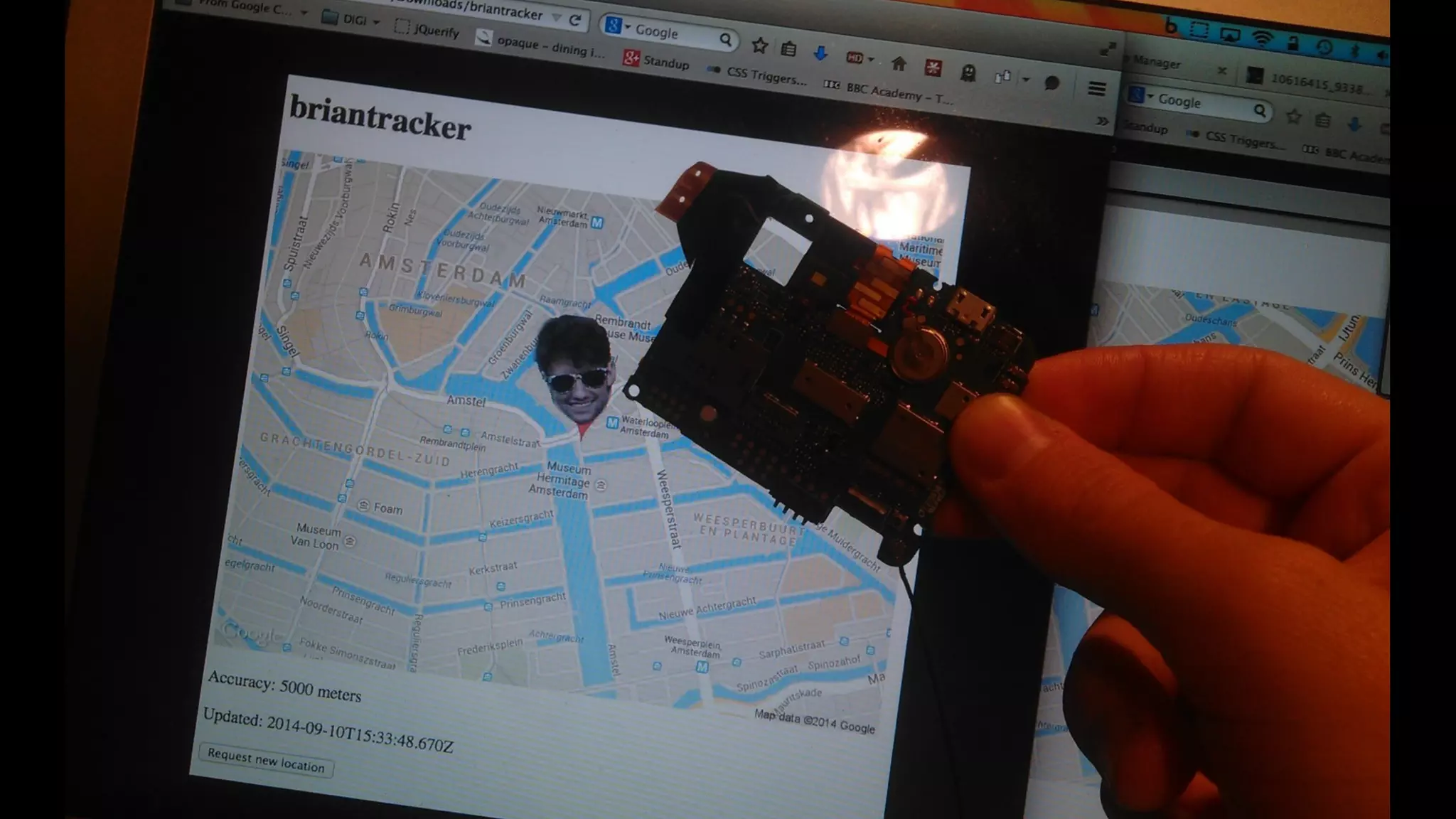

- 134. BrianTracker™ 2G connection Connected to push server Geolocation on request
- 138.

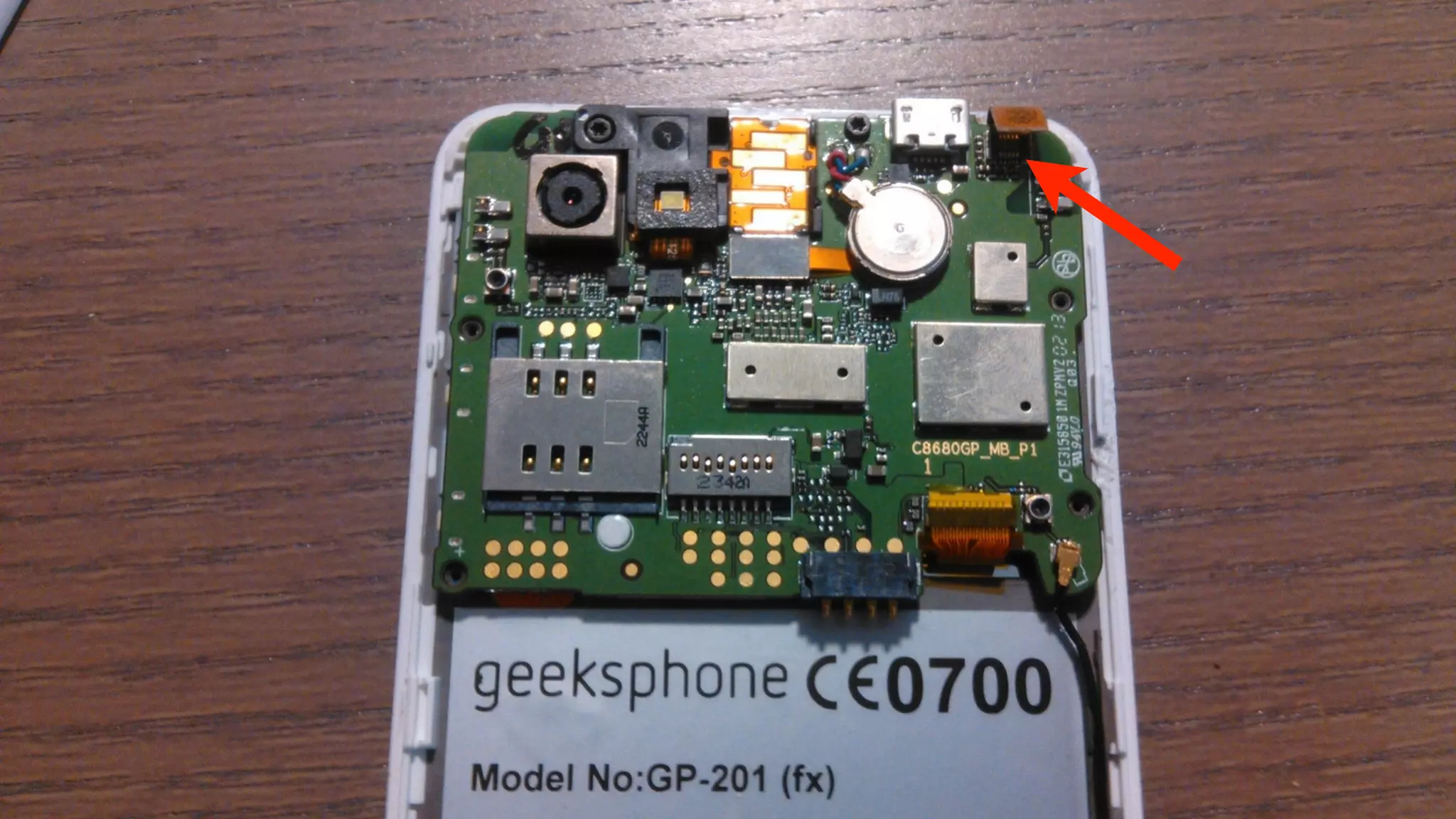

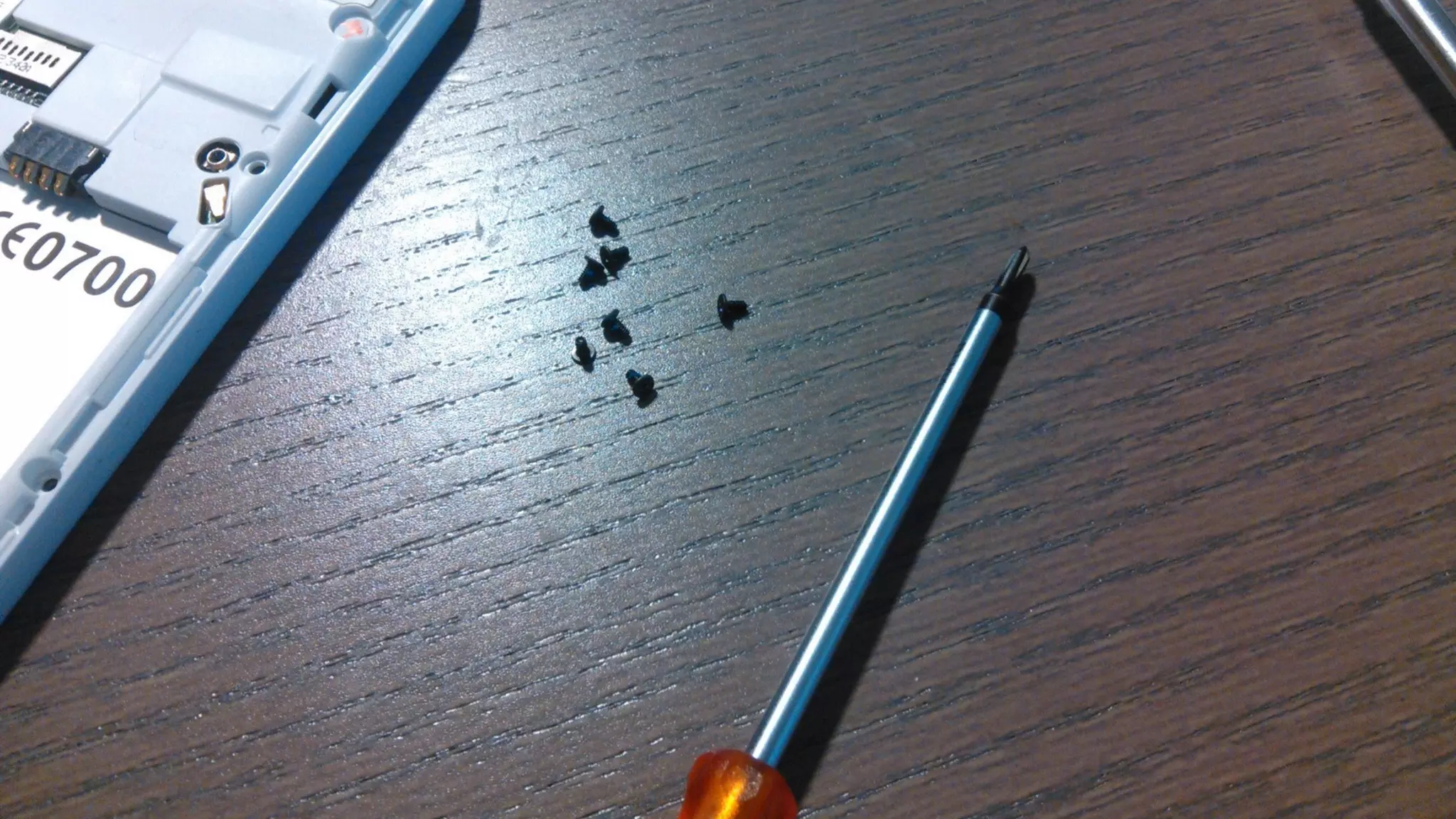

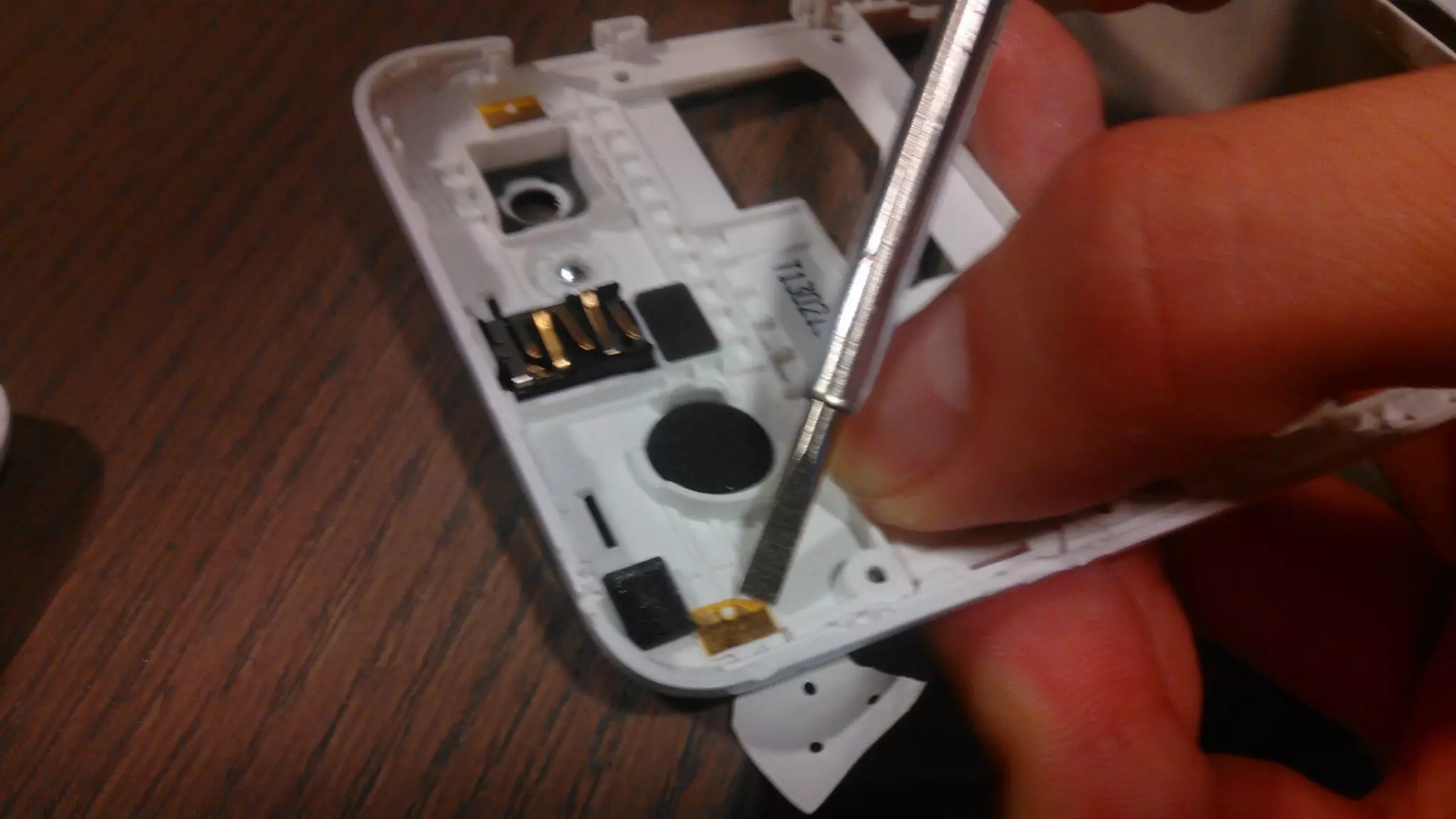

- 139. Get hacking Graba rootable FxOS phone Crack it open Write your own scripts PROFIT!
- 140.

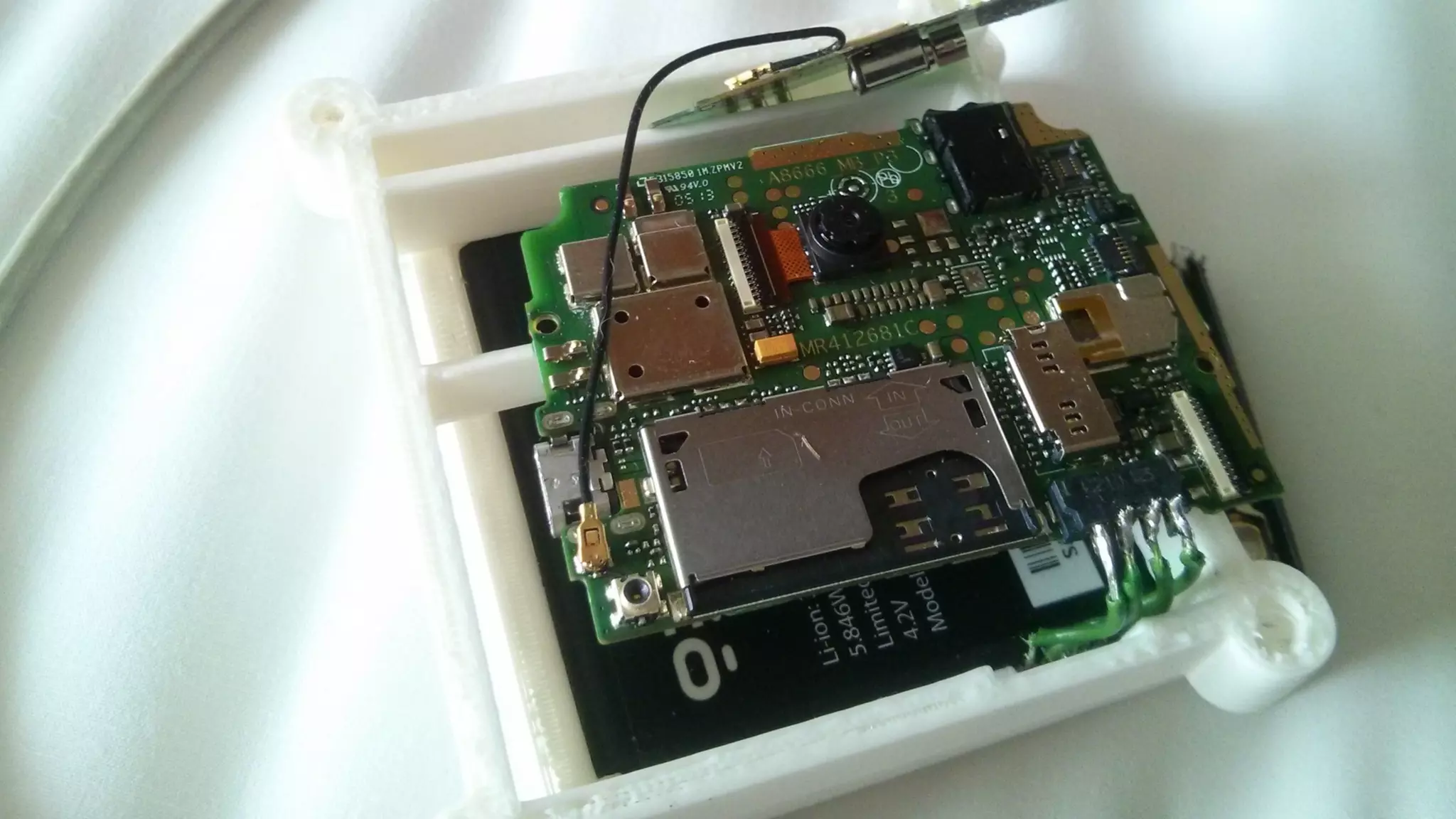

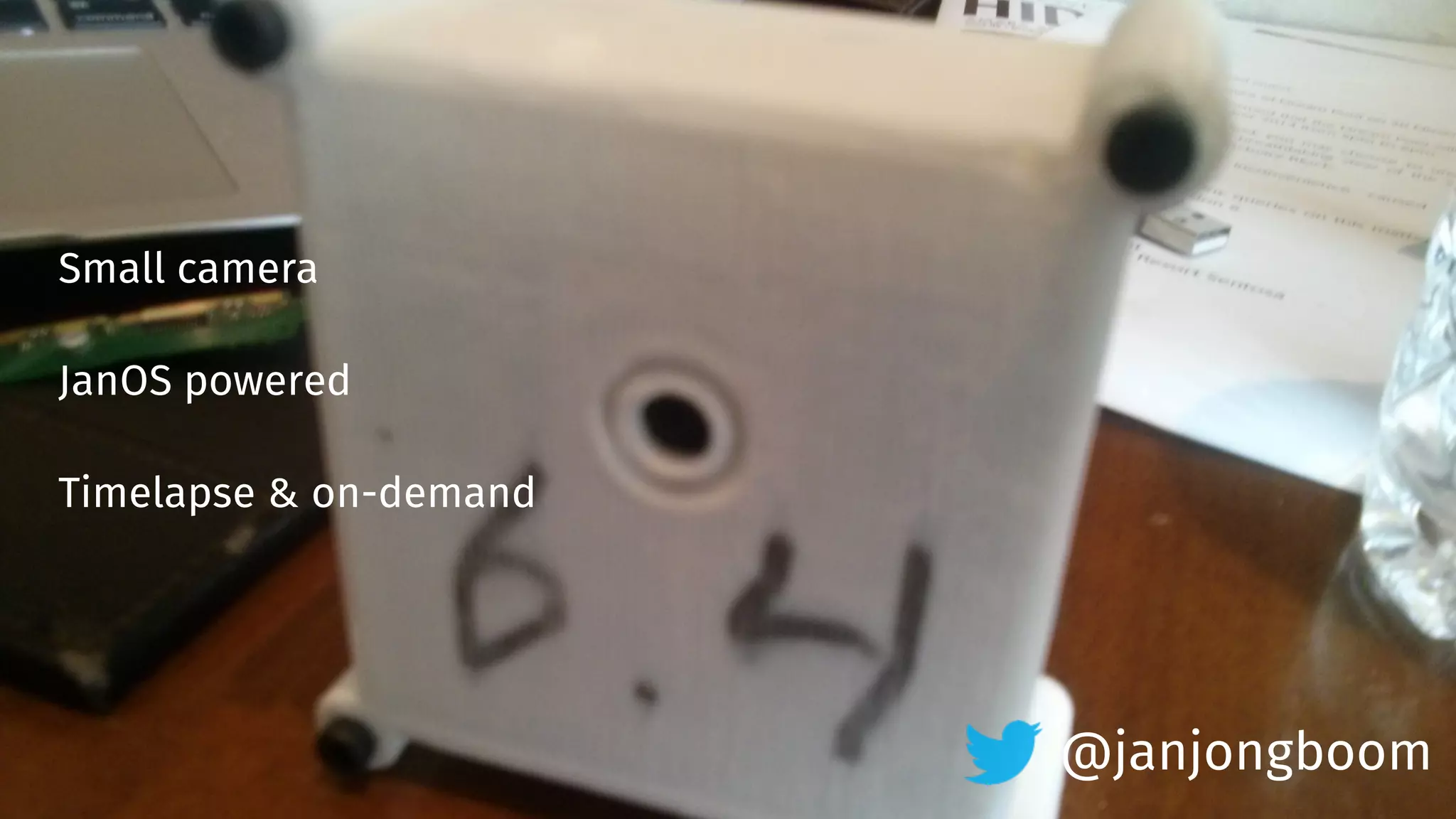

- 143. Small camera JanOSpowered Timelapse & on-demand @janjongboom
- 144. Thank you! http://janjongboom.com github.com/janjongboom
