1. FIREFOX OS
The platform HTML5 deserves
Christian Heilmann (@codepo8)
Øredev, Malmø, 7/11/13

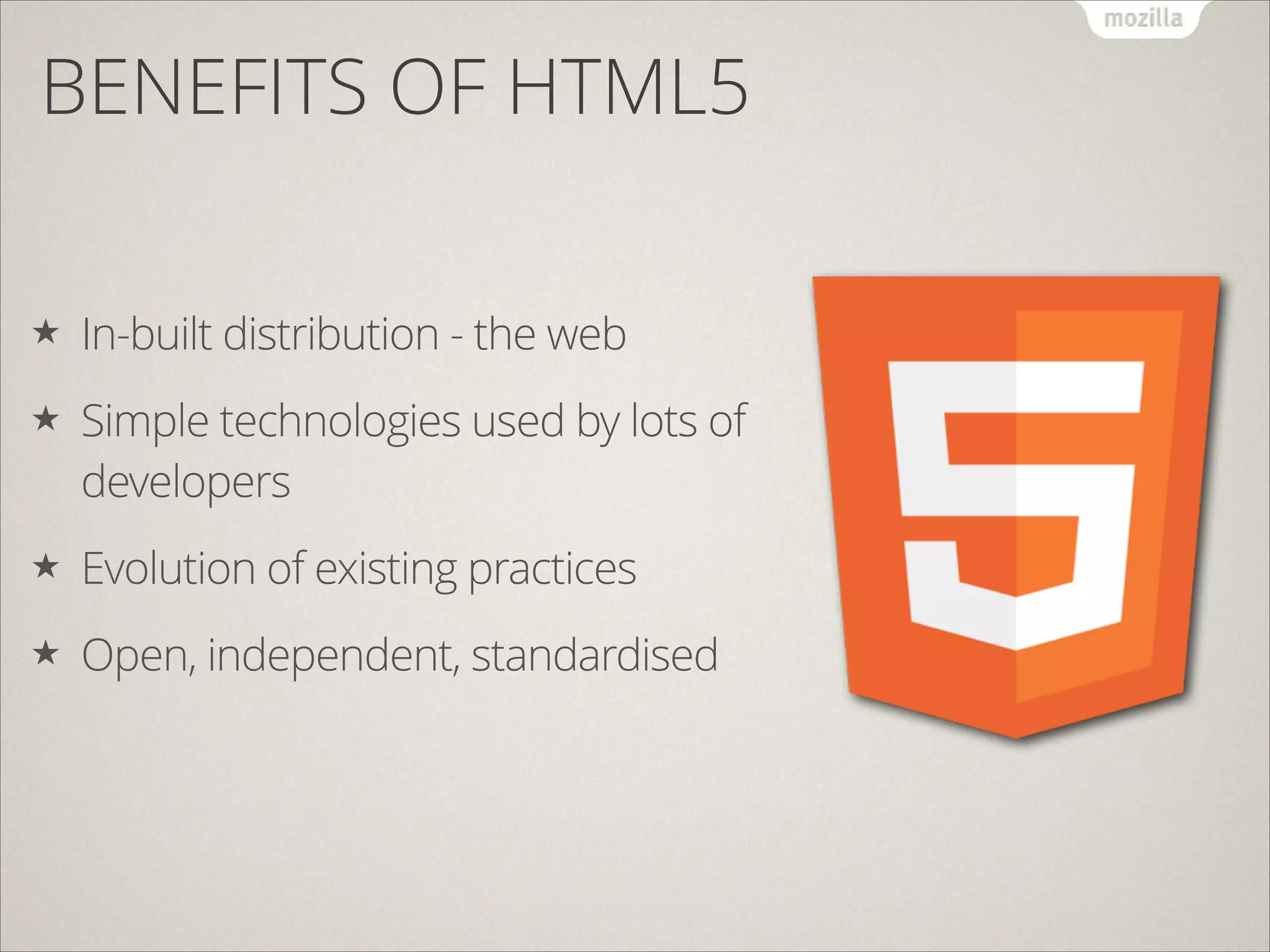

2. BENEFITS OF HTML5
★
In-built distribution - the web
★
Simple technologies used by lots of
developers
★
Evolution of existing practices
★
Open, independent, standardised

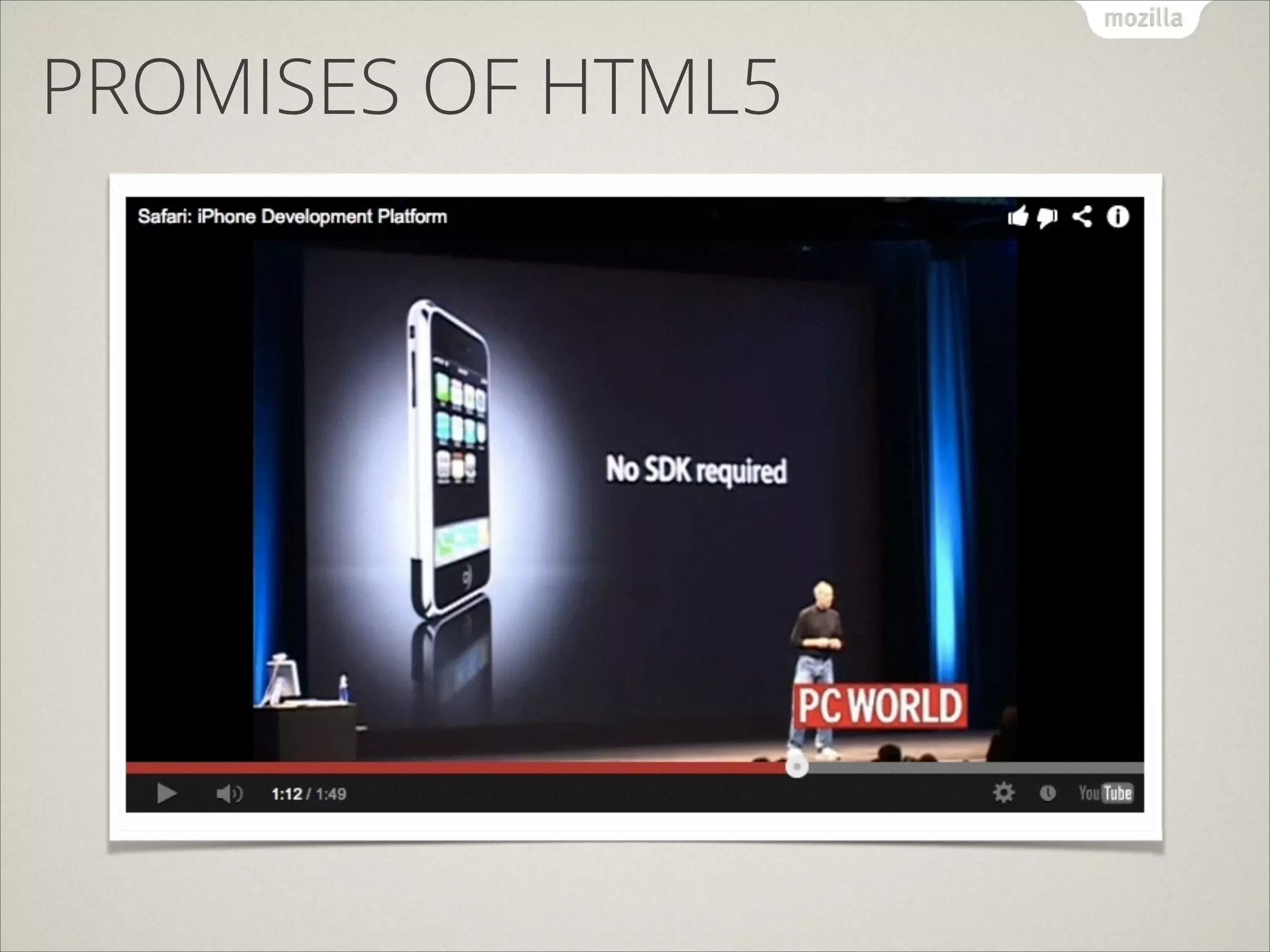

3. PROMISES OF HTML5

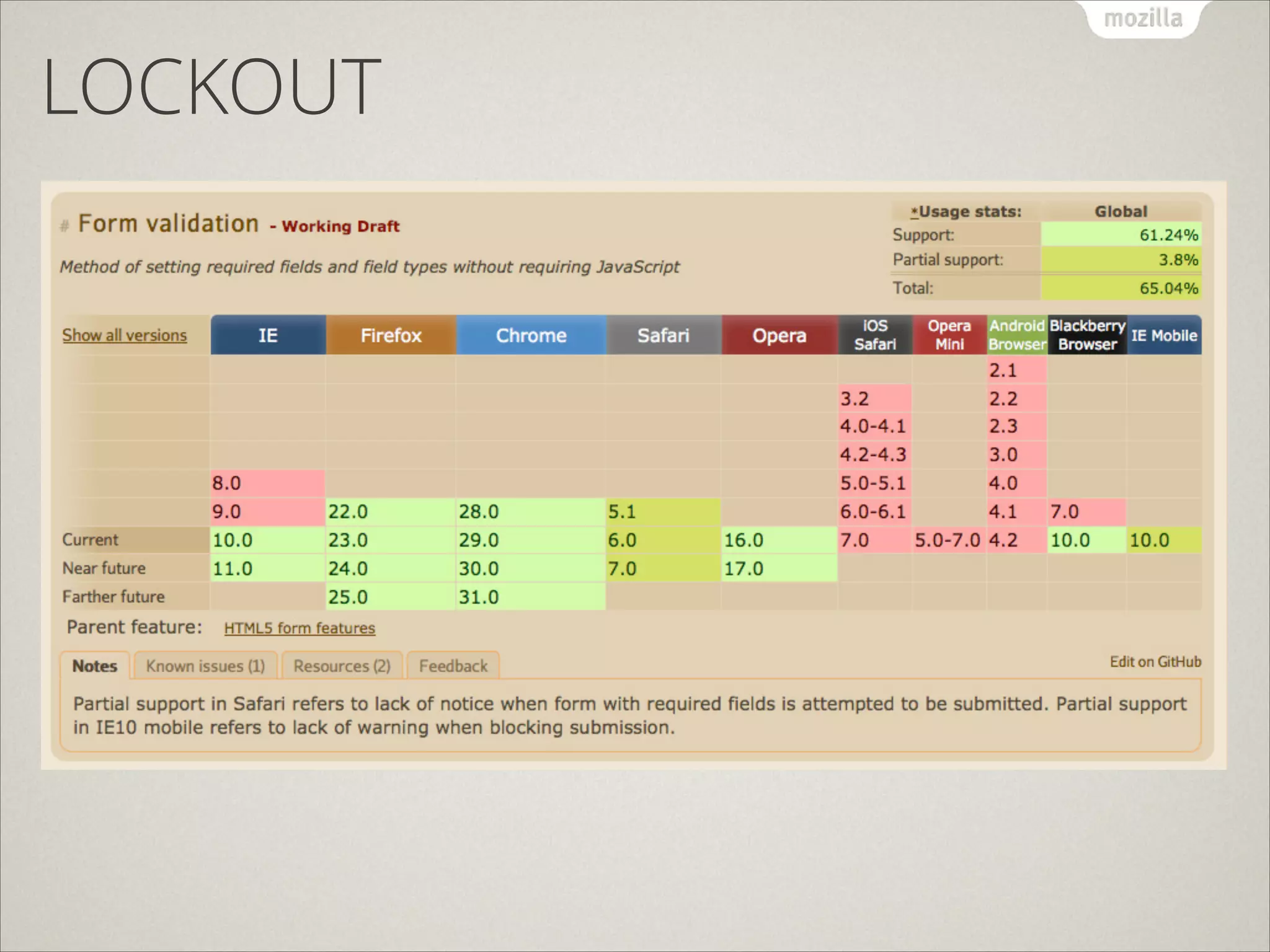

4. LOCKOUT

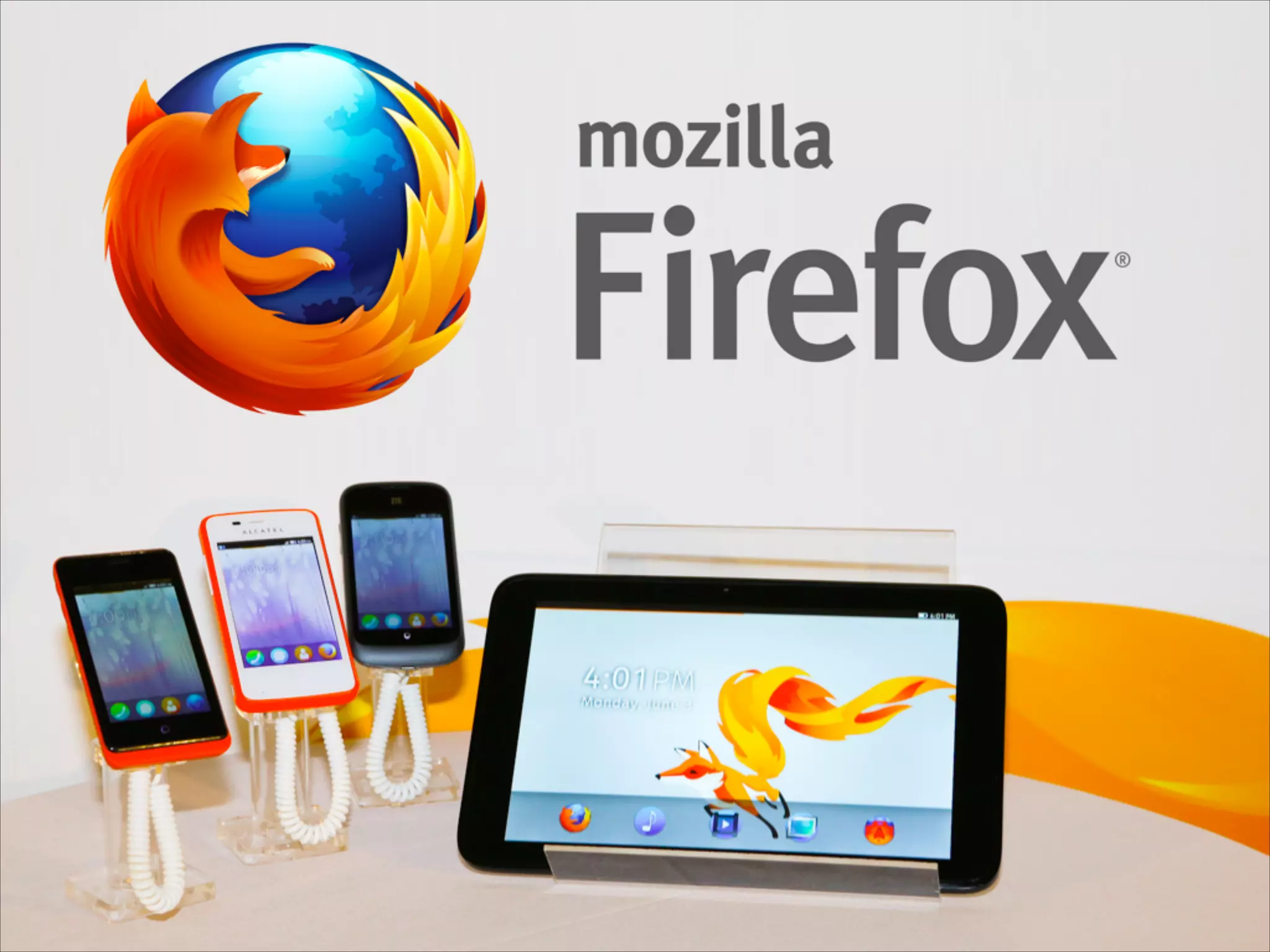

5. FIREFOX OS

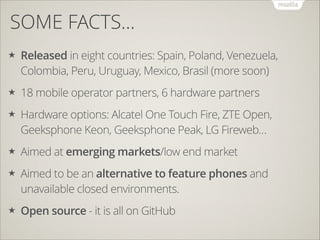

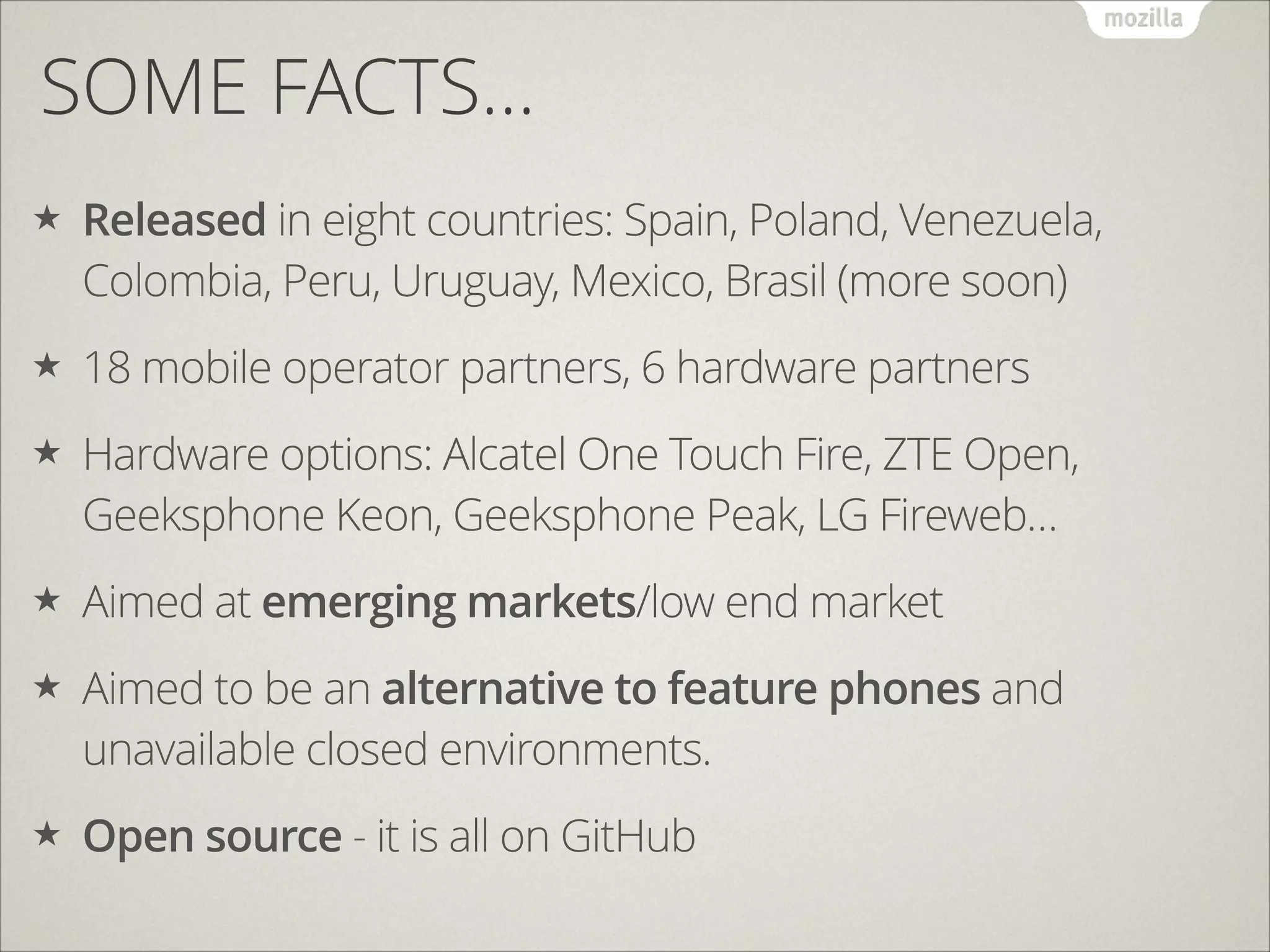

6. SOME FACTS…
★
Released in eight countries: Spain, Poland, Venezuela,
Colombia, Peru, Uruguay, Mexico, Brasil (more soon)
★
18 mobile operator partners, 6 hardware partners
★
Hardware options: Alcatel One Touch Fire, ZTE Open,
Geeksphone Keon, Geeksphone Peak, LG Fireweb…
★
Aimed at emerging markets/low end market
★
Aimed to be an alternative to feature phones and
unavailable closed environments.
★
Open source - it is all on GitHub

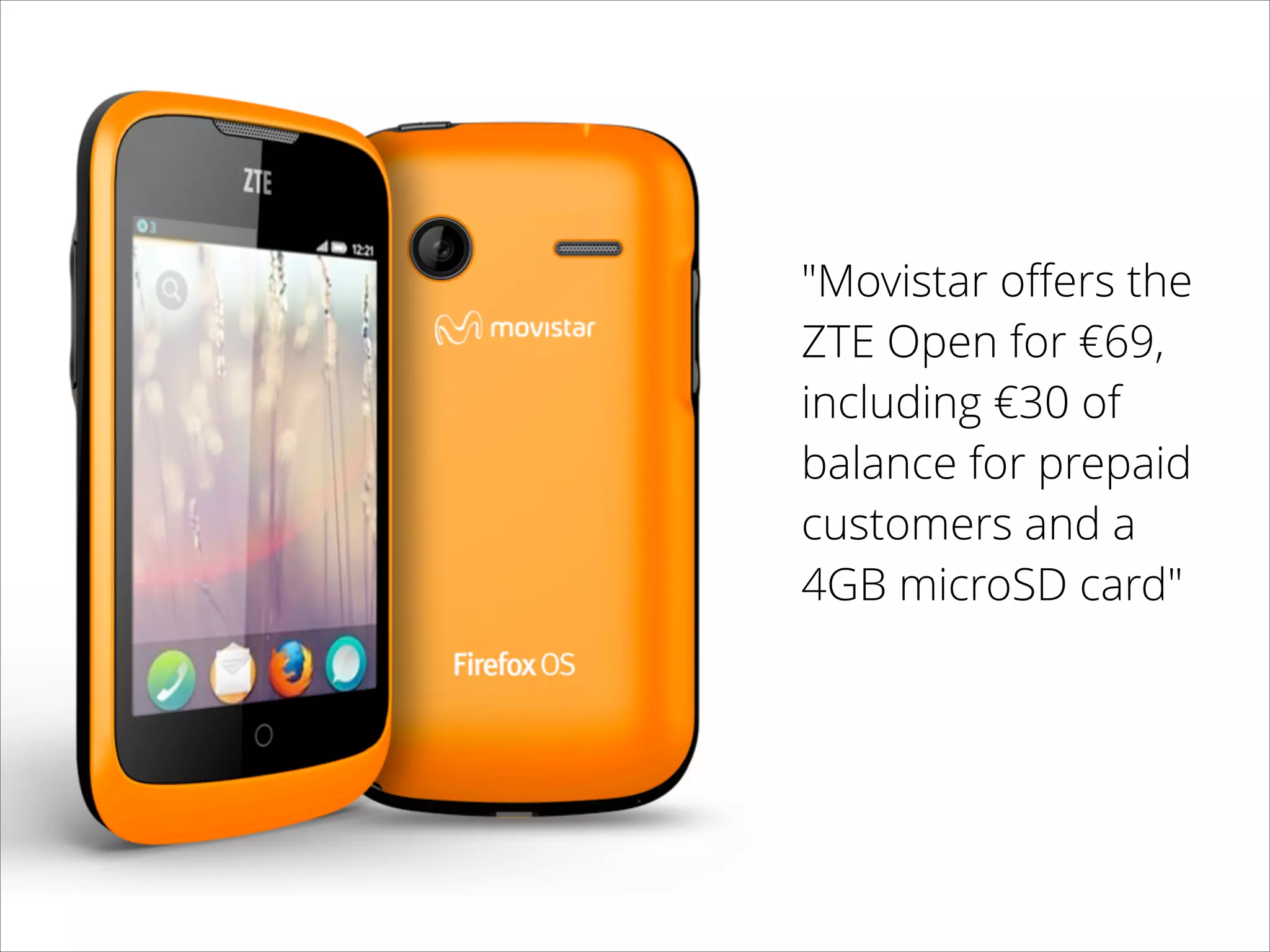

7. "Movistar offers the
ZTE Open for €69,
including €30 of
balance for prepaid
customers and a
4GB microSD card"

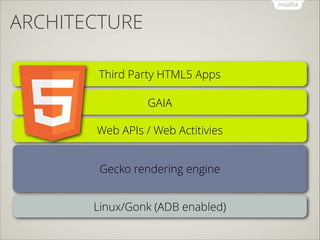

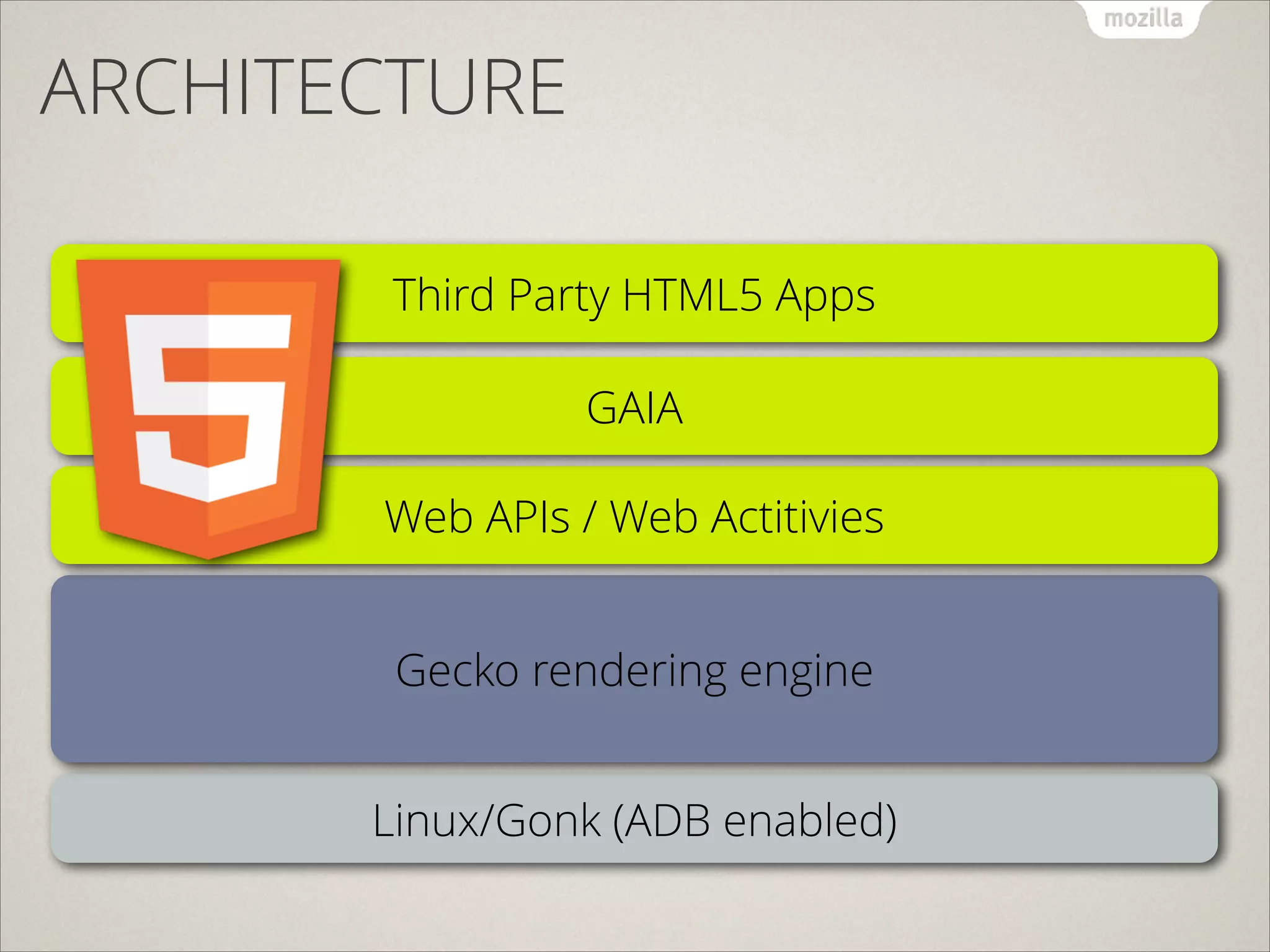

8. ARCHITECTURE
Third Party HTML5 Apps
GAIA
Web APIs / Web Actitivies
Gecko rendering engine
Linux/Gonk (ADB enabled)

9. -
+
=

10. PREDICTABLE HTML5 SUPPORT

11. SECURITY

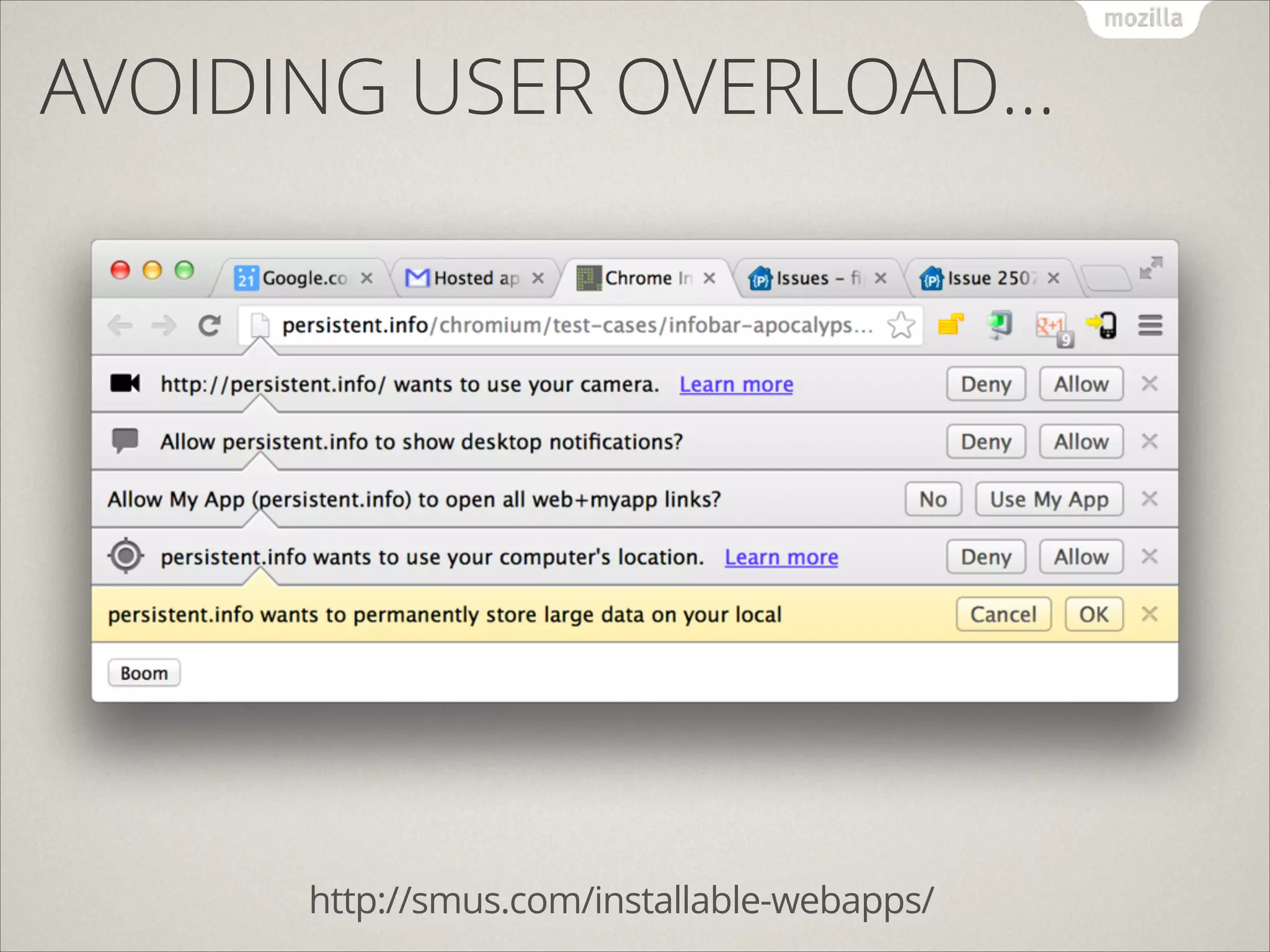

12. AVOIDING USER OVERLOAD…
http://smus.com/installable-webapps/

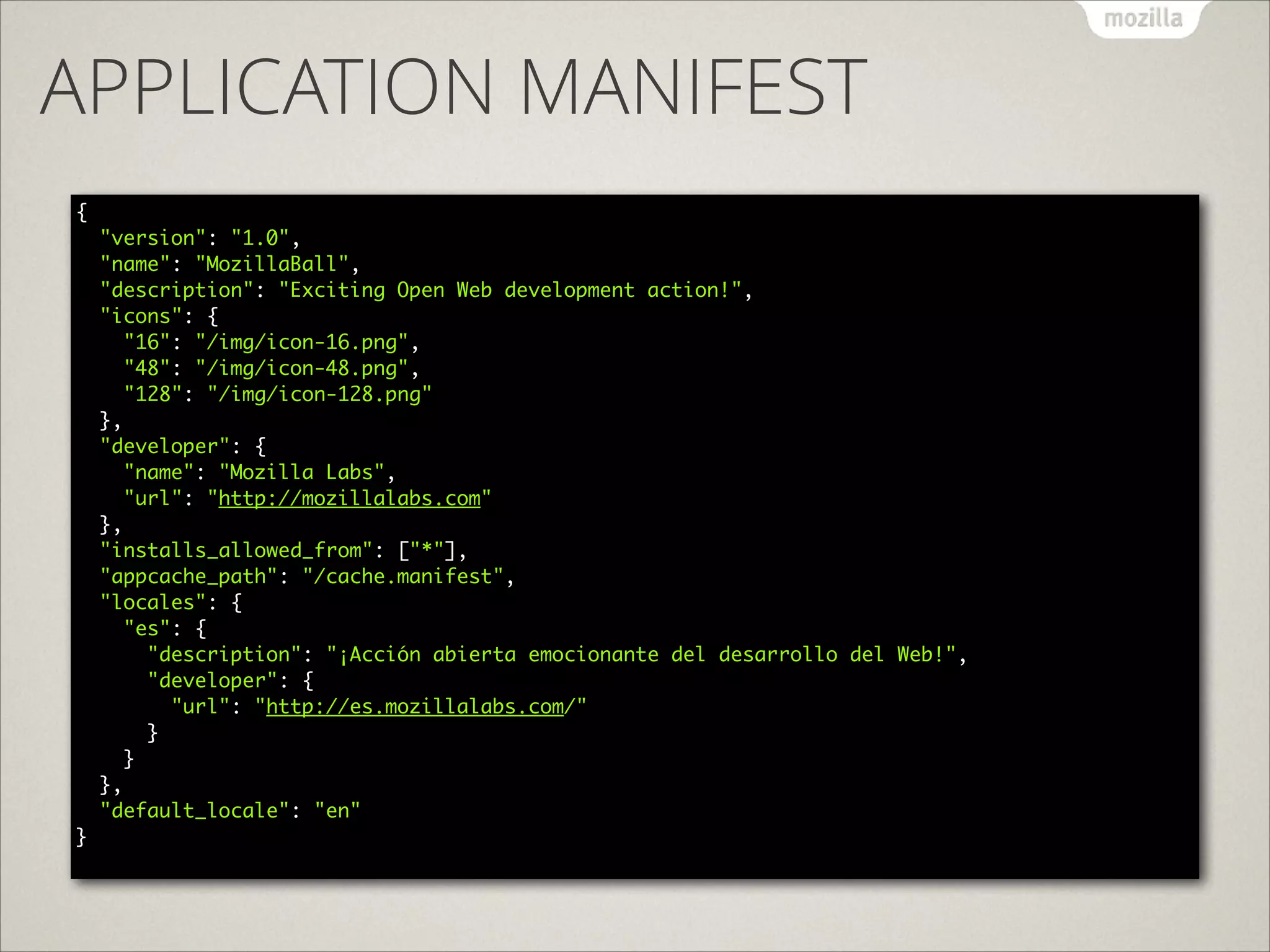

13. APPLICATION MANIFEST
{
"version": "1.0",
"name": "MozillaBall",
"description": "Exciting Open Web development action!",
"icons": {
"16": "/img/icon-16.png",
"48": "/img/icon-48.png",
"128": "/img/icon-128.png"
},
"developer": {
"name": "Mozilla Labs",
"url": "http://mozillalabs.com"
},
"installs_allowed_from": ["*"],
"appcache_path": "/cache.manifest",
"locales": {
"es": {
"description": "¡Acción abierta emocionante del desarrollo del Web!",
"developer": {
"url": "http://es.mozillalabs.com/"
}
}
},
"default_locale": "en"
}

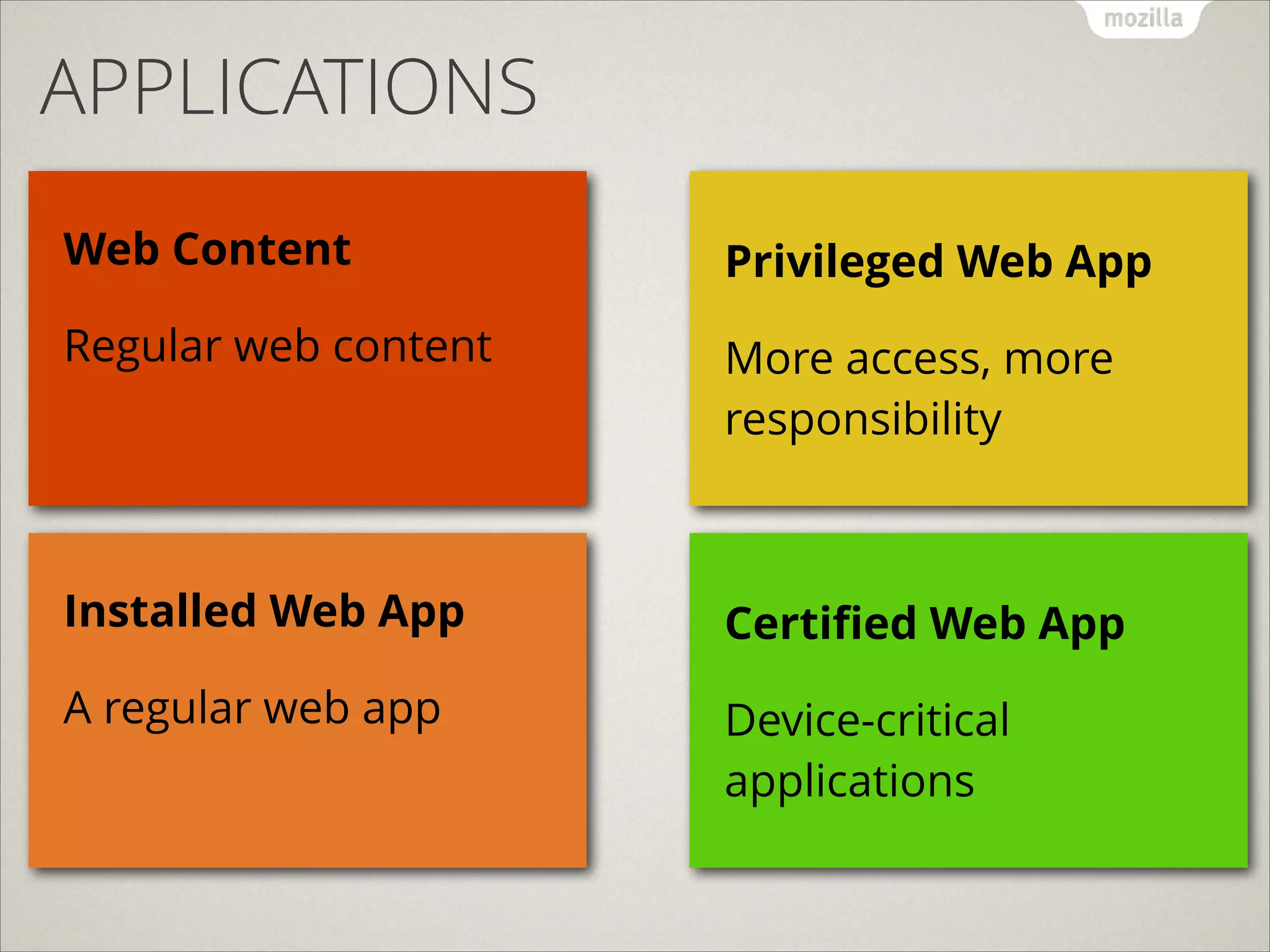

14. APPLICATIONS
Web Content
Privileged Web App
Regular web content
More access, more
responsibility
Installed Web App
Certified Web App
A regular web app
Device-critical
applications

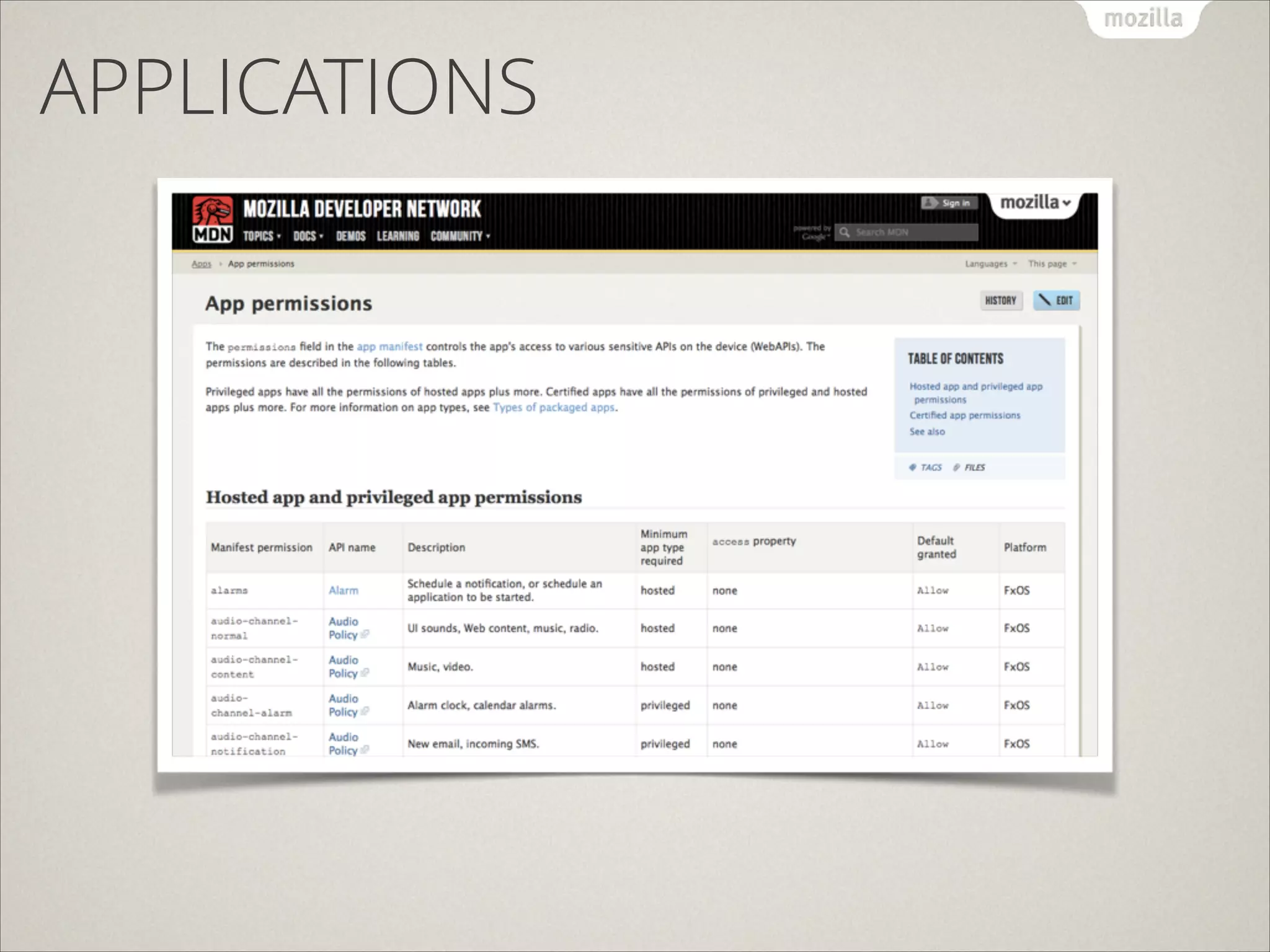

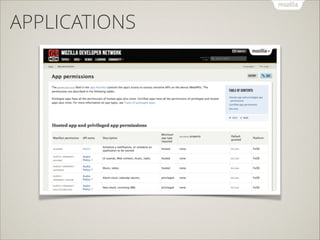

15. APPLICATIONS

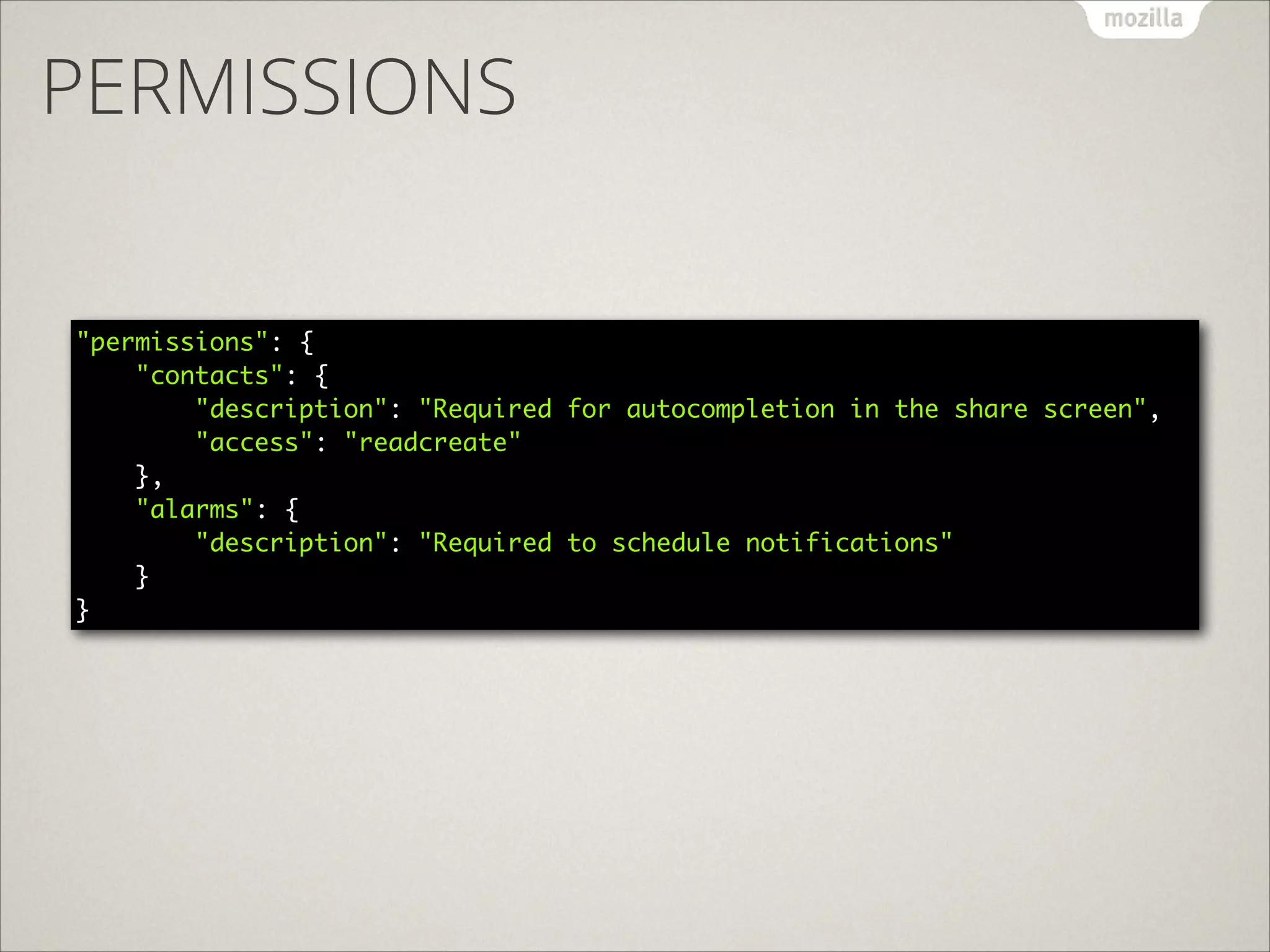

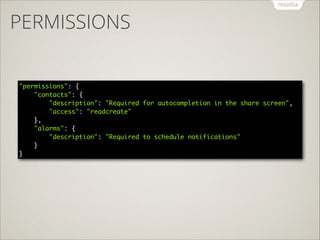

16. PERMISSIONS
"permissions": {
"contacts": {
"description": "Required for autocompletion in the share screen",
"access": "readcreate"
},
"alarms": {
"description": "Required to schedule notifications"
}
}

17. WEB APIS

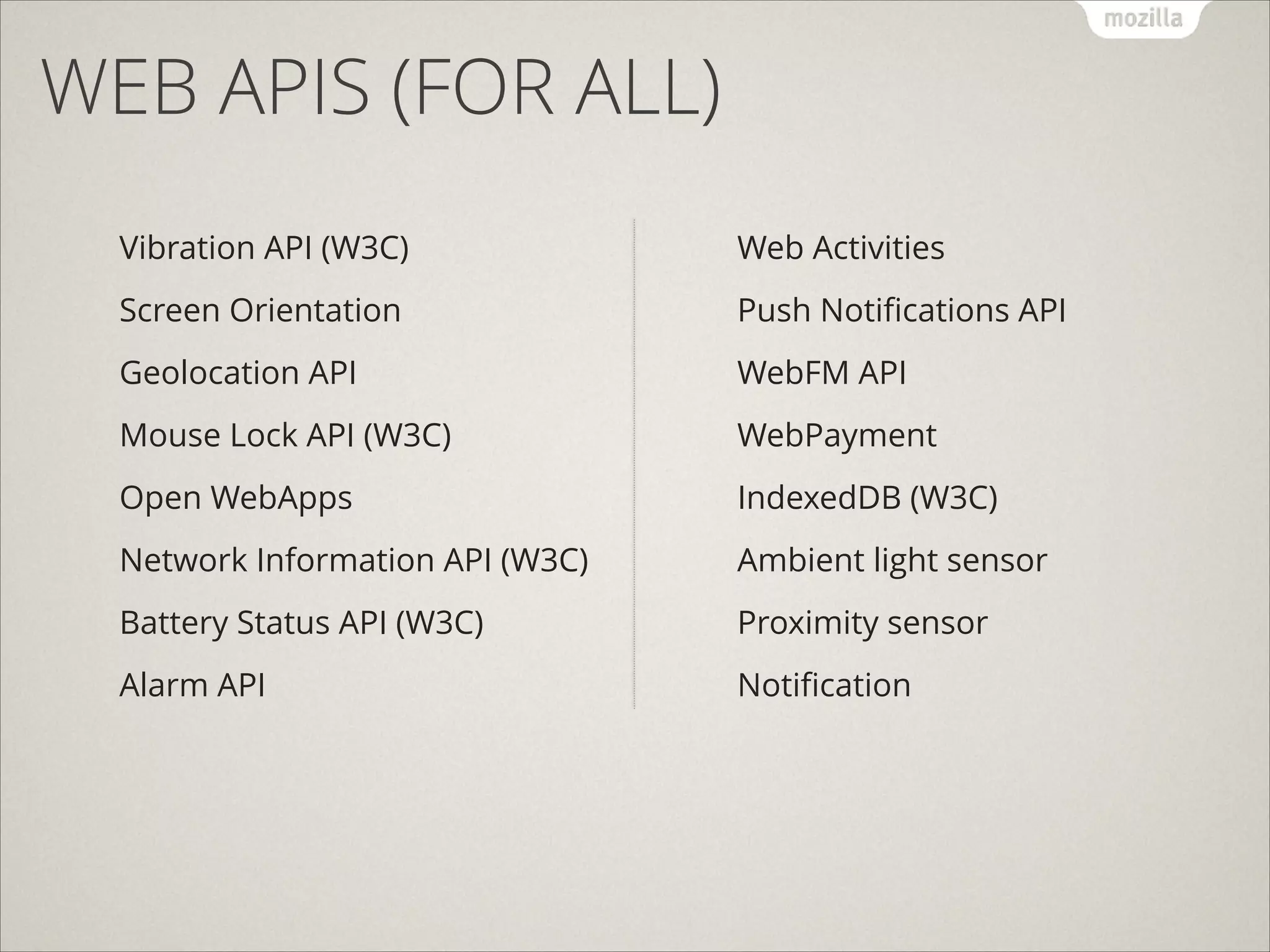

18. WEB APIS (FOR ALL)
Vibration API (W3C)
Web Activities
Screen Orientation
Push Notifications API
Geolocation API
WebFM API
Mouse Lock API (W3C)
WebPayment
Open WebApps
IndexedDB (W3C)
Network Information API (W3C)
Ambient light sensor
Battery Status API (W3C)
Proximity sensor
Alarm API
Notification

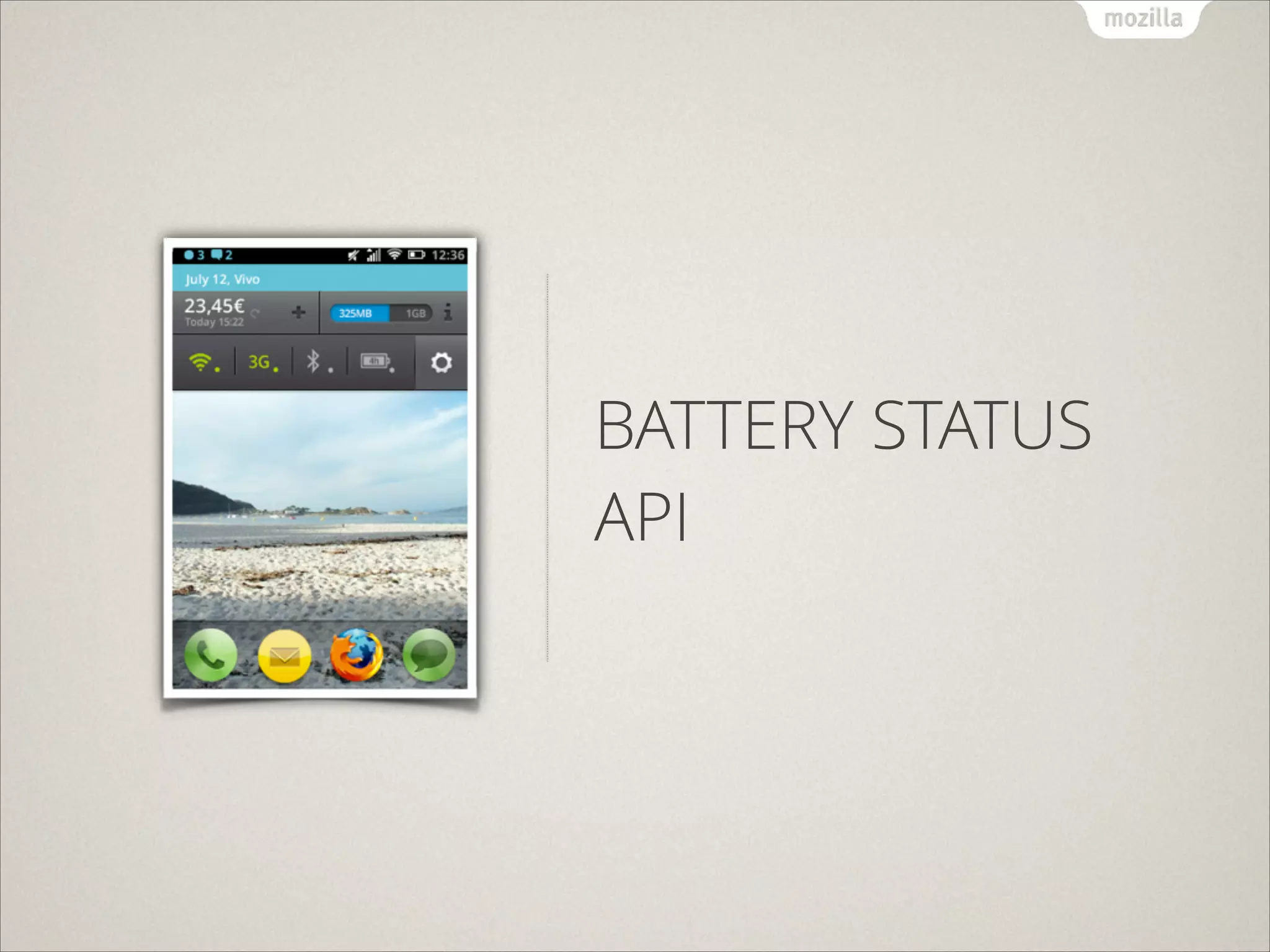

19. BATTERY STATUS
API

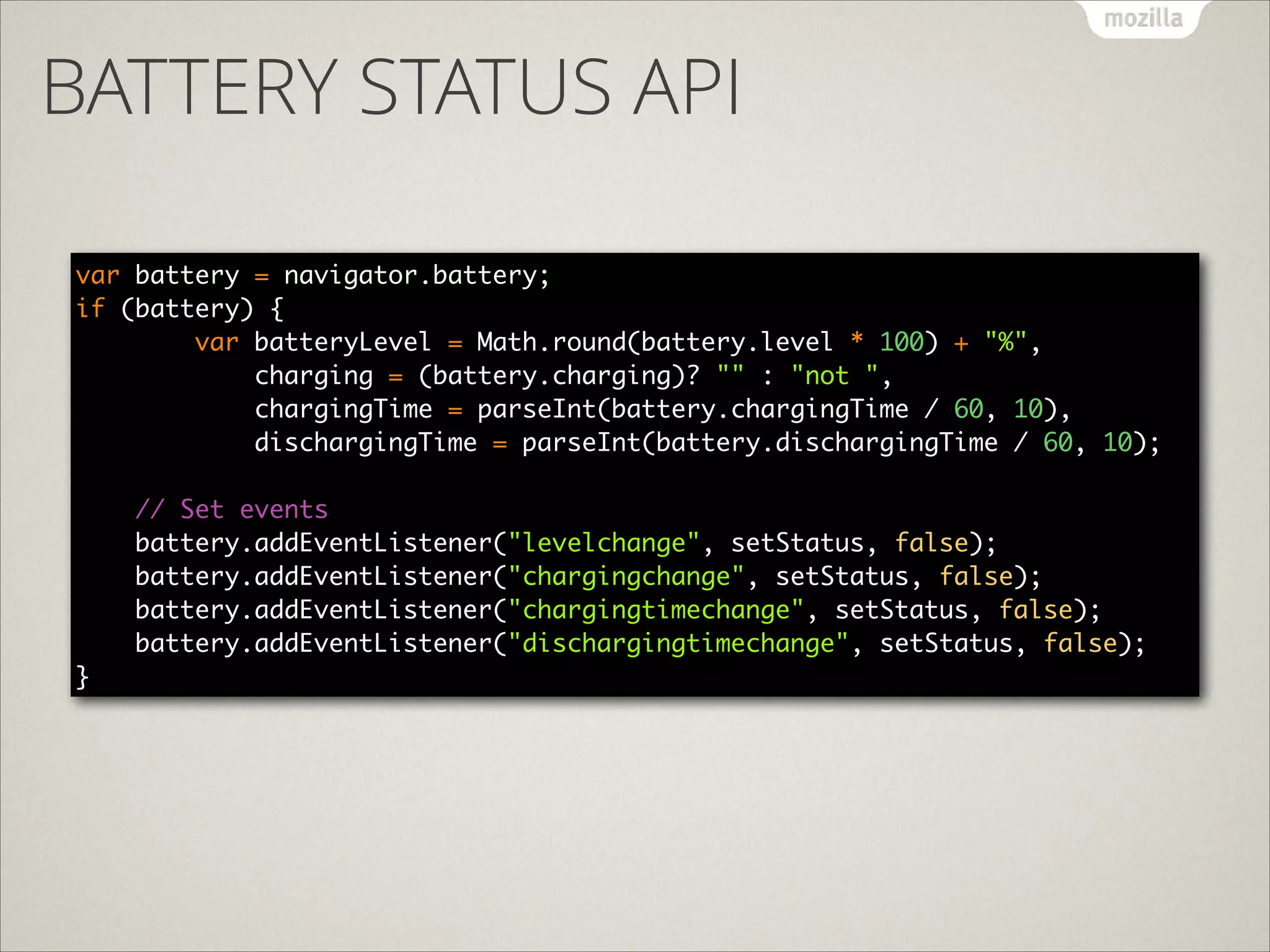

20. BATTERY STATUS API
var battery = navigator.battery;
if (battery) {
var batteryLevel = Math.round(battery.level * 100) + "%",
charging = (battery.charging)? "" : "not ",
chargingTime = parseInt(battery.chargingTime / 60, 10),
dischargingTime = parseInt(battery.dischargingTime / 60, 10);
// Set events
battery.addEventListener("levelchange", setStatus, false);
battery.addEventListener("chargingchange", setStatus, false);
battery.addEventListener("chargingtimechange", setStatus, false);
battery.addEventListener("dischargingtimechange", setStatus, false);
}

21. SCREEN
ORIENTATION API

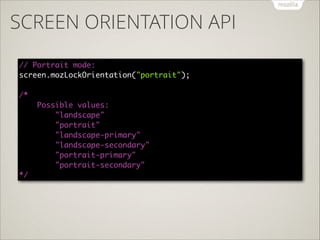

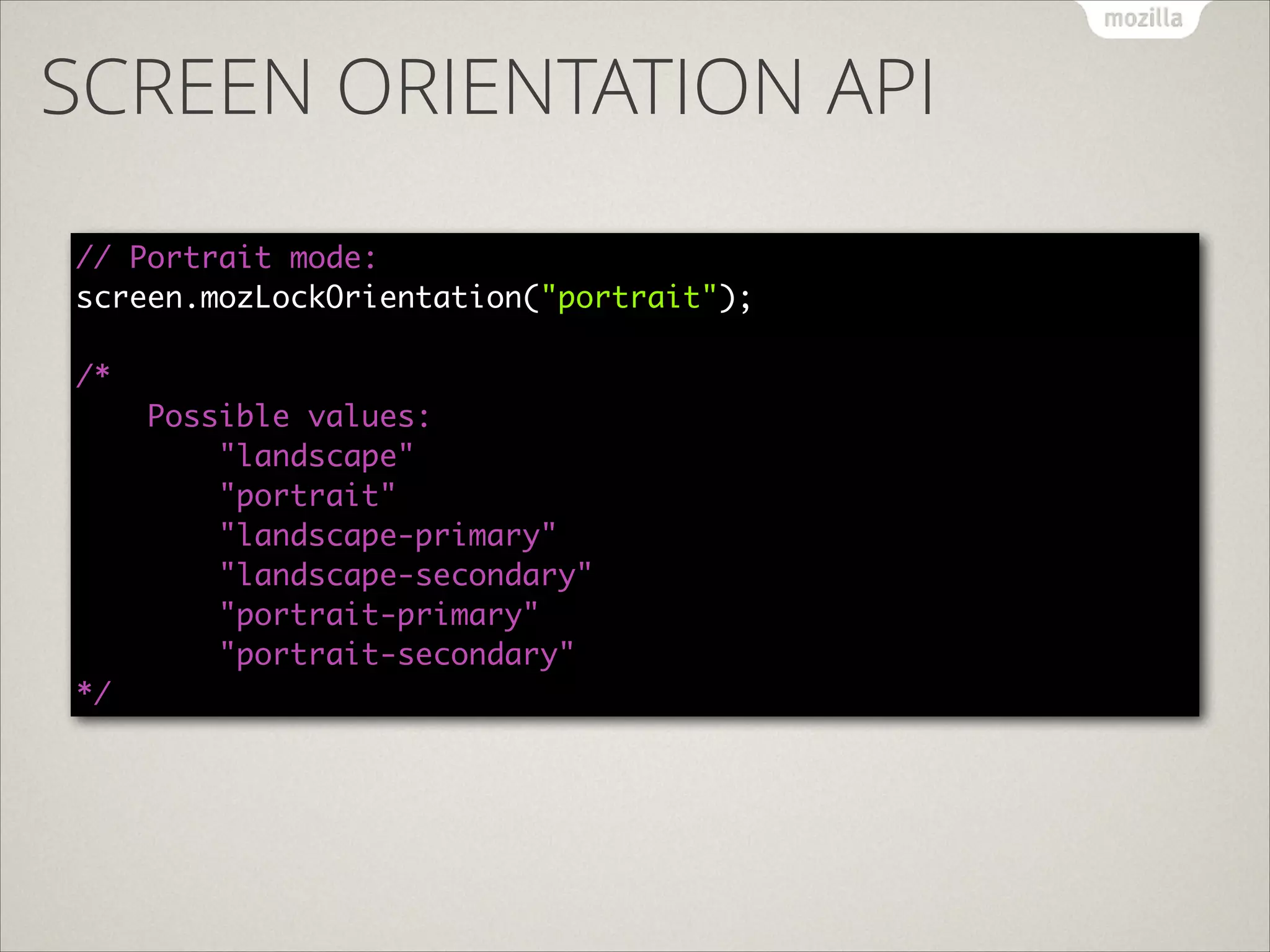

22. SCREEN ORIENTATION API
// Portrait mode:
screen.mozLockOrientation("portrait");
/*
Possible values:
"landscape"
"portrait"
"landscape-primary"
"landscape-secondary"
"portrait-primary"
"portrait-secondary"
*/

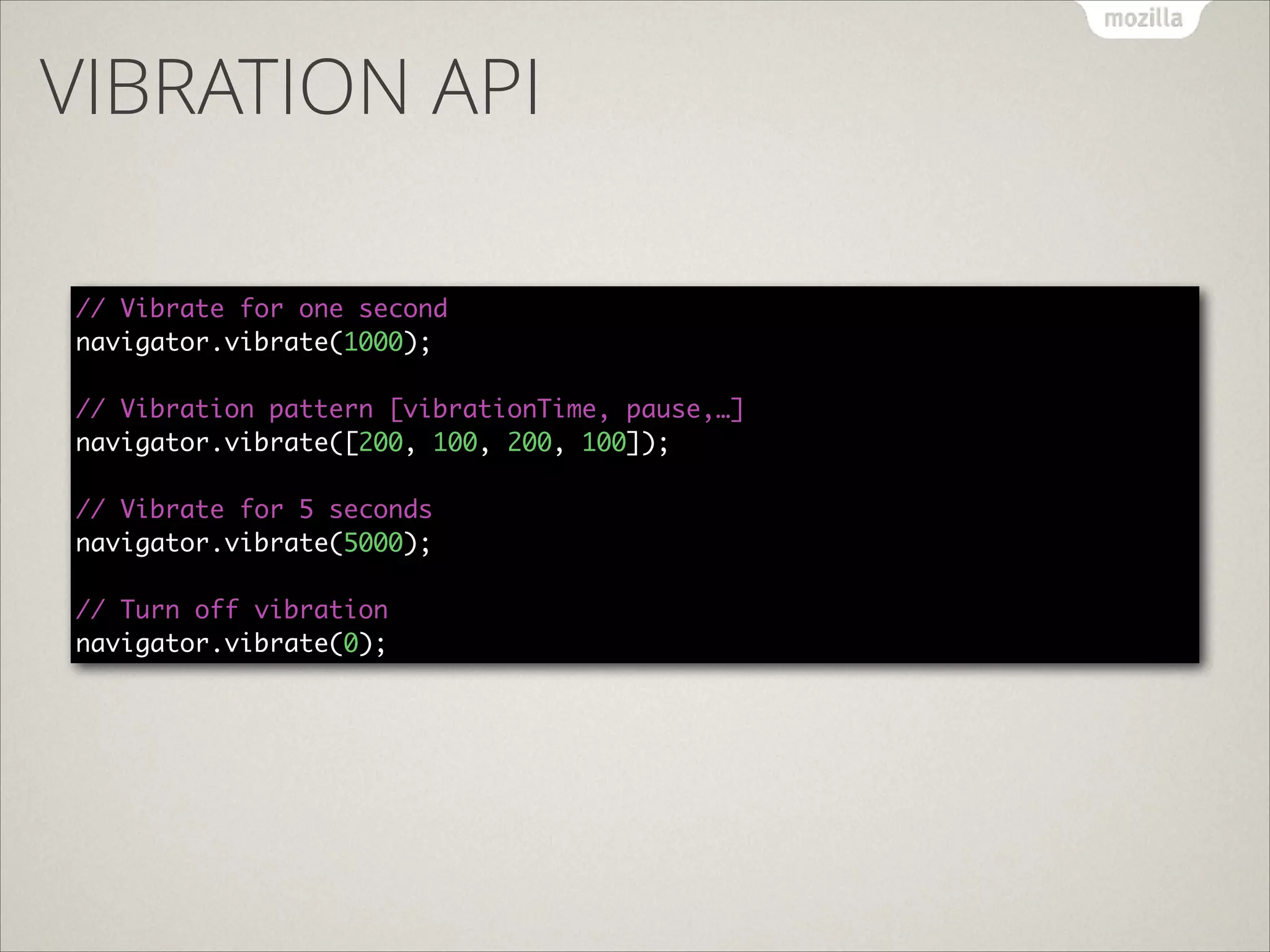

23. VIBRATION API

24. VIBRATION API
// Vibrate for one second
navigator.vibrate(1000);
// Vibration pattern [vibrationTime, pause,…]
navigator.vibrate([200, 100, 200, 100]);
// Vibrate for 5 seconds
navigator.vibrate(5000);
// Turn off vibration
navigator.vibrate(0);

25. NETWORK
INFORMATION API

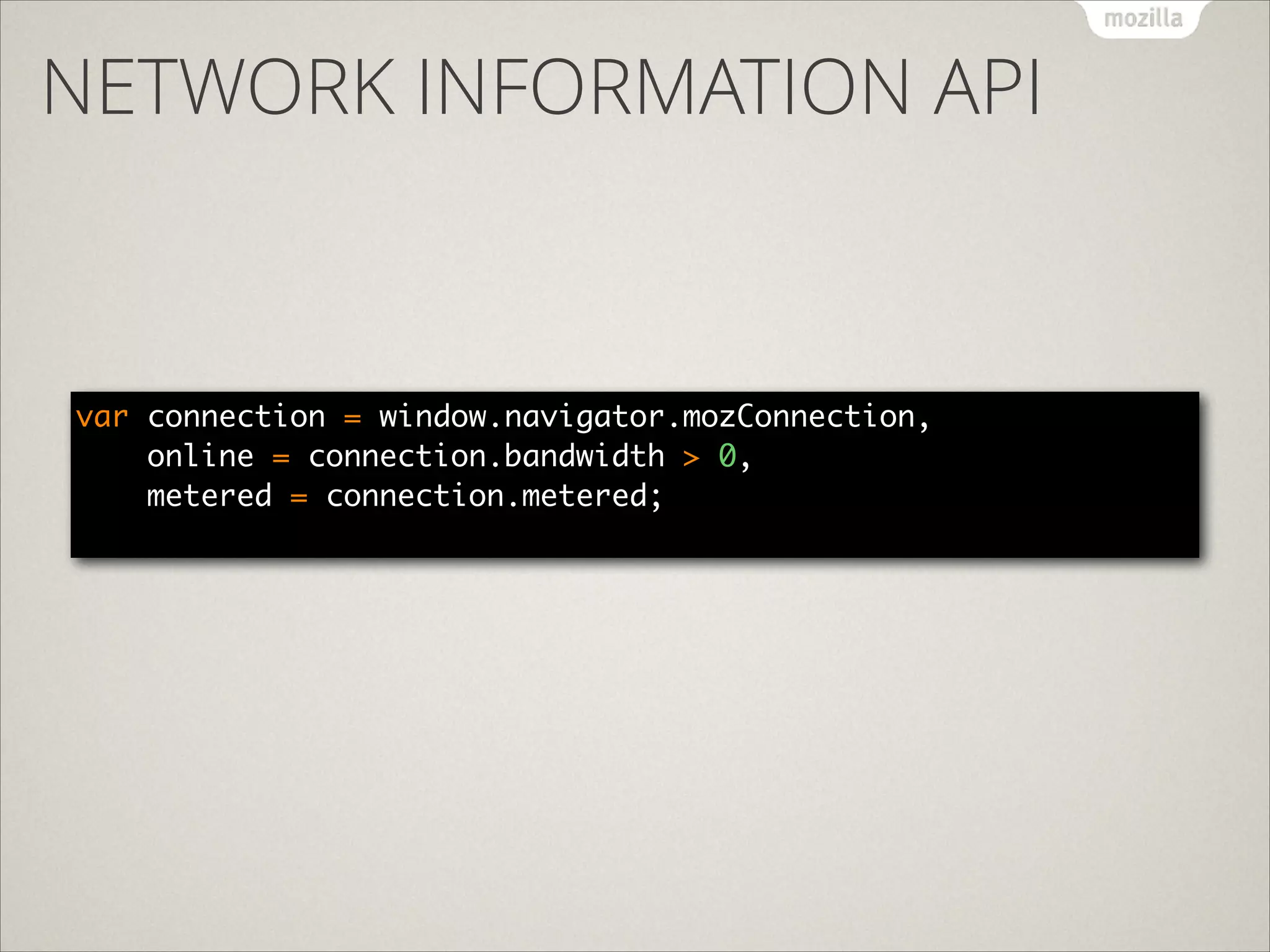

26. NETWORK INFORMATION API
var connection = window.navigator.mozConnection,
online = connection.bandwidth > 0,
metered = connection.metered;

27. ☼
AMBIENT LIGHT
EVENTS

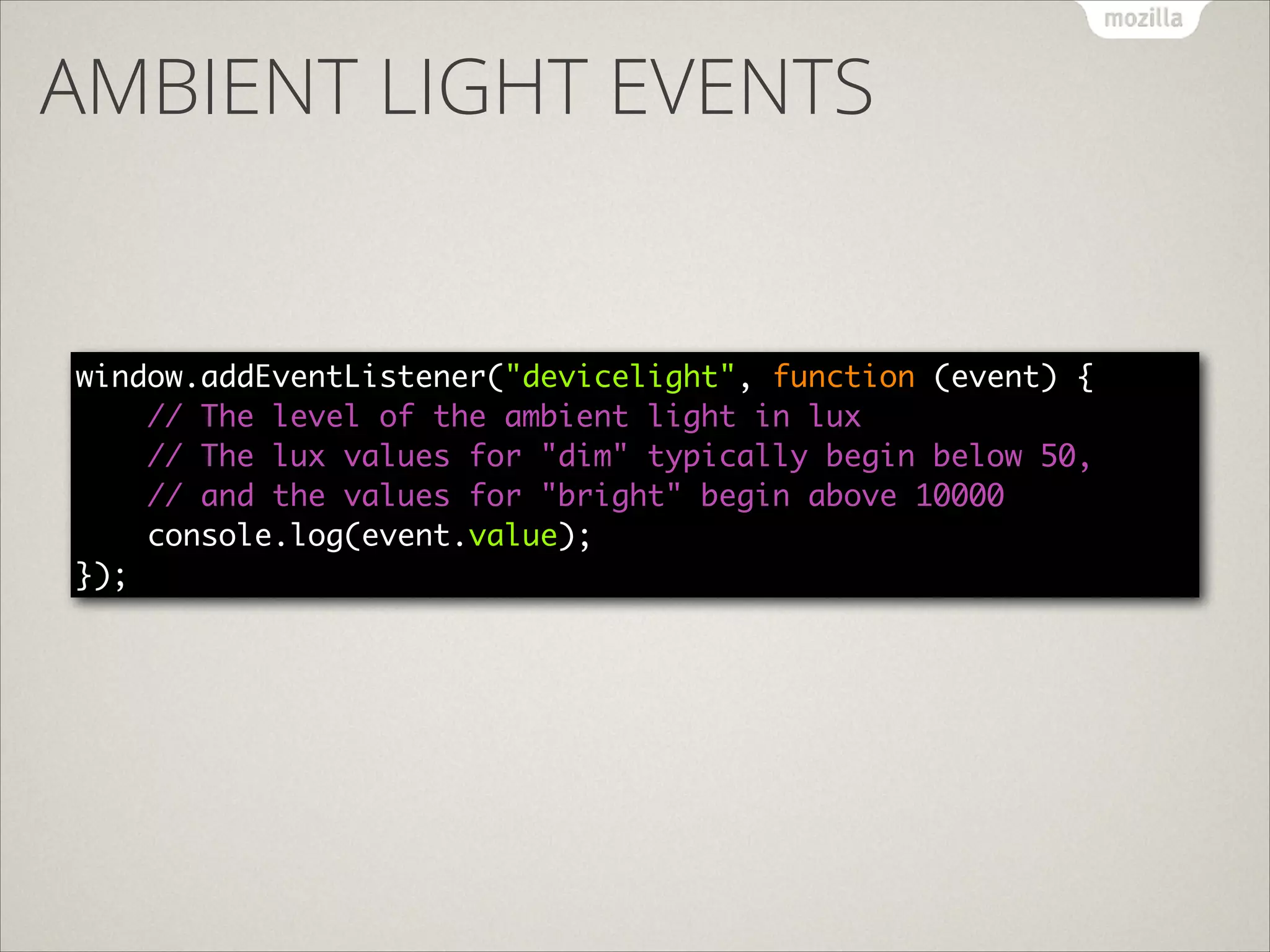

28. AMBIENT LIGHT EVENTS
window.addEventListener("devicelight", function (event) {
// The level of the ambient light in lux
// The lux values for "dim" typically begin below 50,
// and the values for "bright" begin above 10000
console.log(event.value);
});

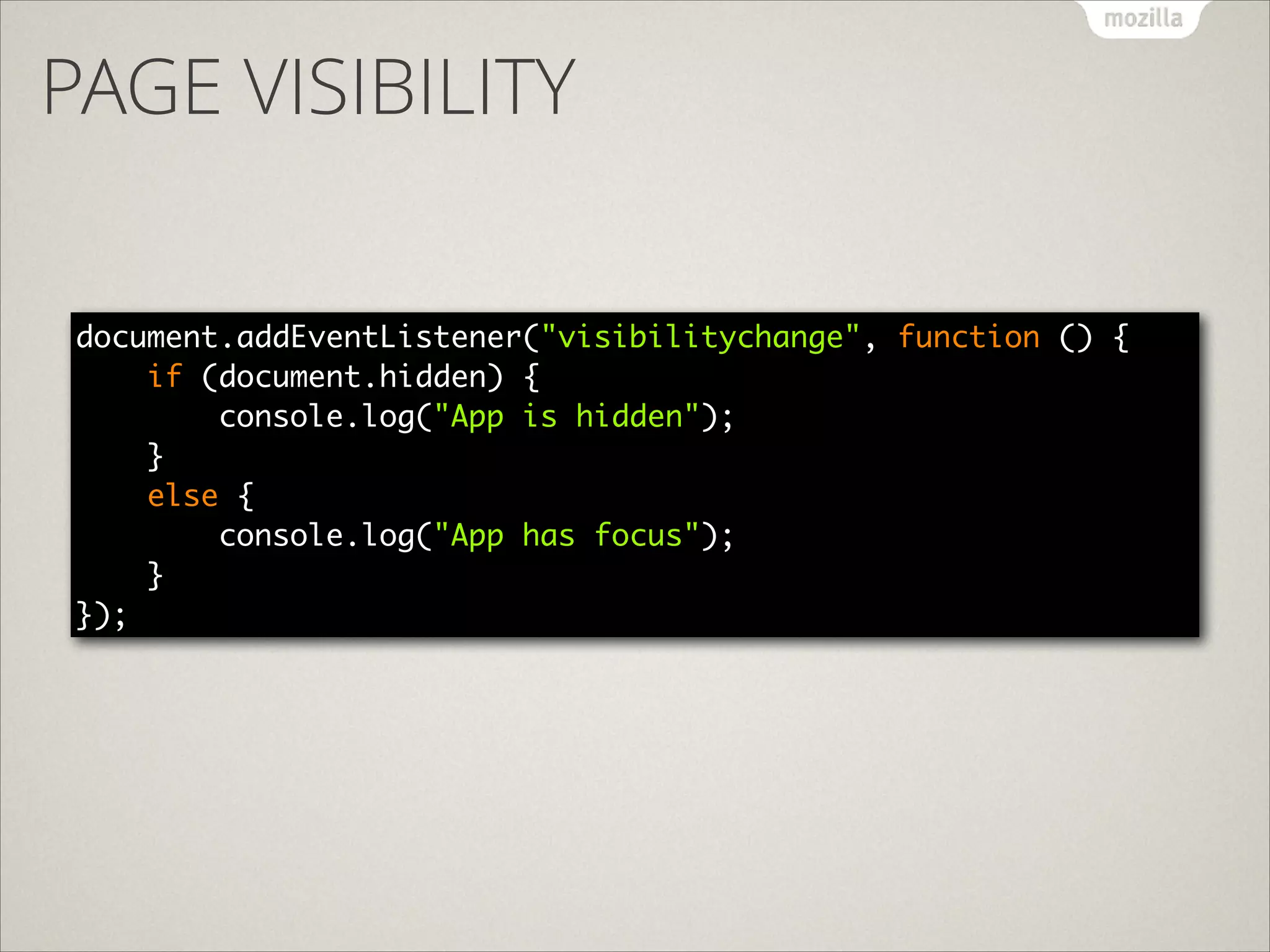

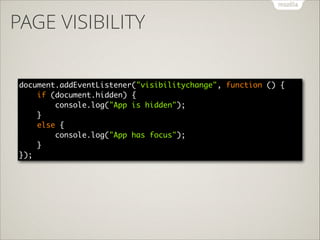

29. PAGE VISIBILITY

30. PAGE VISIBILITY
document.addEventListener("visibilitychange", function () {
if (document.hidden) {
console.log("App is hidden");
}
else {
console.log("App has focus");
}
});

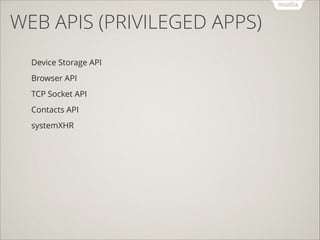

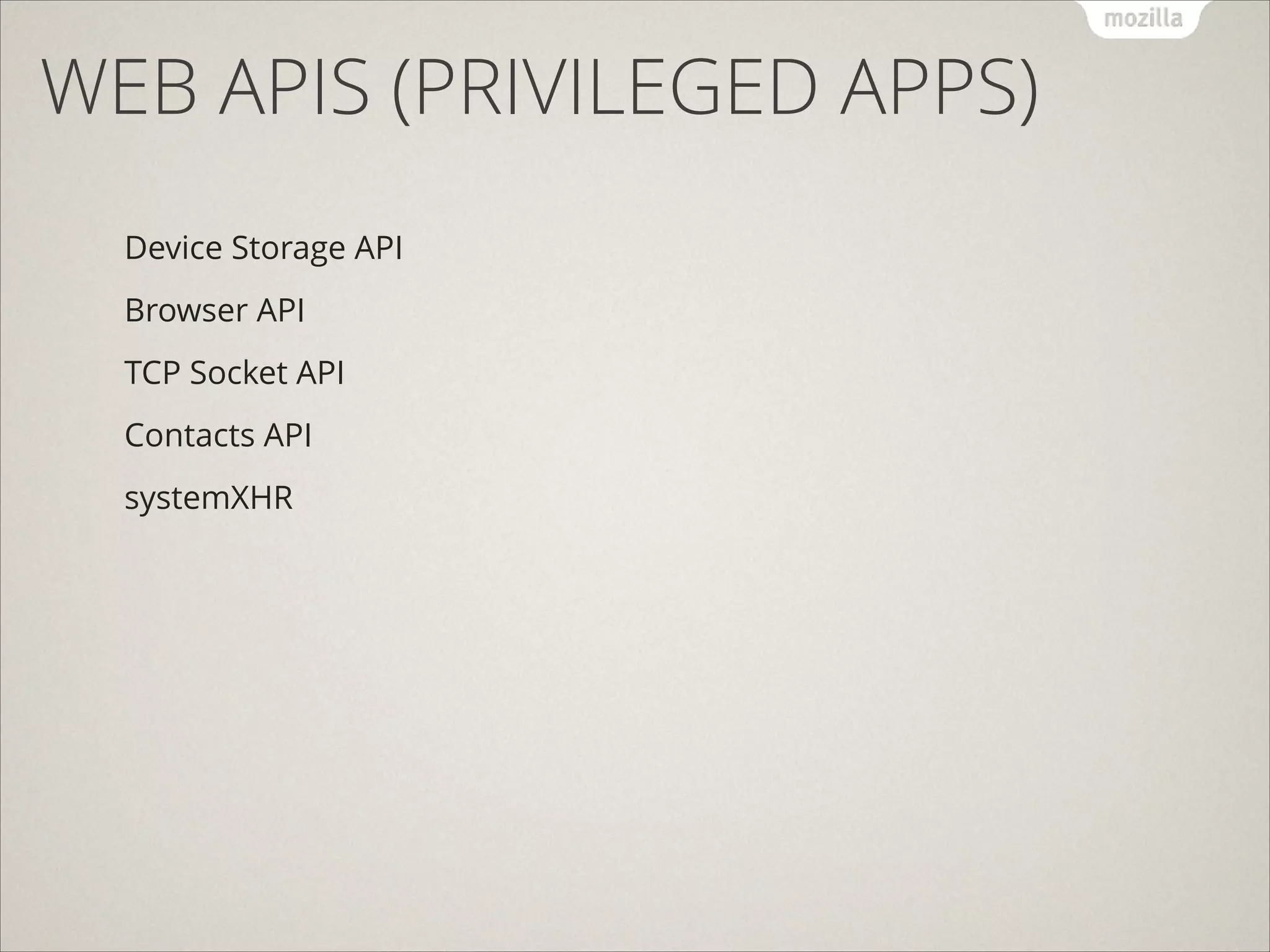

31. WEB APIS (PRIVILEGED APPS)
Device Storage API
Browser API
TCP Socket API
Contacts API
systemXHR

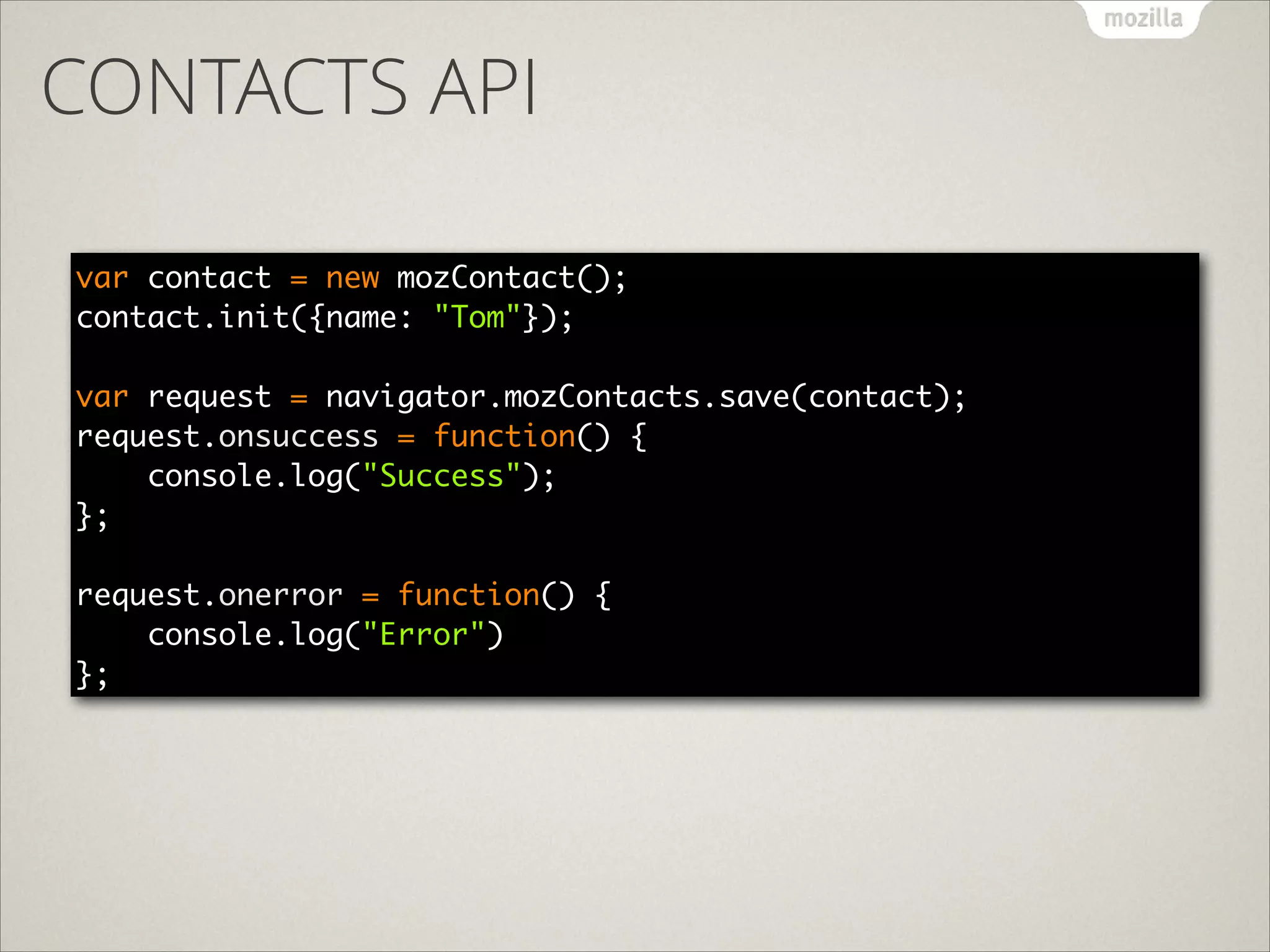

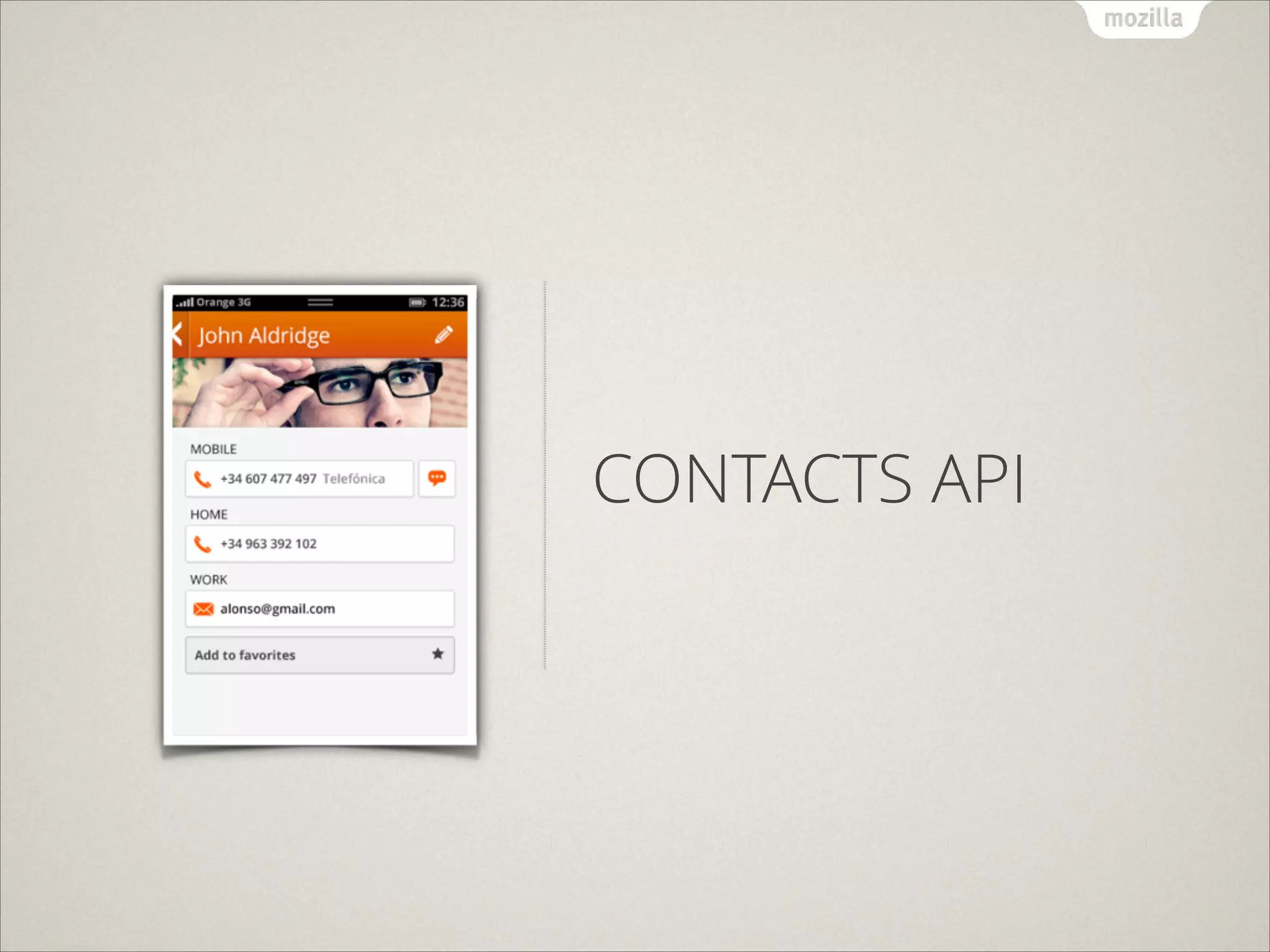

32. CONTACTS API

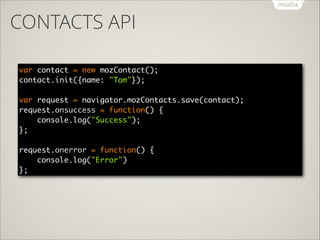

33. CONTACTS API
var contact = new mozContact();
contact.init({name: "Tom"});
var request = navigator.mozContacts.save(contact);
request.onsuccess = function() {
console.log("Success");
};
request.onerror = function() {
console.log("Error")
};

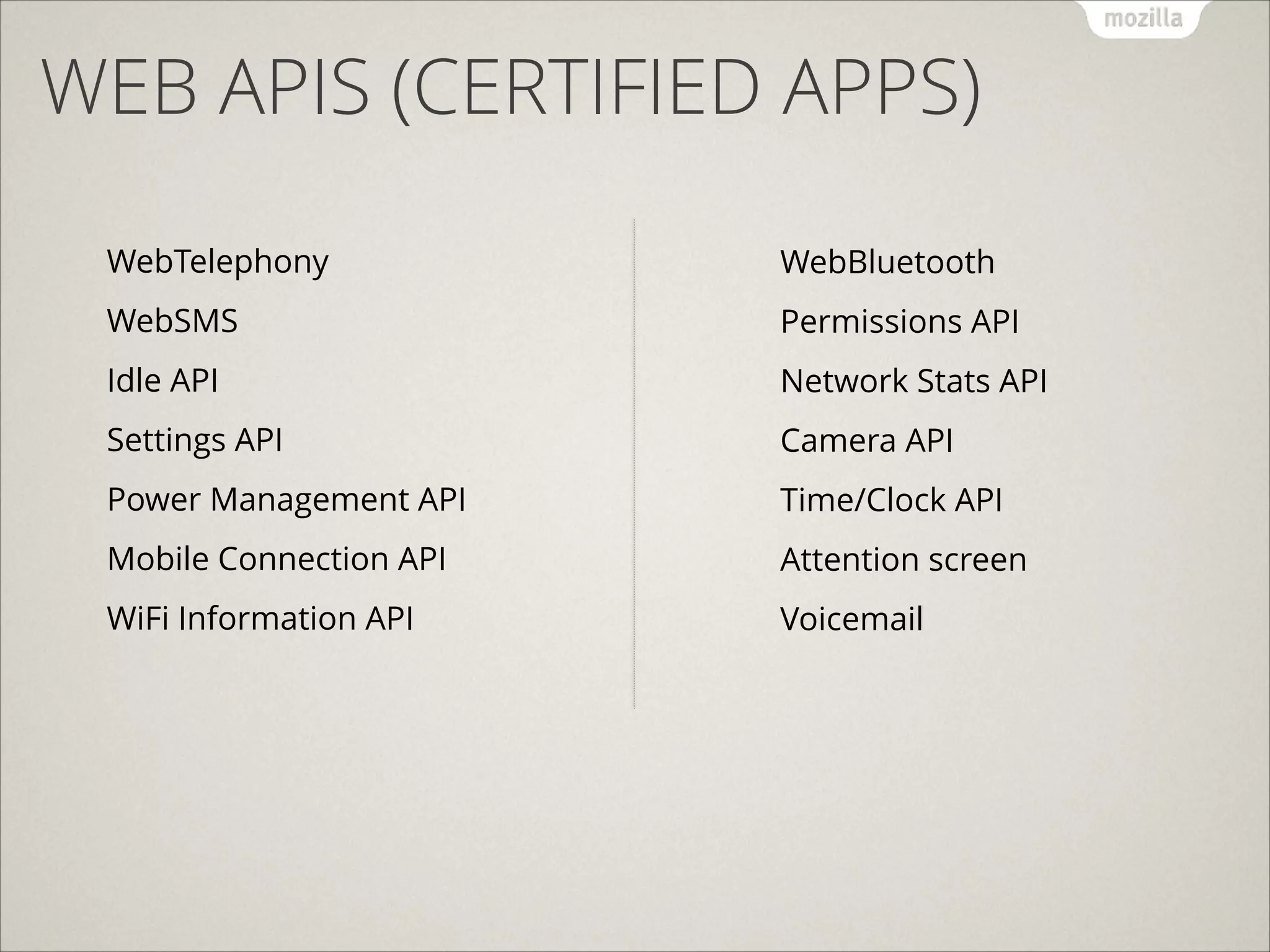

34. WEB APIS (CERTIFIED APPS)
!
!
WebTelephony
WebBluetooth
WebSMS
Permissions API
Idle API
Network Stats API
Settings API
Camera API
Power Management API
Time/Clock API
Mobile Connection API
Attention screen
WiFi Information API
Voicemail

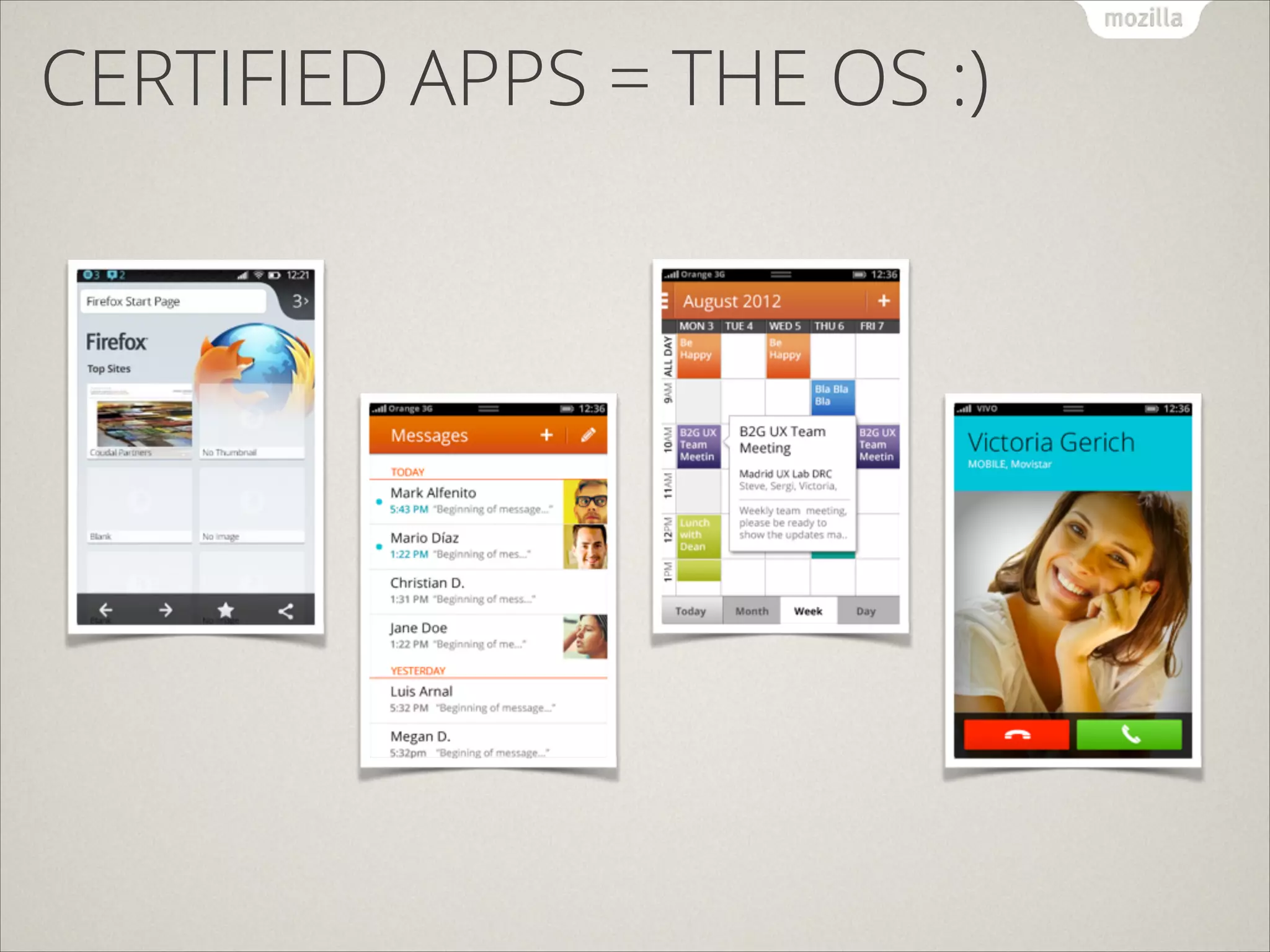

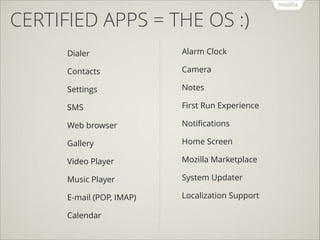

35. CERTIFIED APPS = THE OS :)

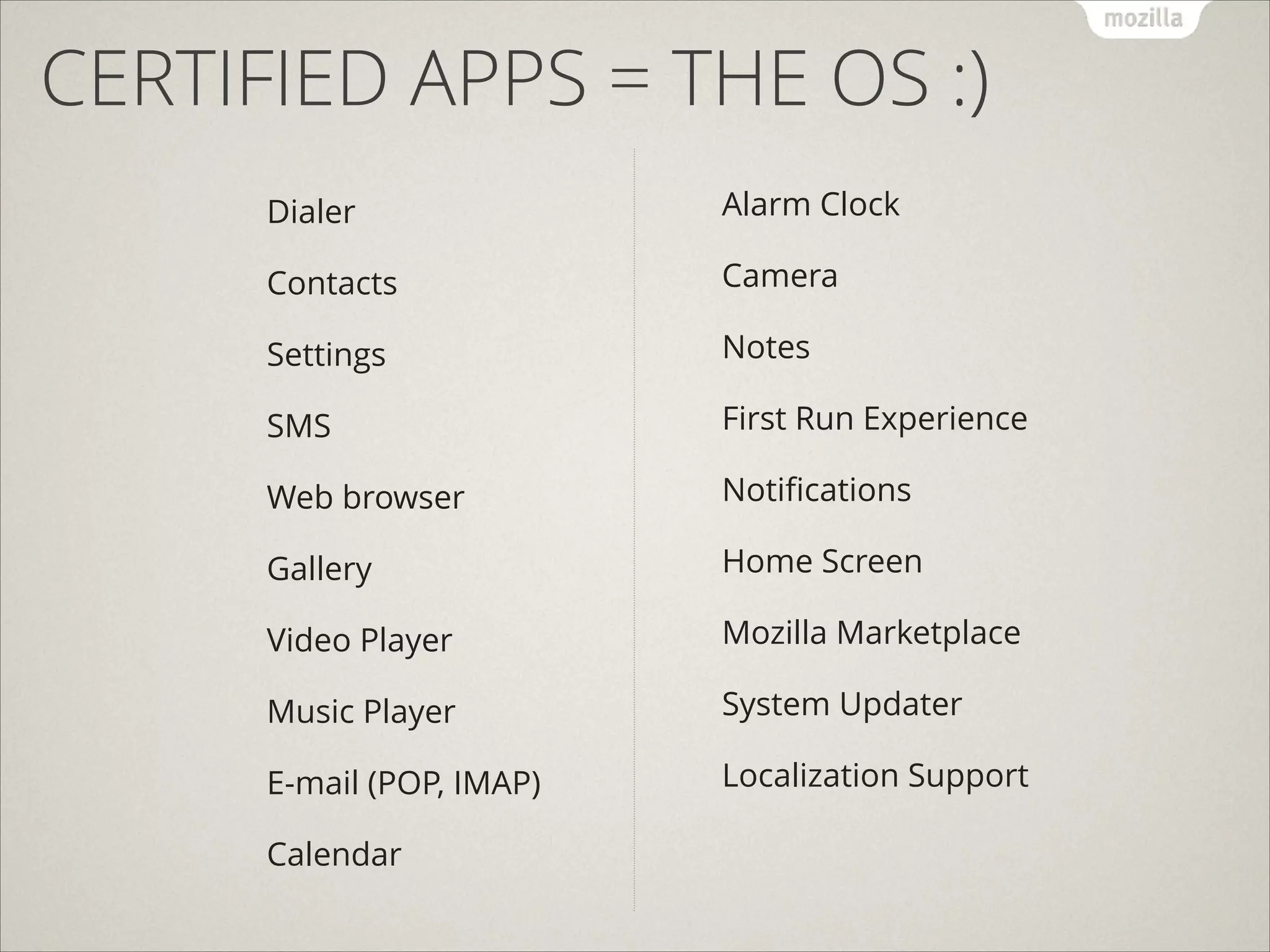

36. CERTIFIED APPS = THE OS :)
Dialer
!
Contacts
!
Settings
!
SMS
!
Web browser
!
Gallery
!
Video Player
!
Music Player
!
E-mail (POP, IMAP)
!
Calendar
Alarm Clock
!
Camera
!
Notes
!
First Run Experience
!
Notifications
!
Home Screen
!
Mozilla Marketplace
!
System Updater
!
Localization Support

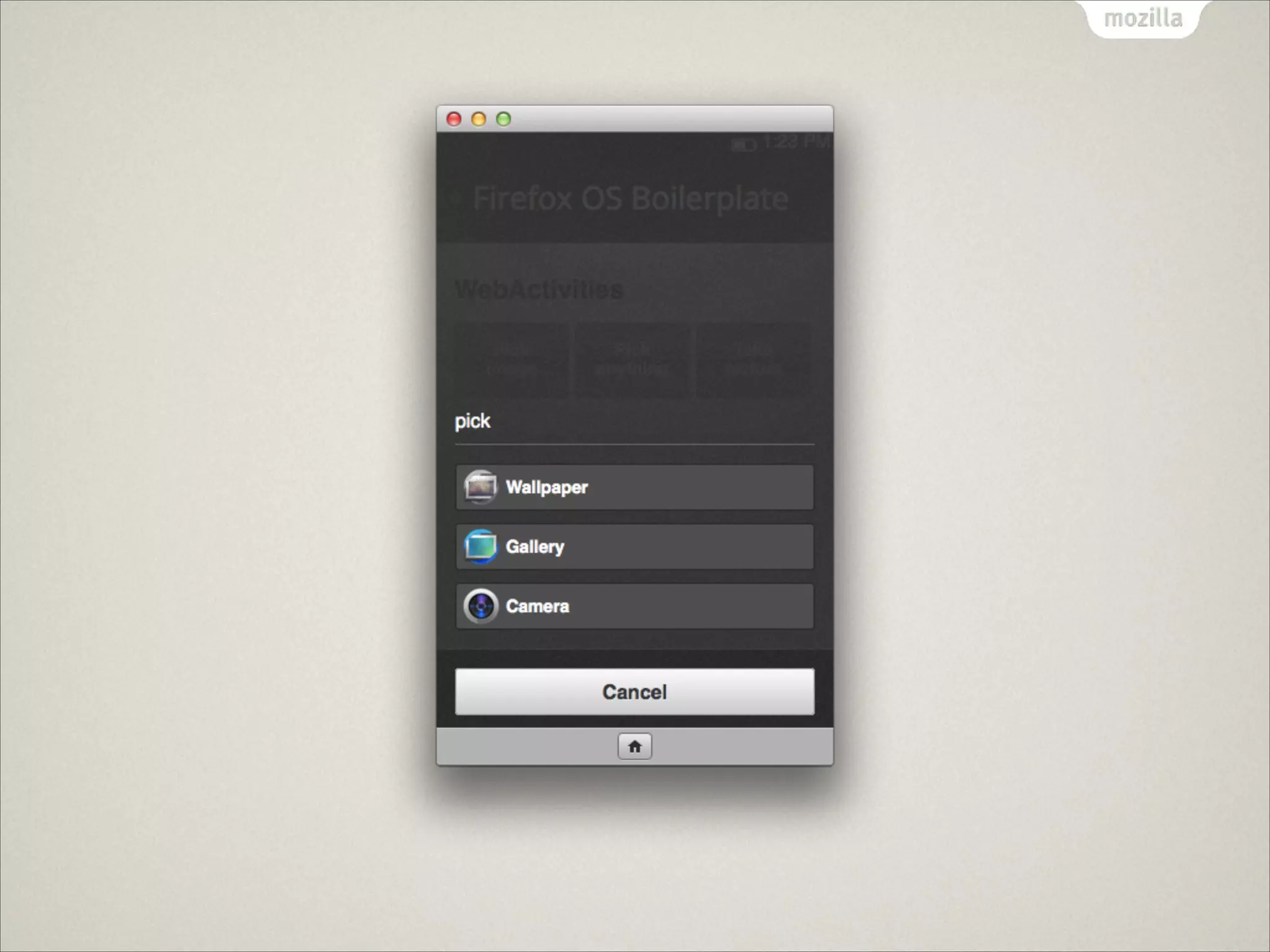

37. WEB
ACTIVITIES

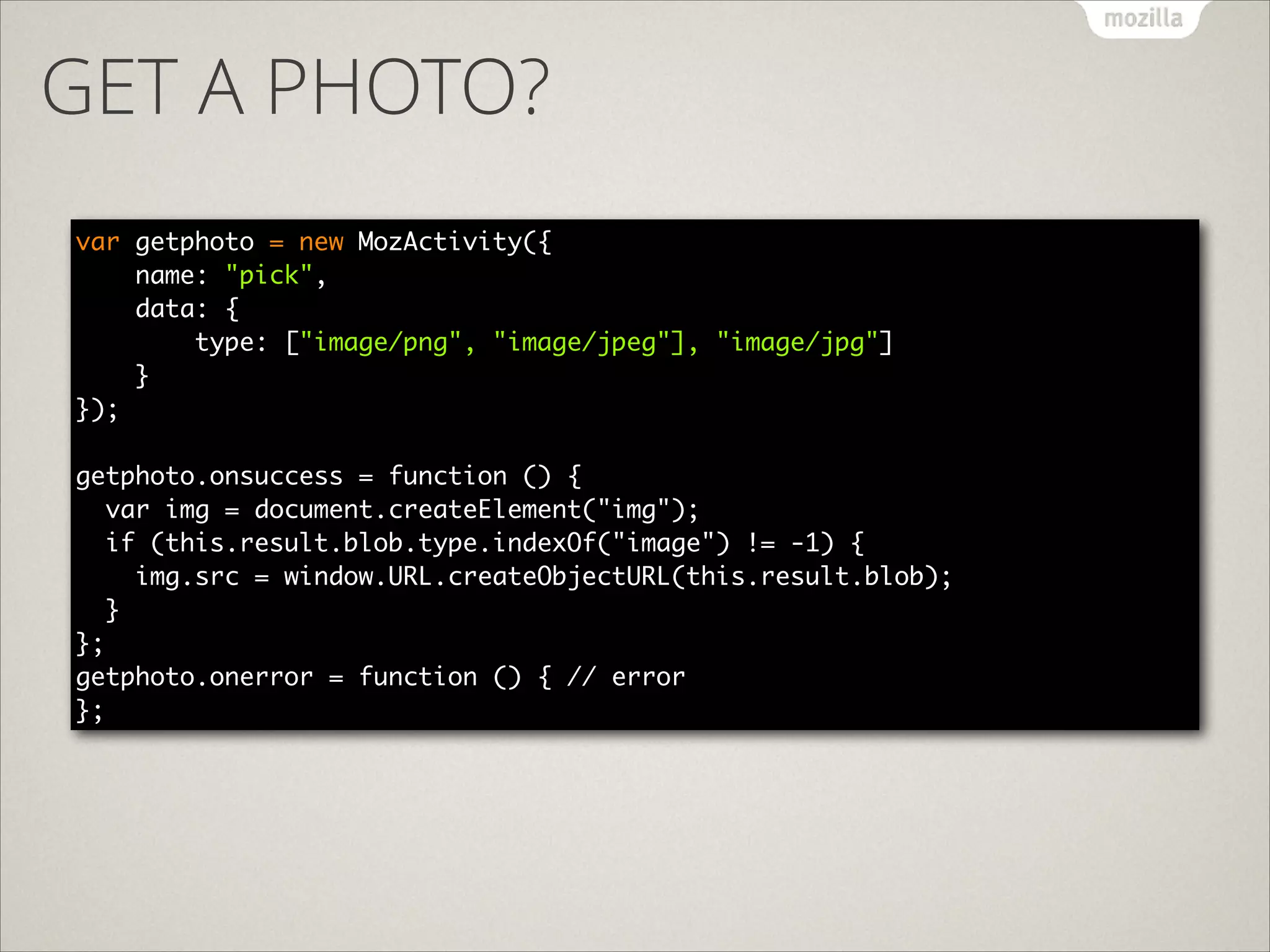

39. GET A PHOTO?
var getphoto = new MozActivity({
name: "pick",
data: {
type: ["image/png", "image/jpeg"], "image/jpg"]
}
});
!
getphoto.onsuccess = function () {
var img = document.createElement("img");
if (this.result.blob.type.indexOf("image") != -1) {
img.src = window.URL.createObjectURL(this.result.blob);
}
};
getphoto.onerror = function () { // error
};

40. FIREFOX OS + ANDROID!

41. APP
DISTRIBUTION

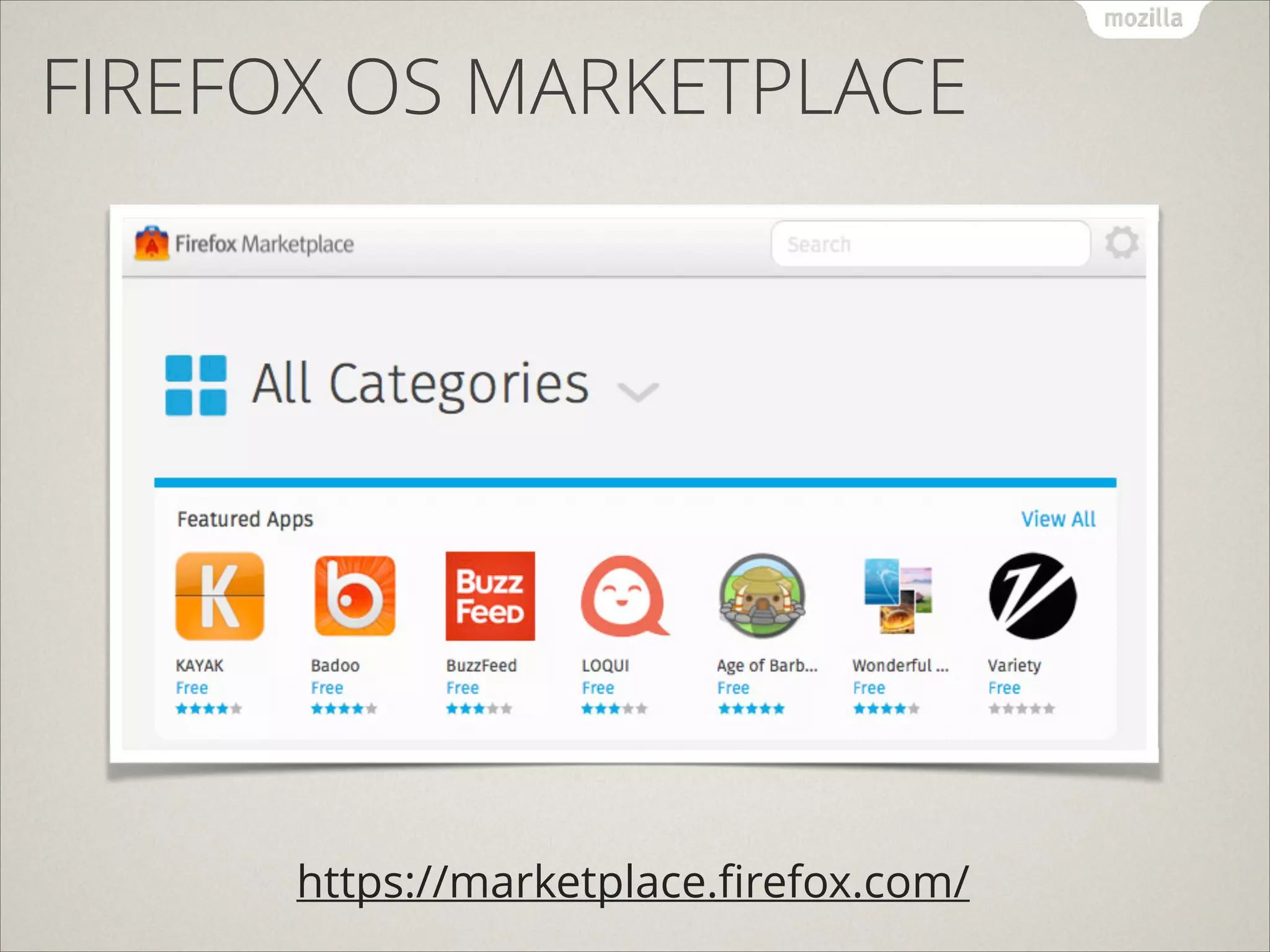

42. FIREFOX OS MARKETPLACE
https://marketplace.firefox.com/

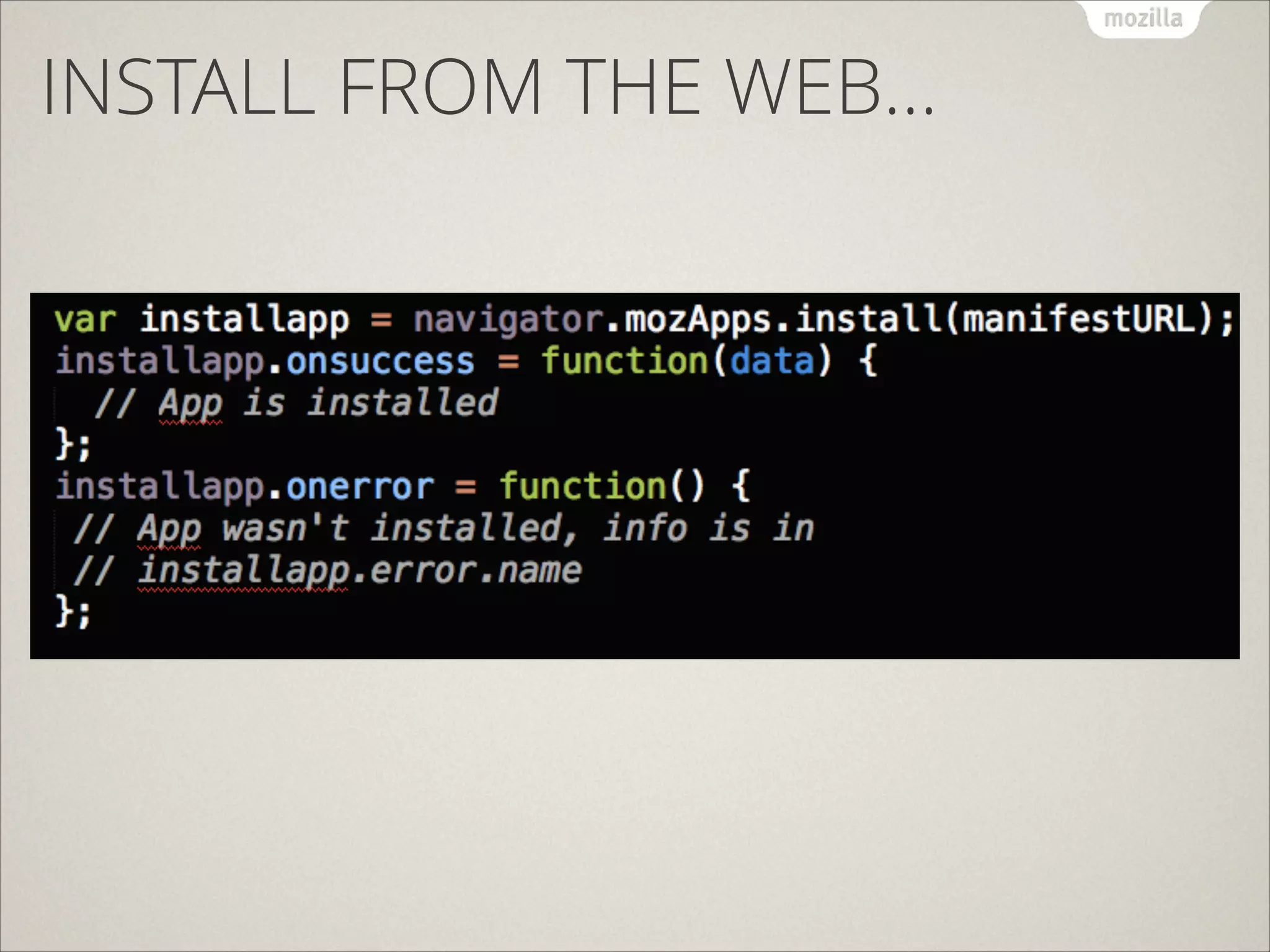

43. INSTALL FROM THE WEB…

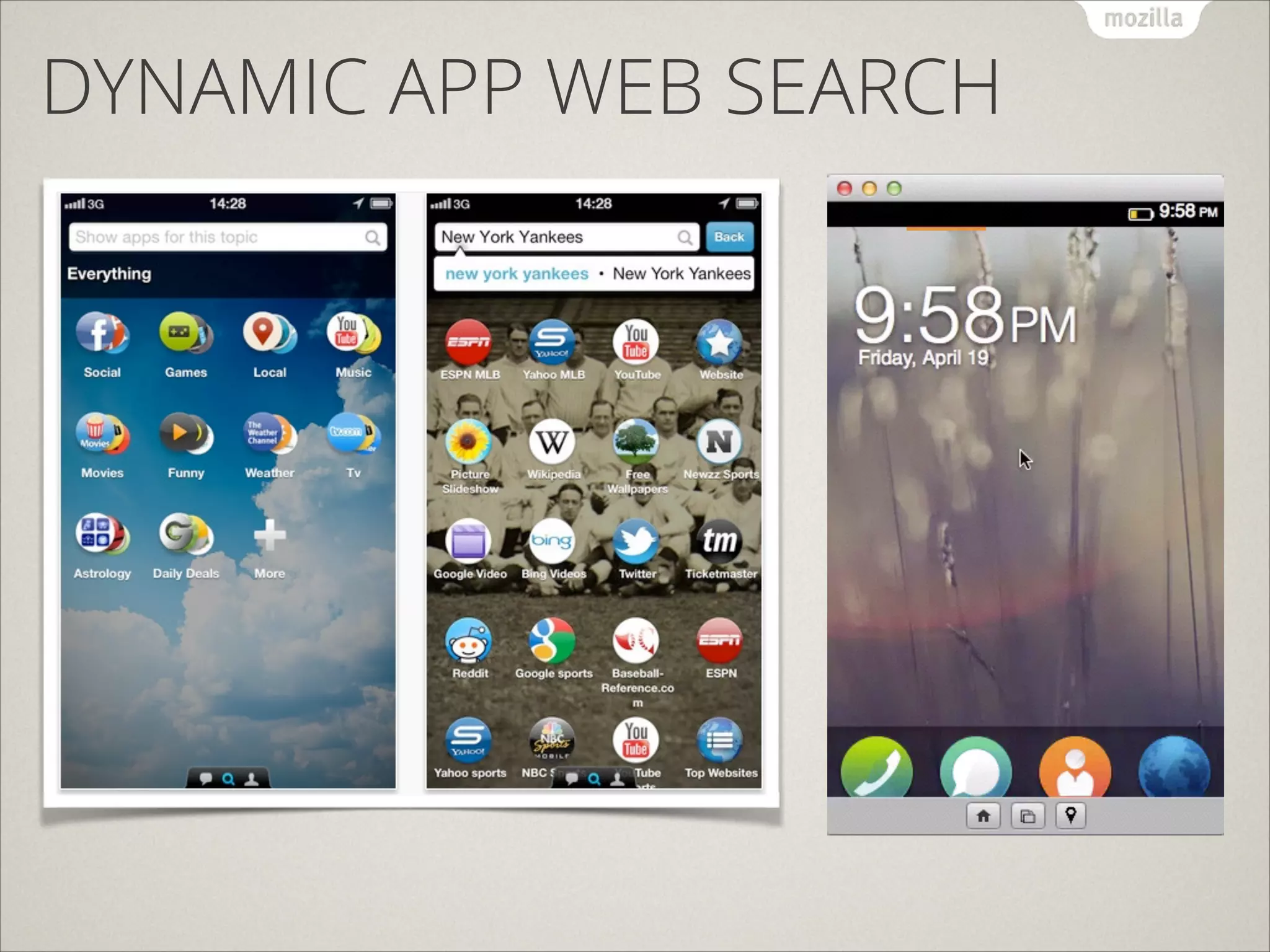

44. DYNAMIC APP WEB SEARCH

45. DEVELOPMENT
ENVIRONMENT

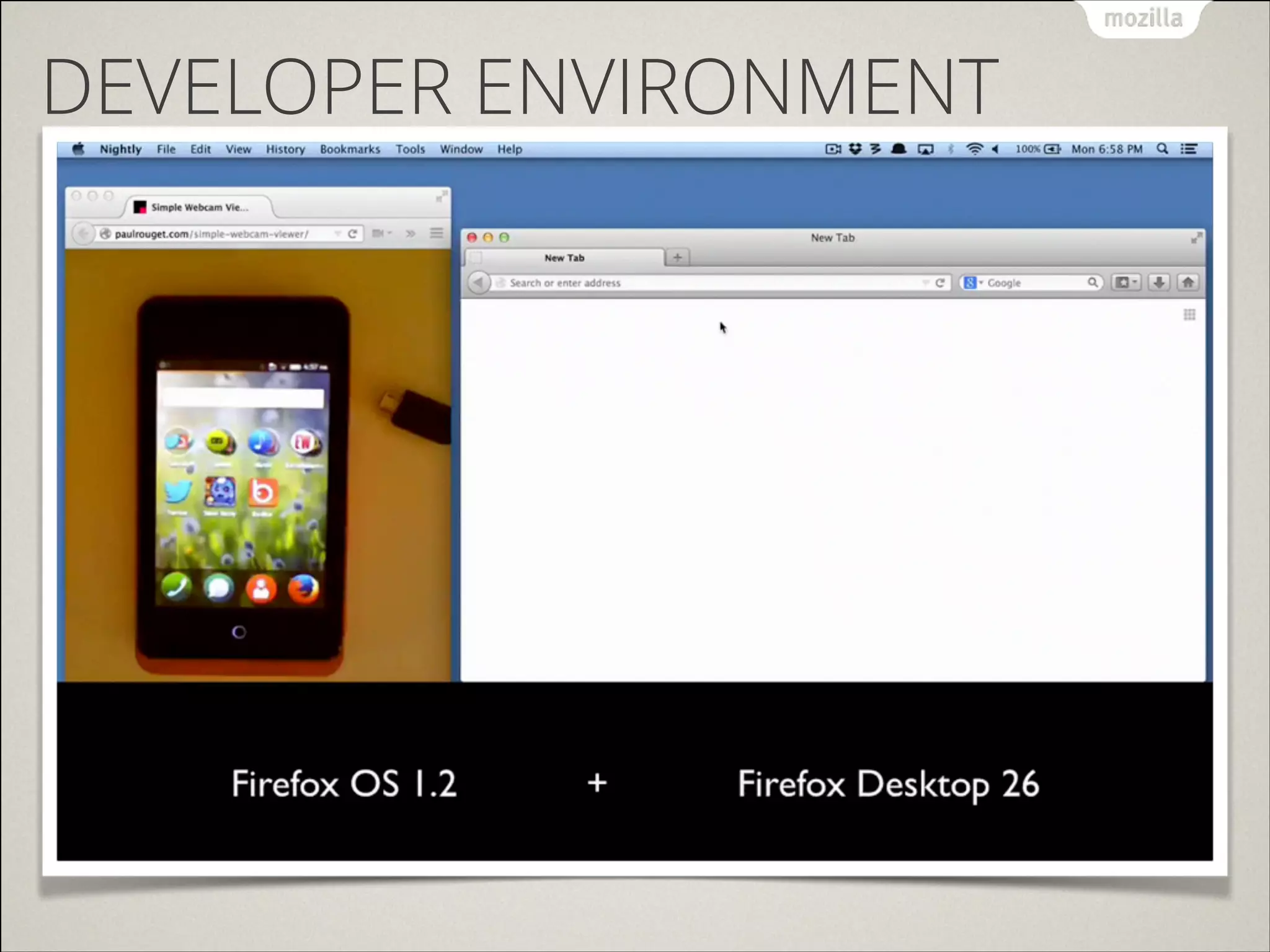

46. DEVELOPER ENVIRONMENT

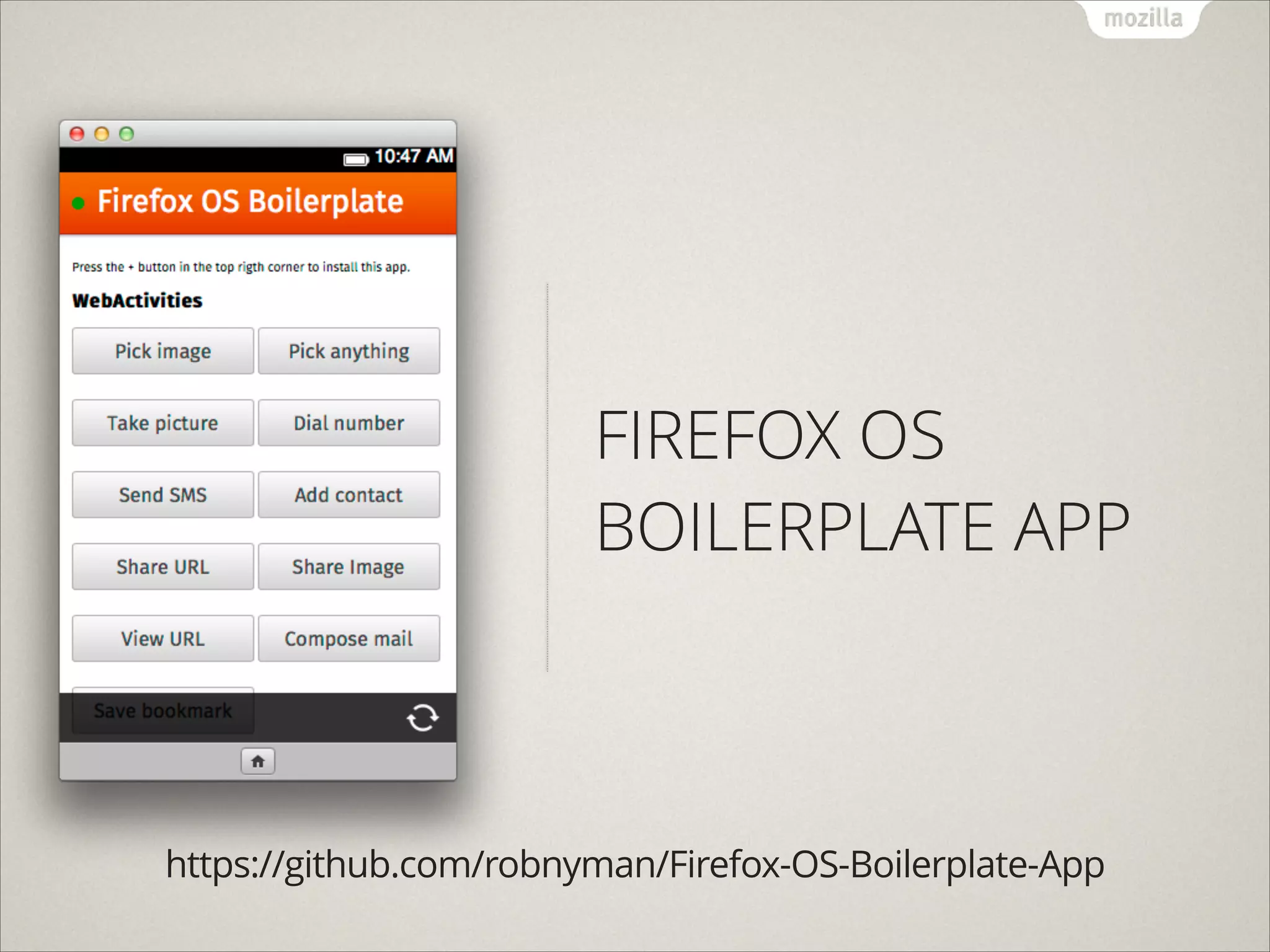

47. FIREFOX OS
BOILERPLATE APP
https://github.com/robnyman/Firefox-OS-Boilerplate-App

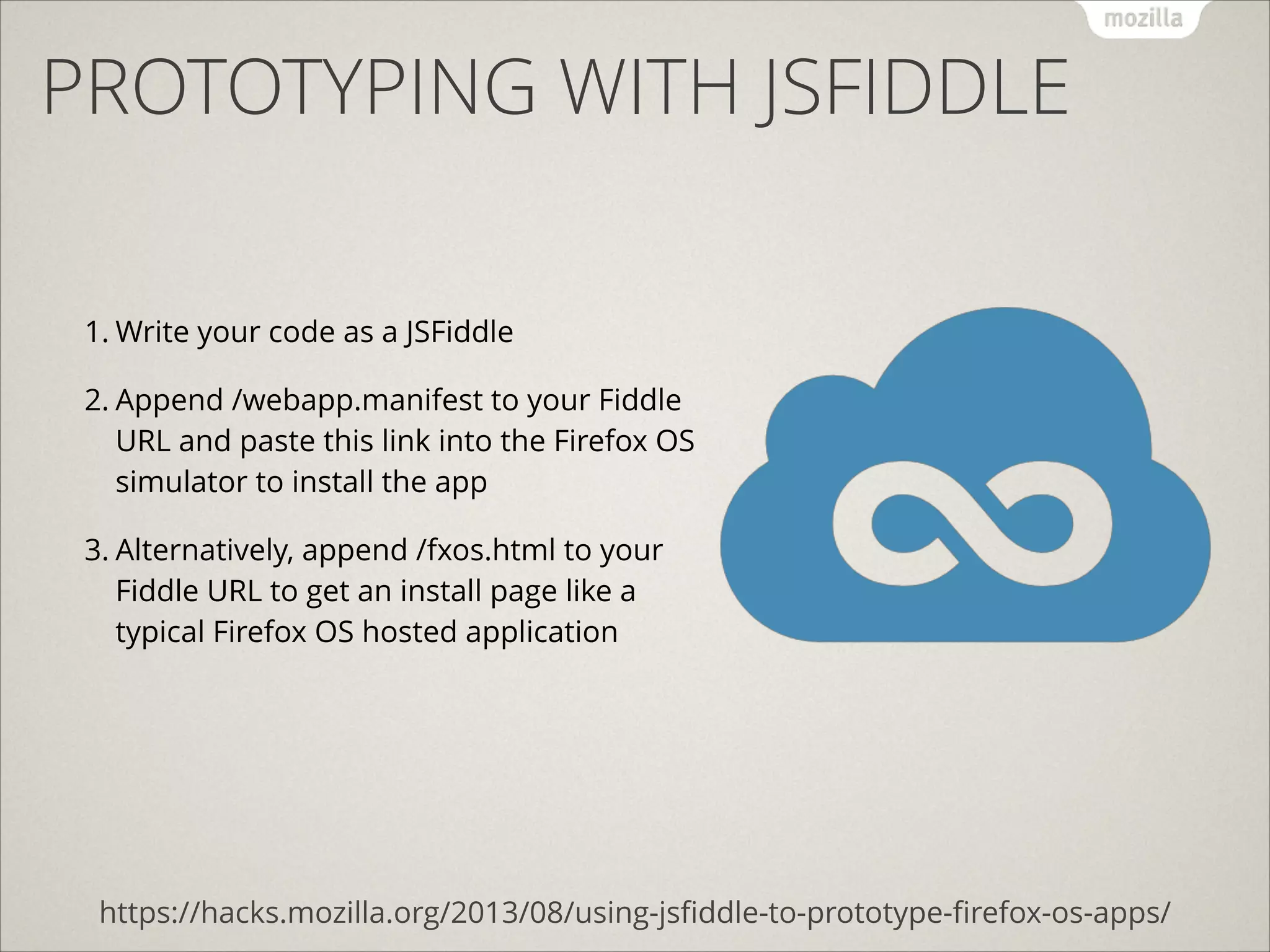

48. PROTOTYPING WITH JSFIDDLE
1. Write your code as a JSFiddle
2. Append /webapp.manifest to your Fiddle
URL and paste this link into the Firefox OS
simulator to install the app
3. Alternatively, append /fxos.html to your
Fiddle URL to get an install page like a
typical Firefox OS hosted application
https://hacks.mozilla.org/2013/08/using-jsfiddle-to-prototype-firefox-os-apps/

49. BUILDING
BLOCKS?

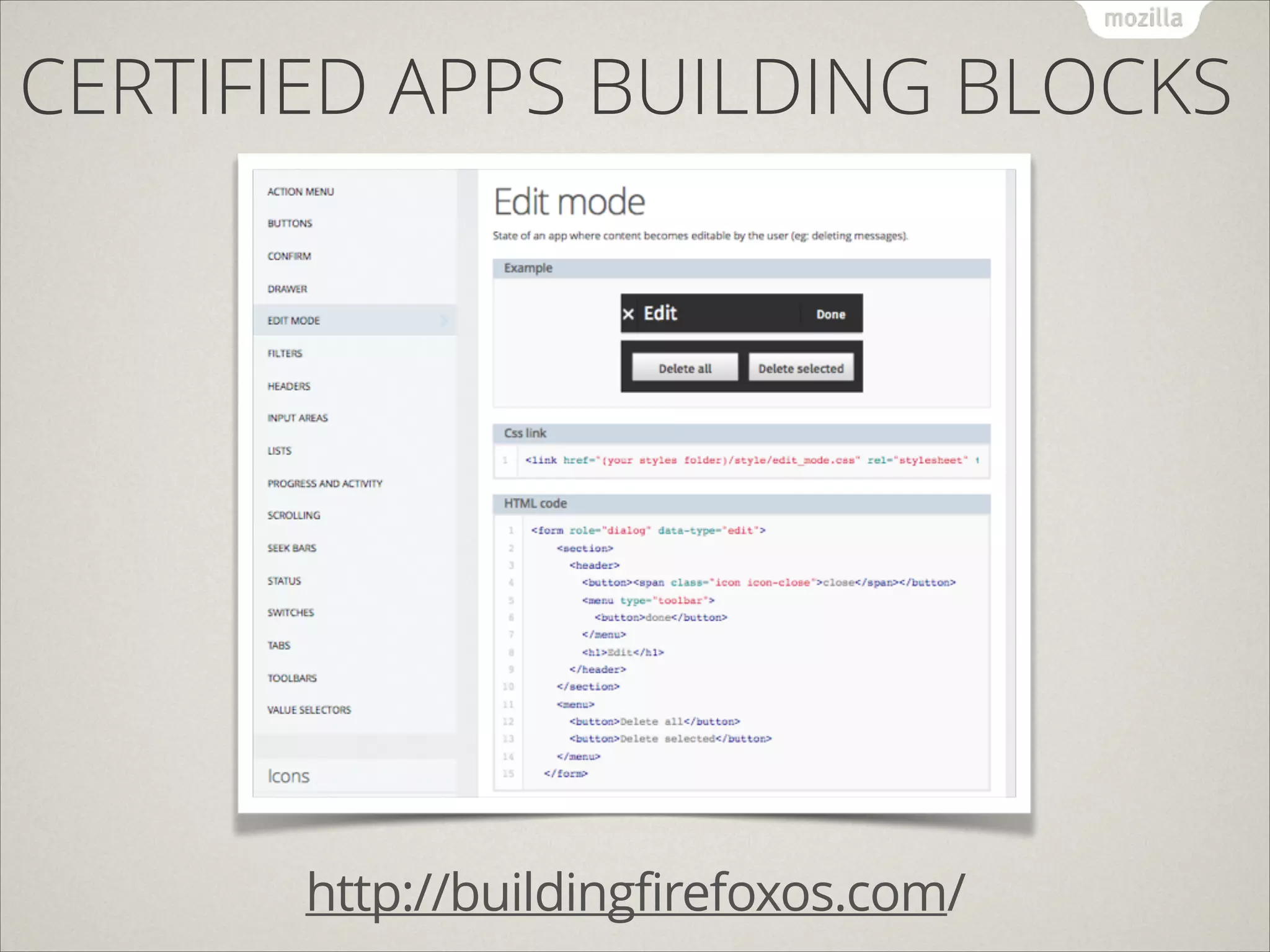

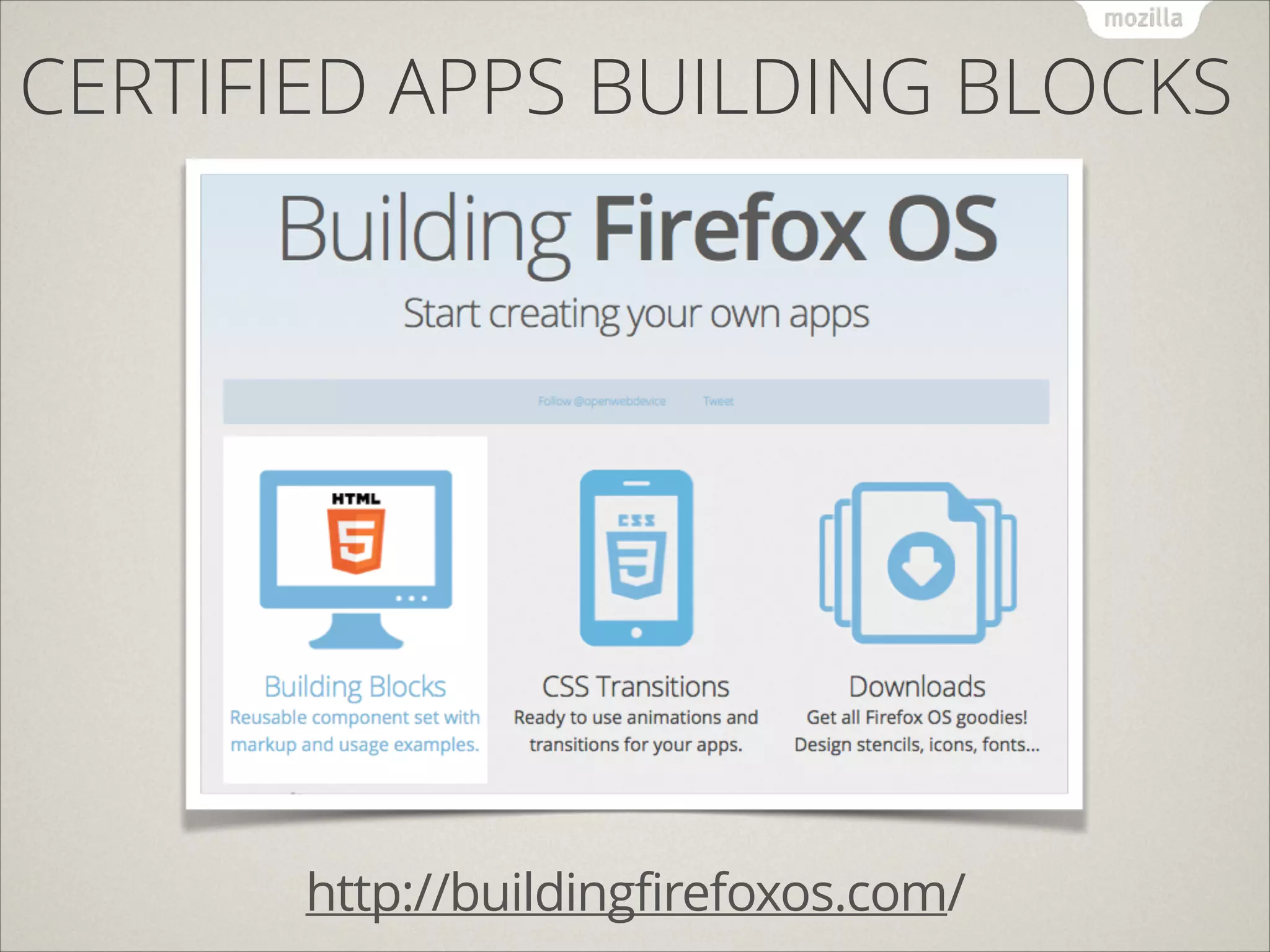

50. CERTIFIED APPS BUILDING BLOCKS
http://buildingfirefoxos.com/

51. CERTIFIED APPS BUILDING BLOCKS
http://buildingfirefoxos.com/

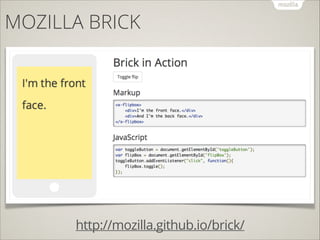

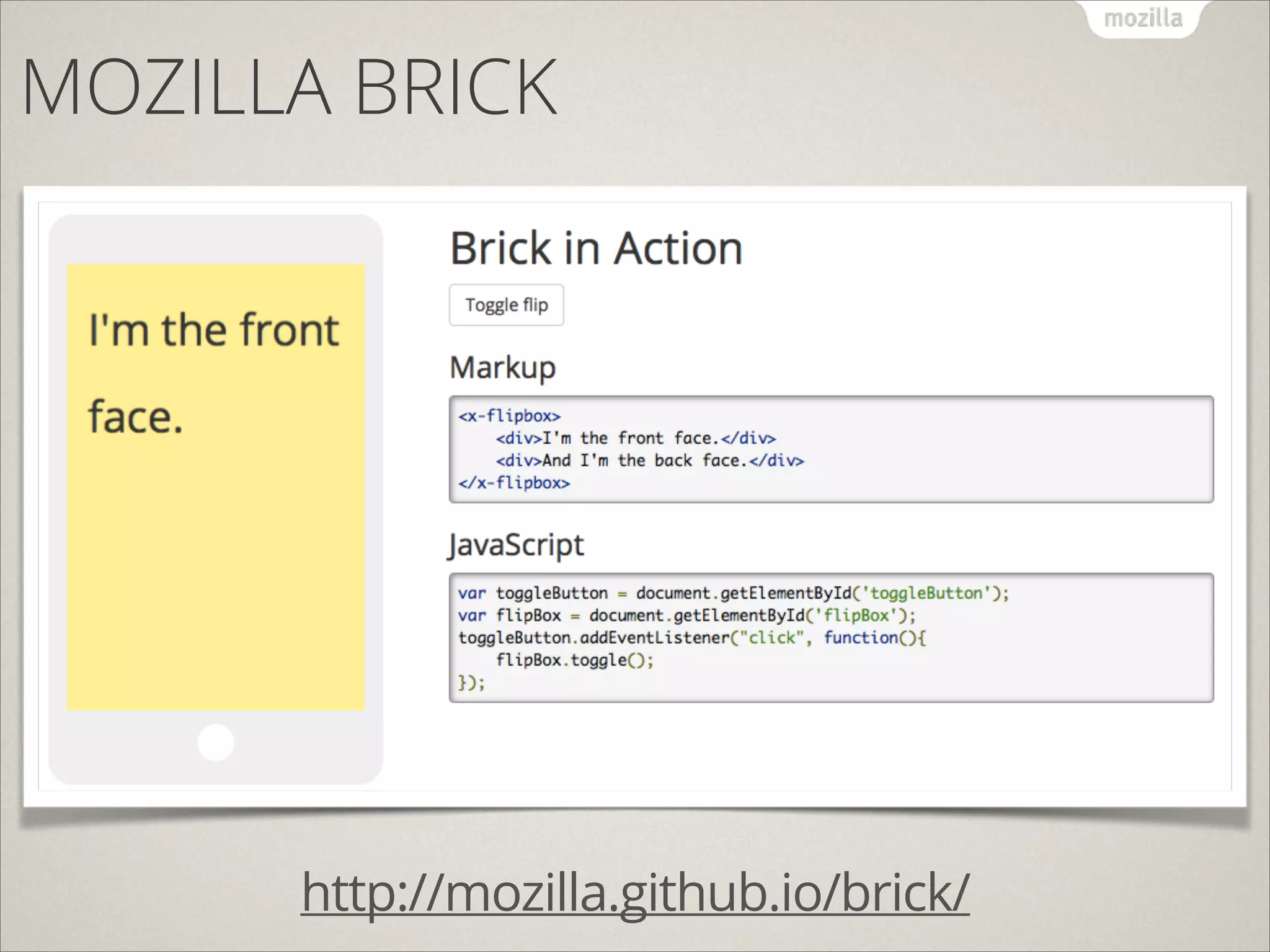

52. MOZILLA BRICK
http://mozilla.github.io/brick/

53. WHAT’S
COOKING?

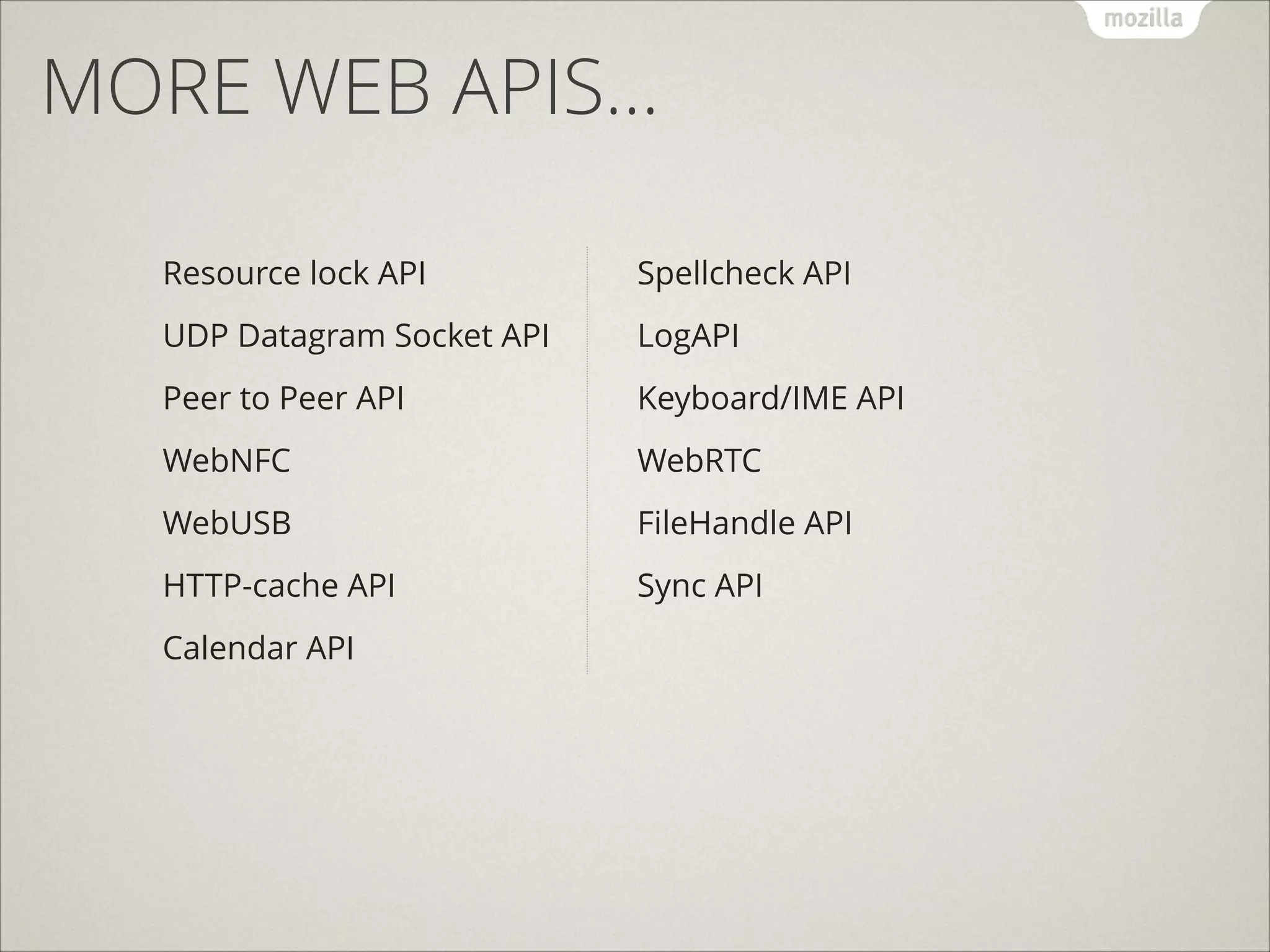

54. MORE WEB APIS…
Resource lock API
Spellcheck API
UDP Datagram Socket API
LogAPI
Peer to Peer API
Keyboard/IME API
WebNFC
WebRTC
WebUSB
FileHandle API
HTTP-cache API
Sync API
Calendar API

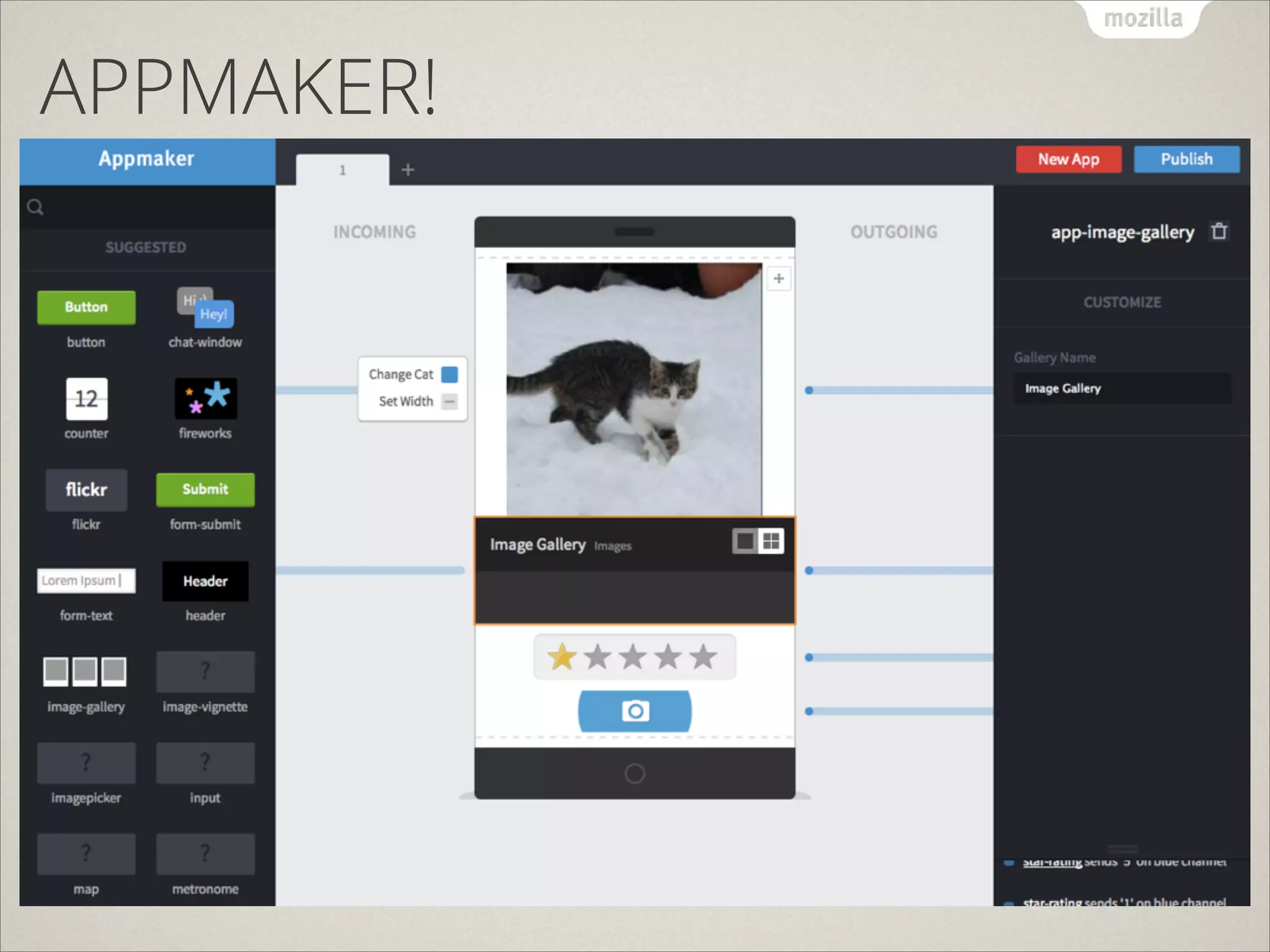

55. APPMAKER!
Resource lock API
Spellcheck API
UDP Datagram Socket API
LogAPI
Peer to Peer API
Keyboard/IME API
WebNFC
WebRTC
WebUSB
FileHandle API
HTTP-cache API
Sync API
Calendar API

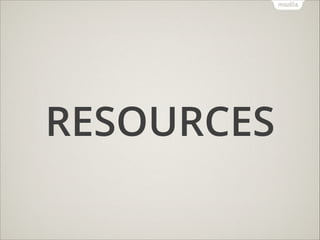

56. RESOURCES

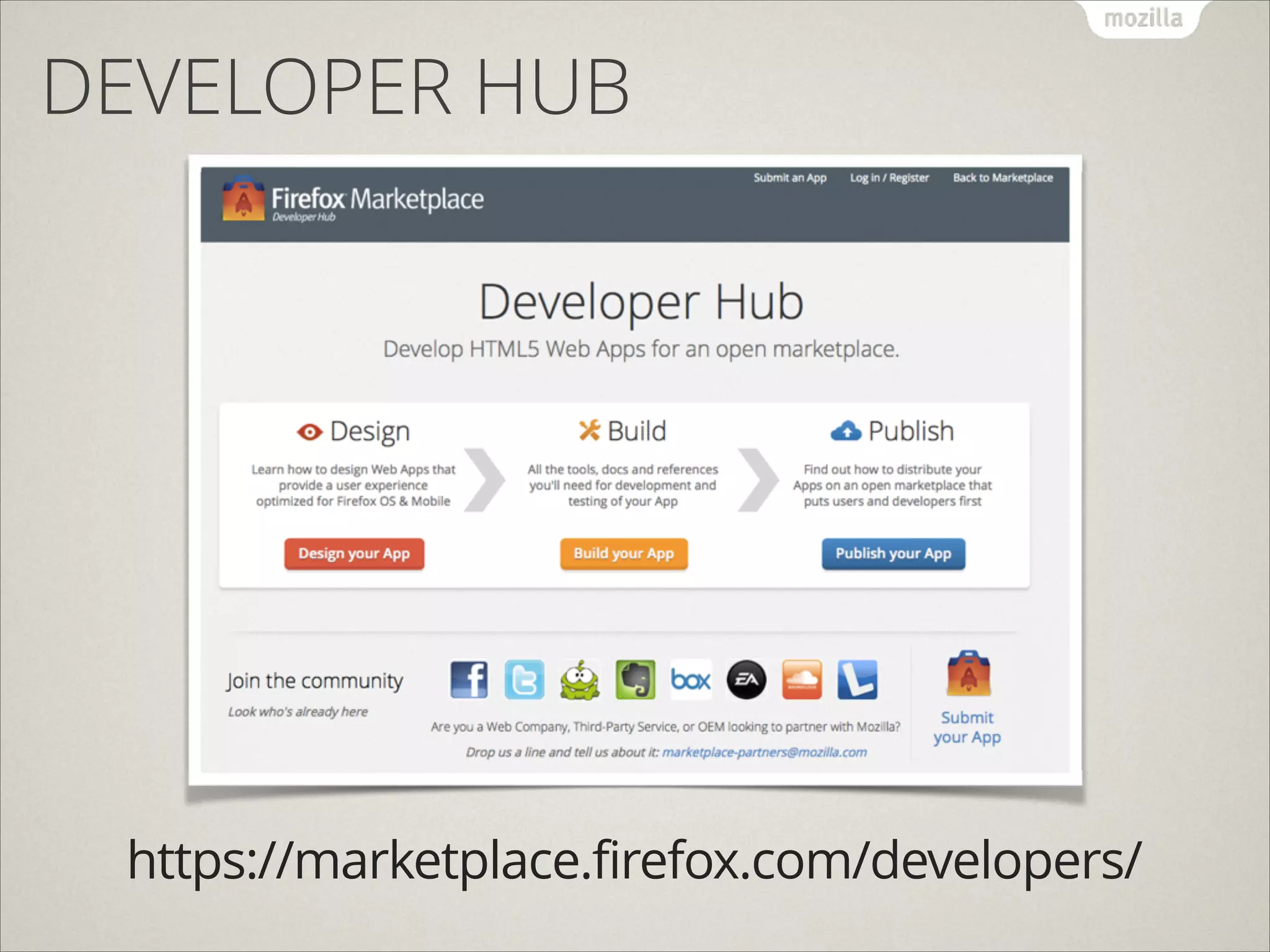

57. DEVELOPER HUB
https://marketplace.firefox.com/developers/

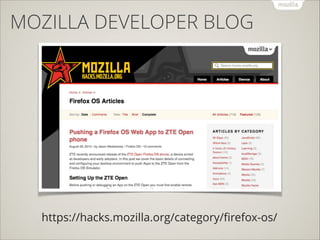

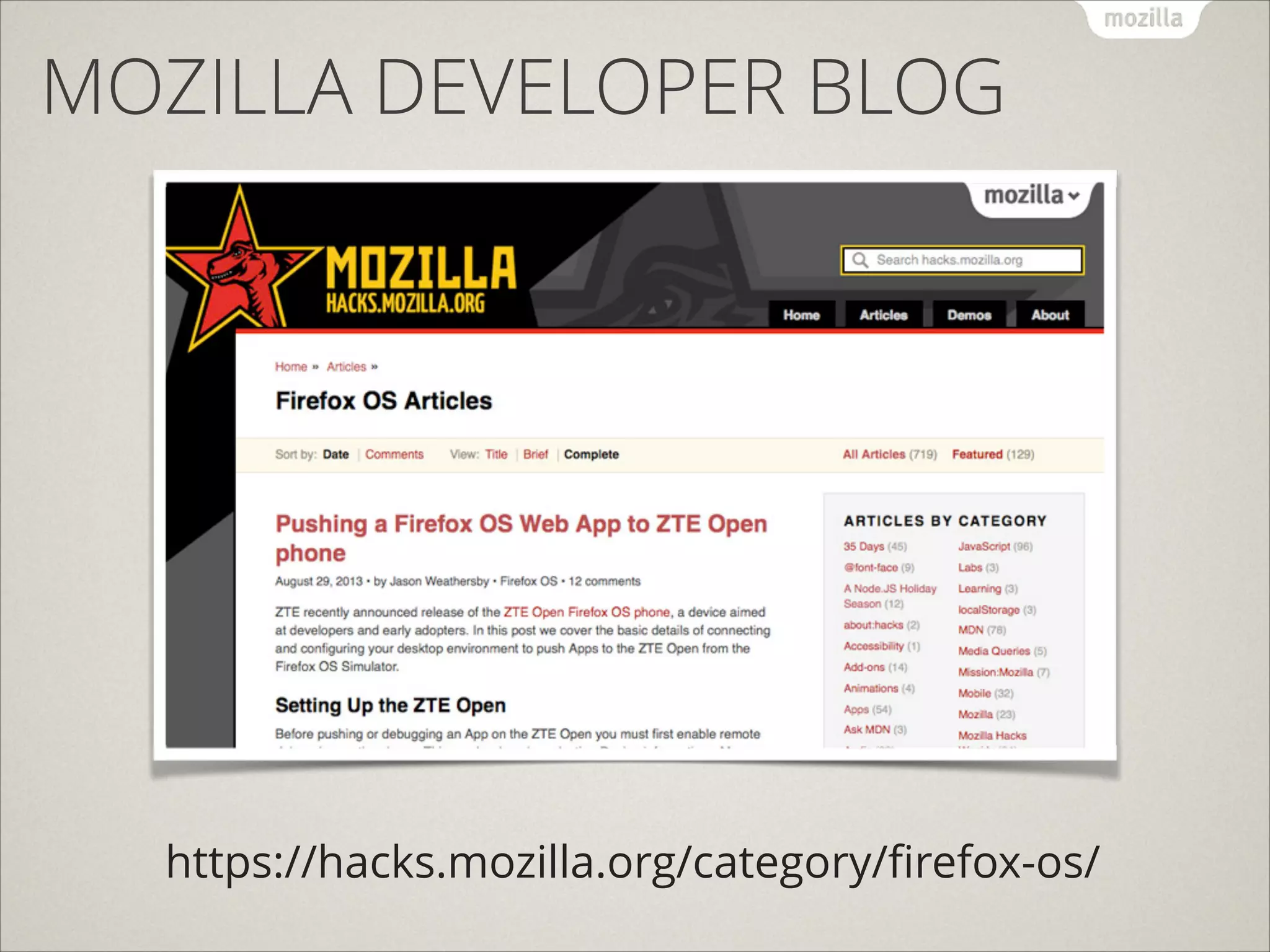

58. MOZILLA DEVELOPER BLOG
https://hacks.mozilla.org/category/firefox-os/

59. FIREFOX OS VIDEO SERIES
https://hacks.mozilla.org/category/videoseries/

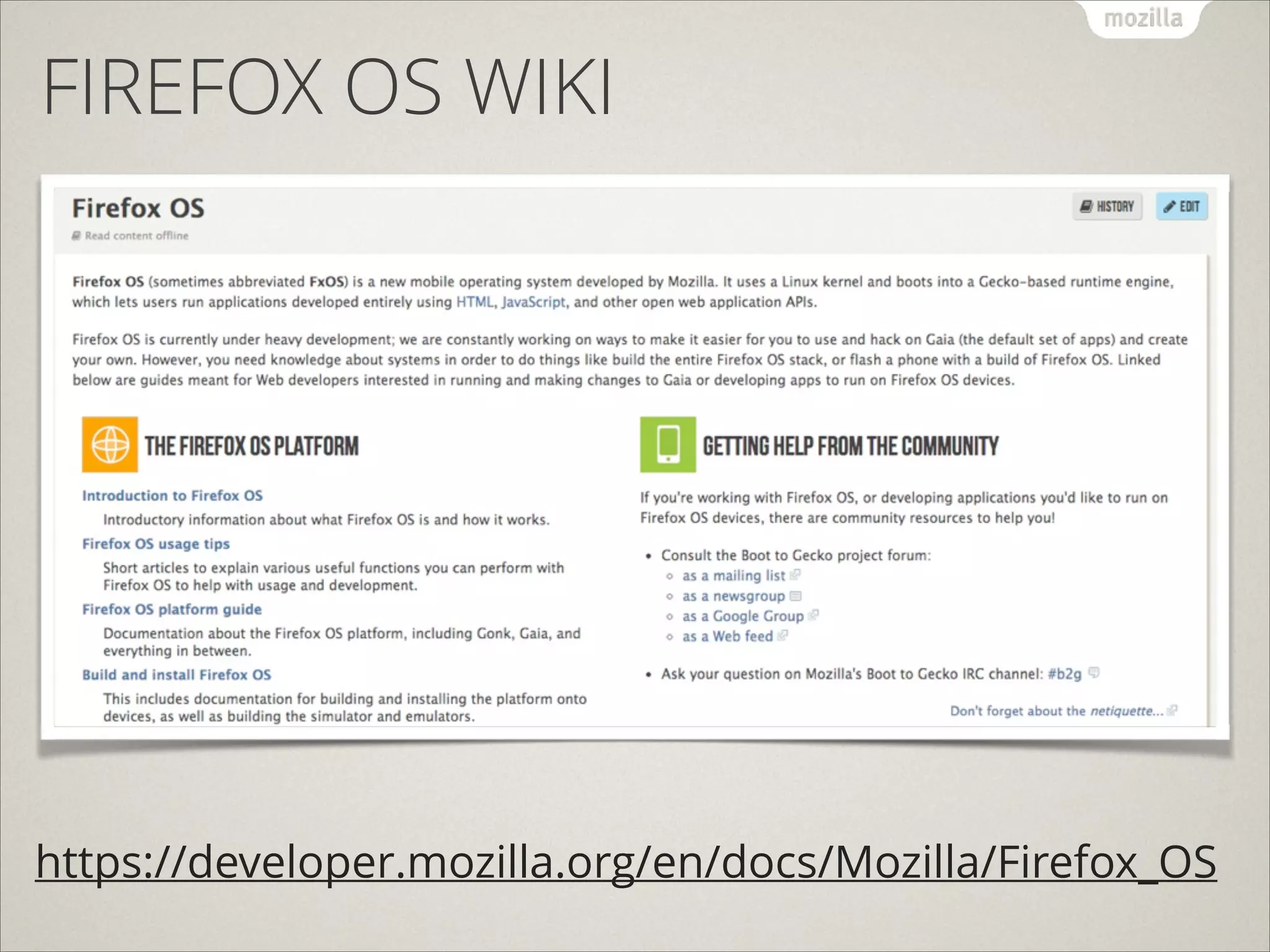

60. FIREFOX OS WIKI
https://developer.mozilla.org/en/docs/Mozilla/Firefox_OS

61. THANKS!
CHRIS HEILMANN
@CODEPO8
