This document discusses cross-platform development using HTML, CSS, and JavaScript. It covers JavaScript engines, the differences between JavaScript and Node.js, and frameworks like Electron, PhoneGap/Cordova, and Ionic that allow building cross-platform desktop and mobile applications with web technologies. It also provides an overview of creating a basic Cordova application, installing required tools, adding platforms, and deploying to devices.

1. Cross-Platform Development
using HTML, CSS & JS

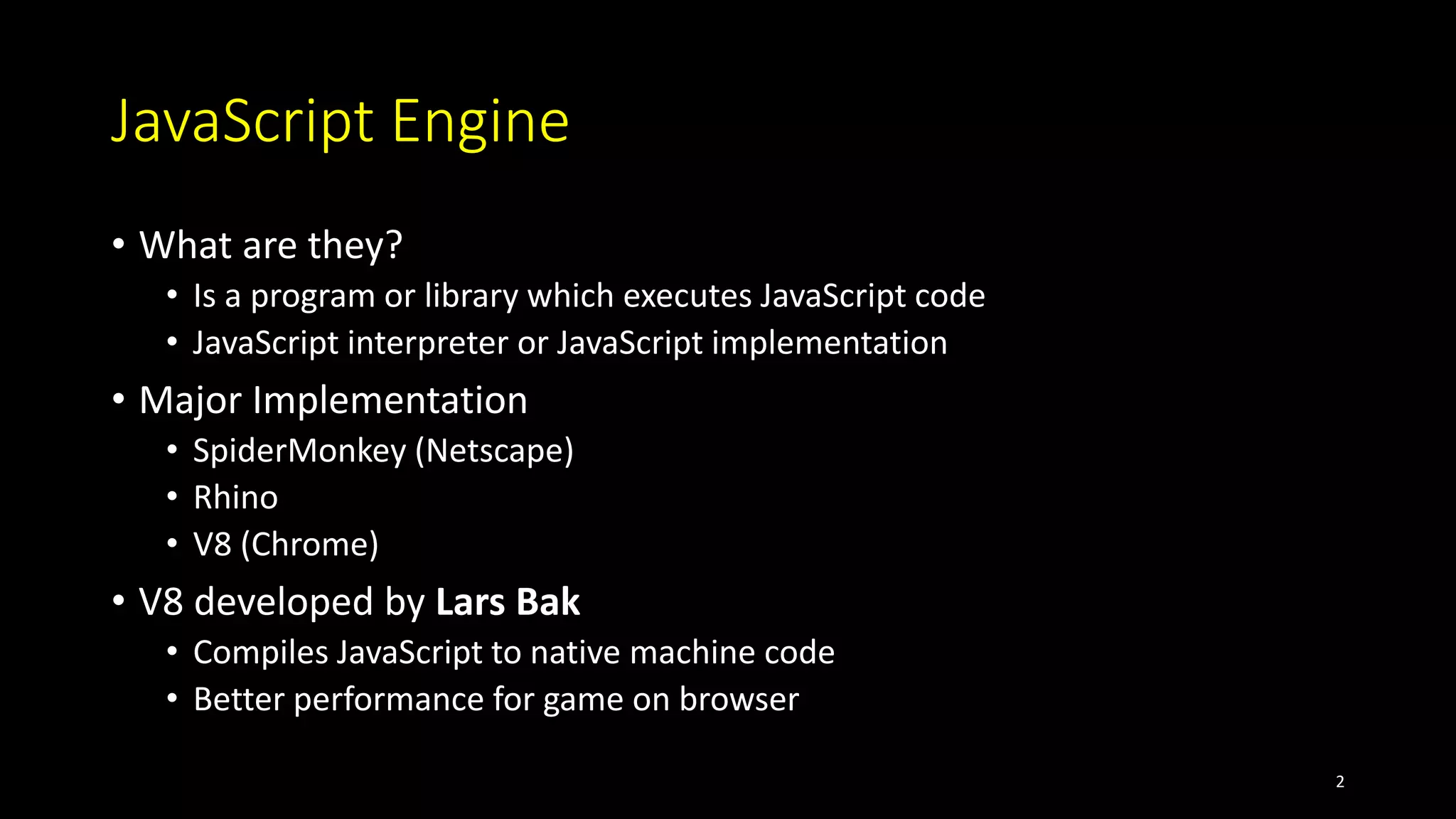

2. JavaScript Engine
• What are they?
• Is a program or library which executes JavaScript code
• JavaScript interpreter or JavaScript implementation
• Major Implementation
• SpiderMonkey (Netscape)
• Rhino
• V8 (Chrome)
• V8 developed by Lars Bak
• Compiles JavaScript to native machine code
• Better performance for game on browser
2

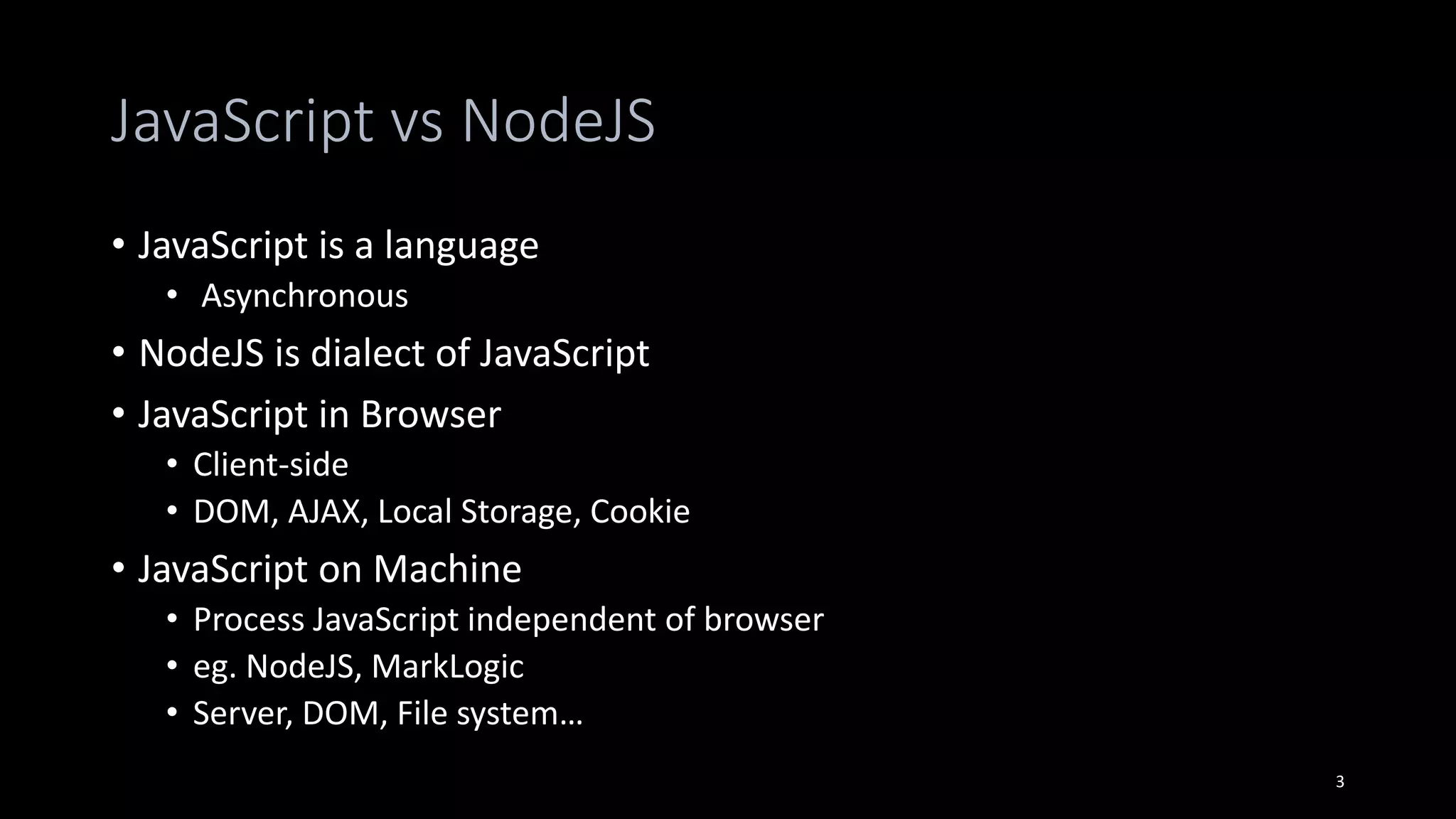

3. JavaScript vs NodeJS
• JavaScript is a language
• Asynchronous
• NodeJS is dialect of JavaScript
• JavaScript in Browser
• Client-side
• DOM, AJAX, Local Storage, Cookie
• JavaScript on Machine
• Process JavaScript independent of browser
• eg. NodeJS, MarkLogic
• Server, DOM, File system…
3

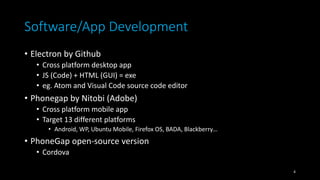

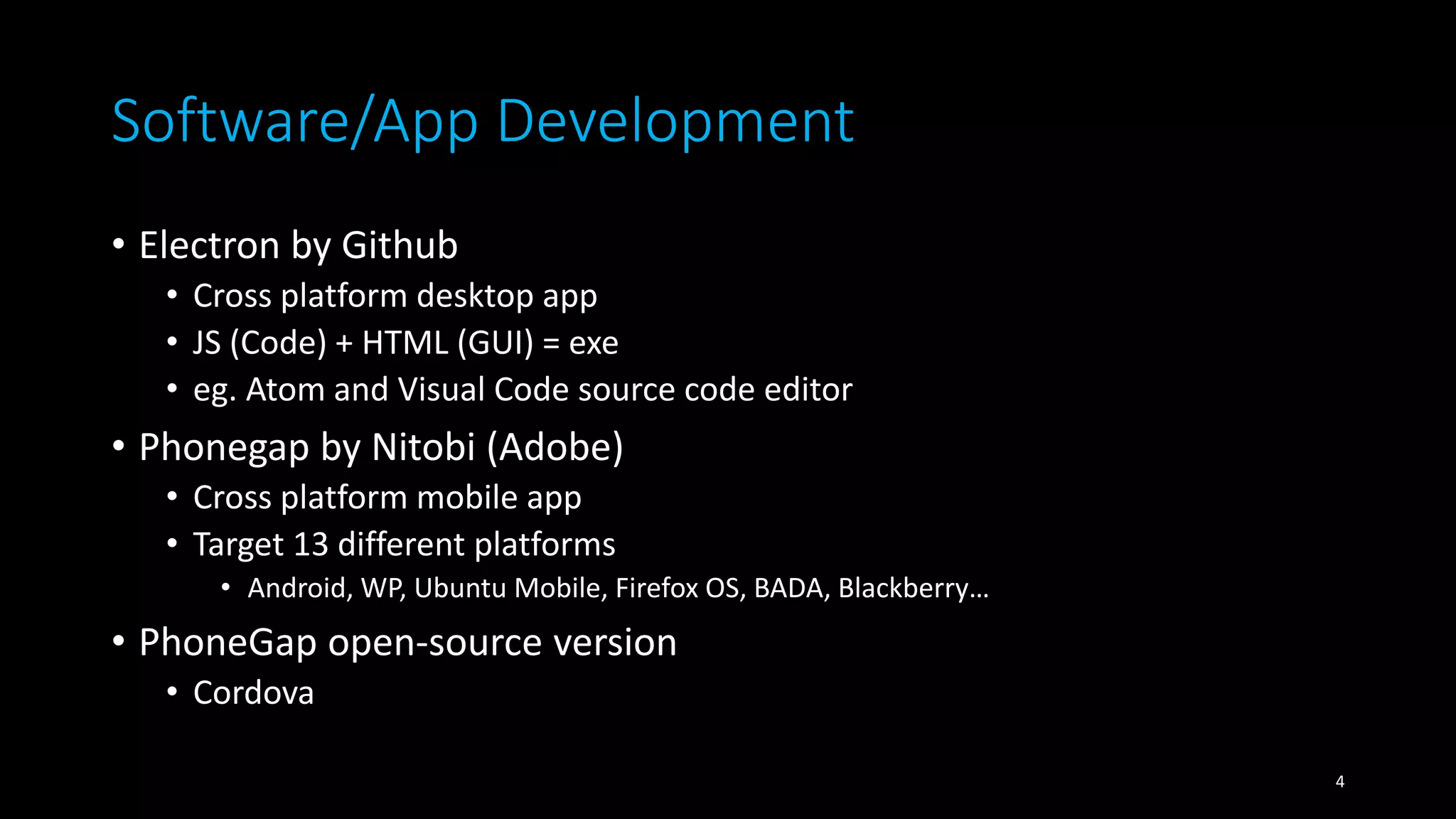

4. Software/App Development
• Electron by Github
• Cross platform desktop app
• JS (Code) + HTML (GUI) = exe
• eg. Atom and Visual Code source code editor
• Phonegap by Nitobi (Adobe)
• Cross platform mobile app
• Target 13 different platforms
• Android, WP, Ubuntu Mobile, Firefox OS, BADA, Blackberry…
• PhoneGap open-source version
• Cordova
4

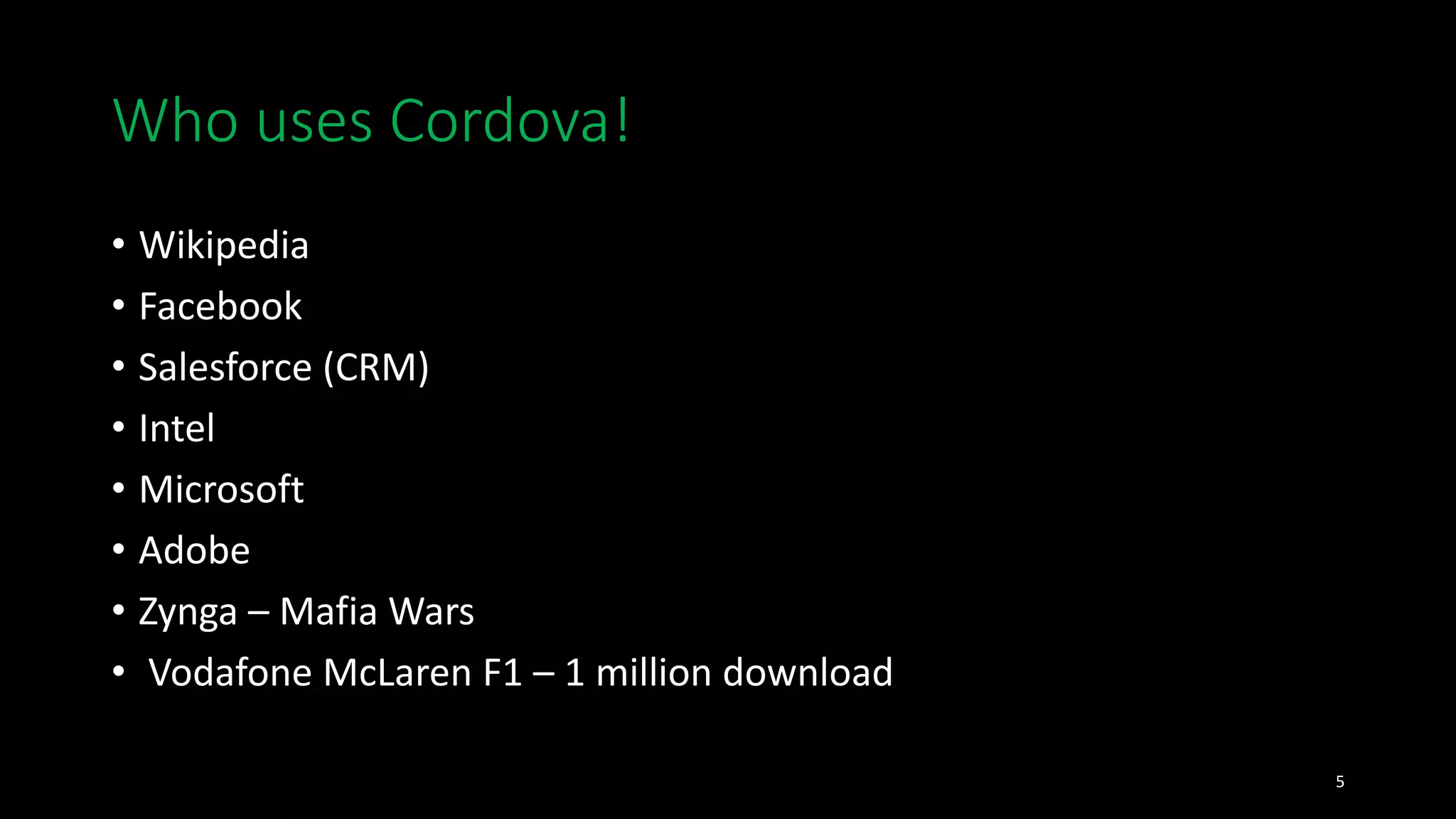

5. Who uses Cordova!
• Wikipedia
• Facebook
• Salesforce (CRM)
• Intel
• Microsoft
• Adobe
• Zynga – Mafia Wars
• Vodafone McLaren F1 – 1 million download
5

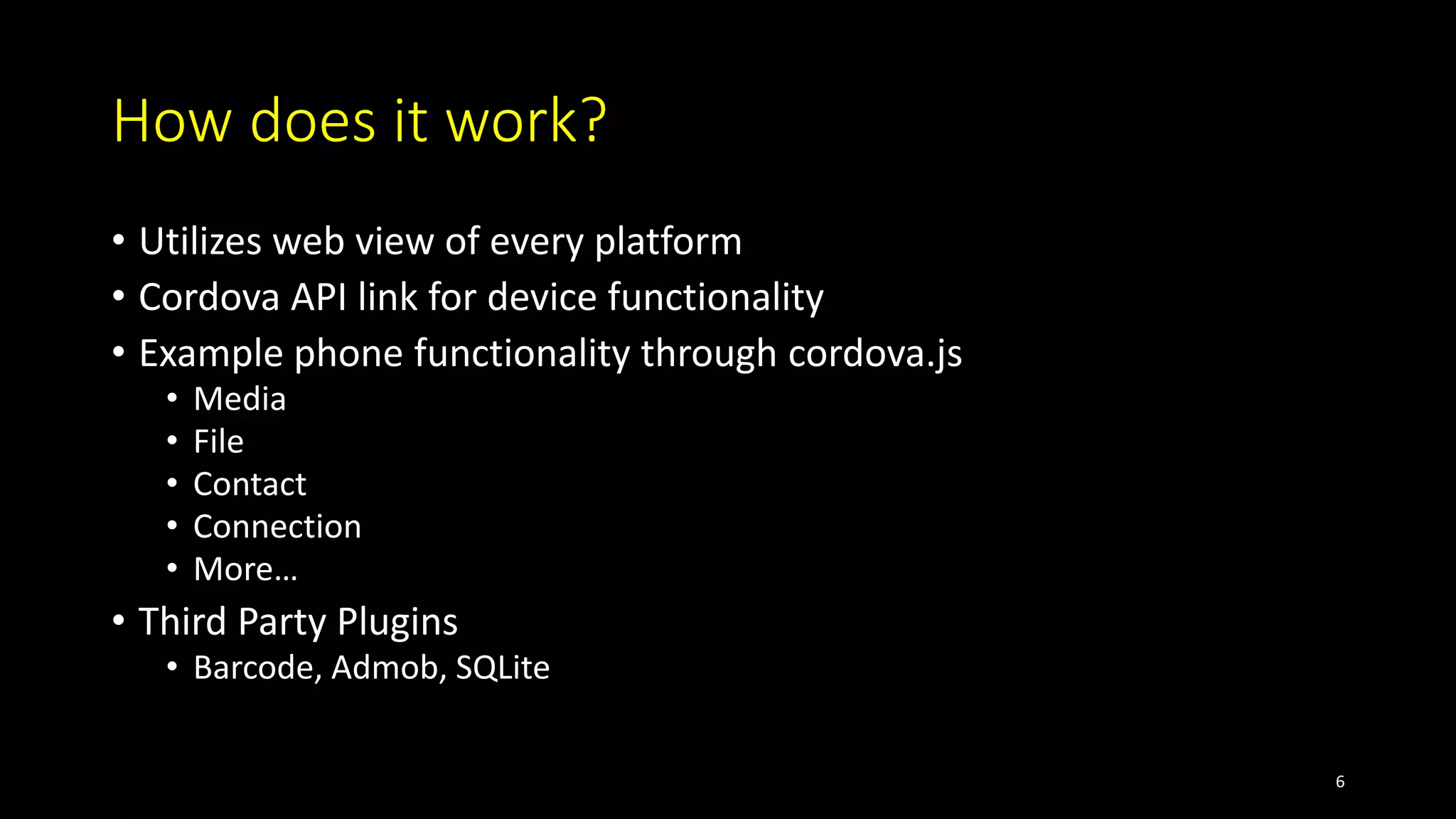

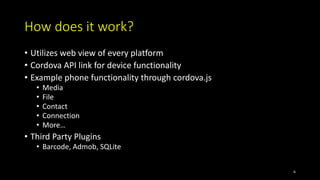

6. How does it work?
• Utilizes web view of every platform
• Cordova API link for device functionality
• Example phone functionality through cordova.js
• Media
• File
• Contact
• Connection
• More…
• Third Party Plugins
• Barcode, Admob, SQLite
6

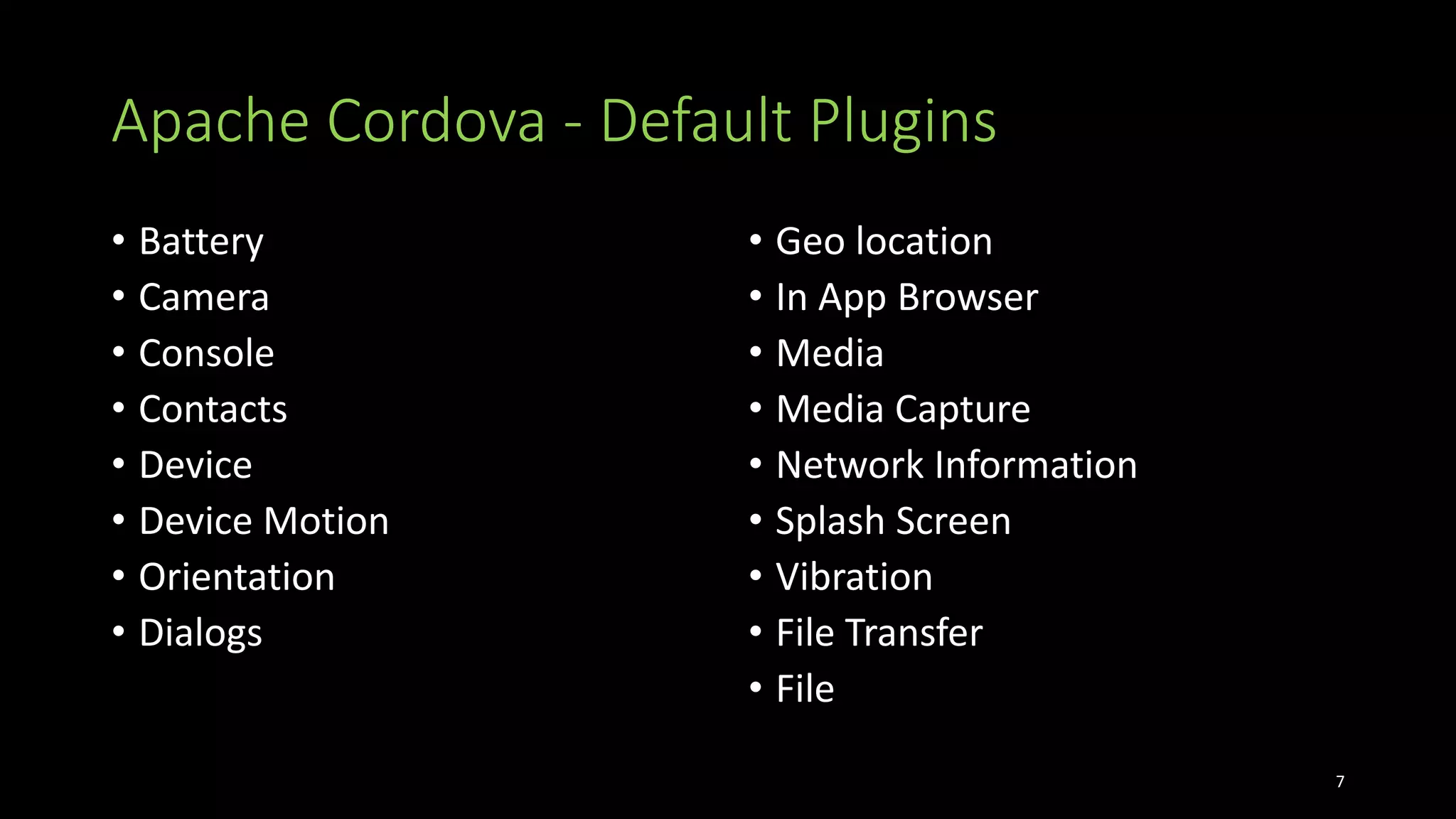

7. Apache Cordova - Default Plugins
• Battery
• Camera
• Console
• Contacts
• Device
• Device Motion
• Orientation
• Dialogs
• Geo location
• In App Browser
• Media
• Media Capture
• Network Information
• Splash Screen
• Vibration
• File Transfer
• File
7

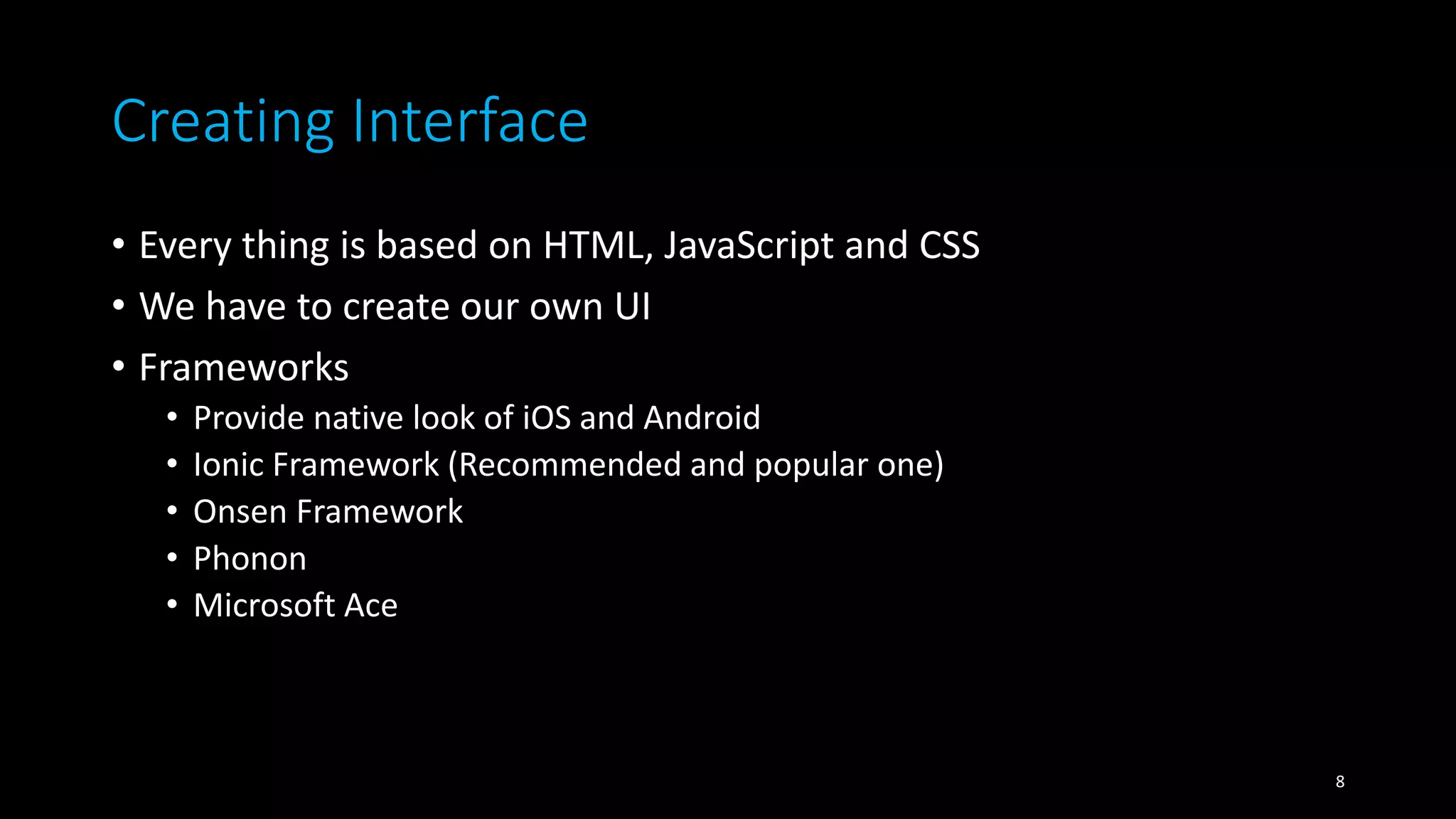

8. Creating Interface
• Every thing is based on HTML, JavaScript and CSS
• We have to create our own UI
• Frameworks
• Provide native look of iOS and Android
• Ionic Framework (Recommended and popular one)
• Onsen Framework
• Phonon
• Microsoft Ace
8

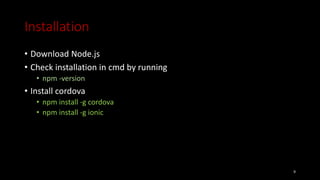

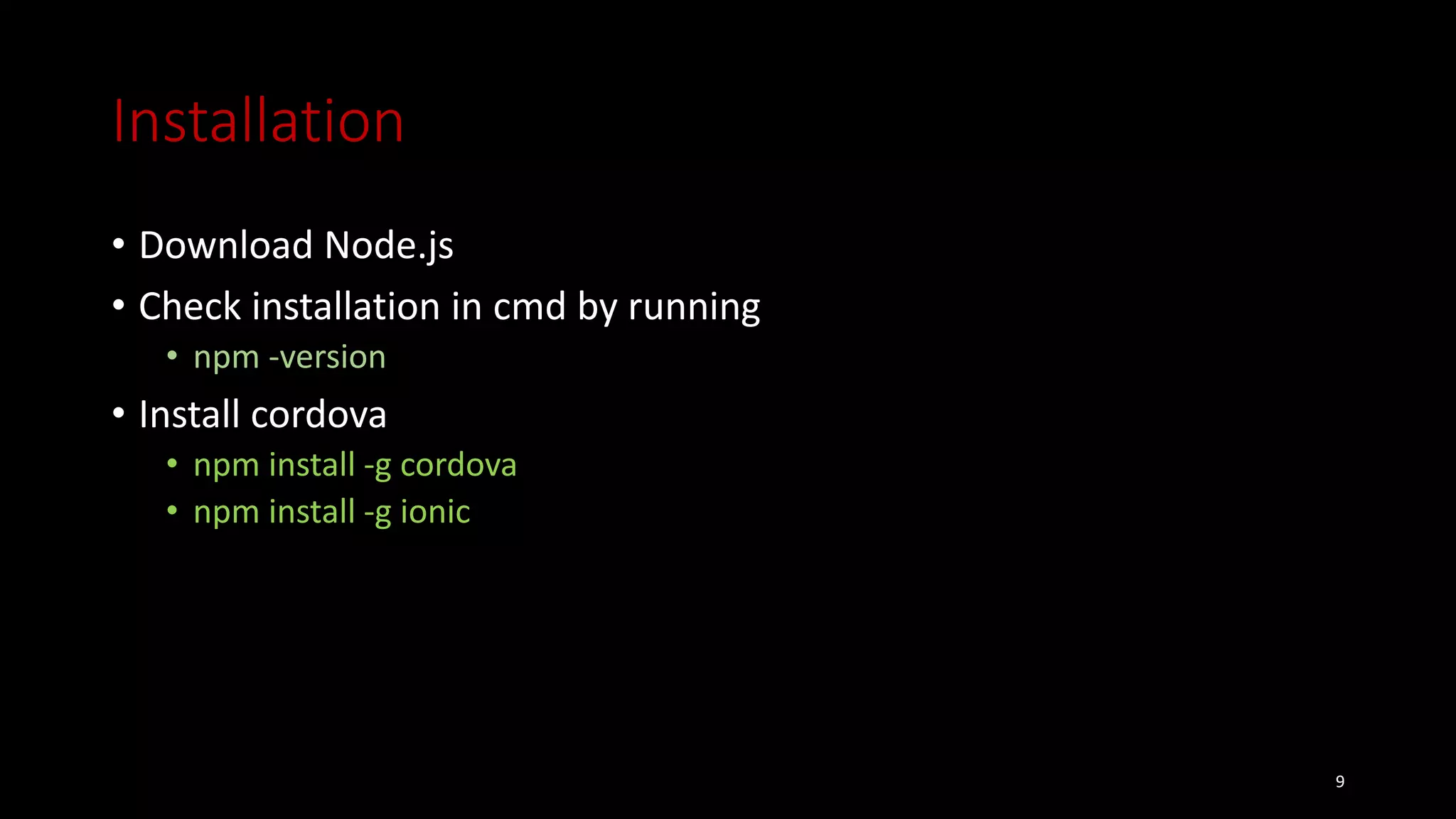

9. Installation
• Download Node.js
• Check installation in cmd by running
• npm -version
• Install cordova
• npm install -g cordova
• npm install -g ionic
9

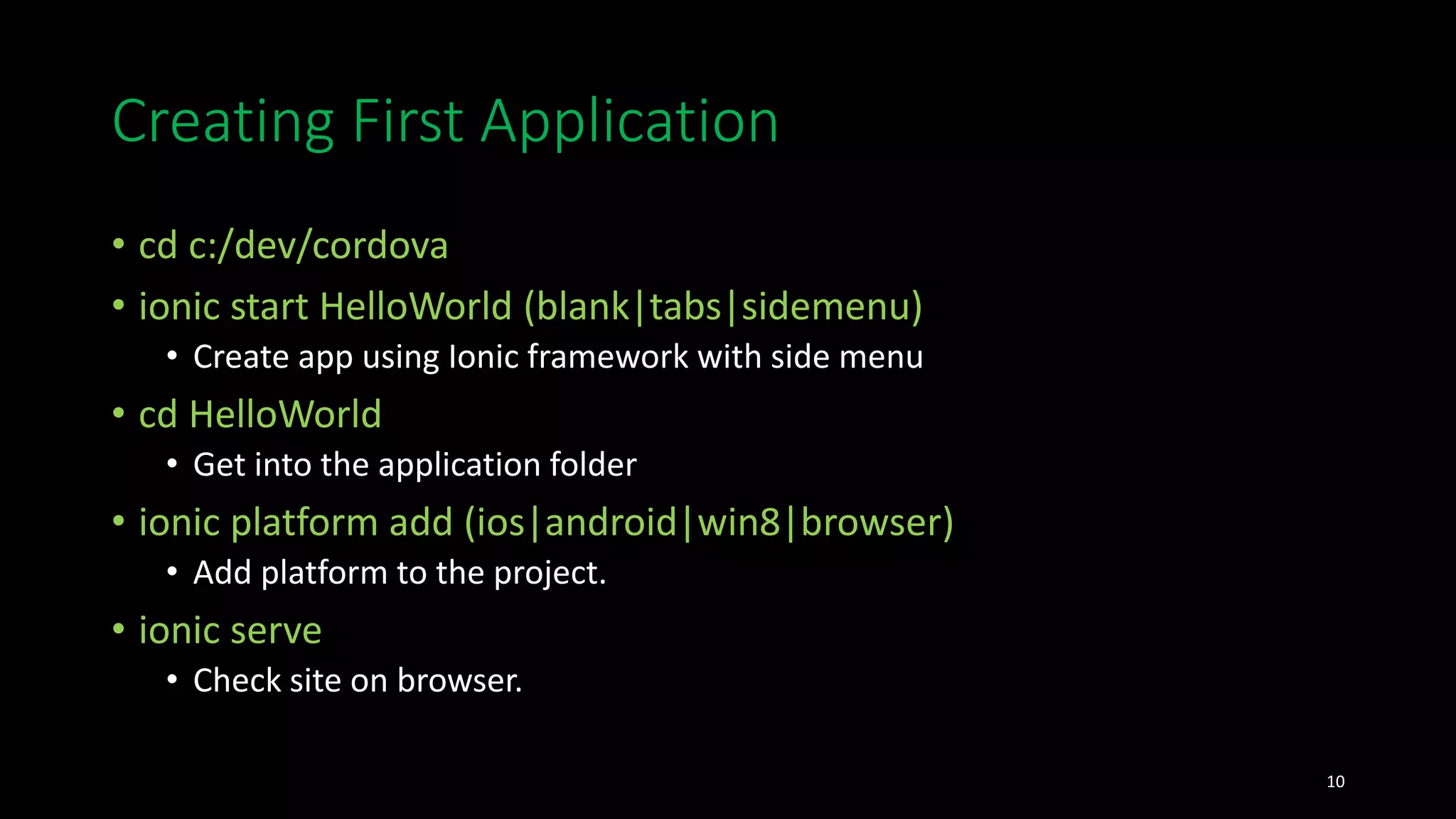

10. Creating First Application
• cd c:/dev/cordova
• ionic start HelloWorld (blank|tabs|sidemenu)
• Create app using Ionic framework with side menu
• cd HelloWorld
• Get into the application folder
• ionic platform add (ios|android|win8|browser)
• Add platform to the project.
• ionic serve
• Check site on browser.
10

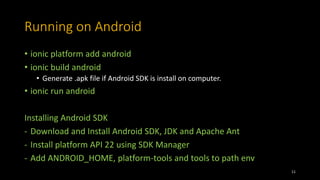

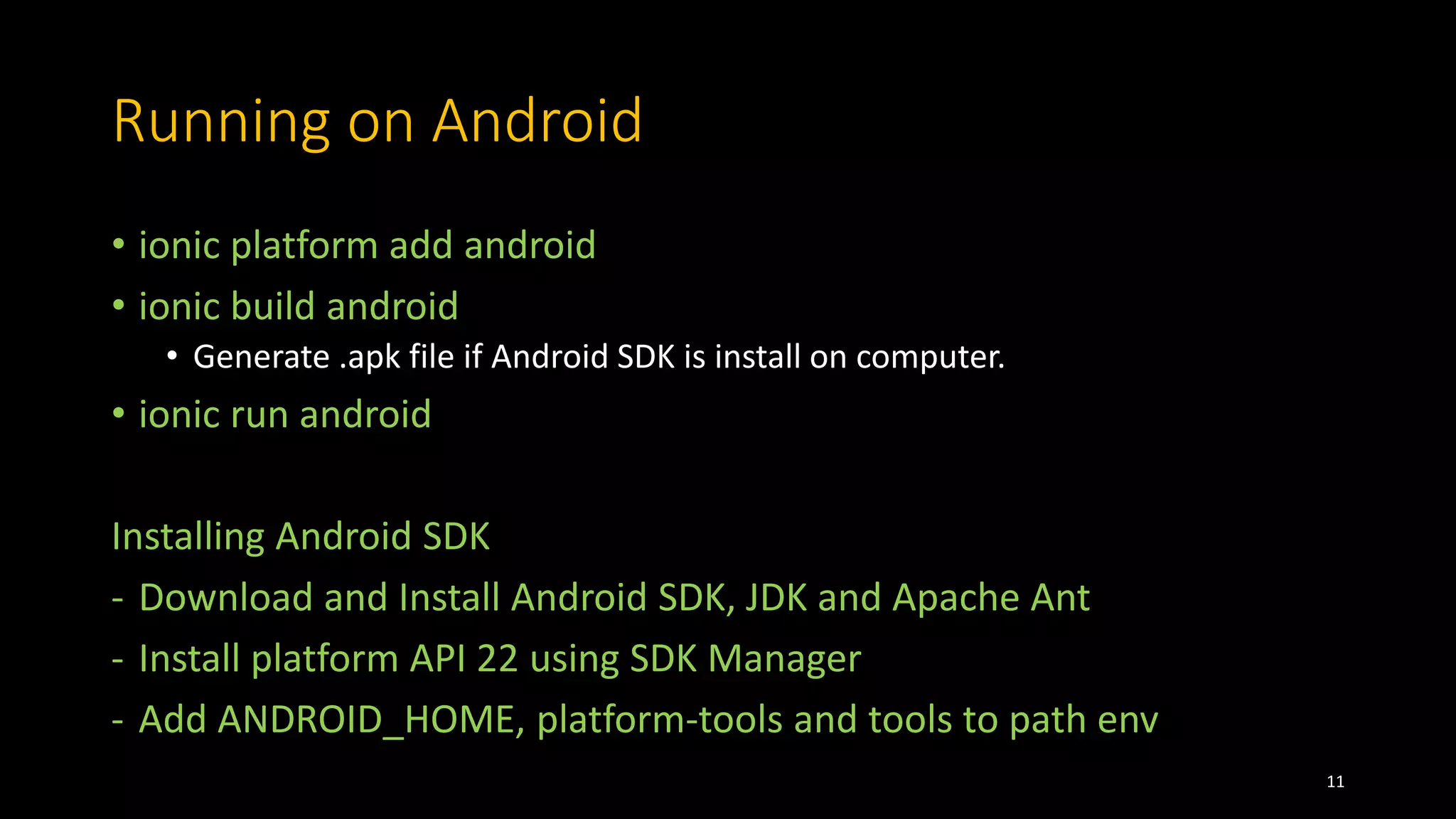

11. Running on Android
• ionic platform add android
• ionic build android
• Generate .apk file if Android SDK is install on computer.
• ionic run android
Installing Android SDK
- Download and Install Android SDK, JDK and Apache Ant
- Install platform API 22 using SDK Manager
- Add ANDROID_HOME, platform-tools and tools to path env
11

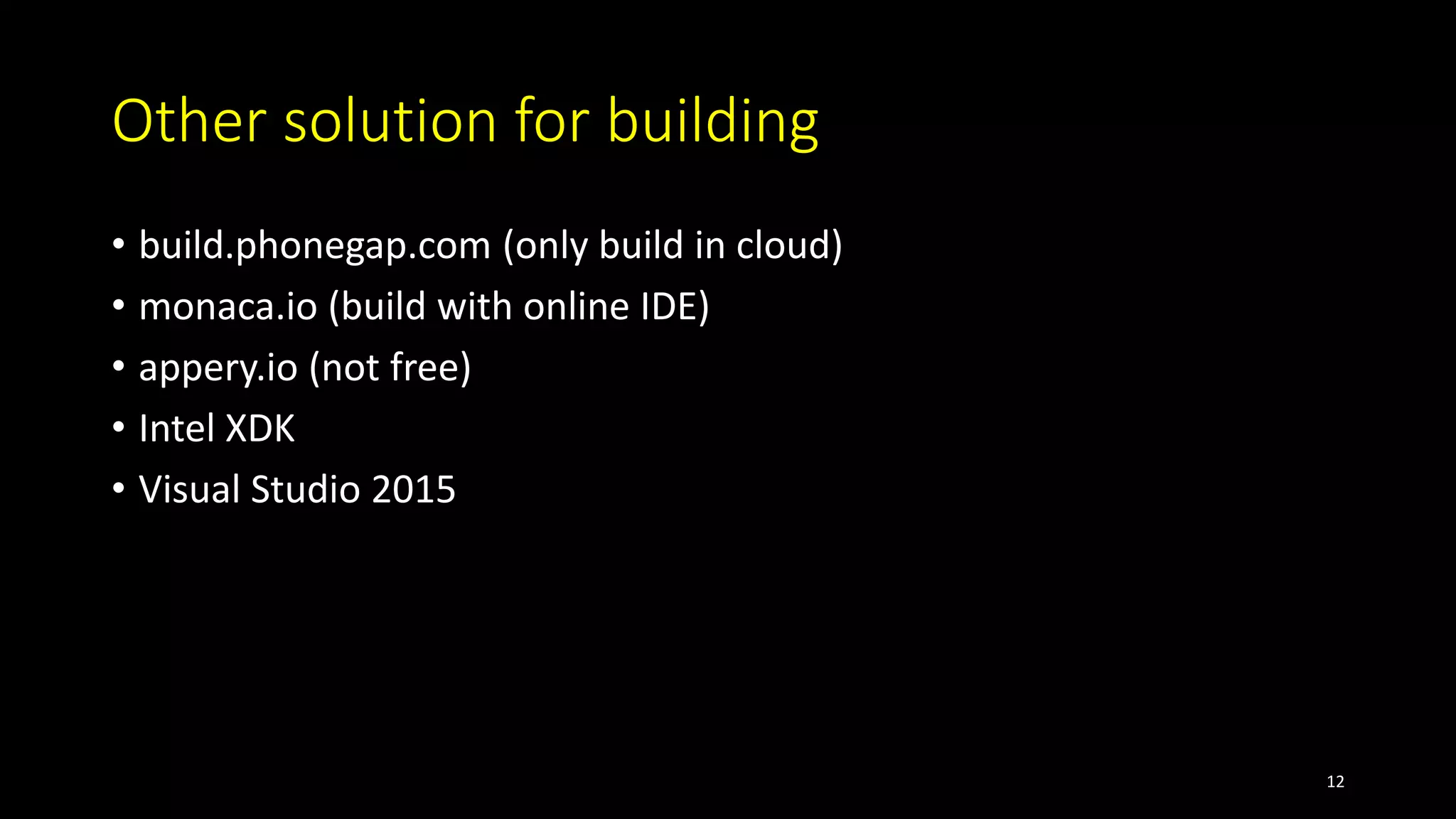

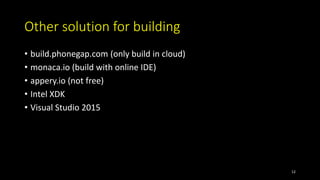

12. Other solution for building
• build.phonegap.com (only build in cloud)
• monaca.io (build with online IDE)
• appery.io (not free)
• Intel XDK
• Visual Studio 2015
12

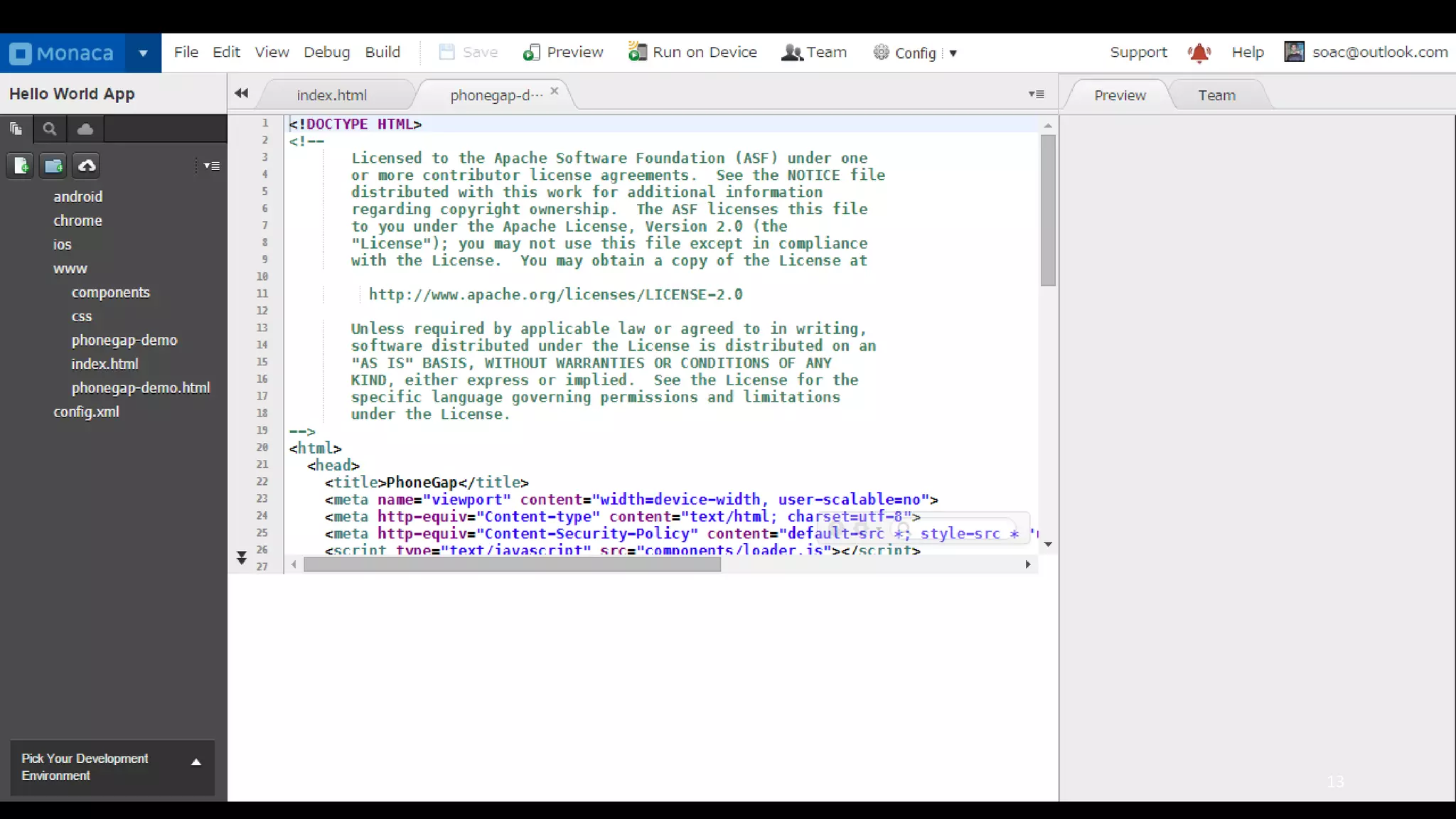

13. 13

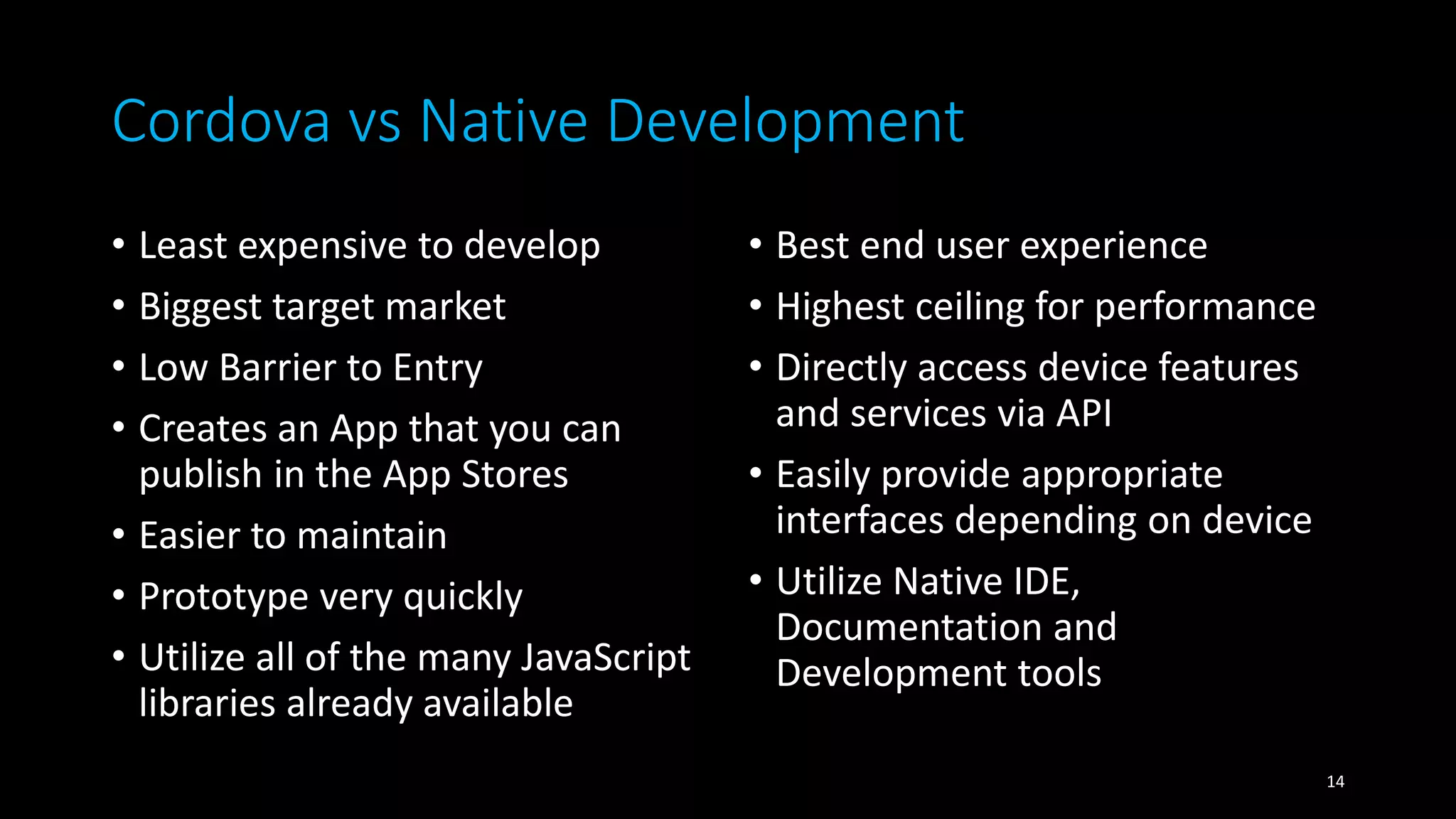

14. Cordova vs Native Development
• Least expensive to develop
• Biggest target market
• Low Barrier to Entry
• Creates an App that you can
publish in the App Stores
• Easier to maintain
• Prototype very quickly
• Utilize all of the many JavaScript
libraries already available
• Best end user experience
• Highest ceiling for performance
• Directly access device features
and services via API
• Easily provide appropriate
interfaces depending on device
• Utilize Native IDE,
Documentation and
Development tools
14

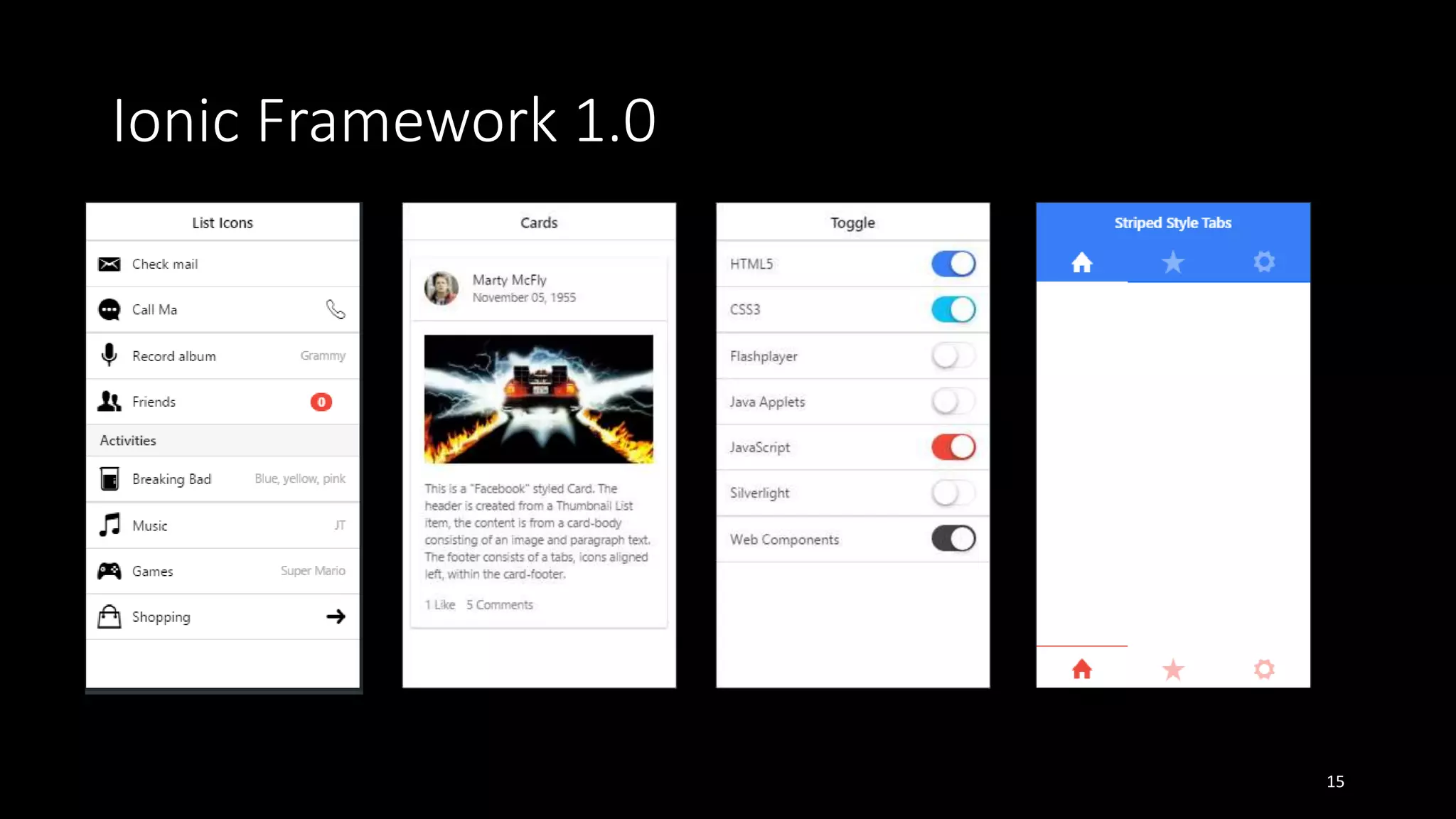

15. Ionic Framework 1.0
15

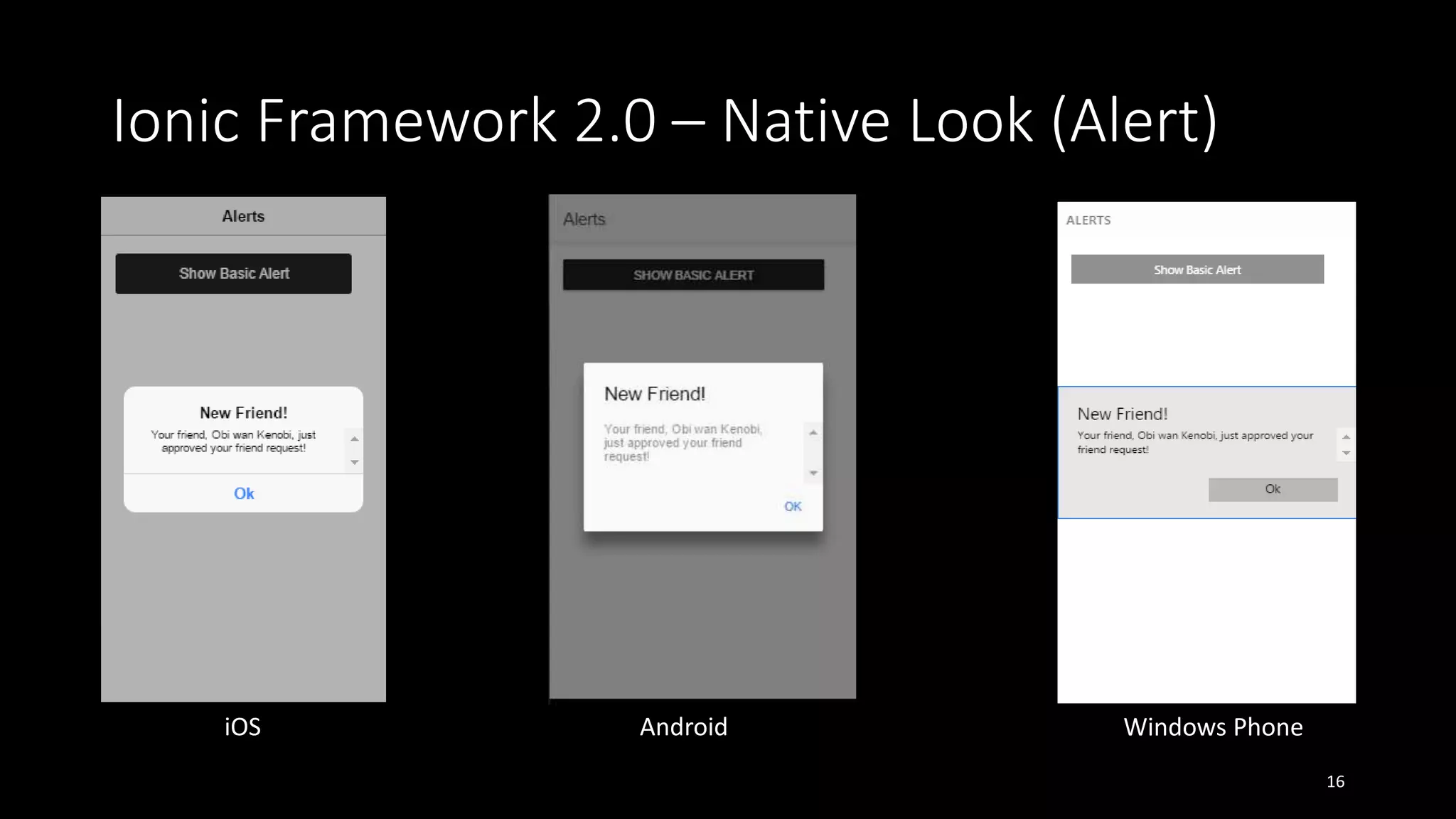

16. Ionic Framework 2.0 – Native Look (Alert)
16
iOS Android Windows Phone

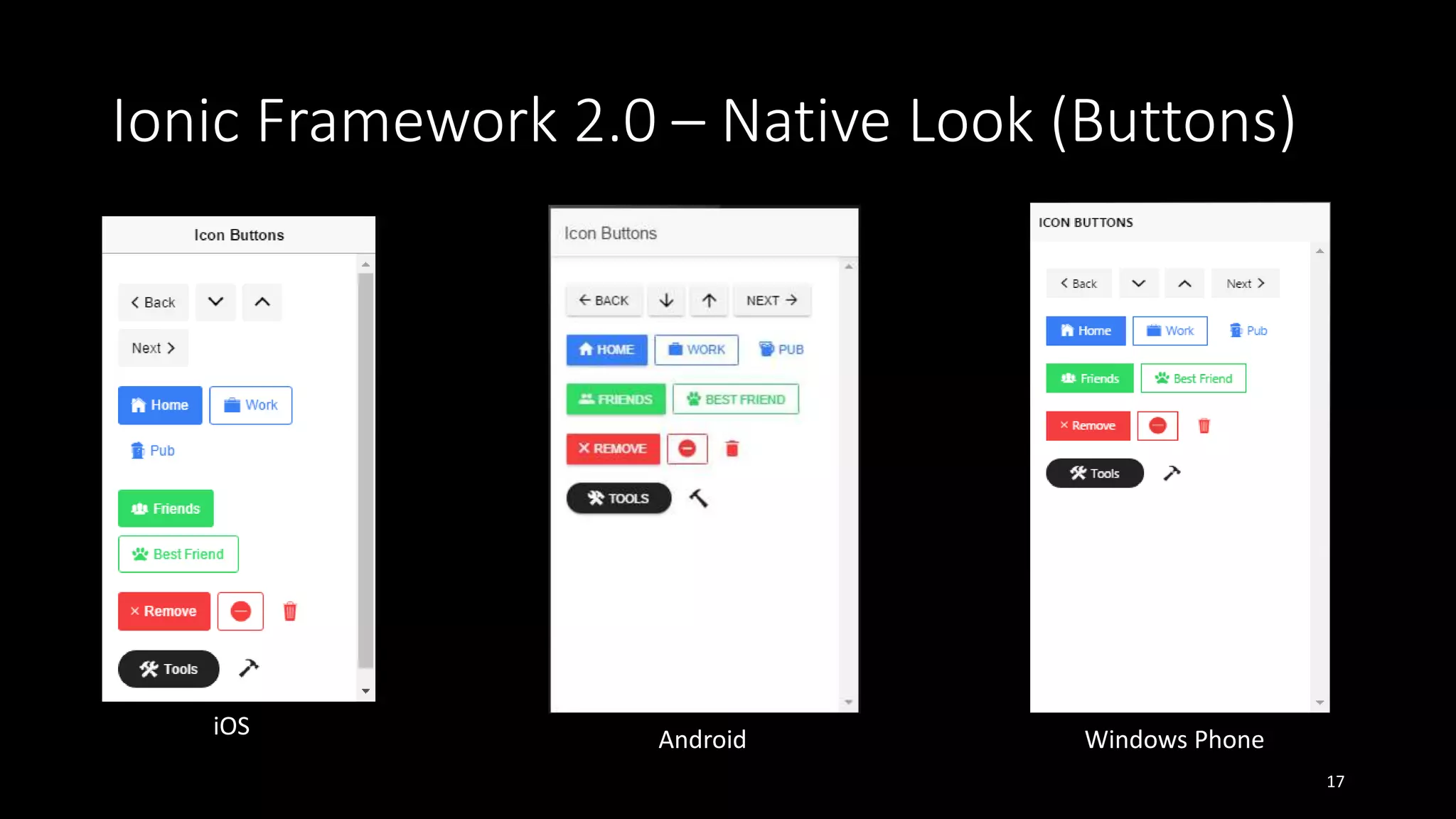

17. Ionic Framework 2.0 – Native Look (Buttons)
17
iOS Android Windows Phone

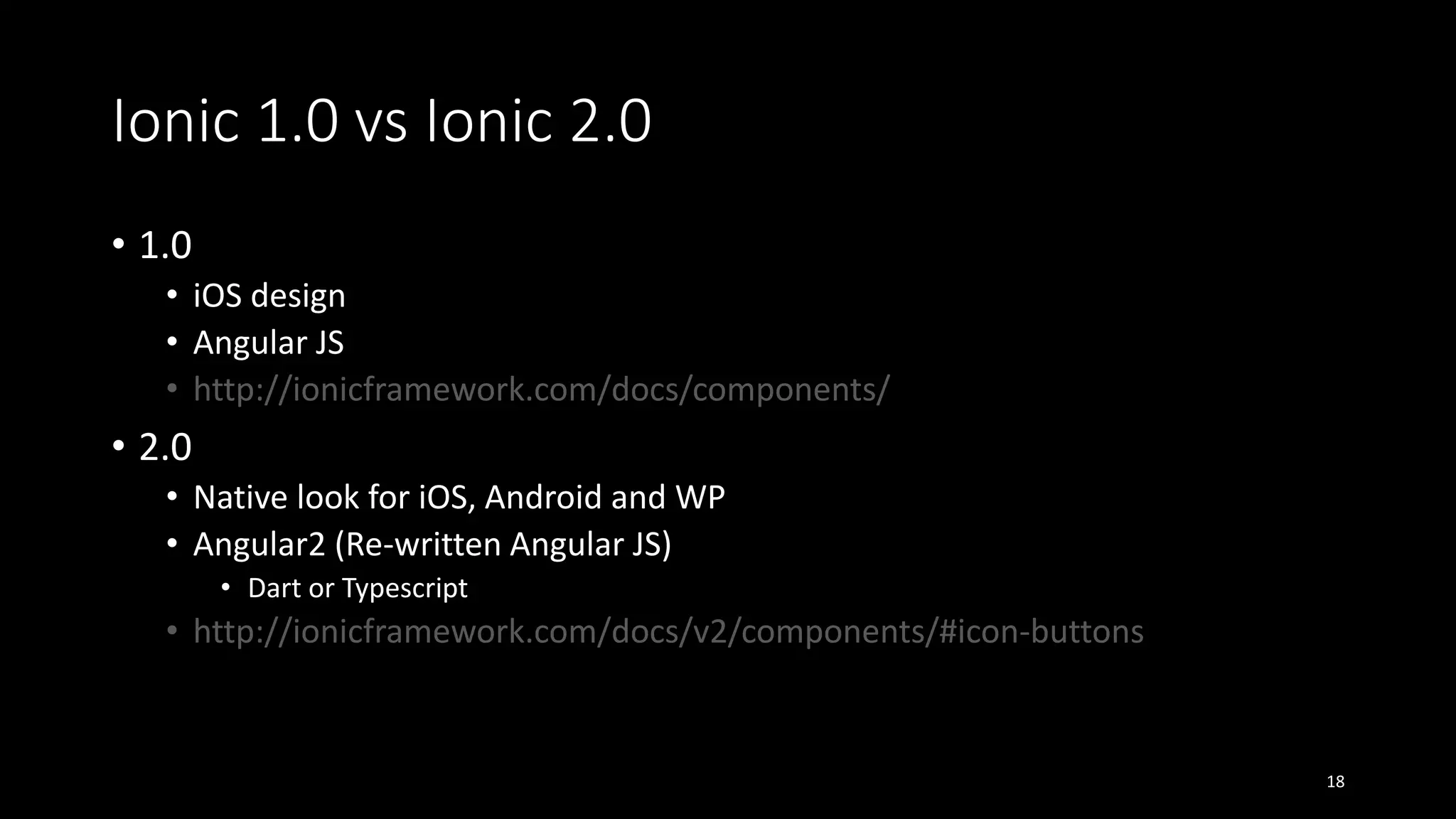

18. Ionic 1.0 vs Ionic 2.0
• 1.0
• iOS design
• Angular JS
• http://ionicframework.com/docs/components/
• 2.0
• Native look for iOS, Android and WP
• Angular2 (Re-written Angular JS)
• Dart or Typescript
• http://ionicframework.com/docs/v2/components/#icon-buttons
18

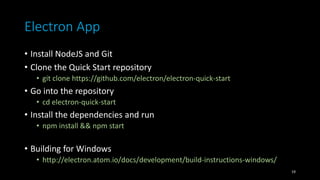

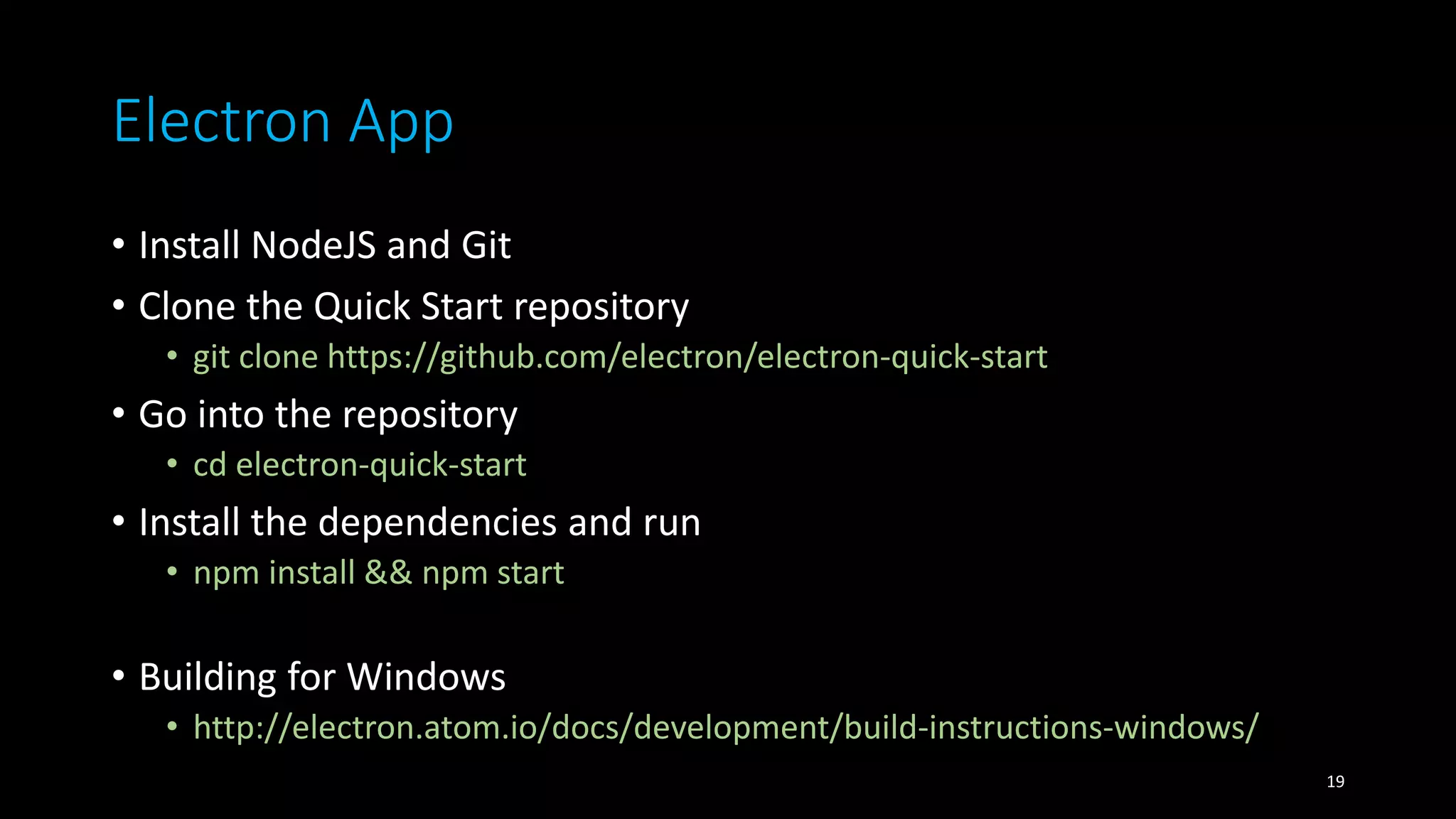

19. Electron App
• Install NodeJS and Git
• Clone the Quick Start repository
• git clone https://github.com/electron/electron-quick-start
• Go into the repository
• cd electron-quick-start
• Install the dependencies and run
• npm install && npm start
• Building for Windows
• http://electron.atom.io/docs/development/build-instructions-windows/
19

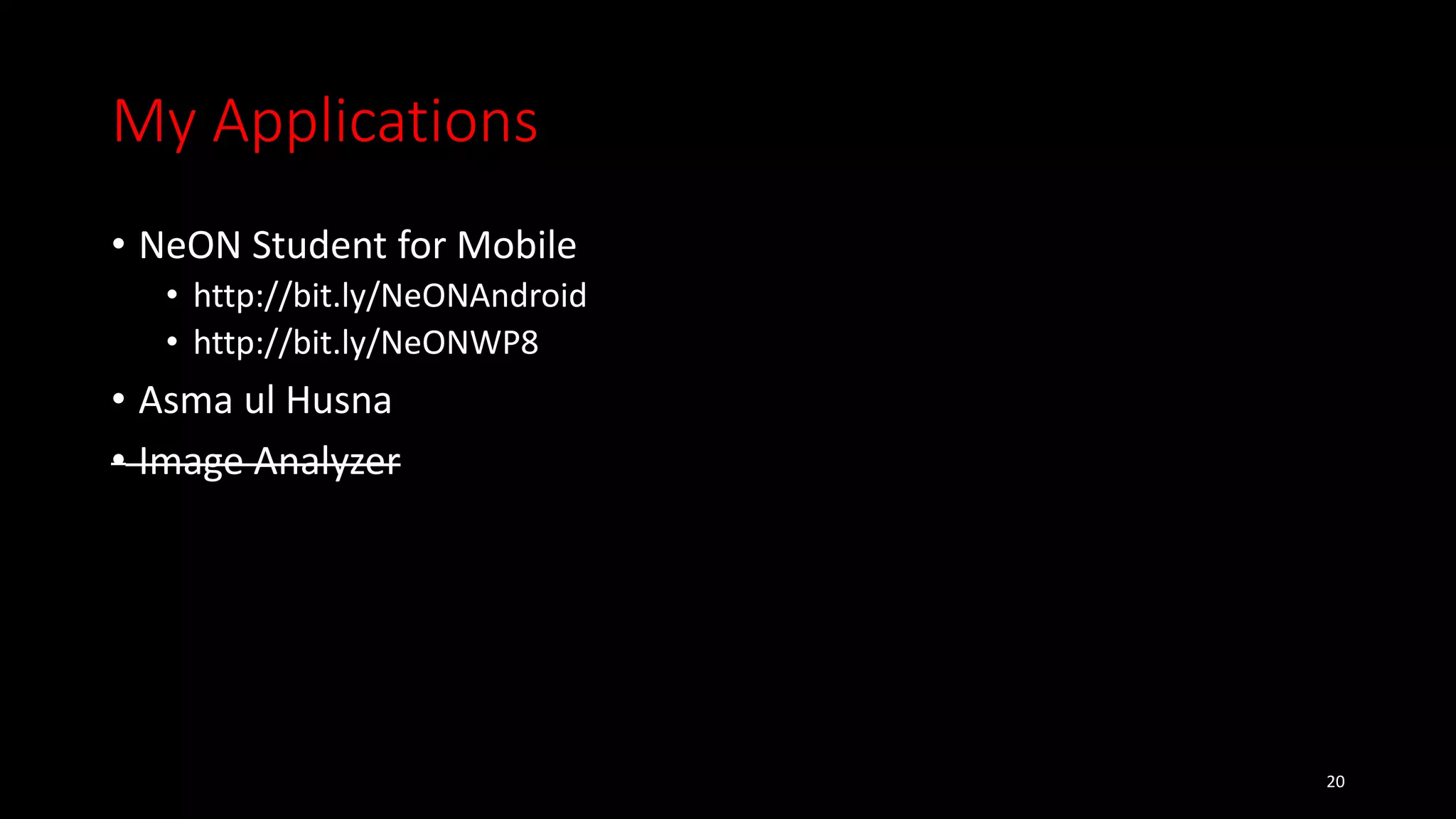

20. My Applications
• NeON Student for Mobile
• http://bit.ly/NeONAndroid
• http://bit.ly/NeONWP8
• Asma ul Husna
• Image Analyzer
20

21. Thank you!

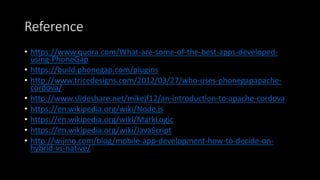

22. Reference
• https://www.quora.com/What-are-some-of-the-best-apps-developed-
using-PhoneGap
• https://build.phonegap.com/plugins
• http://www.tricedesigns.com/2012/03/27/who-uses-phonegapapache-
cordova/
• http://www.slideshare.net/mikejf12/an-introduction-to-apache-cordova
• https://en.wikipedia.org/wiki/Node.js
• https://en.wikipedia.org/wiki/MarkLogic
• https://en.wikipedia.org/wiki/JavaScript
• http://wijmo.com/blog/mobile-app-development-how-to-decide-on-
hybrid-vs-native/
