1. Extending Spring MVC with
Spring Mobile and JavaScript
Roy Clarkson, Spring Mobile/Android Project Lead
Craig Walls, Spring Social Project Lead
Twitter/Github: @royclarkson, @habuma
© 2012 SpringOne 2GX. All rights reserved. Do not distribute without permission.

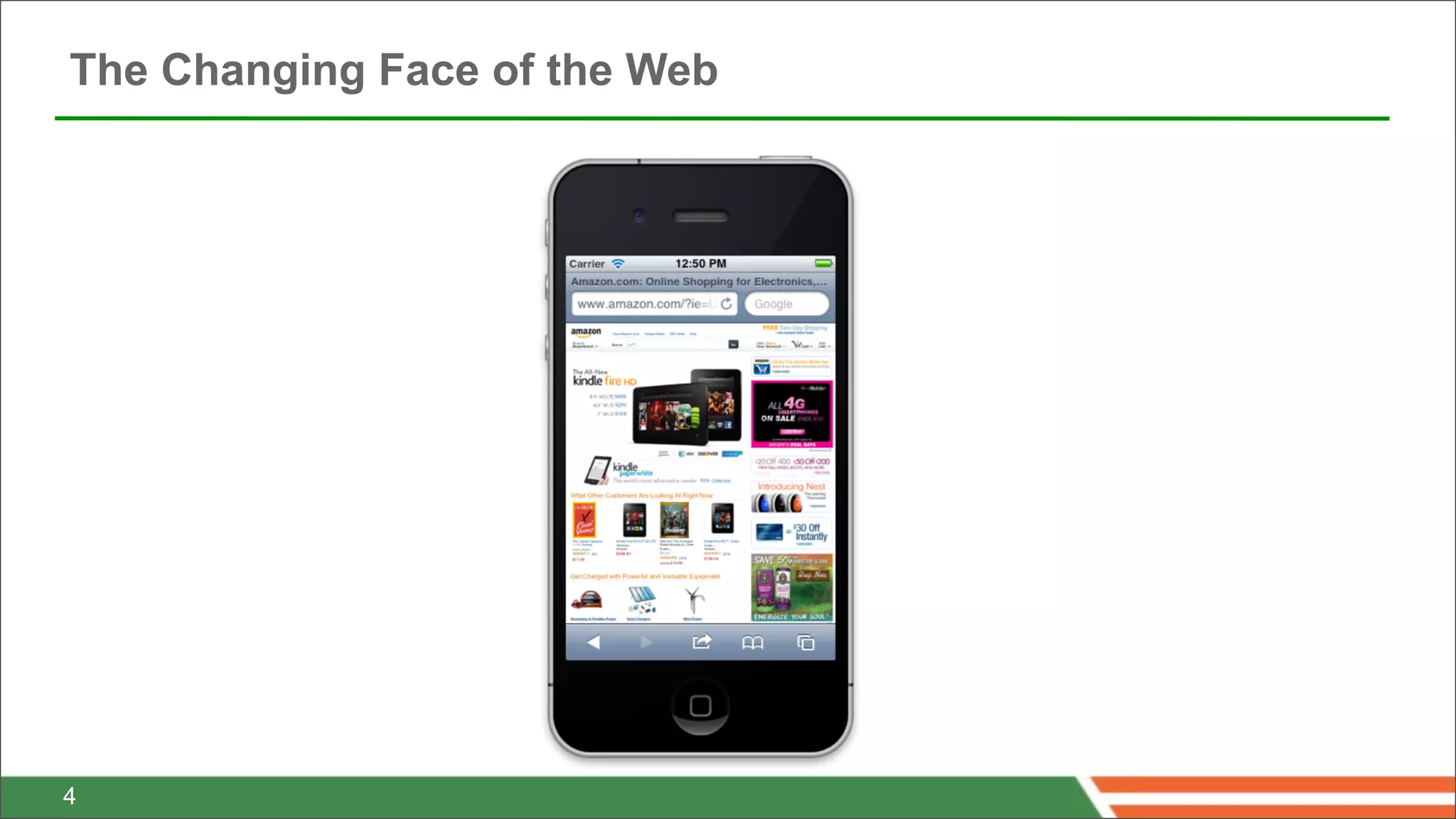

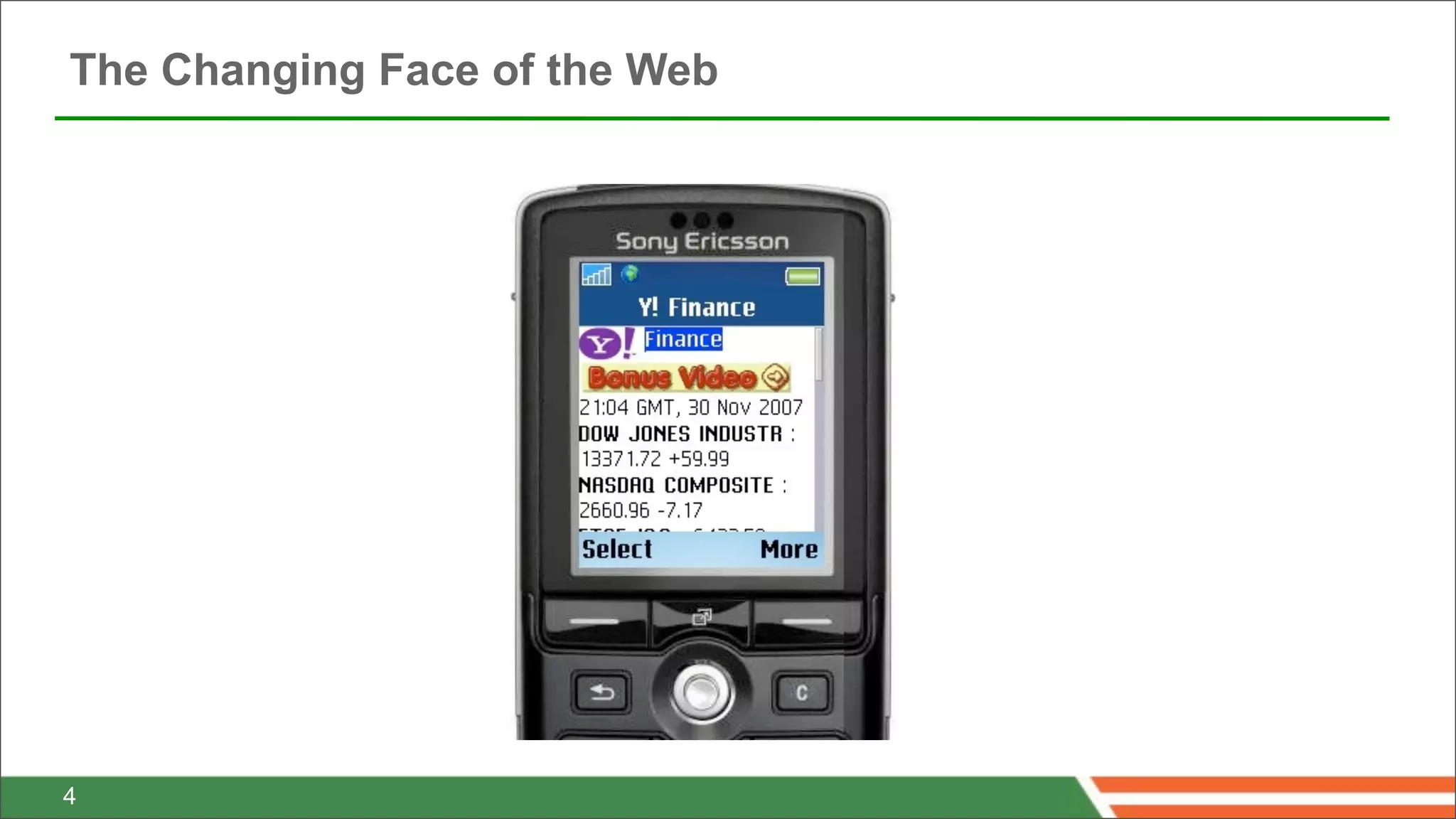

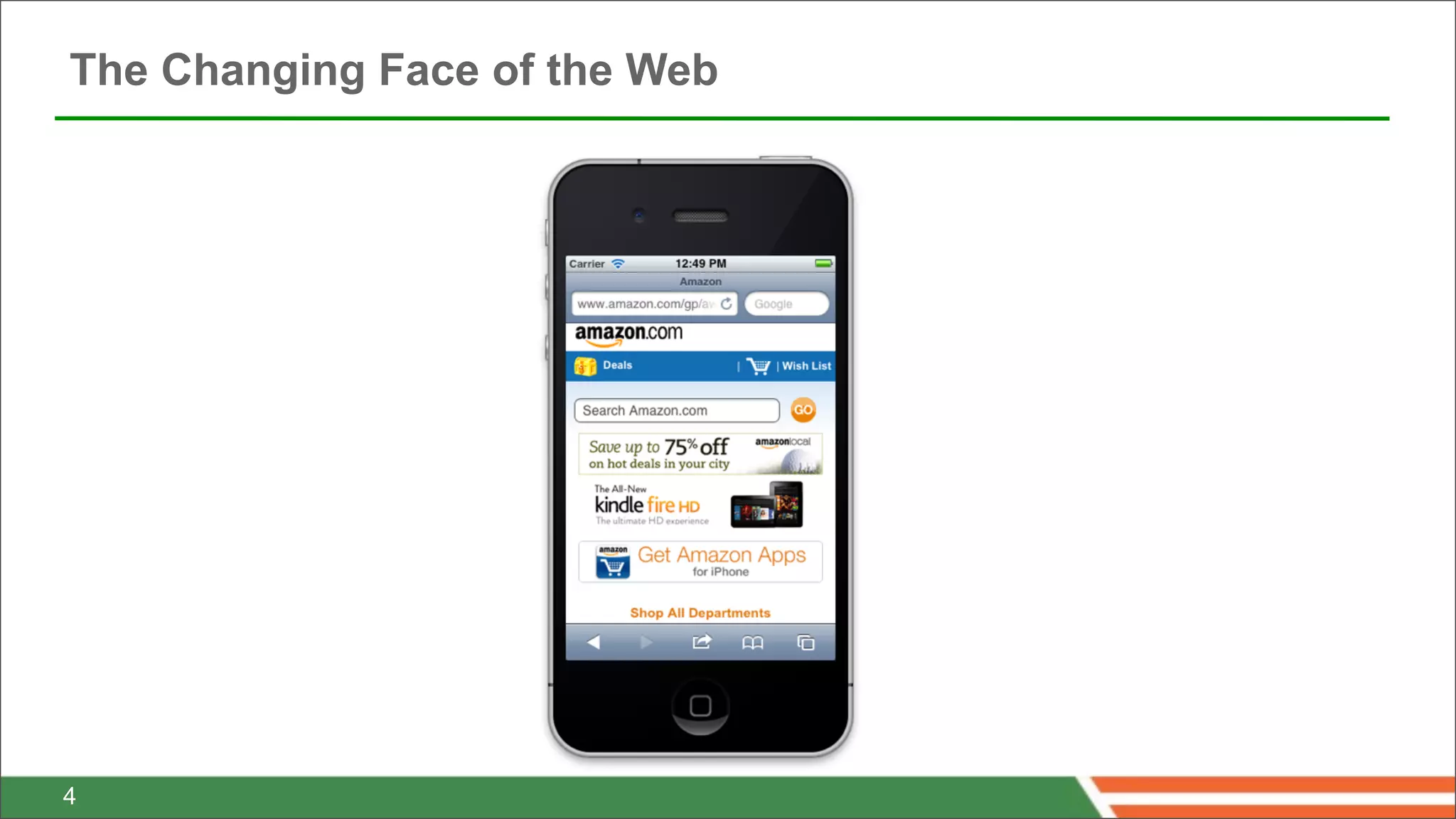

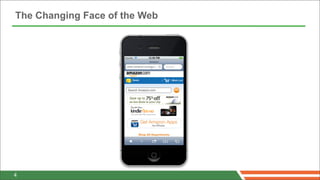

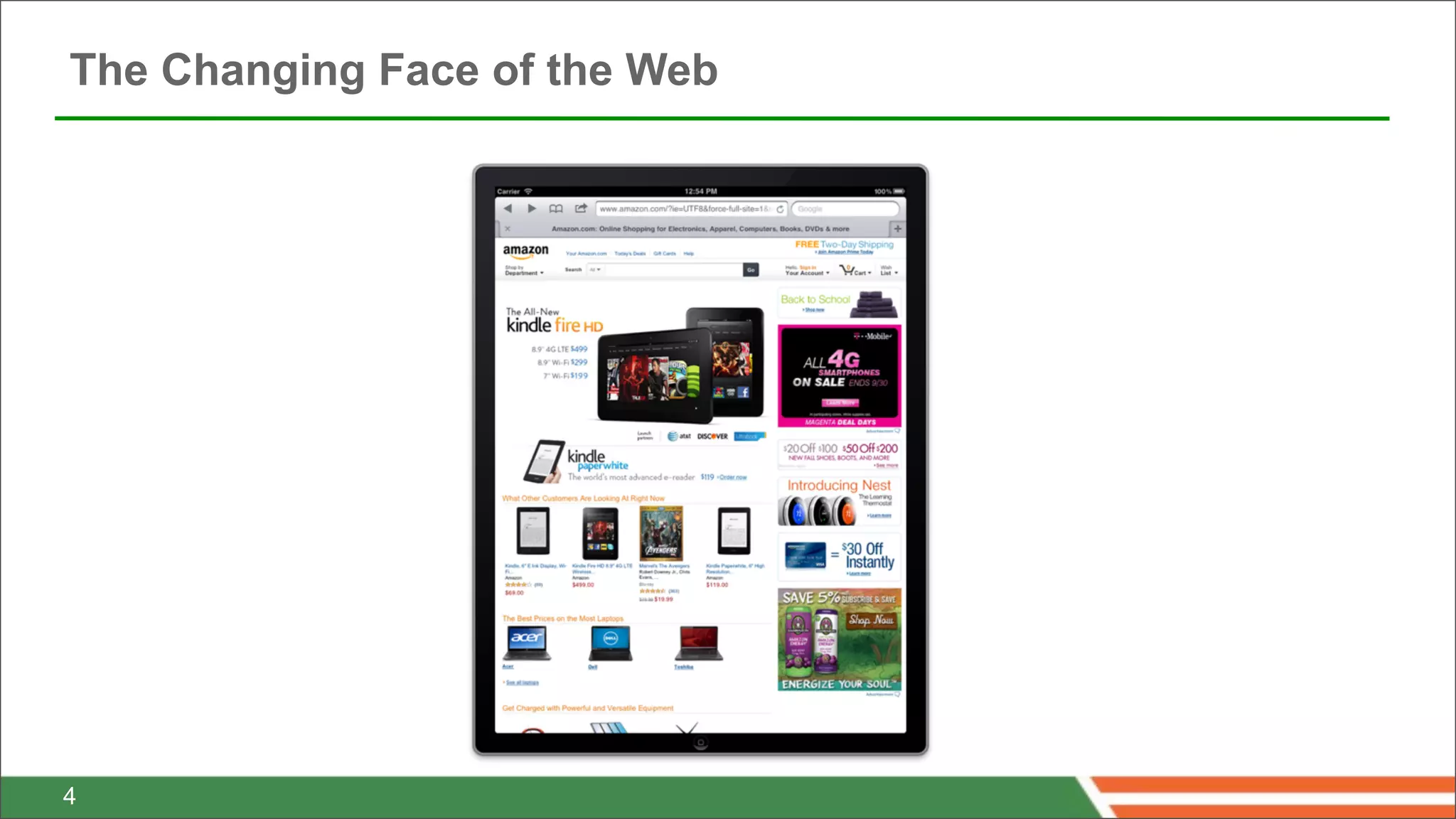

2. The Changing Face of the Web
4

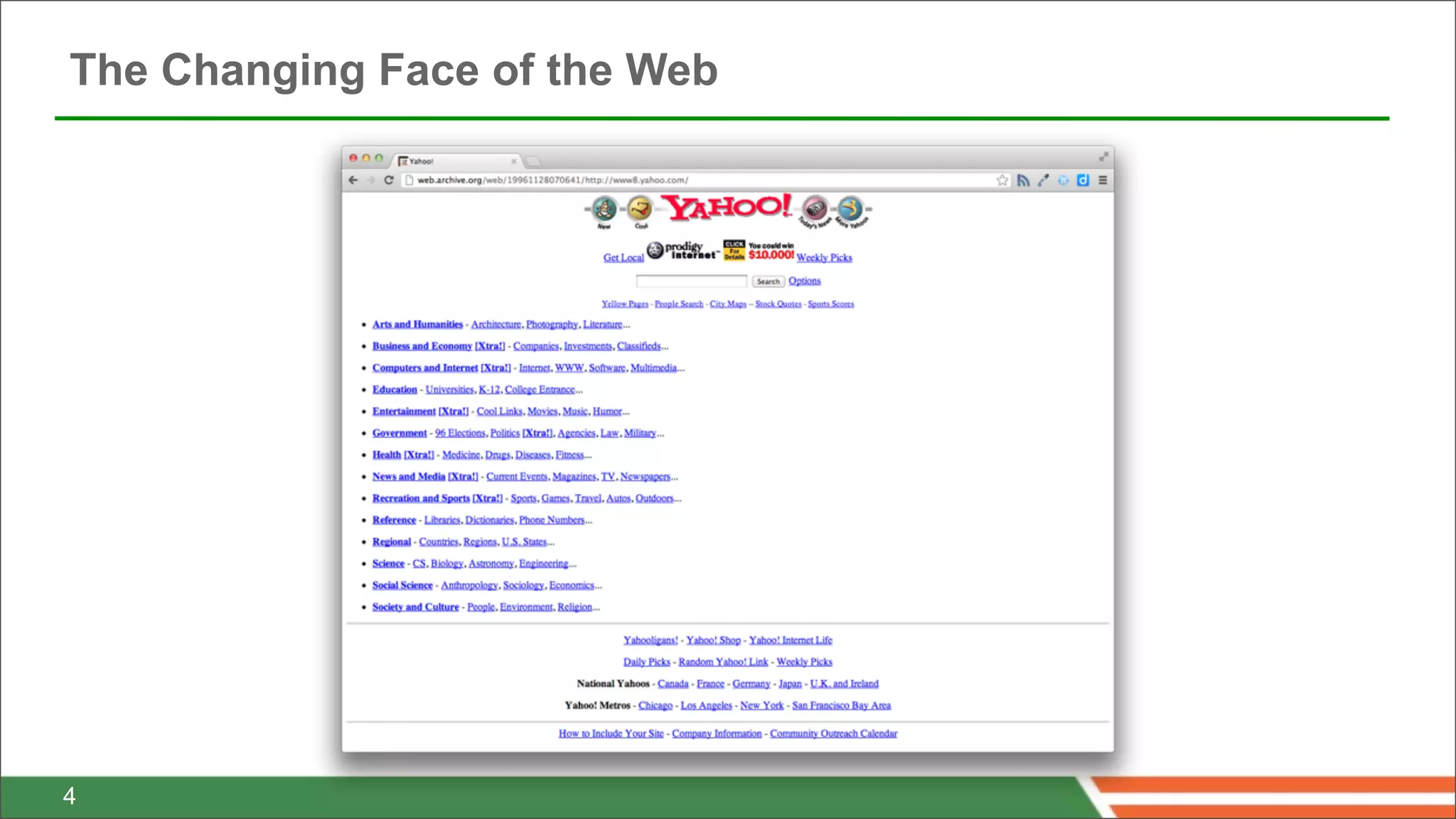

3. The Changing Face of the Web
4

4. The Changing Face of the Web
4

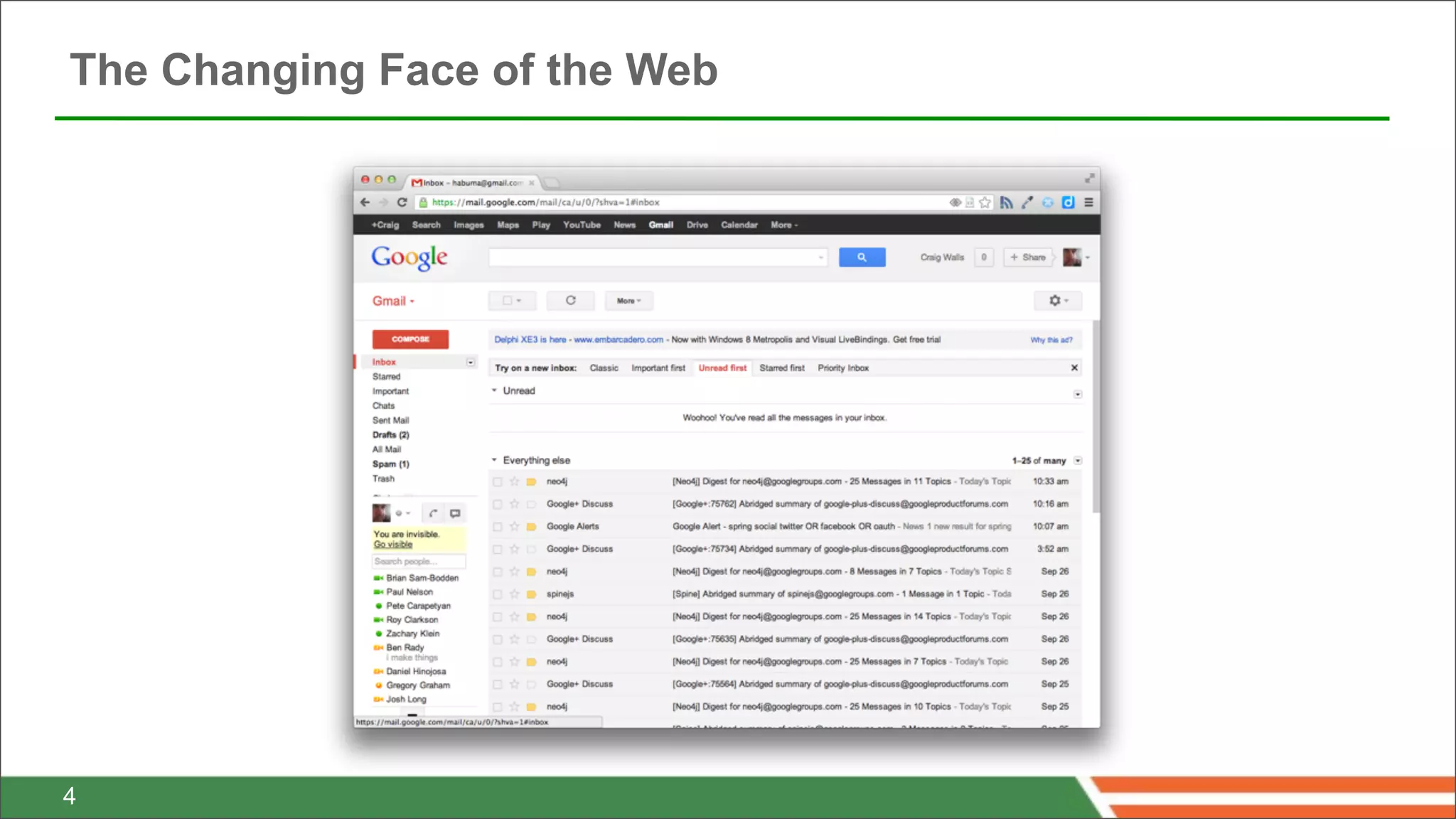

5. The Changing Face of the Web
4

6. The Changing Face of the Web
4

7. The Changing Face of the Web
4

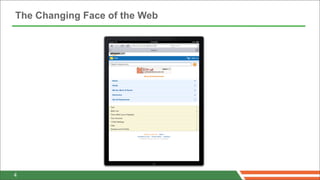

8. The Changing Face of the Web
4

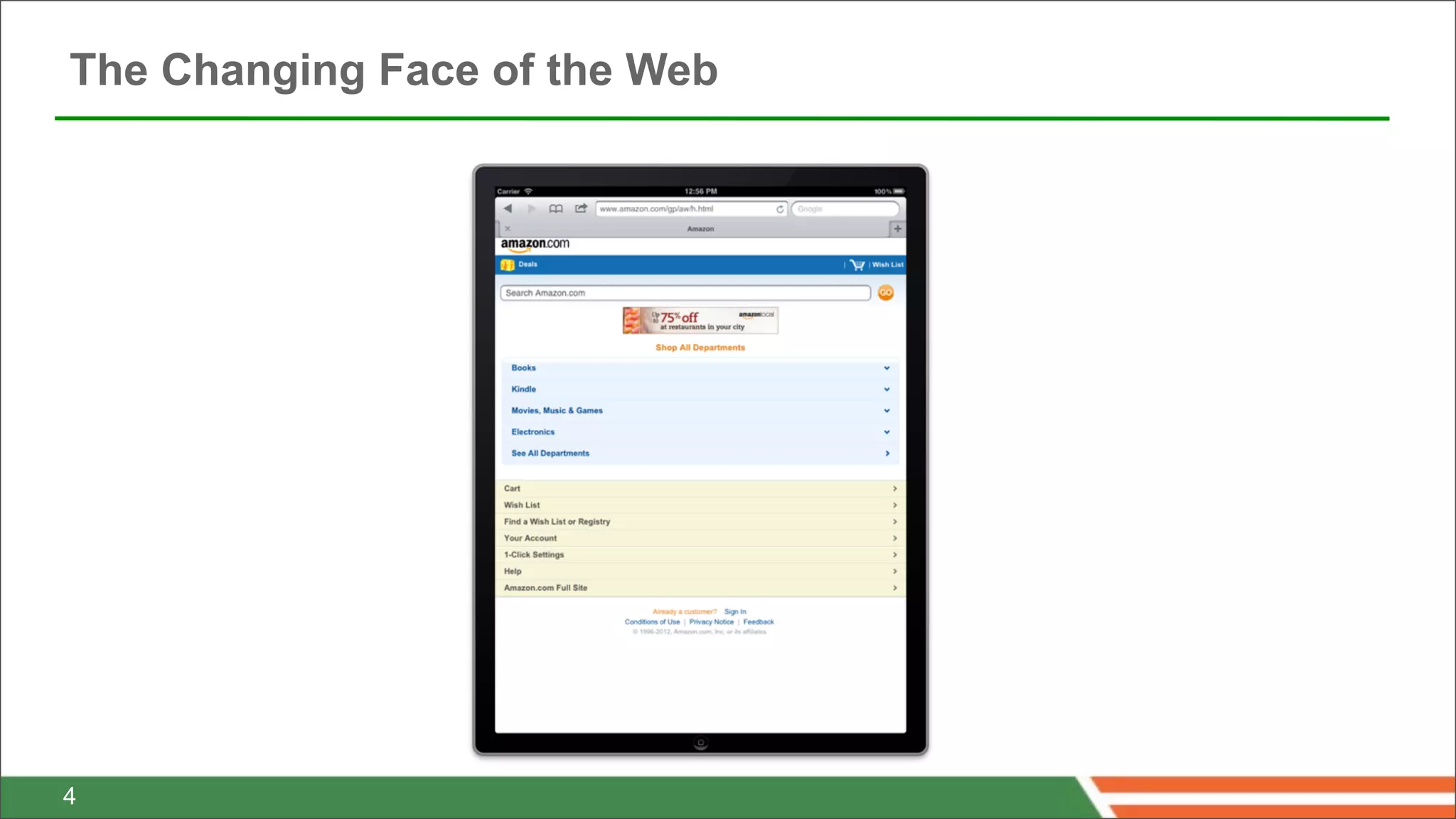

9. The Changing Face of the Web
4

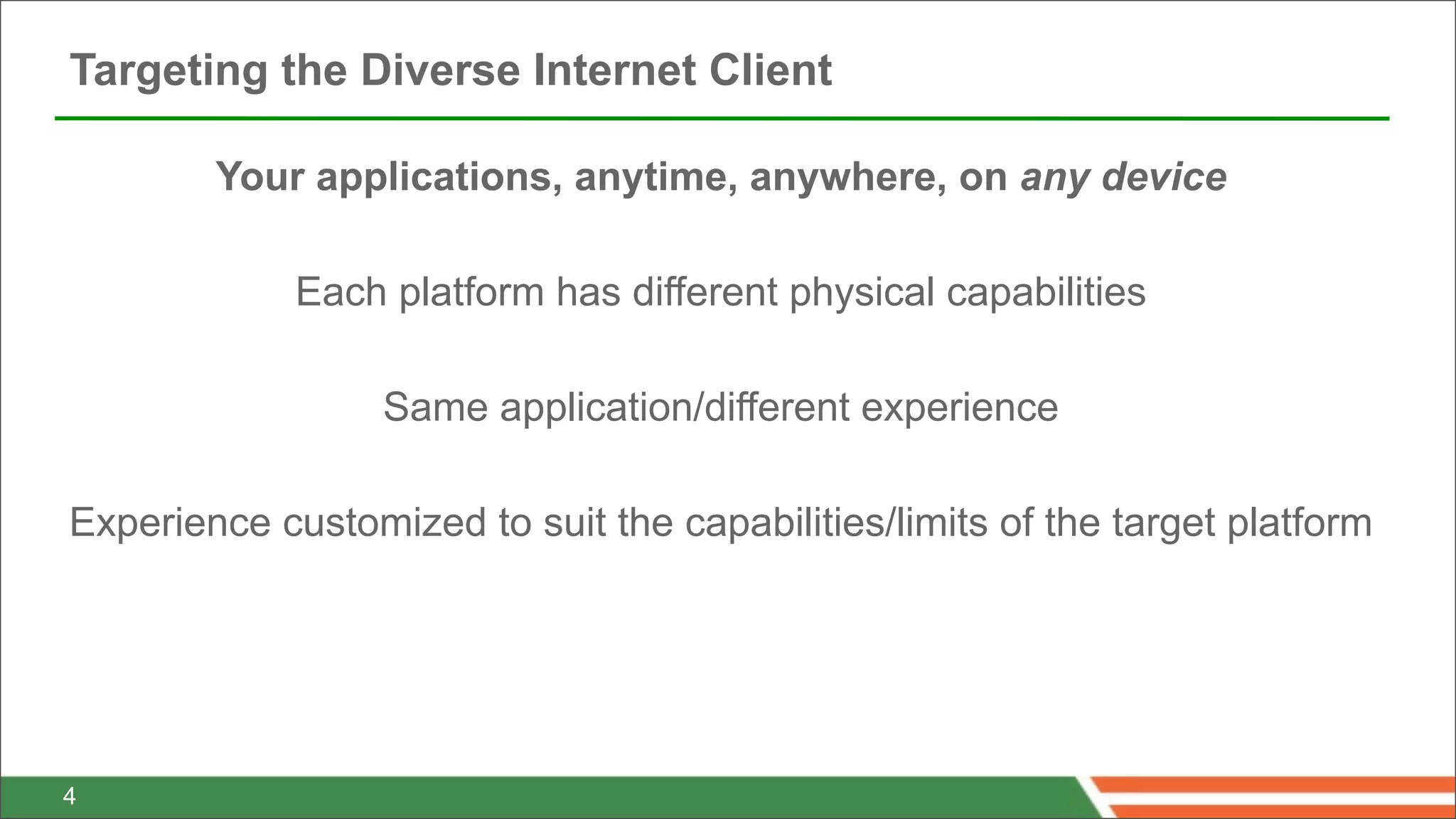

10. Targeting the Diverse Internet Client
Your applications, anytime, anywhere, on any device
Each platform has different physical capabilities
Same application/different experience
Experience customized to suit the capabilities/limits of the target platform
4

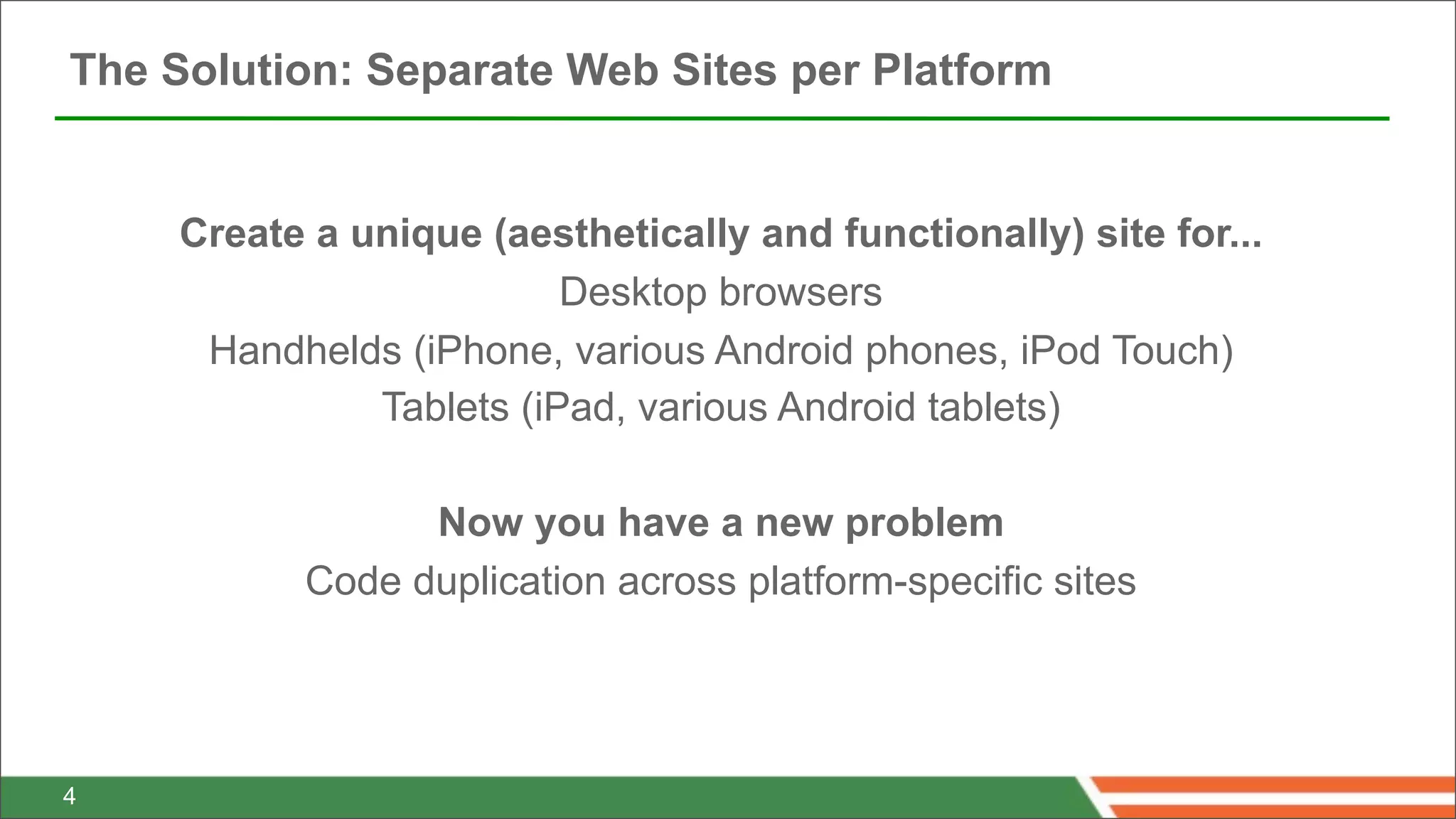

11. The Solution: Separate Web Sites per Platform
Create a unique (aesthetically and functionally) site for...
Desktop browsers
Handhelds (iPhone, various Android phones, iPod Touch)
Tablets (iPad, various Android tablets)
Now you have a new problem
Code duplication across platform-specific sites
4

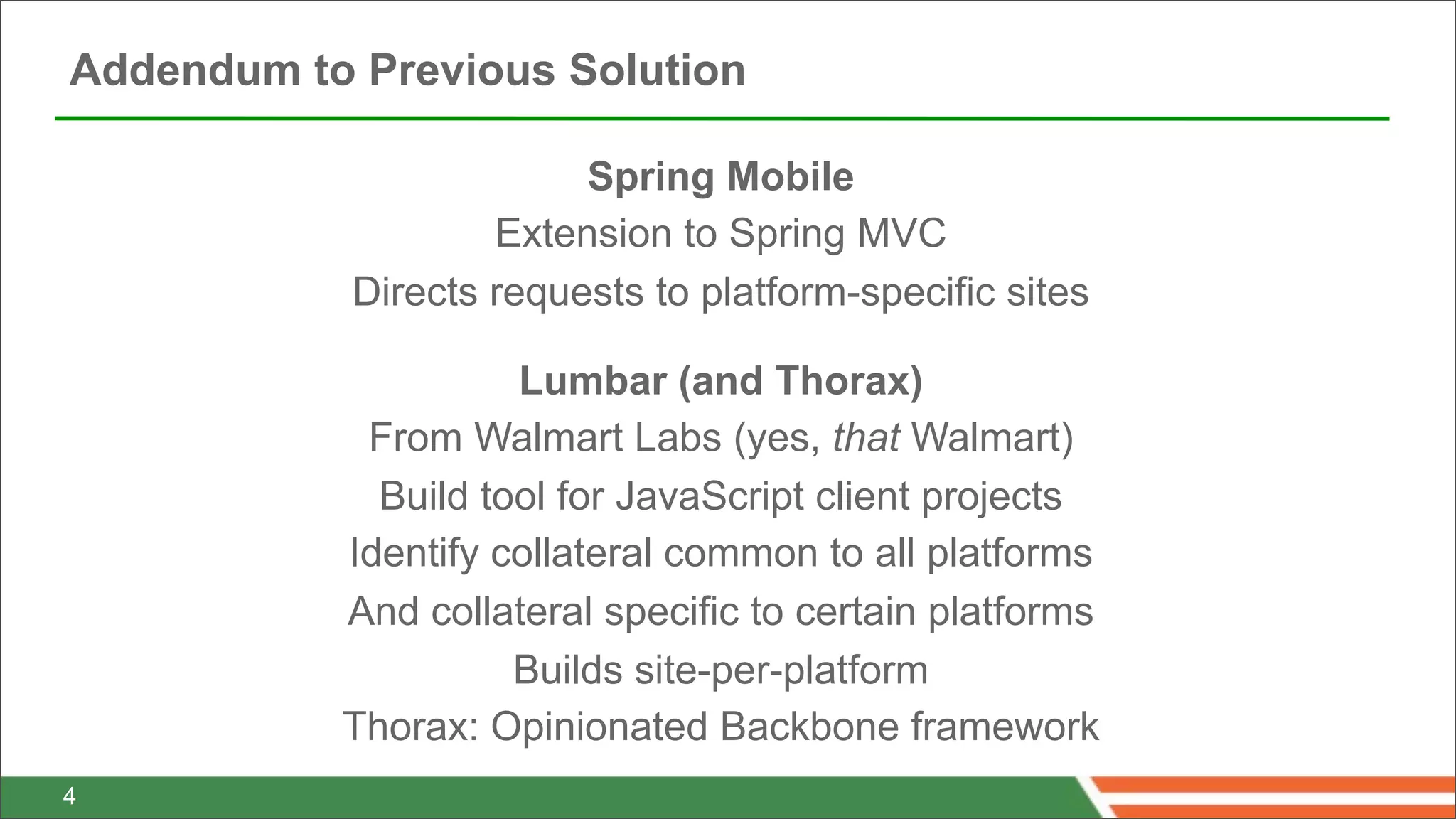

12. Addendum to Previous Solution
Spring Mobile
Extension to Spring MVC
Directs requests to platform-specific sites
Lumbar (and Thorax)
From Walmart Labs (yes, that Walmart)
Build tool for JavaScript client projects
Identify collateral common to all platforms
And collateral specific to certain platforms
Builds site-per-platform
Thorax: Opinionated Backbone framework
4

13. Targeting the Right Platform
with Spring Mobile
© 2012 SpringOne 2GX. All rights reserved. Do not distribute without permission.

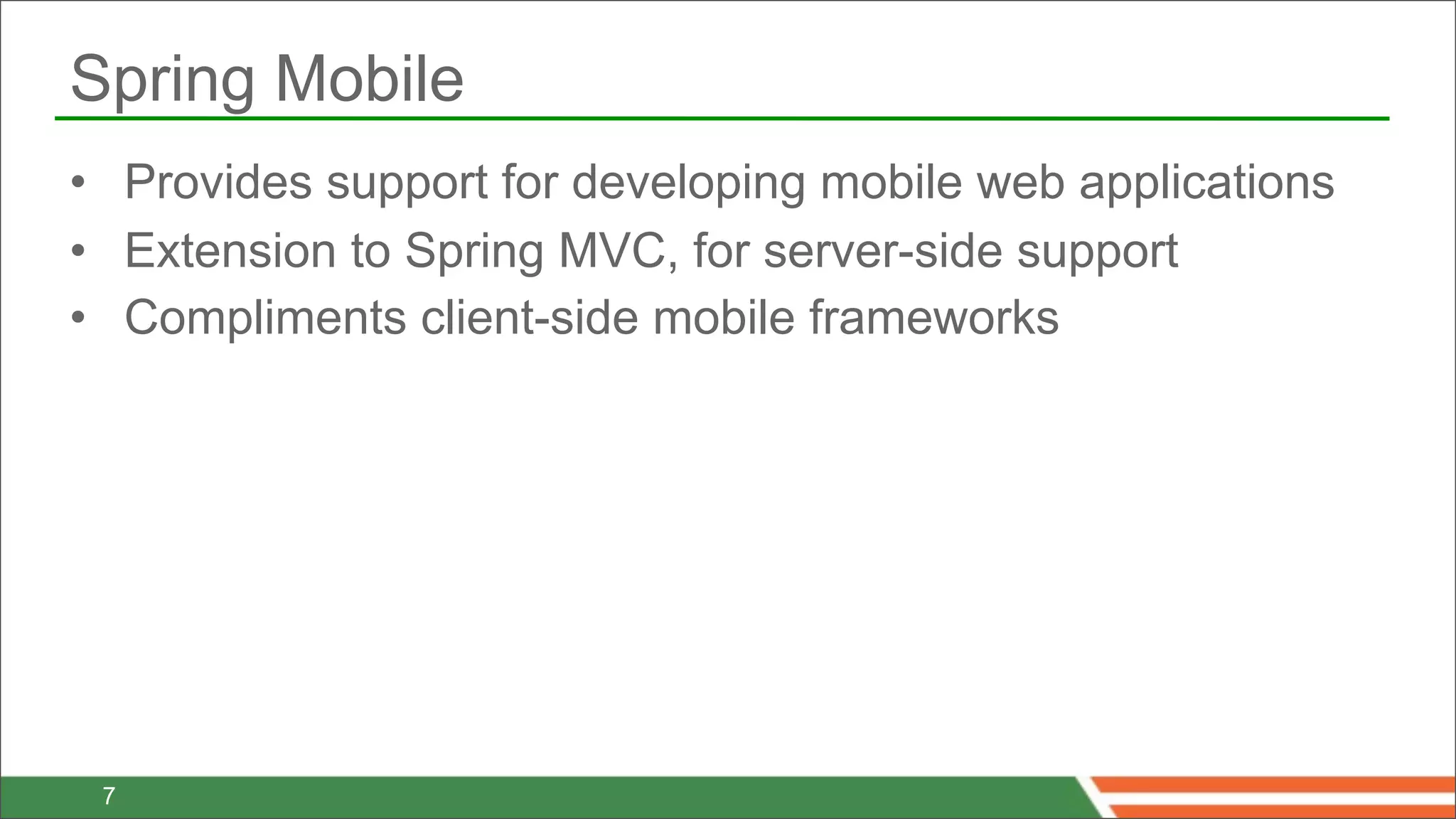

14. Spring Mobile
• Provides support for developing mobile web applications
• Extension to Spring MVC, for server-side support
• Compliments client-side mobile frameworks
7

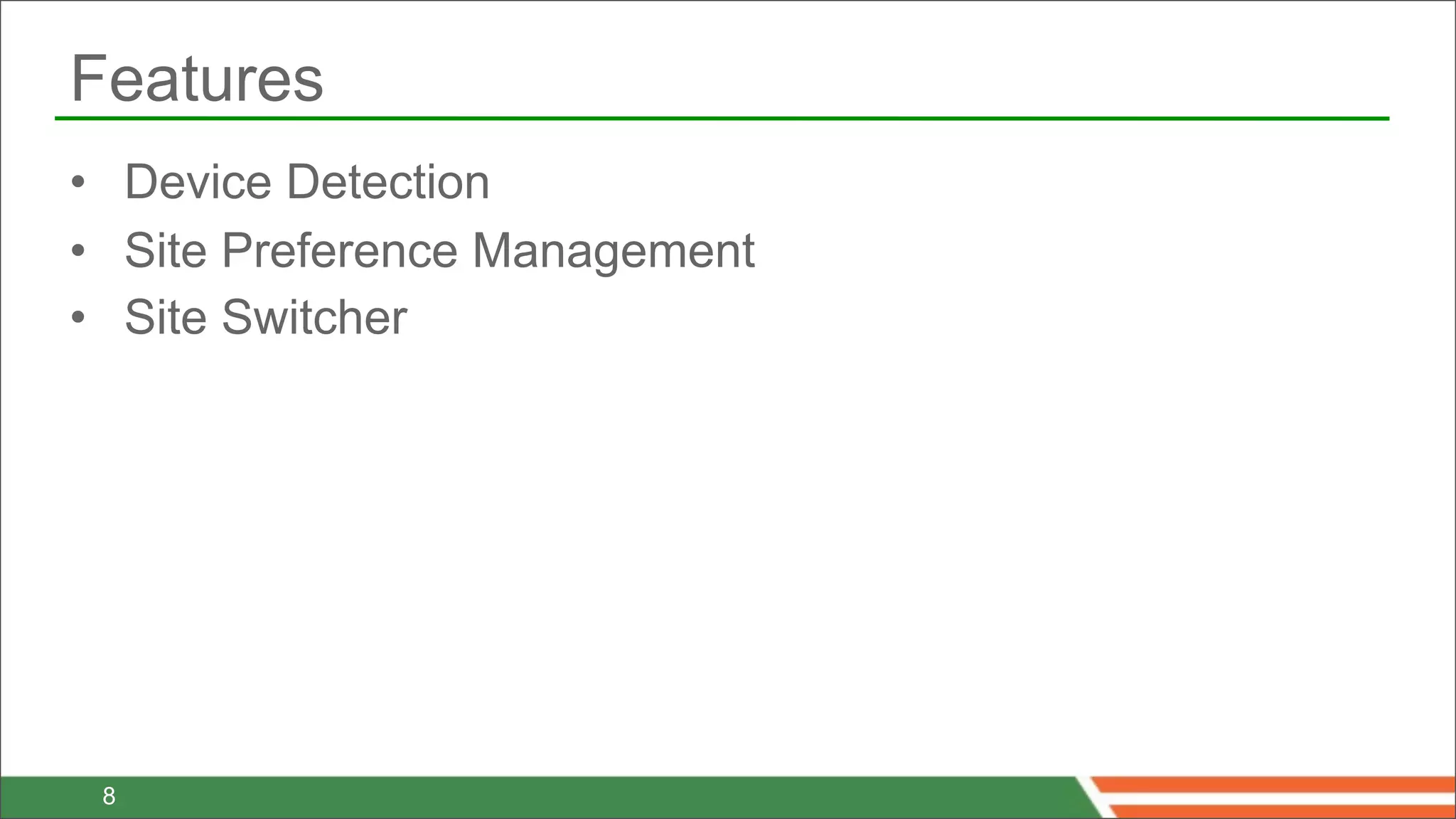

15. Features
• Device Detection
• Site Preference Management
• Site Switcher
8

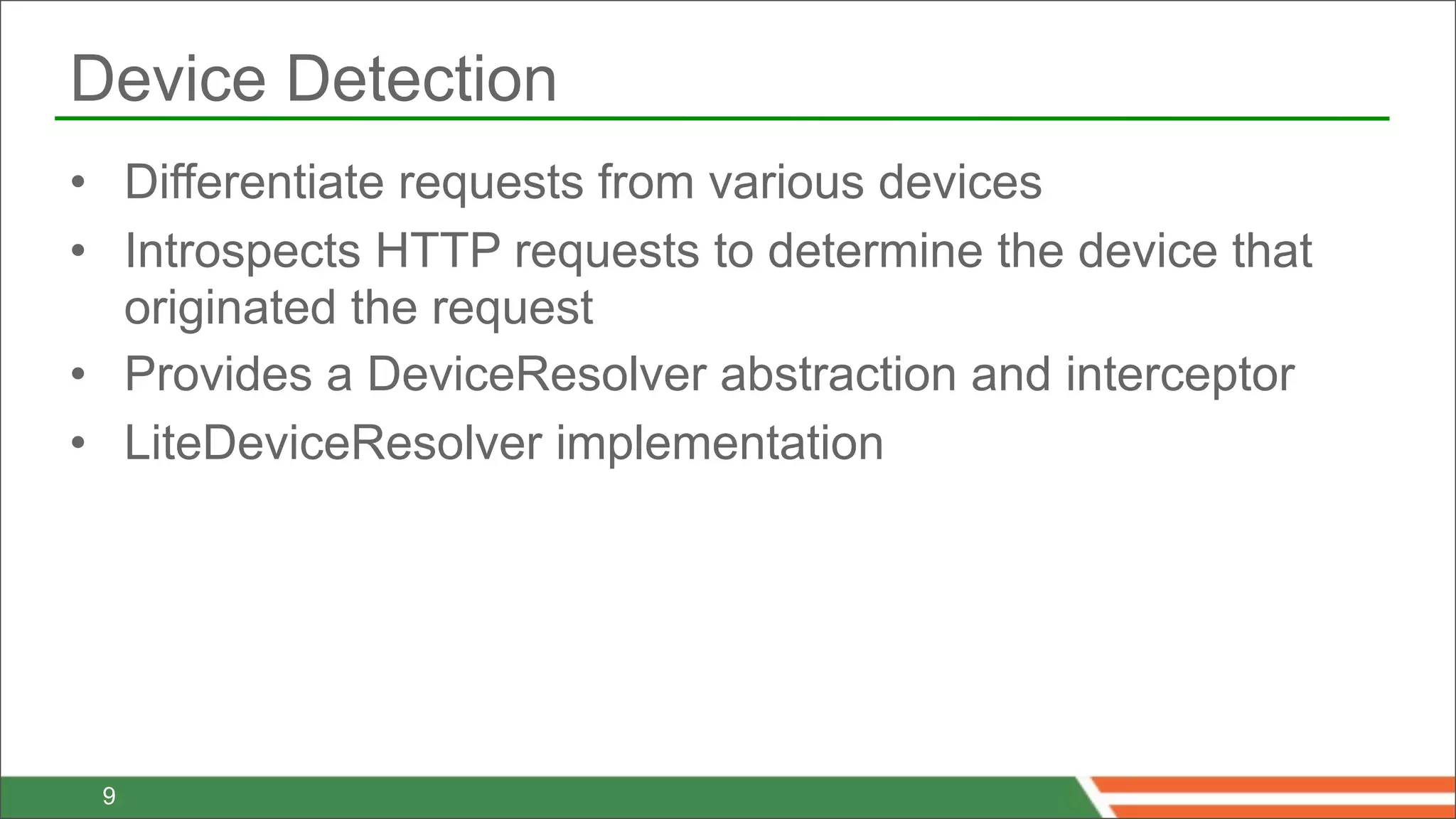

16. Device Detection
• Differentiate requests from various devices
• Introspects HTTP requests to determine the device that
originated the request
• Provides a DeviceResolver abstraction and interceptor
• LiteDeviceResolver implementation
9

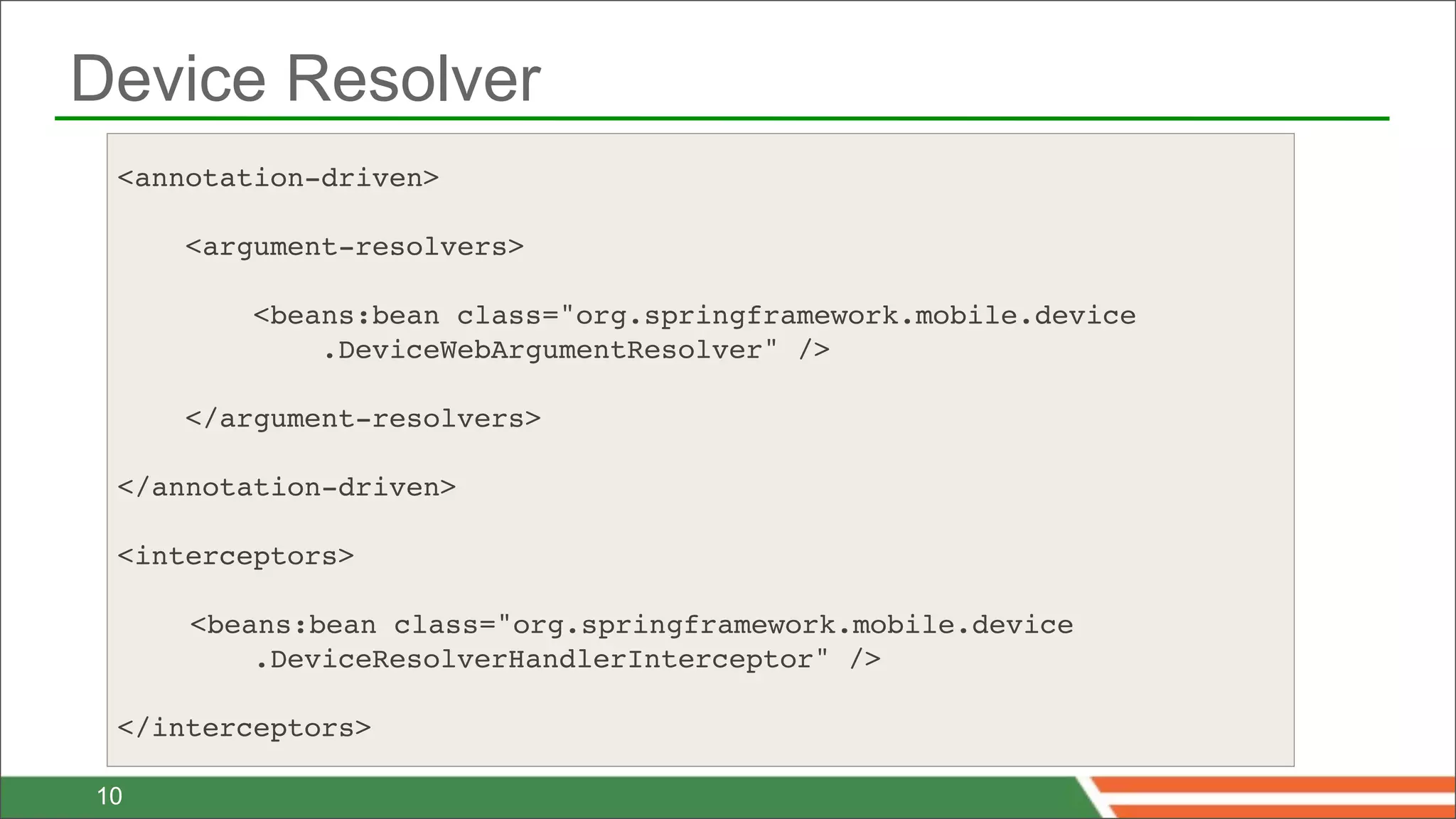

17. Device Resolver
<annotation-driven>
<argument-resolvers>
<beans:bean class="org.springframework.mobile.device
.DeviceWebArgumentResolver" />
</argument-resolvers>
</annotation-driven>
<interceptors>
! <beans:bean class="org.springframework.mobile.device
.DeviceResolverHandlerInterceptor" />
!
</interceptors>
10

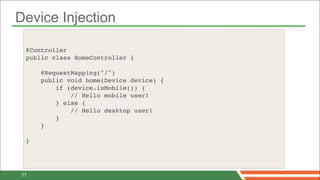

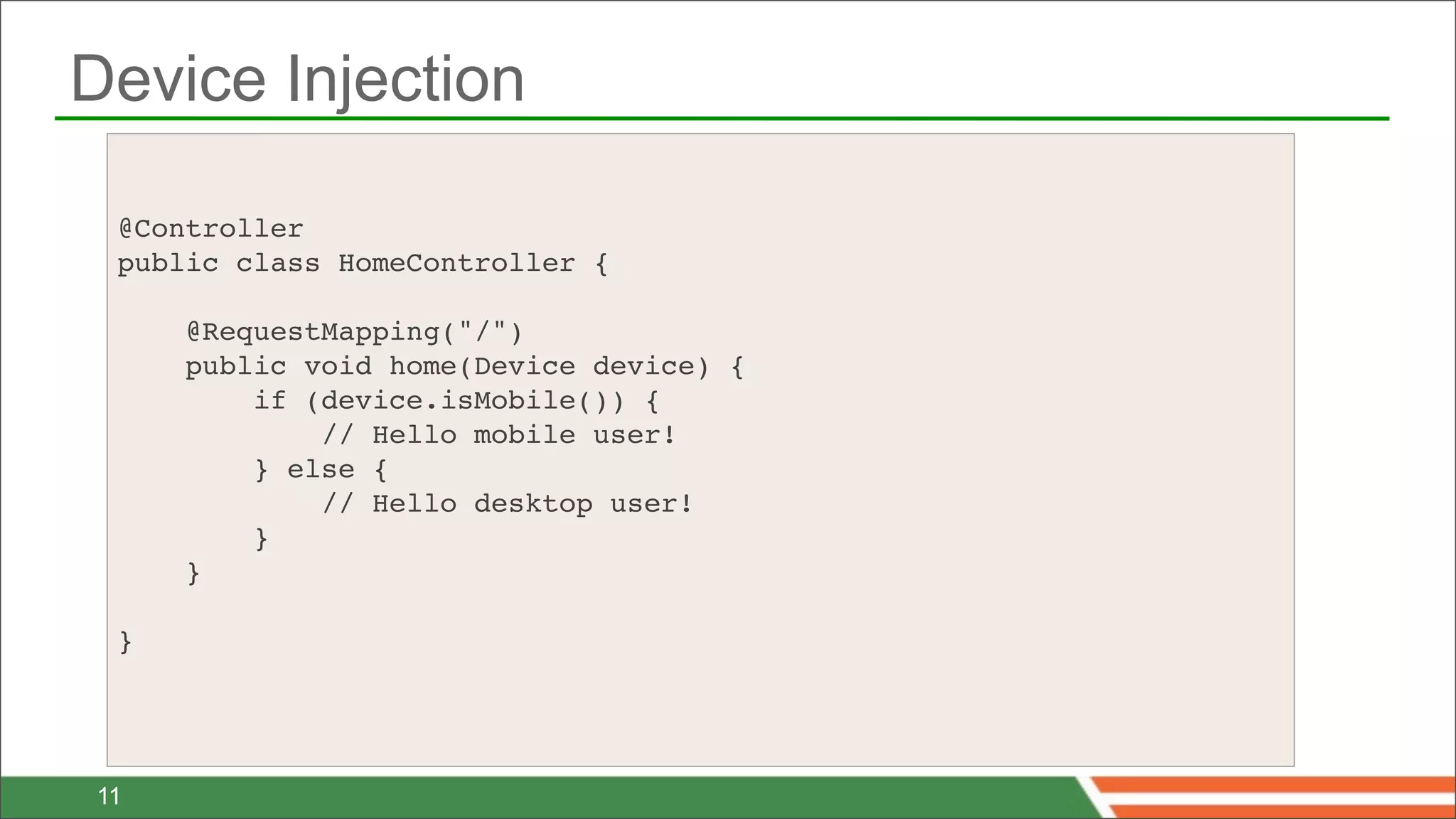

18. Device Injection
@Controller
public class HomeController {
@RequestMapping("/")
public void home(Device device) {
if (device.isMobile()) {
// Hello mobile user!
} else {
// Hello desktop user!
}
}
}
11

19. Device Detection Demo
12

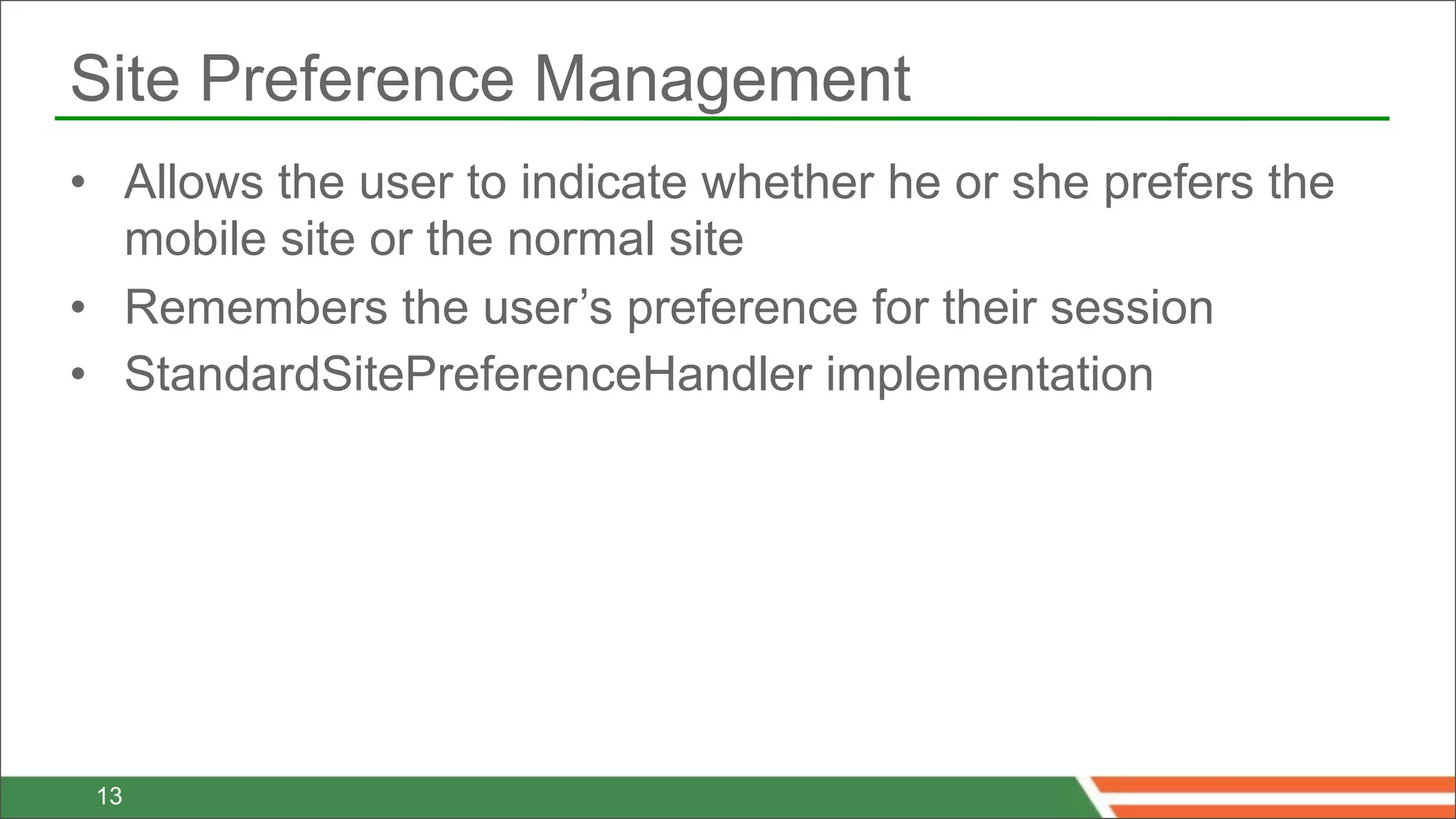

20. Site Preference Management
• Allows the user to indicate whether he or she prefers the
mobile site or the normal site
• Remembers the user’s preference for their session
• StandardSitePreferenceHandler implementation
13

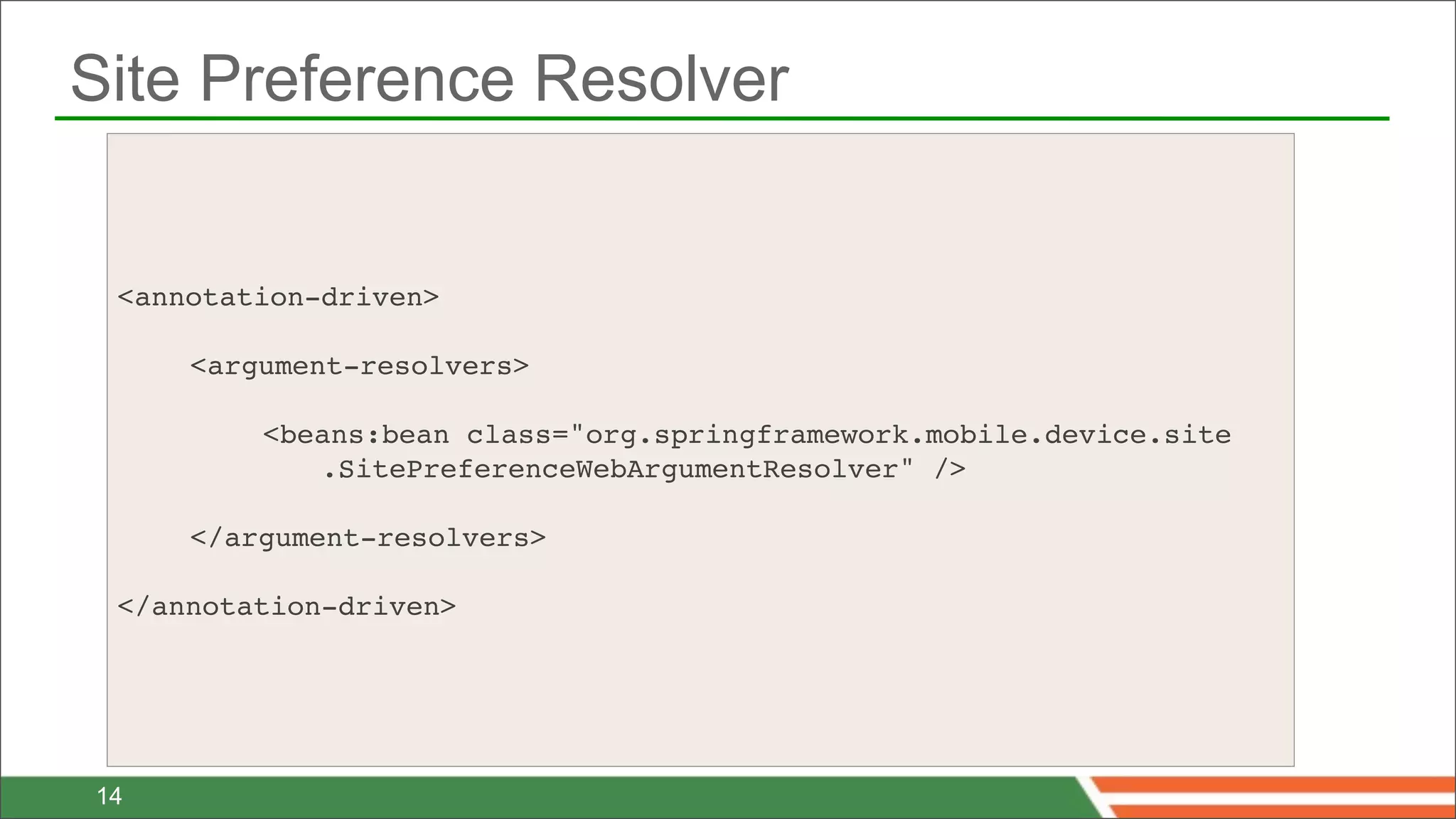

21. Site Preference Resolver
<annotation-driven>
! <argument-resolvers>
! ! <beans:bean class="org.springframework.mobile.device.site
.SitePreferenceWebArgumentResolver" />
! </argument-resolvers>
</annotation-driven>
14

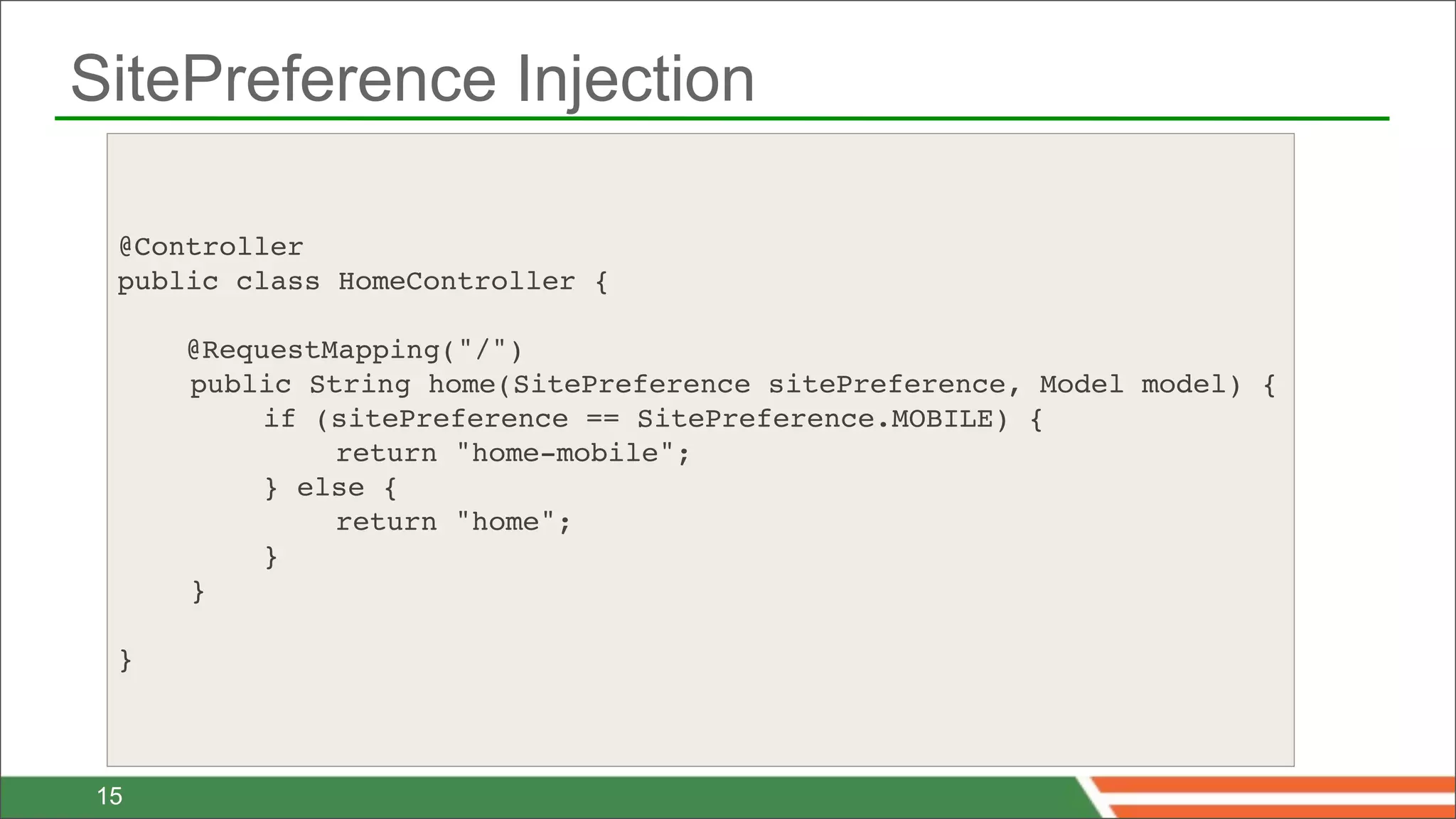

22. SitePreference Injection
@Controller
public class HomeController {
@RequestMapping("/")
! public String home(SitePreference sitePreference, Model model) {
! ! if (sitePreference == SitePreference.MOBILE) {
! ! ! return "home-mobile";
! ! } else {
! ! ! return "home";
! ! }
! }
}
15

23. Site Preference Demo
16

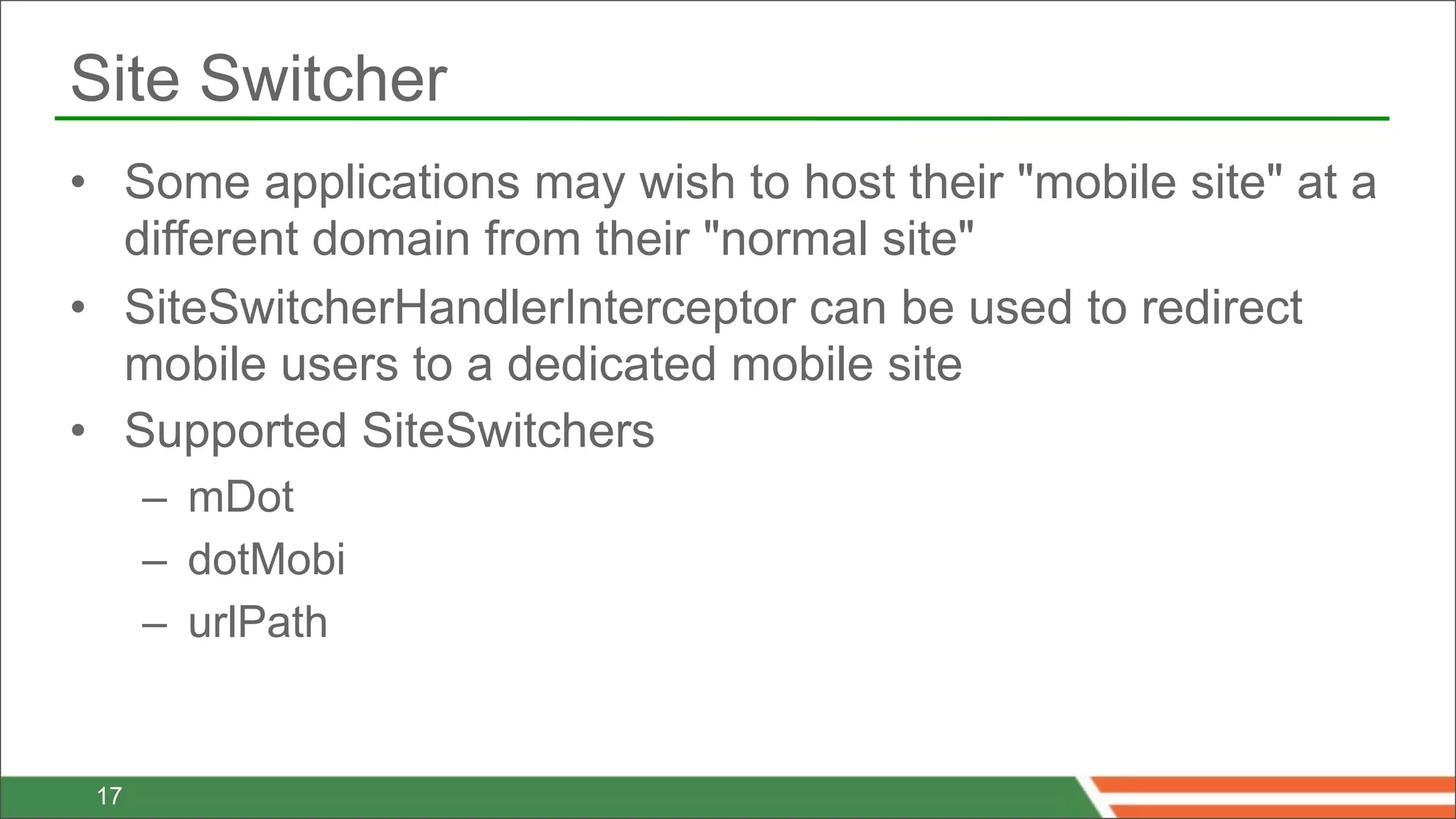

24. Site Switcher
• Some applications may wish to host their "mobile site" at a
different domain from their "normal site"
• SiteSwitcherHandlerInterceptor can be used to redirect
mobile users to a dedicated mobile site
• Supported SiteSwitchers
– mDot
– dotMobi
– urlPath
17

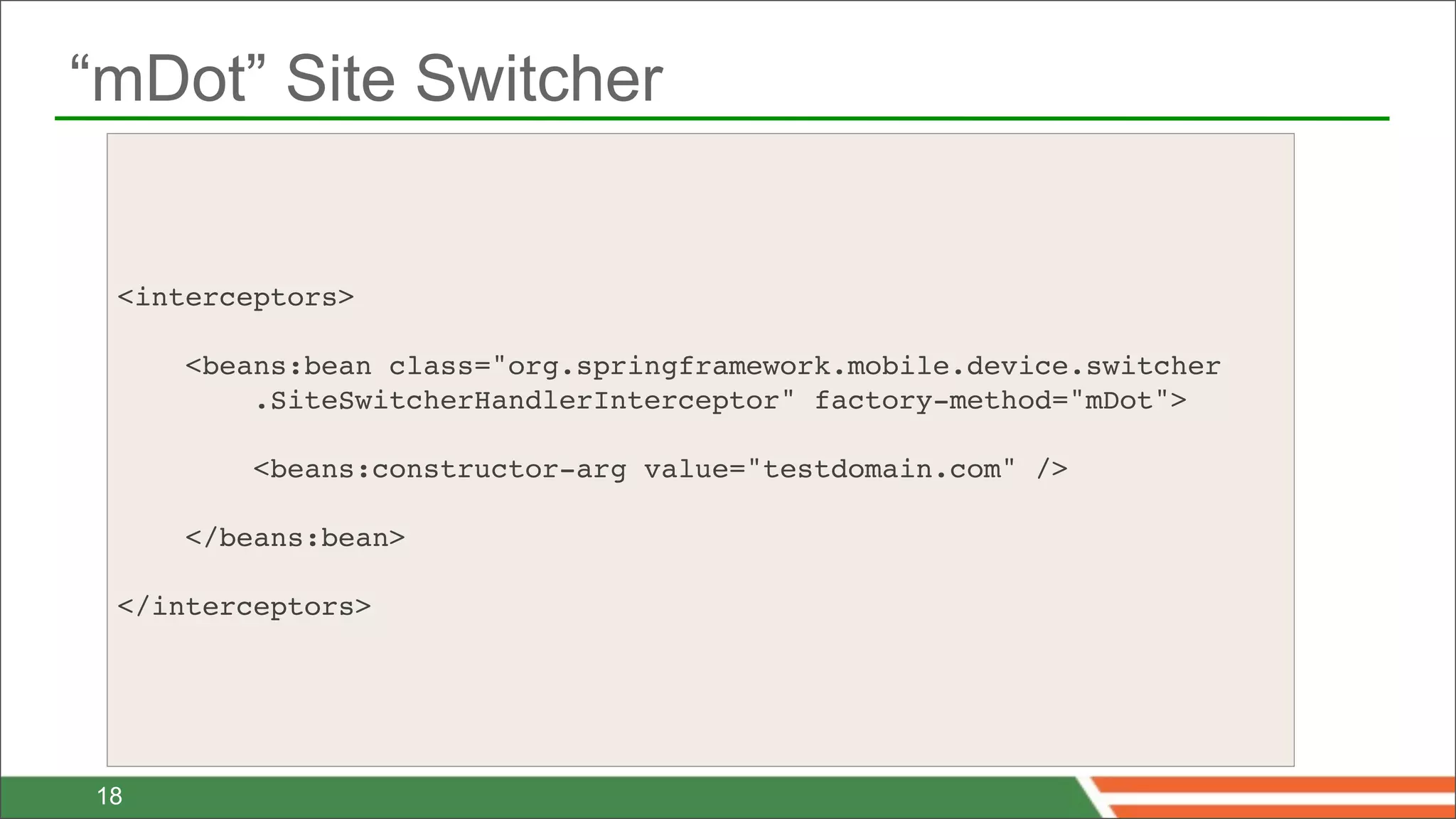

25. “mDot” Site Switcher
<interceptors>
!
<beans:bean class="org.springframework.mobile.device.switcher
.SiteSwitcherHandlerInterceptor" factory-method="mDot">
<beans:constructor-arg value="testdomain.com" />
</beans:bean>
! !
</interceptors>
18

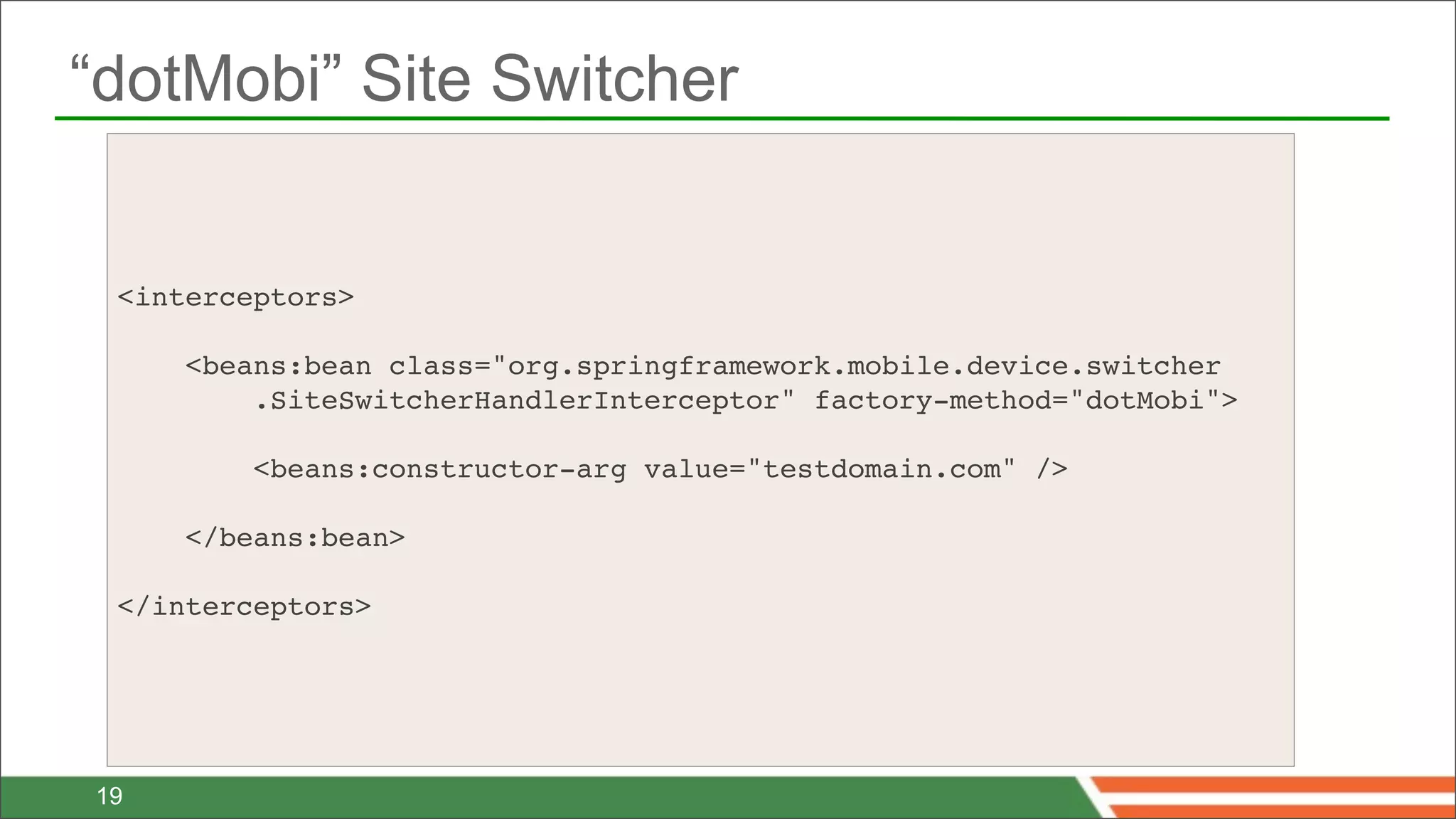

26. “dotMobi” Site Switcher
<interceptors>
!
<beans:bean class="org.springframework.mobile.device.switcher
.SiteSwitcherHandlerInterceptor" factory-method="dotMobi">
<beans:constructor-arg value="testdomain.com" />
</beans:bean>
! !
</interceptors>
19

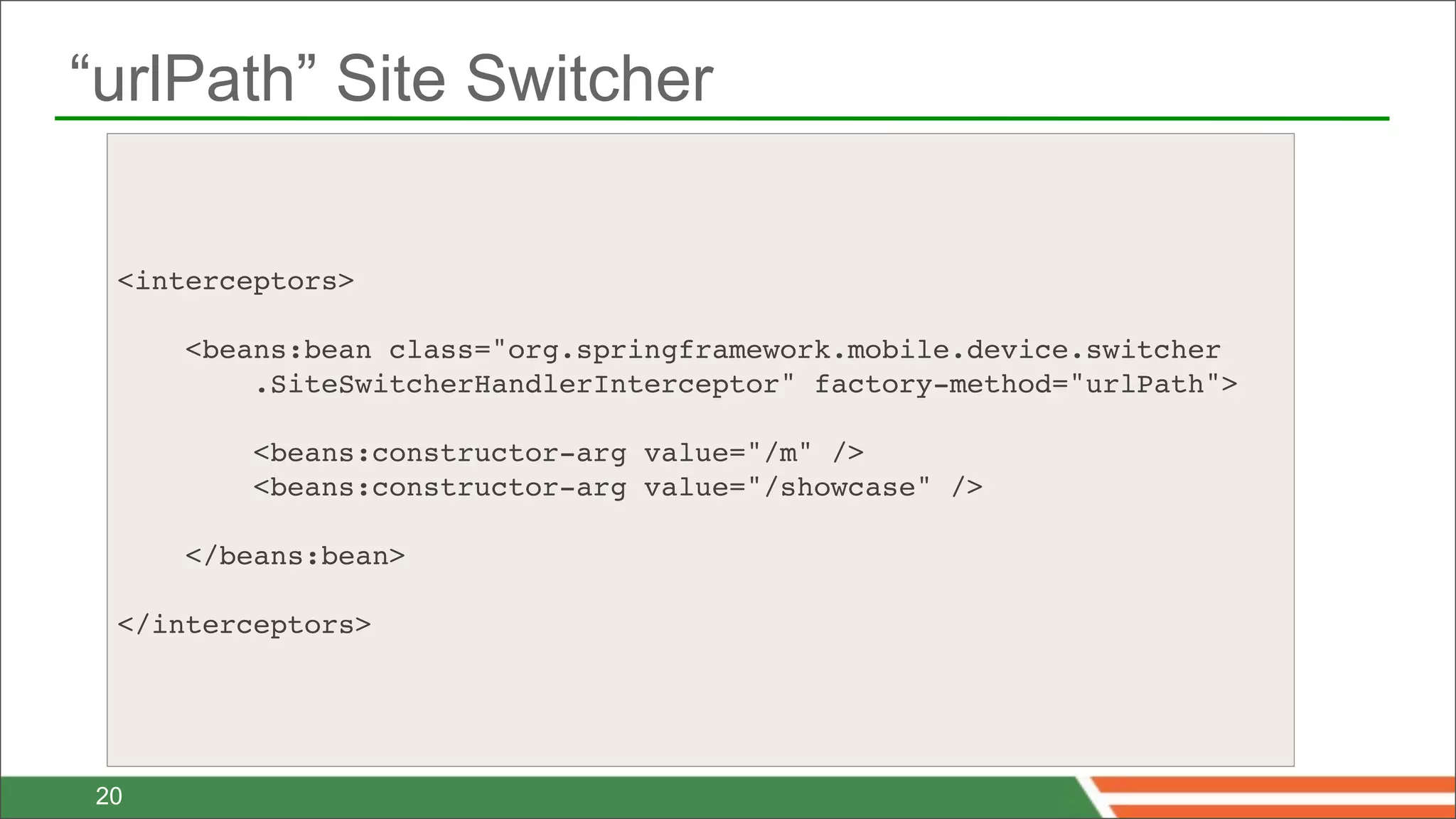

27. “urlPath” Site Switcher
<interceptors>
!
<beans:bean class="org.springframework.mobile.device.switcher
.SiteSwitcherHandlerInterceptor" factory-method="urlPath">
<beans:constructor-arg value="/m" />
<beans:constructor-arg value="/showcase" />
</beans:bean>
! !
</interceptors>
20

28. Site Switcher Demo
21

29. Building Platform-Targeted Sites
with Lumbar (and Thorax)
© 2012 SpringOne 2GX. All rights reserved. Do not distribute without permission.

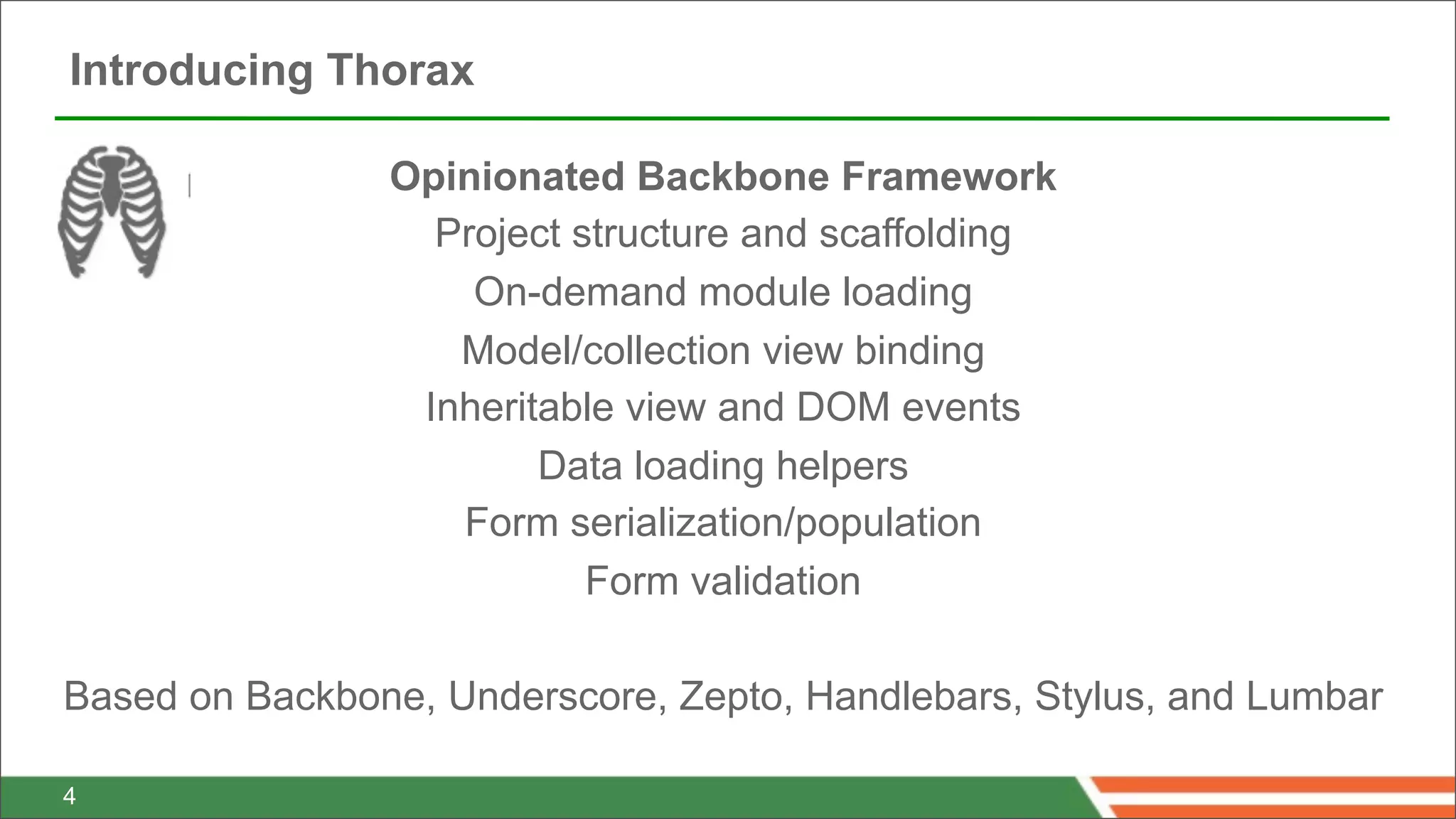

30. Introducing Thorax
Opinionated Backbone Framework
Project structure and scaffolding
On-demand module loading
Model/collection view binding
Inheritable view and DOM events
Data loading helpers
Form serialization/population
Form validation
Based on Backbone, Underscore, Zepto, Handlebars, Stylus, and Lumbar
4

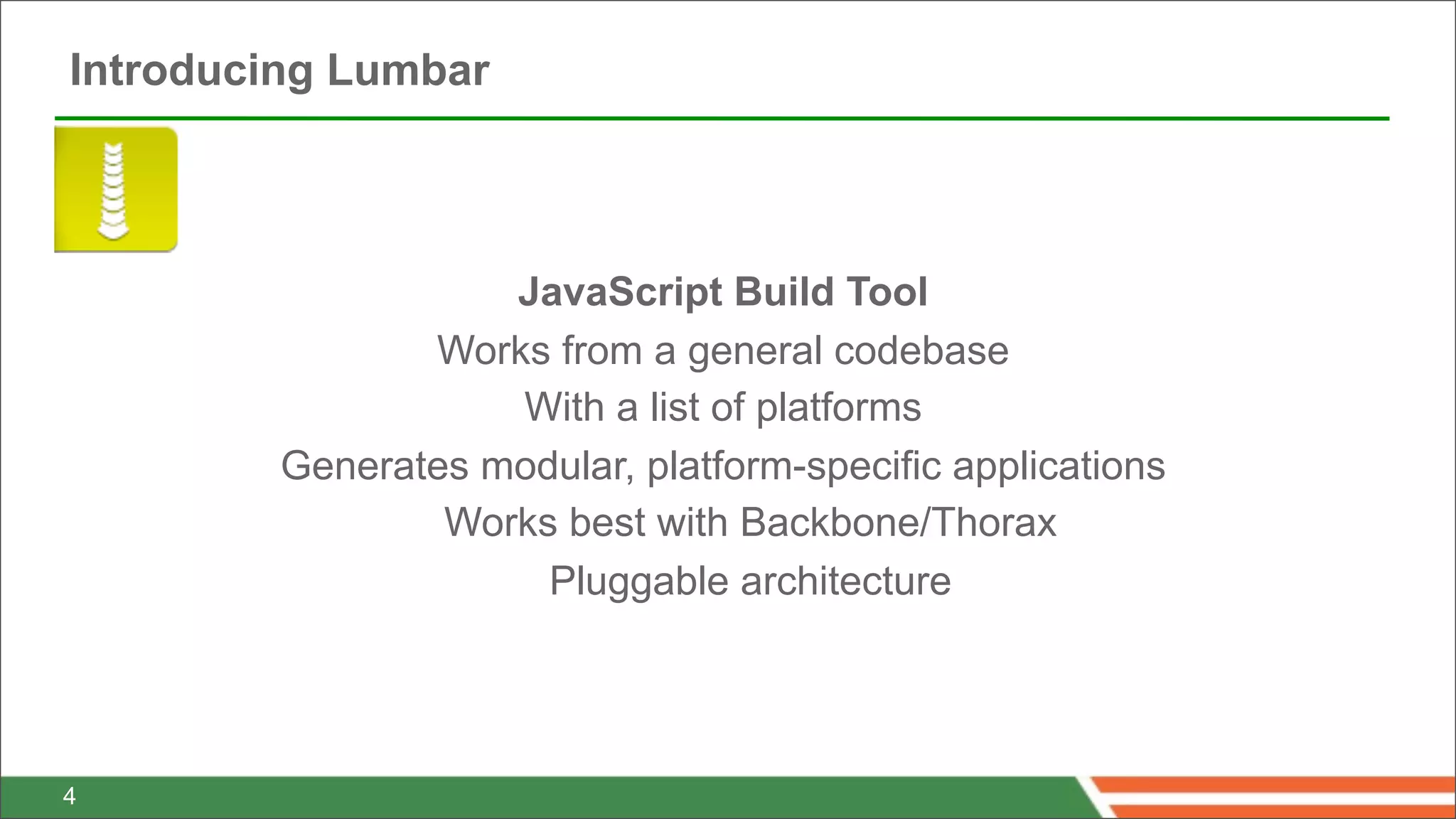

31. Introducing Lumbar
JavaScript Build Tool
Works from a general codebase
With a list of platforms
Generates modular, platform-specific applications
Works best with Backbone/Thorax
Pluggable architecture
4

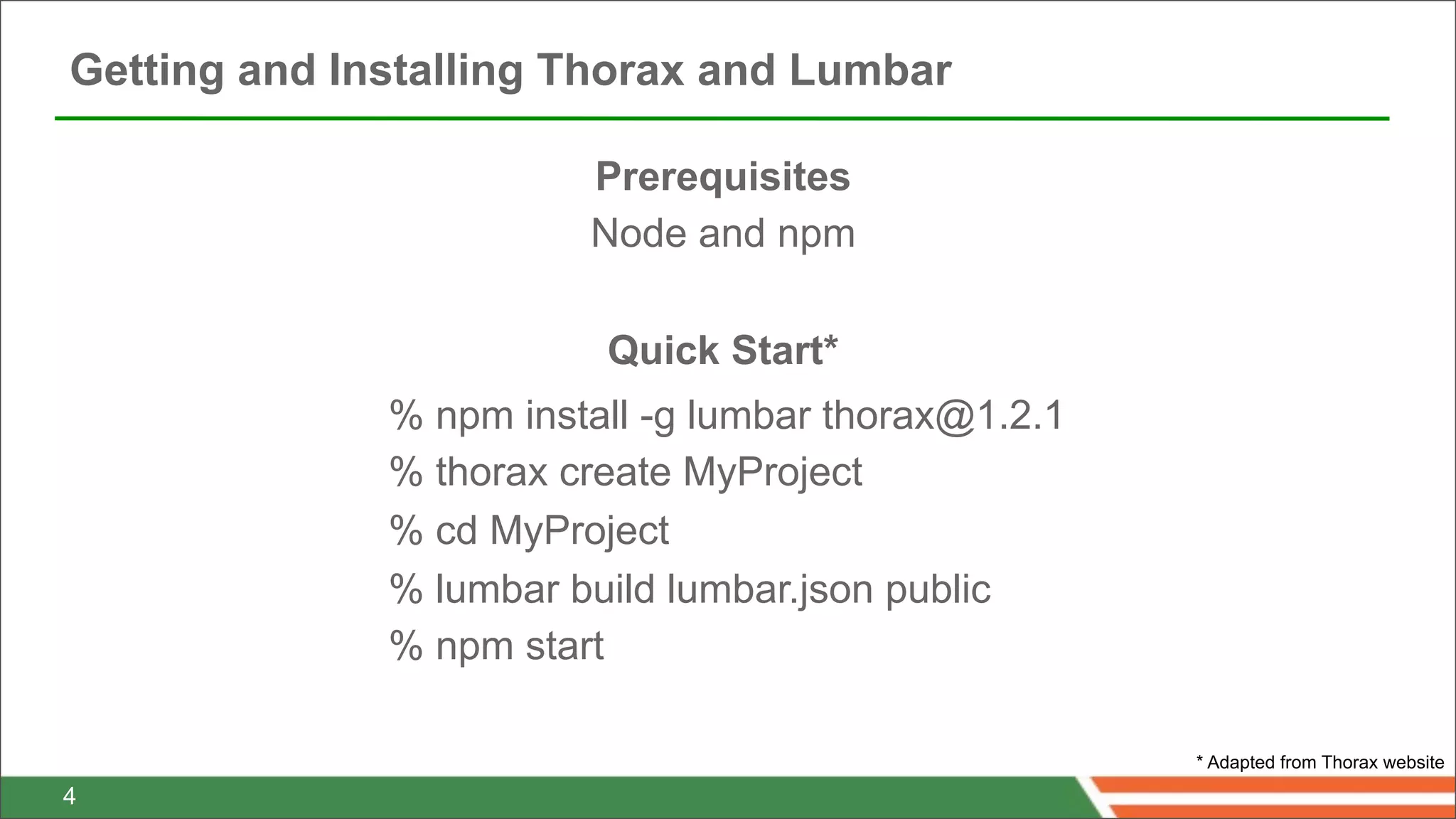

32. Getting and Installing Thorax and Lumbar
Prerequisites
Node and npm
Quick Start*
% npm install -g lumbar thorax@1.2.1
% thorax create MyProject
% cd MyProject
% lumbar build lumbar.json public
% npm start
* Adapted from Thorax website
4

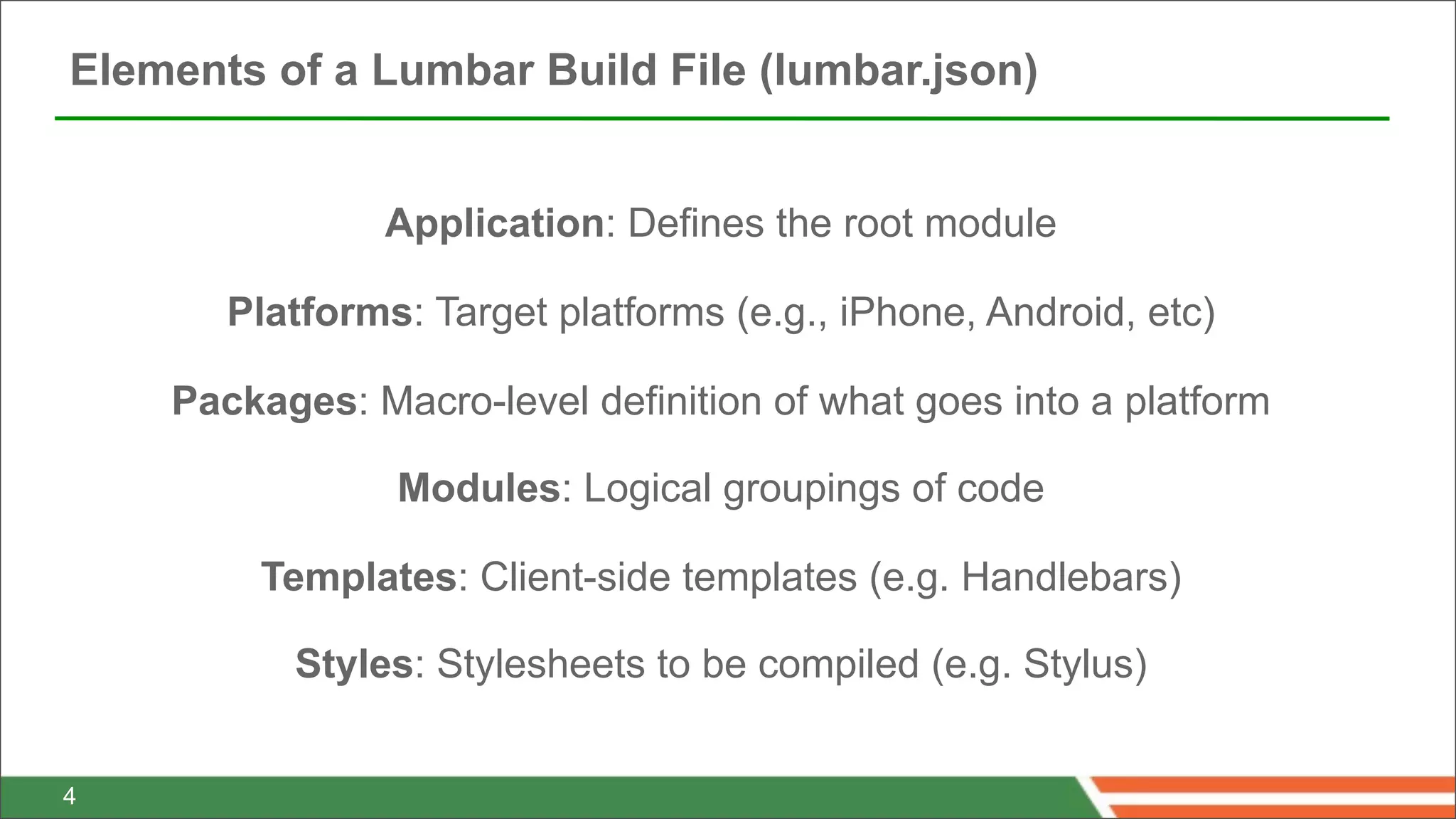

33. Elements of a Lumbar Build File (lumbar.json)
Application: Defines the root module
Platforms: Target platforms (e.g., iPhone, Android, etc)
Packages: Macro-level definition of what goes into a platform
Modules: Logical groupings of code
Templates: Client-side templates (e.g. Handlebars)
Styles: Stylesheets to be compiled (e.g. Stylus)
4

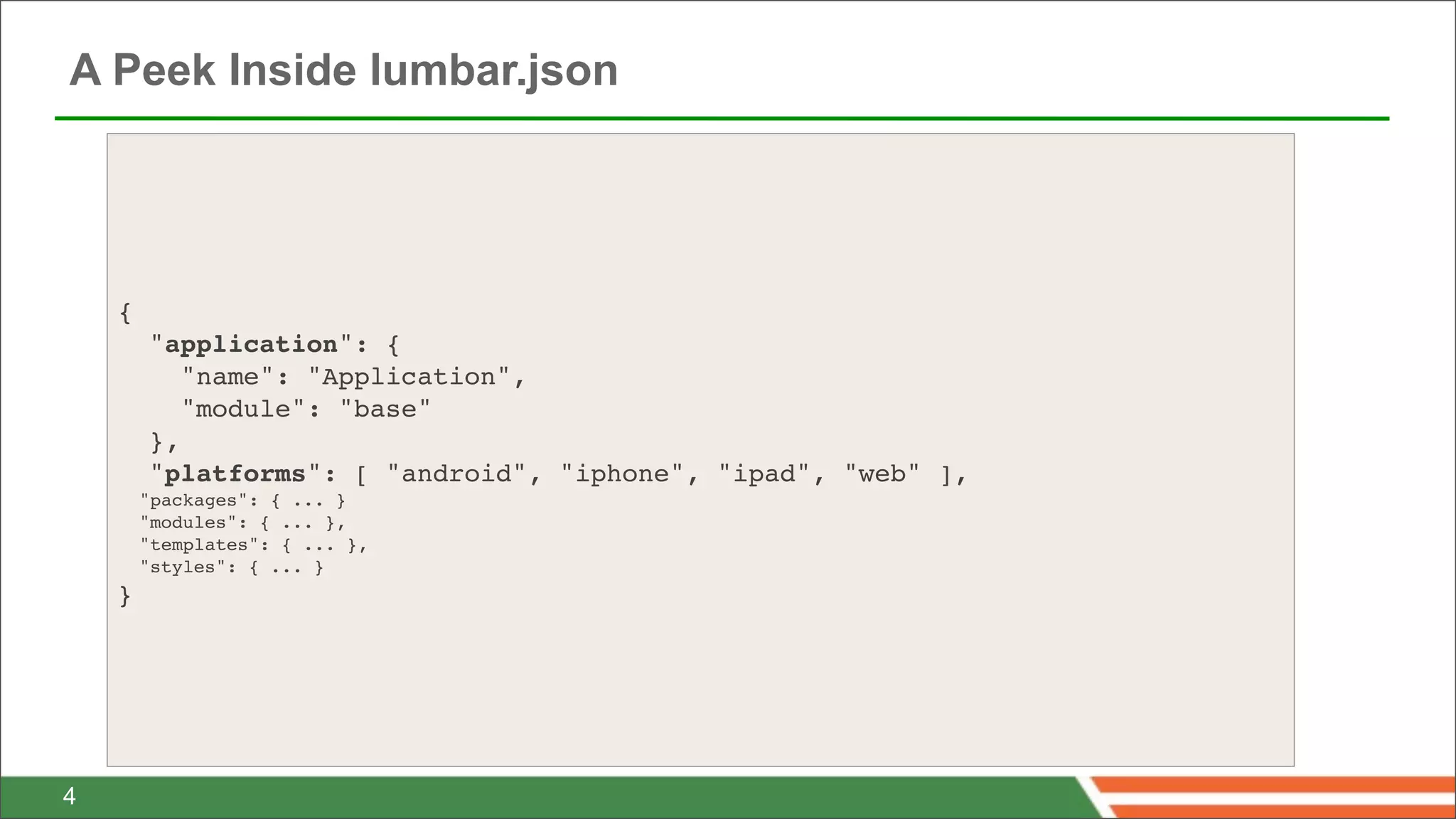

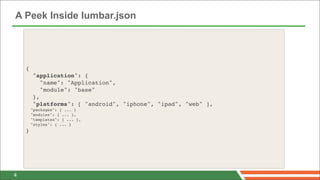

34. A Peek Inside lumbar.json
{
"application": {
"name": "Application",
"module": "base"
},
"platforms": [ "android", "iphone", "ipad", "web" ],
"packages": { ... }
"modules": { ... },
"templates": { ... },
"styles": { ... }
}
4

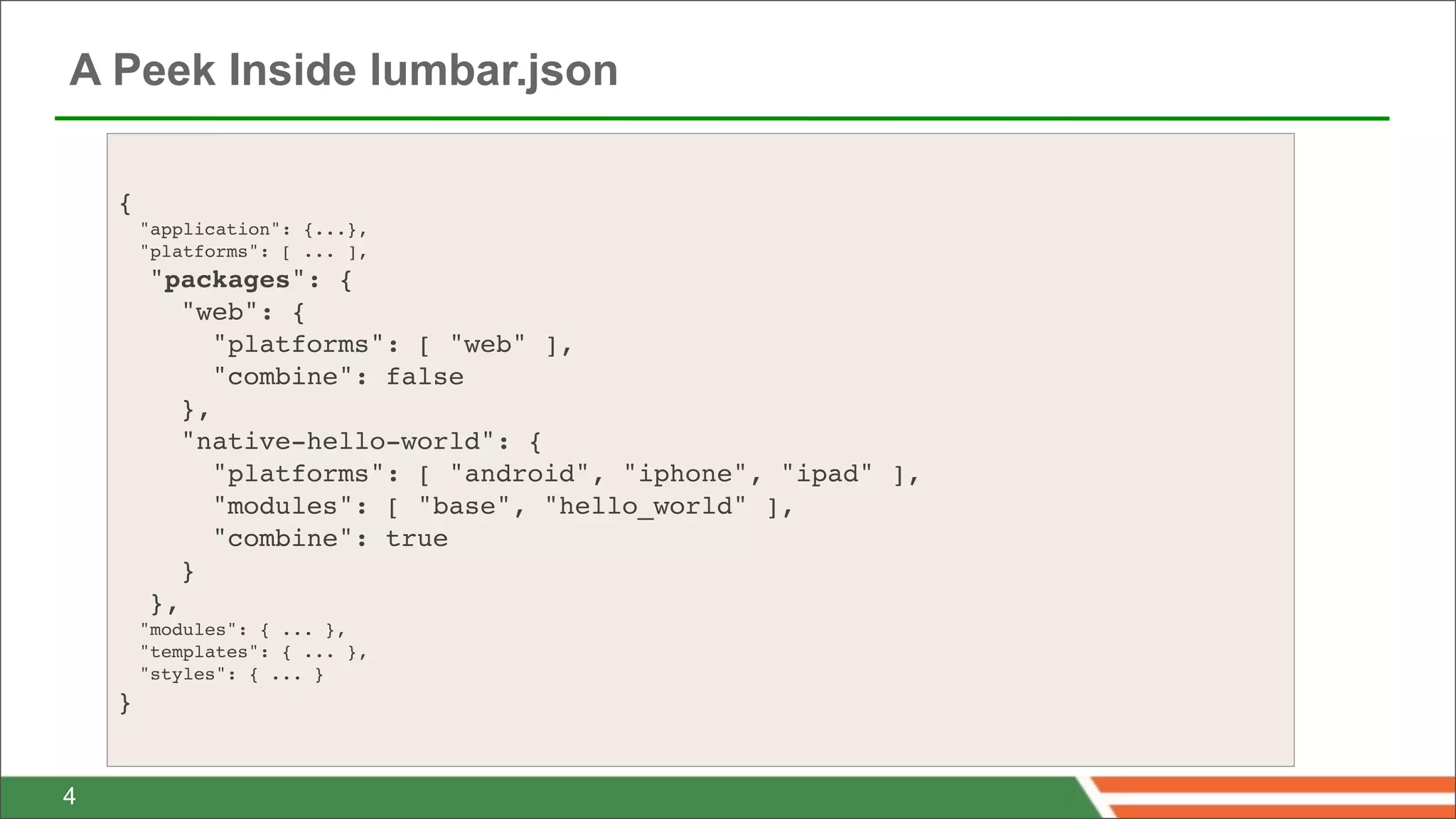

35. A Peek Inside lumbar.json
{
"application": {...},
"platforms": [ ... ],
"packages": {
"web": {
"platforms": [ "web" ],
"combine": false
},
"native-hello-world": {
"platforms": [ "android", "iphone", "ipad" ],
"modules": [ "base", "hello_world" ],
"combine": true
}
},
"modules": { ... },
"templates": { ... },
"styles": { ... }
}
4

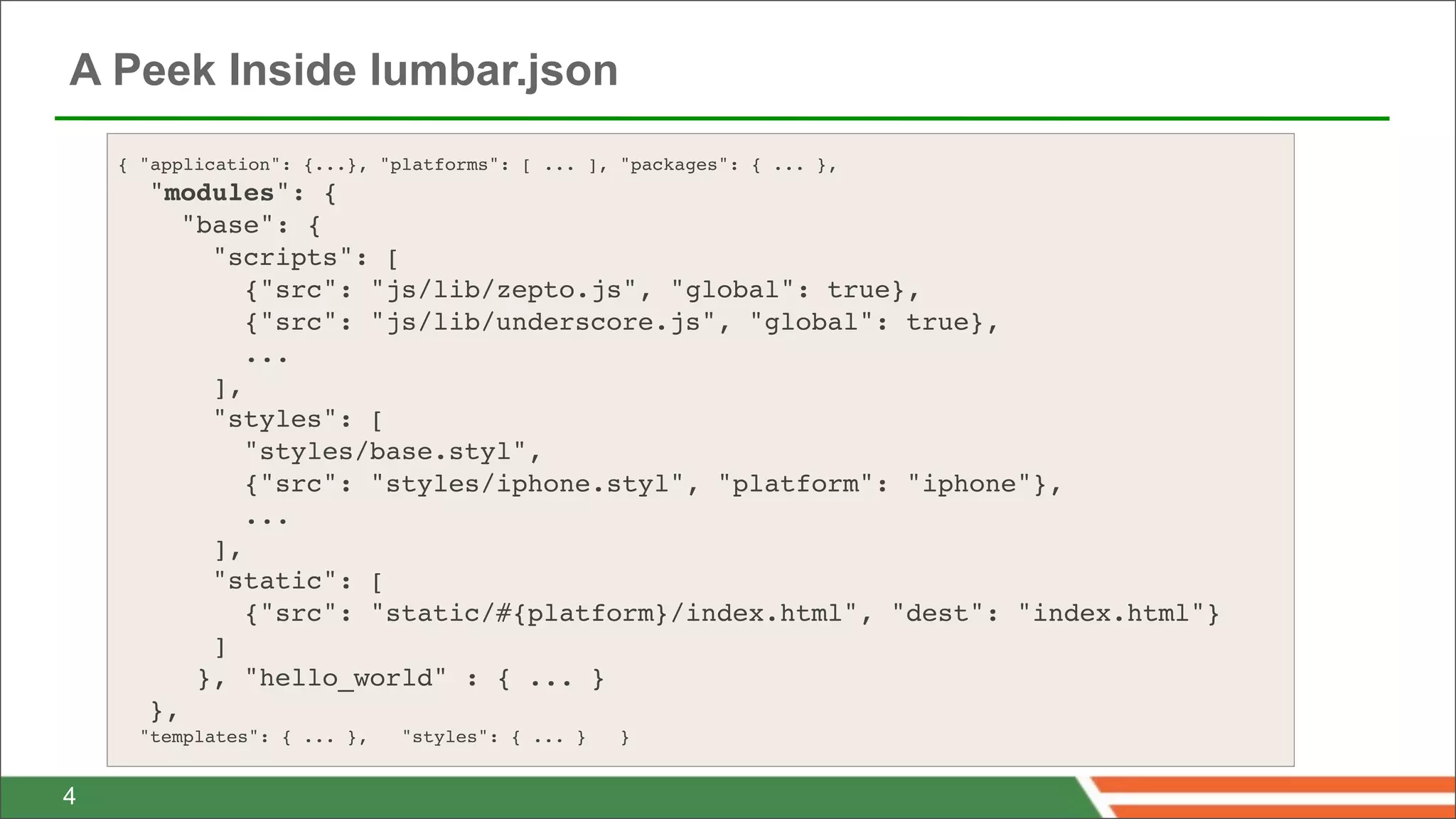

36. A Peek Inside lumbar.json
{ "application": {...}, "platforms": [ ... ], "packages": { ... },
"modules": {
"base": {
"scripts": [
{"src": "js/lib/zepto.js", "global": true},
{"src": "js/lib/underscore.js", "global": true},
...
],
"styles": [
"styles/base.styl",
{"src": "styles/iphone.styl", "platform": "iphone"},
...
],
"static": [
{"src": "static/#{platform}/index.html", "dest": "index.html"}
]
}, "hello_world" : { ... }
},
"templates": { ... }, "styles": { ... } }
4

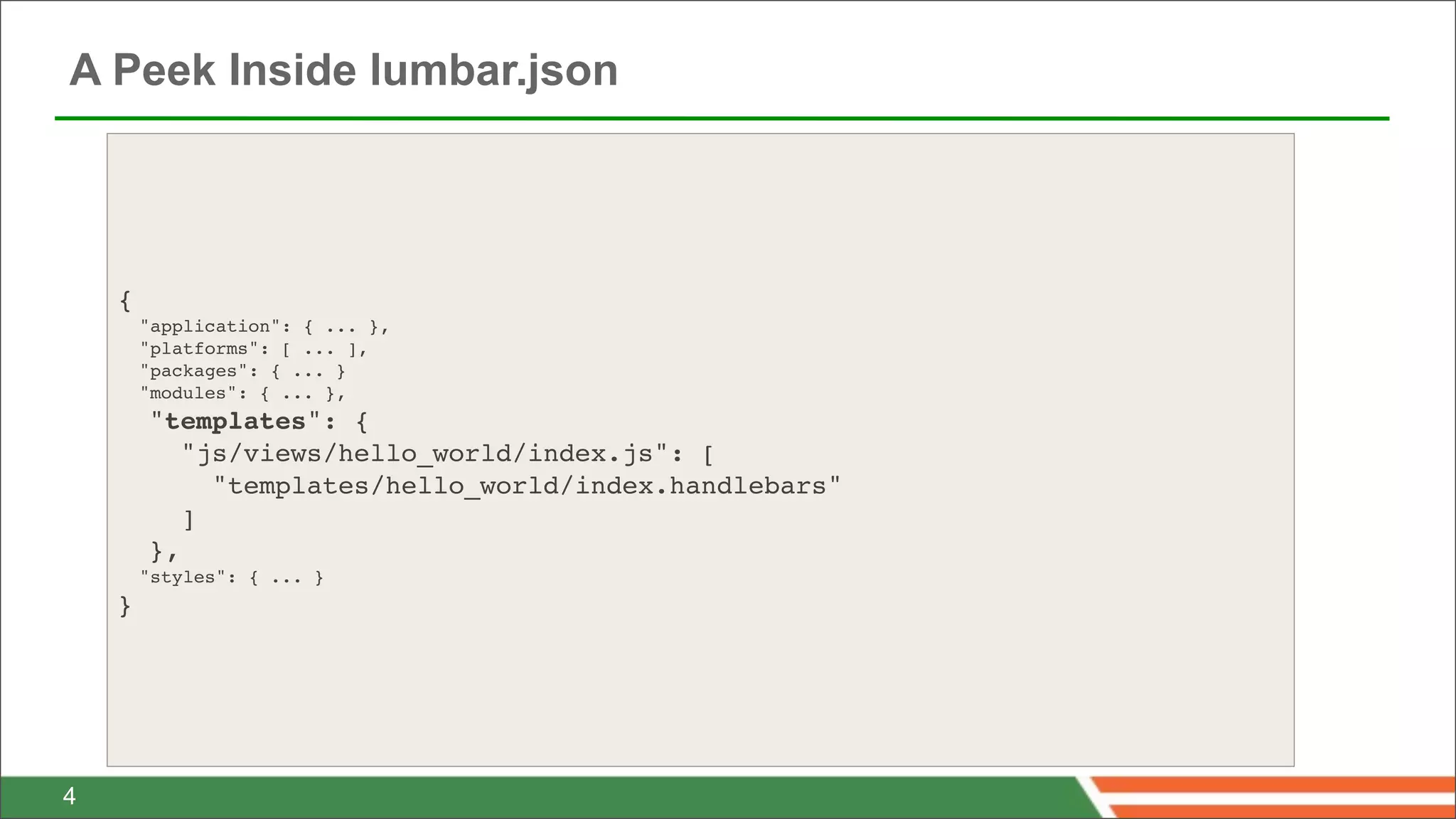

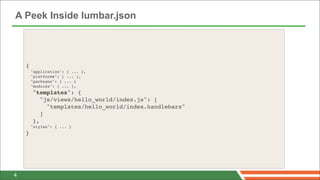

37. A Peek Inside lumbar.json
{
"application": { ... },
"platforms": [ ... ],
"packages": { ... }
"modules": { ... },
"templates": {
"js/views/hello_world/index.js": [
"templates/hello_world/index.handlebars"
]
},
"styles": { ... }
}
4

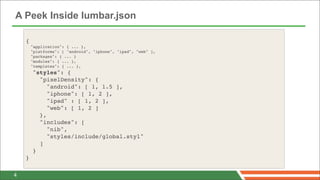

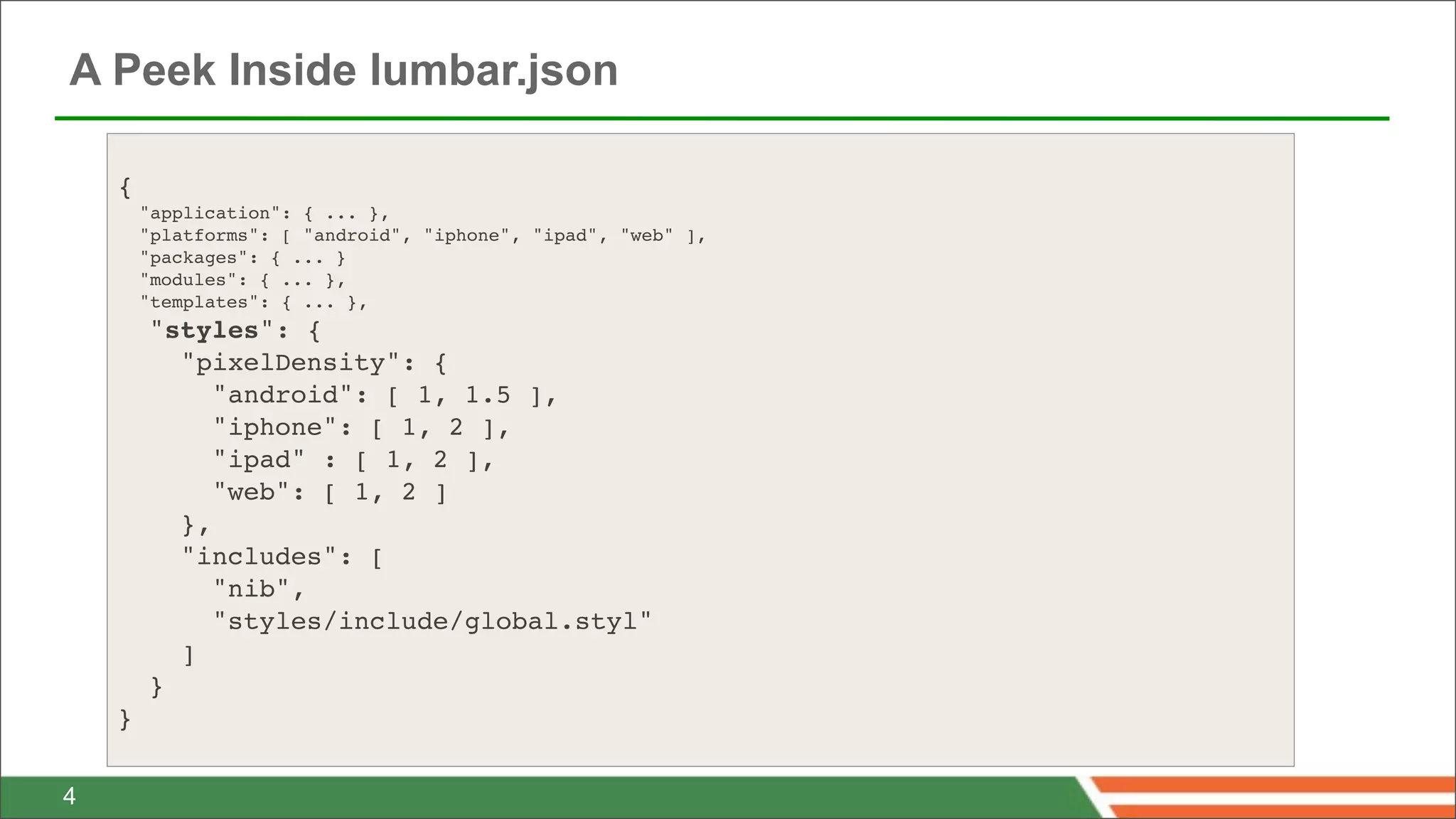

38. A Peek Inside lumbar.json
{
"application": { ... },
"platforms": [ "android", "iphone", "ipad", "web" ],
"packages": { ... }
"modules": { ... },
"templates": { ... },
"styles": {
"pixelDensity": {
"android": [ 1, 1.5 ],
"iphone": [ 1, 2 ],
"ipad" : [ 1, 2 ],
"web": [ 1, 2 ]
},
"includes": [
"nib",
"styles/include/global.styl"
]
}
}
4

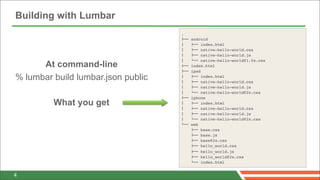

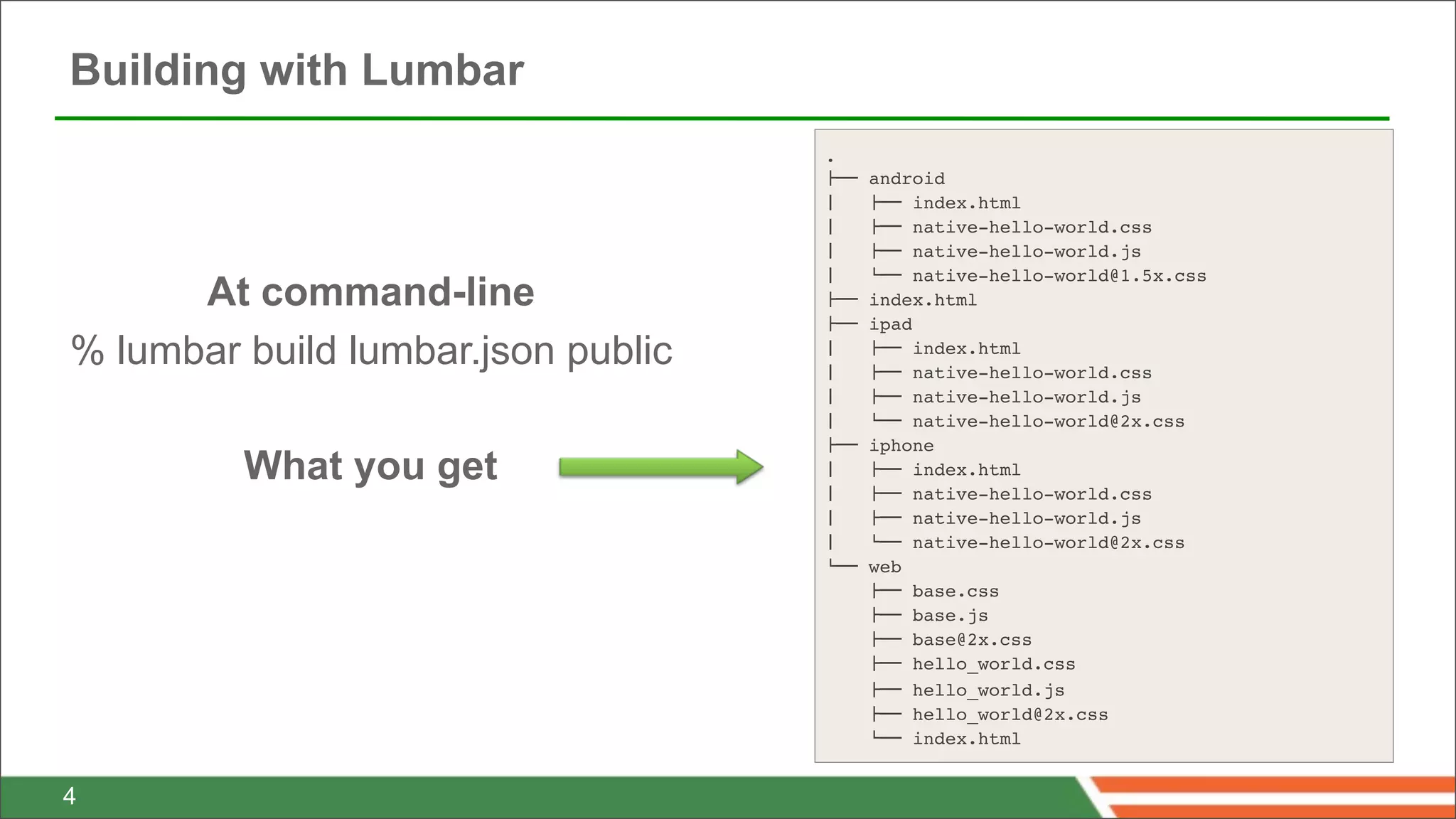

39. Building with Lumbar
.
!"" android
# !"" index.html
# !"" native-hello-world.css
# !"" native-hello-world.js
# $"" native-hello-world@1.5x.css
At command-line !"" index.html
!"" ipad
% lumbar build lumbar.json public #
#
!"" index.html
!"" native-hello-world.css
# !"" native-hello-world.js
# $"" native-hello-world@2x.css
!"" iphone
What you get # !"" index.html
# !"" native-hello-world.css
# !"" native-hello-world.js
# $"" native-hello-world@2x.css
$"" web
!"" base.css
!"" base.js
!"" base@2x.css
!"" hello_world.css
!"" hello_world.js
!"" hello_world@2x.css
$"" index.html
4

40. Demo: Thorax Client

41. Conclusion
© 2012 SpringOne 2GX. All rights reserved. Do not distribute without permission.

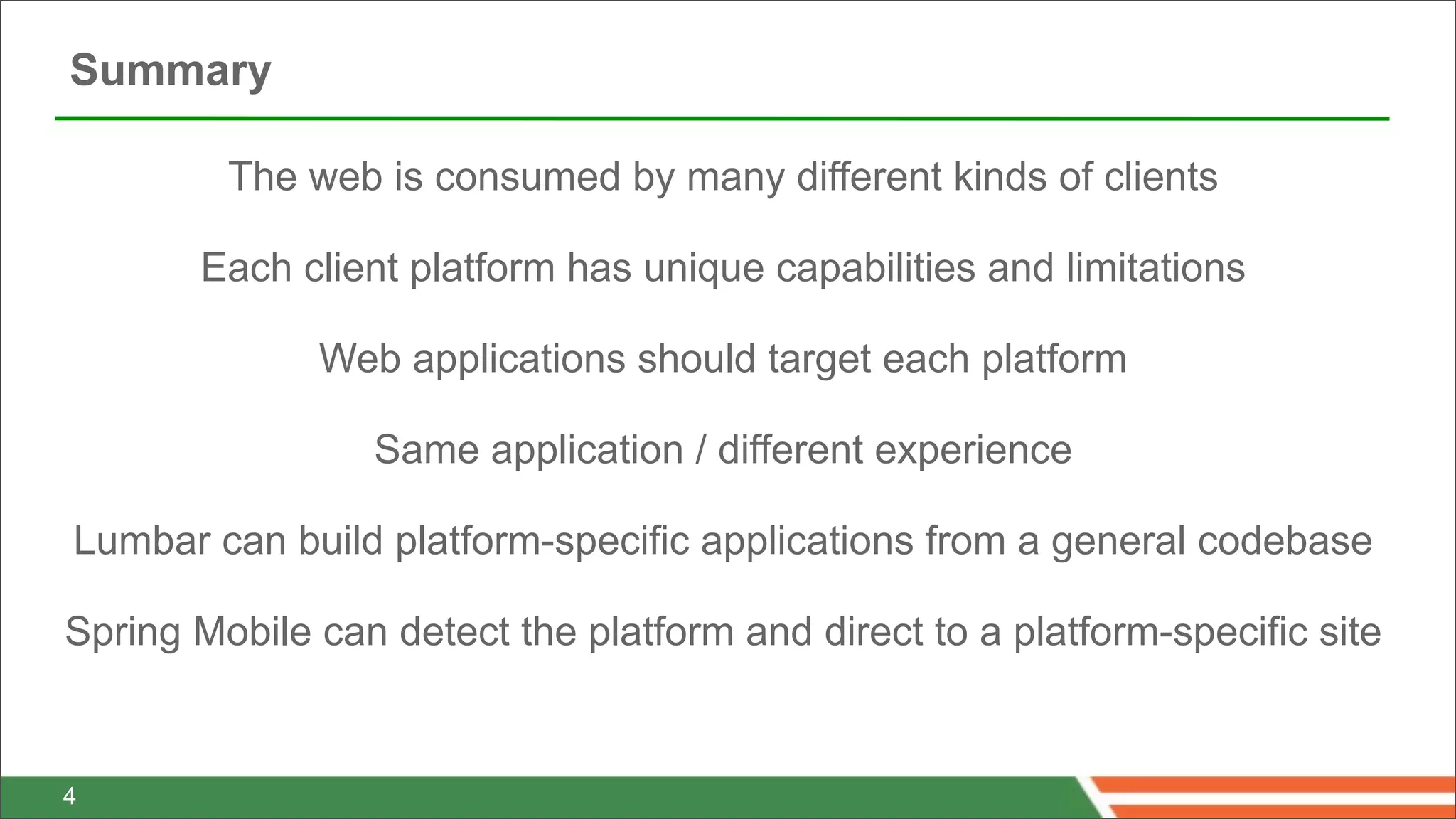

42. Summary
The web is consumed by many different kinds of clients
Each client platform has unique capabilities and limitations
Web applications should target each platform
Same application / different experience
Lumbar can build platform-specific applications from a general codebase
Spring Mobile can detect the platform and direct to a platform-specific site
4
