instruments available for fire testing

2. AITM 2.0002A
AITM 2.0002B
AITM 2.0003
AITM 2.0005
AITM 2.0006
AITM 2.0007/
ABD0031
AITM 2.0007A
AITM 2.0007B
AITM 2.0008
AITM 2.0010
AITM 2.0053
AITM 2.0056
AITM 3.0005
ASTM C 1166
ASTM D 568
ASTM D 635
ASTM D 1230
ASTM D 1692
ASTM D 1929
ASTM D 2863
ASTM D 3675
ASTM D 3801
ASTM D 4108
ASTM D 4151
ASTM D 4372
ASTM D 4986
ASTM D 5048
ASTM D 5132
ASTM D 5238
ASTM D 6413
ASTM D 7140
ASTM D 7309
ASTM E 84
ASTM E 108
ASTM E 136
ASTM E 162
ASTM E 648
ASTM E 662
ASTM E 906
ASTM E 1352
ASTM E 1353
ASTM E 1354
ASTM E 1534
ASTM E 1537
ASTM E 1590
ASTM F 501
ASTM F 814
ASTM F 963
ASTM F 1506
ASTM F 1939
ASTM F 2700
ASTM F 2703
BFD IX-1
BFD IX-10
BFD IX-11
BS 476
BS 5438
BS 5690
BS 5852
BS 6307
BS 6807
BS 7175
BS 7176
BS EN 597
BS EN 1021
BSS 7230
BSS 7238
BSS 7239
BSS 7310
BSS 7322
BSS 7365
CA TB 106
CA TB 116
CA TB 117
CA TB 121
CA TB 129
CA TB 133
CA TB 603
CA TB 604
CA Title 19
Can. Hazard Products
CAN-2-4.2
CAN/CGSB 2-4.162
CAN/CGSB 4.2,
27.1
CAN/CGSB 4.2,
27.3
CAN/CGSB 4.2,
27.4
CAN/CGSB 4.2,
27.5
CAN/CGSB 4.2,
27.7
CAN/CGSB 4.2,
27.10
CAN/CGSB 155.1
CAN/ULC-S102
CAN/ULC S109
CFR 14
16 CFR 1500.44
16 CFR 1610
16 CFR 1611
16 CFR 1615
16 CFR 1616
16 CFR 1630
16 CFR 1631
16 CFR 1632
16 CFR 1633
16 CFR 1634
49 CFR 49 V
571.302
CMVSS 302
CPAI 75
CPAI 84
FAR Part 23
FAR Part 25
FAR Part 29
FAR Part 23, 25, 29
FMVSS 302
FTM 5903
FTM 5906
IEC 60607
IEC 60695-11-10
IEC 60695-11-20
IEEE 383
IEEE 1202
IMO A.471
IMO A.472
IMO A.652
IMO A.653
IMO A.687
IMO A.688
IMO MSC 61(67)
IMO MSC 88
ISO 1182
ISO 1210
ISO 3795
ISO 4589-2
ISO 5658-2
ISO 5659-2
ISO 5660 Part 1
ISO 5660 Part 2
ISO 6925
ISO 6940
ISO 6941
ISO 7176
ISO 8191-1
ISO 9239-1
ISO 9239-2
ISO 9772
ISO 11925-2
ISO 12236
ISO 12945-2
ISO 12947-2
ISO 12952-1 & -2
ISO 12952-3 & -4
ISO 15025
MIL-STD 1623
MIL-STD 2031
NFPA 101
NFPA 102
NFPA 253
NFPA 255
NFPA 258
NFPA 260
NFPA 261
NFPA 262
NFPA 265
NFPA 266
NFPA 267
NFPA 286
NFPA 701
NFPA 702
NFPA 705
NFPA 1971
NFPA 1975
NFPA 1976
NFPA 1977
NFPA 1981
NFPA 2112
RTCA/DO-160E
SAE J369
SBCC 9-88
SMP 800C
TAPPI T461
UBC 8-2
UBC 31-1
UBC 42-1
UBC 42-2
UBC 55-1
UFAC
UL 94
UL 214
FIRE & FLAMMABLITY TESTS BY DOCUMENT
While this is a rather extensive list of tests performed, kindly contact Govmark directly to inquire about any test(s) which are not listed.

3. FIRE & FLAMMABILITY TESTS BY PRODUCT
While this is a rather extensive list of tests performed, kindly contact Govmark directly to inquire about any test(s) which are not listed.
• Aircraft (FAR)
• Aircraft: Cabin Interiors
•Aircraft: Cargo Liners
•Aircraft: Insulation
•Aircraft: Seat Cushions
•Apparel
•Automotive Interiors
•Bus & Rail Car Interiors
•Cargo Liners
•Carpeting
•Children’s Sleepwear
•Draperies
•Firemen’s Clothing
Hazardous Products:
Textiles
•Mattress Pads
•Mattresses
•Panel Walls
•Passenger Vessel Materials
•Plastics
•Sleeping Bags
•Tents
•Textiles
•TPP Value
•Upholstered Furniture
•Upholstered Materials
•Wall Coverings
FIRE & FLAMMABILITY TESTS BY AGENCY
•Airbus Industries
•(ANSI) American National Standards Institute
•(ASTM) American Society for Testing & Materials
•(BFD) Boston Fire Department
•(BIFMA)Business&InstitutionalFurnitureManufacturersAssoc.
•Boeing Co.
•(BS) British Standards Institute
•Calif. Bureau of Home Furnishings & Thermal Insulation
•California Fire Marshal
•Canadian Standards
•(CG) Coast Guard
•(CPSC) Consumer Product Safety Commission
•(DOD) Department of Defense
•Eurorail
•(FAA) Federal Aviation Admin.
•(FRA) Federal Railroad Administration
•(IFAI) Industrial Fabrics Association Int’l
•(IMO) International Maritime Org.
•(ISO) International Standards Org.
•Miami Fire Department
•New York City
•(NFPA) National Fire Protection Assoc.
•Port Authority of New York & New Jersey
•SAE
•TAPPI
•(UFAC) Upholstered Furniture Action Council
•(UMTA) Urban Mass Transportation Admin.
PHYSICAL TESTS
ABRASION RESISTANCE
ASTM D 3884 – Taber Abrasion
ASTM D 4157 - Wyzenbeek Abrasion
ASTM D 4966 – Martindale Abrasion
COLORFASTNESS
AATCC 8 – Crocking
AATCC 16 – Lightfastness
ASTM G 154 – UV Exposure
DIMENSIONAL STABILITY
AATCC 96 – Commercial Laundering
AATCC 135 – Home Laundering
OTHER
AATCC 100 – Antibacterial Finish on Textiles
AATCC 130 - Stain Release
ASTM D 737 – Air Permeability
ASTM D 3776 – Fabric Weight (Mass)
PILLING
ASTM D 3511 – Brush Pilling
ASTM D 3512 – Random Tumble Pilling
ASTM D 4970 – Martindale Pilling
SNAG RESISTANCE
ASTM D 3939 – Mace Snag
ASTM D 5362 – Bean Bag Snag
STRENGTH
ASTM D 434/4034 – Seam Slippage
ASTM D 2262 – Tongue Tear
ASTM D 3786 – Mullen Burst
ASTM D 3787 – Ball Burst
ASTM D 5034 – Tensile Strength
A.L.T. Standards

4. Cone Calorimeter
The most widely used test apparatus to measure heat release
properties of materials.
Specifications:
• ASTM E 1354 • ASTM E 1550 • ASTM E 1740 • ASTM D 5485
• ASTM D 6113 • NFPA 271 • NFPA 264 • CAN ULC 135 • BS
476 Part 15 • ISO 5660 Parts 1 and 2
Smoke Density
The most widely accepted apparatus for the measurement of smoke
given off burning materials. Measures specific optical density under
flaming and non-flaming conditions. It is also used for the extraction
of toxic gas.
Specifications:
• ASTM E 662 • FAR Part 25 Appendix F Part V
• ASTM F 814 • AITM 2.0007
• NFPA 258 • AITM 3.0005
• BSS 7238 • IMO MSC.61 (67) Annex 1 Parts 1&2
• BSS 7239 • ISO 5659-2
Rate of Heat Release (OSU)
Measures heat release properties of aircraft interior materials.
In accordance with FAA regulations, Govmark testers are FAA
inspected and approved.
Specifications:
• FAR Part 25 Appendix F Part IV • BSS 7322
• AITM 2.0006
Model CC-1
Model CC-1-X
(export)
Model sd-2
Model sd-2-X
(export)
Model RHR-1
Model RHR-1-X
(export)
FAA Listed
FAA Listed

5. Microscale Combustion
Calorimeter
Measures multiple fire properties of micro laboratory scale
samples.
Potential measurements:
- Fire load
- Ignition temperature
- Heat release
- Flame resistance
Specification:
• ASTM D 7309
Flooring Radiant Panel
Measures the “critical radiant flux” at flameout for carpeting
and flooring materials used in public buildings and public transit
vehicles.
Specifications:
• ASTM E 648 • NFPA 253
• ISO 9239-1 • ISO 9239-2
Aircraft Insulation Radiant
Panel Tester
Measures the flame propagation of aircraft insulation materials.
Specifications:
• FAR Part 25 Appendix F Part VI • BSS 7365
• AITM 2-0053
Model mcc-2
Model mcc-2-X
(export)
Model FRP-1A-CF(G)
Model FRP-1A-CF(G)-X
(export)
Model FRP-1A-AI(E)
ModelFRP-1A-AI(E)-X
(export)
FAA Listed
FAA Listed

6. 45˚ Flammability (Apparel Textiles)
Mandatory tester for all USA apparel fabrics. Measures rate of
burning. Also specified for upholstery components.
Specifications:
• 16 CFR 1610 • ASTM D 1230
• NFPA 702 • CA TB 117 C and E
45˚ Flammability (Apparel Vinyls)
Mandatory USA tester for all vinyl materials
Specification:
• 16 CFR 1611
Blanket Flammability
Widely cited to measure the ignition resistant properties
of blankets.
Specification:
• ASTM D 4151
Model TC 45
Model TC 45-X
(export)
Model TC-1611
Model TC-1611-X
(export)
Model TC 45/BT
Model TC 45/BT-X
(export)

7. Vertical Flammability (1)
Measures ignition resistance properties of children’s sleepwear,
draperies, cubicle curtains, upholstery foams, tents.
Specifications:
• NFPA 701 (1989) Small Scale • CPAI 84
• CAN/ULC S109 Small Flame • UL 214 Small Flame
• CA TB 117 AI and B • CA Title 19
• 16 CFR 1615 and 1616
Vertical Flammability (2)
Widely cited through out the USA and internationally to measure
the ignition resistant properties of aircraft and transportation
materials, tents and protective clothing.
Specifications:
• Federal Test Method 5903 • BSS 7230
• CPAI 84 • AITM 2.0002
• FAR Part 25 Appendix F Part I
Horizontal Flammability
Measures the burning rate of materials used in automotive
interiors and certain aircraft interiors.
Specifications:
• FMVSS 302 (49 CFR V 571.302) • AITM 2.0003 • CMVSS 302
• FAR Part 25 Appendix F Part I • SAE J369 • ISO 3795
• ASTM D 5132 • BSS 7230
Model 701-S
Model 701-S-X
(export)
Model VC-1
Model VC-1-X
(export)
Model VC-2
Model VC-2X
(export)
Model HC-1
Model HC-1-X
(export)
Model HC-2
Model HC-2-X
(export)
FAA Listed

8. FAA Multi-Purpose Small Scale
Flammability Tester
Specifications:
• FAR Part 25 Appendix F Part I (Vertical, Horizontal, 45˚ and 60˚)
Drapery Flammability
The most widely cited tester to measure the ignition resistant
properties of draperies and other hanging materials used in
public buildings.
Specifications:
• NFPA 701 (1996, 1999, 2004 and later editions) Test Method 1
UL 94 & IEC Tester
Most widely used small scale test to screen plastic materials for
horizontal and vertical burning properties.
Specifications:
• UL 94HB, HBF & HF • ASTM D 635
• UL 94V, VTM & 5 V • ASTM D 3801
• IEC 60695-11-10 • ASTM D 4986
• IEC 60707 • ASTM D 5048
• IEC 60695-11-20 • ISO 9772
• ISO 1210 • ISO 9773
Model FAA mp-1
Model FAA mp-1-x
(export)
Model 701-tm1
Model 701-tm1-X
(export)
Model gov-94
Model gov-94-X
(export)
FAA Listed

9. Large Scale Flammability
Measures ignition resistance properties of outdoor products,
banners, and many other products.
Specifications:
• NFPA 701 (1989) Large Scale
• NFPA 701 (1996, 1999, 2004 & later editions) Test Method 2
• UL 214 Large Flame
• CAN/ULC S109 Large Flame
Protective Clothing
Flammability
Measures thermal performance properties of material
(especially protective clothing) when exposed to a high heat
source.
Specification:
• ASTM D 4108
THERMAL PROTECTION
PERFORMANCE OPEN FLAME/
QUARTZ HEATER
Measures thermal protective properties and heart transfer
properties of material when exposed to high heat sources.
Specifications:
• NFPA 1971 • NFPA 1975 • NFPA 1976
• NFPA 1977 • NFPA 1981 • NFPA 2112
• ISO 17492 • ASTM F2700 • ASTM 2703
• CAN/CGSB 155.20
Model 701L
Model 701L-X
(export)
Model 701L-tm2
Model 701L-tm2-X
(export)
Model TPP-2
Model TPP-2-X
(export)
Model TPP QH-1
Model TPP QH-1-X
(export)

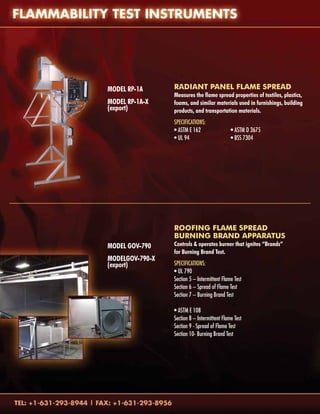

10. Model RP-1A
Model RP-1A-X
(export)
Model GOV-790
ModelGOV-790-X
(export)
Radiant Panel Flame Spread
Measures the flame spread properties of textiles, plastics,
foams, and similar materials used in furnishings, building
products, and transportation materials.
Specifications:
• ASTM E 162 • ASTM D 3675
• UL 94 • BSS 7304
ROOFING FLAME SPREAD
BURNING BRAND APPARATUS
Controls & operates burner that ignites “Brands”
for Burning Brand Test.
Specifications:
• UL 790
Section 5 – Intermittent Flame Test
Section 6 – Spread of Flame Test
Section 7 – Burning Brand Test
• ASTM E 108
Section 8 – Intermittent Flame Test
Section 9 - Spread of Flame Test
Section 10- Burning Brand Test

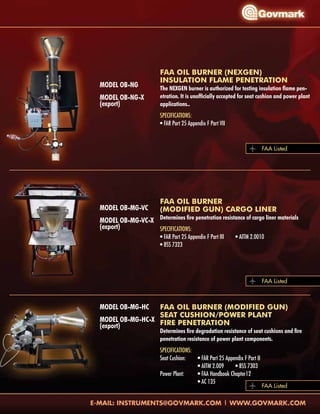

11. Model OB-NG
Model OB-NG-X
(export)
Model OB-MG-VC
Model OB-MG-VC-X
(export)
Model OB-MG-HC
Model OB-MG-HC-X
(export)
FAA OIL BURNER (NEXGEN)
INSULATION FLAME PENETRATION
The NEXGEN burner is authorized for testing insulation flame pen-
etration. It is unofficially accepted for seat cushion and power plant
applications..
Specifications:
• FAR Part 25 Appendix F Part VII
FAA OIL BURNER
(MODIFIED GUN) CARGO LINER
Determines fire penetration resistance of cargo liner materials
Specifications:
• FAR Part 25 Appendix F Part III • AITM 2.0010
• BSS 7323
FAA OIL BURNER (MODIFIED GUN)
SEAT CUSHION/POWER PLANT
FIRE PENETRATION
Determines fire degradation resistance of seat cushions and fire
penetration resistance of power plant components.
Specifications:
Seat Cushion: • FAR Part 25 Appendix F Part II
• AITM 2.009 • BSS 7303
Power Plant: • FAA Handbook Chapter12
• AC 135
FAA Listed
FAA Listed
FAA Listed
