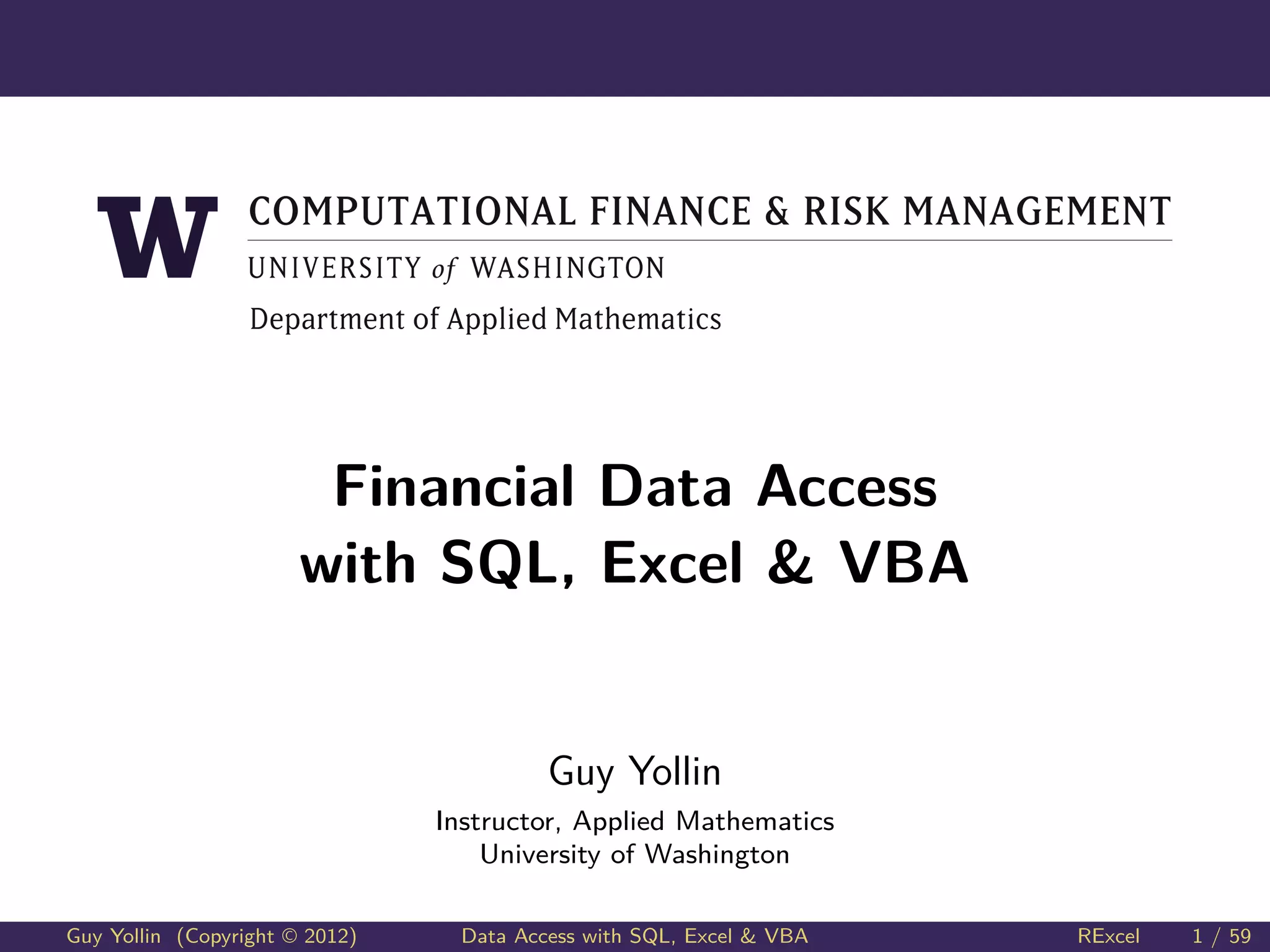

Financial Data Access with SQL, Excel & VBA

Computational Finance and Risk Management

Financial Data Access
with SQL, Excel & VBA

Guy Yollin
Instructor, Applied Mathematics
University of Washington
Guy Yollin (Copyright © 2012)

Data Access with SQL, Excel & VBA

RExcel

1 / 59

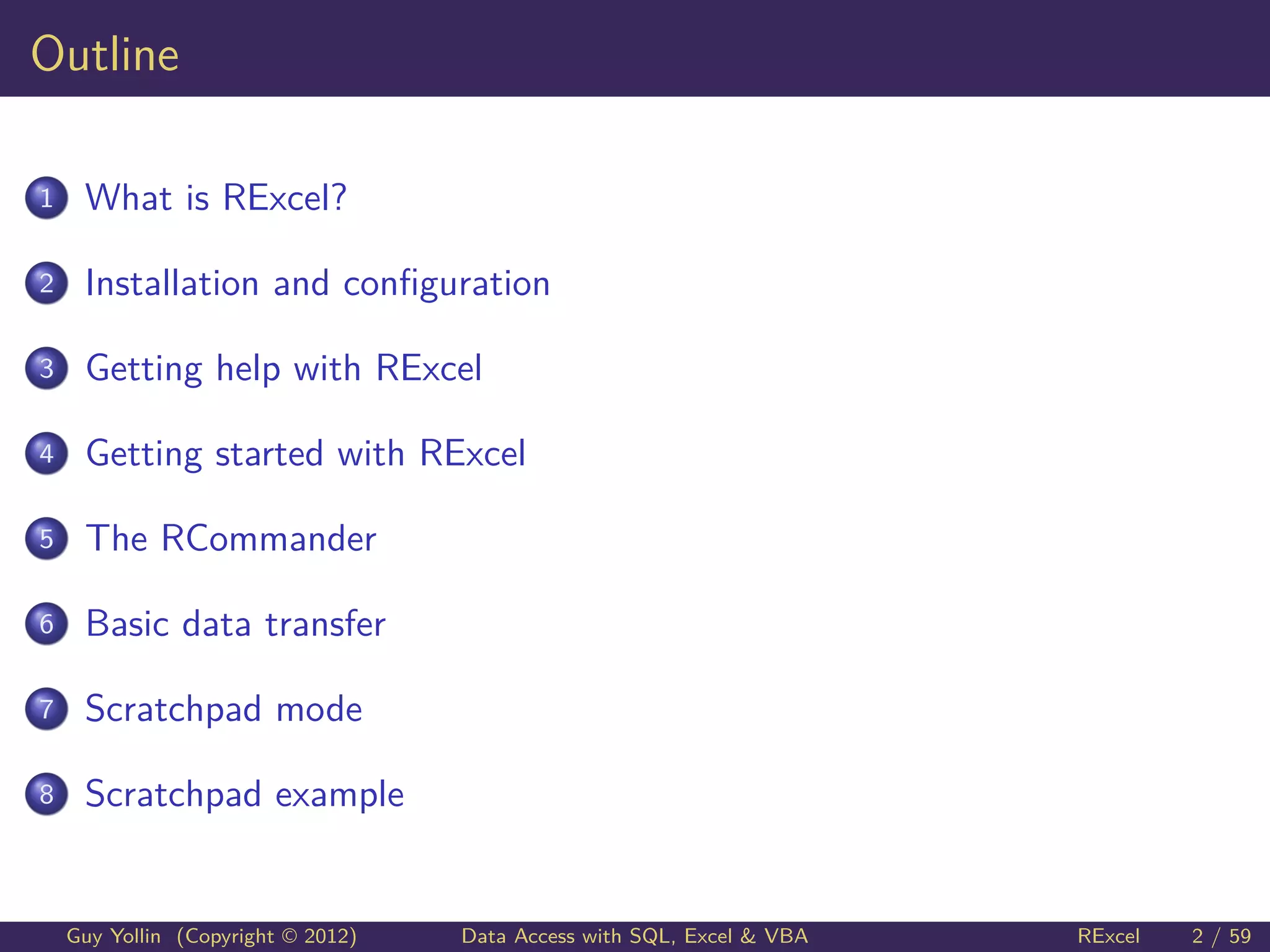

Outline
1

What is RExcel?

2

Installation and conﬁguration

3

Getting help with RExcel

4

Getting started with RExcel

5

The RCommander

6

Basic data transfer

7

Scratchpad mode

8

Scratchpad example



RExcel

2 / 59

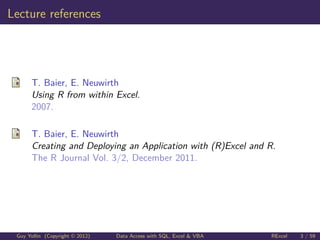

Lecture references

T. Baier, E. Neuwirth
Using R from within Excel.
2007.
Creating and Deploying an Application with (R)Excel and R.
The R Journal Vol. 3/2, December 2011.



RExcel

3 / 59

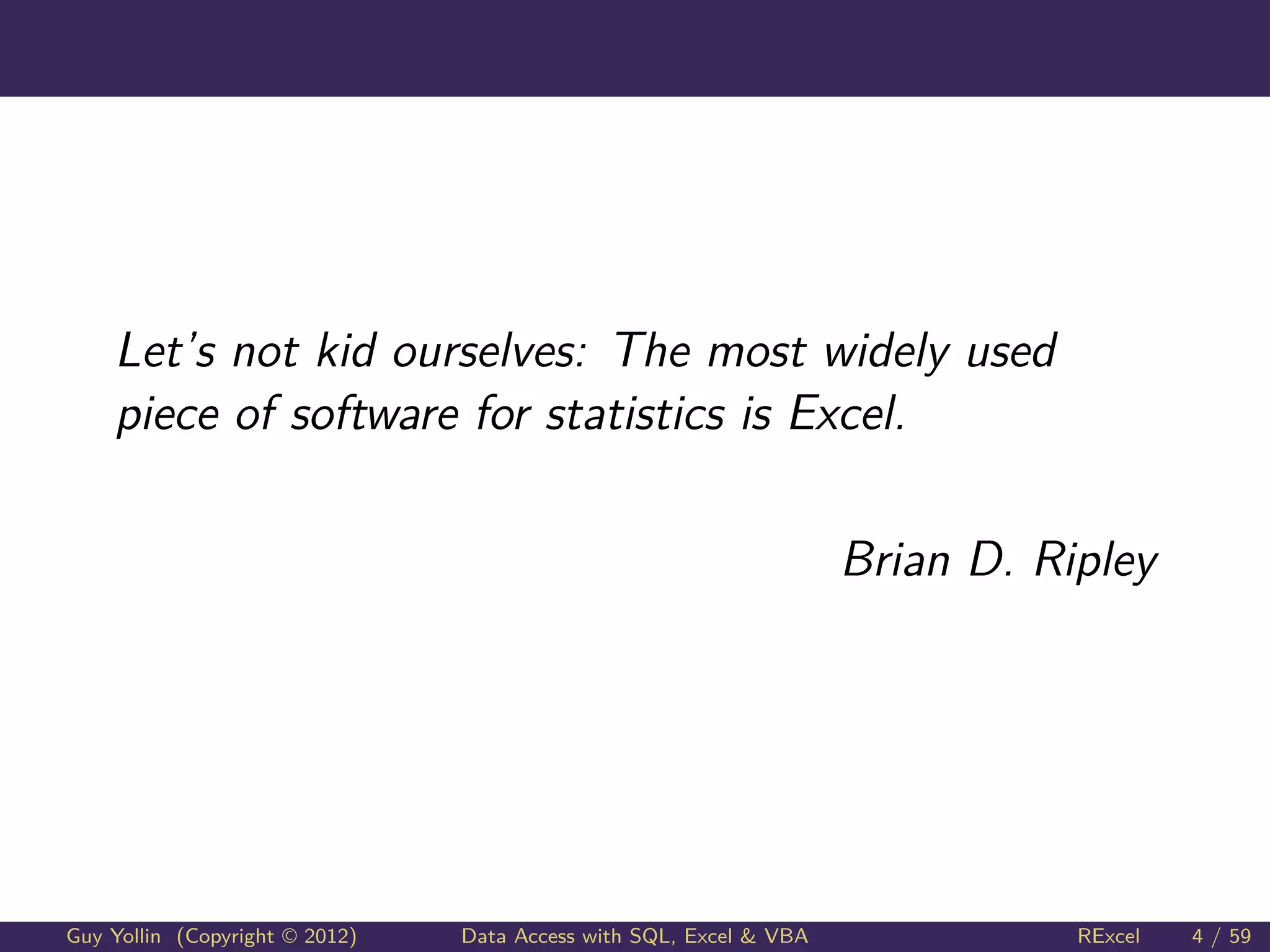

Let’s not kid ourselves: The most widely used
piece of software for statistics is Excel.
Brian D. Ripley



RExcel

4 / 59

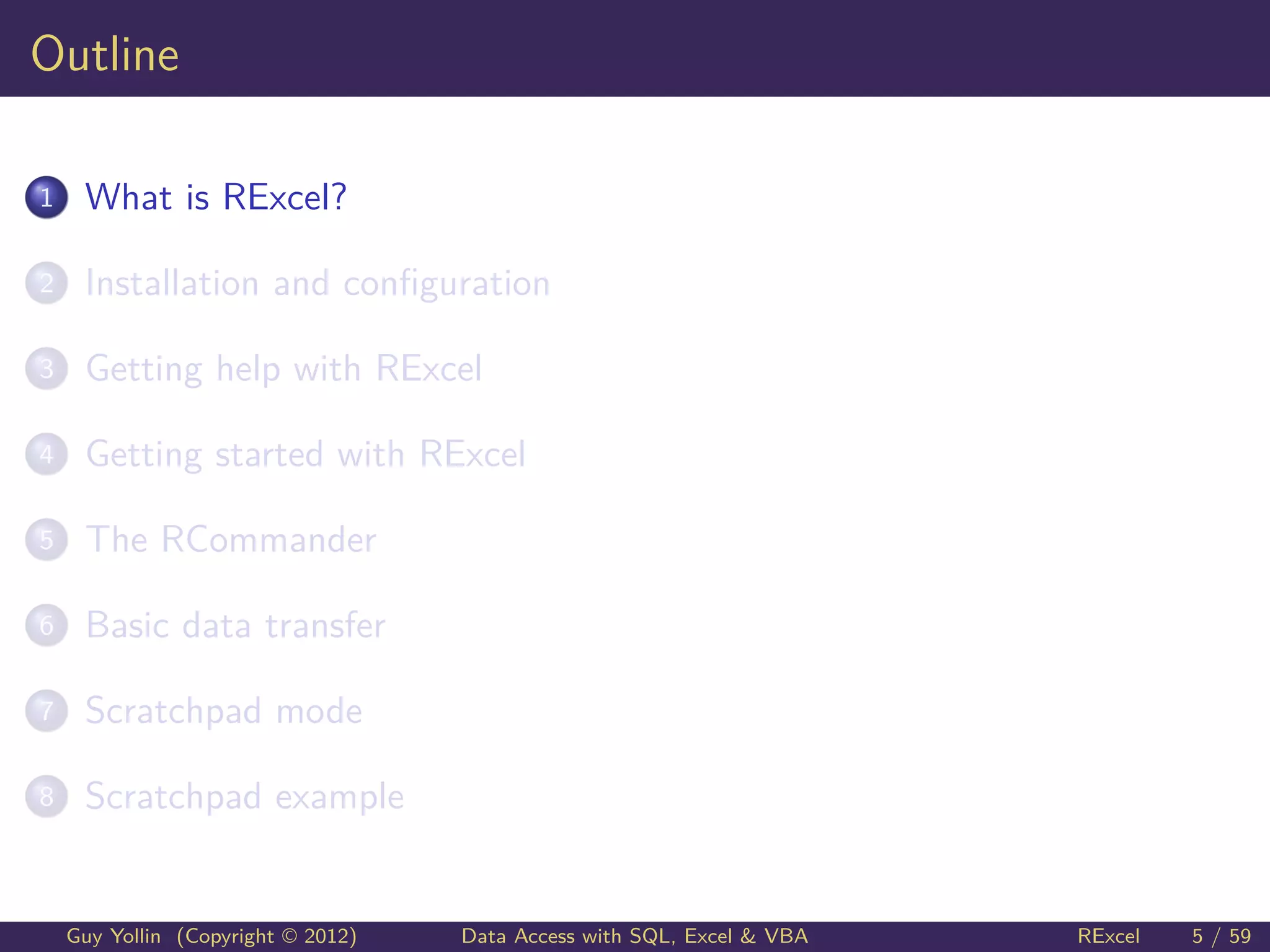

Outline
1

What is RExcel?

2


3


4


5

The RCommander

6

Basic data transfer

7

Scratchpad mode

8

Scratchpad example



RExcel

5 / 59

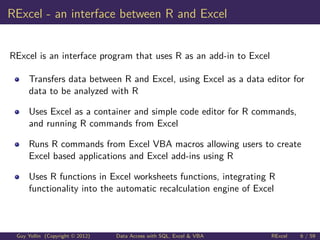

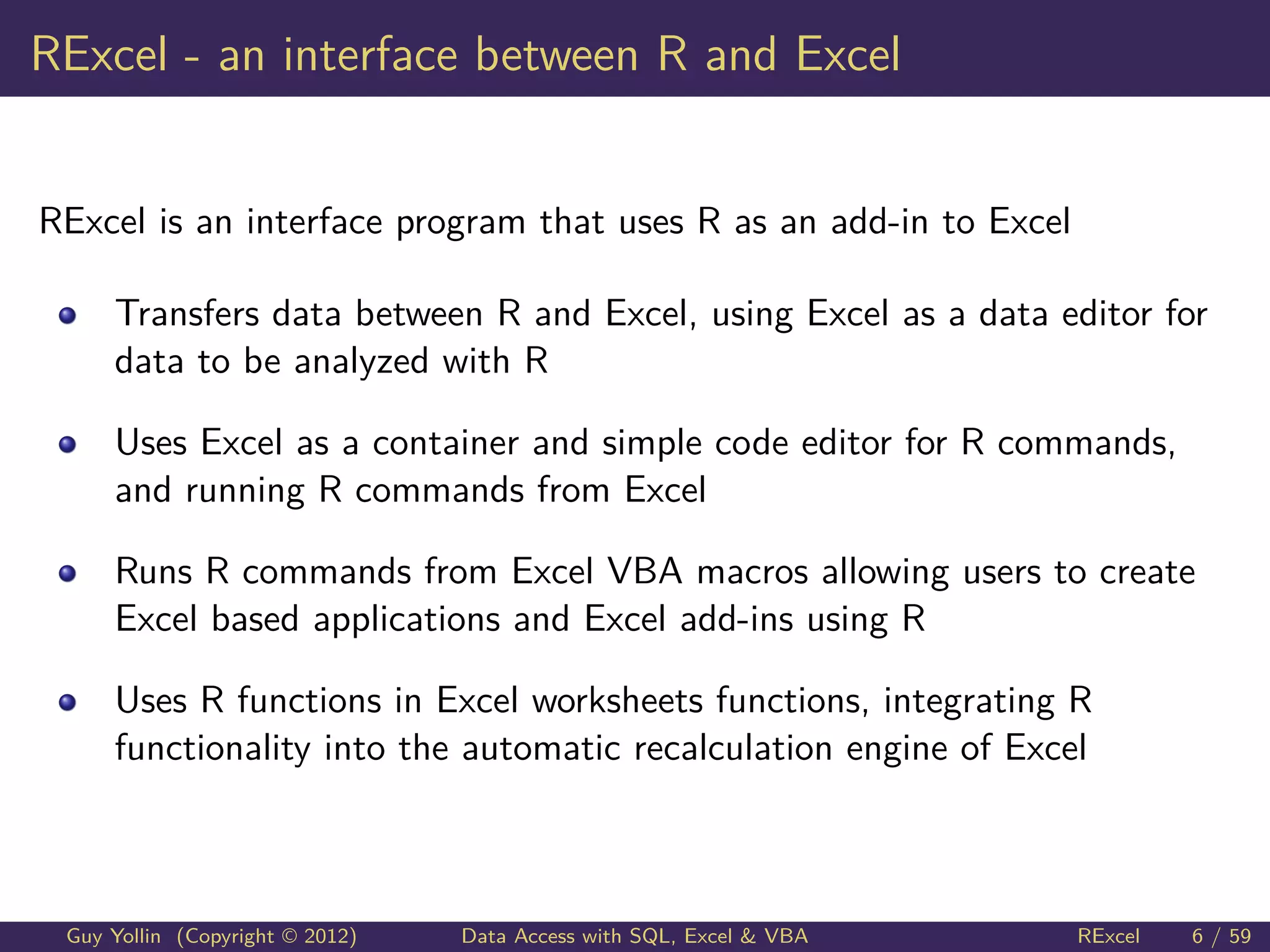

RExcel - an interface between R and Excel

RExcel is an interface program that uses R as an add-in to Excel
Transfers data between R and Excel, using Excel as a data editor for
data to be analyzed with R
Uses Excel as a container and simple code editor for R commands,
and running R commands from Excel
Runs R commands from Excel VBA macros allowing users to create
Excel based applications and Excel add-ins using R
Uses R functions in Excel worksheets functions, integrating R
functionality into the automatic recalculation engine of Excel



RExcel

6 / 59

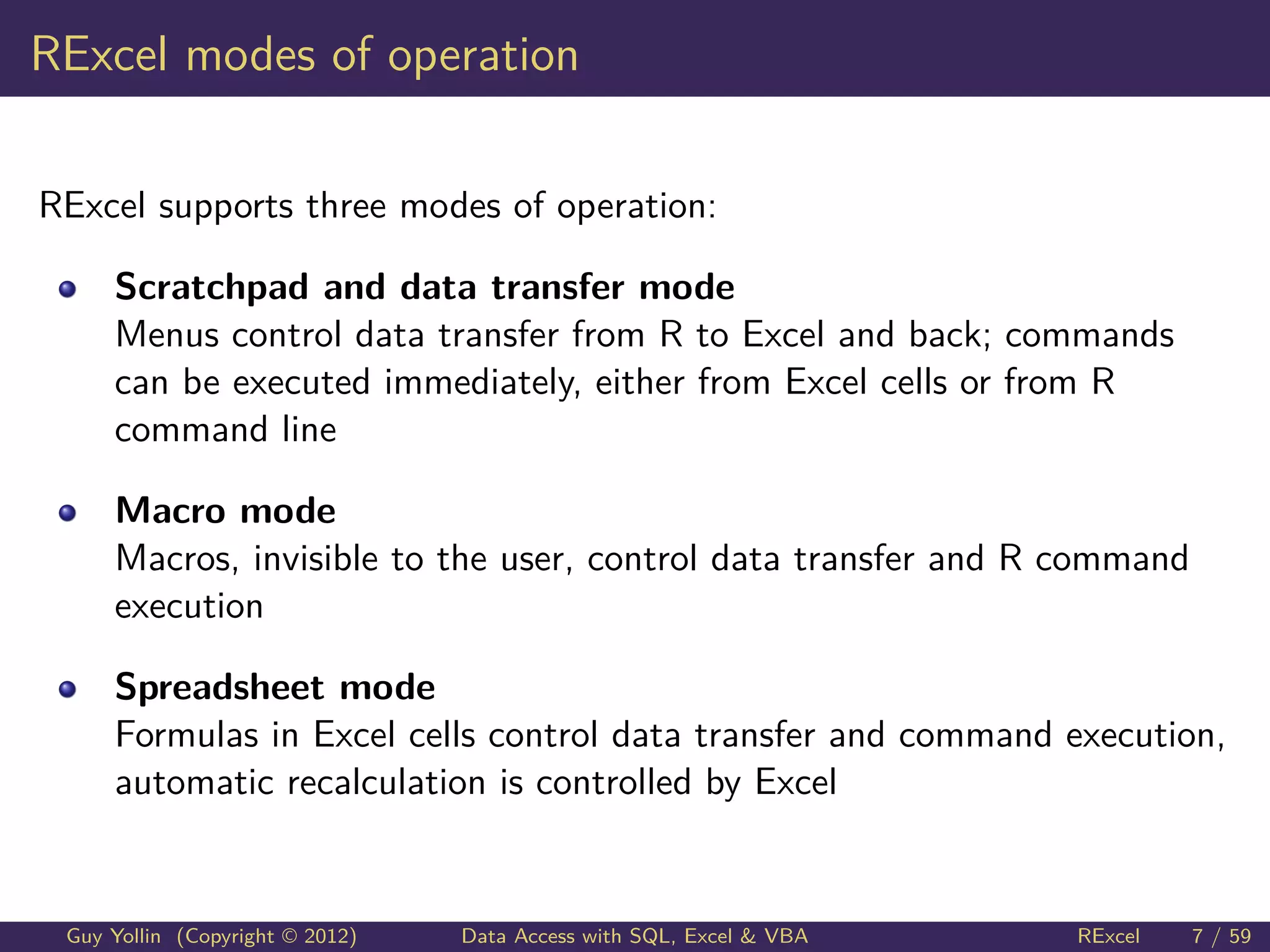

RExcel modes of operation
RExcel supports three modes of operation:
Scratchpad and data transfer mode
Menus control data transfer from R to Excel and back; commands
can be executed immediately, either from Excel cells or from R
command line
Macro mode
Macros, invisible to the user, control data transfer and R command
execution
Spreadsheet mode
Formulas in Excel cells control data transfer and command execution,
automatic recalculation is controlled by Excel



RExcel

7 / 59

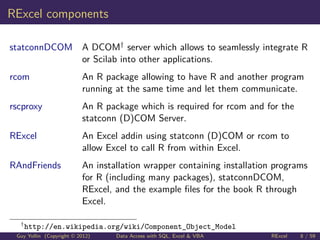

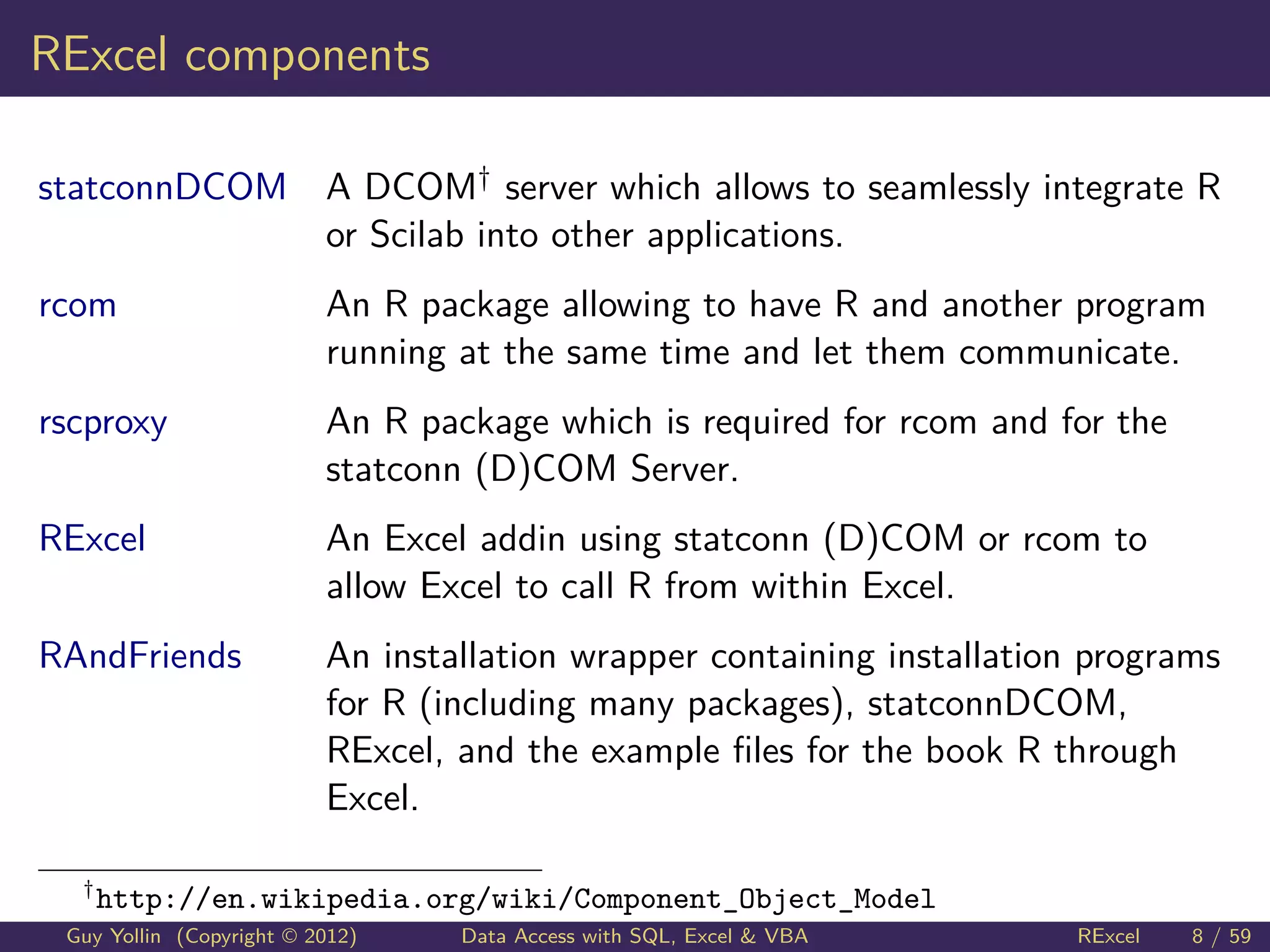

RExcel components
statconnDCOM

A DCOM† server which allows to seamlessly integrate R
or Scilab into other applications.

rcom

An R package allowing to have R and another program
running at the same time and let them communicate.

rscproxy

An R package which is required for rcom and for the
statconn (D)COM Server.

RExcel

An Excel addin using statconn (D)COM or rcom to
allow Excel to call R from within Excel.

RAndFriends

An installation wrapper containing installation programs
for R (including many packages), statconnDCOM,
RExcel, and the example ﬁles for the book R through
Excel.

†

http://en.wikipedia.org/wiki/Component_Object_Model



RExcel

8 / 59

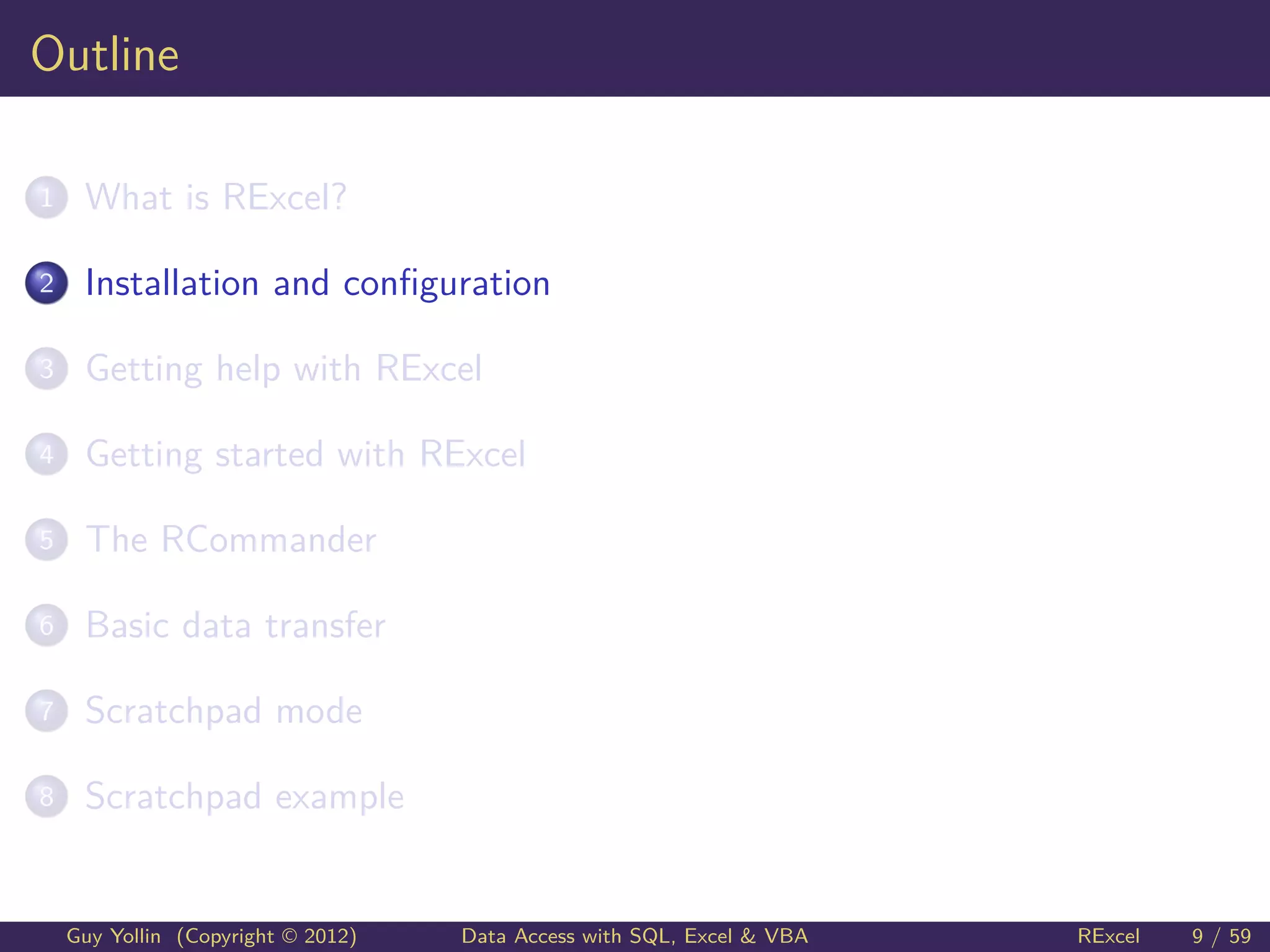

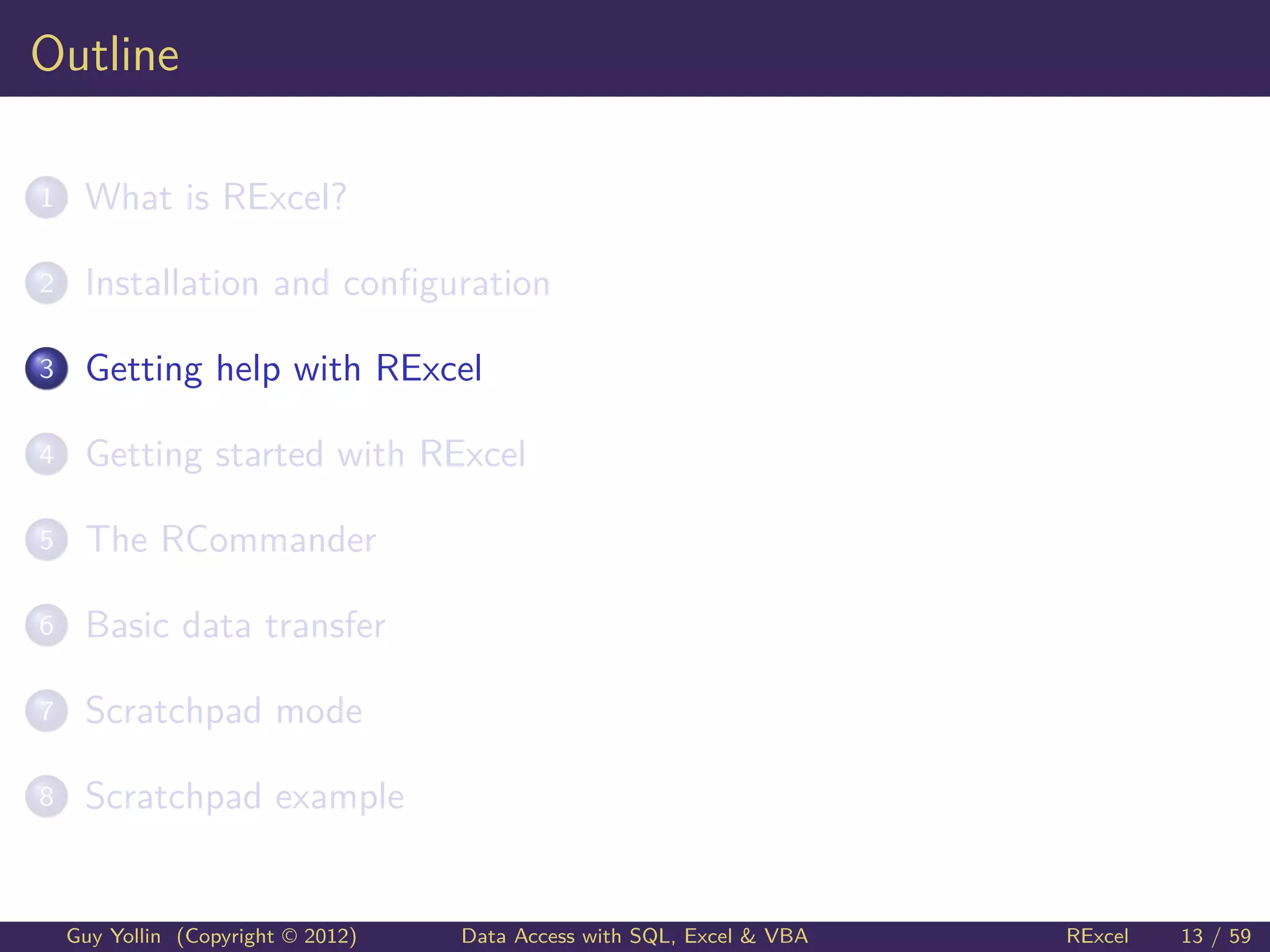

Outline
1

What is RExcel?

2


3


4


5

The RCommander

6

Basic data transfer

7

Scratchpad mode

8

Scratchpad example



RExcel

9 / 59

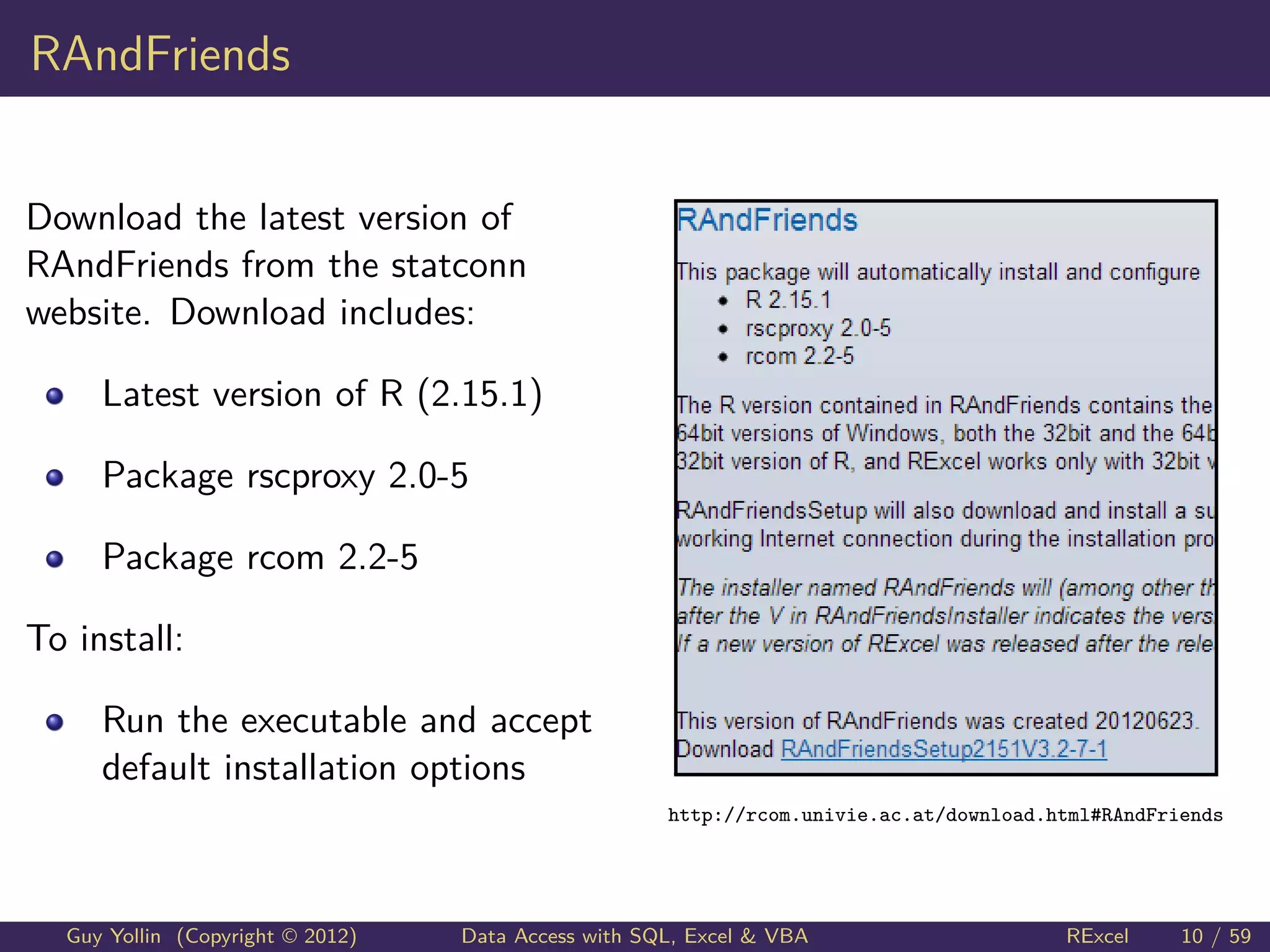

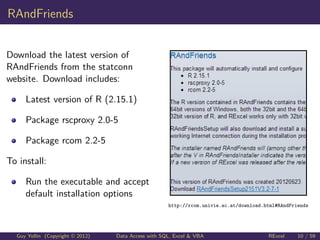

RAndFriends
Download the latest version of
RAndFriends from the statconn
website. Download includes:
Latest version of R (2.15.1)
Package rscproxy 2.0-5
Package rcom 2.2-5
To install:
Run the executable and accept
default installation options
http://rcom.univie.ac.at/download.html#RAndFriends



RExcel

10 / 59

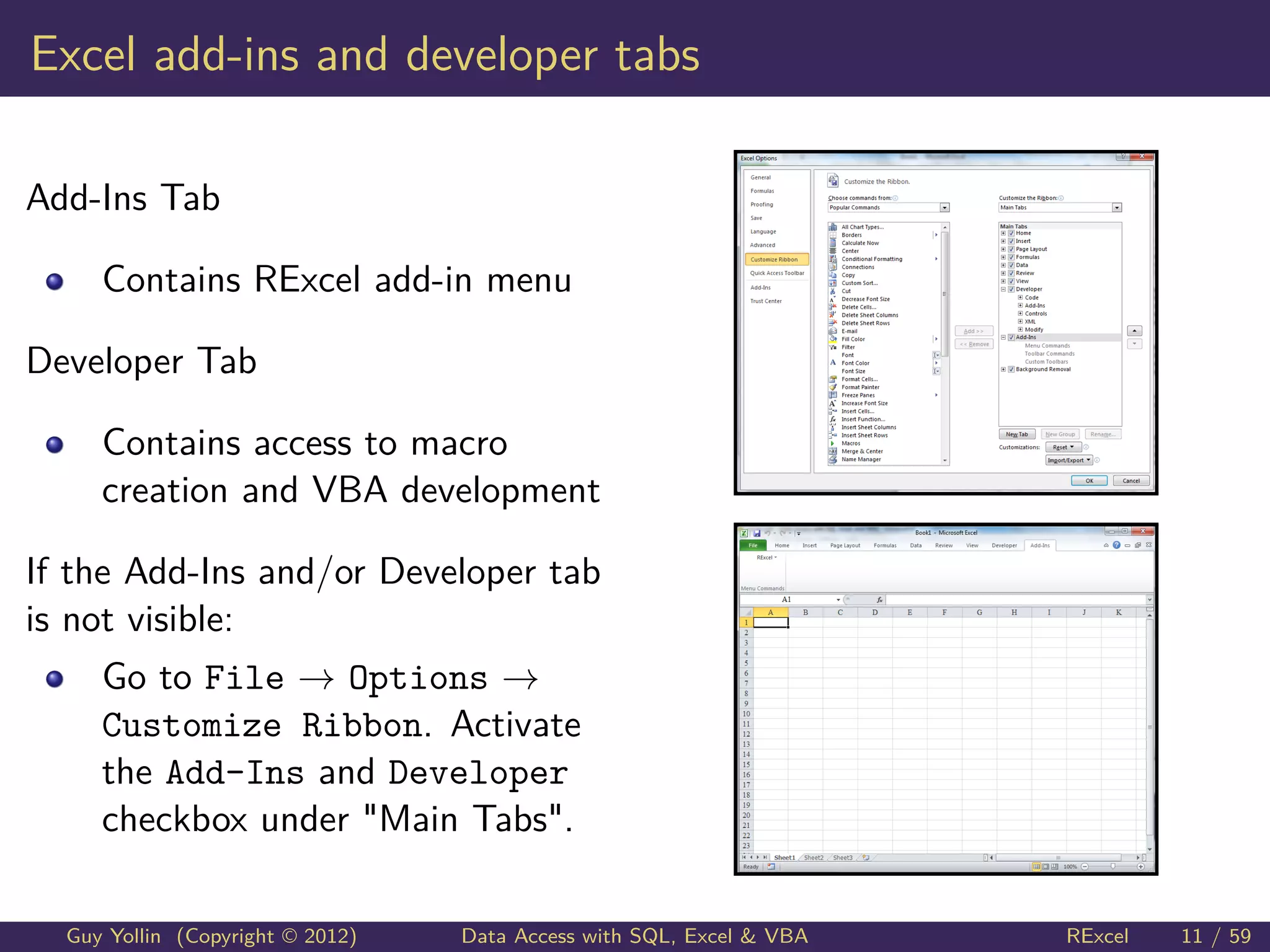

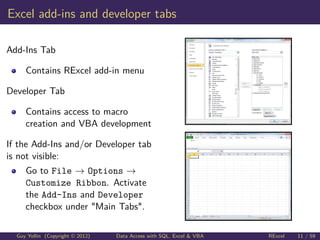

Excel add-ins and developer tabs
Add-Ins Tab
Contains RExcel add-in menu
Developer Tab
Contains access to macro
creation and VBA development
If the Add-Ins and/or Developer tab
is not visible:
Go to File → Options →
Customize Ribbon. Activate
the Add-Ins and Developer
checkbox under "Main Tabs".


RExcel

11 / 59

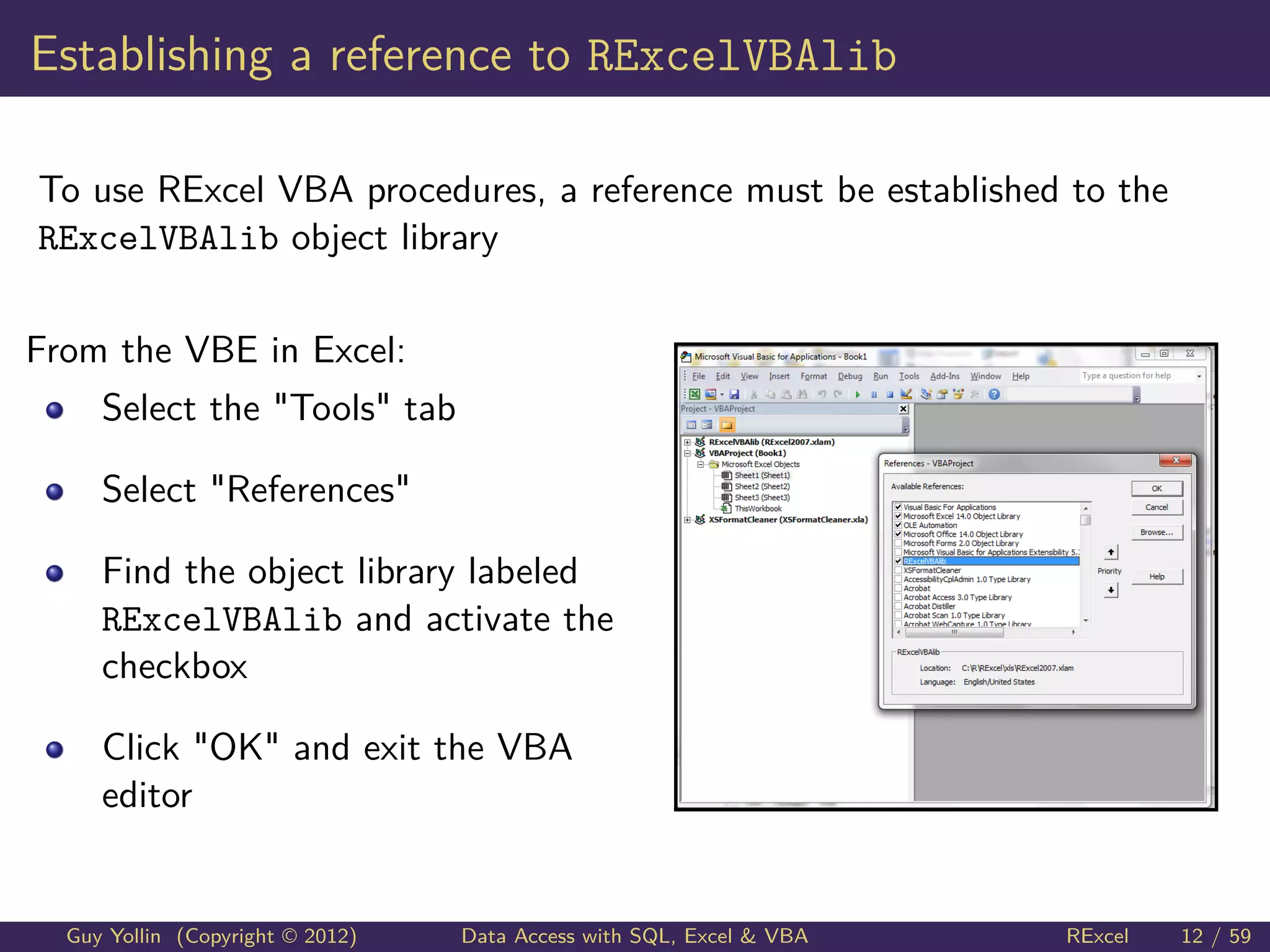

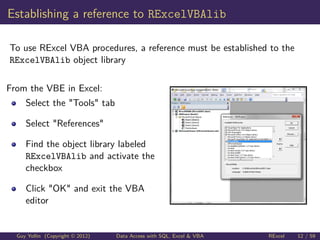

Establishing a reference to RExcelVBAlib
To use RExcel VBA procedures, a reference must be established to the
RExcelVBAlib object library
From the VBE in Excel:
Select the "Tools" tab
Select "References"
Find the object library labeled
RExcelVBAlib and activate the
checkbox
Click "OK" and exit the VBA
editor



RExcel

12 / 59

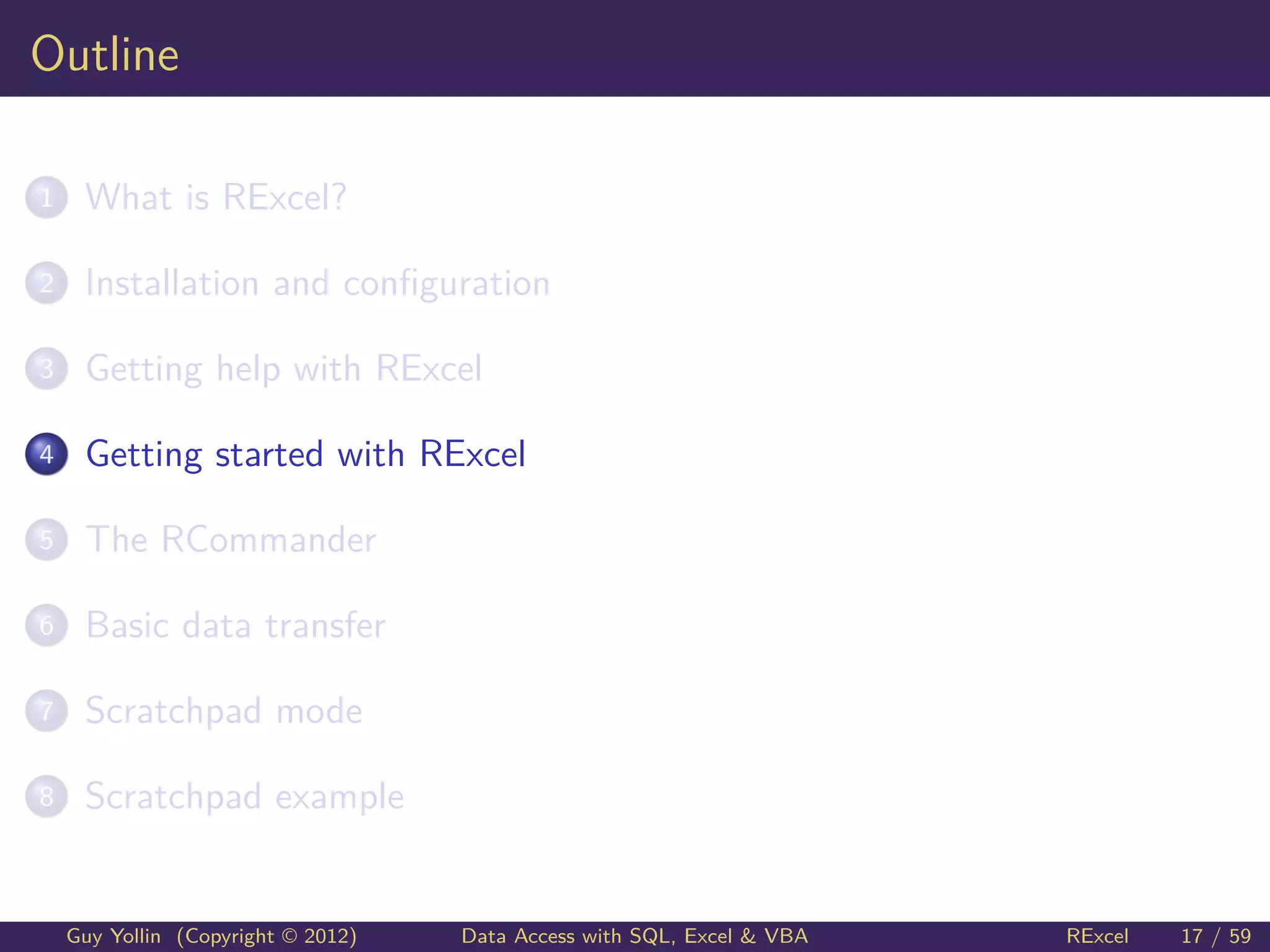

Outline
1

What is RExcel?

2


3


4


5

The RCommander

6

Basic data transfer

7

Scratchpad mode

8

Scratchpad example



RExcel

13 / 59

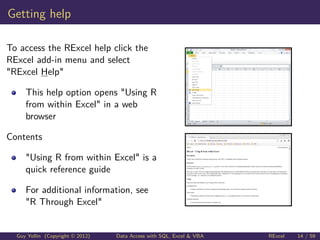

Getting help
To access the RExcel help click the
RExcel add-in menu and select
"RExcel Help"
This help option opens "Using R
from within Excel" in a web
browser
Contents
"Using R from within Excel" is a
quick reference guide
For additional information, see
"R Through Excel"



RExcel

14 / 59

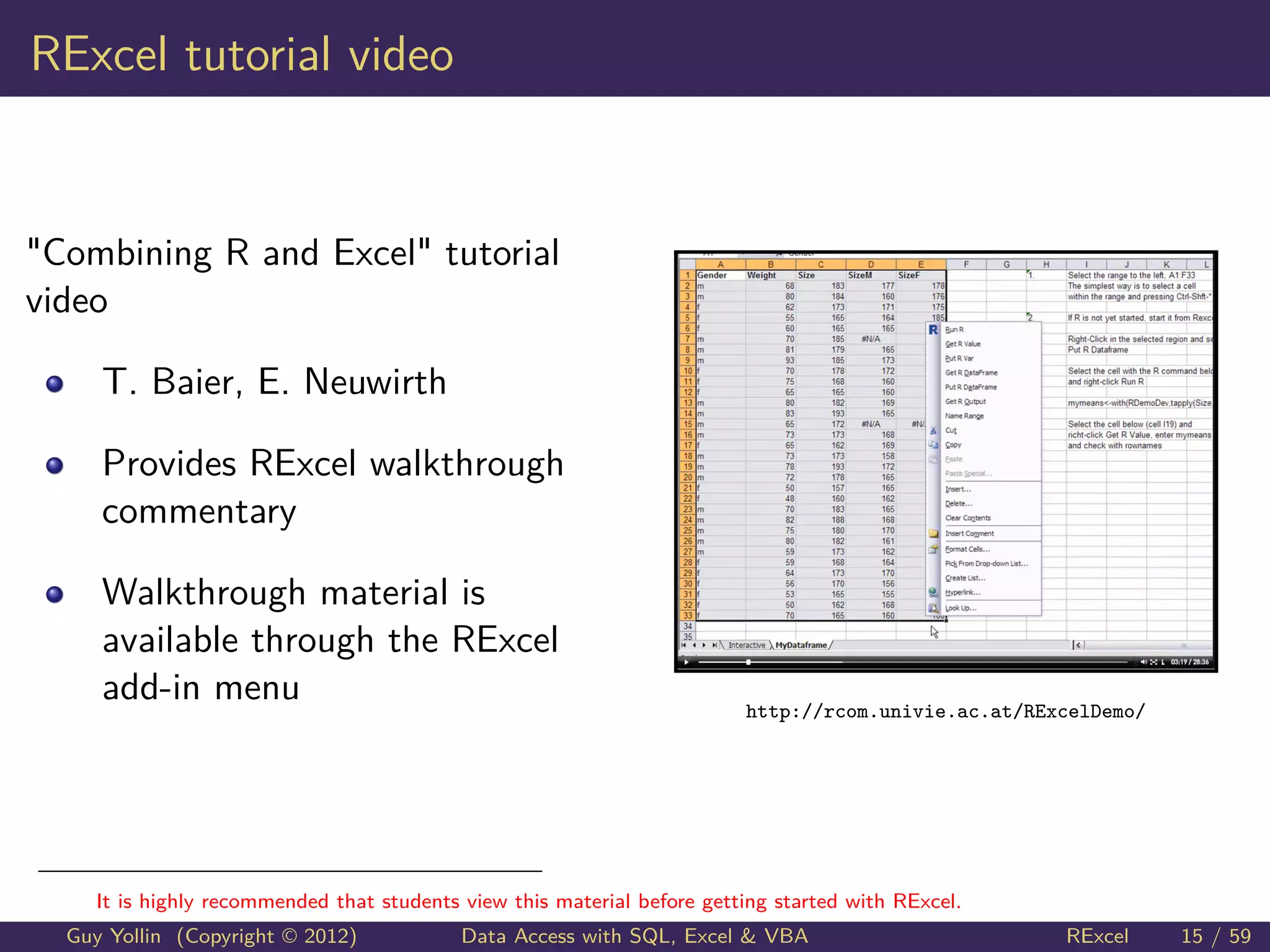

RExcel tutorial video

"Combining R and Excel" tutorial
video
Provides RExcel walkthrough
commentary
Walkthrough material is
available through the RExcel
add-in menu

http://rcom.univie.ac.at/RExcelDemo/

It is highly recommended that students view this material before getting started with RExcel.


RExcel

15 / 59

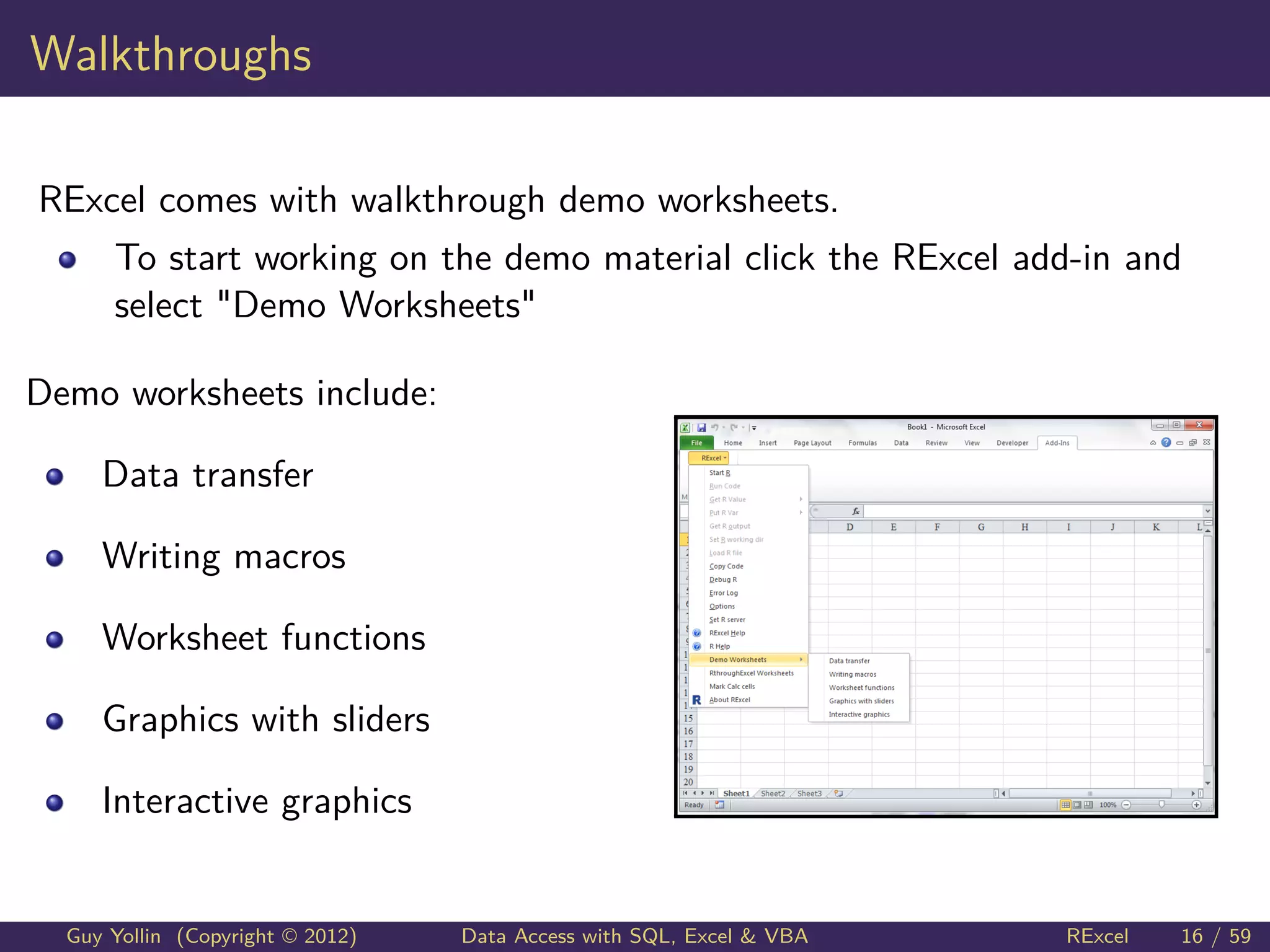

Walkthroughs
RExcel comes with walkthrough demo worksheets.
To start working on the demo material click the RExcel add-in and
select "Demo Worksheets"
Demo worksheets include:
Data transfer
Writing macros
Worksheet functions
Graphics with sliders
Interactive graphics



RExcel

16 / 59

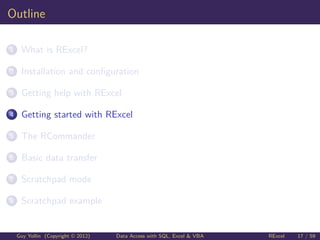

Outline
1

What is RExcel?

2


3


4


5

The RCommander

6

Basic data transfer

7

Scratchpad mode

8

Scratchpad example



RExcel

17 / 59

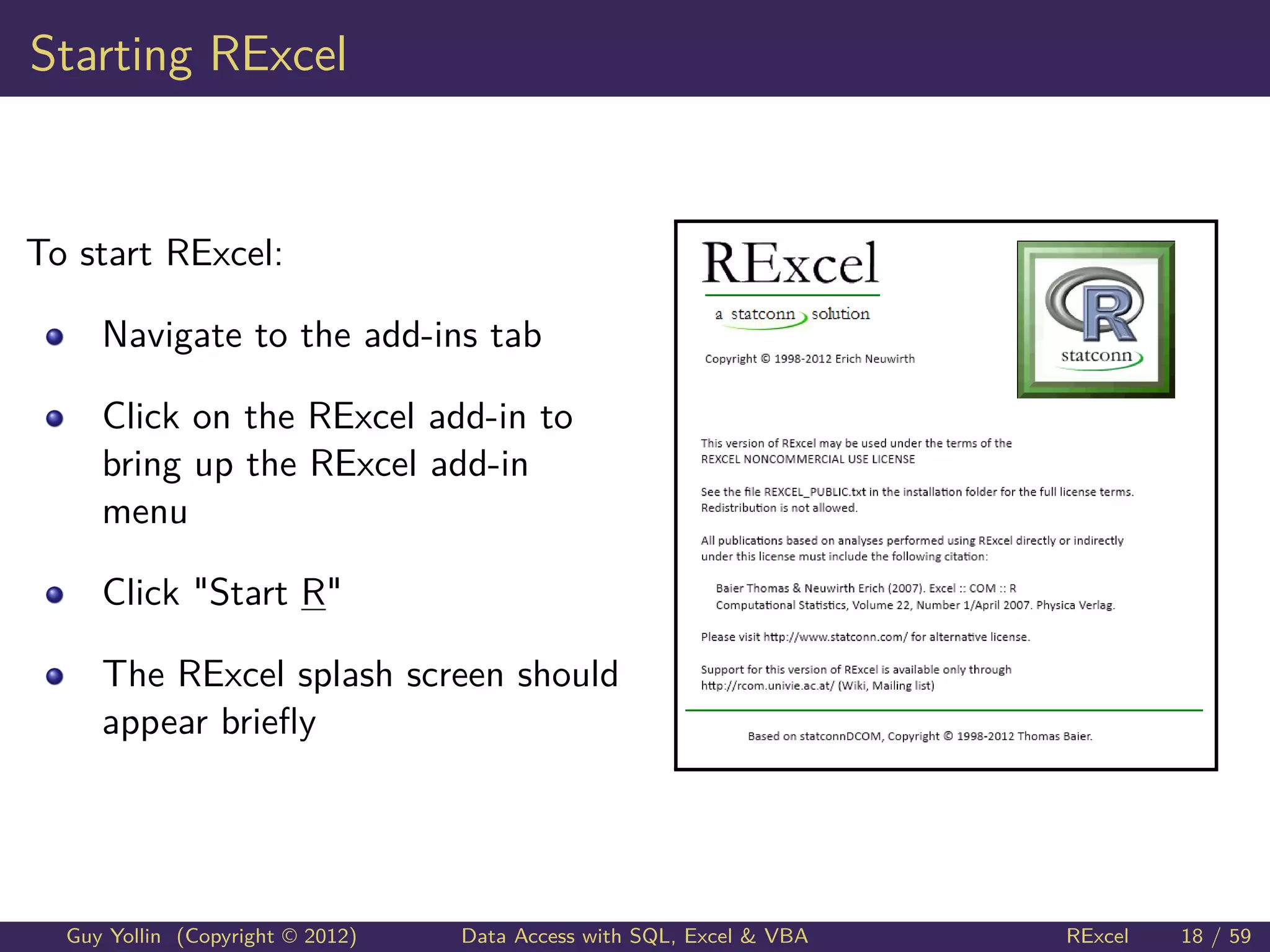

Starting RExcel

To start RExcel:
Navigate to the add-ins tab
Click on the RExcel add-in to
bring up the RExcel add-in
menu
Click "Start R"
The RExcel splash screen should
appear brieﬂy



RExcel

18 / 59

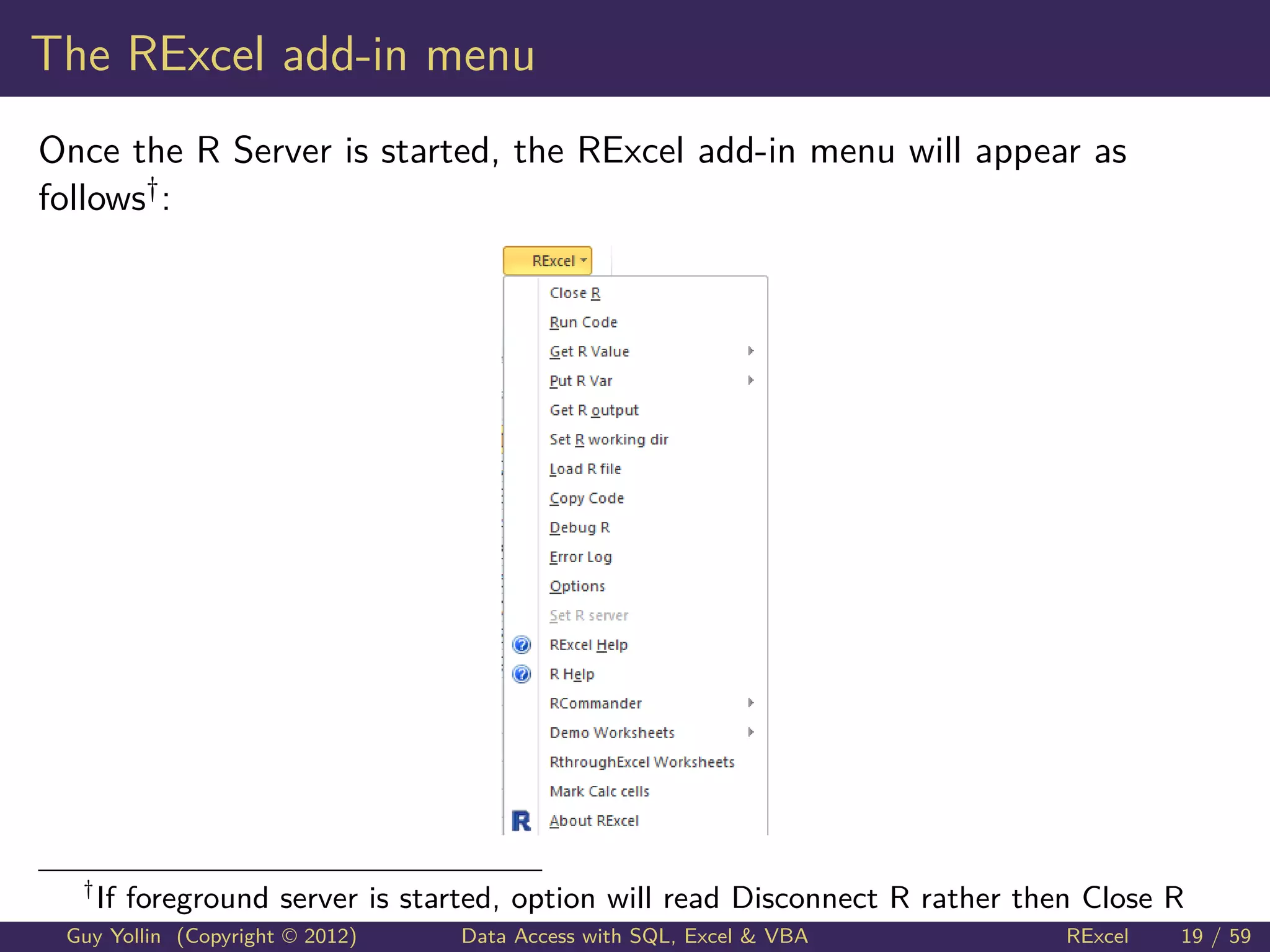

The RExcel add-in menu
Once the R Server is started, the RExcel add-in menu will appear as
follows† :

†

If foreground server is started, option will read Disconnect R rather then Close R



RExcel

19 / 59

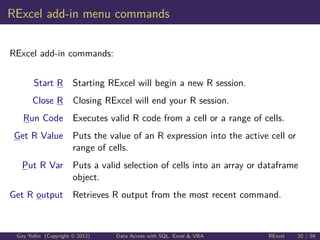

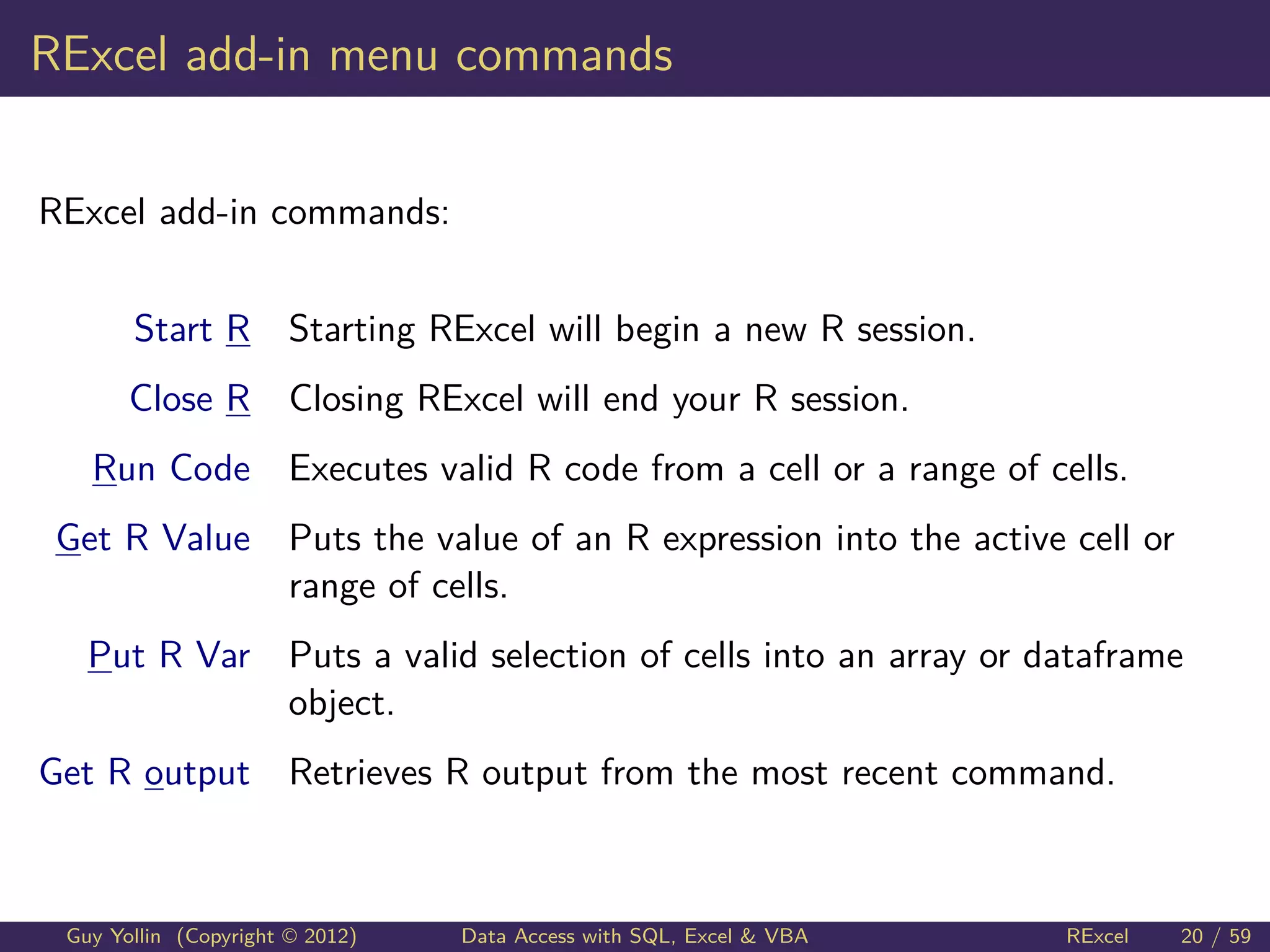

RExcel add-in menu commands
RExcel add-in commands:
Start R Starting RExcel will begin a new R session.
Close R
Run Code

Closing RExcel will end your R session.
Executes valid R code from a cell or a range of cells.

Get R Value

Puts the value of an R expression into the active cell or
range of cells.

Put R Var

Puts a valid selection of cells into an array or dataframe
object.

Get R output

Retrieves R output from the most recent command.



RExcel

20 / 59

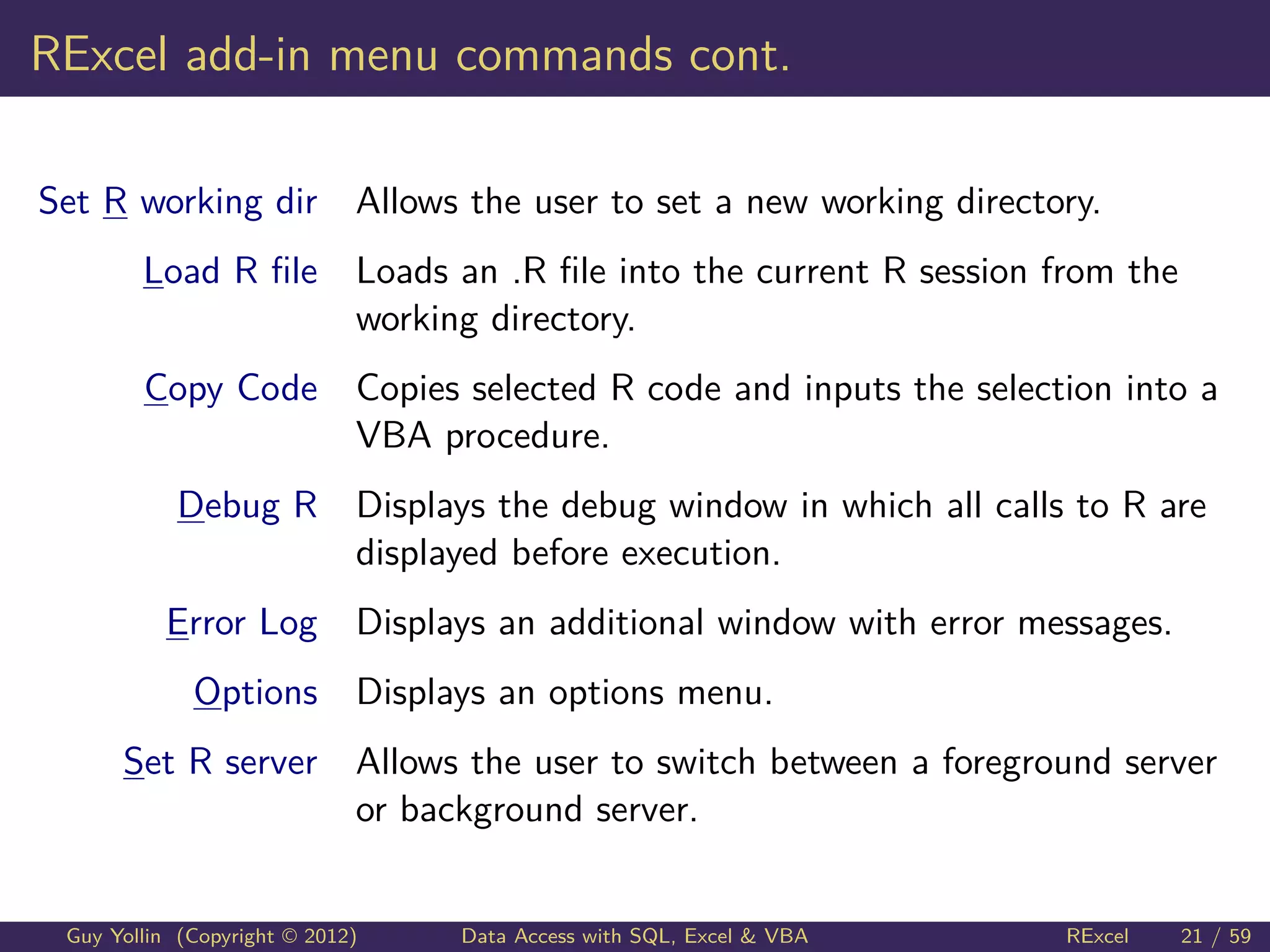

RExcel add-in menu commands cont.
Set R working dir

Allows the user to set a new working directory.

Load R ﬁle

Loads an .R ﬁle into the current R session from the
working directory.

Copy Code

Copies selected R code and inputs the selection into a
VBA procedure.

Debug R

Displays the debug window in which all calls to R are
displayed before execution.

Error Log

Displays an additional window with error messages.

Options
Set R server

Displays an options menu.
Allows the user to switch between a foreground server
or background server.



RExcel

21 / 59

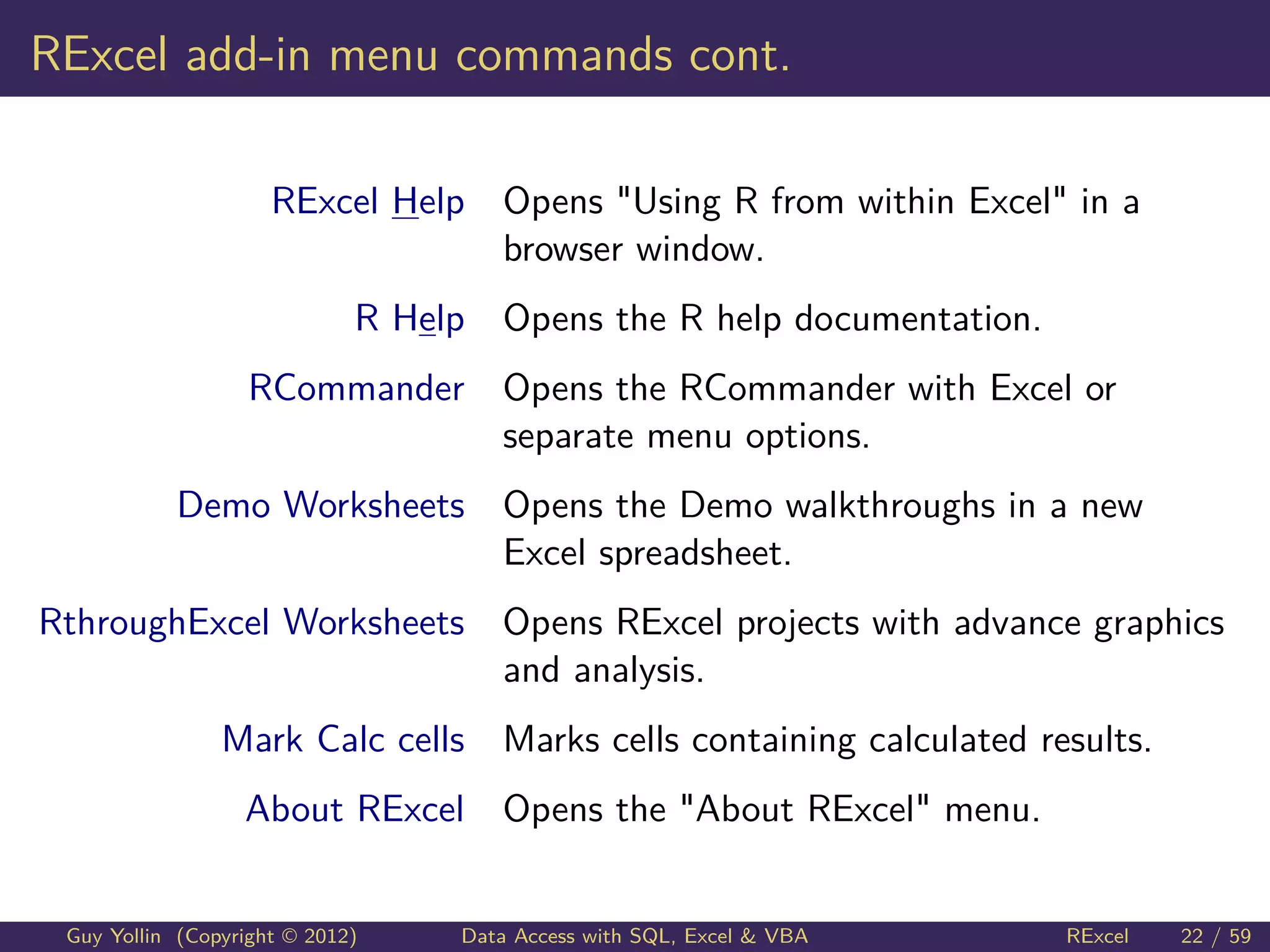

RExcel add-in menu commands cont.
RExcel Help
R Help
RCommander
Demo Worksheets
RthroughExcel Worksheets
Mark Calc cells
About RExcel

Opens "Using R from within Excel" in a
browser window.
Opens the R help documentation.
Opens the RCommander with Excel or
separate menu options.
Opens the Demo walkthroughs in a new
Excel spreadsheet.
Opens RExcel projects with advance graphics
and analysis.
Marks cells containing calculated results.
Opens the "About RExcel" menu.


RExcel

22 / 59

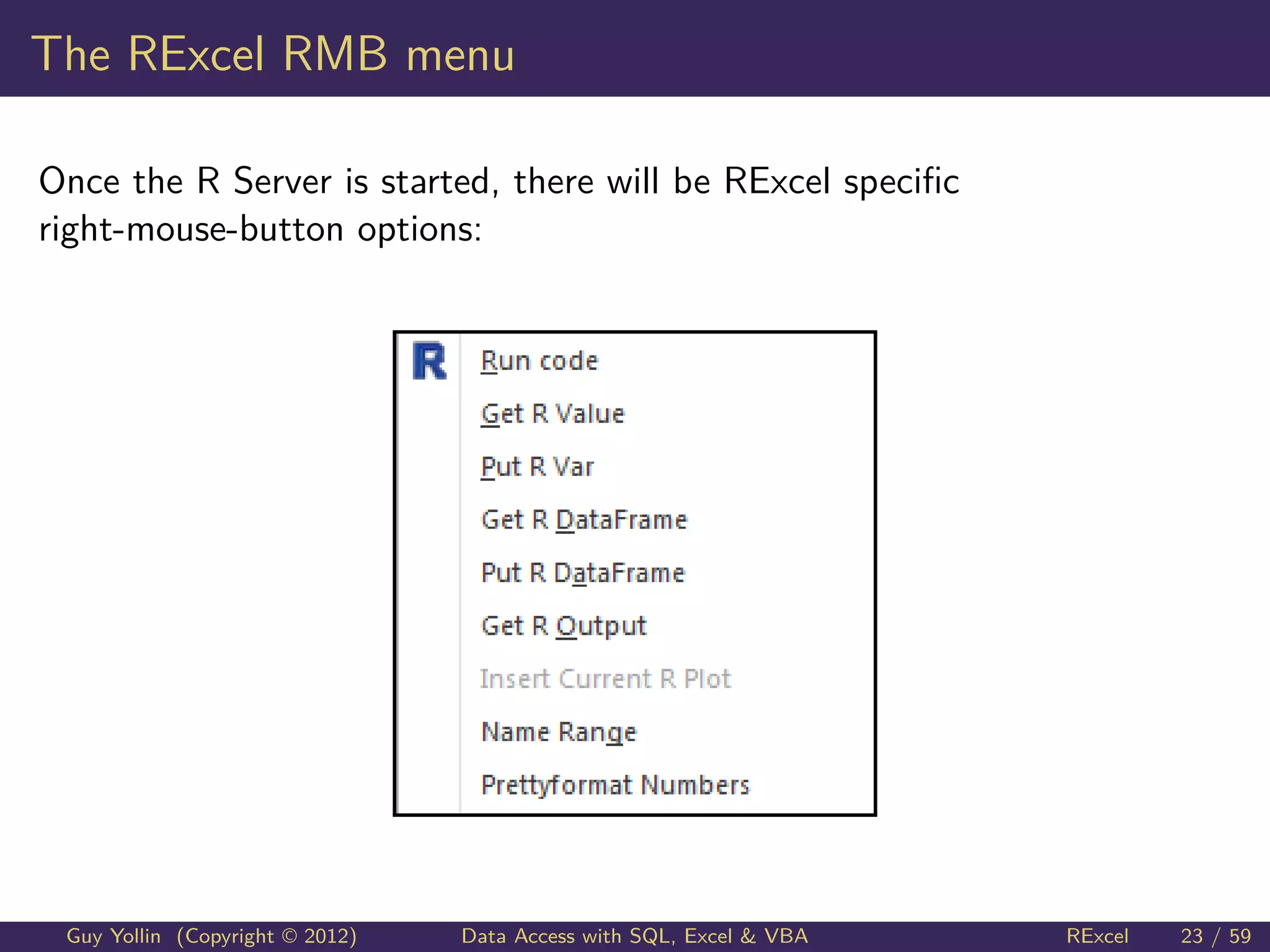

The RExcel RMB menu
Once the R Server is started, there will be RExcel speciﬁc
right-mouse-button options:



RExcel

23 / 59

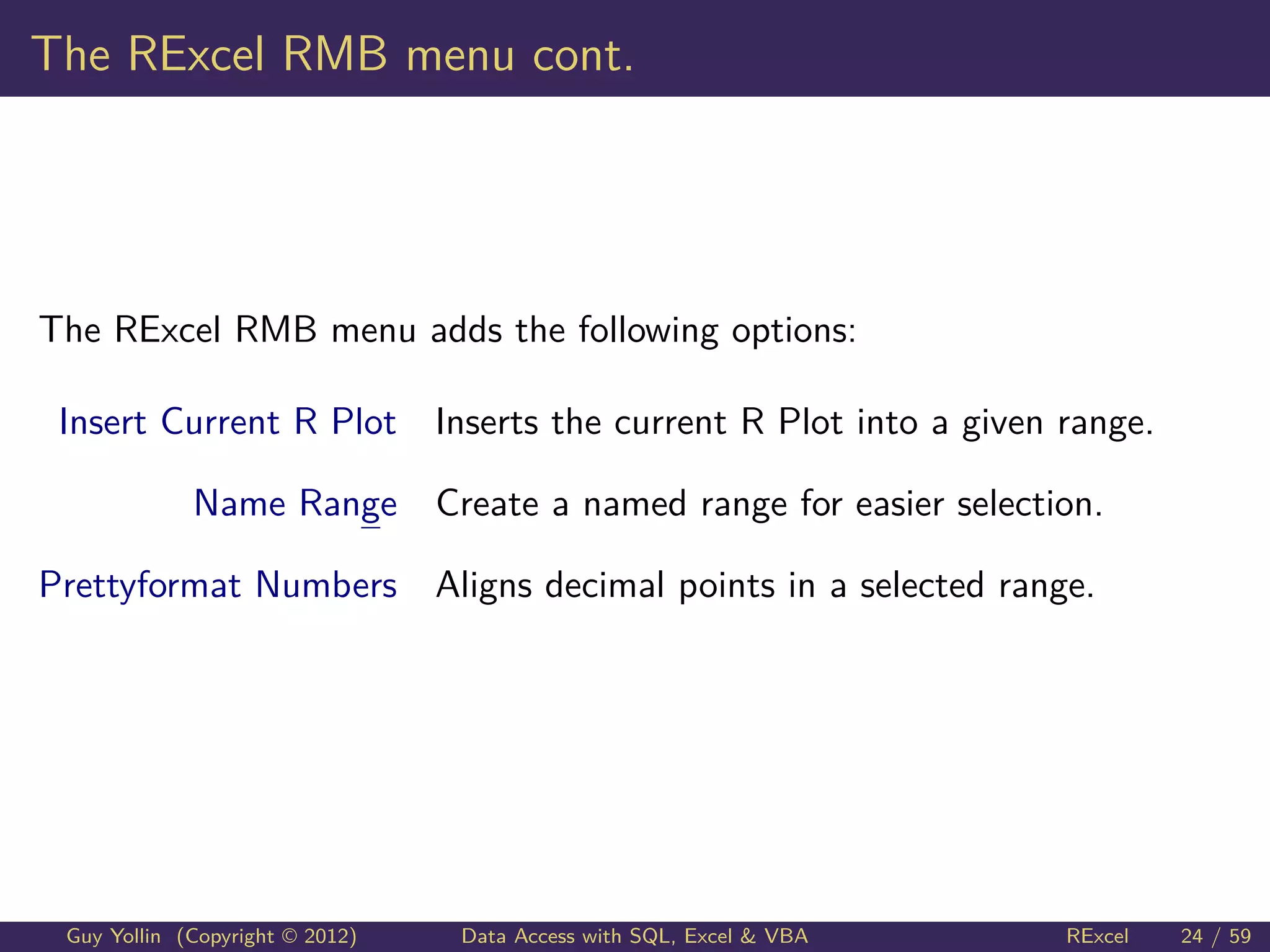

The RExcel RMB menu cont.

The RExcel RMB menu adds the following options:
Insert Current R Plot

Inserts the current R Plot into a given range.

Name Range

Create a named range for easier selection.

Prettyformat Numbers

Aligns decimal points in a selected range.



RExcel

24 / 59

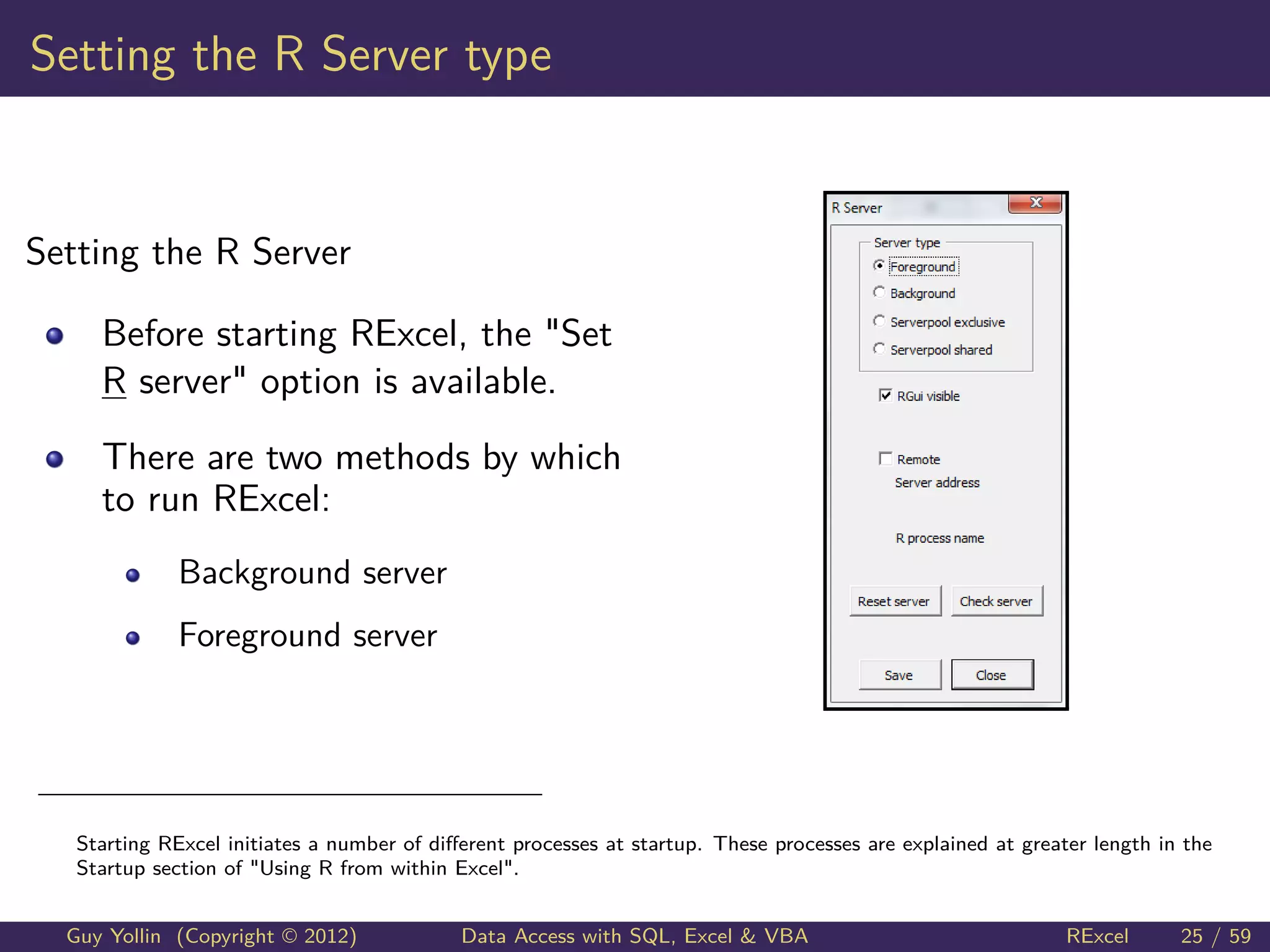

Setting the R Server type

Setting the R Server
Before starting RExcel, the "Set
R server" option is available.
There are two methods by which
to run RExcel:
Background server
Foreground server

Starting RExcel initiates a number of diﬀerent processes at startup. These processes are explained at greater length in the
Startup section of "Using R from within Excel".


RExcel

25 / 59

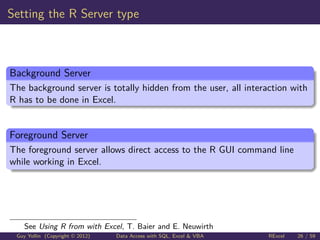

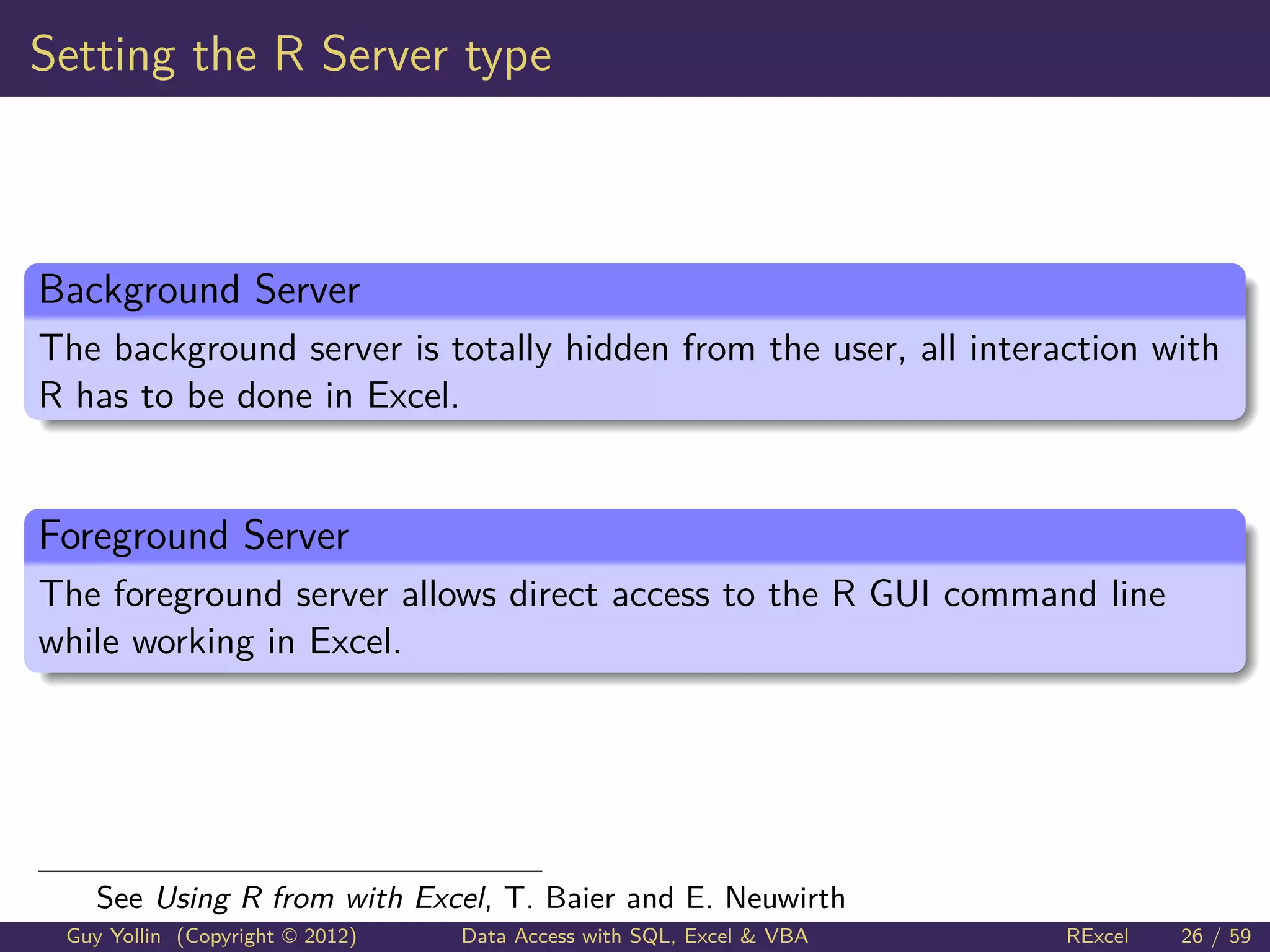

Setting the R Server type

Background Server
The background server is totally hidden from the user, all interaction with
R has to be done in Excel.

Foreground Server
The foreground server allows direct access to the R GUI command line
while working in Excel.

See Using R from with Excel, T. Baier and E. Neuwirth


RExcel

26 / 59

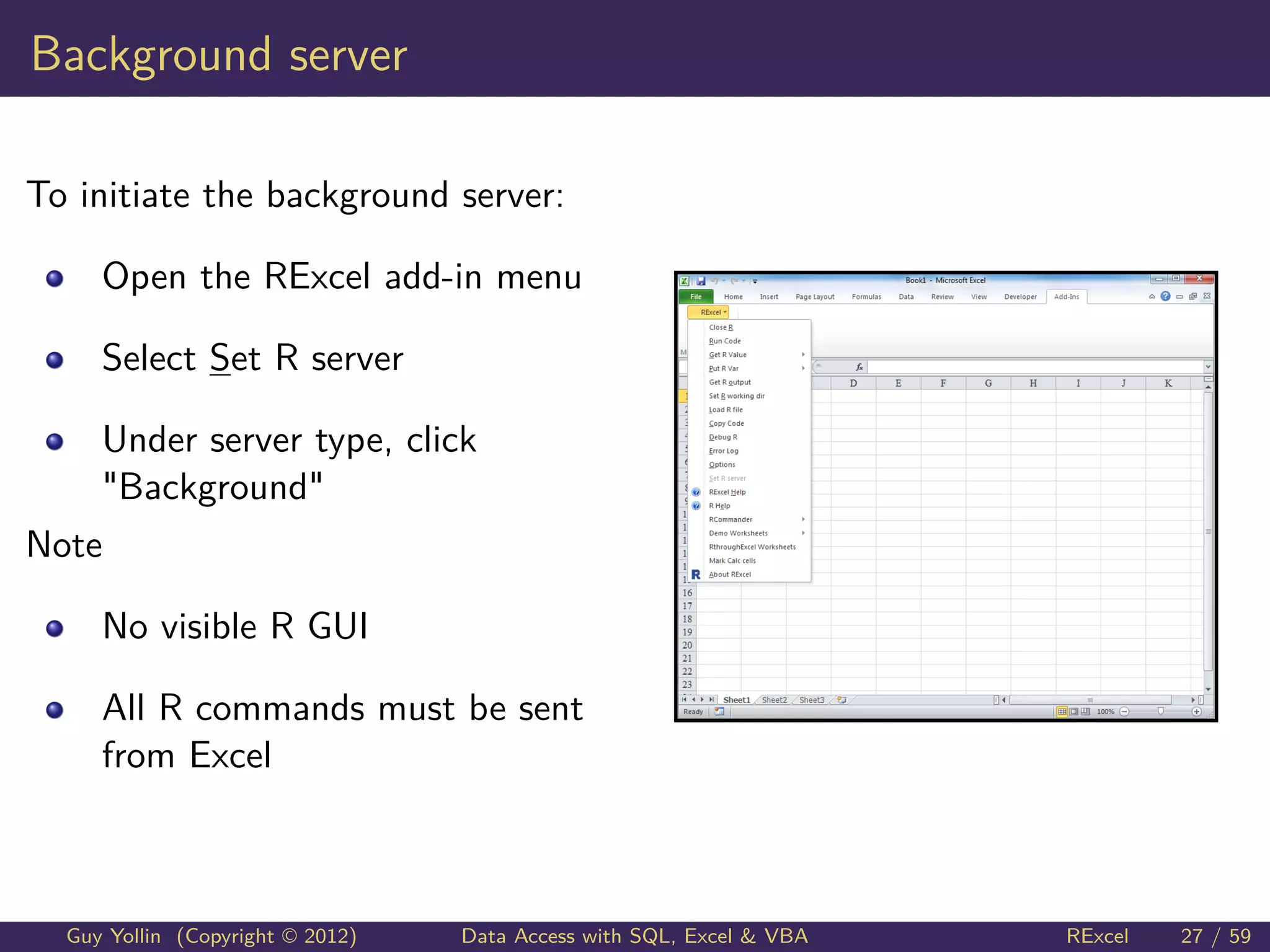

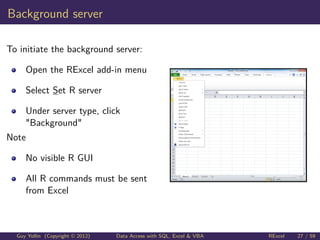

Background server
To initiate the background server:
Open the RExcel add-in menu
Select Set R server
Under server type, click
"Background"
Note
No visible R GUI
All R commands must be sent
from Excel



RExcel

27 / 59

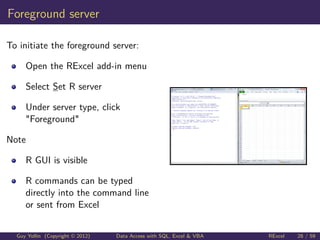

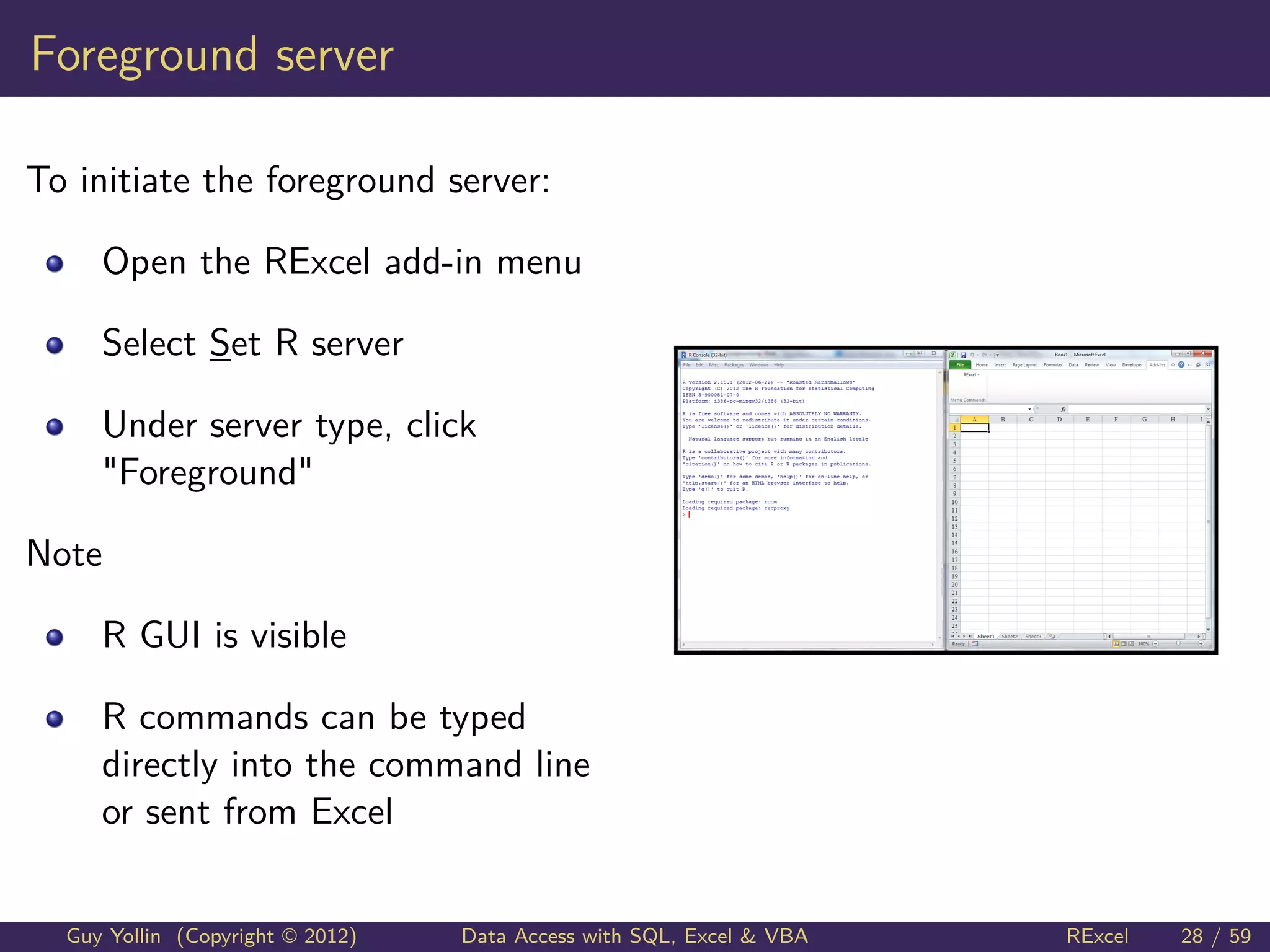

Foreground server
To initiate the foreground server:
Select Set R server
Under server type, click
"Foreground"
Note
R GUI is visible
R commands can be typed
directly into the command line
or sent from Excel


RExcel

28 / 59

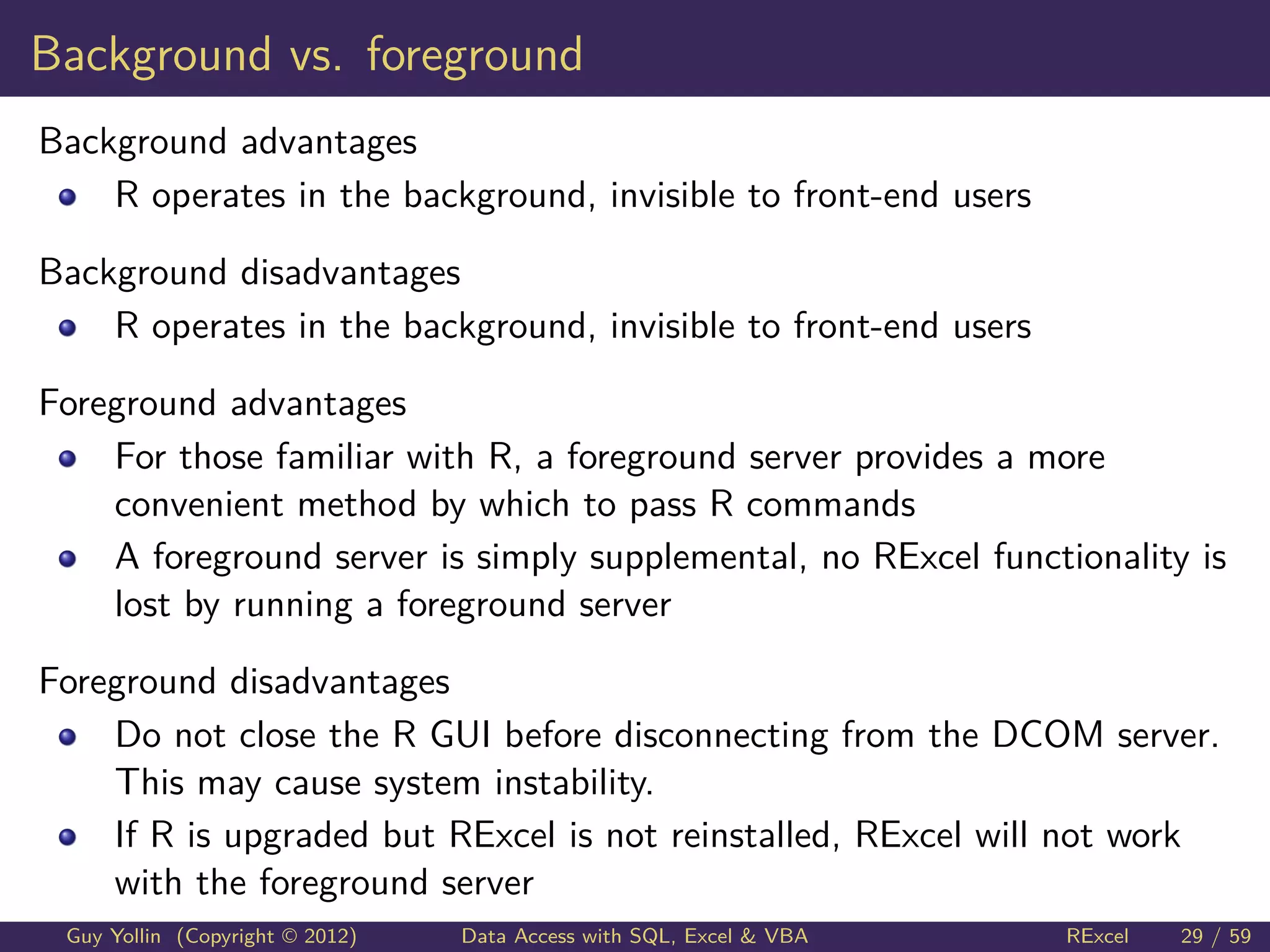

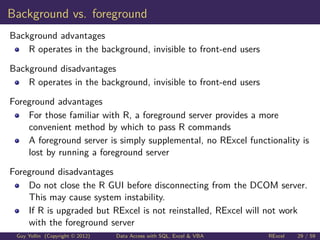

Background vs. foreground
Background advantages
R operates in the background, invisible to front-end users
Background disadvantages
R operates in the background, invisible to front-end users
Foreground advantages
For those familiar with R, a foreground server provides a more
convenient method by which to pass R commands
A foreground server is simply supplemental, no RExcel functionality is
lost by running a foreground server
Foreground disadvantages
Do not close the R GUI before disconnecting from the DCOM server.
This may cause system instability.
If R is upgraded but RExcel is not reinstalled, RExcel will not work
with the foreground server


RExcel

29 / 59

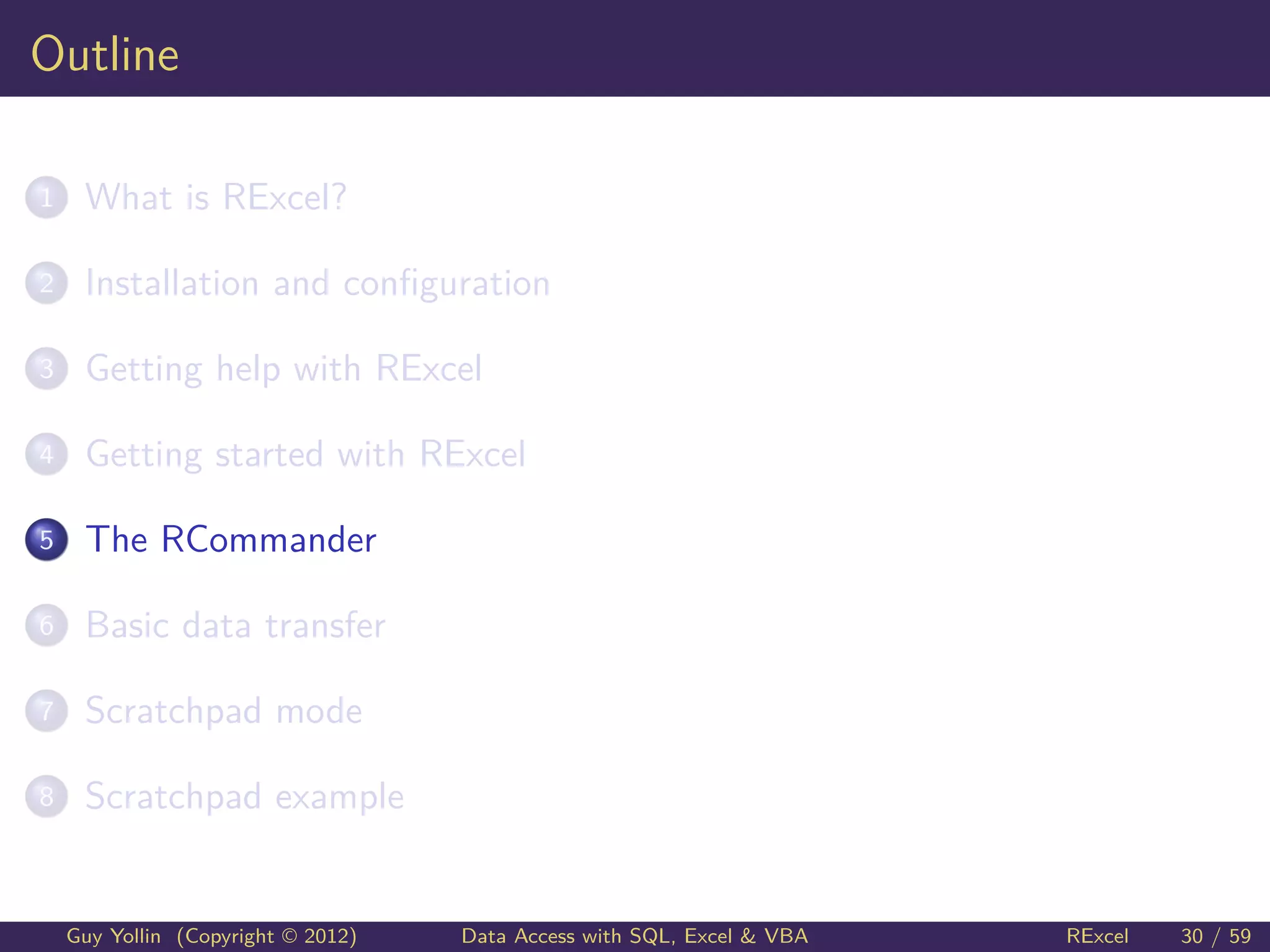

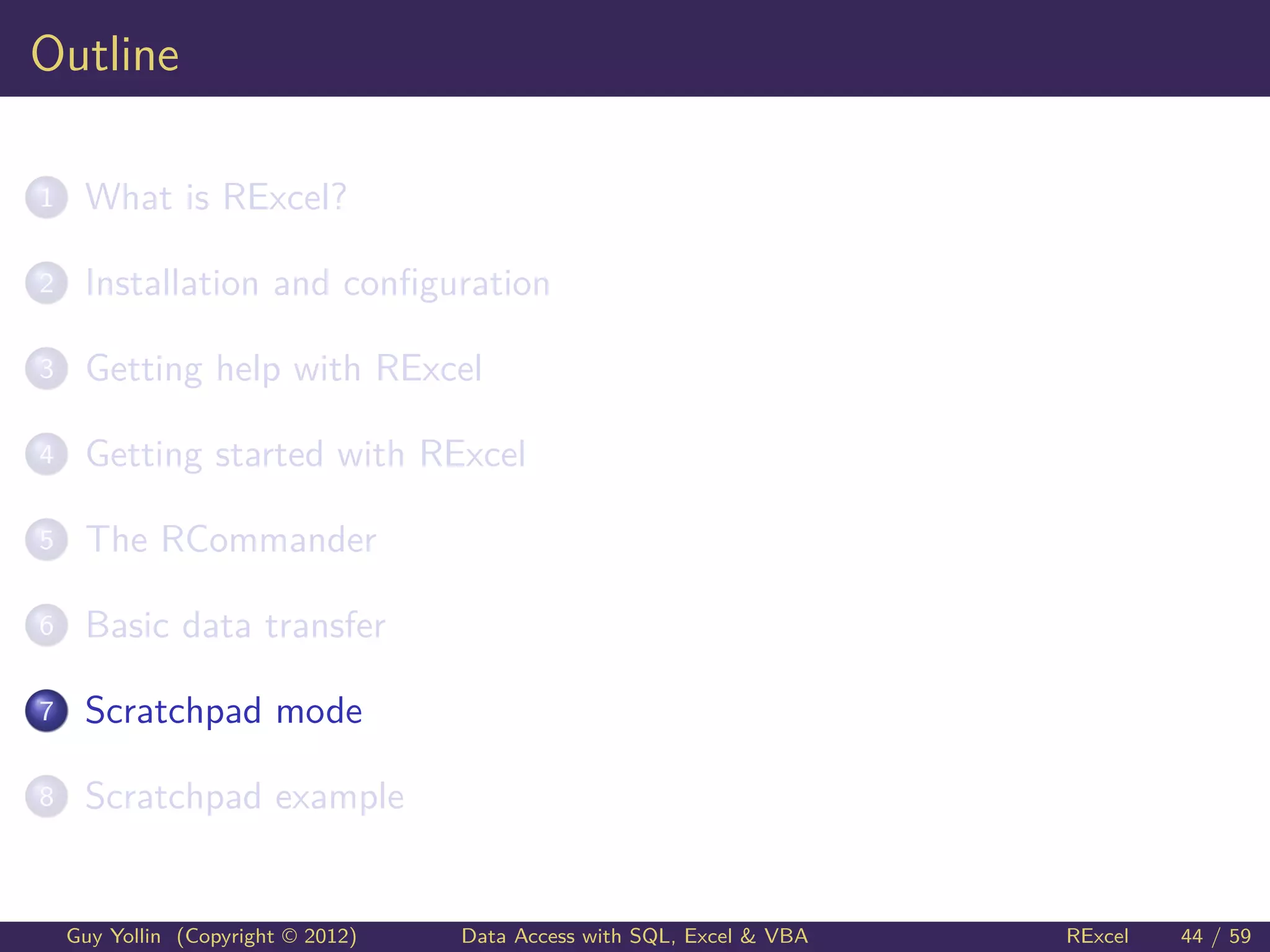

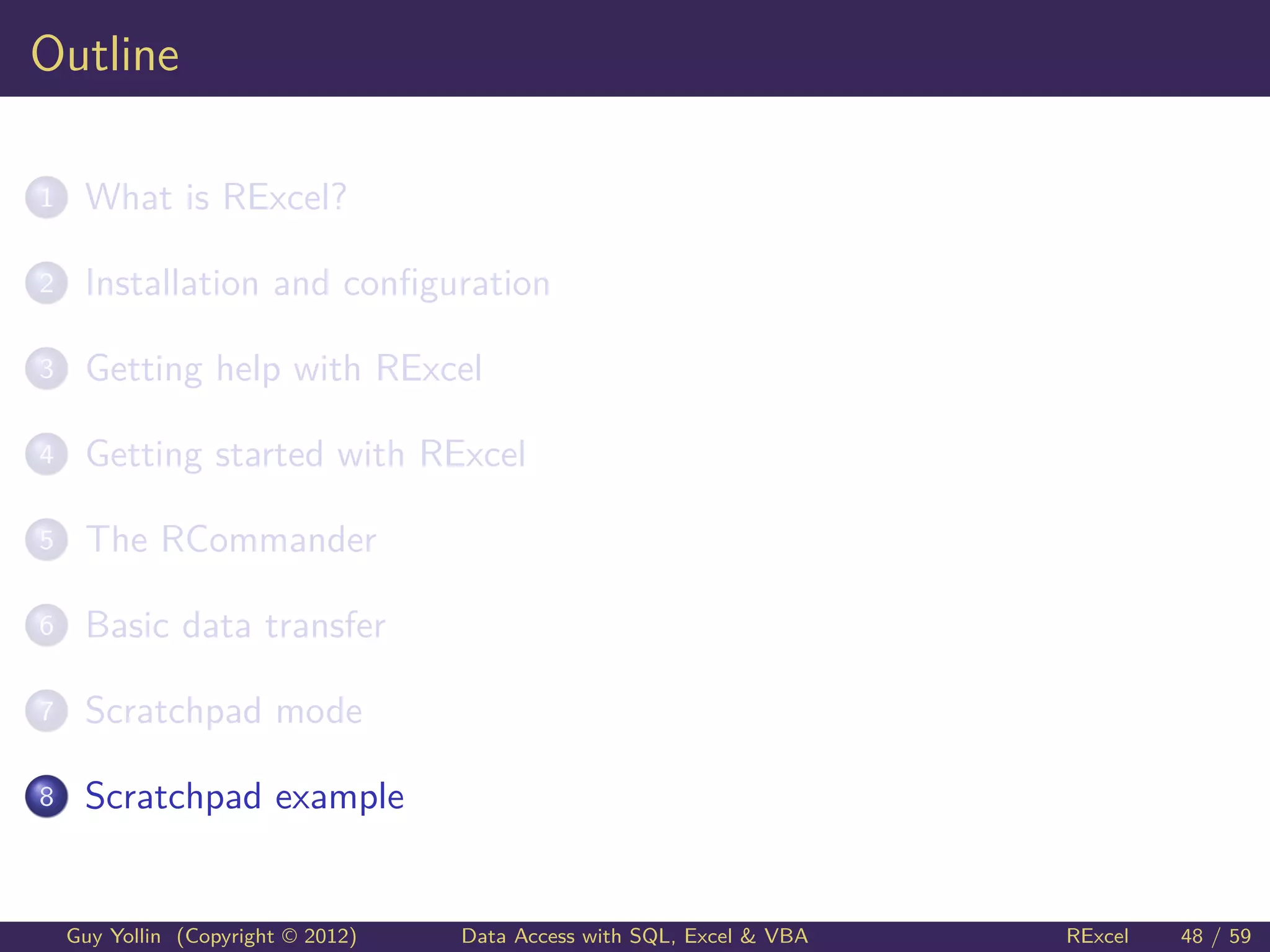

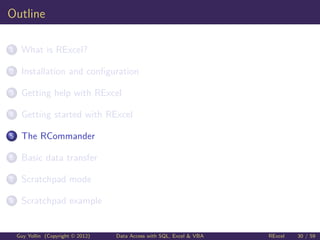

Outline
1

What is RExcel?

2


3


4


5

The RCommander

6

Basic data transfer

7

Scratchpad mode

8

Scratchpad example



RExcel

30 / 59

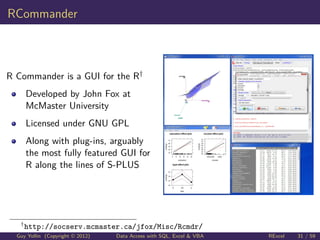

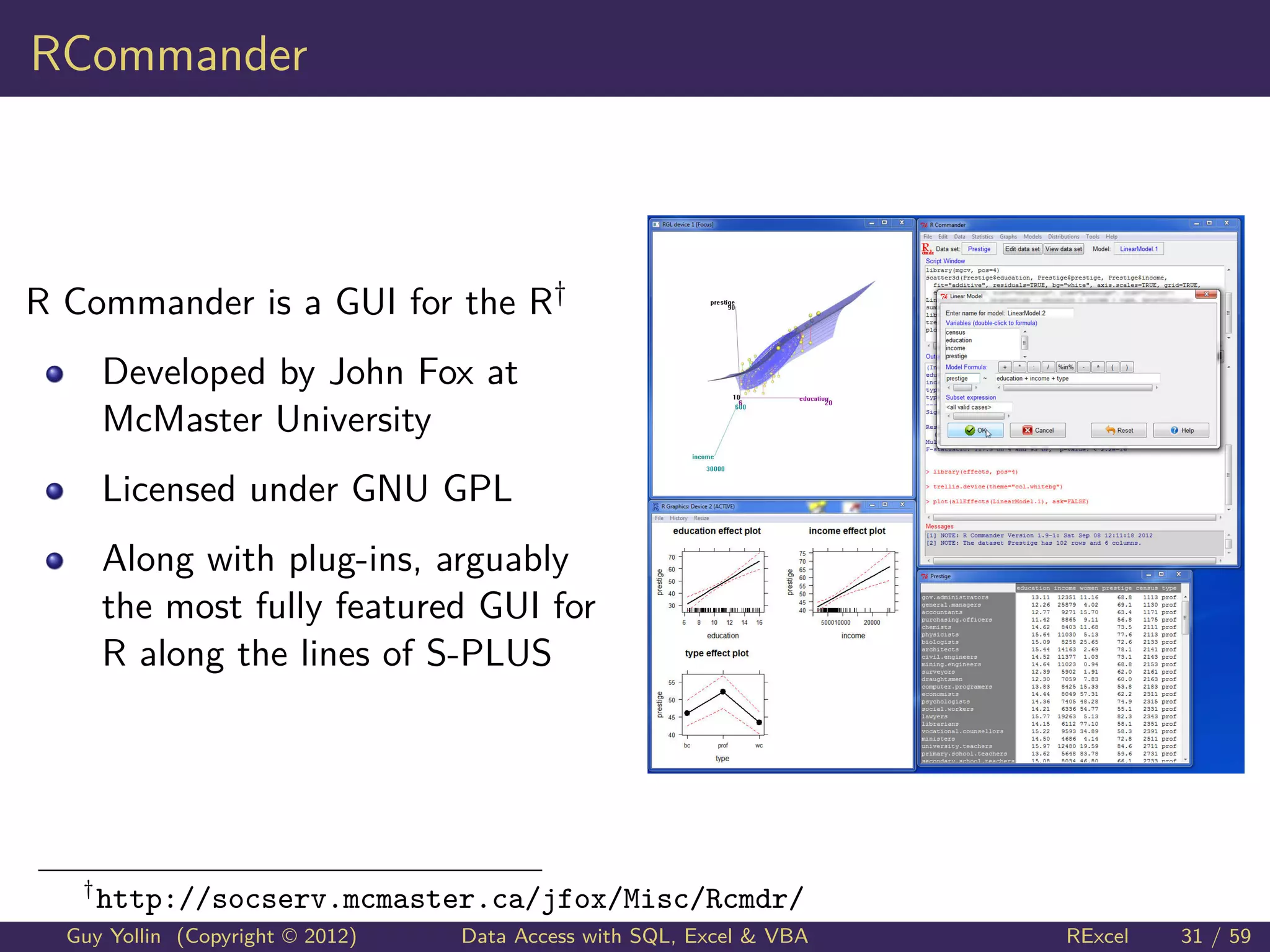

RCommander

R Commander is a GUI for the R†
Developed by John Fox at
McMaster University
Licensed under GNU GPL
Along with plug-ins, arguably
the most fully featured GUI for
R along the lines of S-PLUS

†

http://socserv.mcmaster.ca/jfox/Misc/Rcmdr/



RExcel

31 / 59

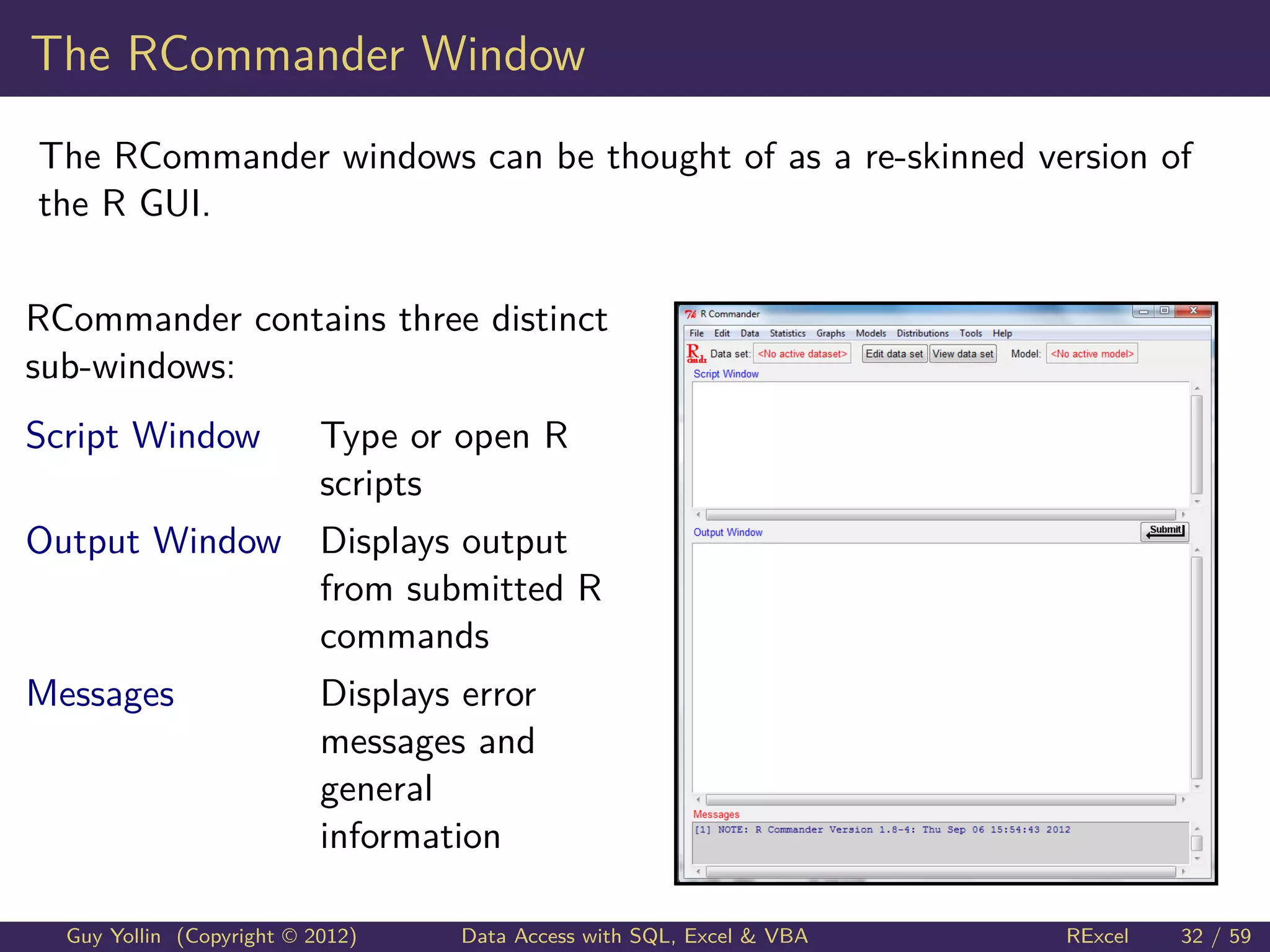

The RCommander Window
The RCommander windows can be thought of as a re-skinned version of
the R GUI.
RCommander contains three distinct
sub-windows:
Script Window

Type or open R
scripts

Output Window

Displays output
from submitted R
commands

Messages

Displays error
messages and
general
information



RExcel

32 / 59

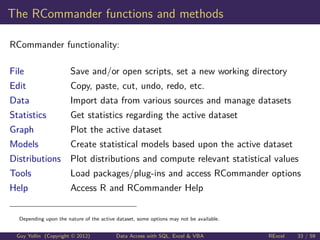

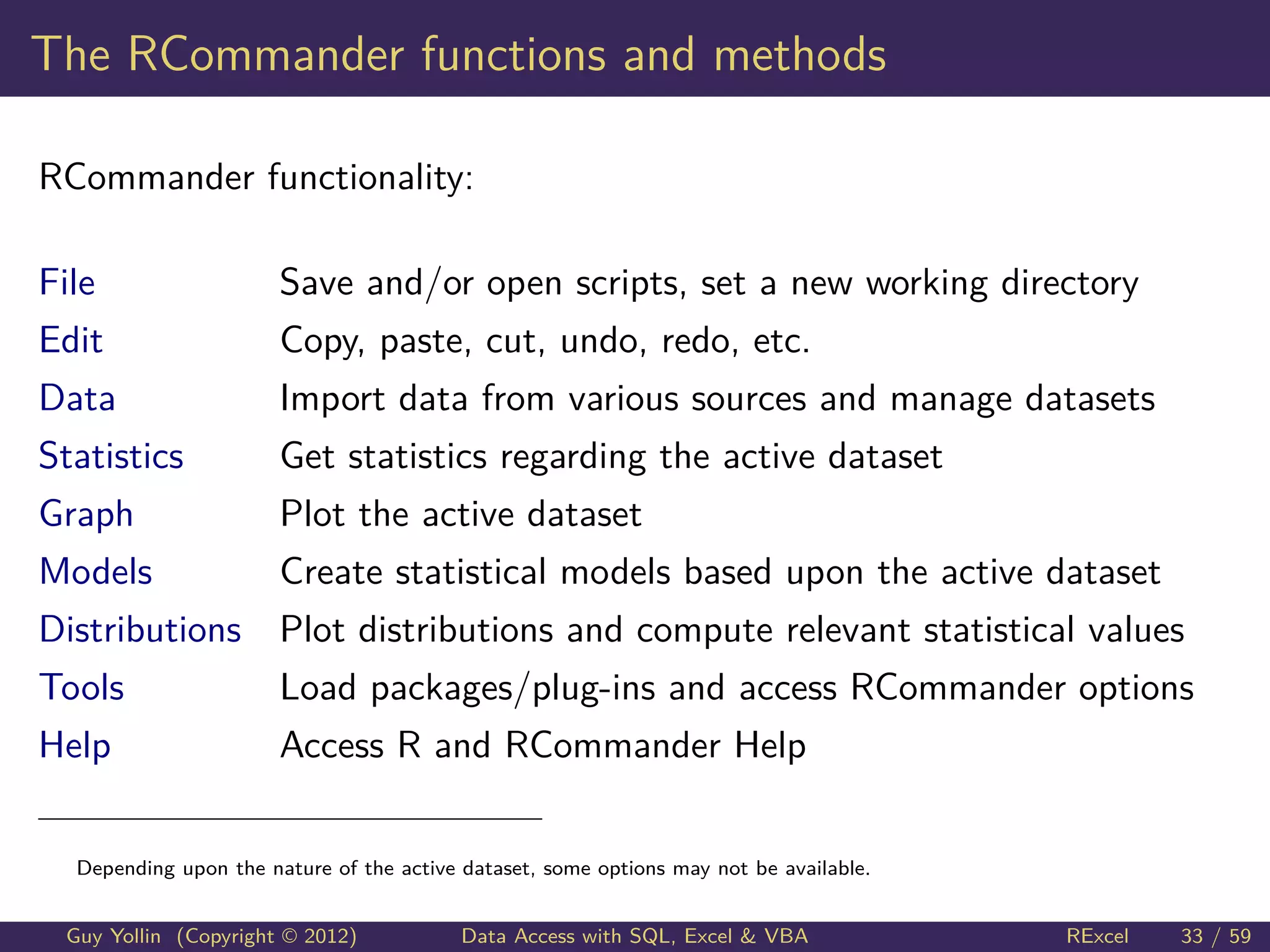

The RCommander functions and methods
RCommander functionality:
File

Save and/or open scripts, set a new working directory

Edit

Copy, paste, cut, undo, redo, etc.

Data

Import data from various sources and manage datasets

Statistics

Get statistics regarding the active dataset

Graph

Plot the active dataset

Models

Create statistical models based upon the active dataset

Distributions

Plot distributions and compute relevant statistical values

Tools

Load packages/plug-ins and access RCommander options

Help

Access R and RCommander Help

Depending upon the nature of the active dataset, some options may not be available.


RExcel

33 / 59

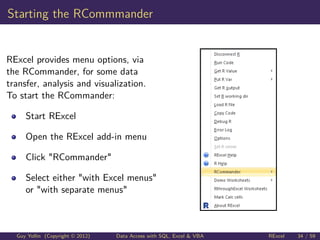

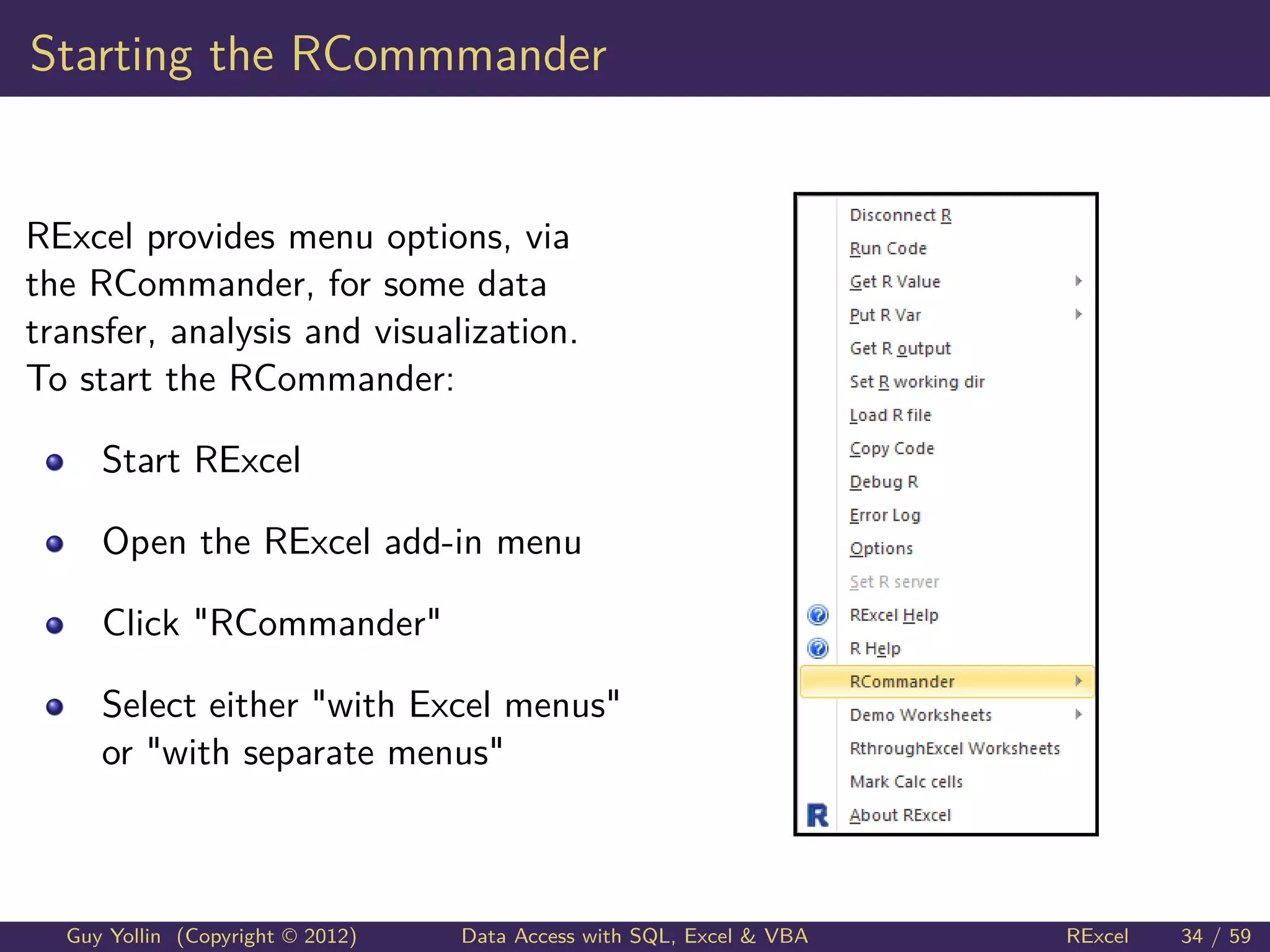

Starting the RCommmander

RExcel provides menu options, via
the RCommander, for some data
transfer, analysis and visualization.
To start the RCommander:
Start RExcel
Click "RCommander"
Select either "with Excel menus"
or "with separate menus"



RExcel

34 / 59

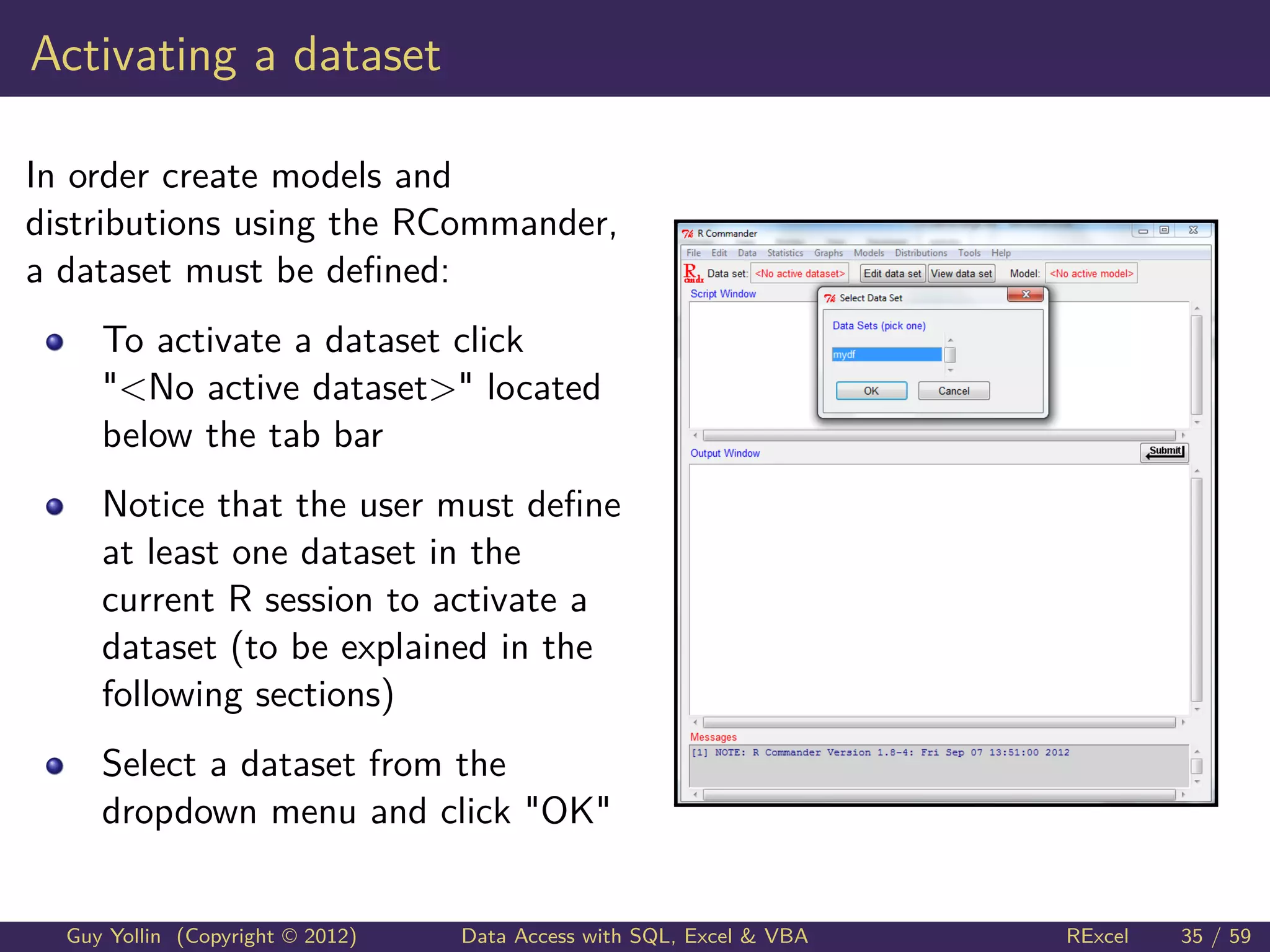

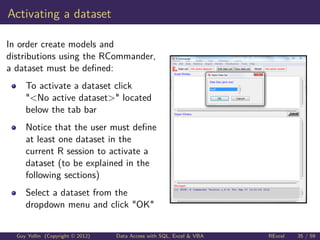

Activating a dataset
In order create models and
distributions using the RCommander,
a dataset must be deﬁned:
To activate a dataset click
"<No active dataset>" located
below the tab bar
Notice that the user must deﬁne
at least one dataset in the
current R session to activate a
dataset (to be explained in the
following sections)
Select a dataset from the
dropdown menu and click "OK"


RExcel

35 / 59

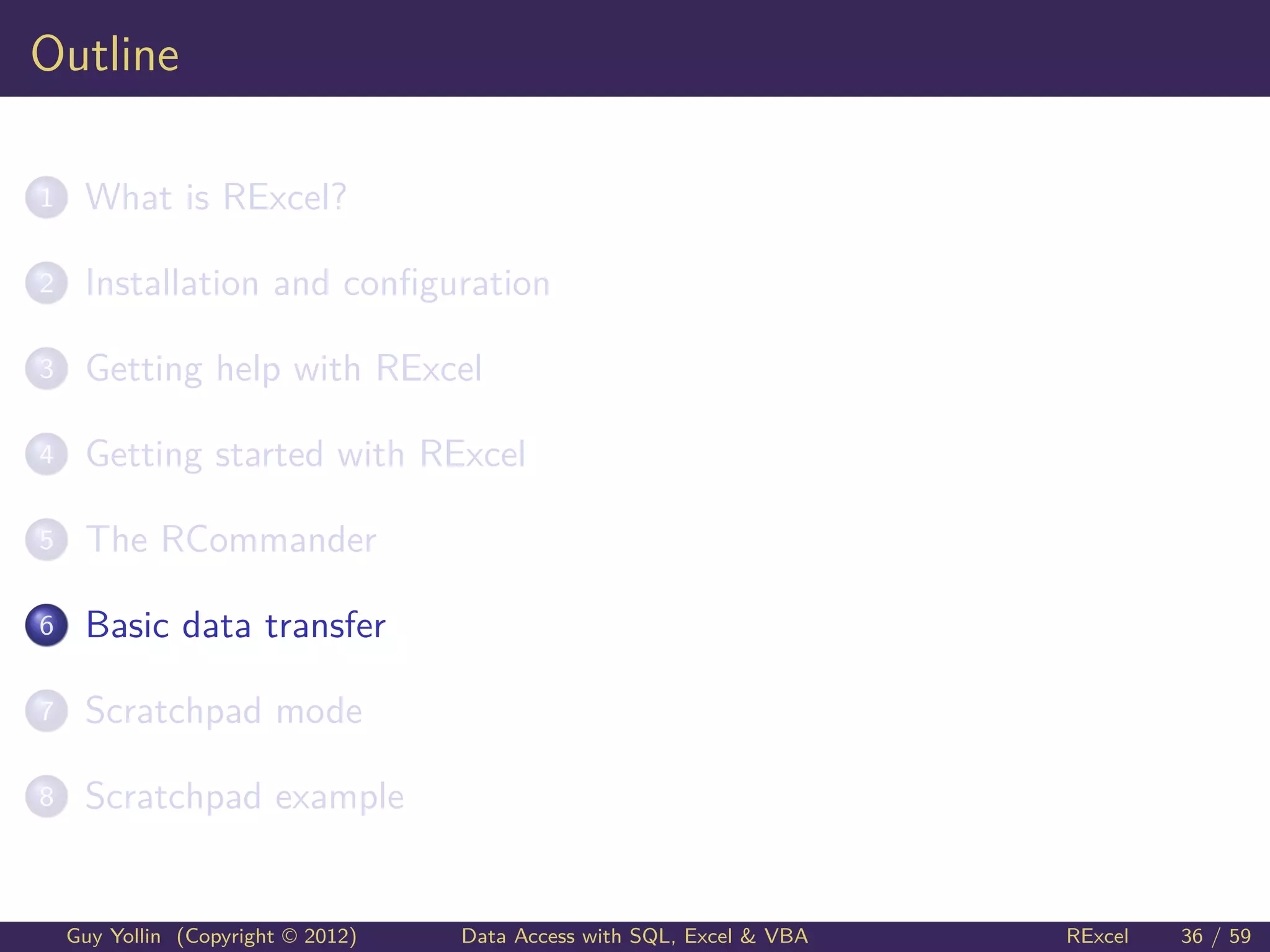

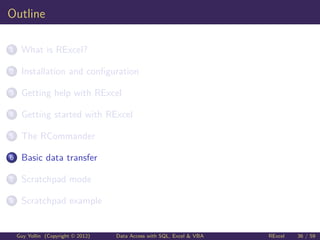

Outline
1

What is RExcel?

2


3


4


5

The RCommander

6

Basic data transfer

7

Scratchpad mode

8

Scratchpad example



RExcel

36 / 59

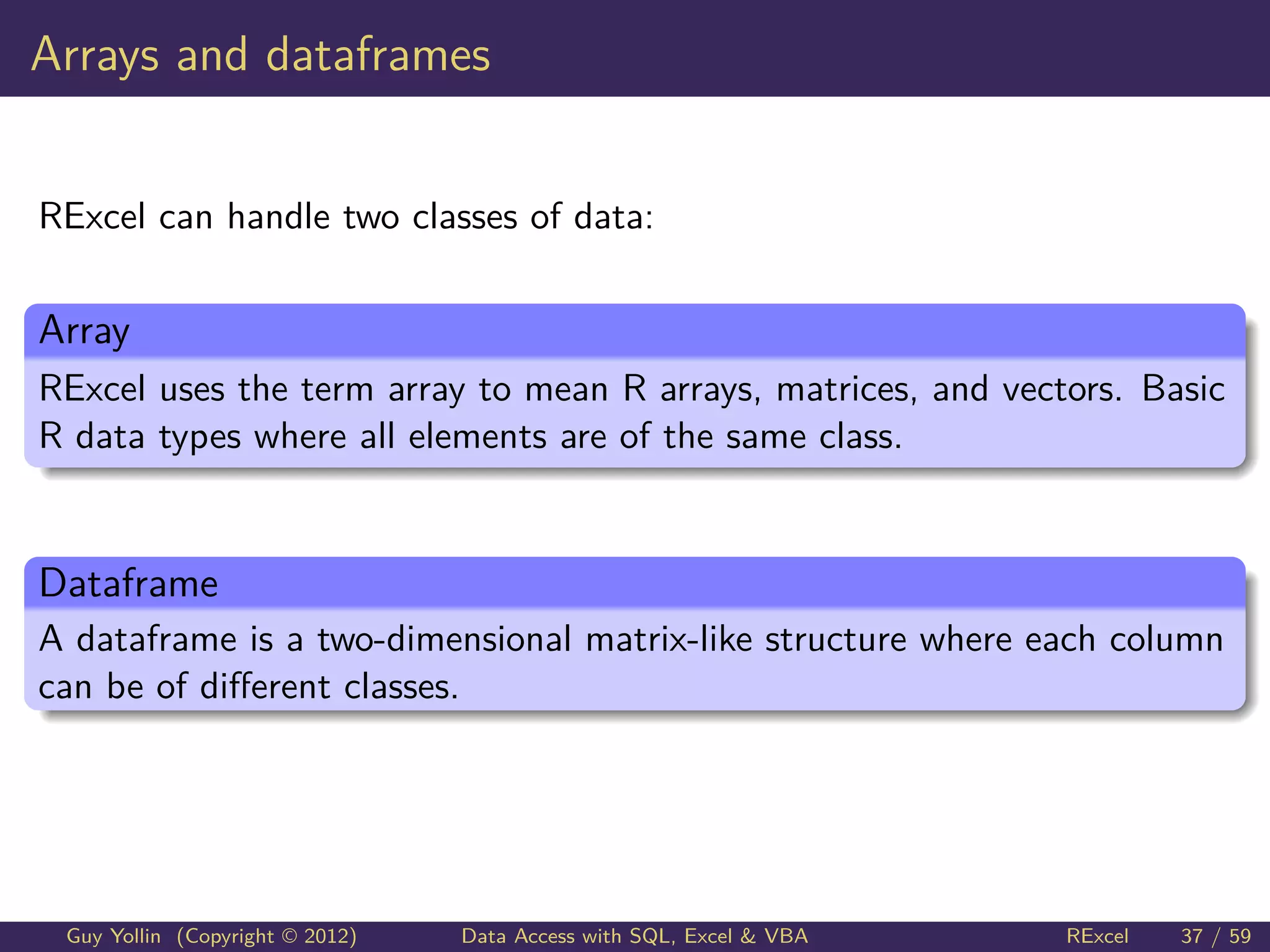

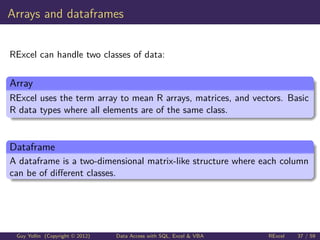

Arrays and dataframes
RExcel can handle two classes of data:

Array
RExcel uses the term array to mean R arrays, matrices, and vectors. Basic
R data types where all elements are of the same class.

Dataframe
A dataframe is a two-dimensional matrix-like structure where each column
can be of diﬀerent classes.



RExcel

37 / 59

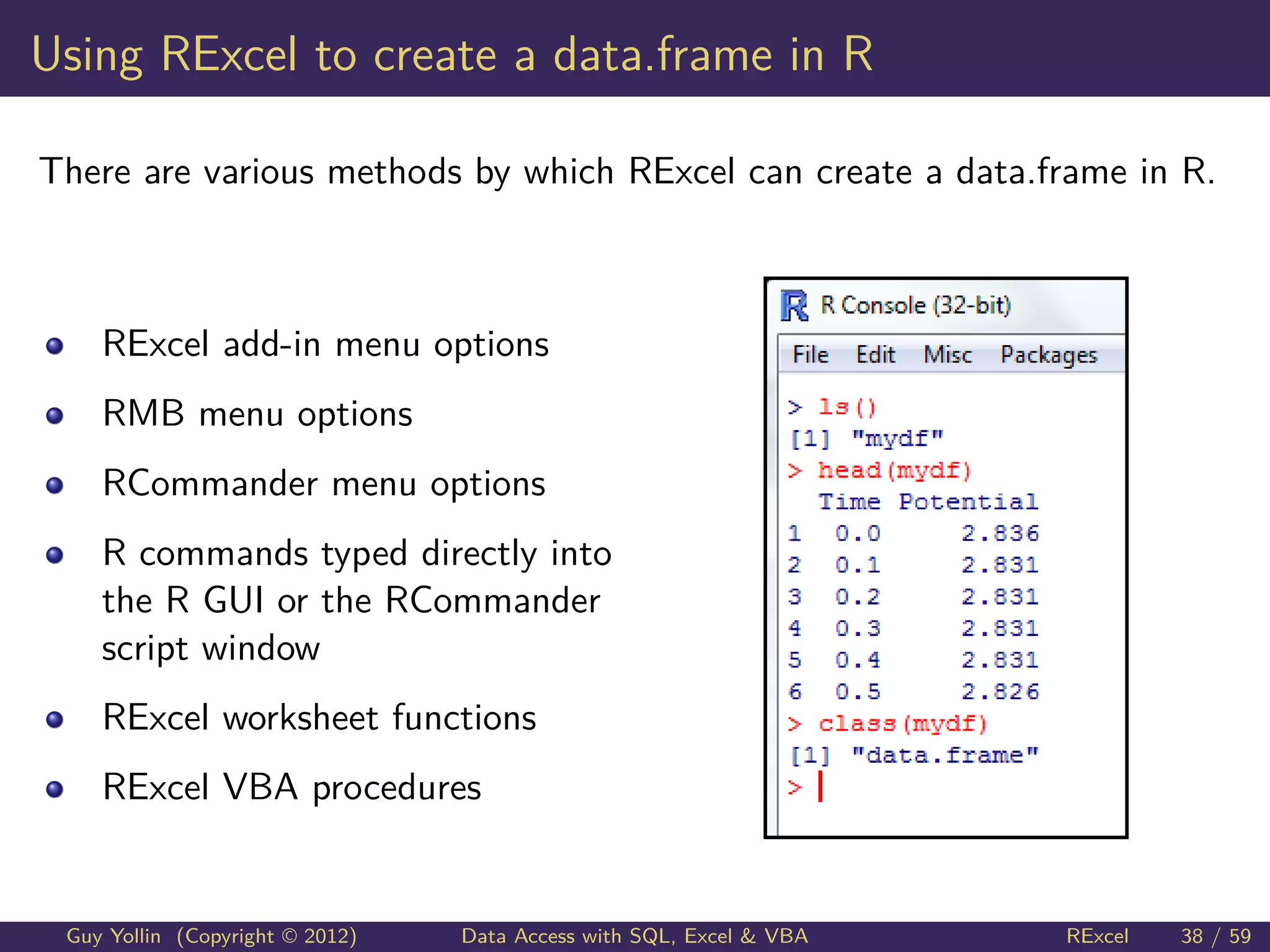

Using RExcel to create a data.frame in R
There are various methods by which RExcel can create a data.frame in R.

RExcel add-in menu options
RMB menu options
RCommander menu options
R commands typed directly into
the R GUI or the RCommander
script window
RExcel worksheet functions
RExcel VBA procedures



RExcel

38 / 59

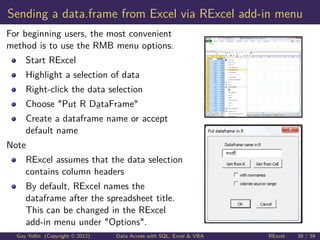

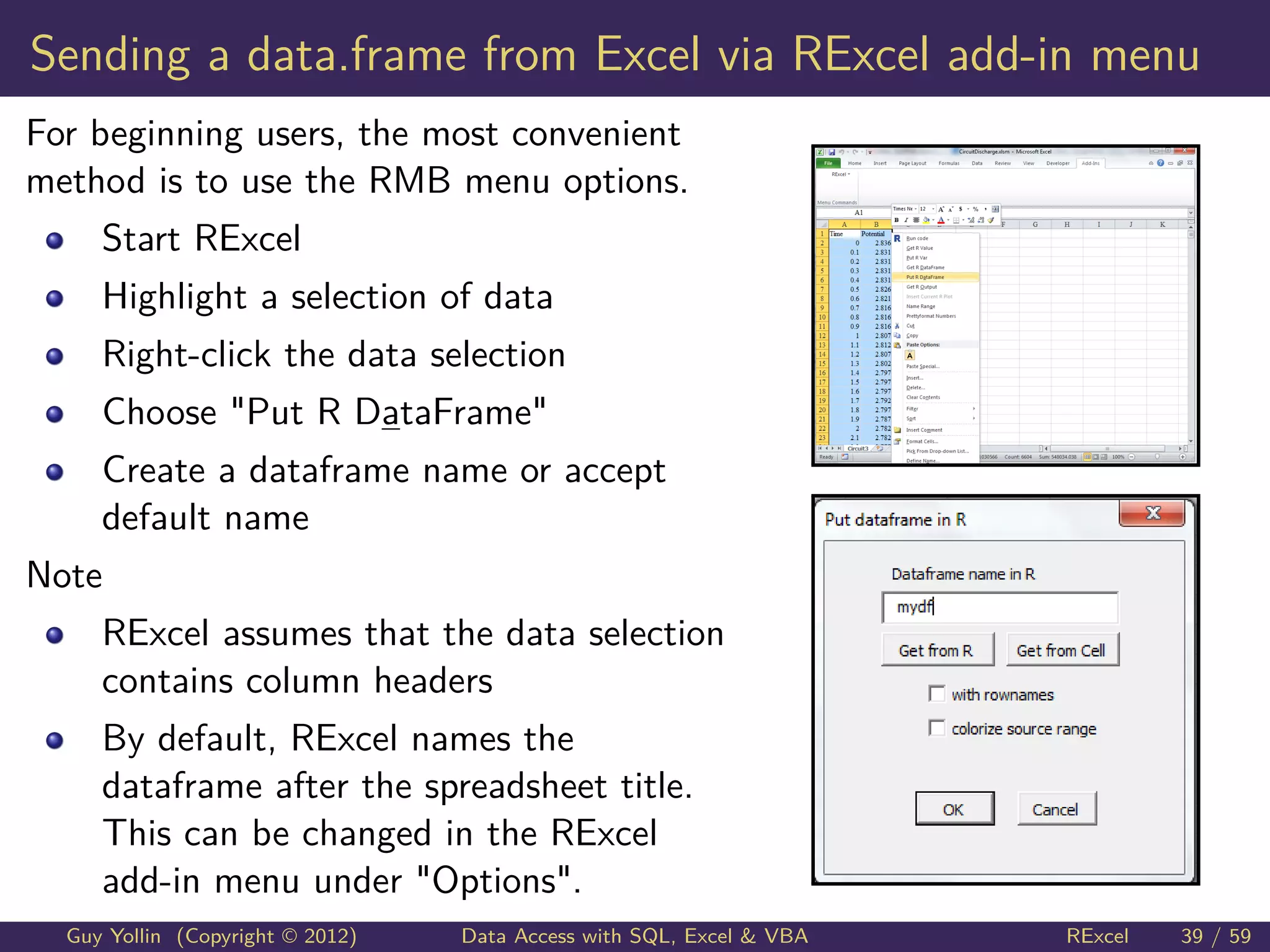

Sending a data.frame from Excel via RExcel add-in menu
For beginning users, the most convenient
method is to use the RMB menu options.
Start RExcel
Highlight a selection of data
Right-click the data selection
Choose "Put R DataFrame"
Create a dataframe name or accept
default name
Note
RExcel assumes that the data selection
contains column headers
By default, RExcel names the
dataframe after the spreadsheet title.
This can be changed in the RExcel
add-in menu under "Options".


RExcel

39 / 59

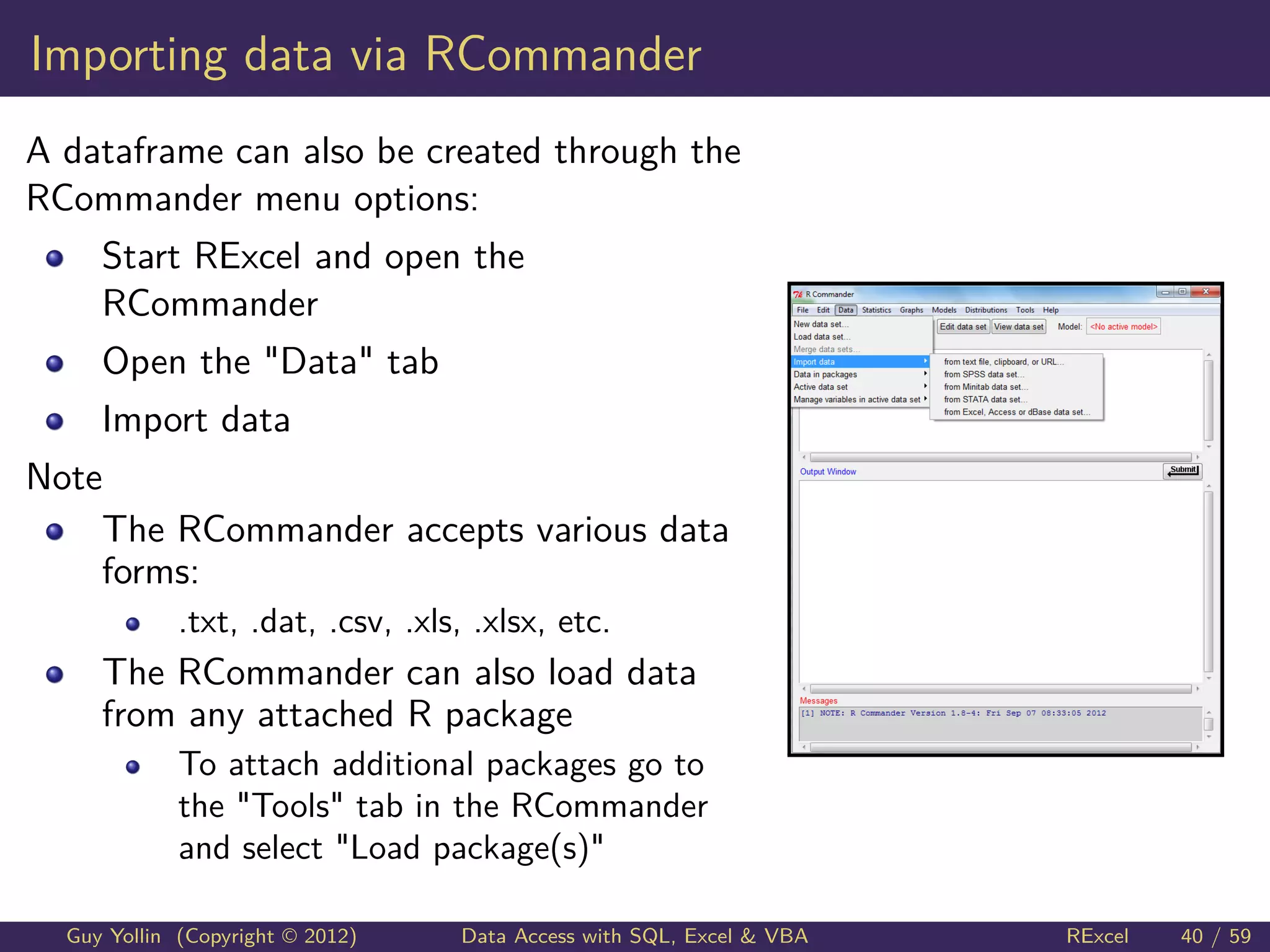

Importing data via RCommander
A dataframe can also be created through the
RCommander menu options:
Start RExcel and open the
RCommander
Open the "Data" tab
Import data
Note
The RCommander accepts various data
forms:
.txt, .dat, .csv, .xls, .xlsx, etc.

The RCommander can also load data
from any attached R package
To attach additional packages go to
the "Tools" tab in the RCommander
and select "Load package(s)"


RExcel

40 / 59

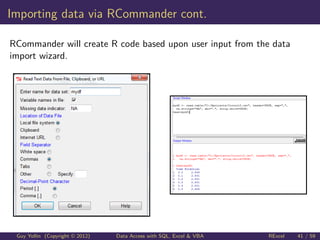

Importing data via RCommander cont.
RCommander will create R code based upon user input from the data
import wizard.



RExcel

41 / 59

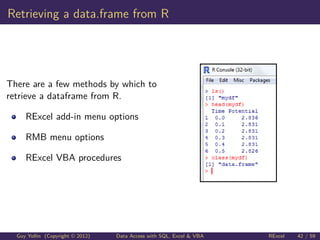

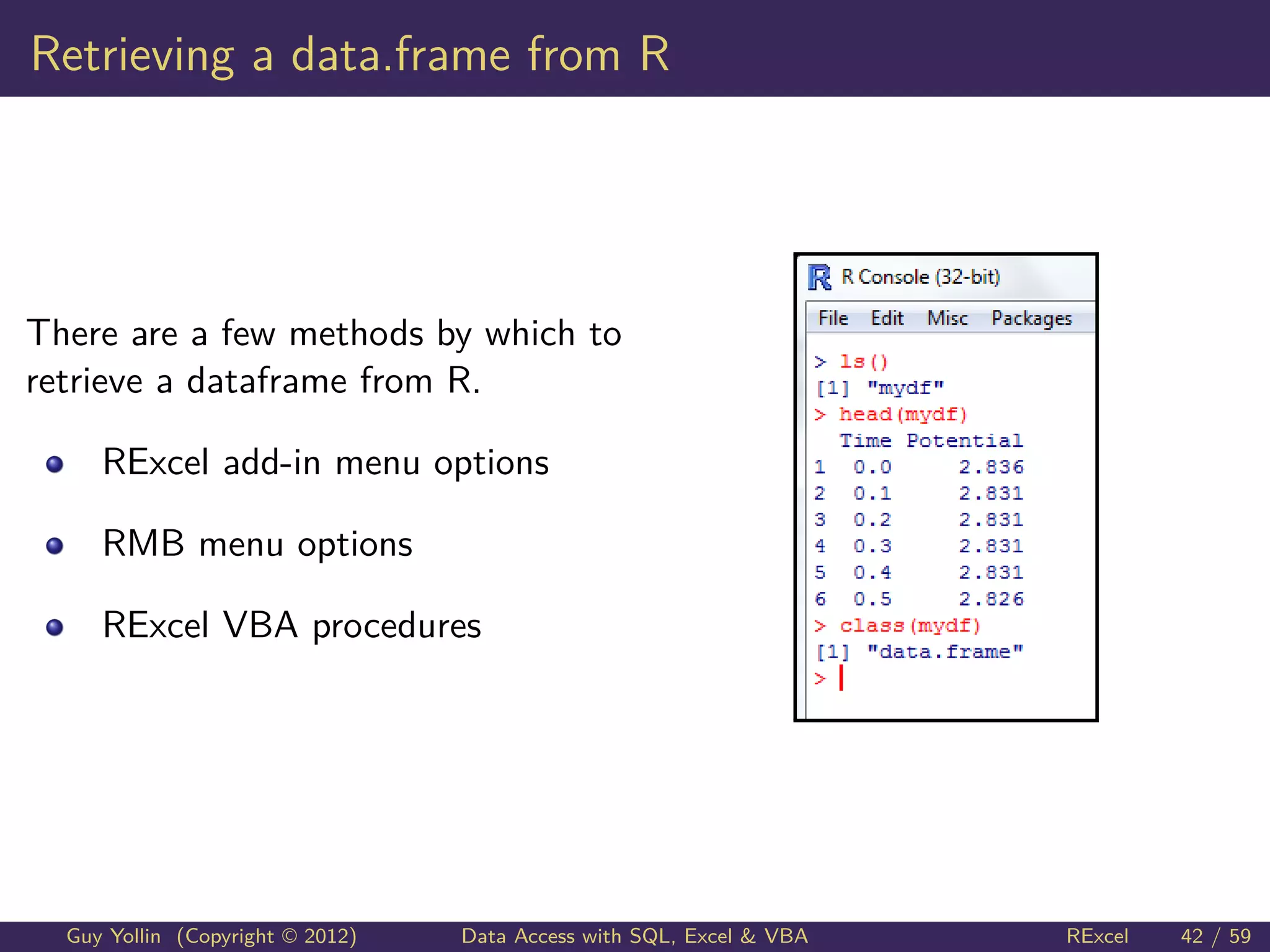

Retrieving a data.frame from R

There are a few methods by which to
retrieve a dataframe from R.
RExcel add-in menu options
RMB menu options
RExcel VBA procedures



RExcel

42 / 59

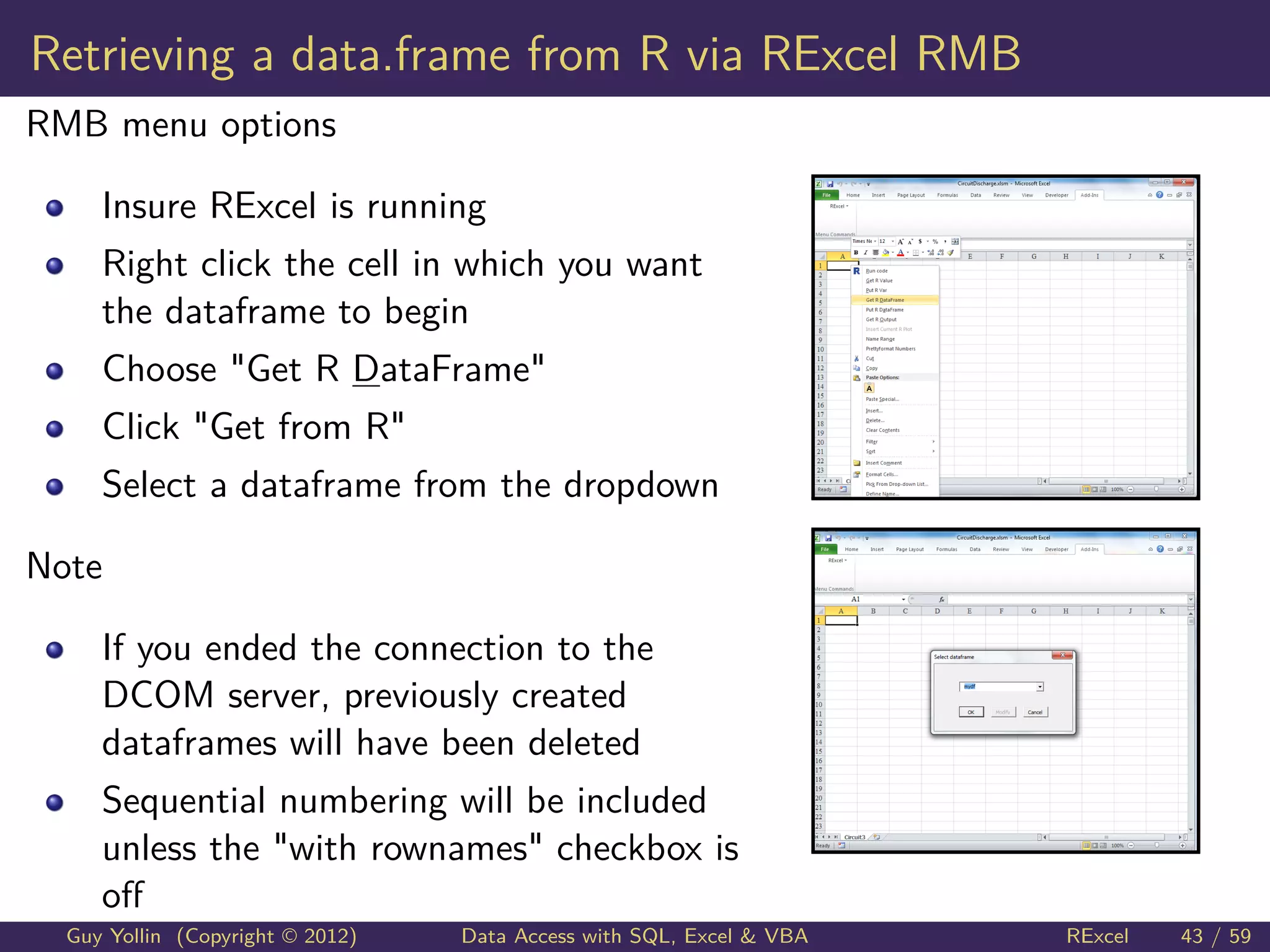

Retrieving a data.frame from R via RExcel RMB
RMB menu options
Insure RExcel is running
Right click the cell in which you want
the dataframe to begin
Choose "Get R DataFrame"
Click "Get from R"
Select a dataframe from the dropdown
Note
If you ended the connection to the
DCOM server, previously created
dataframes will have been deleted
Sequential numbering will be included
unless the "with rownames" checkbox is
oﬀ


RExcel

43 / 59

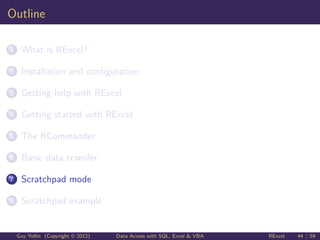

Outline
1

What is RExcel?

2


3


4


5

The RCommander

6

Basic data transfer

7

Scratchpad mode

8

Scratchpad example



RExcel

44 / 59

RExcel as code container and editor
RExcel can run valid R code from a cell or selection of cells. Sending and
receiving information between R and Excel is accessible through the
RExcel add-in menu and the RMB menu.



RExcel

45 / 59

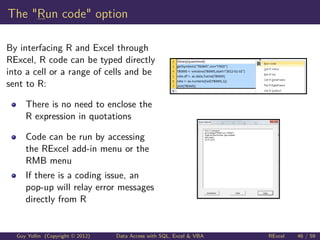

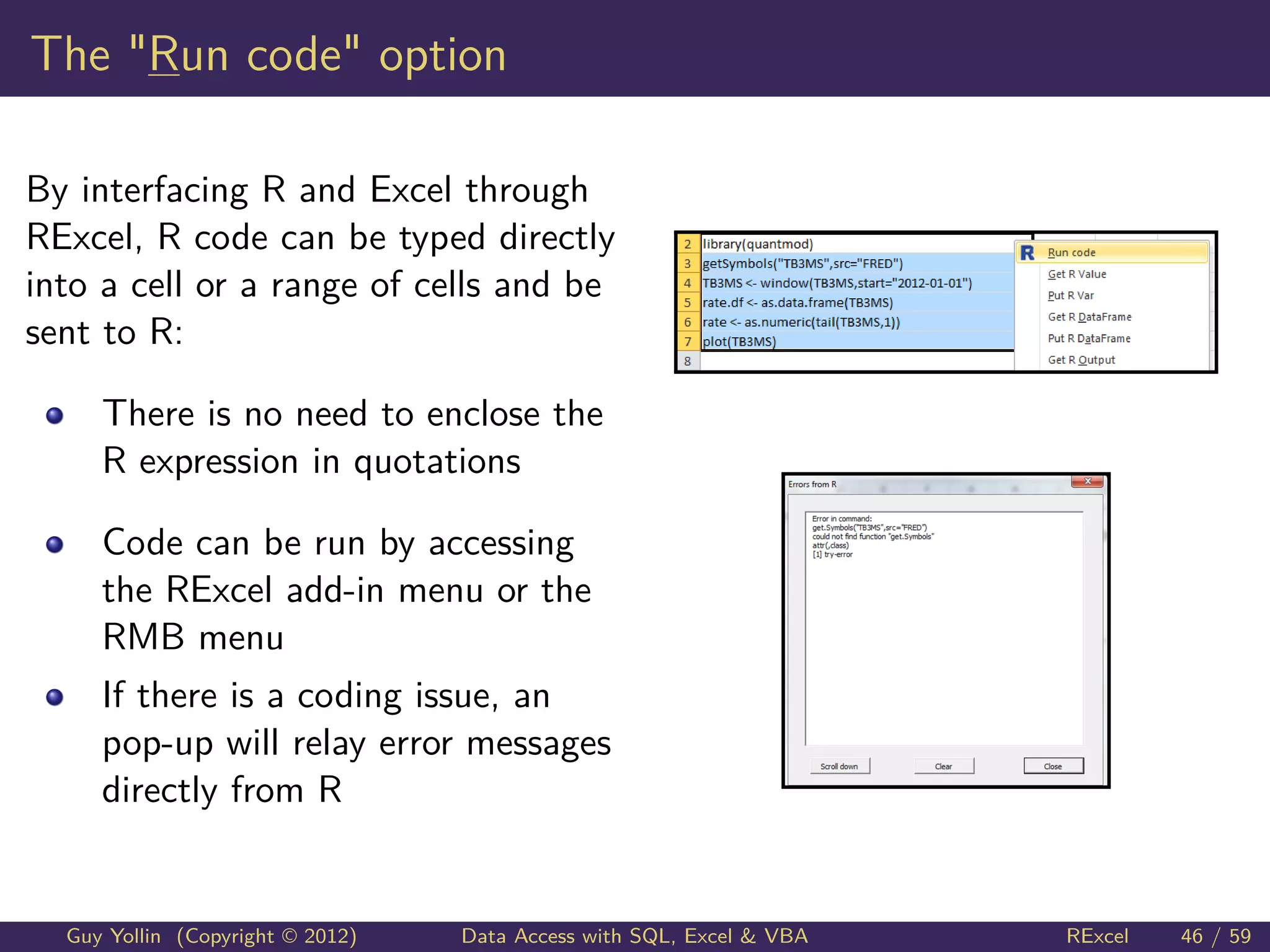

The "Run code" option
By interfacing R and Excel through
RExcel, R code can be typed directly
into a cell or a range of cells and be
sent to R:
There is no need to enclose the
R expression in quotations
Code can be run by accessing
the RExcel add-in menu or the
RMB menu
If there is a coding issue, an
pop-up will relay error messages
directly from R



RExcel

46 / 59

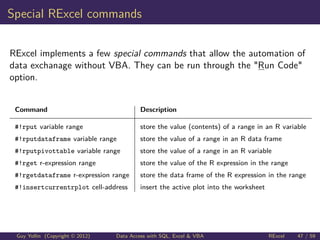

Special RExcel commands
RExcel implements a few special commands that allow the automation of
data exchanage without VBA. They can be run through the "Run Code"
option.

Command

Description

#!rput variable range

store the value (contents) of a range in an R variable

#!rputdataframe variable range

store the value of a range in an R data frame

#!rputpivottable variable range

store the value of a range in an R variable

#!rget r-expression range

store the value of the R expression in the range

#!rgetdataframe r-expression range

store the data frame of the R expression in the range

#!insertcurrentrplot cell-address

insert the active plot into the worksheet



RExcel

47 / 59

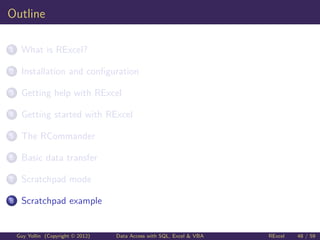

Outline
1

What is RExcel?

2


3


4


5

The RCommander

6

Basic data transfer

7

Scratchpad mode

8

Scratchpad example



RExcel

48 / 59

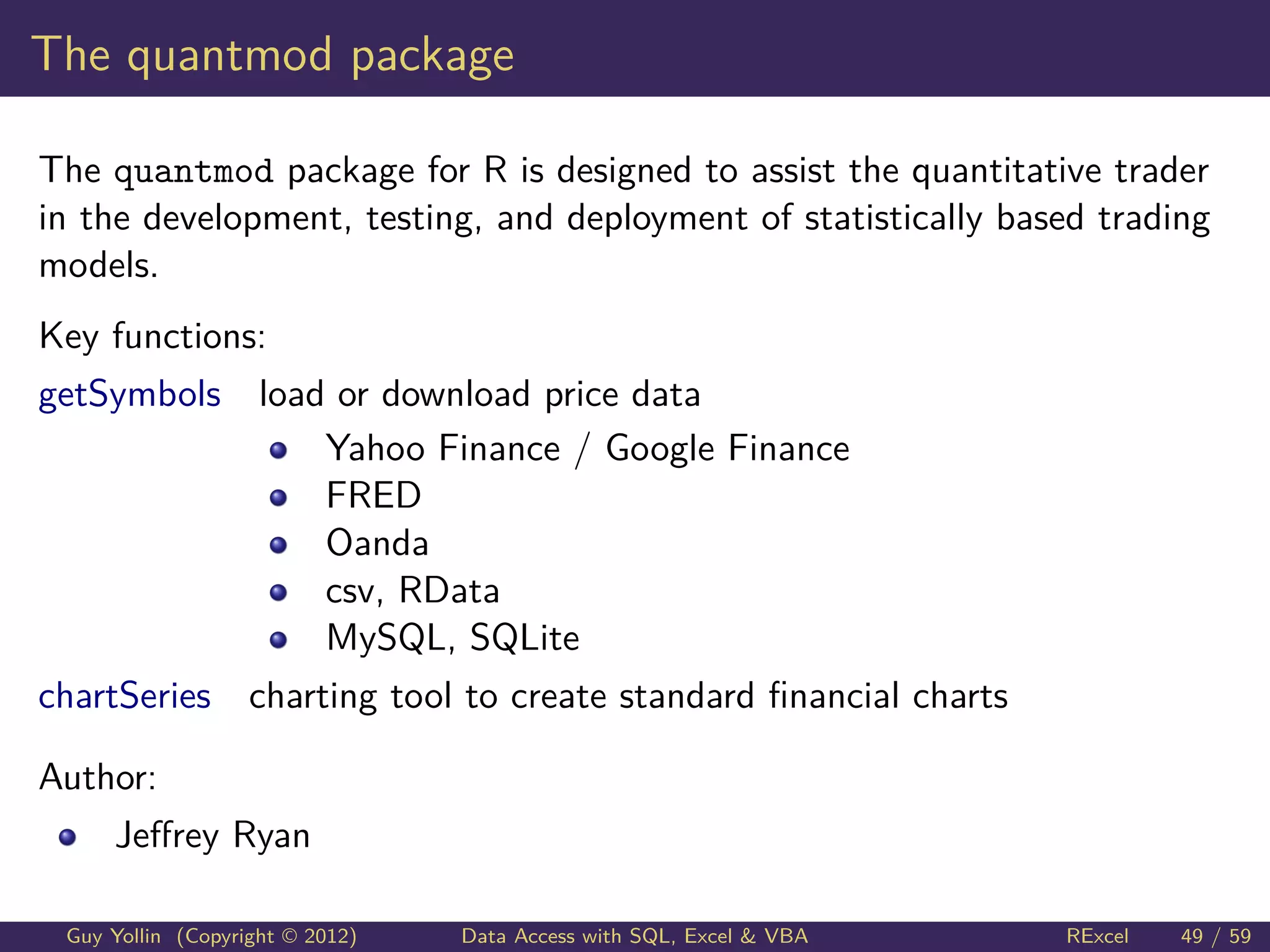

The quantmod package
The quantmod package for R is designed to assist the quantitative trader
in the development, testing, and deployment of statistically based trading
models.
Key functions:
getSymbols

load or download price data
Yahoo Finance / Google Finance
FRED
Oanda
csv, RData
MySQL, SQLite

chartSeries

charting tool to create standard ﬁnancial charts

Author:
Jeﬀrey Ryan


RExcel

49 / 59

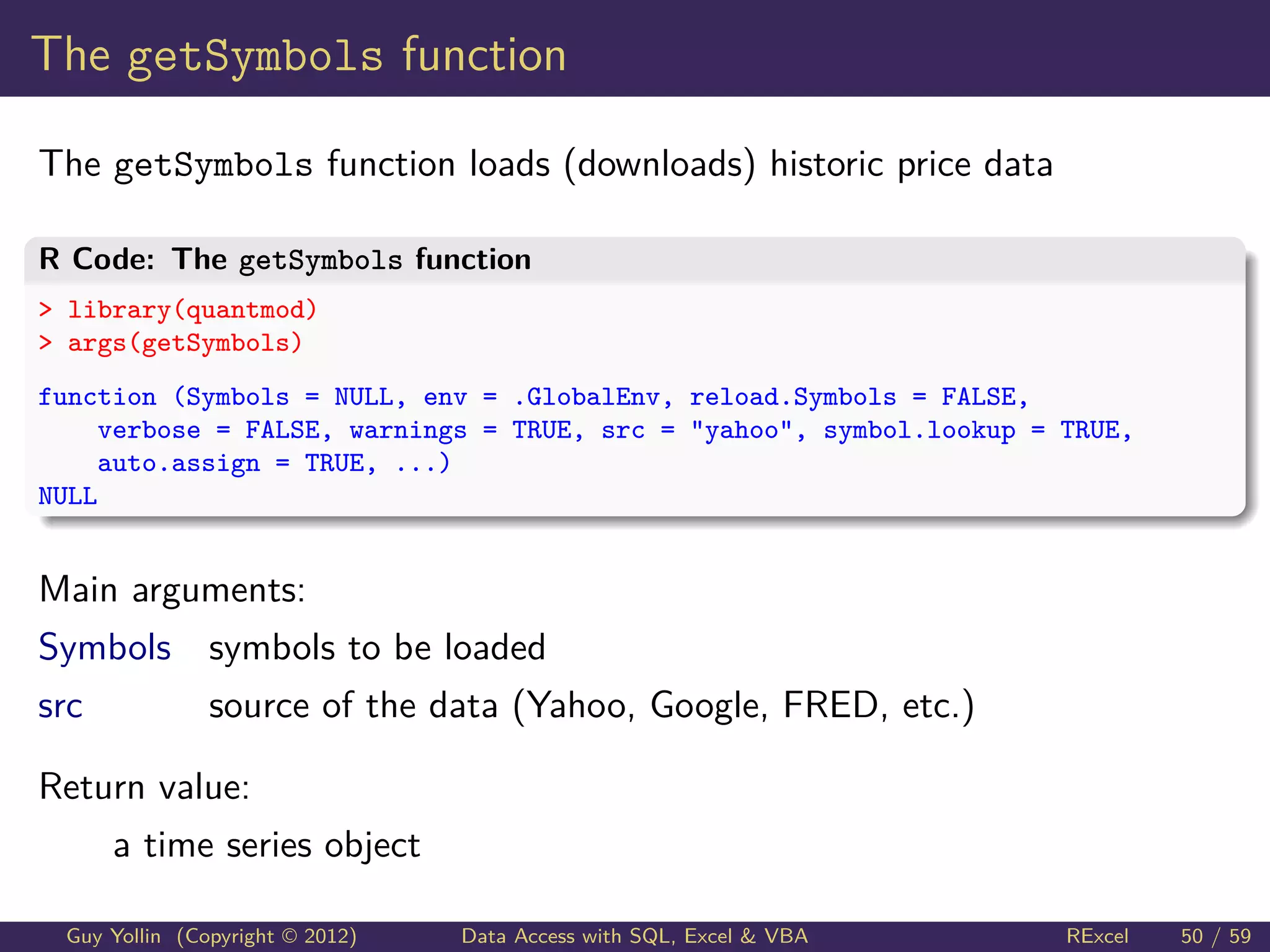

The getSymbols function
The getSymbols function loads (downloads) historic price data
R Code: The getSymbols function
> library(quantmod)
> args(getSymbols)
function (Symbols = NULL, env = .GlobalEnv, reload.Symbols = FALSE,
verbose = FALSE, warnings = TRUE, src = "yahoo", symbol.lookup = TRUE,
auto.assign = TRUE, ...)
NULL

Main arguments:
Symbols

symbols to be loaded

src

source of the data (Yahoo, Google, FRED, etc.)

Return value:
a time series object


RExcel

50 / 59

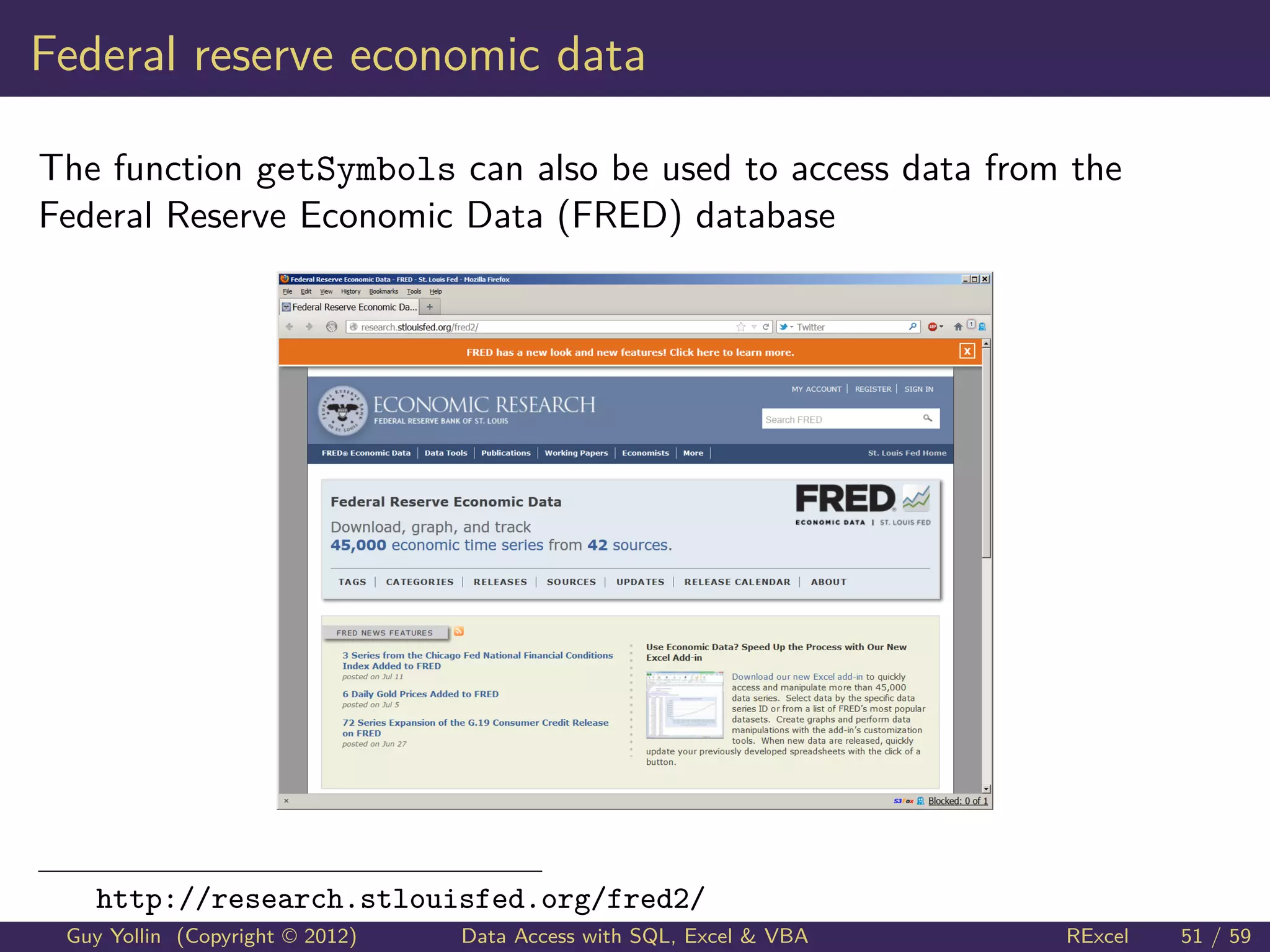

Federal reserve economic data
The function getSymbols can also be used to access data from the
Federal Reserve Economic Data (FRED) database

http://research.stlouisfed.org/fred2/


RExcel

51 / 59

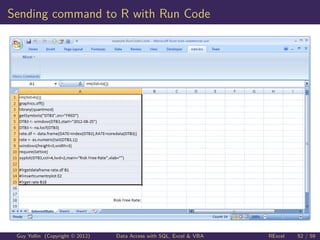

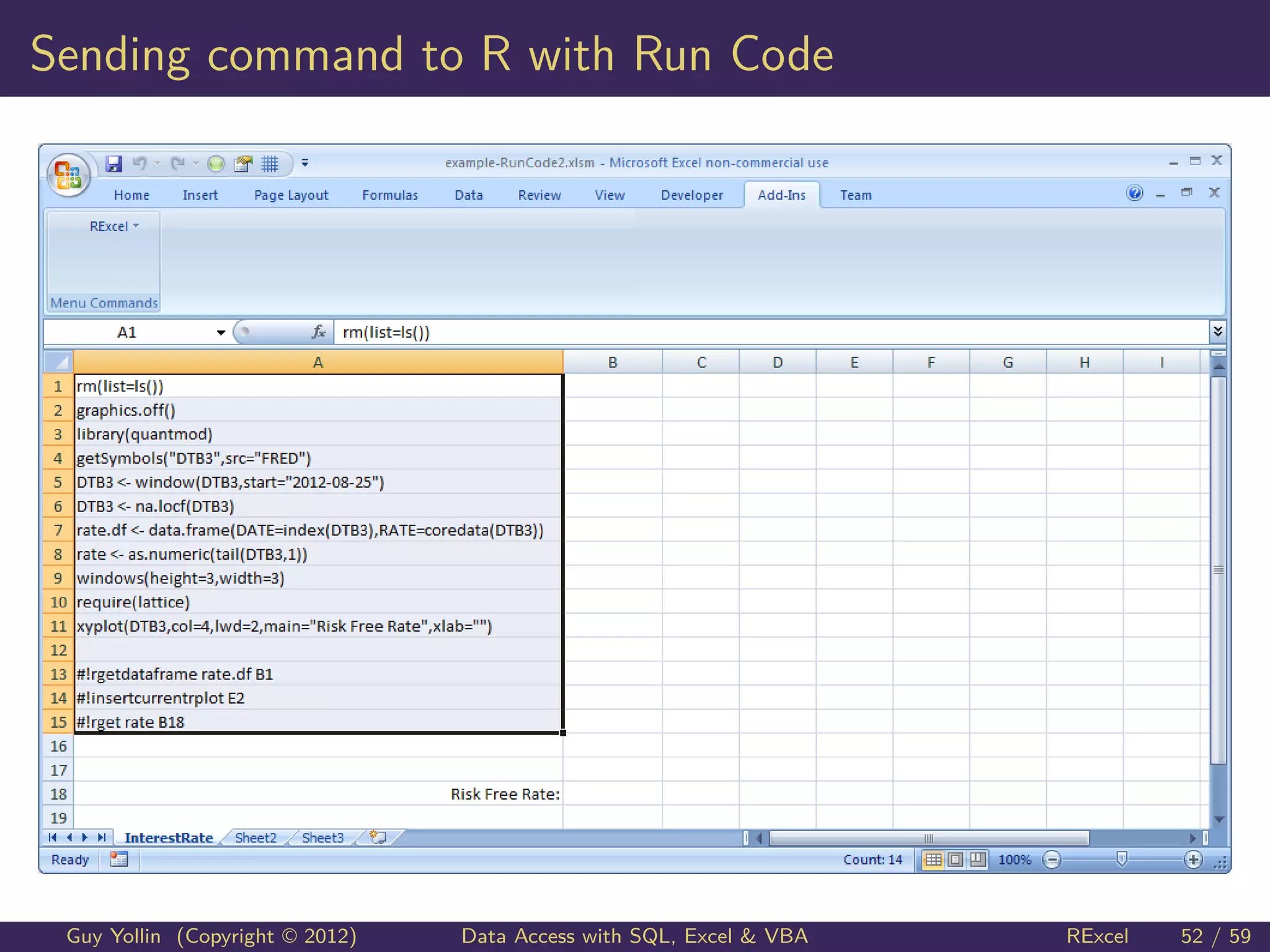

Sending command to R with Run Code



RExcel

52 / 59

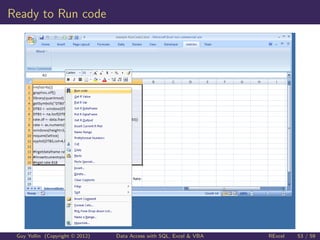

Ready to Run code



RExcel

53 / 59

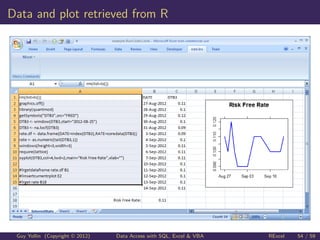

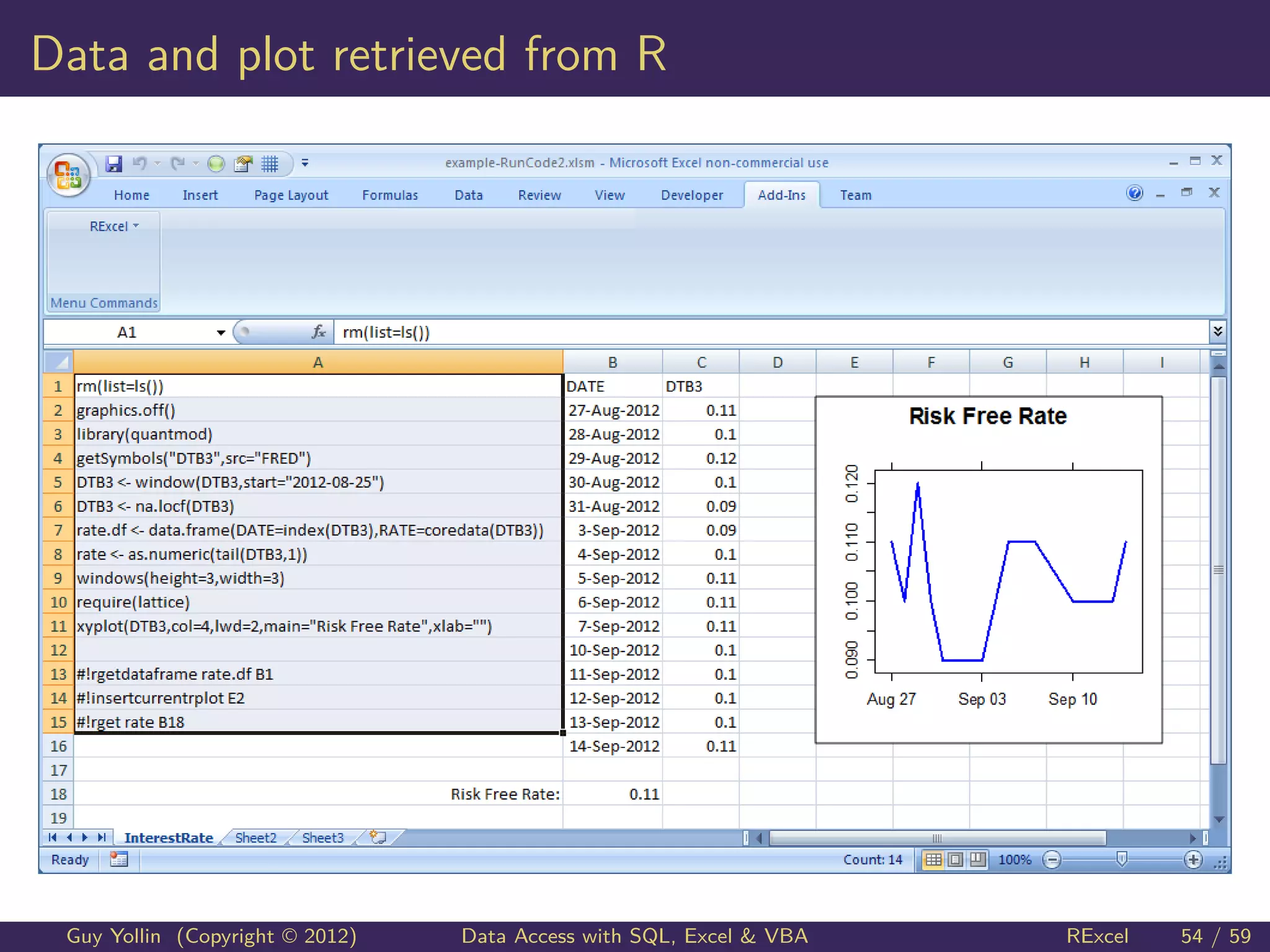

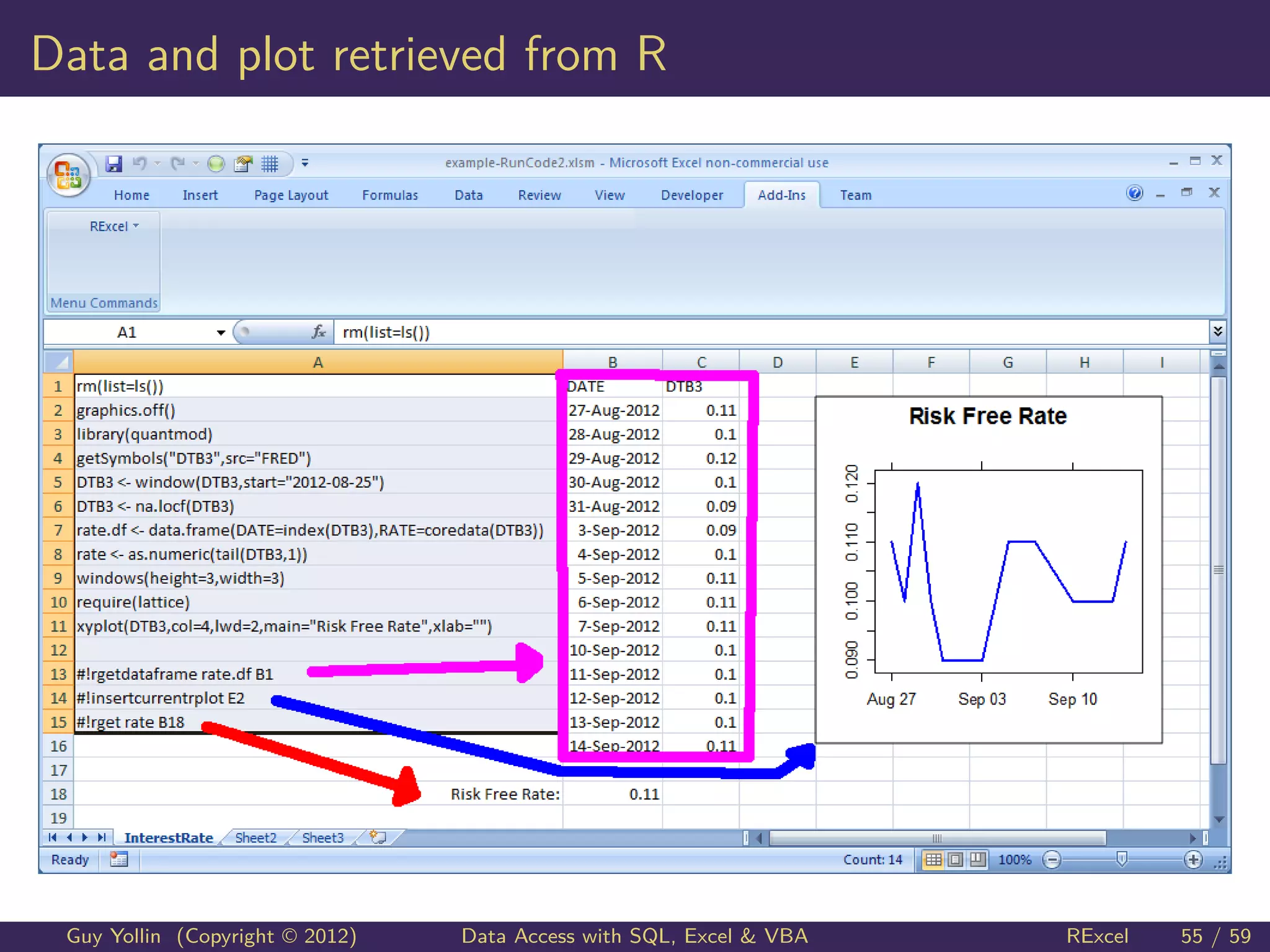

Data and plot retrieved from R



RExcel

54 / 59

Data and plot retrieved from R



RExcel

55 / 59

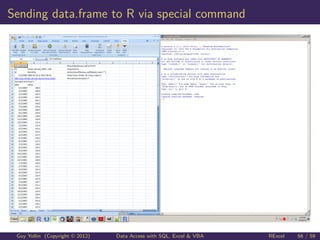

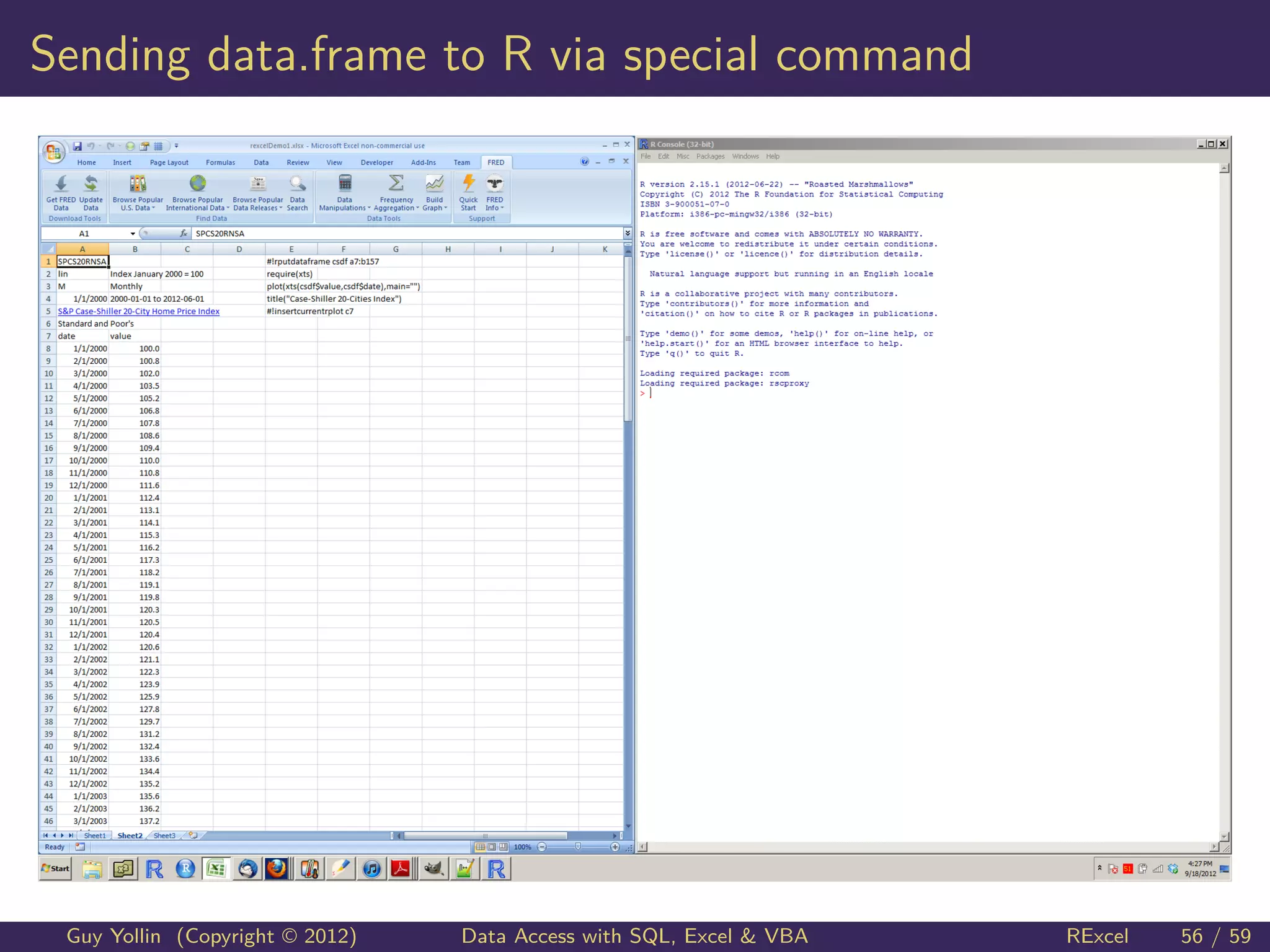

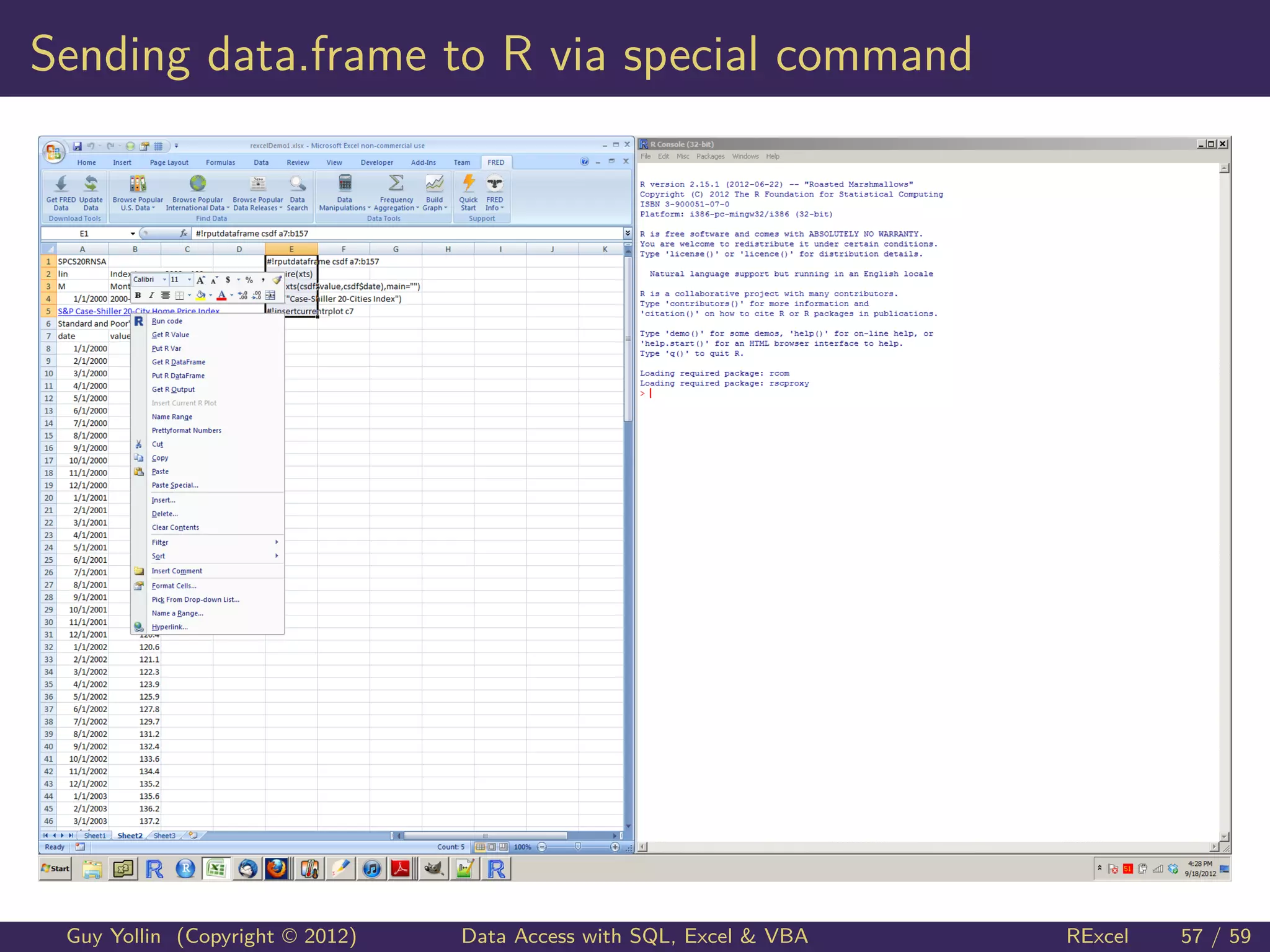

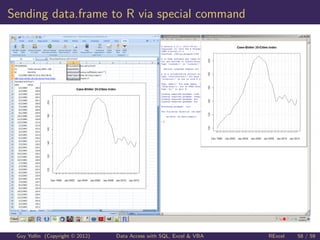

Sending data.frame to R via special command



RExcel

56 / 59




RExcel

57 / 59




RExcel

58 / 59


http://depts.washington.edu/compfin



RExcel

59 / 59

Financial Data Access with SQL, Excel & VBA

More Related Content

What's hot

Similar to Financial Data Access with SQL, Excel & VBA

Recently uploaded

Financial Data Access with SQL, Excel & VBA
