The document discusses the analysis and design of a G+1 framed structure using STAAD Pro software. It involves generating the 3D model in STAAD Pro, applying loads such as dead load, live load, wind load and seismic loads, analyzing the structure, and designing the reinforced concrete beams and columns. Loads considered include self-weight, imposed loads, wind loads calculated according to IS codes, and seismic loads. Beams are designed for bending moment, shear and torsion according to IS 456 and IS 13920. Columns are designed for axial force and biaxial bending according to IS 456. The results of the STAAD analysis and design are presented.
IRJET- Analysis of G+20 RCC Bare Framed Structures with Different Types o...IRJET Journal
This document analyzes a G+20 reinforced concrete framed structure with different bracing systems (inverted V, diagonal, K, X, and V braces) in different seismic zones (II, III, IV, and V) using STAAD Pro v8i software. The X bracing system performed best by reducing displacement by up to 75%, increasing base shear by up to 17.6%, and reducing story drift by up to 74.9% compared to the bare frame structure. While other bracing systems provided improvements, X bracing provided the most economic and effective performance overall.
This document analyzes the seismic performance of a G+2 institutional building in Bhopal, India. The building is modeled and analyzed using STAAD.Pro software under different earthquake load combinations. Results are presented for maximum bending moment, shear force, axial force, joint displacement, and section displacement at each floor. The first floor experiences the highest bending moment of 164.07 kNm and maximum joint displacement of 8.484 mm in the X direction under seismic loads. The analysis provides optimal reinforcement for the building to limit damage to Grade 2 under seismic activity.
IRJET- Disproportionate Collapse in Building StructureIRJET Journal
This document analyzes the progressive collapse potential of a 6-story reinforced concrete building using nonlinear static analysis. Different columns are removed one at a time to simulate abnormal loading events. Demand-capacity ratios are calculated for flexure, shear, and axial forces for each case. Results like story displacement, drift, and shear are also obtained. Demand-capacity ratios exceed acceptable limits for flexure and shear in beams when corner or middle columns are removed, indicating failure. Story displacement is highest when the corner column is removed. Story drift increases then decreases with height. This analysis evaluates the building's ability to arrest disproportionate collapse when vertical load-carrying members are compromised.
The document summarizes the planning, analysis, and design of a multispecialty hospital building. It includes the objectives to prepare architectural drawings, analyze the G+2 building using STAAD Pro, and design the building according to IS 456:2000 using the working stress method. It describes analyzing the building's ability to resist lateral loads. Maximum bending moments in beams and columns will depend on their relative rigidity. Structural elements like slabs, beams, columns, footings, and staircases will be designed according to code specifications using the working stress method.
IJRET : International Journal of Research in Engineering and Technology is an international peer reviewed, online journal published by eSAT Publishing House for the enhancement of research in various disciplines of Engineering and Technology. The aim and scope of the journal is to provide an academic medium and an important reference for the advancement and dissemination of research results that support high-level learning, teaching and research in the fields of Engineering and Technology. We bring together Scientists, Academician, Field Engineers, Scholars and Students of related fields of Engineering and Technology
PROGRESSIVE COLLAPSE ANALYSIS OF REINFORCED CONCRETE SYMMETRICAL AND UNSYMMET...AM Publications
Progressive collapse is a chain reaction of failures that propagates either throughout or a portion of the
structure disproportionate to the original local failure. The progressive collapse of building structure is initiated when
one or more vertical load carrying members are removed. Once a column is removed or made weak, due to man-made or
natural hazards, load carried by column removed is transferred to neighboring columns in the structure, if the
neighboring column is incapable of withstanding the extra load, leads to the progressive failure of adjoining members and
finally to the failure of partial or whole structure. The collapsing system continually seeks alternative load paths in order
to survive. One of the important characteristics of progressive collapse is that the final damage is not proportional to
the initial damage. The research material available for progressive collapse failure of structures suggests that
buildings designed to resist seismic actions have good robustness against progressive collapse. However, no detailed
investigations have been conducted so far to assess this robustness. Hence this study is made to examine the potential
ability of seismically designed building against progressive collapse. A Five storey reinforced concrete framed
structure symmetrical and Unsymmetrical was considered in the study to evaluate the Demand Capacity Ratio
(D.C.R.), the ratio of the member force and the member strength as per U.S. General Services Administration (GSA)
guidelines. The Linear static analysis is carried out using software, ETABS V 9.7 according to Indian Standard codes.
Analysis and design is carried out to get the final output of design details. To study the collapse, typical columns are
removed one at a time, and continued with analysis and design. Many such columns are removed in different trials to
know the effects of progressive analysis. Member forces and reinforcement details are calculated. From the analysis,
DCR values of beams are calculated.
Progressive collapse is the result of a localized failure of one or two structural elements that lead to a steady progression of load transfer that exceeds the capacity of other surrounding elements, thus initiating the progression that leads to a total or partial collapse of the structure. The present study is to evaluate the behavior of G+8 reinforced concrete building subjected to potential collapse. The reinforced concrete structure is analyzed by Pushover Analysis using ETABS Software. It shows the maximum storey displacement and a maximum storey drift values of the components are studied. And the potential of the progressive collapse is determined.
IRJET- Analysis of G+20 RCC Bare Framed Structures with Different Types o...IRJET Journal
This document analyzes a G+20 reinforced concrete framed structure with different bracing systems (inverted V, diagonal, K, X, and V braces) in different seismic zones (II, III, IV, and V) using STAAD Pro v8i software. The X bracing system performed best by reducing displacement by up to 75%, increasing base shear by up to 17.6%, and reducing story drift by up to 74.9% compared to the bare frame structure. While other bracing systems provided improvements, X bracing provided the most economic and effective performance overall.
This document analyzes the seismic performance of a G+2 institutional building in Bhopal, India. The building is modeled and analyzed using STAAD.Pro software under different earthquake load combinations. Results are presented for maximum bending moment, shear force, axial force, joint displacement, and section displacement at each floor. The first floor experiences the highest bending moment of 164.07 kNm and maximum joint displacement of 8.484 mm in the X direction under seismic loads. The analysis provides optimal reinforcement for the building to limit damage to Grade 2 under seismic activity.
IRJET- Disproportionate Collapse in Building StructureIRJET Journal
This document analyzes the progressive collapse potential of a 6-story reinforced concrete building using nonlinear static analysis. Different columns are removed one at a time to simulate abnormal loading events. Demand-capacity ratios are calculated for flexure, shear, and axial forces for each case. Results like story displacement, drift, and shear are also obtained. Demand-capacity ratios exceed acceptable limits for flexure and shear in beams when corner or middle columns are removed, indicating failure. Story displacement is highest when the corner column is removed. Story drift increases then decreases with height. This analysis evaluates the building's ability to arrest disproportionate collapse when vertical load-carrying members are compromised.
The document summarizes the planning, analysis, and design of a multispecialty hospital building. It includes the objectives to prepare architectural drawings, analyze the G+2 building using STAAD Pro, and design the building according to IS 456:2000 using the working stress method. It describes analyzing the building's ability to resist lateral loads. Maximum bending moments in beams and columns will depend on their relative rigidity. Structural elements like slabs, beams, columns, footings, and staircases will be designed according to code specifications using the working stress method.
IJRET : International Journal of Research in Engineering and Technology is an international peer reviewed, online journal published by eSAT Publishing House for the enhancement of research in various disciplines of Engineering and Technology. The aim and scope of the journal is to provide an academic medium and an important reference for the advancement and dissemination of research results that support high-level learning, teaching and research in the fields of Engineering and Technology. We bring together Scientists, Academician, Field Engineers, Scholars and Students of related fields of Engineering and Technology
PROGRESSIVE COLLAPSE ANALYSIS OF REINFORCED CONCRETE SYMMETRICAL AND UNSYMMET...AM Publications
Progressive collapse is a chain reaction of failures that propagates either throughout or a portion of the
structure disproportionate to the original local failure. The progressive collapse of building structure is initiated when
one or more vertical load carrying members are removed. Once a column is removed or made weak, due to man-made or
natural hazards, load carried by column removed is transferred to neighboring columns in the structure, if the
neighboring column is incapable of withstanding the extra load, leads to the progressive failure of adjoining members and
finally to the failure of partial or whole structure. The collapsing system continually seeks alternative load paths in order
to survive. One of the important characteristics of progressive collapse is that the final damage is not proportional to
the initial damage. The research material available for progressive collapse failure of structures suggests that
buildings designed to resist seismic actions have good robustness against progressive collapse. However, no detailed
investigations have been conducted so far to assess this robustness. Hence this study is made to examine the potential
ability of seismically designed building against progressive collapse. A Five storey reinforced concrete framed
structure symmetrical and Unsymmetrical was considered in the study to evaluate the Demand Capacity Ratio
(D.C.R.), the ratio of the member force and the member strength as per U.S. General Services Administration (GSA)
guidelines. The Linear static analysis is carried out using software, ETABS V 9.7 according to Indian Standard codes.
Analysis and design is carried out to get the final output of design details. To study the collapse, typical columns are
removed one at a time, and continued with analysis and design. Many such columns are removed in different trials to
know the effects of progressive analysis. Member forces and reinforcement details are calculated. From the analysis,
DCR values of beams are calculated.
Progressive collapse is the result of a localized failure of one or two structural elements that lead to a steady progression of load transfer that exceeds the capacity of other surrounding elements, thus initiating the progression that leads to a total or partial collapse of the structure. The present study is to evaluate the behavior of G+8 reinforced concrete building subjected to potential collapse. The reinforced concrete structure is analyzed by Pushover Analysis using ETABS Software. It shows the maximum storey displacement and a maximum storey drift values of the components are studied. And the potential of the progressive collapse is determined.
Progressive collapse analysis of a reinforced concrete frame buildingIAEME Publication
This document summarizes research on analyzing the progressive collapse of a reinforced concrete frame building. Progressive collapse occurs when a structural failure in one element, like a column, causes a domino effect that brings down larger parts of the structure. The researchers used linear static analysis in SAP2000 to model removal of columns and calculate demand-to-capacity ratios to evaluate structural integrity. They also conducted nonlinear dynamic analysis removing a single column to study load redistribution. The analysis found catenary action helped resist progressive collapse by redistributing loads through composite joints. Demand-to-capacity ratios above 2.0 indicated structural damage or collapse depending on the structural configuration.
IJRET : International Journal of Research in Engineering and Technology is an international peer reviewed, online journal published by eSAT Publishing House for the enhancement of research in various disciplines of Engineering and Technology. The aim and scope of the journal is to provide an academic medium and an important reference for the advancement and dissemination of research results that support high-level learning, teaching and research in the fields of Engineering and Technology. We bring together Scientists, Academician, Field Engineers, Scholars and Students of related fields of Engineering and Technology
Analytical assessment on progressive collapse potential of new reinforced con...eSAT Journals
Abstract Progressive collapse is a catastrophic partial or total failure that mostly occurs when a structure looses a primary structural component or more like a column or any vertical load resisting component due to natural or manmade hazard. In this research paper a new undergoing construction of Reinforced concrete 12 storied building located in Whitefield, Bangalore is modelled in accordance with the actual drawings according to Indian standard codes and analysed for progressive collapse potential by using structural design and analysis software Etabs2013. For evaluating the effect of progressive collapse in accordance with the guidance of U.S General Service Administration (GSA) linear static method is followed. The analytical model is checked for Demand capacity ratio by removing primary vertical support, one column at a time and evaluating whether the member is resistance to progressive collapse. Many such columns are removed and analysed to know the behaviour of building on abnormal loading conditions. The result shows that progressive collapse can be resisted by providing proper detailing and adequate reinforcement to the beams and columns. Keywords: Progressive collapse, Demand Capacity Ratio (DCR), General Service Administration standards (GSA), Design software Etabs2013, linear static
P delta effect in reinforced concrete structures of rigid jointYousuf Dinar
ABSTRACT: Popularity of High-Rise structures of rigid joint frame system are increasing day by day to accommodate growing people in metropolitan city and to construct the structures without any special structural component. However combination of rigid frame with RC structure get 30 storey as maximum storey and prone to collapse under severe displacement, axial force and moment, if the P-Delta effects does not included in analysis and design phase. Due to complexity and low knowledge of P-Delta analyses designers, engineers and architectures are prone to perform Linear Static analysis which may eventually become a cause of catastrophic collapse of the high-rise. 12 cases and 2 different analysis are performed to give a light on the P-Delta effect in RC Structures of Rigid Joint which will aware and suggest concerning person to understand, make experience and perform P-Delta analysis of the high-rise for safety using numerical modelling which may accelerate the process and reduce the complexities.
Progressive Collapse Analysis of RC Buildings with consideration of Effect of...ijsrd.com
To study the effect of failure of load carrying elements i.e. columns on the entire structure; 15 storey moment resistant RC buildings is considered. The buildings are modeled and analyzed for progressive collapse using the structural analysis and design software SAP2000. Normally it has been considered only the failure of primary load carrying members like columns, beams, struts, foundations etc. to understand the progressive collapse scenario. This paper involves the effect of slabs in progressive collapse with the failure of column.
IRJET-Comparative Study on Design Results of a Multi-Storied Building using S...IRJET Journal
This document discusses a comparative study of the design results from STAAD Pro and ETABS software for a regular and irregular multi-story building structure. A G+8 building is modeled and designed in both software programs. The results, including shear forces, bending moments, deflections, and reinforcement details from each software are then compared. The objective is to determine which software provides more accurate design results and to evaluate the advantages and disadvantages of each program.
Variation of deflection of steel high rise structure due to p- delta effect c...Yousuf Dinar
This document summarizes the results of a study that analyzed the effect of P-Delta on the deflection of steel high-rise structures considering global slenderness ratio. 40 different structural models were simulated with varying numbers of stories (7, 14, 20, 30) and bay dimensions to modify the slenderness. Both P-Delta analysis and linear static analysis were performed, and deflections were compared. P-Delta analysis resulted in significantly higher deflections than linear static analysis, especially as slenderness increased with taller buildings and smaller bays. Deflections at the top of each structure and for individual stories were evaluated. Results showed increasing deflections with P-Delta analysis as slenderness rose due to building height or
Optimization of a multistorey building by optimum positioning of shear walleSAT Journals
Abstract The shear wall is a structural element which is used to resist earthquake forces. These wall will consumptives shear forces & will prevent changing location-position of construction & consequently destruction. On other hand, shear wall arrangement must be absolutely accurate, if not, we will find negative effect instead. For example if the shear walls make an increase distance between mass centre and hardness centre, we cannot expect a good tensional behavior from the structure. In case of mass centre and hardness centre coincide with each other, at that time the distance of shear wall from the mass centre also plays an important role in the shear contribution of the shear wall. The bending moment, shear force, torsion, axial force contribution by rest of the structural element and the ultimate design of all the structural components also affected by that. A study has been carried out to determine the optimum Structural configuration of a multistory building by changing the shear wall locations radically. Four different cases of shear wall position for a 10 storey residential building with keeping zero eccentricity between mass centre and hardness centre have been analyzed and designed as a space frame system by computer application software, subjected to lateral and gravity loading in accordance with IS provisions. Keywords: Shear walls, Lateral loading, Zero eccentricity, Stresses, Design configuration.
Progressive Collapse Analysis of RC Framed StructuresAmit Devar
The term progressive collapse defined as the
spread of local damage, from an initiating event, from
element to element resulting, eventually, in the collapse of an
entire structure or a disproportionately large part of it is
known as progressive collapse. The progressive collapse of
structures during severe loading caused by earthquakes,
blasts, and other effects causes catastrophic loss of life. Such
collapse is typically caused by the inability of the structural
system to redistribute its loads following the failure of one or
more structural members to carry gravity loads. In reinforced
concrete (RC) structures, the loss of gravity load carrying
capacity in column.
Progressive collapse analysis of an rc structure subjected to seismic loads i...eSAT Journals
Abstract Progressive Collapse is the spread of initial failure from element to element leading to entire collapse of an structure. It is due to vehicle impacts, fire,earthquakes and natural or man made hazards. Collapse leads to large proprtions of dispropriate triggers in the structures which makes structures incapable of withstanding loads and it leads to collapse of the structure. In this study special moment resisting frame of G+19 story building is modeled using FEM based software( ETABSV9.7). The analysis is carried as per GSA gudelines in zone V having medium soil by linear dynamic and non linear analysis. The story drift and story shears are calculated to know the potential for progressive collapse of an structure. Keywords: Progressive Collapse,Column Removal ,Dynamic Analysis,Push Over Analysis etc…
IRJET- Study on Rigid and Semi Rigid Diaphragm in Multistoried Structure usin...IRJET Journal
This document presents a study on the seismic analysis of multistory reinforced concrete structures considering rigid and semi-rigid floor diaphragms. The study was carried out using ETABS software to analyze structures with rigid diaphragms, semi-rigid diaphragms, and no diaphragms. Results were collected in terms of base shear, maximum story displacement, and maximum story drift for different soil types and seismic zones. The results showed that structures with rigid diaphragms performed better with less displacement compared to structures with semi-rigid or no diaphragms. Rigid diaphragms increased the base shear but reduced displacement by up to 45% and provided better stiffness. In conclusion, rigid
Chronological construction sequence effects on reinforced concrete and steel ...Yousuf Dinar
Building structures are analyzed in a single step using linear static analysis on the assumption that the structures are subjected to full load once the whole structure is constructed completely. In reality the dead load due to the each structural components and finishing items are imposed in separate stages as the structures are constructed story by story for nonlinear behavior of materials. Advancement of finite element modeling accelerates the accuracy of finite element simulation by taking the consideration of construction sequential effects. In this paper, rigid frame structures of both concrete and steel model of different configurations have been taken for sequential analysis. The analysis outcomes will help to understand how the structural response against loads varies for construction sequential analysis and linear static analysis while highlighting the material property. For vivid understanding of necessity of sequential analysis, analysis outcomes are eventually compared with conventional one step analysis. The effect of sequence of construction due to the self-weight of members has been studied and its effect on the overall design forces has also been highlighted using finite element modeling.
Seismic performance study on rc wall buildings from pushover analysiseSAT Publishing House
IJRET : International Journal of Research in Engineering and Technology is an international peer reviewed, online journal published by eSAT Publishing House for the enhancement of research in various disciplines of Engineering and Technology. The aim and scope of the journal is to provide an academic medium and an important reference for the advancement and dissemination of research results that support high-level learning, teaching and research in the fields of Engineering and Technology. We bring together Scientists, Academician, Field Engineers, Scholars and Students of related fields of Engineering and Technology.
IRJET- Lateral Stiffness of Framed Structures for Lateral LoadsIRJET Journal
The document discusses methods for calculating the lateral stiffness of framed structures. It begins by noting the importance of evaluating stiffness for seismic design codes. Several approximate methods for calculating storey stiffness are compared, but accurate methods using finite element analysis have been less studied. The study aims to compare different accurate methods for calculating storey stiffness using analytical software models. A 4-storey reinforced concrete frame structure is modeled and different analysis methods are applied to calculate storey stiffnesses, including applying point loads at different locations and calculating drifts. Results will help identify the most accurate and practical method for engineers.
IRJET- Evaluation of P-Delta Effect in Seismic Response of Tall StructuresIRJET Journal
This document evaluates the P-delta effect on the seismic response of tall structures. It presents the results of a static analysis of a 10-story reinforced concrete building carried out in ETABS software. The building was analyzed considering P-delta effects (non-linear static analysis) and without considering P-delta effects (linear static analysis) for seismic zones II and III. The results show that parameters like displacement, storey force, and moment are higher when P-delta effects are considered. Therefore, P-delta effect is significant and should not be neglected in the design of tall structures in seismic zones.
A comparative study of force based design and direct displacement based desig...IRJET Journal
This document compares force-based design (FBD) and direct displacement-based design (DDBD) for reinforced concrete dual-wall frame structures. It analyzes and designs 8, 12, 16, and 20-story RC frame buildings using both FBD according to Indian code IS 1893:2002 and DDBD. DDBD characterizes the structure using a single-degree-of-freedom model representing peak displacement response rather than initial elastic characteristics. The study finds that structures designed using DDBD are more economical than those designed using FBD under similar modeling conditions.
Pushover analysis was performed on a 12-story building model designed for seismic zones 3 and 5 in India. The analysis assessed damage at different performance levels from immediate occupancy to collapse. For the zone 3 design, yielding initially occurred in beams and then columns. The structure remained within collapse prevention limits, indicating ductile behavior. Similarly, the zone 5 design remained ductile with initial yielding in beams and columns. The structures designed using linear analysis for both seismic zones were found to perform well under pushover analysis and experience damage within acceptable limits.
Design of midship section based on hydrostatic and hydrodynamic loadsISAAC SAMUEL RAJA T
The ship hull is the major part of the ship which
forms the skeleton of ships bottom structure. There is a need
for the naval architects and engineers to make the hull a super
strong structure by making the hull heavier to withstand
heavy loads (which may not be needed for certain offshore
conditions). If the mass of the ship increases, then the
propulsive power of the hull decreases. So, the work
concentrated on determination of effective thickness of the
hull structure is important. Various mid ship sections of 120m
container ship are modelled in Solidworks software and
analysed with alloy steel, titanium alloy, and aluminium alloy
in Solidworks simulation 2014 tool. Dead weight of the ship,
hydrodynamic loads and hydrostatic loads were consideration
during structural simulation. Best mid ship section with
optimum thickness and suitable material is determined.
Performance Levels of RC Structures by Non-Linear Pushover AnalysisIJERA Editor
In the recent earthquakes in which many concrete structures have been severely damaged or collapsed, have indicated the need for evaluating the seismic adequacy of existing buildings. About 60% of the land area of our country is susceptible to damaging levels of seismic hazard. We can’t avoid future earthquakes, but preparedness and safe building construction practices can certainly reduce the extent of damage and loss. In order to strengthen and resist the buildings for future earthquakes, the behavior of a building during earthquakes depends critically on its overall shape, size and geometry. The nonlinear pushover analysis is becoming a popular tool for seismic performance evaluation of existing and new structures. The weak zones in the structure can be examined by conducting this push over analysis and then it will be decided whether the particular part is to be retrofitted or rehabilitated according to the requirement. This method determines the base shear capacity of the building and performance levels of each part of building under varying intensity of seismic force. The results of effects of different plan on seismic response of buildings have been presented in terms of displacement, base shear and plastic hinge pattern
The document describes a project report for the design and analysis of a G+22 building using the software ETABS. It includes an introduction to ETABS, the objectives of analyzing the high rise building to calculate loads and seismic behavior. It provides details on the codes used, plan and structural elements, material properties, load cases including dead, live, wind and earthquake loads. The procedure outlines the steps to model the structure, define properties, draw the frame, apply supports and loads, and check for errors.
IRJET- Design and Structural Analysis of Multi Storey Building (Both Commerci...IRJET Journal
This document discusses the structural analysis and design of a multi-storey commercial and residential building using STAAD Pro software. It first describes analyzing the building by calculating loads like dead load, live load, and load combinations. It then details designing building components like slabs, beams, columns, and footings based on the load calculations. The analysis found the building to be safe against all loadings and deflections. The conclusion is that STAAD Pro provides accurate results and a safe structural design for the multi-storey building.
Analysis and Design of an Earthquake Resistant Structure using STADD. ProIRJET Journal
This document describes analyzing and designing an earthquake resistant residential building in Mumbai using STADD.Pro software. The 11-story building is modeled in STADD.Pro and various loads including dead load, live load, wind load, and seismic load are calculated and applied based on Indian codes. An equivalent static analysis is performed to calculate member forces and displacements. The building is then designed as an ordinary moment resisting frame using limit state design method and concrete grade M25 with reinforcement FE415. The output from STADD.Pro contains the design of each individual beam and column to ensure the structural safety of the building under all load combinations including lateral loads from earthquakes and wind.
Progressive collapse analysis of a reinforced concrete frame buildingIAEME Publication
This document summarizes research on analyzing the progressive collapse of a reinforced concrete frame building. Progressive collapse occurs when a structural failure in one element, like a column, causes a domino effect that brings down larger parts of the structure. The researchers used linear static analysis in SAP2000 to model removal of columns and calculate demand-to-capacity ratios to evaluate structural integrity. They also conducted nonlinear dynamic analysis removing a single column to study load redistribution. The analysis found catenary action helped resist progressive collapse by redistributing loads through composite joints. Demand-to-capacity ratios above 2.0 indicated structural damage or collapse depending on the structural configuration.
IJRET : International Journal of Research in Engineering and Technology is an international peer reviewed, online journal published by eSAT Publishing House for the enhancement of research in various disciplines of Engineering and Technology. The aim and scope of the journal is to provide an academic medium and an important reference for the advancement and dissemination of research results that support high-level learning, teaching and research in the fields of Engineering and Technology. We bring together Scientists, Academician, Field Engineers, Scholars and Students of related fields of Engineering and Technology
Analytical assessment on progressive collapse potential of new reinforced con...eSAT Journals
Abstract Progressive collapse is a catastrophic partial or total failure that mostly occurs when a structure looses a primary structural component or more like a column or any vertical load resisting component due to natural or manmade hazard. In this research paper a new undergoing construction of Reinforced concrete 12 storied building located in Whitefield, Bangalore is modelled in accordance with the actual drawings according to Indian standard codes and analysed for progressive collapse potential by using structural design and analysis software Etabs2013. For evaluating the effect of progressive collapse in accordance with the guidance of U.S General Service Administration (GSA) linear static method is followed. The analytical model is checked for Demand capacity ratio by removing primary vertical support, one column at a time and evaluating whether the member is resistance to progressive collapse. Many such columns are removed and analysed to know the behaviour of building on abnormal loading conditions. The result shows that progressive collapse can be resisted by providing proper detailing and adequate reinforcement to the beams and columns. Keywords: Progressive collapse, Demand Capacity Ratio (DCR), General Service Administration standards (GSA), Design software Etabs2013, linear static
P delta effect in reinforced concrete structures of rigid jointYousuf Dinar
ABSTRACT: Popularity of High-Rise structures of rigid joint frame system are increasing day by day to accommodate growing people in metropolitan city and to construct the structures without any special structural component. However combination of rigid frame with RC structure get 30 storey as maximum storey and prone to collapse under severe displacement, axial force and moment, if the P-Delta effects does not included in analysis and design phase. Due to complexity and low knowledge of P-Delta analyses designers, engineers and architectures are prone to perform Linear Static analysis which may eventually become a cause of catastrophic collapse of the high-rise. 12 cases and 2 different analysis are performed to give a light on the P-Delta effect in RC Structures of Rigid Joint which will aware and suggest concerning person to understand, make experience and perform P-Delta analysis of the high-rise for safety using numerical modelling which may accelerate the process and reduce the complexities.
Progressive Collapse Analysis of RC Buildings with consideration of Effect of...ijsrd.com
To study the effect of failure of load carrying elements i.e. columns on the entire structure; 15 storey moment resistant RC buildings is considered. The buildings are modeled and analyzed for progressive collapse using the structural analysis and design software SAP2000. Normally it has been considered only the failure of primary load carrying members like columns, beams, struts, foundations etc. to understand the progressive collapse scenario. This paper involves the effect of slabs in progressive collapse with the failure of column.
IRJET-Comparative Study on Design Results of a Multi-Storied Building using S...IRJET Journal
This document discusses a comparative study of the design results from STAAD Pro and ETABS software for a regular and irregular multi-story building structure. A G+8 building is modeled and designed in both software programs. The results, including shear forces, bending moments, deflections, and reinforcement details from each software are then compared. The objective is to determine which software provides more accurate design results and to evaluate the advantages and disadvantages of each program.
Variation of deflection of steel high rise structure due to p- delta effect c...Yousuf Dinar
This document summarizes the results of a study that analyzed the effect of P-Delta on the deflection of steel high-rise structures considering global slenderness ratio. 40 different structural models were simulated with varying numbers of stories (7, 14, 20, 30) and bay dimensions to modify the slenderness. Both P-Delta analysis and linear static analysis were performed, and deflections were compared. P-Delta analysis resulted in significantly higher deflections than linear static analysis, especially as slenderness increased with taller buildings and smaller bays. Deflections at the top of each structure and for individual stories were evaluated. Results showed increasing deflections with P-Delta analysis as slenderness rose due to building height or
Optimization of a multistorey building by optimum positioning of shear walleSAT Journals
Abstract The shear wall is a structural element which is used to resist earthquake forces. These wall will consumptives shear forces & will prevent changing location-position of construction & consequently destruction. On other hand, shear wall arrangement must be absolutely accurate, if not, we will find negative effect instead. For example if the shear walls make an increase distance between mass centre and hardness centre, we cannot expect a good tensional behavior from the structure. In case of mass centre and hardness centre coincide with each other, at that time the distance of shear wall from the mass centre also plays an important role in the shear contribution of the shear wall. The bending moment, shear force, torsion, axial force contribution by rest of the structural element and the ultimate design of all the structural components also affected by that. A study has been carried out to determine the optimum Structural configuration of a multistory building by changing the shear wall locations radically. Four different cases of shear wall position for a 10 storey residential building with keeping zero eccentricity between mass centre and hardness centre have been analyzed and designed as a space frame system by computer application software, subjected to lateral and gravity loading in accordance with IS provisions. Keywords: Shear walls, Lateral loading, Zero eccentricity, Stresses, Design configuration.
Progressive Collapse Analysis of RC Framed StructuresAmit Devar
The term progressive collapse defined as the
spread of local damage, from an initiating event, from
element to element resulting, eventually, in the collapse of an
entire structure or a disproportionately large part of it is
known as progressive collapse. The progressive collapse of
structures during severe loading caused by earthquakes,
blasts, and other effects causes catastrophic loss of life. Such
collapse is typically caused by the inability of the structural
system to redistribute its loads following the failure of one or
more structural members to carry gravity loads. In reinforced
concrete (RC) structures, the loss of gravity load carrying
capacity in column.
Progressive collapse analysis of an rc structure subjected to seismic loads i...eSAT Journals
Abstract Progressive Collapse is the spread of initial failure from element to element leading to entire collapse of an structure. It is due to vehicle impacts, fire,earthquakes and natural or man made hazards. Collapse leads to large proprtions of dispropriate triggers in the structures which makes structures incapable of withstanding loads and it leads to collapse of the structure. In this study special moment resisting frame of G+19 story building is modeled using FEM based software( ETABSV9.7). The analysis is carried as per GSA gudelines in zone V having medium soil by linear dynamic and non linear analysis. The story drift and story shears are calculated to know the potential for progressive collapse of an structure. Keywords: Progressive Collapse,Column Removal ,Dynamic Analysis,Push Over Analysis etc…
IRJET- Study on Rigid and Semi Rigid Diaphragm in Multistoried Structure usin...IRJET Journal
This document presents a study on the seismic analysis of multistory reinforced concrete structures considering rigid and semi-rigid floor diaphragms. The study was carried out using ETABS software to analyze structures with rigid diaphragms, semi-rigid diaphragms, and no diaphragms. Results were collected in terms of base shear, maximum story displacement, and maximum story drift for different soil types and seismic zones. The results showed that structures with rigid diaphragms performed better with less displacement compared to structures with semi-rigid or no diaphragms. Rigid diaphragms increased the base shear but reduced displacement by up to 45% and provided better stiffness. In conclusion, rigid
Chronological construction sequence effects on reinforced concrete and steel ...Yousuf Dinar
Building structures are analyzed in a single step using linear static analysis on the assumption that the structures are subjected to full load once the whole structure is constructed completely. In reality the dead load due to the each structural components and finishing items are imposed in separate stages as the structures are constructed story by story for nonlinear behavior of materials. Advancement of finite element modeling accelerates the accuracy of finite element simulation by taking the consideration of construction sequential effects. In this paper, rigid frame structures of both concrete and steel model of different configurations have been taken for sequential analysis. The analysis outcomes will help to understand how the structural response against loads varies for construction sequential analysis and linear static analysis while highlighting the material property. For vivid understanding of necessity of sequential analysis, analysis outcomes are eventually compared with conventional one step analysis. The effect of sequence of construction due to the self-weight of members has been studied and its effect on the overall design forces has also been highlighted using finite element modeling.
Seismic performance study on rc wall buildings from pushover analysiseSAT Publishing House
IJRET : International Journal of Research in Engineering and Technology is an international peer reviewed, online journal published by eSAT Publishing House for the enhancement of research in various disciplines of Engineering and Technology. The aim and scope of the journal is to provide an academic medium and an important reference for the advancement and dissemination of research results that support high-level learning, teaching and research in the fields of Engineering and Technology. We bring together Scientists, Academician, Field Engineers, Scholars and Students of related fields of Engineering and Technology.
IRJET- Lateral Stiffness of Framed Structures for Lateral LoadsIRJET Journal
The document discusses methods for calculating the lateral stiffness of framed structures. It begins by noting the importance of evaluating stiffness for seismic design codes. Several approximate methods for calculating storey stiffness are compared, but accurate methods using finite element analysis have been less studied. The study aims to compare different accurate methods for calculating storey stiffness using analytical software models. A 4-storey reinforced concrete frame structure is modeled and different analysis methods are applied to calculate storey stiffnesses, including applying point loads at different locations and calculating drifts. Results will help identify the most accurate and practical method for engineers.
IRJET- Evaluation of P-Delta Effect in Seismic Response of Tall StructuresIRJET Journal
This document evaluates the P-delta effect on the seismic response of tall structures. It presents the results of a static analysis of a 10-story reinforced concrete building carried out in ETABS software. The building was analyzed considering P-delta effects (non-linear static analysis) and without considering P-delta effects (linear static analysis) for seismic zones II and III. The results show that parameters like displacement, storey force, and moment are higher when P-delta effects are considered. Therefore, P-delta effect is significant and should not be neglected in the design of tall structures in seismic zones.
A comparative study of force based design and direct displacement based desig...IRJET Journal
This document compares force-based design (FBD) and direct displacement-based design (DDBD) for reinforced concrete dual-wall frame structures. It analyzes and designs 8, 12, 16, and 20-story RC frame buildings using both FBD according to Indian code IS 1893:2002 and DDBD. DDBD characterizes the structure using a single-degree-of-freedom model representing peak displacement response rather than initial elastic characteristics. The study finds that structures designed using DDBD are more economical than those designed using FBD under similar modeling conditions.
Pushover analysis was performed on a 12-story building model designed for seismic zones 3 and 5 in India. The analysis assessed damage at different performance levels from immediate occupancy to collapse. For the zone 3 design, yielding initially occurred in beams and then columns. The structure remained within collapse prevention limits, indicating ductile behavior. Similarly, the zone 5 design remained ductile with initial yielding in beams and columns. The structures designed using linear analysis for both seismic zones were found to perform well under pushover analysis and experience damage within acceptable limits.
Design of midship section based on hydrostatic and hydrodynamic loadsISAAC SAMUEL RAJA T
The ship hull is the major part of the ship which
forms the skeleton of ships bottom structure. There is a need
for the naval architects and engineers to make the hull a super
strong structure by making the hull heavier to withstand
heavy loads (which may not be needed for certain offshore
conditions). If the mass of the ship increases, then the
propulsive power of the hull decreases. So, the work
concentrated on determination of effective thickness of the
hull structure is important. Various mid ship sections of 120m
container ship are modelled in Solidworks software and
analysed with alloy steel, titanium alloy, and aluminium alloy
in Solidworks simulation 2014 tool. Dead weight of the ship,
hydrodynamic loads and hydrostatic loads were consideration
during structural simulation. Best mid ship section with
optimum thickness and suitable material is determined.
Performance Levels of RC Structures by Non-Linear Pushover AnalysisIJERA Editor
In the recent earthquakes in which many concrete structures have been severely damaged or collapsed, have indicated the need for evaluating the seismic adequacy of existing buildings. About 60% of the land area of our country is susceptible to damaging levels of seismic hazard. We can’t avoid future earthquakes, but preparedness and safe building construction practices can certainly reduce the extent of damage and loss. In order to strengthen and resist the buildings for future earthquakes, the behavior of a building during earthquakes depends critically on its overall shape, size and geometry. The nonlinear pushover analysis is becoming a popular tool for seismic performance evaluation of existing and new structures. The weak zones in the structure can be examined by conducting this push over analysis and then it will be decided whether the particular part is to be retrofitted or rehabilitated according to the requirement. This method determines the base shear capacity of the building and performance levels of each part of building under varying intensity of seismic force. The results of effects of different plan on seismic response of buildings have been presented in terms of displacement, base shear and plastic hinge pattern
The document describes a project report for the design and analysis of a G+22 building using the software ETABS. It includes an introduction to ETABS, the objectives of analyzing the high rise building to calculate loads and seismic behavior. It provides details on the codes used, plan and structural elements, material properties, load cases including dead, live, wind and earthquake loads. The procedure outlines the steps to model the structure, define properties, draw the frame, apply supports and loads, and check for errors.
IRJET- Design and Structural Analysis of Multi Storey Building (Both Commerci...IRJET Journal
This document discusses the structural analysis and design of a multi-storey commercial and residential building using STAAD Pro software. It first describes analyzing the building by calculating loads like dead load, live load, and load combinations. It then details designing building components like slabs, beams, columns, and footings based on the load calculations. The analysis found the building to be safe against all loadings and deflections. The conclusion is that STAAD Pro provides accurate results and a safe structural design for the multi-storey building.
Analysis and Design of an Earthquake Resistant Structure using STADD. ProIRJET Journal
This document describes analyzing and designing an earthquake resistant residential building in Mumbai using STADD.Pro software. The 11-story building is modeled in STADD.Pro and various loads including dead load, live load, wind load, and seismic load are calculated and applied based on Indian codes. An equivalent static analysis is performed to calculate member forces and displacements. The building is then designed as an ordinary moment resisting frame using limit state design method and concrete grade M25 with reinforcement FE415. The output from STADD.Pro contains the design of each individual beam and column to ensure the structural safety of the building under all load combinations including lateral loads from earthquakes and wind.
REPORT ON G+4 RCC HOSTEL BUILDING ANALYSIS AND DESIGN USING STAAD PRO SOFTWARERakeshDas161
REPORT ON G+4 RCC HOSTEL BUILDING IN ( SEISMIC ZONE 5 ) ANALYSIS AND DESIGN USING STAAD PRO SOFTWARE
PREPARED BY RAKESH DAS AND HIS GROUP
DEPARTMENT OF CIVIL ENGINEERING
GIRIJANANDA CHOWDHURY INSTITUTE OF MANAGEMENT AND TECHNOLOGY GUWAHATI ASSAM
ANALYSIS AND DESIGN OF MULTISTORIED EARTHQUAKE RESISTANT BUILDING. “G+25”IRJET Journal
This document summarizes the analysis and design of a 25-story earthquake resistant building (G+25) using STAAD Pro software. The building is modeled and analyzed for dead, live, and seismic loads according to Indian codes. The maximum shear forces and bending moments are determined. The sizes of beams, columns, and other structural elements are designed and reinforced concrete sections are determined. The analysis found that the structural members are safe and economical for the loads designed for, and the sizes obtained from STAAD can be used for construction of the building. Future work could use STAAD to analyze tall buildings under seismic loads and optimize designs using lightweight and self-compacting concrete.
IRJET- Analysis & Design of Multi-Story Building using Staad Pro and E-TabsIRJET Journal
1) The document analyzes and designs a 5-story residential building using STAAD PRO and ETABS software. It also performs manual design calculations as per Indian codes.
2) The building is modeled, analyzed for dead, live, wind, and seismic loads according to Indian codes. Beams, columns, slabs, and foundations are designed using software and manually.
3) Results of the analysis such as beam, column, and footing dimensions and reinforcement details are presented. The document concludes that software design reduces time and improves accuracy compared to manual design.
Planning, Analysis, Design and Detailing of degree college building by adapti...IRJET Journal
This document provides details on the planning, analysis, design, and estimation of a proposed G+1 degree college building using sustainable concepts. The building is planned on a 1-acre plot with a total built-up area of 28,654 square feet. The layout and drafting are done using AutoCAD software. Structural analysis is performed manually as per Indian codes to calculate forces and deflections. Based on the analysis, the dimensioning and reinforcement of structural elements like beams, columns, slabs, and footings are designed manually. Detailing of all elements is done using AutoCAD. Finally, the project cost is estimated using Microsoft Excel. The total estimated cost is around 5 crores following the latest PWD schedule of rates
A Comparative Study on Analysis of G+8 Commercial Steel Building Using STAAD....IRJET Journal
- The document presents a comparative study analyzing a G+8 commercial steel building using STAAD.Pro and ETABS software.
- The study models the building in both programs and compares results for parameters like horizontal displacements, support reactions, axial forces in columns, shear forces and bending moments in beams.
- The results show some parameters like support reactions and displacements are similar between the programs while others like bending moments and shear forces show more variation. Overall both programs provide effective analysis of the building structure.
This document is a dissertation report submitted by Khan Asadullah for a B.Tech in Civil Engineering. It details the seismic design of a residential building using STAAD Pro software. The building has 2 basements, a ground floor, and 23 upper floors. The report includes modeling the building in STAAD Pro, analyzing it under gravity, wind, and seismic loads, and designing various structural elements like beams, columns, slabs, and foundations both manually and using STAAD Pro. Load combinations, material properties, and design considerations in accordance with Indian codes are also discussed.
COMPARITIVE ANALYSIS OF RCC STRUCTURE ON SLOPING GROUND AGAINST SEISMIC LOADI...IRJET Journal
This document analyzes the seismic performance of reinforced concrete structures on sloping ground using fluid viscous dampers, shear walls, and bracings. It models a 10-story building in the software ETABS and analyzes it under response spectrum analysis. The models are compared based on maximum story displacement, drift, and shear. Results show that in the x-direction, the structure with x-bracing performed best in reducing seismic effects compared to the other models that included fluid viscous dampers and shear walls.
Analysis and Design of G+19 Storied Building Using Staad-ProIJERA Editor
High-rise structures need much time for its time consuming and cumbersome calculations using conventional
manual methods. STAAD-Pro provides us a fast, efficient, easy to use and accurate platform for analyzing and
designing structures. The principle objective of this project is to analysis and design a multi-storied building
G+19 (3 dimensional frame) using STAAD Pro software. The design involves analyzing the whole structure by
STAAD Pro. The design methods used in STAAD-Pro analysis are Limit State Design conforming to Indian
Standard Code of Practice. We conclude that STAAD-PRO is a very powerful tool which can save much time
and is very accurate in designs. In this project, G+19 storied building is considered and applied various loads
like wind laod, static laod ,earthquake load and results are studied and compared by manual calculations.
This document describes a project submitted by Bedabrata Bhattacharjee and A.S.V. Nagender to analyze and design a multi-storey building using STAAD.Pro software. It includes a certificate from their professor U.K. Mishra certifying the project. The document then discusses loads considered for the building design including dead loads, imposed loads, wind loads and seismic loads. It provides background on analyzing the structure, designing based on limit state methods, and conforming to Indian code standards. The objective is to analyze a G+21 building using STAAD.Pro to understand its capabilities for high-rise structural design.
This document describes a project submitted by Bedabrata Bhattacharjee and A.S.V. Nagender to analyze and design a multi-storey building using STAAD.Pro software. It includes a certificate from their professor U.K. Mishra certifying the project. The document then discusses loads considered for the building design including dead loads, imposed loads, wind loads and seismic loads. It provides background on analyzing the structure, designing based on limit state methods, and conforming to Indian code standards. The objective is to analyze a G+21 building using STAAD.Pro to understand its capabilities for high-rise structural design.
Staad pro internshala ppt for engineering.pptxxegedi4561
This document provides an overview of STAAD Pro structural analysis software. It discusses the history and development of STAAD Pro, the types of structures that can be modeled including frames and finite elements, how to generate models using different methods, assigning loads and properties, performing analysis and design, and the advantages of STAAD Pro including its wide range of international design codes. In conclusion, STAAD Pro is widely used in the construction industry for structural design and analysis, though experienced users can be difficult to find, and training in STAAD Pro provides skills valuable for careers in real estate and construction.
CADmantra Technologies Pvt. Ltd. is one of the best Cad training company in northern zone in India . which are provided many types of courses in cad field i.e AUTOCAD,SOLIDWORK,CATIA,CRE-O,Uniraphics-NX, CNC, REVIT, STAAD.Pro. And many courses
Contact: www.cadmantra.com
www.cadmantra.blogspot.com
www.cadmantra.wix.com
AutoCAD is a 2D and 3D CAD software application available since 1982. It was originally derived from a 1977 program called Interact CAD. The 2016 release marked AutoCAD's 30th major release. STAAD.Pro is a structural analysis and design software used to generate 3D models, perform analysis, and design structures according to various international codes. It was originally developed by Research Engineers International before being acquired by Bentley Systems in 2005. The document then provides details on modeling, analysis, design, and advantages of using STAAD.Pro for structural engineering projects.
IRJET- Comparative Study on Analysis and Design of Regular Configuration of B...IRJET Journal
- The document compares the analysis and design of a regular multi-story reinforced concrete building using Staad.Pro and ETABS software.
- It models and analyzes the building in both programs, calculating member forces like shear and bending moments. Results from the two programs are then compared.
- The goal is to determine which software provides a more accurate and economical design while conforming to Indian code standards for structural design and load calculations.
SEISMIC ANALYSIS OF G+7 RESIDENTIAL BUILDING WITH AND WITHOUT SHEAR WALLIRJET Journal
This document summarizes a study on the seismic analysis of a G+7 residential building located in a high seismic zone V, with and without shear walls. The building is modeled in STAAD Pro software and analyzed considering Indian code IS 1893(2005). Parameters like base shear, storey shear, displacements, bending moments, and stresses are compared between the models. The results show that the model with shear walls experiences lower displacements, stresses, bending moments, and base shear, indicating that shear walls greatly improve a building's ability to resist seismic forces compared to a building without shear walls.
IRJET- Planning, Analyzing and Design of High Rise Building using EtabsIRJET Journal
1) The document discusses planning, analyzing, and designing a 15-story residential building using ETABS software.
2) It describes modeling the building in ETABS, including dimensions of columns, beams, slabs and applying loads like dead, live, and seismic.
3) The analysis involved evaluating bending moments, shear forces, and drift from equivalent static analysis in ETABS to ensure structural integrity under loads.
Comparative study of a multi – storied building with and without shear wall b...IRJET Journal
This document describes a comparative study using STAAD.Pro software to analyze a mid-rise (G+5) and high-rise (G+10) building with and without shear walls. The study aims to identify the load case with the greatest story drift and determine the maximum drift values and heights. A 3D model of each building is created in STAAD.Pro and assigned materials, member properties, loads, and load combinations based on Indian codes. An analysis is run to obtain member forces and support reactions. Story drift values will then be compared between models to evaluate their structural performance.
Harnessing WebAssembly for Real-time Stateless Streaming PipelinesChristina Lin
Traditionally, dealing with real-time data pipelines has involved significant overhead, even for straightforward tasks like data transformation or masking. However, in this talk, we’ll venture into the dynamic realm of WebAssembly (WASM) and discover how it can revolutionize the creation of stateless streaming pipelines within a Kafka (Redpanda) broker. These pipelines are adept at managing low-latency, high-data-volume scenarios.
Using recycled concrete aggregates (RCA) for pavements is crucial to achieving sustainability. Implementing RCA for new pavement can minimize carbon footprint, conserve natural resources, reduce harmful emissions, and lower life cycle costs. Compared to natural aggregate (NA), RCA pavement has fewer comprehensive studies and sustainability assessments.
ACEP Magazine edition 4th launched on 05.06.2024Rahul
This document provides information about the third edition of the magazine "Sthapatya" published by the Association of Civil Engineers (Practicing) Aurangabad. It includes messages from current and past presidents of ACEP, memories and photos from past ACEP events, information on life time achievement awards given by ACEP, and a technical article on concrete maintenance, repairs and strengthening. The document highlights activities of ACEP and provides a technical educational article for members.
DEEP LEARNING FOR SMART GRID INTRUSION DETECTION: A HYBRID CNN-LSTM-BASED MODELgerogepatton
As digital technology becomes more deeply embedded in power systems, protecting the communication
networks of Smart Grids (SG) has emerged as a critical concern. Distributed Network Protocol 3 (DNP3)
represents a multi-tiered application layer protocol extensively utilized in Supervisory Control and Data
Acquisition (SCADA)-based smart grids to facilitate real-time data gathering and control functionalities.
Robust Intrusion Detection Systems (IDS) are necessary for early threat detection and mitigation because
of the interconnection of these networks, which makes them vulnerable to a variety of cyberattacks. To
solve this issue, this paper develops a hybrid Deep Learning (DL) model specifically designed for intrusion
detection in smart grids. The proposed approach is a combination of the Convolutional Neural Network
(CNN) and the Long-Short-Term Memory algorithms (LSTM). We employed a recent intrusion detection
dataset (DNP3), which focuses on unauthorized commands and Denial of Service (DoS) cyberattacks, to
train and test our model. The results of our experiments show that our CNN-LSTM method is much better
at finding smart grid intrusions than other deep learning algorithms used for classification. In addition,
our proposed approach improves accuracy, precision, recall, and F1 score, achieving a high detection
accuracy rate of 99.50%.
Using recycled concrete aggregates (RCA) for pavements is crucial to achieving sustainability. Implementing RCA for new pavement can minimize carbon footprint, conserve natural resources, reduce harmful emissions, and lower life cycle costs. Compared to natural aggregate (NA), RCA pavement has fewer comprehensive studies and sustainability assessments.
KuberTENes Birthday Bash Guadalajara - K8sGPT first impressionsVictor Morales
K8sGPT is a tool that analyzes and diagnoses Kubernetes clusters. This presentation was used to share the requirements and dependencies to deploy K8sGPT in a local environment.
Redefining brain tumor segmentation: a cutting-edge convolutional neural netw...IJECEIAES
Medical image analysis has witnessed significant advancements with deep learning techniques. In the domain of brain tumor segmentation, the ability to
precisely delineate tumor boundaries from magnetic resonance imaging (MRI)
scans holds profound implications for diagnosis. This study presents an ensemble convolutional neural network (CNN) with transfer learning, integrating
the state-of-the-art Deeplabv3+ architecture with the ResNet18 backbone. The
model is rigorously trained and evaluated, exhibiting remarkable performance
metrics, including an impressive global accuracy of 99.286%, a high-class accuracy of 82.191%, a mean intersection over union (IoU) of 79.900%, a weighted
IoU of 98.620%, and a Boundary F1 (BF) score of 83.303%. Notably, a detailed comparative analysis with existing methods showcases the superiority of
our proposed model. These findings underscore the model’s competence in precise brain tumor localization, underscoring its potential to revolutionize medical
image analysis and enhance healthcare outcomes. This research paves the way
for future exploration and optimization of advanced CNN models in medical
imaging, emphasizing addressing false positives and resource efficiency.
CHINA’S GEO-ECONOMIC OUTREACH IN CENTRAL ASIAN COUNTRIES AND FUTURE PROSPECTjpsjournal1
The rivalry between prominent international actors for dominance over Central Asia's hydrocarbon
reserves and the ancient silk trade route, along with China's diplomatic endeavours in the area, has been
referred to as the "New Great Game." This research centres on the power struggle, considering
geopolitical, geostrategic, and geoeconomic variables. Topics including trade, political hegemony, oil
politics, and conventional and nontraditional security are all explored and explained by the researcher.
Using Mackinder's Heartland, Spykman Rimland, and Hegemonic Stability theories, examines China's role
in Central Asia. This study adheres to the empirical epistemological method and has taken care of
objectivity. This study analyze primary and secondary research documents critically to elaborate role of
china’s geo economic outreach in central Asian countries and its future prospect. China is thriving in trade,
pipeline politics, and winning states, according to this study, thanks to important instruments like the
Shanghai Cooperation Organisation and the Belt and Road Economic Initiative. According to this study,
China is seeing significant success in commerce, pipeline politics, and gaining influence on other
governments. This success may be attributed to the effective utilisation of key tools such as the Shanghai
Cooperation Organisation and the Belt and Road Economic Initiative.
CHINA’S GEO-ECONOMIC OUTREACH IN CENTRAL ASIAN COUNTRIES AND FUTURE PROSPECT
Final
1. 1

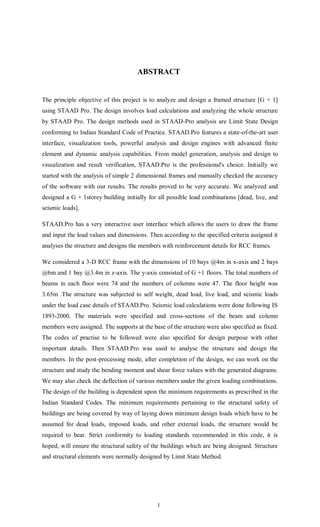

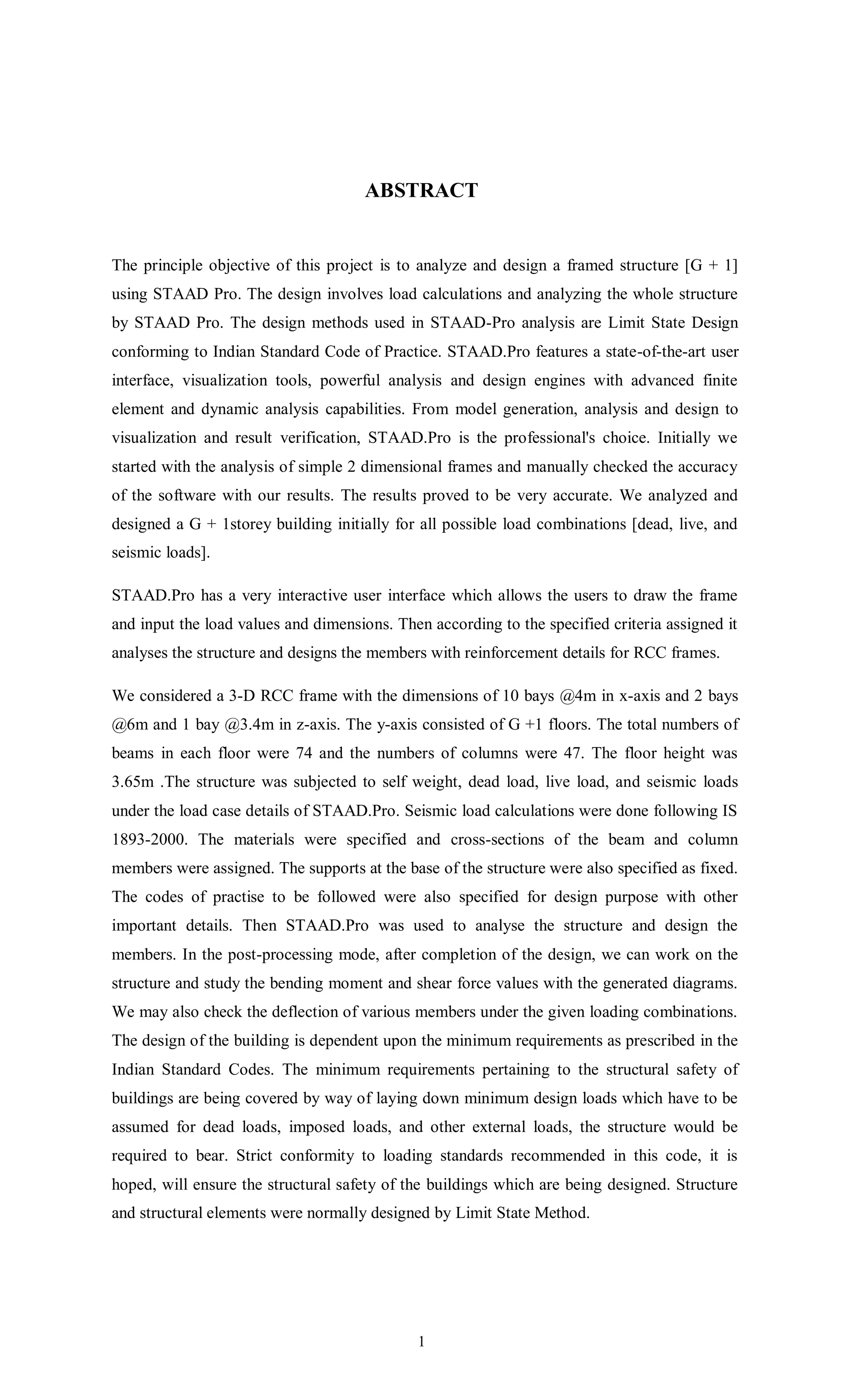

ABSTRACT
The principle objective of this project is to analyze and design a framed structure [G + 1]
using STAAD Pro. The design involves load calculations and analyzing the whole structure
by STAAD Pro. The design methods used in STAAD-Pro analysis are Limit State Design
conforming to Indian Standard Code of Practice. STAAD.Pro features a state-of-the-art user
interface, visualization tools, powerful analysis and design engines with advanced finite
element and dynamic analysis capabilities. From model generation, analysis and design to
visualization and result verification, STAAD.Pro is the professional's choice. Initially we
started with the analysis of simple 2 dimensional frames and manually checked the accuracy
of the software with our results. The results proved to be very accurate. We analyzed and
designed a G + 1storey building initially for all possible load combinations [dead, live, and
seismic loads].
STAAD.Pro has a very interactive user interface which allows the users to draw the frame
and input the load values and dimensions. Then according to the specified criteria assigned it
analyses the structure and designs the members with reinforcement details for RCC frames.
We considered a 3-D RCC frame with the dimensions of 10 bays @4m in x-axis and 2 bays
@6m and 1 bay @3.4m in z-axis. The y-axis consisted of G +1 floors. The total numbers of
beams in each floor were 74 and the numbers of columns were 47. The floor height was
3.65m .The structure was subjected to self weight, dead load, live load, and seismic loads
under the load case details of STAAD.Pro. Seismic load calculations were done following IS
1893-2000. The materials were specified and cross-sections of the beam and column
members were assigned. The supports at the base of the structure were also specified as fixed.
The codes of practise to be followed were also specified for design purpose with other
important details. Then STAAD.Pro was used to analyse the structure and design the
members. In the post-processing mode, after completion of the design, we can work on the
structure and study the bending moment and shear force values with the generated diagrams.
We may also check the deflection of various members under the given loading combinations.
The design of the building is dependent upon the minimum requirements as prescribed in the
Indian Standard Codes. The minimum requirements pertaining to the structural safety of
buildings are being covered by way of laying down minimum design loads which have to be
assumed for dead loads, imposed loads, and other external loads, the structure would be
required to bear. Strict conformity to loading standards recommended in this code, it is
hoped, will ensure the structural safety of the buildings which are being designed. Structure
and structural elements were normally designed by Limit State Method.
2. 2
INTRODUCTION
Our project involves analysis and design of multi-storeyed [G +1] using a very popular
designing software STAAD Pro. We have chosen STAAD Pro because of its following
advantages:
Easy to use interface.
Conformation with the Indian Standard Codes.
Versatile nature of solving any type of problem.
Accuracy of the solution.
STAAD.Pro features a state-of-the-art user interface, visualization tools, powerful analysis
and design engines with advanced finite element and dynamic analysis capabilities. From
model generation, analysis and design to visualization and result verification, STAAD.Pro is
the professional's choice for steel, concrete, timber, aluminum and cold-formed steel design
of low and high-rise buildings, culverts, petrochemical plants, tunnels, bridges, piles and
much more.
STAAD.Pro consists of the following:
The STAAD.Pro Graphical User Interface: It is used to generate the model, which can then
be analyzed using the STAAD engine. After analysis and design is completed, the GUI can
also be used to view the results graphically.
The STAAD analysis and design engine: It is a general-purpose calculation engine for
structural analysis and integrated Steel, Concrete, Timber and Aluminium design.
To start with we have solved some sample problems using STAAD Pro and checked the
accuracy of the results with manual calculations. The results were to satisfaction and were
accurate. In the initial phase of our project we have done calculations regarding loadings on
buildings and also considered seismic loads.
Structural analysis comprises the set of physical laws and mathematics required to study and
predicts the behavior of structures. Structural analysis can be viewed more abstractly as a
method to drive the engineering design process or prove the soundness of a design without a
dependence on directly testing it.
3. 3
To perform an accurate analysis a structural engineer must determine such information as
structural loads, geometry, support conditions, and materials properties. The results of such
an analysis typically include support reactions, stresses and displacements. This information
is then compared to criteria that indicate the conditions of failure. Advanced structural
analysis may examine dynamic response, stability and non-linear behaviour. The aim of
design is the achievement of an acceptable probability that structures being designed will
perform satisfactorily during their intended life. With an appropriate degree of safety, they
should sustain all the loads and deformations of normal construction and use and have
adequate durability and adequate resistance to the effects of seismic. Structure and structural
elements shall normally be designed by Limit State Method. Account should be taken of
accepted theories, experiment and experience and the need to design for durability. Design,
including design for durability, construction and use in service should be considered as a
whole. The realization of design objectives requires compliance with clearly defined
standards for materials, production, workmanship and also maintenance and use of structure
in service.
The design of the building is dependent upon the minimum requirements as prescribed in the
Indian Standard Codes. The minimum requirements pertaining to the structural safety of
buildings are being covered by way of laying down minimum design loads which have to be
assumed for dead loads, imposed loads, and other external loads, the structure would be
required to bear. Strict conformity to loading standards recommended in this code, it is
hoped, will not only ensure the structural safety of the buildings which are being designed.
4. 4
LOADS CONSIDERED
2.1 DEAD LOADS:
All permanent constructions of the structure form the dead loads. The dead load comprises of
the weights of walls, partitions floor finishes, false ceilings, false floors and the other
permanent constructions in the buildings. The dead load loads may be calculated from the
dimensions of various members and their unit weights. the unit weights of plain concrete and
reinforced concrete made with sand and gravel or crushed natural stone aggregate may be
taken as 24 kN/m" and 25 kN/m" respectively.
2.2 IMPOSED LOADS:
Imposed load is produced by the intended use or occupancy of a building including the
weight of movable partitions, distributed and concentrated loads, load due to impact and
vibration and dust loads. Imposed loads do not include loads due to wind, seismic activity,
snow, and loads imposed due to temperature changes to which the structure will be subjected
to, creep and shrinkage of the structure, the differential settlements to which the structure
may undergo.
2.3 WIND LOAD:
Wind is air in motion relative to the surface of the earth. The primary cause of wind is traced
to earth's rotation and differences in terrestrial radiation. The radiation effects are primarily
responsible for convection either upwards or downwards. The wind generally blows
horizontal to the ground at high wind speeds. Since vertical components of atmospheric
motion are relatively small, the term 'wind' denotes almost exclusively the horizontal wind,
vertical winds are always identified as such. The wind speeds are assessed with the aid of
anemometers or anemographs which are installed at meteorological observatories at heights
generally varying from 10 to 30 meters above ground.
2.4 SEISMIC LOAD:
Design Lateral Force
5. 5
The design lateral force shall first be computed for the building as a whole. This design
lateral force shall then be distributed to the various floor levels. The overall design seismic
force thus obtained at each floor level shall then be distributed to individual lateral load
resisting elements depending on the floor diaphragm action.
6. 6
WORKING WITH STAAD.Pro:
3.1 Input Generation:
The GUI (or user) communicates with the STAAD analysis engine through the STD input
file. That input file is a text file consisting of a series of commands which are executed
sequentially. The commands contain either instructions or data pertaining to analysis and/or
design. The STAAD input file can be created through a text editor or the GUI Modeling
facility. In general, any text editor may be utilized to edit/create the STD input file. The GUI
Modeling facility creates the input file through an interactive menu-driven graphics oriented
procedure.
Fig 3.1: STAAD input file
3.2 Types of Structures:
A STRUCTURE can be defined as an assemblage of elements. STAAD is capable of
analyzing and designing structures consisting of frame, plate/shell and solid elements. Almost
any type of structure can be analyzed by STAAD.
A SPACE structure, which is a three dimensional framed structure with loads applied in any
plane, is the most general.
A PLANE structure is bound by a global X-Y coordinate system with loads in the same
plane.
A TRUSS structure consists of truss members which can have only axial member forces and
no bending in the members.
7. 7
A FLOOR structure is a two or three dimensional structure having no horizontal (global X or
Z) movement of the structure [FX, FZ & MY are restrained at every joint]. The floor framing
(in global X-Z plane) of a building is an ideal example of a FLOOR structure. Columns can
also be modeled with the floor in a FLOOR structure as long as the structure has no
horizontal loading. If there is any horizontal load, it must be analyzed as a SPACE structure.
3.3 Generation of the structure:
The structure may be generated from the input file or mentioning the co-ordinates in the GUI.
The figure below shows the GUI generation method.
Fig 3.2: generation of structure through GUI
3.4 Material Constants:
The material constants are: modulus of elasticity (E); weight density (DEN); Poisson's ratio
(POISS); co-efficient of thermal expansion (ALPHA), Composite Damping Ratio, and beta
angle (BETA) or coordinates for any reference (REF) point. E value for members must be
provided or the analysis will not be performed. Weight density (DEN) is used only when self-
weight of the structure is to be taken into account.
If Poisson's ratio is not provided, STAAD will assume a value for this quantity based on the
value of E. Coefficient of thermal expansion (ALPHA) is used to calculate the expansion of
the members if temperature loads are applied. The temperature unit for temperature load and
ALPHA has to be the same.
3.5 Supports:
Supports are specified as PINNED, FIXED, or FIXED with different releases (known as
FIXED BUT). A pinned support has restraints against all translational movement and none
against rotational movement. In other words, a pinned support will have reactions for all
8. 8
forces but will resist no moments. A fixed support has restraints against all directions of
movement. Translational and rotational springs can also be specified. The springs are
represented in terms of their spring constants. A translational spring constant is defined as the
force to displace a support joint one length unit in the specified global direction. Similarly, a
rotational spring constant is defined as the force to rotate the support joint one degree around
the specified global direction.
3.6 Loads:
Loads in a structure can be specified as joint load, member load, temperature load and fixed-
end member load. STAAD can also generate the self-weight of the structure and use it as
uniformly distributed member loads in analysis. Any fraction of this self-weight can also be
applied in any desired direction.
Joint loads:
Joint loads, both forces and moments, may be applied to any free joint of a structure. These
loads act in the global coordinate system of the structure. Positive forces act in the positive
coordinate directions. Any number of loads may be applied on a single joint, in which case
the loads will be additive on that joint.
Member load:
Three types of member loads may be applied directly to a member of a structure. These loads
are uniformly distributed loads, concentrated loads, and linearly varying loads (including
trapezoidal). Uniform loads act on the full or partial length of a member. Concentrated loads
act at any intermediate, specified point. Linearly varying loads act over the full length of a
member. Trapezoidal linearly varying loads act over the full or partial length of a member.
Trapezoidal loads are converted into a uniform load and several concentrated loads. Any
number of loads may be specified to act upon a member in any independent loading
condition. Member loads can be specified in the member coordinate system or the global
coordinate system. Uniformly distributed member loads provided in the global coordinate
system may be specified to act along the full or projected member length.
Fixed end member load:
Load effects on a member may also be specified in terms of its fixed end loads. These loads
are given in terms of the member coordinate system and the directions are opposite to the
9. 9
actual load on the member. Each end of a member can have six forces: axial; shear y; shear z;
torsion; moment y, and moment z.
Load Generator - Moving load& Seismic:
Load generation is the process of taking a load causing unit such as wind pressure, ground
movement or a truck on a bridge, and converting it to a form such as member load or a joint
load which can be then be used in the analysis.
Moving Load Generator:
This feature enables the user to generate moving loads on members of a structure. Moving
load system(s) consisting of concentrated loads at fixed specified distances in both directions
on a plane can be defined by the user. A user specified number of primary load cases will be
subsequently generated by the program and taken into consideration in analysis.
Seismic Load Generator:
The STAAD seismic load generator follows the procedure of equivalent lateral load analysis.
It is assumed that the lateral loads will be exerted in X and Z directions and Y will be the
direction of the gravity loads. Thus, for a building model, Y axis will be perpendicular to the
floors and point upward (all Y joint coordinates positive). For load generation per the codes,
the user is required to provide seismic zone coefficients, importance factors, and soil
characteristic parameters. Instead of using the approximate code based formulas to estimate
the building period in a certain direction, the program calculates the period using Raleigh
quotient technique. This period is then utilized to calculate seismic coefficient C. After the
base shear is calculated from the appropriate equation, it is distributed among the various
levels and roof per the specifications. The distributed base shears are subsequently applied as
lateral loads on the structure. These loads may then be utilized as normal load cases for
analysis and design.
3.7 Section Types for Concrete Design:
The following types of cross sections for concrete members can be designed.
For Beams Prismatic (Rectangular & Square) & T-shape For Columns
Prismatic (Rectangular, Square and Circular)
10. 10
3.8 Design Parameters:
The program contains a number of parameters that are needed to perform design as per IS
13920. It accepts all parameters that are needed to perform design as per IS: 456. Over and
above it has some other parameters that are required only when designed is performed as per
IS: 13920. Default parameter values have been selected such that they are frequently used
numbers for conventional design requirements. These values may be changed to suit the
particular design being performed by this manual contains a complete list of the available
parameters and their default values. It is necessary to declare length and force units as
Millimeter and Newton before performing the concrete design.
3.9 Beam Design:
Beams are designed for flexure, shear and torsion. If required the effect of the axial force may
be taken into consideration. For all these forces, all active beam loadings are prescanned to
identify the critical load cases at different sections of the beams. For design to be performed
as per IS: 13920 the width of the member shall not be less than 200mm. Also the member
shall preferably have a width-to depth ratio of more than 0.3.
Design for Flexure:
Design procedure is same as that for IS 456. However while designing following criteria are
satisfied as per IS-13920:
1. The minimum grade of concrete shall preferably be M20.
2. Steel reinforcements of grade Fe415 or less only shall be used.
3. The minimum tension steel ratio on any face, at any section, is given by:
pmin = 0.24Vfck/fy
The maximum steel ratio on any face, at any section, is given by pmax = 0.025
4. The positive steel ratio at a joint face must be at least equal to half the negative steel
at that face.
5. The steel provided at each of the top and bottom face, at any section, shall at least be
equal to one-fourth of the maximum negative moment steel provided at the face of either
joint.
Design for Shear:
The shear force to be resisted by vertical hoops is guided by the IS 13920:1993 revision.
Elastic sagging and hogging moments of resistance of the beam section at ends are
considered while calculating shear force. Plastic sagging and hogging moments of resistance
can also be considered for shear design if PLASTIC parameter is mentioned in the input file.
Shear reinforcement is calculated to resist both shear forces and torsional moments.
11. 11
3.10 Column Design:
Columns are designed for axial forces and biaxial moments per IS 456:2000. Columns are
also designed for shear forces. All major criteria for selecting longitudinal and transverse
reinforcement as stipulated by IS: 456 have been taken care of in the column design of
STAAD. However following clauses have been satisfied to incorporate provisions of IS
13920:
1 The minimum grade of concrete shall preferably be M20
2. Steel reinforcements of grade Fe415 or less only shall be used.
3. The minimum dimension of column member shall not be less than 200 mm. For columns
having unsupported length exceeding 4m, the shortest dimension of column shall not be less
than 300 mm.
4. The ratio of the shortest cross-sectional dimension to the perpendicular dimension shall
preferably be not less than 0.
5. The spacing of hoops shall not exceed half the least lateral dimension of the column,
except where special confining reinforcement is provided.
6. Special confining reinforcement shall be provided over a length lo from each joint face,
towards mid span, and on either side of any section, where flexural yielding may occur. The
length lo shall not be less than a) larger lateral dimension of the member at the section where
yielding occurs, b) 1/6 of clear span of the member, and c) 450 mm.
7. The spacing of hoops used as special confining reinforcement shall not exceed VV of
minimum member dimension but need not be less than 75 mm nor more than 100 mm.
3.11 Design Operations:
STAAD contains a broad set of facilities for designing structural members as individual
components of an analyzed structure. The member design facilities provide the user with the
ability to carry out a number of different design operations. These facilities may design
problem. The operations to perform a design are:
• Specify the members and the load cases to be considered in the design.
• Specify whether to perform code checking or member selection.
• Specify design parameter values, if different from the default values.
• Specify whether to perform member selection by optimization.
These operations may be repeated by the user any number of times depending upon the
design requirements.
12. 12
Earthquake motion often induces force large enough to cause inelastic deformations in the
structure. If the structure is brittle, sudden failure could occur. But if the structure is made to
behave ductile, it will be able to sustain the earthquake effects better with some deflection
larger than the yield deflection by absorption of energy. Therefore ductility is also required as
an essential element for safety from sudden collapse during severe shocks. STAAD has the
capabilities of performing concrete design as per IS 13920. While designing it satisfies all
provisions of IS 456 - 2000 and IS 13920 for beams and columns.
3.12 General Comments:
This section presents some general statements regarding the implementation of Indian Standard code
of practice (IS: 800-1984) for structural steel design in STAAD. The design philosophy and
procedural logistics for member selection and code checking are based upon the principles of
allowable stress design. Two major failure modes are recognized: failure by overstressing, and failure
by stability considerations. The flowing sections describe the salient features of the allowable stresses
being calculated and the stability criteria being used. Members are proportioned to resist the design
loads without exceeding the allowable stresses and the most economic section is selected on the basis
of least weight criteria. The code checking part of the program checks stability and strength
requirements and reports the critical loading condition and the governing code criteria. It is generally
assumed that the user will take care of the detailing requirements like provision of stiffeners and
check the local effects such as flange buckling and web crippling.
Allowable Stresses:
The member design and code checking in STAAD are based upon the allowable stress design method
as per IS: 800 (1984). It is a method for proportioning structural members using design loads and
forces, allowable stresses, and design limitations for the appropriate material under service conditions.
It would not be possible to describe every aspect of IS: 800 in this manual. This section, however, will
discuss the salient features of the allowable stresses specified by IS: 800 and implemented in STAAD.
Appropriate sections of IS: 800 will be referenced during the discussion of various types of allowable
stresses.
Multiple Analyses:
Structural analysis/design may require multiple analyses in the same run. STAAD allows the user to
change input such as member properties, support conditions etc. in an input file to facilitate multiple
analyses in the same run. Results from different analyses may be combined for design purposes. For
structures with bracing, it may be necessary to make certain members inactive for a particular load
case and subsequently activate them for another. STAAD. provides an INACTIVE facility for this
type of analysis.
13. 13
ANALYSIS OF G+1 RCC FRAMED STRUCTURE USING
STAAD.Pro
Fig 4.1: plan of the G+1 storey building
Fig 4.2: plan of beam and columns
Properties of beam and columns
Columns
R1-Rectangular Column (Size-0.30m*0.52m)
R2-Rectangular Column (Size-0.30m*0.45m)
R3-Square Column (Size-0.30m*0.30m)
Beam
14. 14
R4-Rectangular Beam (Size-0.225m*0.30m)
R5-Rectangular Beam (Size-0.225m*0.45m)
R6-Rectangular Beam (Size-0.225m*0.45m)
R7-Rectangular Beam (Size-0.300m*0.45m)
R8-Rectangular Beam (Size-0.300m*0.20m) [CBM]
4.1 Physical parameters of building:
Length = 8 bays @ 3.20m = 26
Width = 3 bays @ 5.6*2m and 2.7m =15.0m
Height = 4m + 1 storeys @ 3.6m = 73.3m
(1.0m parapet being non- structural for seismic purposes, is not considered of building frame
height)
Live load-3KN/m
Grade of concrete and steel
Used M30 concrete and Fe 415steel.
4.2 Generation of member property:
Fig 4.3: Generation of member property
Generation of member property can be done in STAAD.Pro by using the window as shown
above. The member section is selected and the dimensions have been specified. The beams
and the columns are having a dimension given above at the ground floor and at the other
floor.
15. 15
4.3 Supports:
Fig 4.4: fixing supports of the structure
4.4 Materials for the structure:
The materials for the structure were specified as concrete with their various constants as per standard
IS code of practice.
4.5 Loading:
The loadings were calculated partially manually and rest was generated using STAAD.Pro
load generator. The loading cases were categorized as:
Self-weight
Dead load from slab
Live load
Seismic load
Load combination
Self-weight
The self-weight of the structure can be generated by STAAD.Pro itself with the self-weight
command in the load case column.
Dead load from slab:
16. 16
Dead load from slab can also be generated by STAAD.Pro by specifying the floor thickness and the
load on the floor per sq. m. Calculation of the load per sq. m was done considering the weight of
beam, weight of column, weight of RCC slab, weight of terracing, external walls, internal walls and
parapet over roof.
Fig 4.5: the structure under DL from slab
Live load:
The live load considered in floor was 3 KN/sq m. The live loads were generated in a similar
manner as done in the earlier case for dead load in each floor. This may be done from the
member load button from the load case column.
Seismic load:
The seismic load values were calculated as per IS 1893-2002. STAAD.Pro has a seismic load
generator in accordance with the IS code mentioned.
Description:
The seismic load generator can be used to generate lateral loads in the X and Z directions
only. Y is the direction of gravity loads. This facility has not been developed for cases where
the Z axis is set to be the vertical direction using the "SET Z UP" command. Methodology:
The design base shear is computed by STAAD in accordance with the IS: 1893(Part 1)-2002.
V = Ah*W
Where, Ah = (Z*I*Sa)/ (2*R*g)
STAAD utilizes the following procedure to generate the lateral seismic loads.
-I- User provides seismic zone co-efficient and desired "1893(Part 1)-2002 specs"
17. 17
through the DEFINE 1893 LOAD command.
Program calculates the structure period (T).
Program calculates Sa/g utilizing T. -I- Program calculates V from the above equation. W is
obtained from the weight dataprovided by the user through the DEFINE 1893 LOAD
command.
The total lateral seismic load (base shear) is then distributed by the program among different
levels of the structure per the IS: 1893(Part 1)-2002 procedures.
Load combination:
The structure has been analyzed for load combinations considering all the previous loads in proper
ratio. In the first case a combination of self-weight, dead load, live load and wind load was taken in to
consideration. In the second combination case instead of wind load seismic load was taken into
consideration.
Fig 4.16: GUI showing the analyzing window
18. 18
DESIGN OF G + 1 RCC FRAMED BUILDING USING
STAAD.Pro
The structure was designed for concrete in accordance with IS code. The parameters such as
clear cover, Fy, Fc, etc were specified. The window shown below is the input window for the
design purpose. Then it has to be specified which members are to be designed as beams and
which member are to be designed as beams and columns.
fig 5.2: design specifications in STAAD.Pro
Fig 5.1: input window for design purpose.
25. 25
PRINT SUPPORT REACTION
LOAD LIST 6 TO 18
START CONCRETE DESIGN
CODE INDIAN
FC 25000 ALL
FYMAIN 450000 ALL
DESIGN BEAM 1 TO 64 143 TO 270
DESIGN COLUMN 65 TO 142 271 TO 309
END CONCRETE DESIGN
FINISH
26. 26
ANALYSIS AND DESIGN RESULTS
Some of the sample analysis and design results have been shown below for beam number 24.
7.1 BEAM NO. 24 DESIGN RESULTS
B E A M N O. 24 D E S I G N R E S U L T S
M25 Fe450 (Main) Fe415 (Sec.)
LENGTH: 2700.0 mm SIZE: 203.2 mm X 304.8 mm COVER: 25.0 mm
SUMMARY OF REINF. AREA (Sq.mm)
----------------------------------------------------------------------------
SECTION 0.0 mm 675.0 mm 1350.0 mm 2025.0 mm 2700.0 mm
----------------------------------------------------------------------------
TOP 592.74 272.31 103.56 298.08 624.38
REINF. (Sq. mm) (Sq. mm) (Sq. mm) (Sq. mm) (Sq. mm)
BOTTOM 621.20 261.11 0.00 263.93 608.02
REINF. (Sq. mm) (Sq. mm) (Sq. mm) (Sq. mm) (Sq. mm)
----------------------------------------------------------------------------
SUMMARY OF PROVIDED REINF. AREA
----------------------------------------------------------------------------
SECTION 0.0 mm 675.0 mm 1350.0 mm 2025.0 mm 2700.0 mm
----------------------------------------------------------------------------
TOP 4-20í 4-20í 4-20í 4-20í 4-20í
29. 29
fig 7.5: Concrete design of beam no. 24
7.2 COLUMN NO.104 DESIGN RESULTS
M25 Fe450 (Main) Fe415 (Sec.)
LENGTH: 3650.0 mm CROSS SECTION: 533.4 mm X 304.8 mm COVER: 40.0 mm
** GUIDING LOAD CASE: 8 END JOINT: 79 SHORT COLUMN
REQD. STEEL AREA : 2515.38 Sq.mm.
REQD. CONCRETE AREA: 160065.78 Sq.mm.
MAIN REINFORCEMENT : Provide 16 - 16 dia. (1.98%, 3216.99 Sq.mm.)
(Equally distributed)
TIE REINFORCEMENT : Provide 8 mm dia. rectangular ties @ 255 mm c/c
30. 30
SECTION CAPACITY BASED ON REINFORCEMENT REQUIRED (KNS-MET)
Fig 7.6: Concrete design of column no. 3
7.3 BEAM NO. 249 DESIGN RESULTS
B E A M N O. 249 D E S I G N R E S U L T S
M25 Fe450 (Main) Fe415 (Sec.)
LENGTH: 3200.0 mm SIZE: 304.8 mm X 228.6 mm COVER: 25.0 mm
SUMMARY OF REINF. AREA (Sq.mm)
31. 31
----------------------------------------------------------------------------
SECTION 0.0 mm 800.0 mm 1600.0 mm 2400.0 mm 3200.0 mm
----------------------------------------------------------------------------
TOP 1039.13 233.54 0.00 235.36 1038.81
REINF. (Sq. mm) (Sq. mm) (Sq. mm) (Sq. mm) (Sq. mm)
BOTTOM 451.12 302.97 270.91 306.00 450.78
REINF. (Sq. mm) (Sq. mm) (Sq. mm) (Sq. mm) (Sq. mm)
----------------------------------------------------------------------------
SUMMARY OF PROVIDED REINF. AREA
----------------------------------------------------------------------------
SECTION 0.0 mm 800.0 mm 1600.0 mm 2400.0 mm 3200.0 mm
----------------------------------------------------------------------------
TOP 11-12í 8-12í 2-12í 8-12í 11-12í
REINF. 2 layer(s) 1 layer(s) 1 layer(s) 1 layer(s) 2 layer(s)
BOTTOM 8-12í 8-12í 8-12í 8-12í 8-12í
REINF. 1 layer(s) 1 layer(s) 1 layer(s) 1 layer(s) 1 layer(s)
SHEAR 2 legged 8í 2 legged 8í 2 legged 8í 2 legged 8í 2 legged 8í
REINF. @ 100 mm c/c @ 100 mm c/c @ 100 mm c/c @ 100 mm c/c @ 100 mm c/c
32. 32
7.1 COLUMN NO. 76 DESIGN RESULTS
C O L U M N N O. 76 D E S I G N R E S U L T S
M25 Fe450 (Main) Fe415 (Sec.)
LENGTH: 3650.0 mm CROSS SECTION: 457.2 mm X 304.8 mm COVER: 40.0 mm
** GUIDING LOAD CASE: 16 END JOINT: 12 SHORT COLUMN
REQD. STEEL AREA : 2047.41 Sq.mm.
REQD. CONCRETE AREA: 137307.92 Sq.mm.
MAIN REINFORCEMENT : Provide 20 - 12 dia. (1.62%, 2261.95 Sq.mm.)
(Equally distributed)
TIE REINFORCEMENT : Provide 8 mm dia. rectangular ties @ 190 mm c/c
SECTION CAPACITY BASED ON REINFORCEMENT REQUIRED (KNS-MET)
7.4 BEAM NO. 260 DESIGN RESULTS
B E A M N O. 260 D E S I G N R E S U L T S
M25 Fe450 (Main) Fe415 (Sec.)
LENGTH: 3200.0 mm SIZE: 203.2 mm X 304.8 mm COVER: 25.0 mm
33. 33
SUMMARY OF REINF. AREA (Sq.mm)
----------------------------------------------------------------------------
SECTION 0.0 mm 800.0 mm 1600.0 mm 2400.0 mm 3200.0 mm
----------------------------------------------------------------------------
TOP 793.47 263.82 0.00 236.76 755.12
REINF. (Sq. mm) (Sq. mm) (Sq. mm) (Sq. mm) (Sq. mm)
BOTTOM 459.27 270.33 126.37 258.82 447.38
REINF. (Sq. mm) (Sq. mm) (Sq. mm) (Sq. mm) (Sq. mm)
----------------------------------------------------------------------------
SUMMARY OF PROVIDED REINF. AREA
----------------------------------------------------------------------------
SECTION 0.0 mm 800.0 mm 1600.0 mm 2400.0 mm 3200.0 mm
----------------------------------------------------------------------------
TOP 5-16í 5-16í 2-16í 5-16í 5-16í
REINF. 1 layer(s) 1 layer(s) 1 layer(s) 1 layer(s) 1 layer(s)
BOTTOM 7-10í 6-10í 6-10í 6-10í 7-10í
REINF. 2 layer(s) 1 layer(s) 1 layer(s) 1 layer(s) 2 layer(s)
SHEAR 2 legged 8í 2 legged 8í 2 legged 8í 2 legged 8í 2 legged 8í
REINF. @ 90 mm c/c @ 90 mm c/c @ 90 mm c/c @ 90 mm c/c @ 90 mm c/c
----------------------------------------------------------------------------
34. 34
CONCLUSION
STAAD PRO has the capability to calculate the reinforcement needed for any concrete
