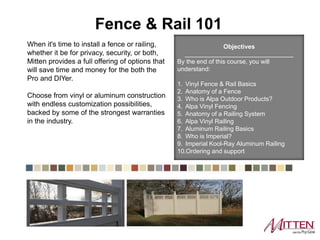

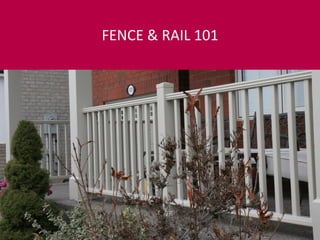

Product Knowledge Course
Introductory Level
FENCE & RAIL 101
When it's time to install a fence or railing,
whether it be for privacy, security, or both,
Ply Gem provides a full offering of options
that will save time and money for the both
the Pro and DIYer.
Choose from vinyl or aluminum construction
with endless customization possibilities,
backed by some of the strongest warranties
in the industry.
Objectives
________________________________
By the end of this course, you will
understand:
1. Vinyl Fence & Rail Basics
2. Anatomy of a Fence
3. Who is Alpa Outdoor Products?
4. Alpa Vinyl Fencing
5. Anatomy of a Railing System
6. Alpa Vinyl Railing
7. Aluminum Railing Basics
8. Who is Imperial?
9. Imperial Kool-Ray Aluminum Railing
10.Ordering and Support
Fence & Rail 101

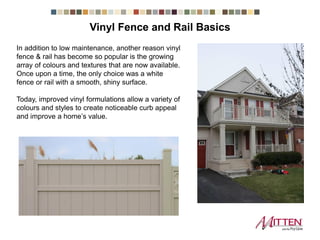

In addition to low maintenance, another reason vinyl
fence & rail has become so popular is the growing
array of colours and textures that are now available.
Once upon a time, the only choice was a white
fence or rail with a smooth, shiny surface.
Today, improved vinyl formulations allow a variety of
colours and styles to create noticeable curb appeal
and improve a home’s value.
Vinyl Fence and Rail Basics
Improvements in colour technology have also changed the way vinyl fence and
rail components are made.
Early products were monolithic; the vinyl was extruded in a single layer. Now,
most are co-extruded. A thick inside layer and a thin outside layer are extruded at
the same time and joined under heat and pressure to form a molecular bond.
The outside layer, or capstock, contains the colour and the UV inhibitors. The use
of acrylic colors in the exterior layer of some products makes them less prone to
fading than standard PVC.
Vinyl Fence and Rail Basics

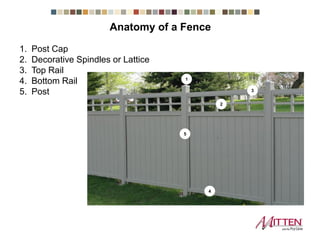

1. Post Cap
2. Decorative Spindles or Lattice
3. Top Rail
4. Bottom Rail
5. Post
1
2
3
4
5
Anatomy of a Fence

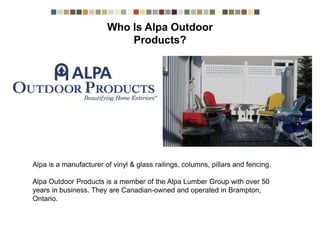

Alpa is a manufacturer of vinyl & glass railings, columns, pillars and fencing.
Alpa Outdoor Products is a member of the Alpa Lumber Group with over 50 years in
business. They are Canadian-owned and operated in Brampton, Ontario.
Who is Alpa Outdoor Products?

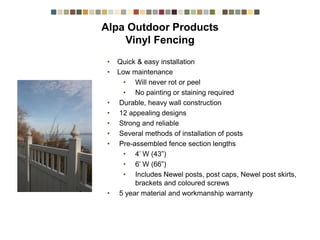

• Quick & easy installation
• Low maintenance
• Will never rot or peel
• No painting or staining required
• Durable, heavy wall construction
• 12 appealing designs
• Strong and reliable
• Several methods of installation of posts
• Pre-assembled fence section lengths
• 4’ W (43”)
• 6’ W (66”)
• Includes Newel posts, post caps, Newel post skirts,
brackets and coloured screws
• 5 year material and workmanship warranty
Alpa Outdoor Products Vinyl Fencing

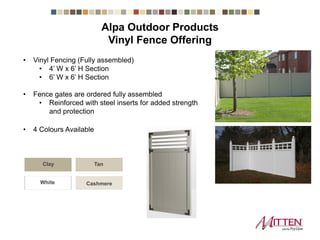

• Vinyl Fencing (Fully assembled)
• 4’ W x 6’ H Section
• 6’ W x 6’ H Section
• Fence gates are ordered fully assembled
• Reinforced with steel inserts for added strength
and protection
• 4 Colours Available
Clay Tan
CashmereWhite
Alpa Outdoor Products
Vinyl Fence Offering

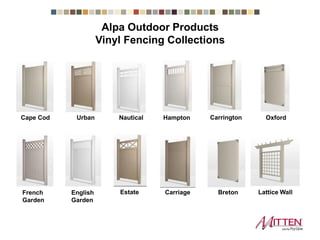

Vinyl Fencing Collections
Urban Nautical Hampton
French
Garden
CarriageEnglish
Garden
Estate
CarringtonCape Cod
Breton
Oxford
Lattice Wall
Alpa Outdoor Products
1. Newel Post Sleeve and Skirt
2. Newel Post Cap
3. Hand Rail or Top Rail
4. Stair Hand Rail or Top Rail
5. Bottom Rail
6. Baluster
7. Baluster Connections
Anatomy of a Railing System

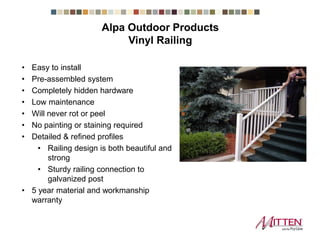

• Easy to install
• Pre-assembled system
• Completely hidden hardware
• Low maintenance
• Will never rot or peel
• No painting or staining required
• Detailed & refined profiles
• Railing design is both beautiful and
strong
• Sturdy railing connection to
galvanized post
• 5 year material and workmanship
warranty
Alpa Outdoor Products Vinyl Railing

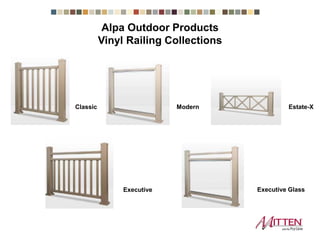

Vinyl Railing Collections
Classic Modern
Executive GlassExecutive
Estate-X
Alpa Outdoor Products

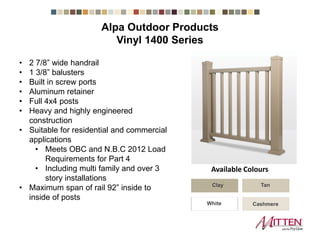

Vinyl 1400 Series
• 2 7/8” wide handrail
• 1 3/8” balusters
• Built in screw ports
• Aluminum retainer
• Full 4x4 posts
• Heavy and highly engineered
construction
• Suitable for residential and commercial
applications
• Meets OBC and N.B.C 2012 Load
Requirements for Part 4
• Including multi family and over 3
story installations
• Maximum span of rail 92” inside to
inside of posts
Clay Tan
CashmereWhite
Available Colours
Alpa Outdoor Products

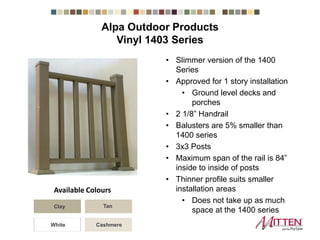

• Slimmer version of the 1400 Series
• Approved for 1 story installation
• Ground level decks and porches
• 2 1/8” Handrail
• Balusters are 5% smaller than 1400
series
• 3x3 Posts
• Maximum span of the rail is 84” inside
to inside of posts
• Thinner profile suits smaller installation
areas
• Does not take up as much space
at the 1400 series
Vinyl 1403 Series
Clay Tan
CashmereWhite
Available Colours
Alpa Outdoor Products

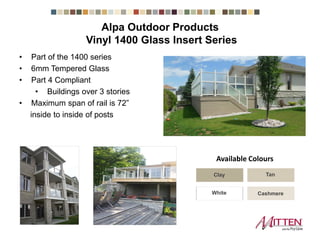

• Part of the 1400 series
• 6mm Tempered Glass
• Part 4 Compliant
• Buildings over 3 stories
• Maximum span of rail is 72”
inside to inside of posts
Vinyl 1400 Glass Insert Series
Clay Tan
CashmereWhite
Available Colours
Alpa Outdoor Products

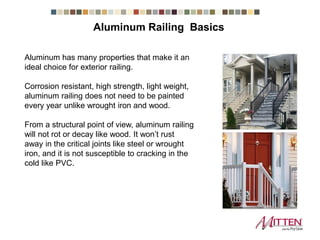

Aluminum has many properties that make it an
ideal choice for exterior railing.
Corrosion resistant, high strength, light weight,
aluminum railing does not need to be painted
every year unlike wrought iron and wood.
From a structural point of view, aluminum railing
will not rot or decay like wood. It won’t rust
away in the critical joints like steel or wrought
iron, and it is not susceptible to cracking in the
cold like PVC.
Aluminum Railing Basics

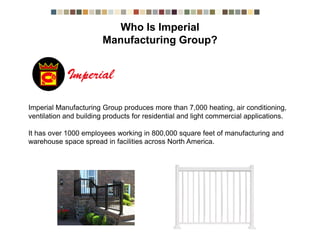

Imperial Manufacturing Group produces more than 7,000 heating, air conditioning,
ventilation and building products for residential and light commercial applications.
It has over 1000 employees working in 800,000 square feet of manufacturing and
warehouse space spread in facilities across North America.
Who is Imperial Manufacturing Group?
5000 Series
• Maintenance Free
• No painting or staining needed
• Corrosion-Resistant
• Will not warp, crack or fade
• Multiple Applications
• Decks, porches, balconies and around
pools
• 20 Year Limited Warranty
• Pre-Assembled in up to 13’ Lengths
• Available Heights
• 32”, 36”, 42”
• Available Spindle Sizes
• ½” x ¾”, ¾” x ¾”, ¾” x 1”
• Available Post Sizes
• 2” x 2”, 3” x 3”
Clay
Warm Beige
White
Black
Available Colours
Imperial Kool-Ray Products

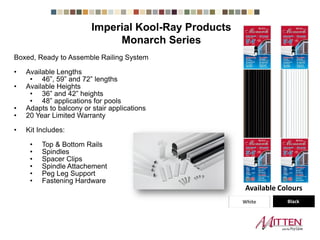

Monarch Series
Boxed, Ready to Assemble Railing System
• Available Lengths
• 46”, 59” and 72” lengths
• Available Heights
• 36” and 42” heights
• 48” applications for pools
• Adapts to balcony or stair applications
• 20 Year Limited Warranty
• Kit Includes:
• Top & Bottom Rails
• Spindles
• Spacer Clips
• Spindle Attachement
• Peg Leg Support
• Fastening Hardware
White Black
Available Colours
Imperial Kool-Ray Products
Vinyl and Aluminum Railing
Distributed by Mitten
Features and Benefits
Distributed by Mitten
Fence and Rail Product Lines

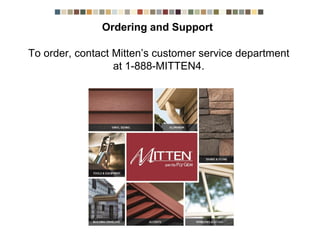

Ordering and Support
To order, contact Mitten’s customer service department at
1-888-MITTEN4.
• Vinyl Railing Handrail Options
• Classic/Bread Loaf
• Flat
• Pre-Assembled Length Options
• 4’,6’ or 8’ sections
• Available Height Options
• 36” H or 42” H
• Newel Post Options
• 4” x 4” x 41” H
• 4” x 4” x 45” H
• Newel posts include metal post inserts, cap and skirt
• Also available without metal inserts to be installed over
existing wooded posts
Alpa Outdoor Products
Vinyl Railing
Flat
Classic/Bread Loaf
