Deploying and managing IBM MQ in the Cloud
- 1. Rob Parker IBM MQDevelopment 1 7/10/2017 Deploying and Managing IBM MQ in the cloud
- 2. • Deploying andOrchestration • Managing your Queue Manager In the cloud • Monitoring your Queue Manager In the cloud • Questions Agenda

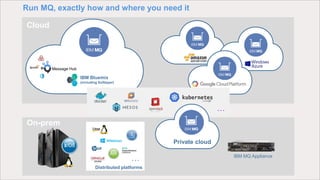

- 3. On-prem … IBM MQAppliance AWS AWS AWS Cloud Message Hub IBM Bluemix (including Softlayer) Distributed platforms … Private cloud Run MQ, exactly how and where you need it
- 4.
- 5.
- 6. Deploying & Orchestration InstallingMQ • Initial installation • Applying fixpacks • Migrating between versions • Managing licenses Running queue managers • Create/start/stop/delete QM • Naming queue managers • Binding apps to QMs • Failing over Provisioning an Environment • Create VM, start docker container etc. • Setup virtual network interface • Create storage • Create security policies
- 7. Provisioning an environment ManualConfiguration and in-house management tools Cross Cloud & Multi Resource management tools
- 8. 9 Manage andscript software installation Similar to Chef, use in conjuction with an MQ install package to automate and repeat installations Provides an MQ cookbook to include in Chef recipes Use to perform repeatable & automatable MQ installations Create immutable OS images with MQ pre-installed Cookie-cutter installations of e.g. MQ & Redhat Deploy images to chosen IaaS service Installing MQ https://developer.ibm.com/messaging/mq-on-cloud/

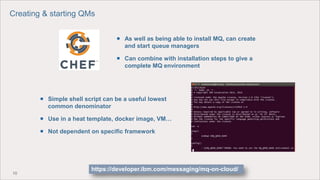

- 9. 10 Simple shellscript can be a useful lowest common denominator Use in a heat template, docker image, VM… Not dependent on specific framework As well as being able to install MQ, can create and start queue managers Can combine with installation steps to give a complete MQ environment Creating & starting QMs https://developer.ibm.com/messaging/mq-on-cloud/
- 10. 11 Deleting resources whenthey’re no longer needed Orchestration isn’t limited to creating resources Tear down resources when they’re no longer required Quickly spin up everything necessary to run a scenario, tear everything down when it’s no longer needed Useful for running one-off tests, creating short-lived development environments Keeps cloud costs to a minimum – only pay for what you need at the time Don’t need to manually keep track of what you created Repeatability terraform apply terraform destroy https://developer.ibm.com/messaging/mq-on-cloud/

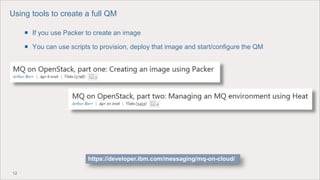

- 11. 12 Using tools tocreate a full QM If you use Packer to create an image You can use scripts to provision, deploy that image and start/configure the QM https://developer.ibm.com/messaging/mq-on-cloud/

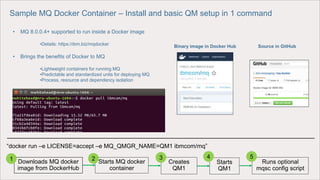

- 12. • MQ 8.0.0.4+supported to run inside a Docker image •Details: https://ibm.biz/mqdocker • Brings the benefits of Docker to MQ •Lightweight containers for running MQ •Predictable and standardized units for deploying MQ •Process, resource and dependency isolation Binary image in Docker Hub Source in GitHub Sample MQ Docker Container – Install and basic QM setup in 1 command “docker run –e LICENSE=accept –e MQ_QMGR_NAME=QM1 ibmcom/mq” Downloads MQ docker image from DockerHub Starts MQ docker container Creates QM1 Starts QM1 Runs optional mqsc config script 1 2 3 4 5
- 13. MQ Advanced forDevelopers in the Bluemix Container Service It is now possible to spin up MQ queue managers in the Bluemix Container Service with a couple of clicks The fastest way to get up and running with MQ for development and experimentation Pre-configured defaults mean instant access for administration and messaging applications
- 14. Managing your Queue Manager 157/10/2017

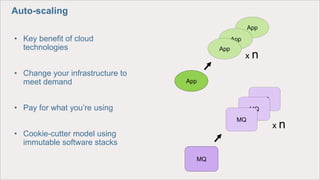

- 15. MQ MQ MQ Auto-scaling MQ x n • Keybenefit of cloud technologies • Change your infrastructure to meet demand • Pay for what you’re using • Cookie-cutter model using immutable software stacks App App App App x n

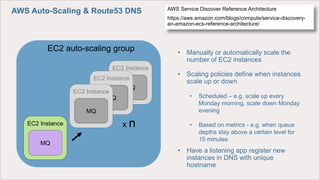

- 16. AWS Auto-Scaling &Route53 DNS EC2 auto-scaling group MQ EC2 Instance MQ EC2 Instance MQ EC2 Instance MQ EC2 Instance x n • Manually or automatically scale the number of EC2 instances • Scaling policies define when instances scale up or down • Scheduled – e.g. scale up every Monday morning, scale down Monday evening • Based on metrics - e.g. when queue depths stay above a certain level for 15 minutes • Have a listening app register new instances in DNS with unique hostname AWS Service Discover Reference Architecture https://aws.amazon.com/blogs/compute/service-discovery- an-amazon-ecs-reference-architecture/

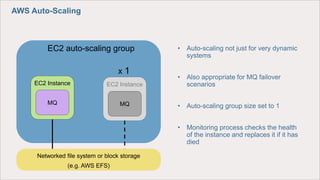

- 17. AWS Auto-Scaling EC2 auto-scalinggroup MQ EC2 Instance MQ EC2 Instance x 1 • Auto-scaling not just for very dynamic systems • Also appropriate for MQ failover scenarios • Auto-scaling group size set to 1 • Monitoring process checks the health of the instance and replaces it if it has died Networked file system or block storage (e.g. AWS EFS)

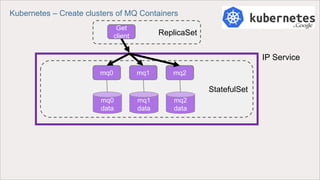

- 18. Kubernetes – Createclusters of MQ Containers StatefulSet mq0 mq1 mq2 mq0 data mq1 data mq2 data ReplicaSet Get client IP Service

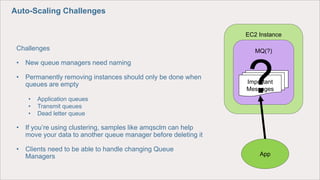

- 19. Auto-Scaling Challenges Challenges • Newqueue managers need naming • Permanently removing instances should only be done when queues are empty • Application queues • Transmit queues • Dead letter queue • If you’re using clustering, samples like amqsclm can help move your data to another queue manager before deleting it • Clients need to be able to handle changing Queue Managers MQ(?) EC2 Instance Important Messages App ?

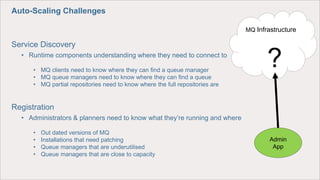

- 20. MQ Infrastructure Service Discovery •Runtime components understanding where they need to connect to • MQ clients need to know where they can find a queue manager • MQ queue managers need to know where they can find a queue • MQ partial repositories need to know where the full repositories are Registration • Administrators & planners need to know what they’re running and where • Out dated versions of MQ • Installations that need patching • Queue managers that are underutilised • Queue managers that are close to capacity Auto-Scaling Challenges Admin App ?

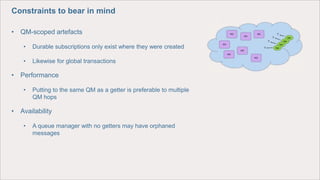

- 21. Constraints to bearin mind • QM-scoped artefacts • Durable subscriptions only exist where they were created • Likewise for global transactions • Performance • Putting to the same QM as a getter is preferable to multiple QM hops • Availability • A queue manager with no getters may have orphaned messages
- 22.

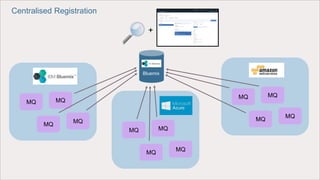

- 23. MQ MQ MQ MQ MQ MQ MQ MQ MQMQ MQ MQ + Centralised Registration Bluemix
- 24. IBM Cloud ProductInsights – New IBM Bluemix Service • Supported in MQ 9.0.2+ • IBM Bluemix service that gives you an overview of your on-premise and cloud-hosted products • See which queue managers (or Liberty/WAS servers, or IIB Brokers etc.) you have, which versions they are, what platforms they’re on, how utilised they are. https://developer.ibm.com/product-insights V 9.0.2

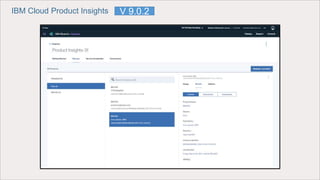

- 25. IBM Cloud ProductInsights V 9.0.2

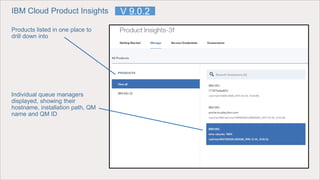

- 26. IBM Cloud ProductInsights Products listed in one place to drill down into Individual queue managers displayed, showing their hostname, installation path, QM name and QM ID V 9.0.2

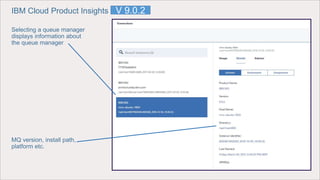

- 27. IBM Cloud ProductInsights Selecting a queue manager displays information about the queue manager MQ version, install path, platform etc. V 9.0.2

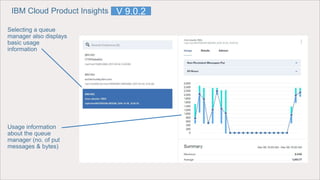

- 28. IBM Cloud ProductInsights Selecting a queue manager also displays basic usage information Usage information about the queue manager (no. of put messages & bytes) V 9.0.2
- 29. IBM Cloud ProductInsights • Queue manager authorises itself using the API key associated with the Product Insights service • Copy API key to file in /var/mqm (or Windows equivalent) • Update qm.ini with the “BluemixRegistration” stanza V 9.0.2
- 30. Monitoring your Queue Manager 317/10/2017
- 31.

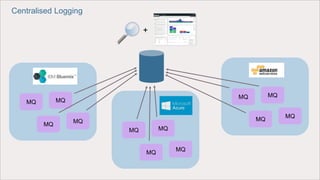

- 32. MQ MQ MQ MQ MQ MQ MQ MQ MQMQ MQ MQ + Centralised Logging

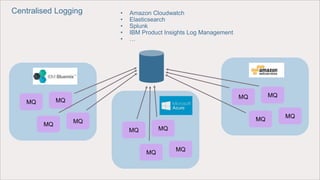

- 33. MQ MQ MQ MQ MQ MQ MQ MQ MQMQ MQ MQ Centralised Logging • Amazon Cloudwatch • Elasticsearch • Splunk • IBM Product Insights Log Management • …

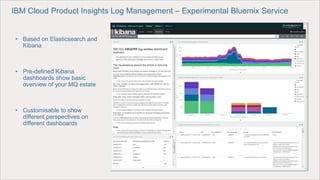

- 34. IBM Cloud ProductInsights Log Management – Experimental Bluemix Service • Based on Elasticsearch and Kibana • Pre-defined Kibana dashboards show basic overview of your MQ estate • Customisable to show different perspectives on different dashboards
- 35. IBM Cloud ProductInsights Log Management • Help pane describes the dashboard and how to use it • Raw AMQERR messages for detailed investigation • AMQERR activity over time, per queue manager • Interactive – select a queue manager in one widget and the entire dashboard updates
- 36. Centralised Monitoring –MQ $SYS topics • First introduced on the MQ Appliance to aid remote monitoring & diagnosis • Added to MQ distributed platforms in MQ V9 • Benefits over pre-V9 statistics messages • They automatically get published when an app subscribes • Metadata topics let you see what’s available to subscribe to • e.g. $SYS/MQ/INFO/QMGR/MYQM/Monitor/METADATA/CLASSES • New data available that wasn’t previously (e.g. DISK and CPU activity) • Includes MQ activity trace capability • e.g. $SYS/MQ/INFO/QMGR/MYQM/ActivityTrace/ChannelName/MY.SVRCONN

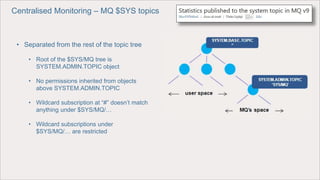

- 37. Centralised Monitoring –MQ $SYS topics • Separated from the rest of the topic tree • Root of the $SYS/MQ tree is SYSTEM.ADMIN.TOPIC object • No permissions inherited from objects above SYSTEM.ADMIN.TOPIC • Wildcard subscription at “#” doesn’t match anything under $SYS/MQ/… • Wildcard subscriptions under $SYS/MQ/… are restricted

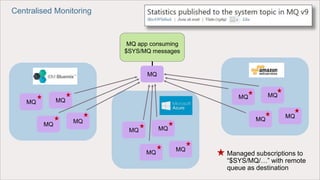

- 38. MQ MQ MQ MQ MQ MQ MQ MQ MQMQ MQ MQ Centralised Monitoring MQ app consuming $SYS/MQ messages Managed subscriptions to “$SYS/MQ/…” with remote queue as destination MQ
- 39. Centralised Monitoring –MQ $SYS topics • Visualise queue depths, CPU & disk spikes, # of client connections…. • See https://github.com/ibm- messaging/mq-golang to try it for yourself
- 40. 41 7/10/2017 Prove it “Ican put and then get a message from a new Docker container running MQ in a clean workspace in about 5 mins… 1.5 mins with the image already downloaded.” --Robert Parker, June 2017
- 41.

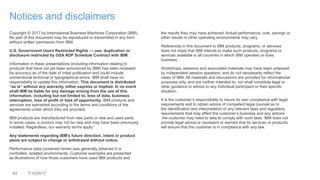

- 42. 43 7/10/2017 Notices anddisclaimers Copyright © 2017 by International Business Machines Corporation (IBM). No part of this document may be reproduced or transmitted in any form without written permission from IBM. U.S. Government Users Restricted Rights — use, duplication or disclosure restricted by GSA ADP Schedule Contract with IBM. Information in these presentations (including information relating to products that have not yet been announced by IBM) has been reviewed for accuracy as of the date of initial publication and could include unintentional technical or typographical errors. IBM shall have no responsibility to update this information. This document is distributed “as is” without any warranty, either express or implied. In no event shall IBM be liable for any damage arising from the use of this information, including but not limited to, loss of data, business interruption, loss of profit or loss of opportunity. IBM products and services are warranted according to the terms and conditions of the agreements under which they are provided. IBM products are manufactured from new parts or new and used parts. In some cases, a product may not be new and may have been previously installed. Regardless, our warranty terms apply.” Any statements regarding IBM's future direction, intent or product plans are subject to change or withdrawal without notice. Performance data contained herein was generally obtained in a controlled, isolated environments. Customer examples are presented as illustrations of how those customers have used IBM products and the results they may have achieved. Actual performance, cost, savings or other results in other operating environments may vary. References in this document to IBM products, programs, or services does not imply that IBM intends to make such products, programs or services available in all countries in which IBM operates or does business. Workshops, sessions and associated materials may have been prepared by independent session speakers, and do not necessarily reflect the views of IBM. All materials and discussions are provided for informational purposes only, and are neither intended to, nor shall constitute legal or other guidance or advice to any individual participant or their specific situation. It is the customer’s responsibility to insure its own compliance with legal requirements and to obtain advice of competent legal counsel as to the identification and interpretation of any relevant laws and regulatory requirements that may affect the customer’s business and any actions the customer may need to take to comply with such laws. IBM does not provide legal advice or represent or warrant that its services or products will ensure that the customer is in compliance with any law.
