IBM MQ cloud architecture blueprint

IBM MQ
Cloud architecture
blueprint
David Ware Matt Roberts
Chief Architect, IBM MQ Lead Architect, IBM MQ on Cloud
May 2019

Overview
This deck introduces recommended patterns and guidance for IBM MQ
deployments in multi-location or multi-provider cloud scenarios
Contents
• Deployment options for IBM MQ in clouds
• Architectural best practices

3© 2019 IBM Corporation
Example customer topology “before”
Account #2Account #1
IBM Cloud region
Account #3
Central IT / MQ
team responsibility
On-premises
Key:
Application
Queue manger

Deployment options for
IBM MQ in clouds

Hybrid cloud deployments
On-premises
Cloud#1
• Across customers and industries we see that
both new and existing applications are moving
to the cloud
• Most enterprises are moving to a hybrid cloud
topology with combinations of multiple cloud
providers, locations and data centres
• This opens up both new possibilities and new
problems, but applications require messaging
services more now than ever before
• IBM MQ provides advanced capabilities not
found in other offerings that enable you to
support these new style deployments
© 2019 IBM Corporation

The need for asynchronous messaging
When applications connect directly
to each other their availability and
scalability is dependent on both
applications, and on the quality of
the network connection between
them
As the the network availability and
scalability is stretched, some
messaging services, such as IBM MQ,
can be used to decouple the
applications further from the
infrastructure
Using a messaging service between
applications decouples the overall
availability and scalability from the
applications. Availability is still
dependent on the messaging service
and the applications’ connectivity to it

On-premise, software
and the MQ Appliance
Run MQ yourself in
public or private
clouds
Let IBM host MQ for
you with its managed
SaaS MQ service in
public clouds,
IBM Cloud and AWS
Run IBM MQ in any
location or cloud,
exactly as you
need it
© 2019 IBM Corporation 7
Kubernetes
AWS
Linux
Windows Solaris
AIX
IBMi
IBM Z
Appliance
zLinuxHPE NonStop
Azure
AWS
Red Hat OpenShift
IBM Cloud Private

For example:
Deploy and run MQ
in IBM Cloud to
suit your needs
(Usual requirements for
supported operating
system and file system)
IaaS
Open-source containers
Vendor container platform
IBM MQ on Cloud service
Managed container platform
BYOL
SaaS (PaaS)
Docker, Kubernetes, …
IBM Cloud Private,
Red Hat OpenShift, …
IBM Kubernetes Service
Virtual machine,
Bare metal server
software install

MQ on Cloud service
Up and Running in Minutes
Managed for You
Hourly billing
Enabled for Hybrid Cloud
Connectivity
Available in multiple clouds!
A managed service for IBM MQ operated by IBM, so that you can focus on your applications
9
cloud.ibm.com/catalog/services/mq
Lite plan - no
credit card
required!

Choose your preferred level of responsibility
MQ on Cloud
service
Data centre
Networking
Servers
Storage
Hypervisor
Virtual machine
OS patching
MQ patching
QM failover
Queues, Topics
Clustering
QM availability/restart
Q / Msg monitoring
Application
System monitoring
Data centre
Networking
Servers
Storage
Hypervisor
Virtual machine
OS patching
MQ patching
QM failover
Queues, Topics
Clustering
Q / Msg monitoring
Application
System monitoring
Data centre
Networking
Servers
Storage
Hypervisor
Virtual machine
OS patching
MQ patching
QM failover
Queues, Topics
Clustering
Q / Msg monitoring
Application
System monitoring
Data centre
Networking
Servers
Storage
Hypervisor
Virtual machine
OS patching
MQ patching
QM failover
Queues, Topics
Clustering
Q / Msg monitoring
Application
System monitoring
Data centre
Networking
Servers
Storage
Hypervisor
Virtual machine
OS patching
MQ patching
QM failover
Queues, Topics
Clustering
Q / Msg monitoring
Application
System monitoring
Virtual machine
IaaS install
IBM Cloud Private
on IKS
IBM Cloud Private
IaaS install
On-premises
software MQ
Customer IBM
Kubernetes masterKubernetes masterKubernetes master

Relative location of the components
MQ on Cloud
service
Virtual machine
IaaS install
IBM Cloud Private
on IKS
IBM Cloud Private
IaaS install
Customer account(s)
IBM account(s)
QM QMQM
QM
K8s Master
K8s Master K8s Master
Apps Apps Apps Apps
• Connectivity between accounts (public / private backbone depending on the specific case)
• Data egress charges (for data out of an account, but not inbound)
• (K8s = Kubernetes)

General architectural best practices
for IBM MQ in the cloud

Architectural best practices for IBM MQ in the cloud
1. Avoiding long distance client connections
2. Deploy application-centric queue managers
3. Use cloud-hosted gateway queue managers
4. Use horizontal scaling for increased availability
5. Connectivity options to on-premises
6. Connecting to other messaging services
7. Deployment isolation to aid organizational structure
8. Use IBM MQ security features where appropriate

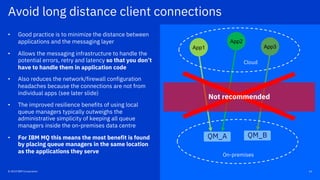

Avoid long distance client connections
QM_A QM_B
On-premises
Cloud
Not recommended
App1
App2
App3
• Good practice is to minimize the distance between
applications and the messaging layer
• Allows the messaging infrastructure to handle the
potential errors, retry and latency so that you don’t
have to handle them in application code
• Also reduces the network/firewall configuration
headaches because the connections are not from
individual apps (see later slide)
• The improved resilience benefits of using local
queue managers typically outweighs the
administrative simplicity of keeping all queue
managers inside the on-premises data centre
• For IBM MQ this means the most benefit is found
by placing queue managers in the same location
as the applications they serve

• The flexibility of cloud style deployments makes
it easier to deploy a larger number of small
QMs, where previously you might have used
one big QM
• Assigning “one” app to a QM means it is;
• Easier to schedule maintenance
• Apply finer grained sizing / scaling
• QM failure only affects a single application
• Continue processing locally if a remote QM is
down
• Sometimes ownership is devolved to
application teams, allowing them to innovate
more quickly
• Use IBM MQ’s strength in QM-to-QM channels
to connect application domains where
necessary
Deploy application-centric queue managers
MQ
MQ1 MQ2 MQ3 MQ4
App1 App2 App3 App4
App1 App2 App3 App4

• Ensures that the long distance
connectivity is handled by IBM MQ,
which is designed to handle the
error, retry and latency issues that
can occur with remote connections
• Reduces the number of cross-
location links which makes
configuration and administration
more straightforward
• Gateway QMs might often be
managed by a central team, as
they are used by many apps
Use cloud-hosted gateway queue managers
On-premises
Cloud
Not recommended

Use gateway queue managers (2)
Cloud #2
Cloud #1
On-premises
• Provide gateway queue managers in each
domain where applications are deployed, in
order to maximise performance and reliability
• Either different cloud providers, or different
locations/different accounts within a provider
• Gateway QMs should be configured to be highly
available and scalable (e.g. multiple instances
and routes) as they are used by multiple
applications

• Applications with high throughput or availability
requirements should be designed to use multiple
equivalent queue managers rather than depend
upon a single QM
• Same benefits as described for having multiple
gateway queue managers
• Allows individual queue managers to be taken out of
service for upgrade (or due to a failure) without
affecting the overall service
• Add additional queue managers in order to increase
the capacity of the system
• Requires applications to be written and configured
with this pattern in mind (message ordering,
multiple endpoints)
• IBM MQ product capabilities such as ”uniform
clusters”, CCDT, ConnectionNameList and auto
client-reconnect can help support these topologies
Horizontal scaling for increased availability
QM1a QM1b QM1c

• MQ clustering provides the ability to link
together queue managers so that they
dynamically configure the necessary channels
to allow messages to flow where necessary
• Also provides workload balancing and
availability routing for distribution of messages
across multiple equivalent instances of queues
• Note that MQ clusters are fully connected,
which can increases the number of links
between locations – can mitigate this by
choosing the scope of the cluster(s)
Use MQ clustering to provide transparent routing
On-premises
Cloud

• How do you intend to connect from on-
premises to your cloud location(s)?
• Various options using public Internet, often via
use of an on-premises “agent”
• Direct connection, without agent
• Outbound initiation only (not addressable inbound)
• Bi-directional initiation (addressable from Internet)
• VPN
• IBM Cloud Secure Gateway
• IBM MQ Internet Pass-thru
• Private or telco backbone connections
• e.g. Direct Link (IBM), Direct Connect (AWS)
• Different pros/cons of each in terms of security,
configuration, throughput and cost
Identify hybrid cloud connectivity approach
Direct / public Agent / VPN Dedicated link

1. Pre-packaged bridge
– IBM Event Streams on Cloud (hosted Apache Kafka,
formerly MessageHub) includes a built-in bridge for
connecting to IBM MQ
– IBM Event Streams (Apache Kafka in IBM Cloud
Private) also includes IBM MQ connectors
2. Integration flow
– Flow primitives exist in various integration products
to allow put/get with MQ to be combined with other
providers
– e.g. AppConnect Enterprise on Cloud, or on-
premises
3. Manual coding
– Write custom code to integrate the two providers
– Apache Camel provides a Java based framework for
integrating providers, including using the JMS
interfaces (not endorsed directly by IBM)
• In some cases you may be requested to
transfer messages between IBM MQ and other
messaging providers
• Consider carefully the application scenarios for
doing this and whether it is appropriate for the
solution as a whole
• Important considerations:
• Error handling and retry of the transfer
• Performance and throughput
• Resilience and availability
• Quality of service requirements
Connecting to other messaging services

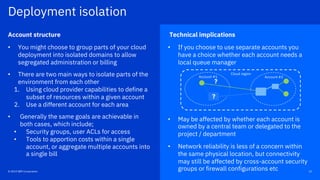

Technical implications
• If you choose to use separate accounts you
have a choice whether each account needs a
local queue manager
• May be affected by whether each account is
owned by a central team or delegated to the
project / department
• Network reliability is less of a concern within
the same physical location, but connectivity
may still be affected by cross-account security
groups or firewall configurations etc
Account structure
• You might choose to group parts of your cloud
deployment into isolated domains to allow
segregated administration or billing
• There are two main ways to isolate parts of the
environment from each other
1. Using cloud provider capabilities to define a
subset of resources within a given account
2. Use a different account for each area
• Generally the same goals are achievable in
both cases, which include;
• Security groups, user ACLs for access
• Tools to apportion costs within a single
account, or aggregate multiple accounts into
a single bill
Deployment isolation
?
Cloud region
?

Central vs LoB administration of MQ
In traditional on-premises
deployments IBM MQ is often
managed by a central MQ team on
behalf of application teams
In some situations ownership of
application-specific queue managers
might be delegated to the application
teams, to enable them to own their
updates in a self-service fashion
More feasible for application teams
that have a better level of skill in MQ
Applications with light workload
requirements might connect directly
to the gateway queue managers
Gateway queue managers
are used by multiple
applications so are also
likely to be managed by a
central MQ team
Central IT / MQ
team responsibility
Cloud #2Cloud #1
On-premises
On-premises
Can use Gateway queue managers to
remotely administer other connected QMs
via MQ Explorer, runmqsc, PCF or REST API

Use IBM MQ security features where appropriate
App
1. TLS channels to
encrypt data in motion
2. Authenticate connecting
application using a client
certificate with Mutual TLS
3. Authenticate application with
username/password, backed by
operating system, LDAP or custom
user registry
6. Encrypt individual message content
using Advanced Message Security
(AMS) feature – see next slide
IBM MQ
4. Fine grained authorization of
individual applications to specific
queues / topics etc
5. Restrict incoming
connections based on a
policy using channel
authentication

1. Automatically encrypted by the sending client
so that it can only be decrypted by the
intended recipient
2. Or encrypted by the queue manager on receipt,
for cases where the application deployment
cannot be updated
Benefits
• No application code changes required
• Goes beyond TLS channel security, which only
protects data in transit between processes
• Message data can only be read by the intended
receiving application code
• Not on the queue by the system administrator
• Not on the disk by your infrastructure or cloud
provider
• Proven, trusted approach to fulfilling
compliance requirements such as GDPR, PCI,
HIPAA etc
IBM MQ: Security for the Cloud
MQ Advanced Message Security (AMS) provides the capability to encrypt messages in transit and at rest
between sender and receiver.
Application B
Application A
Channels
IBM MQ
Advanced
Queue
Manager
Queue
Manager

• Gateway queue managers to connect
between accounts + locations where
necessary (does every domain need to
talk to all others?)
• Application specific queue managers
for cloud deployments where there is
more than one app per account
• Delegate ownership of the app-specific
queue managers to the account teams
if they have appropriate skill?
• Could consider moving to a similar
model on-premises if desirable
• MQ Cluster(s) where appropriate to aid
routing and workload balancing of
messages
• Choice whether to route between
Accounts directly (e.g. #2 -> #3 in
diagram), or always route via on-
premises
Potential customer topology “after” (discussion)
IBM Cloud region
Account #3
Central IT / MQ
team responsibility
On-premises
Pair of QMs at
each Gateway for
resilience
?

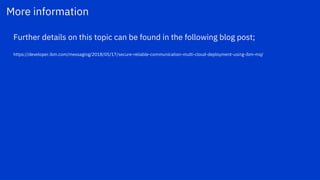

More information
Further details on this topic can be found in the following blog post;
https://developer.ibm.com/messaging/2018/05/17/secure-reliable-communication-multi-cloud-deployment-using-ibm-mq/

IBM MQ cloud architecture blueprint

Recommended

Recommended

More Related Content

What's hot

What's hot (20)

Similar to IBM MQ cloud architecture blueprint

Similar to IBM MQ cloud architecture blueprint (20)

Recently uploaded

Recently uploaded (20)

IBM MQ cloud architecture blueprint
