1. Gran Sasso Science Institute
+ Università degli Studi dell’Aquila
Ivano Malavolta
Fast mobile web apps

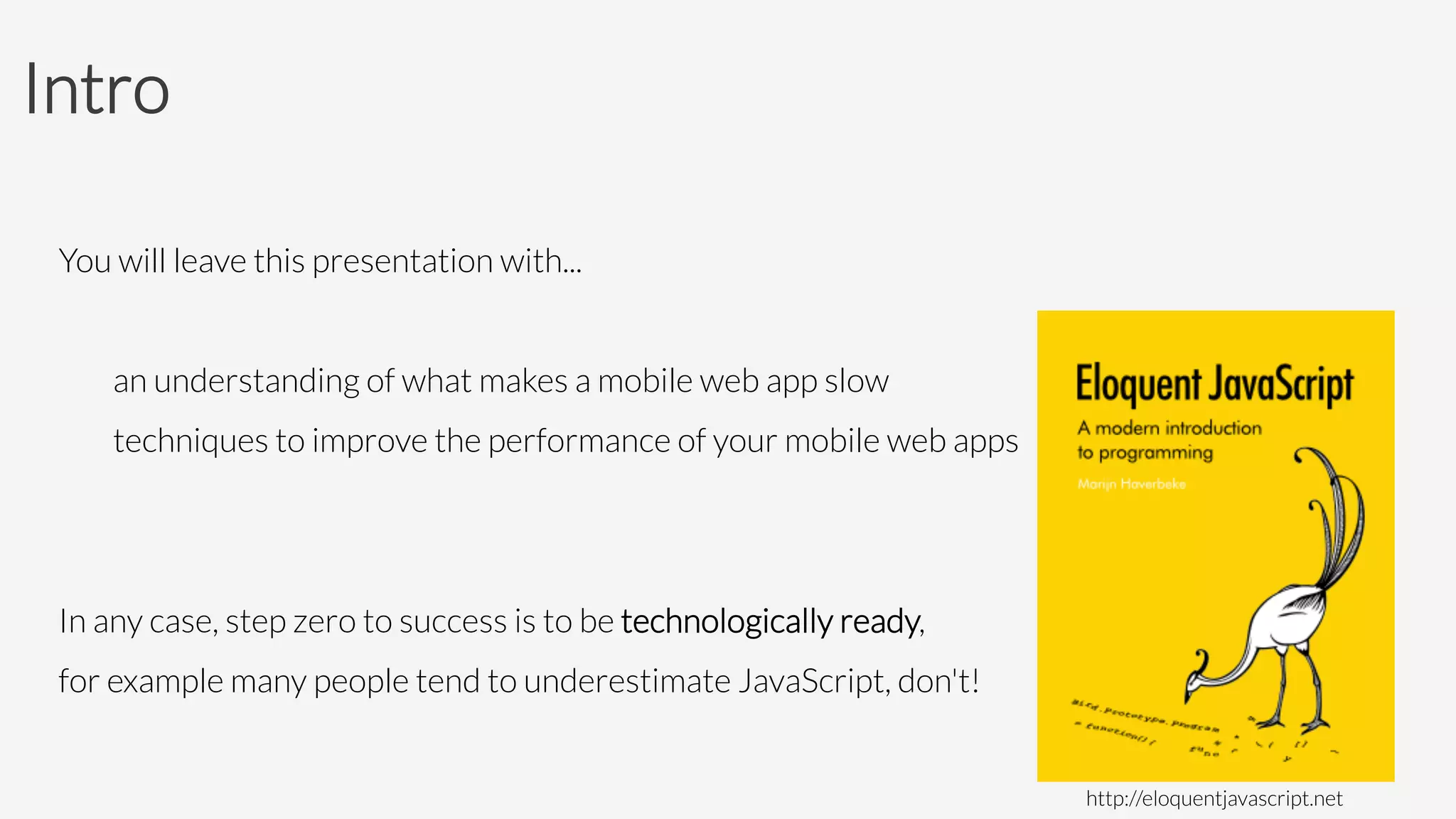

2. Intro
You will leave this presentation with...
an understanding of what makes a mobile web app slow
techniques to improve the performance of your mobile web apps
In any case, step zero to success is to be technologically ready,
for example many people tend to underestimate JavaScript, don't!
http://eloquentjavascript.net

3. Roadmap
• Use the DOM efficiently
• Master events
• Be smart with the network
• Take care of memory issues
• Take advantage of CSS3 features
The best practices and advices in this presentation are
implemented in a generic app template available here:
https://github.com/iivanoo/cordovaboilerplate

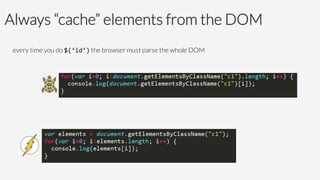

4. Always “cache” elements from the DOM
every time you do $(‘id’) the browser must parse the whole DOM

5. Minimize DOM reflows
A reflow is triggered every time the content of the DOM changes, DOM elements are resized, CSS
positioning/padding/margins are changed, etc.
• Use CSS transforms, transitions and animation
• Use fixed widths and heights (when possible)
• Avoid changing elements of the DOM
They change the appearance of the DOM, but do not
trigger a reflow op
Reflow:
the browser process for calculating positions and geometries
for HTML DOM elements

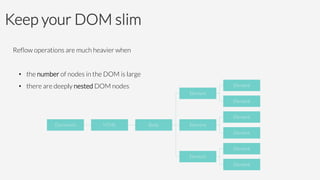

6. Keep your DOM slim
Reflow operations are much heavier when
• the number of nodes in the DOM is large
• there are deeply nested DOM nodes
Document
HTML
Body
Element
Element
Element
Element
Element
Element
Element
Element
Element

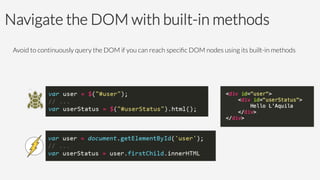

7. Navigate the DOM with built-in methods
Avoid to continuously query the DOM if you can reach specific DOM nodes using its built-in methods

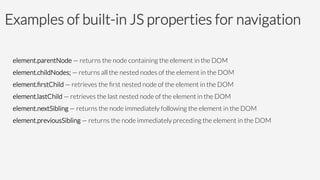

8. Examples of built-in JS properties for navigation
element.parentNode — returns the node containing the element in the DOM
element.childNodes; — returns all the nested nodes of the element in the DOM
element.firstChild — retrieves the first nested node of the element in the DOM
element.lastChild — retrieves the last nested node of the element in the DOM
element.nextSibling — returns the node immediately following the element in the DOM
element.previousSibling — returns the node immediately preceding the element in the DOM

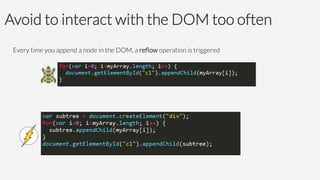

9. Avoid to interact with the DOM too often
Every time you append a node in the DOM, a reflow operation is triggered

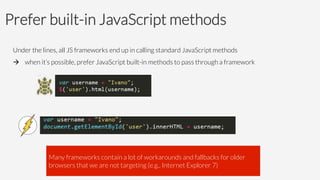

10. Prefer built-in JavaScript methods
Under the lines, all JS frameworks end up in calling standard JavaScript methods
à
when it’s possible, prefer JavaScript built-in methods to pass through a framework
Many frameworks contain a lot of workarounds and fallbacks for older
browsers that we are not targeting (e.g., Internet Explorer 7)

11. Examples of built-in JS methods
element.innerHTML; — returns the contents of the DOM node
element.innerHTML = " contents "; — appends contents to the DOM node
element.parentNode.removeChild(element); — remove the node from the DOM
element.hasAttribute(" attribute") — tests whether the DOM node has a specific attribute
element.getAttribute(" attribute") — returns the value of a specific attribute
element.setAttribute(" name", " value ") — adds a specific attribute to the DOM node
element.removeAttribute(" attribute") —removes a specific attribute to the DOM node

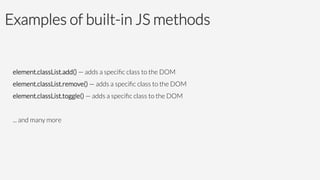

12. Examples of built-in JS methods
element.classList.add() — adds a specific class to the DOM
element.classList.remove() — adds a specific class to the DOM
element.classList.toggle() — adds a specific class to the DOM
... and many more

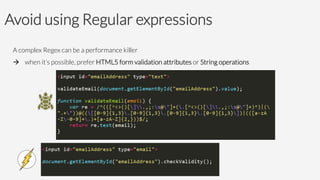

13. Avoid using Regular expressions
A complex Regex can be a performance killer
à
when it’s possible, prefer HTML5 form validation attributes or String operations

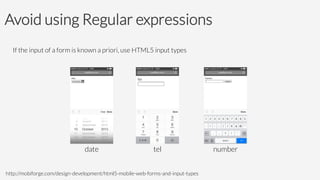

14. Avoid using Regular expressions
If the input of a form is known a priori, use HTML5 input types
http://mobiforge.com/design-development/html5-mobile-web-forms-and-input-types
date
tel
number

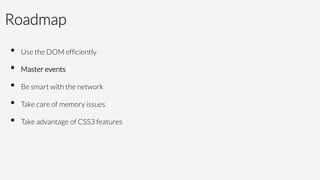

15. Roadmap
• Use the DOM efficiently
• Master events
• Be smart with the network
• Take care of memory issues
• Take advantage of CSS3 features

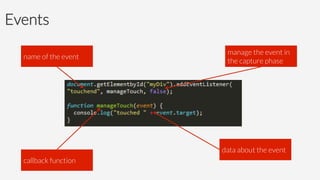

16. Events
name of the event
callback function
manage the event in
the capture phase
data about the event

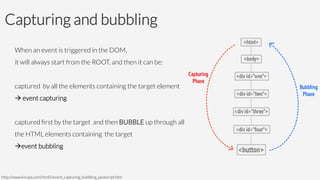

17. Capturing and bubbling
When an event is triggered in the DOM,
it will always start from the ROOT, and then it can be:
captured by all the elements containing the target element
à event capturing
captured first by the target and then BUBBLE up through all
the HTML elements containing the target
àevent bubbling
http://www.kirupa.com/html5/event_capturing_bubbling_javascript.htm

18. Event delegation
Delegation
The act of establishing event handlers at higher levels in the DOM than the items of interest

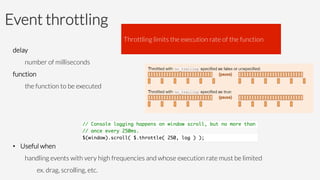

19. Event throttling
delay
number of milliseconds
function
the function to be executed
• Useful when
handling events with very high frequencies and whose execution rate must be limited
ex. drag, scrolling, etc.
Throttling limits the execution rate of the function

20. Event debouncing
delay
number of milliseconds
function
the function to be executed
• Useful when
handling events with very high frequencies and that must be executed once
ex. toggle state, Ajax request, etc.
Debouncing guarantees that the function will be executed only once

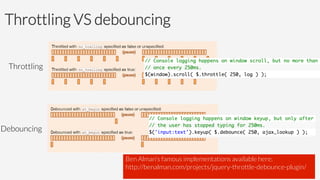

21. Throttling VS debouncing
Throttling
Debouncing
Ben Alman’s famous implementations available here:
http://benalman.com/projects/jquery-throttle-debounce-plugin/

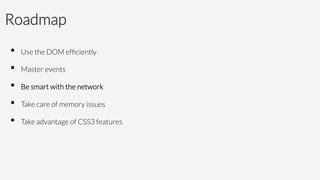

22. Roadmap
• Use the DOM efficiently
• Master events
• Be smart with the network
• Take care of memory issues
• Take advantage of CSS3 features

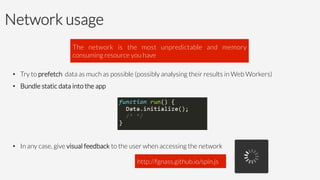

23. Network usage
• Try to prefetch data as much as possible (possibly analysing their results in Web Workers)
• Bundle static data into the app
• In any case, give visual feedback to the user when accessing the network
The network is the most unpredictable and memory
consuming resource you have
http://fgnass.github.io/spin.js

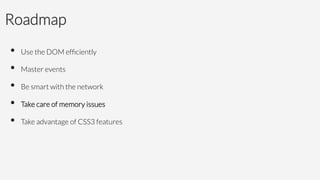

24. Roadmap
• Use the DOM efficiently
• Master events
• Be smart with the network
• Take care of memory issues
• Take advantage of CSS3 features

25. Take care of memory issues
True, it automatically cleans up and deallocates memory, but it must be sure about what it is deleting forever
à you have to make it clear what code you are no longer using
Definition of memory leak
A memory leak is the situation in which the available memory of your app gets gradually lost
In JavaScript a memory leak can happen when an object is stored in memory but cannot be accessed by the
running code
Wait, why should I worry if JavaScript has a garbage
collector that automatically cleans my memory?

26. Meet your best friend!

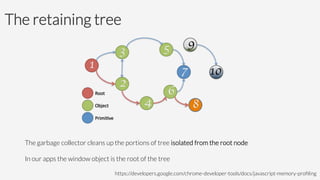

27. The retaining tree
The garbage collector cleans up the portions of tree isolated from the root node
In our apps the window object is the root of the tree
https://developers.google.com/chrome-developer-tools/docs/javascript-memory-profiling

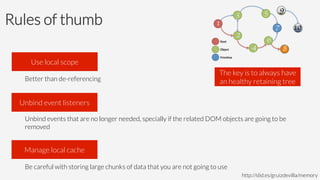

28. Rules of thumb
Better than de-referencing
Unbind events that are no longer needed, specially if the related DOM objects are going to be
removed
Be careful with storing large chunks of data that you are not going to use
Use local scope
Unbind event listeners
Manage local cache
http://slid.es/gruizdevilla/memory
The key is to always have
an healthy retaining tree

29. How to detect a memory leak
1. Open the Memory View in the Timeline tab
2. start recording
3. execute the suspicious actions
4. during the execution force a GC different times
5. If you see a sawtooth-shaped wave
à no relevant memory leaks J
You have a memory leak if one of the following do not drop down:
used memory – number of DOM nodes – number of event handlers
http://goo.gl/UAZQvl

30. Examples of pattern
http://goo.gl/UAZQvl
No memory leak
Memory leak detected
NOTHING IS FREE
It’s normal that during the investigation your memory grows
You have to pay for what you are doing in your app

31. How to detect the source of your memory leak
1. Open the Heap Profile
2. Take a heap snapshot
3. Perform suspicious actions
4. Take a heap snapshot
5. Perform suspicious actions again
6. Take a final heap snapshot
7. Select the most recent snapshot taken
8. find the drop-down that says "All objects" and switch it to "Objects allocated between snapshots 1 and
2". (You can also do the same for 2 and 3 if needed)
http://goo.gl/UAZQvl
There, you will find the objects which have not been collected during the snapshots

32. How to detect the source of your memory leak
Now, start from the first object and check which references it is holding
Shallow size
the size of the object
Retain size
the size of memory that can be freed once an object is deleted
Yellow DOM nodes
Red DOM nodes
Detached DOM trees, no JS object is directly referencing them, but they are alive
some JS object is referencing them
Detached DOM tree is a subtree of the DOM that
1) has been removed from the DOM, and
2) cannot be GCed because some JS object is still
indirectly referencing it

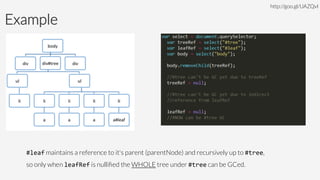

33. Example
http://goo.gl/UAZQvl
#leaf maintains a reference to it's parent (parentNode) and recursively up to #tree,
so only when leafRef is nullified the WHOLE tree under #tree can be GCed.

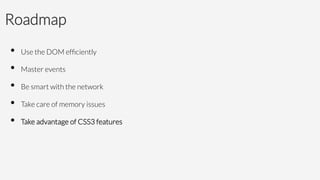

34. Roadmap
• Use the DOM efficiently
• Master events
• Be smart with the network
• Take care of memory issues
• Take advantage of CSS3 features

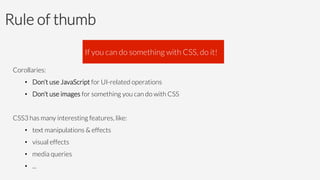

35. Rule of thumb
Corollaries:
• Don’t use JavaScript for UI-related operations
• Don’t use images for something you can do with CSS
CSS3 has many interesting features, like:
• text manipulations & effects
• visual effects
• media queries
• ...
If you can do something with CSS, do it!

36. Text transforms
text-transform
none | capitalize |
lowercase | uppercase

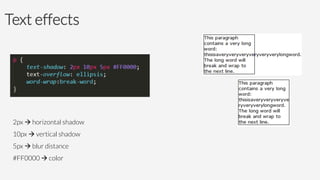

37. Text effects
2px à horizontal shadow
10px à vertical shadow
5px à blur distance
#FF0000 à color

38. Visual effects
Three main mechanisms:
1. Transforms (both 2D and 3D)
2. Transitions
3. Animations

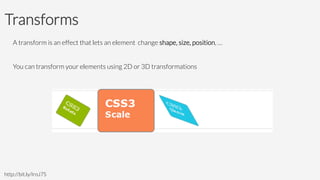

39. Transforms
A transform is an effect that lets an element change shape, size, position, …
You can transform your elements using 2D or 3D transformations
http://bit.ly/IroJ7S

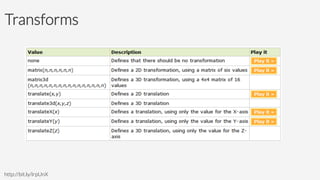

40. Transforms
http://bit.ly/IrpUnX

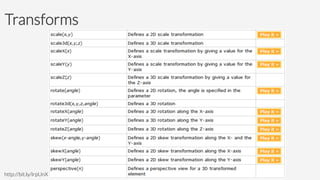

41. Transforms
http://bit.ly/IrpUnX

42. Transitions
They are used to add an effect when changing from one style to another
The effect will start when the specified CSS property changes value
initial state
final state
Intermediate states
automatically calculated
time

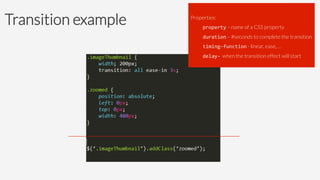

43. Transition example
Properties:
property – name of a CSS property
duration – #seconds to complete the transition
timing-­‐function - linear, ease, …
delay-­‐ when the transition effect will start

44. Animations
An animation is an effect that lets an element gradually change from one style to another
You can change style in loop, repeating, etc.
initial state
finalstate
Intermediate states
automatically calculated
time

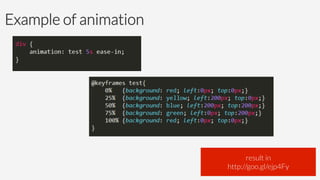

45. Example of animation
result in
http://goo.gl/ejp4Fy

46. Transition VS animation
Trigger
Transitions must be bound to a CSS property change
Animations start autonomously
States
Transitions have start and end states
Animations can have multiple states
Repeats
Transitions can be perfomed once for each activation
Animations can be looped

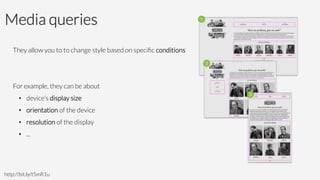

47. Media queries
They allow you to to change style based on specific conditions
For example, they can be about
• device’s display size
• orientation of the device
• resolution of the display
• ...
http://bit.ly/I5mR1u

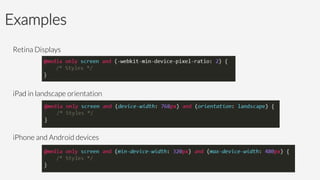

48. Examples
Retina Displays
iPad in landscape orientation
iPhone and Android devices

49. References
https://developer.mozilla.org/en-US/docs/JavaScript/Guide
https://github.com/iivanoo/cordovaboilerplate

50. + 39 380 70 21 600
Contact
Ivano Malavolta |
Gran Sasso Science Institute
iivanoo
ivano.malavolta@univaq.it
www.ivanomalavolta.com
