CATT and FASTNET are inter-RPO projects that provide tools for analyzing aerosol and trajectory data. They have been integrated into the DataFed.Net infrastructure, which provides a variety of web-based applications and data catalogs for accessing, viewing, analyzing, and interpreting fast, current, and slow aerosol and meteorological data. This document provides an overview of the types of data and analysis tools available through DataFed.Net for studying aerosol events and transport patterns.

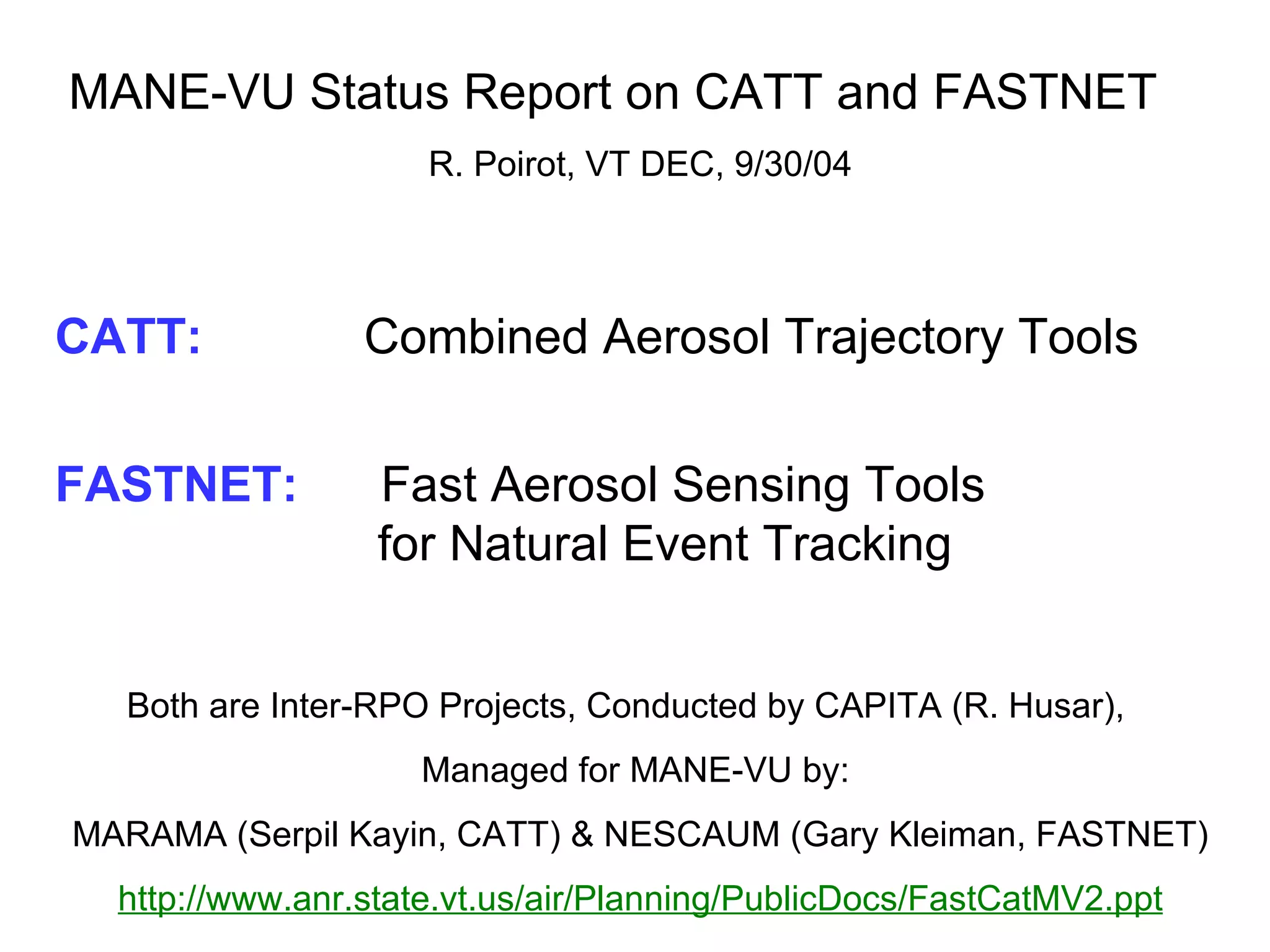

1. MANE-VU Status Report on CATT and FASTNET R. Poirot, VT DEC, 9/30/04 CATT: Combined Aerosol Trajectory Tools FASTNET: Fast Aerosol Sensing Tools for Natural Event Tracking Both are Inter-RPO Projects, Conducted by CAPITA (R. Husar), Managed for MANE-VU by: MARAMA (Serpil Kayin, CATT) & NESCAUM (Gary Kleiman, FASTNET) http://www.anr.state.vt.us/air/Planning/PublicDocs/FastCatMV2.ppt

2. Status: CATT & FASTNET have been Eaten by DataFed.Net

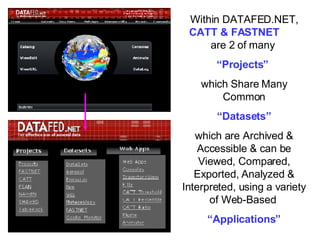

3. Within DATAFED.NET, CATT & FASTNET are 2 of many “ Projects” which Share Many Common “ Datasets” which are Archived & Accessible & can be Viewed, Compared, Exported, Analyzed & Interpreted, using a variety of Web-Based “ Applications”

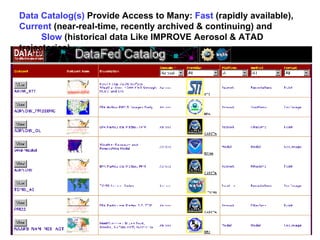

4. Data Catalog(s) Provide Access to Many: Fast (rapidly available), Current (near-real-time, recently archived & continuing) and Slow (historical data Like IMPROVE Aerosol & ATAD trajectories)

5. Data Catalogs: Aerosol, Fire, Maps, Meteorology, Emissions, Images, Events

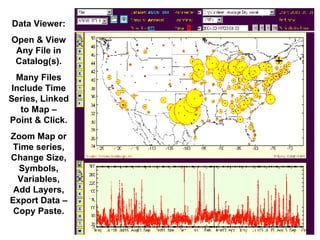

6. Data Viewer: Open & View Any File in Catalog(s). Many Files Include Time Series, Linked to Map – Point & Click. Zoom Map or Time series, Change Size, Symbols, Variables, Add Layers, Export Data – Copy Paste.

7. Data Files Accessed & Archived Specifically for FASTNET. Note Varying Start dates (1988-2004), with Most Continuing. VIEWS_CHEM (IMPROVE Aerosol) and ATAD Trajectories (NPS) are currently used in CATT Applications

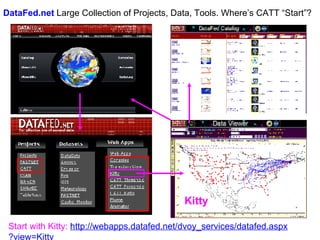

8. Start with Kitty: http:// webapps . datafed .net/ dvoy _services/ datafed . aspx ?view=Kitty Kitty DataFed .net Large Collection of Projects, Data, Tools. Where’s CATT “Start”?

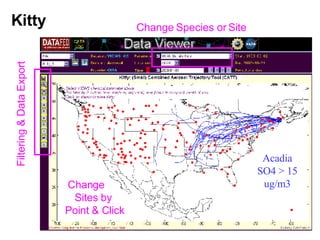

9. Change Species or Site Filtering & Data Export Change Sites by Point & Click Kitty Acadia SO4 > 15 ug/m3

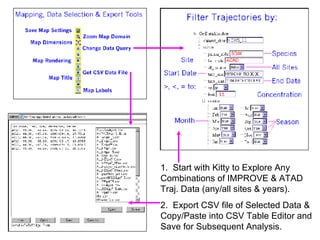

10. 1. Start with Kitty to Explore Any Combinations of IMPROVE & ATAD Traj. Data (any/all sites & years). 2. Export CSV file of Selected Data & Copy/Paste into CSV Table Editor and Save for Subsequent Analysis.

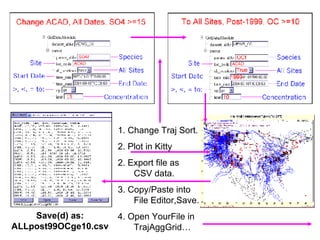

11. 1. Change Traj Sort. 2. Plot in Kitty 2. Export file as CSV data. 3. Copy/Paste into File Editor,Save. 4. Open YourFile in TrajAggGrid… Save(d) as: ALLpost99OCge10.csv

12. Select All Sites and Dates after 1/1/99 if : Organic Carbon >= 10 ug/m3. Fires in the West & Southeast (but not much in MANE-VU) Save CSV file & open in Trajectory Aggregator/Gridder, Weight Traj. by OC Concentration (or not), Normalize (or not) & Plot.

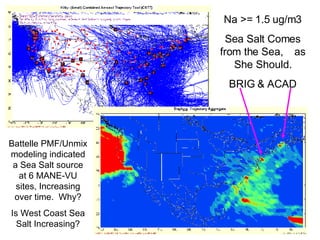

13. Na >= 1.5 ug/m3 Sea Salt Comes from the Sea, as She Should. BRIG & ACAD Battelle PMF/Unmix modeling indicated a Sea Salt source at 6 MANE-VU sites, Increasing over time. Why? Is West Coast Sea Salt Increasing?

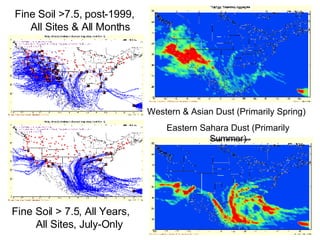

14. Fine Soil >7.5, post-1999, All Sites & All Months Fine Soil > 7.5, All Years, All Sites, July-Only Western & Asian Dust (Primarily Spring) Eastern Sahara Dust (Primarily Summer)

15. Arsenic Nickel Nickel Selenium Nickel

16. If SO4 > 15 for entire IMPROVE network and entire period of record (25 sites). Top 10% of “Secondary Sulfate Source” from Battelle PMF at ACAD, BRIG, GRSM, LYBR, MACA, SHEN & WASH (7 sites)

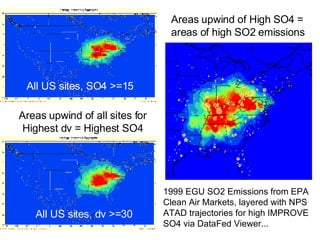

17. All US sites, dv >=30 All US sites, SO4 >=15 Areas upwind of all sites for Highest dv = Highest SO4 Areas upwind of High SO4 = areas of high SO2 emissions 1999 EGU SO2 Emissions from EPA Clean Air Markets, layered with NPS ATAD trajectories for high IMPROVE SO4 via DataFed Viewer...

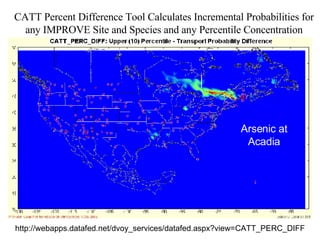

18. http://webapps.datafed.net/dvoy_services/datafed.aspx?view=CATT_PERC_DIFF CATT Percent Difference Tool Calculates Incremental Probabilities for any IMPROVE Site and Species and any Percentile Concentration Arsenic at Acadia

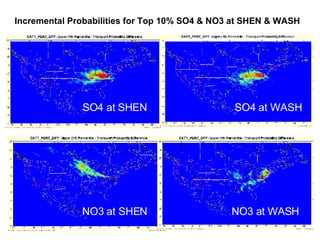

19. SO4 at SHEN NO3 at SHEN NO3 at WASH SO4 at WASH Incremental Probabilities for Top 10% SO4 & NO3 at SHEN & WASH

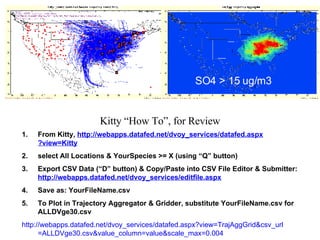

20. SO4 > 15 ug/m3 From Kitty, http:// webapps . datafed .net/ dvoy _services/ datafed . aspx ?view=Kitty select All Locations & YourSpecies >= X (using “Q” button) Export CSV Data (“D” button) & Copy/Paste into CSV File Editor & Submitter: http:// webapps . datafed .net/ dvoy _services/ editfile . aspx Save as: YourFileName.csv To Plot in Trajectory Aggregator & Gridder, substitute YourFileName.csv for ALLDVge30.csv http:// webapps . datafed .net/ dvoy _services/ datafed . aspx ?view= TrajAggGrid & csv _ url =ALLDVge30. csv &value_column=value&scale_max=0.004 Kitty “How To”, for Review

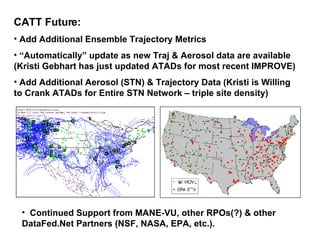

21. CATT Future: Add Additional Ensemble Trajectory Metrics “ Automatically” update as new Traj & Aerosol data are available (Kristi Gebhart has just updated ATADs for most recent IMPROVE) Add Additional Aerosol (STN) & Trajectory Data (Kristi is Willing to Crank ATADs for Entire STN Network – triple site density) Continued Support from MANE-VU, other RPOs(?) & other DataFed.Net Partners (NSF, NASA, EPA, etc.).

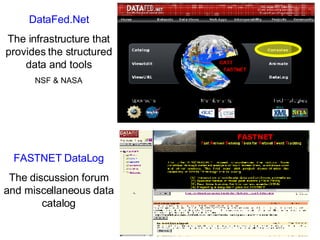

22. DataFed.Net The infrastructure that provides the structured data and tools NSF & NASA FASTNET DataLog The discussion forum and miscellaneous data catalog

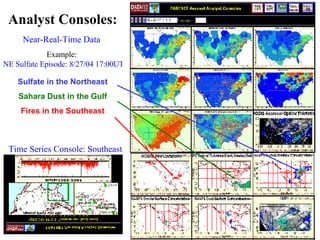

23. Analyst Consoles: Near-Real-Time Data Example: NE Sulfate Episode: 8/27/04 17:00UTC Sulfate in the Northeast Sahara Dust in the Gulf Fires in the Southeast Time Series Console: Southeast

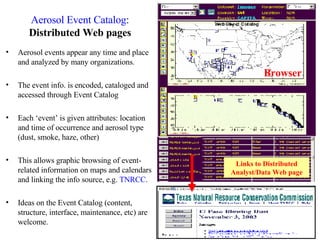

24. Aerosol Event Catalog : Distributed Web pages Aerosol events appear any time and place and analyzed by many organizations. The event info. is encoded, cataloged and accessed through Event Catalog Each ‘event’ is given attributes: location and time of occurrence and aerosol type (dust, smoke, haze, other) This allows graphic browsing of event-related information on maps and calendars and linking the info source, e.g. TNRCC . Ideas on the Event Catalog (content, structure, interface, maintenance, etc) are welcome. Browser Links to Distributed Analyst/Data Web page

25. Quebec Fires, July 6, 2002 SeaWiFS, METAR & TOMS Index Superimposed SeaWiFS satellite and METAR surface haze shown in the Voyager distributed data browser Satellite data are fetched from NASA GSFC; surface data from NWS/CAPITA servers

26. PM-2.5 vs. ASOS Bext during 7/02 Quebec Smoke Event. Note Ratio of scales = 6:1 implying 6 m2/g for Organics (which = 1.8 OC for this smoke)

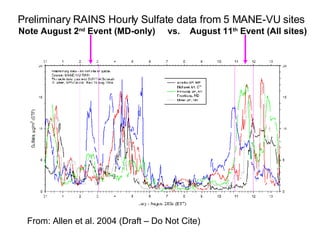

27. From: Allen et al. 2004 (Draft – Do Not Cite) Preliminary RAINS Hourly Sulfate data from 5 MANE-VU sites Note August 2 nd Event (MD-only) vs. August 11 th Event (All sites)

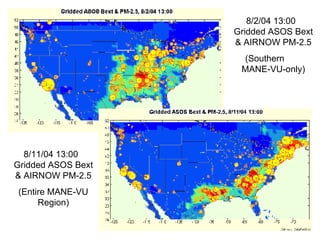

28. 8/2/04 13:00 Gridded ASOS Bext & AIRNOW PM-2.5 (Southern MANE-VU-only) 8/11/04 13:00 Gridded ASOS Bext & AIRNOW PM-2.5 (Entire MANE-VU Region)

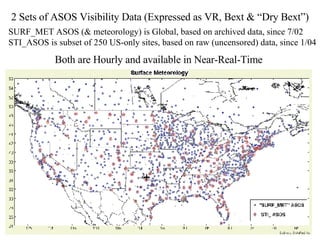

29. 2 Sets of ASOS Visibility Data (Expressed as VR, Bext & “Dry Bext”) SURF_MET ASOS (& meteorology) is Global, based on archived data, since 7/02 STI_ASOS is subset of 250 US-only sites, based on raw (uncensored) data, since 1/04 Both are Hourly and available in Near-Real-Time

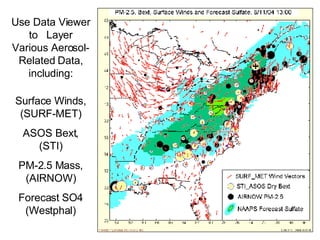

30. Use Data Viewer to Layer Various Aerosol-Related Data, including: Surface Winds, (SURF-MET) ASOS Bext, (STI) PM-2.5 Mass, (AIRNOW) Forecast SO4 (Westphal)

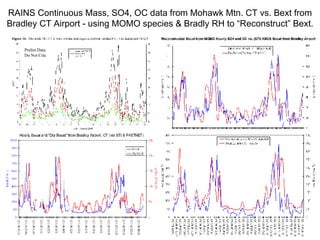

31. RAINS Continuous Mass, SO4, OC data from Mohawk Mtn. CT vs. Bext from Bradley CT Airport - using MOMO species & Bradly RH to “Reconstruct” Bext. Prelim Data. Do Not Cite.

32. Real-time Surface Meteorology provided a rich met context. Link to the Animation of the period Feb 19-21

33. Mystery Peak over the Great Lake & NE Regions The 30-day smoothing average shows the seasonality by region The Feb/Mar PM25 peak is evident for the Northeast, Great Lakes and Great Plains This secondary peak is absent in the South and West Jul-Aug sulfate peak Feb-Mar mystery peak

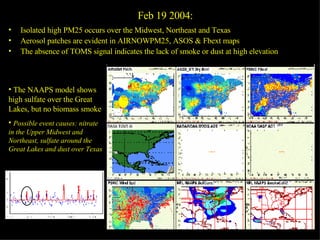

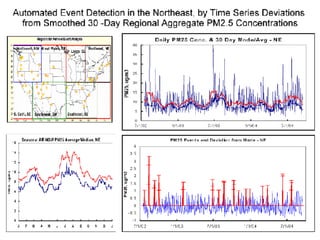

35. Feb 19 2004: Isolated high PM25 occurs over the Midwest, Northeast and Texas Aerosol patches are evident in AIRNOWPM25, ASOS & Fbext maps The absence of TOMS signal indicates the lack of smoke or dust at high elevation The high surface wind speed over Texas, hints on possible dust storm activity The NAAPS model shows high sulfate over the Great Lakes, but no biomass smoke Possible event causes: nitrate in the Upper Midwest and Northeast, sulfate around the Great Lakes and dust over Texas

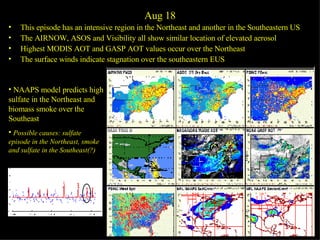

36. Aug 18 This episode has an intensive region in the Northeast and another in the Southeastern US The AIRNOW, ASOS and Visibility all show similar location of elevated aerosol Highest MODIS AOT and GASP AOT values occur over the Northeast The surface winds indicate stagnation over the southeastern EUS NAAPS model predicts high sulfate in the Northeast and biomass smoke over the Southeast Possible causes: sulfate episode in the Northeast, smoke and sulfate in the Southeast(?)

37. FASTNET Future: Link various “image data” (photos, satellite, etc.) to “Events”, Add New Data (& Datasets, like RAINS) & Continue Archival, Link New Fast to Old Slow (IMPROVE Aerosol & Traj.) Data, Compare Aerosol/haze indicators to Emissions & Model Data, Automated “Event Detection” & Analysis Methods! Continued Support from MANE-VU, other RPOs(?) & other DataFed.Net Partners (NSF, NASA, EPA, etc.).
