Building an interactive timeline from facebook photos

Building an interactive timeline
from facebook photos

Rakesh Rajan & Pranav Bhasin

July 25, 2009

Agenda
1. Intro and Demo
2. Evolution
3. Challenges
4. Best Practices

Intro

lifeblob ...where memories come alive!
Tell your story on a timeline
Connect with stories of your friends
Navigate through relations

lifeblob facebook app
Discover photos through relations
http://apps.facebook.com/lifeblob

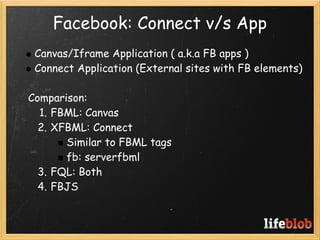

Facebook: Connect v/s App
Canvas/Iframe Application ( a.k.a FB apps )
Connect Application (External sites with FB elements)

Comparison:
1. FBML: Canvas
2. XFBML: Connect
Similar to FBML tags
fb: serverfbml
3. FQL: Both
4. FBJS

Facebook: IFrame v/s Canvas
Speed

Appearance

URLs

Authentication

Step 1: Facebook Connect
Facebook largest photo sharing site on the internet.

Users can register for your site with just two clicks!

FBConnect is easy to implement.
<html xmlns="http://www.w3.org/1999/xhtml xmlns:fb="http://www.facebook.com/2008/fbml">
Include FB javascript in BODY section.
<fb:login-button></fb:login-button>
FB.init("APIKEY", <path to xd_receiver.htm);

User permission and caching

Privacy

FBConnect: Registration
lifeblob - user timelines and anonymous timelines

If a user is already member of lifeblob and later links
up facebook, don't create multiple timelines!

connect.registerUsers
publish email hashes
FB returns the email hash upon login - helpful for
merging accounts

Issues: multiple emails

FBConnect: Sync Data
Cache Cache Cache!
Facebook allows to store certain data upto a day. Have
cron jobs to sync up data like user's name, pic etc
everyday.

Get offline access from users - only a few grant it.

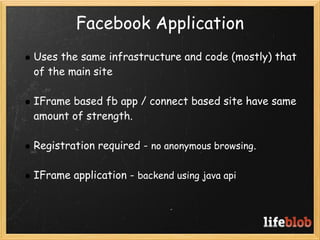

Facebook Application
Uses the same infrastructure and code (mostly) that
of the main site

IFrame based fb app / connect based site have same
amount of strength.

Registration required - no anonymous browsing.

IFrame application - backend using java api

IFrame URLs
Urls do not change
Back button breaks
Sharing breaks

Solution: http://wiki.developers.facebook.com/index.
php/IFrame_Url
FB.CanvasClient.syncUrl()
syncUrl will report any inner URL to the outer frame and
append it to the URL hash
Can override the browser's back and forward buttons.

IFrame App - Authentication
First hit to Iframe - Various session parameters as
request parameters

2 ways to continue:
Pass parameters to all the internal links
Dummy page to save cookie using javascript

We started with passing parameters - Issues with using
the app and site at the same time.
Cookie mismatch - only subset of request parameters in
cookies.

FQL - Enhancements
batch.run - Combines multiple seperate API calls into a
single request
Max limit: 20

fql.multiquery - Runs multiple queries in one call and return
the data at one time
We reduced 5 queries into 1!
"query1":"select uid from event_member where eid=<>"
"query2":"select name from profile where uid in (select uid from
#query1)"

Preload FQL - Let FB "eagerly" send you data upfront.

More ...
Track everything. - GA provides event tracking
how many people accepted the app
conversion of people from newsfeed, notifications and
invites.
viral coefficient

Notifications/Invites - limit per user
track number of notifications and invites sent
track hideall/spam reports
When building a node using xfbml, prefer
parseDomElement over parseDomTree

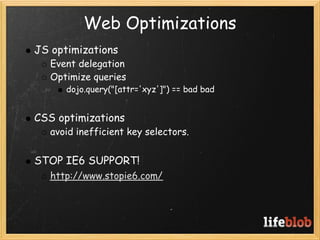

Web Optimizations
JS optimizations
Event delegation
Optimize queries
dojo.query("[attr='xyz']") == bad bad

CSS optimizations
avoid inefficient key selectors.

STOP IE6 SUPPORT!
http://www.stopie6.com/
