- 1. CALCULATING NUTRIENT REMOVAL ASSOCIATEDWITH MAINTENANCE ACTIVITIES PRESENTED BY: STEFAN BROADUS

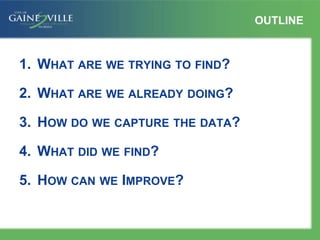

- 2. OUTLINE 1. WHAT AREWE TRYING TO FIND? 2. WHAT ARE WE ALREADY DOING? 3. HOW DO WE CAPTURE THE DATA? 4. WHAT DID WE FIND? 5. HOW CAN WE IMPROVE?

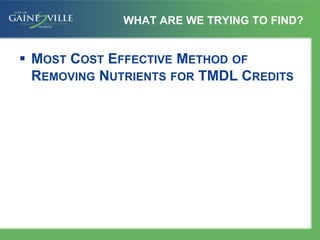

- 3. WHAT ARE WETRYING TO FIND?  MOST COST EFFECTIVE METHOD OF REMOVING NUTRIENTS FOR TMDL CREDITS

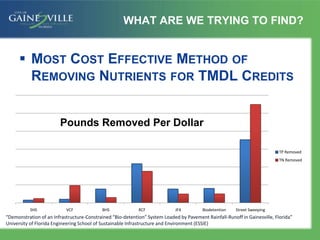

- 4. WHAT ARE WETRYING TO FIND?  MOST COST EFFECTIVE METHOD OF REMOVING NUTRIENTS FOR TMDL CREDITS SHS VCF BHS RCF JF4 Biodetention Street Sweeping Pounds Removed Per Dollar TP Removed TN Removed “Demonstration of an Infrastructure-Constrained “Bio-detention” System Loaded by Pavement Rainfall-Runoff in Gainesville, Florida” University of Florida Engineering School of Sustainable Infrastructure and Environment (ESSIE)

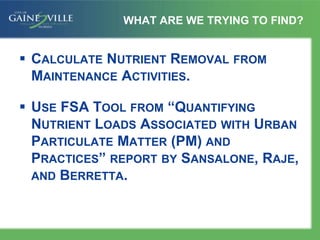

- 5. WHAT ARE WETRYING TO FIND?  CALCULATE NUTRIENT REMOVAL FROM MAINTENANCE ACTIVITIES.  USE FSA TOOL FROM “QUANTIFYING NUTRIENT LOADS ASSOCIATED WITH URBAN PARTICULATE MATTER (PM) AND PRACTICES” REPORT BY SANSALONE, RAJE, AND BERRETTA.

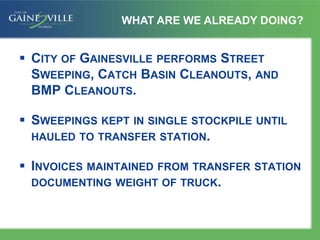

- 6.  CITY OFGAINESVILLE PERFORMS STREET SWEEPING, CATCH BASIN CLEANOUTS, AND BMP CLEANOUTS.  SWEEPINGS KEPT IN SINGLE STOCKPILE UNTIL HAULED TO TRANSFER STATION.  INVOICES MAINTAINED FROM TRANSFER STATION DOCUMENTING WEIGHT OF TRUCK. WHAT ARE WE ALREADY DOING?

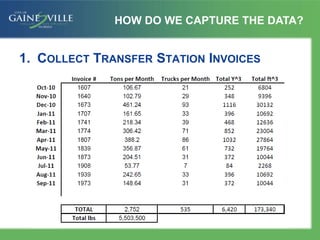

- 7. 1. COLLECT TRANSFERSTATION INVOICES HOW DO WE CAPTURE THE DATA?

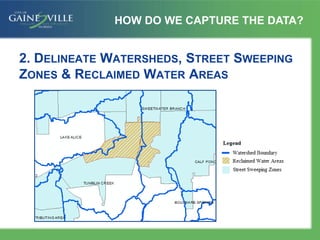

- 8. 2. DELINEATE WATERSHEDS,STREET SWEEPING ZONES & RECLAIMED WATER AREAS HOW DO WE CAPTURE THE DATA?
- 9. 3. DETERMINE WEIGHTOF COLLECTED MATERIAL PER WATERSHED HOW DO WE CAPTURE THE DATA?

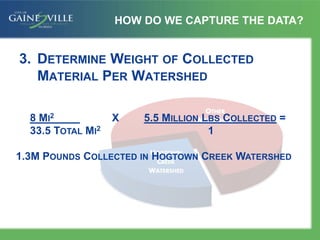

- 10. 3. DETERMINE WEIGHTOF COLLECTED MATERIAL PER WATERSHED HOW DO WE CAPTURE THE DATA? 8 MI2 X 5.5 MILLION LBS COLLECTED = 33.5 TOTAL MI2 1 1.3M POUNDS COLLECTED IN HOGTOWN CREEK WATERSHED

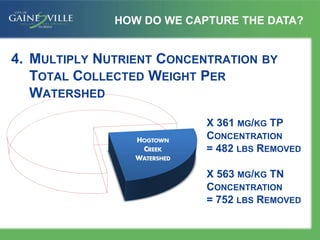

- 11. 4. MULTIPLY NUTRIENTCONCENTRATION BY TOTAL COLLECTED WEIGHT PER WATERSHED HOW DO WE CAPTURE THE DATA? X 361 MG/KG TP CONCENTRATION = 482 LBS REMOVED X 563 MG/KG TN CONCENTRATION = 752 LBS REMOVED

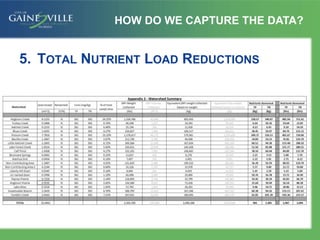

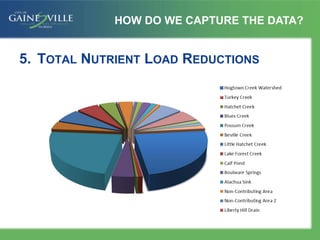

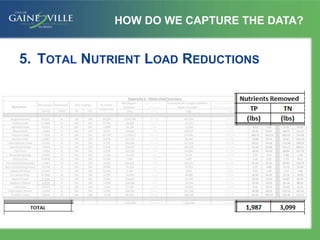

- 12. 5. TOTAL NUTRIENTLOAD REDUCTIONS HOW DO WE CAPTURE THE DATA?
- 13. 5. TOTAL NUTRIENTLOAD REDUCTIONS HOW DO WE CAPTURE THE DATA?
- 14. 5. TOTAL NUTRIENTLOAD REDUCTIONS HOW DO WE CAPTURE THE DATA?

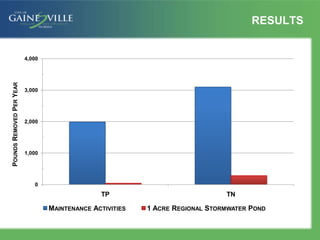

- 15. 0 1,000 2,000 3,000 4,000 TP TN POUNDSREMOVEDPERYEAR MAINTENANCE ACTIVITIES1 ACRE REGIONAL STORMWATER POND RESULTS

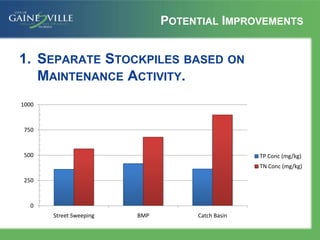

- 16. POTENTIAL IMPROVEMENTS 1. SEPARATESTOCKPILES BASED ON MAINTENANCE ACTIVITY. 0 250 500 750 1000 Street Sweeping BMP Catch Basin TP Conc (mg/kg) TN Conc (mg/kg)

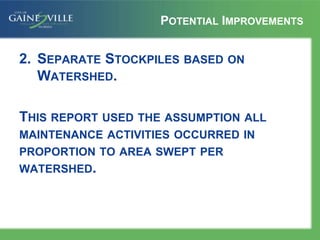

- 17. POTENTIAL IMPROVEMENTS 2. SEPARATESTOCKPILES BASED ON WATERSHED. THIS REPORT USED THE ASSUMPTION ALL MAINTENANCE ACTIVITIES OCCURRED IN PROPORTION TO AREA SWEPT PER WATERSHED.
- 18. POTENTIAL IMPROVEMENTS 2. SEPARATESTOCKPILES BASED ON WATERSHED. 3 STOCKPILES (1 FOR EACH ACTIVITY) X 20 WATERSHEDS 60 STOCKPILES

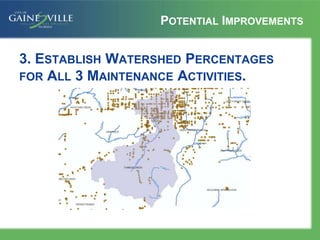

- 19. POTENTIAL IMPROVEMENTS 3. ESTABLISHWATERSHED PERCENTAGES FOR ALL 3 MAINTENANCE ACTIVITIES.

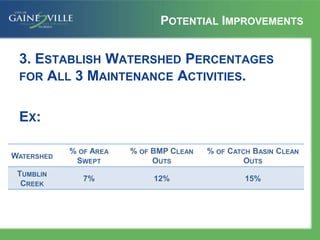

- 20. POTENTIAL IMPROVEMENTS 3. ESTABLISHWATERSHED PERCENTAGES FOR ALL 3 MAINTENANCE ACTIVITIES. EX: WATERSHED % OF AREA SWEPT % OF BMP CLEAN OUTS % OF CATCH BASIN CLEAN OUTS TUMBLIN CREEK 7% 12% 15%

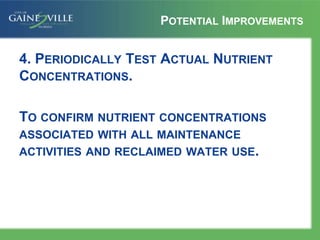

- 21. POTENTIAL IMPROVEMENTS 4. PERIODICALLYTEST ACTUAL NUTRIENT CONCENTRATIONS. TO CONFIRM NUTRIENT CONCENTRATIONS ASSOCIATED WITH ALL MAINTENANCE ACTIVITIES AND RECLAIMED WATER USE.
- 22.
