- 1. https://strimzi.io Everything you everneeded to know about Kafka on Kubernetes Jakub Scholz Kafka Summit Europe 2021
- 2. About me " PrincipalSoftware Engineer @ Red Hat " Maintainer of Strimzi project (https://strimzi.io) " Apache Kafka contributor @scholzj https://github.com/scholzj https://www.linkedin.com/in/scholzj/ Everything you ever needed to know about Kafka on Kubernetes 2
- 3. Kafka on Kubernetes "Many different ways to run Kafka on Kubernetes ○ Bunch of YAML files ○ Helm Charts ○ Operators " You should still understand how Kubernetes works Everything you ever needed to know about Kafka on Kubernetes 3

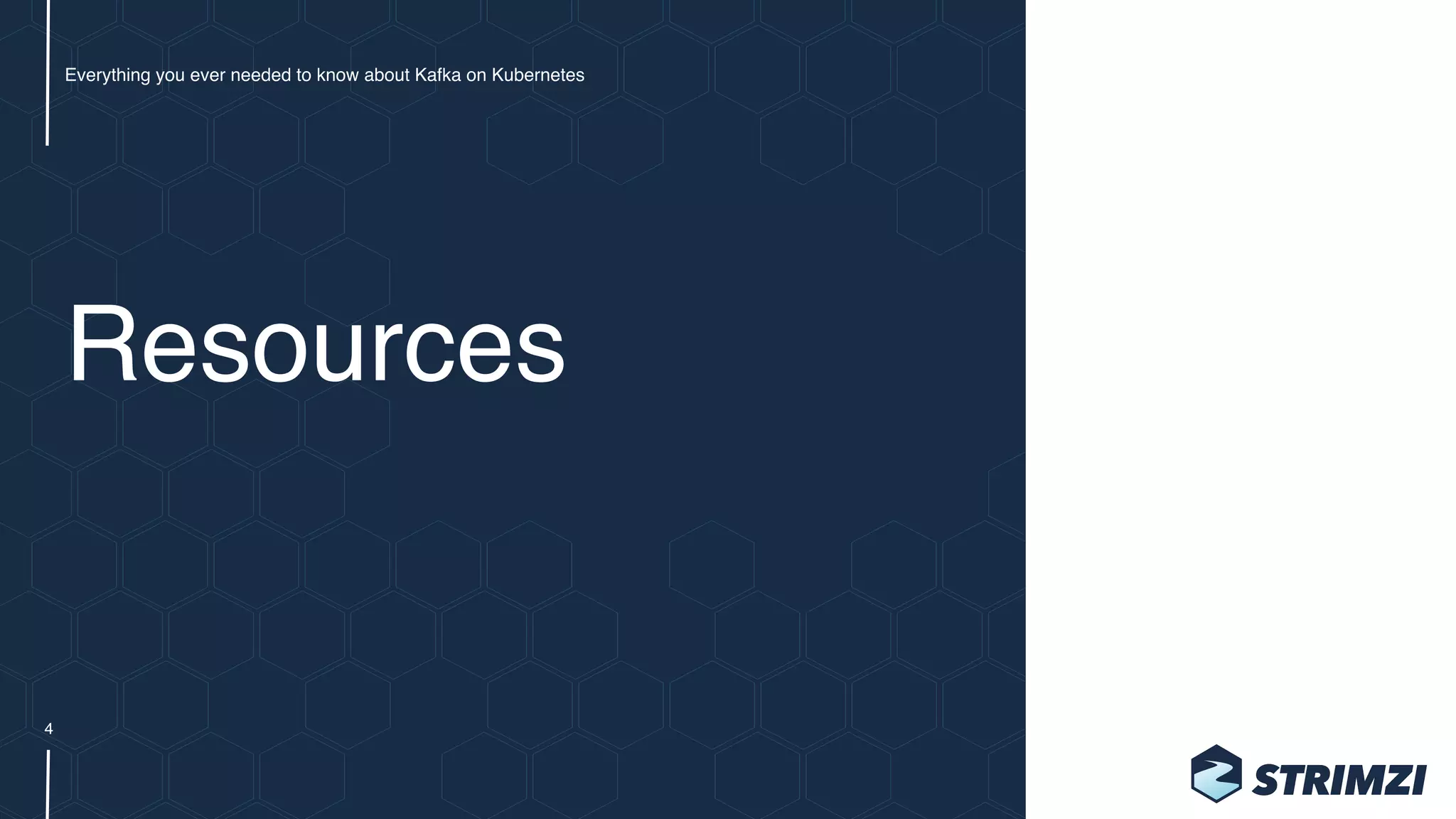

- 4. Resources Everything you everneeded to know about Kafka on Kubernetes 4

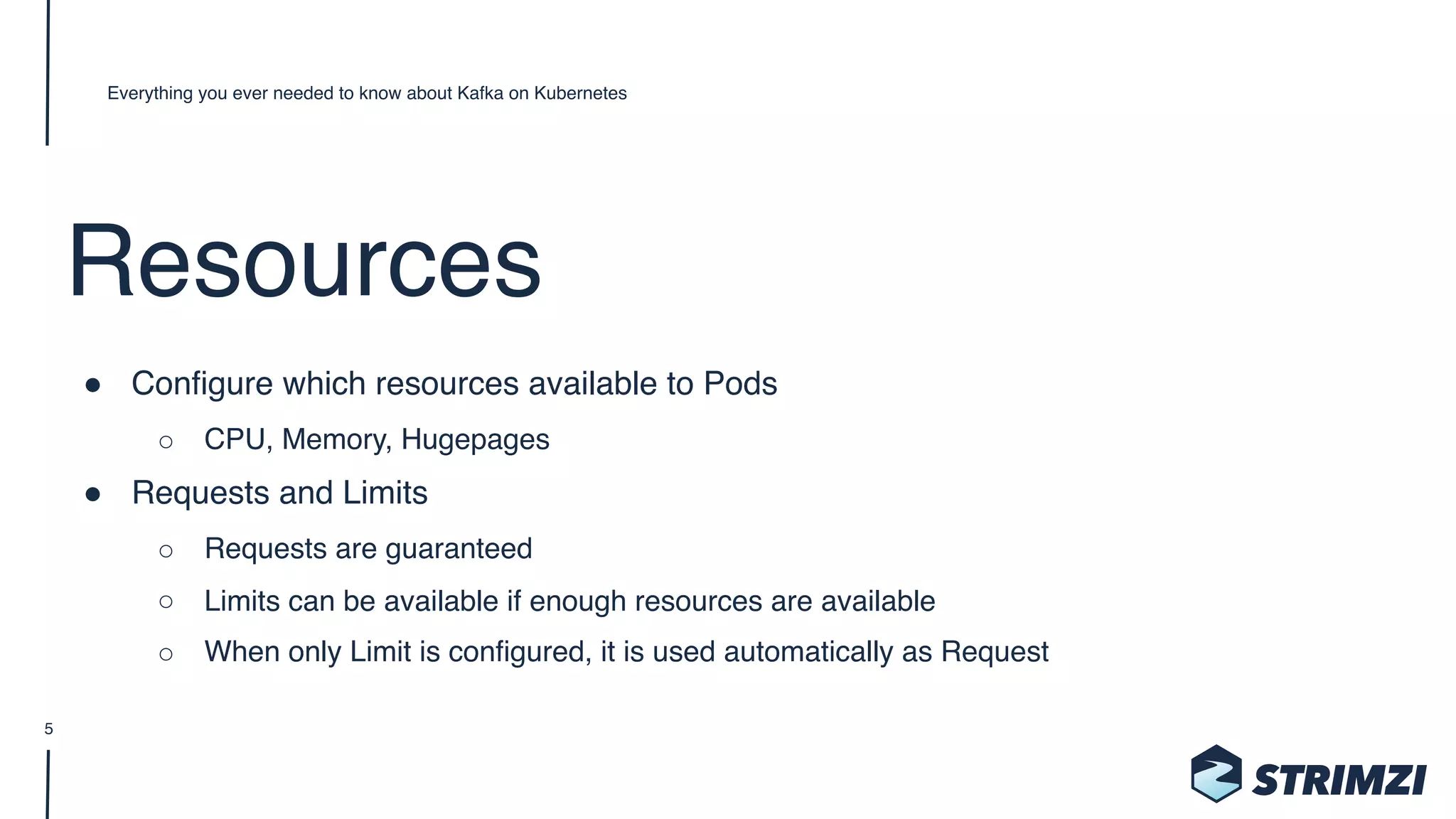

- 5. Resources " Configure whichresources available to Pods ○ CPU, Memory, Hugepages " Requests and Limits ○ Requests are guaranteed ○ Limits can be available if enough resources are available ○ When only Limit is configured, it is used automatically as Request Everything you ever needed to know about Kafka on Kubernetes 5
- 6. Resources " CPU ○ Podsare not killed for exceeding CPU usage " Memory ○ Pods are killed when the exceed the memory limit ○ Pods might be killed when they exceed the memory request and node runs OoM Everything you ever needed to know about Kafka on Kubernetes 6

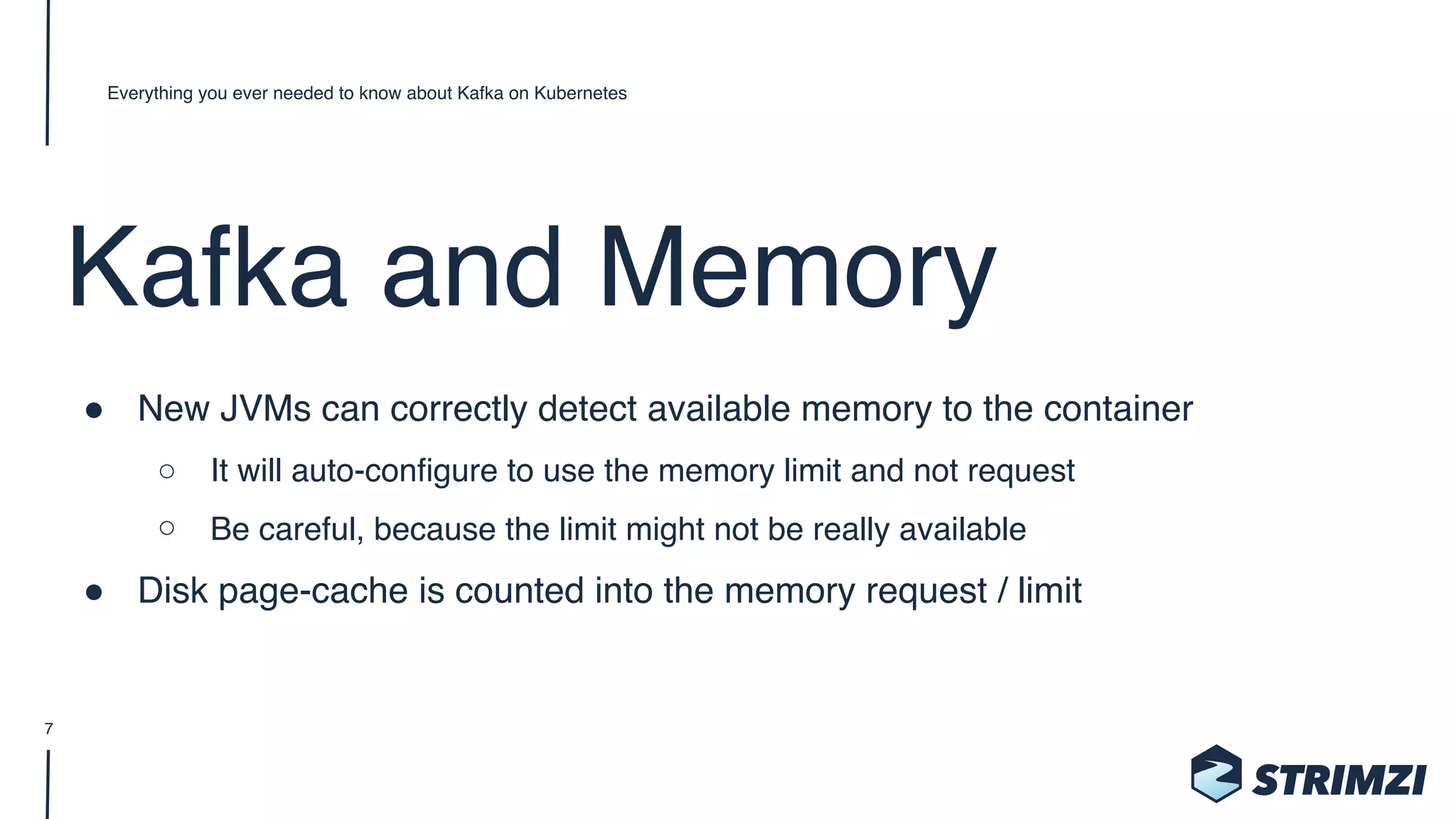

- 7. Kafka and Memory "New JVMs can correctly detect available memory to the container ○ It will auto-configure to use the memory limit and not request ○ Be careful, because the limit might not be really available " Disk page-cache is counted into the memory request / limit Everything you ever needed to know about Kafka on Kubernetes 7

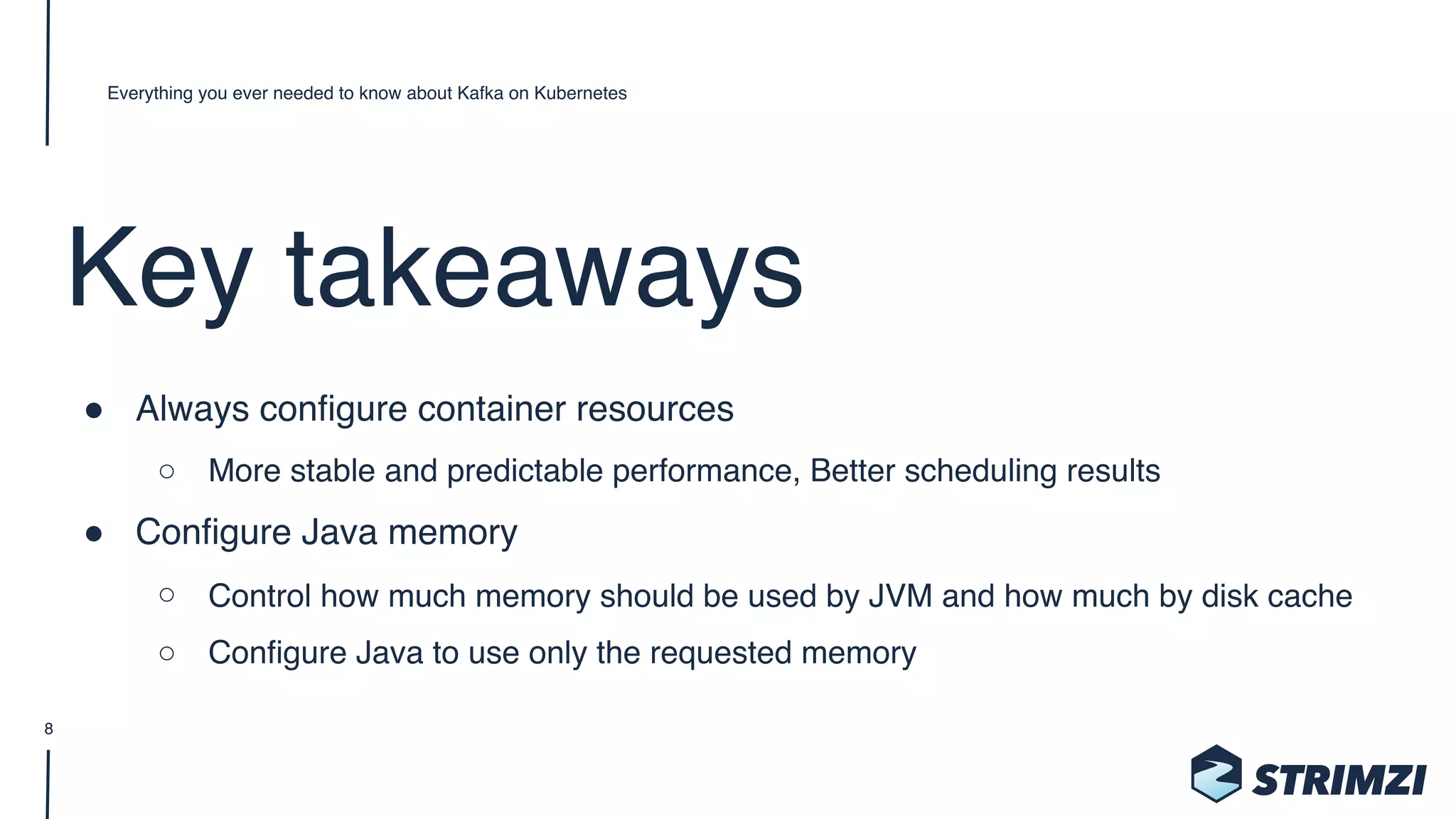

- 8. Key takeaways " Alwaysconfigure container resources ○ More stable and predictable performance, Better scheduling results " Configure Java memory ○ Control how much memory should be used by JVM and how much by disk cache ○ Configure Java to use only the requested memory Everything you ever needed to know about Kafka on Kubernetes 8

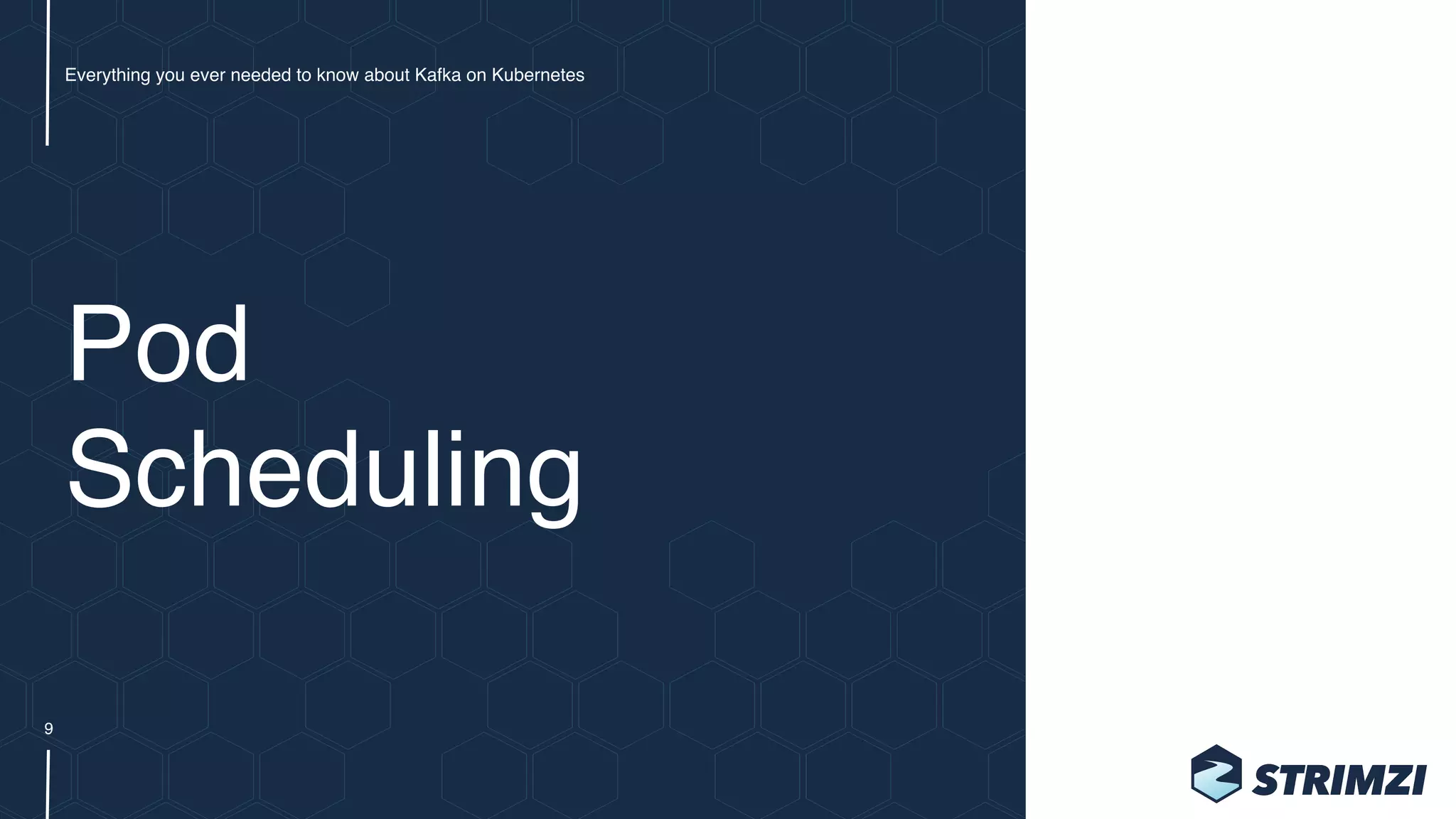

- 9. Pod Scheduling Everything youever needed to know about Kafka on Kubernetes 9

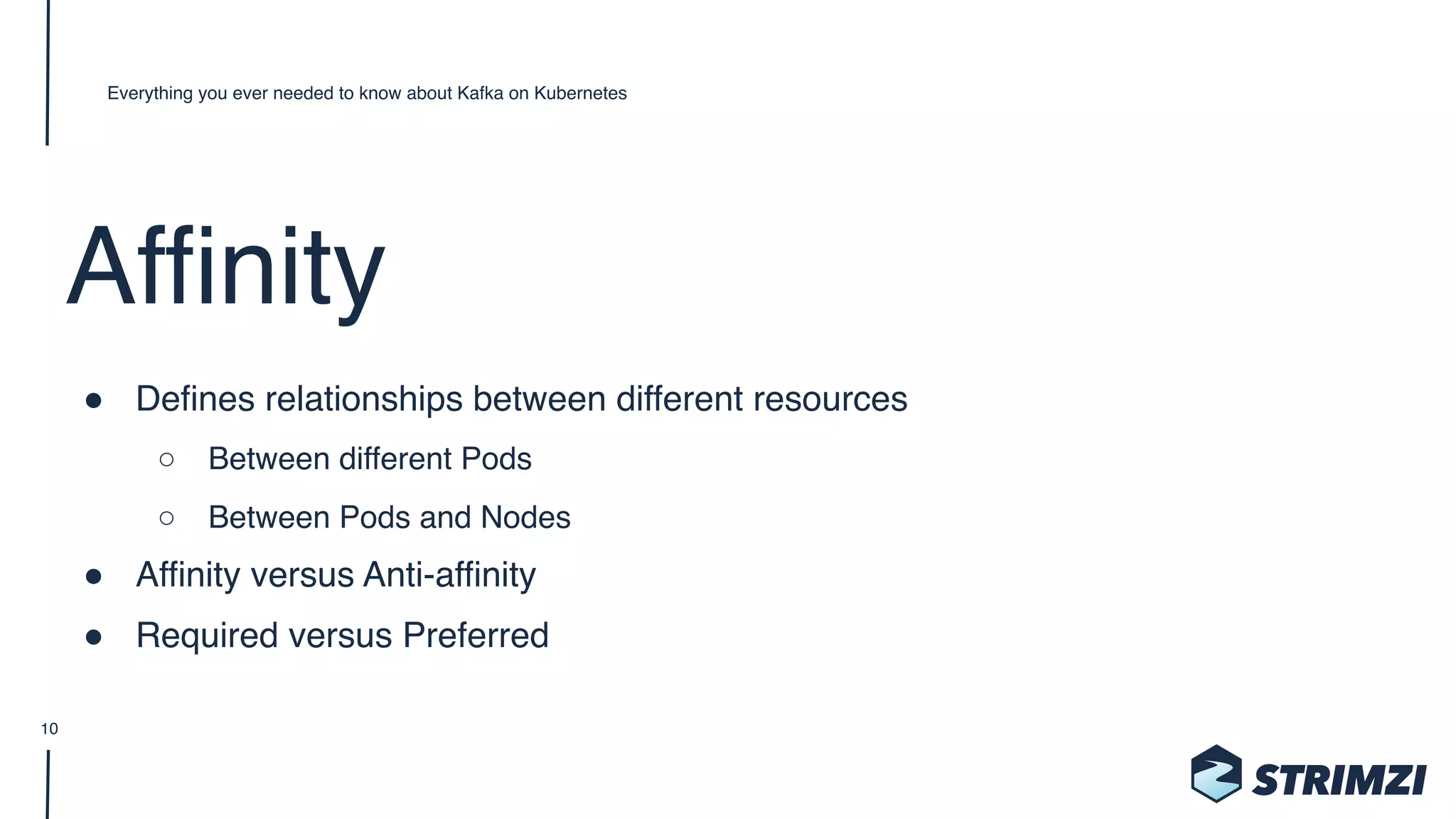

- 10. Affinity " Defines relationshipsbetween different resources ○ Between different Pods ○ Between Pods and Nodes " Affinity versus Anti-affinity " Required versus Preferred Everything you ever needed to know about Kafka on Kubernetes 10

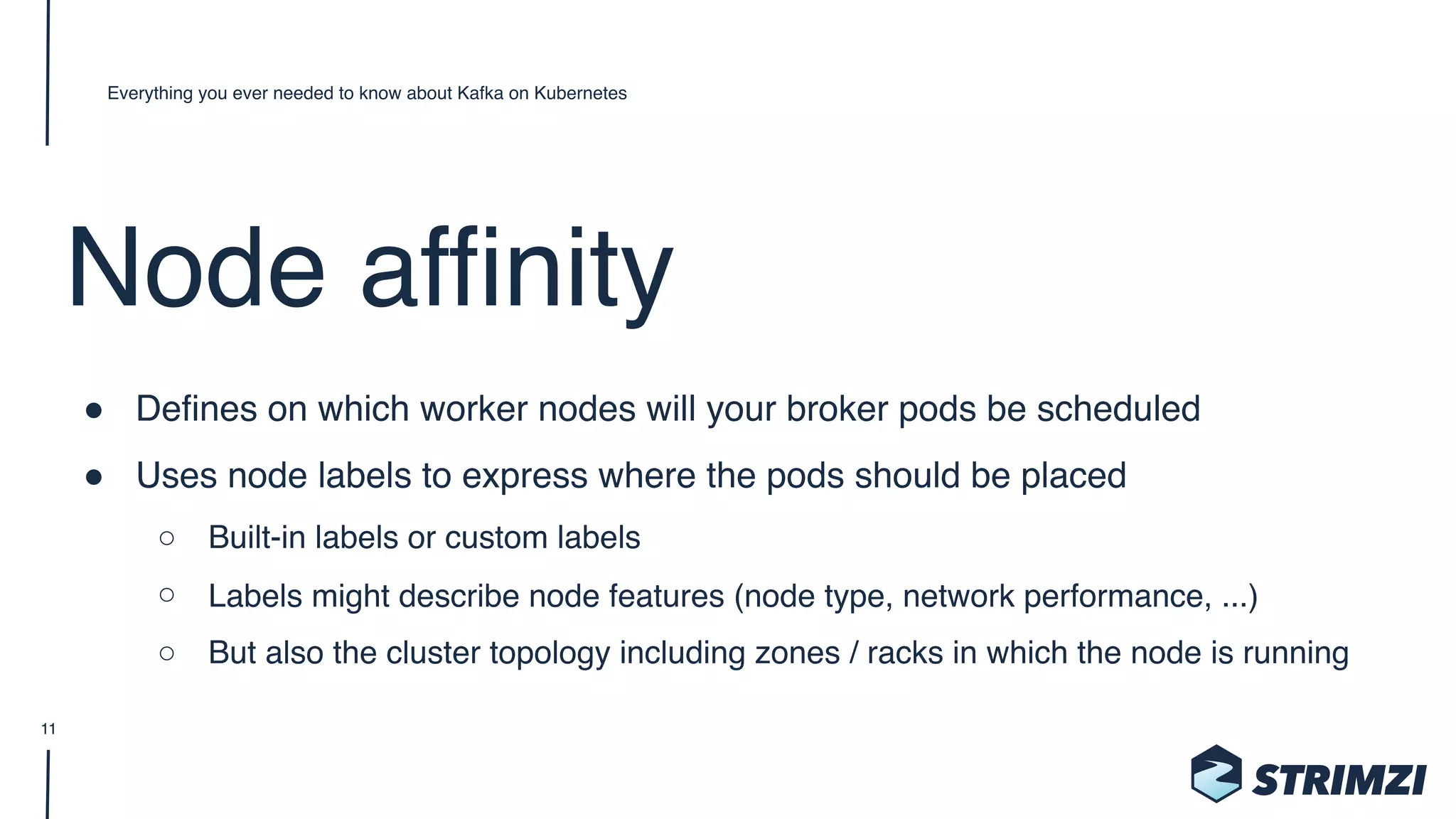

- 11. Node affinity " Defineson which worker nodes will your broker pods be scheduled " Uses node labels to express where the pods should be placed ○ Built-in labels or custom labels ○ Labels might describe node features (node type, network performance, ...) ○ But also the cluster topology including zones / racks in which the node is running Everything you ever needed to know about Kafka on Kubernetes 11

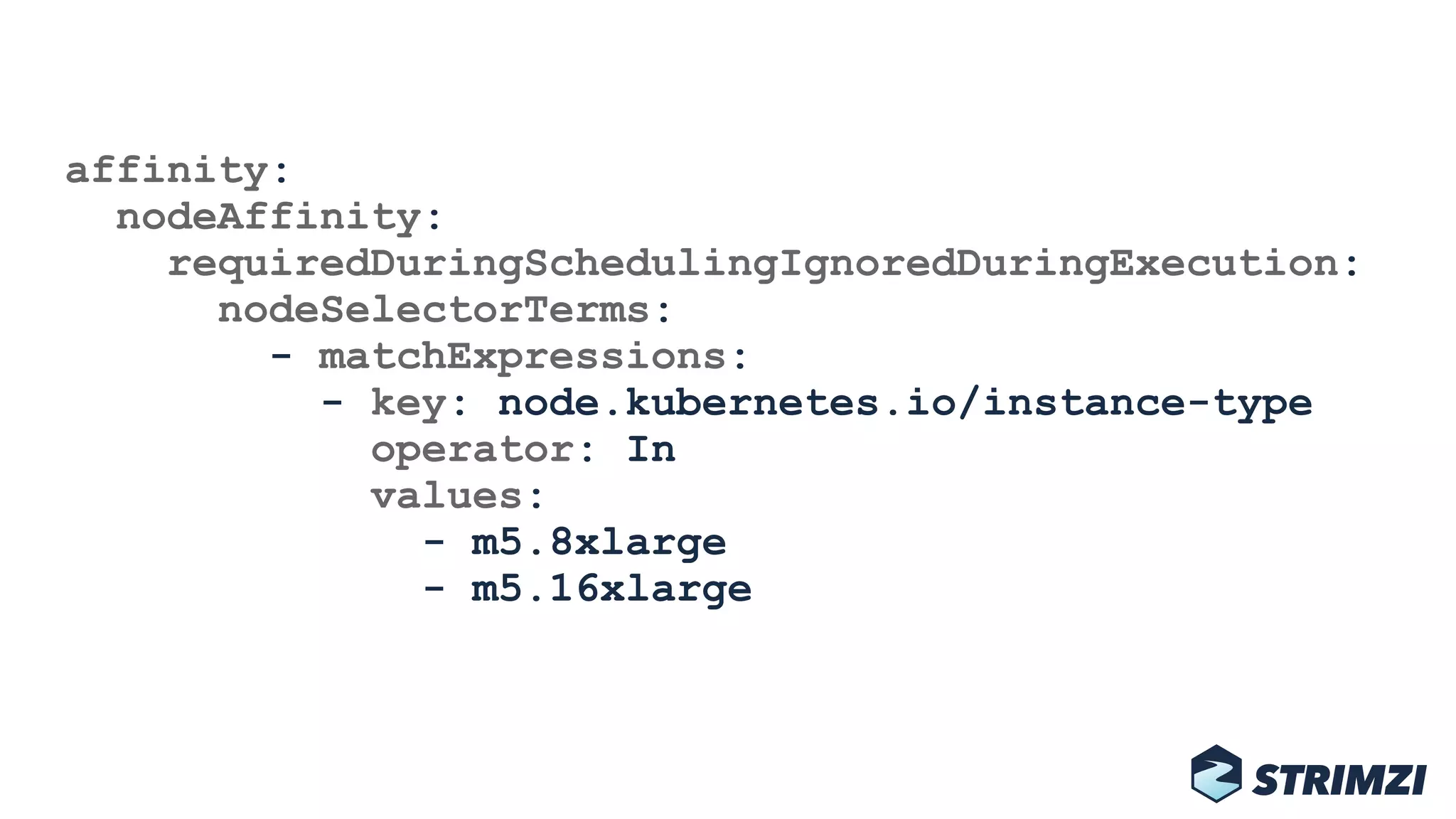

- 12. affinity: nodeAffinity: requiredDuringSchedulingIgnoredDuringExecution: nodeSelectorTerms: - matchExpressions: - key:node.kubernetes.io/instance-type operator: In values: - m5.8xlarge - m5.16xlarge

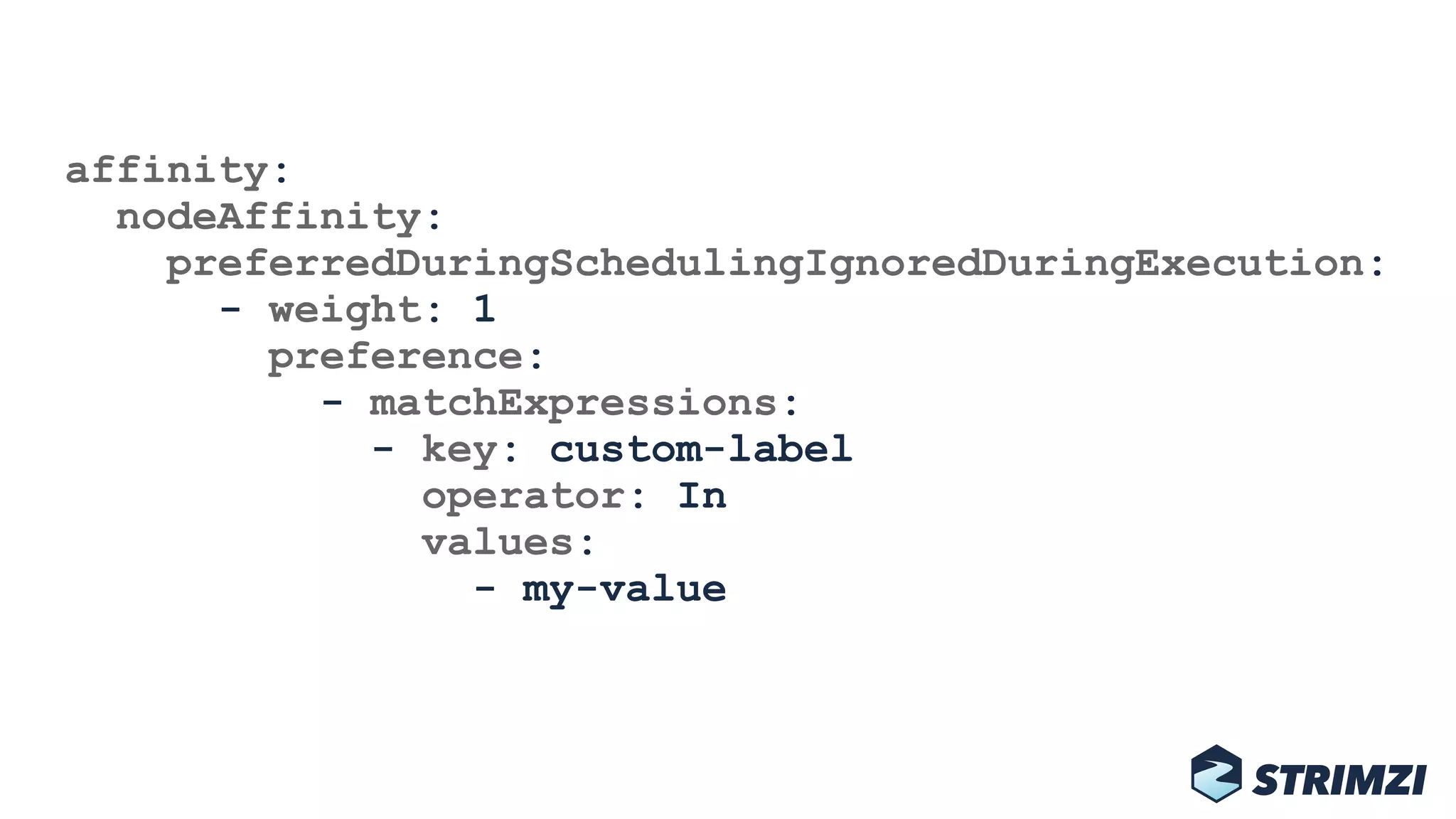

- 13. affinity: nodeAffinity: preferredDuringSchedulingIgnoredDuringExecution: - weight: 1 preference: -matchExpressions: - key: custom-label operator: In values: - my-value

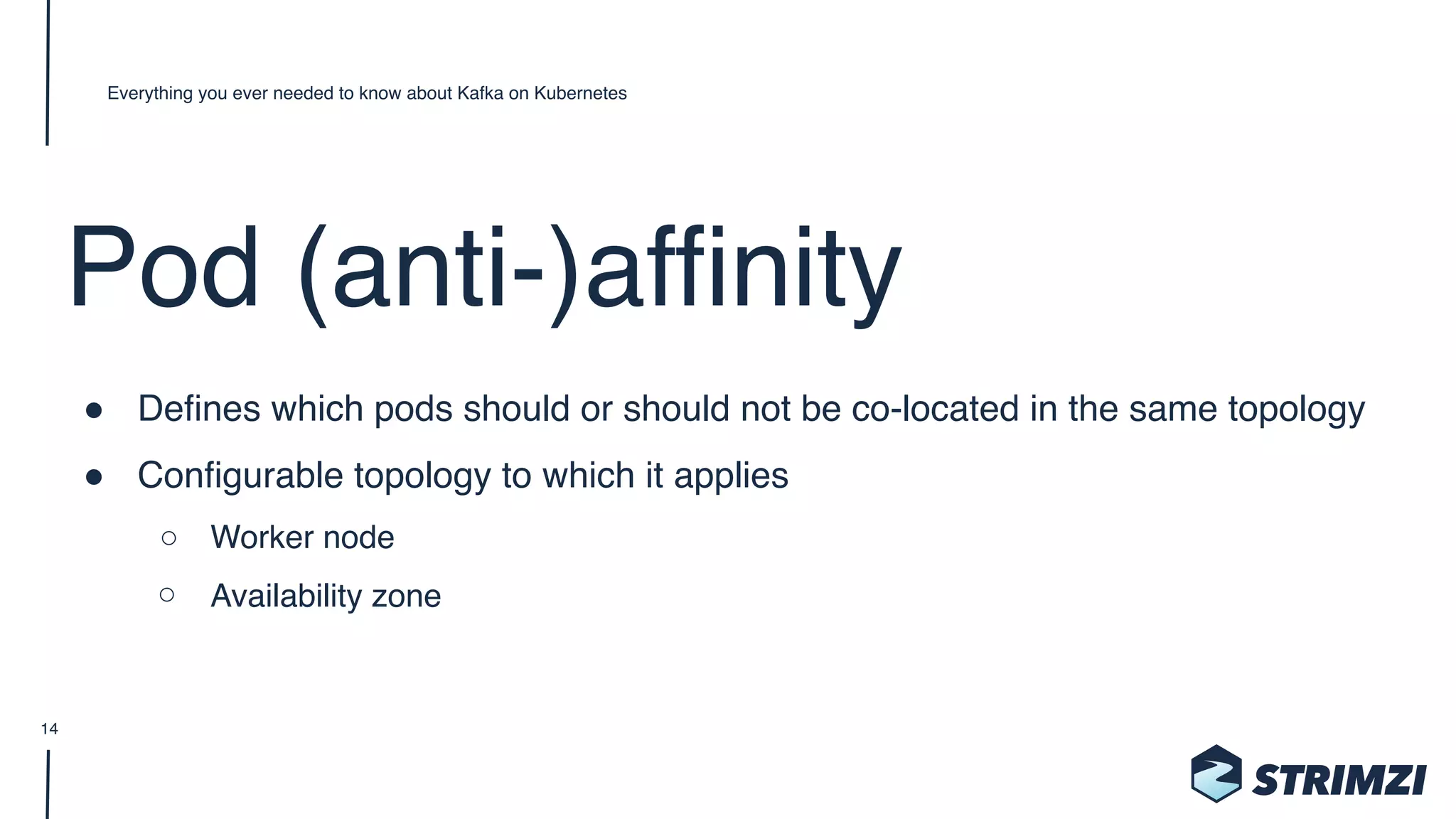

- 14. Pod (anti-)affinity " Defineswhich pods should or should not be co-located in the same topology " Configurable topology to which it applies ○ Worker node ○ Availability zone Everything you ever needed to know about Kafka on Kubernetes 14

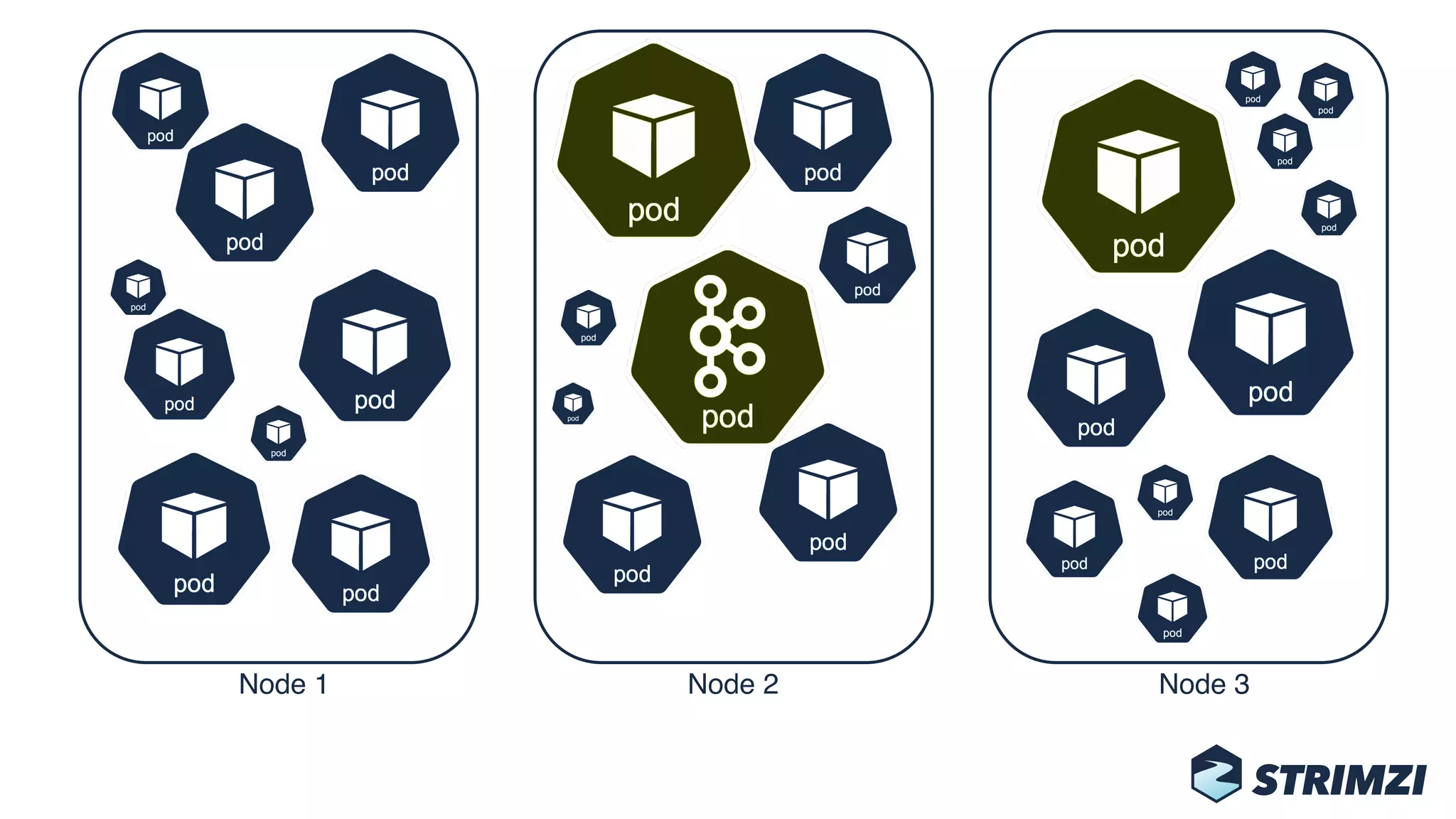

- 15. Node 1 Node2 Node 3

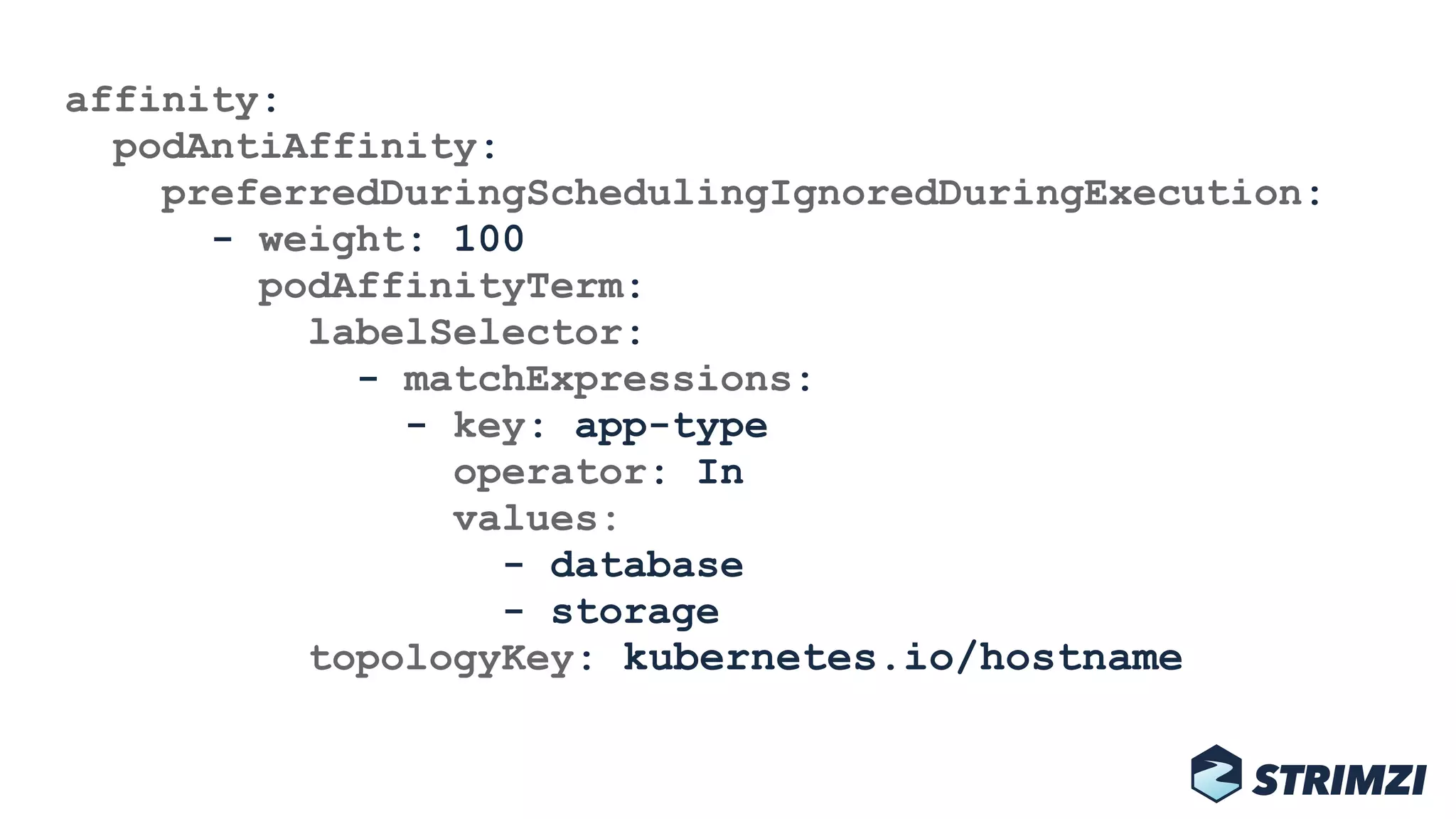

- 16. affinity: podAntiAffinity: preferredDuringSchedulingIgnoredDuringExecution: - weight: 100 podAffinityTerm: labelSelector: -matchExpressions: - key: app-type operator: In values: - database - storage topologyKey: kubernetes.io/hostname

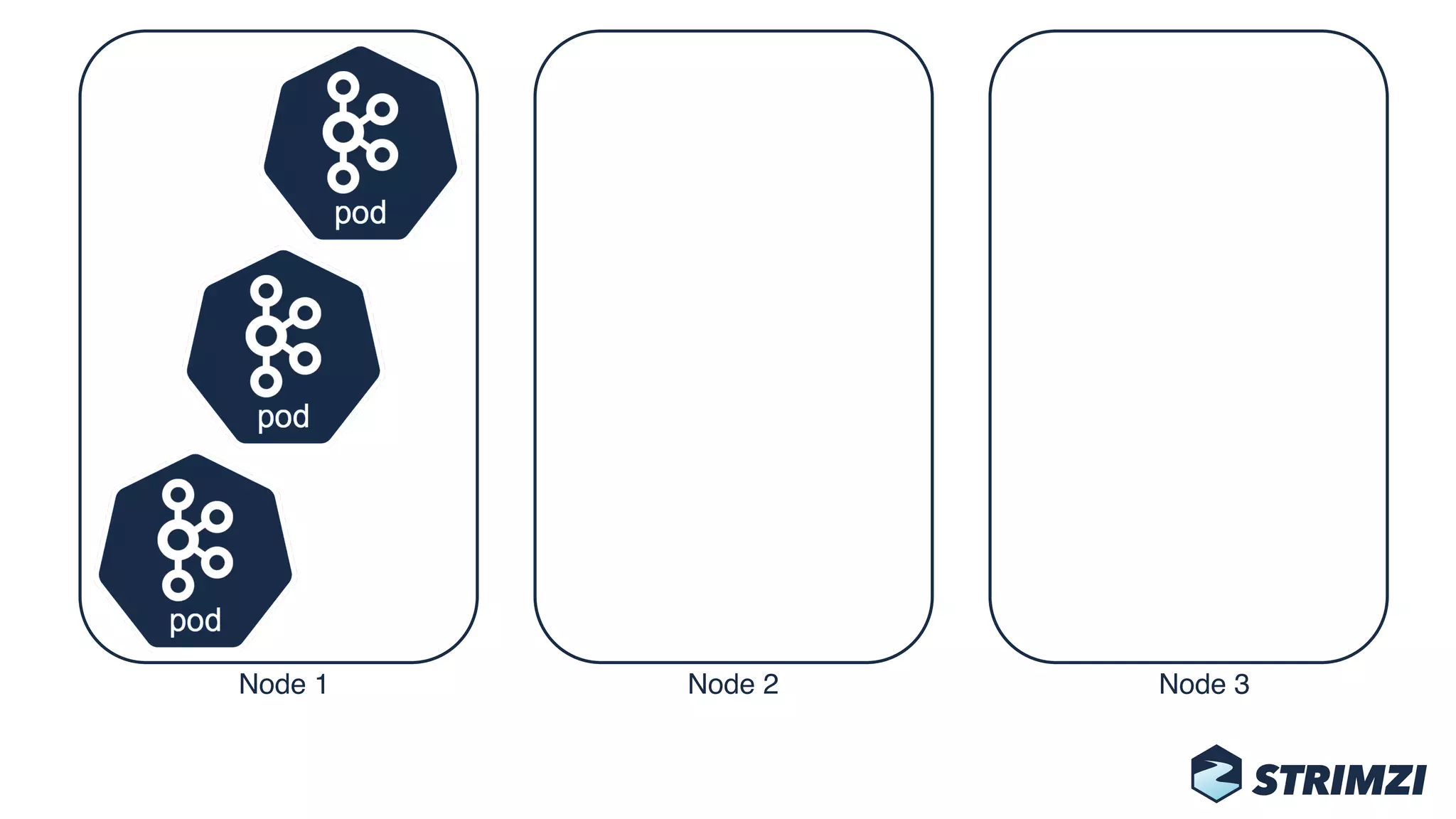

- 17. Node 1 Node2 Node 3

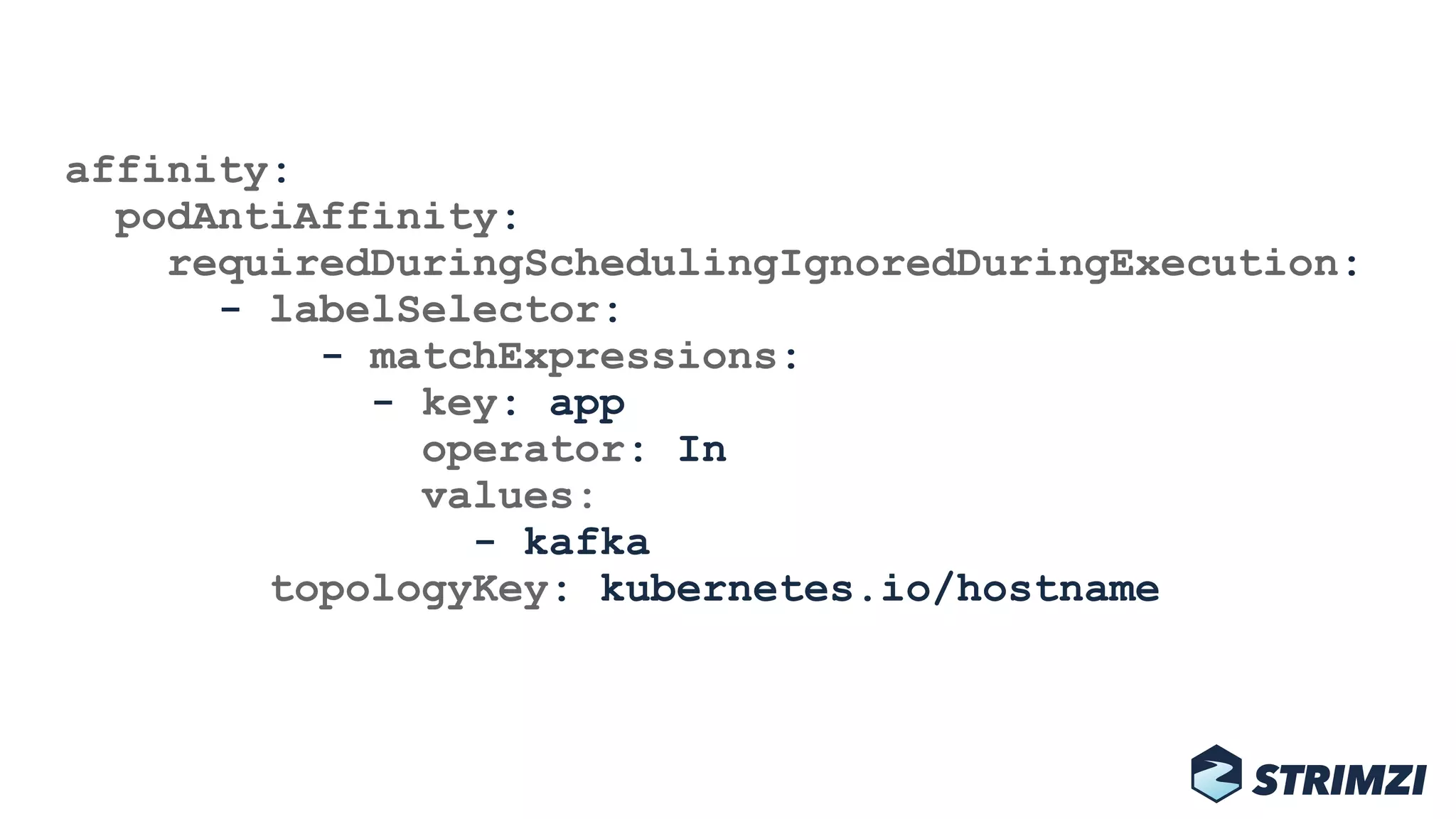

- 18. affinity: podAntiAffinity: requiredDuringSchedulingIgnoredDuringExecution: - labelSelector: - matchExpressions: -key: app operator: In values: - kafka topologyKey: kubernetes.io/hostname

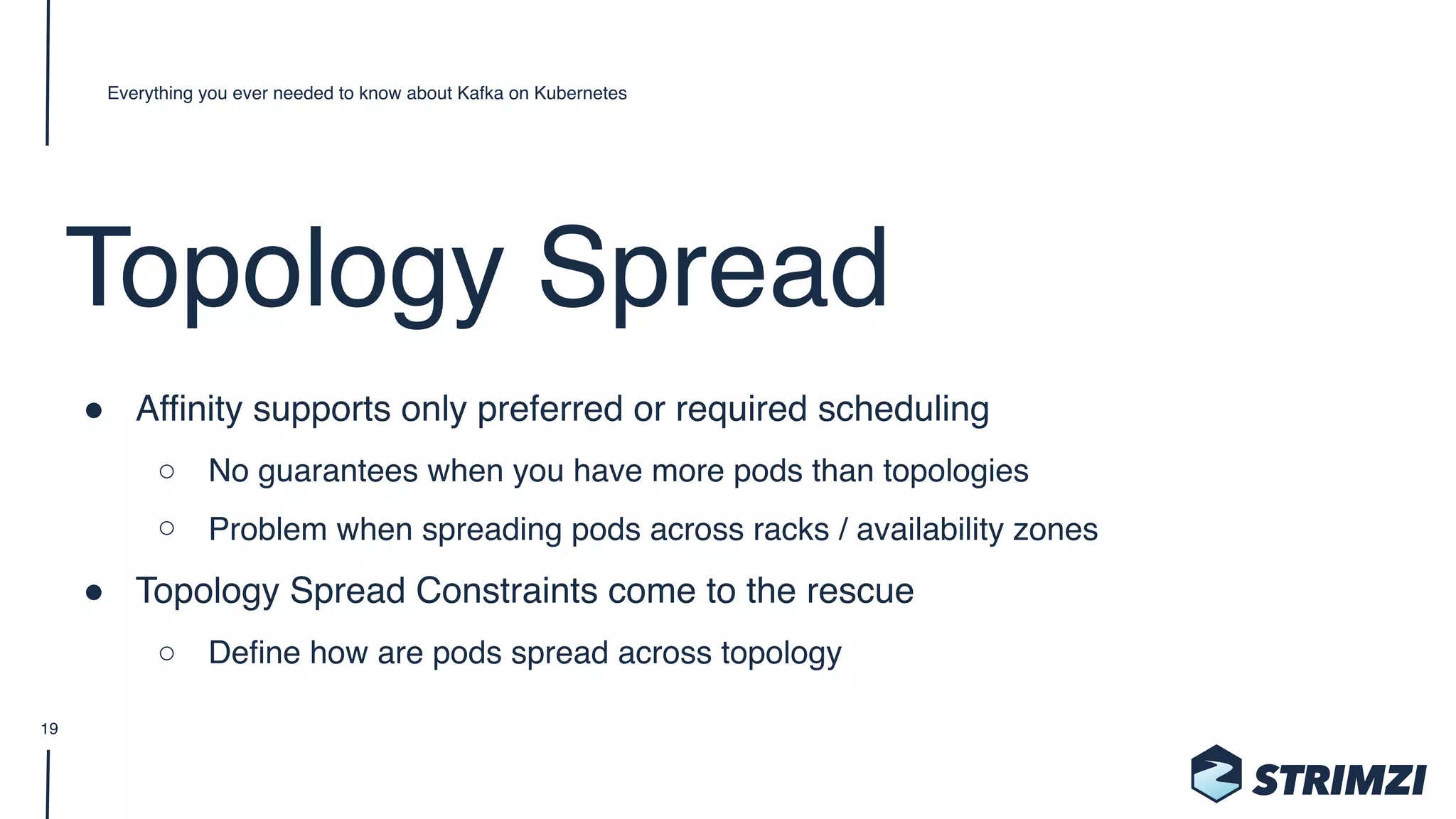

- 19. Topology Spread " Affinitysupports only preferred or required scheduling ○ No guarantees when you have more pods than topologies ○ Problem when spreading pods across racks / availability zones " Topology Spread Constraints come to the rescue ○ Define how are pods spread across topology Everything you ever needed to know about Kafka on Kubernetes 19

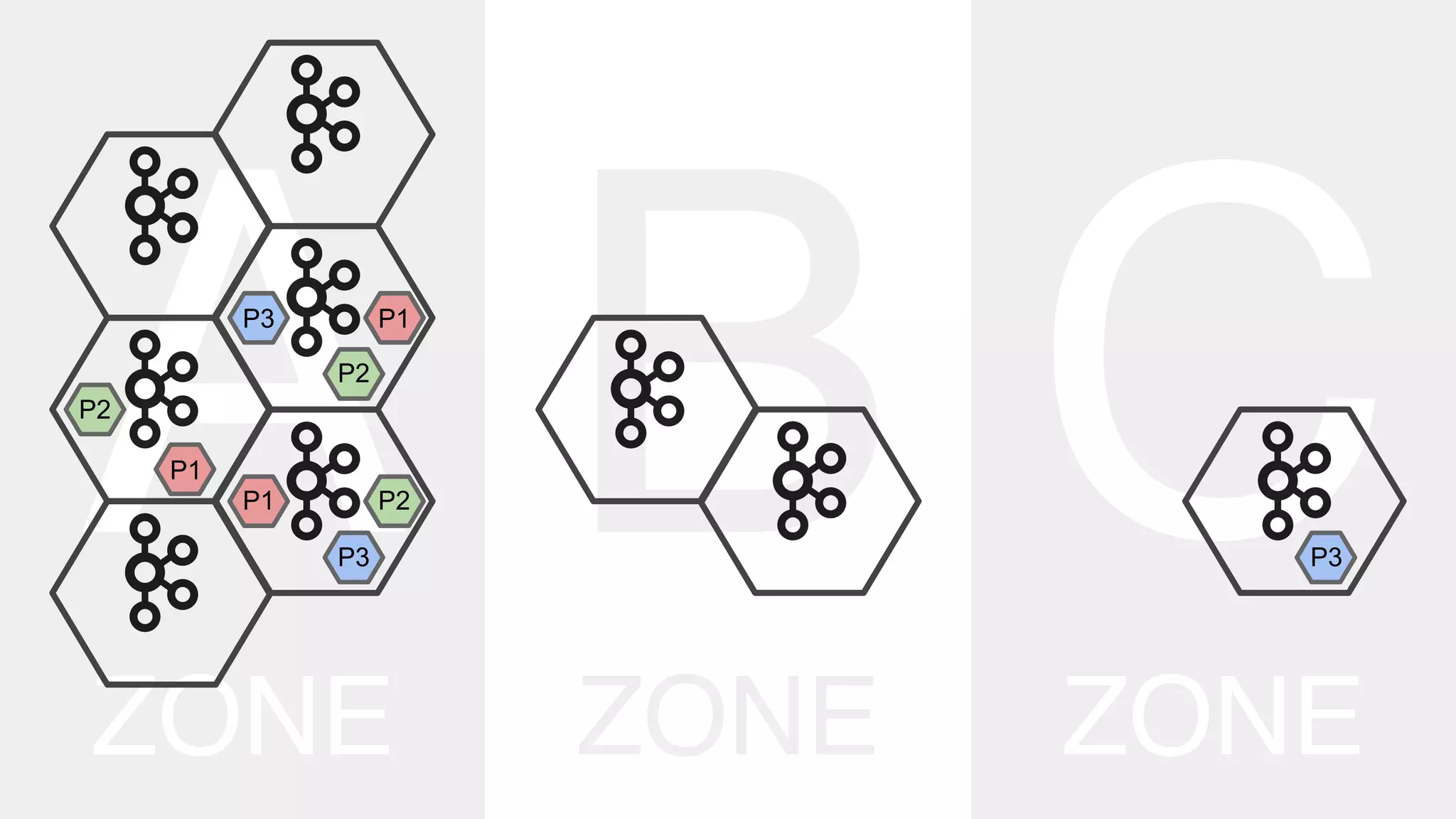

- 20.

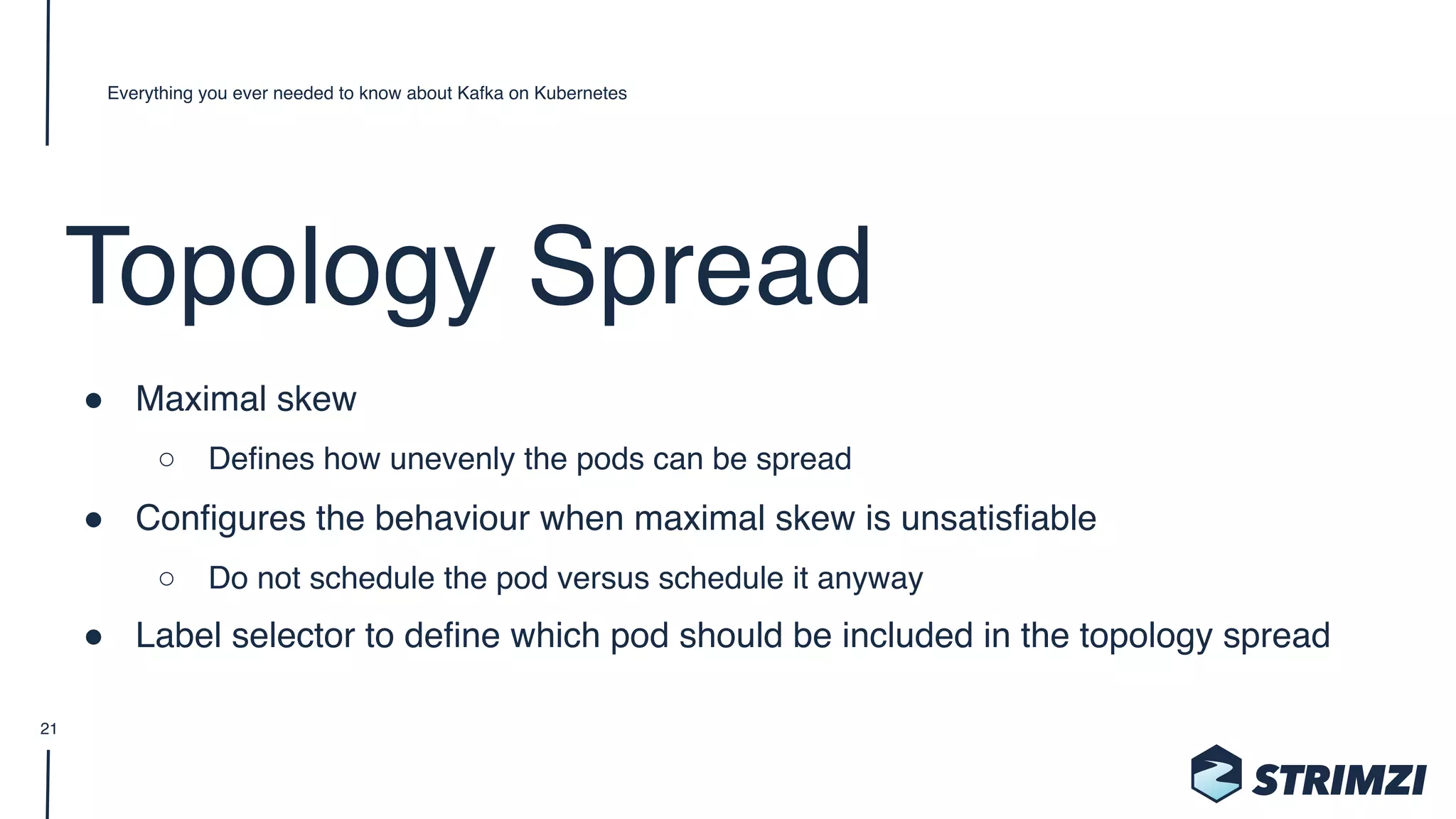

- 21. Topology Spread " Maximalskew ○ Defines how unevenly the pods can be spread " Configures the behaviour when maximal skew is unsatisfiable ○ Do not schedule the pod versus schedule it anyway " Label selector to define which pod should be included in the topology spread Everything you ever needed to know about Kafka on Kubernetes 21

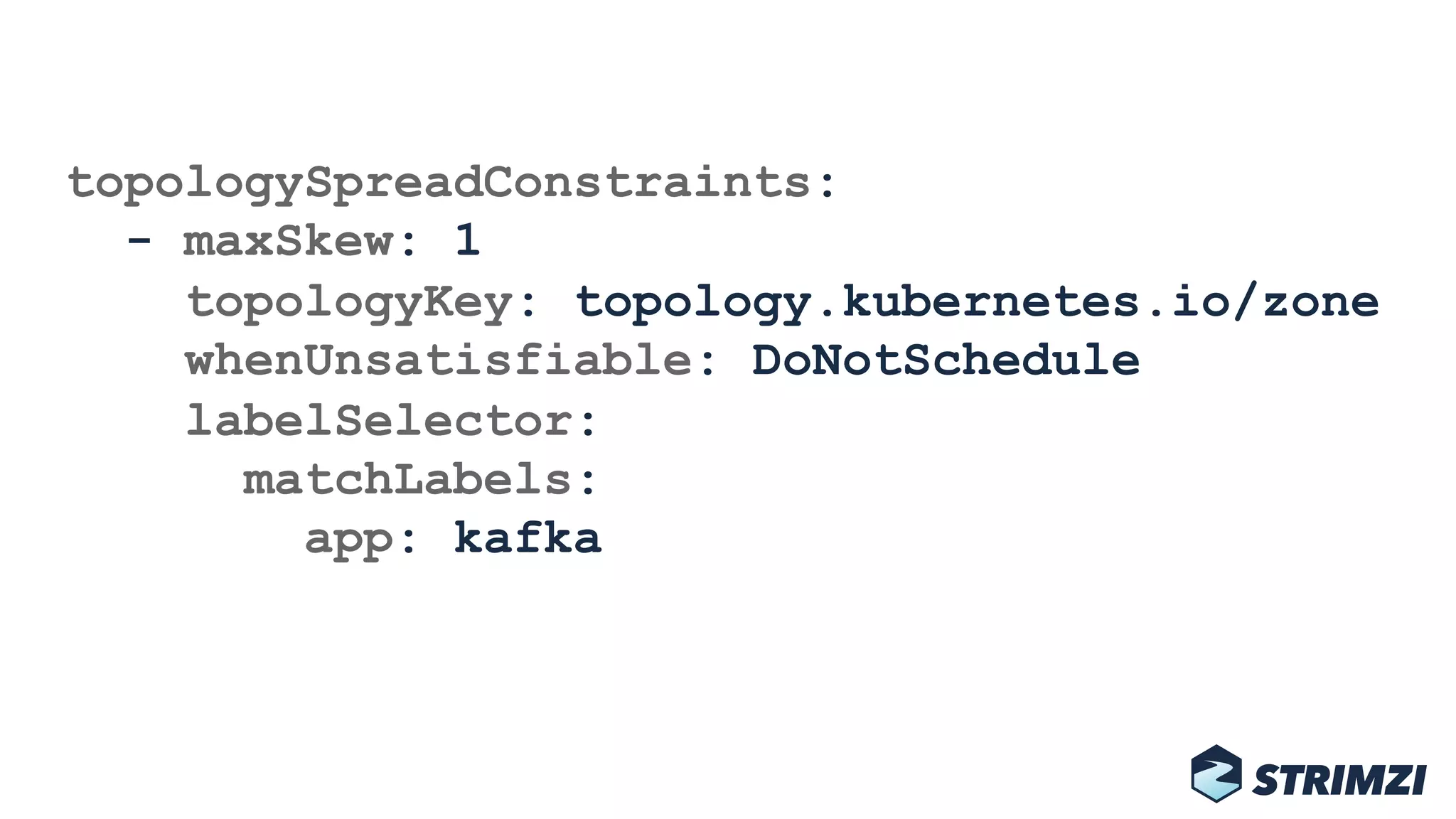

- 22. topologySpreadConstraints: - maxSkew: 1 topologyKey:topology.kubernetes.io/zone whenUnsatisfiable: DoNotSchedule labelSelector: matchLabels: app: kafka

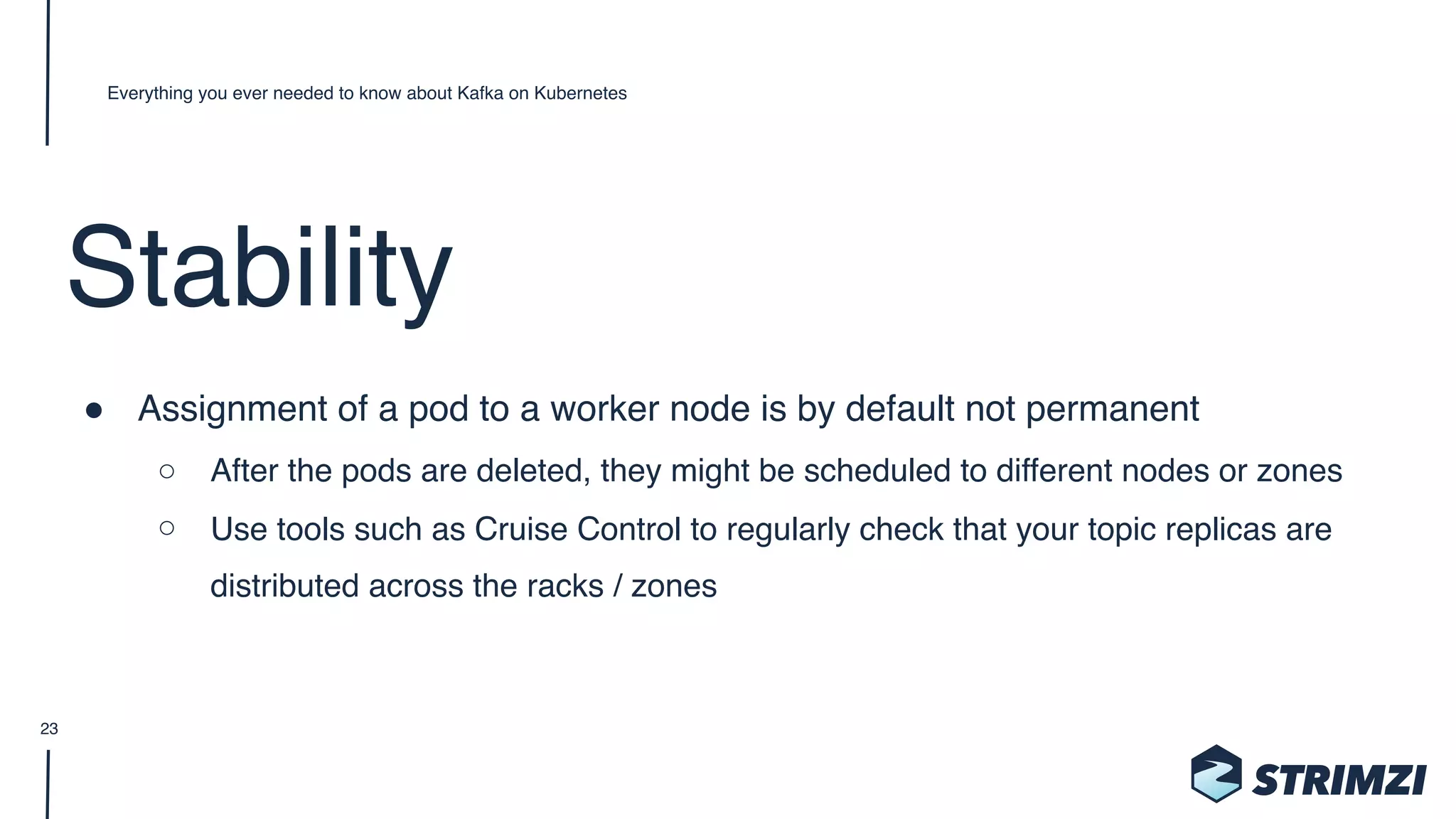

- 23. Stability " Assignment ofa pod to a worker node is by default not permanent ○ After the pods are deleted, they might be scheduled to different nodes or zones ○ Use tools such as Cruise Control to regularly check that your topic replicas are distributed across the racks / zones Everything you ever needed to know about Kafka on Kubernetes 23

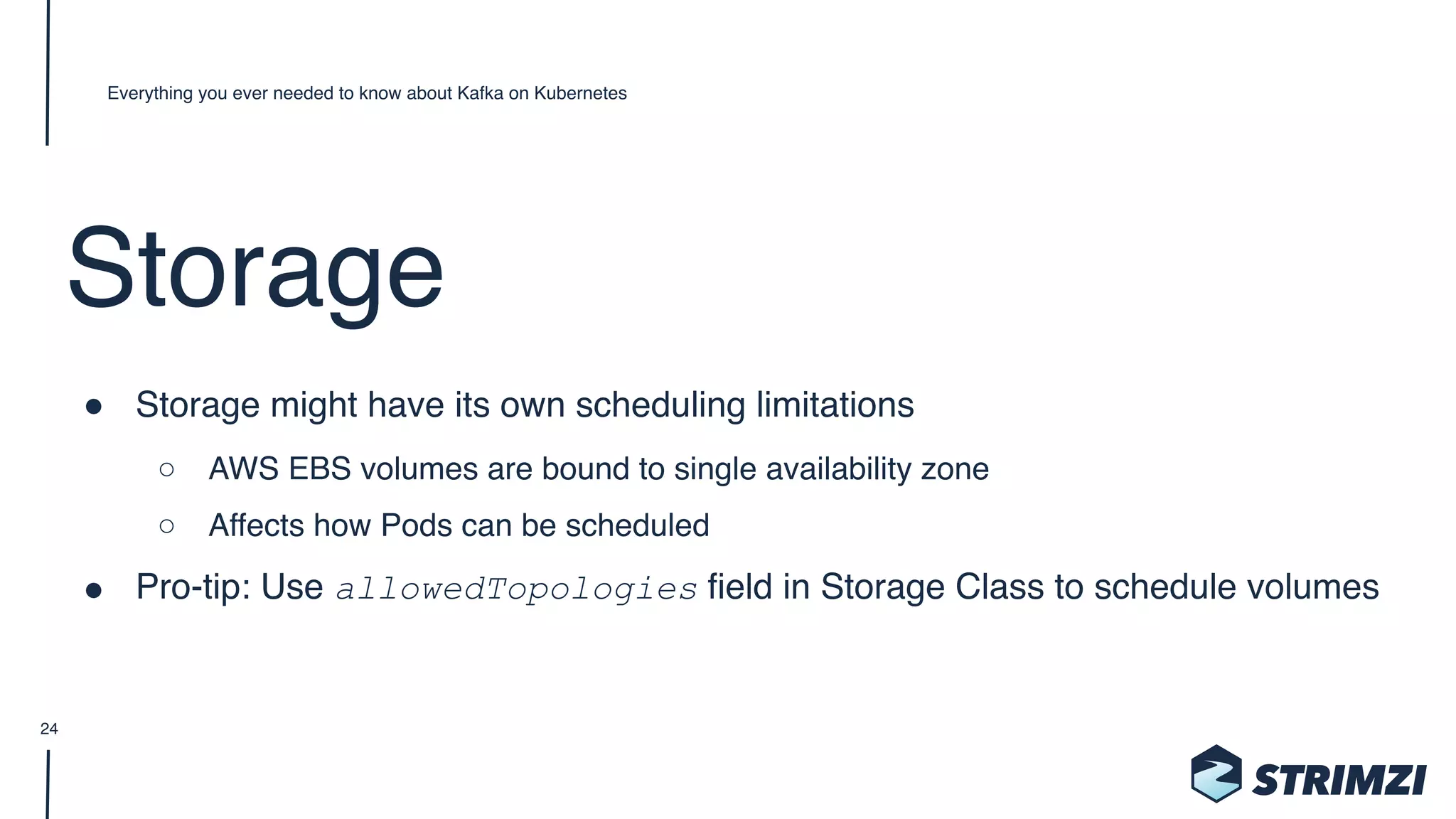

- 24. Storage " Storage mighthave its own scheduling limitations ○ AWS EBS volumes are bound to single availability zone ○ Affects how Pods can be scheduled " Pro-tip: Use allowedTopologies field in Storage Class to schedule volumes Everything you ever needed to know about Kafka on Kubernetes 24
- 25. Dedicated nodes " Workernodes dedicated only for Kafka ○ Will still run Kubernetes components, log / metrics collectors etc. ○ Less competing for resources with other applications ○ Better isolation and more predictable performance Everything you ever needed to know about Kafka on Kubernetes 25

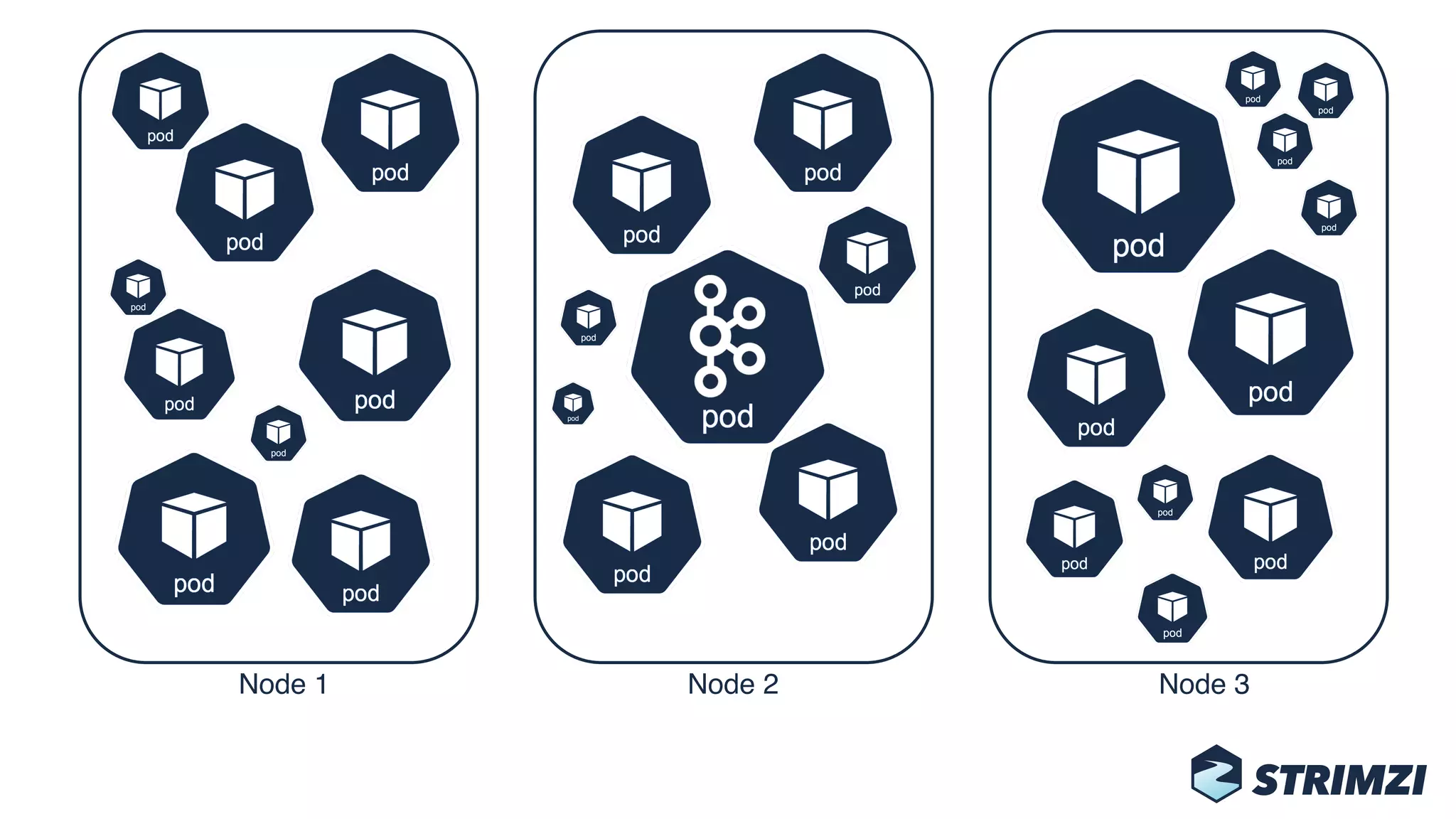

- 26. Node 1 Node2 Node 3

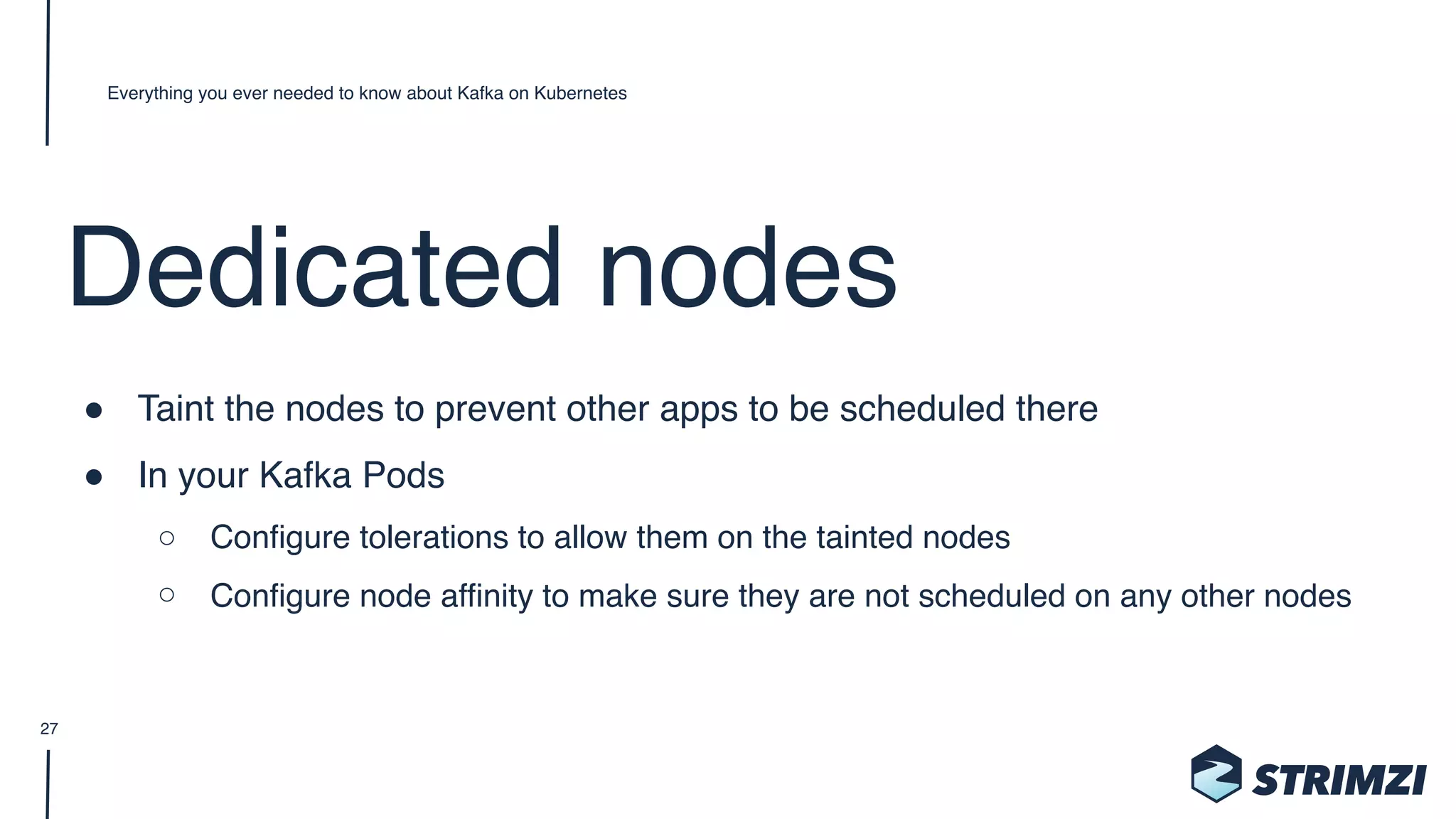

- 27. Dedicated nodes " Taintthe nodes to prevent other apps to be scheduled there " In your Kafka Pods ○ Configure tolerations to allow them on the tainted nodes ○ Configure node affinity to make sure they are not scheduled on any other nodes Everything you ever needed to know about Kafka on Kubernetes 27

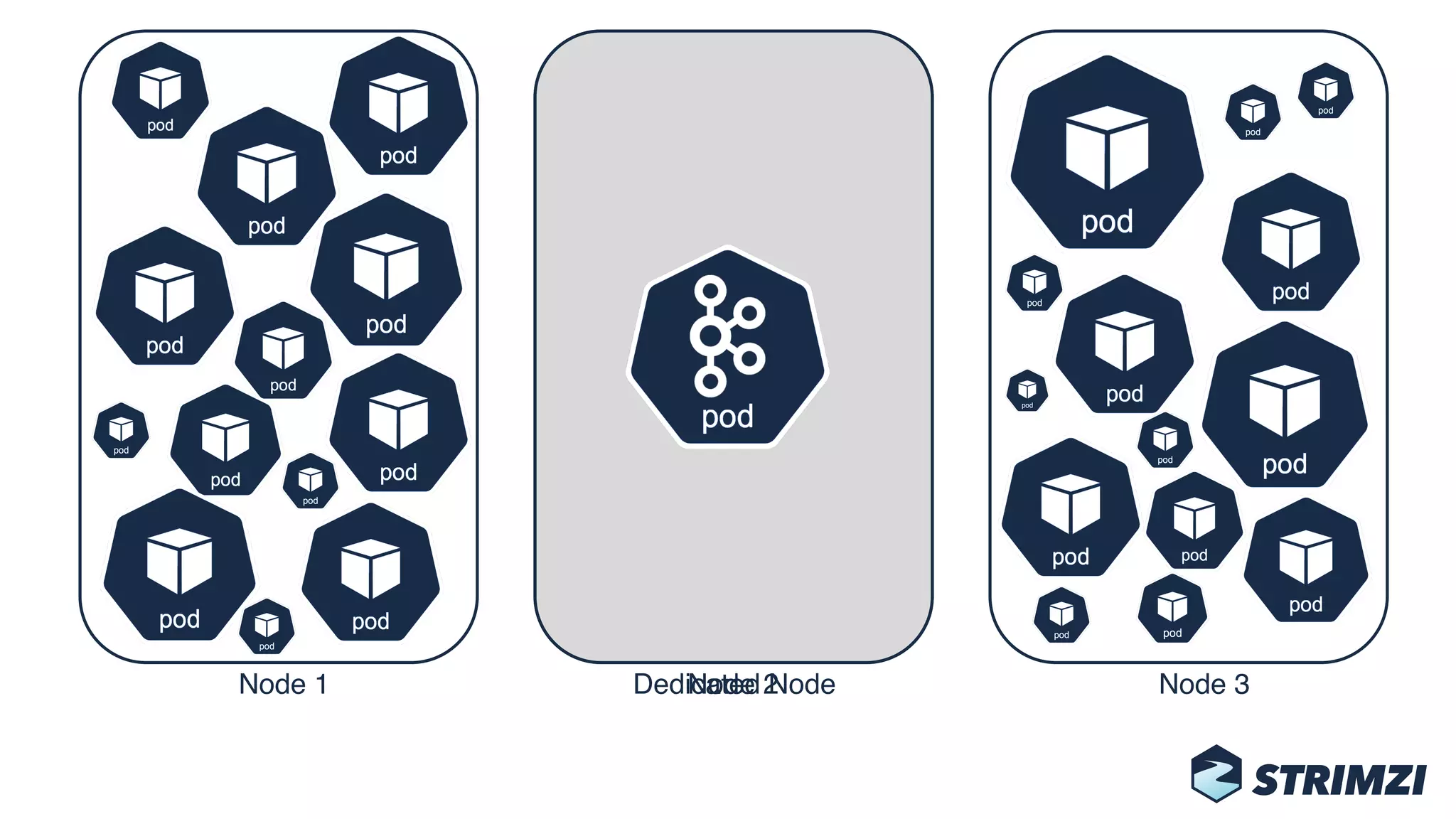

- 28. Node 1 Node2 Node 3 Dedicated Node

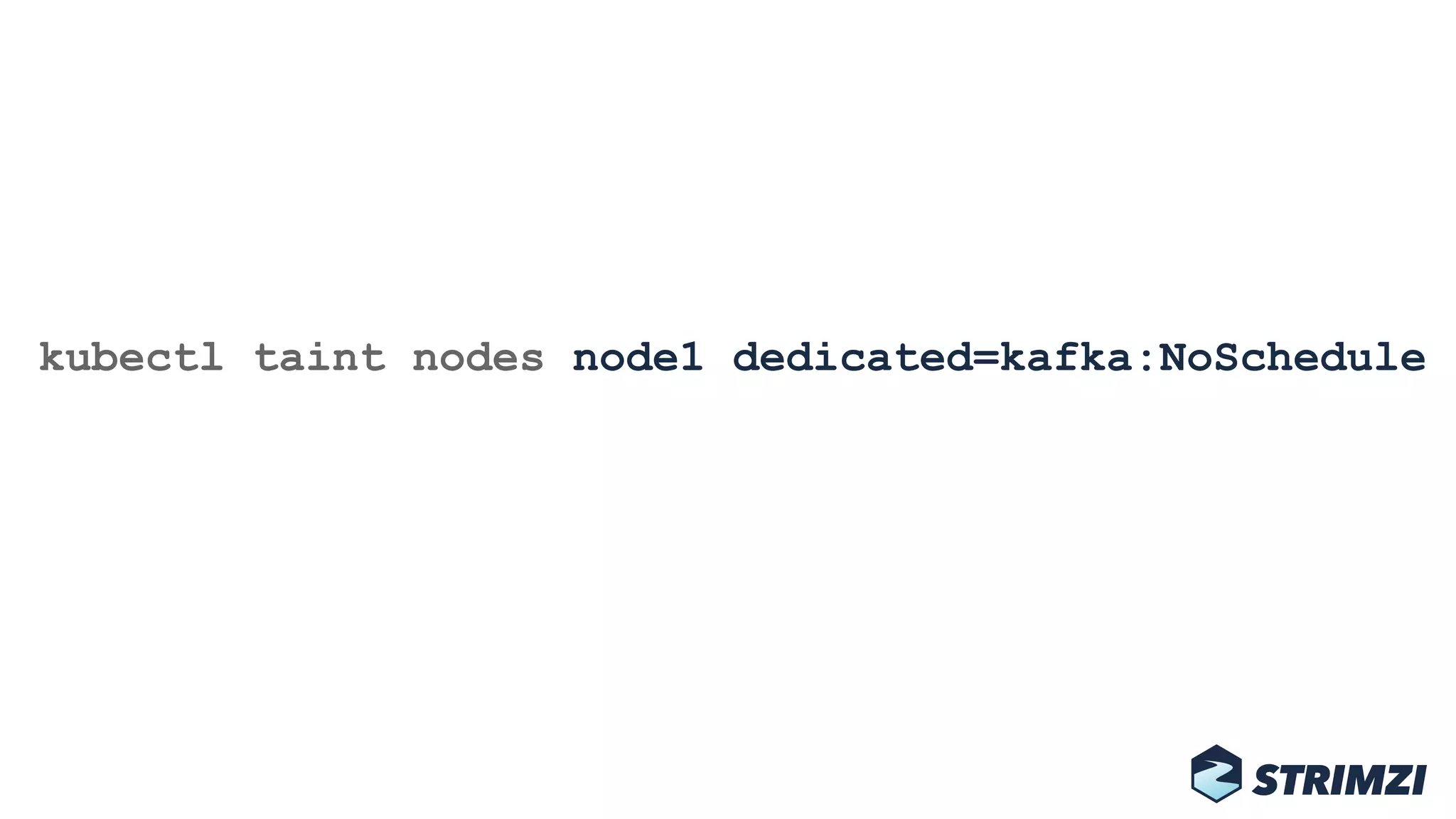

- 29. kubectl taint nodesnode1 dedicated=kafka:NoSchedule

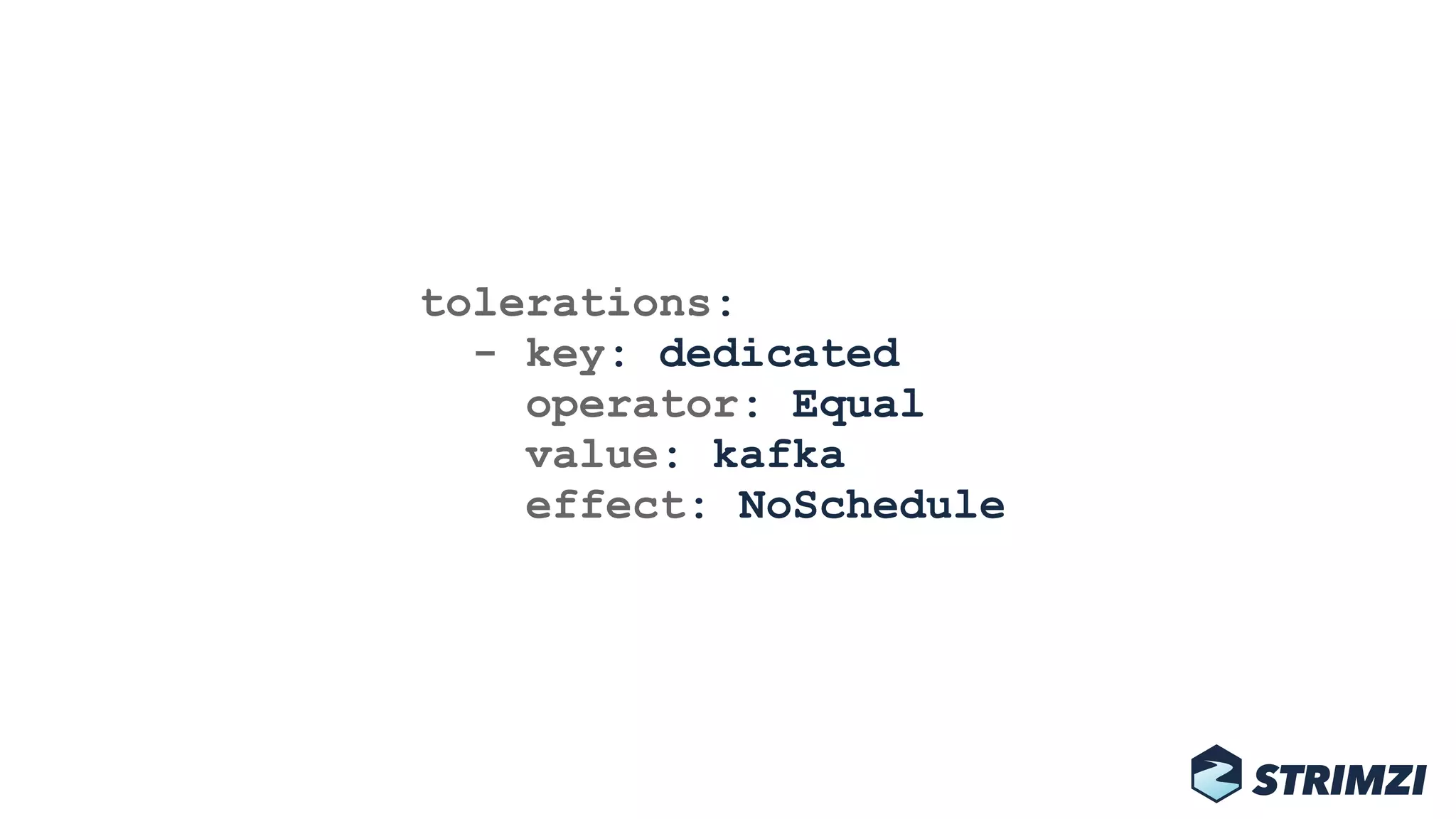

- 30. tolerations: - key: dedicated operator:Equal value: kafka effect: NoSchedule

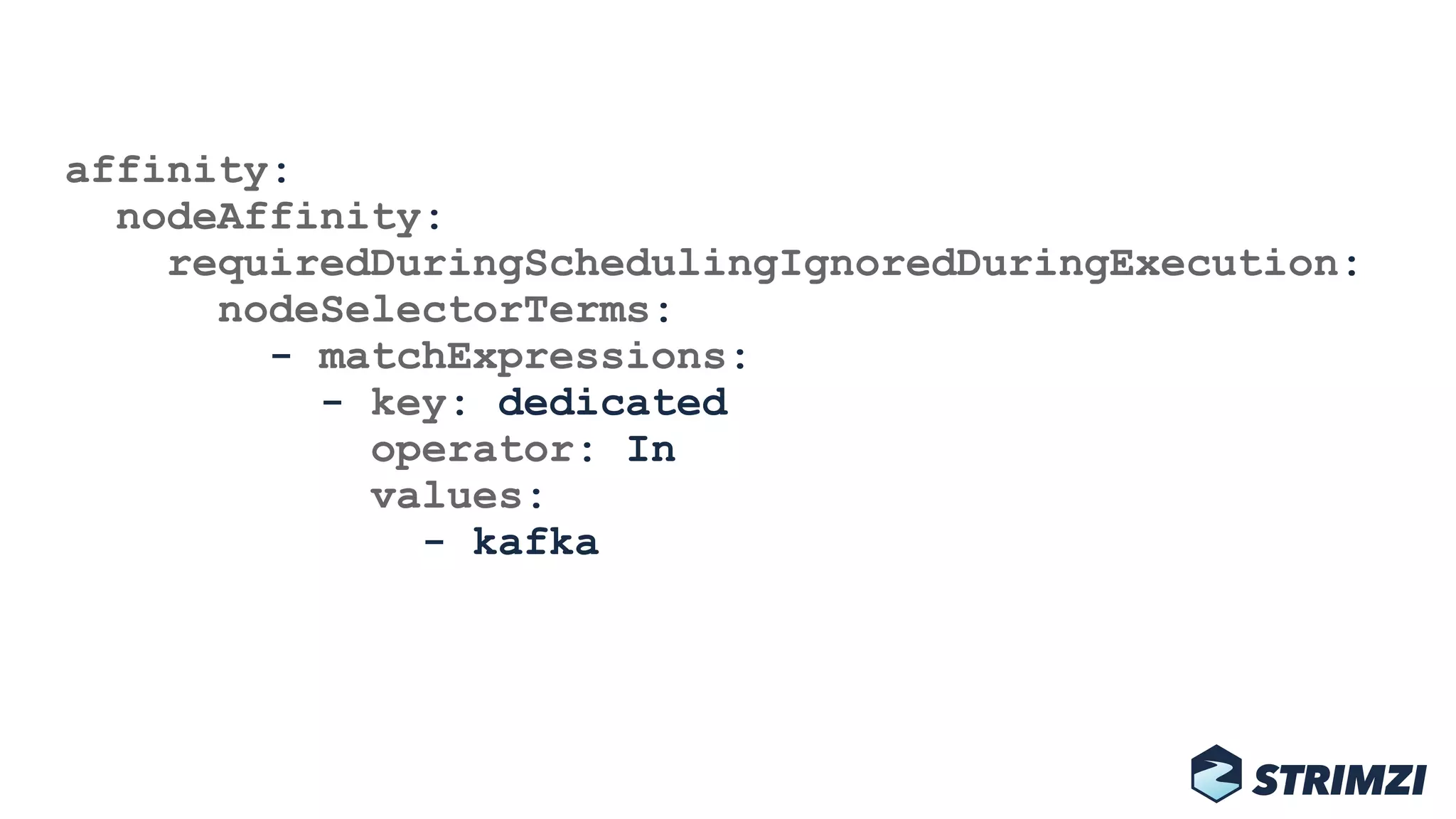

- 31. affinity: nodeAffinity: requiredDuringSchedulingIgnoredDuringExecution: nodeSelectorTerms: - matchExpressions: - key:dedicated operator: In values: - kafka

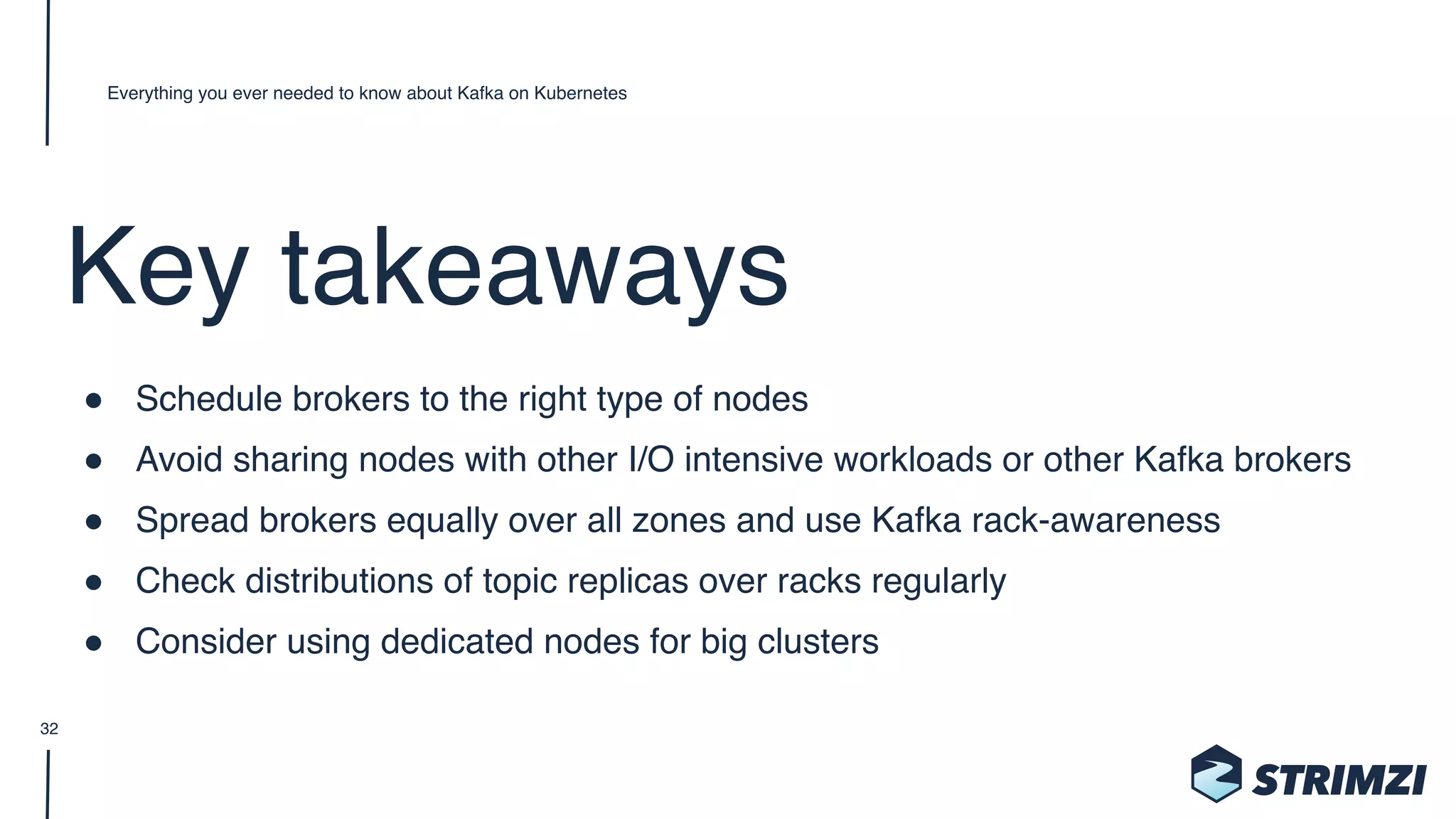

- 32. Key takeaways " Schedulebrokers to the right type of nodes " Avoid sharing nodes with other I/O intensive workloads or other Kafka brokers " Spread brokers equally over all zones and use Kafka rack-awareness " Check distributions of topic replicas over racks regularly " Consider using dedicated nodes for big clusters Everything you ever needed to know about Kafka on Kubernetes 32

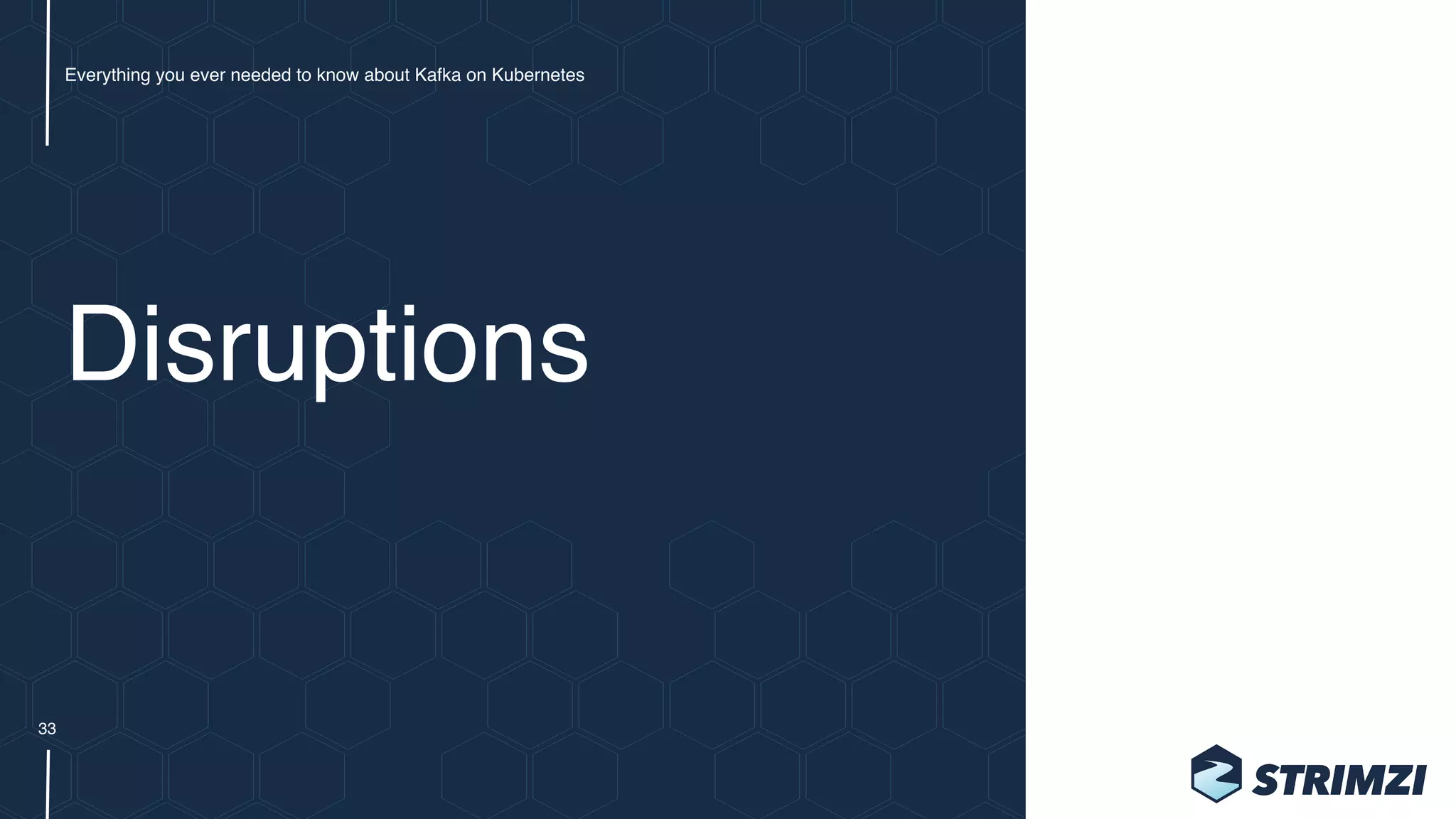

- 33. Disruptions Everything you everneeded to know about Kafka on Kubernetes 33

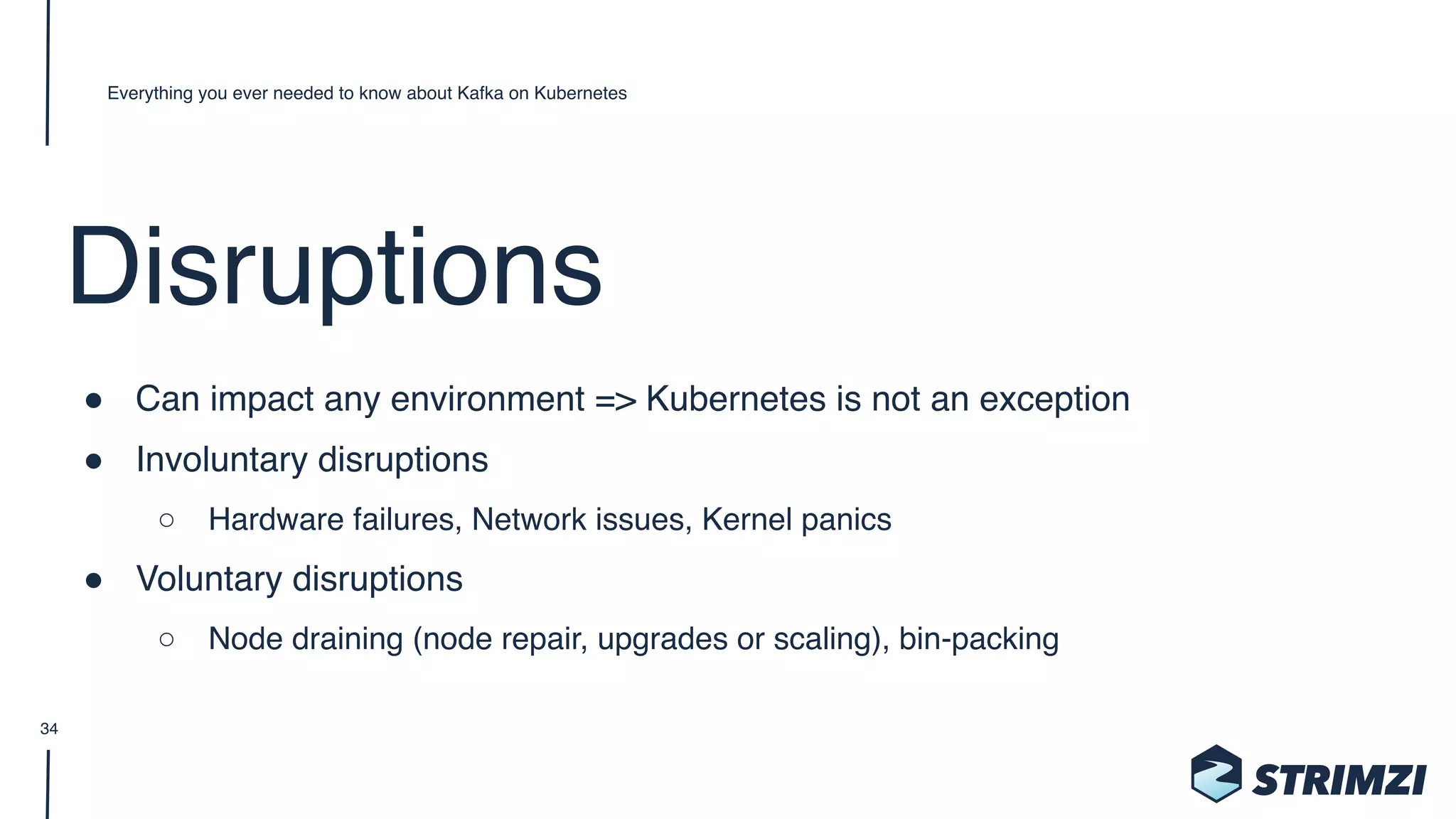

- 34. Disruptions " Can impactany environment => Kubernetes is not an exception " Involuntary disruptions ○ Hardware failures, Network issues, Kernel panics " Voluntary disruptions ○ Node draining (node repair, upgrades or scaling), bin-packing Everything you ever needed to know about Kafka on Kubernetes 34

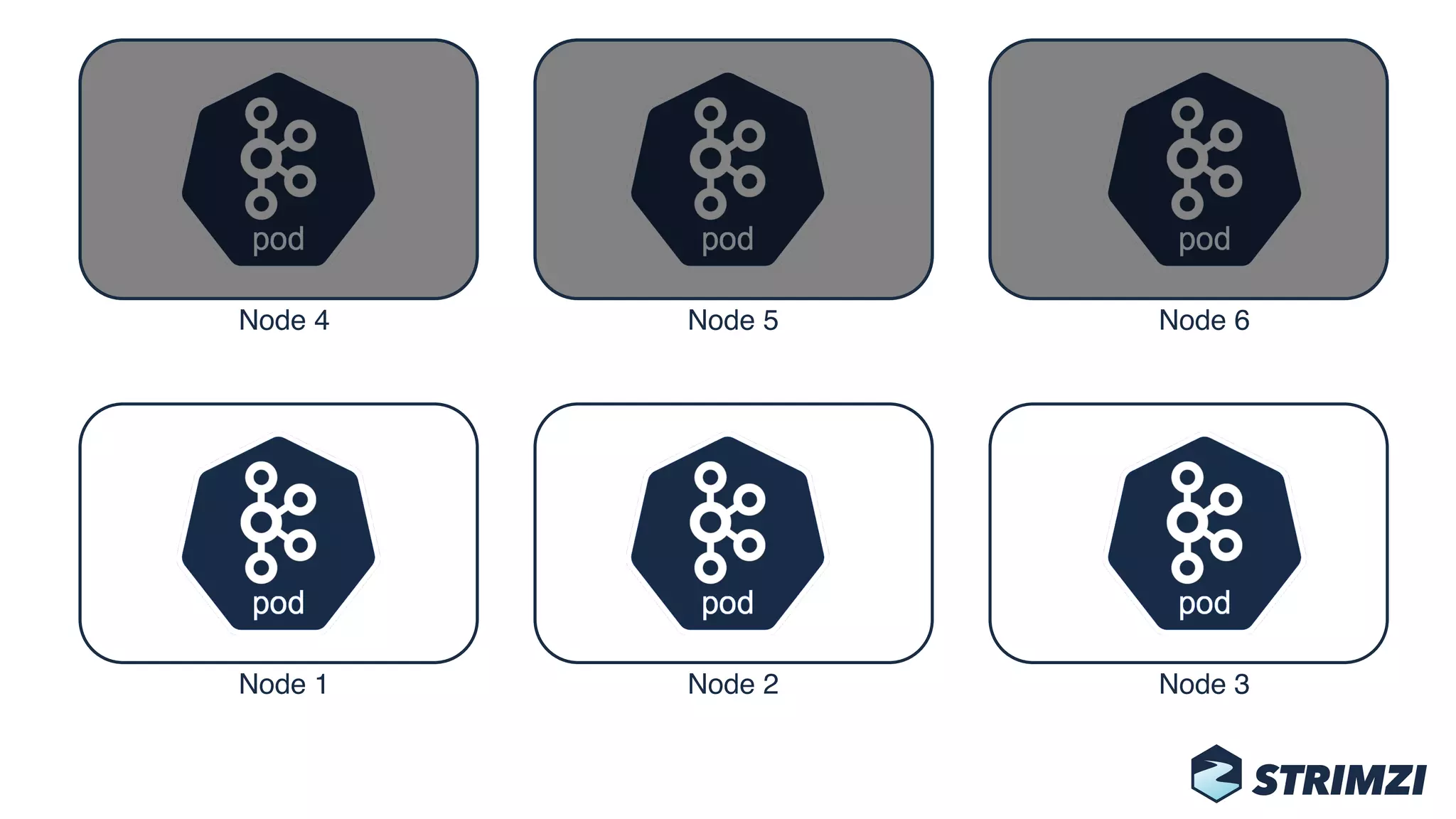

- 35. Node 1 Node2 Node 3 Node 4 Node 5 Node 6

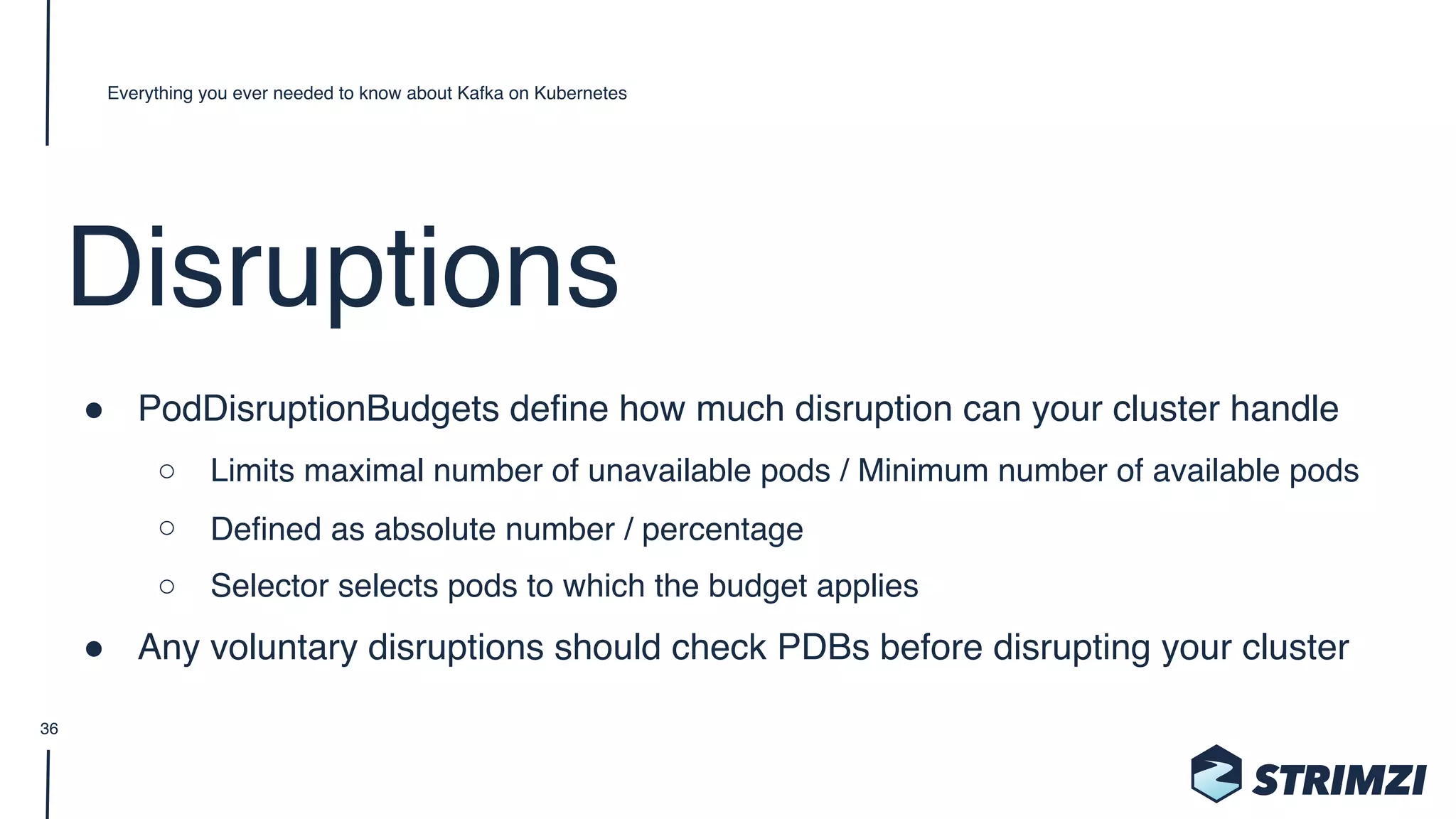

- 36. Disruptions " PodDisruptionBudgets definehow much disruption can your cluster handle ○ Limits maximal number of unavailable pods / Minimum number of available pods ○ Defined as absolute number / percentage ○ Selector selects pods to which the budget applies " Any voluntary disruptions should check PDBs before disrupting your cluster Everything you ever needed to know about Kafka on Kubernetes 36
- 37. Node 1 Node2 Node 3 Node 4 Node 5 Node 6

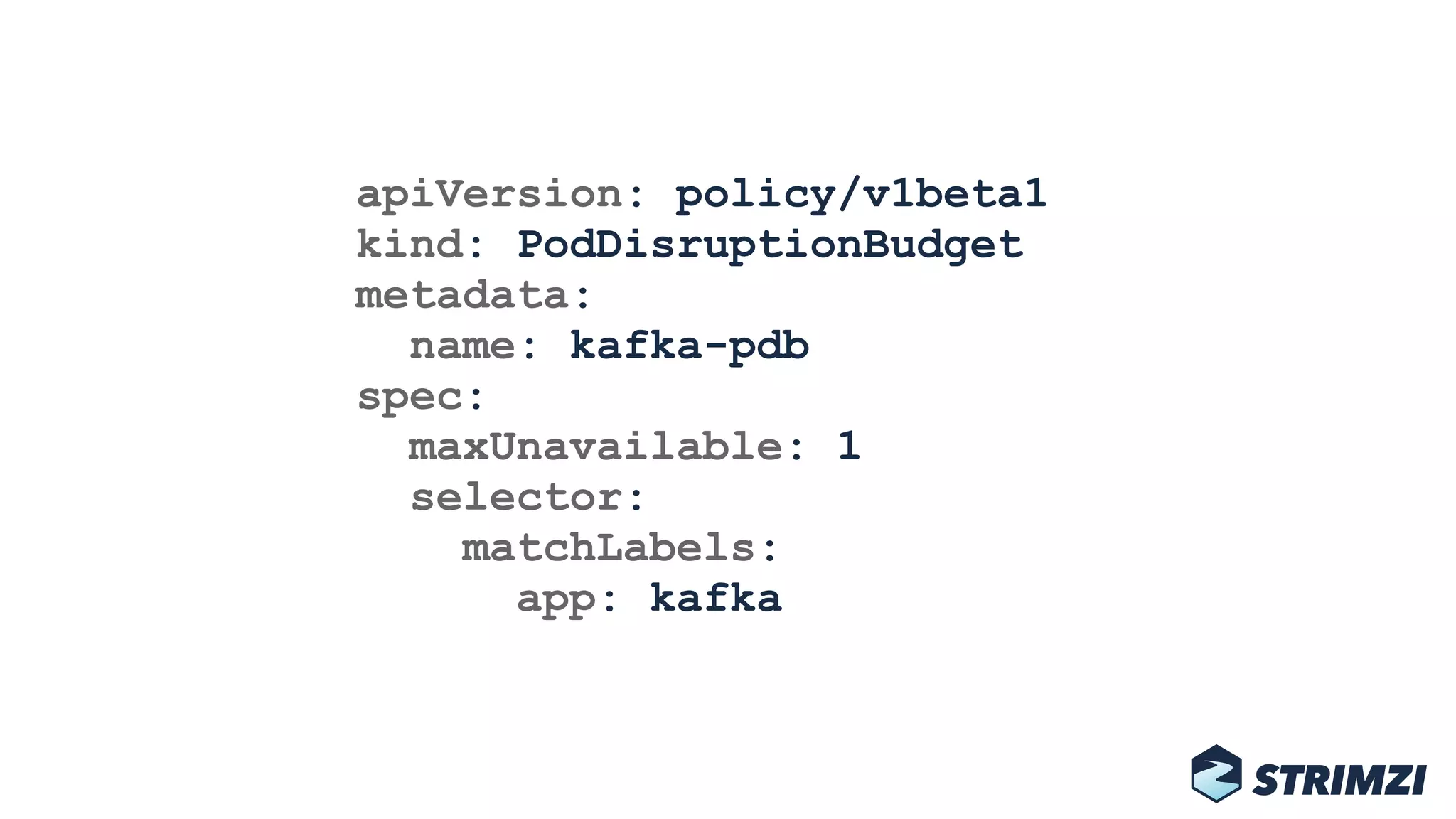

- 38. apiVersion: policy/v1beta1 kind: PodDisruptionBudget metadata: name:kafka-pdb spec: maxUnavailable: 1 selector: matchLabels: app: kafka

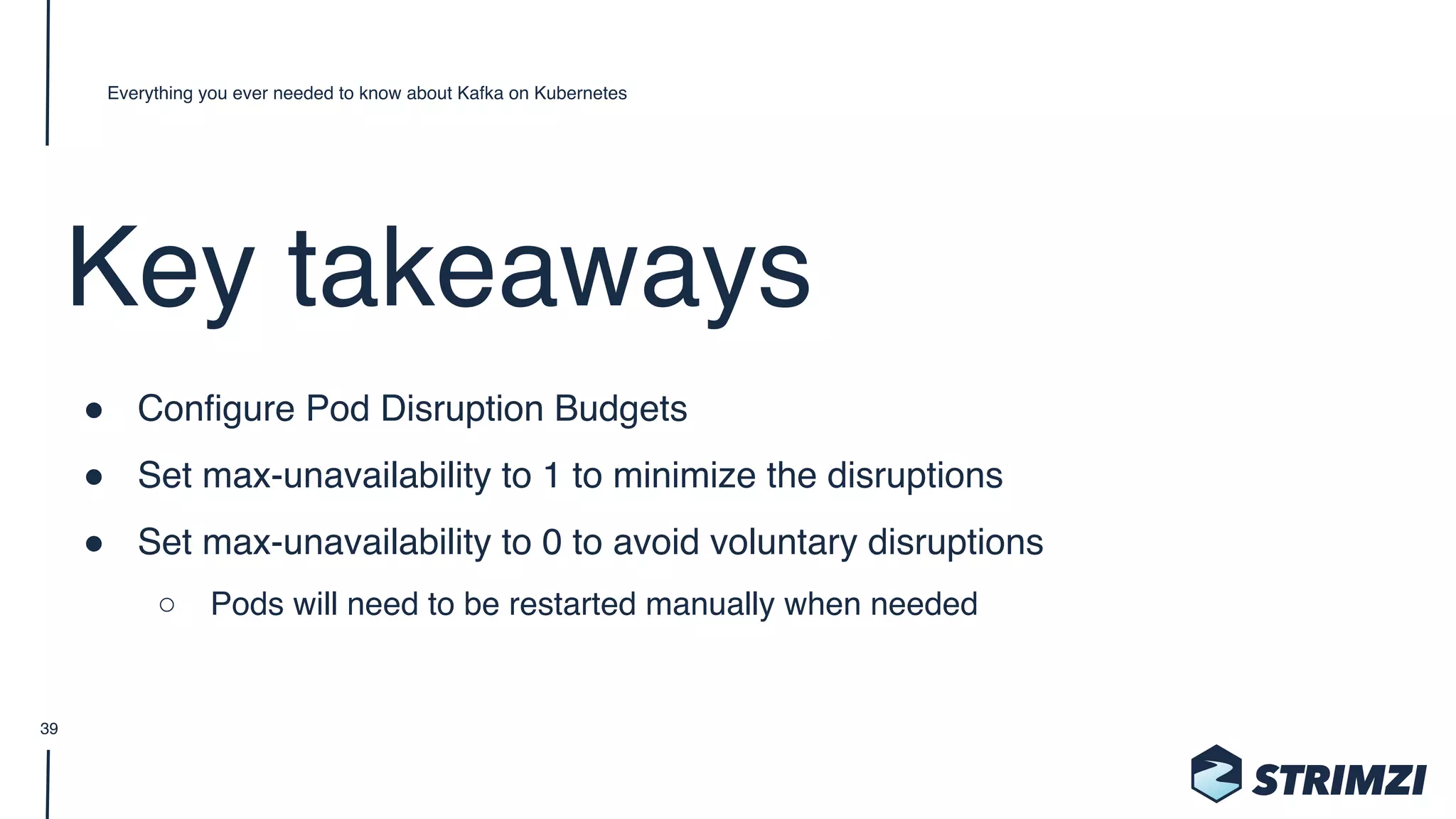

- 39. Key takeaways " ConfigurePod Disruption Budgets " Set max-unavailability to 1 to minimize the disruptions " Set max-unavailability to 0 to avoid voluntary disruptions ○ Pods will need to be restarted manually when needed Everything you ever needed to know about Kafka on Kubernetes 39

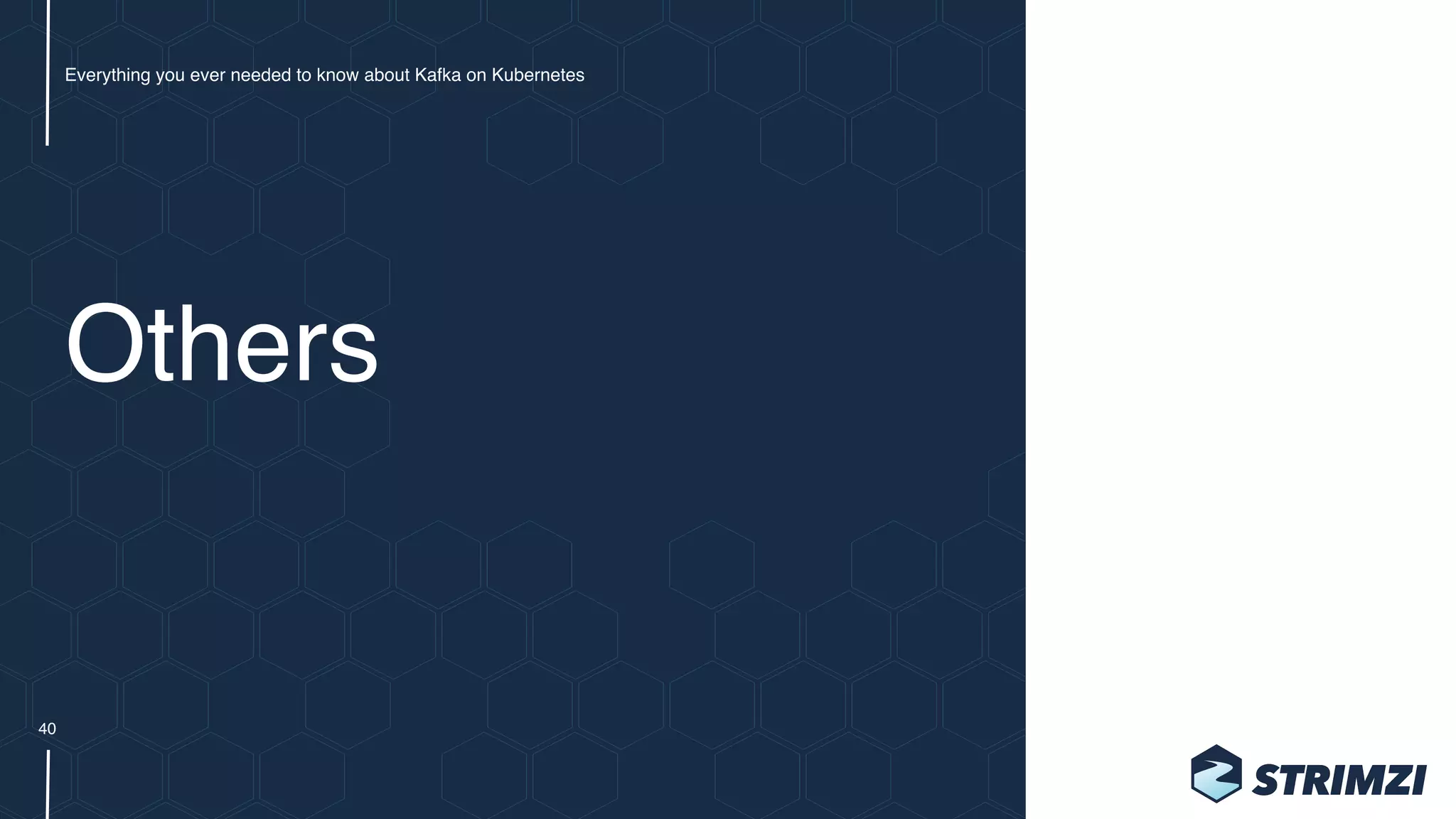

- 40. Others Everything you everneeded to know about Kafka on Kubernetes 40

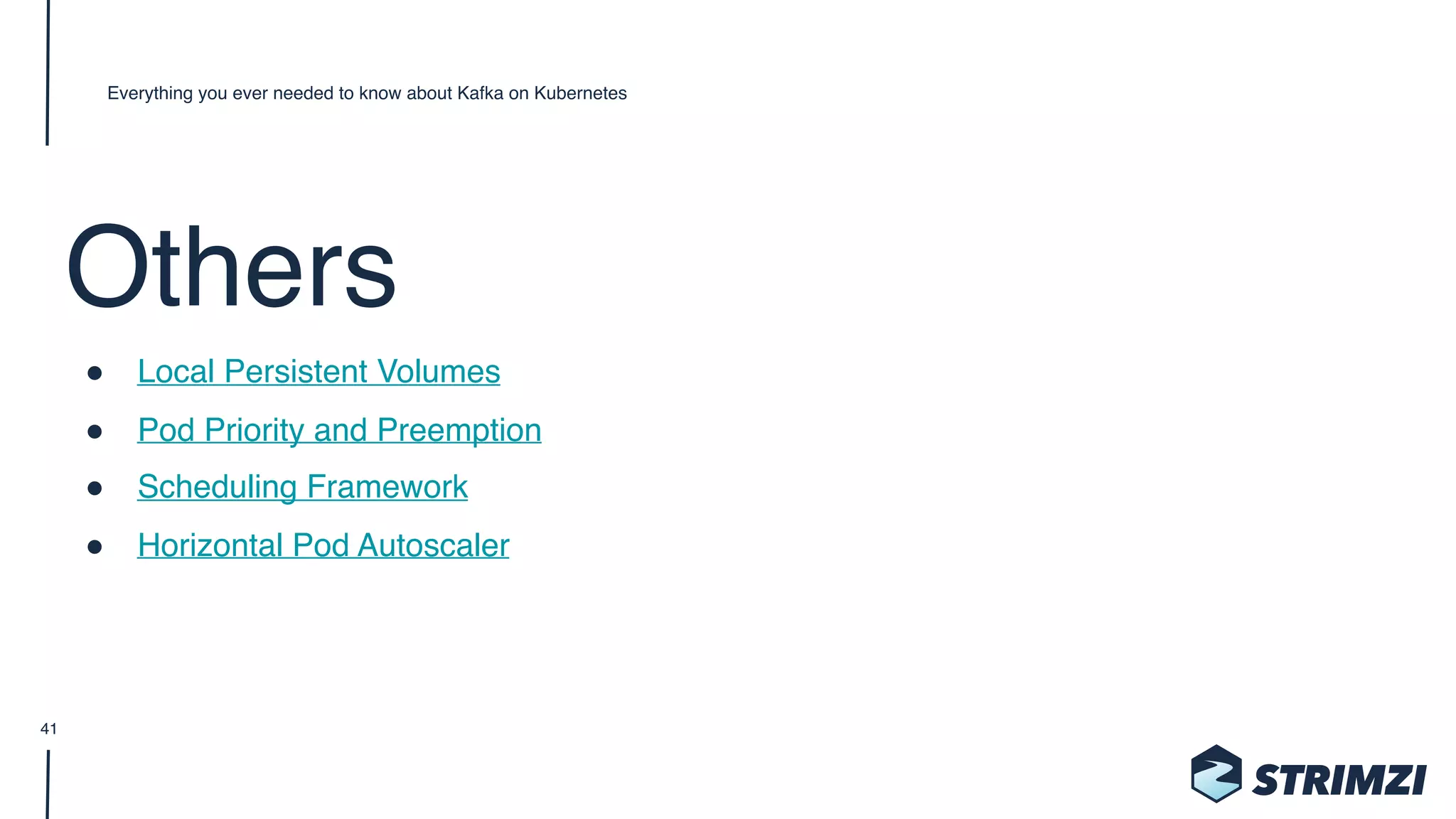

- 41. Others " Local PersistentVolumes " Pod Priority and Preemption " Scheduling Framework " Horizontal Pod Autoscaler Everything you ever needed to know about Kafka on Kubernetes 41
