1. Tiered Storage 101
Maria Berinde-Tâmpănariu
Staff Solutions Engineer

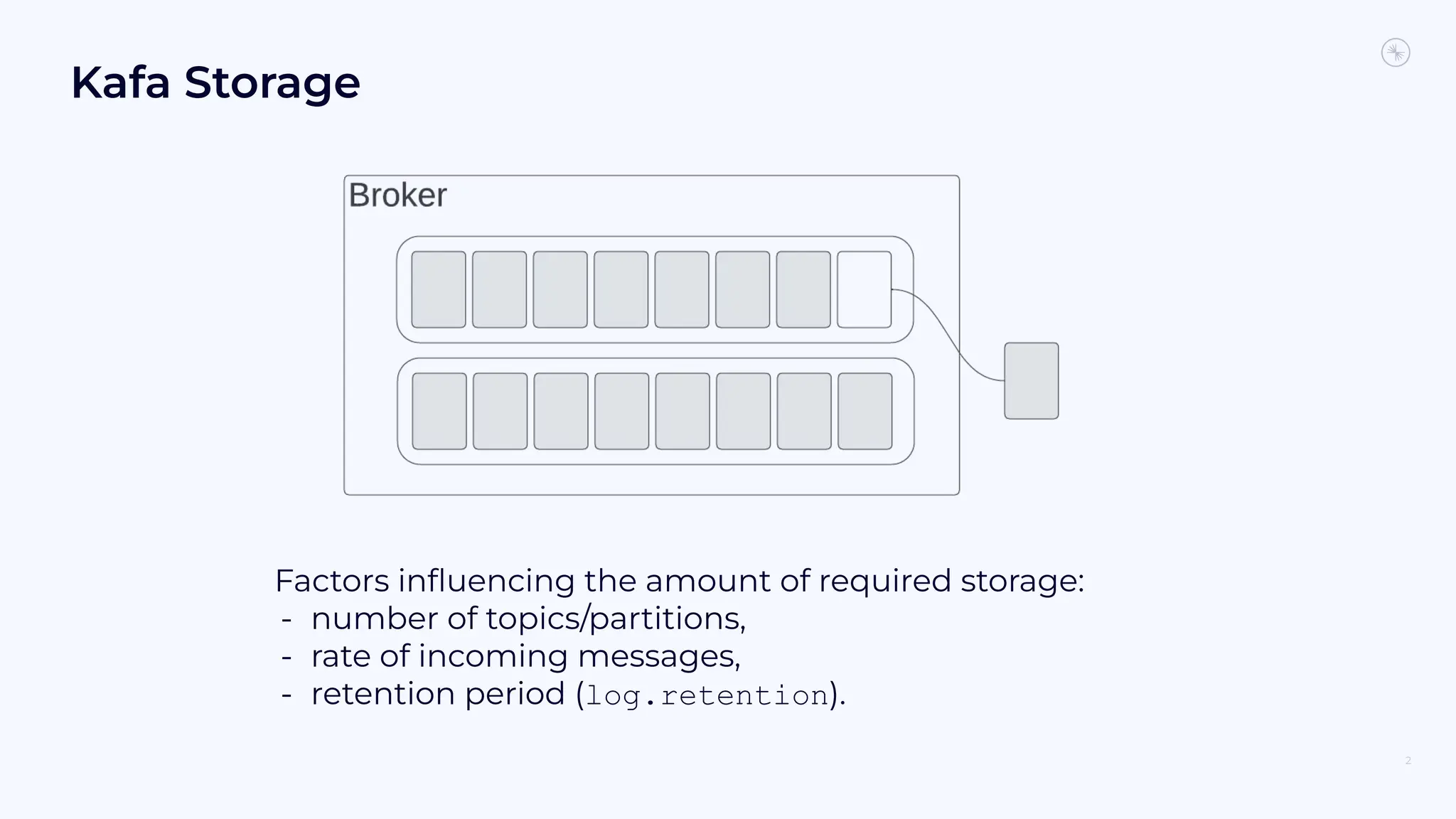

2. Kafa Storage
2
Factors influencing the amount of required storage:
- number of topics/partitions,
- rate of incoming messages,
- retention period (log.retention).

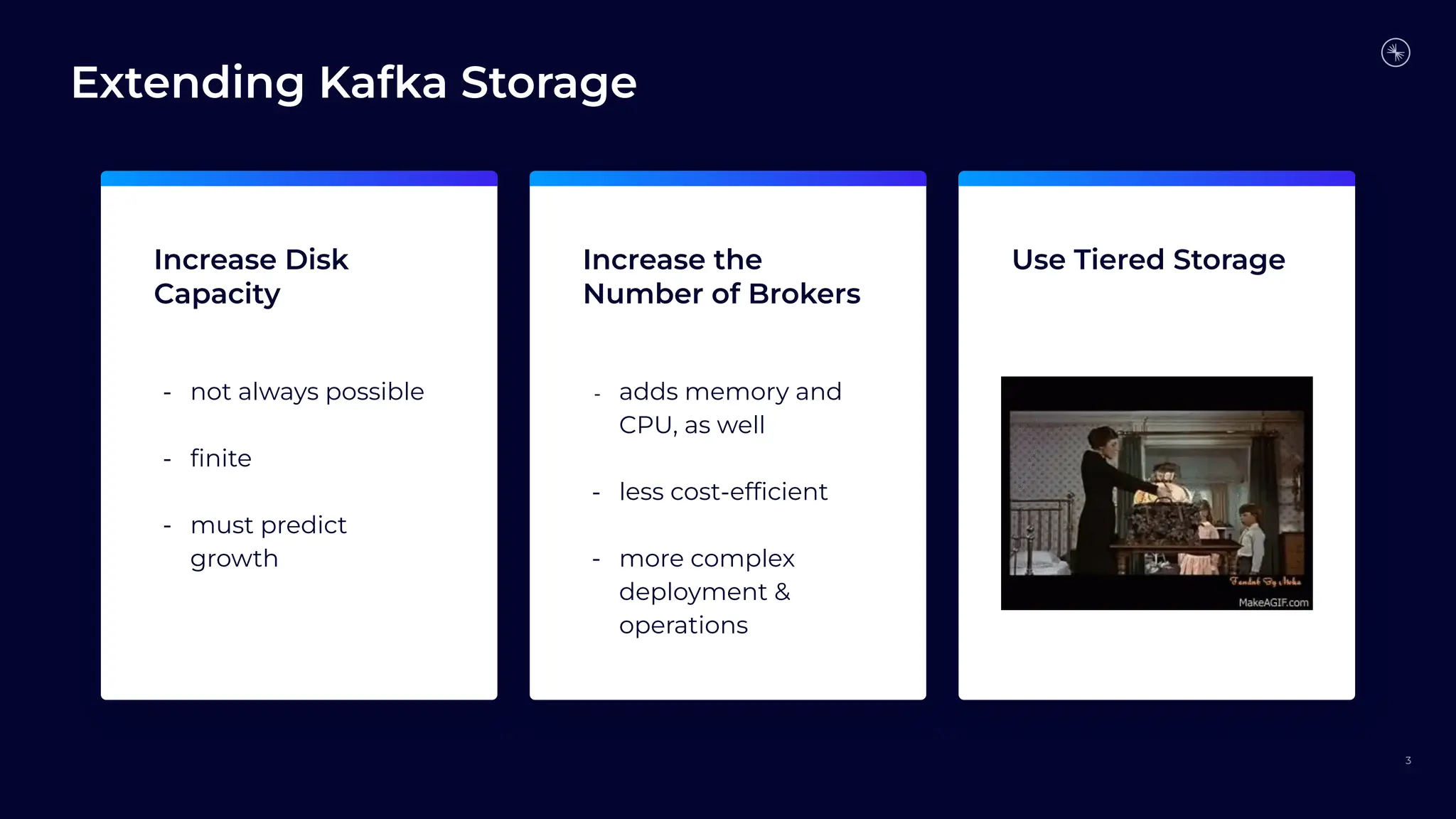

3. Extending Kafka Storage
3
Increase Disk
Capacity
Increase the
Number of Brokers
Use Tiered Storage
- not always possible
- finite
- must predict
growth
- adds memory and
CPU, as well
- less cost-efficient
- more complex
deployment &
operations

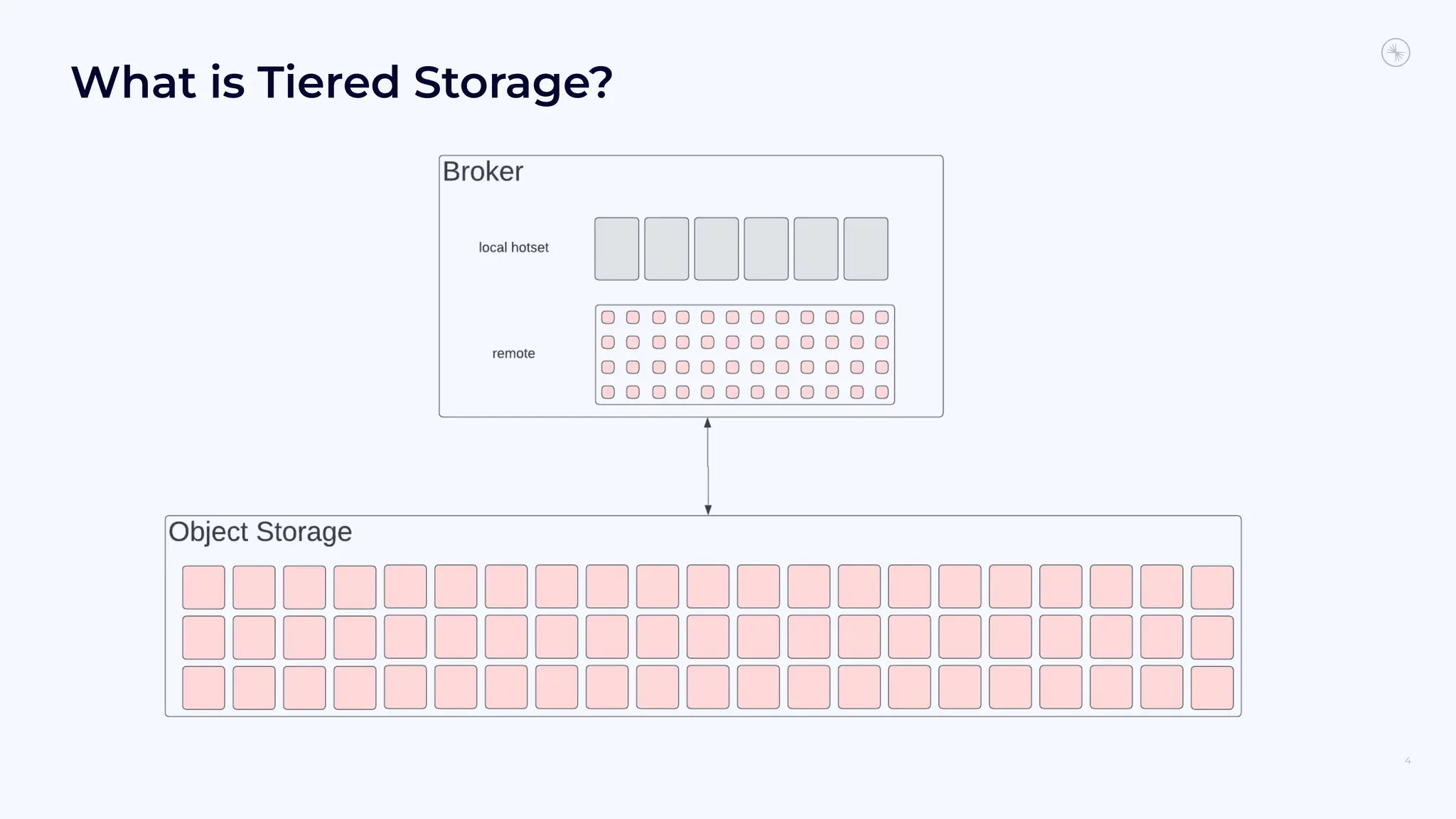

4. What is Tiered Storage?
4

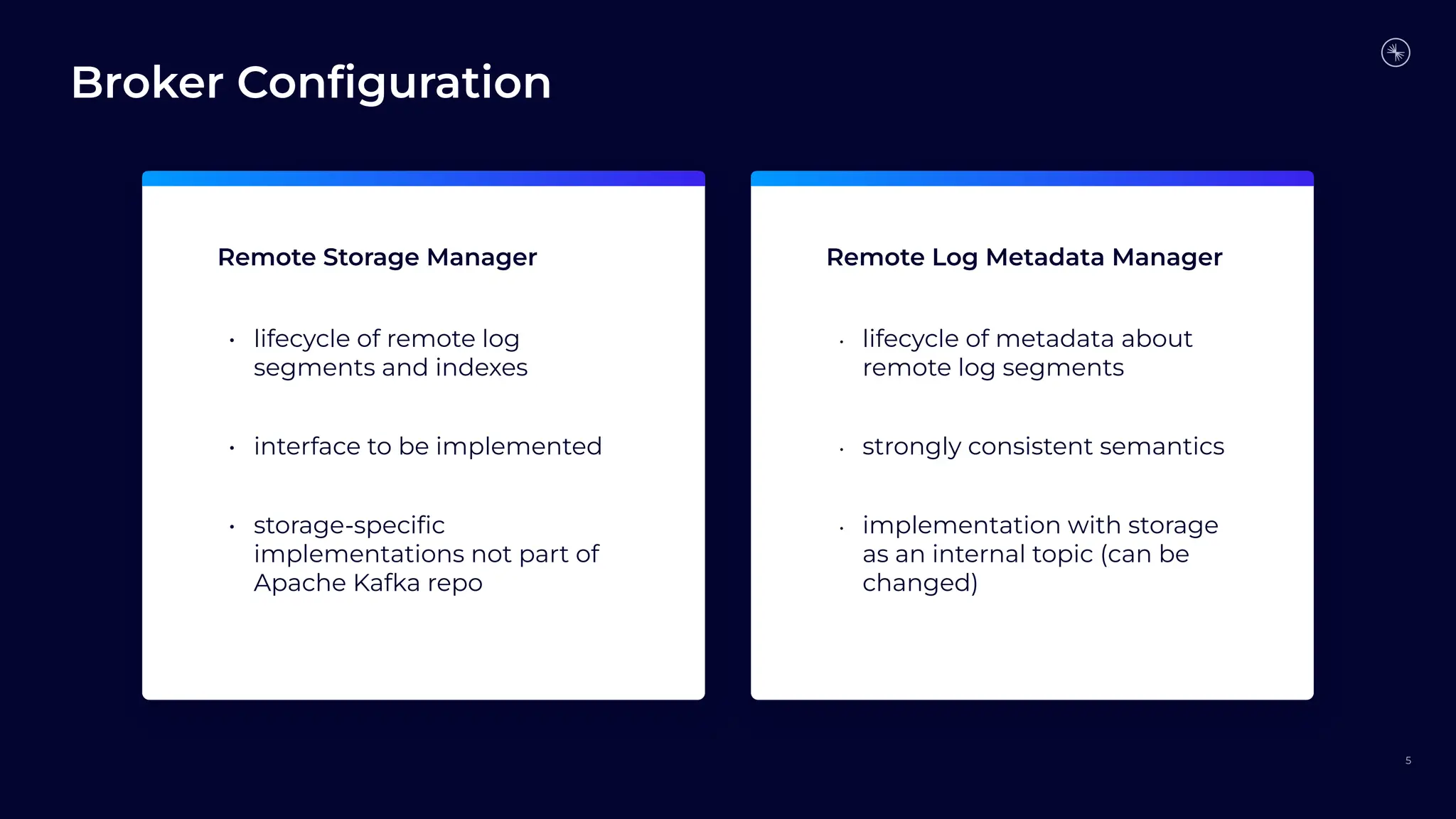

5. Broker Configuration
5
Remote Storage Manager Remote Log Metadata Manager
• lifecycle of remote log
segments and indexes
• interface to be implemented
• storage-specific
implementations not part of
Apache Kafka repo
• lifecycle of metadata about
remote log segments
• strongly consistent semantics
• implementation with storage
as an internal topic (can be
changed)

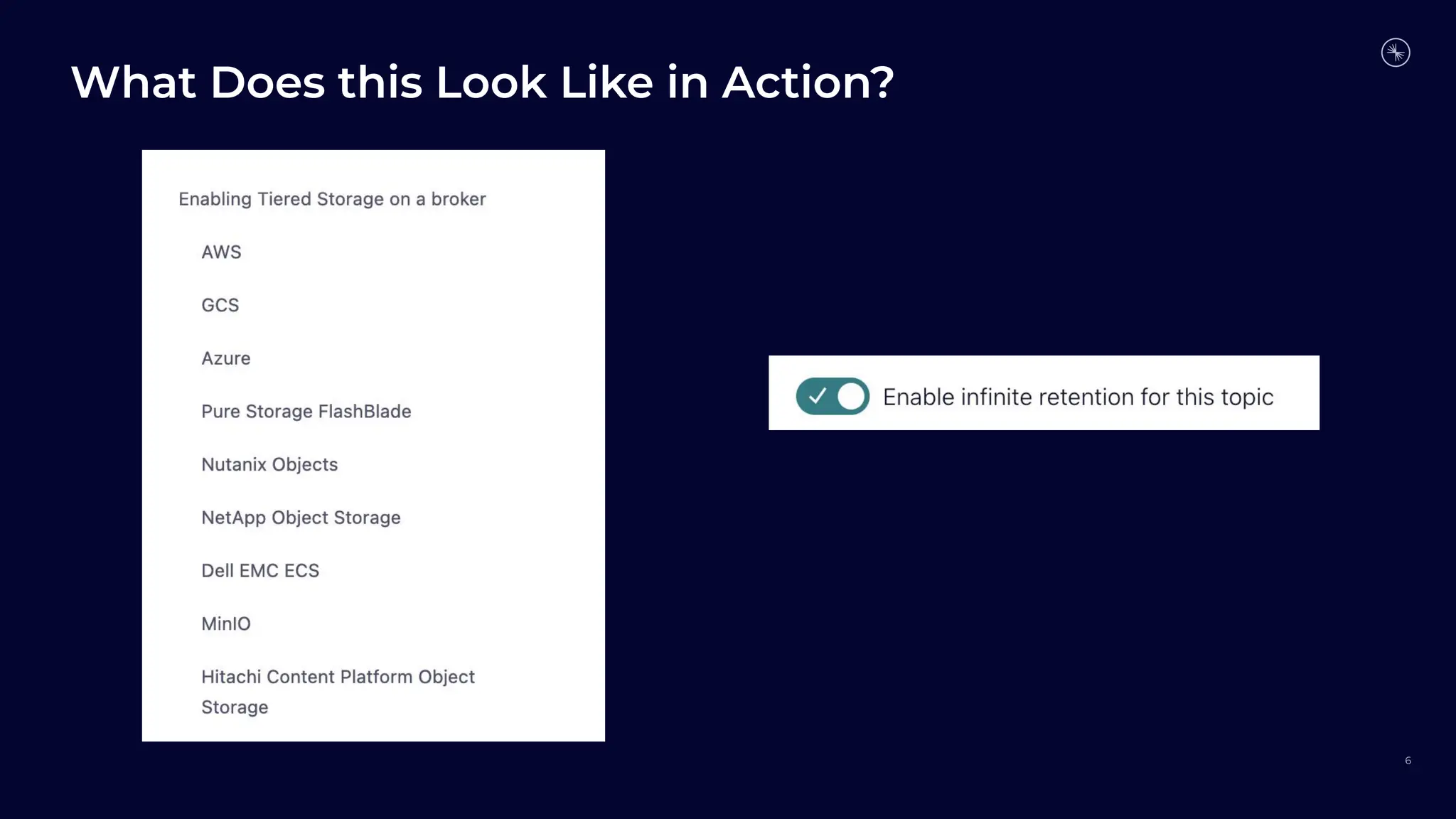

6. What Does this Look Like in Action?
6

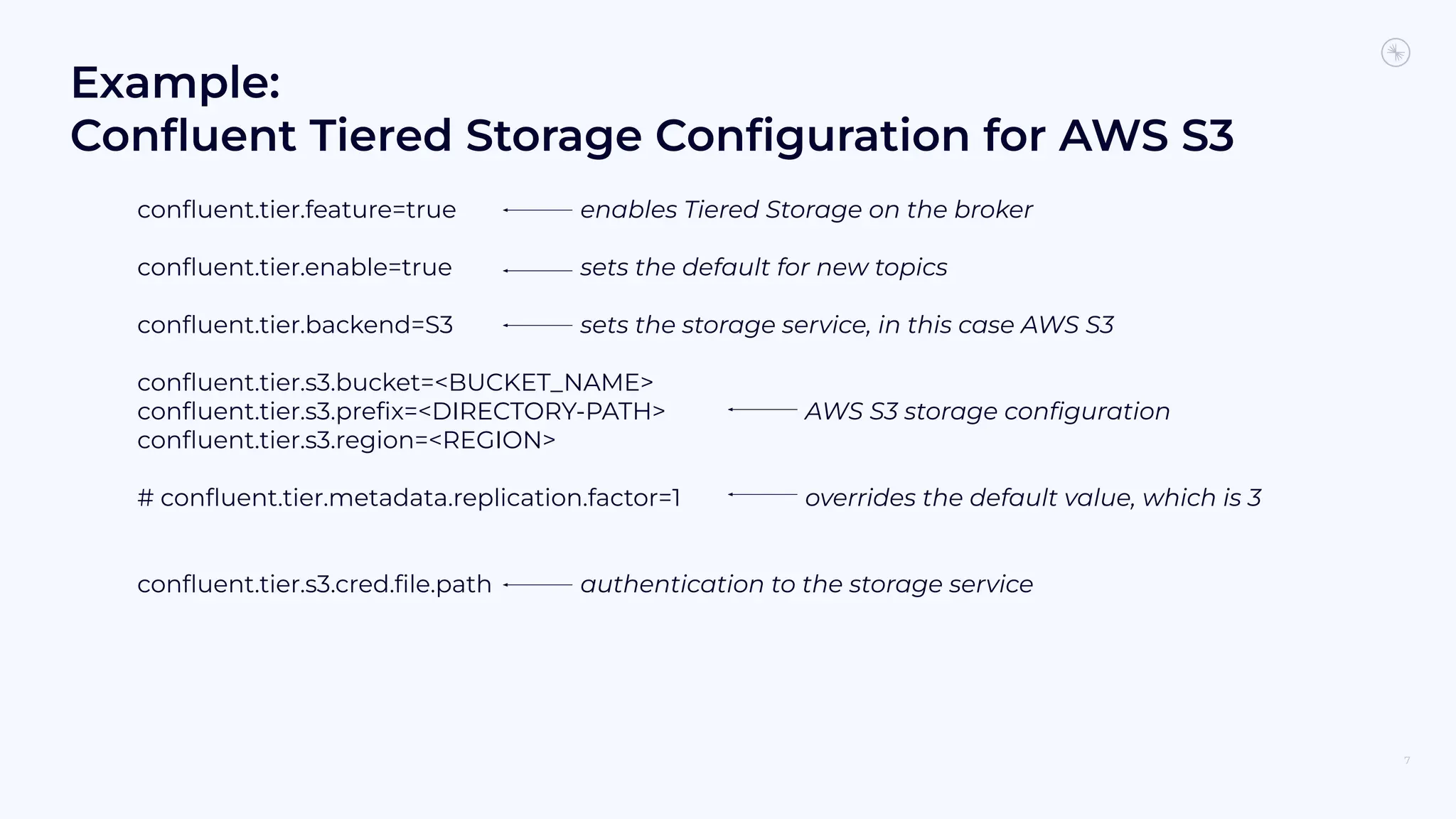

7. Example:
Confluent Tiered Storage Configuration for AWS S3
confluent.tier.feature=true enables Tiered Storage on the broker
confluent.tier.enable=true sets the default for new topics
confluent.tier.backend=S3 sets the storage service, in this case AWS S3
confluent.tier.s3.bucket=<BUCKET_NAME>
confluent.tier.s3.prefix=<DIRECTORY-PATH> AWS S3 storage configuration
confluent.tier.s3.region=<REGION>
# confluent.tier.metadata.replication.factor=1 overrides the default value, which is 3
confluent.tier.s3.cred.file.path authentication to the storage service
7

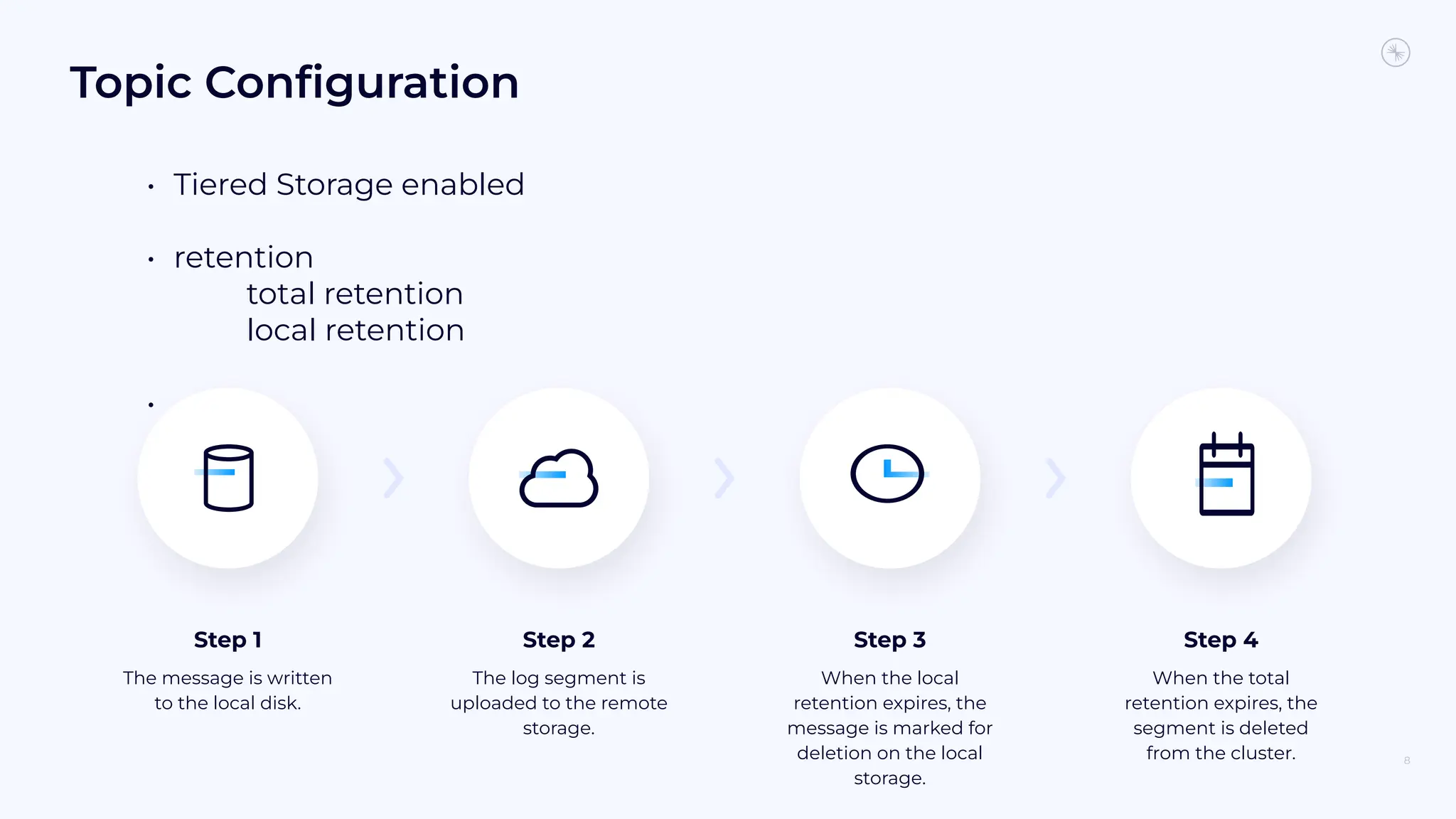

8. Topic Configuration
• Tiered Storage enabled
• retention
total retention
local retention
•
8
The message is written
to the local disk.
Step 1
The log segment is
uploaded to the remote
storage.
Step 2
When the local
retention expires, the
message is marked for
deletion on the local
storage.
Step 3
When the total
retention expires, the
segment is deleted
from the cluster.
Step 4

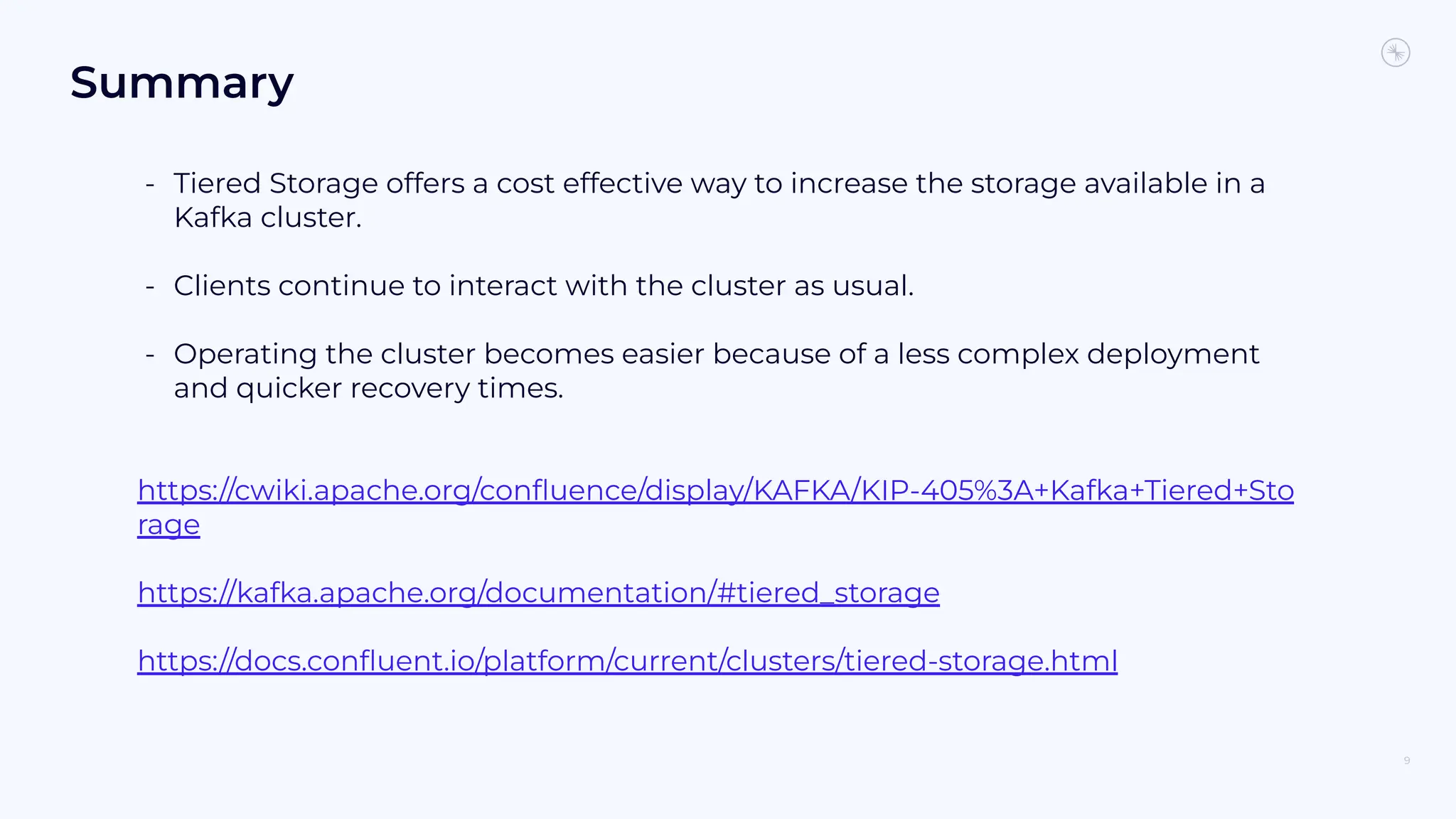

9. Summary
- Tiered Storage offers a cost effective way to increase the storage available in a
Kafka cluster.
- Clients continue to interact with the cluster as usual.
- Operating the cluster becomes easier because of a less complex deployment
and quicker recovery times.
https://cwiki.apache.org/confluence/display/KAFKA/KIP-405%3A+Kafka+Tiered+Sto
rage
https://kafka.apache.org/documentation/#tiered_storage
https://docs.confluent.io/platform/current/clusters/tiered-storage.html
9
