Ethereum is a decentralized platform that runs smart contracts. It uses a blockchain and cryptocurrency called Ether. Smart contracts are programs that run exactly as programmed without downtime, censorship, fraud or third party interference. They are written in Solidity and run on the Ethereum Virtual Machine. Remix is an IDE used to write, deploy and test smart contracts. It provides different environments like JavaScript VM, injected web3 and web3 provider to interact with local or remote Ethereum networks.

1. ETHEREUM

2. Overview
Introduction
Smart contracts
Ethereum Virtual Machine
Architecture
Consensus algorithm
Solidity
Remix

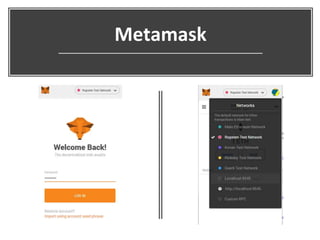

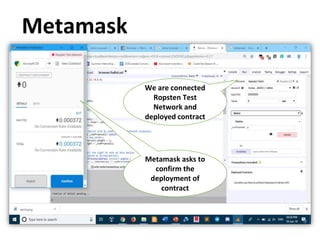

Metamask
Truffle
Dapps

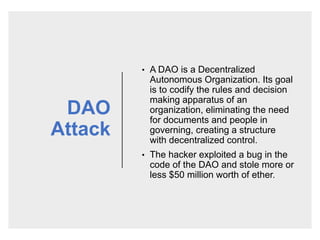

The DAO Attack
Conclusion

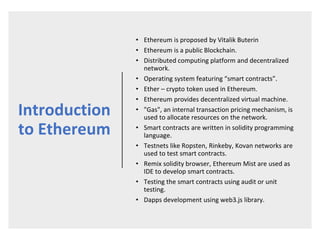

3. Introduction
to Ethereum
• Ethereum is proposed by Vitalik Buterin
• Ethereum is a public Blockchain.
• Distributed computing platform and decentralized
network.
• Operating system featuring “smart contracts”.
• Ether – crypto token used in Ethereum.
• Ethereum provides decentralized virtual machine.
• "Gas", an internal transaction pricing mechanism, is
used to allocate resources on the network.
• Smart contracts are written in solidity programming
language.
• Testnets like Ropsten, Rinkeby, Kovan networks are
used to test smart contracts.
• Remix solidity browser, Ethereum Mist are used as
IDE to develop smart contracts.
• Testing the smart contracts using audit or unit
testing.
• Dapps development using web3.js library.

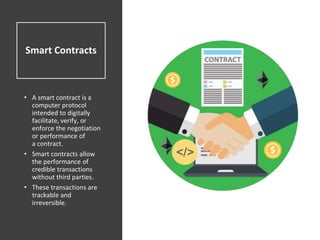

4. Smart Contracts
• A smart contract is a
computer protocol
intended to digitally
facilitate, verify, or
enforce the negotiation
or performance of
a contract.
• Smart contracts allow
the performance of
credible transactions
without third parties.
• These transactions are
trackable and
irreversible.

5. Ethereum Virtual Machine
Virtual machines are
essentially creating a level of
abstraction between the
executing code and the
executing machine.
This layer is needed to
improve the portability of
software, as well as to make
sure applications are
separated from each other,
and separated from their
host.
Creating Smart contracts
using Solidity, Javascript, C++
etc.,
Opcodes, Bytecode, register
stack, contract memory,
contract storage.
Cost of interacting with
smart contracts – GAS
Deploying smart contract Swarm hash and metadata
file
Application Binary Interface
(ABI)

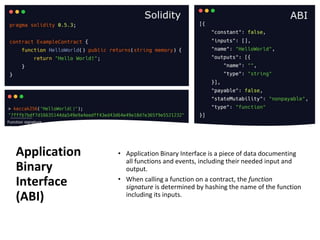

6. Application
Binary
Interface
(ABI)
• Application Binary Interface is a piece of data documenting
all functions and events, including their needed input and
output.
• When calling a function on a contract, the function
signature is determined by hashing the name of the function
including its inputs.

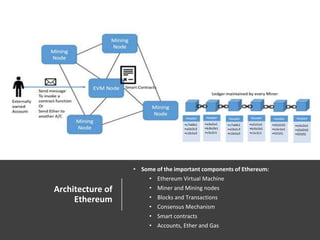

7. Architecture of
Ethereum
• Some of the important components of Ethereum:
• Ethereum Virtual Machine
• Miner and Mining nodes
• Blocks and Transactions
• Consensus Mechanism
• Smart contracts
• Accounts, Ether and Gas

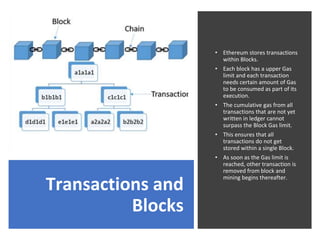

8. Transactions and
Blocks
• Ethereum stores transactions
within Blocks.
• Each block has a upper Gas
limit and each transaction
needs certain amount of Gas
to be consumed as part of its
execution.
• The cumulative gas from all
transactions that are not yet
written in ledger cannot
surpass the Block Gas limit.
• This ensures that all
transactions do not get
stored within a single Block.
• As soon as the Gas limit is
reached, other transaction is
removed from block and
mining begins thereafter.

9. Consensus
Algorithm
Proof of Work
• A miner collect all the pending transactions from the
transaction pool initiated by EVM nodes where smart
contracts are executed or the transactions happened
by sending ether from one account to other.
• Also they calculate the state and adds the transaction
root hash to the block header.
• After including the transaction in a block, this block is
advertised to all nodes.
• Each miner undergo with mathematical puzzle to
advertise their mined block. Who ever finishes that
mathematical puzzle first, they can advertise their
mined block into the network.
• The miner has to identify the correct nonce in order
to solve the mathematical puzzle.
• Miner gets rewards from two ways. They are:
• Block reward(~5Ether)
• Cumulative gas fees from the transactions in
the block.
• Other miners would verify the block and if found
correct would further verify every transaction while
accept the block and append the same to their ledger
instance

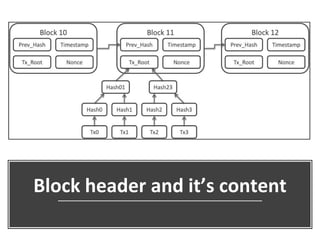

10. Block header and it’s content

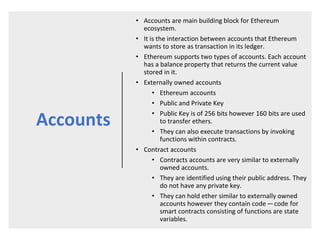

11. Accounts
• Accounts are main building block for Ethereum
ecosystem.
• It is the interaction between accounts that Ethereum
wants to store as transaction in its ledger.
• Ethereum supports two types of accounts. Each account
has a balance property that returns the current value
stored in it.
• Externally owned accounts
• Ethereum accounts
• Public and Private Key
• Public Key is of 256 bits however 160 bits are used
to transfer ethers.
• They can also execute transactions by invoking
functions within contracts.
• Contract accounts
• Contracts accounts are very similar to externally
owned accounts.
• They are identified using their public address. They
do not have any private key.
• They can hold ether similar to externally owned
accounts however they contain code — code for
smart contracts consisting of functions are state
variables.

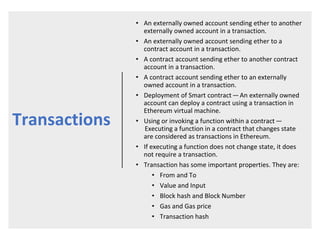

12. Transactions
• An externally owned account sending ether to another
externally owned account in a transaction.
• An externally owned account sending ether to a
contract account in a transaction.
• A contract account sending ether to another contract
account in a transaction.
• A contract account sending ether to an externally
owned account in a transaction.
• Deployment of Smart contract — An externally owned
account can deploy a contract using a transaction in
Ethereum virtual machine.
• Using or invoking a function within a contract —
Executing a function in a contract that changes state
are considered as transactions in Ethereum.
• If executing a function does not change state, it does
not require a transaction.
• Transaction has some important properties. They are:
• From and To
• Value and Input
• Block hash and Block Number
• Gas and Gas price
• Transaction hash

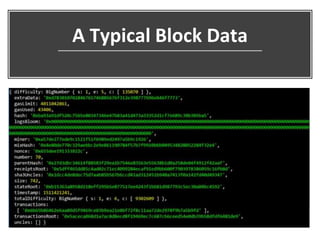

13. A Typical Block Data

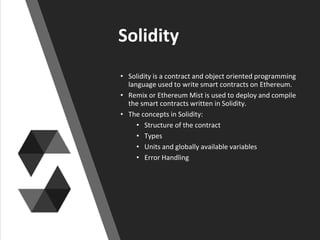

14. Solidity
• Solidity is a contract and object oriented programming
language used to write smart contracts on Ethereum.
• Remix or Ethereum Mist is used to deploy and compile
the smart contracts written in Solidity.
• The concepts in Solidity:
• Structure of the contract
• Types
• Units and globally available variables
• Error Handling

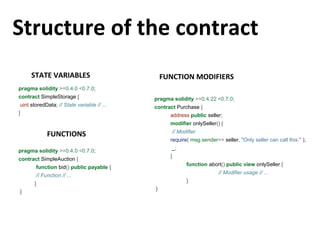

15. Structure of the contract
STATE VARIABLES
pragma solidity >=0.4.0 <0.7.0;
contract SimpleStorage {
uint storedData; // State variable // ...
}
pragma solidity >=0.4.0 <0.7.0;
contract SimpleAuction {
function bid() public payable {
// Function // ...
}
}
pragma solidity >=0.4.22 <0.7.0;
contract Purchase {
address public seller;
modifier onlySeller() {
// Modifier
require( msg.sender== seller, "Only seller can call this." );
_;
}
function abort() public view onlySeller {
// Modifier usage // ...
}
}
FUNCTIONS
FUNCTION MODIFIERS

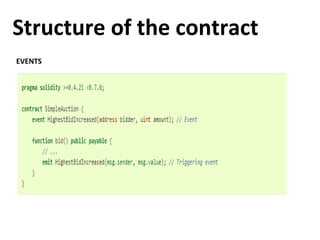

16. Structure of the contract
EVENTS

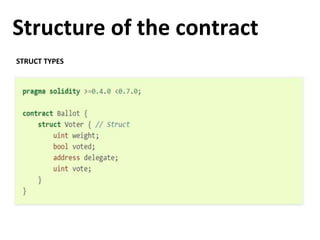

17. Structure of the contract
STRUCT TYPES

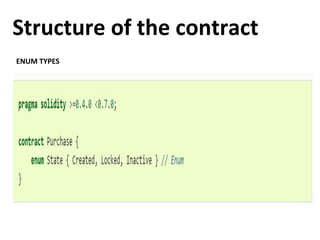

18. Structure of the contract
ENUM TYPES

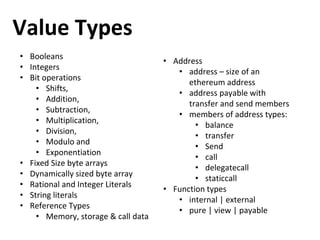

19. Value Types
• Booleans
• Integers
• Bit operations
• Shifts,
• Addition,
• Subtraction,
• Multiplication,
• Division,
• Modulo and
• Exponentiation
• Fixed Size byte arrays
• Dynamically sized byte array
• Rational and Integer Literals
• String literals
• Reference Types
• Memory, storage & call data
• Address
• address – size of an
ethereum address
• address payable with
transfer and send members
• members of address types:
• balance
• transfer
• Send
• call
• delegatecall
• staticcall
• Function types
• internal | external
• pure | view | payable

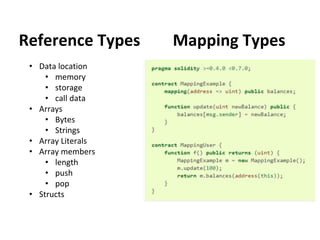

20. • Data location
• memory
• storage
• call data
• Arrays
• Bytes
• Strings
• Array Literals
• Array members
• length
• push
• pop
• Structs
Mapping TypesReference Types

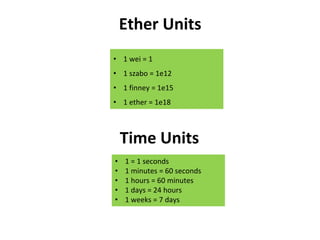

21. Ether Units
Time Units
• 1 = 1 seconds
• 1 minutes = 60 seconds
• 1 hours = 60 minutes
• 1 days = 24 hours
• 1 weeks = 7 days
• 1 wei = 1
• 1 szabo = 1e12
• 1 finney = 1e15
• 1 ether = 1e18

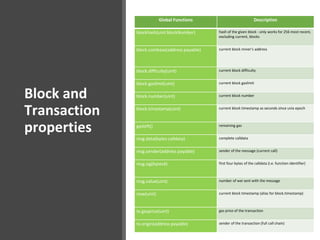

22. Block and
Transaction
properties
Global Functions Description
blockhash(uint blockNumber) hash of the given block - only works for 256 most recent,
excluding current, blocks
block.coinbase(address payable) current block miner’s address
block.difficulty(uint) current block difficulty
block.gaslimit(uint) current block gaslimit
block.number(uint) current block number
block.timestamp(uint) current block timestamp as seconds since unix epoch
gasleft() remaining gas
msg.data(bytes calldata) complete calldata
msg.sender(address payable) sender of the message (current call)
msg.sig(bytes4) first four bytes of the calldata (i.e. function identifier)
msg.value(uint) number of wei sent with the message
now(uint) current block timestamp (alias for block.timestamp)
tx.gasprice(uint) gas price of the transaction
tx.origin(address payable) sender of the transaction (full call chain)

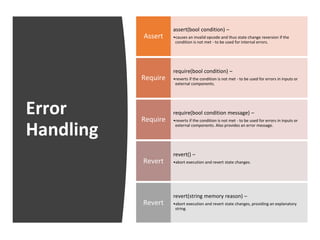

23. Error
Handling
assert(bool condition) –
•causes an invalid opcode and thus state change reversion if the
condition is not met - to be used for internal errors.
Assert
require(bool condition) –
•reverts if the condition is not met - to be used for errors in inputs or
external components.
Require
require(bool condition message) –
•reverts if the condition is not met - to be used for errors in inputs or
external components. Also provides an error message.
Require
revert() –
•abort execution and revert state changes.Revert
revert(string memory reason) –
•abort execution and revert state changes, providing an explanatory
string.
Revert

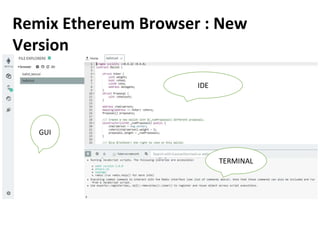

24. Remix Ethereum Browser : New
Version
IDE
GUI
TERMINAL

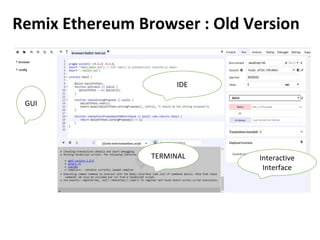

25. Remix Ethereum Browser : Old Version
IDE
GUI
TERMINAL Interactive
Interface

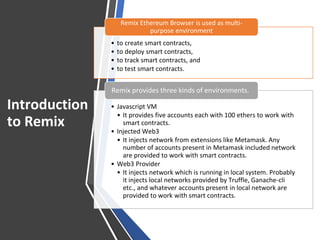

26. Introduction
to Remix
• to create smart contracts,
• to deploy smart contracts,
• to track smart contracts, and
• to test smart contracts.
Remix Ethereum Browser is used as multi-
purpose environment
• Javascript VM
• It provides five accounts each with 100 ethers to work with
smart contracts.
• Injected Web3
• It injects network from extensions like Metamask. Any
number of accounts present in Metamask included network
are provided to work with smart contracts.
• Web3 Provider
• It injects network which is running in local system. Probably
it injects local networks provided by Truffle, Ganache-cli
etc., and whatever accounts present in local network are
provided to work with smart contracts.
Remix provides three kinds of environments.

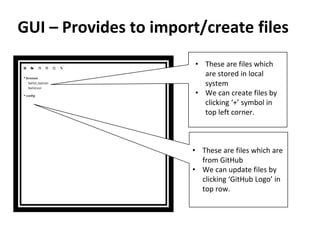

27. GUI – Provides to import/create files
• These are files which
are stored in local
system
• We can create files by
clicking ‘+’ symbol in
top left corner.
• These are files which are
from GitHub
• We can update files by
clicking ‘GitHub Logo’ in
top row.

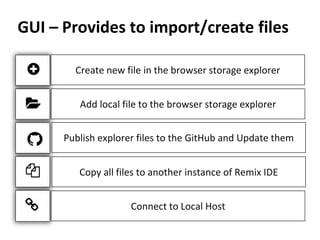

28. GUI – Provides to import/create files
Create new file in the browser storage explorer
Add local file to the browser storage explorer
Publish explorer files to the GitHub and Update them
Copy all files to another instance of Remix IDE
Connect to Local Host

29. IDE – Provides to create/edit smart contracts

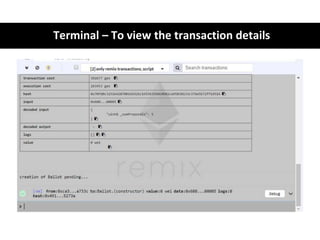

30. Terminal – To view the transaction details

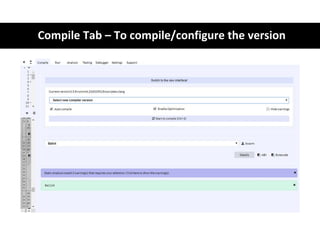

31. Compile Tab – To compile/configure the version

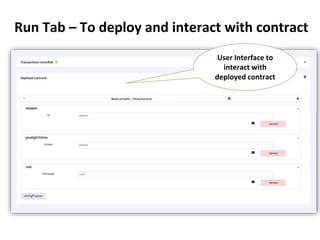

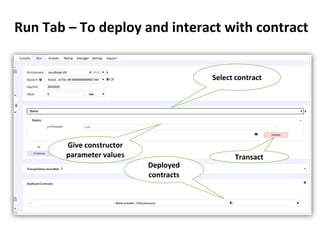

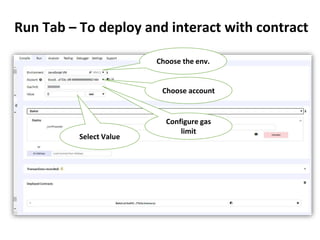

32. Run Tab – To deploy and interact with contract
Choose the env.
Choose account
Configure gas
limit
Select Value

33. Run Tab – To deploy and interact with contract
Select contract
Give constructor
parameter values Transact
Deployed
contracts

34. Run Tab – To deploy and interact with contract
User Interface to
interact with
deployed contract

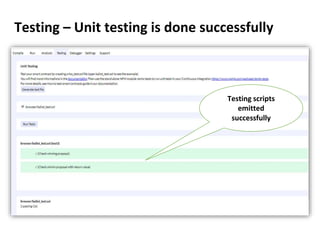

35. Testing – Unit testing is done successfully
Testing scripts
emitted
successfully

36. Debugging – Debugging the contract by txn hash
Debug to know
what is happening
to the contract

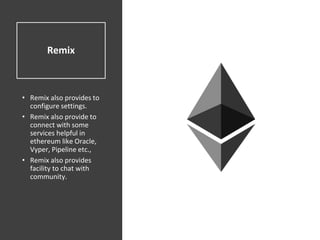

37. Remix
• Remix also provides to
configure settings.
• Remix also provide to
connect with some
services helpful in
ethereum like Oracle,
Vyper, Pipeline etc.,
• Remix also provides
facility to chat with
community.

38. Metamask

39. Metamask
We are connected
Ropsten Test
Network and
deployed contract
Metamask asks to
confirm the
deployment of
contract

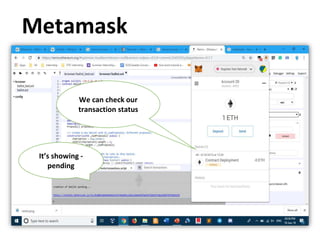

40. Metamask
We can check our
transaction status
It’s showing -
pending

41. Metamask
We can track our
transaction status
in Etherscan.

42. Metamask
The transaction
happened
successfully

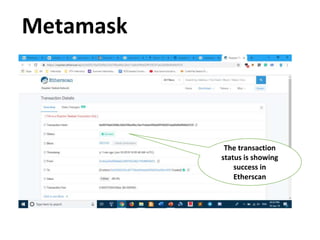

43. Metamask
The transaction
status is showing
success in
Etherscan

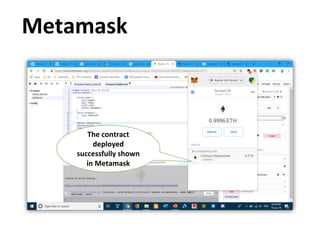

44. Metamask
The contract
deployed
successfully shown
in Metamask

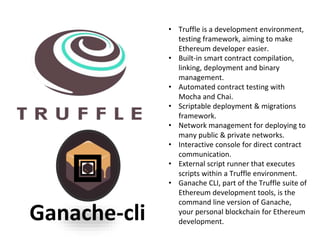

45. • Truffle is a development environment,
testing framework, aiming to make
Ethereum developer easier.
• Built-in smart contract compilation,
linking, deployment and binary
management.
• Automated contract testing with
Mocha and Chai.
• Scriptable deployment & migrations
framework.
• Network management for deploying to
many public & private networks.
• Interactive console for direct contract
communication.
• External script runner that executes
scripts within a Truffle environment.
• Ganache CLI, part of the Truffle suite of
Ethereum development tools, is the
command line version of Ganache,
your personal blockchain for Ethereum
development.Ganache-cli

46. Decentralized apps(Dapps)
• Dapps are decentralized applications.
• Nothing but any website or app where the backend, the server is
decentralized.
• Ethereum is well known for Dapps.
• Below are sequence of steps to built Dapps:
• Write solidity smart contracts.
• Test the smart contracts using Unit Testing or Audit Testing.
• With the help of tools like Truffle, Ganache-cli and Web3.js and some
other frontend technologies build a Dapp of our own wish.
• We can even create Dapp using Testnets to check before deploying in
to the main net.

47. DAO
Attack
• A DAO is a Decentralized
Autonomous Organization. Its goal
is to codify the rules and decision
making apparatus of an
organization, eliminating the need
for documents and people in
governing, creating a structure
with decentralized control.
• The hacker exploited a bug in the
code of the DAO and stole more or
less $50 million worth of ether.

48. Cons of
Ethereum
• Scalability is the biggest issue. Till date
only 15 transactions per second are
executed.
• Because of Proof Of Work consensus
mechanism there is a loss of resources
to mine a block as mining requires
huge computational powers.
• DAO attack.
• ‘Gas’, the transaction fee is needed to
pay for every transaction is very high.

49. Conclusion
• With the help of Solidity, Remix,
Metamask, Truffle and other tools, we can
build good smart contracts and Dapps.
• Smart contracts can achieve trust between
peers or organizations without the help of
third party.
• Ethereum can make wonderful Dapps
which can solve real life issues.
• By this, we can make use of
decentralization, distributed and
immutable ledgers which are necessary
and important in today’s world.
• Finally, we can achieve beyond
cryptocurrencies by using Ethereum
Blockchain.

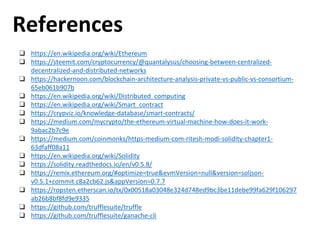

50. References
❑ https://en.wikipedia.org/wiki/Ethereum
❑ https://steemit.com/cryptocurrency/@quantalysus/choosing-between-centralized-
decentralized-and-distributed-networks
❑ https://hackernoon.com/blockchain-architecture-analysis-private-vs-public-vs-consortium-
65eb061b907b
❑ https://en.wikipedia.org/wiki/Distributed_computing
❑ https://en.wikipedia.org/wiki/Smart_contract
❑ https://crypviz.io/knowledge-database/smart-contracts/
❑ https://medium.com/mycrypto/the-ethereum-virtual-machine-how-does-it-work-
9abac2b7c9e
❑ https://medium.com/coinmonks/https-medium-com-ritesh-modi-solidity-chapter1-
63dfaff08a11
❑ https://en.wikipedia.org/wiki/Solidity
❑ https://solidity.readthedocs.io/en/v0.5.8/
❑ https://remix.ethereum.org/#optimize=true&evmVersion=null&version=soljson-
v0.5.1+commit.c8a2cb62.js&appVersion=0.7.7
❑ https://ropsten.etherscan.io/tx/0x00518a03048e324d748ed9bc3be11debe99fa629f106297
ab26b8bf8fd9e9335
❑ https://github.com/trufflesuite/truffle
❑ https://github.com/trufflesuite/ganache-cli

51. THANK YOU
