The document provides an overview of Norton’s Norzon Q-Soft grinding wheels, highlighting their suitability for steel and cast iron applications with superior material removal rates. It emphasizes safety standards compliance and the performance features of these wheels, including comfort and no chipping during use. Additionally, it offers contact information for testing the product and states the company's commitment to worker safety through rigorous product testing and certification.

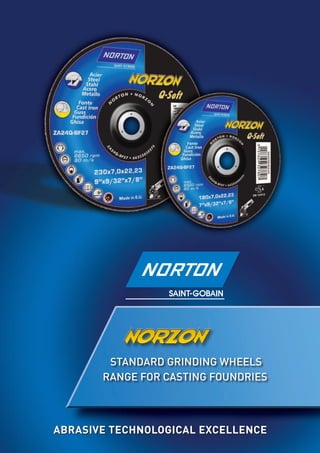

1. STANDARD GRINDING WHEELS
RANGE FOR CASTING FOUNDRIES
ABRASIVE TECHNOLOGICAL EXCELLENCE

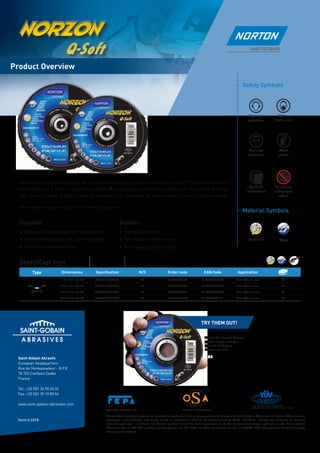

2. Product Overview
Safety Symbols
Wear ear Wear a
protection dust mask
Wear eye Wear
protection gloves
Norton has a global reputation for its dedicated foundry products. The NorZon Q-SOFT depressed centre
Read the Do not use
wheels feature a blend of aggressive NorZon® and premium aluminium oxide grain. The blend of these instructions a damaged
two grains provide a higher material removal rate compared to conventional aluminum oxide wheels. wheel
Great performance and value for casting foundries.
Material Symbols
Features Benefits
• Suitable for steel and cast iron applications • Comfortable in use
• Good performance on low power machines • Fast material removal rate Cast Iron Steel
• Optimal quality to price ratio • No chipping during grinding
Steel/Cast Iron
Type Dimensions Specification M/S Order code EAN Code Application
115 x 7,0 x 22,23 ZA24Q NORZON 80 66252840240 3157629327784 Steel/Cast Iron 25
125 x 7,0 x 22,23 ZA24Q NORZON 80 66252840237 3157629325346 Steel/Cast Iron 25
TYPE 27 180 x 7,0 x 22,23 ZA24Q NORZON 80 66252840242 3157629327807 Steel/Cast Iron 25
230 x 7,0 x 22,23 ZA24Q NORZON 80 66252838276 3157629294161 Steel/Cast Iron 25
Try them out!
To test the Norton Norzon
Q-Soft range, just get
in touch with your
Norton contact.
Saint-Gobain Abrasifs Résultats des tests de performance
European Headquarters
Rue de l’Ambassadeur - B.P.8
78 702 Conflans Cedex
France
Tel: +33 (0)1 34 90 40 00
F
ax: +33 (0)1 39 19 89 56
www.saint-gobain-abrasives.com EN ISO 9001, EN ISO 14001 and OHSAS 18001
Certificates No. 71 100 H 287, 71 104 H 021 and 71 116 I 030
www,fepa-abrasives,org www,osa-abrasives,org
The personal safety of workers using abrasive products is the primary concern of Norton and Saint-Gobain Abrasives. All Norton Abrasives are
Form # 1978 developed, manufactured and safety tested in accordance with the European standard FEPA “EN12413 – Safety requirements for bonded
abrasive products”. In addition, all Norton products meet the strict requirements of the international safety organisation oSa. Saint-Gobain
Abrasives has an ISO 9001 certified quality system, an ISO 14001 certified environmental and an OHSAS 18001 occupational health and safety
management system.
