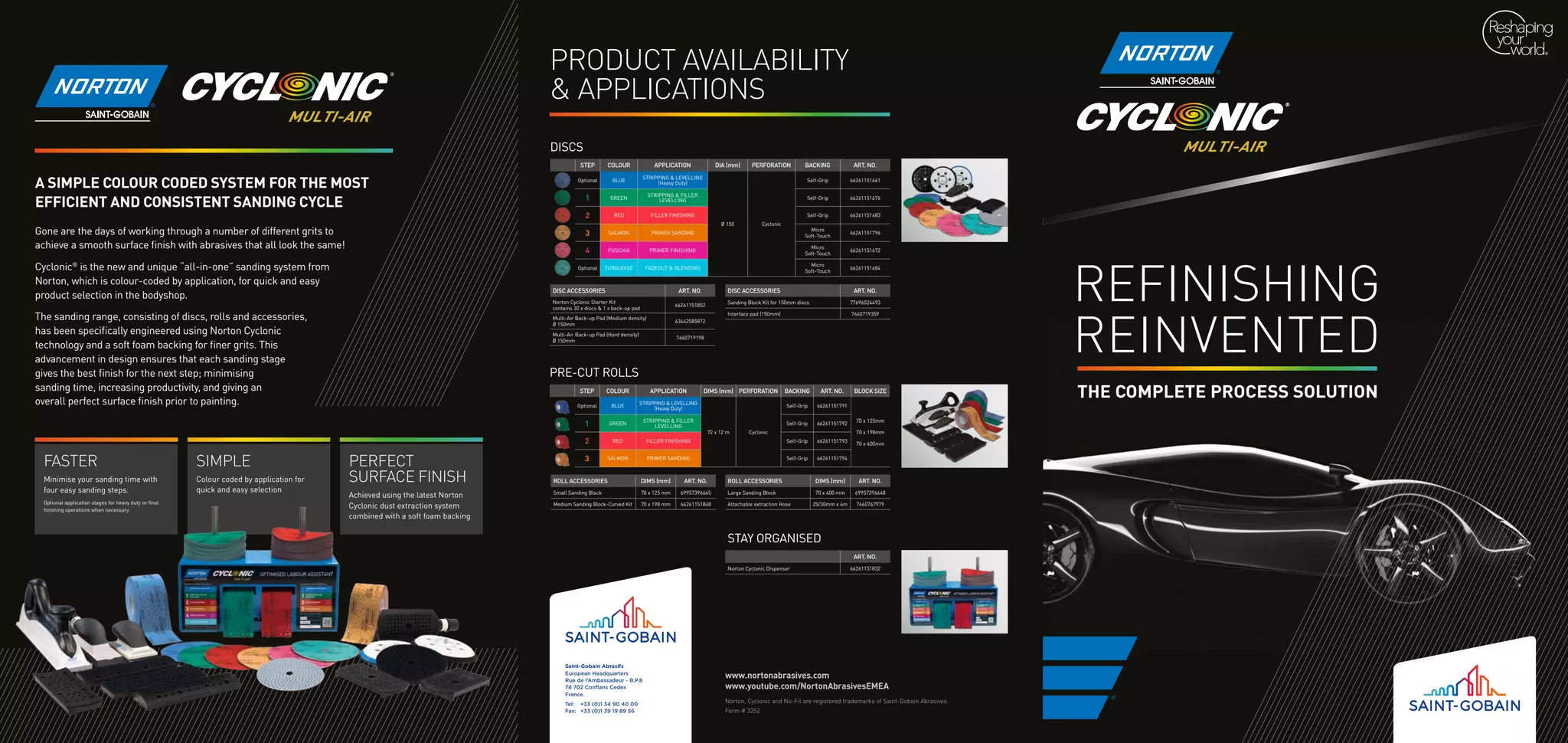

1. REFINISHING
REINVENTED
THE COMPLETE PROCESS SOLUTION
PRODUCT AVAILABILITY
& APPLICATIONS
Saint-Gobain Abrasifs
European Headquarters
Rue de l’Ambassadeur - B.P.8
78 702 Conflans Cedex
France
Tel: +33 (0)1 34 90 40 00
Fax: +33 (0)1 39 19 89 56
DISCS
STEP COLOUR APPLICATION DIA (mm) PERFORATION BACKING ART. NO.
Optional BLUE
STRIPPING LEVELLING
(Heavy Duty)
Ø 150 Cyclonic
Self-Grip 66261151661
1 GREEN
STRIPPING FILLER
LEVELLING
Self-Grip 66261151676
2 RED FILLER FINISHING Self-Grip 66261151683
3 SALMON PRIMER SANDING
Micro
Soft-Touch
66261151796
4 FUSCHIA PRIMER FINISHING
Micro
Soft-Touch
66261151672
Optional TURQUOISE FADEOUT BLENDING
Micro
Soft-Touch
66261151684
STAY ORGANISED
ART. NO.
Norton Cyclonic Dispenser 66261151832
DISC ACCESSORIES ART. NO.
Norton Cyclonic Starter Kit
contains 30 x discs 1 x back-up pad
66261151852
Multi-Air Back-up Pad (Medium density)
Ø 150mm
63642585872
Multi-Air Back-up Pad (Hard density)
Ø 150mm
7660719198
DISC ACCESSORIES ART. NO.
Sanding Block Kit for 150mm discs 77696024493
Interface pad (150mm) 7660719359
Norton, Cyclonic and No-Fil are registered trademarks of Saint-Gobain Abrasives.
Form # 3252
www.nortonabrasives.com
www.youtube.com/NortonAbrasivesEMEA
PRE-CUT ROLLS
STEP COLOUR APPLICATION DIMS (mm) PERFORATION BACKING ART. NO. BLOCK SIZE
Optional BLUE
STRIPPING LEVELLING
(Heavy Duty)
72 x 12 m Cyclonic
Self-Grip 66261151791
70 x 125mm
70 x 198mm
70 x 400mm
1 GREEN
STRIPPING FILLER
LEVELLING
Self-Grip 66261151792
2 RED FILLER FINISHING Self-Grip 66261151793
3 SALMON PRIMER SANDING Self-Grip 66261151794
ROLL ACCESSORIES DIMS (mm) ART. NO.
Small Sanding Block 70 x 125 mm 69957396645
Medium Sanding Block-Curved Kit 70 x 198 mm 66261151848
ROLL ACCESSORIES DIMS (mm) ART. NO.
Large Sanding Block 70 x 400 mm 69957396648
Attachable extraction Hose 25/30mm x 4m 7660767979
A SIMPLE COLOUR CODED SYSTEM FOR THE MOST
EFFICIENT AND CONSISTENT SANDING CYCLE
Gone are the days of working through a number of different grits to
achieve a smooth surface finish with abrasives that all look the same!
Cyclonic®
is the new and unique “all-in-one” sanding system from
Norton, which is colour-coded by application, for quick and easy
product selection in the bodyshop.
The sanding range, consisting of discs, rolls and accessories,
has been specifically engineered using Norton Cyclonic
technology and a soft foam backing for finer grits. This
advancement in design ensures that each sanding stage
gives the best finish for the next step; minimising
sanding time, increasing productivity, and giving an
overall perfect surface finish prior to painting.
FASTER
Minimise your sanding time with
four easy sanding steps.
Optional application stages for heavy duty or final
finishing operations when necessary.
SIMPLE
Colour coded by application for
quick and easy selection
PERFECT
SURFACE FINISH
Achieved using the latest Norton
Cyclonic dust extraction system
combined with a soft foam backing

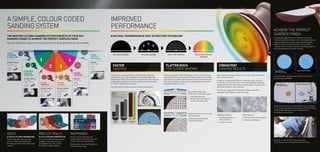

2. Thanks to the unique hole pattern, Norton Cyclonic improves
productivity by up to 32% compared to conventional multi-hole
sanding discs. With a 25% increase in dust extraction, the new hole
configuration is based on the same science as cyclone formation,
for the most powerful air movement.
Use with a Multi-Air back-up pad for the best performance.
TRADITIONAL
SANDING
MULTI-AIR
SANDING
MULTI-AIR CYCLONIC
SANDING
KEY:
GREY: Material Removal
BLACK: Dust Extraction
FASTER
SANDING
i.
NO HOLE SANDING
ii.
VACUUM SANDING
iii. iv.
SANDING
NO HOLE SANDING VACUUM SANDING MULTI-AIR SANDING MULTI-AIR CYCLONIC
SANDING
IMPROVED
PERFORMANCE
A NATURAL PROGRESSION IN DUST EXTRACTION TECHNOLOGY
STRIPPING
FILLER
LEVELLING
MACHINE / MANUAL:
5mm ORBIT /
SANDING BLOCK
1 4
2 3
FILLER
FINISHING
MACHINE / MANUAL:
5mm ORBIT /
SANDING BLOCK
PRIMER
SANDING
MACHINE / MANUAL:
2.5mm ORBIT /
SANDING BLOCK
PRIMER
FINISHING
MACHINE:
2.5mm ORBIT
OPTIONAL
STRIPPING
LEVELLING
(HEAVY DUTY)
MACHINE / MANUAL:
5mm ORBIT /
SANDING BLOCK
OPTIONAL
FADEOUT
BLENDING
MACHINE:
2.5mm ORBIT
Work smarter not harder thanks to the Norton ceramic grain which
does all the hard work!
A superior cut and longer life than conventional grain, ceramics
are sharper, cut cooler and wear more evenly, providing consistent
sanding results and a more uniform scratch pattern on paint, primer,
clear coat, aluminium and composites.
The new anti-clogging No-fil®
formula combined with A975
sandpaper allows the disc to work for longer.
WITHOUT NO-FIL®
• Immediate balling up
of dust particles
• Creates scratches
WITH NO-FIL®
• Dust particles remain separate
• Easier dust extraction
CONSISTENT
SANDING RESULTS
Die punched holes cause
deformation on the disc surface.
i. Dust extraction hole
ii. Abrasive does not make full
contact with the surface
Multi-Air Cyclonic laser-cut discs
are flat and true.
+32% improved productivity
+25% dust extraction
FLATTER DISCS
FOR CLOSER SANDING
Thanks to new laser cutting technology, holes are cut into the disc,
not punched. This precise cutting technique means discs are flatter,
dust extraction is better and the abrasive surface area is increased
for a more consistent scratch pattern and improved surface finish
throughout the life of the disc.
SURFACE AREA
SURFACE AREA
DISCS
Ø 150 mm CYCLONIC PERFORATION
Colour coded discs with Self-Grip
and micro Soft-Touch backing for
finishing applications. Accessories also
available.
PRE-CUT ROLLS
72 x12m CYCLONIC PERFORATION
Pre-cut rolls with Self-Grip backing
available in one dimension to fit
all sanding blocks; 70 x 125mm,
70 x 198mm and 70 x 420mm.
DISPENSER
Storage unit for organising and
dispensing the full range of discs and
rolls for quick and easy selection.
Multiple units can be fixed together to
store the whole range.
Discs with foam backing provide shallow scratches for
quicker, easier polishing.
Achieve a more uniform scratch pattern, with no ‘digging’
on the surface and edges during sanding. Micro Soft-Touch
provides fast levelling of primer orange peel and
an excellent surface finish.
Standard Self-Grip disc
Standard Self-Grip disc
Disc with micro
Soft-Touch backing
Conforms to curved and contoured surfaces
ensuring maximum contact and surface finishing.
ACHIEVE THE PERFECT
SURFACE FINISH
For finishing applications, finer step discs have a thin
foam backing which provides a more comfortable sanding
experience and gives a wider contact area as the foam
adapts to surface curves and contours for a smooth,
consistent finish. All discs and rolls are self-gripping for a
fast and easy process from start to finish.
i.
i.
ii.
A SIMPLE, COLOUR CODED
SANDING SYSTEM
THE NORTON CYCLONIC SANDING SYSTEM CONSISTS OF FOUR KEY
SANDING STAGES TO ACHIEVE THE PERFECT SURFACE FINISH
Optional application stages for heavy duty or final finishing operations are also available.
Disc with micro
Soft-Touch backing
SURFACE AREA
SURFACE AREA
