1. GraphQL
REST war gestern
Jens Siebert (@jens_siebert)
WebMontag Kassel, 10. Dezember 2018
https://www.slideshare.net/JensSiebert1

2. REST ist super!
aber es hat so seine Probleme…

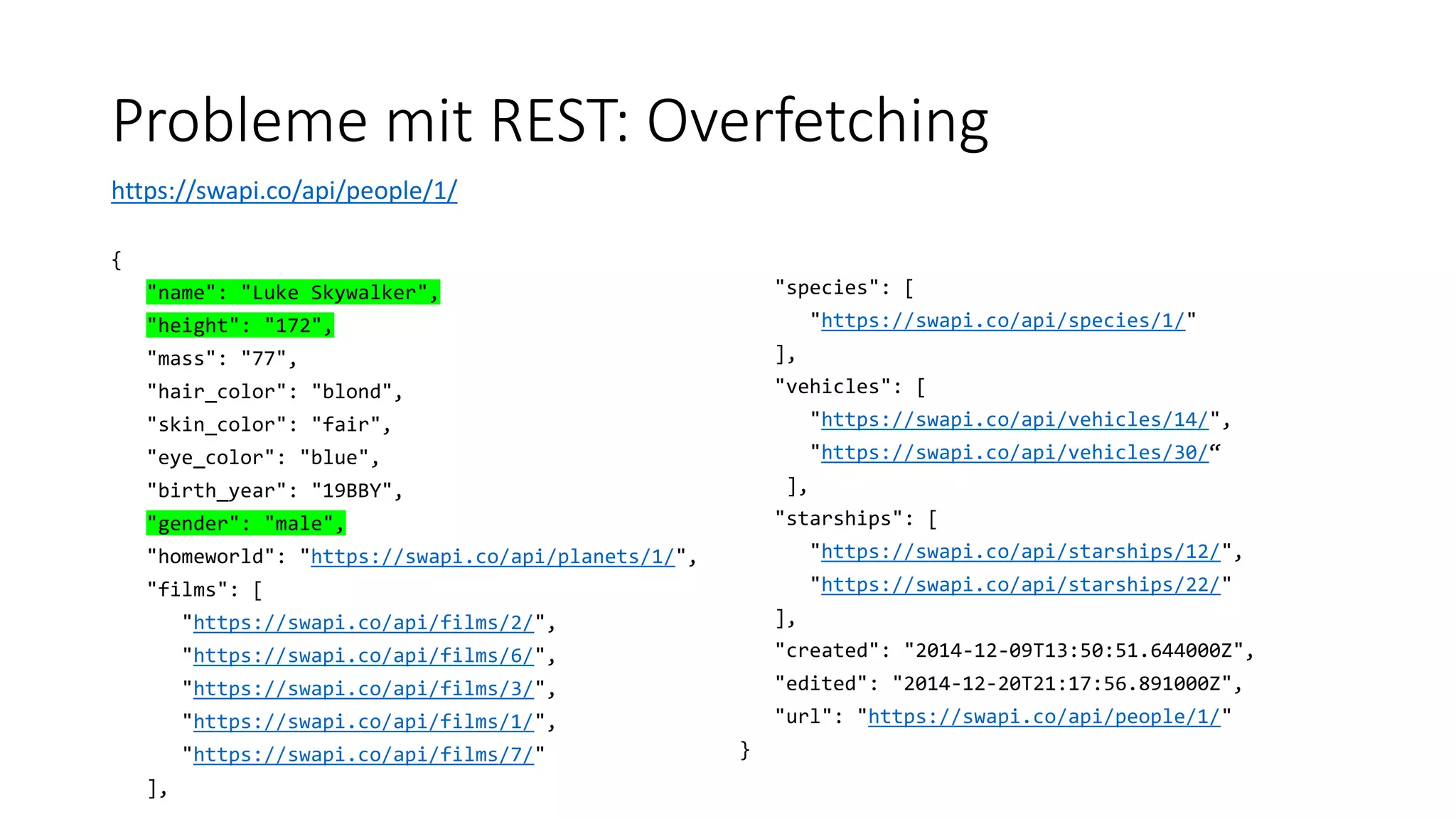

3. Probleme mit REST: Overfetching
https://swapi.co/api/people/1/
{
"name": "Luke Skywalker",
"height": "172",
"mass": "77",
"hair_color": "blond",
"skin_color": "fair",
"eye_color": "blue",
"birth_year": "19BBY",
"gender": "male",
"homeworld": "https://swapi.co/api/planets/1/",
"films": [
"https://swapi.co/api/films/2/",
"https://swapi.co/api/films/6/",
"https://swapi.co/api/films/3/",
"https://swapi.co/api/films/1/",
"https://swapi.co/api/films/7/"
],
"species": [
"https://swapi.co/api/species/1/"
],
"vehicles": [
"https://swapi.co/api/vehicles/14/",
"https://swapi.co/api/vehicles/30/“
],
"starships": [
"https://swapi.co/api/starships/12/",
"https://swapi.co/api/starships/22/"
],
"created": "2014-12-09T13:50:51.644000Z",
"edited": "2014-12-20T21:17:56.891000Z",
"url": "https://swapi.co/api/people/1/"
}

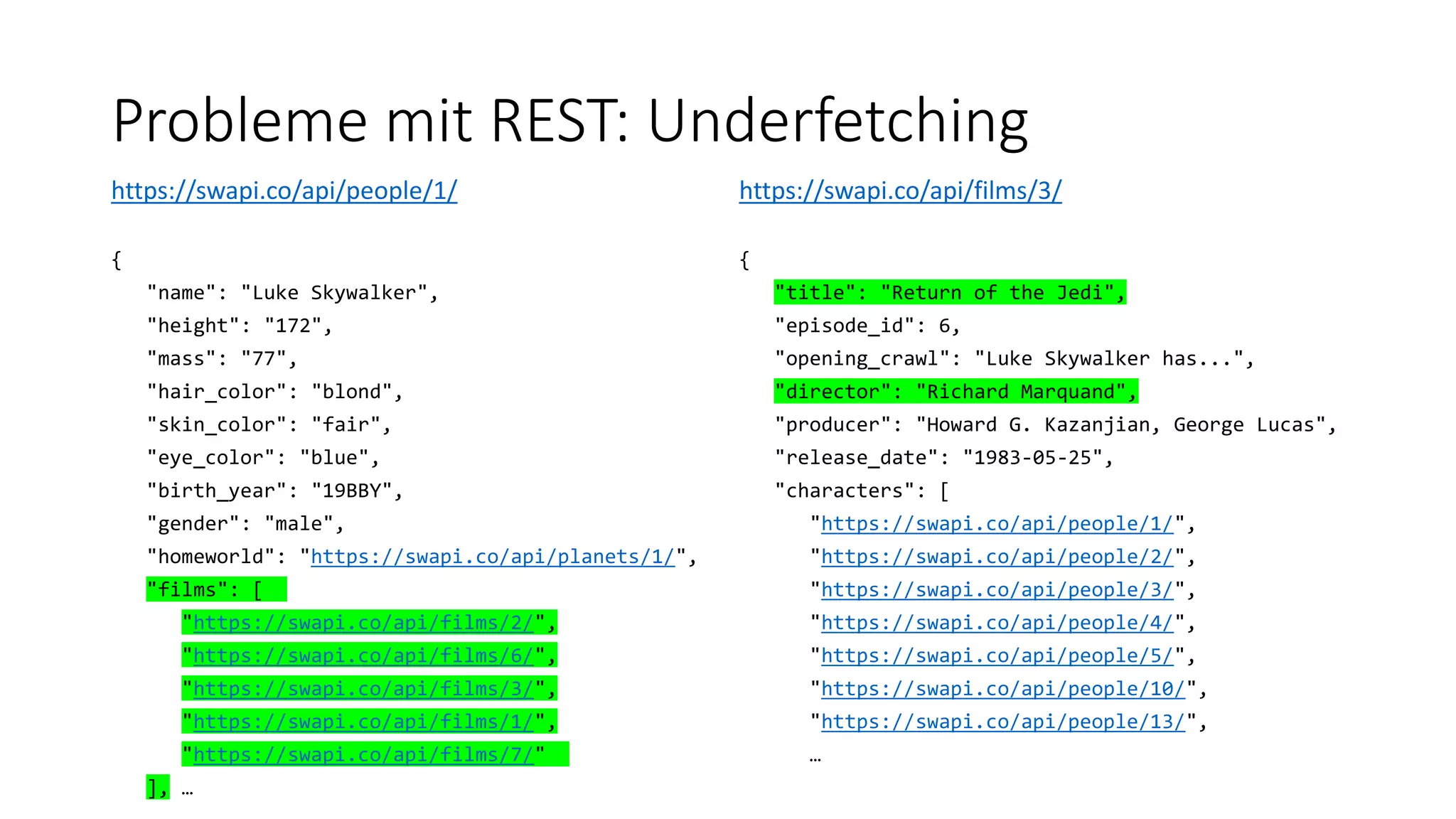

4. Probleme mit REST: Underfetching
https://swapi.co/api/people/1/
{
"name": "Luke Skywalker",
"height": "172",
"mass": "77",
"hair_color": "blond",
"skin_color": "fair",
"eye_color": "blue",
"birth_year": "19BBY",
"gender": "male",
"homeworld": "https://swapi.co/api/planets/1/",
"films": [
"https://swapi.co/api/films/2/",
"https://swapi.co/api/films/6/",
"https://swapi.co/api/films/3/",
"https://swapi.co/api/films/1/",
"https://swapi.co/api/films/7/"
], …
https://swapi.co/api/films/3/
{
"title": "Return of the Jedi",
"episode_id": 6,
"opening_crawl": "Luke Skywalker has...",
"director": "Richard Marquand",
"producer": "Howard G. Kazanjian, George Lucas",
"release_date": "1983-05-25",
"characters": [
"https://swapi.co/api/people/1/",
"https://swapi.co/api/people/2/",
"https://swapi.co/api/people/3/",
"https://swapi.co/api/people/4/",
"https://swapi.co/api/people/5/",
"https://swapi.co/api/people/10/",
"https://swapi.co/api/people/13/",
…

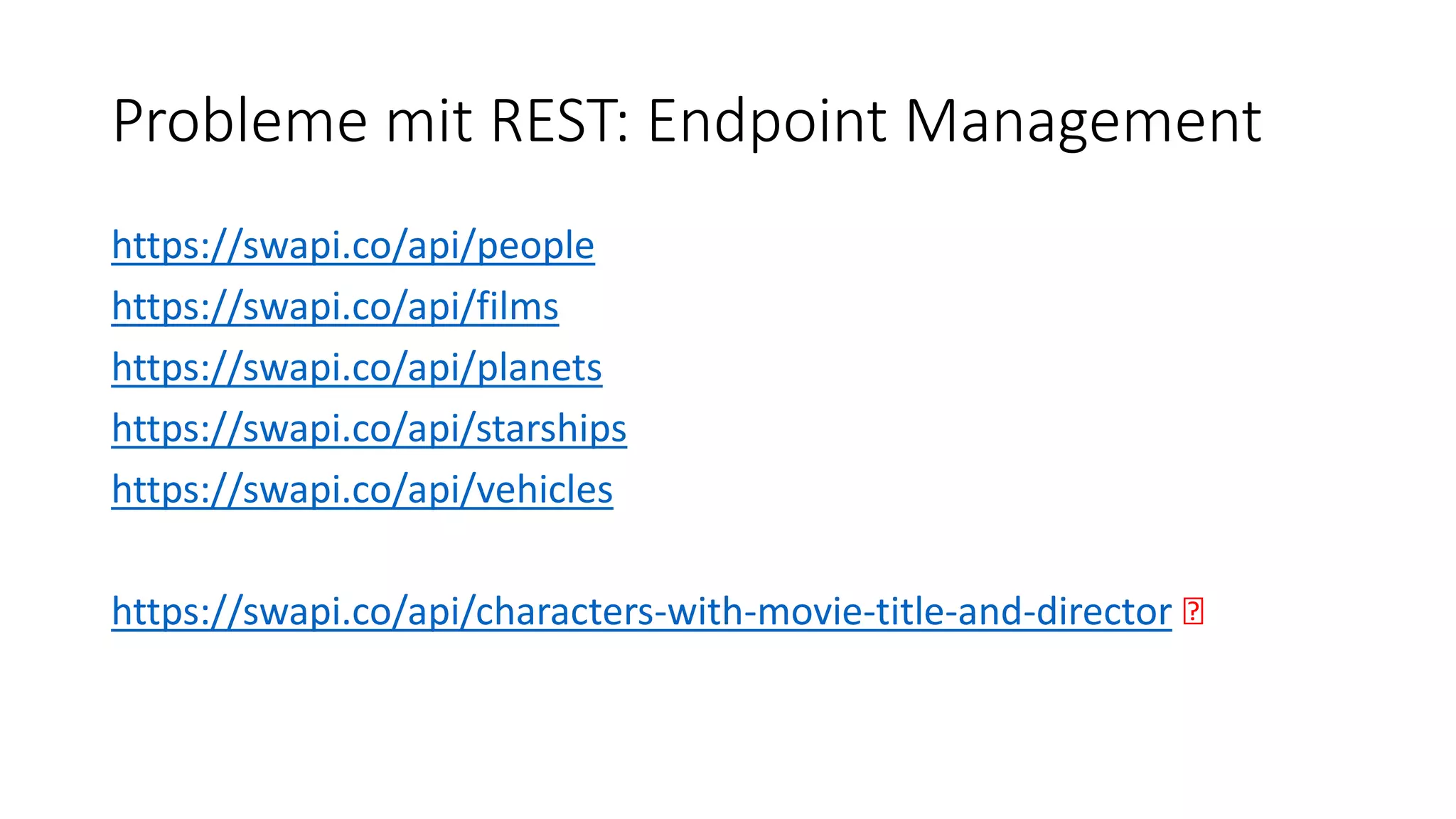

5. Probleme mit REST: Endpoint Management
https://swapi.co/api/people
https://swapi.co/api/films
https://swapi.co/api/planets
https://swapi.co/api/starships
https://swapi.co/api/vehicles
https://swapi.co/api/characters-with-movie-title-and-director 🤢

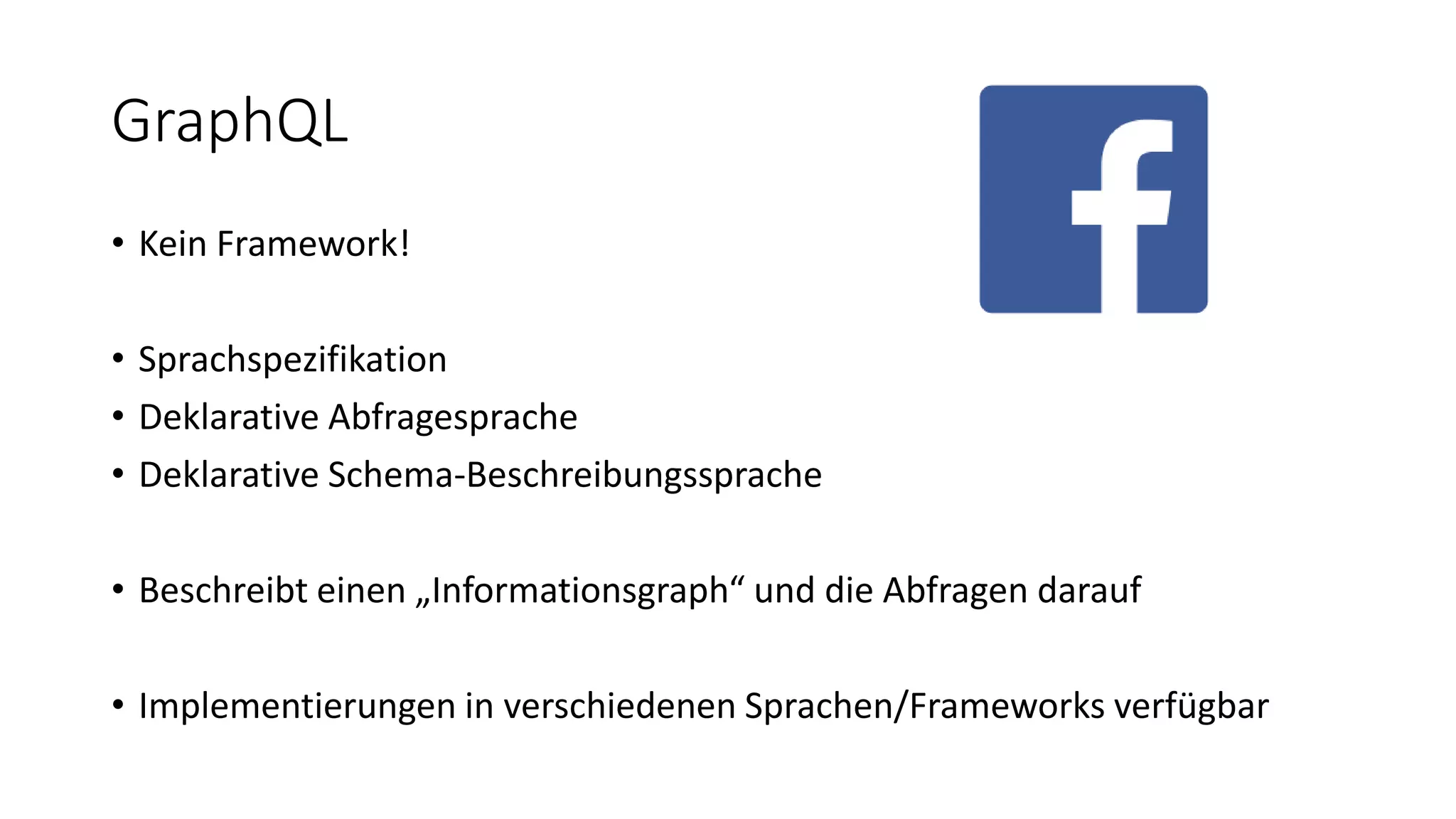

6. GraphQL
• Kein Framework!
• Sprachspezifikation
• Deklarative Abfragesprache
• Deklarative Schema-Beschreibungssprache
• Beschreibt einen „Informationsgraph“ und die Abfragen darauf
• Implementierungen in verschiedenen Sprachen/Frameworks verfügbar

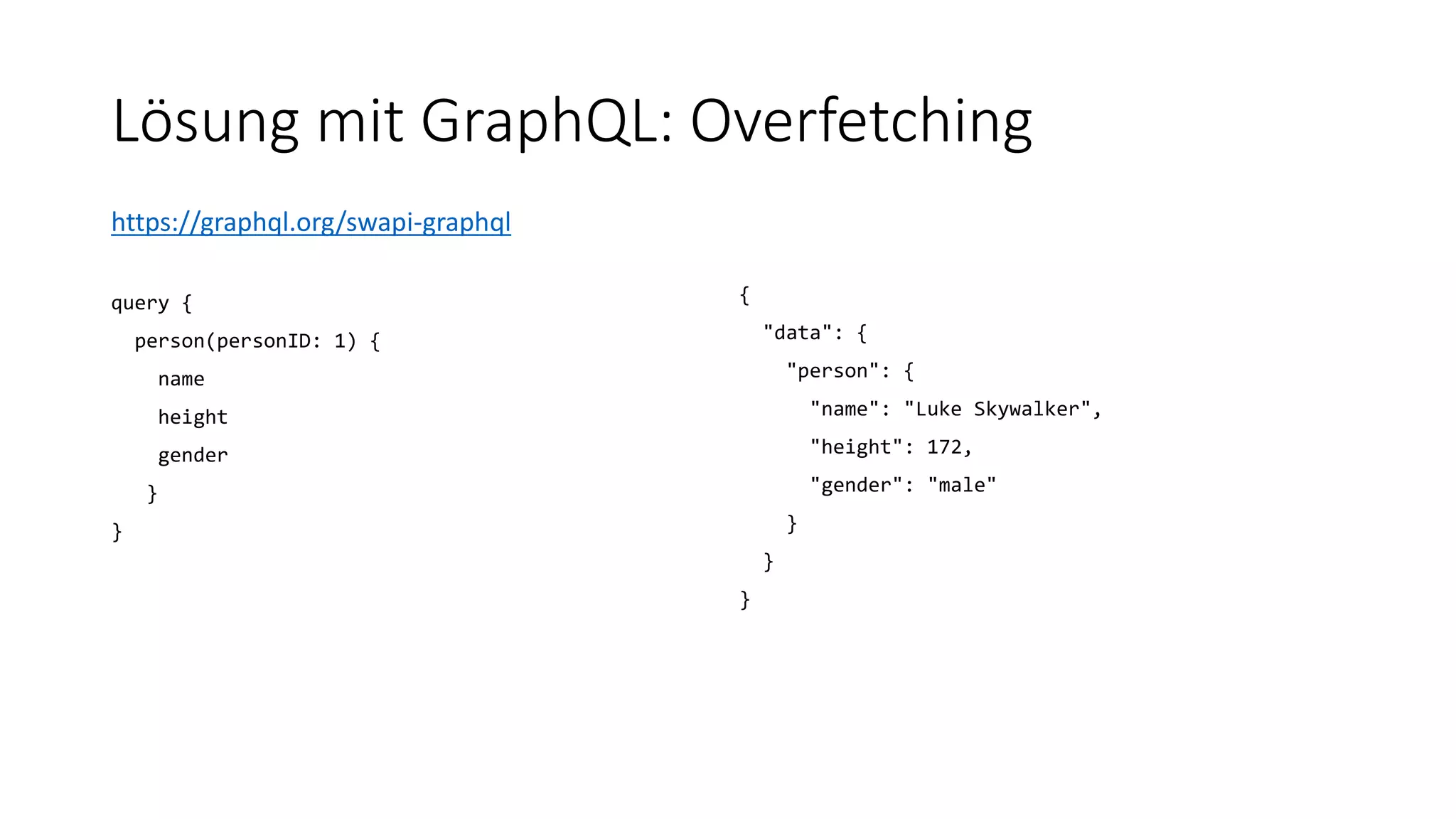

7. Lösung mit GraphQL: Overfetching
https://graphql.org/swapi-graphql
query {
person(personID: 1) {
name
height
gender
}
}
{
"data": {
"person": {
"name": "Luke Skywalker",
"height": 172,
"gender": "male"
}
}
}

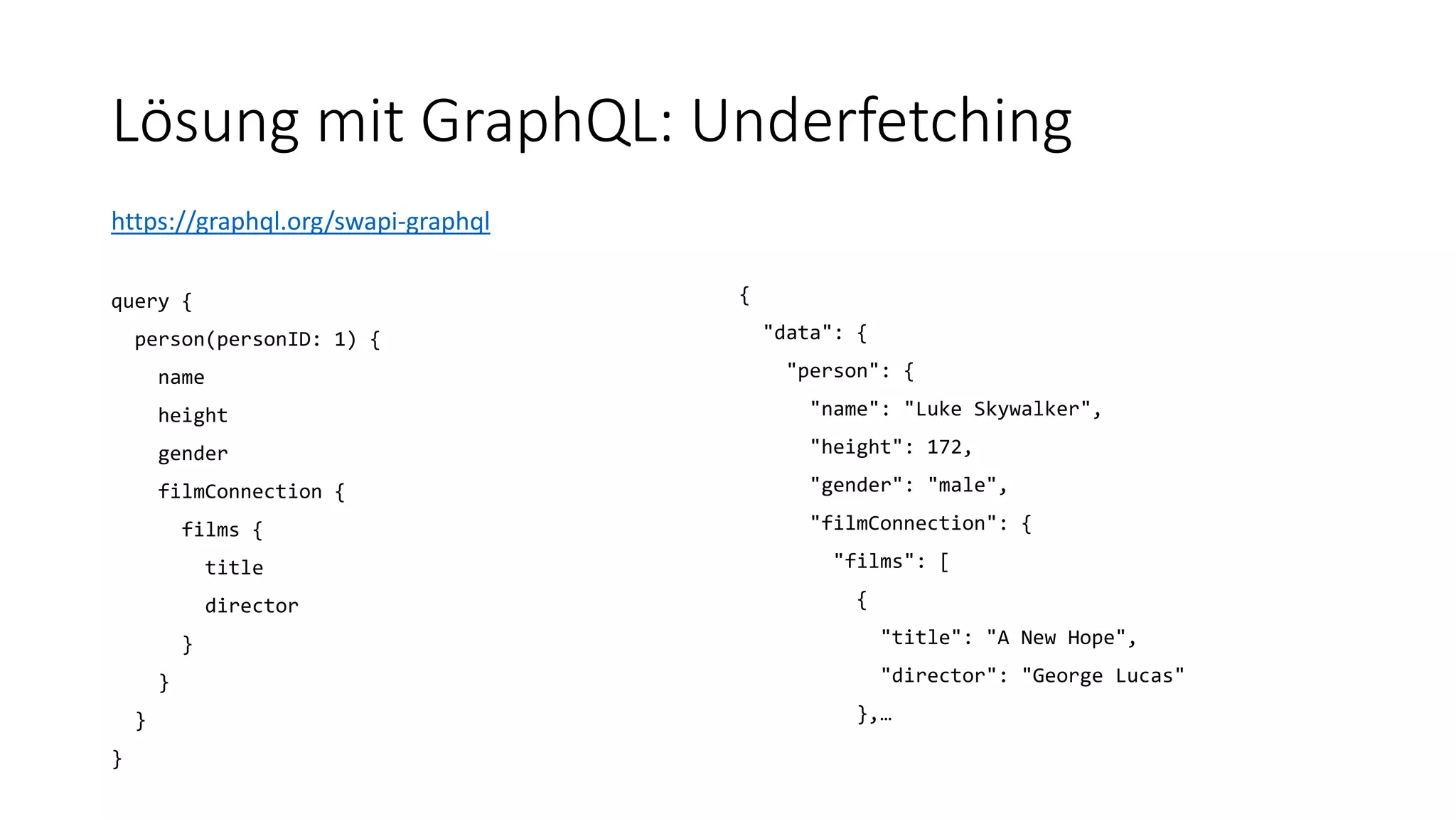

8. Lösung mit GraphQL: Underfetching
https://graphql.org/swapi-graphql
query {
person(personID: 1) {
name
height
gender
filmConnection {
films {
title
director
}
}
}
}
{
"data": {
"person": {
"name": "Luke Skywalker",
"height": 172,
"gender": "male",
"filmConnection": {
"films": [
{
"title": "A New Hope",
"director": "George Lucas"
},…

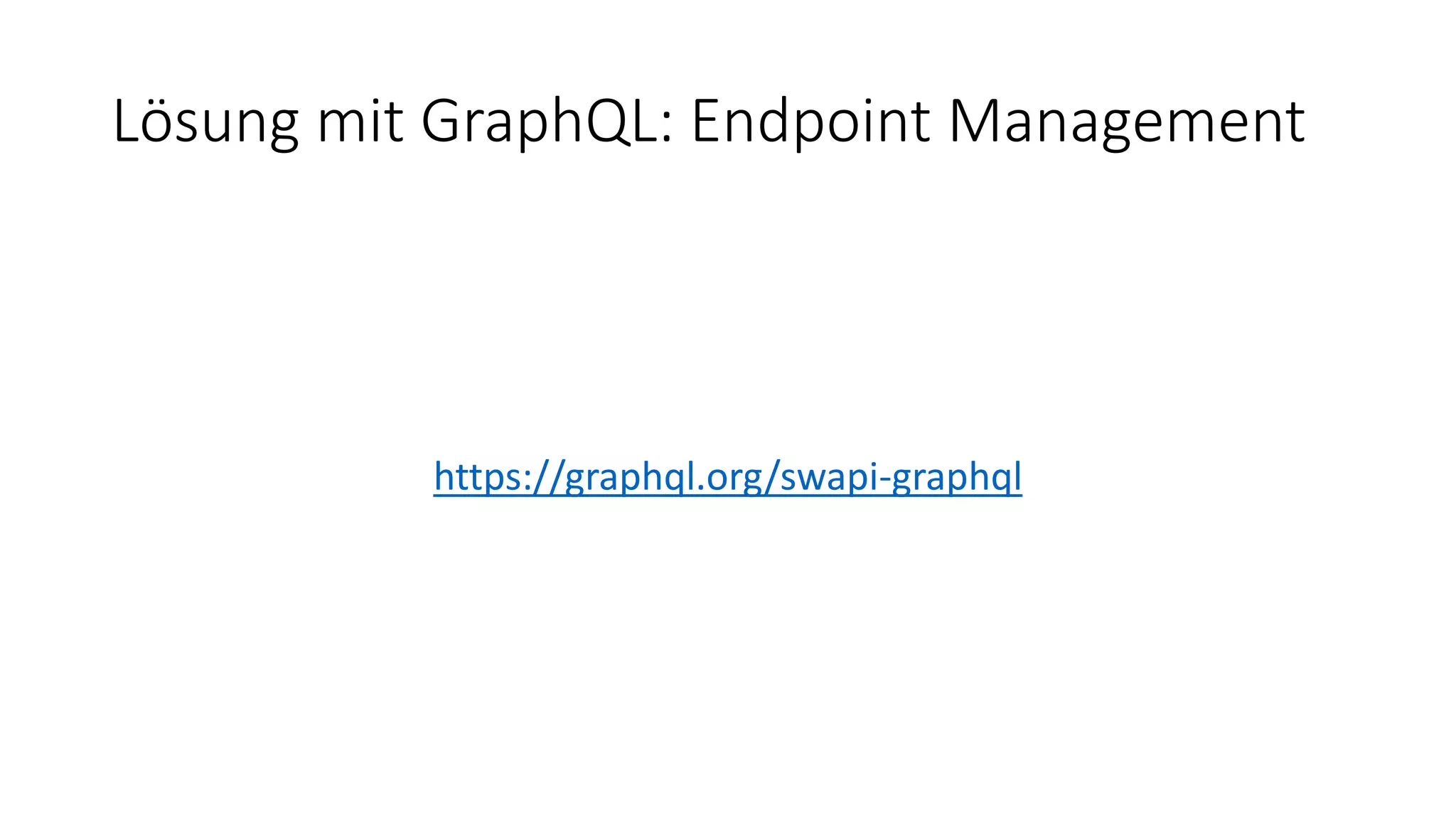

9. Lösung mit GraphQL: Endpoint Management
https://graphql.org/swapi-graphql

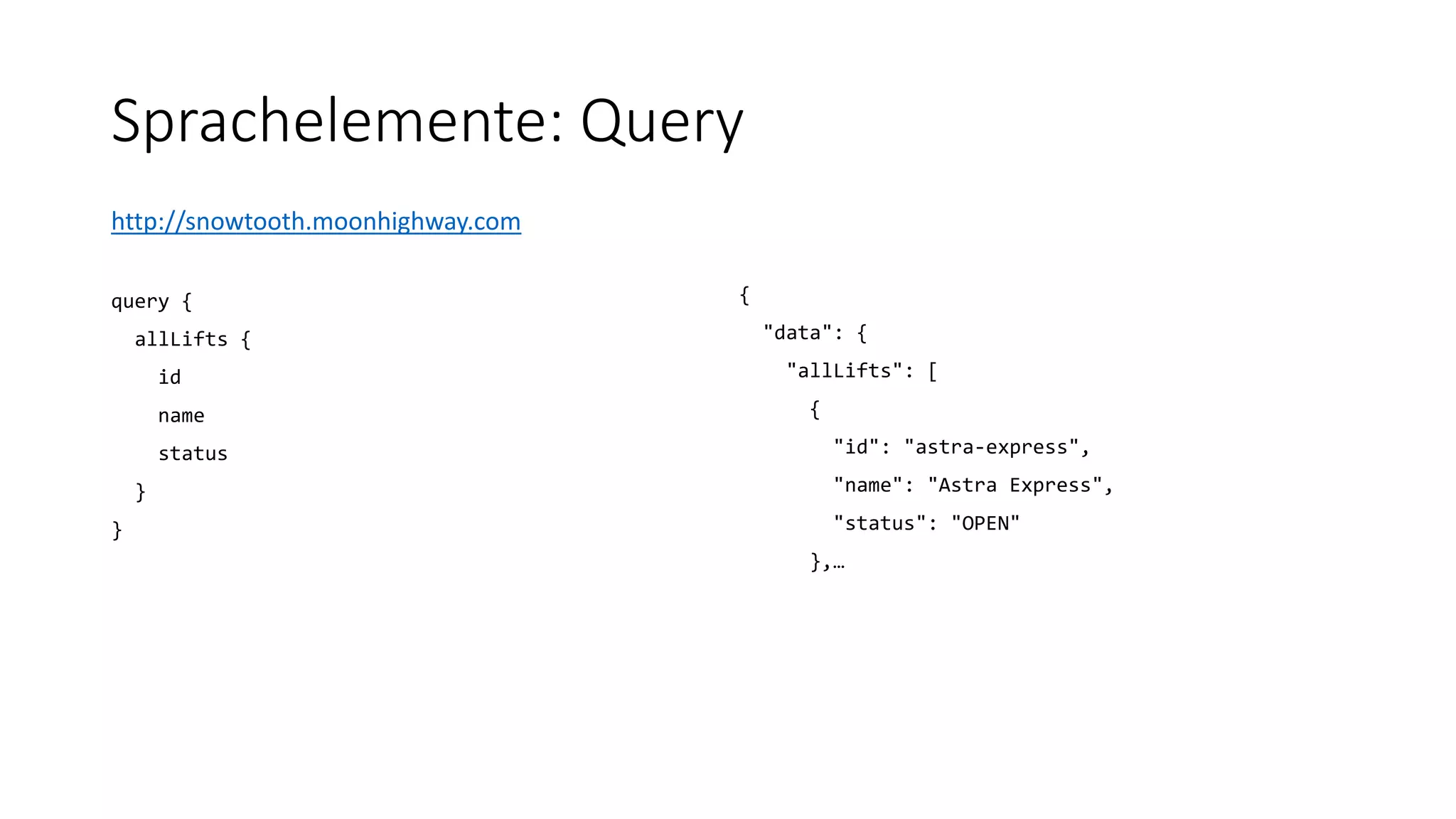

10. Sprachelemente: Query
http://snowtooth.moonhighway.com
query {
allLifts {
id
name
status
}
}
{
"data": {
"allLifts": [
{
"id": "astra-express",
"name": "Astra Express",
"status": "OPEN"
},…

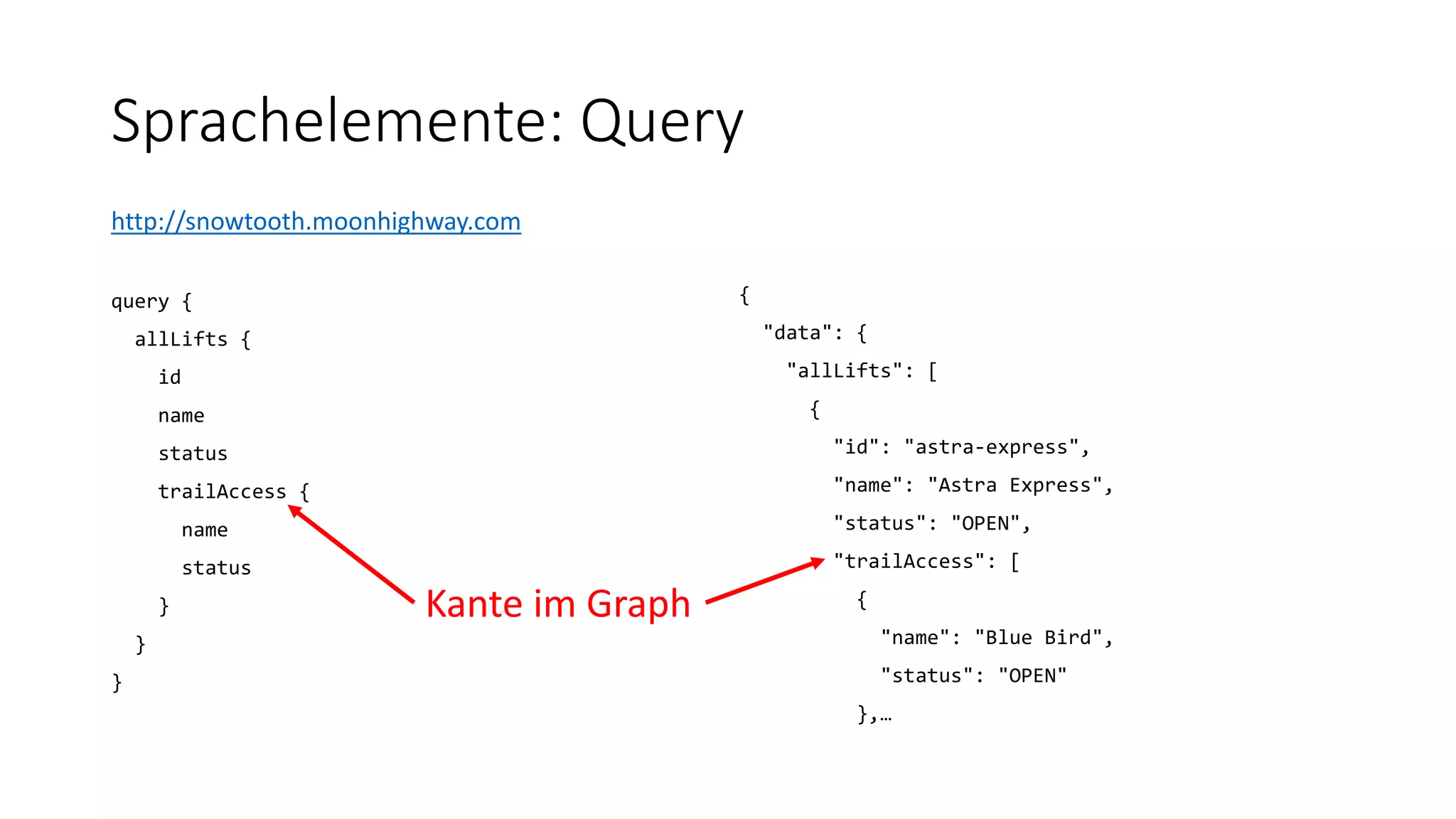

11. Sprachelemente: Query
http://snowtooth.moonhighway.com
query {
allLifts {
id
name
status
trailAccess {
name
status
}
}
}
{
"data": {
"allLifts": [
{
"id": "astra-express",
"name": "Astra Express",
"status": "OPEN",
"trailAccess": [
{
"name": "Blue Bird",
"status": "OPEN"
},…
Kante im Graph

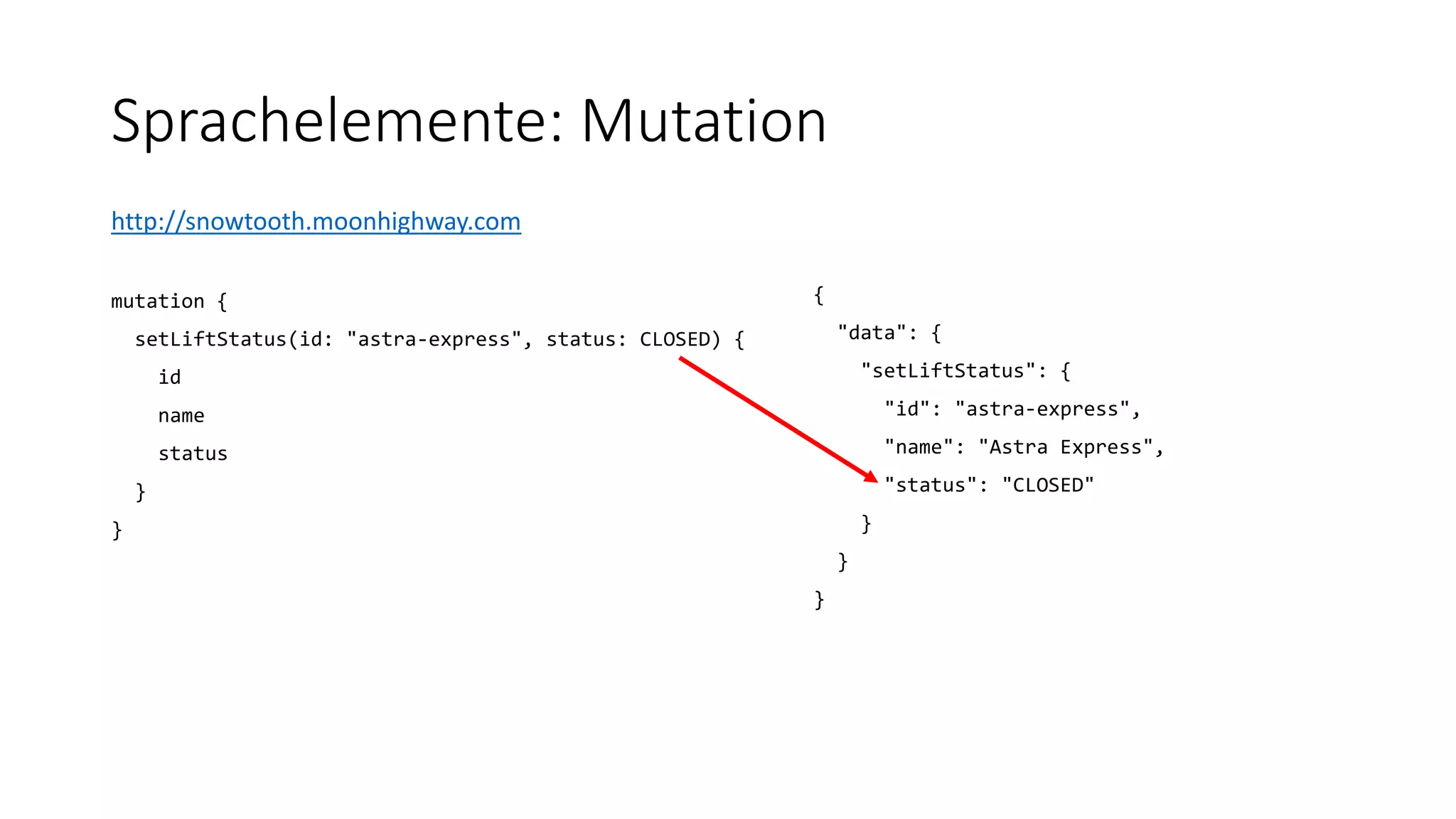

12. Sprachelemente: Mutation
http://snowtooth.moonhighway.com
mutation {
setLiftStatus(id: "astra-express", status: CLOSED) {
id
name
status
}
}
{
"data": {
"setLiftStatus": {
"id": "astra-express",
"name": "Astra Express",
"status": "CLOSED"
}
}
}

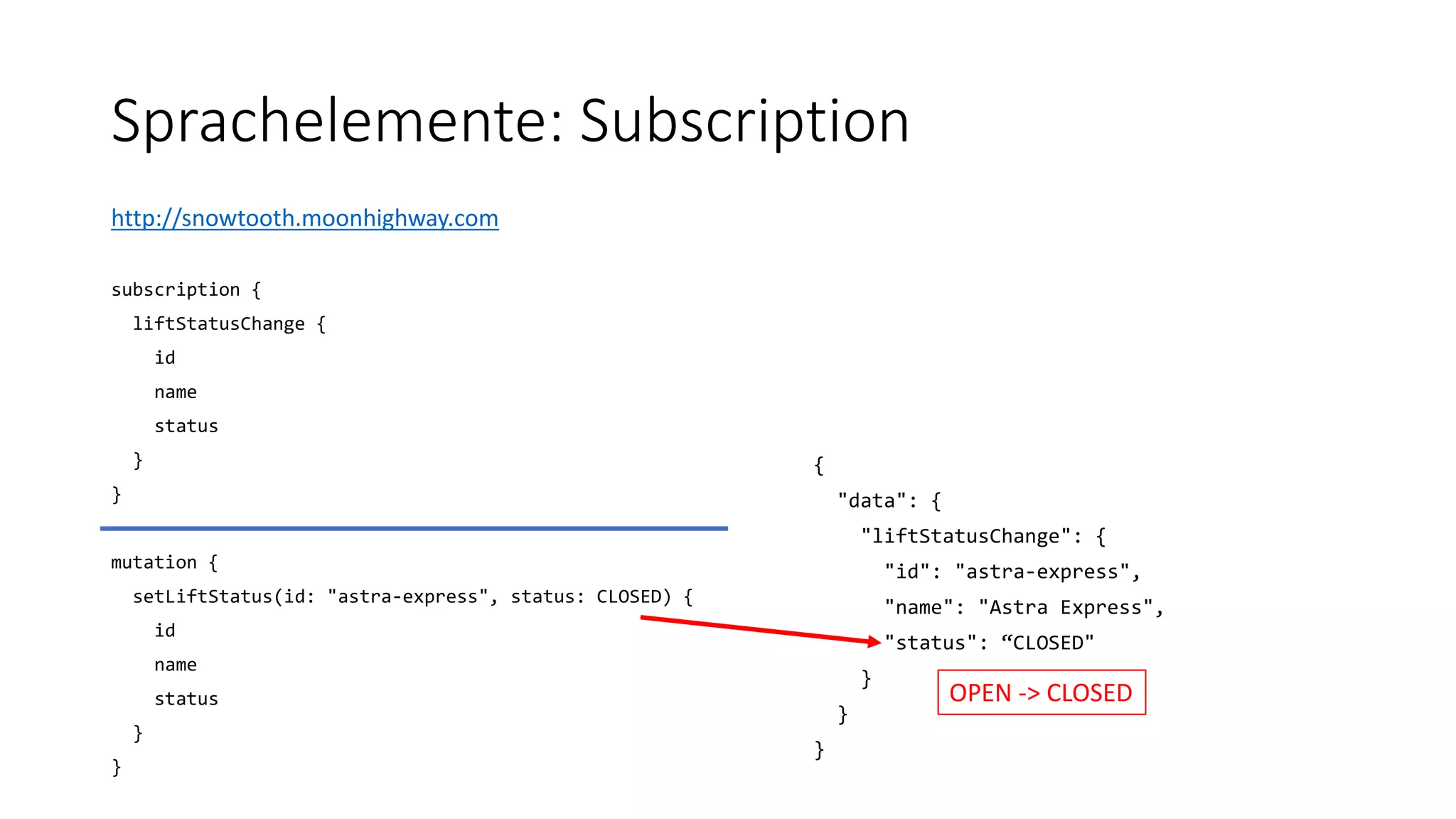

13. Sprachelemente: Subscription
http://snowtooth.moonhighway.com
subscription {
liftStatusChange {
id
name
status
}
}
mutation {
setLiftStatus(id: "astra-express", status: CLOSED) {
id
name
status
}
}
{
"data": {
"liftStatusChange": {
"id": "astra-express",
"name": "Astra Express",
"status": “CLOSED"
}
}
}
OPEN -> CLOSED

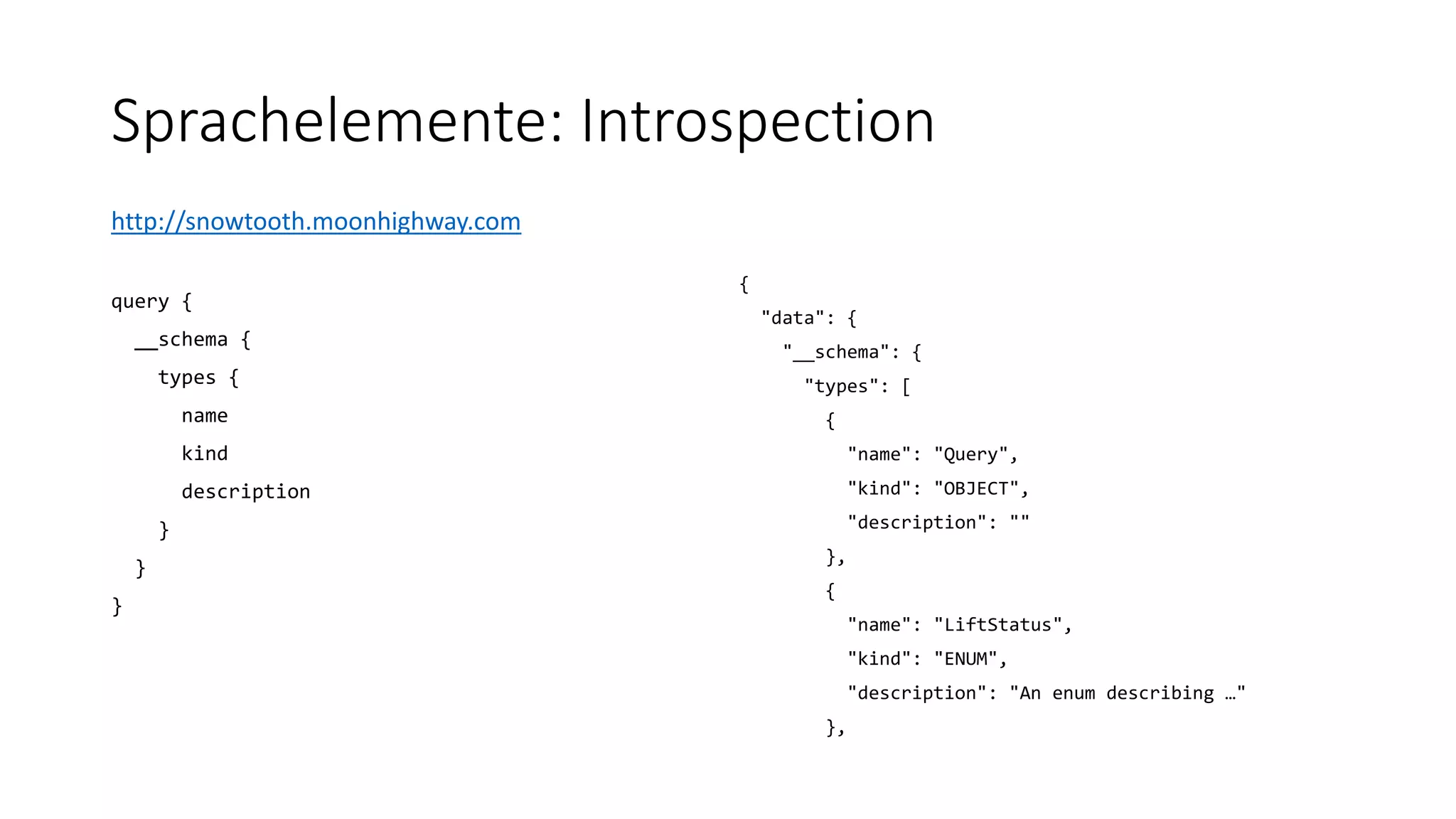

14. Sprachelemente: Introspection
http://snowtooth.moonhighway.com
query {
__schema {
types {
name
kind
description
}
}
}
{
"data": {
"__schema": {
"types": [
{
"name": "Query",
"kind": "OBJECT",
"description": ""
},
{
"name": "LiftStatus",
"kind": "ENUM",
"description": "An enum describing …"
},

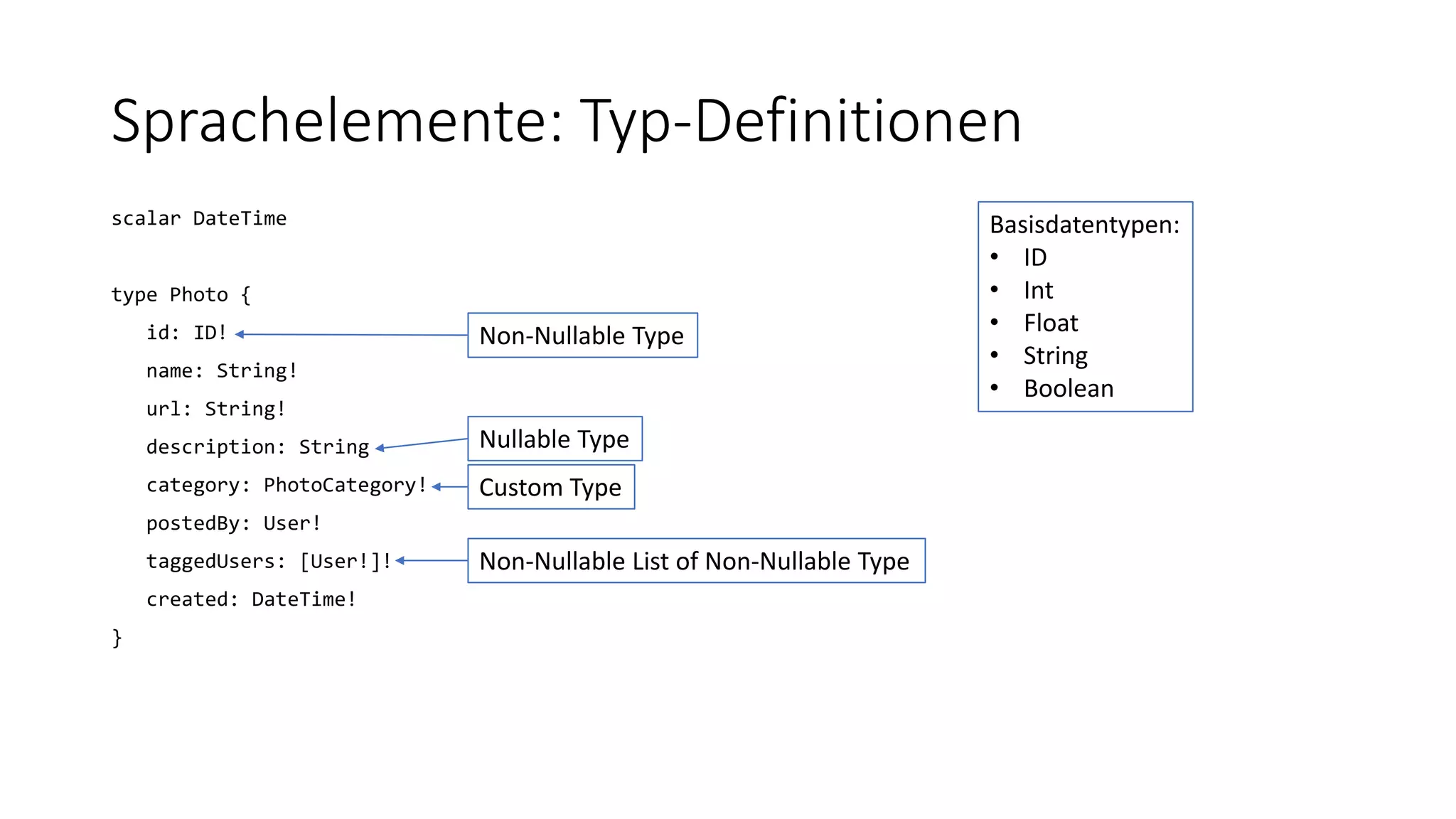

15. Sprachelemente: Typ-Definitionen
scalar DateTime
type Photo {
id: ID!
name: String!
url: String!
description: String
category: PhotoCategory!
postedBy: User!
taggedUsers: [User!]!
created: DateTime!
}
Basisdatentypen:
• ID
• Int
• Float
• String
• Boolean
Nullable Type
Non-Nullable Type
Custom Type
Non-Nullable List of Non-Nullable Type

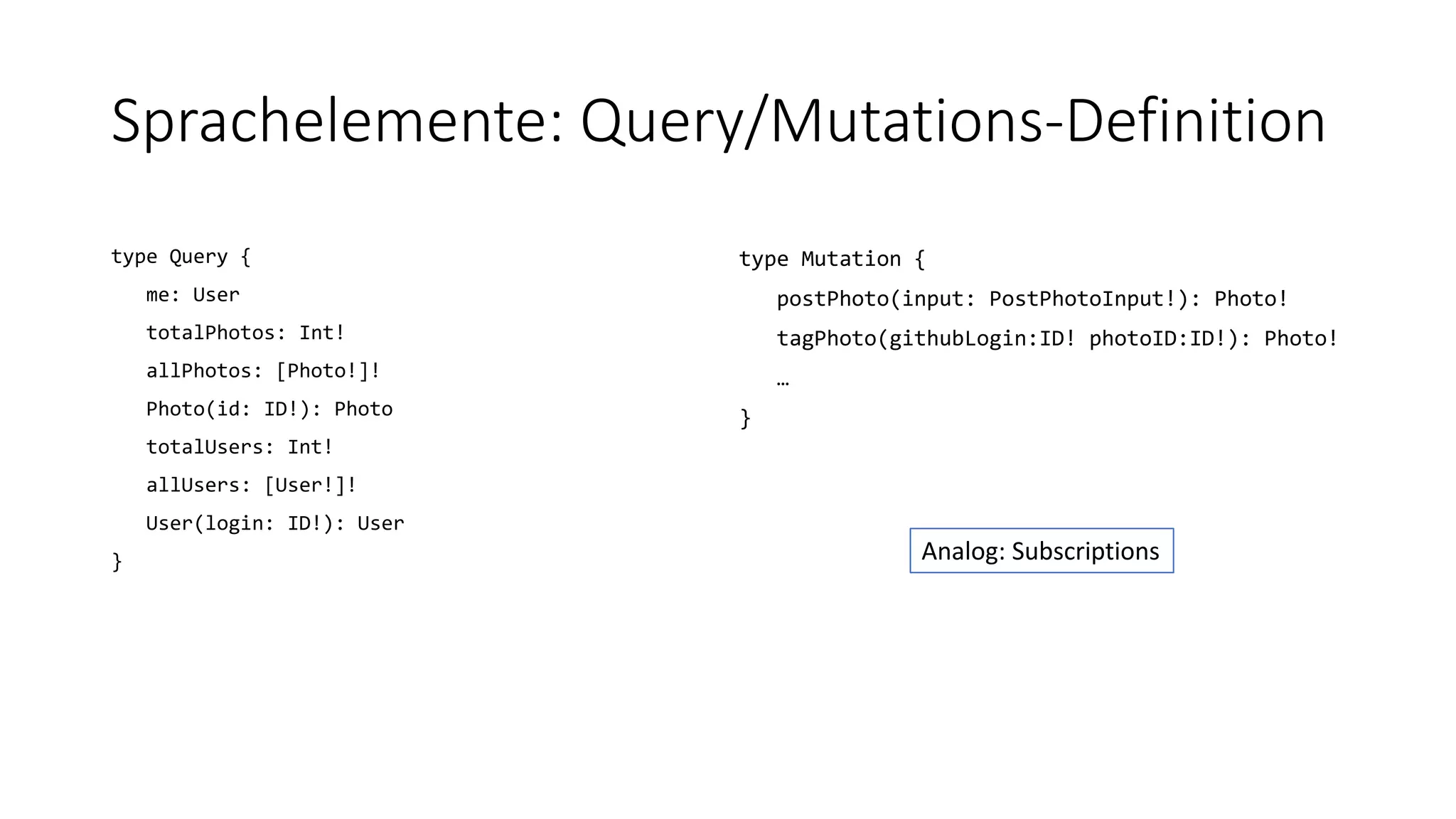

16. Sprachelemente: Query/Mutations-Definition
type Query {
me: User
totalPhotos: Int!
allPhotos: [Photo!]!
Photo(id: ID!): Photo
totalUsers: Int!
allUsers: [User!]!
User(login: ID!): User
}
type Mutation {
postPhoto(input: PostPhotoInput!): Photo!
tagPhoto(githubLogin:ID! photoID:ID!): Photo!
…
}
Analog: Subscriptions

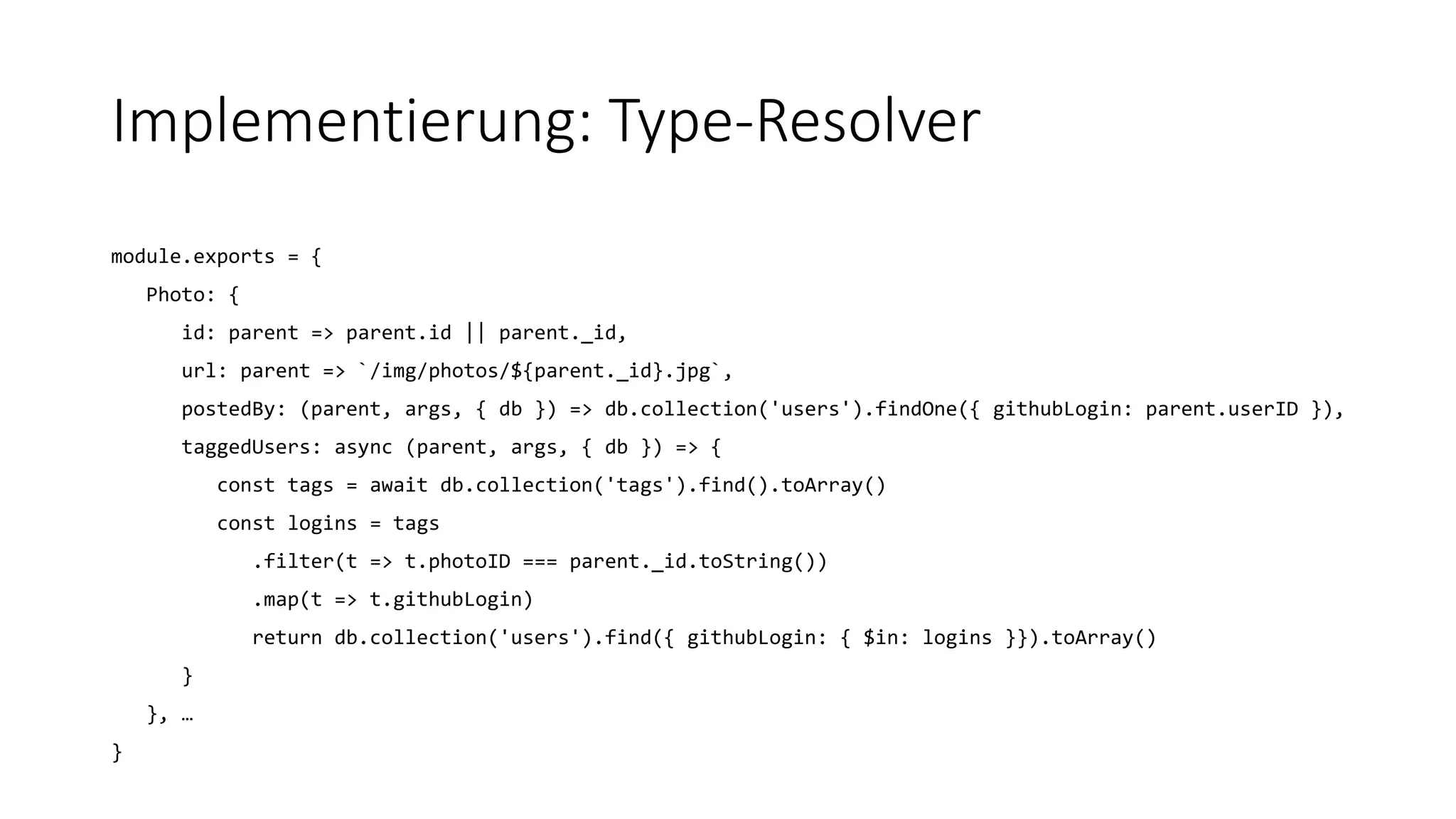

17. Implementierung: Type-Resolver
module.exports = {
Photo: {
id: parent => parent.id || parent._id,
url: parent => `/img/photos/${parent._id}.jpg`,
postedBy: (parent, args, { db }) => db.collection('users').findOne({ githubLogin: parent.userID }),
taggedUsers: async (parent, args, { db }) => {
const tags = await db.collection('tags').find().toArray()
const logins = tags
.filter(t => t.photoID === parent._id.toString())
.map(t => t.githubLogin)
return db.collection('users').find({ githubLogin: { $in: logins }}).toArray()
}
}, …
}

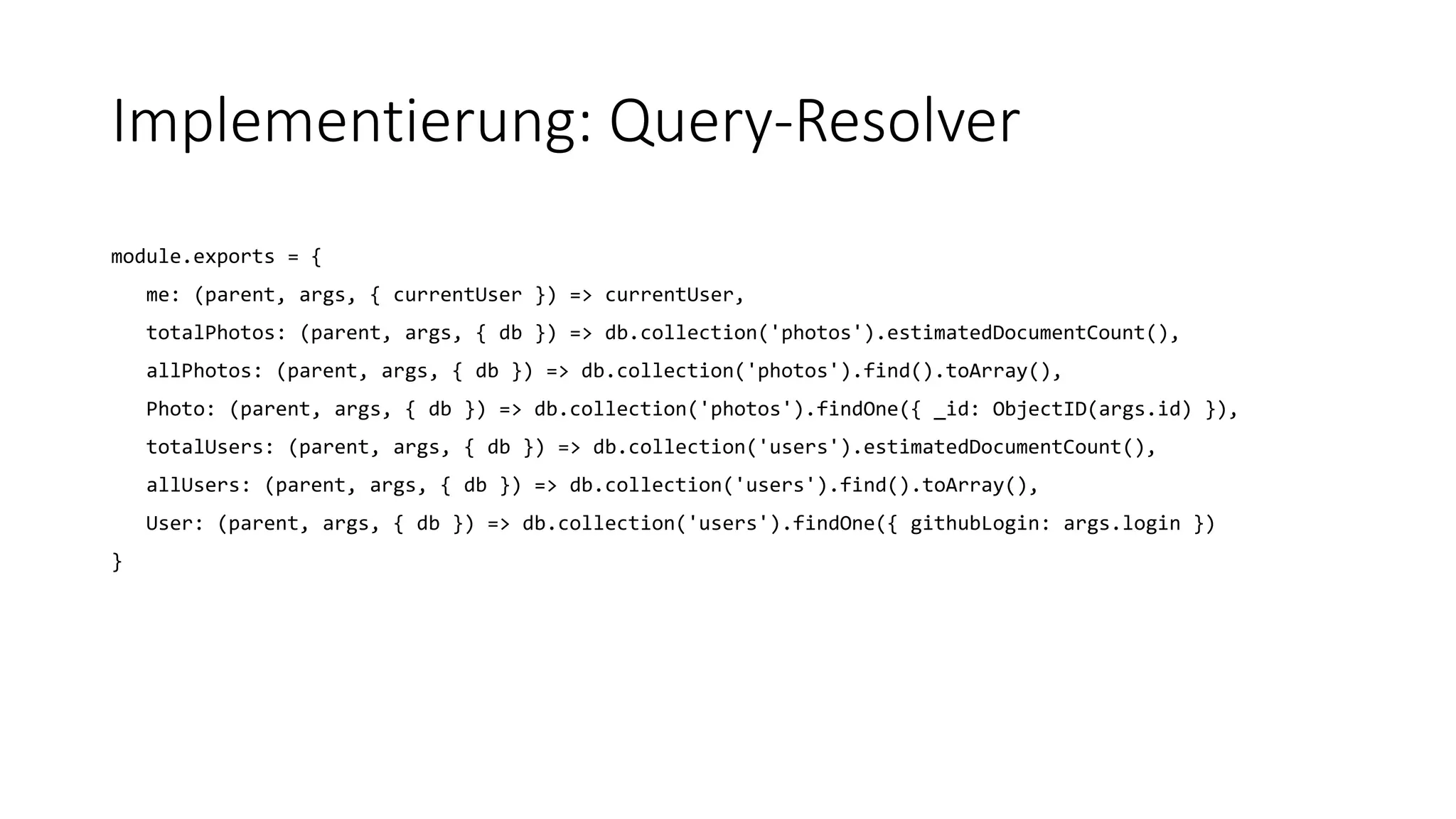

18. Implementierung: Query-Resolver
module.exports = {
me: (parent, args, { currentUser }) => currentUser,
totalPhotos: (parent, args, { db }) => db.collection('photos').estimatedDocumentCount(),
allPhotos: (parent, args, { db }) => db.collection('photos').find().toArray(),
Photo: (parent, args, { db }) => db.collection('photos').findOne({ _id: ObjectID(args.id) }),
totalUsers: (parent, args, { db }) => db.collection('users').estimatedDocumentCount(),
allUsers: (parent, args, { db }) => db.collection('users').find().toArray(),
User: (parent, args, { db }) => db.collection('users').findOne({ githubLogin: args.login })
}

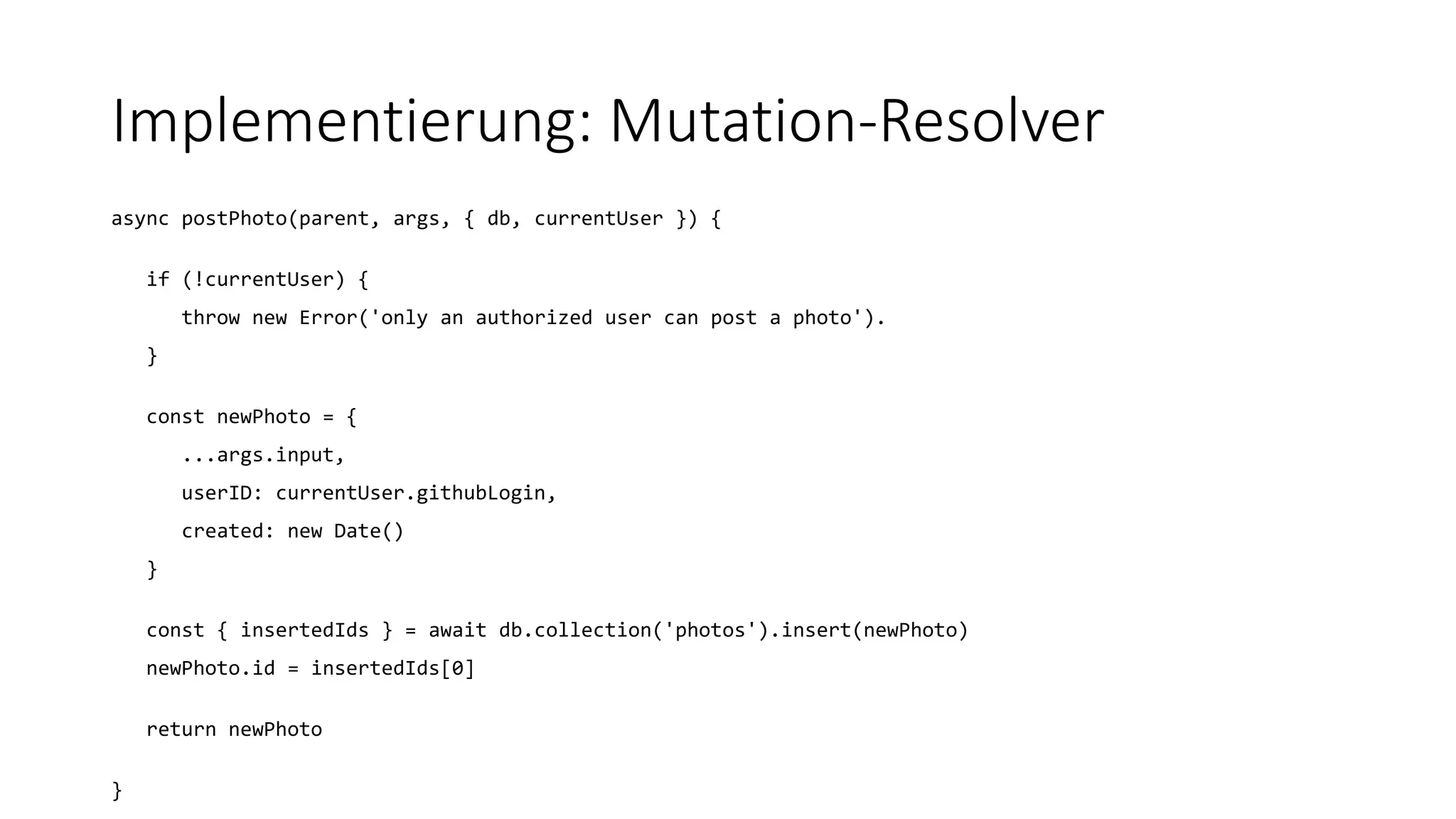

19. Implementierung: Mutation-Resolver
async postPhoto(parent, args, { db, currentUser }) {
if (!currentUser) {
throw new Error('only an authorized user can post a photo').
}
const newPhoto = {
...args.input,
userID: currentUser.githubLogin,
created: new Date()
}
const { insertedIds } = await db.collection('photos').insert(newPhoto)
newPhoto.id = insertedIds[0]
return newPhoto
}

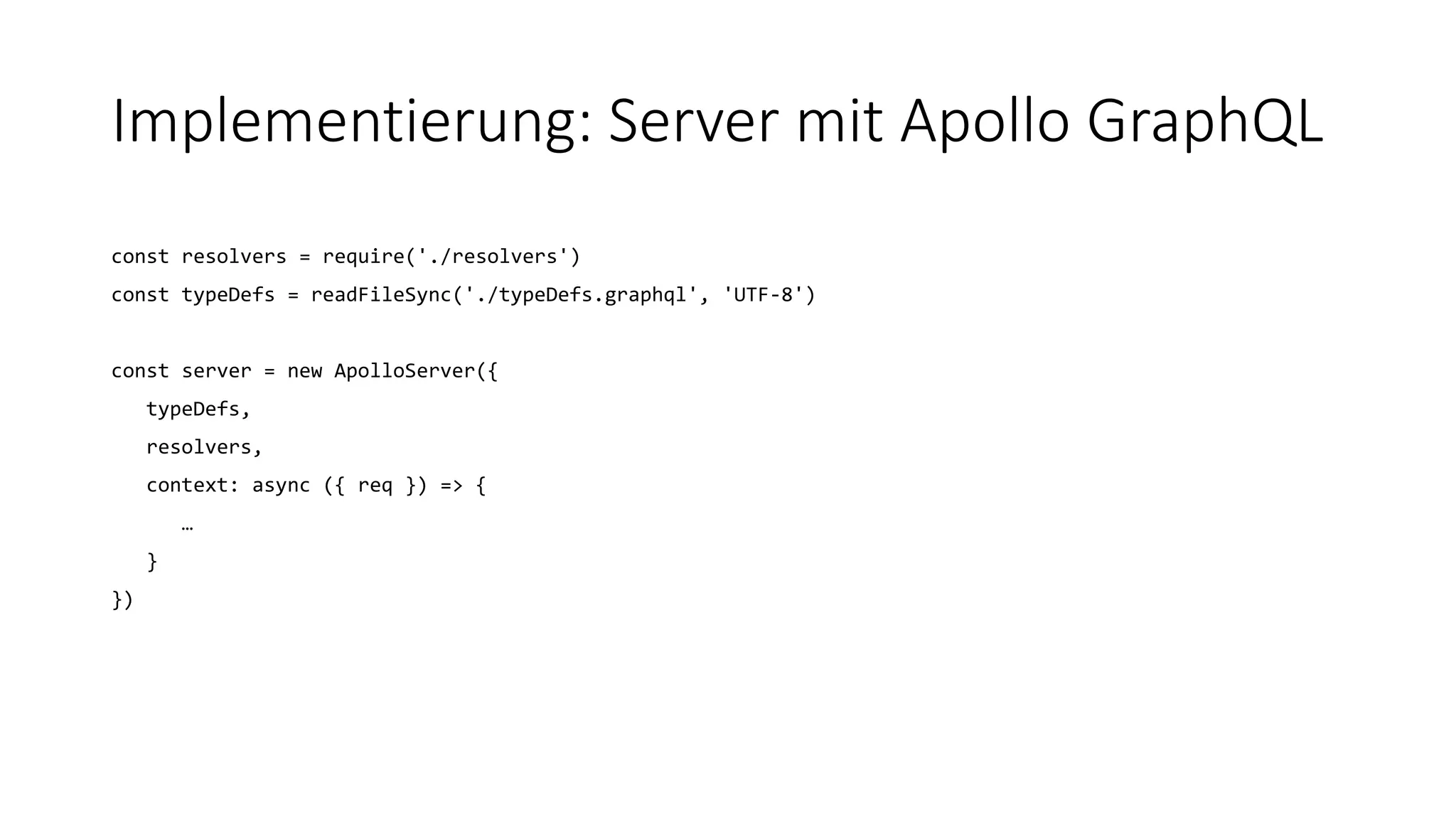

20. Implementierung: Server mit Apollo GraphQL
const resolvers = require('./resolvers')
const typeDefs = readFileSync('./typeDefs.graphql', 'UTF-8')
const server = new ApolloServer({
typeDefs,
resolvers,
context: async ({ req }) => {
…
}
})

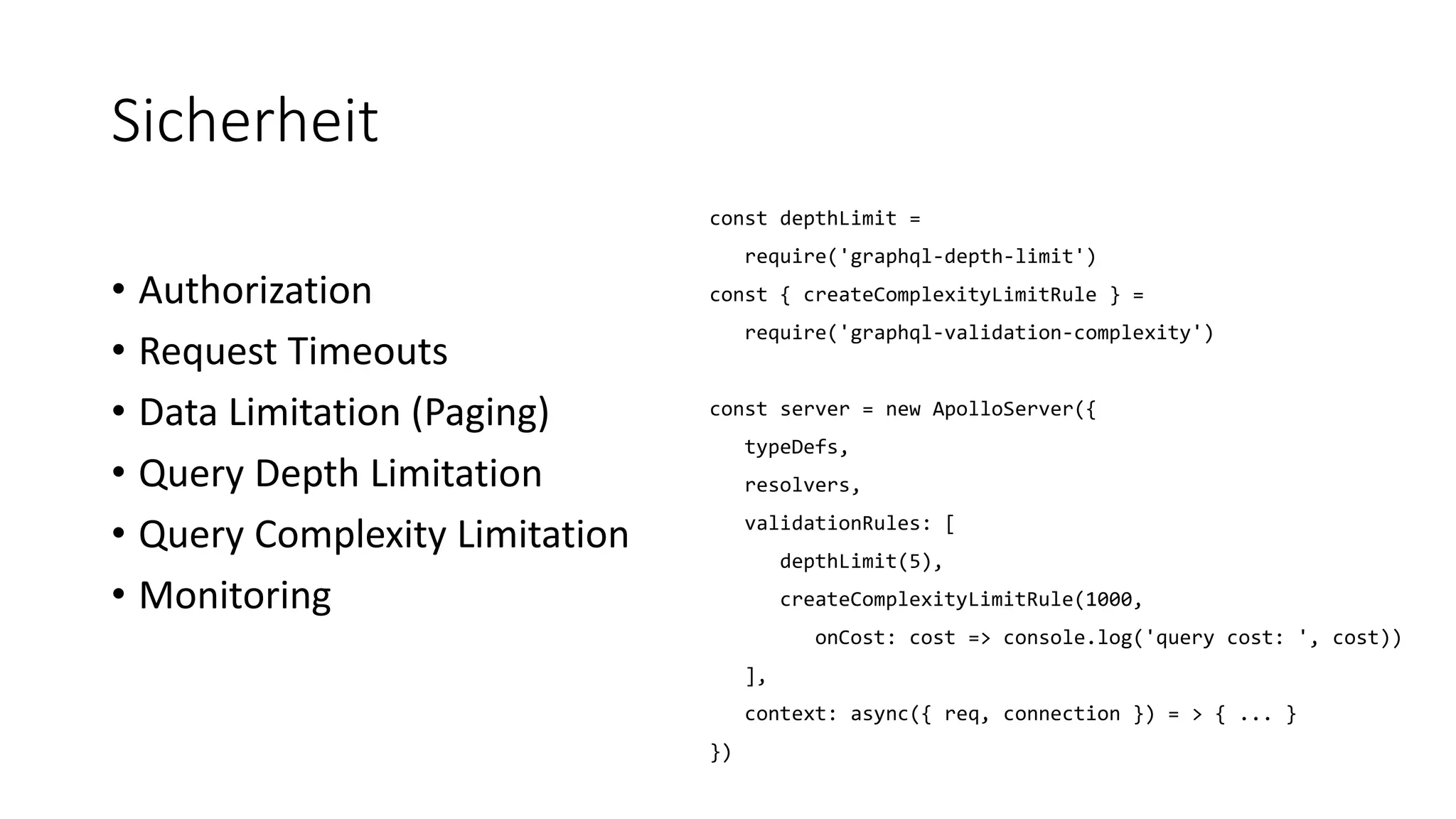

21. Sicherheit
• Authorization
• Request Timeouts
• Data Limitation (Paging)
• Query Depth Limitation
• Query Complexity Limitation
• Monitoring
const depthLimit =
require('graphql-depth-limit')
const { createComplexityLimitRule } =
require('graphql-validation-complexity')
const server = new ApolloServer({
typeDefs,
resolvers,
validationRules: [
depthLimit(5),
createComplexityLimitRule(1000,
onCost: cost => console.log('query cost: ', cost))
],
context: async({ req, connection }) = > { ... }
})

22. Literatur

23. Vielen Dank!
https://graphql.org
https://graphql.org/learn
https://www.apollographql.com
Slides: https://www.slideshare.net/JensSiebert1
Code: https://github.com/moonhighway/learning-graphql
Beispiel: http://snowtooth.moonhighway.com
Twitter: @jens_siebert
