1. 1Copy Right @ Envision 2013
Maximo Condition Monitoring Made Easy
iARMS – Condition Monitoring

2. 2Copy Right @ Envision 2013

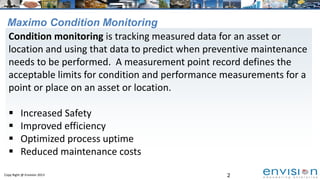

Maximo Condition Monitoring
Condition monitoring is tracking measured data for an asset or
location and using that data to predict when preventive maintenance
needs to be performed. A measurement point record defines the
acceptable limits for condition and performance measurements for a
point or place on an asset or location.
 Increased Safety
 Improved efficiency
 Optimized process uptime
 Reduced maintenance costs

3. 3Copy Right @ Envision 2013

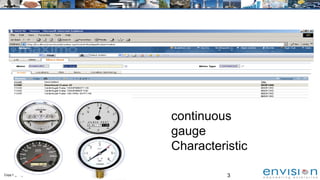

continuous
gauge
Characteristic

4. 4Copy Right @ Envision 2013
Maximo Condition Monitoring
Using threshold values from gauge or characteristic meters to trigger
generation of work orders

5. 5Copy Right @ Envision 2013

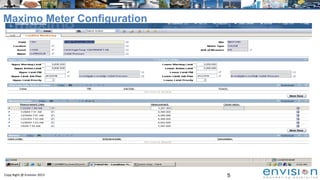

Maximo Meter Configuration

6. 6Copy Right @ Envision 2013

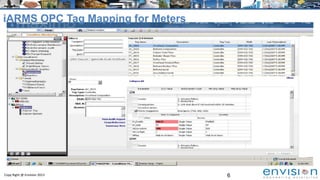

iARMS OPC Tag Mapping for Meters

7. 7Copy Right @ Envision 2013
Automation
Controller
MODBUS
Energy Meter
AI, DI
Local PC
AI, DI
RTU
AI, DI
Recorder
DCS/PLC/BMS
SCADA PC/ OPC Server
iARMS OPC
Client
Firewall
Legacy
Machines
Database & File-
store
iARMS Site Manager
iARMS Centralized Server

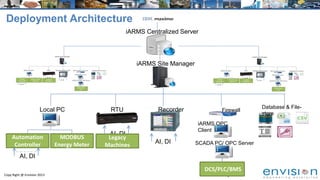

Deployment Architecture

8. 8Copy Right @ Envision 2013
 No inbuilt interface layer in Maximo to connect with SCADA, DCS,
BMS or other systems.
 No real -time visibility of critical parameters in Maximo.
 Vital parameters data is locked in closed systems like SCADA, DCS,
BMS or other systems.
 Inability to track the usage, performance of Equipment, Plants.
 Unable to leverage the historical information for predictive
analysis.
 SME’s located in various locations unable to collaborate.
 Central Maximo deployment in Data Centers for multiple plants in
different geographies is a challenge.
Industry Challenges:

9. 9Copy Right @ Envision 2013

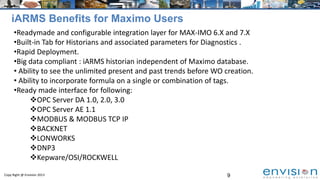

iARMS Benefits for Maximo Users
•Readymade and configurable integration layer for MAX-IMO 6.X and 7.X
•Built-in Tab for Historians and associated parameters for Diagnostics .
•Rapid Deployment.
•Big data compliant : iARMS historian independent of Maximo database.
• Ability to see the unlimited present and past trends before WO creation.
• Ability to incorporate formula on a single or combination of tags.
•Ready made interface for following:
OPC Server DA 1.0, 2.0, 3.0
OPC Server AE 1.1
MODBUS & MODBUS TCP IP
BACKNET
LONWORKS
DNP3
Kepware/OSI/ROCKWELL

10. 10Copy Right @ Envision 2013

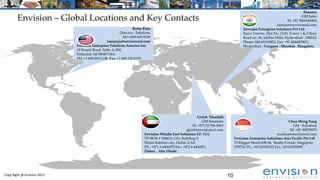

Envision – Global Locations and Key Contacts
Ramana
GM Sales
M: +91 9866184404
ramana@envisionesl.com
Envision Enterprise Solutions Pvt Ltd.
Sreya Towers ,Plot No. 1130, Tower 1 & 2 floor
Road no. 36, Jubliee Hills, Hyderabad - 500033
Phone: 040 65343853. Fax: +91 4044455651
Hyderabad . Gurgaon . Mumbai . Bangalore
Chua Mong Sang
GM - Solutions
M: +65 90078975
mschua@envisionesl.com
Envision Enterprise Solutions Asia Pacific Pte Ltd
15 Enggor Street,#08-04, Realty Centre, Singapore
079716. Ph.: +65 62950102 Fax: +65 62955059
Girish Eleadath
GM Solutions
M: +971 55 956 4865
girish@envisionesl.com
Envision Middle East Solutions FZ- LLC.
PO BOX # 500415, G01, Building 9,
Dubai Internet city, Dubai, UAE.
Ph.: +971 4 4456970 Fax: +971 4 4456971
Dubai . Abu Dhabi
Rama Raju
Director - Solutions
M:+1609 665 9559
ramaraju@envisionesl.com
Envision Enterprise Solutions America Inc.
12 Roszel Road, Suite A-204,
Princeton NJ 08540 USA .
PH: +1 609 269 2198 Fax: +1 609 228 6378

11. 11Copy Right @ Envision 2013
