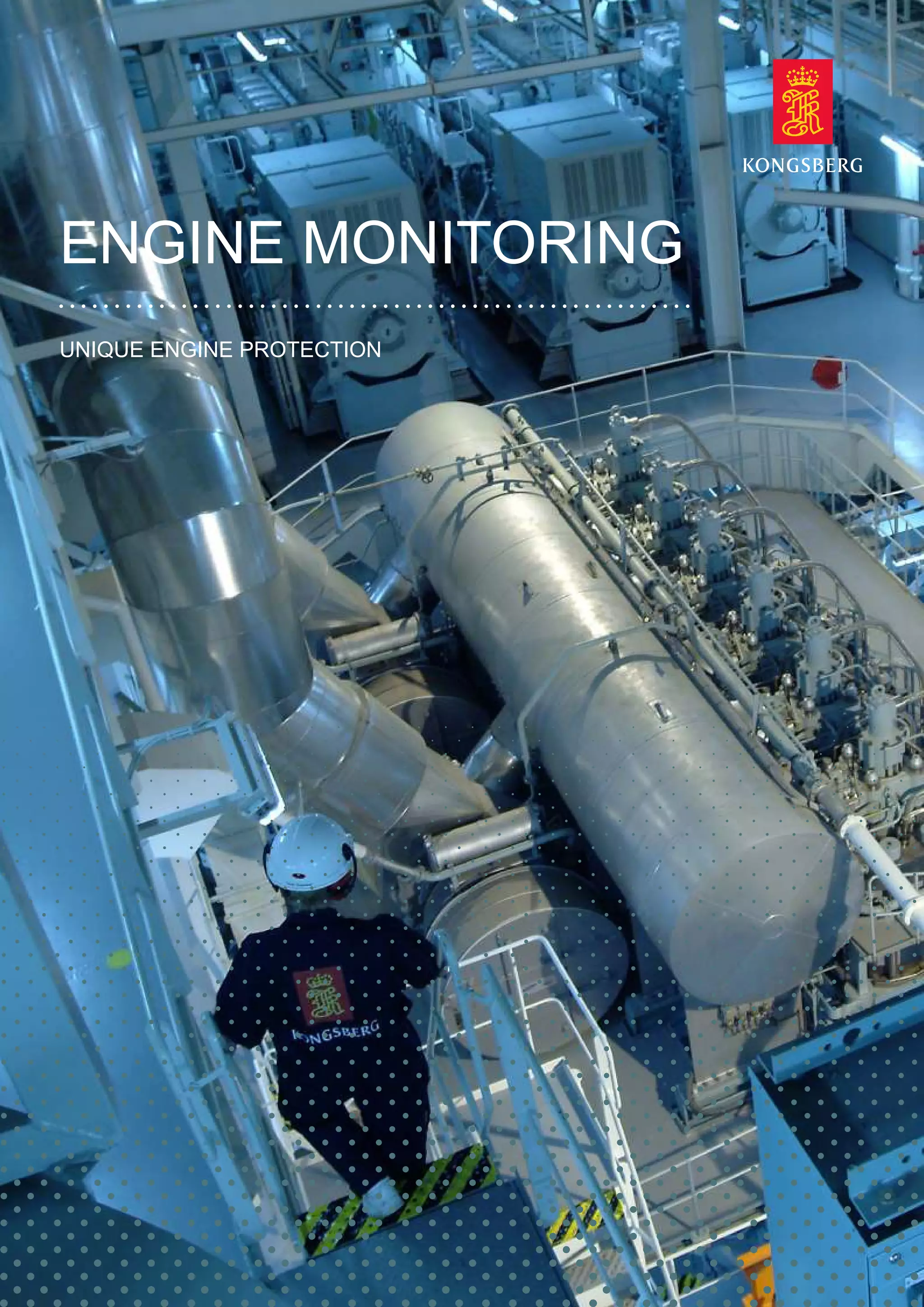

Marine Engine Automation

1. UNIQUE ENGINE PROTECTION
ENGINE MONITORING

2. UNIQUE ENGINE PROTECTION 3
SYSTEM PHILOSOPHY 4
AVODING OPEN-UP INSPECTION 6
UNIQUE TEMPERATURE MONITORING - BEARINGS AND LINERS 8
TORQUE AND POWER MONITORING 10
Kongsberg Maritime • August 2014 • Design and layout: DEON.NO
CONTENTS
OUR MISSION
We shall earn the respect and recognition for our
dedication to provide innovative and reliable marine
electronics that ensure optimal operation at sea.
By utilizing and integrating our technology, experience
and competencies in positioning, hydro-acoustics,
communication, control, navigation, simulation, and
automation, we aim to give our customers The Full
Picture. The Full Picture yields professional solutions
and global services that make a difference enabling
you to stay ahead of the competition.
OUR PHILOSOPHY
Our success depends on the success of our
customers. Actively listening to our customers and
truly understanding their needs, and then translating
these needs into successful products and solutions
is central to achieving our goal.
Our people are the key to our success and we
empower them to achieve. Working together in a
global network of knowledge, guided by our values,
engenders innovation and world class performance.
Every day we have to think a little differently, because
every client is unique. We aspire to translate the
imagination and dedication of our staff into successful
technologies and solutions. Our commitment is to add
value to your operations by providing you with
The Full Picture.

3. Engine Monitoring Systems for
operational safety
KONGSBERG Engine Monitoring Systems are built on
KONGSBERG K-Chief hardware and software. They
consist of bearing wear and bearing temperature
monitoring of crank-train bearings, water in oil, cylinder
liner temperature and shaft power monitoring. The
Engine Monitoring Systems are fully scalable from
standalone to full integration with KONGSBERG
K-Chief alarm monitoring system and KONGSBERG
AutoChief propulsion control system. All systems are
recommended and approved by the major engine
designers and are an ideal basis for condition based
maintenance.
UNIQUE ENGINE PROTECTION
The KONGSBERG Engine Monitoring Systems provide
improved operational safety, reduced risk of
unforeseeable repair costs and optimized monitoring of
the engines.
?Bearing Wear Conditon Monitoring (BWCM) is
required to avoid open-up inspections (MAN B&W
2-stroke engines)
?Unique protection of the engine by using wireless
temperature monitoring of crank and crosshead
bearing
?Can be configured and combined to suit individual
needs
?Approved by MAN Diesel & Turbo for condition
based maintenance
3
Engine overview presented in K-Chief

4. WORKSTATIONS
BRIDGE
CARGO
AUTOMATION
ENGINE MONITORING
AutoChief
engine
control
Torque
monitoring
Fuel
monitoring
Cylinder
pressure
Turbo
charger
monitoring
Bearing wear
and
Water in oil
Bearing
and liner
temperature
Weather
forecast
SYSTEM PHILOSOPHY
Essential components such as bearing wear sensors
and wireless temperature sensors yield the best results
that technology has to offer in terms of reliability,
accuracy and durability. By utilizing the CAN field bus
protocol for engine instrumentation, installation costs
are reduced and the quality of data processing
enhanced.
The engine monitoring functionalities have been
developed in close co-operation with maritime
professionals, to ensure system functionalities that
work effectively and safely in real life operations. The
KONGSBERG Engine Monitoring System concept in
general and the individual modules utilize open
standards, which provide for interfaces to different
automation systems.
Utilize open standards for automation
systems
4
Modular and scalable concept
Systems may easily be extended by adding additional
hardware units such as operator stations, input/output
modules and additional measuring points.
KONGSBERG System Technology offers signal
acquisition and processing units for installation in ER
cabinets, ECR consoles or mounted directly on the
engine. Processing algorithms are executed within the
local acquisition units or in the powerful controller units.
By distribution and segregation the consequences of a
system fault are reduced and may even be eliminated.
The KONGSBERG Engine Monitoring Systems
concept yields a modular design, where the various
modules can be configured and combined to suit
individual needs.
The individualised Engine Monitoring systems can then
be integrated with KONGSBERG K-Chief and
AutoChief system. Each module is fully compatible with
each other and therefore provides seamless
information sharing and a consistent operation
environment.

5. Engine overview
Cylinder Liner
Temperature
Monitors piston
running
performance by
measuring the
temperature of
the cylinder
liners.
Bearing Wear
Measures the
combined wear
of crosshead,
crank and main
bearing and
provides early
warning of
bearing seizure.
It is required to
avoid open up
inspections.
Main Bearing
Temperature
Mounted on the
bearing girder
with the tip in
direct contact
with the bearing
shell.
Shaft Power
Calculates
torque and
power. The
system is 100%
digital and
measures the
twist of a
rotating shaft.
Crank and
Crosshead
Temperature
Measures
continuously the
temperature of
the bearings.
The sensor
communicates
wirelessly with a
processing unit
using a high
frequency and
low energy radar
pulse.
Water in Oil
The sensor
gives continuous
measurement of
moisture in oil,
and oil
temperature.
Moisture is
measured in
terms of water
activity.

6. AVOIDING OPEN-UP INSPECTION
Condition monitoring of crank-train
bearings in 2-stroke diesel engines
The KONGSBERG Bearing Wear Condition Monitoring
(BWCM) system measures and displays the combined
physical wear of the crosshead, crank and main
bearings, providing early bearing seizure warnings if
problems occur during engine operation. The sensors
are specifically designed to provide reliable and
accurate measurements over years of operation inside
the engine.
Main Benefits
?Approved to avoid open-up inspections
?Unique long-term measuring accuracy
?Compact and simple cabling and
installation on the engine
?Full integration with KONGSBERG K-Chief
and AutoChief system
6
The BWCM system uses two sensors mounted in each
cylinder compartment, measuring every time the
crosshead passes Bottom Dead Centre. The
KONGSBERG BWCM sensors are compensated for
engine speed, engine load (cpp) and engine crank
case temperature.

7. Water in Oil sensor
The KONGSBERG Water in Oil sensor enables fast
and reliable detection of moisture in lubrication oil. It
can be used in online moisture monitoring and as a
control device.
The Water in Oil sensor measures moisture in oil in
terms of the water activity (aw) and temperature (T).
Water activity indicates directly whether there is a risk
of free water formation which causes corrosion of the
bearings. The measurement is also independent of oil
type and age.
The sensor incorporates the latest generation of the
HUMICAP® Sensor, which is the result of ten years of
field experience. It was developed for demanding
moisture measurement in liquid hydrocarbons. The
sensor's excellent chemical tolerance provides
accurate and reliable measurement over a wide
measurement range.
Avoiding open up inspection
The KONGSBERG Bearing Wear Conditon Monitoring
(BWCM) system is designed according to the
specifications of MAN Diesel & Turbo and received a
Type Approval according to Germanischer Lloyd’s (GL)
Guidelines for Machinery.
The following systems are part of a class survey
arrangement:
?BWCM system
?Water in Oil sensor
?Shaft Earthing Device (owner or yard supply)
?Computerized Planned Maintenance System (owner
or yard supply)
WATER IN OIL SENSOR
7
Main Benefits
?According to MAN Diesel & Turbo and
GL specifications condition based
overhaul of crank-train bearings
?Dual sensor for continuous measurement
of moisture in oil and oil temperature
?Easy to maintain in the field
BEARING WEAR SENSOR

8. UNIQUE TEMPERATURE MONITORING
- BEARINGS AND LINERS
RADAR PULSE FROM
SIGNAL PROCESSING UNIT
SIGNAL
PROCESSING
UNIT
SENSORSTATIONARY
ANTENNA
PULSE RESPONSE
FROM SENSOR
CUTTINGTHEOILSUPPLY
ALARMFROM
TEMPERATURESENSOR
ALARM LIMIT
ALARMFROMOIL
MISTDETECTION
1
100
2 3 4
200
300
400
o
C
Min
SENTRY - For crankpin and crosshead
bearing temperature monitoring
The SENTRY wireless bearing temperature monitoring
system is capable of continuously measuring the
temperature of bearings during engine operation.
The wireless sensors are individually interrogated from
a multiplexed Signal Processing Unit (SPU) using a
high frequency and low energy radar pulse. The radar
pulse is transmitted to the wireless sensor via a coaxial
cable to a stationary antenna positioned inside the
crank case. Within the interrogation range of the
stationary antenna the sensor responds to the radar
pulse by reflecting a pulse pattern back to the SPU.
The characteristics of the reflected pulse are uniquely
defined by the temperature.
Main Benefits
?Continuously measuring temperature of the
bearings for fast response time
?Passive sensor, no battery required
?Proven and reliable technology
?Type Approved to replace Oil Mist Detectors
8
Main components are:
?Wireless temperature sensor
?Stationary reading antenna
?Signal Processing Unit
WIRELESS TEMPERATURE SENSOR

9. Main bearing temperature sensors
Custom designed main bearing temperature sensors
can be fitted into any type of 2-stroke and 4-stroke
diesel engines. On 2-stroke engines the sensors are
mounted on the main bearing girder with the tip of the
sensor in direct contact with the bearing shell. The
sensor measures the combined temperatures of the
bearing shell and of the lubrication oil that flows from
the bearing. On 4-stroke engines the sensors are
inserted in the main bearing cap.
Monitoring cylinder liner temperature
The KONGSBERG cylinder liner monitoring system
monitors the piston running performance by measuring
the temperature of the upper part of the cylinder liners.
Increased friction between the piston rings and the
cylinder liner creates an elevated temperature level
leading to abnormal liner wear and potential piston ring
breakage. Temperature alarm limits can be individually
set on the PC work station to give early warning about
high thermal load and potential cylinder liner scuffing.
The KONGSBERG cylinder liner monitoring system
consists of high quality temperature sensors and one
field-bus signal converter on each cylinder and one
common Operator Station. Additionally, individual relay
output alarms can be provided directly to the cylinder
lubrication units in order to temporarily increase the
cylinder lubrication.
9
LINER TEMPERATURE SENSORS
CONVERTER
BEARING TEMPERATURE SENSOR
Main Benefits
?Tailor made to the Wärtsilä MAPEX PR
condition monitoring system
?Also used to send scuffing alarms to the
MAN Diesel & Turbo Alpha Lubricator
?Easy to refit on MAN Diesel & Turbo and
Wärtsilä engines
?Field-bus signal converters (CAN Open)
installed directly on engine block

10. TORQUE AND POWER MONITORING
MetaPower® is 100% digital and based on
optical measurement
The MetaPower® System
The system displays RPM,
torque and power for both shafts.
measures the twist of a
rotating shaft. Two slotted wheels are mounted on the
shaft. Light is transmitted by LEDs through the slots in
each wheel, converted to a digital electronic signal and
sent back to the processing unit for calculation of the
corresponding torque.
ROTATING SHAFT
PROCESSING UNIT
Main Benefits
?Service free operation
?The maintenance (cleaning lenses and
code wheels) is conducted by the crew
?No sensitive electronics
?No mechanical wear
?No zero point drifting over time
?Not affected by ambient temperature
variations
10
High accuracy torque measurement
No need for strain gauges or any type of delicate
electronics glued to, or mounted on the rotating shafts.
The system is a digital measuring system using LED
switches for the detection of the shaft twist, the shaft
RPM and consequently the transferred power.
Integrated K-Chief and standalone installation
CONNECTION BOX

11. GLOBAL CUSTOMER SUPPORT
As part of our commitment to total customer satisfac-
tion, we offer a wide variety of services to meet individ-
ual customers’ operational needs. KONGSBERG support
24 is a solution designed to give round-the-clock sup-
port. For mission-critical operations, KONGSBERG support
24 can be extended to include remote monitoring. We
can adapt the level of support needs by offering ser-
vice agreements, on-site spare part stocks and quick
on-site response arrangements.
Global and local support
We provide global support from local service and
support facilities at strategic locations worldwide.
Service and support work is carried out under the
supervision of your personal account manager, who will
ensure that you receive high-quality service and support
where and when you need it.
Your account manager will ensure continuity and
work closely with your personnel to improve and
optimize system availability and performance.
Under the direction of your account manager, and
with a local inventory of spare parts, our well qualified
field service engineers will be able to
help you quickly and effectively.
SUPPORT 24
Call +47 815 35 355
E-mail: km.support@kongsberg.com
We are always there, wherever you need us.
K customer services organisation is designed
to provide high-quality, global support, whenever and
wherever it is needed. We are committed to providing
easy access to support and service, and to responding
promptly to your needs. Support and service activi-
ties are supervised from our headquarters in Norway,
with service and support centres at strategic locations
around the globe – where you are
and the action is.
ONGSBERG
Denmark
India (4)
Antarctica
UAE (3)
Finland
Australia (2)
Ireland
China (4)
Norway (35)
Venezuela
Svalbard
Brazil (3)
UK (11)
South Africa
Spain
Mexico (2)
Canada (5)
Poland (2)
Netherlands
Germany
Russia
Italy (2)
Greece South Korea (6)
Singapore (4)
Saudi Arabia
France
Hungary
Malaysia
Nigeria
USA (14)

12. kongsberg.com
