1) The document discusses developing solutions to move aircraft trolleys over steps or ramps using human power only. It aims to improve efficiency of aircraft cabin operations. 2) The research objectives are to identify challenges of moving trolleys on non-flat floors, develop solutions to do so with minimal effort increase, create CAD models to analyze effort required, and verify solutions using a demonstrator. 3) The methodology includes literature review, problem definition, building a demonstrator, dynamic analysis using CAD models, developing new solutions, and optimizing the design based on comparing analytical and experimental results.

1. Solutions to Lift Aircraft Trolley on a step or ramp with
Human Power
RV College of
Engineering
Go, change the world
Students Name and USN no
Bhavith Shetty 1RV18ME035
Internal Guide External Guide
Project work at Airbus Group India Pvt Ltd, Bangalore
First Presentation
Dept of Mech. Engg.

2. RV College of
Engineering
Go, change the world

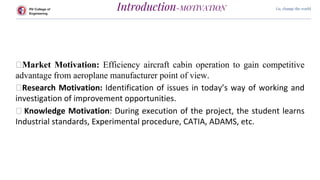

Introduction-MOTIVATION
⮚Market Motivation: Efficiency aircraft cabin operation to gain competitive
advantage from aeroplane manufacturer point of view.
⮚Research Motivation: Identification of issues in today’s way of working and
investigation of improvement opportunities.
⮚ Knowledge Motivation: During execution of the project, the student learns
Industrial standards, Experimental procedure, CATIA, ADAMS, etc.

3. RV College of
Engineering
Go, change the world

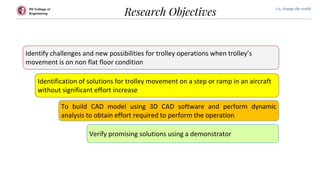

Research Objectives
Identify challenges and new possibilities for trolley operations when trolley’s
movement is on non flat floor condition
Identification of solutions for trolley movement on a step or ramp in an aircraft
without significant effort increase
To build CAD model using 3D CAD software and perform dynamic
analysis to obtain effort required to perform the operation
Verify promising solutions using a demonstrator

4. RV College of
Engineering
Go, change the world

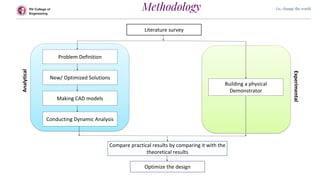

Methodology
Literature survey
Problem Definition
Building a physical
Demonstrator
Conducting Dynamic Analysis
New/ Optimized Solutions
Making CAD models
Compare practical results by comparing it with the
theoretical results
Optimize the design
Analytical
Experimental

5. RV College of
Engineering
Go, change the world

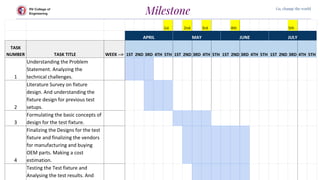

Milestone
1st 2nd 3rd 4th 5th
APRIL MAY JUNE JULY
TASK
NUMBER TASK TITLE WEEK --> 1ST 2ND 3RD 4TH 5TH 1ST 2ND 3RD 4TH 5TH 1ST 2ND 3RD 4TH 5TH 1ST 2ND 3RD 4TH 5TH
1
Understanding the Problem
Statement. Analyzing the
technical challenges.
2
Literature Survey on fixture
design. And understanding the
fixture design for previous test
setups.
3
Formulating the basic concepts of
design for the test fixture.
4
Finalizing the Designs for the test
fixture and finalizing the vendors
for manufacturing and buying
OEM parts. Making a cost
estimation.
Testing the Test fixture and
Analysing the test results. And

6. RV College of
Engineering
Go, change the world
Suggestion and corrections
