1. Presented by :
Esraa Riad Albatrawy

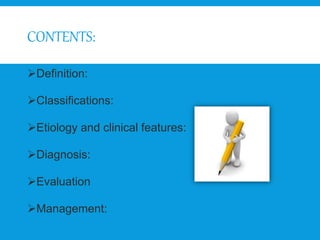

2. CONTENTS:
Definition:
Classifications:
Etiology and clinical features:
Diagnosis:
Evaluation
Management:

3. Enamel white lesions:
• Subsurface enamel
demineralization that clinically
presents itself as “a milky white
opacity.

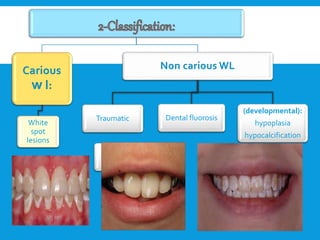

4. Carious
w l:
White
spot
lesions
Non carious WL
Traumatic Dental fluorosis
(developmental):
hypoplasia
hypocalcification

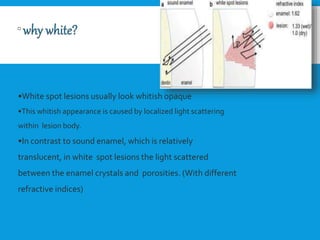

5. •White spot lesions usually look whitish opaque
•This whitish appearance is caused by localized light scattering
within lesion body.
•In contrast to sound enamel, which is relatively
translucent, in white spot lesions the light scattered
between the enamel crystals and porosities. (With different
refractive indices)
White Spot Lesions

6. CARIOUS WHITE
LESIONS
White spot lesion

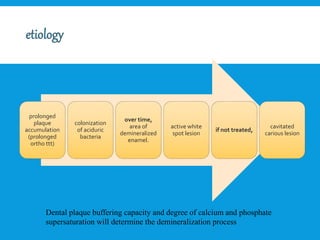

8. prolonged
plaque
accumulation
(prolonged
ortho ttt)
colonization
of aciduric
bacteria
over time,
area of
demineralized
enamel.
active white
spot lesion
if not treated,
cavitated
carious lesion
Dental plaque buffering capacity and degree of calcium and phosphate
supersaturation will determine the demineralization process

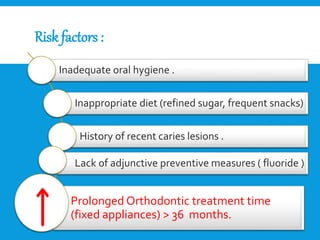

10. Risk factors :
Inadequate oral hygiene .
Inappropriate diet (refined sugar, frequent snacks)
History of recent caries lesions .
Lack of adjunctive preventive measures ( fluoride )
Prolonged Orthodontic treatment time
(fixed appliances) > 36 months.

11. NON CARIOUS
WHITE LESIONS

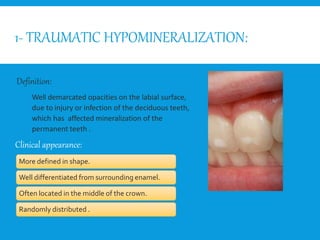

12. 1- TRAUMATIC HYPOMINERALIZATION:
Well demarcated opacities on the labial surface,
due to injury or infection of the deciduous teeth,
which has affected mineralization of the
permanent teeth .
More defined in shape.
Well differentiated from surrounding enamel.
Often located in the middle of the crown.
Randomly distributed .
Definition:
Clinical appearance:
Whit
By:

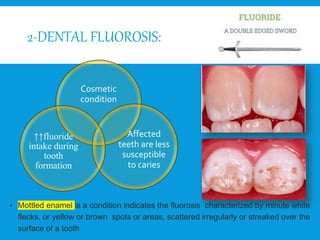

13. 2-DENTAL FLUOROSIS:
Cosmetic
condition
Affected
teeth are less
susceptible
to caries
↑↑fluoride
intake during
tooth
formation
• Mottled enamel is a condition indicates the fluorosis characterized by minute white
flecks, or yellow or brown spots or areas, scattered irregularly or streaked over the
surface of a tooth

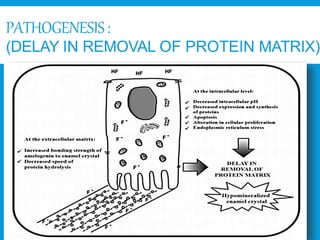

14. PATHOGENESIS:
(DELAY IN REMOVAL OF PROTEIN MATRIX)

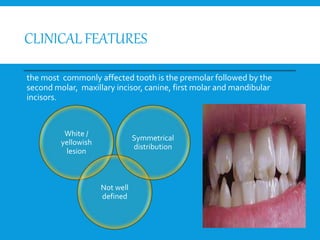

16. CLINICAL FEATURES
the most commonly affected tooth is the premolar followed by the
second molar, maxillary incisor, canine, first molar and mandibular
incisors.
White /
yellowish
lesion
Not well
defined
Symmetrical
distribution

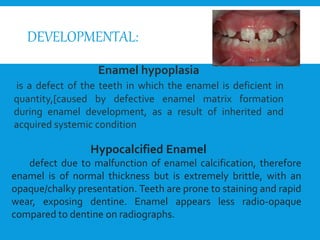

17. Enamel hypoplasia
is a defect of the teeth in which the enamel is deficient in
quantity,[caused by defective enamel matrix formation
during enamel development, as a result of inherited and
acquired systemic condition
Hypocalcified Enamel
defect due to malfunction of enamel calcification, therefore
enamel is of normal thickness but is extremely brittle, with an
opaque/chalky presentation. Teeth are prone to staining and rapid
wear, exposing dentine. Enamel appears less radio-opaque
compared to dentine on radiographs.
DEVELOPMENTAL:

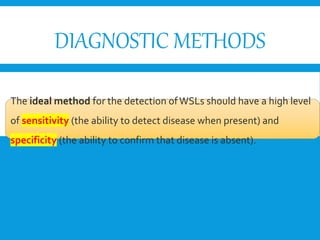

18. DIAGNOSTIC METHODS
The ideal method for the detection ofWSLs should have a high level
of sensitivity (the ability to detect disease when present) and
specificity (the ability to confirm that disease is absent).

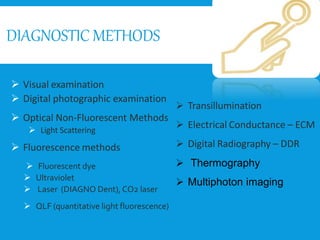

19. DIAGNOSTIC METHODS
 Visual examination
 Digital photographic examination
 Optical Non-Fluorescent Methods
 Light Scattering
 Fluorescence methods
 Fluorescent dye
 Ultraviolet
 Laser (DIAGNO Dent), CO2 laser
 QLF (quantitative light fluorescence)
 Transillumination
 Electrical Conductance – ECM
 Digital Radiography – DDR
 Thermography
 Multiphoton imaging

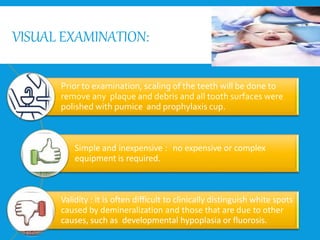

20. VISUAL EXAMINATION:
Prior to examination, scaling of the teeth will be done to
remove any plaque and debris and all tooth surfaces were
polished with pumice and prophylaxis cup.
Simple and inexpensive : no expensive or complex
equipment is required.
Validity : it is often difficult to clinically distinguish white spots
caused by demineralization and those that are due to other
causes, such as developmental hypoplasia or fluorosis.

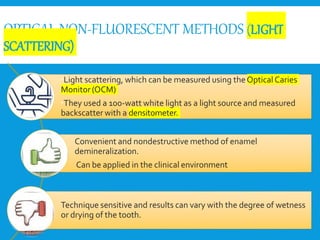

21. OPTICAL NON-FLUORESCENT METHODS (LIGHT
SCATTERING)
Light scattering, which can be measured using theOptical Caries
Monitor(OCM)
They used a 100-watt white light as a light source and measured
backscatter with a densitometer.
Convenient and nondestructive method of enamel
demineralization.
Can be applied in the clinical environment
Technique sensitive and results can vary with the degree of wetness
or drying of the tooth.

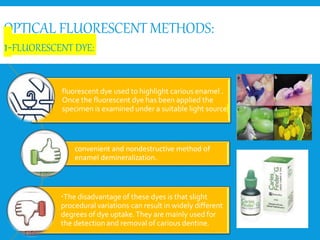

22. OPTICAL FLUORESCENT METHODS:
1-FLUORESCENT DYE:
fluorescent dye used to highlight carious enamel .
Once the fluorescent dye has been applied the
specimen is examined under a suitable light source
convenient and nondestructive method of
enamel demineralization.
The disadvantage of these dyes is that slight
procedural variations can result in widely different
degrees of dye uptake.They are mainly used for
the detection and removal of carious dentine.

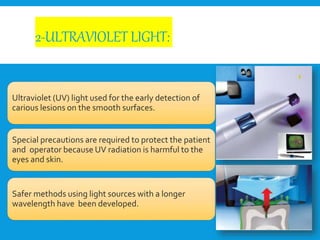

23. 2-ULTRAVIOLET LIGHT:
Ultraviolet (UV) light used for the early detection of
carious lesions on the smooth surfaces.
Special precautions are required to protect the patient
and operator because UV radiation is harmful to the
eyes and skin.
Safer methods using light sources with a longer
wavelength have been developed.

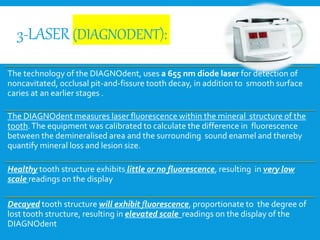

24. 3-LASER (DIAGNODENT):
The technology of the DIAGNOdent, uses a 655 nm diode laser for detection of
noncavitated, occlusal pit-and-fissure tooth decay, in addition to smooth surface
caries at an earlier stages .
The DIAGNOdent measures laser fluorescence within the mineral structure of the
tooth.The equipment was calibrated to calculate the difference in fluorescence
between the demineralised area and the surrounding sound enamel and thereby
quantify mineral loss and lesion size.
Healthy tooth structure exhibits little or no fluorescence, resulting in very low
scale readings on the display
Decayed tooth structure will exhibit fluorescence, proportionate to the degree of
lost tooth structure, resulting in elevated scale readings on the display of the
DIAGNOdent

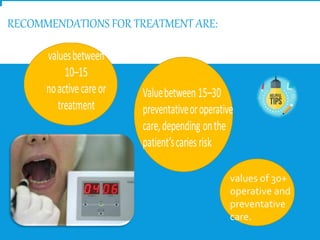

25. RECOMMENDATIONS FOR TREATMENT ARE:
values of 30+
operative and
preventative
care.

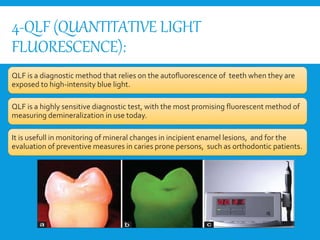

26. 4-QLF (QUANTITATIVE LIGHT
FLUORESCENCE):
QLF is a diagnostic method that relies on the autofluorescence of teeth when they are
exposed to high-intensity blue light.
QLF is a highly sensitive diagnostic test, with the most promising fluorescent method of
measuring demineralization in use today.
It is usefull in monitoring of mineral changes in incipient enamel lesions, and for the
evaluation of preventive measures in caries prone persons, such as orthodontic patients.

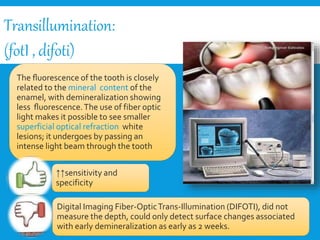

27. ↑↑sensitivity and
specificity
Transillumination:
(fotI , difoti)
Digital Imaging Fiber-OpticTrans-Illumination (DIFOTI), did not
measure the depth, could only detect surface changes associated
with early demineralization as early as 2 weeks.
The fluorescence of the tooth is closely
related to the mineral content of the
enamel, with demineralization showing
less fluorescence.The use of fiber optic
light makes it possible to see smaller
superficial optical refraction white
lesions; it undergoes by passing an
intense light beam through the tooth

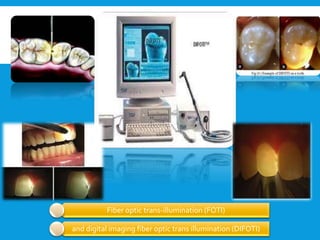

28. Fiber optic trans-illumination (FOTI)
and digital imaging fiber optic trans illumination (DIFOTI)

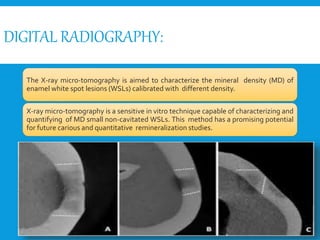

29. DIGITAL RADIOGRAPHY:
The X-ray micro-tomography is aimed to characterize the mineral density (MD) of
enamel white spot lesions (WSLs) calibrated with different density.
X-ray micro-tomography is a sensitive in vitro technique capable of characterizing and
quantifying of MD small non-cavitated WSLs. This method has a promising potential
for future carious and quantitative remineralization studies.

30. THERMOGRAPHY
The concept of thermography for the detection of early enamel caries
has been discovered by Kaneko in 1999.
It measures the lesion activity rather than its presence or absence.
This is based on the principle of change in thermal radiation energy that
occurs when fluid is lost from a lesion by evaporation just as in WSLs
e.g., Infrared thermography, Frequency-domain infrared photothermal
radiometry and modulated luminescence (PTR/LUM).

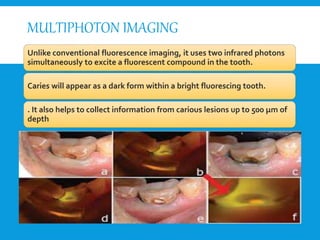

31. MULTIPHOTON IMAGING
Unlike conventional fluorescence imaging, it uses two infrared photons
simultaneously to excite a fluorescent compound in the tooth.
Caries will appear as a dark form within a bright fluorescing tooth.
. It also helps to collect information from carious lesions up to 500 μm of
depth

32. EVALUATION
Different methods
are used for
evaluation on
clinical
examination
Ekstrand assessment scale (1995)
The Nyvad system (1999)
The Dundee SelectableThreshold Method for
Caries Diagnosis (DSTM in 2000)
The InternationalCaries Detection and
Assessment System (ICDAS in 2004)

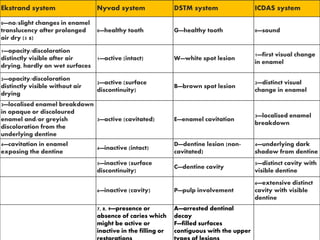

33. Ekstrand system Nyvad system DSTM system ICDAS system
0—no/slight changes in enamel
translucency after prolonged
air dry (5 s)
0—healthy tooth G—healthy tooth 0—sound
1—opacity/discoloration
distinctly visible after air
drying, hardly on wet surfaces
1—active (intact) W—white spot lesion
1—first visual change
in enamel
2—opacity/discoloration
distinctly visible without air
drying
2—active (surface
discontinuity)
B—brown spot lesion
2—distinct visual
change in enamel
3—localised enamel breakdown
in opaque or discoloured
enamel and/or greyish
discoloration from the
underlying dentine
3—active (cavitated) E—enamel cavitation
3—localised enamel
breakdown
4—cavitation in enamel
exposing the dentine
4—inactive (intact)
D—dentine lesion (non-
cavitated)
4—underlying dark
shadow from dentine
5—inactive (surface
discontinuity)
C—dentine cavity
5—distinct cavity with
visible dentine
6—inactive (cavity) P—pulp involvement
6—extensive distinct
cavity with visible
dentine
7, 8, 9—presence or
absence of caries which
might be active or
inactive in the filling or
A—arrested dentinal
decay
F—filled surfaces
contiguous with the upper

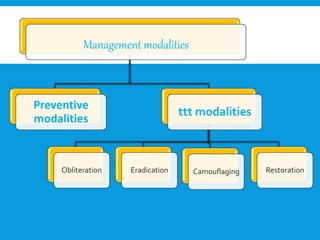

35. Management modalities
Preventive
modalities
ttt modalities
Obliteration Eradication Camouflaging Restoration

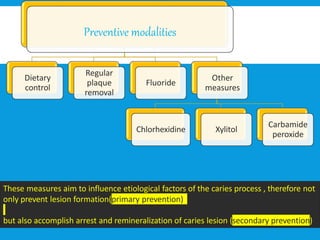

36. Preventive modalities
Dietary
control
Regular
plaque
removal
Fluoride
Other
measures
Chlorhexidine Xylitol
Carbamide
peroxide
These measures aim to influence etiological factors of the caries process , therefore not
only prevent lesion formation(primary prevention)
but also accomplish arrest and remineralization of caries lesion (secondary prevention)

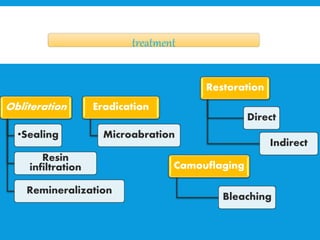

37. Obliteration
•Sealing
Resin
infiltration
Remineralization
Eradication
Microabration
Camouflaging
Bleaching
Restoration
Direct
Indirect
treatment

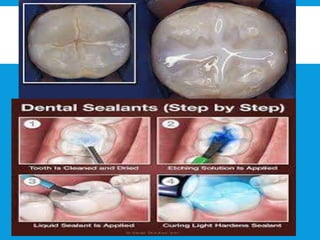

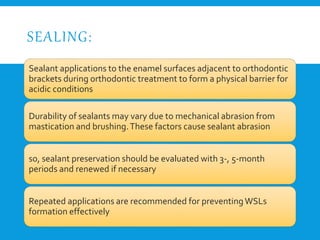

38. SEALING:
Sealant applications to the enamel surfaces adjacent to orthodontic
brackets during orthodontic treatment to form a physical barrier for
acidic conditions
Durability of sealants may vary due to mechanical abrasion from
mastication and brushing.These factors cause sealant abrasion
so, sealant preservation should be evaluated with 3-, 5-month
periods and renewed if necessary
Repeated applications are recommended for preventingWSLs
formation effectively

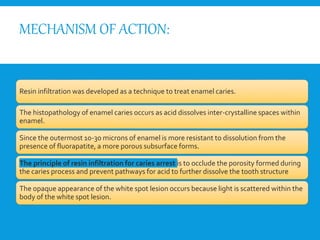

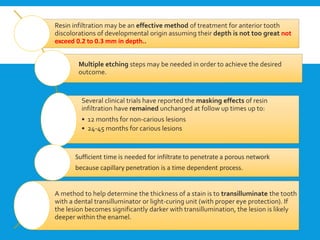

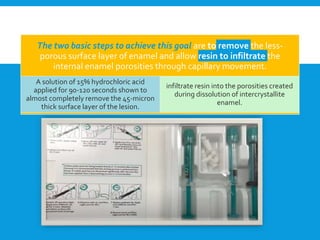

40. RESIN INFILTRATION:
resin infiltration is a technique that has been available as a
commercial product since 2010.
The product (ICON, DMG) was initially developed as a
treatment for incipient interproximal caries and anterior
white spot lesions.
Clinical experience with this technique, however, revealed
that it is also effective maskinge in enamel discoloration of
non-carious origin.

41. MECHANISM OF ACTION:
Resin infiltration was developed as a technique to treat enamel caries.
The histopathology of enamel caries occurs as acid dissolves inter-crystalline spaces within
enamel.
Since the outermost 10-30 microns of enamel is more resistant to dissolution from the
presence of fluorapatite, a more porous subsurface forms.
The principle of resin infiltration for caries arrest is to occlude the porosity formed during
the caries process and prevent pathways for acid to further dissolve the tooth structure
The opaque appearance of the white spot lesion occurs because light is scattered within the
body of the white spot lesion.

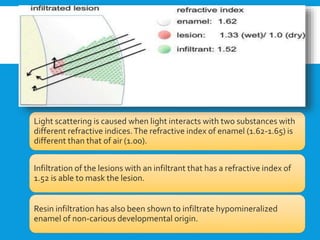

42. Light scattering is caused when light interacts with two substances with
different refractive indices.The refractive index of enamel (1.62-1.65) is
different than that of air (1.00).
Infiltration of the lesions with an infiltrant that has a refractive index of
1.52 is able to mask the lesion.
Resin infiltration has also been shown to infiltrate hypomineralized
enamel of non-carious developmental origin.

43. The two basic steps to achieve this goal are to remove the less-
porous surface layer of enamel and allow resin to infiltrate the
internal enamel porosities through capillary movement.
A solution of 15% hydrochloric acid
applied for 90-120 seconds shown to
almost completely remove the 45-micron
thick surface layer of the lesion.
infiltrate resin into the porosities created
during dissolution of intercrystallite
enamel.

44. Resin infiltration may be an effective method of treatment for anterior tooth
discolorations of developmental origin assuming their depth is not too great not
exceed 0.2 to 0.3 mm in depth..
Multiple etching steps may be needed in order to achieve the desired
outcome.
Several clinical trials have reported the masking effects of resin
infiltration have remained unchanged at follow up times up to:
• 12 months for non-carious lesions
• 24-45 months for carious lesions
Sufficient time is needed for infiltrate to penetrate a porous network
because capillary penetration is a time dependent process.
A method to help determine the thickness of a stain is to transilluminate the tooth
with a dental transilluminator or light-curing unit (with proper eye protection). If
the lesion becomes significantly darker with transillumination, the lesion is likely
deeper within the enamel.

45. VIDEO:

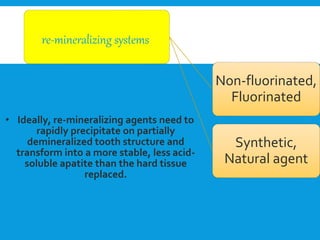

46. • Ideally, re-mineralizing agents need to
rapidly precipitate on partially
demineralized tooth structure and
transform into a more stable, less acid-
soluble apatite than the hard tissue
replaced.
re-mineralizing systems
Non-fluorinated,
Fluorinated
Synthetic,
Natural agent

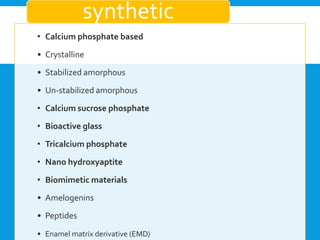

47. • Calcium phosphate based
• Crystalline
• Stabilized amorphous
• Un-stabilized amorphous
• Calcium sucrose phosphate
• Bioactive glass
• Tricalcium phosphate
• Nano hydroxyaptite
• Biomimetic materials
• Amelogenins
• Peptides
• Enamel matrix derivative (EMD)
synthetic

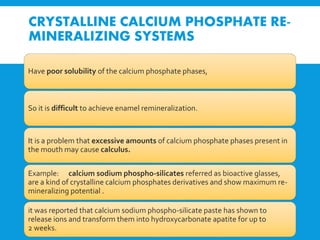

48. CRYSTALLINE CALCIUM PHOSPHATE RE-
MINERALIZING SYSTEMS
Have poor solubility of the calcium phosphate phases,
So it is difficult to achieve enamel remineralization.
It is a problem that excessive amounts of calcium phosphate phases present in
the mouth may cause calculus.
Example: calcium sodium phospho-silicates referred as bioactive glasses,
are a kind of crystalline calcium phosphates derivatives and show maximum re-
mineralizing potential .
it was reported that calcium sodium phospho-silicate paste has shown to
release ions and transform them into hydroxycarbonate apatite for up to
2 weeks.

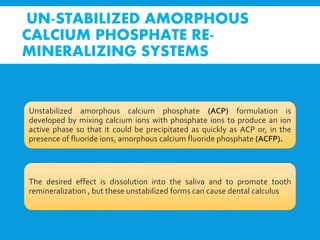

49. UN-STABILIZED AMORPHOUS
CALCIUM PHOSPHATE RE-
MINERALIZING SYSTEMS
Unstabilized amorphous calcium phosphate (ACP) formulation is
developed by mixing calcium ions with phosphate ions to produce an ion
active phase so that it could be precipitated as quickly as ACP or, in the
presence of fluoride ions, amorphous calcium fluoride phosphate (ACFP).
The desired effect is dissolution into the saliva and to promote tooth
remineralization , but these unstabilized forms can cause dental calculus

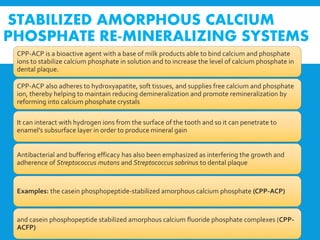

50. STABILIZED AMORPHOUS CALCIUM
PHOSPHATE RE-MINERALIZING SYSTEMS
CPP-ACP is a bioactive agent with a base of milk products able to bind calcium and phosphate
ions to stabilize calcium phosphate in solution and to increase the level of calcium phosphate in
dental plaque.
CPP-ACP also adheres to hydroxyapatite, soft tissues, and supplies free calcium and phosphate
ion, thereby helping to maintain reducing demineralization and promote remineralization by
reforming into calcium phosphate crystals
It can interact with hydrogen ions from the surface of the tooth and so it can penetrate to
enamel’s subsurface layer in order to produce mineral gain
Antibacterial and buffering efficacy has also been emphasized as interfering the growth and
adherence of Streptococcus mutans and Streptococcus sobrinus to dental plaque
Examples: the casein phosphopeptide-stabilized amorphous calcium phosphate (CPP-ACP)
and casein phosphopeptide stabilized amorphous calcium fluoride phosphate complexes (CPP-
ACFP)

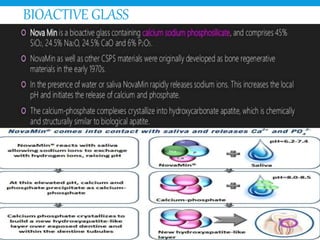

52. BIOACTIVE GLASS

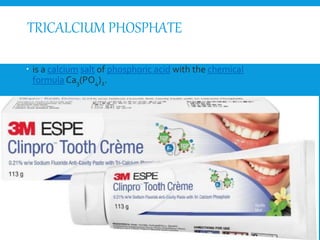

53. TRICALCIUM PHOSPHATE
 is a calcium salt of phosphoric acid with the chemical
formula Ca3(PO4)2.

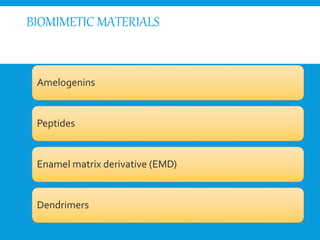

55. BIOMIMETIC MATERIALS
Amelogenins
Peptides
Enamel matrix derivative (EMD)
Dendrimers

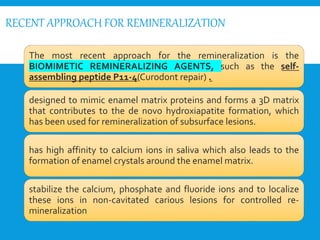

56. RECENT APPROACH FOR REMINERALIZATION
The most recent approach for the remineralization is the
BIOMIMETIC REMINERALIZING AGENTS, such as the self-
assembling peptide P11-4(Curodont repair) .
designed to mimic enamel matrix proteins and forms a 3D matrix
that contributes to the de novo hydroxiapatite formation, which
has been used for remineralization of subsurface lesions.
has high affinity to calcium ions in saliva which also leads to the
formation of enamel crystals around the enamel matrix.
stabilize the calcium, phosphate and fluoride ions and to localize
these ions in non-cavitated carious lesions for controlled re-
mineralization

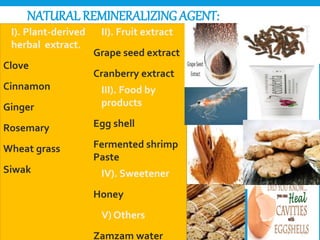

59. NATURAL REMINERALIZING AGENT:
I). Plant-derived
herbal extract.
Clove
Cinnamon
Ginger
Rosemary
Wheat grass
Siwak
II). Fruit extract
Grape seed extract
Cranberry extract
III). Food by
products
Egg shell
Fermented shrimp
Paste
IV). Sweetener
Honey
V) Others
Zamzam water

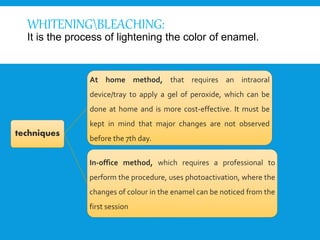

61. WHITENINGBLEACHING:
It is the process of lightening the color of enamel.
techniques
At home method, that requires an intraoral
device/tray to apply a gel of peroxide, which can be
done at home and is more cost-effective. It must be
kept in mind that major changes are not observed
before the 7th day.
In-office method, which requires a professional to
perform the procedure, uses photoactivation, where the
changes of colour in the enamel can be noticed from the
first session

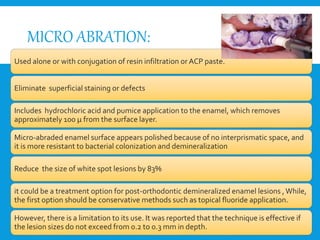

63. MICRO ABRATION:
Used alone or with conjugation of resin infiltration or ACP paste.
Eliminate superficial staining or defects
Includes hydrochloric acid and pumice application to the enamel, which removes
approximately 100 μ from the surface layer.
Micro-abraded enamel surface appears polished because of no interprismatic space, and
it is more resistant to bacterial colonization and demineralization
Reduce the size of white spot lesions by 83%
it could be a treatment option for post-orthodontic demineralized enamel lesions ,While,
the first option should be conservative methods such as topical fluoride application.
However, there is a limitation to its use. It was reported that the technique is effective if
the lesion sizes do not exceed from 0.2 to 0.3 mm in depth.

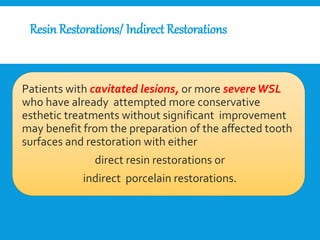

68. ResinRestorations/ Indirect Restorations
Patients with cavitated lesions, or more severeWSL
who have already attempted more conservative
esthetic treatments without significant improvement
may benefit from the preparation of the affected tooth
surfaces and restoration with either
direct resin restorations or
indirect porcelain restorations.

69. THANK YOU

70. REFERENCES:
• https://watermark.silverchair.com/111611-
710_1.pdf?token=AQECAHi208BE49Ooan9kkhW_Ercy7Dm3ZL_9Cf3qfK
Ac485ysgAAAsgwg
• https://watermark.silverchair.com/041218-
274_1.pdf?token=AQECAHi208BE49Ooan9kkhW_Ercy7Dm3ZL_9Cf3qfK
Ac485ysgAAAsgwg
• file:///C:/Users/D%20AGHA%20SMART%20STORE/Downloads/Enamel_
microabrasion_associated_with_resin_infiltr.pdf
• https://www.intechopen.com/books/contemporary-approach-to-dental-
caries/incipient-caries-lesions-in-orthodontics
• https://www.intechopen.com/books/dental-caries-diagnosis-prevention-
and-management/management-of-white-spot-lesions
