The document is a quiz on electromagnets and magnetism. It contains 10 multiple choice questions about diagrams showing electromagnets, how they work, and their applications. The questions cover topics like how to make an electromagnet stronger, what parts are responsible for sound in devices like bells and speakers, and how electromagnets are used in applications like trains.

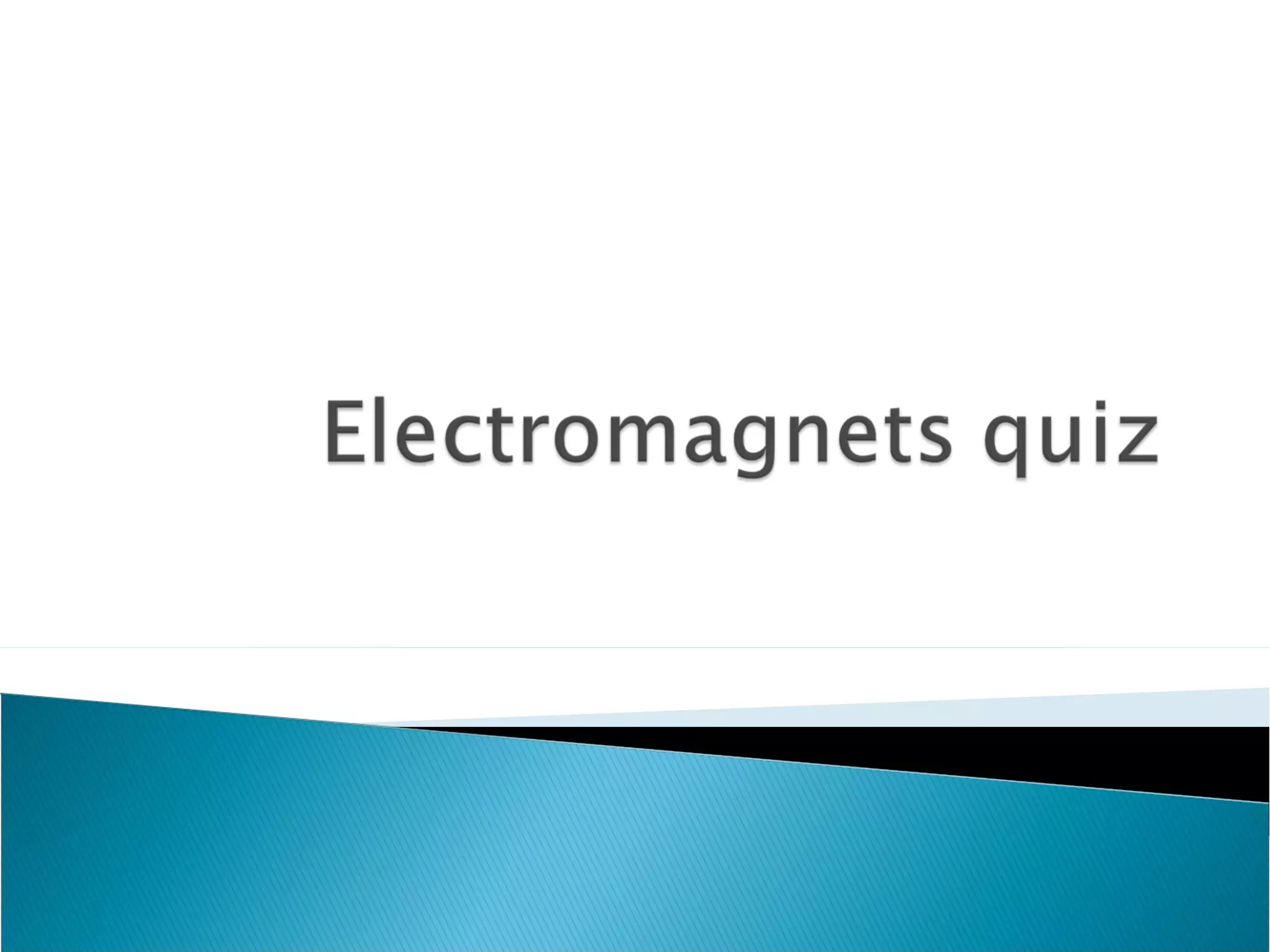

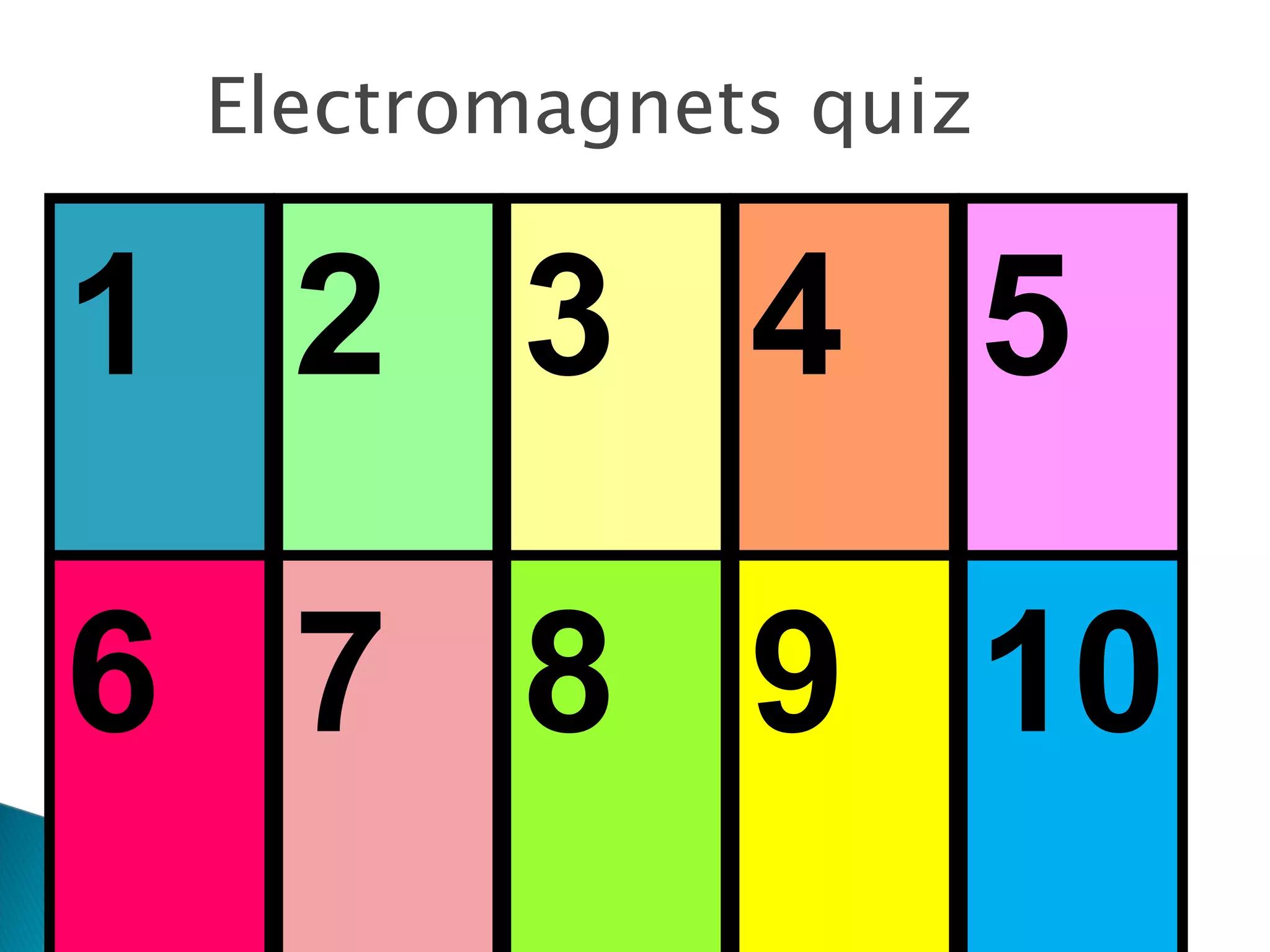

2. 1 2 4 5 6 7 3 8 9 10 Electromagnets quiz

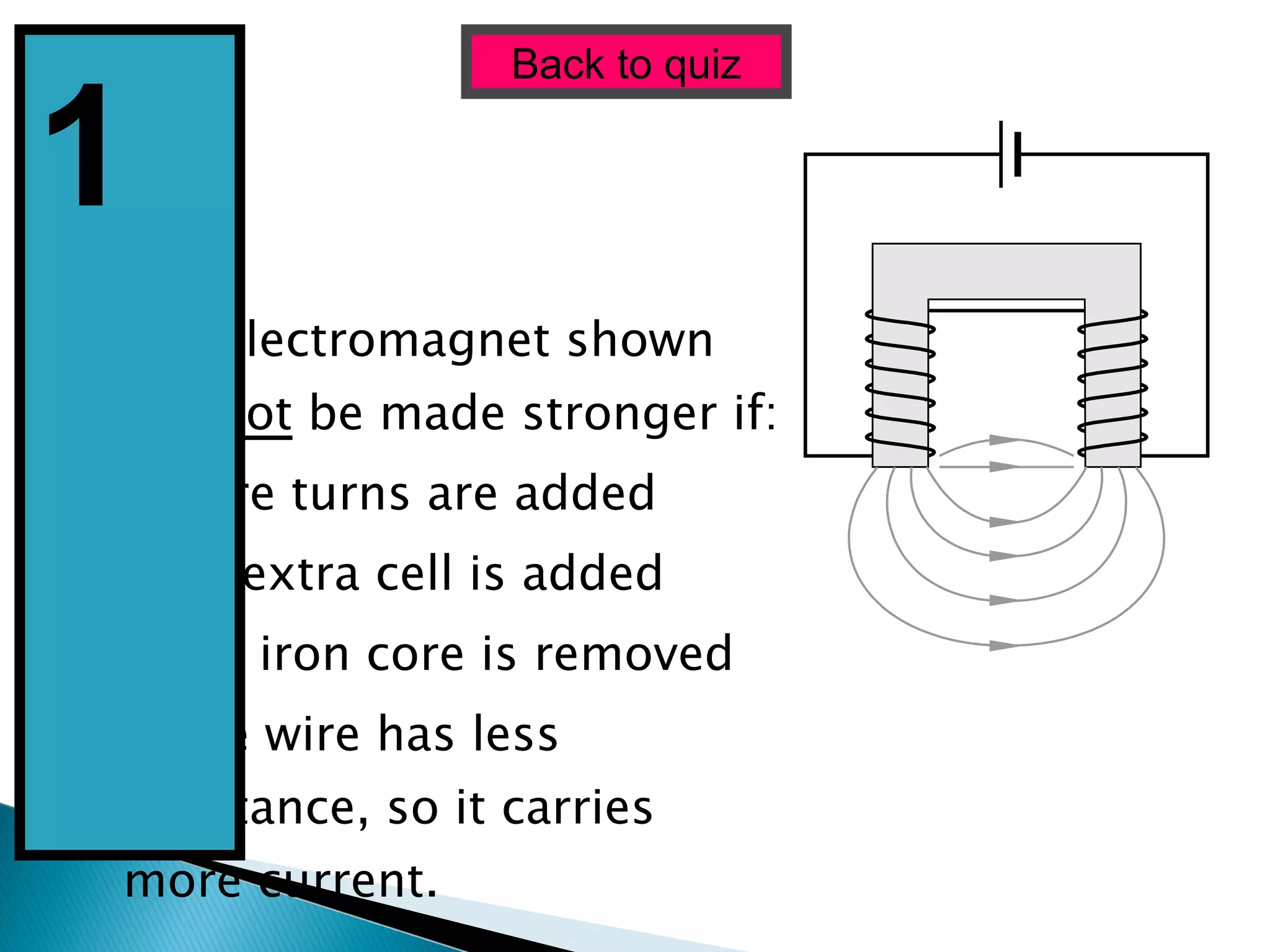

3. The electromagnet shown will not be made stronger if: (a) More turns are added (b) An extra cell is added (c) The iron core is removed (d) The wire has less resistance, so it carries more current. Back to quiz 1

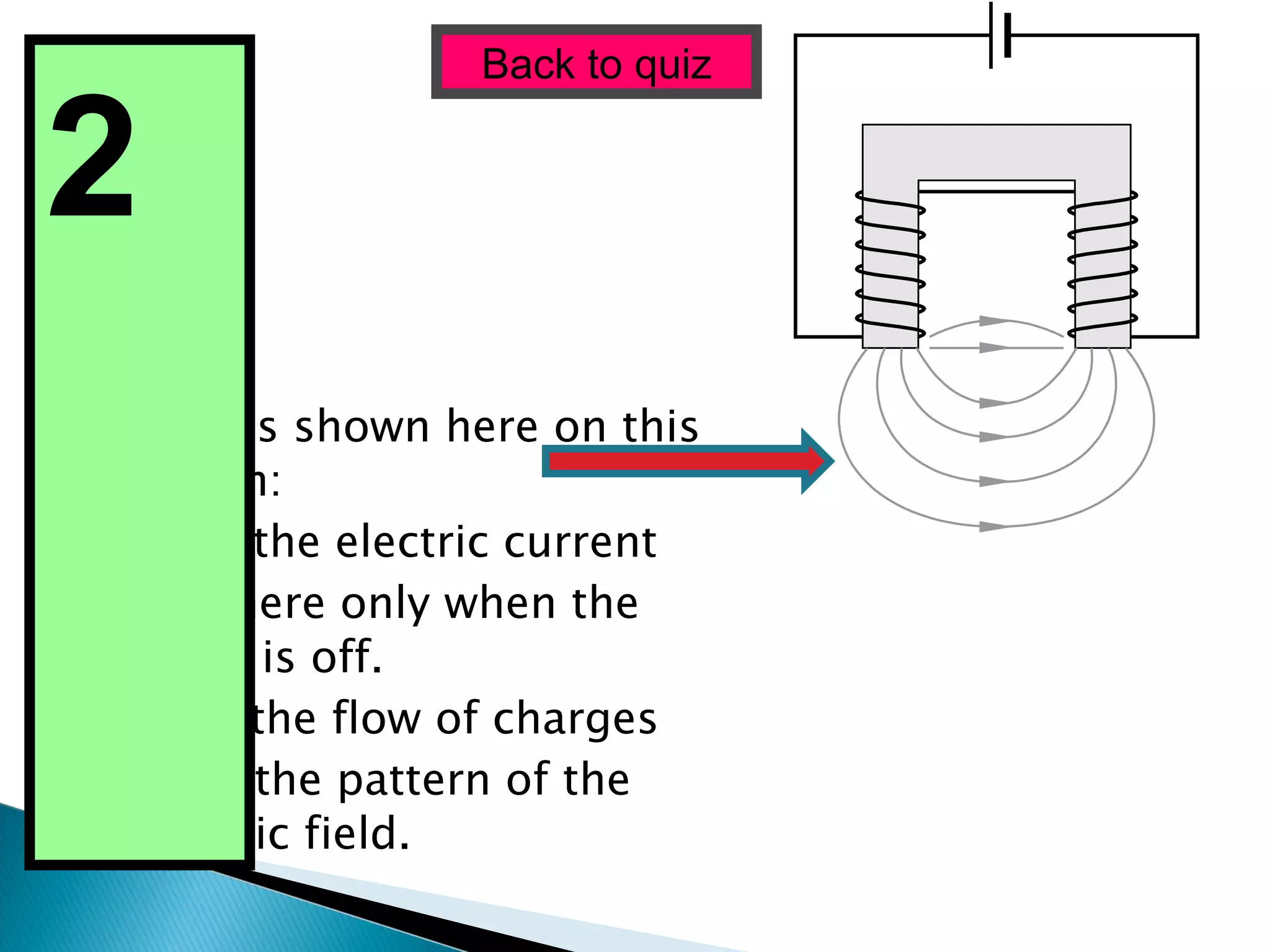

4. The lines shown here on this diagram: (a) Carry the electric current (b) Are there only when the current is off. (c) Show the flow of charges (d) Show the pattern of the magnetic field. Back to quiz 2

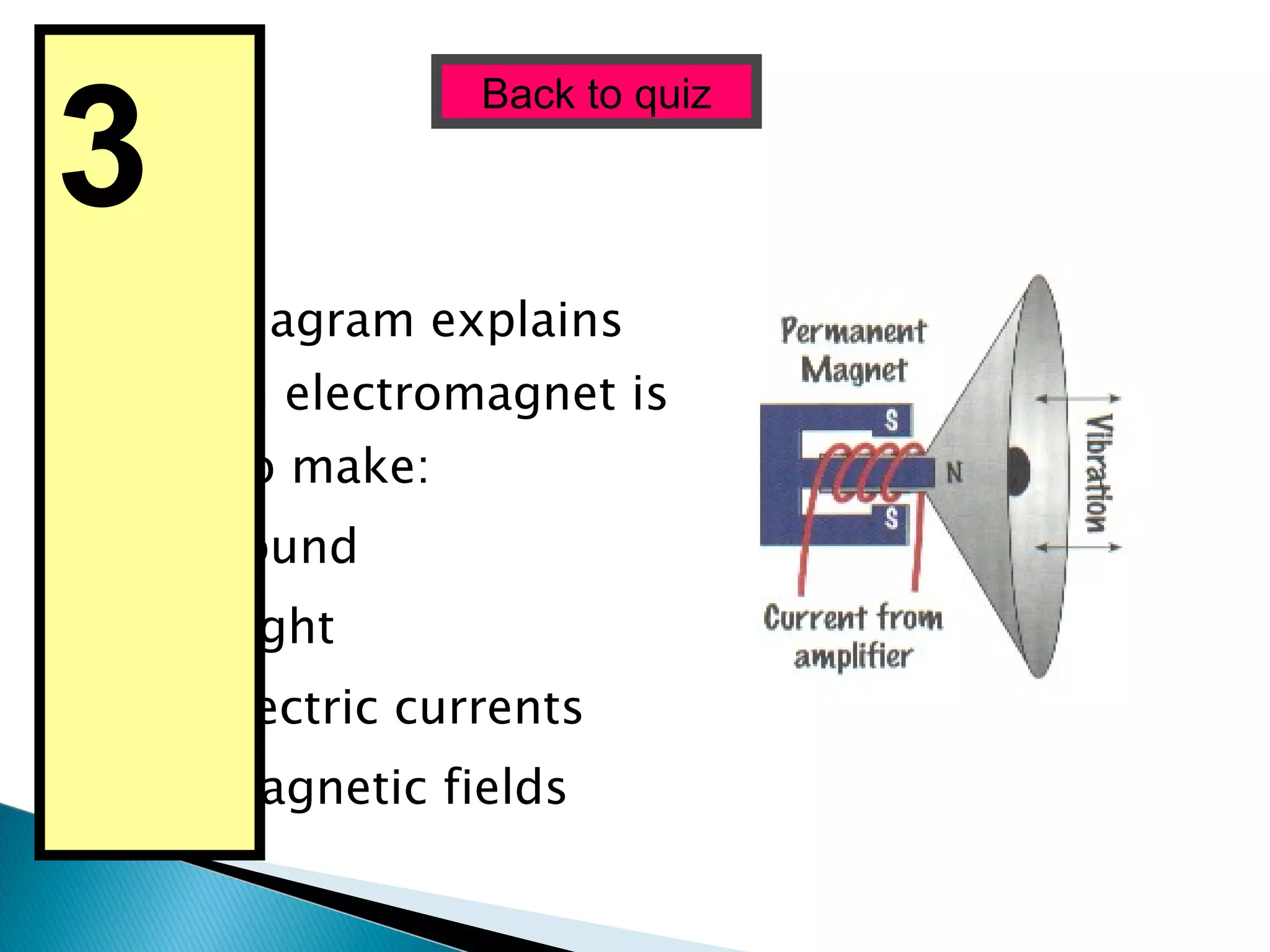

5. This diagram explains how an electromagnet is used to make: (a) Sound (b) Light (c) Electric currents (d) Magnetic fields Back to quiz 3

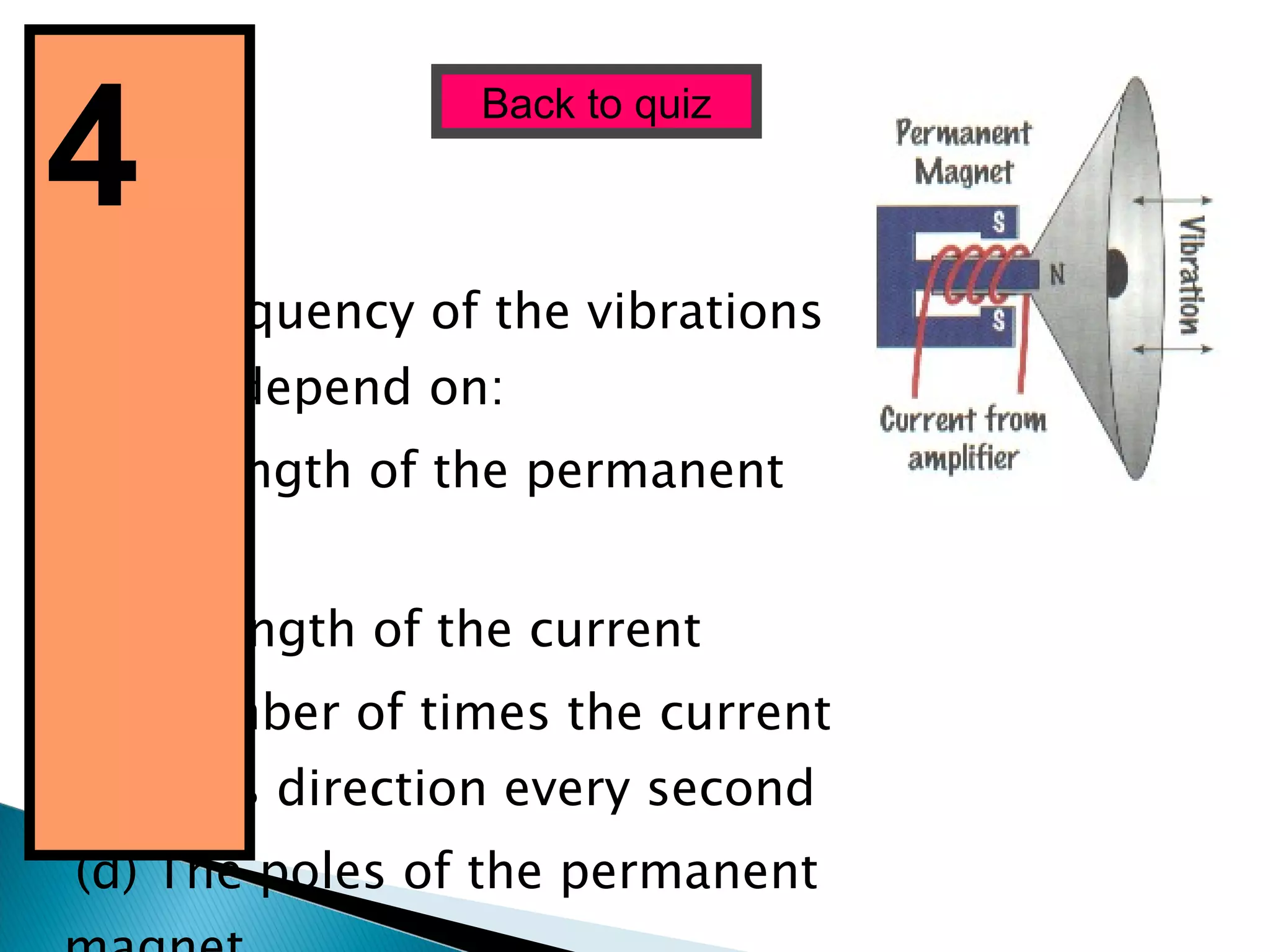

6. The frequency of the vibrations shown depend on: (a) Strength of the permanent magnet. (b) Strength of the current (c) Number of times the current changes direction every second (d) The poles of the permanent magnet Back to quiz 4

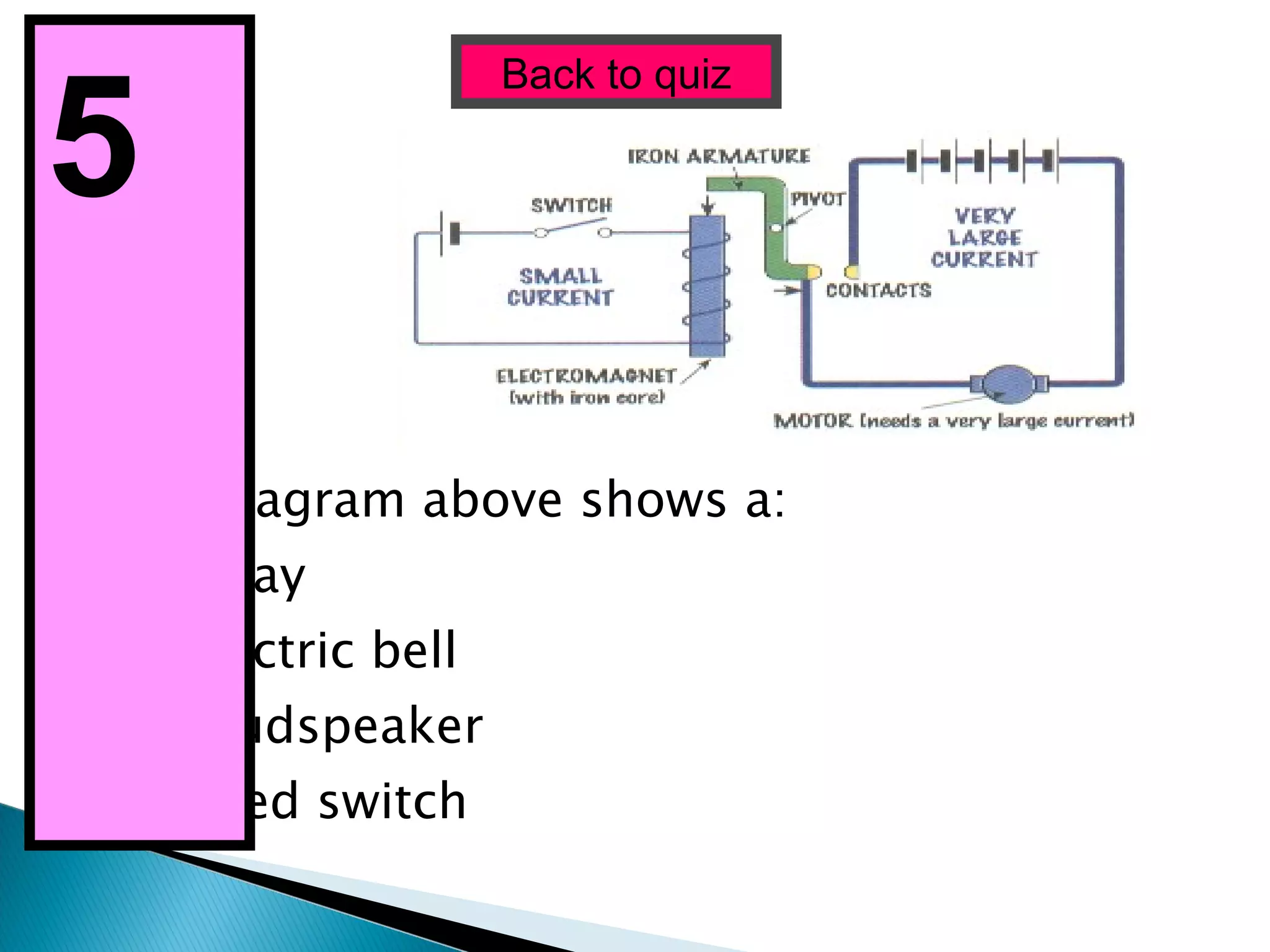

7. The diagram above shows a: (a) Relay (b) Electric bell (c) Loudspeaker (d) Reed switch Back to quiz 5

8. The electromagnet shown in this diagram is being used to: (a) Move plastic rubbish (b) Move steel rubbish (c) Move household rubbish (d) Move garden rubbish Back to quiz 6

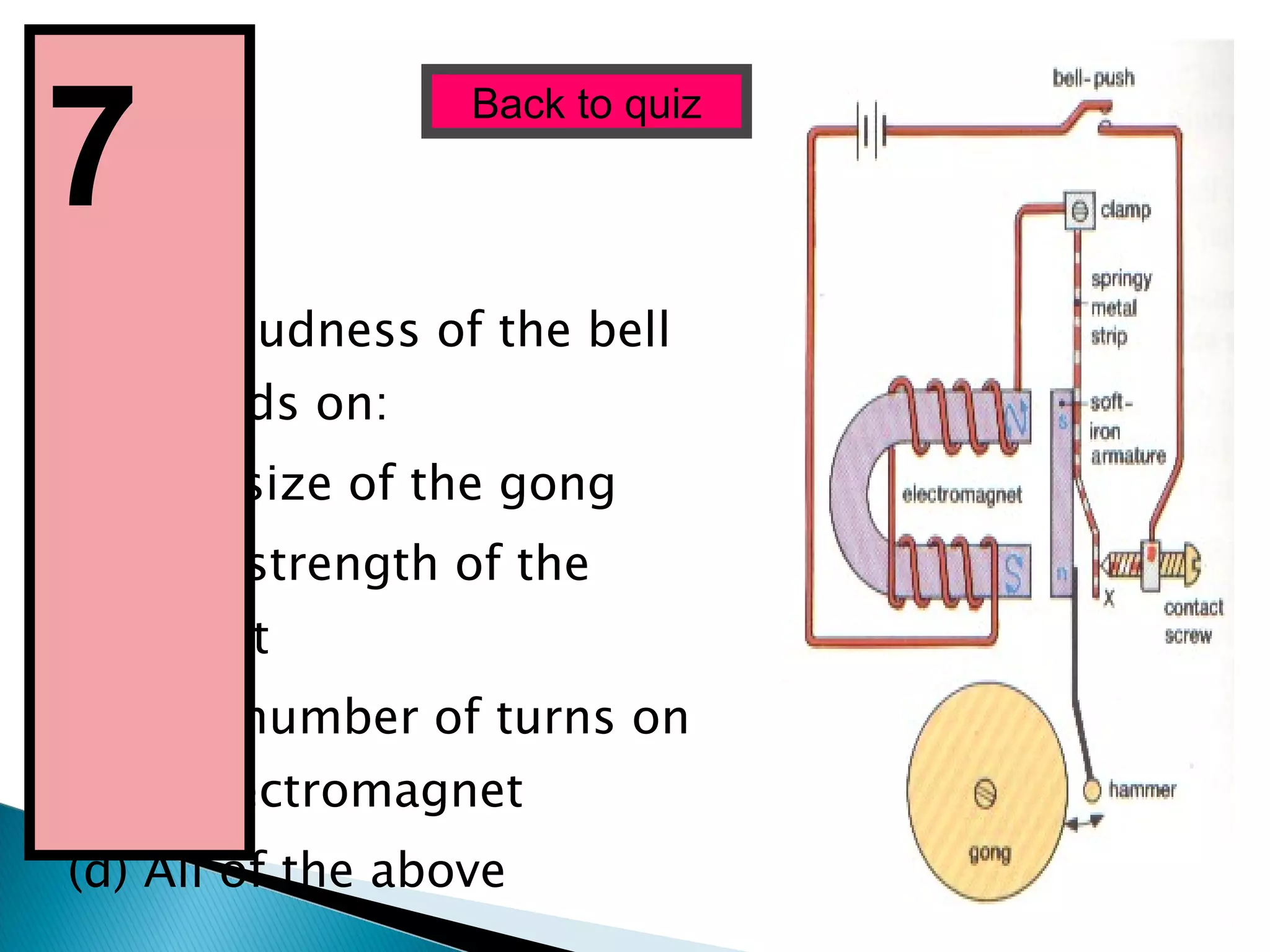

9. The loudness of the bell depends on: (a) The size of the gong (b) The strength of the current (c) The number of turns on the electromagnet (d) All of the above Back to quiz 7

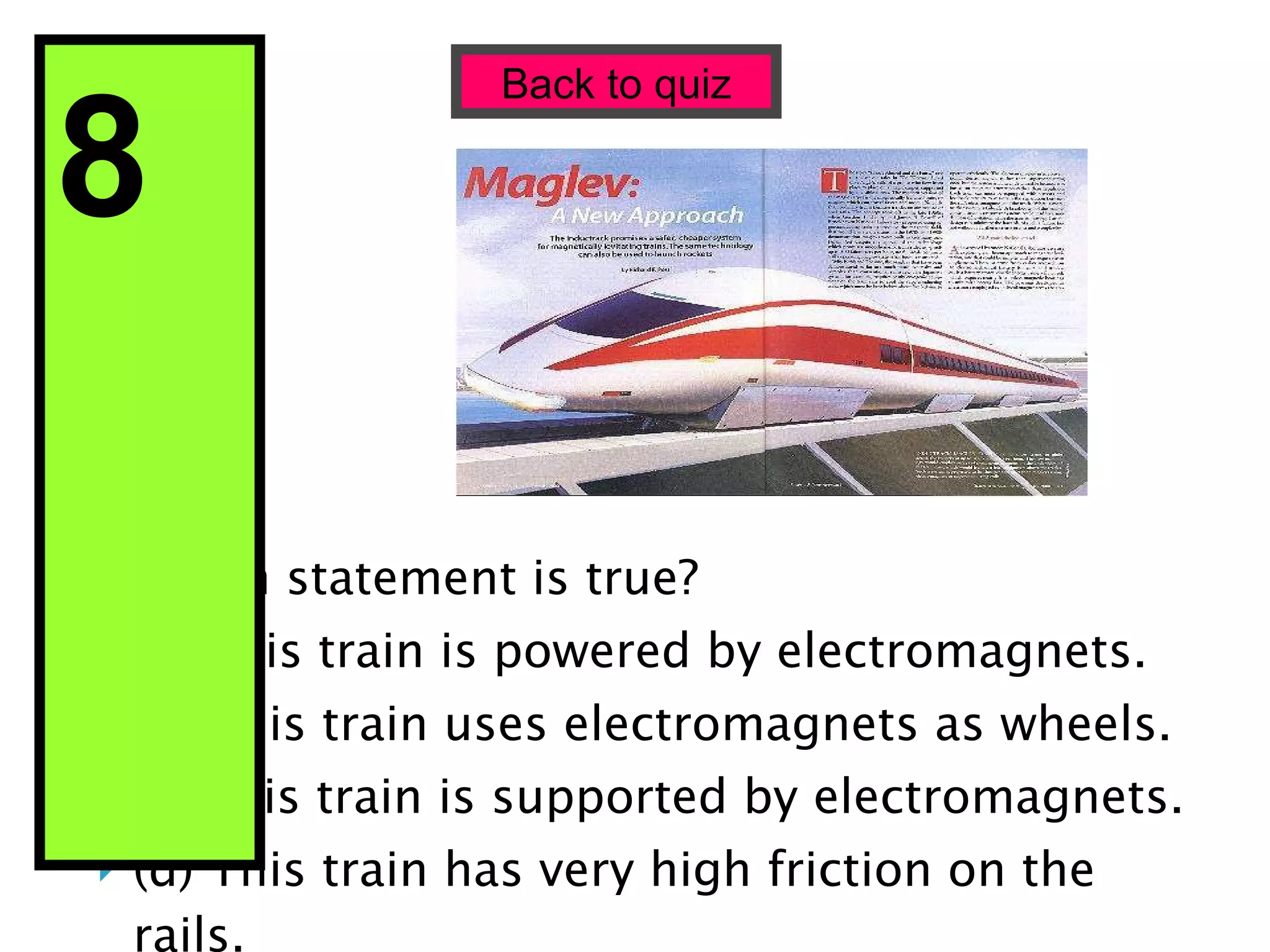

10. Which statement is true? (a) This train is powered by electromagnets. (b) This train uses electromagnets as wheels. (c) This train is supported by electromagnets. (d) This train has very high friction on the rails. Back to quiz 8

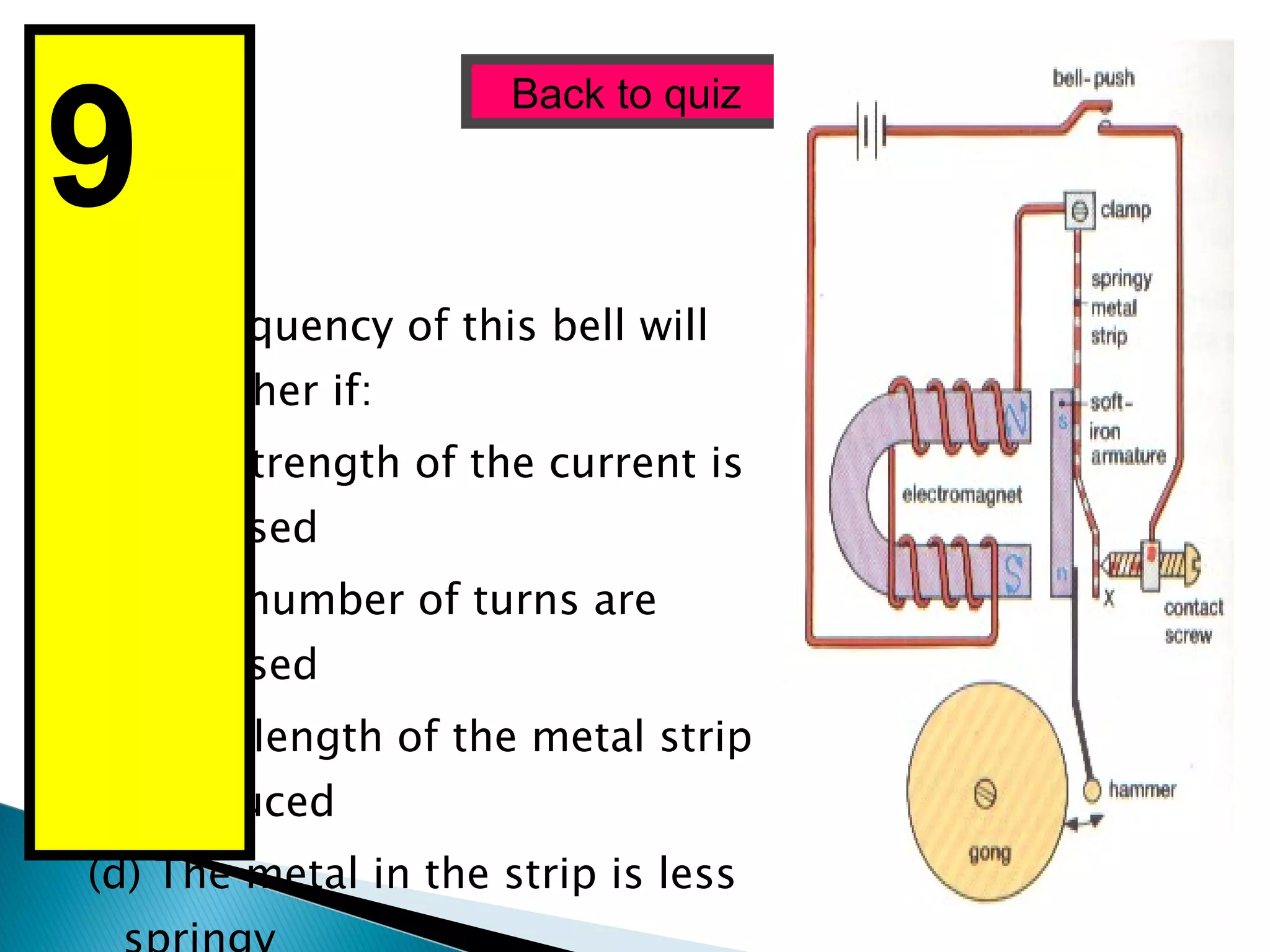

11. The frequency of this bell will be higher if: (a)The strength of the current is increased (b) The number of turns are increased (c) The length of the metal strip is reduced (d) The metal in the strip is less springy Back to quiz 9

12. The gadget shown in this picture: (1) is impossible to make (2 ) uses trick photography: (a) (1) true (2) true (b) (1) true (2) false (c) (1) false (2) true (d) (1) false (2) false Back to quiz 10

13. 8J – Magnets and Electromagnets

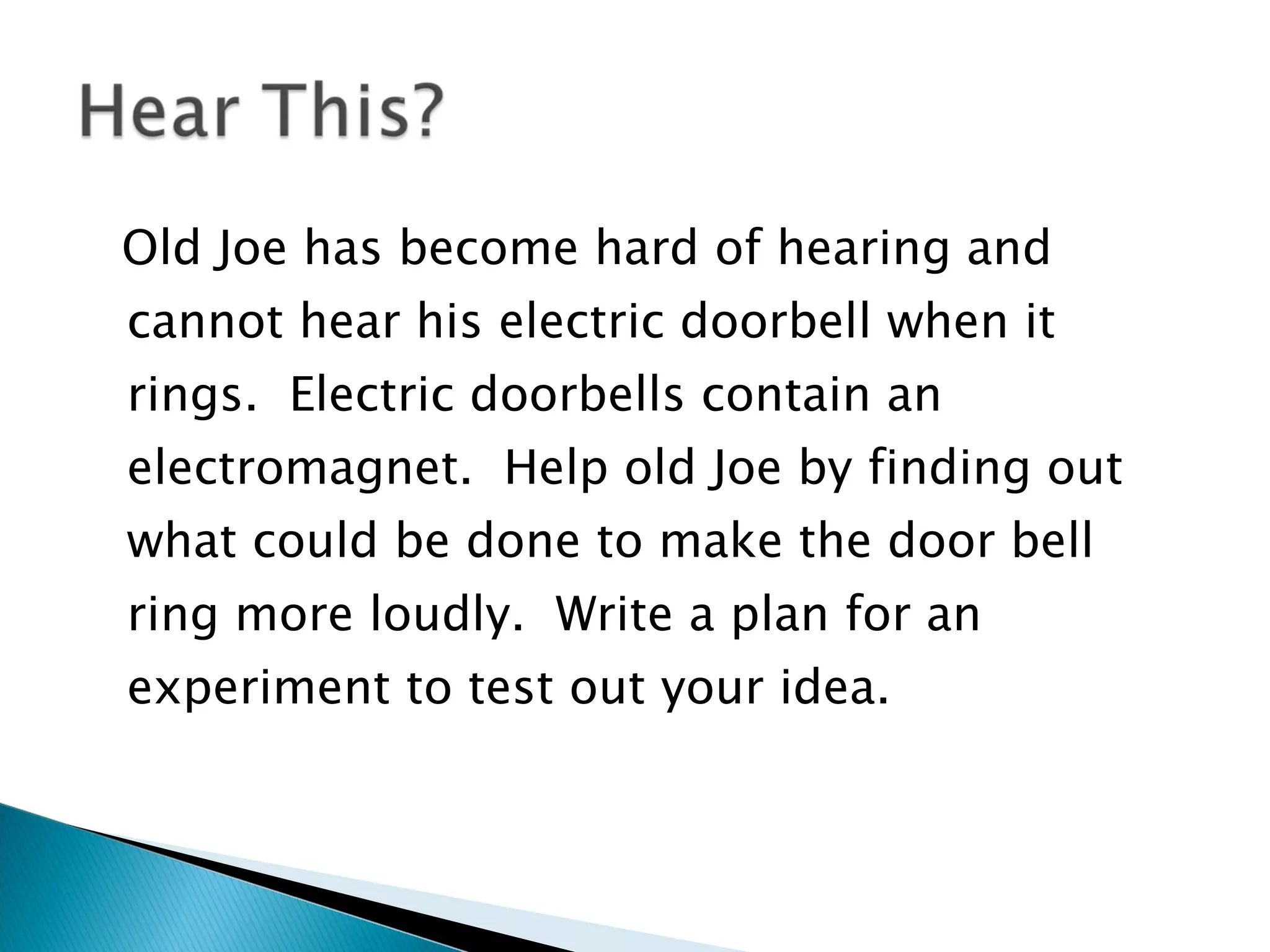

14. Old Joe has become hard of hearing and cannot hear his electric doorbell when it rings. Electric doorbells contain an electromagnet. Help old Joe by finding out what could be done to make the door bell ring more loudly. Write a plan for an experiment to test out your idea.
