The document discusses various types of electrical conduits and accessories used in wiring installations. It describes common conduits like PVC, rigid steel, EMT, non-metallic, GRC, and IMC. Flexible metallic conduit is also mentioned. Accessories include condulets, clamps, and connectors used for joining conduits to boxes or each other. The activity asks students to collect conduits and accessories to present to the class.

1. Preliminary Activity

2. ELECTRICAL
SUPPLIES AND
MATERIALS
Prepared by:
MR. JHUNALVIN B. SANTOS
TLE 8 Teacher

3. Terminologies
Supply – to provide with
Materials – consumable
Utility – designed for
general use.

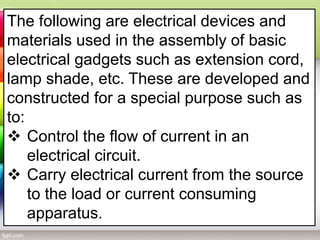

4. The following are electrical devices and
materials used in the assembly of basic
electrical gadgets such as extension cord,
lamp shade, etc. These are developed and
constructed for a special purpose such as
to:
 Control the flow of current in an
electrical circuit.
 Carry electrical current from the source
to the load or current consuming
apparatus.

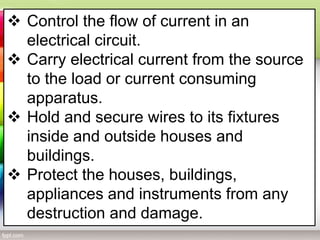

5.  Control the flow of current in an
electrical circuit.
 Carry electrical current from the source
to the load or current consuming
apparatus.
 Hold and secure wires to its fixtures
inside and outside houses and
buildings.
 Protect the houses, buildings,
appliances and instruments from any
destruction and damage.

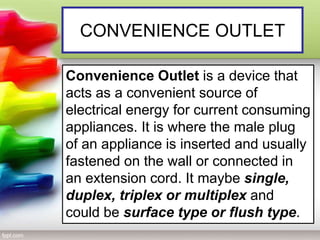

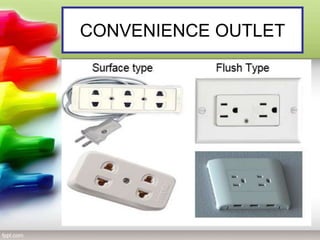

6. CONVENIENCE OUTLET
Convenience Outlet is a device that
acts as a convenient source of
electrical energy for current consuming
appliances. It is where the male plug
of an appliance is inserted and usually
fastened on the wall or connected in
an extension cord. It maybe single,
duplex, triplex or multiplex and
could be surface type or flush type.

7. CONVENIENCE OUTLET

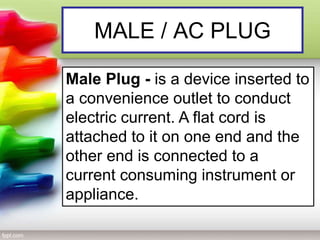

8. MALE / AC PLUG
Male Plug - is a device inserted to
a convenience outlet to conduct
electric current. A flat cord is
attached to it on one end and the
other end is connected to a
current consuming instrument or
appliance.

9. MALE / AC PLUG

10. LAMP HOLDER
Lamp Holder – This is an
electrical device that is used to
hold and protect incandescent or
compact fluorescent lamp. It is
also called as “Lamp
Socket/Receptacle”.

11. LAMP HOLDER

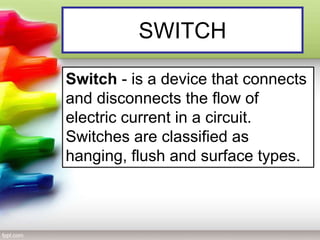

12. SWITCH
Switch - is a device that connects
and disconnects the flow of
electric current in a circuit.
Switches are classified as
hanging, flush and surface types.

13. SWITCH

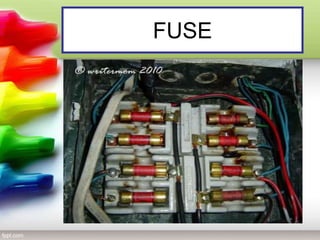

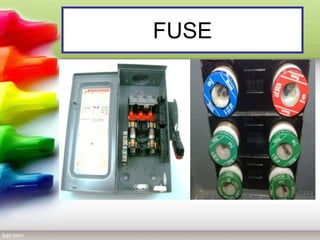

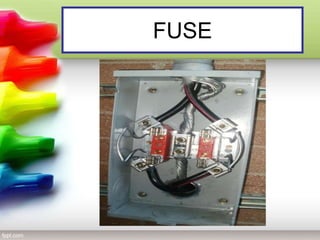

14. FUSE
Fuse - a circuit protective
device that automatically blows
and cuts the current when
overload or short circuit
happens.

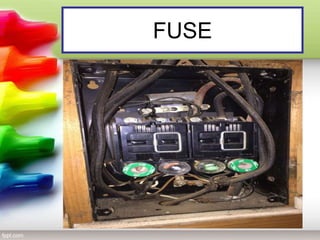

15. FUSE

16. FUSE

17. FUSE

18. FUSE

19. FUSE

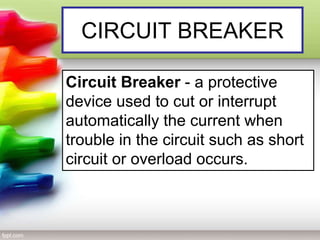

20. CIRCUIT BREAKER
Circuit Breaker - a protective
device used to cut or interrupt
automatically the current when
trouble in the circuit such as short
circuit or overload occurs.

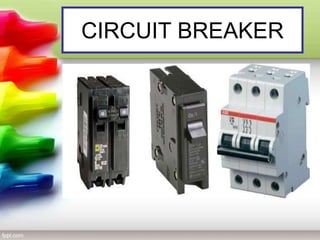

21. CIRCUIT BREAKER

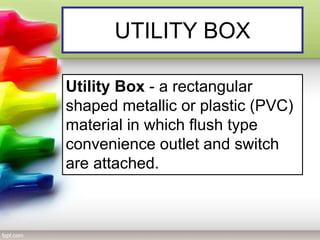

22. UTILITY BOX
Utility Box - a rectangular
shaped metallic or plastic (PVC)
material in which flush type
convenience outlet and switch
are attached.

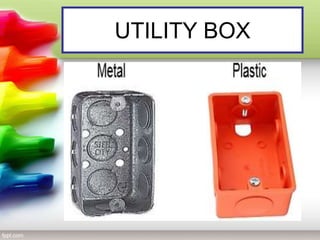

23. UTILITY BOX

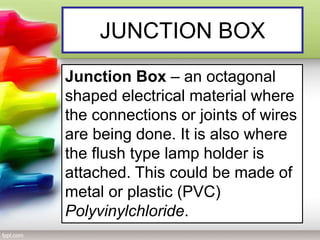

24. JUNCTION BOX
Junction Box – an octagonal
shaped electrical material where
the connections or joints of wires
are being done. It is also where
the flush type lamp holder is
attached. This could be made of
metal or plastic (PVC)
Polyvinylchloride.

25. JUNCTION BOX

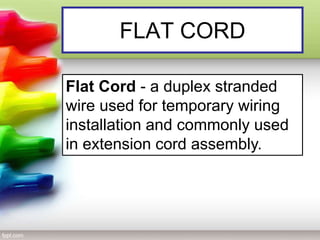

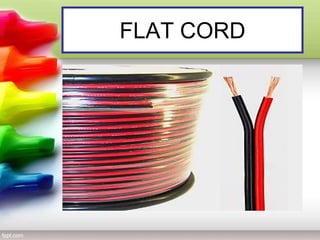

26. FLAT CORD
Flat Cord - a duplex stranded
wire used for temporary wiring
installation and commonly used
in extension cord assembly.

27. FLAT CORD

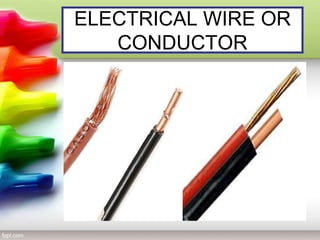

28. ELECTRICAL WIRE OR
CONDUCTOR
Electrical Wire/Conductor-
electrical material that could be:
Stranded wire which is made of
multiple strands joined together to
make a single wire.
Solid wire is made of a single strand
of copper or aluminum wire. These
are used in wiring installation inside
and outside the buildings.

29. ELECTRICAL WIRE OR
CONDUCTOR

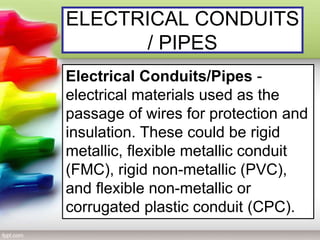

30. ELECTRICAL CONDUITS
/ PIPES
Electrical Conduits/Pipes -
electrical materials used as the
passage of wires for protection and
insulation. These could be rigid
metallic, flexible metallic conduit
(FMC), rigid non-metallic (PVC),
and flexible non-metallic or
corrugated plastic conduit (CPC).

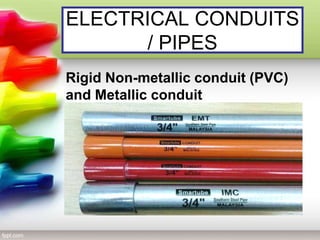

31. ELECTRICAL CONDUITS
/ PIPES
Rigid Non-metallic conduit (PVC)
and Metallic conduit

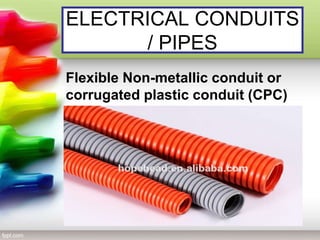

32. ELECTRICAL CONDUITS
/ PIPES
Flexible Non-metallic conduit or
corrugated plastic conduit (CPC)

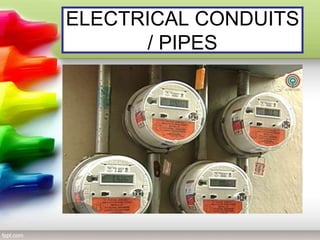

33. ELECTRICAL CONDUITS
/ PIPES

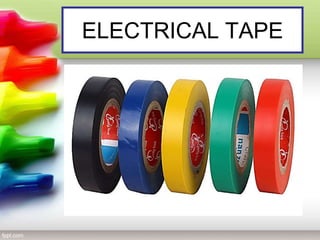

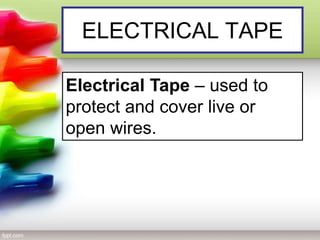

34. ELECTRICAL TAPE
Electrical Tape – used to
protect and cover live or
open wires.

35. ELECTRICAL TAPE

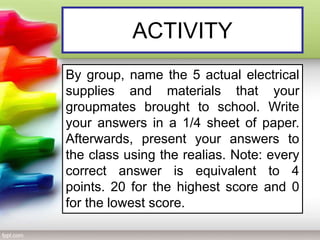

36. ACTIVITY
By group, name the 5 actual electrical
supplies and materials that your
groupmates brought to school. Write
your answers in a 1/4 sheet of paper.
Afterwards, present your answers to
the class using the realias. Note: every
correct answer is equivalent to 4
points. 20 for the highest score and 0
for the lowest score.

37. Quiz
Direction: Identify the given electrical supply. Write
the answer at the back of your big notebook.

39. ELECTRICAL
CONDUITS
AND
ACCESSORIES
Prepared by:
MR. JHUNALVIN B. SANTOS
TLE 8 Teacher

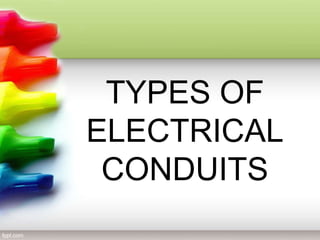

40. TYPES OF
ELECTRICAL
CONDUITS

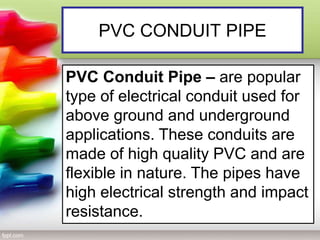

41. PVC CONDUIT PIPE
PVC Conduit Pipe – are popular
type of electrical conduit used for
above ground and underground
applications. These conduits are
made of high quality PVC and are
flexible in nature. The pipes have
high electrical strength and impact
resistance.

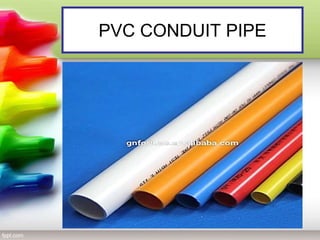

42. PVC CONDUIT PIPE

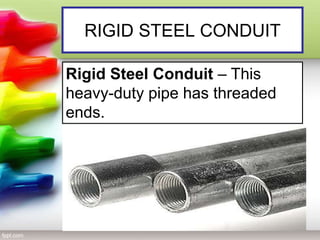

43. RIGID STEEL CONDUIT
Rigid Steel Conduit – This
heavy-duty pipe has threaded
ends.

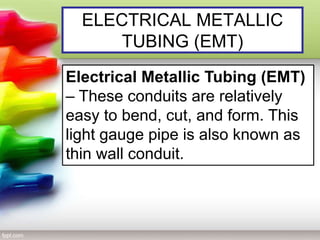

44. ELECTRICAL METALLIC
TUBING (EMT)
Electrical Metallic Tubing (EMT)
– These conduits are relatively
easy to bend, cut, and form. This
light gauge pipe is also known as
thin wall conduit.

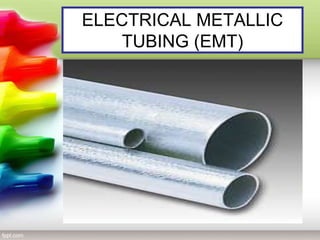

45. ELECTRICAL METALLIC
TUBING (EMT)

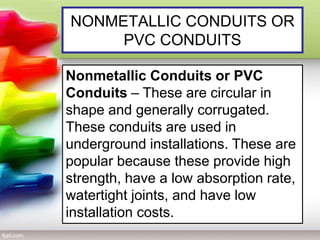

46. NONMETALLIC CONDUITS OR
PVC CONDUITS
Nonmetallic Conduits or PVC
Conduits – These are circular in
shape and generally corrugated.
These conduits are used in
underground installations. These are
popular because these provide high
strength, have a low absorption rate,
watertight joints, and have low
installation costs.

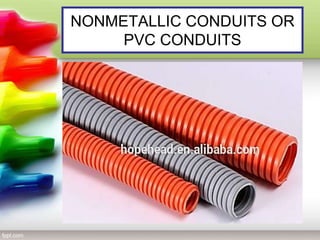

47. NONMETALLIC CONDUITS OR
PVC CONDUITS

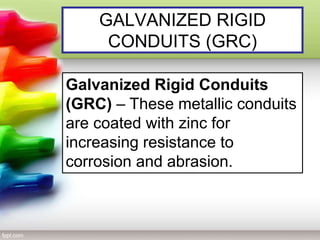

48. GALVANIZED RIGID
CONDUITS (GRC)
Galvanized Rigid Conduits
(GRC) – These metallic conduits
are coated with zinc for
increasing resistance to
corrosion and abrasion.

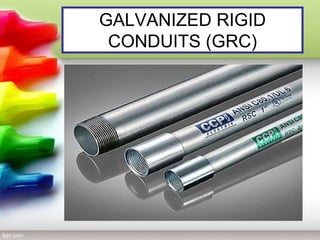

49. GALVANIZED RIGID
CONDUITS (GRC)

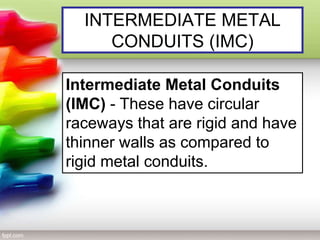

50. INTERMEDIATE METAL
CONDUITS (IMC)
Intermediate Metal Conduits
(IMC) - These have circular
raceways that are rigid and have
thinner walls as compared to
rigid metal conduits.

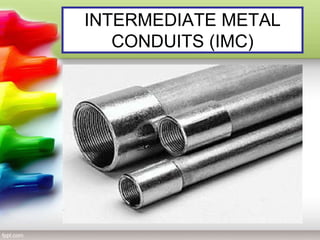

51. INTERMEDIATE METAL
CONDUITS (IMC)

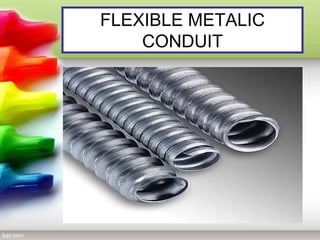

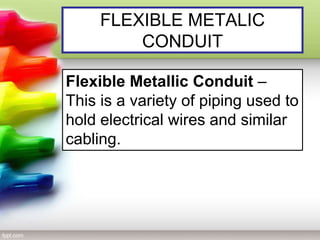

52. FLEXIBLE METALIC
CONDUIT
Flexible Metallic Conduit –
This is a variety of piping used to
hold electrical wires and similar
cabling.

53. FLEXIBLE METALIC
CONDUIT

54. ELECTRICAL
CONDUIT
ACCESSORIES

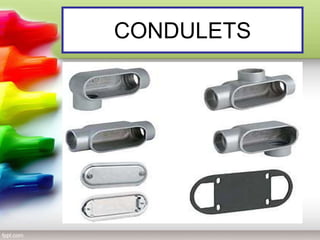

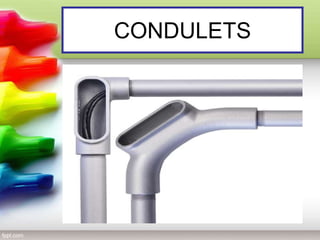

55. CONDULETS
Condulets – These are used for
a fitting resembling a pipe or box
with a removable cover for
access to electric conduits.

56. CONDULETS

57. CONDULETS

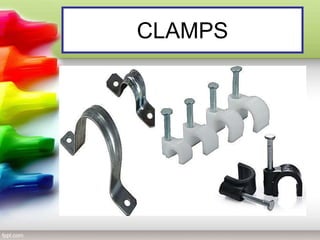

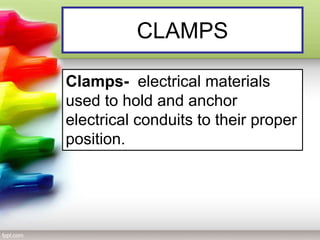

58. CLAMPS
Clamps- electrical materials
used to hold and anchor
electrical conduits to their proper
position.

59. CLAMPS

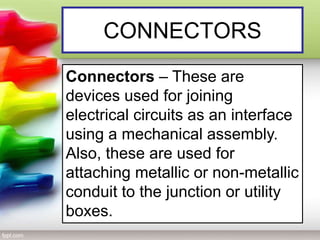

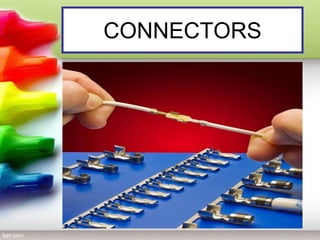

60. CONNECTORS
Connectors – These are
devices used for joining
electrical circuits as an interface
using a mechanical assembly.
Also, these are used for
attaching metallic or non-metallic
conduit to the junction or utility
boxes.

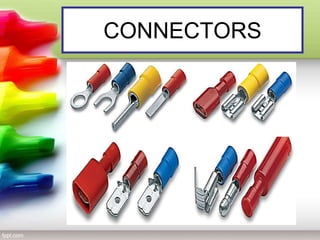

61. CONNECTORS

62. CONNECTORS

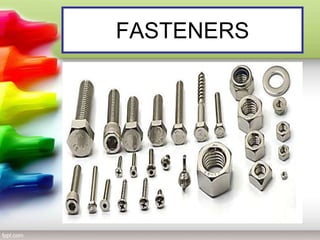

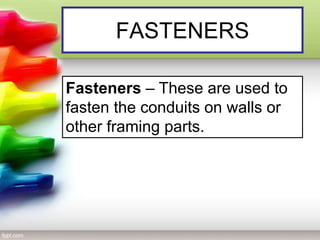

63. FASTENERS
Fasteners – These are used to
fasten the conduits on walls or
other framing parts.

64. FASTENERS

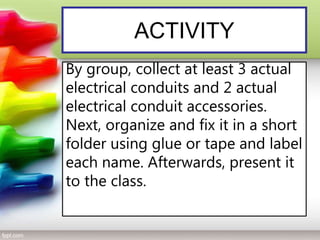

65. ACTIVITY
By group, collect at least 3 actual
electrical conduits and 2 actual
electrical conduit accessories.
Next, organize and fix it in a short
folder using glue or tape and label
each name. Afterwards, present it
to the class.

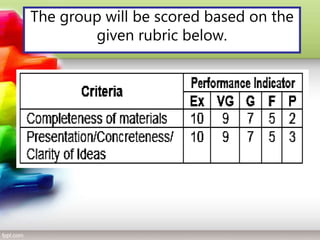

66. The group will be scored based on the
given rubric below.

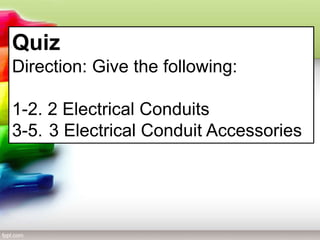

67. Quiz
Direction: Give the following:
1-2. 2 Electrical Conduits
3-5. 3 Electrical Conduit Accessories
