1. CURRENT VERSION 7.6

2. Elastic 101 - Index operations
ENG. ISMAIL ANJRINI
ELASTIC CERTIFIED ENGINEER
CURRENT VERSION 7.6Elastic-Saudi-Arabia

3. About Me
Ismail Anjrini
More than 15 years experience
Elasticsearch Certified Engineer
CURRENT VERSION 7.6

4. CURRENT VERSION 7.6
INDEX

5. Index
An index is like a ‘table’ in a relational database.
It has a mapping which defines multiple types.
An index is a logical namespace:
◦ Maps to one or more primary shards
◦ Can have zero or more replica shards
RDBMS
ES
Database
?
Table
Index
Columns/Rows
Document
CURRENT VERSION 7.6

6. CURRENT VERSION 7.6

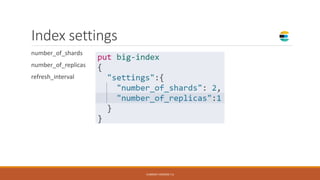

7. Index settings
number_of_shards
number_of_replicas
refresh_interval
CURRENT VERSION 7.6

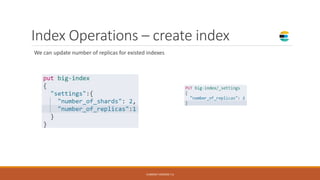

8. Index Operations – create index
We can update number of replicas for existed indexes
CURRENT VERSION 7.6

9. Index Operations – mapping
CURRENT VERSION 7.6

10. Index Operations – mapping
PUT names
{
"mappings":
{
"properties":
{
"name":
{
"type": "keyword“
},
"name_text": { "type": "text" }
}
}
}
CURRENT VERSION 7.6

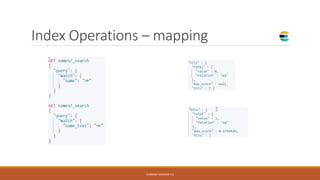

11. Index Operations – mapping
CURRENT VERSION 7.6

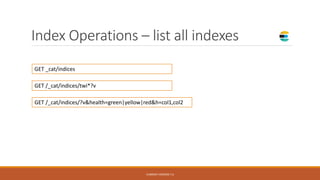

12. Index Operations – list all indexes
GET _cat/indices
GET /_cat/indices/twi*?v
GET /_cat/indices/?v&health=green|yellow|red&h=col1,col2
CURRENT VERSION 7.6

13. Index Operations – read index details
GET big-index
GET big-index?format=yaml|json
CURRENT VERSION 7.6

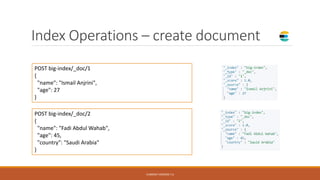

14. Index Operations – create document
POST big-index/_doc/1
{
"name": "Ismail Anjrini",
"age": 27
}
POST big-index/_doc/2
{
"name": "Fadi Abdul Wahab",
"age": 45,
"country": "Saudi Arabia"
}
CURRENT VERSION 7.6

15. Index Operations – POST vs PUT
POST big-index/_doc/
{
"name": "Kasem",
"age": 46
}
PUT big-index/_doc/
{
"name": "Riyadh",
"age": 33
}
CURRENT VERSION 7.6

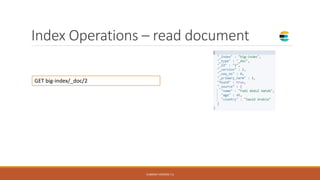

16. Index Operations – read document
GET big-index/_doc/2
CURRENT VERSION 7.6

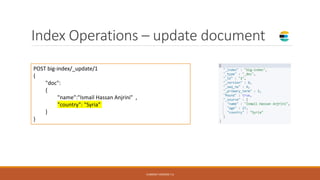

17. Index Operations – update document
POST big-index/_update/1
{
"doc":
{
"name":"Ismail Hassan Anjrini" ,
"country": "Syria"
}
}
CURRENT VERSION 7.6

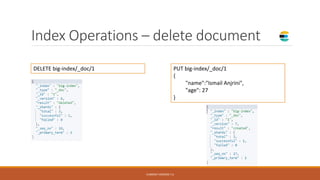

18. Index Operations – delete document
DELETE big-index/_doc/1 PUT big-index/_doc/1
{
"name":"Ismail Anjrini",
"age": 27
}
CURRENT VERSION 7.6

19. Index Operations - Index aliases
An index alias is a secondary name used to refer to one or more existing indices
POST index-1/_alias/index-alias
POST index-2/_alias/index-alias
POST index-3/_alias/index-alias
CURRENT VERSION 7.6

20. Index Operations - Index aliases
filter: If specified, the index alias only applies to documents returned by the filter.
POST index-*/_alias/index-Egypt
{
"filter":
{
"term":
{
"nationality": "egypt"
}
}
}
CURRENT VERSION 7.6

21. Index Operations - Index aliases
DELETE index-1/_alias/index-alias
DELETE index-*/_alias/index-alias
GET index-alias/_search
GET index-alias/_search
CURRENT VERSION 7.6

22. Index Template
Index templates define settings and mappings that you can automatically apply when creating
new indices
Elasticsearch applies templates to new indices based on an index pattern that matches the index
name
Changes to index templates do not affect existing indices
Settings and mappings specified in create index API requests override any settings or mappings
specified in an index template
CURRENT VERSION 7.6

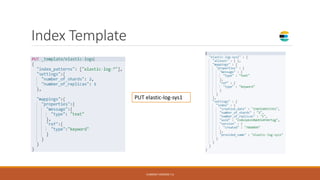

23. Index Template
CURRENT VERSION 7.6
PUT elastic-log-sys1

24. Index Template - Order
Multiple index templates can potentially match an index
Both the settings and mappings are merged into the final configuration of the index
The order of the merging can be controlled using the order parameter
With lower order being applied first, and higher orders overriding them
CURRENT VERSION 7.6

25. Index Template - Order
CURRENT VERSION 7.6
PUT elastic-log-sys1

26. Index Operations - Reindex
Reindex the current data in old-index to new-index
It does not copy the settings/fields settings from the source index to destination
CURRENT VERSION 7.6

27. Index Operations - Reindex
version_type: internal or empty:
◦ Update any document that have the same _id regardless the version number in the target index
◦ Increase the version number for the documents with the same _id
CURRENT VERSION 7.6

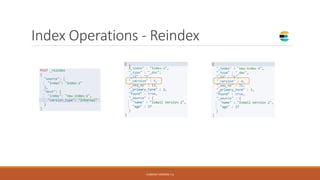

28. Index Operations - Reindex
CURRENT VERSION 7.6

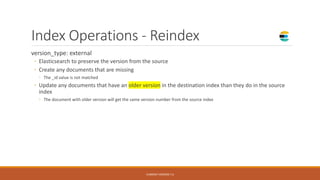

29. Index Operations - Reindex
version_type: external
◦ Elasticsearch to preserve the version from the source
◦ Create any documents that are missing
◦ The _id value is not matched
◦ Update any documents that have an older version in the destination index than they do in the source
index
◦ The document with older version will get the same version number from the source index
CURRENT VERSION 7.6

30. Index Operations - Reindex
Created index-1
Add data to index-1
Delete new-index-1
CURRENT VERSION 7.6

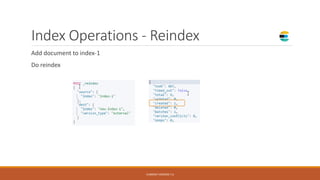

31. Index Operations - Reindex
Add document to index-1
Do reindex
CURRENT VERSION 7.6

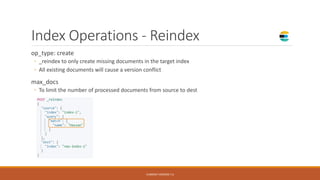

32. Index Operations - Reindex
op_type: create
◦ _reindex to only create missing documents in the target index
◦ All existing documents will cause a version conflict
max_docs
◦ To limit the number of processed documents from source to dest
CURRENT VERSION 7.6

33. CURRENT VERSION 7.6
