- 1. © 2015 IBMCorporation IBM Integration Bus Effective Administration and Development Matthew Golby-Kirk, IBM
- 2. What will thissession cover? WMB and IIB have support for two main user roles • Integration Developer • Administrator This session will aim to cover accepted best practice for the typical developer and administrator tasks • Including some essential “top tips” Topics to discuss • Tools of the trade • Design with IIB features • Design for performance and scalability • Design for administration • Common administrative tasks I’ll focus on WMB V8 and IIB V9 • but will cover some V10 improvements too!

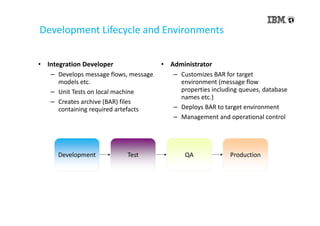

- 3. Development Lifecycle andEnvironments • Integration Developer – Develops message flows, message models etc. – Unit Tests on local machine – Creates archive (BAR) files containing required artefacts • Administrator – Customizes BAR for target environment (message flow properties including queues, database names etc.) – Deploys BAR to target environment – Management and operational control Development Test QA Production
- 4. Tools of theTrade for WMB V8 and IIB V9 Integration Toolkit Command line Integration Node Third Party Tools Integration API (CMP) REST API Integration Explorer Web Admin REST API WAS Admin

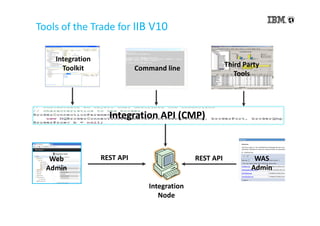

- 5. Tools of theTrade for IIB V10 Integration Toolkit Integration Node Command line Integration API (CMP) REST API Third Party Tools Web Admin REST API WAS Admin
- 6. Integration Explorer Management option designedfor administrators Plug-in to MQ Explorer Extra features − Create/Manage Configurable Services − Performance Views − Group integration nodes − Administration Log − Administration Queue − Manage statistics & tracing − Replaced in v10 with Web UI
- 7. BIP1121I: Creates anexecution group. Syntax: mqsicreateexecutiongroup brokerSpec -e egName [-w timeoutSecs] [-v traceFileName] Command options: 'brokerSpec' is one of: (a) 'brokerName' : Name of a locally defined broker (b) '-n brokerFileName' : File containing remote broker connection parameters (*.broker) (c) '-i ipAddress -p port -q qMgr' : hostname, port and queue manager of a remote broker '-e egName' name of the new execution group '-w timeoutSecs' maximum number of seconds to wait for the execution group to be created '-v traceFileName' send verbose internal trace to the specified file. Command line tools A wide selection of tools for scripting actions Requires a configured environment • mqsiprofile or mqsicommandconsole (Windows) mqsiprofile (Linux/UNIX) JCL or ISPF (z/OS) Most commands work against local or remote integration nodes Some new “IIB” command in V10
- 8. Integration API (CMP) Javainterface that enables the administration tools Use for custom administration requirements Fully documented and samples available • WMB v8 and later allows you to create and edit message flows too – Build your entire system programmatically!
- 9. Web Visualisation andAnalytics A comprehensive tool for web management • Manage all integration resources from zero-footprint client • Analyze integration performance in real-time • Supported on a variety of browsers: IE10, Firefox, Safari… • Complements MQ Explorer and WAS Admin consoles Managing Integration Resources • View top-level integration node properties • Add/remove/change integration servers • Start/Stop integration data flows • Role based access to control usage • Advanced options include data replay, policy & monitoring • Exploits underlying public REST/JSON API Integration Performance Analysis • Operational experience; no developer intervention required – New and existing flows can exploit without change • Many metrics of integration flow available in real-time – CPU & I/O time shown by default in integration analyzer – Other metrics include thread, data sizes, errors… • Flexible display includes data tables and flow profile – Drill down to understand detailed behaviour • Exploits underlying MQTT web sockets technology – Asynchronous notification at low CPU cost

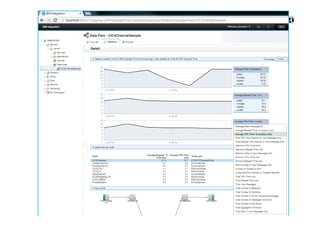

- 10.
- 11. V10 Web UIAdministration Improvements IIB Web UI becomes the primary means of runtime administration – Browser approach is lightweight and universal – Integration Bus Explorer no longer provided as part of IIBv10 Programmatic intervention using public Java and REST APIs Integration Bus Explorer admin capabilities re-located – Policy Set configuration moved to the IIB Toolkit – Export Port Configuration for external HTTP listeners in Web UI – Integration Server Create, Rename and Delete added to Web UI – BAR file deployment added to Web UI

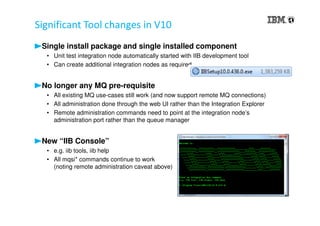

- 12. Significant Tool changesin V10 Single install package and single installed component • Unit test integration node automatically started with IIB development tool • Can create additional integration nodes as required No longer any MQ pre-requisite • All existing MQ use-cases still work (and now support remote MQ connections) • All administration done through the web UI rather than the Integration Explorer • Remote administration commands need to point at the integration node’s administration port rather than the queue manager New “IIB Console” • e.g. iib tools, iib help • All mqsi* commands continue to work (noting remote administration caveat above)
- 13. Integration Toolkit Viewfor Developers

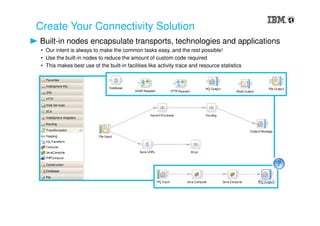

- 14. Create Your ConnectivitySolution Built-in nodes encapsulate transports, technologies and applications • Our intent is always to make the common tasks easy, and the rest possible! • Use the built-in nodes to reduce the amount of custom code required • This makes best use of the built-in facilities like activity trace and resource statistics

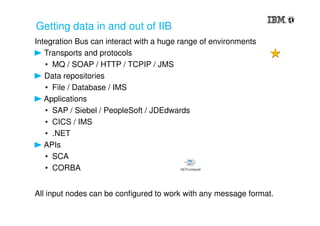

- 15. Integration Bus caninteract with a huge range of environments Transports and protocols • MQ / SOAP / HTTP / TCPIP / JMS Data repositories • File / Database / IMS Applications • SAP / Siebel / PeopleSoft / JDEdwards • CICS / IMS • .NET APIs • SCA • CORBA All input nodes can be configured to work with any message format. Getting data in and out of IIB

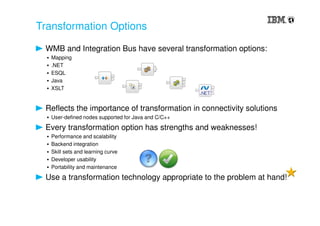

- 16. Transformation Options WMB andIntegration Bus have several transformation options: ▪ Mapping ▪ .NET ▪ ESQL ▪ Java ▪ XSLT Reflects the importance of transformation in connectivity solutions ▪ User-defined nodes supported for Java and C/C++ Every transformation option has strengths and weaknesses! ▪ Performance and scalability ▪ Backend integration ▪ Skill sets and learning curve ▪ Developer usability ▪ Portability and maintenance Use a transformation technology appropriate to the problem at hand!

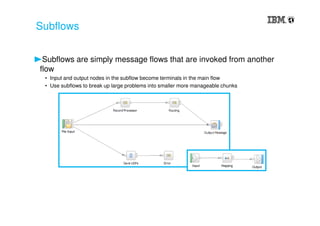

- 17. Subflows are simplymessage flows that are invoked from another flow • Input and output nodes in the subflow become terminals in the main flow • Use subflows to break up large problems into smaller more manageable chunks Subflows
- 18. Message Modelling Models areneeded for parsing, validation and transformation • Models avoid the need to write custom code to parse messages! Graphical mapper requires models to display the message structure • ESQL editor provides in line validation of code that navigates message trees

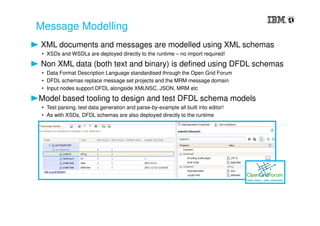

- 19. XML documents andmessages are modelled using XML schemas • XSDs and WSDLs are deployed directly to the runtime – no import required! Non XML data (both text and binary) is defined using DFDL schemas • Data Format Description Language standardised through the Open Grid Forum • DFDL schemas replace message set projects and the MRM message domain • Input nodes support DFDL alongside XMLNSC, JSON, MRM etc Model based tooling to design and test DFDL schema models • Test parsing, test data generation and parse-by-example all built into editor! • As with XSDs, DFDL schemas are also deployed directly to the runtime Message Modelling
- 20. Design for Performance Thereare several areas that incur a processing cost • Parsing and serialization of messages as they enter and exit the flow • Business logic such as transformations executed during message processing • Transformation cost includes general complexity, tree navigation and tree copying • External resources such as interactions with databases and queue managers Message flow design is critical to achieve high performance and scalability • For example using global units of work to achieve transactionality across a flow Performance is a large (and important) topic in its own right • There is a wealth of information and guidance available online!
- 21. Design for Scalability Largemessages can consume large amounts of memory/CPU There is an industry trend toward larger data sets • Already apparent in IIB deployments A flow with a large memory overhead can • slow down other flows by causing swapping • in the worst case, bring down the execution group Recommendations • Plan ahead - consider whether a message 10 times the current size would be able to be handled without a problem • Where appropriate, use large message handling techniques in your flows ( see Large Messaging sample )

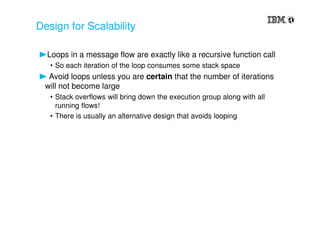

- 22. Design for Scalability Loopsin a message flow are exactly like a recursive function call • So each iteration of the loop consumes some stack space Avoid loops unless you are certain that the number of iterations will not become large • Stack overflows will bring down the execution group along with all running flows! • There is usually an alternative design that avoids looping

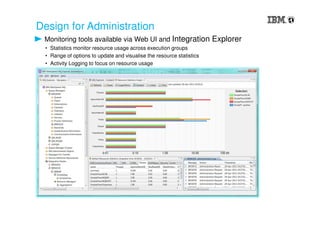

- 23. Design for Administration Monitoringtools available via Web UI and Integration Explorer • Statistics monitor resource usage across execution groups • Range of options to update and visualise the resource statistics • Activity Logging to focus on resource usage
- 24. Design for Administration UseApplications and Libraries for easier management Use configurable services to externalize deployment time properties • Allows deployment information to be configured by a system administrator • For example, credentials for the database nodes and FTP server and port • Ideal for moving solutions through staging environments (test to production)

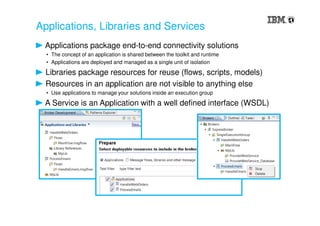

- 25. Applications, Libraries andServices Applications package end-to-end connectivity solutions • The concept of an application is shared between the toolkit and runtime • Applications are deployed and managed as a single unit of isolation Libraries package resources for reuse (flows, scripts, models) Resources in an application are not visible to anything else • Use applications to manage your solutions inside an execution group A Service is an Application with a well defined interface (WSDL)

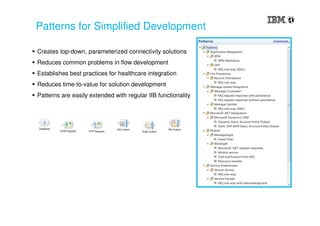

- 26. Patterns for SimplifiedDevelopment Creates top-down, parameterized connectivity solutions Reduces common problems in flow development Establishes best practices for healthcare integration Reduces time-to-value for solution development Patterns are easily extended with regular IIB functionality
- 27. Pattern Generation Pattern generationcreates the production ready projects • Generated projects reflect the configuration choices of the pattern user • Configuration is saved so that the pattern can be re-generated if required
- 28. Built-In Patterns Integration Busprovides a core set of built-in patterns These implement a variety of common scenarios • Web service front end to a MQ based application • Processing data stored in a file and routing to one or more queues • Adding a proxy in front of a web service provider • Processing data from an SAP system and routing to MQ • Shredding messages and routing to one or more queues Patterns are selected based on client feedback and field experience This core set of patterns continues to grow with each release

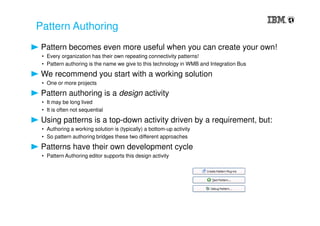

- 29. Pattern Authoring Pattern becomeseven more useful when you can create your own! • Every organization has their own repeating connectivity patterns! • Pattern authoring is the name we give to this technology in WMB and Integration Bus We recommend you start with a working solution • One or more projects Pattern authoring is a design activity • It may be long lived • It is often not sequential Using patterns is a top-down activity driven by a requirement, but: • Authoring a working solution is (typically) a bottom-up activity • So pattern authoring bridges these two different approaches Patterns have their own development cycle • Pattern Authoring editor supports this design activity

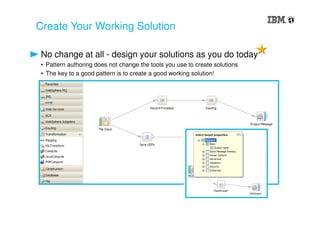

- 30. Create Your WorkingSolution No change at all - design your solutions as you do today • Pattern authoring does not change the tools you use to create solutions • The key to a good pattern is to create a good working solution!
- 31. Design Your Pattern Straightforwardto create patterns using the Pattern Authoring editor! • Design the user interface which is presented to your pattern users • Easy to add branding - style sheets, images and other files as required
- 32.

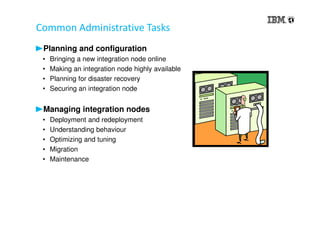

- 33. Common Administrative Tasks Planningand configuration • Bringing a new integration node online • Making an integration node highly available • Planning for disaster recovery • Securing an integration node Managing integration nodes • Deployment and redeployment • Understanding behaviour • Optimizing and tuning • Migration • Maintenance
- 34. Bringing a newintegration node online Typical steps required • Preconfiguration (e.g. OS, userids) • Installation (IIB, additional software) • Creating the integration node • Creating integration servers • Creating Configurable Services • Deploying BAR files • Additional configuration (e.g. security, userids) And don’t forget: • Documentation • Scripting • Virtualization

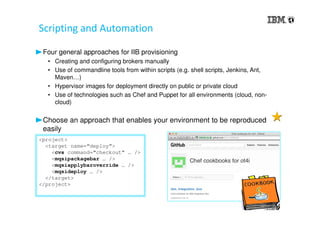

- 35. Scripting and Automation Fourgeneral approaches for IIB provisioning • Creating and configuring brokers manually • Use of commandline tools from within scripts (e.g. shell scripts, Jenkins, Ant, Maven…) • Hypervisor images for deployment directly on public or private cloud • Use of technologies such as Chef and Puppet for all environments (cloud, non- cloud) Choose an approach that enables your environment to be reproduced easily <project> <target name=“deploy”> <cvs command=“checkout” … /> <mqsipackagebar … /> <mqsiapplybaroverride … /> <mqsideploy … /> </target> </project>
- 36. Making the integrationnode highly available How do I ensure that the integration node is continually processing messages? • Active/Active vs. Active/Passive • Agree SLAs with the business (% uptime) The integration node includes restart recovery of integration servers • But this is usually not sufficient on its own • Does not cover machine restart Two main options • Third-party solutions (e.g. VCS/HACMP/MSCS) • Multi-instance queue managers and integration nodes Distributed Cache • Built in cache support in 8.0.0.1 and later. • Enables HA scenarios

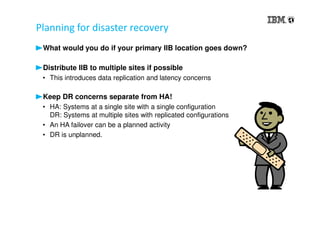

- 37. Planning for disasterrecovery What would you do if your primary IIB location goes down? Distribute IIB to multiple sites if possible • This introduces data replication and latency concerns Keep DR concerns separate from HA! • HA: Systems at a single site with a single configuration DR: Systems at multiple sites with replicated configurations • An HA failover can be a planned activity • DR is unplanned.

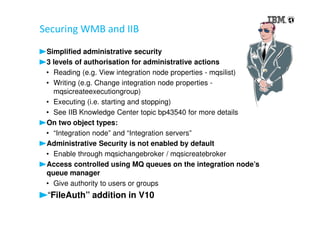

- 38. Securing WMB andIIB Simplified administrative security 3 levels of authorisation for administrative actions • Reading (e.g. View integration node properties - mqsilist) • Writing (e.g. Change integration node properties - mqsicreateexecutiongroup) • Executing (i.e. starting and stopping) • See IIB Knowledge Center topic bp43540 for more details On two object types: • “Integration node” and “Integration servers” Administrative Security is not enabled by default • Enable through mqsichangebroker / mqsicreatebroker Access controlled using MQ queues on the integration node’s queue manager • Give authority to users or groups “FileAuth” addition in V10

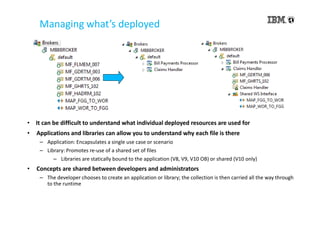

- 39. Managing what’s deployed •It can be difficult to understand what individual deployed resources are used for • Applications and libraries can allow you to understand why each file is there – Application: Encapsulates a single use case or scenario – Library: Promotes re-use of a shared set of files – Libraries are statically bound to the application (V8, V9, V10 OB) or shared (V10 only) • Concepts are shared between developers and administrators – The developer chooses to create an application or library; the collection is then carried all the way through to the runtime

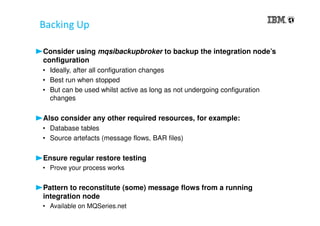

- 40. Backing Up Consider usingmqsibackupbroker to backup the integration node’s configuration • Ideally, after all configuration changes • Best run when stopped • But can be used whilst active as long as not undergoing configuration changes Also consider any other required resources, for example: • Database tables • Source artefacts (message flows, BAR files) Ensure regular restore testing • Prove your process works Pattern to reconstitute (some) message flows from a running integration node • Available on MQSeries.net
- 41. Understanding integration nodebehaviour The tools include a lot of information that is useful to the administrator • Administration queue and log, Message flow and resource statistics • Warnings when features that affect performance are enabled • Use this information to understand recent configuration changes − How the integration server is performing, connected endpoints, etc.

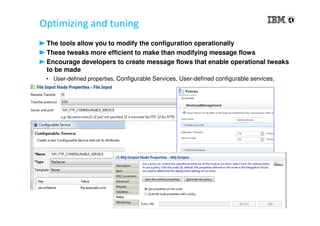

- 42. Optimizing and tuning Thetools allow you to modify the configuration operationally These tweaks more efficient to make than modifying message flows Encourage developers to create message flows that enable operational tweaks to be made • User-defined properties, Configurable Services, User-defined configurable services, Policies

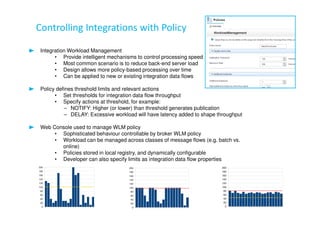

- 43. Integration Workload Management •Provide intelligent mechanisms to control processing speed • Most common scenario is to reduce back-end server load • Design allows more policy-based processing over time • Can be applied to new or existing integration data flows Policy defines threshold limits and relevant actions • Set thresholds for integration data flow throughput • Specify actions at threshold, for example: – NOTIFY: Higher (or lower) than threshold generates publication – DELAY: Excessive workload will have latency added to shape throughput Web Console used to manage WLM policy • Sophisticated behaviour controllable by broker WLM policy • Workload can be managed across classes of message flows (e.g. batch vs. online) • Policies stored in local registry, and dynamically configurable • Developer can also specify limits as integration data flow properties Controlling Integrations with Policy 0 20 40 60 80 100 120 140 160 180 200 0 20 40 60 80 100 120 140 160 180 200 0 20 40 60 80 100 120 140 160 180 200

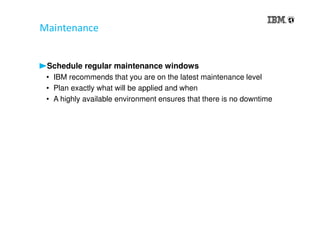

- 44. Maintenance Schedule regular maintenancewindows • IBM recommends that you are on the latest maintenance level • Plan exactly what will be applied and when • A highly available environment ensures that there is no downtime

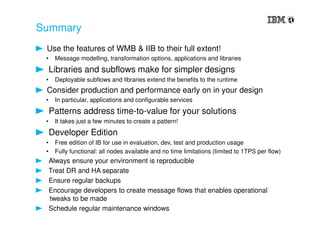

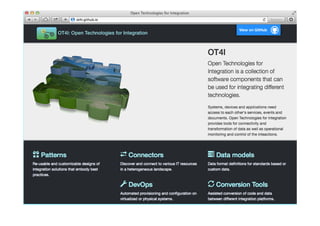

- 46. Summary Use the featuresof WMB & IIB to their full extent! • Message modelling, transformation options, applications and libraries Libraries and subflows make for simpler designs • Deployable subflows and libraries extend the benefits to the runtime Consider production and performance early on in your design • In particular, applications and configurable services Patterns address time-to-value for your solutions • It takes just a few minutes to create a pattern! Developer Edition • Free edition of IB for use in evaluation, dev, test and production usage • Fully functional: all nodes available and no time limitations (limited to 1TPS per flow) Always ensure your environment is reproducible Treat DR and HA separate Ensure regular backups Encourage developers to create message flows that enables operational tweaks to be made Schedule regular maintenance windows
