The document investigates how the color of light affects the rate of photosynthesis. It describes an experiment where leaf discs were submerged in water of different colors and the time taken for the first 10 discs to float was recorded, with floating indicating photosynthesis had occurred. The results showed blue light had the fastest rates, with discs floating quickest in blue water, while green light had the slowest rates. This supports the hypothesis and demonstrates that the color of light influences the rate of photosynthesis, with more light absorption by chloroplasts under blue than other colors.

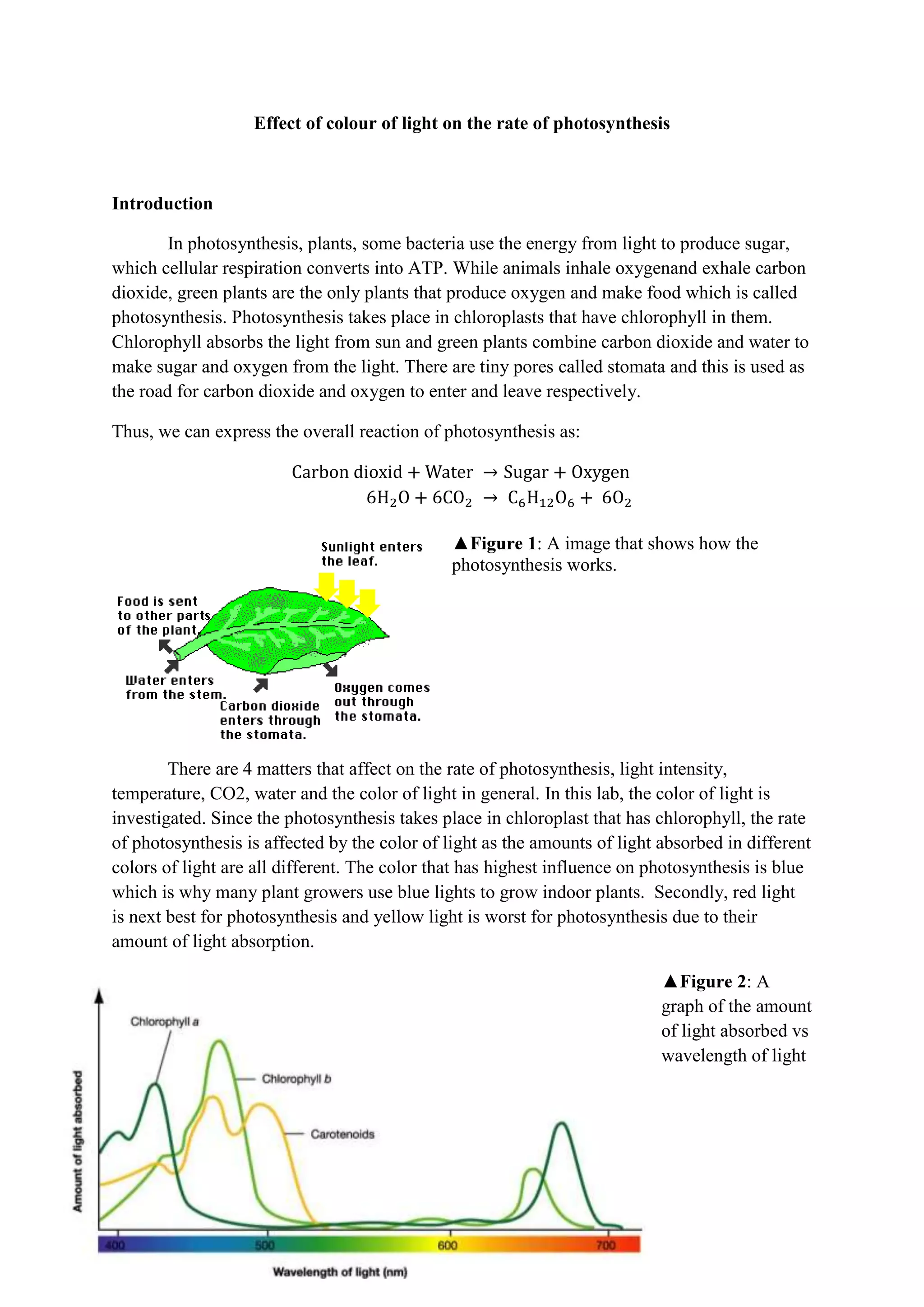

1. Effect of colour of light on the rate of photosynthesis
Introduction
In photosynthesis, plants, some bacteria use the energy from light to produce sugar,
which cellular respiration converts into ATP. While animals inhale oxygenand exhale carbon
dioxide, green plants are the only plants that produce oxygen and make food which is called
photosynthesis. Photosynthesis takes place in chloroplasts that have chlorophyll in them.
Chlorophyll absorbs the light from sun and green plants combine carbon dioxide and water to
make sugar and oxygen from the light. There are tiny pores called stomata and this is used as
the road for carbon dioxide and oxygen to enter and leave respectively.
Thus, we can express the overall reaction of photosynthesis as:
▲ 1: A image that shows how the
photosynthesis works.
There are 4 matters that affect on the rate of photosynthesis, light intensity,
temperature, CO2, water and the color of light in general. In this lab, the color of light is
investigated. Since the photosynthesis takes place in chloroplast that has chlorophyll, the rate
of photosynthesis is affected by the color of light as the amounts of light absorbed in different
colors of light are all different. The color that has highest influence on photosynthesis is blue
which is why many plant growers use blue lights to grow indoor plants. Secondly, red light
is next best for photosynthesis and yellow light is worst for photosynthesis due to their
amount of light absorption.
▲ 2: A
graph of the amount
of light absorbed vs
wavelength of light

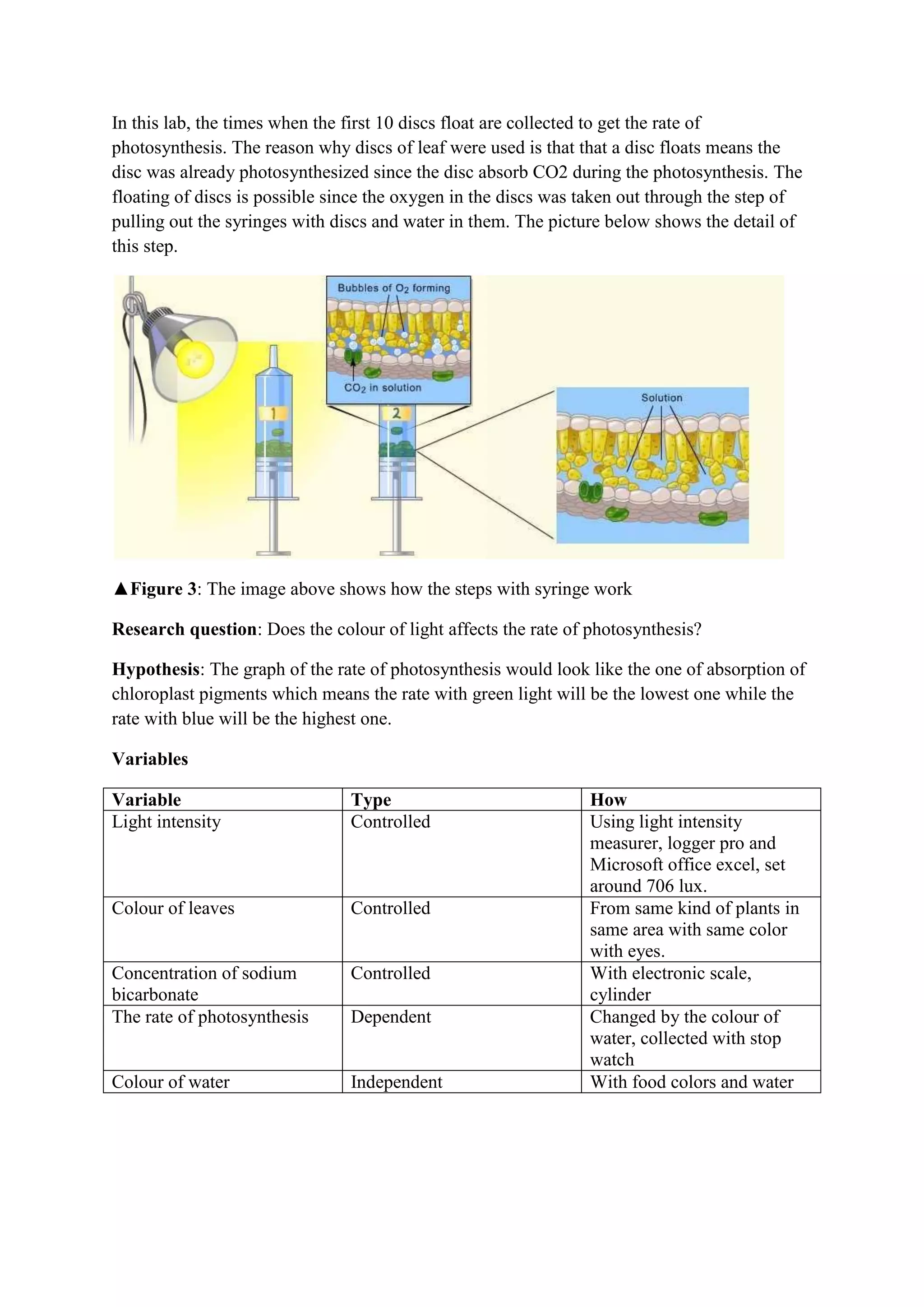

2. In this lab, the times when the first 10 discs float are collected to get the rate of
photosynthesis. The reason why discs of leaf were used is that that a disc floats means the
disc was already photosynthesized since the disc absorb CO2 during the photosynthesis. The
floating of discs is possible since the oxygen in the discs was taken out through the step of
pulling out the syringes with discs and water in them. The picture below shows the detail of
this step.
▲ 3: The image above shows how the steps with syringe work
Research question: Does the colour of light affects the rate of photosynthesis?
Hypothesis: The graph of the rate of photosynthesis would look like the one of absorption of
chloroplast pigments which means the rate with green light will be the lowest one while the
rate with blue will be the highest one.
Variables
Variable Type How
Light intensity Controlled Using light intensity
measurer, logger pro and
Microsoft office excel, set
around 706 lux.
Colour of leaves Controlled From same kind of plants in
same area with same color
with eyes.
Concentration of sodium Controlled With electronic scale,
bicarbonate cylinder
The rate of photosynthesis Dependent Changed by the colour of
water, collected with stop
watch
Colour of water Independent With food colors and water

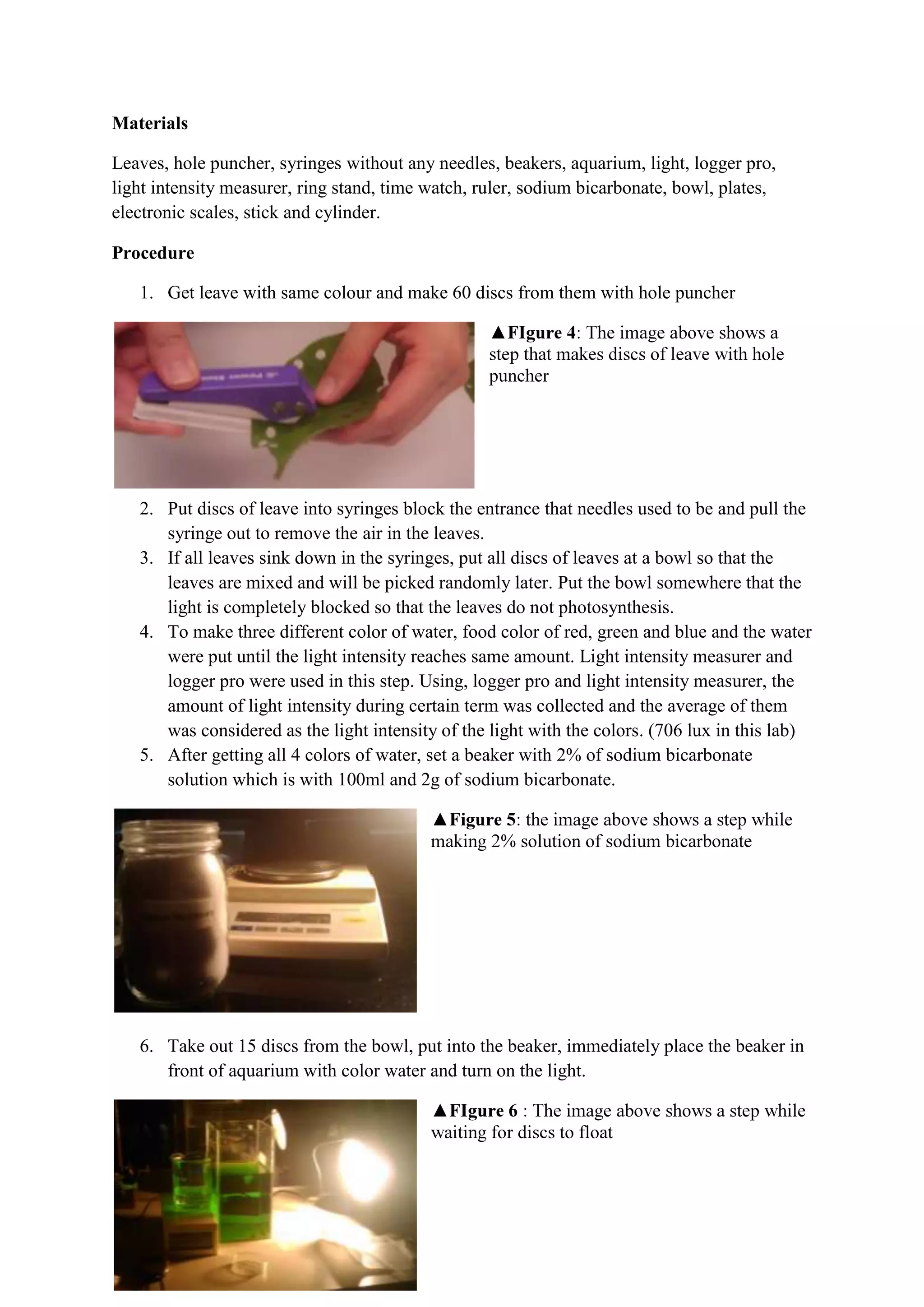

3. Materials
Leaves, hole puncher, syringes without any needles, beakers, aquarium, light, logger pro,
light intensity measurer, ring stand, time watch, ruler, sodium bicarbonate, bowl, plates,
electronic scales, stick and cylinder.
Procedure
1. Get leave with same colour and make 60 discs from them with hole puncher
2. Put discs of leave into syringes block the entrance that needles used to be and pull the
syringe out to remove the air in the leaves.
3. If all leaves sink down in the syringes, put all discs of leaves at a bowl so that the
leaves are mixed and will be picked randomly later. Put the bowl somewhere that the
light is completely blocked so that the leaves do not photosynthesis.
4. To make three different color of water, food color of red, green and blue and the water
were put until the light intensity reaches same amount. Light intensity measurer and
logger pro were used in this step. Using, logger pro and light intensity measurer, the
amount of light intensity during certain term was collected and the average of them
was considered as the light intensity of the light with the colors. (706 lux in this lab)
5. After getting all 4 colors of water, set a beaker with 2% of sodium bicarbonate
solution which is with 100ml and 2g of sodium bicarbonate.
6. Take out 15 discs from the bowl, put into the beaker, immediately place the beaker in
front of aquarium with color water and turn on the light.

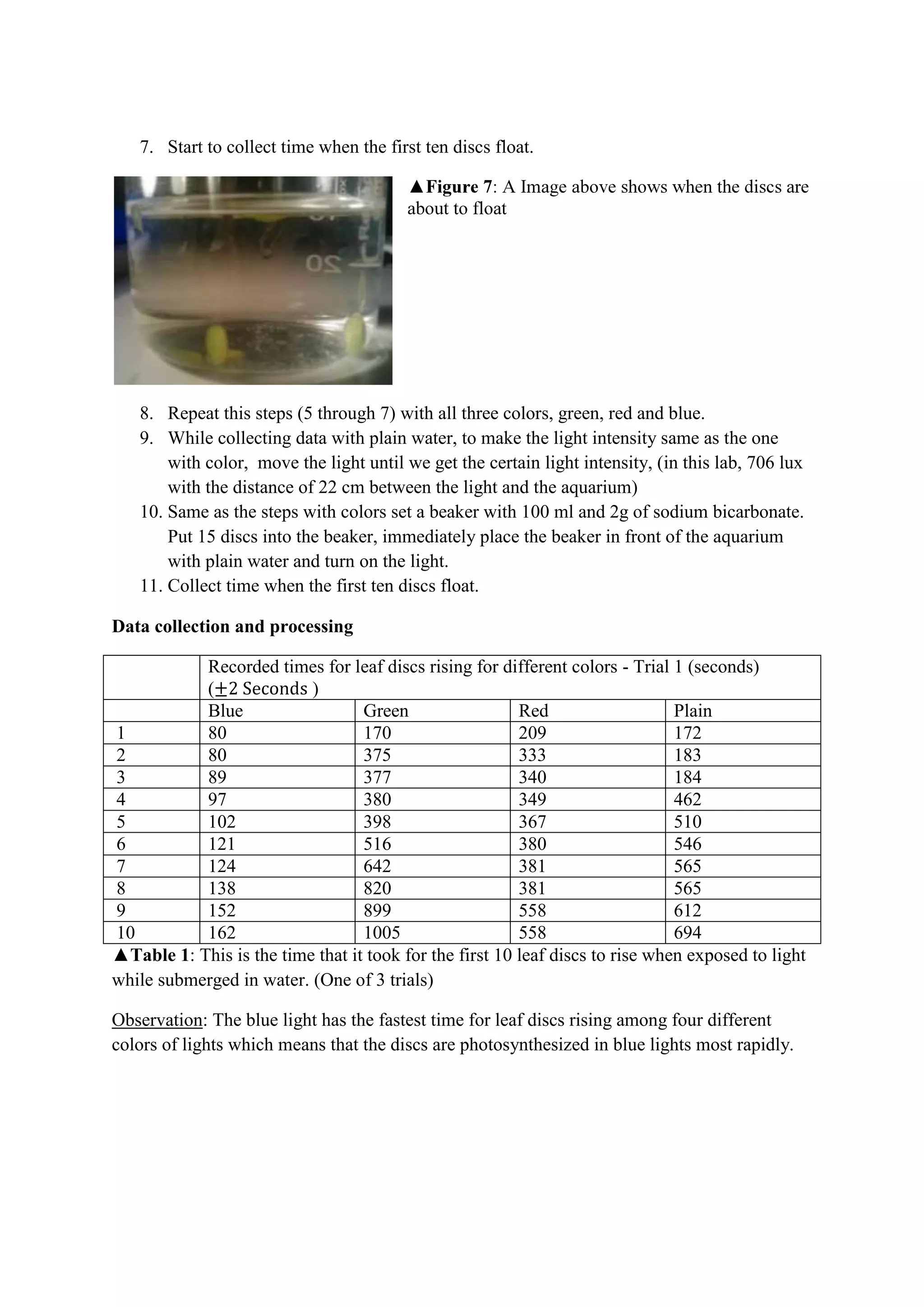

4. 7. Start to collect time when the first ten discs float.
8. Repeat this steps (5 through 7) with all three colors, green, red and blue.
9. While collecting data with plain water, to make the light intensity same as the one
with color, move the light until we get the certain light intensity, (in this lab, 706 lux
with the distance of 22 cm between the light and the aquarium)
10. Same as the steps with colors set a beaker with 100 ml and 2g of sodium bicarbonate.
Put 15 discs into the beaker, immediately place the beaker in front of the aquarium
with plain water and turn on the light.
11. Collect time when the first ten discs float.
Data collection and processing
Recorded times for leaf discs rising for different colors - Trial 1 (seconds)
( )
Blue Green Red Plain
1 80 170 209 172
2 80 375 333 183
3 89 377 340 184
4 97 380 349 462
5 102 398 367 510
6 121 516 380 546
7 124 642 381 565
8 138 820 381 565
9 152 899 558 612
10 162 1005 558 694
▲Table 1: This is the time that it took for the first 10 leaf discs to rise when exposed to light
while submerged in water. (One of 3 trials)
Observation: The blue light has the fastest time for leaf discs rising among four different
colors of lights which means that the discs are photosynthesized in blue lights most rapidly.

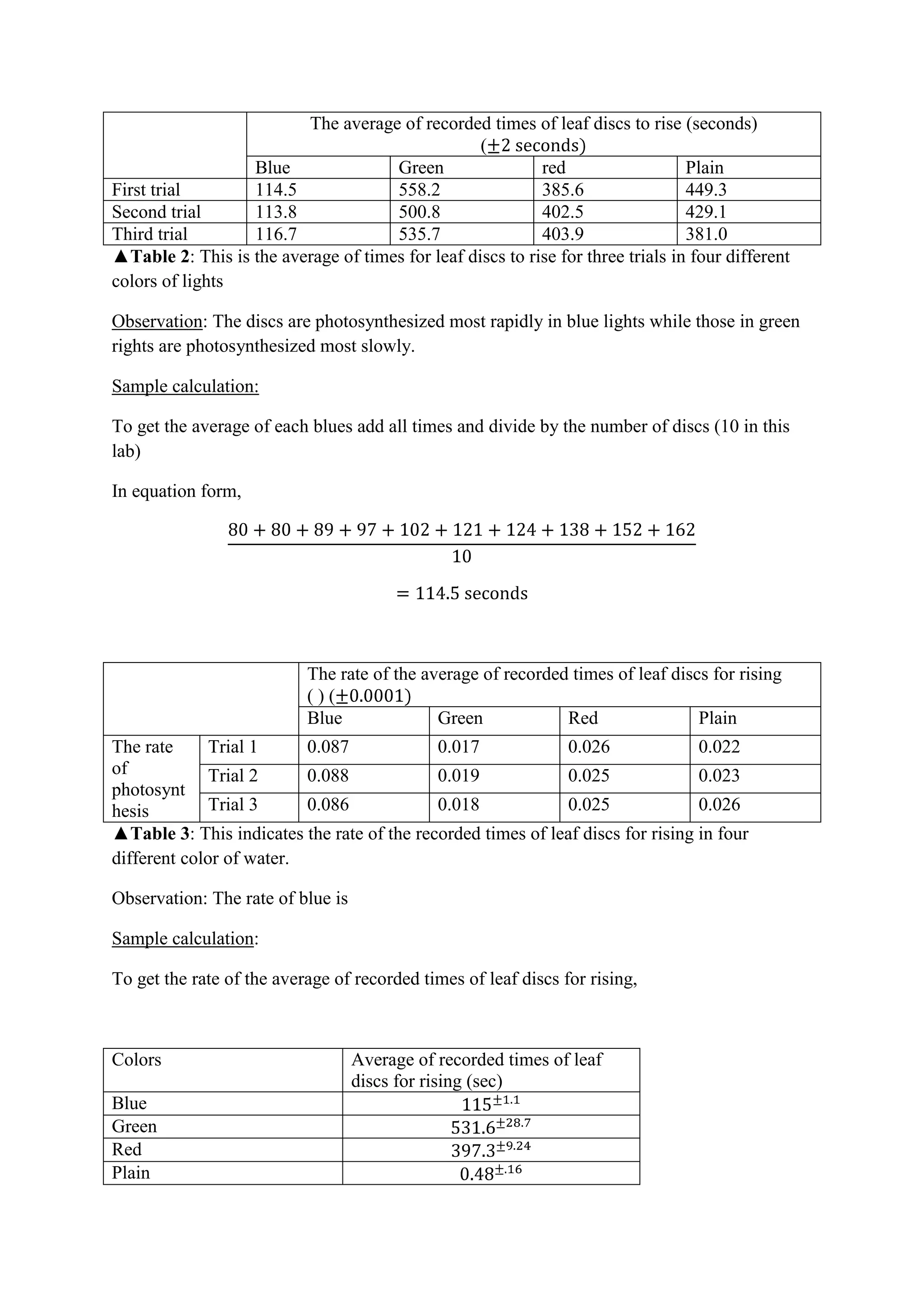

5. The average of recorded times of leaf discs to rise (seconds)
(
Blue Green red Plain
First trial 114.5 558.2 385.6 449.3
Second trial 113.8 500.8 402.5 429.1
Third trial 116.7 535.7 403.9 381.0
▲Table 2: This is the average of times for leaf discs to rise for three trials in four different
colors of lights
Observation: The discs are photosynthesized most rapidly in blue lights while those in green
rights are photosynthesized most slowly.
Sample calculation:
To get the average of each blues add all times and divide by the number of discs (10 in this
lab)
In equation form,
The rate of the average of recorded times of leaf discs for rising
()(
Blue Green Red Plain
The rate Trial 1 0.087 0.017 0.026 0.022
of Trial 2 0.088 0.019 0.025 0.023
photosynt
hesis Trial 3 0.086 0.018 0.025 0.026
▲Table 3: This indicates the rate of the recorded times of leaf discs for rising in four
different color of water.
Observation: The rate of blue is
Sample calculation:
To get the rate of the average of recorded times of leaf discs for rising,
Colors Average of recorded times of leaf
discs for rising (sec)
Blue
Green
Red
Plain

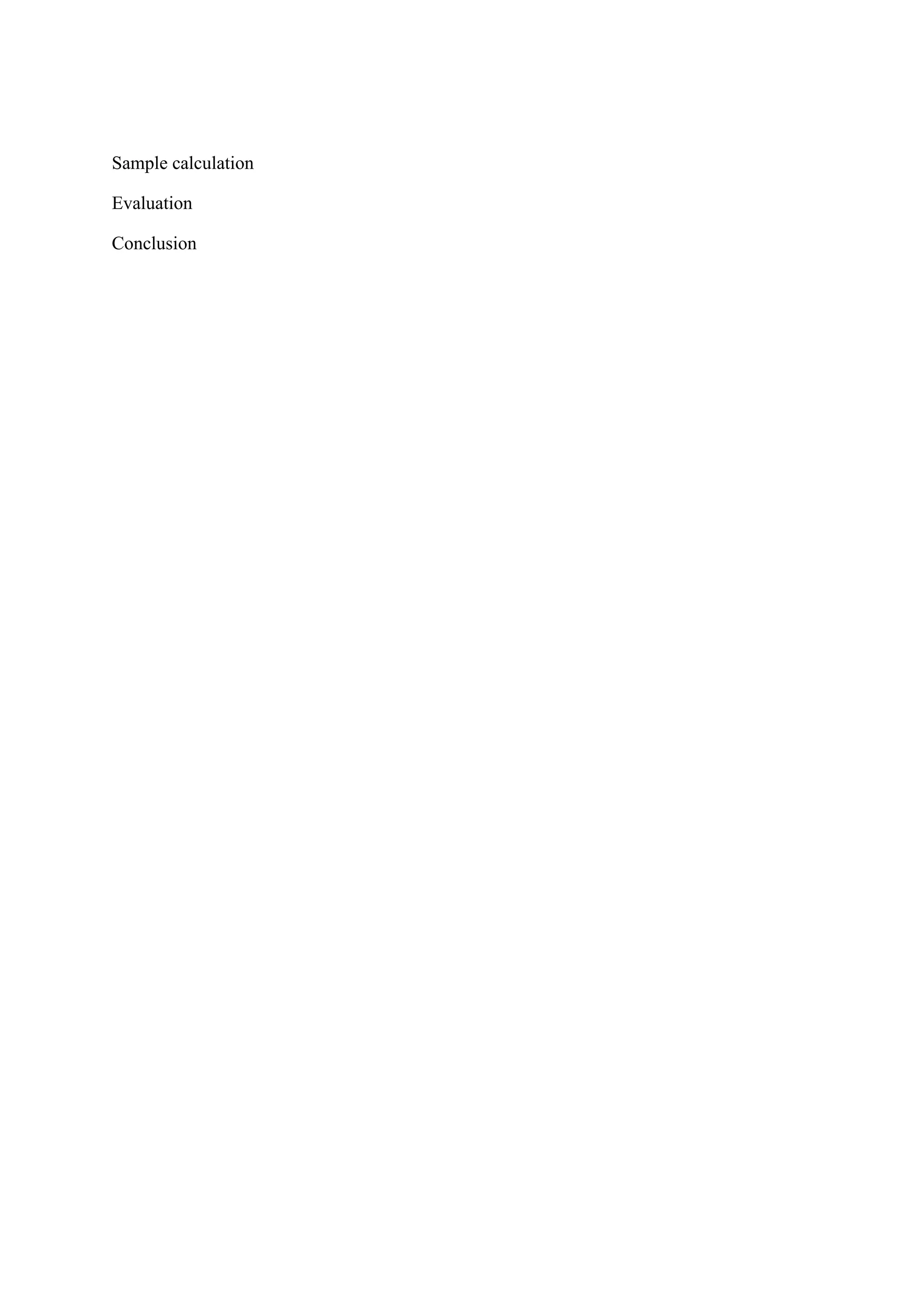

6. Sample calculation
Evaluation
Conclusion
