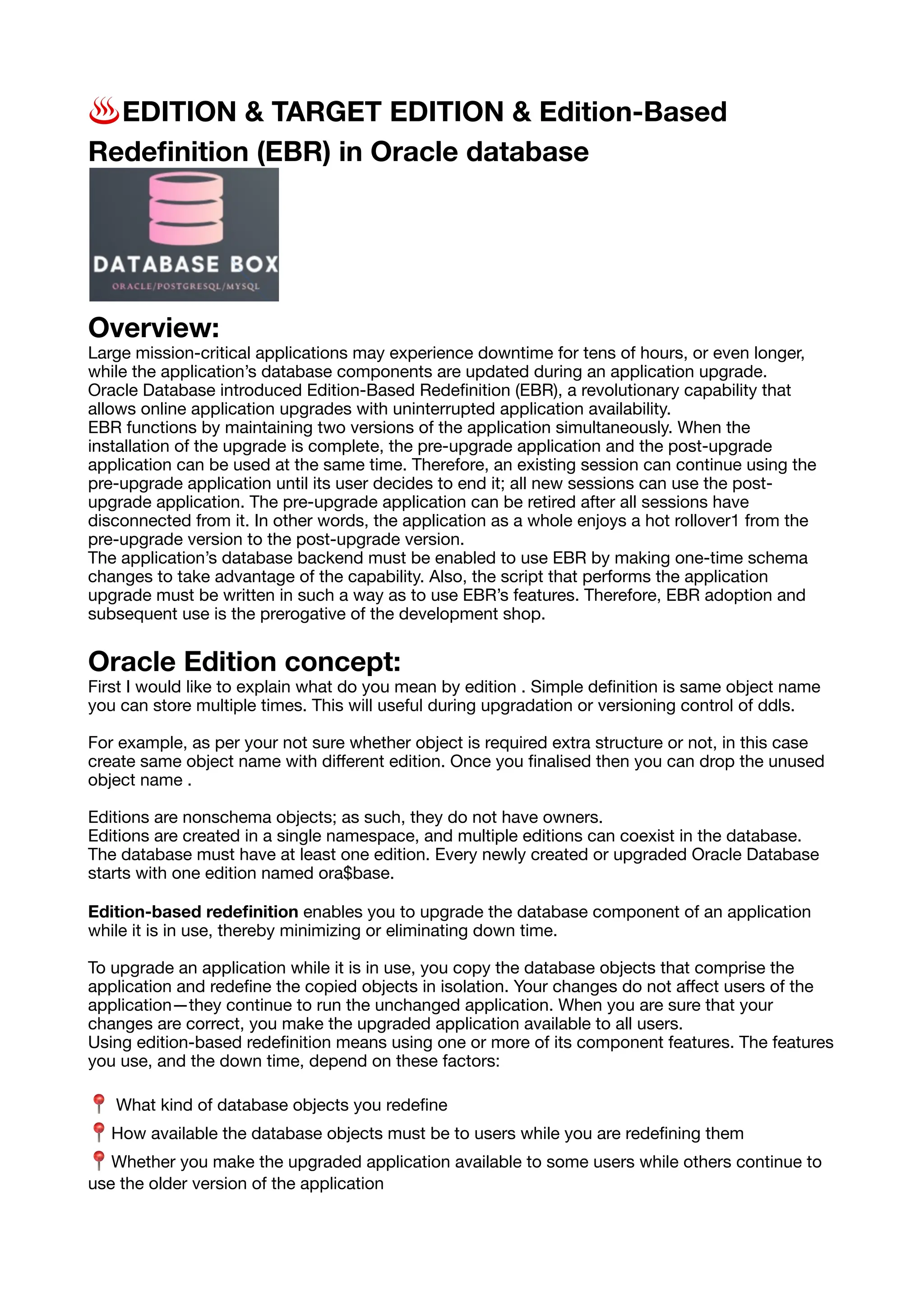

EDITION & TARGET EDITION & Edition-Based Redefinition (EBR) in Oracle

1. ♨ EDITION & TARGET EDITION & Edition-Based
Rede
fi
nition (EBR) in Oracle database
Overview:
Large mission-critical applications may experience downtime for tens of hours, or even longer,
while the application’s database components are updated during an application upgrade.
Oracle Database introduced Edition-Based Rede
fi
nition (EBR), a revolutionary capability that
allows online application upgrades with uninterrupted application availability.
EBR functions by maintaining two versions of the application simultaneously. When the
installation of the upgrade is complete, the pre-upgrade application and the post-upgrade
application can be used at the same time. Therefore, an existing session can continue using the
pre-upgrade application until its user decides to end it; all new sessions can use the post-
upgrade application. The pre-upgrade application can be retired after all sessions have
disconnected from it. In other words, the application as a whole enjoys a hot rollover1 from the
pre-upgrade version to the post-upgrade version.
The application’s database backend must be enabled to use EBR by making one-time schema
changes to take advantage of the capability. Also, the script that performs the application
upgrade must be written in such a way as to use EBR’s features. Therefore, EBR adoption and
subsequent use is the prerogative of the development shop.
Oracle Edition concept:
First I would like to explain what do you mean by edition . Simple de
fi
nition is same object name
you can store multiple times. This will useful during upgradation or versioning control of ddls.
For example, as per your not sure whether object is required extra structure or not, in this case
create same object name with di
ff
erent edition. Once you
fi
nalised then you can drop the unused
object name .
Editions are nonschema objects; as such, they do not have owners.
Editions are created in a single namespace, and multiple editions can coexist in the database.
The database must have at least one edition. Every newly created or upgraded Oracle Database
starts with one edition named ora$base.
Edition-based rede
fi
nition enables you to upgrade the database component of an application
while it is in use, thereby minimizing or eliminating down time.
To upgrade an application while it is in use, you copy the database objects that comprise the
application and rede
fi
ne the copied objects in isolation. Your changes do not a
ff
ect users of the
application—they continue to run the unchanged application. When you are sure that your
changes are correct, you make the upgraded application available to all users.
Using edition-based rede
fi
nition means using one or more of its component features. The features
you use, and the down time, depend on these factors:
📍 What kind of database objects you rede
fi
ne
📍 How available the database objects must be to users while you are rede
fi
ning them
📍 Whether you make the upgraded application available to some users while others continue to
use the older version of the application

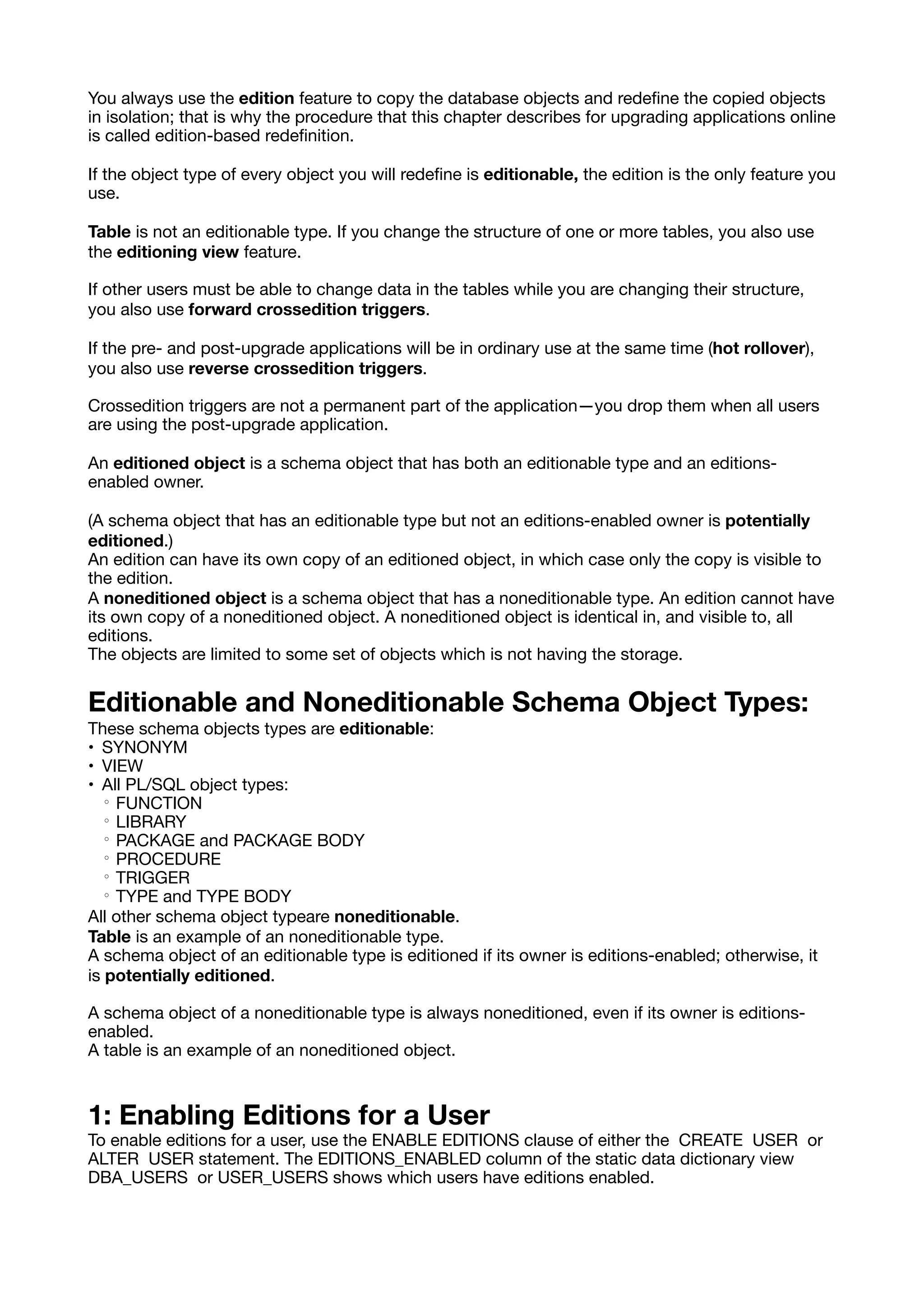

2. You always use the edition feature to copy the database objects and rede
fi
ne the copied objects
in isolation; that is why the procedure that this chapter describes for upgrading applications online
is called edition-based rede
fi
nition.
If the object type of every object you will rede
fi
ne is editionable, the edition is the only feature you
use.
Table is not an editionable type. If you change the structure of one or more tables, you also use
the editioning view feature.
If other users must be able to change data in the tables while you are changing their structure,
you also use forward crossedition triggers.
If the pre- and post-upgrade applications will be in ordinary use at the same time (hot rollover),
you also use reverse crossedition triggers.
Crossedition triggers are not a permanent part of the application—you drop them when all users
are using the post-upgrade application.
An editioned object is a schema object that has both an editionable type and an editions-
enabled owner.
(A schema object that has an editionable type but not an editions-enabled owner is potentially
editioned.)
An edition can have its own copy of an editioned object, in which case only the copy is visible to
the edition.
A noneditioned object is a schema object that has a noneditionable type. An edition cannot have
its own copy of a noneditioned object. A noneditioned object is identical in, and visible to, all
editions.
The objects are limited to some set of objects which is not having the storage.
Editionable and Noneditionable Schema Object Types:
These schema objects types are editionable:
• SYNONYM
• VIEW
• All PL/SQL object types:
◦ FUNCTION
◦ LIBRARY
◦ PACKAGE and PACKAGE BODY
◦ PROCEDURE
◦ TRIGGER
◦ TYPE and TYPE BODY
All other schema object typeare noneditionable.
Table is an example of an noneditionable type.
A schema object of an editionable type is editioned if its owner is editions-enabled; otherwise, it
is potentially editioned.
A schema object of a noneditionable type is always noneditioned, even if its owner is editions-
enabled.
A table is an example of an noneditioned object.
1: Enabling Editions for a User
To enable editions for a user, use the ENABLE EDITIONS clause of either the CREATE USER or
ALTER USER statement. The EDITIONS_ENABLED column of the static data dictionary view
DBA_USERS or USER_USERS shows which users have editions enabled.

3. $ sqlplus / as sysdba
SQL> GRANT CREATE ANY EDITION, DROP ANY EDITION to user1;
SQL> alter user user1 enable editions;
SQL> grant create any view to user1;
SQL> select USERNAME,EDITIONS_ENABLED from dba_users where USERNAME='USER1';
USERNAME E
--------------- ---------
USER1 Y
2: Check the current & new edition in User1
$ sqlplus test1/pass
SQL> create edition e2;
--creating new edition
SQL> SELECT SYS_CONTEXT('userenv', 'current_edition_name') FROM DUAL;
-- check the current edition
SYS_CONTEXT('USERENV','CURRENT_EDITION_NAME')
---------------------
ORA$BASE
SQL> create editioning view ed_emp_view_orabase as select EMPNO,ENAME from emp;
SQL> desc ed_emp_view_orabase
Name Null? Type
----------------- -------- -------- -------
EMPNO NUMBER(4)
ENAME VARCHAR2(10)
SQL> alter session set edition=e2;
---moving to new edition
SQL> SELECT SYS_CONTEXT('userenv', 'current_edition_name') FROM DUAL;
SYS_CONTEXT('USERENV','CURRENT_EDITION_NAME')
----------------------------
E2
SQL> CREATE or replace EDITIONING VIEW ed_emp_view as
select EMPNO,ENAME,SAL from emp;
SQL> desc ed_emp_view
Name Null? Type
------------------------ -------- ---------
EMPNO NUMBER(4)
ENAME VARCHAR2(10)
SAL NUMBER(7,2)
3: Take the export
$ expdp dump
fi
le=test.dmp schemas=test include=view directory=dir1 source_edition=e2
4: drop the view from any edition
[oracle@ ~]$ sqlplus test/test

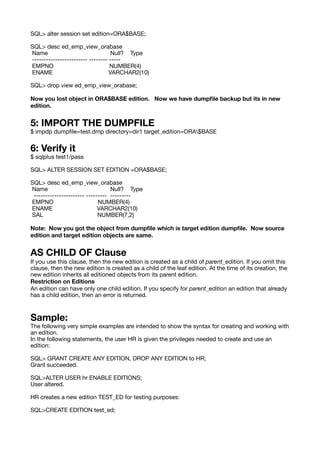

4. SQL> alter session set edition=ORA$BASE;
SQL> desc ed_emp_view_orabase
Name Null? Type
------------------------ -------- -----
EMPNO NUMBER(4)
ENAME VARCHAR2(10)
SQL> drop view ed_emp_view_orabase;
Now you lost object in ORA$BASE edition. Now we have dump
fi
le backup but its in new
edition.
5: IMPORT THE DUMPFILE
$ impdp dump
fi
le=test.dmp directory=dir1 target_edition=ORA$BASE
6: Verify it
$ sqlplus test1/pass
SQL> ALTER SESSION SET EDITION =ORA$BASE;
SQL> desc ed_emp_view_orabase
Name Null? Type
---------------------- --------- ---------
EMPNO NUMBER(4)
ENAME VARCHAR2(10)
SAL NUMBER(7,2)
Note: Now you got the object from dump
fi
le which is target edition dump
fi
le. Now source
edition and target edition objects are same.
AS CHILD OF Clause
If you use this clause, then the new edition is created as a child of parent_edition. If you omit this
clause, then the new edition is created as a child of the leaf edition. At the time of its creation, the
new edition inherits all editioned objects from its parent edition.
Restriction on Editions
An edition can have only one child edition. If you specify for parent_edition an edition that already
has a child edition, then an error is returned.
Sample:
The following very simple examples are intended to show the syntax for creating and working with
an edition.
In the following statements, the user HR is given the privileges needed to create and use an
edition:
SQL> GRANT CREATE ANY EDITION, DROP ANY EDITION to HR;
Grant succeeded.
SQL>ALTER USER hr ENABLE EDITIONS;
User altered.
HR creates a new edition TEST_ED for testing purposes:
SQL>CREATE EDITION test_ed;

5. HR then creates an editioning view ed_view in the default edition ORA$BASE for testing
purposes,
fi
rst verifying that the current edition is the default edition:
SQL>SELECT SYS_CONTEXT('userenv', 'current_edition_name') FROM DUAL;
SYS_CONTEXT('USERENV','CURRENT_EDITION_NAME')
----------------------------------
ORA$BASE
1 row selected.
SQL> CREATE EDITIONING VIEW e_view AS
SELECT last_name,
fi
rst_name, email
FROM employees;
View created.
DESCRIBE e_view
Name Null? Type
-------------- -------- -------------
LAST_NAME NOT NULL VARCHAR2(25)
FIRST_NAME VARCHAR2(20)
EMAIL NOT NULL VARCHAR2(25)
The view is then actualized in the TEST_ED edition when HR uses the TEST_ED edition and re-
creates the view in a di
ff
erent form:
SQL>ALTER SESSION SET EDITION = TEST_ED;
Session altered.
SQL>CREATE OR REPLACE EDITIONING VIEW e_view AS
SELECT last_name,
fi
rst_name, email, salary FROM employees;
View created.
The view in the TEST_ED edition has an additional column:
DESCRIBE e_view
Name Null? Type
------------------ -------- ---------------
LAST_NAME NOT NULL VARCHAR2(25)
FIRST_NAME VARCHAR2(20)
EMAIL NOT NULL VARCHAR2(25)
SALARY NUMBER(8,2)
The view in the ORA$BASE edition remains isolated from the test environment:
SQL>ALTER SESSION SET EDITION = ora$base;
Session altered.
DESCRIBE e_view;
Name Null? Type
----------- -------- --------------
LAST_NAME NOT NULL VARCHAR2(25)
FIRST_NAME VARCHAR2(20)
EMAIL NOT NULL VARCHAR2(25)
Even if the view is dropped in the test environment, it remains in the ORA$BASE edition:
SQL>ALTER SESSION SET EDITION = TEST_ED;
Session altered.

6. SQL>DROP VIEW e_view;
View dropped.
ALTER SESSION SET EDITION = ORA$BASE;
Session altered.
DESCRIBE e_view;
Name Null? Type
---------------- -------- ------------------
LAST_NAME NOT NULL VARCHAR2(25)
FIRST_NAME VARCHAR2(20)
EMAIL NOT NULL VARCHAR2(25)
When the testing of upgrade that necessitated the TEST_ED edition is complete, the edition can
be dropped:
SQL>DROP EDITION TEST_ED;
Making an Edition Available to Some Users
As the creator of the edition, you automatically have the USE privilege WITH GRANT OPTION on
it. To grant the USE privilege on the edition to other users, use the SQL statement GRANT USE
ON EDITION.
Making an Edition Available to All Users
To make an edition available to all users, either:
• Grant the USE privilege on the edition to PUBLIC:
SQL> GRANT USE ON EDITION edition_name TO PUBLIC
• Make the edition the database default edition:
SQL>ALTER DATABASE DEFAULT EDITION = edition_name
• This has the side e
ff
ect of allowing all users to use the edition, because it e
ff
ectively grants the
USE privilege on edition_nameto PUBLIC.
Edition-Based Rede
fi
nition (EBR)
Edition-based rede
fi
nition (EBR) enables online application upgrade with uninterrupted availability
of the application. When the installation of an upgrade is complete, the pre-upgrade application
and the post-upgrade application can be used at the same time. Therefore, an existing session
can continue to use the pre-upgrade application until its user decides to end it; and all new
sessions can use the post-upgrade application. When there are no longer any sessions using the
pre-upgrade application, it can be retired. In this way, EBR allows hot rollover from from the pre-
upgrade version to the post-upgrade version, with zero downtime.
EBR enables online application upgrades in the following manner:
• Code changes are installed in the privacy of a new edition.
• Data changes are made safely by writing only to new columns or new tables not seen by the old
edition. An editioning view exposes a di
ff
erent projection of a table into each edition to allow
each to see just its own columns.
• Crossedition triggers propagate data changes made by the old edition into the new edition’s
columns, or (in hot-rollover) vice-versa.
EBR is available for use in all editions of Oracle Database without the need to license it.
Oracle data pump option for Edition:
TARGET_EDITION=name
If you specify TARGET_EDITION=name, then Data Pump Import creates all of the objects found in
the dump
fi
le. Objects that are not editionable are created in all editions.

7. For example, tables are not editionable, so if there is a table in the dump
fi
le, then the table is
created, and all editions see it.
Objects in the dump
fi
le that are editionable, such as procedures, are created only in the speci
fi
ed
target edition.
If this parameter is not speci
fi
ed, then Import uses the default edition on the target database, even
if an edition was speci
fi
ed in the export job. If the speci
fi
ed edition does not exist, or is not usable,
then an error message is returned.
Restrictions
This parameter is only useful if there are two or more versions of the same versionable objects in
the database.
The following is an example of using the TARGET_EDITION parameter:
# impdp hr DIRECTORY=dpump_dir1 DUMPFILE=exp_dat.dmp TARGET_EDITION=exp_edition
This example assumes the existence of an edition named exp_edition on the system to which
objects are being imported. Because no import mode is speci
fi
ed, the default of schema mode
will be used.
More info:
https://docs.oracle.com/en/database/oracle/oracle-database/19/adfns/editions.html
https://docs.oracle.com/en/database/oracle/oracle-database/23/adfns/editions.html
https://www.oracle.com/docs/tech/ebr-technical-deep-dive-overview.pdf
Alireza Kamrani
Database Box is a technical group on LinkedIn.
